非常感谢 WAU建筑事务所 予gooood分享以下内容。更多关于他们：WAU Design on gooood
Appreciation towards WAU建筑事务所 for providing the following description:

项目位于江门蓬江区天沙河边，展厅作为蓬江治水成果的集中展示，是对外治水环保科普、治水沙龙交流的重要场所，同时是一年一度的龙舟赛的主席台。业主希望在2021年的春节后的世界水日开放给市民，从设计到建成开放只有8个月时间，其中还包含春节假期及一个半月的室内布展。这是一个快速建造的建筑，是一个施工策略占主导的项目。

▼建筑沿河外观，external view of the building along the river ©白羽

The Project is located by the Tiansha River in Pengjiang District of Jiangmen. The exhibition hall serves as a centralized display of the water-control achievements of Pengjiang. It is an important place for external science popularization of water control and environment protection and for the exchange of water control salon. In addition, it is also served as the rostrum for the Dragon Boat Race which is held once a year. The Owner hopes to open it to the public on the World Water Day after the Spring Festival of 2021. It will take only 8 months from design to completion and opening, including the Spring Festival holiday and one and a half months of indoor exhibition arranging. This is a fast-construct building, and a project where construction strategies dominate.

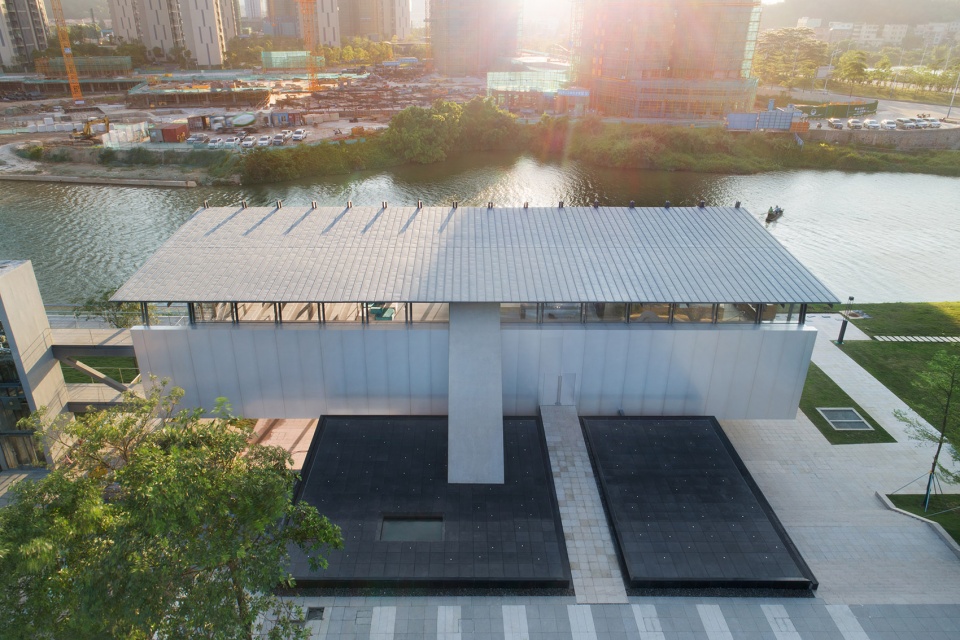

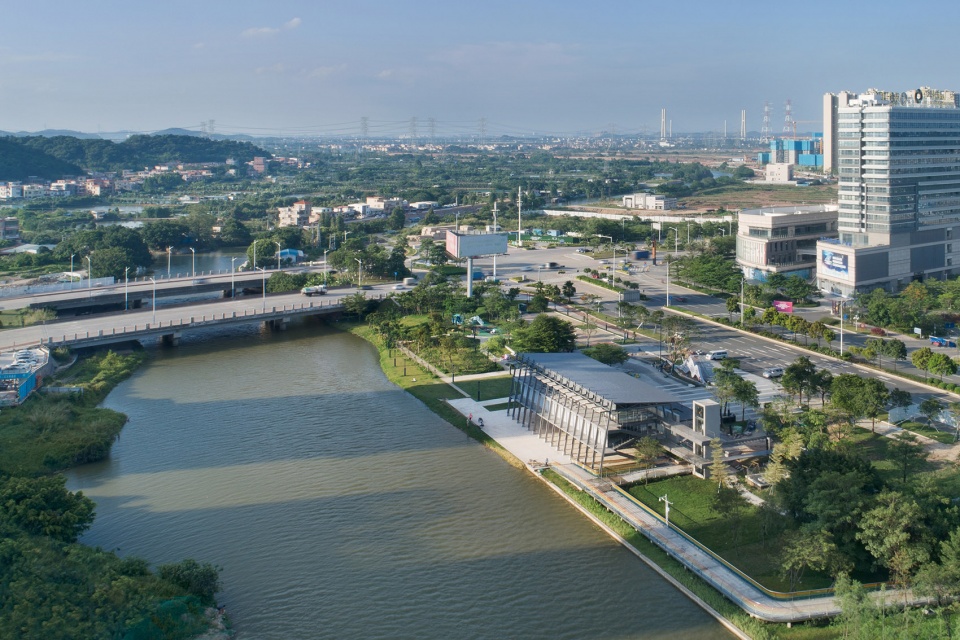

▼鸟瞰，aerial view ©白羽

我们提出“化整为零”施工策略，把建筑物拆解成可以同时施工的两部分：底部是混凝土结构的儿童展厅，平沿河步道的标高；上部是钢结构的成果展厅及公共教育用房，架空于河岸步道，连接马路标高的主广场。

We put forward the construction strategy of “breaking up the whole into parts”, decomposing the building into two parts that can be constructed simultaneously: the bottom part is the children’s exhibition hall of concrete structure, and is flush with the elevation of the walkway along the river; the upper part is the achievement exhibition hall and the public education room of steel structure, and is elevated on the river bank walkway, connecting to the main square at the road.

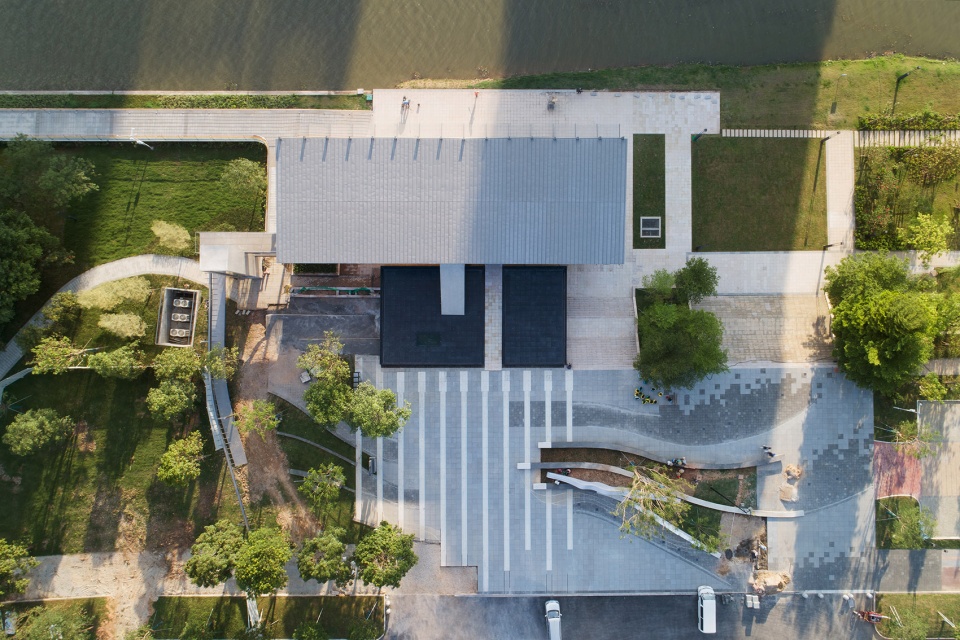

▼顶视图，top view ©白羽

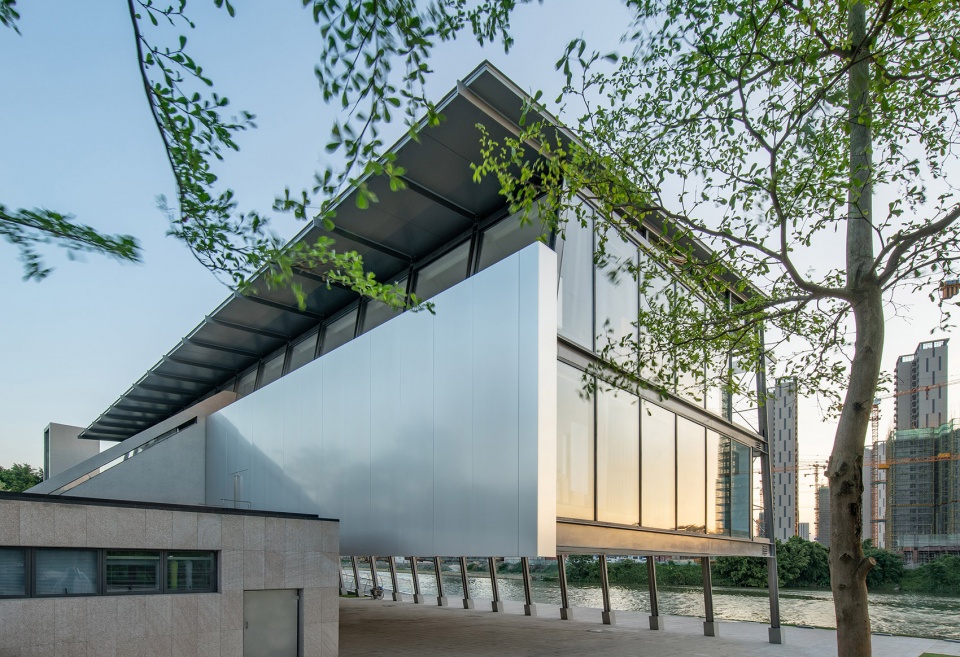

▼建筑底部为混凝土结构，上部为钢结构，concrete structure on the bottom part, steel structure on the upper part ©白羽

▼架空步道，elevated walkway ©白羽

因为防汛的要求，我们在底部采用混凝土剪力墙结构，200平米的儿童展厅在被拆除的旧建筑范围内，远离河岸留出大面积的步道空间，可减少土方开挖，更主要的是有现成的施工面，节省时间。同时，部分功能位于河岸标高，可以削减主广场标高的建筑体量，保持城市界面与河流之间的亲切尺度感。

Due to the demands of flood control, we adopt the concrete shear wall structure at the bottom pat. The 200m² children’s exhibition hall is within the scope of the demolished old building, leaving a large area of walkway space far away from the river bank, which can reduce earthwork excavation. In addition, with the ready-made construction surface, it can save construction time. In addition, some functions are set at the elevation of the river bank, which can reduce the building volume at the elevation of the main square and maintain the intimate sense of scale between the city interface and the river.

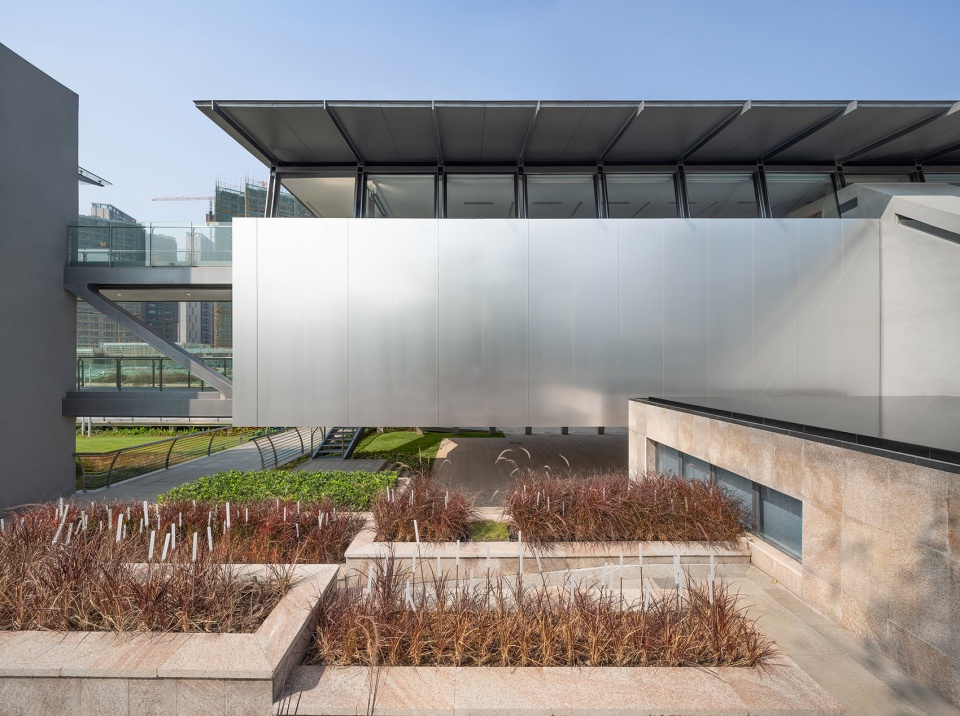

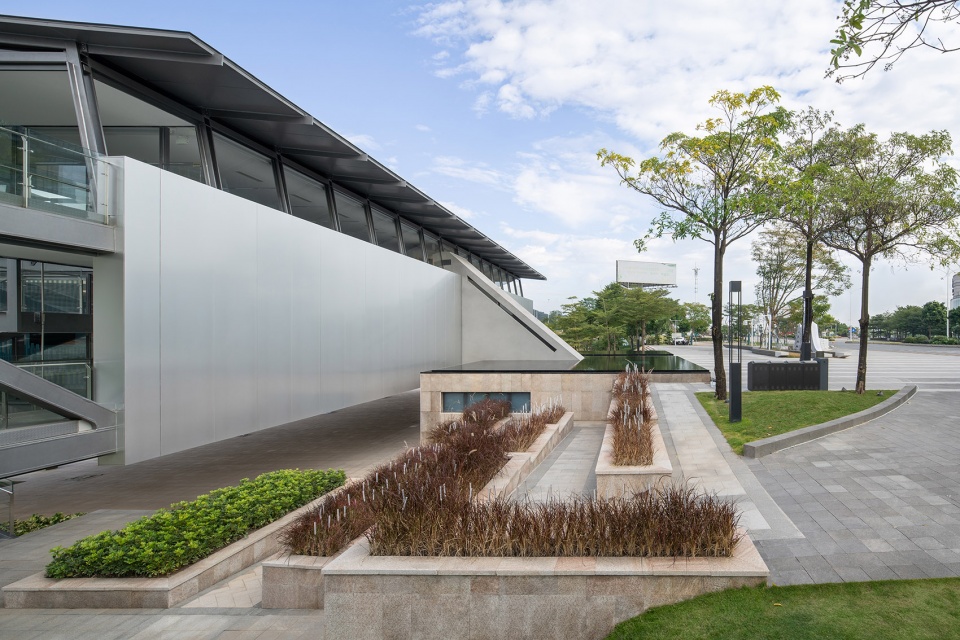

▼混凝土结构与下沉庭院，sunken garden and the concrete staurcture ©白羽

▼建筑前的广场，plaza in front of the building ©白羽

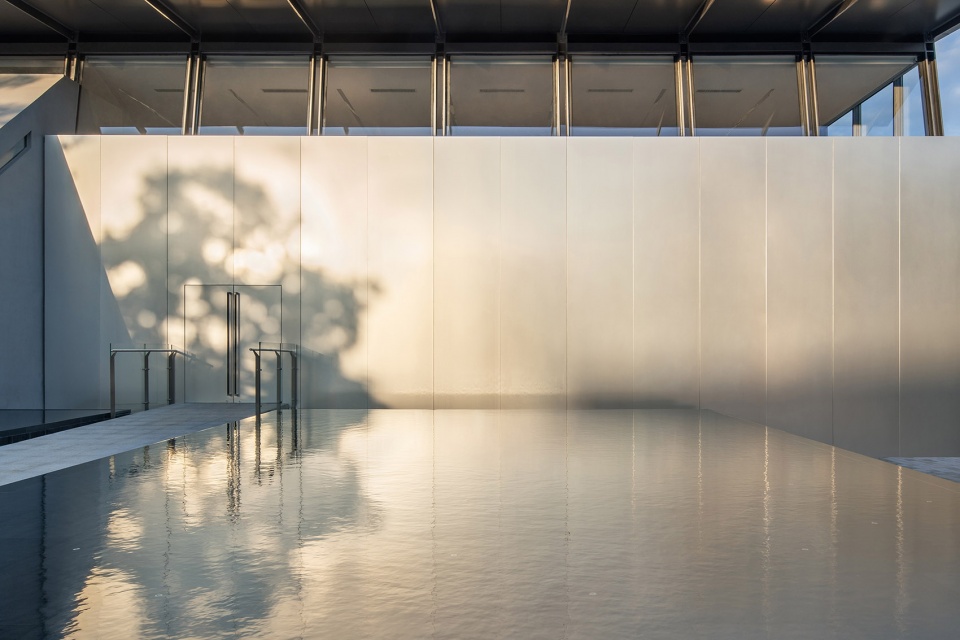

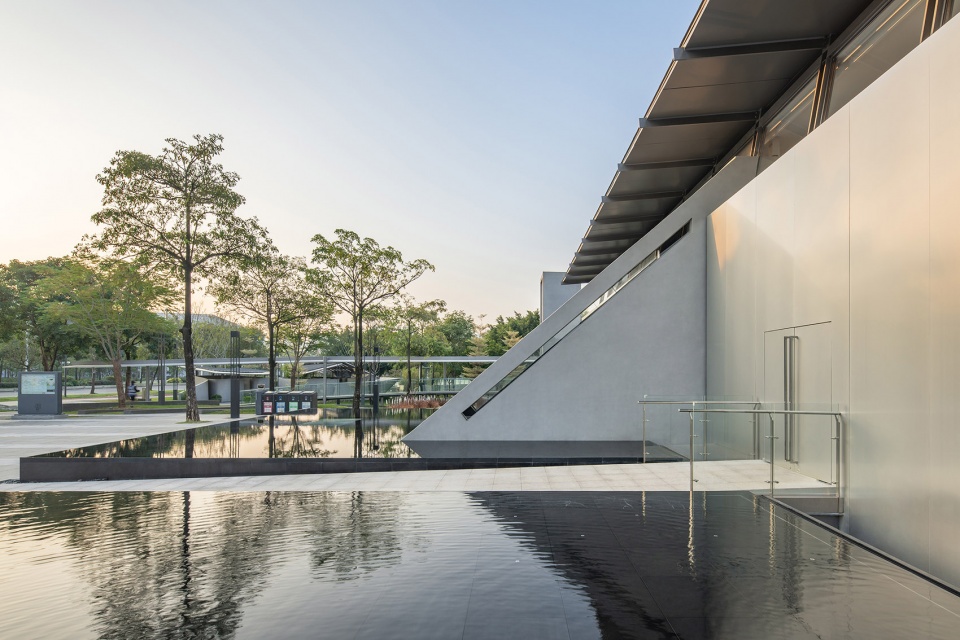

▼水景和通往展厅的步道，waterscape and path towards the exhibition hall ©白羽

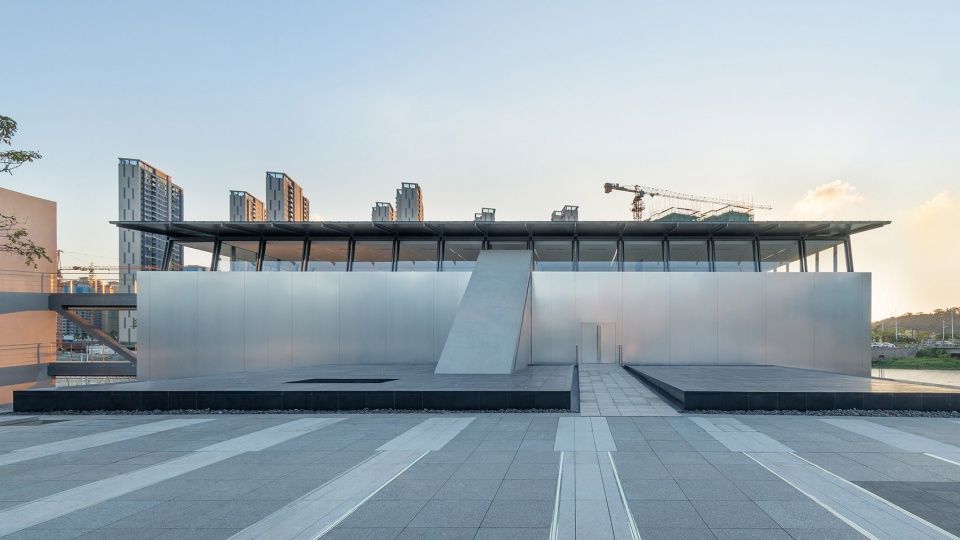

▼展厅入口，entrance to the exhibition hall ©白羽

上部则采用标准重复单元的钢结构，半个月的桩基础施工结束后，工厂预制的结构部件刚好可以运达现场安装。柱跨为2.4米，以0.6米为模数，可以让固定家具的板材、地砖、门窗、栏杆及墙板等非常兼容，保证快速施工的品控。悬浮的上部轻巧地避开原有的景观步道及树。建筑的上部与下部在平面上错开，只有楼梯连接，也是唯一的结构连接。

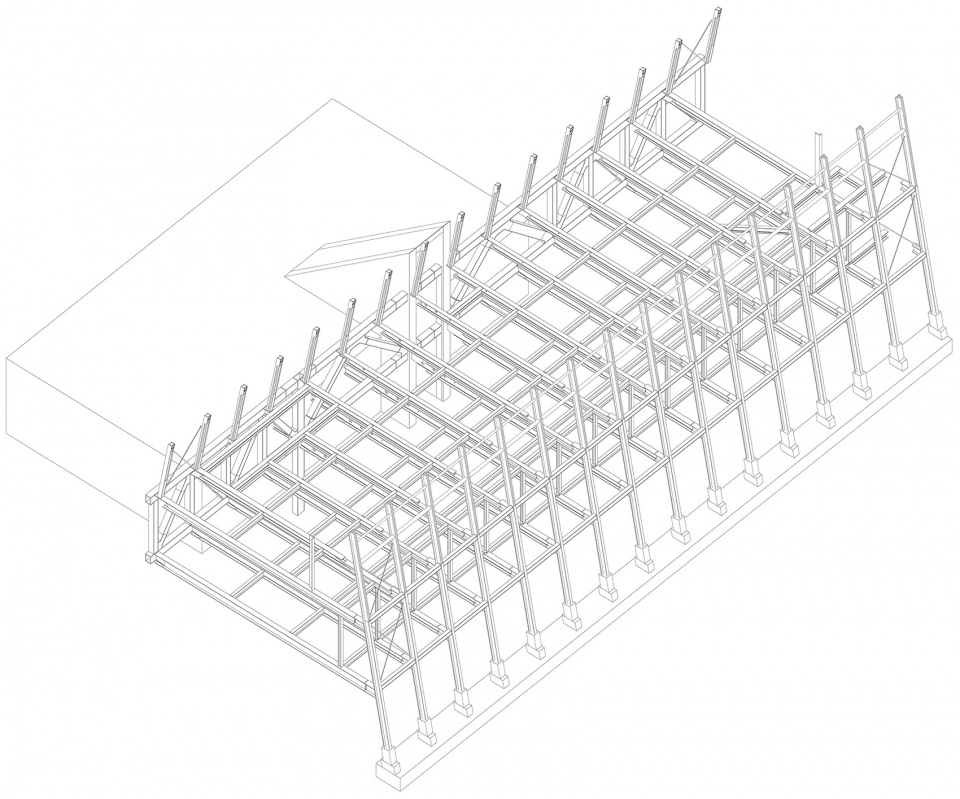

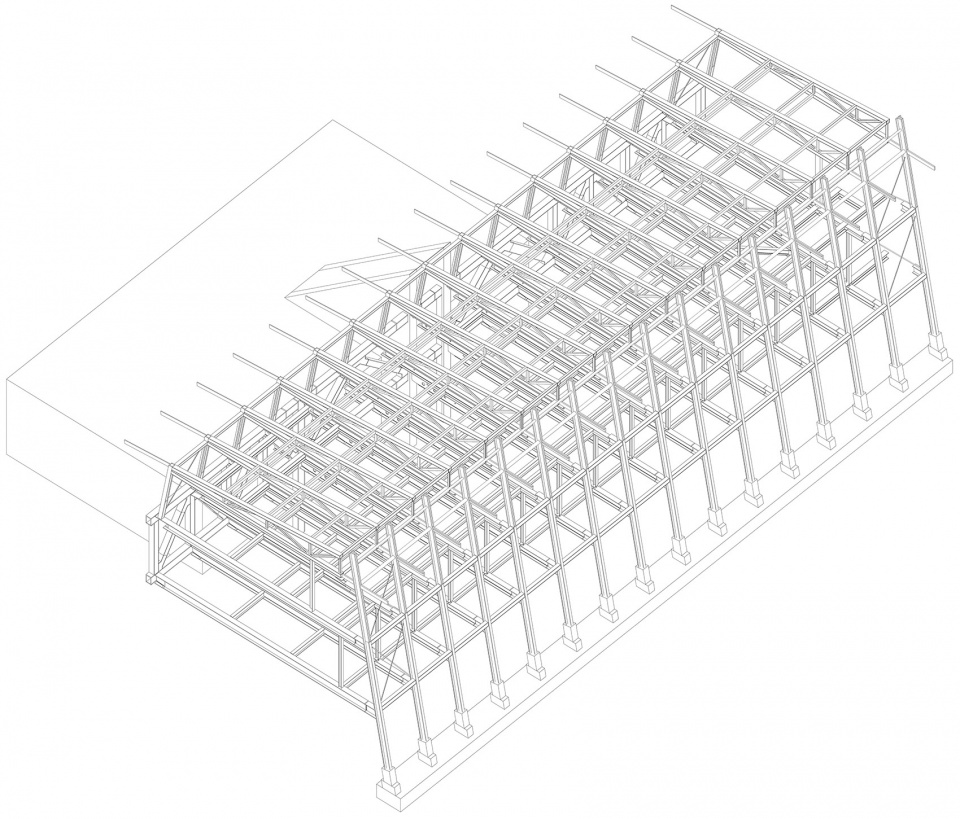

▼结构图解，structure diagram ©WAU建筑事务所

The steel structure of standard repeating units is adopted for the upper part. After half a month of pile foundation construction, the prefabricated structural components can just be transported to the site for installation. The column span is 2.4m with the modulus of 0.6m, which can make the fixed furniture plates, floor tiles, doors and windows, railings and wall panels very compatible, ensuring good quality control of rapid construction. The suspended upper part perfectly avoids the original landscape walkways and trees. The upper and lower parts of the building are staggered in plane and are only connected by stair, which is the only structural connection.

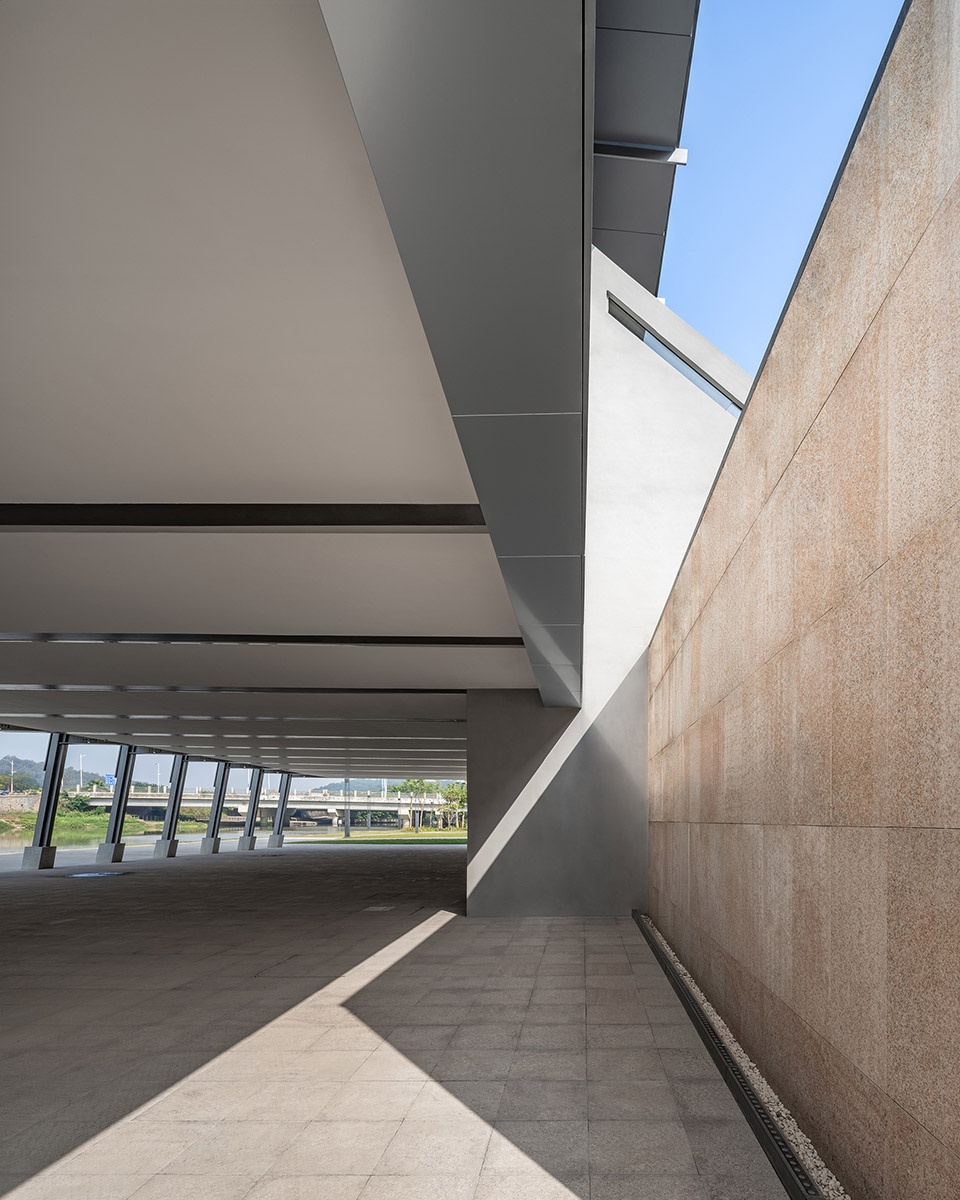

▼从架空建筑底部看向河流，view to the river through the elevated ground floor ©白羽

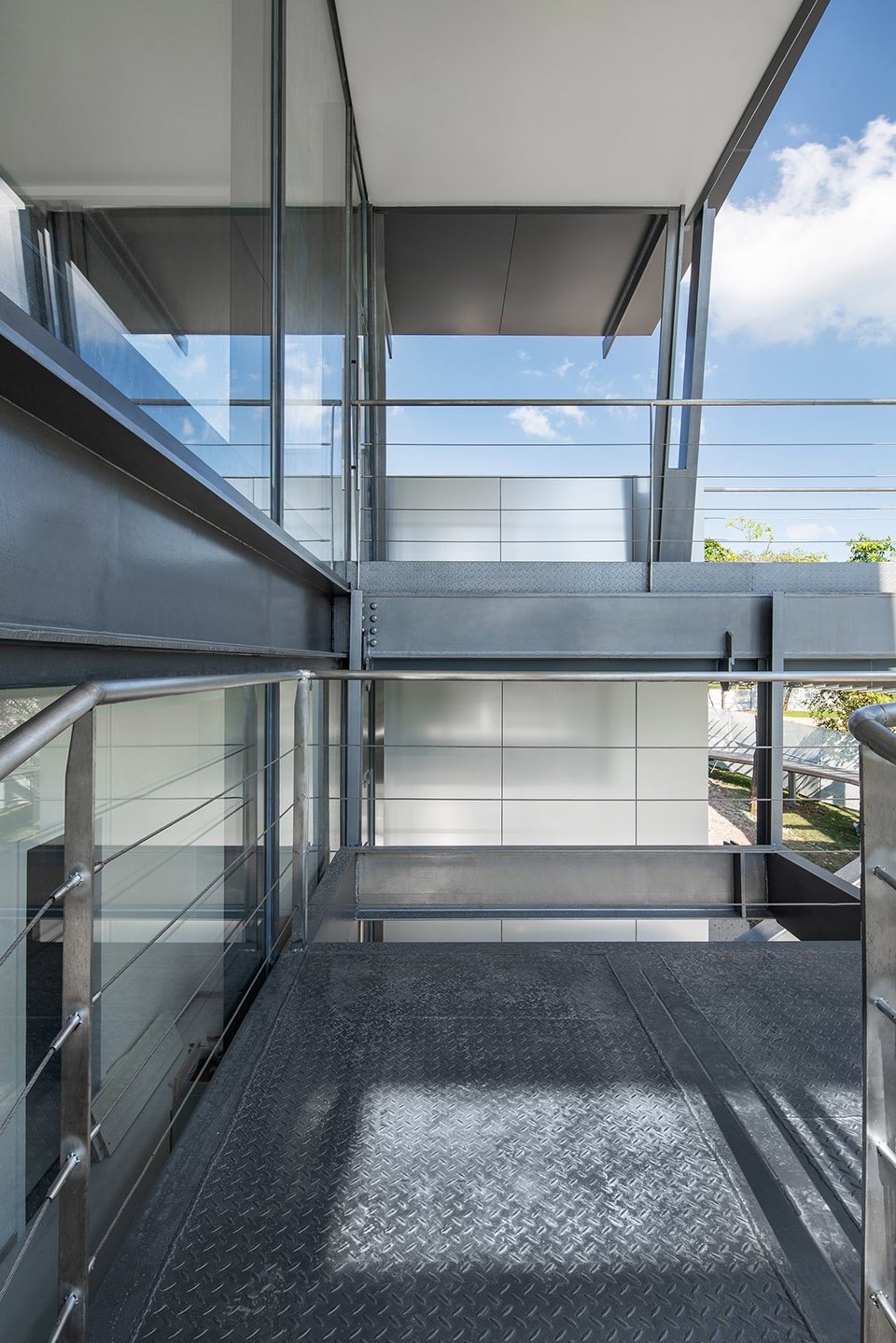

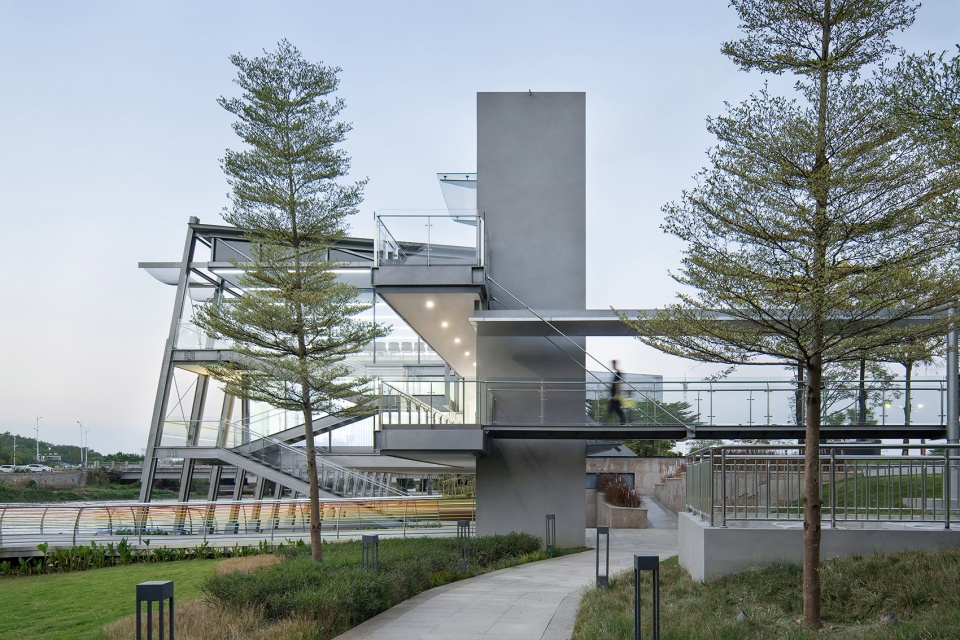

▼楼梯连接上下部平面，staircase connecting the bottom and upper floors ©白羽

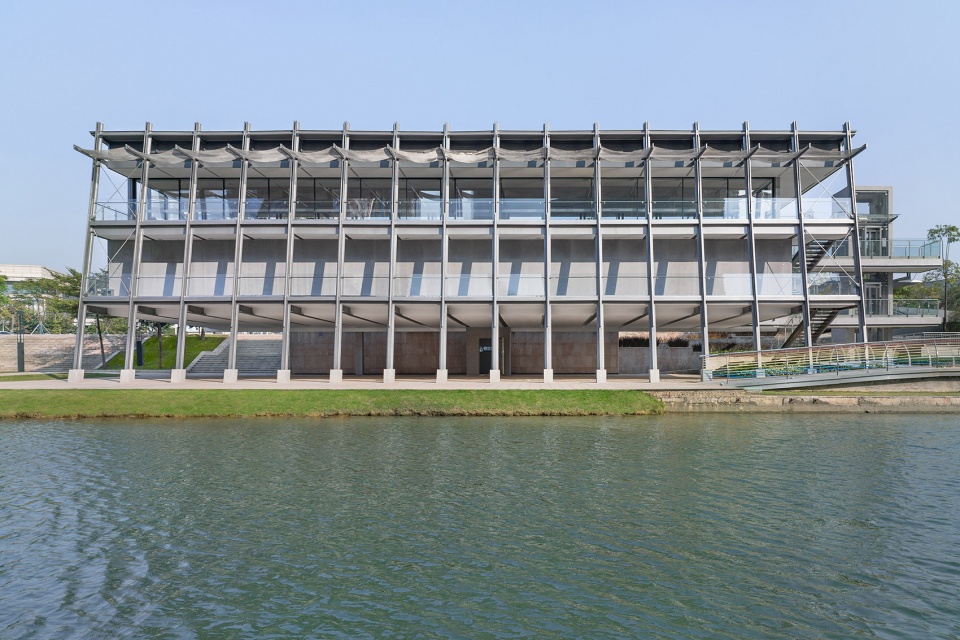

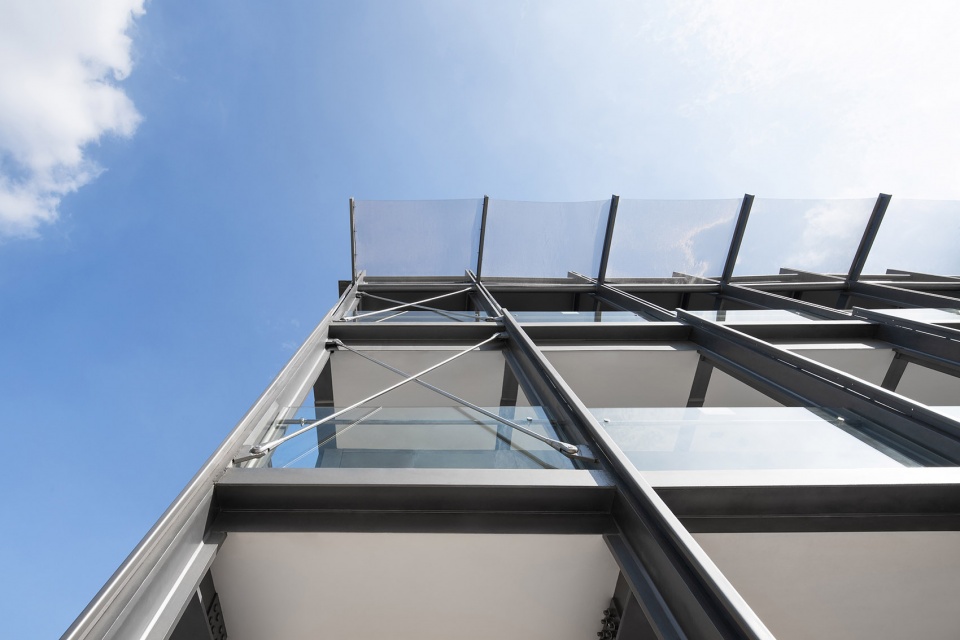

▼仰望沿河的钢结构立面，look up at the steel structure facade along the river ©白羽

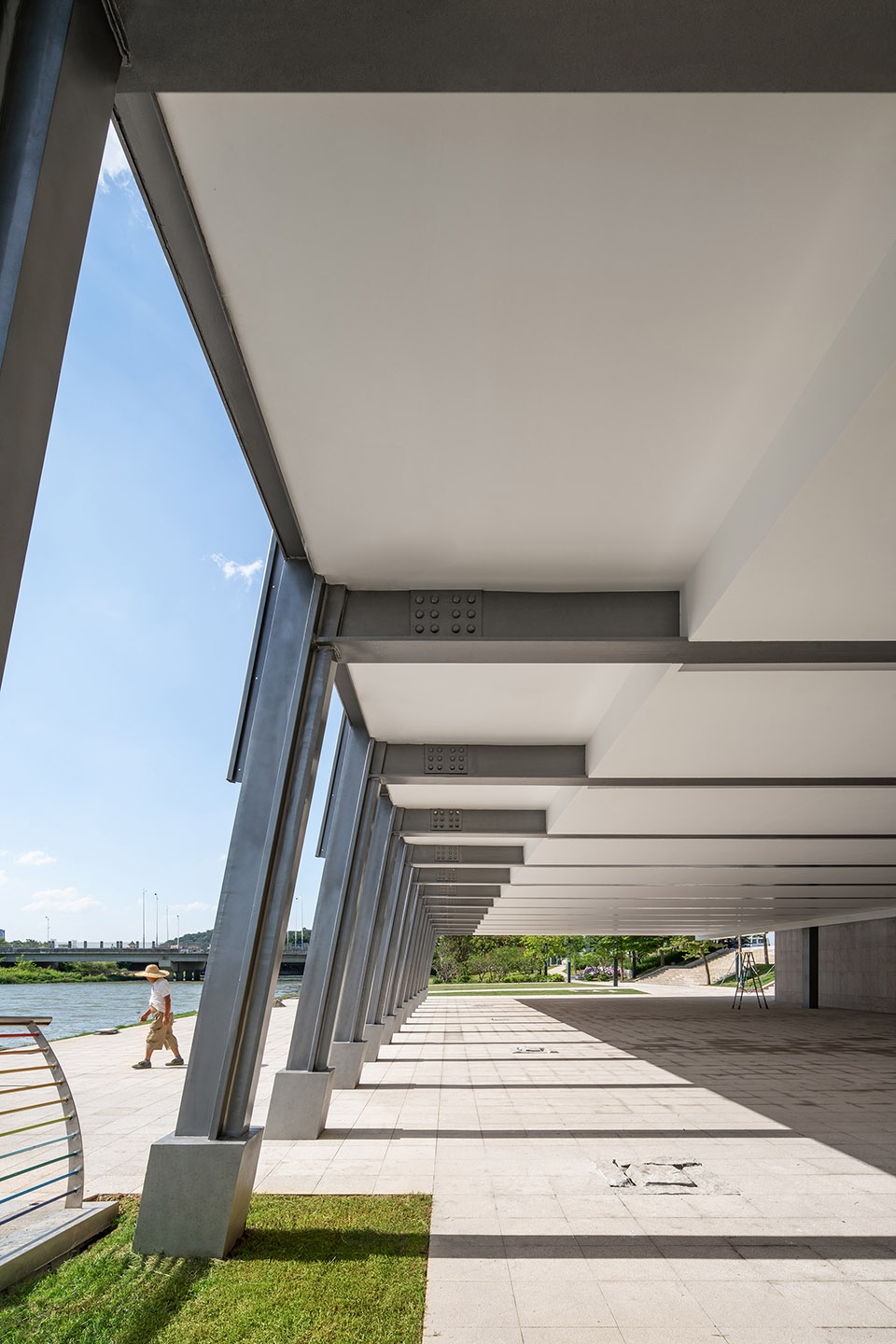

▼架空层避开原有步道
suspended floor avoids the original walkways ©白羽

▼错开的结构，scattered structures ©白羽

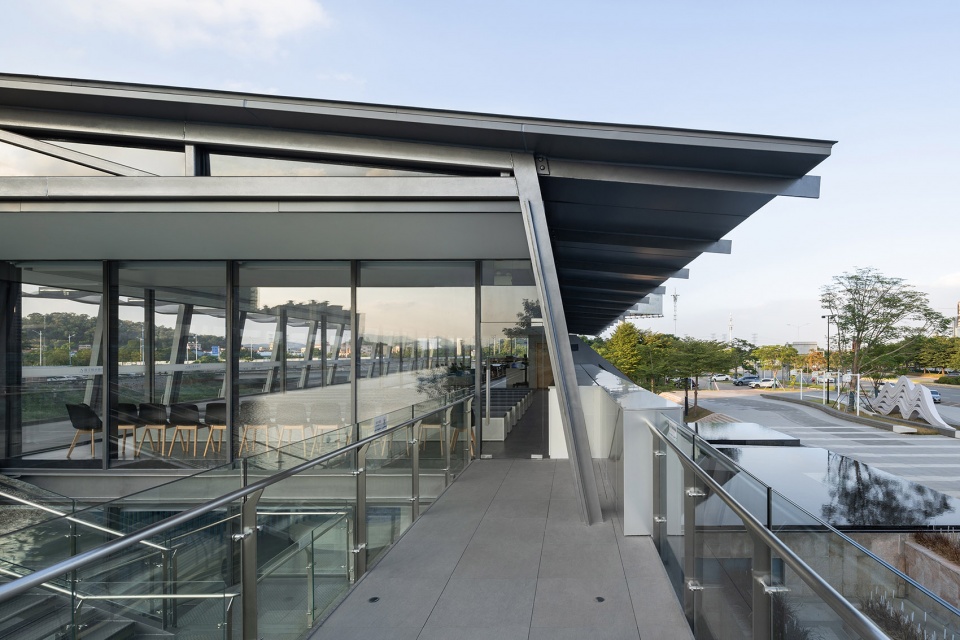

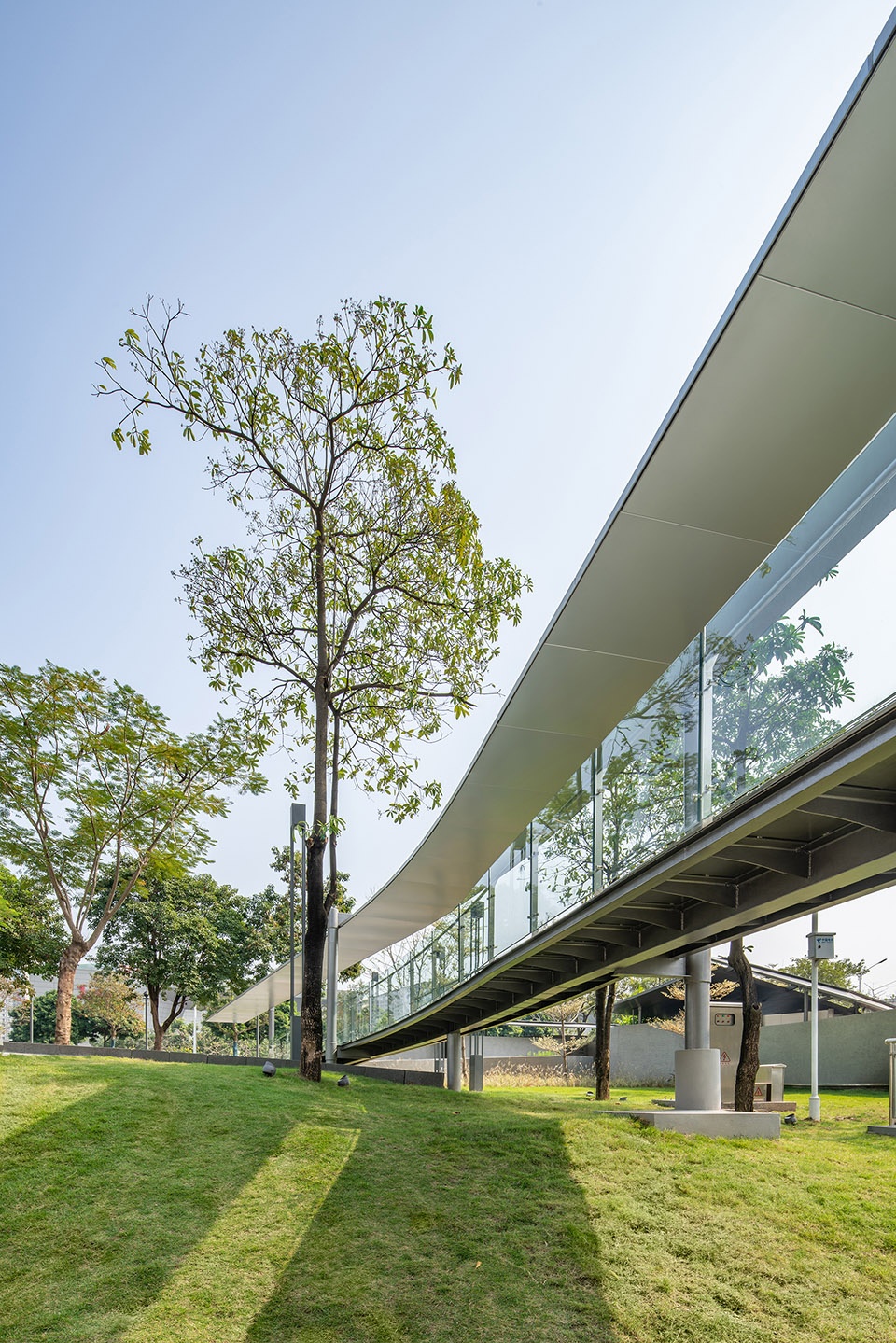

▼上层步道，walkway on the upper floor ©白羽

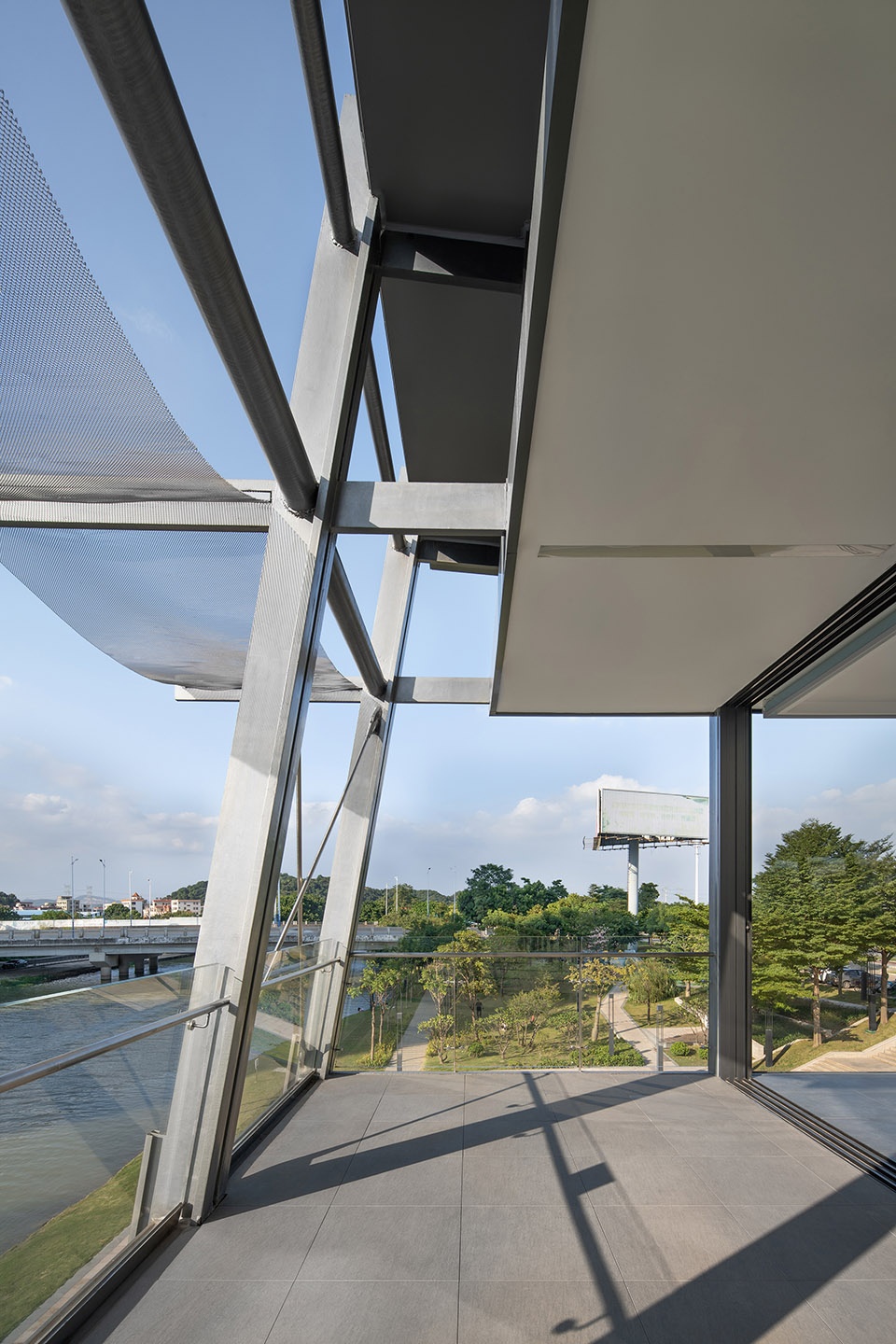

▼观景平台，sightseeing platform ©白羽

▼步道和结构细部
details of the walkway and the structure ©白羽

架空的建筑给河岸公园的人们提供一个阴凉的休憩空间。整齐的外露斜钢柱会让人联想到龙舟赛的划桨，悬浮的上部犹如飘于水面的小舟。位于顶层的公共教育空间的落地门可以完全打开，可供观赏龙舟赛。

The elevated building provides a shady rest space for people in the riverside park. The neatly exposed inclined steel columns are reminiscent of the paddles of dragon boat, and the suspended upper part looks like a boat floating on the water. The doors of the public education space on the top floor can be fully opened for watching the dragon boat race.

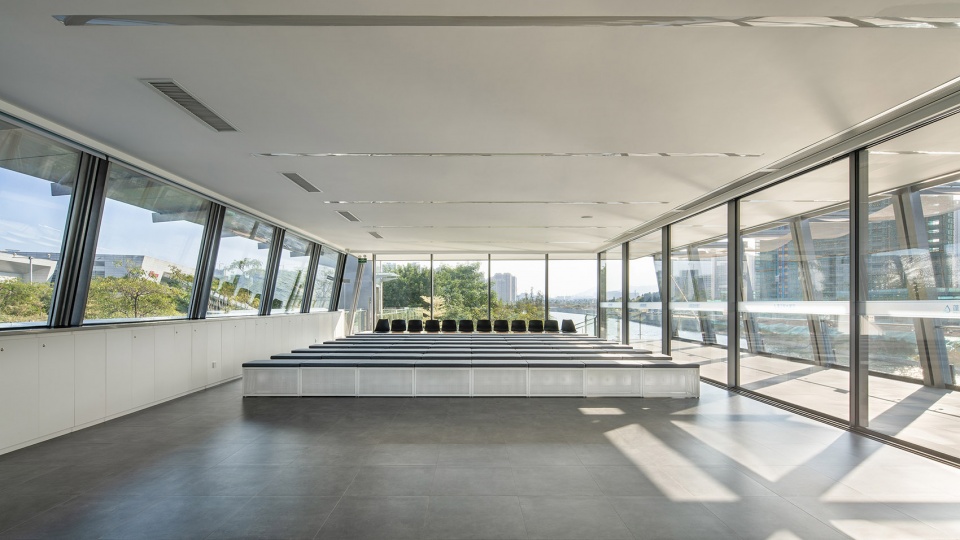

▼顶层教育空间，落地门可以完全打开，education space on the top floor with doors that could be fully open ©白羽

因我们设计时主动考虑施工步骤及周期，确保项目在非常短的时间完成。落成一年，这里成为主要的儿童环境治理科普教育基地。

Because we have actively taken the construction steps and cycle into consideration during design, we ensure that the project is completed in a very short time. One year after its completion, it has become a major popular science education base on environmental governance for children.

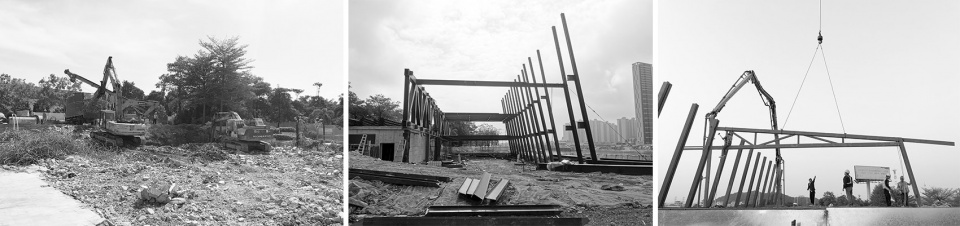

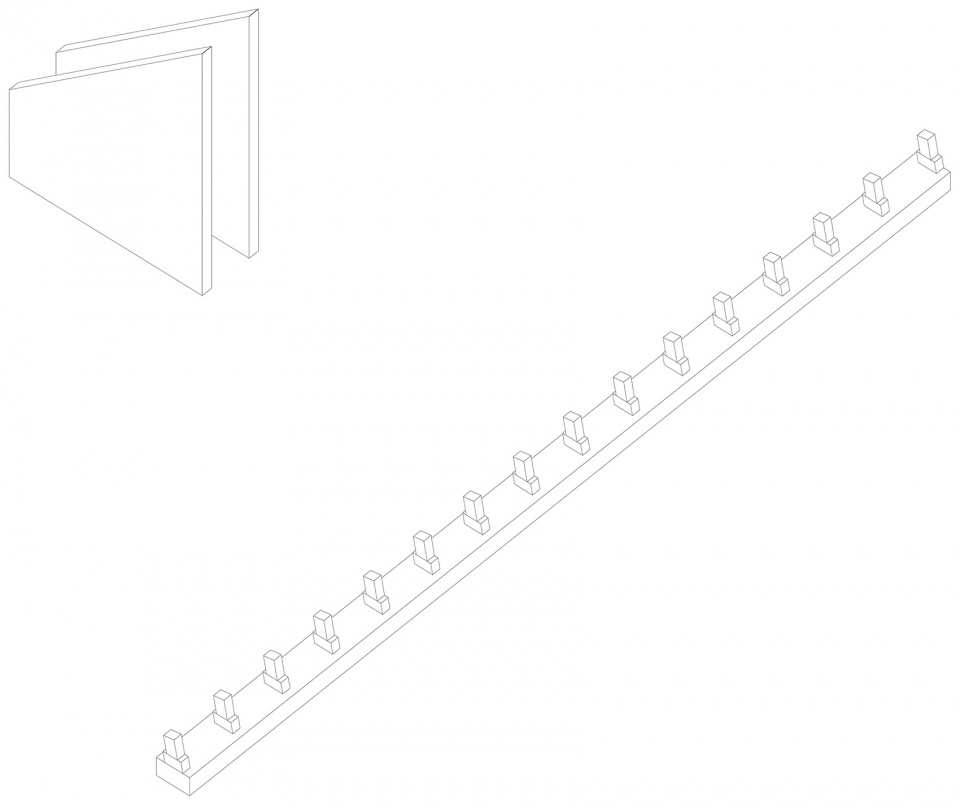

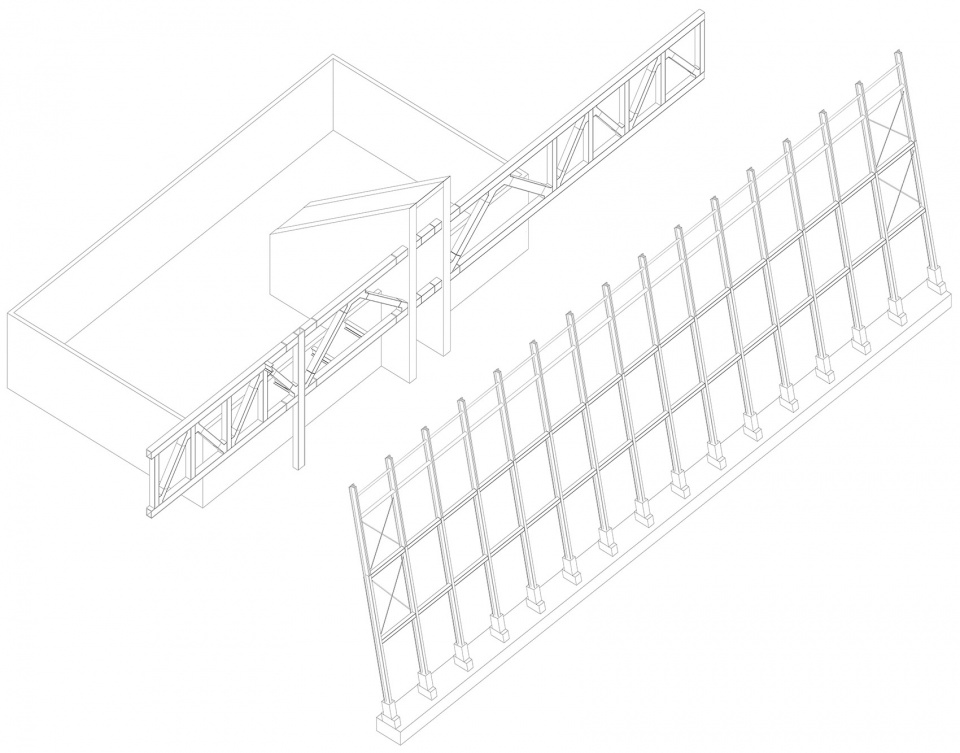

▼施工过程，construction process ©WAU建筑事务所

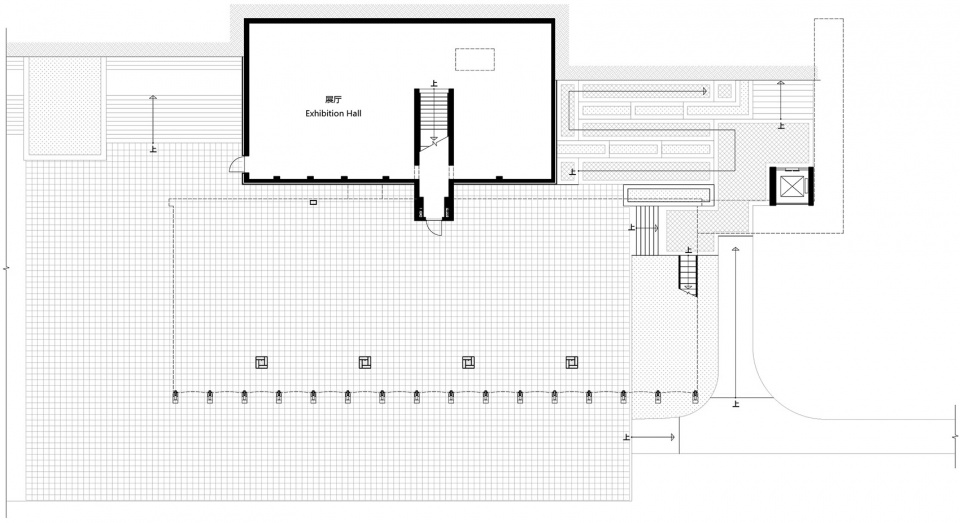

▼底层平面图，ground floor plan ©WAU建筑事务所

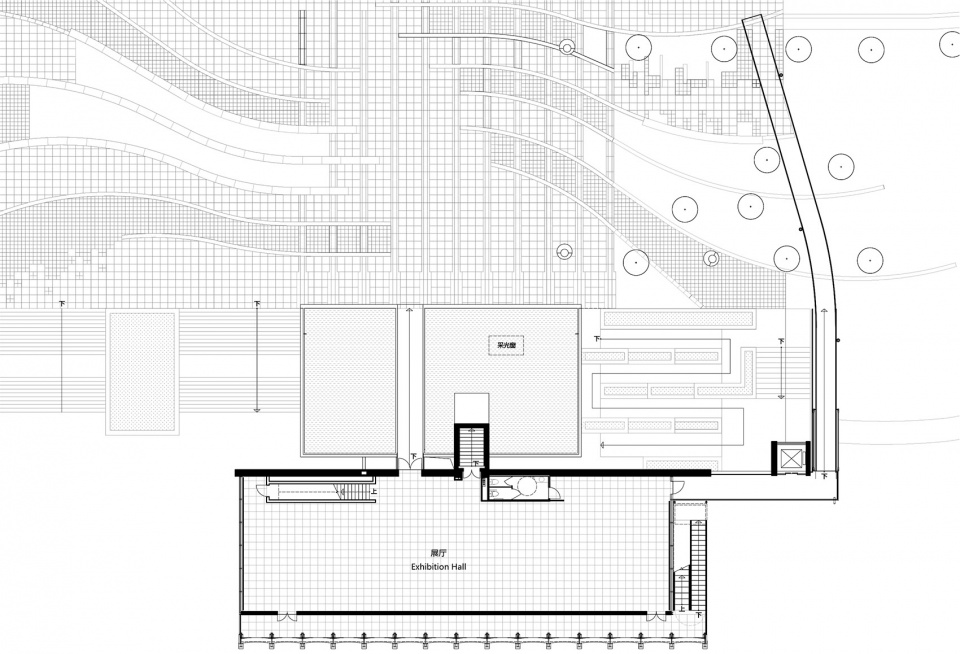

▼二层平面图，second floor plan ©WAU建筑事务所

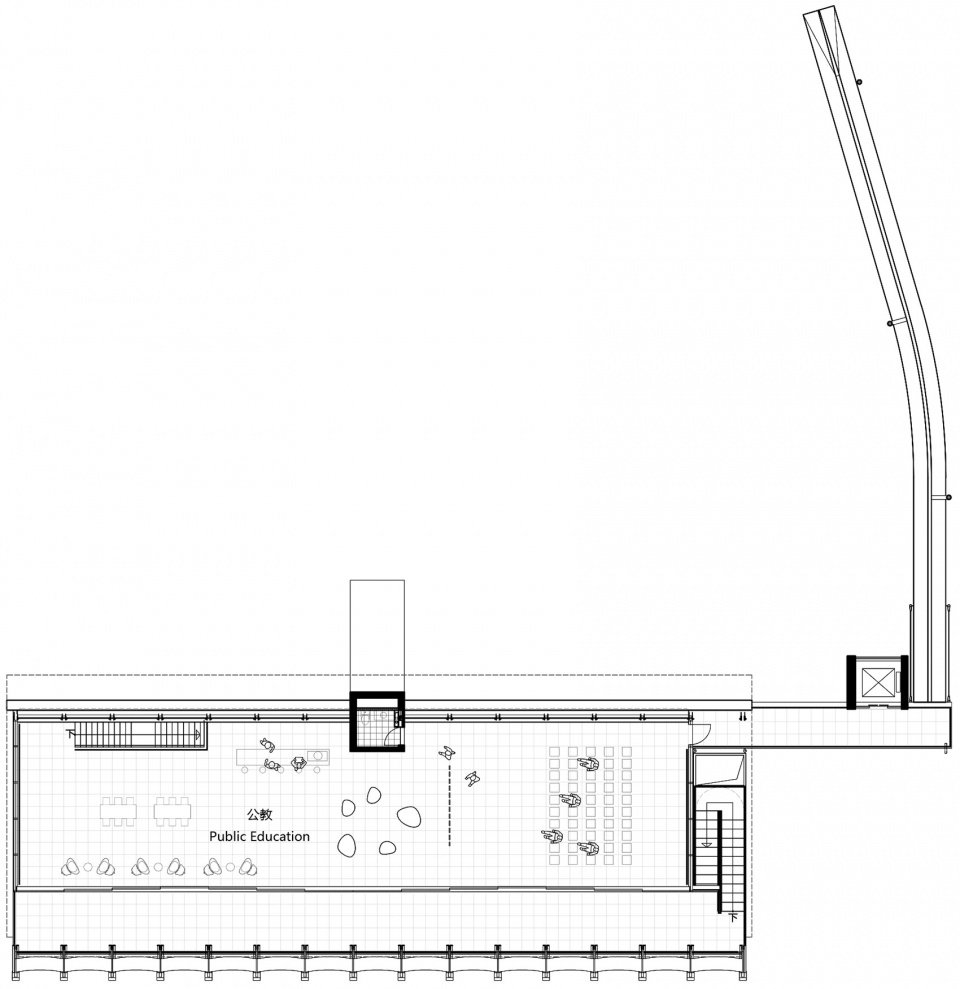

▼三层平面图，third floor plan ©WAU建筑事务所

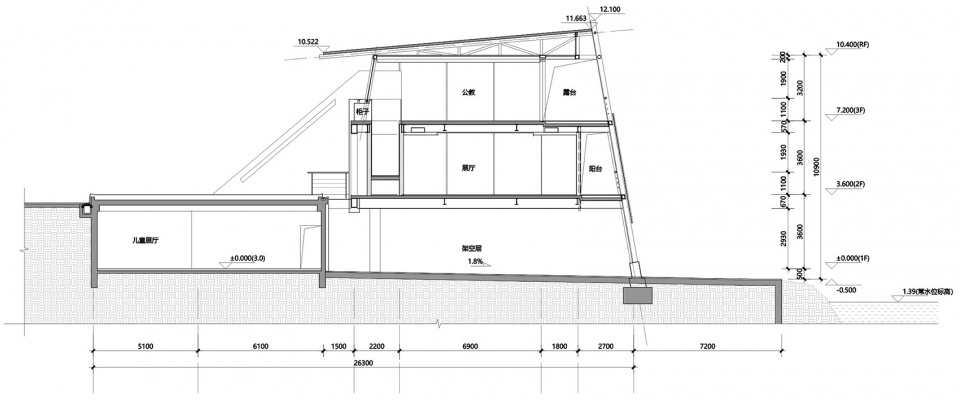

▼剖面图，section ©WAU建筑事务所

项目名称：蓬江智水展示中心
设计方：WAU建筑事务所
公司网站：www.waudesign.cn
联系邮箱：office@waudesign.cn
项目设计&完成年份：2020/2021
主创：吴林寿，赵向莹
团队：张玮莹，罗倩萍
项目地址：广东江门
建筑面积：900㎡
摄影版权：白羽
结构：陈招智

Project Name: Smart Water Hall
Design: WAU Design
Website: www.waudesign.cn
Contact e-mail: office@waudesign.cn
Design & Completion Year: 2020/2021
Leader Designer: Linshou WU, Xiangying ZHAO
Team: Weiying ZHANG, Qianping LUO
Project Location: Guangdong，Jiangmen
Gross Built Area: 900㎡
Photo Credits: Baiyu
Structure: Zhaozhi CHEN
