感谢来自 上海意构建筑设计（邮箱：568421640@qq.com）对gooood的分享。更多关于他们： IG·Architects on gooood。
Appreciation towards IG·Architects （mail：568421640@qq.com）for providing the following description:

重庆移通学院合川校区位于由嘉陵江、渠江与涪江三江交汇的合川。校园依山傍水，环境优美，交通便捷，校园总占地面积1350亩，建筑面积58万平米，在校学生2.8万人，是中国最具特色的山水园林式书院大学。为满足招生需求，需要建设一栋宿舍楼。

Chongqing College of Mobile Communication Hechuan Campus is located in Hechuan, where the Jialing River, Qu River, and Fu River converge. The campus, nestled among mountains and rivers, boasts beautiful surroundings and convenient transportation. Covering a total area of 1350 acres with a building area of 580,000 square meters, the campus accommodates 28,000 students, making it China’s most distinctive landscape-style academy. To meet enrollment demands, a dormitory building needs to be constructed.

▼项目概览，overview of the project ©PrismImage建筑摄影

南湖书院位于重庆移通学院南侧。项目规划为1500床位宿舍楼，建筑面积1.7万平米。基地自然景观保存完好，北侧为植为繁茂的山体公园，南侧面向宽阔的江面景观。

South Lake Academy is situated to the south of Chongqing College of Mobile Communication.The project plans for a dormitory building with 1500 beds and a building area of 17,000 square meters. The natural landscape of the site is well-preserved, with lush vegetation on the northern side and expansive river views to the south.

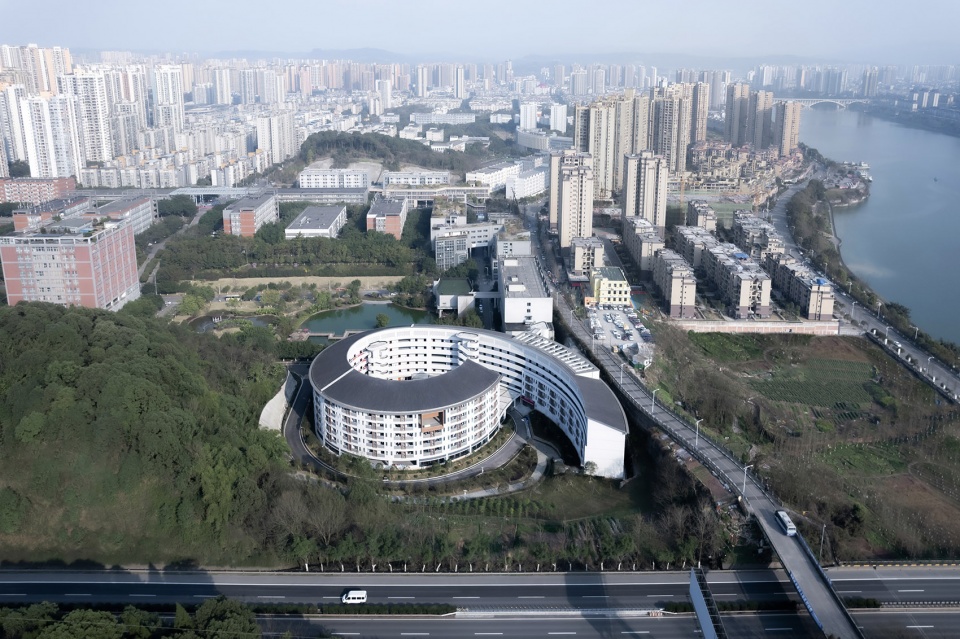

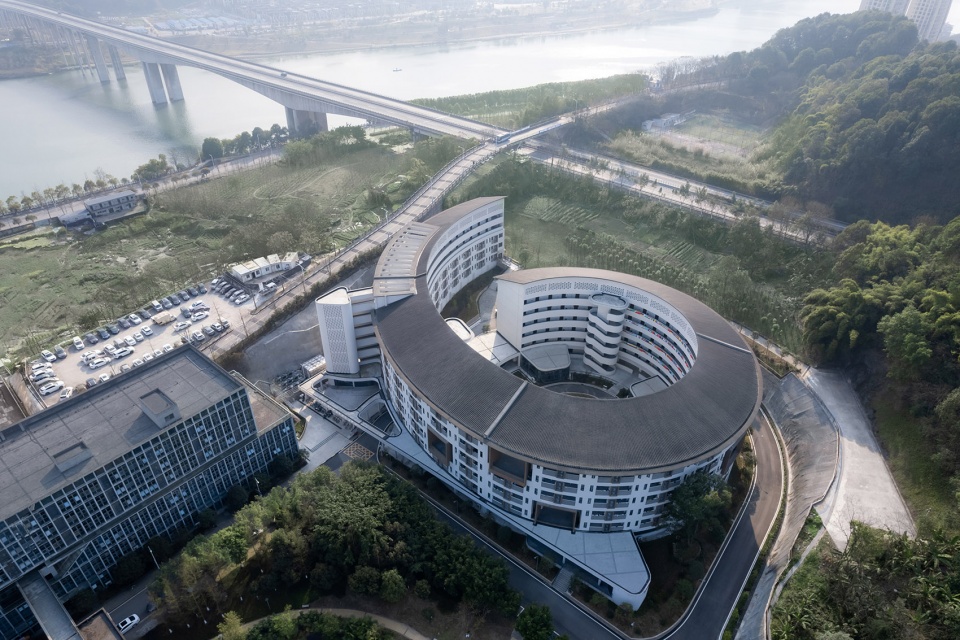

▼项目鸟瞰，bird view of the project ©PrismImage建筑摄影

书院借鉴土楼的建筑布局，依山就势，就地取材，积极地与场所对话，传承自然与人文息息相关的生活场景，建筑平面排布接近斐波那契曲线，体现自然之美。我们用低技术生态的手段去迎接重庆炎热气候的挑战；通过底层架空和空间围合创造利用空气流动的微循环；外廊及长屋檐更加利于减少阳光直射及宿舍通风，增加室内舒适度；圆形的内院及底层架空拓展了学生的社交场所，让建筑如传统围屋一样有着独特的居住体验和人文情怀；

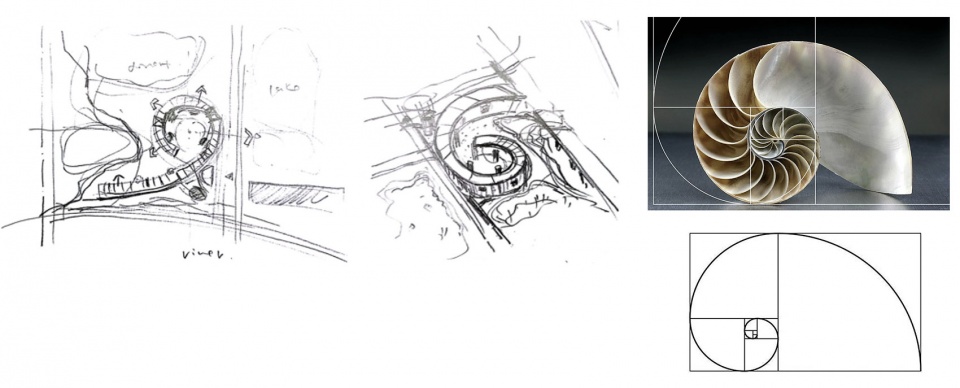

▼方案草图，preliminary sketch ©上海意构建筑设计

The academy draws inspiration from the layout of earthen buildings, embracing the natural terrain and utilizing local materials. It actively engages with the site, preserving the intertwined scenes of nature and culture. The architectural layout follows the Fibonacci curve, reflecting the beauty of nature. We use low-technology ecological means to meet the challenge of Chongqing’s hot climate; Create microcirculation using air flow through the ground floor and space enclosure; The outer porch and long eaves are more conducive to reducing direct sunlight and dormitory ventilation, increasing indoor comfort; The circular inner courtyard and the elevated ground floor expand the social places for students, and make the building have a unique living experience and humanistic feelings like the traditional enclosure.

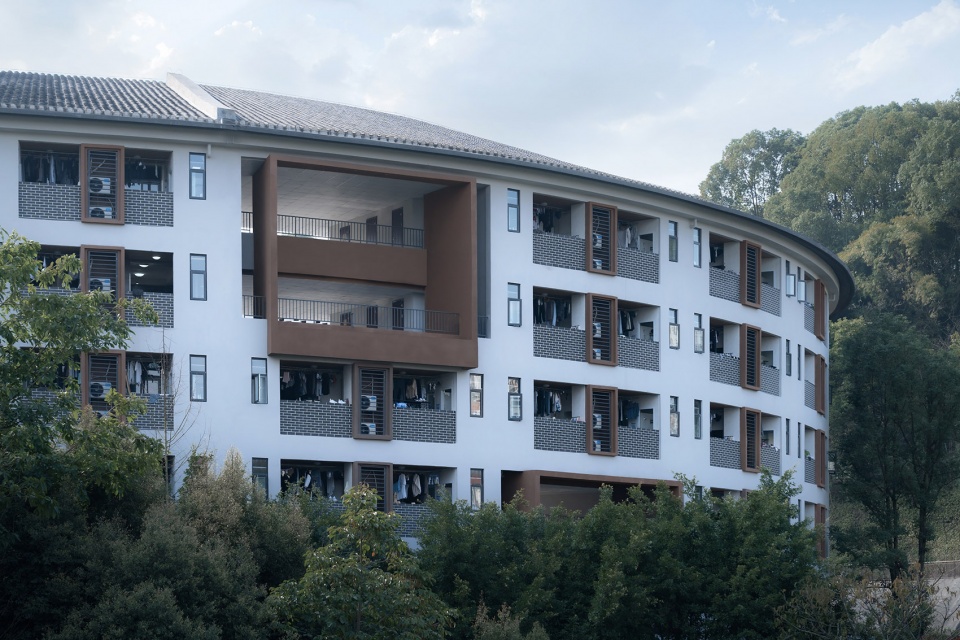

▼宿舍外观，exterior of the dormitory©PrismImage建筑摄影

本设计采用简洁、纯净的新中式建筑风格，建筑空间形态、建筑语言的选择都取意于中国传统书院风格和合川本地的建筑构造元素。建筑主色调为灰白色，在寝室空调位与休息平台点缀了橘红色墙面，为建筑增添了一份暖意与活力。并与校园内红砖建筑有了群体建筑间的呼应。

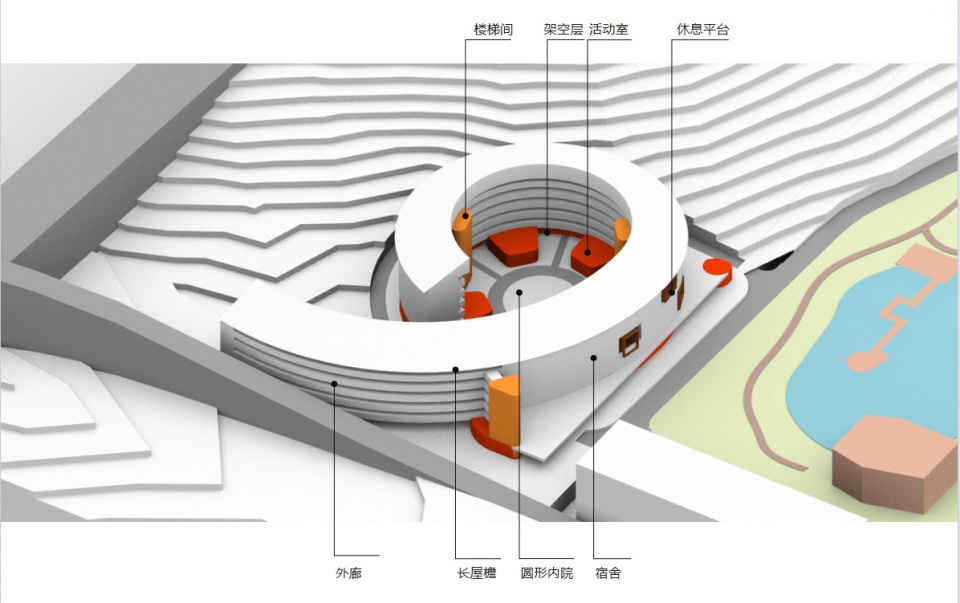

▼体块分析，scheme analysis ©上海意构建筑设计

The design adopts the simple and pure new Chinese style of architecture, and the choice of architectural space form and architectural language is based on the traditional Chinese academy style and the local architectural structure elements of Hechuan. The architectural style is mainly Chinese style, which is also in line with the characteristics of academy architecture.

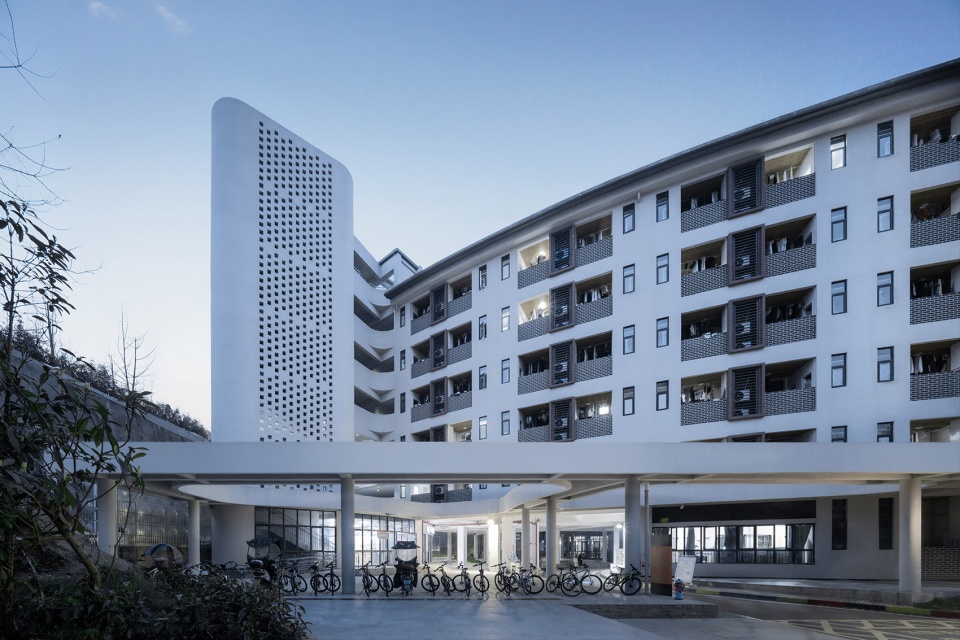

▼宿舍入口透视，perspective of dormitory entrance ©PrismImage建筑摄影

平面每隔一段去掉2间宿舍设置观景平台，增加了宿舍的通透性，提供学生更多的休息交流空间。

Two dormitories are removed every other section to set a viewing platform, which increases the permeability of the dormitory and provides more rest and communication space for students.

▼临湖立面观景平台，lakeside sightseeing terrace ©PrismImage建筑摄影

“圆”是中国文化的一个重要精神符号，圆融、圆满，它寄托着古人美好的期望，也是探究世界的思索。在设计中，将向心的空间作为中心，学生在圆形内院举行活动，宿舍走廊上可以作为看台，增加交互性和观赏性。楼梯与主体建筑脱开，采用悬臂楼梯，主要由两个方向踏步中间的分隔墙提供竖向支撑，梯步和平台都通过悬臂梁向外悬挑，创造出宛如漂浮般的效果，营造出富有雕塑感的视觉效果，体现建筑的结构美学。

“Circle” is an important spiritual symbol of Chinese culture. It embodies the good expectations of the ancients and is also a way to explore the world. In the design, the centripetal space is used as the center, students hold activities in the circular inner courtyard, and the dormitory corridor can be used as a stand to increase interaction and appreciation. The staircase is separated from the main building by a cantilevered staircase, which is mainly supported vertically by a dividing wall in the middle of two directional steps. The steps and platforms are cantilevered outwards to create a floating effect, creating a sculptural visual effect, reflecting the structural aesthetics of the building.

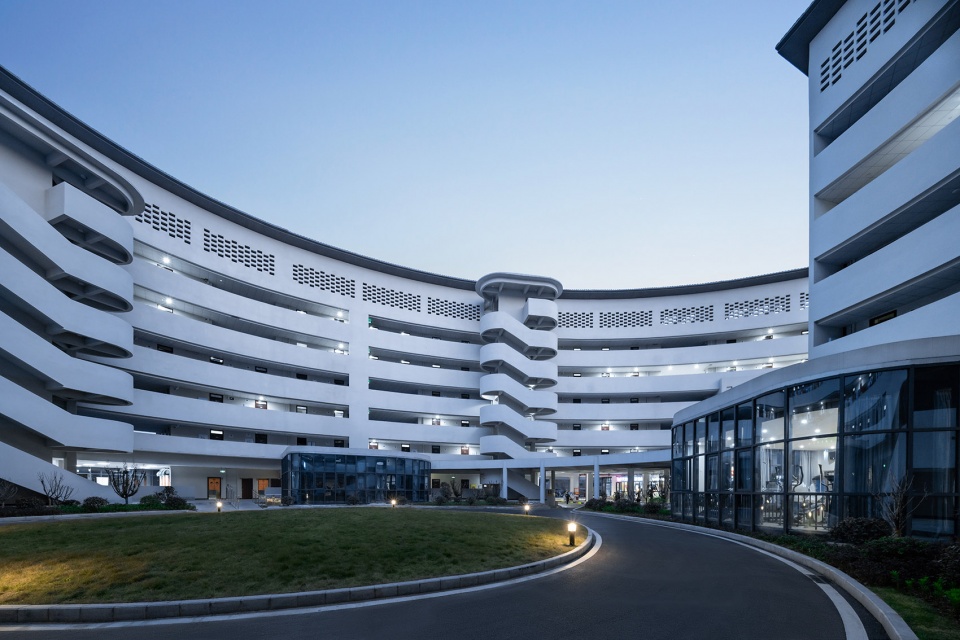

▼内院，Inner courtyard ©PrismImage建筑摄影

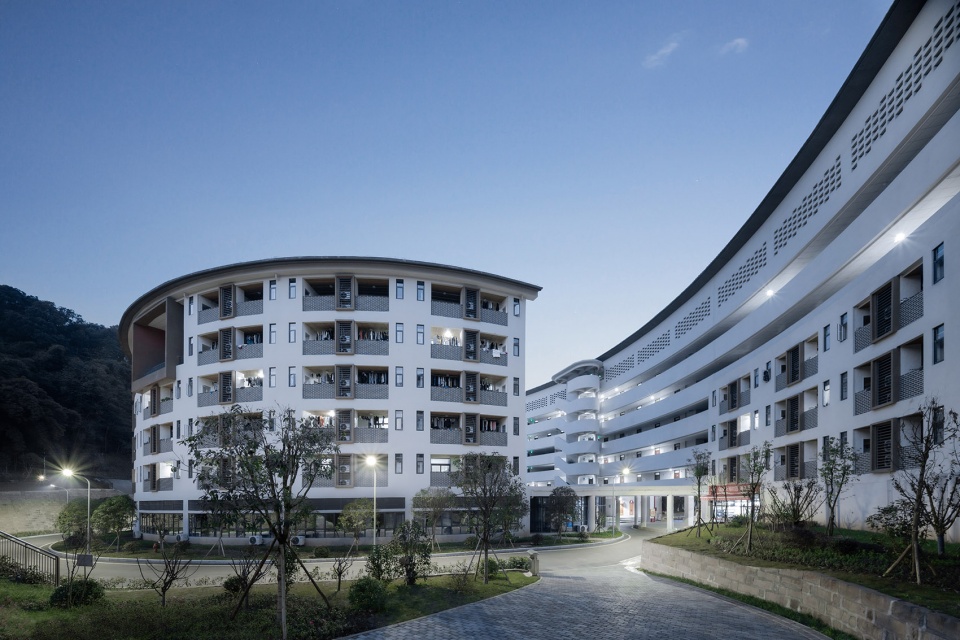

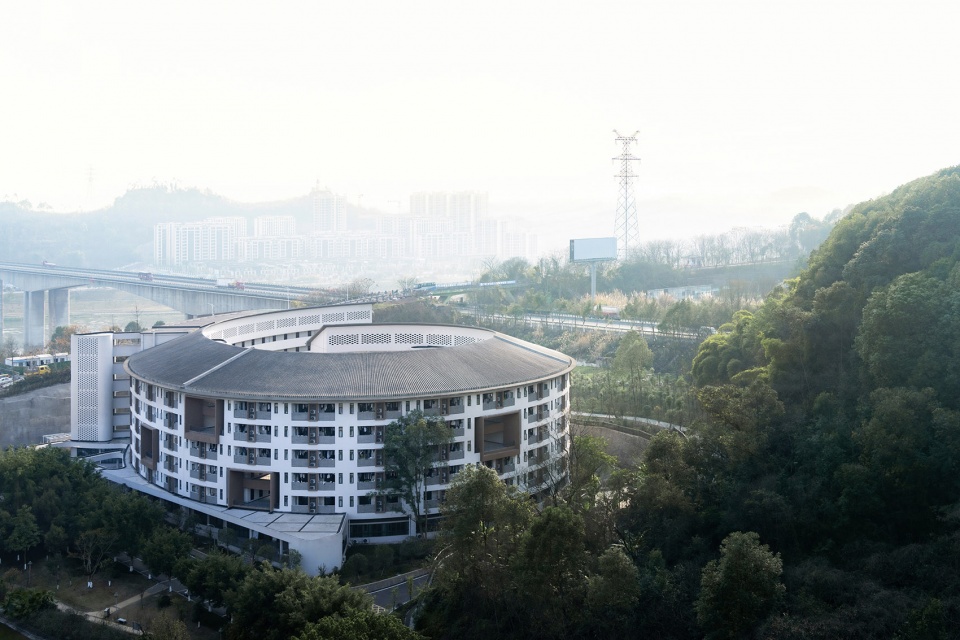

▼西北侧透视，Northwest perspective ©PrismImage建筑摄影

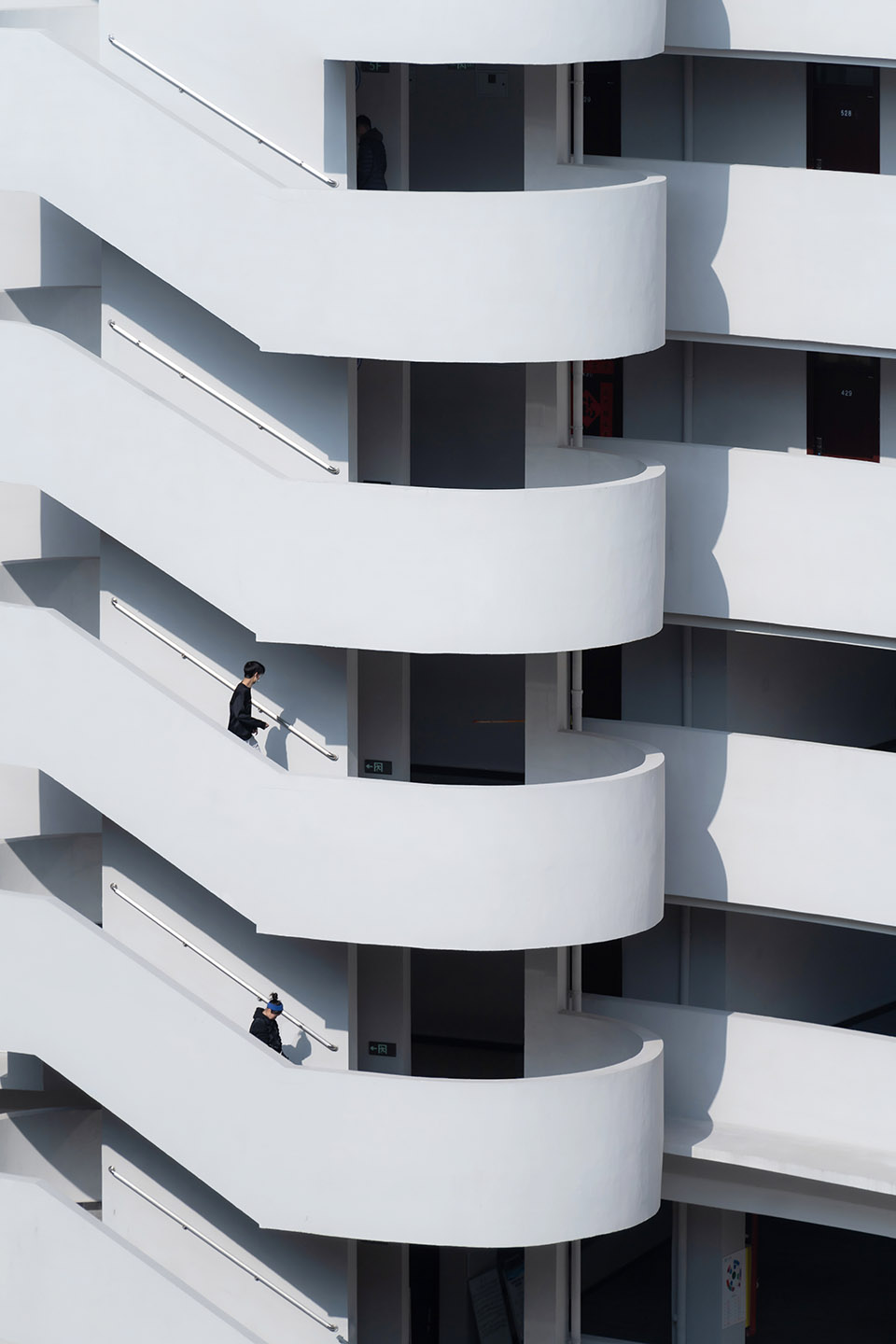

▼开放式外挂楼梯，External staircase ©PrismImage建筑摄影

南湖书院宿舍设置在2-6层，1层空间局部架空，剩余空间设置自习室、排练室、健身房、会客厅、咖啡厅、多功能影音厅、创意项目工作坊等30多种青春个性文化空间。学生们可以在中庭花园的交流互动。

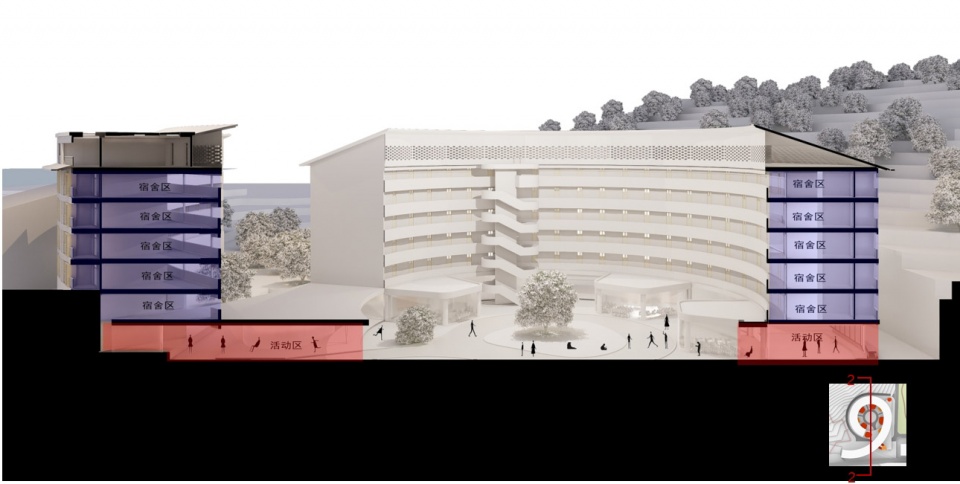

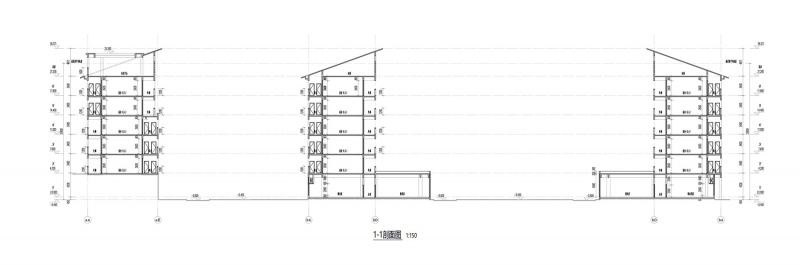

▼书院1-1剖面，section 1-1 ©上海意构建筑设计

▼书院2-2剖面，section 2-2 ©上海意构建筑设计

Nanhu Academy dormitory is set in the 2-6 floors, the first floor space is partially empty, the remaining space is set up self-study room, rehearsal room, gym, meeting room, coffee shop, multi-functional video hall, creative project workshop and other more than 30 kinds of youth personality cultural space. Students can interact in the atrium garden.

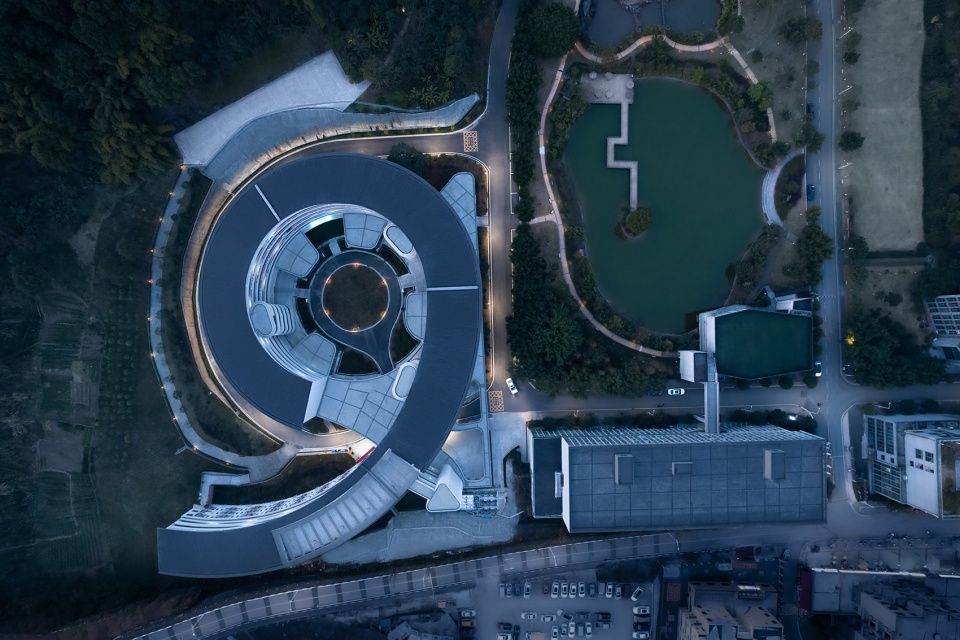

▼夜景鸟瞰，bird view at night ©PrismImage建筑摄影

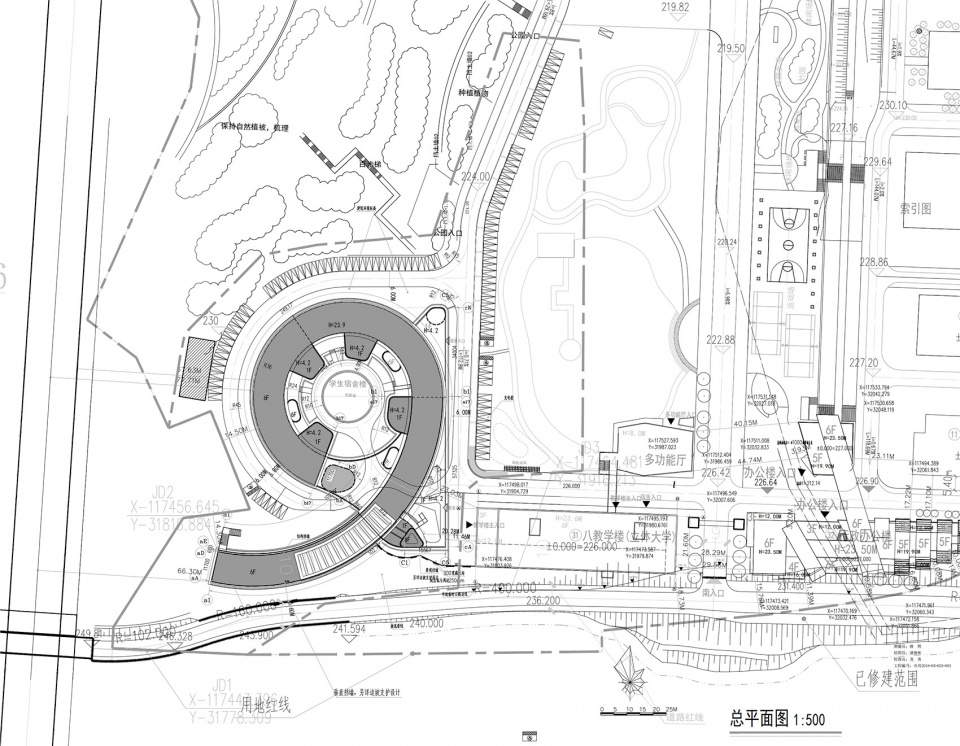

▼总平面图，site plan ©上海意构建筑设计

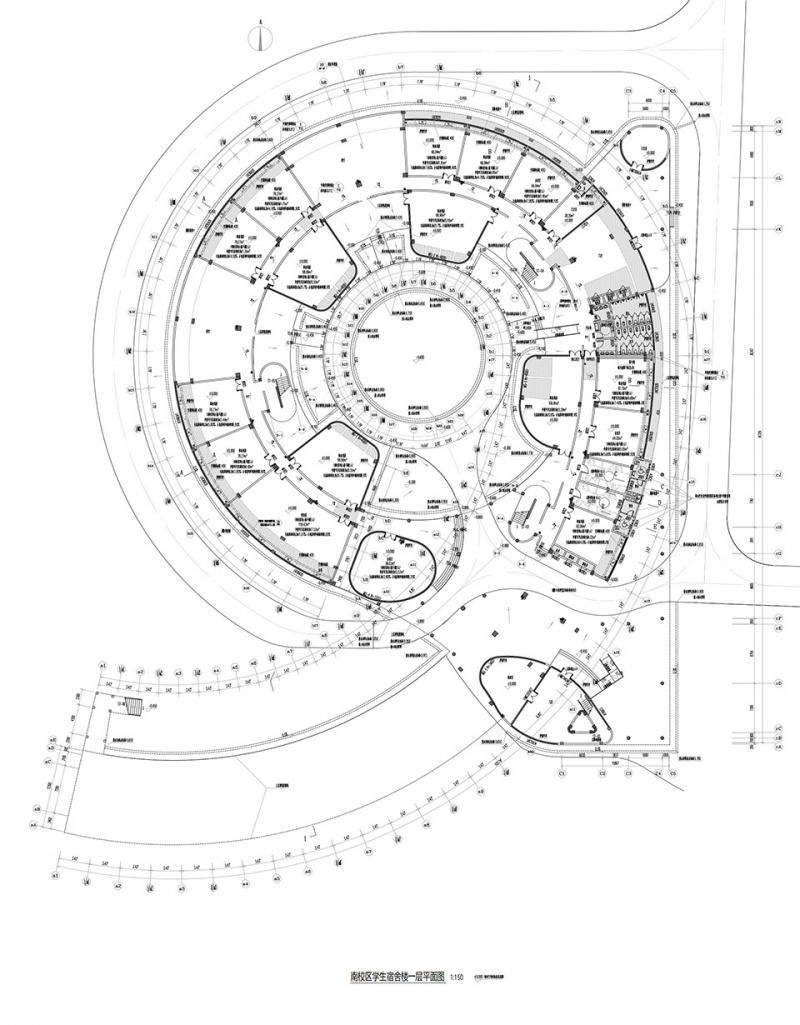

▼一层平面图，ground floor plan ©上海意构建筑设计

▼二层平面图，first floor plan ©上海意构建筑设计

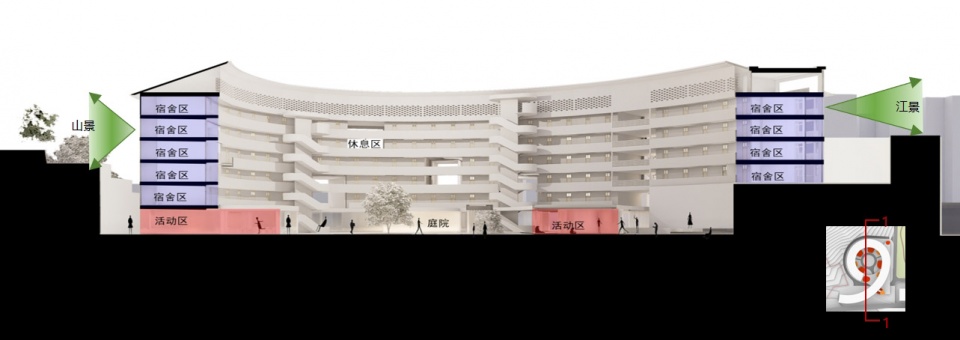

▼剖面图，section ©上海意构建筑设计

项目名称：重庆移通学院南湖书院
项目位置：重庆市合川大学城
建筑面积：17000㎡
业主单位：重庆移通学院
建筑设计：上海意构建筑设计有限公司
设计总负责：贾静
设计团队：邢思航廖勇石崇鹏毛宁陈培达
施工图设计：重庆对外建设(集团)有限公司
建筑摄影：PrismImage建筑摄影
设计时间： 2020年3月
竣工时间：2021年7月
