Tianjin Chow Tai Fook Financial Centre, China by Ronald Lu & Partners + SOM + ECADI

World’s Seventh-tallest Building Created by Ronald Lu & Partners Using “BIM” Digital Design Technology

Project Specs

Location:
Materials:

感谢 吕元祥建筑师事务所 + SOM + ECADI 予gooood分享以下内容。更多关于:Ronald Lu & Partners on gooood ; SOM on gooood ; ECADI on gooood
Appreciations towards Ronald Lu & Partners SOM + ECADI for providing the following description:

吕元祥建筑师事务所(RLP)一直致力推动建筑设计进入数字化时代,在建筑信息建模(Building Information Modeling, 简称BIM)领域已深耕12载,积累了成熟的专业优势,并运用最前沿的科技为建筑赋能,创造更美好生活。

位于天津滨海新区的天津周大福金融中心刚落成,旋即荣获全球建筑及自然环境领域公认的至高荣誉——皇家特许测量师学会(RICS)中国奖2020颁发的年度BIM最佳应用冠军和年度建造项目冠军,再次显示RLP的BIM非凡实力。

这座高530米的世界第七、中国第三高楼借助RLP对于BIM的实际应用,显著降低了建造时间和工程成本,其晶莹剔透的双曲面蜿蜓造型更体现出数字化设计在优化复杂玻璃幕墙结构方面的卓越贡献。

Ronald Lu & Partners (RLP) is committed to advancing architectural design in the digital age, implementing cutting-edge technologies to create a better life at every opportunity. The 530-metre-high Tianjin Chow Tai Fook Financial Centre (“the tower”; “the Centre”) is an excellent example of the firm’s commitment to excellence.

The seventh-tallest building in the world and the third-tallest in China, this recently-completed tower is a testament to RLP’s extensive skills in using building information modelling (BIM) technology to design and execute world-class structures. In this case, BIM significantly reduced the time and cost of the tower’s construction, and played a vital role in optimising its striking, crystal-clear hyperboloid winding glass curtain wall.

Architects have begun using digital modelling to improve efficiency and accuracy, especially during the design and construction of ultra-complex buildings like the Centre, as it increases accuracy and reduces resource use.

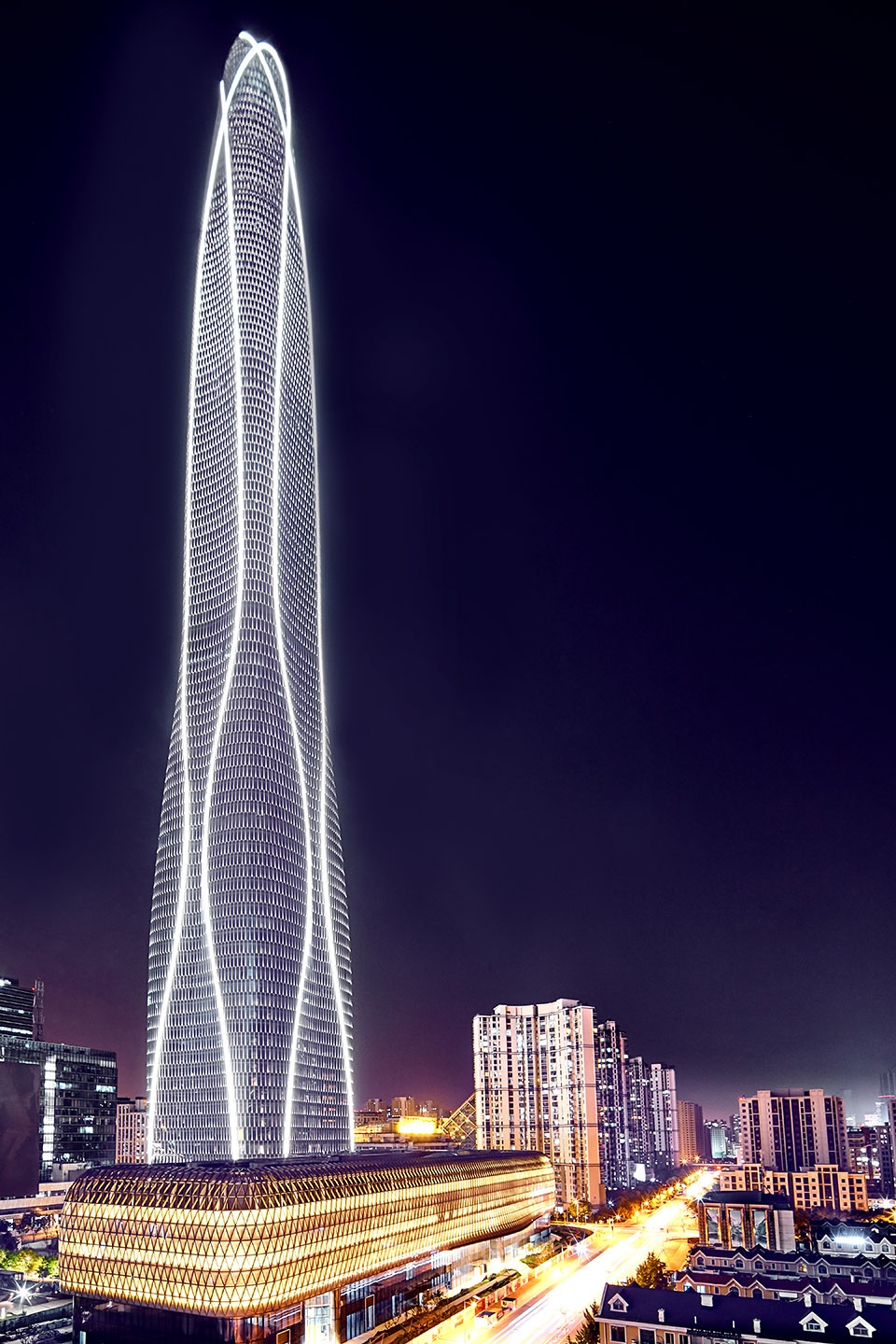

▼天津周大福金融中心全貌,The 530m-tall Tianjin Chow Tai Fook Financial Centre ©Seth Power



长江以北第一高楼
The tallest building north of the Yangtze River in China

天津周大福金融中心作为中国目前长江以北的第一高楼,由4层地下室、5层裙楼和103层塔楼组成,融合了K11购物中心、K11 ATELIER甲级办公、五星级酒店和酒店式公寓等城市功能于一体,堪称全国施工难度最大的超高层建筑之一。

RLP善用在数字化建模的成熟技术,与国内外的顶级团队(包括SOM、华东建筑设计研究总院和ARUP)合作,创造出这座刚柔并济的“垂直城市”。除了上述RICS大奖,天津周大福金融中心同时获得了在业界举足轻重的中国BIM认证联盟铂金奖、中国建筑金属结构协会钢结构金奖年度杰出工程大奖等国际荣誉。

The tallest building north of the Yangtze River in China, the Tianjin Chow Tai Fook Financial Centre is made up of four basement levels and five podium levels, topped by a 103-storey tower. The Centre also includes the K11 shopping mall, the K11 ATELIER office, a five-star hotel and serviced apartments.

The Centre has been recognised as one of the most complicated skyscraper designs and structural systems ever designed in the country, combining both rigidity and flexibility to counter the effect of winds and seismic activity. In delivering this incredible “vertical city”, RLP leveraged the sophisticated talents of experts in digital modelling and collaborated with top domestic and foreign partners, including SOM, the East China Institute of Architectural Design and Research and ARUP.

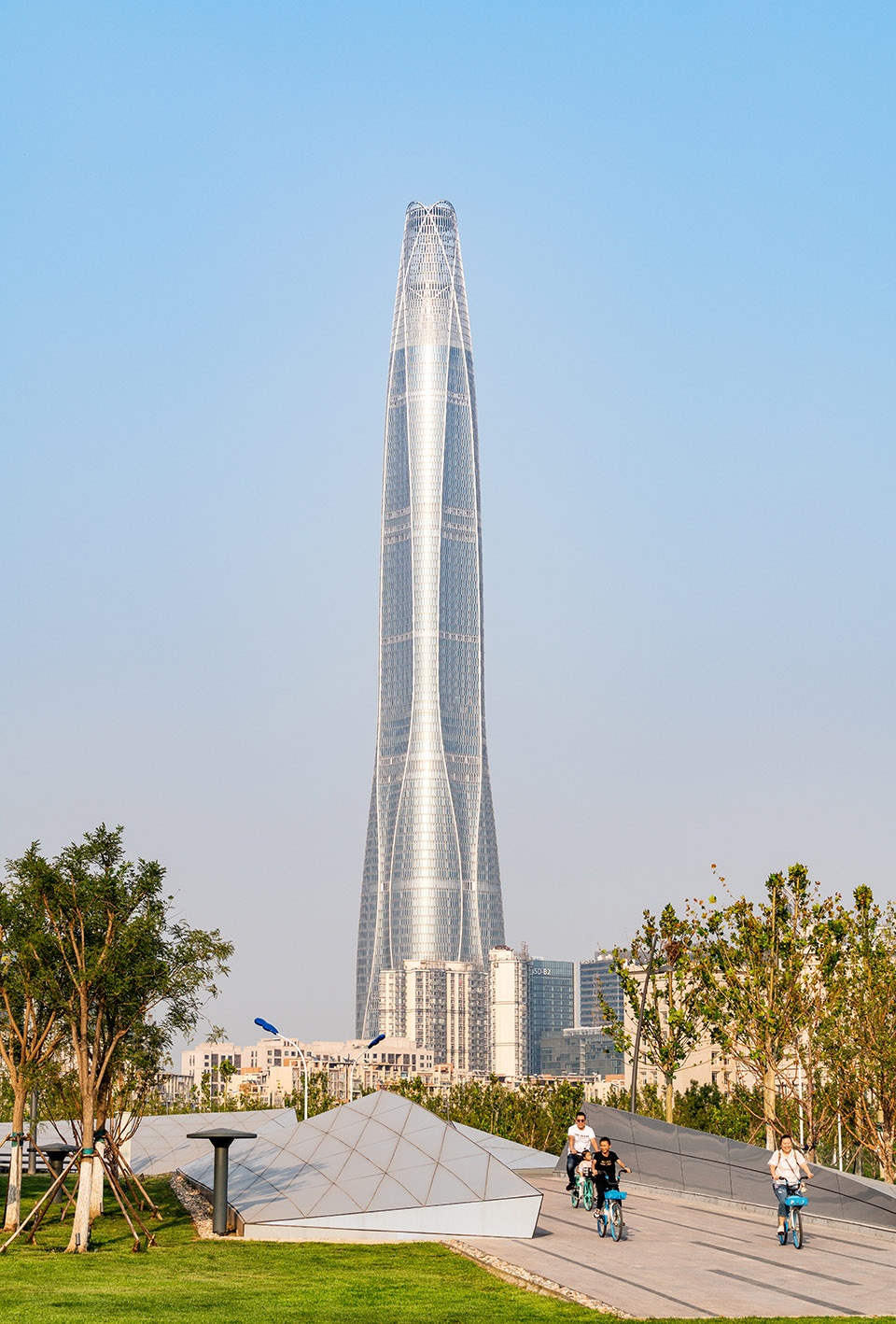

▼RLP使用建筑信息模型(BIM)技术来设计和执行复杂的结构 ©New World China
RLP used building Information modelling (BIM) technology to design and execute the complex structure



BIM以数据整合资源
BIM effectively integrates resources and data

BIM是一套工程设计、建造、管理的数据化工具,涵盖了几何学、空间关系、地理信息系统、各种建筑组件的性质及数量。随着信息技术的发展,BIM在工期协调,冲突检测,跨部门合作,视觉表达方面的优势逐渐显现。建筑师得以借助数字化建模,提升效率与精确性,尤其是在完成超复杂建筑体的设计和建造过程中,能够极大程度地降低施工时间和经济成本,节约社会资源。

以天津周大福金融中心为例,原本8面不规则曲面相交而成的外立面幕墙结构,估计需要至少制造1308块独立不对称的IGU(Insulating Glass Units,即隔绝玻璃模块)。经过BIM分析,反复数据建模,把独立的IGU数量缩减至476块,并提出便于施工的边角分割方法和干挂幕墙节点,项目最终提前4个月竣工,可见BIM在优化过程中起到了至关重要的作用。

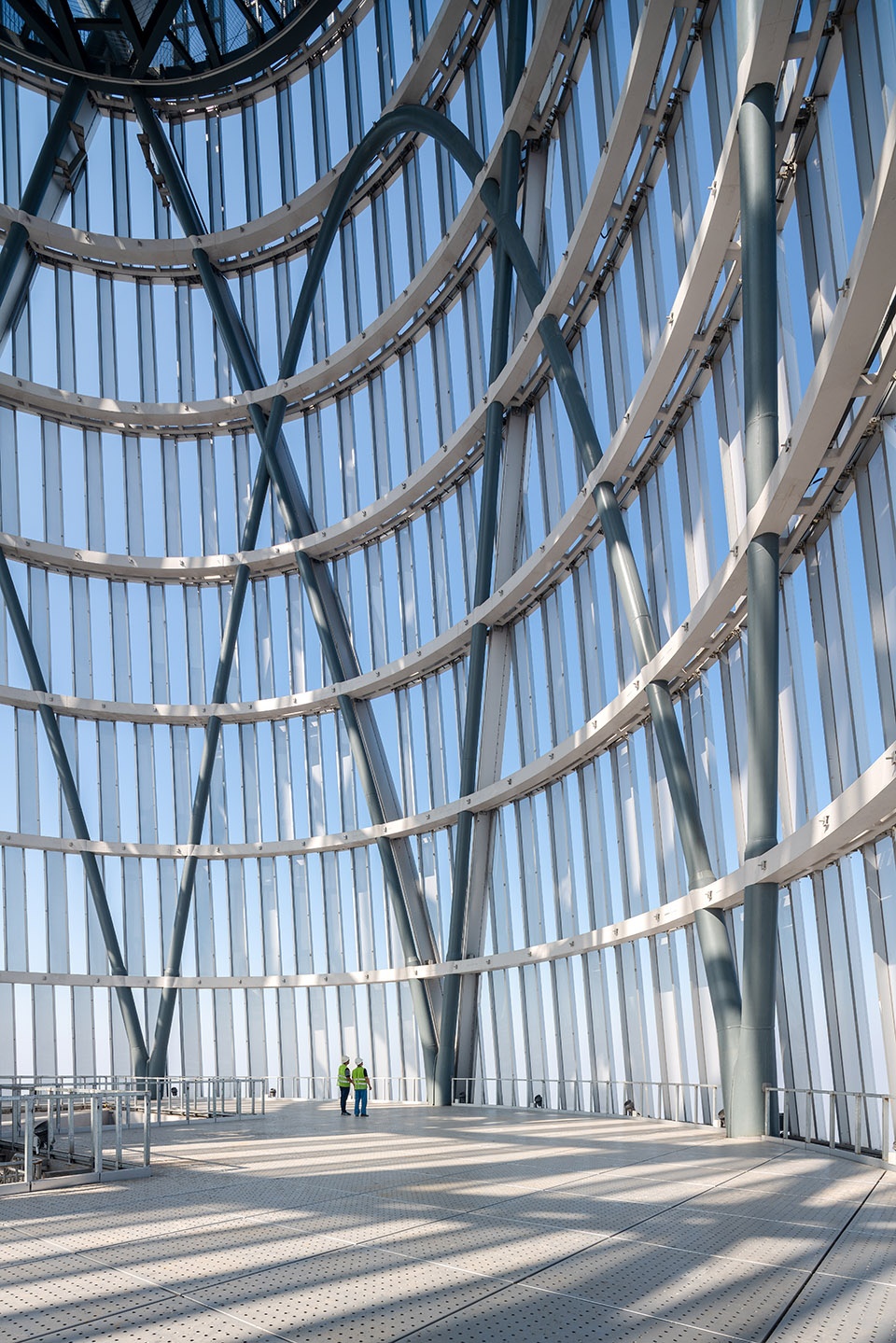

▼塔冠内部,top floor of the tower ©Seth Power

At the start of the construction process for the Tianjin Chow Tai Fook Financial Centre, experts estimated that at least 1,308 pieces of independent asymmetric insulating glass units (IGUs) would be required for its unique curtain wall structure, formed by the intersection of eight irregular curved surfaces.

However, after performing BIM analysis and using repeated data modelling, the number of independent IGUs needed for the Centre’s curtain wall was reduced to 476 – a decrease of over 60%. This not only saved an enormous amount of resources and significantly reduced costs; it avoided the risks inherent in fabricating and transporting these glass panels. Additionally, the optimisation of end-unit segmentation and joint cladding helped to further simplify the construction process. As a result of this sophisticated BIM analysis and implementation, the project was completed a full four months ahead of schedule.

Traditional building design still largely relies on two-dimensional technical drawings; BIM extends these designs into three-dimensional geometry. BIM also incorporates information about time, cost, asset management, sustainability, and other important considerations that technical drawings cannot. As the technology has evolved, BIM’s multiple advantages in terms of construction schedule coordination, clash detection, spatial relationships, geospatial information, quantities and properties of building components, and many other factors have become more apparent and increasingly indispensable.

▼玻璃幕墙:BIM能够有效地整合资源和数据,生成高效且具有成本效益的解决方案

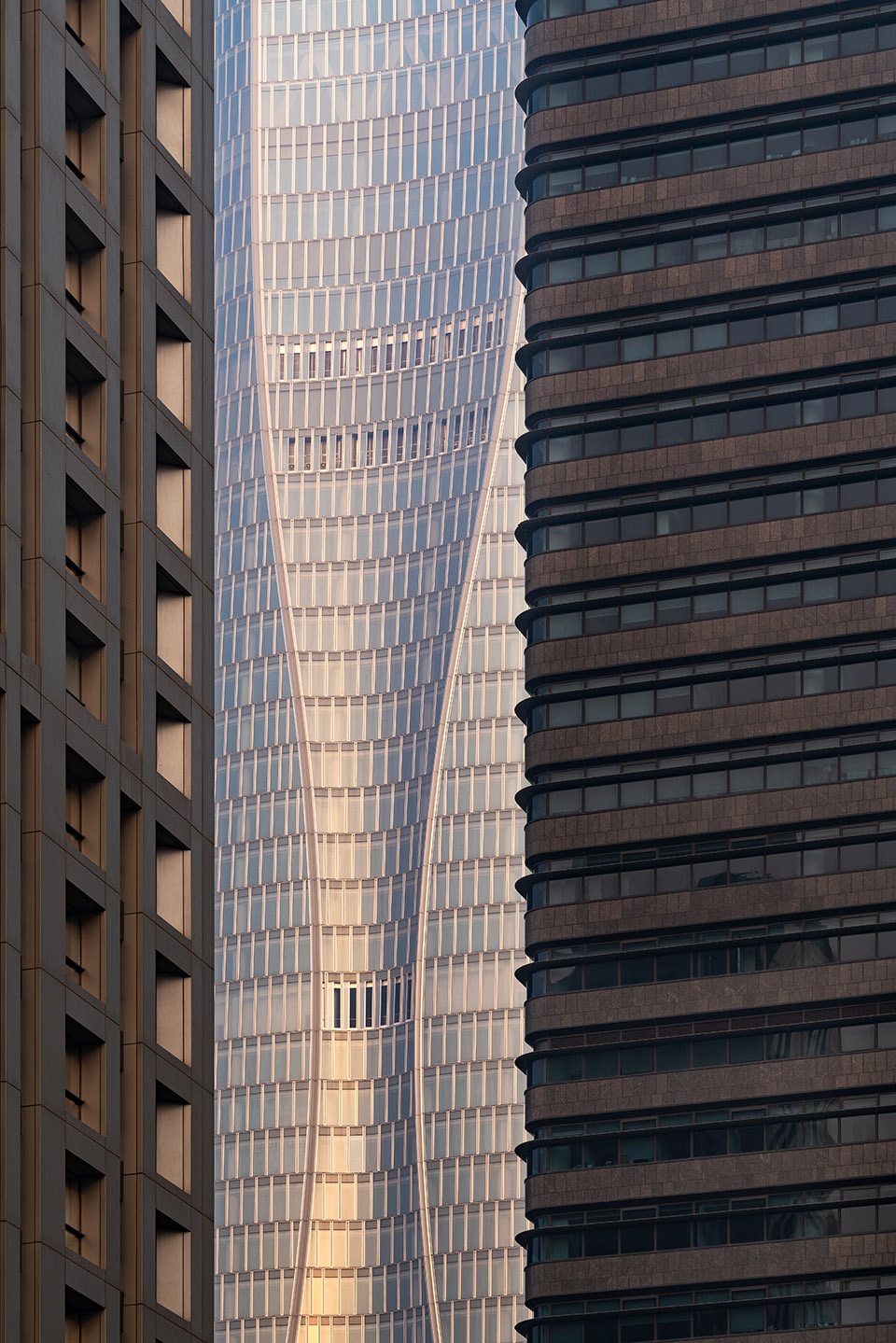

Curtain wall: BIM effectively integrates resources and data to produce efficient, cost-effective solutions ©Seth Power

RLP副主席吕庆耀表示: “过去几年,BIM开始广泛在建筑、工程和施工领域(AEC)普及应用,政府亦推出相关标准和政策,大力支持业界加快脚步进入数字化时代。相信未来BIM在整合跨部门信息资源、优化建造时间和经济成本、解决高难度结构方面的优势会更加突显。天津周大福金融中心作为全球瞩目的超高层建筑,拥有精雕细琢的外观造型之余,全程体现了“建造的艺术(art of making)”,可见RLP深耕BIM超12载的执着毅力和专业优势。我们目前拥有超过80位BIM专家,迄今为止已获得近10个BIM国际奖项,包括香港的戏曲中心。未来我们会继续利用数字化技术为建筑赋能,参与更多中国以及世界各城市的蓬勃发展。”

Bryant Lu, the Vice Chairman of RLP, has been a champion of BIM for more than a decade. He says, “Over the past few years, BIM has become widely used in the fields of architecture, engineering and construction. Governments have also introduced BIM-related standards and policies to support these sectors and help accelerate their practices into the digital age. At RLP, we have experienced the many advantages of BIM first hand: integrating cross-departmental information resources, optimising construction times, ensuring economic costs are kept down, and solving complex structures.”

“I absolutely believe that the use of BIM across these sectors will become more prominent in the future”, Mr Lu continues, “BIM helped create the iconic façade system of the Tianjin Chow Tai Fook Financial Centre, making it into a world-renowned skyscraper. This success reflects RLP’s persistence, perseverance and professional advantage in cultivating our BIM proficiency over the past 12 years.”

The Tianjin Chow Tai Fook Financial Centre has already won several awards, including the highest honour recognised by the Royal Institution of Chartered Surveyors’ China Awards 2020, as well as other internationally prominent awards including the China BIM Certification Alliance’s Platinum Award and the Steel Structure Gold Award at the China Construction Metal Structure Association’s Annual Outstanding Engineering Awards.

RLP has also won several international BIM-related awards, including for our design of Hong Kong’s Xiqu Centre. RLP currently employs more than 80 BIM experts, a figure which is likely to expand.

Mr Lu has a bright view of the future of BIM at the firm, saying: “RLP intends to expand our usage of cutting-edge digital tools such as BIM to design a better life and contribute more to the development of cities in China, across the Asia-Pacific region and around the world.”

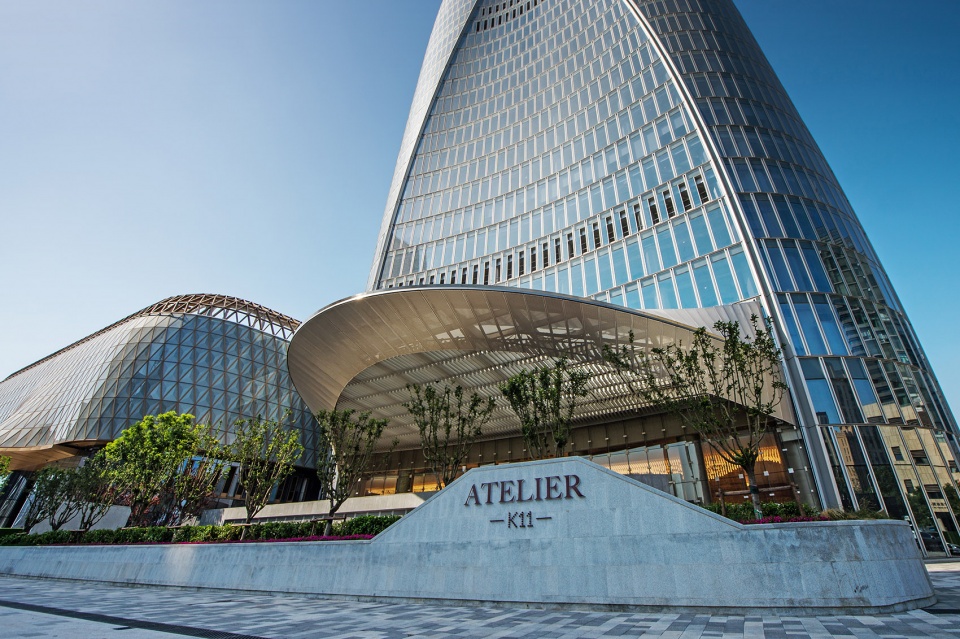

▼塔楼入口:建筑还包括一个购物中心,K11 ATELIER办公室、一家五星级酒店和公寓,Entrance: the Centre also includes a shopping mall, the K11 ATELIER office, a five-star hotel and serviced apartments ©New World China

项目名称:天津周大福金融中心
项目地点:中国天津市滨海区
设计师:吕元祥建筑师事务所、SOM、华东建筑设计研究总院
发展商:(新世界中国)新世界中国地产有限公司
建成时间:2019年
建筑面积:389,980平方米
建筑高度:530米
摄影师:新世界中国、Seth Power

Project Name: Tianjin Chow Tai Fook Financial Centre
Project location: Binhai District, Tianjin, China
Designer: Ronald Lu & Partners, SOM, East China Institute of Architectural Design and Research
Developer: (New World China) New World China Land Co., Ltd.
Completion: 2019
Building area: 389,980 square meters
Building height: 530 meters
Photographer: New World China, Seth Powers
