感谢 EskewDumezRipple 对gooood的分享。更多关于：EskewDumezRipple on gooood.
Appreciation towards EskewDumezRipple for providing the following description:

项目坐落于路易斯安那州新奥尔良，是一栋占地172,000平方英尺（约15979平方米）的七层住宅楼。项目灵感来自于该市历史悠久的法式街区内院建筑。与典型的仅对居民开放的住宅庭院相比，The Beacon公寓楼的庭院直接向Girod街开放。这种设置，不仅为公寓楼中的居民提供了良好的居住环境，同时使建筑与周边环境形成一个统一的整体。126个住宅单元围合出一个宛若绿洲的独特城市公共空间，在这里，人们可以躲避城市的喧嚣与浮躁的商业气息，享受宁静安详的生活。此外，公寓楼的底层还设有20,000平方英尺（约1858平方米）的零售空间，在最大程度上方便了居民的日常生活。

The Beacon is a 172,000-square-foot, seven-story residential building that takes it’s inspiration from the city’s historic French Quarter courtyard buildings. In contrast to the typical residential courtyard block accessible only to the residents of the building, this courtyard opens directly onto Girod Street; creating an amenity not only for the building, but the neighborhood and new development as a whole. This provides a calming oasis for the 126 residential units and a unique public space in which to live and escape the hustle and bustle of a thriving commercial corridor. The development is enhanced by 20,000 square feet of ground-floor retail which is integrated into the project.

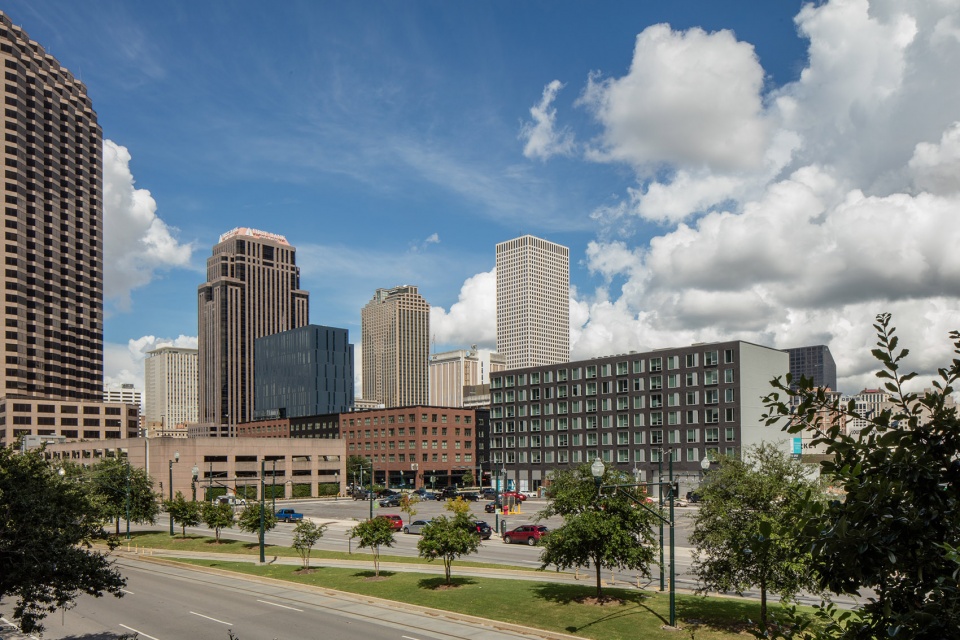

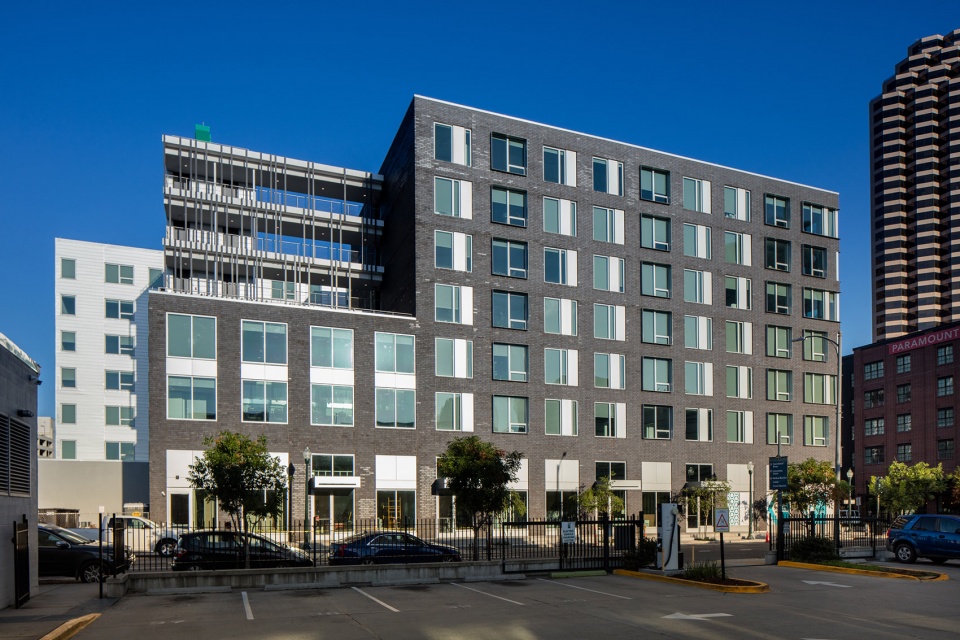

▼项目与周边城市环境，project and the surrounding environment © Timothy Hursley

项目的设计理念基于场地的历史背景与城市肌理，旨在为被誉为“隐藏的宝石”的新奥尔良市赋予全新的诠释。公寓楼室内充满活力的色调与建筑外部朴素的灰色金属外立面形成鲜明的对比。

Expanding upon the reinterpretation of New Orleans’ reputation as a “hidden gem,” the themes throughout this space are rooted in the imagery and textures of a geode–a vibrant array of colors throughout the interior in contrast to the subdued, austere exterior grays, and metallic features.

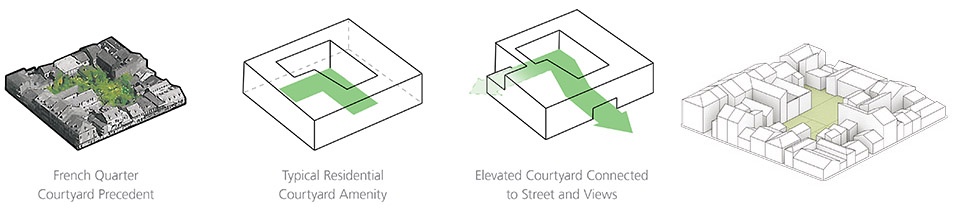

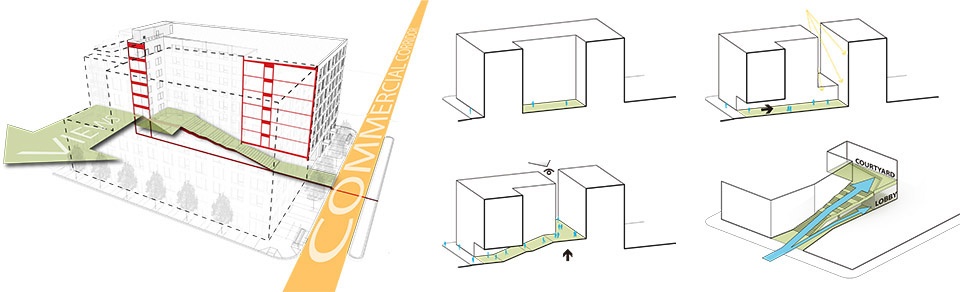

▼分析图，diagram © Eskew+Dumez+Ripple

面向街道的立面由深色的饰面砖墙构成，而庭院内侧的墙壁则覆盖有轻质金属板。金属材料的外表皮将阳光反射到内院空间中，营造出温暖舒适的氛围，此外，沿两侧街道的立面外窗上还设有遮光板，白天，遮光板在柔和的灰色砖墙上形成有趣的光影，为外立面添加了丰富而多变的肌理。交错的线性元素有序地排布在立面上，形成简洁而生动的效果。

Where the street facing façade is composed of dark brick, the inward-facing courtyard walls are clad in light metal panels to reflect sunlight into the space, creating a warm, welcoming experience. Shadow boxes along the windows create an articulated exterior that can be seen from both intersecting streets. Throughout the day, shadows stretch across the subdued grey brick, creating an ever-evolving, multi-textured skin. The varied banding is laid out in a staggering pattern that produces an austere, but animated façade.

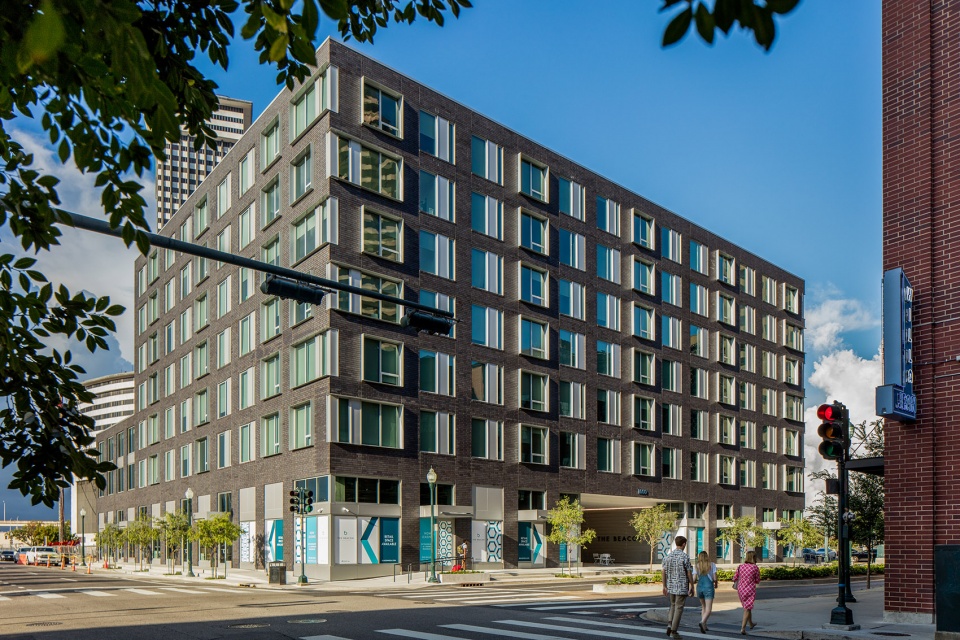

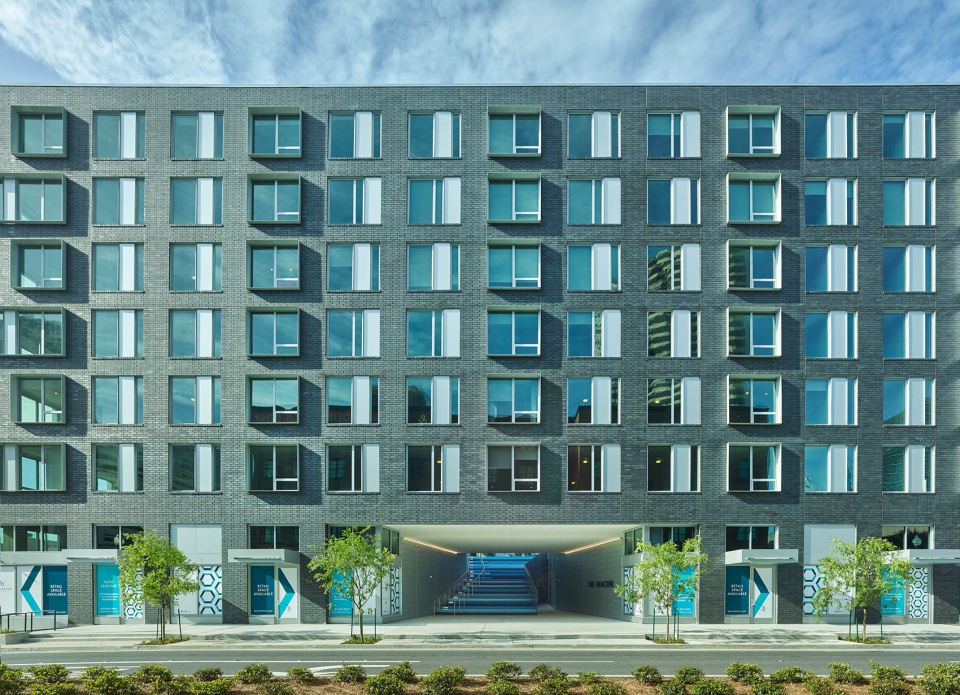

▼沿街立面由深色的饰面砖墙构成，street facing façade is composed of dark brick © Timothy Hursley

▼立面细部，details of the facade © Timothy Hursley

建筑师将主入口处的楼梯平面倾斜了一定的角度，在室外楼梯与建筑主体之间形成一个缝隙空间。这种设置将公共与私人入口彼此隔开。当游客被引导到内部庭院时，居民可以绕过楼梯，不受干扰地进入公寓大厅。

The entry stairs are carved out and set at an angle, creating a fissure that separates the public and private entrances from one another. While guests are directed up and into the courtyard, residents are able to bypass the stairs and access the lobby without interference.

▼项目主入口，main entrance © Timothy Hursley

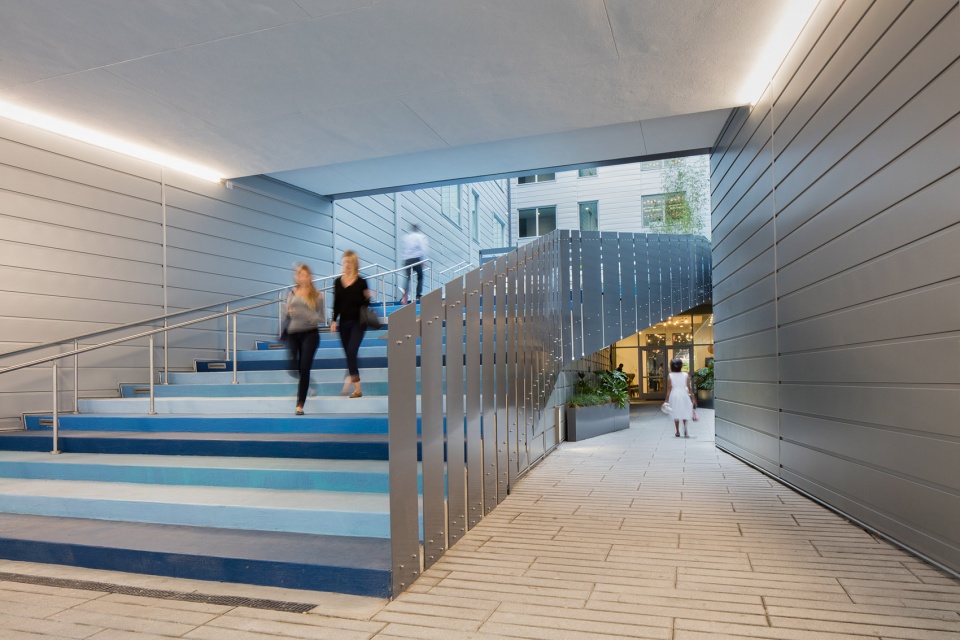

▼入口楼梯将公共与私人入口彼此隔开，The entry stairs separates the public and private entrances © Timothy Hursley

由楼梯漫步而上，映入眼帘的是一个与屋顶露台相连的高架庭院，在这里，人们可以远离商业区的浮躁与喧嚣，在享受宁静氛围的同时欣赏城市的景观。与新奥尔良传统的，作为私人聚会空间的法式内院不同，本项目中的内院则更为开放与包容。从街道入口到屋顶露台，空间衔接流畅自然，为人们提供了统一和谐的空间体验。

The procession up through the building leads guests and residents off the hustle of a thriving commercial corridor into a tranquil elevated courtyard, and provides a connection to the rooftop terrace that offers views back over the city they just escaped. Unlike the traditional New Orleans French Quarter courtyard, built as an exclusive space reserved for private gatherings, the interior courtyard within this building is designed to be open and inclusive; a way to seamlessly experience the entire space from street entrance to rooftop terrace.

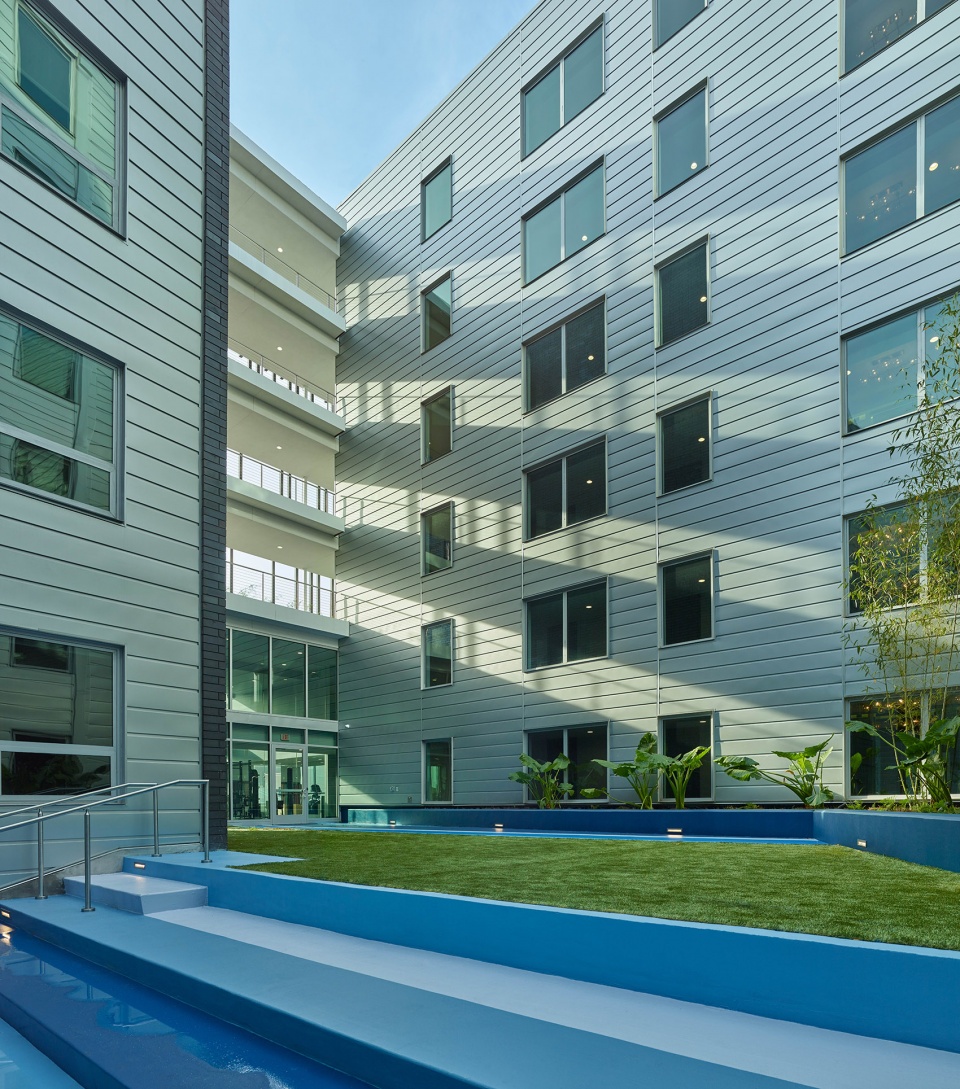

▼与屋顶露台相连的高架庭院，elevated courtyard provides a connection to the rooftop terrace © Timothy Hursley

▼由庭院看建筑，viewing the project from the inner yard © Timothy Hursley

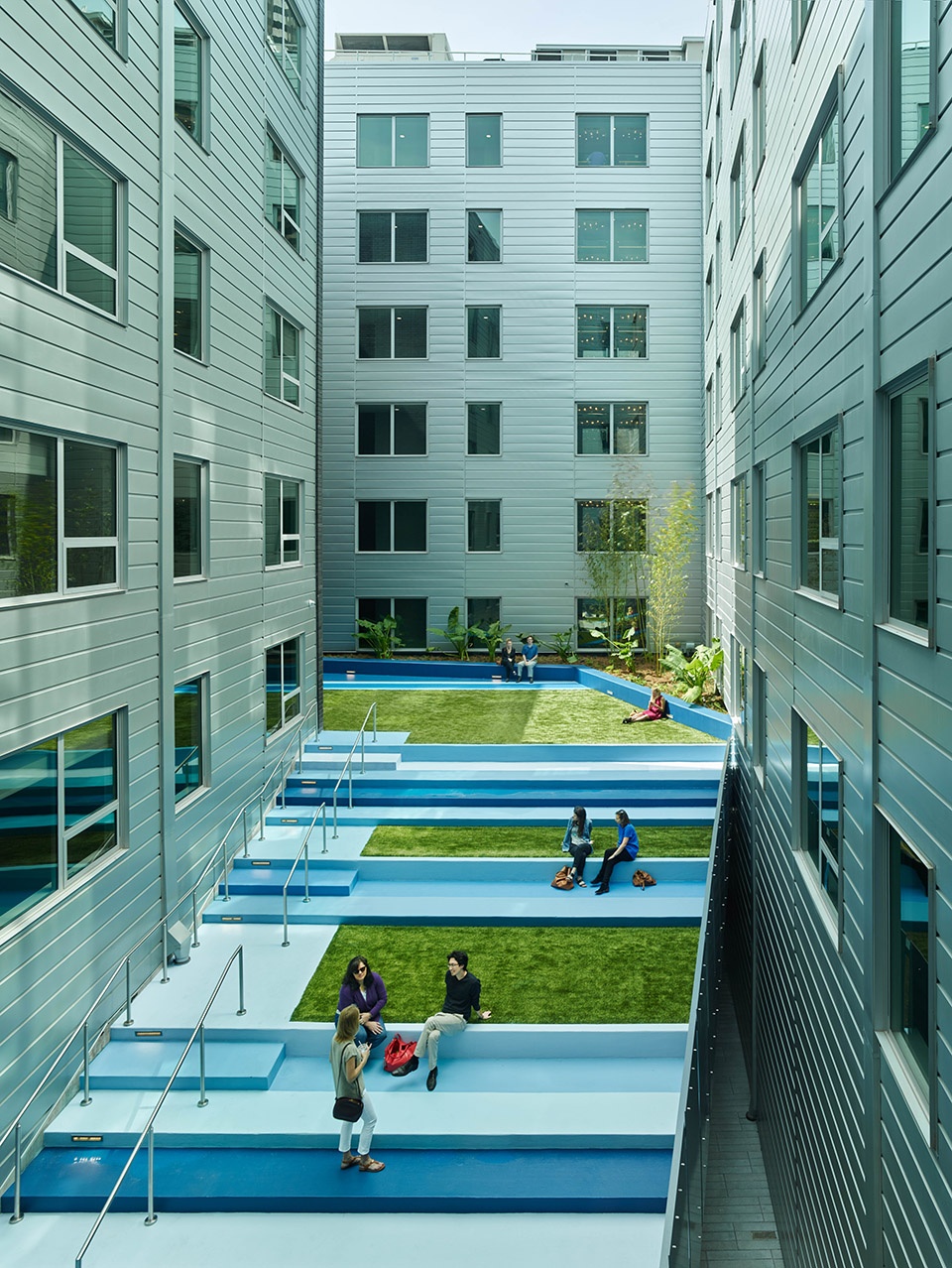

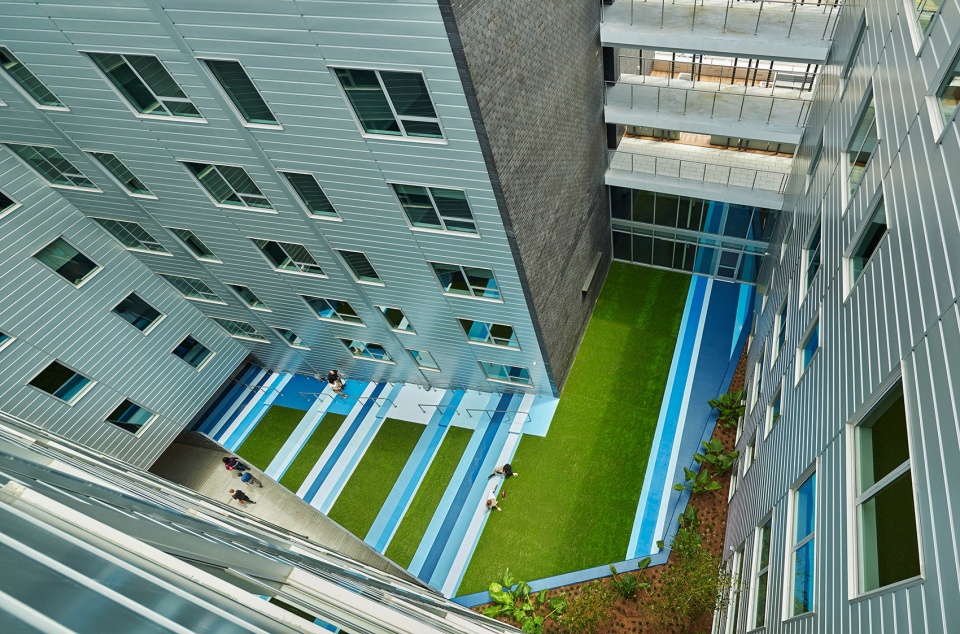

▼俯瞰庭院与露台，overlook the inner yard and the terrace © Timothy Hursley

此外，建筑师还在公寓的四层屋顶设置了一个较为私密的露台空间，包括休闲区，木制装潢的酒吧，以及宽敞开放的座位区。柔和的灰色主色调与露台周围雅致的绿植盆景共同营造出舒适的氛围，于此人们可以在一个更为亲切放松的环境中放松休闲、享受美食。这个充满现代美学气息的安静休息空间将使居民的幸福感推向高峰。

The fourth-floor terrace provides an enclosed space for guests and residents to relax, eat, and drink in a more intimate setting. Serving as the pinnacle of the resident experience, this rooftop terrace includes a lounge area, wood-paneled bar, and expansive seating areas. Surrounded by calming grey tones and tasteful vegetation, this area offers a quiet lounge with a modern aesthetic.

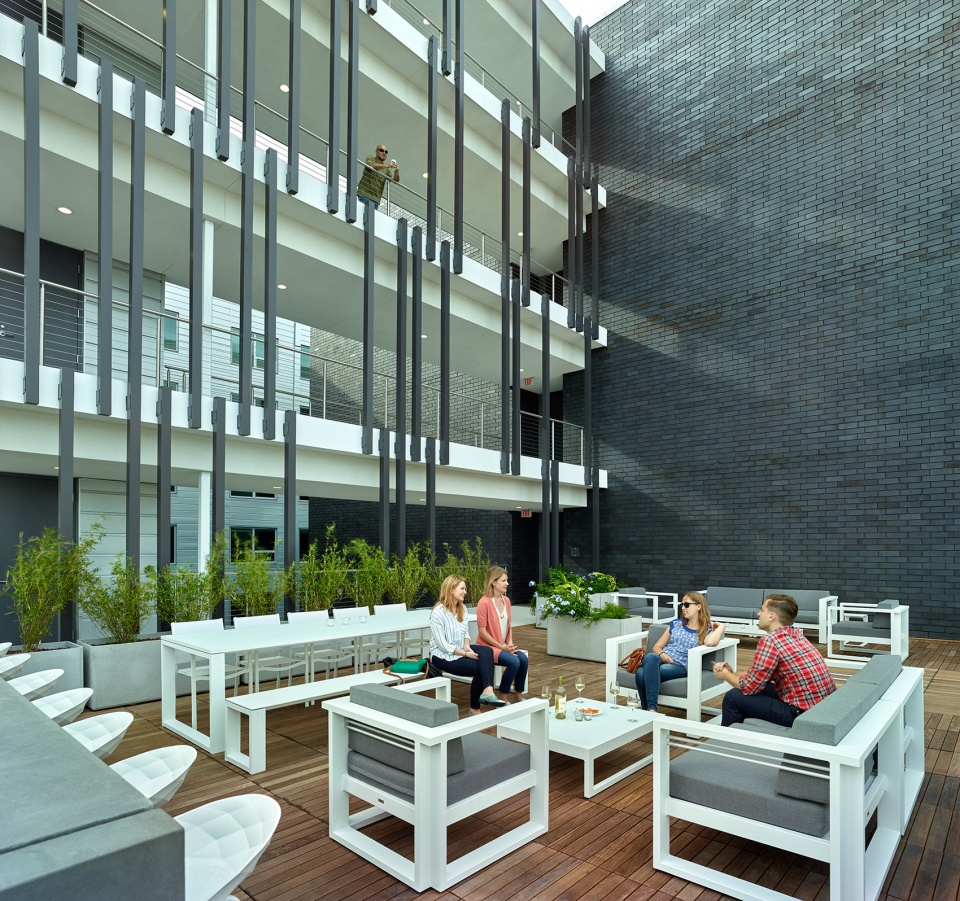

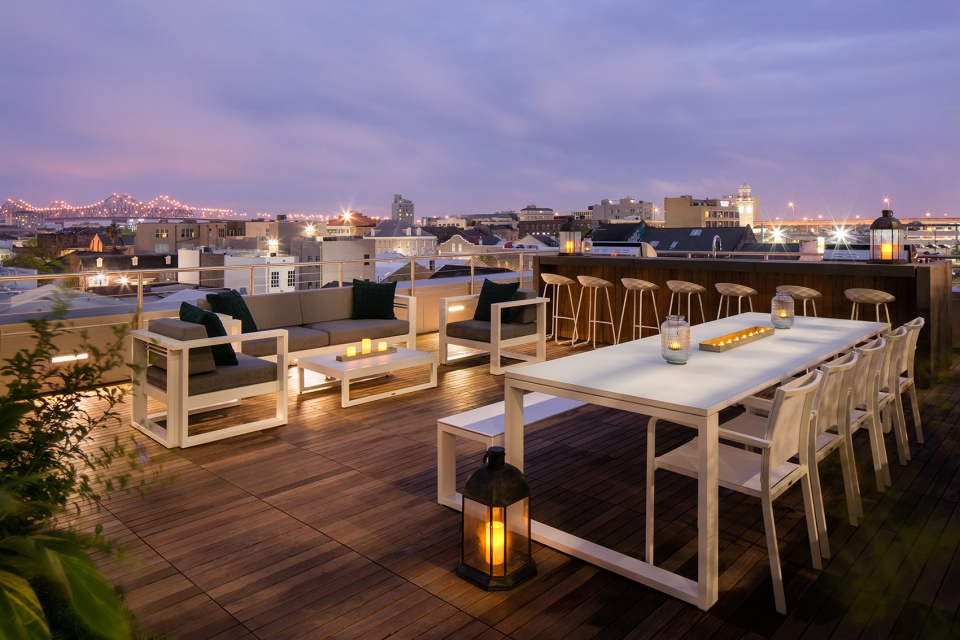

▼四层屋顶露台，the fourth-floor terrace © Timothy Hursley

▼夜景，night view © Timothy Hursley

项目的室内设计带有鲜明的当代风格与折衷主义气息，以LOFT式公寓为灵感的一居室或两居室为居民们提供了宽敞舒适的生活空间。公寓室内的色调以中性的灰白色调为主，在与项目整体风格协调的前提下，居民可以自主选择装潢的风格。公寓整体室内氛围简洁干净，设计注重细节与品质。此外，Eskew+Dumez+Ripple事务所还格外注重附属功能空间的设计，例如厨房中岛，步入式衣橱以及全尺寸浴室等，旨在提高空间利用率，营造出更加宽敞的居住体验。

Offering contemporary, loft-inspired and spacious one- and two-bedroom floor plans, the interior blends contemporary style with eclectic taste. The design sought to provide a neutral palette of grays and whites for residents to customize while keeping with the overall building design; a clean and welcoming space enhanced by a focus on detail and texture. Additional attention was paid to items like kitchen islands, walk-in closets, and full size bathrooms to give the space a larger feel while maintaining a compact unit footprint.

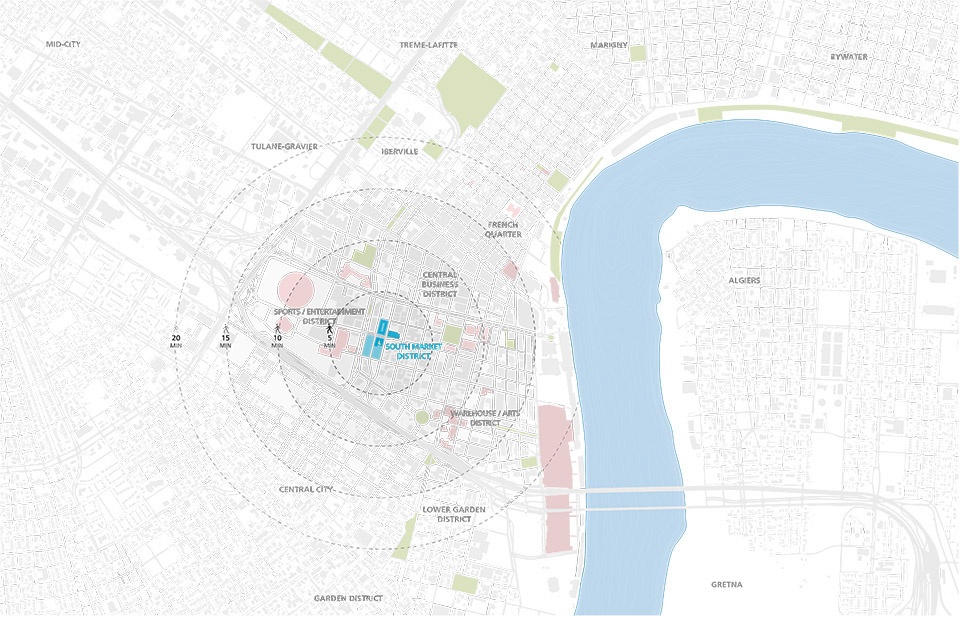

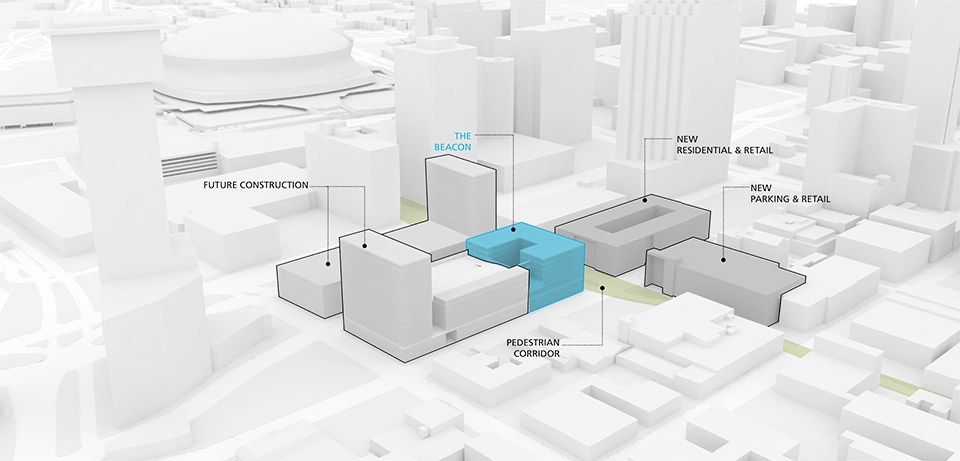

▼区位图，location plan © EskewDumezRipple

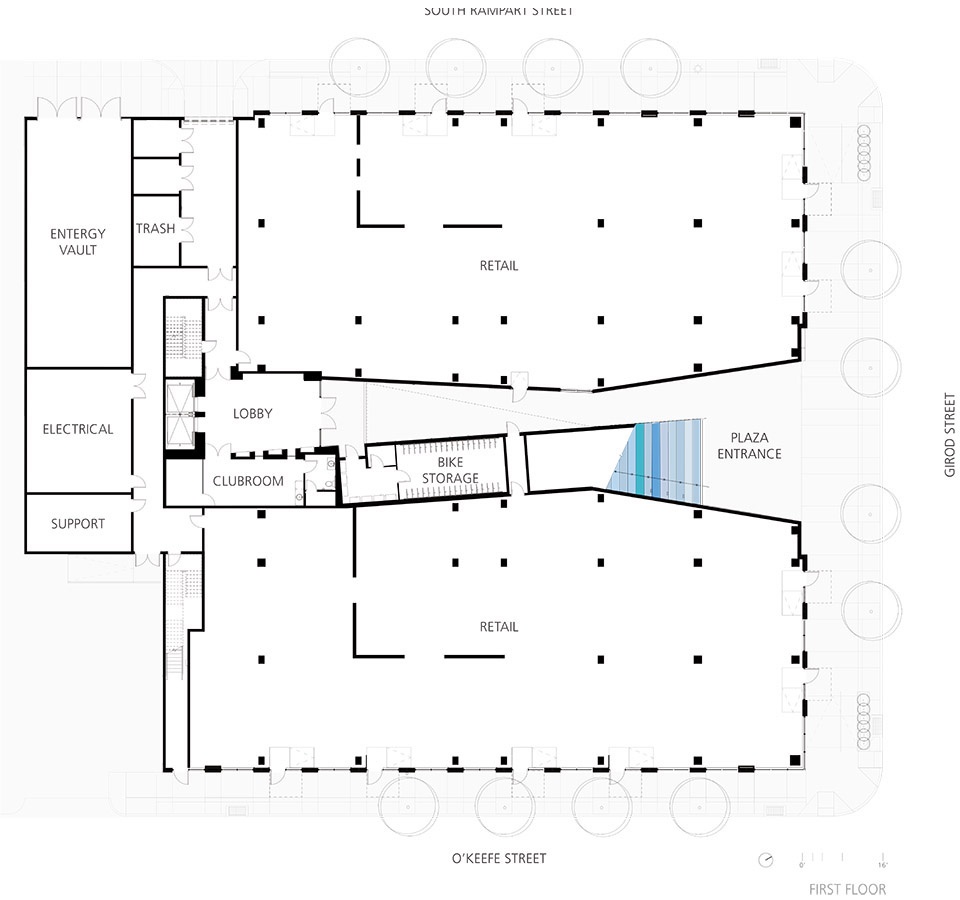

▼底层平面图，ground floor plan © EskewDumezRipple

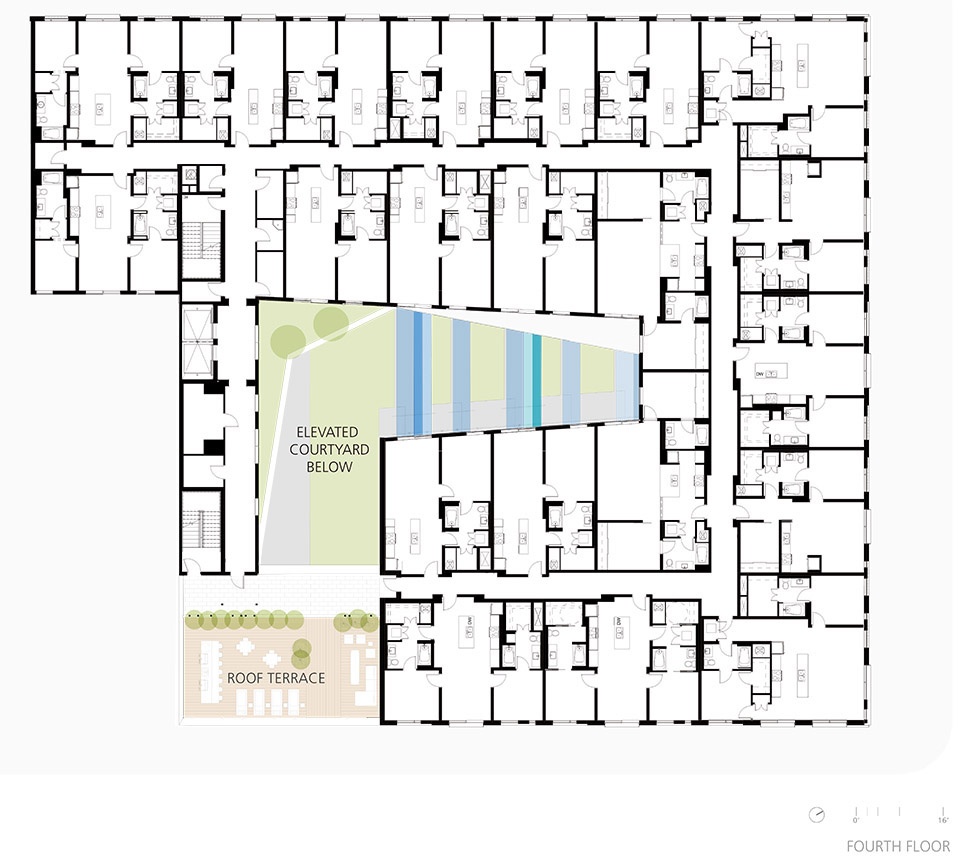

▼四层平面图，fourth floor plan © EskewDumezRipple

Location: New Orleans, Louisiana

EskewDumezRipple project team:
Steve Dumez, FAIA
Jose Alvarez, AIA, LEED AP
Hussein Alayyan, LEED AP BD+C
Wendy Kerrigan, AIA

Project consultant team:
EskewDumezRipple (Architecture and Interiors)
Spackman Mossop+Michaels (Landscape Architect)
Woodward Engineering Group (Civil & Structural Engineering)
Pontchartrain Mechanical (Mechanical Engineering)
Northside Electric Inc. (Electrical Engineering)
Woodward Design+Build (General Contractor)
