感谢 空间站建筑师事务所 予gooood的分享以下内容。更多请至：SpaceStation on gooood
Appreciation towards SpaceStation for providing the following description:

MONOLOGO （谟农咖啡）的选址在北京751园区的工业景观保护区内。南侧的炉罐区得以完整保留，西侧与园区主路之间是一片开阔的场地。

▼项目视频，viewing the project from the street © 空间站建筑师事务所

MONOLOGO (Monong Coffee) is located in the industrial landscape protection area of Beijing’s 751 Park. This site includes a furnace tank area on the south side of the original 751 plant which has been wholly preserved, while a vast open space spreads between the west side and the main road cutting through the park.

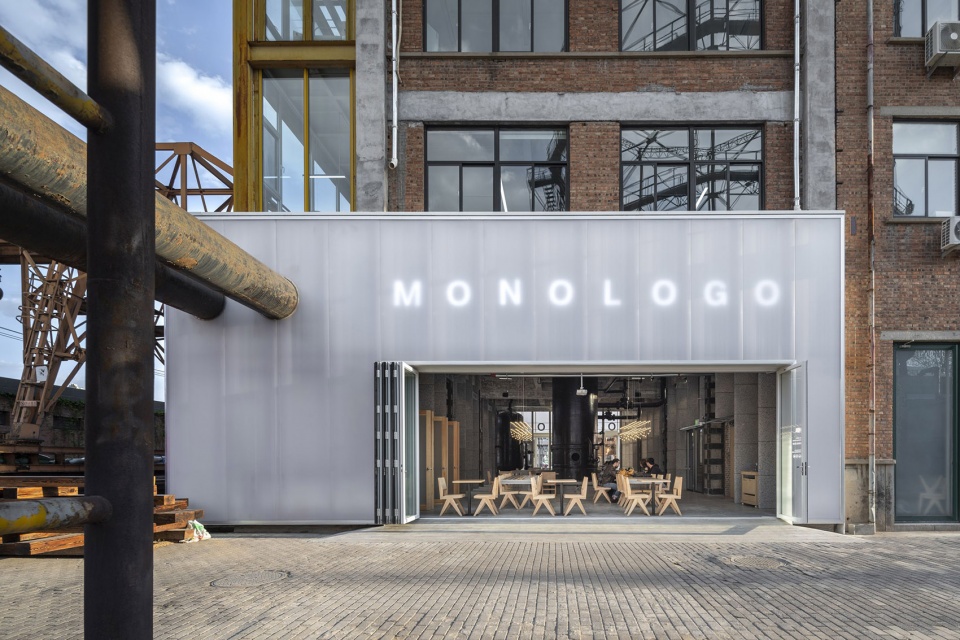

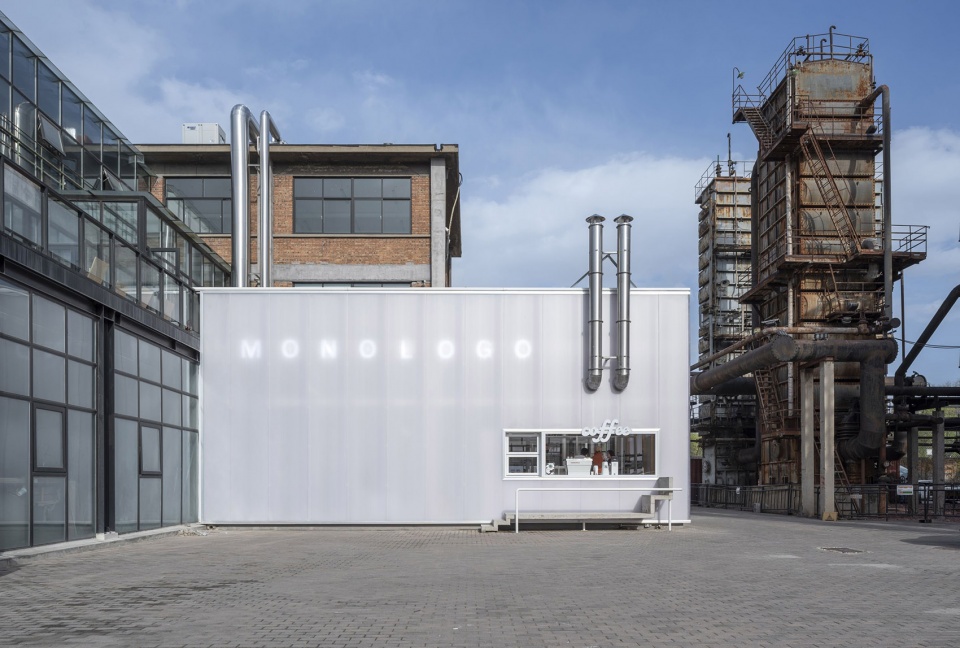

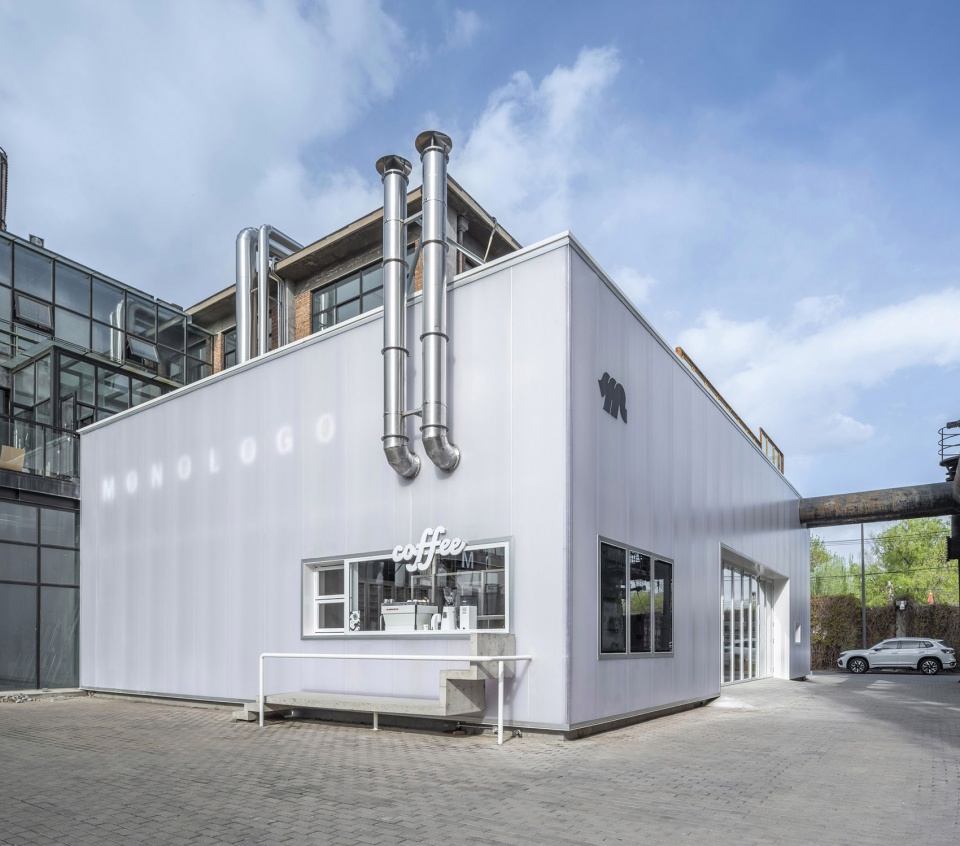

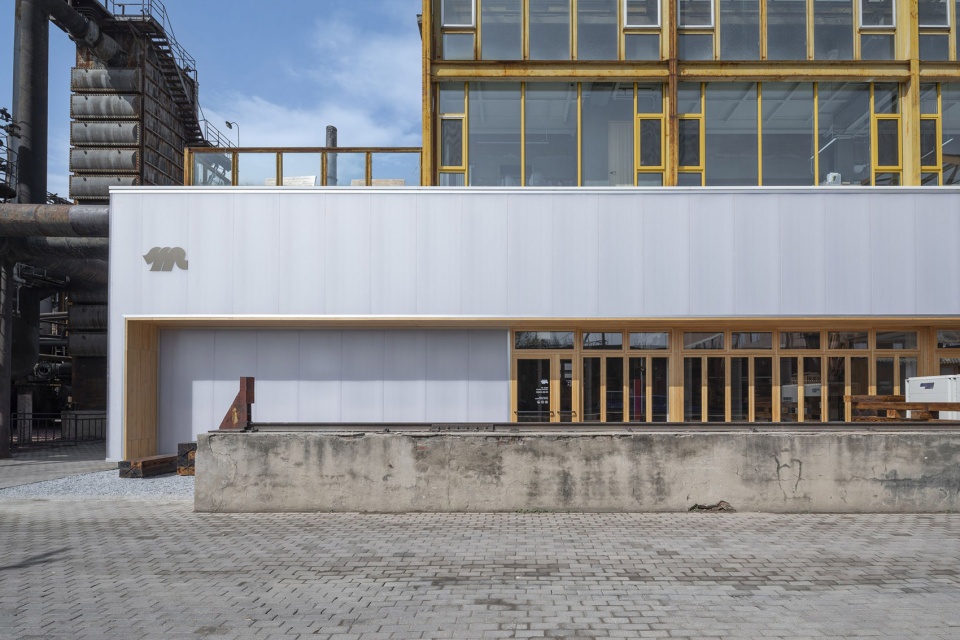

▼店面外观，appearance of the store © 空间站建筑师事务所

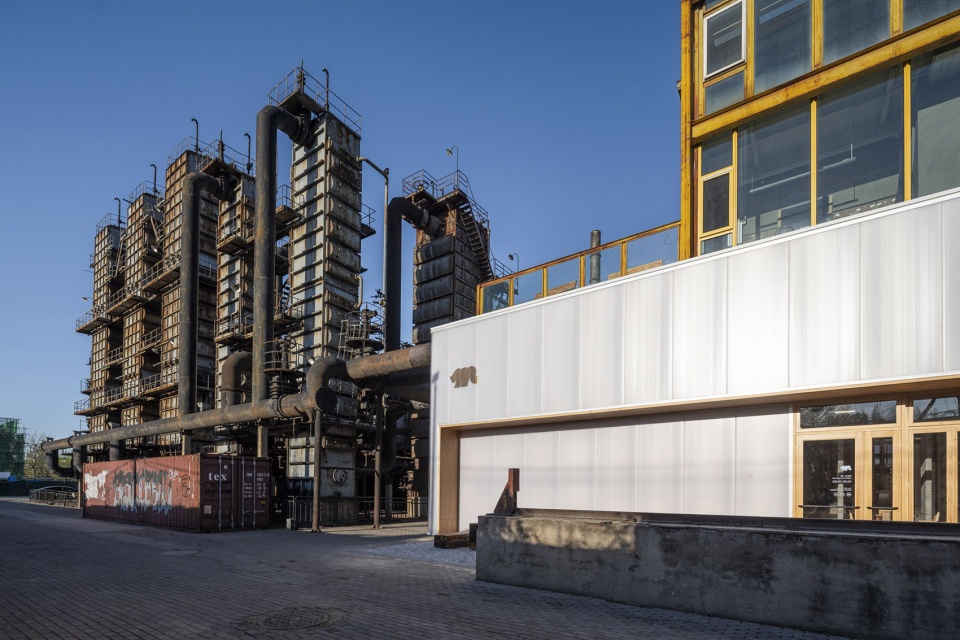

▼店面与邻近的工业遗址，storefront with adjacent industrial heritage © 空间站建筑师事务所

▼取餐口，takeaway window © 空间站建筑师事务所

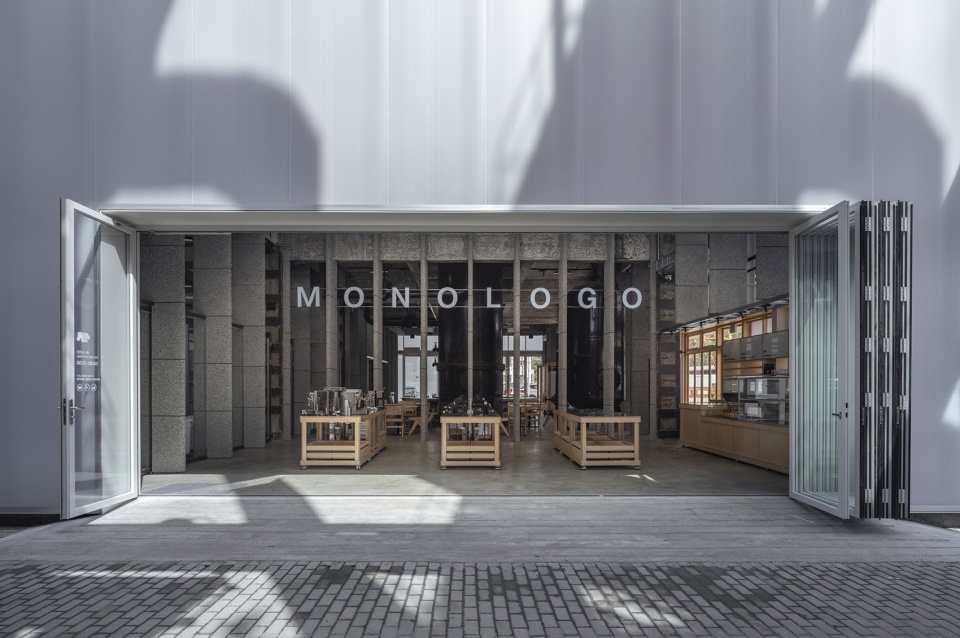

▼入口区域概览，overview of the entrance area © 空间站建筑师事务所

基地核心部分是一栋混凝土框架结构的厂房，建于上世纪七十年代。场地中央保留了三个大型炉罐。厂房东南西三面分两次加建了黄色和黑色两处钢结构的部分。我们这次的改造可以算作这个场所的第四次“生长”。我们希望前三次的记忆能被完整的保留下来，并通过这次的方案将它们串联成一个完整的故事。

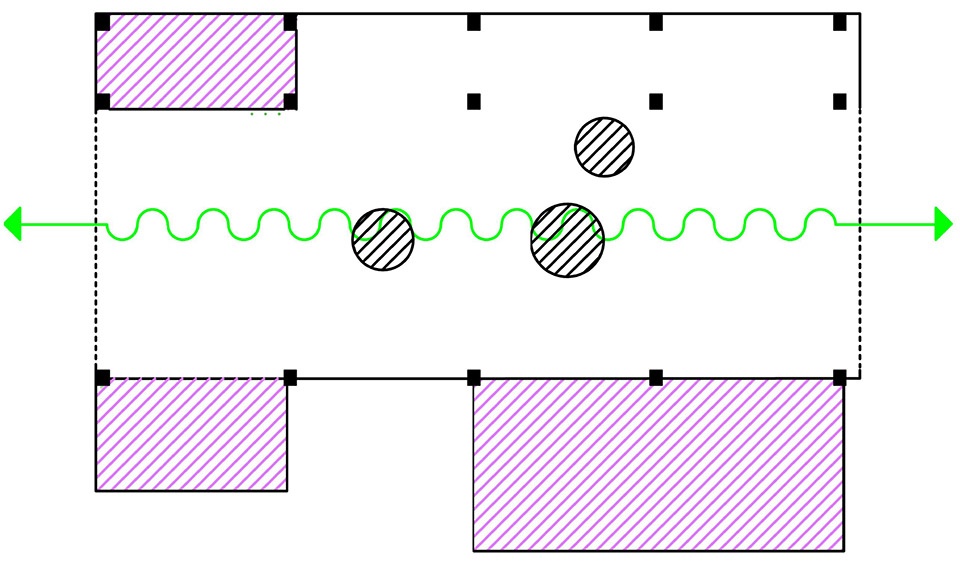

▼设计概念，concept drawing © 空间站建筑师事务所

The core part of the site is a factory building with a concrete frame structure dating back to the 1970s. Three imposing furnace tanks are preserved in the center of the site. Two yellow and black steel structures were added to the south, east and west corners of the plant in two separate occasions. Our renovation project should be counted as the fourth “extension” of the site. We hope that memories of former interventions may be fully preserved, and through this project, they will eventually be connected into a cohesive narrative.

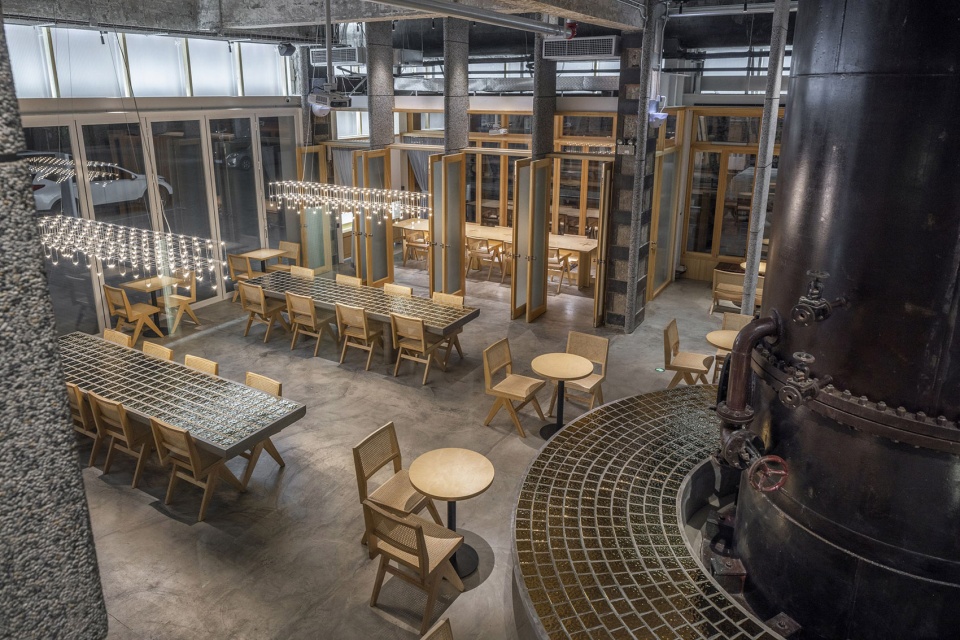

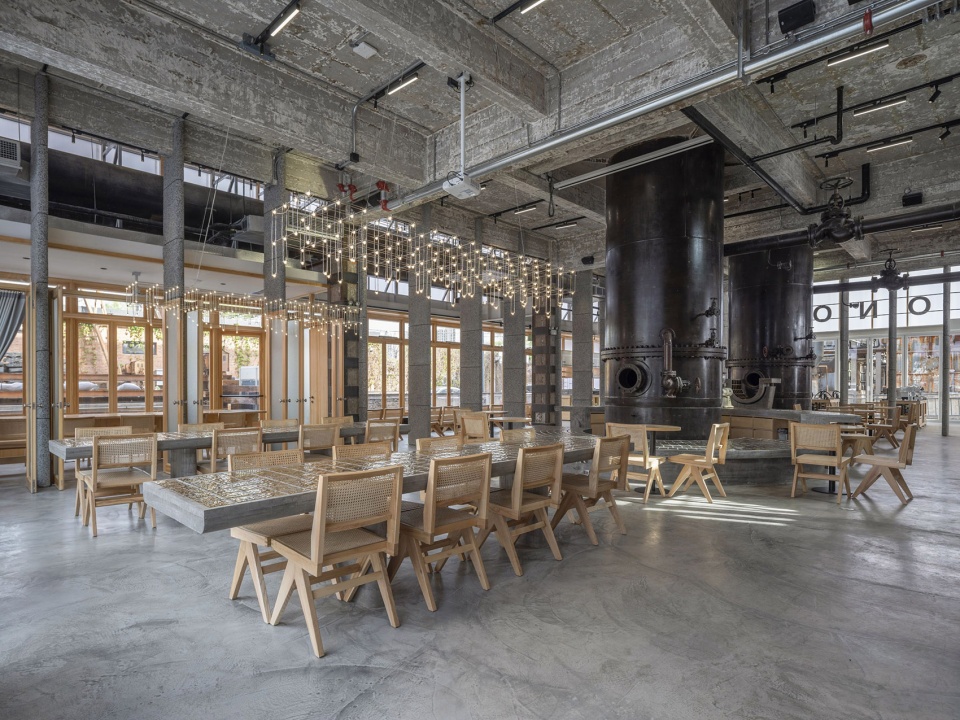

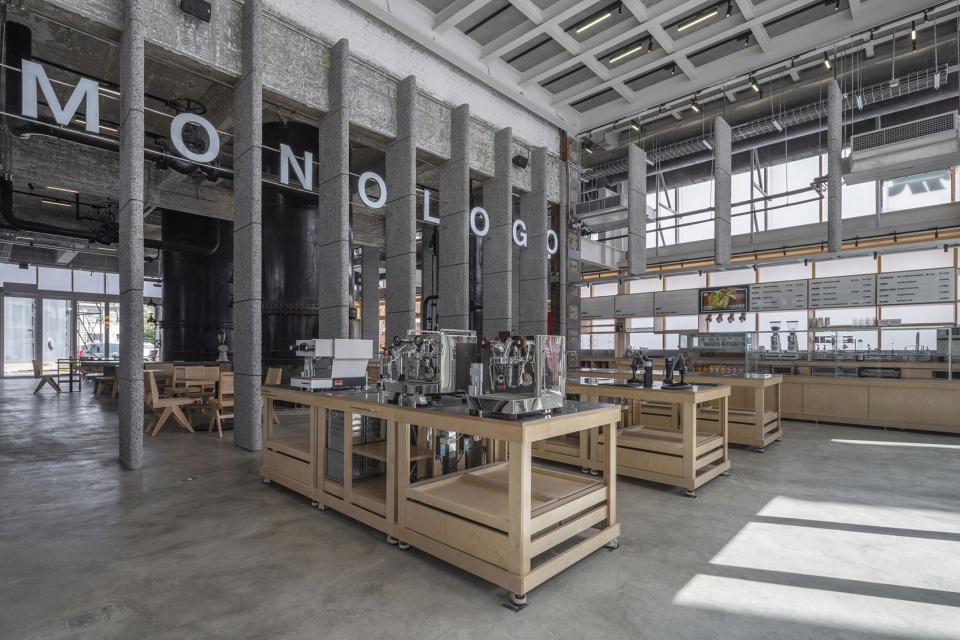

▼室内概览，interior overall © 空间站建筑师事务所

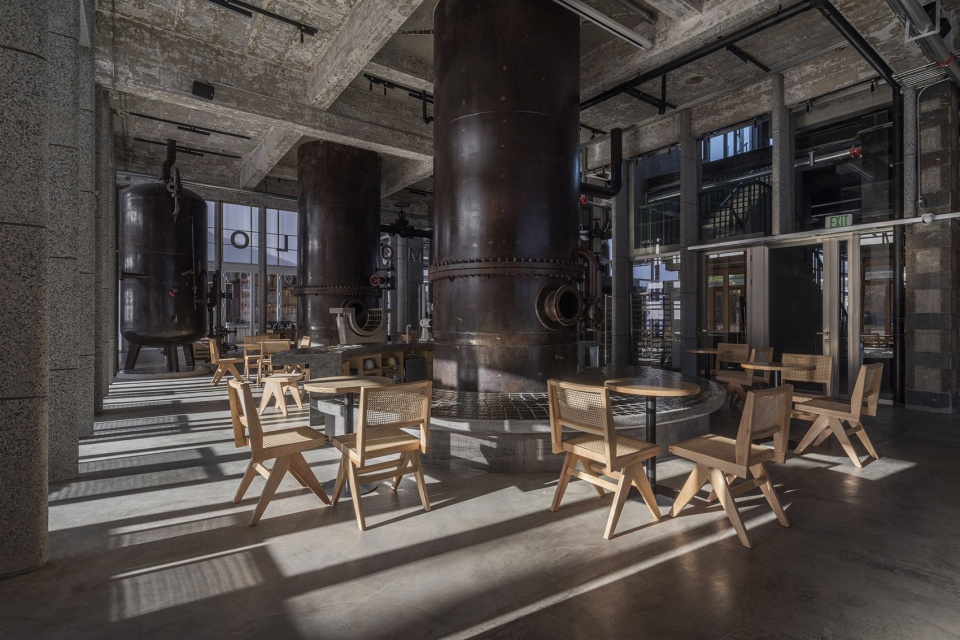

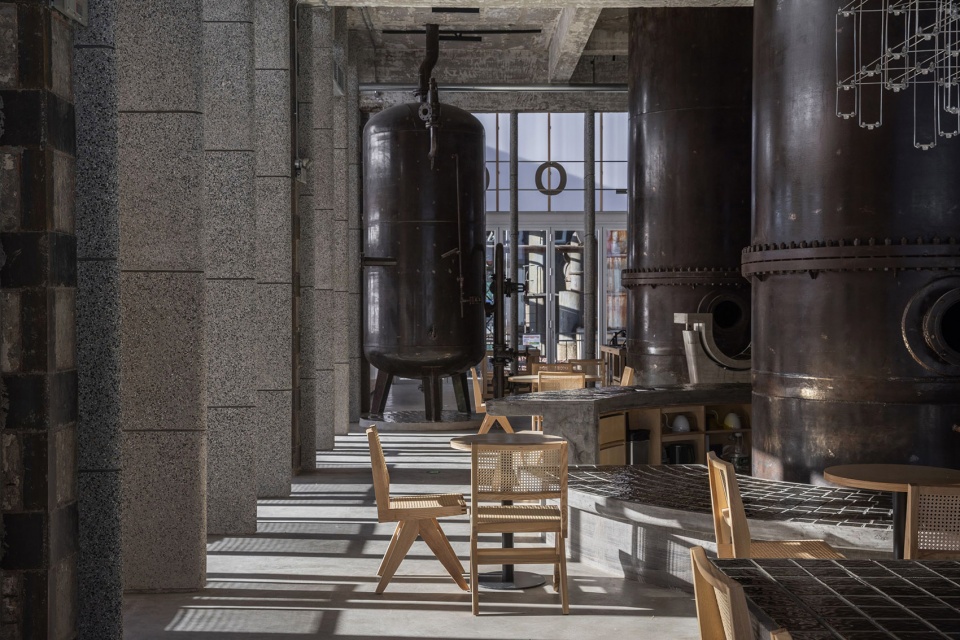

▼场地中央保留了三个大型炉罐，three imposing furnace tanks preserved in the center of the site © 空间站建筑师事务所

我们首先用三种材料为三部分的空间分别设计了一套家具：为炉罐区设计了镶嵌金色瓷砖的混凝土家具，为黄色钢结构区域设计了桦木多层板家具，为黑色钢结构部分设计了不锈钢的厨房家具。三套家具加强了三个部分不同的场所体验，有时代感的材料与构造做法让也体验者易于发现新与旧的区别。

Firstly, we designed a set of furniture allocating distinctive materials for each of the three sections of the site: concrete furniture inlaid with golden tiles for the furnace tank area, birch plywood furniture for the yellow steel structure area and stainless-steel kitchen furniture for the black steel structure section. A trio of furniture highlights and diversifies experiences of the site, materials and construction methods imbued with an awareness of time make it easy for visitors to spot the difference between old and new.

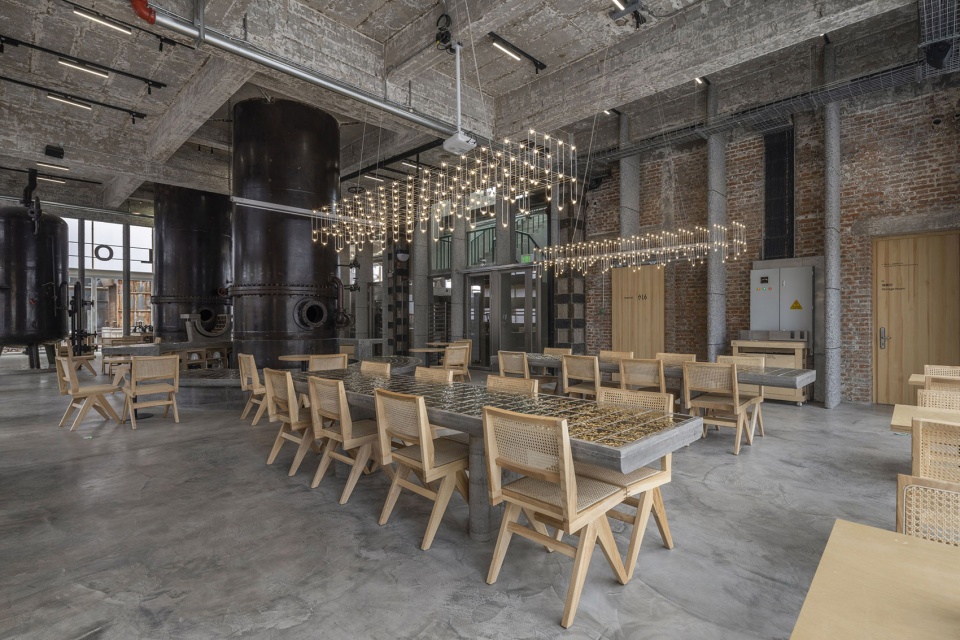

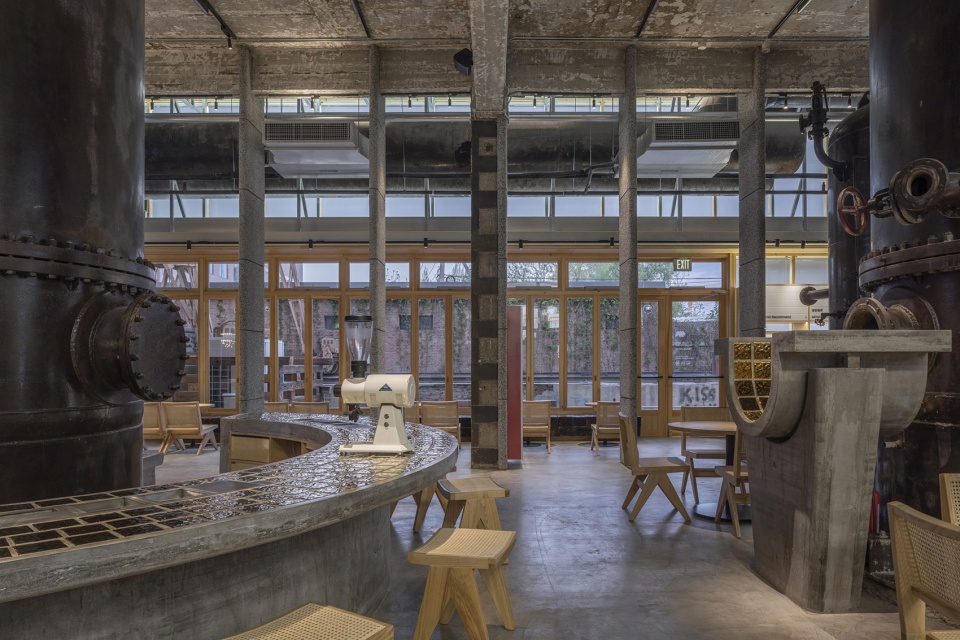

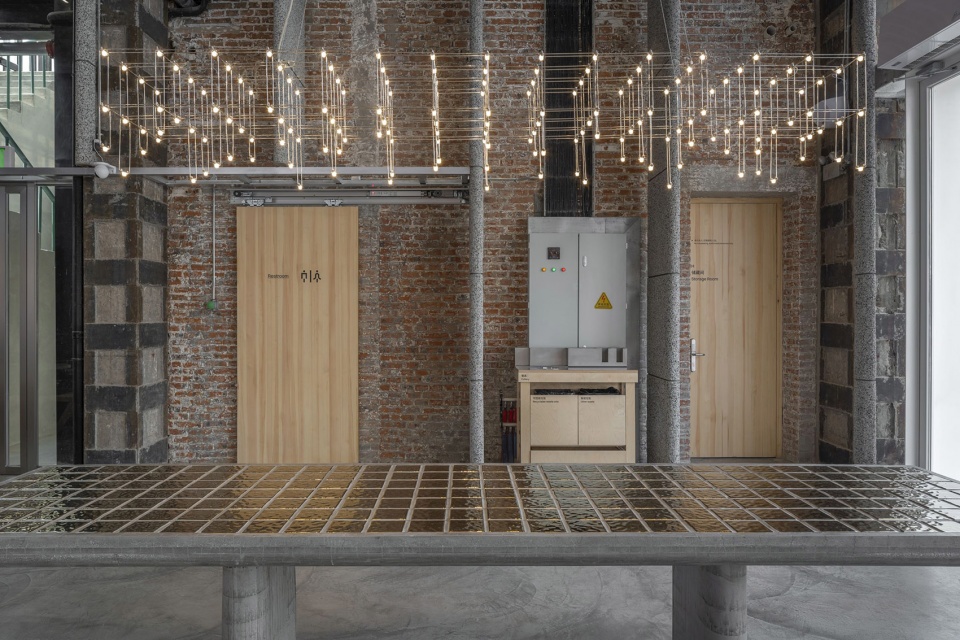

▼炉罐区设计了镶嵌金色瓷砖的混凝土家具，concrete furniture inlaid with golden tiles for the furnace tank area © 空间站建筑师事务所

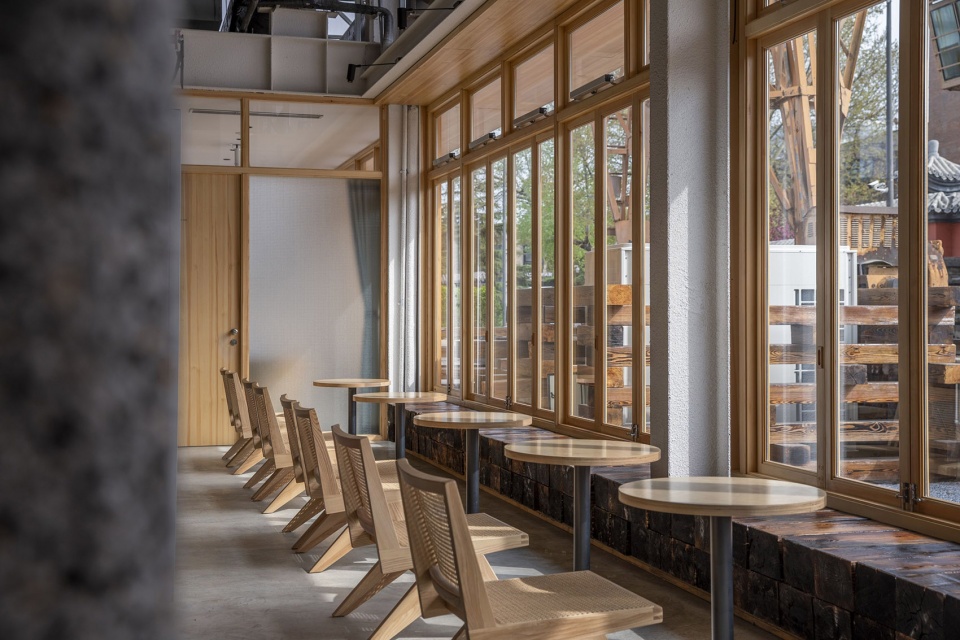

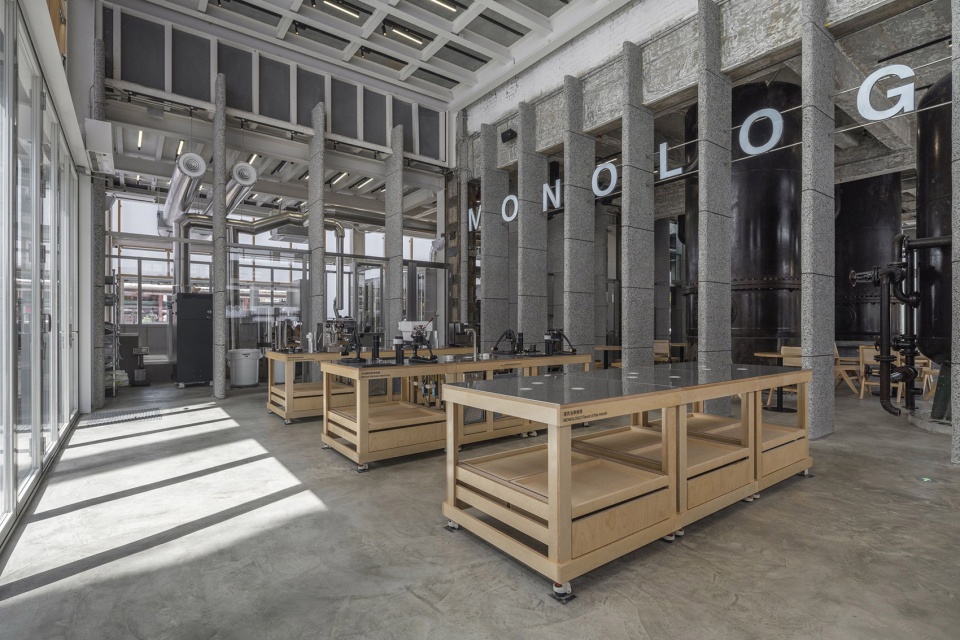

▼桦木多层板家具，birch plywood furniture © 空间站建筑师事务所

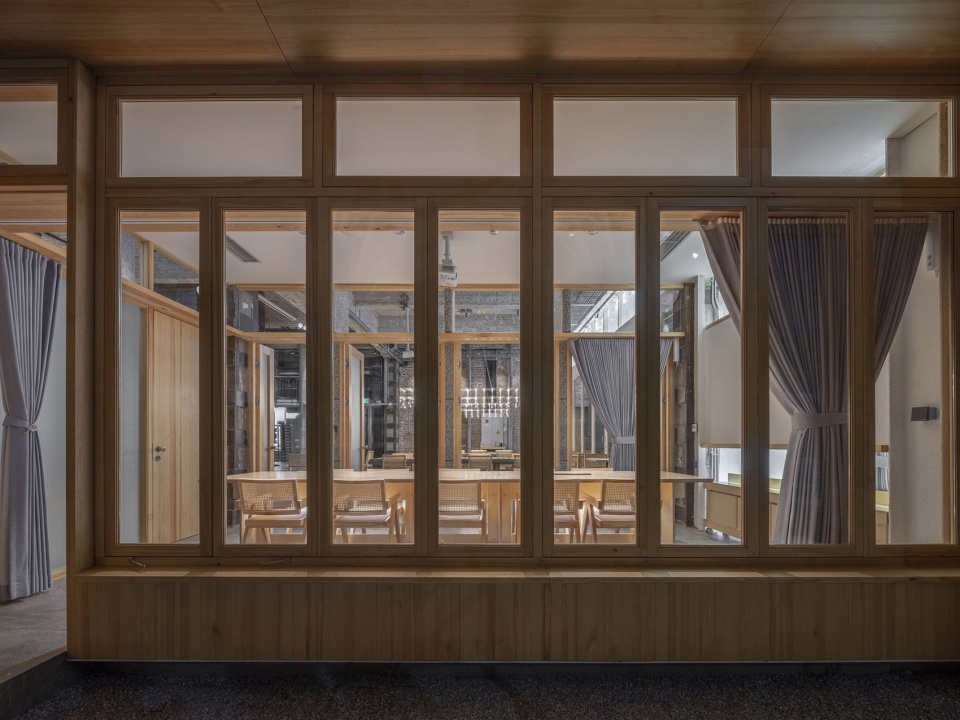

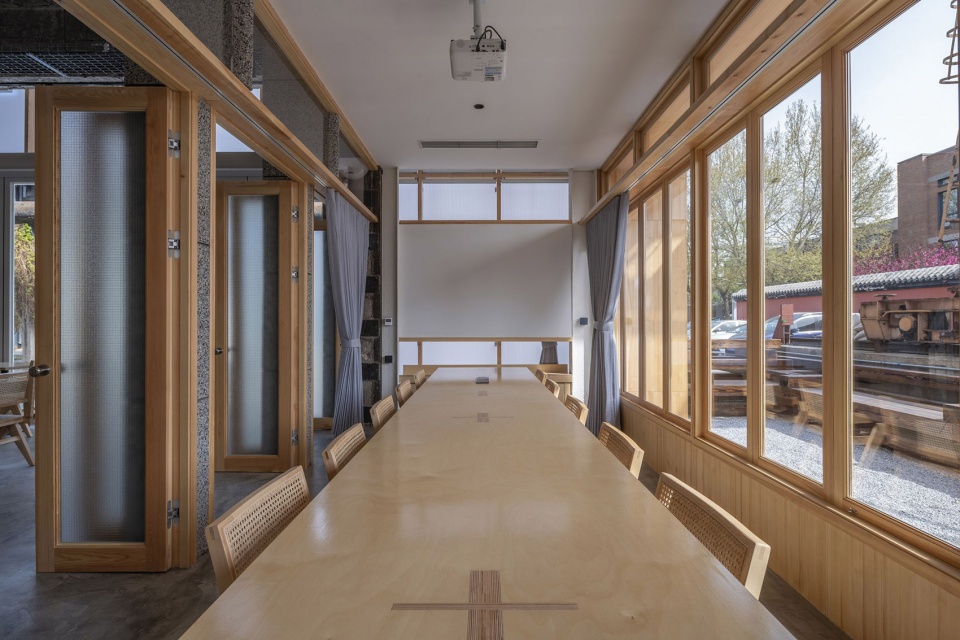

▼包间，VIP room © 空间站建筑师事务所

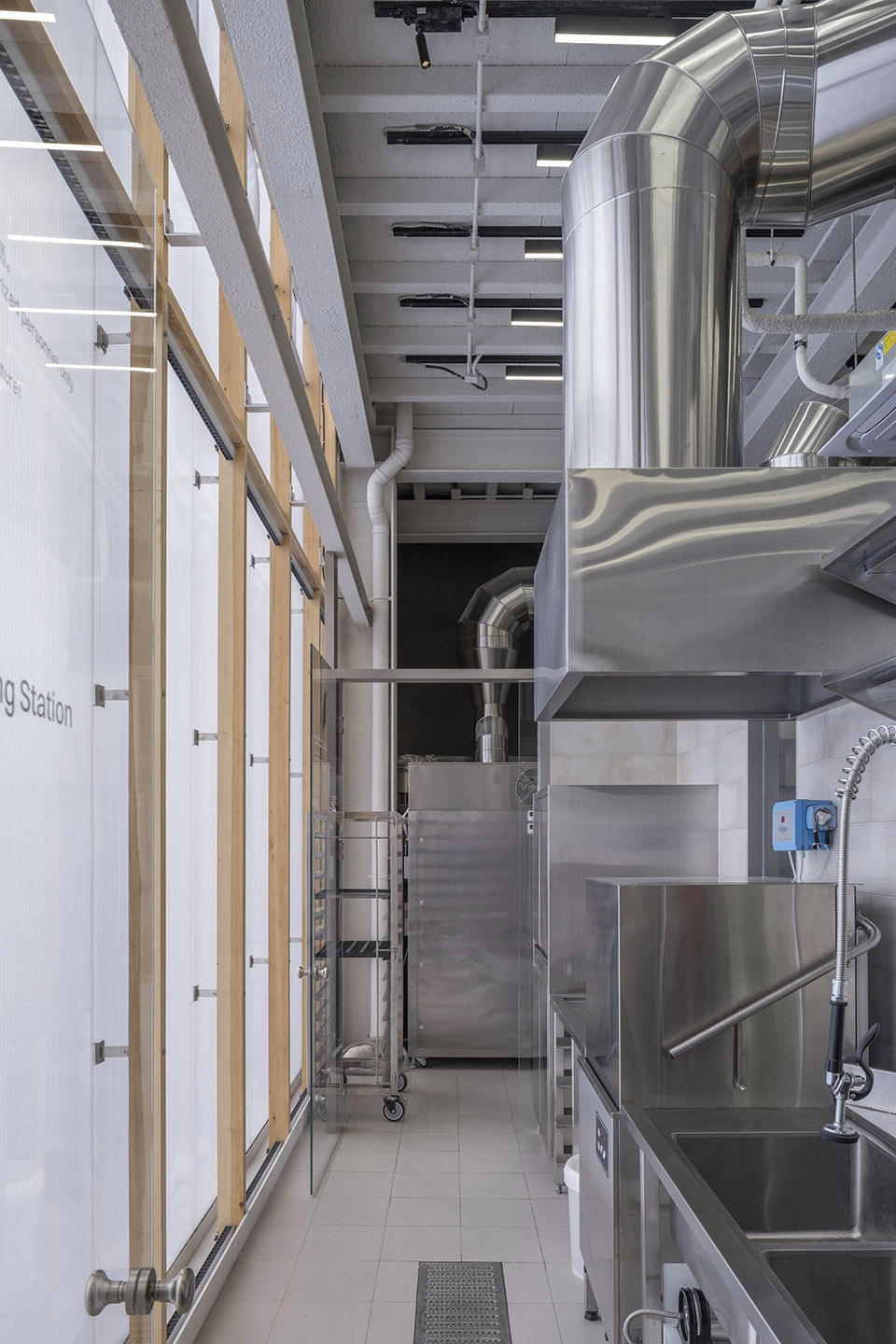

▼厨房内的不锈钢家具，stainless-steel kitchen furniture © 空间站建筑师事务所

第二步，我们在三个部分的交界处安放了三排细长的“扁柱”，穿针引线，将这三部分重新“缝合”在一起。扁柱能将两侧的自然光进行过滤，使核心空间的光线更加柔和。人们在空间漫步时，视线被局部的遮挡，随着行走视点的变化，遮挡与通透不断地进行交替，形成了丰富的层次感。空间因此产生了引导性，鼓励客人去体验和发现。透过扁柱的间隙，客座区的客人可以看到整个烘焙和后厨的区域，看到咖啡制作和食物加工制作的全过程。

In a further step, we intersected three rows of slender “flat columns” at the junction of the three sections, thus threading a metaphorical needle, we tied them together in a knot. Flat columns can filter natural light on both sides, softening light in the core area of the site. When people walk into our space, their sightline line is partially blocked. With shifts in walking viewpoint, effects of shielding and transparency are constantly alternating, establishing a sense of rhythm and layer. The space thus becomes truly “compelling”, encouraging guests to roam around and be a part of it all. Through gaps between the flat columns, visitors in the guest seating area can see the entire baking and kitchen area and witness the whole process of coffee making and food processing.

▼细长的“扁柱”作为不同空间的过渡，rows of slender “flat columns” at the junction of the different sections © 空间站建筑师事务所

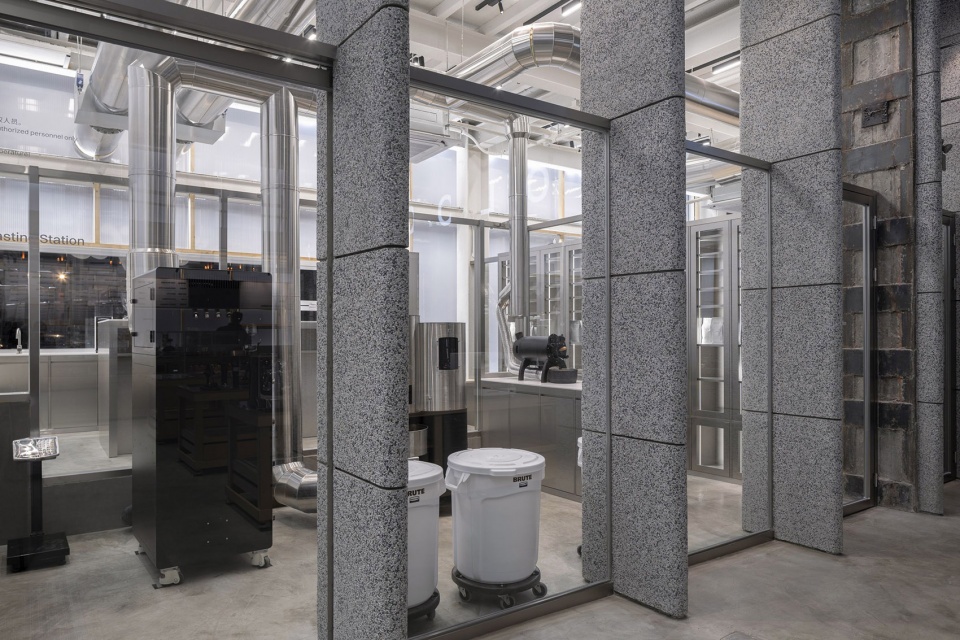

▼透过扁柱的间隙可以看到整个烘焙和后厨的区域， visitors can see the entire baking and kitchen area through gaps between the flat columns © 空间站建筑师事务所

第三步是用一个纯白色的“外套”将这三部分包裹成一个完整的方盒子。白色半透明的聚碳酸脂板立面非常纯净，从外部看不到任何框材结构，白天可以将自然光引入，晚上的灯光还可以穿透到外部。带有一点临时感的姿态与周围的工业景观保护区形成了有趣的对话。

The third phase was to integrate these three parts into a square box wrapped in a pristine white “coating”. A translucent polycarbonate board façade acts like a smooth coating though which no frame structure can be seen from the outside. Natural light can seep in at daytime, while illumination from the interior filters out at night. This slightly temporary gesture forms an interesting dialogue with surroundings explicitly bent to the preservation of industrial landscape.

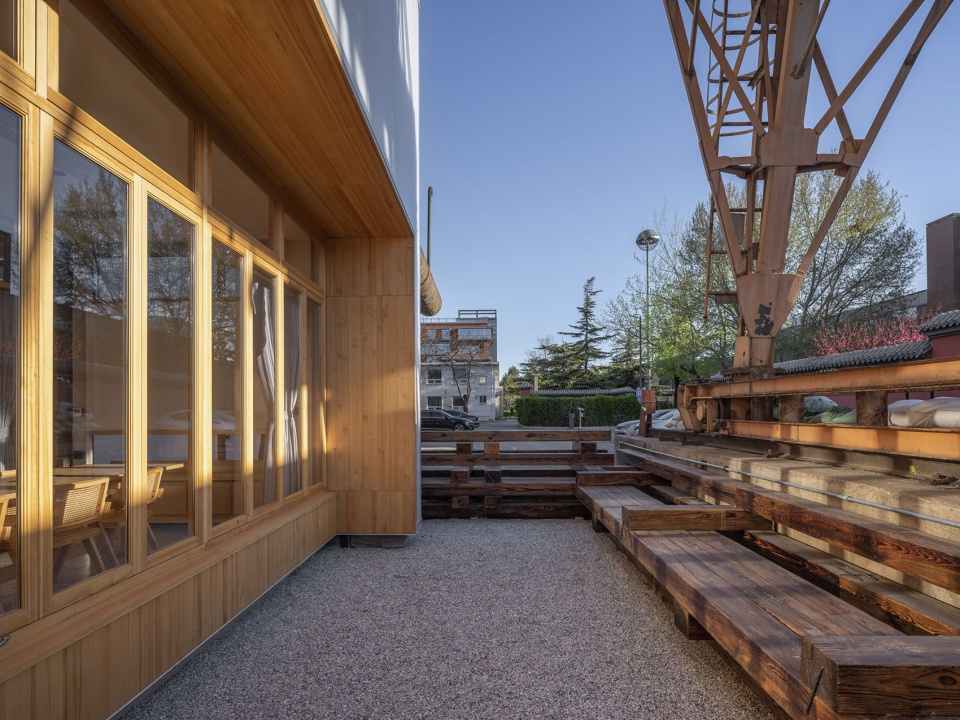

▼包间花园，VIP room garden garden © 空间站建筑师事务所

▼从花园望向包间，looking VIP room from outdoor garden © 空间站建筑师事务所

咖啡馆是一种城市公共空间。MONOLOGO的室内空间高大空旷，其中伫立着纪念碑式的炉罐，两侧高大的柱列加强了空间的纪念性，进入的瞬间宛如走进一座上个世纪的遗迹。南北两侧的立面被设计为可以完全敞开，室内空间可以切换为有咖啡座的城市广场。

Furthermore, we believe that a café is meant to be a kind of urban public space. MONOLOGO’s high-ceilinged, spacious interior is graced with a monumental furnace tank, tall columns on both sides emphasize the celebratory air of the place, entering it instantly feels like stepping into a memorial to the last century. The façades on the north and south sides are designed to be completely open, and the interior space can be switched to an urban square with coffee seats.

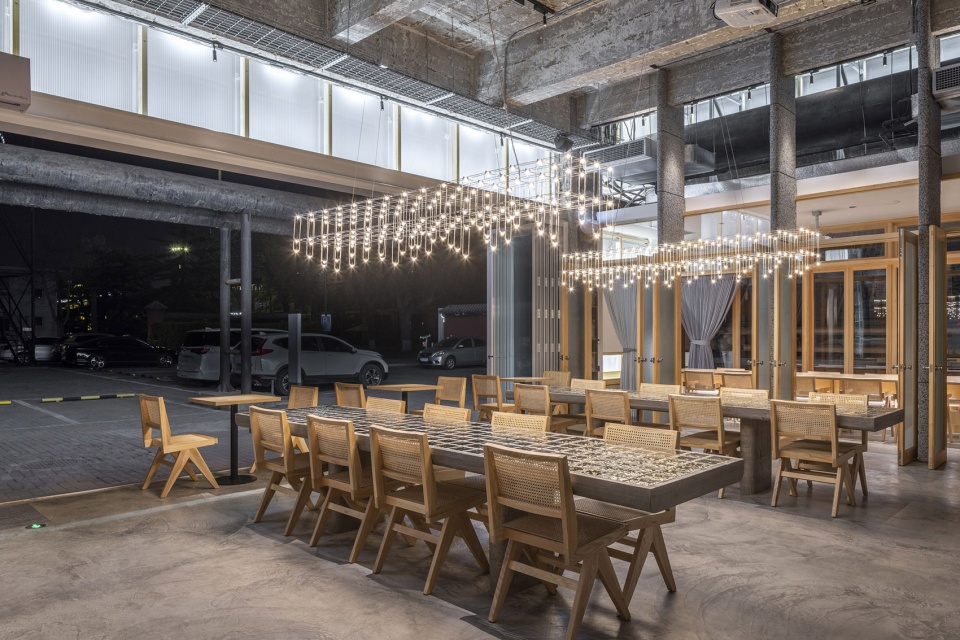

▼完全敞开的就餐区，the completely open dining area © 空间站建筑师事务所

我们在空间的顶部紧贴楼板布置了均匀的条型灯。这种朴素的布光使得室内光线的效果与自然光非常接近。光线把空间中每一件物品，包括顶部的管线与设备全部照亮，弱化了内与外的区分，同时也赋予了空间中所有元素以同等的尊严。

Lastly, we applied uniform strip lights onto the ceiling slabs. This simple lighting arrangement makes the effect of indoor lighting very close to natural light. Light illuminates every item, including pipelines and equipment on the top, blurring the distinction between interior and exterior, thus endowing all elements in the space with equal dignity.

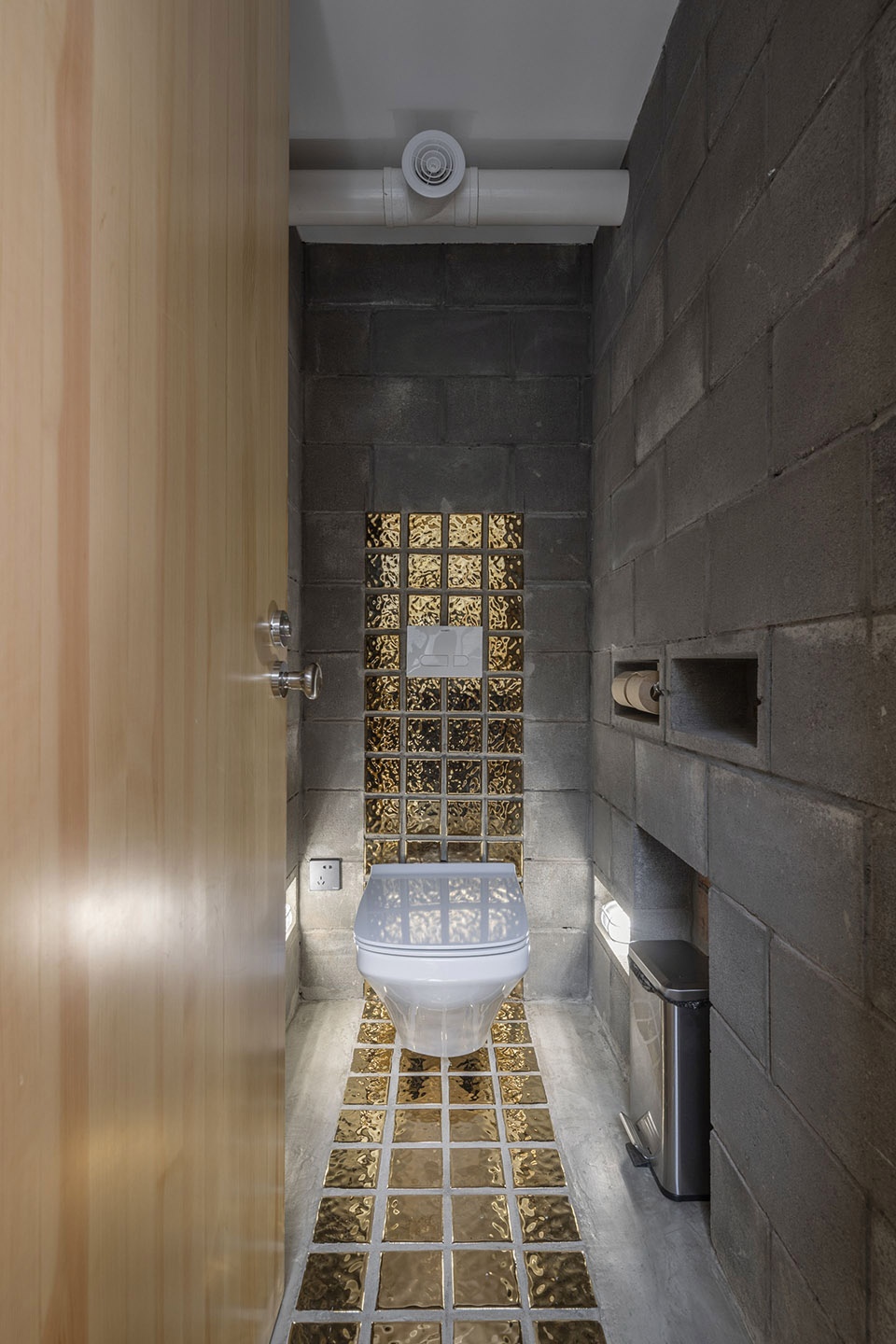

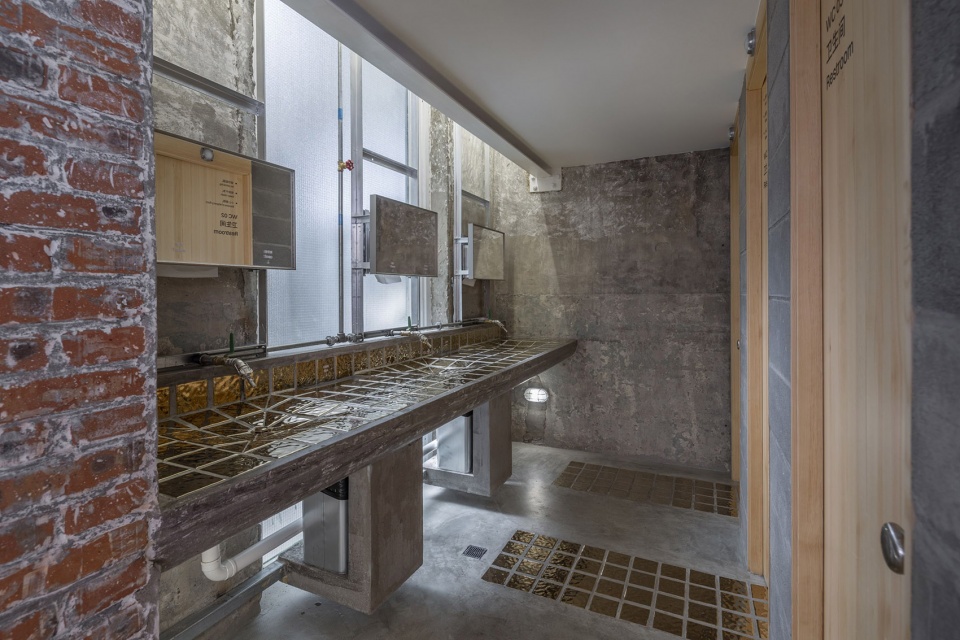

▼卫生间，the restroom © 空间站建筑师事务所

▼卫生间内部概览，the restroom interior overall © 空间站建筑师事务所\

▼卫生间细节，detail of the toilet © 空间站建筑师事务所

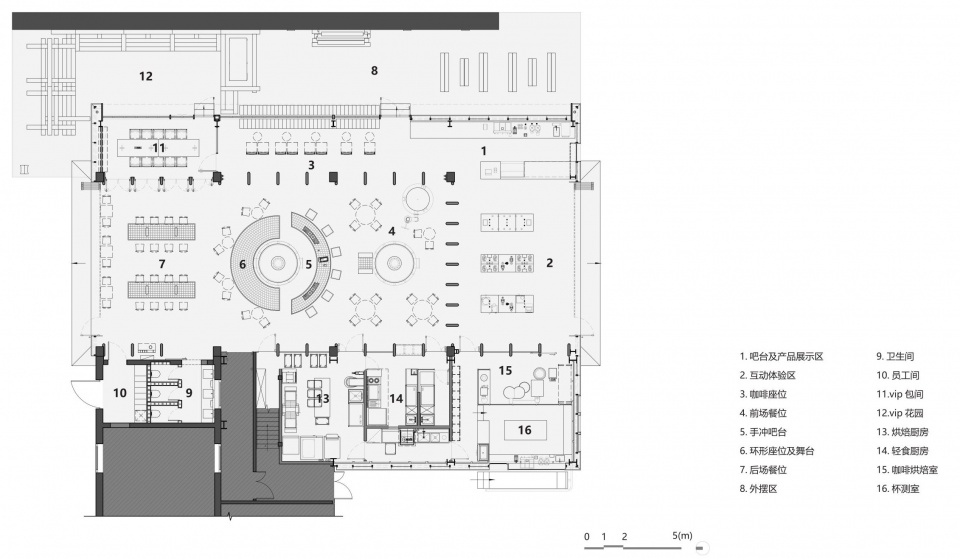

▼平面图，plan © 空间站建筑师事务所

项目名称：谟农咖啡
设计：空间站建筑师事务所
公司网站： www.spacestationarchitects.com
联系邮箱： contact@spacestationarchitects.com
项目设计 & 完成年份 “设计：2022年4月-2022年10月
施工完成：2023年4月”
项目地址：北京市朝阳区
建筑面积： 375平方米
摄影版权：空间站建筑师事务所
主创设计师：汪铮
项目负责人：杨杰
设计团队：向怀志、陆娟
施工图负责人：许辉
商业模式咨询：凹凸合作社
给排水设计：张沙
暖通设计：卢芊
电气设计：闫天雄
后厨设计：北京东邦御厨科技股份有限公司
工程技术负责人：张兵
工程项目经理：吴晓峰
工程现场负责人：陆其中
工程电气负责人：从向阳
甲方项目管理：王南南
合作方 “施工单位:北京海汀顿建筑设计工程有限公司
摄影：金伟琦”

Project name: MONOLOGO Coffee
Design: SpaceStation
Website: www.spacestationarchitects.com
Contact e-mail: contact@spacestationarchitects.com
Design year & Completion Year：April,2022 – October,2022
construction Finished：April,2023
Project location ChaoYang District, Beijing, China
Gross Built Area (square meters) 375 square meters
Photo credits SpaceStation
Leader designer: WANG Zheng
Project principal：YANG Jie
Design Team：XIANG Huaizhi，LU Juan
Construction drawing principal：XU Hui
Business Model Consulting：HowTo Consulting Co.,Ltd
Water Supply and Drainage Engineering：ZHANG Sha
HVAC Engineering：LU qian
Electrical Engineering：YAN Tianxiong
Kitchen design：Royal Kitchen
Construction technique Management：ZHANG Bing
Construction project manager：WU Xiaofeng
Construction site manager：LU qizhong
Construction Electrical manager：CONG xiangyang
Project principal of Party A：WANG nannan
Partners “Construction Team：Beijing Hotington Build Design&Engineering Co. ,Ltd.
Photographer：JIN Weiqi
