感谢 上海都设营造建筑设计事务所有限公司 予gooood分享以下内容。更多关于他们，请至: DuShe Architectural Design on gooood
Appreciations towards DuShe Architectural Design for providing the following description:

改造缘起-从火车站到博物馆
The Origin of Renovation – From Railway Station to Museum

从类型学意义上来说，交通建筑与展览建筑的空间有着天然的共通性。火车站的高大候车室、站台空间适合改造为展览空间。废弃的火车站改造为其他功能，在国际上也早有先例，巴黎奥赛美术馆就是最成功的例子。

From a typological point of view, the space of the traffic building and the exhibition building has a natural commonality. The tall waiting room and platform space of the railway station are suitable for transformation into exhibition space. The transformation of abandoned train stations into other functions has long been an international precedent. The Musée d’Orsay in Paris is the most successful example.

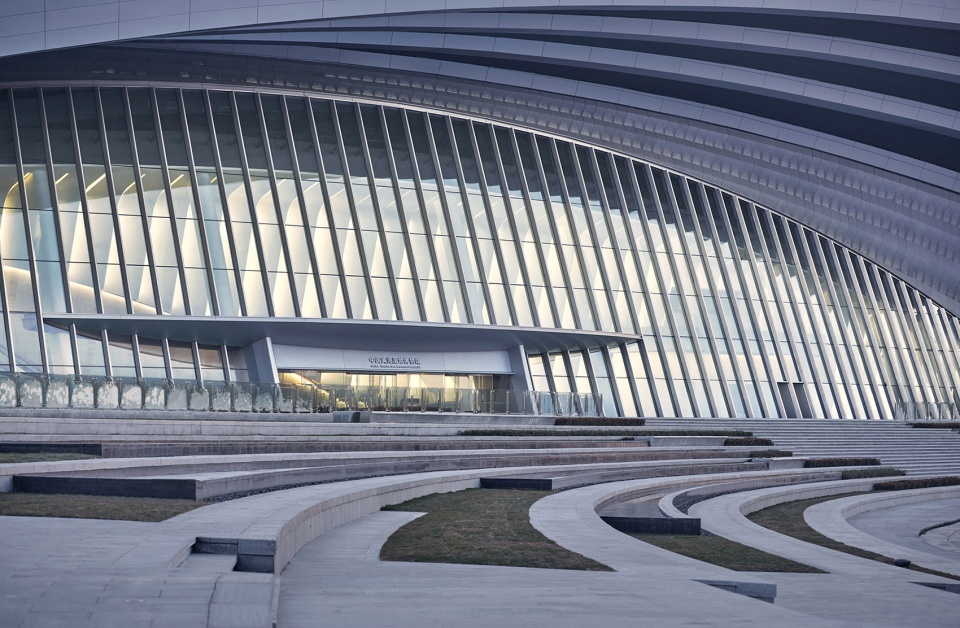

▼项目概览，Preview © 章勇

在黄（渤）海候鸟栖息地正式列入世界遗产名录后，盐城急需一个对外展示湿地文化的窗口。火车站毗邻新建的湿地公园，改造为湿地博物馆后，将成为展示盐城湿地文化的新地标。

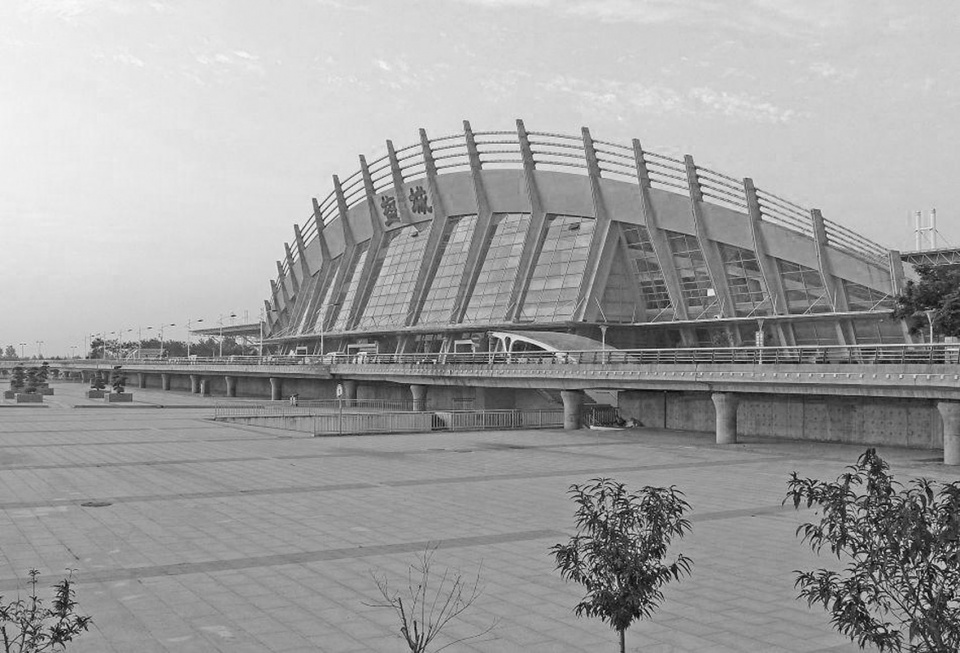

▼改造前为盐城火车站，Yancheng Railway Station Before the Renovation

After the Yellow (Bo) Sea Migratory Bird Habitat was officially included in the World Heritage List, Yancheng urgently needed a window to display wetland culture to the outside world. The railway station is adjacent to the newly built wetland park. After being transformed into a wetland museum, it will become a new landmark for displaying Yancheng wetland culture.

▼改造后成为湿地博物馆，The new wetland museum © 章勇

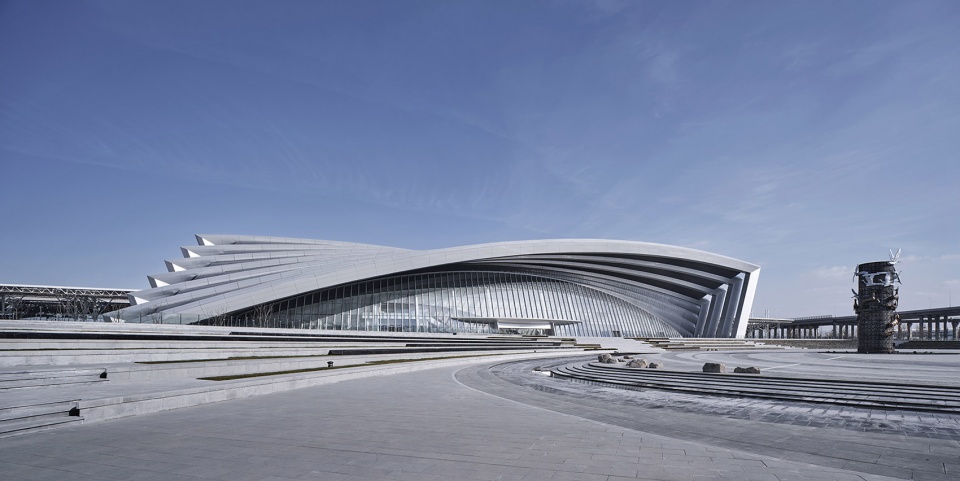

▼从广场望向建筑立面，View form the square © 章勇

改造策略- 新老建筑传承对话
Renovation Strategies – A Dialogue on the Inheritance of Old and New Buildings

原火车站采用空间桁架结构，局部层高较低，难以满足展览要求。改造设计保留下部混凝土结构，拆除现有网架，新增钢结构屋面满足使用需求。采用大跨度桁架加强网壳结构，在不动原有结构及基础的条件下实现屋顶造型。

The original railway station adopts a space truss structure, and the local floor height is low, which is difficult to meet the exhibition requirements. The renovation design retains the lower concrete structure, removes the existing grid, and adds a steel structure roof to meet the needs of use. A large-span truss is used to strengthen the reticulated shell structure, and the roof shape can be realized without moving the original structure and foundation.

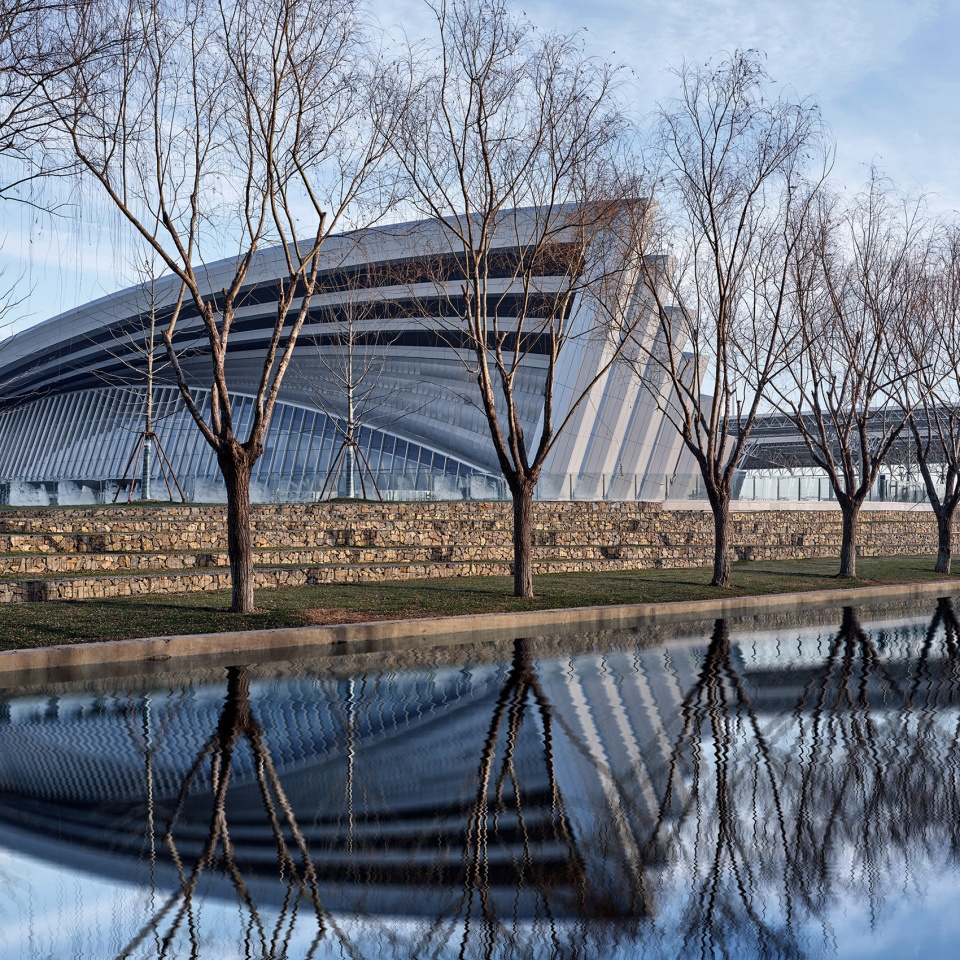

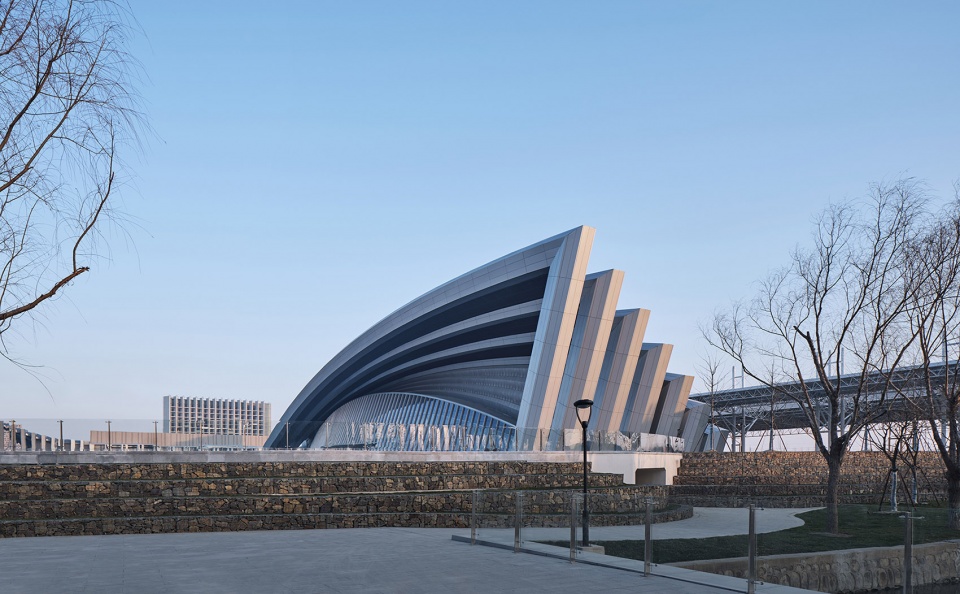

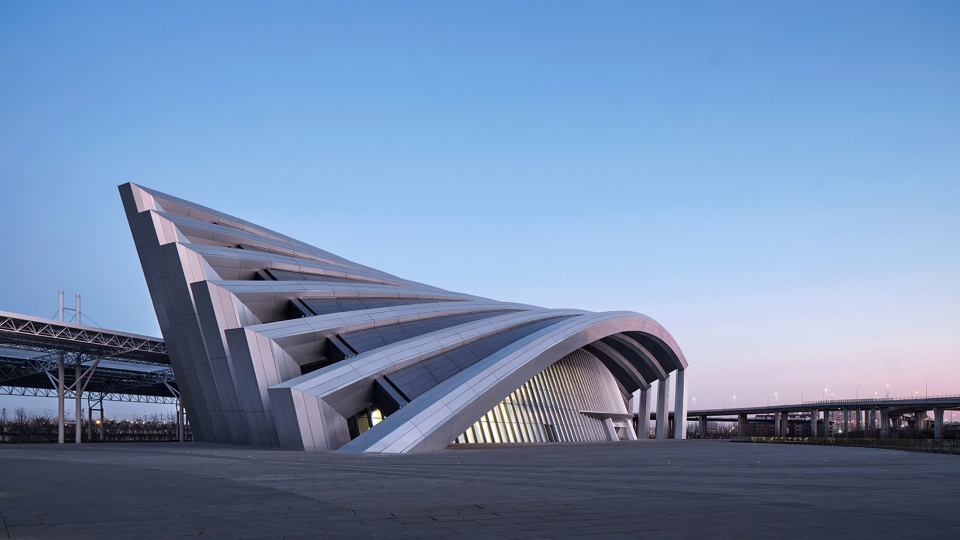

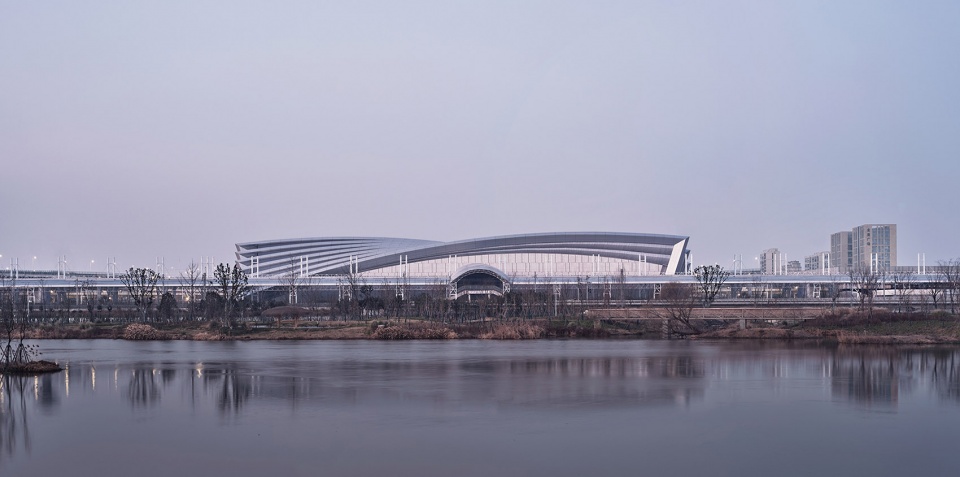

▼河岸视角，View from the riverfront © 章勇

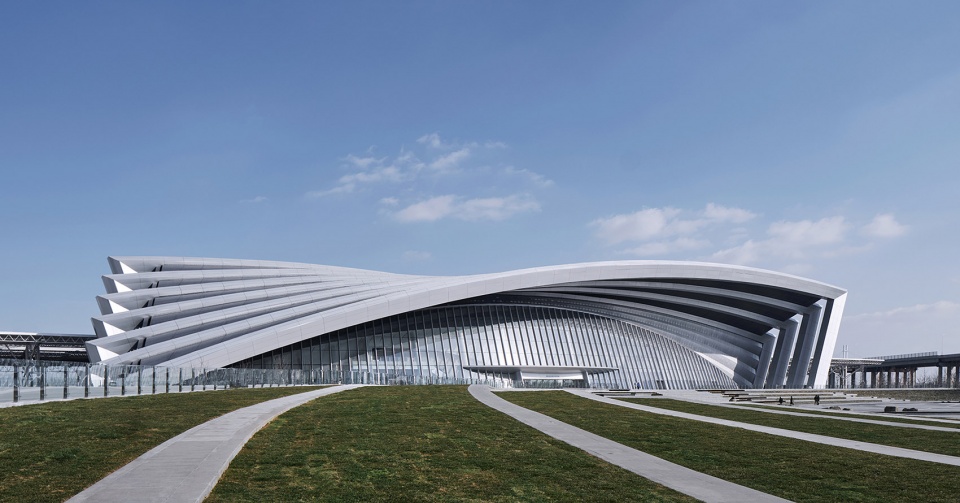

▼从景观草地望向建筑，View from the landscaped lawn © 章勇

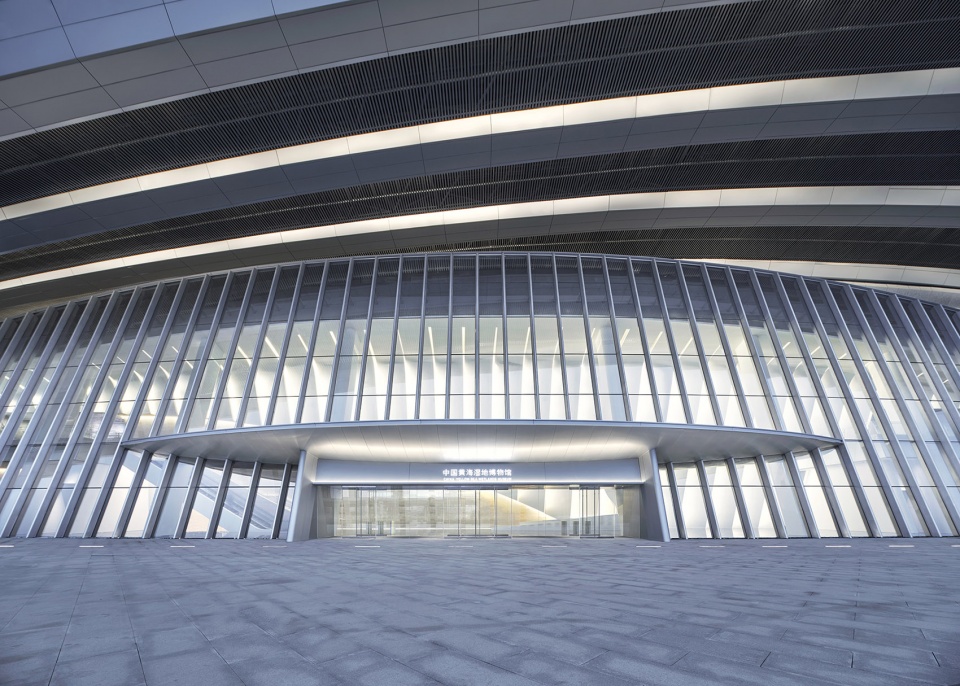

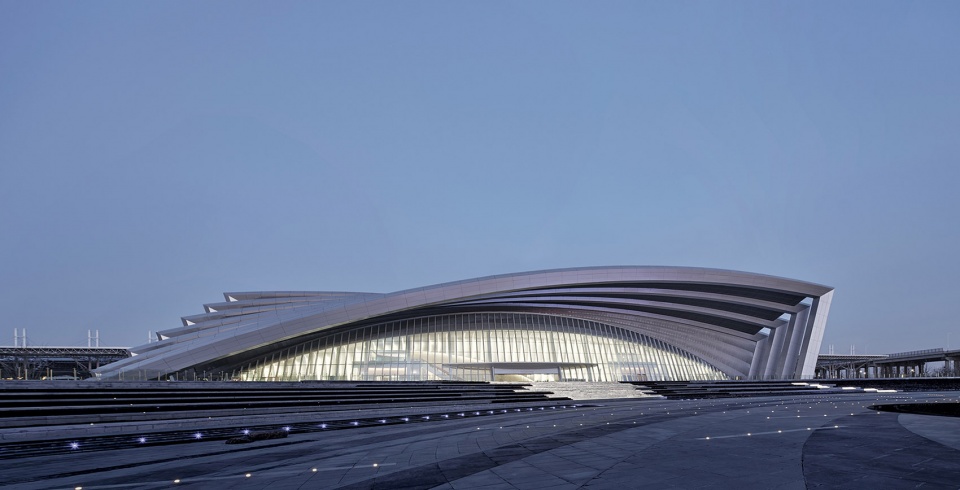

▼入口立面，Entrance facade © 章勇

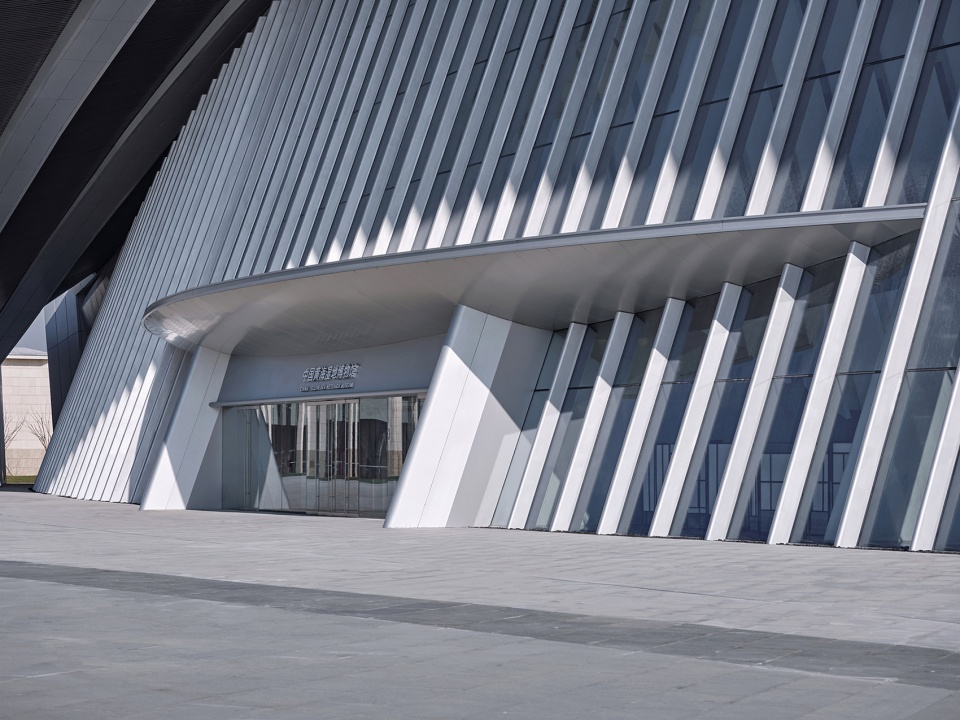

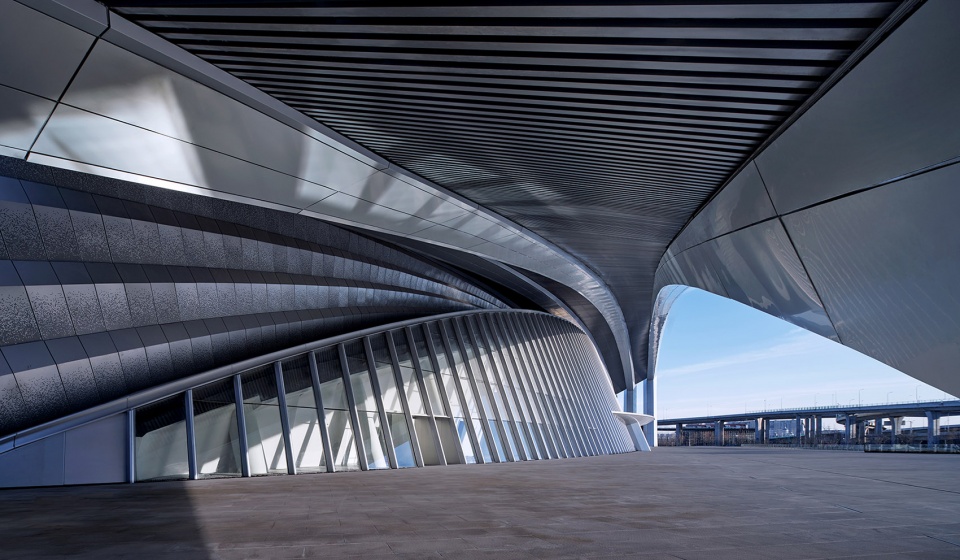

▼主入口雨蓬，Main entrance awning © 章勇

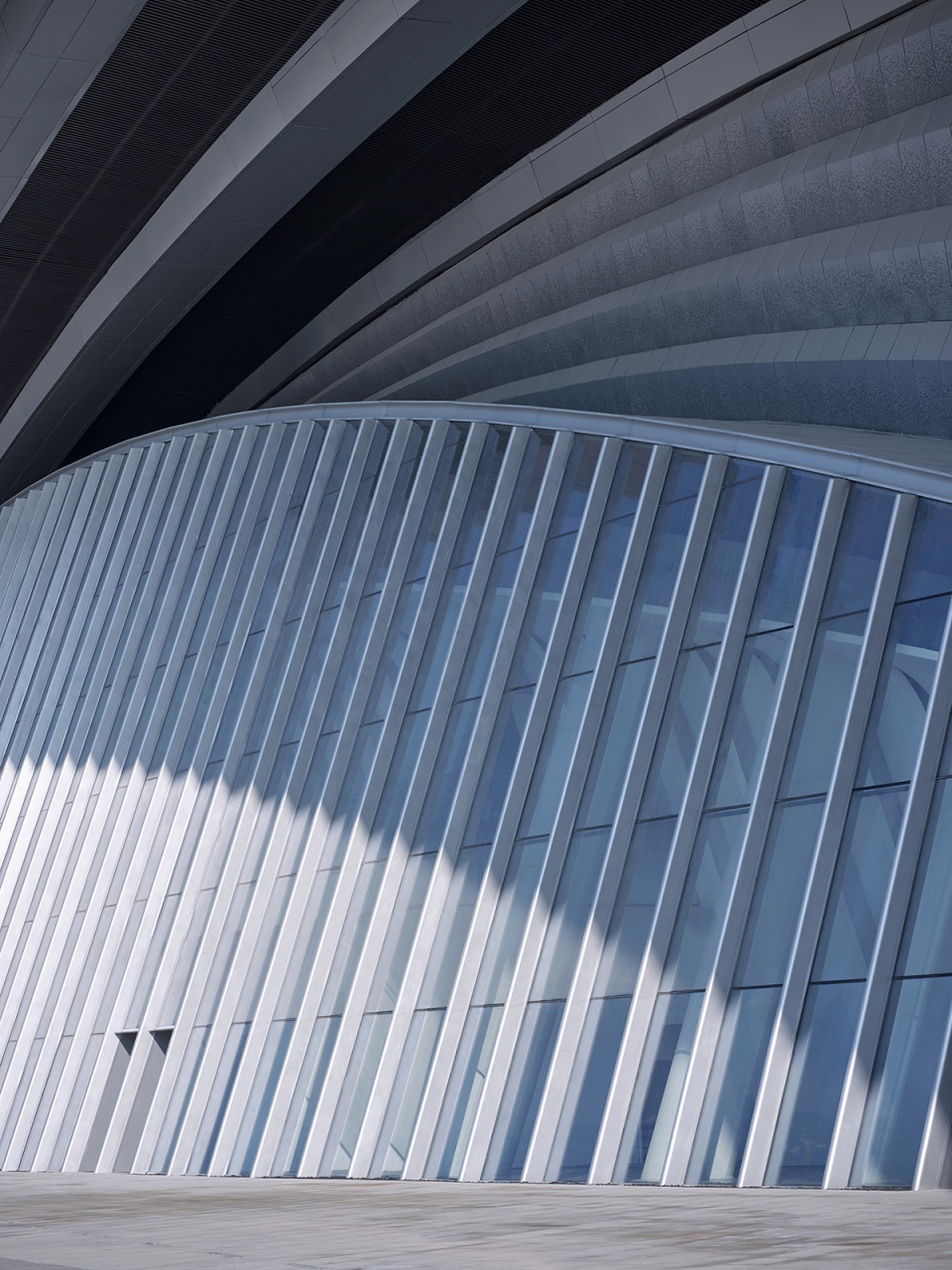

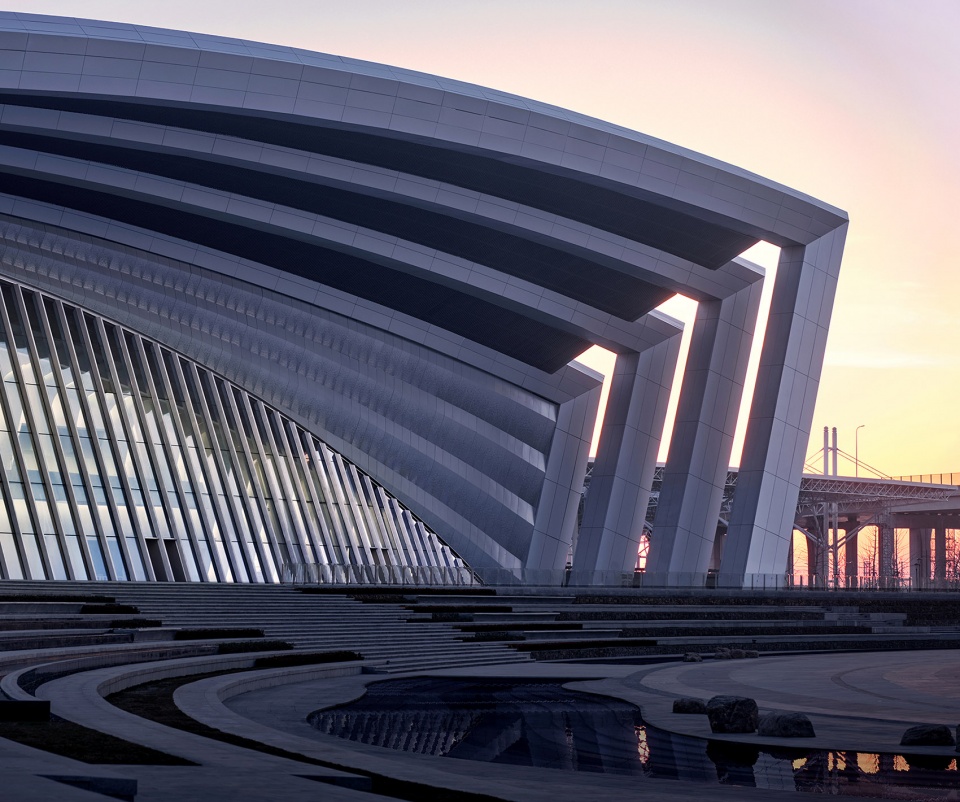

▼立面近景，A close view to the facade © 章勇

空间关系上，设计延续了原有火车站的建筑尺度和空间关系，提炼原建筑语言，创造出新颖现代的建筑形象。博物馆公共大厅体量利用既有建筑结构，营造开放透明的城市公共客厅。

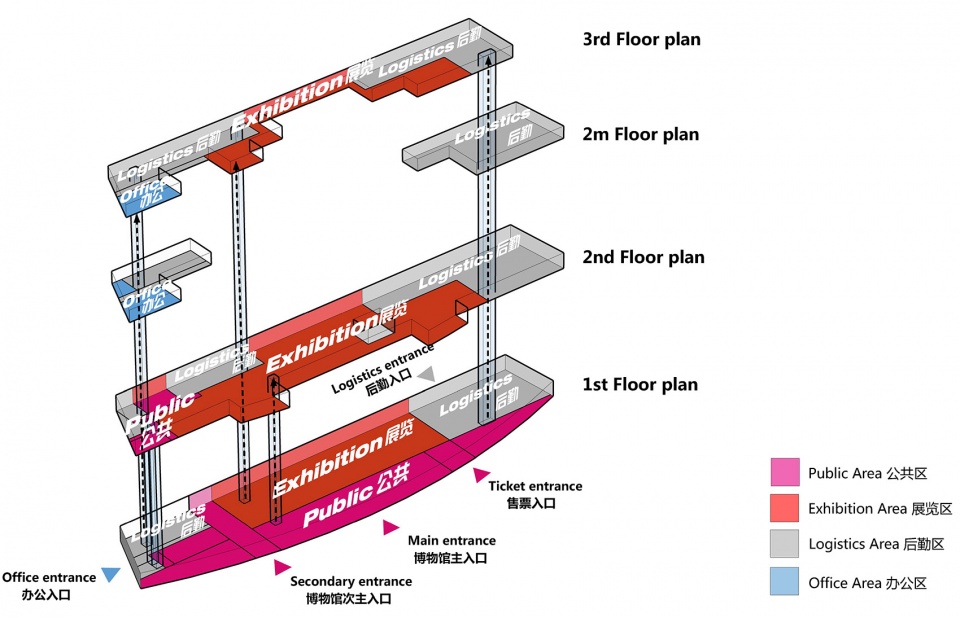

▼功能分区，Functional Division © 都设营造建筑设计事务所

In terms of spatial relationship, the design continues the architectural scale and spatial relationship of the original railway station, refines the original architectural language, and creates a novel and modern architectural image. The public hall of the museum uses the existing building structure to create an open and transparent urban public living room.

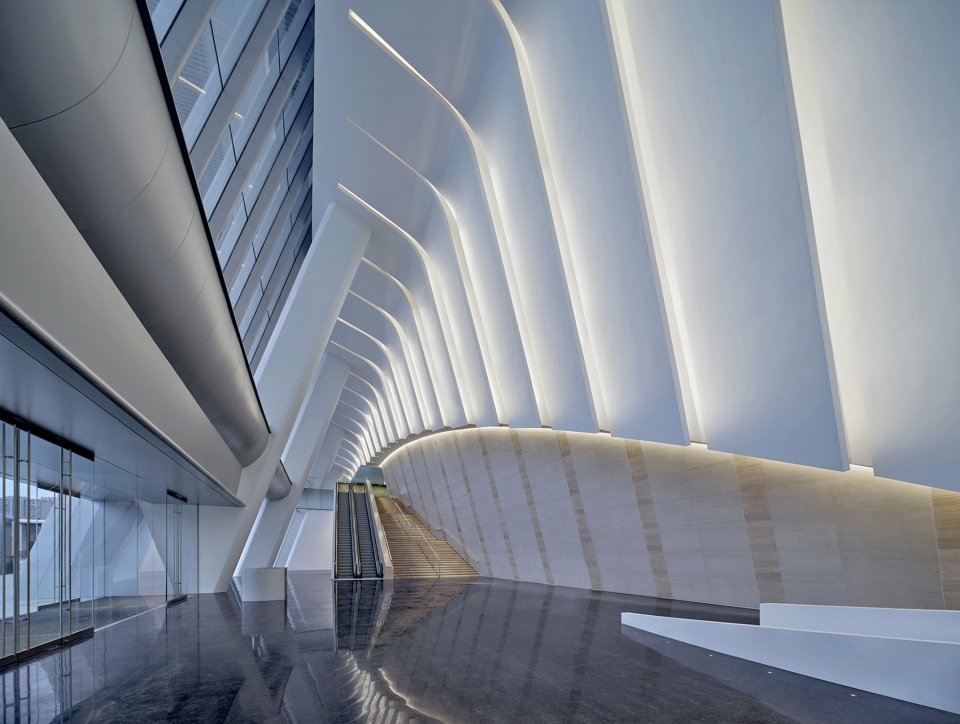

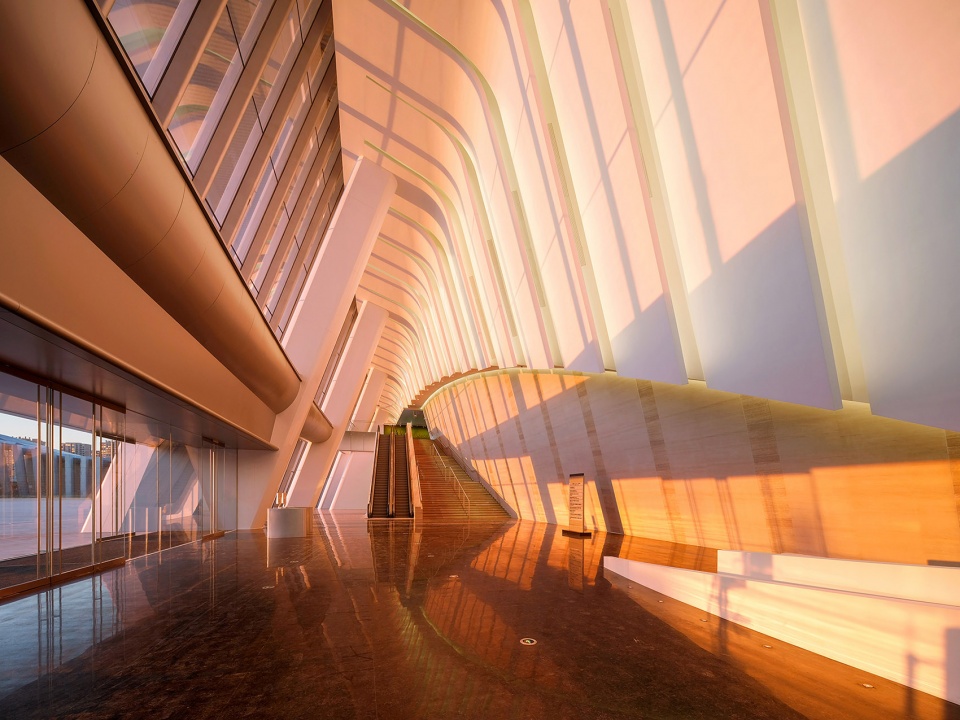

▼公共大厅，Public hall © 章勇

▼傍晚大厅景象，View in the evening © 章勇

技术实现-设计体系确保高完成度
Technical realization – design system to ensure a high degree of completion

为最大化建筑正立面的通透感，幕墙设计采用顶底承重的钢框架系统。高精度钢型材只在顶部和地面与主体结构相连接，中间无需其他结构支点。最高达24m的钢立柱外露，幕墙视觉效果与结构得到统一表达。

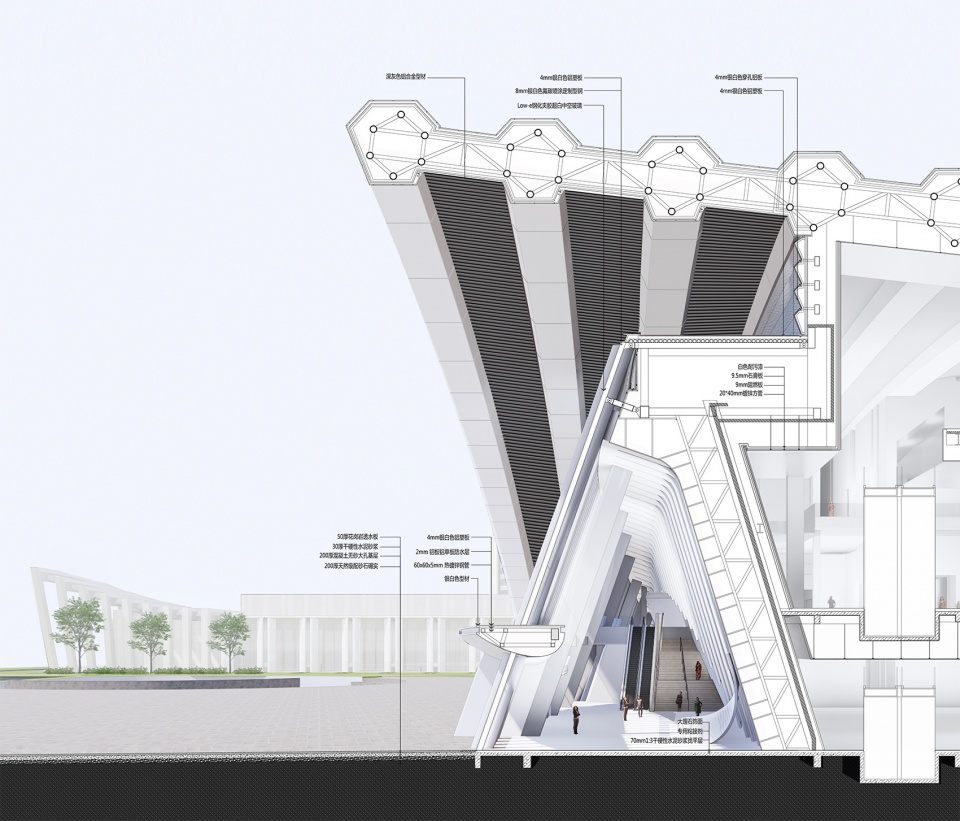

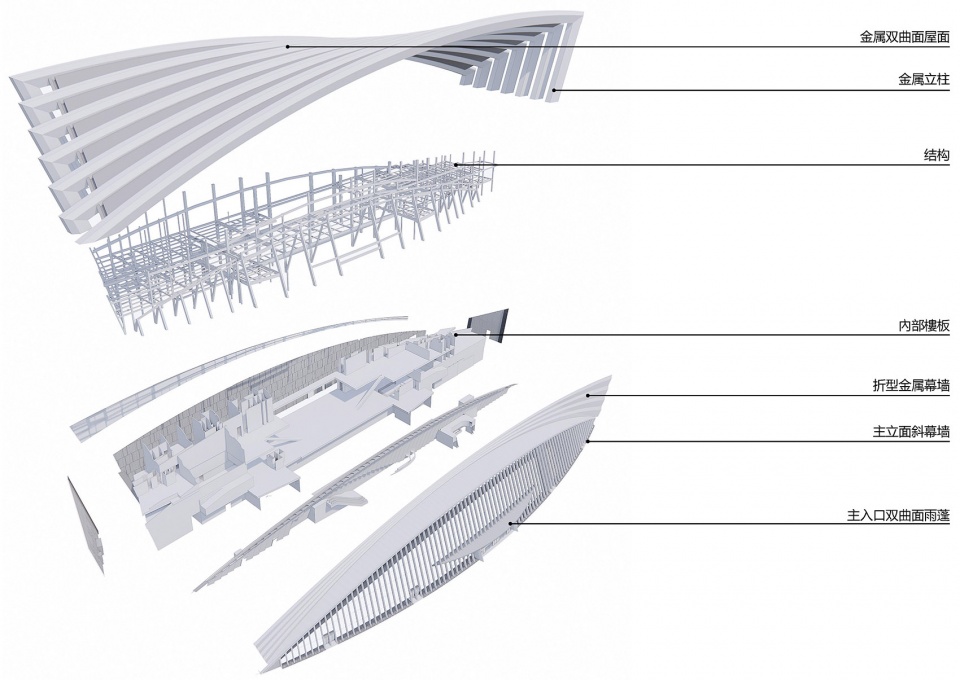

▼剖透视图，Perspective © 都设营造建筑设计事务所

In order to maximize the transparency of the building’s facade, the curtain wall design adopts a steel frame system with load-bearing top and bottom. The high-precision steel profiles are only connected to the main structure at the top and the ground, and no other structural fulcrum is required in the middle. The steel column up to 24m is exposed, and the visual effect and structure of the curtain wall are expressed in a unified manner.

▼外墙结构细节，Structural details © 章勇

屋面造型以原建筑角点为出发点，用圆弧线的切线作为方向生成轮廓线，通过渐变手法形成富有韵律且整体统一的屋面造型。银白色的线性元素，也呼应盐城湿地保护动物——丹顶鹤羽毛意向。

The roof modeling takes the original building corner as the starting point, uses the tangent of the arc line as the direction to generate the contour line, and forms a rhythmic and unified roof shape through the gradient technique. The silver-white linear elements also echo the intention of the feathers of the red-crowned crane, the protected animal of Yancheng Wetland.

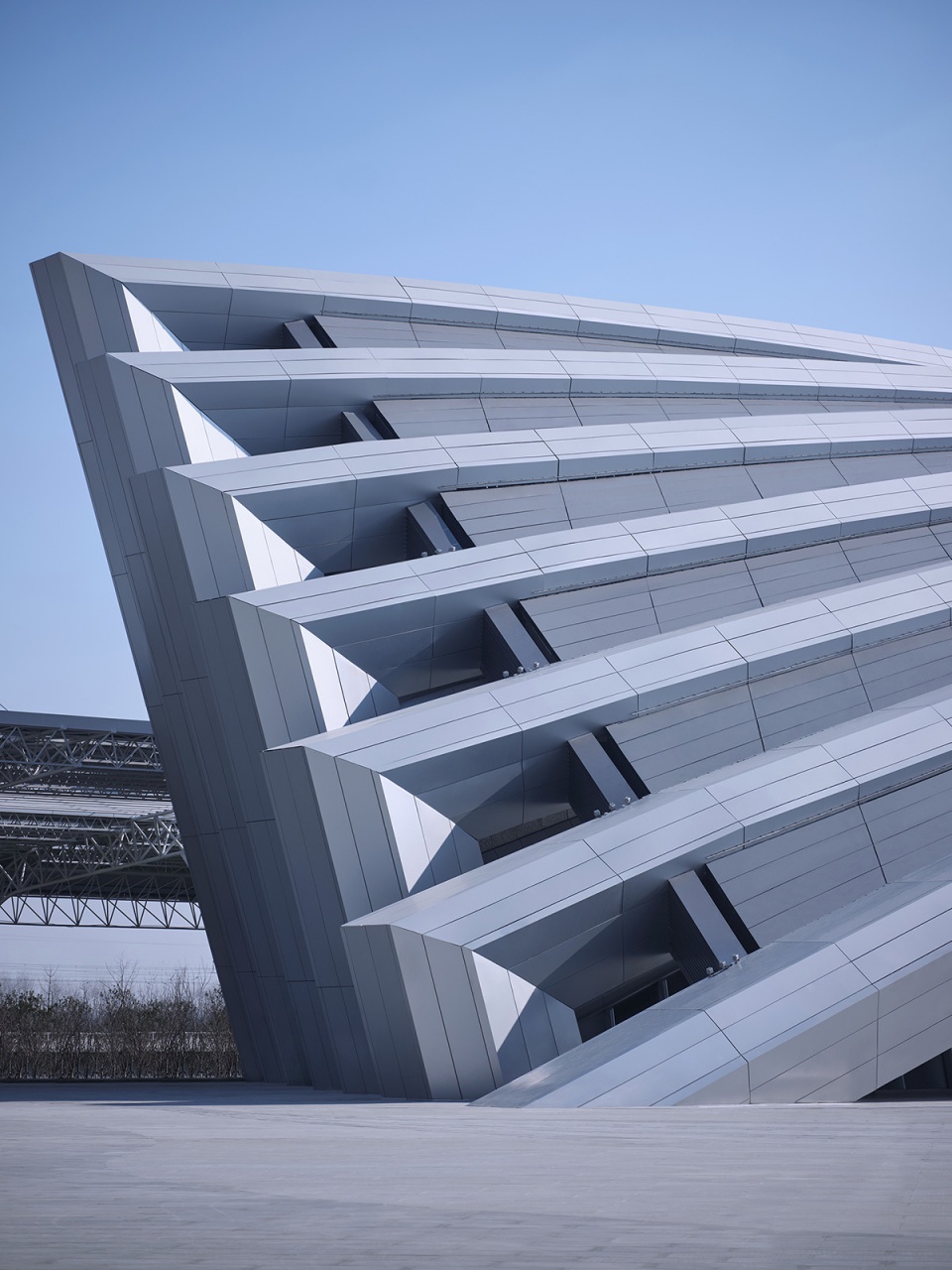

▼富有韵律且整体统一的屋面造型，The rhythmic and unified roof shape © 章勇

在方案设计阶段，结构师提前介入，配合建筑师的造型设计。从一开始的折板方案，到网架方案，最终确定采用六边形桁架+联系桁架方案。各专业紧密配合，确保屋面造型与结构的一致性。

In the program design stage, the structural engineer intervenes in advance to cooperate with the architect’s modeling design. From the initial folded plate plan to the grid plan, the hexagonal truss + contact truss plan was finally adopted. All majors cooperate closely to ensure the consistency of roof shape and structure.

▼双曲面屋面近景，The double curved roof © 章勇

火车站站房改造的同时，原站前广场和候车站台也被保留利用。站前广场和进站匝道改造为城市广场，候车站台改造为室外展区。同时原有的铁轨作为城市轴线，将博物馆区域与高铁新城区域相连接，成为整个城市设计的最重要一环。

At the same time as the renovation of the railway station building, the original station square and waiting platform were also retained and used. The square in front of the station and the entry ramp were transformed into a city square, and the waiting platform was transformed into an outdoor exhibition area. At the same time, the original railway tracks, as the city axis, connect the museum area with the high-speed rail new city area and become the most important part of the entire urban design.

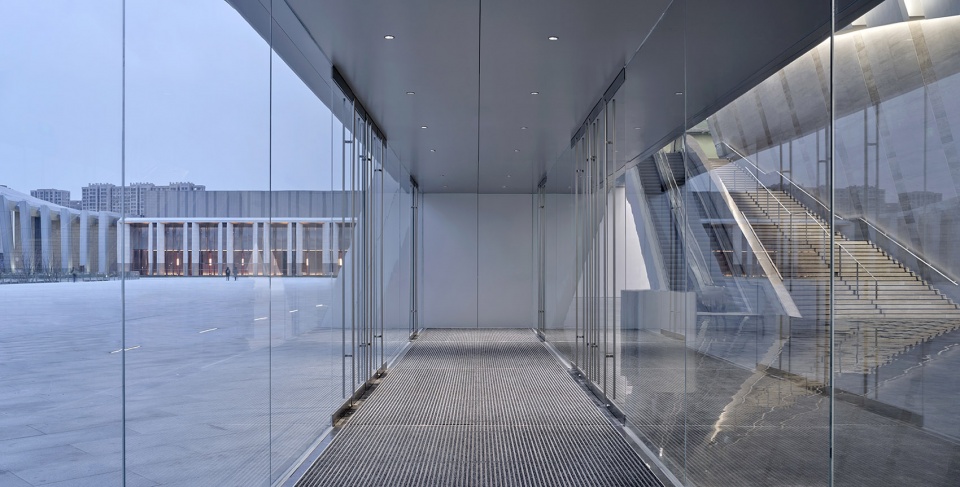

▼从室内望向广场，View to the square from internal space © 章勇

▼入口夜景，Entrance night view © 章勇

随着高铁时代的到来，城市老火车站逐步失去了原有的交通作用。如何改造火车站，使其发挥新的作用，是摆在不少城市面前的一个问题。盐城火车站案例，提供了一个全新的既有建筑改造模式。

With the advent of the era of high-speed rail, the old railway station in the city gradually lost its original transportation function. How to transform the railway station to make it play a new role is a problem facing many cities. The case of Yancheng Railway Station provides a new mode of renovation of existing buildings.

▼整体鸟瞰，Aerial view © 章勇

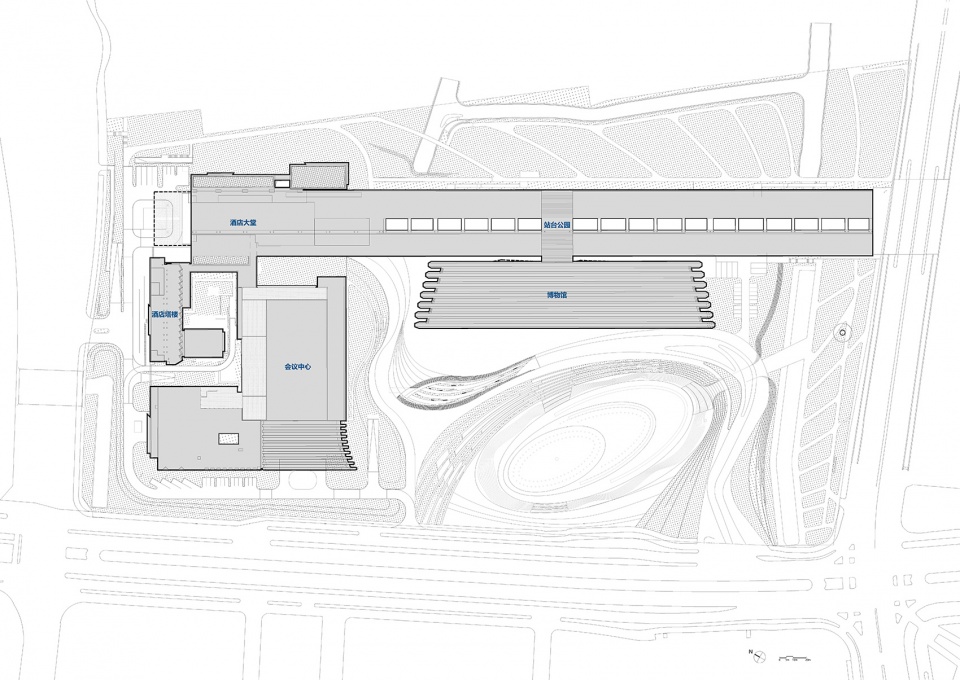

▼总图，Site Plan © 都设营造建筑设计事务所

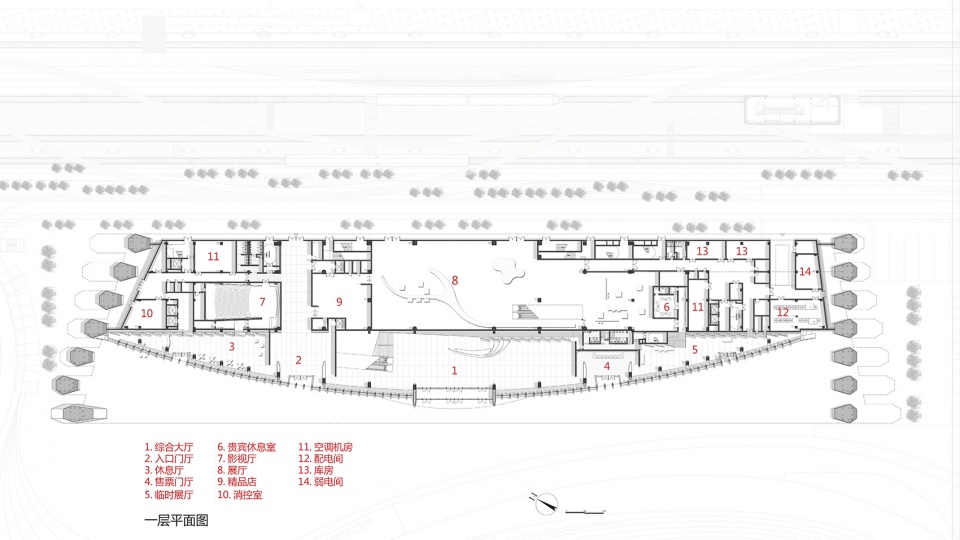

▼一层平面图，First Floor Plan © 都设营造建筑设计事务所

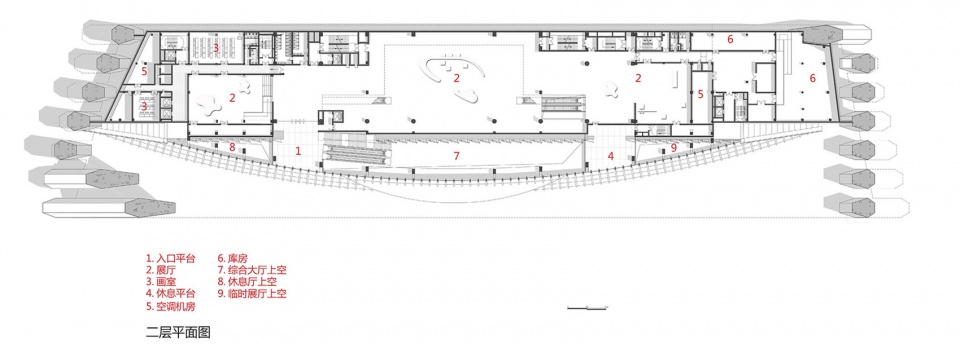

▼二层平面图，Second Floor Plan © 都设营造建筑设计事务所

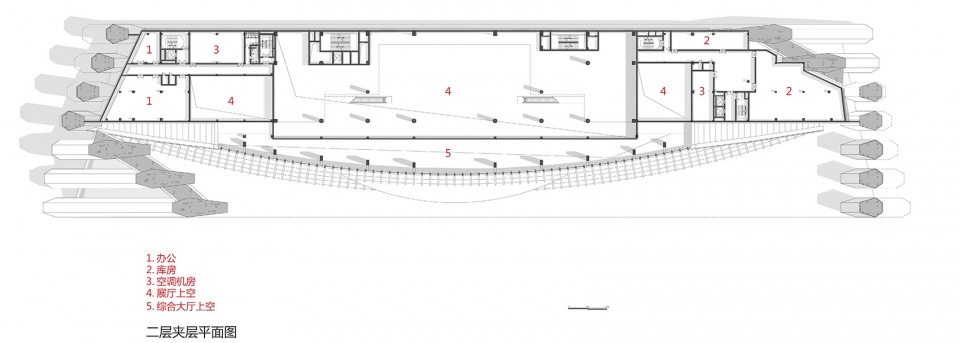

▼二层夹层平面图，Second Floor Mezzanine Floor Plan © 都设营造建筑设计事务所

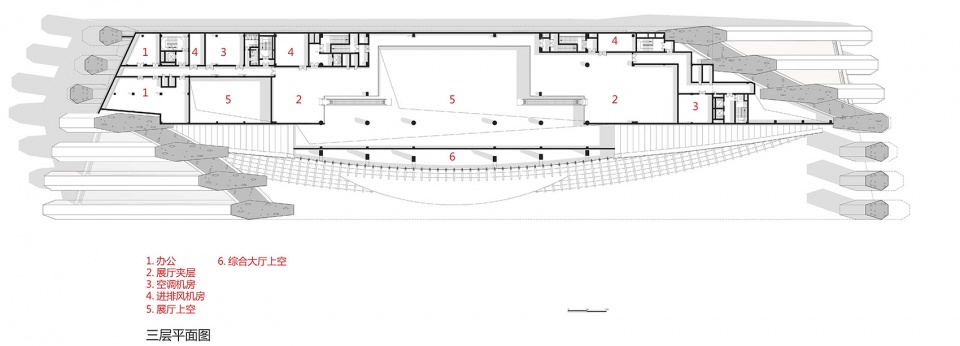

▼三层平面图，Third Floor Floor Plan © 都设营造建筑设计事务所

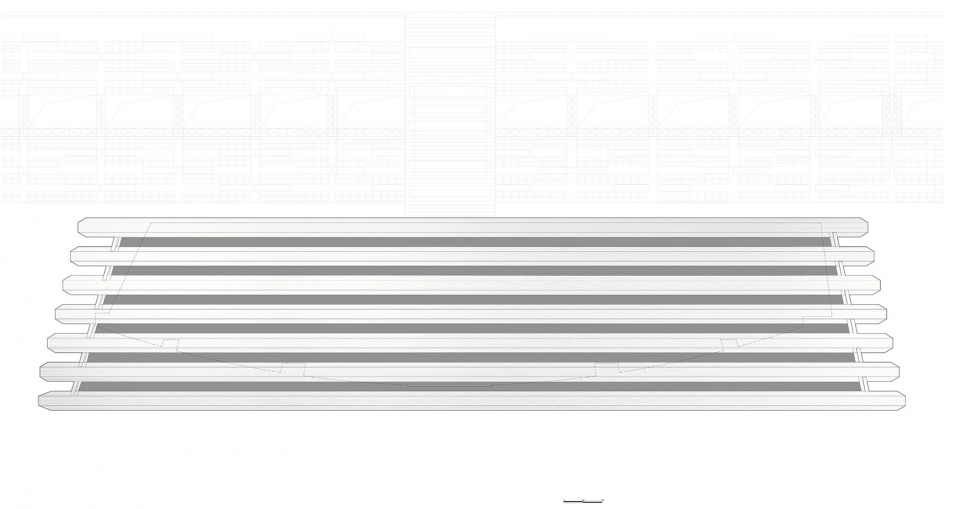

▼屋顶平面图，Roof Plan © 都设营造建筑设计事务所

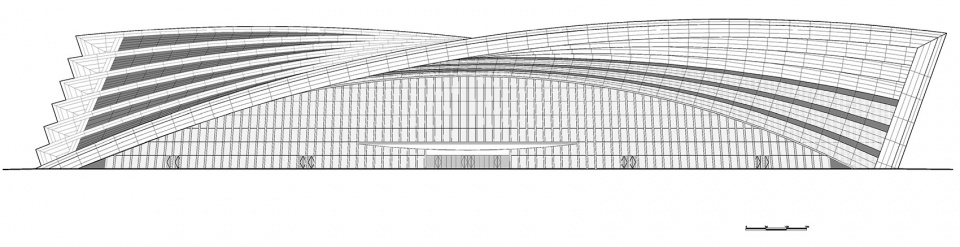

▼主立面图，Elevation © 都设营造建筑设计事务所

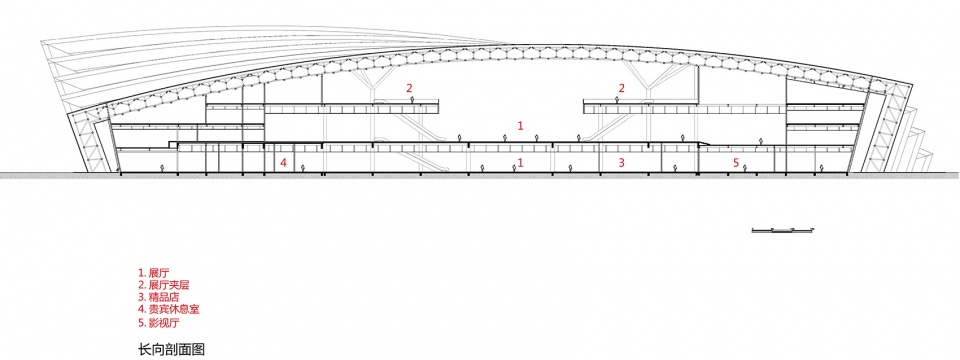

▼长向剖面图，Long Section © 都设营造建筑设计事务所

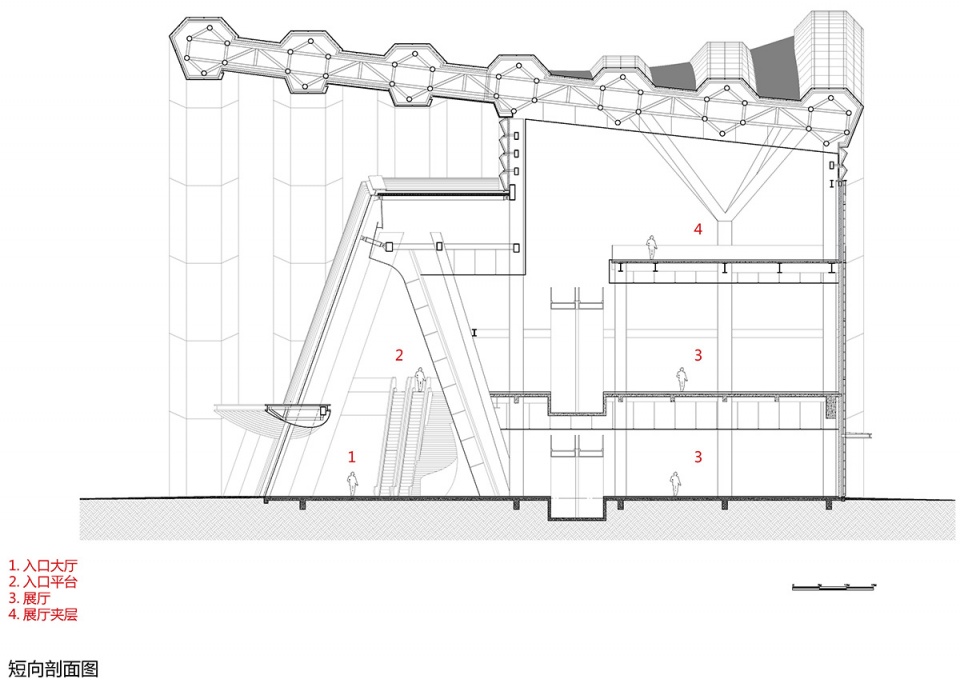

▼短向剖面图，Short Section © 都设营造建筑设计事务所

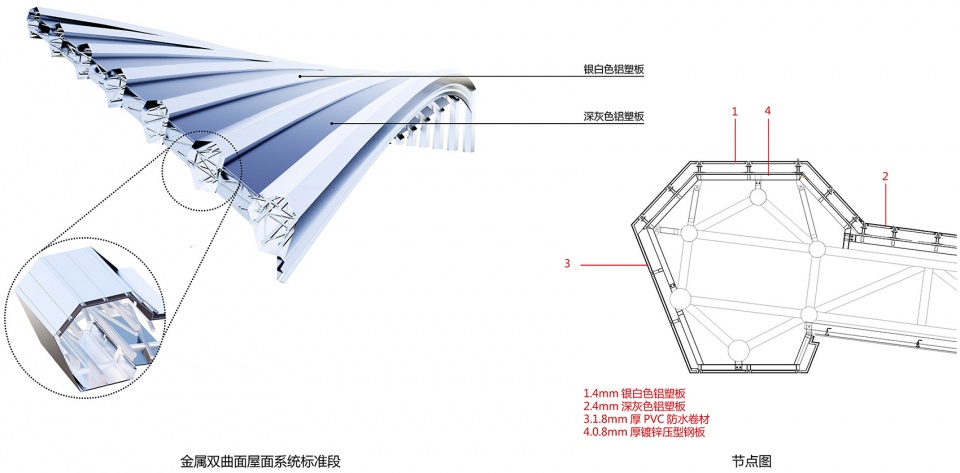

▼节点图1，Detail 1 © 都设营造建筑设计事务所

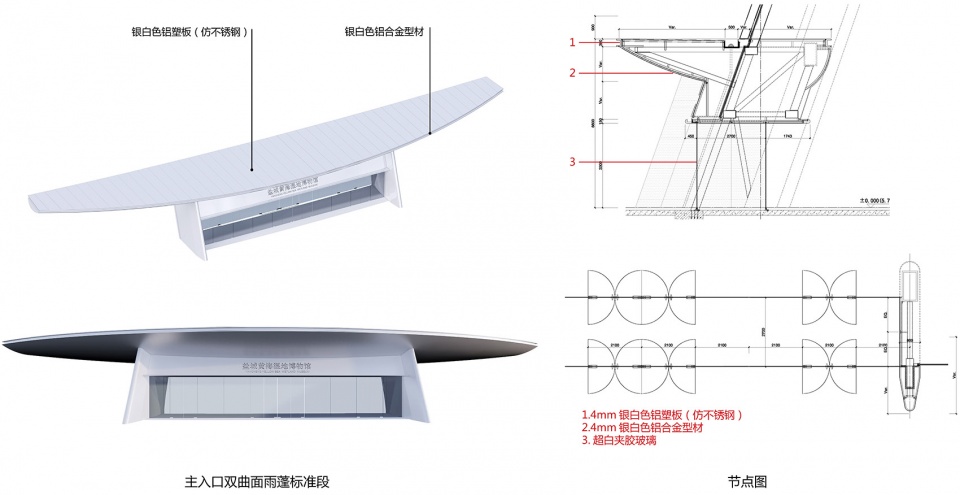

▼节点图2，Detail 2 © 都设营造建筑设计事务所

▼节点图3，Detail 3 © 都设营造建筑设计事务所

项目名称：中国黄海湿地博物馆
设计方：上海都设营造建筑设计事务所有限公司
公司网站：www.shdsd.cn
联系邮箱：zhujielu@shdsd.cn
项目设计 & 完成年份：2019年设计，2021年完成
主创及设计团队：
设计总负责：凌克戈
建筑设计团队: 王利民，孔君涛，刘文超，杨旺辉，谢欣准，王治国，张丁，等
室内设计团队：孔君涛，王倩岚，谢欣准、等
项目管理：徐燕宁、邹天辰
项目地址：江苏省盐城市亭湖区范公路青年路交叉口
建筑面积：18573㎡
摄影版权：章勇
合作方：
设计总控：上海都设营造建筑设计事务所有限公司
建筑设计：上海都设营造建筑设计事务所有限公司
合作设计：上海建筑设计研究院有限公司
室内设计：上海都设营造建筑设计事务所有限公司
景观设计：上海都设营造建筑设计事务所有限公司/重庆大野景观创意设计股份有限公司
幕墙顾问：上海睿柏建筑外墙设计有限公司
照明设计：上海格锐照明设计有限公司
标识设计：澳颖设计咨询（上海）有限公司
人防设计：盐城市建筑设计研究院有限公司
绿建及海绵城市顾问：江苏汉筑节能技术有限公司
风洞试验：华东建筑设计研究院有限公司技术中心
装配式建筑顾问：华东建筑设计研究院有限公司技术中心
建筑施工方: 中国建筑第八工程局有限公司
室内施工方：苏州金螳螂建筑装饰股份有限公司
景观施工方：杭州园林设计院股份有限公司
客户：盐城市铁路投资发展有限公司

More: 上海都设营造建筑设计事务所有限公司。更多关于他们，请至: DuShe Architectural Design on gooood
