感谢 奕檐建筑 予gooood分享以下内容。更多关于他们：YDESIGN on gooood。Appreciation towards 奕檐建筑 for providing the following description:

SHAKE IT是RICH&LIGHT旗下的一个创新健康饮品品牌，近期我们完成了这个新品牌的首家门店。品牌的目标是通过自身的产品给人们提供快速的营养解决方案，让更多的人可以随时喝到健康有品质的饮料。

Shake it is a healthy sub-brand of Rich&light. Recently we’ve finished the first store of this new brand. The goal of this new brand is to provide efficient nutrition supply to people so that everyone could have some healthy qualified drink.

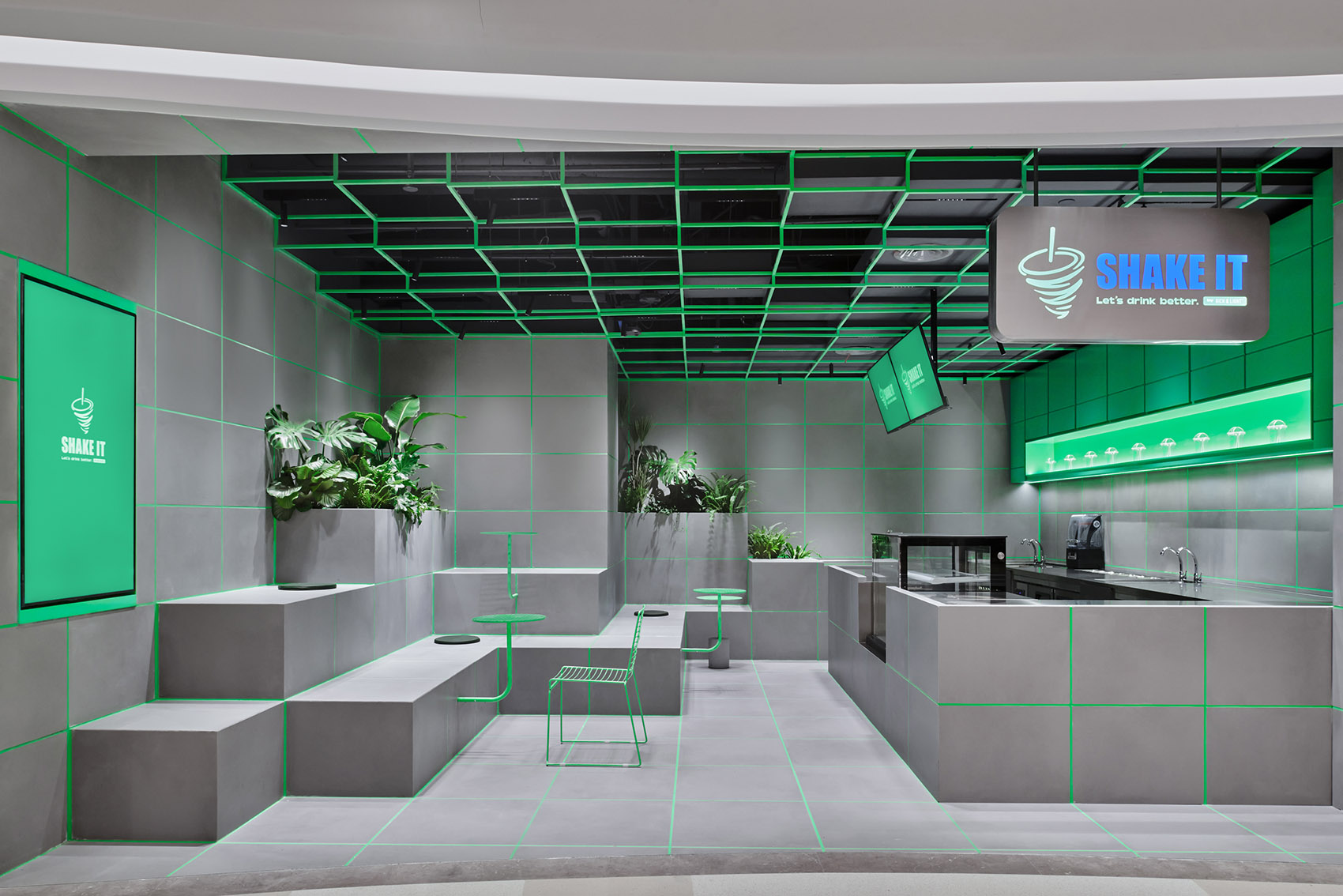

▼空间概览，overview ©yuuuunstudio

项目位于静安寺1788广场1楼，店面的空间只有45平米，设计的核心概念在于如何在有限的空间中传达出无限的可能性，并把这种可能性在未来的店铺中进一步去发展和延伸，产生更多的可能性。因此，一个采用品牌绿色的Matrix（矩阵）的模数化设计概念产生了。

The site is on ground floor of 1788 square in Jingan district with only 45 sqm. The concept is to express infinite possibilities of space in the limited area and develop this possibility in future stores. Thus, a brand green color matrix modular design is born.

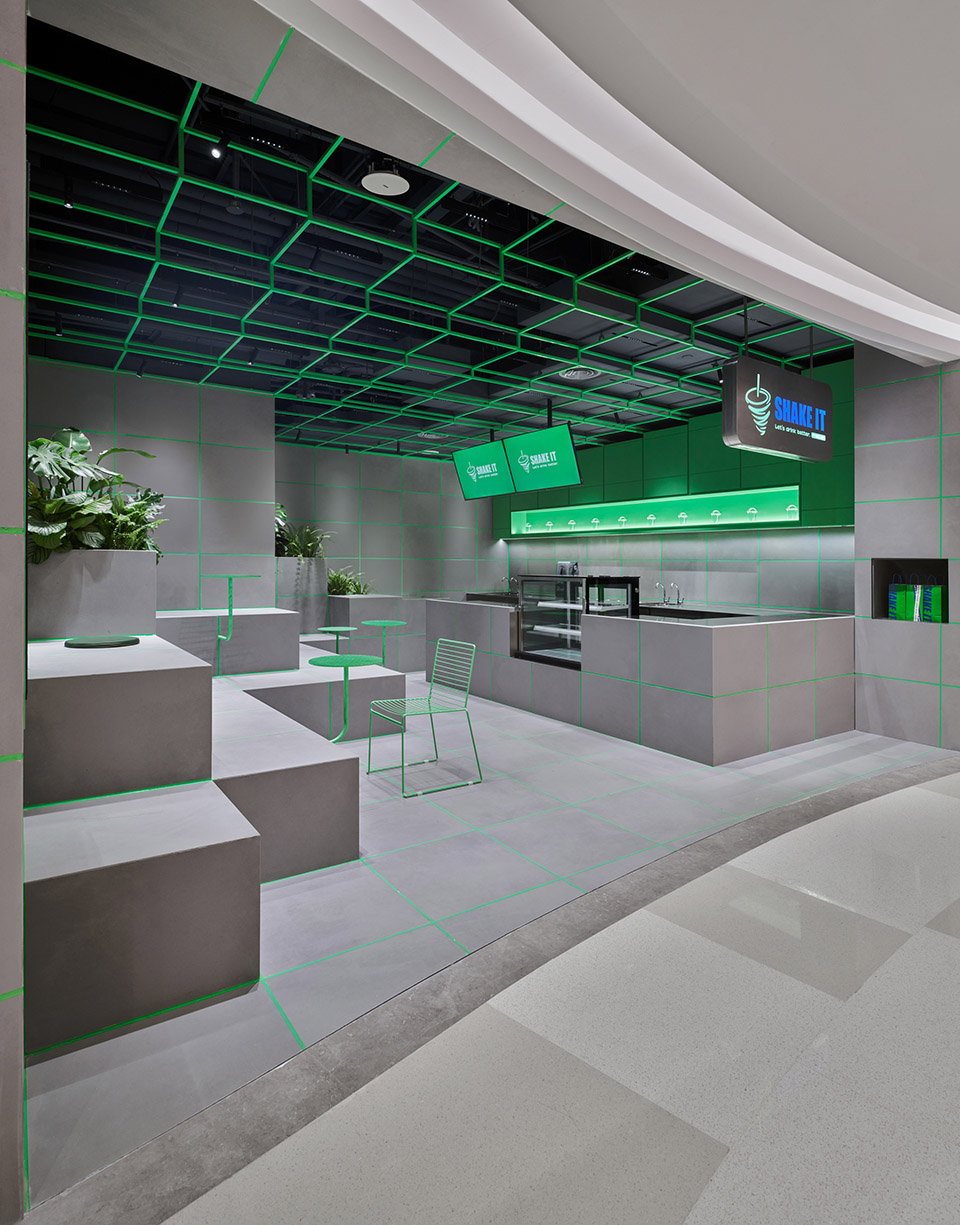

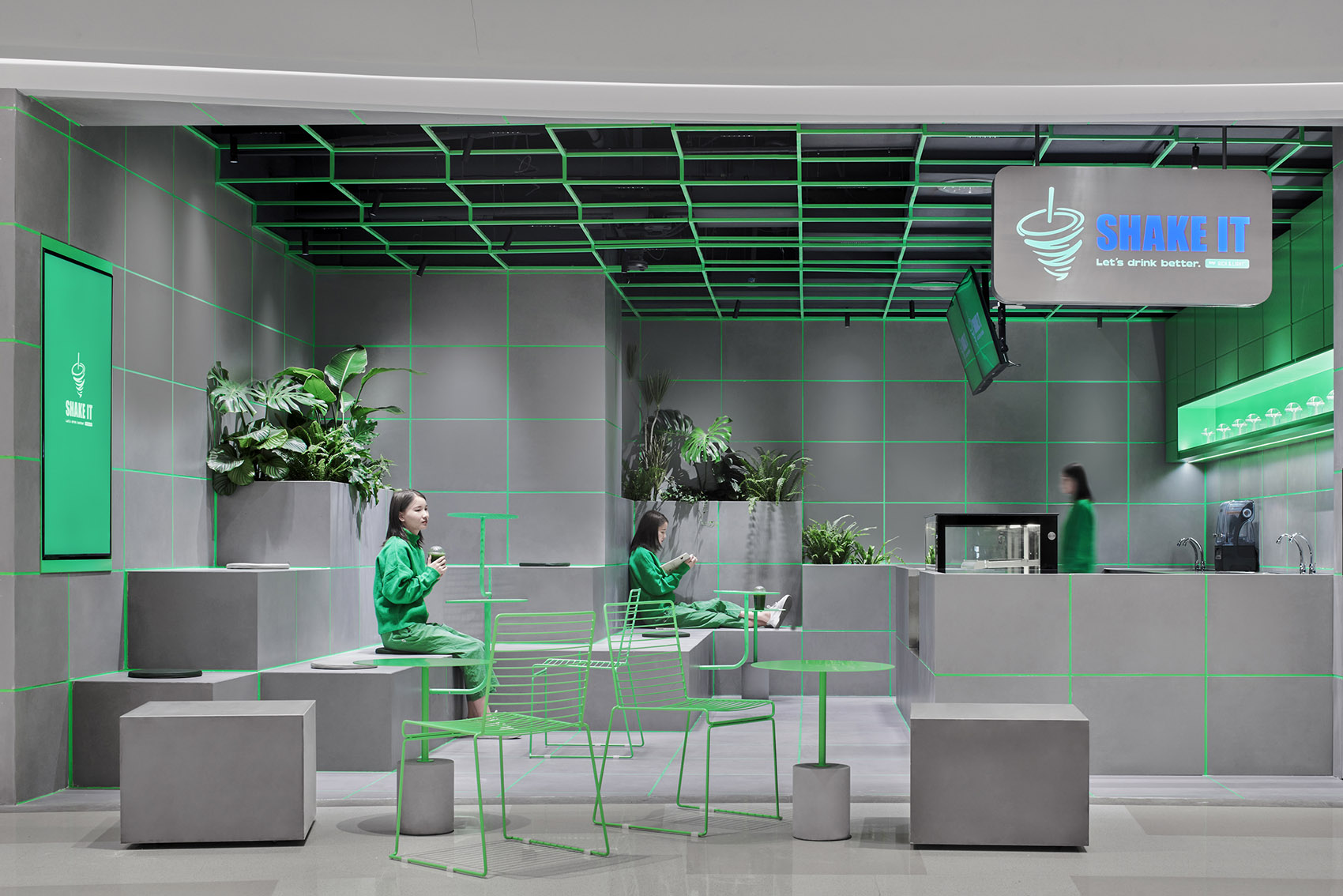

▼店铺入口，entrance ©yuuuunstudio

通过模数化的设计，空间内所有的一切都有了“规矩”，也在视觉上让人产生了空间的无限的延伸感。在这个项目中我们采用了600x600x450的模数，比较好的兼顾了座椅和材料的常规尺寸，也兼顾了最低的吊顶高度和吧台高度。

With this modular design strategy, everything in the space has its own “rules” and it brings the visual infinity into the space. We used a 600x600x450 module which complies with seating and regular tile size. It also complies with the bar height and ceiling height.

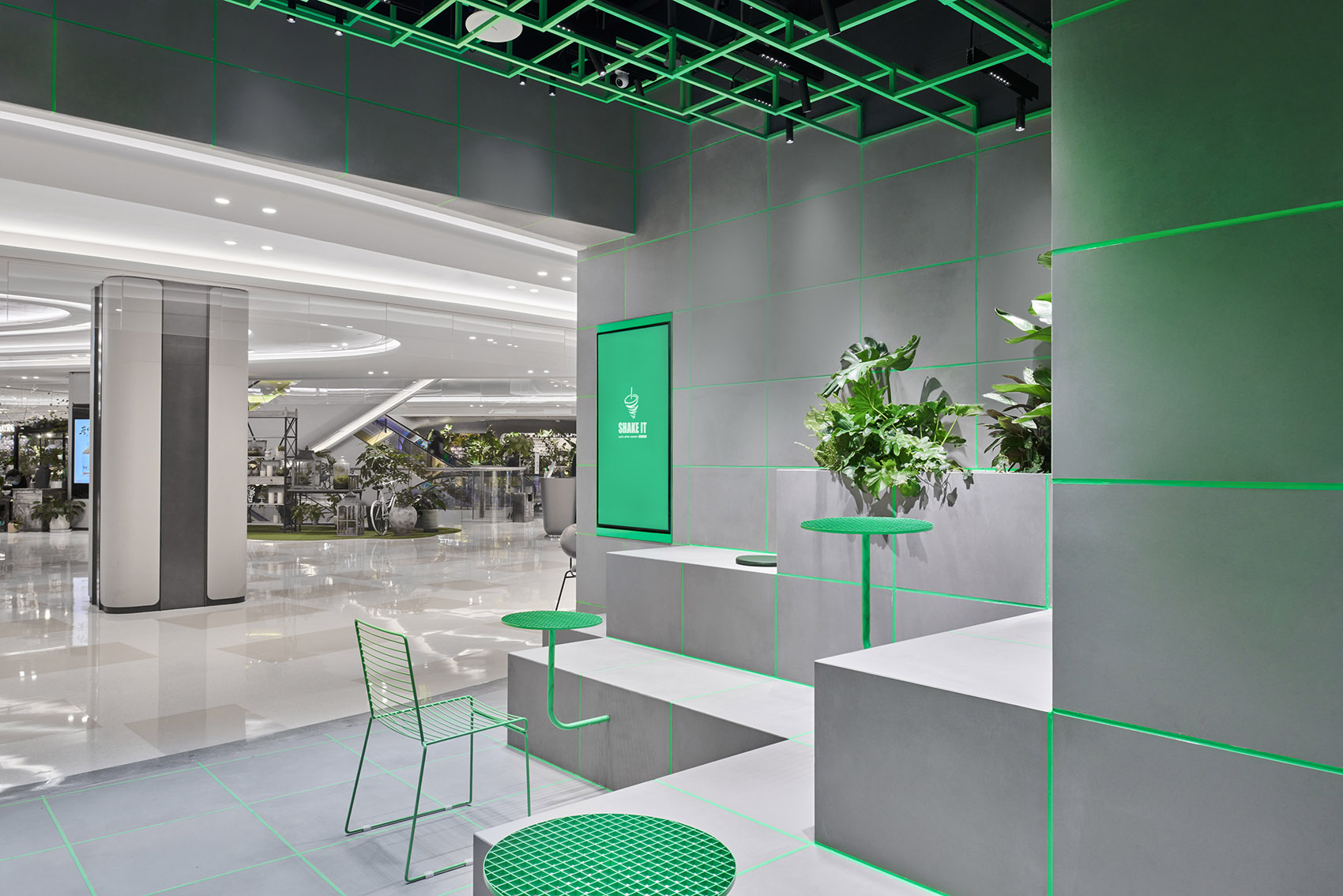

▼从用餐区看商场，view from the tasting area ©yuuuunstudio

▼可移动家具，moving furniture ©奕檐建筑

▼使用场景，experiencing scene ©yuuuunstudio

店内没有设置常规的卡座或者座椅，而是采用了跟空间模数结合的高低错落的台阶式设计，像是户外空间的具有休闲感的座位，目的是让人路过的时候可以随意的拿起一个坐垫找位置坐下，享用一杯没有负担的饮品。几处错落的“模块”种植池让空间多了一些惬意和随性。

Instead of regular fixed seating or table/chair setting, we created a stepped seating area just like the outdoor seating space. So people walking by could easily take a pad and find a place to sit, enjoying a cup of burden-free drink. A couple of modular plant pot adds a little bit more casual and natural feeling.

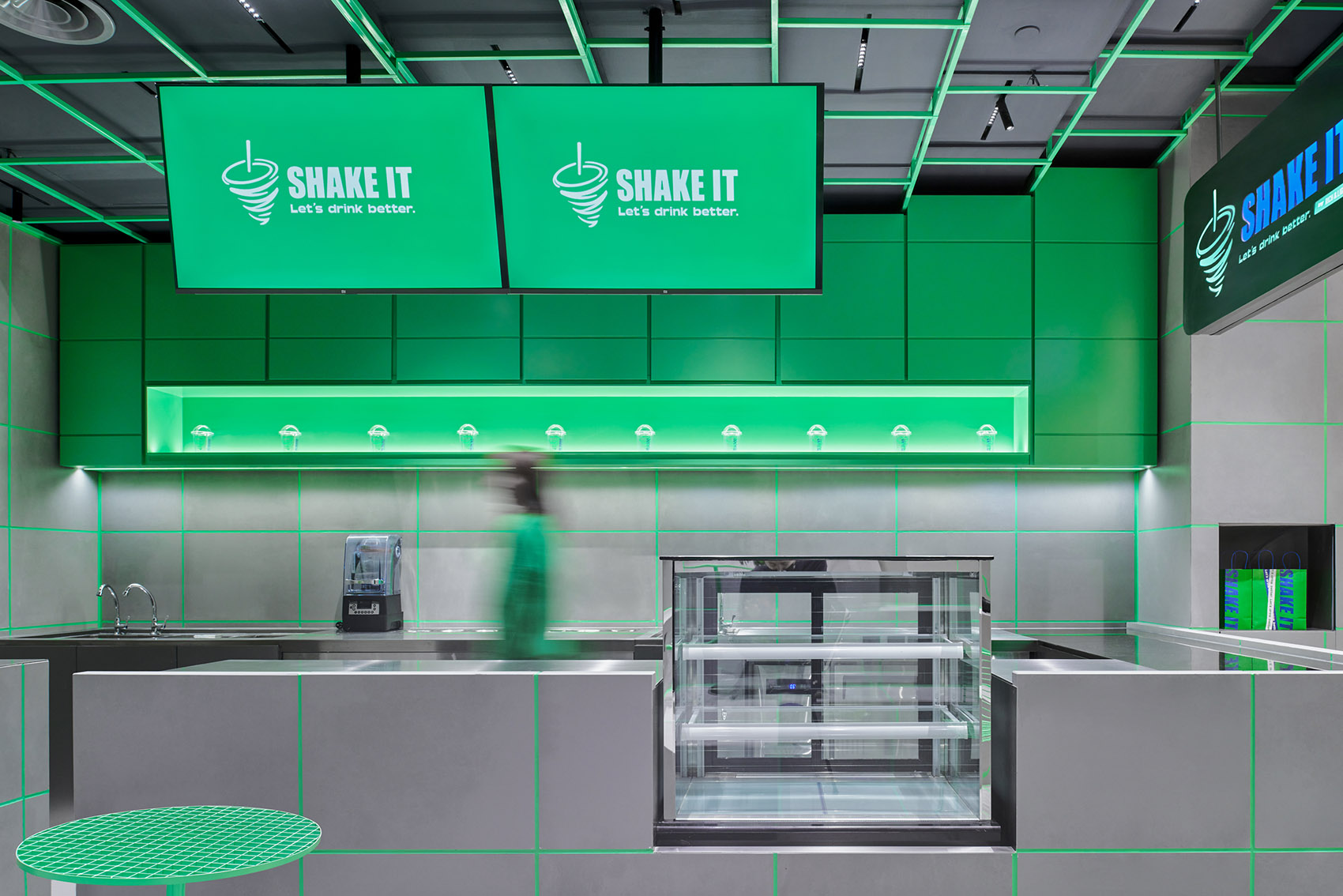

▼吧台区，the bar ©yuuuunstudio

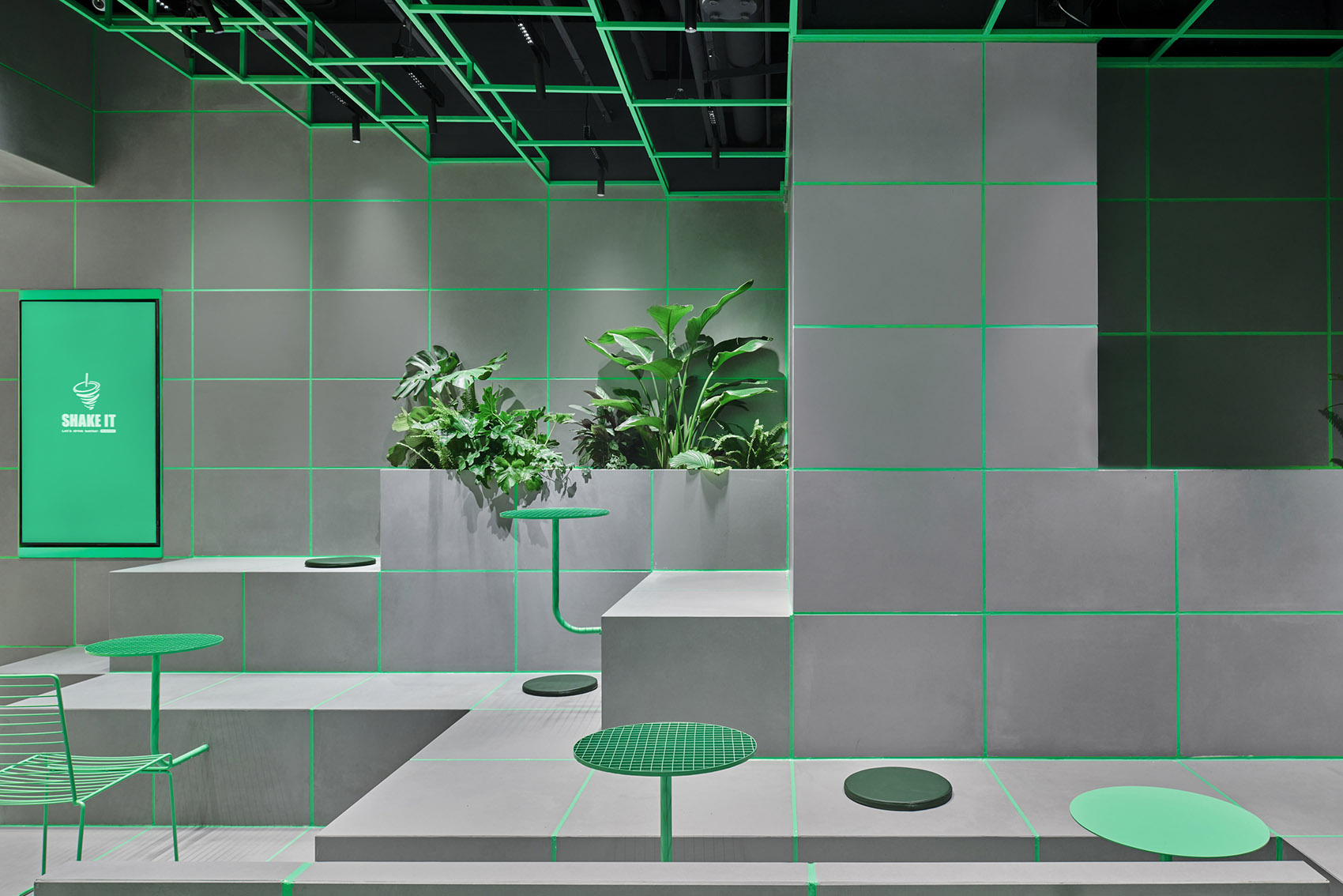

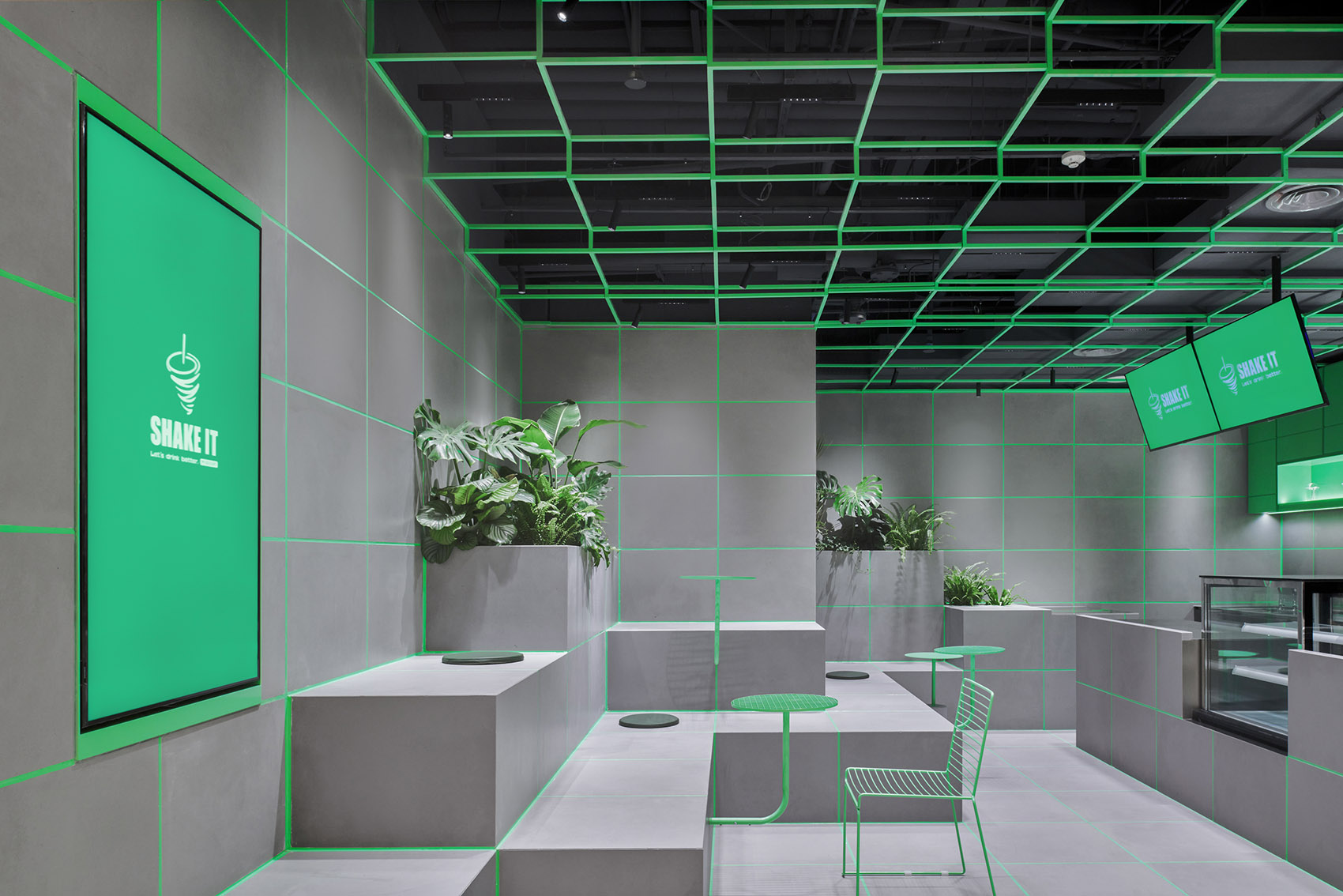

▼用餐区，dining area ©yuuuunstudio

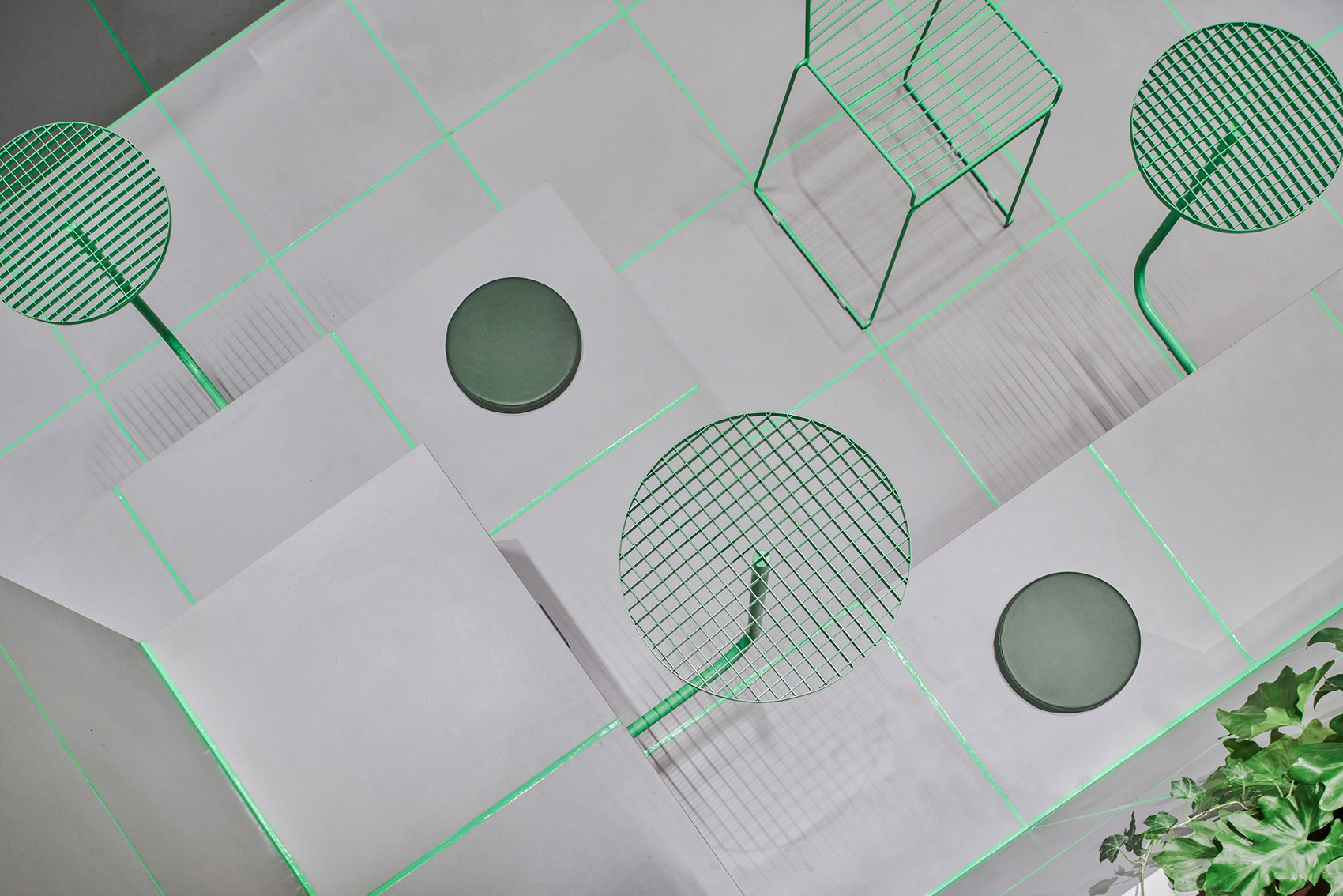

▼俯瞰桌椅，top view of the tables ©yuuuunstudio

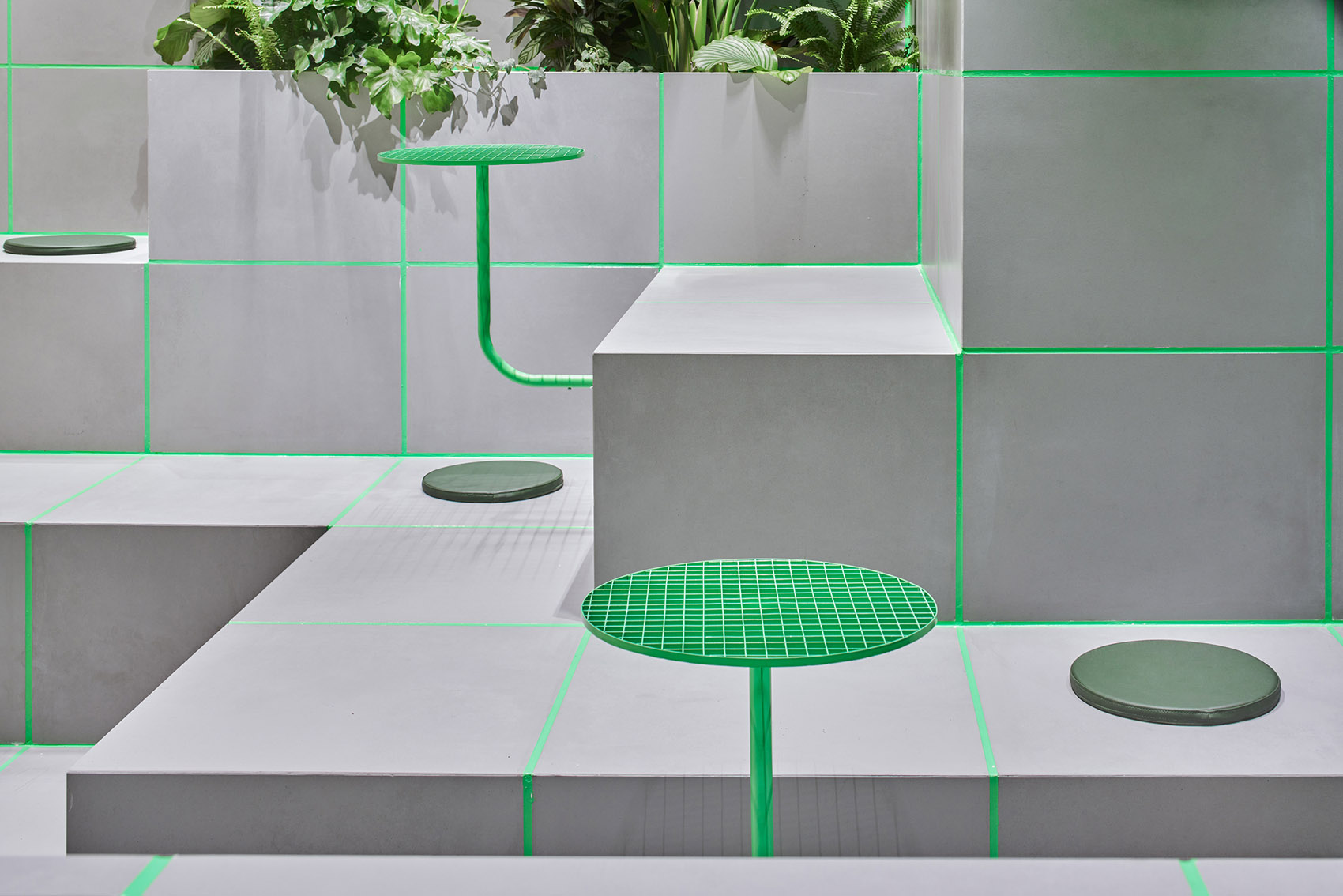

▼桌椅细部，details ©yuuuunstudio

天花的设计除了沿用模数外也根据场地原有的管线高度进行了参数化的设计，顺应原有空间中后区低，前区高的特点，设计了缓缓上扬的曲面来控制模数化的金属网格，完成了天花高度的自然过渡，最大化的利用了空间高度。

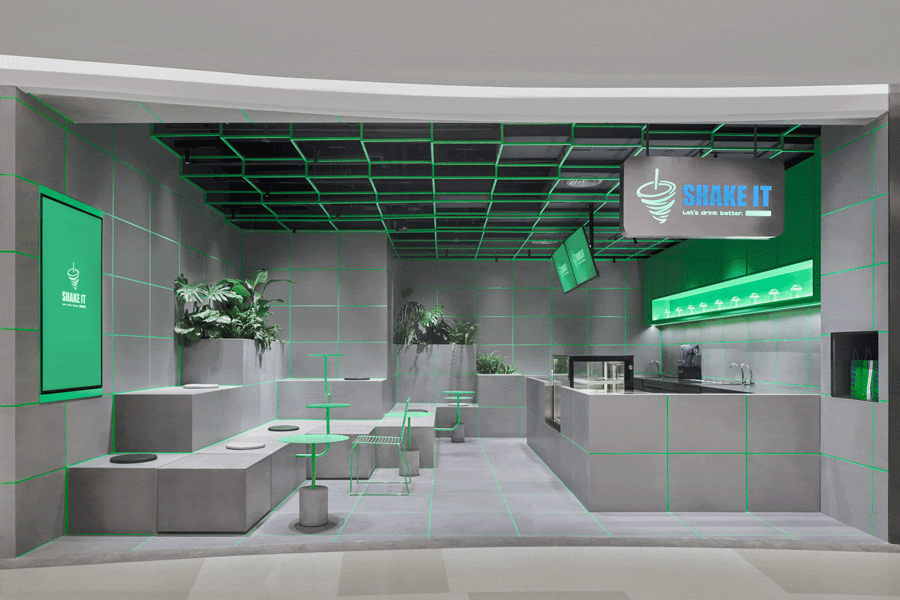

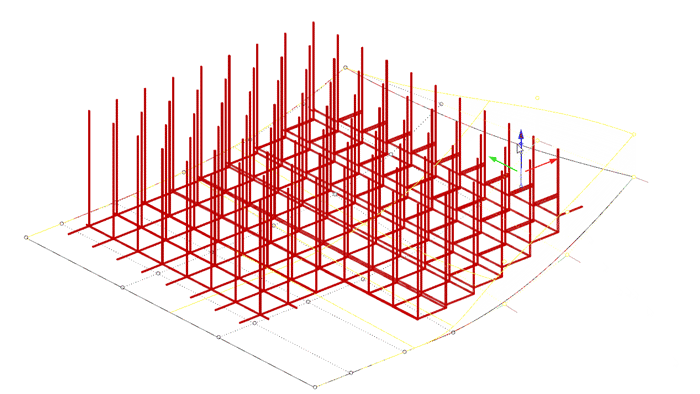

▼天花板生成动图，ceiling gerenation ©奕檐建筑

For the ceiling design, besides of the modular frame, the height of each unit is parametrically designed as per MEP heights – lower at the back and higher in front. A smoothly heading up curved surface is used to control the height of the framed ceiling which completes the height transition and make the most use of the space height.

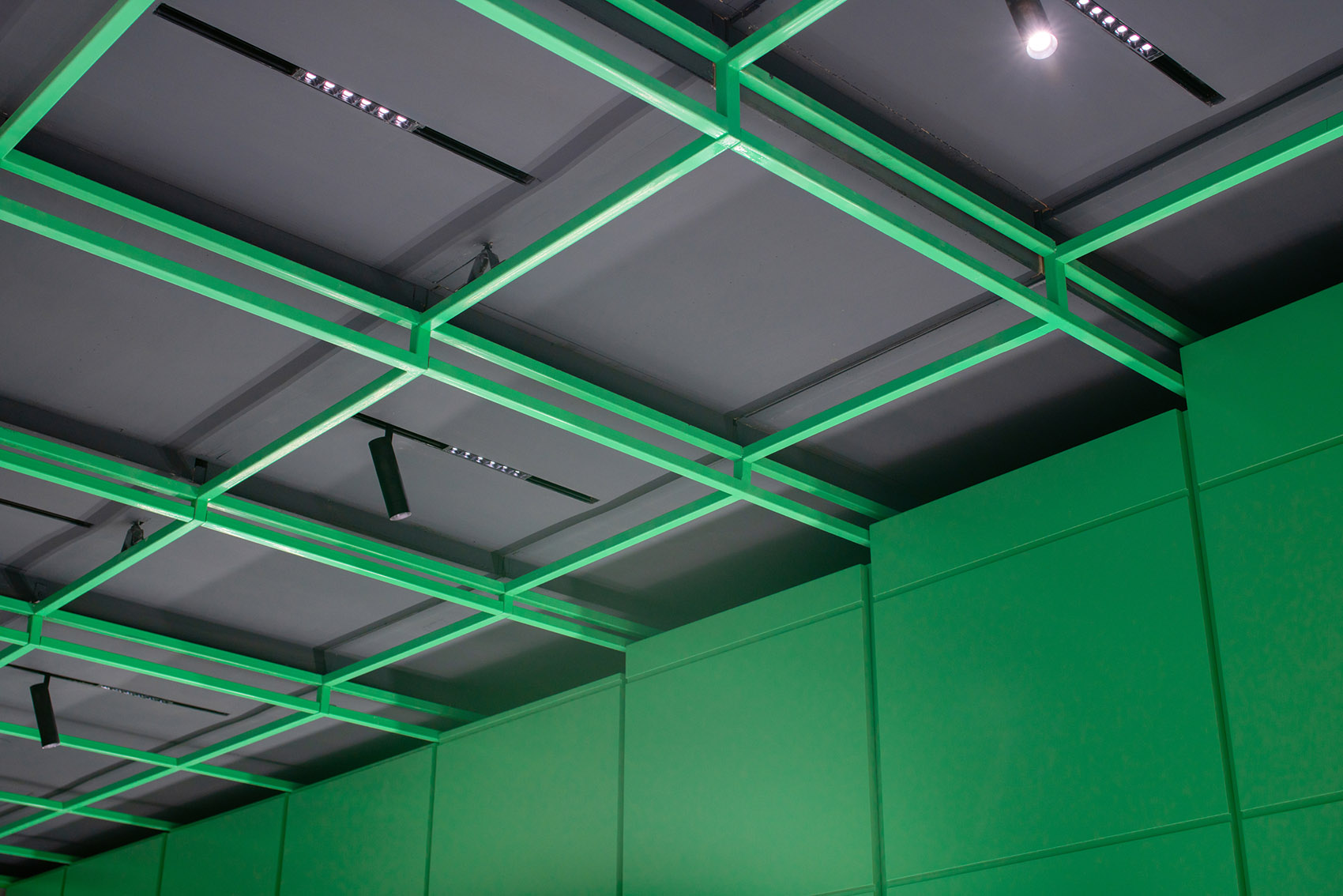

▼天花设计，the ceiling design ©yuuuunstudio

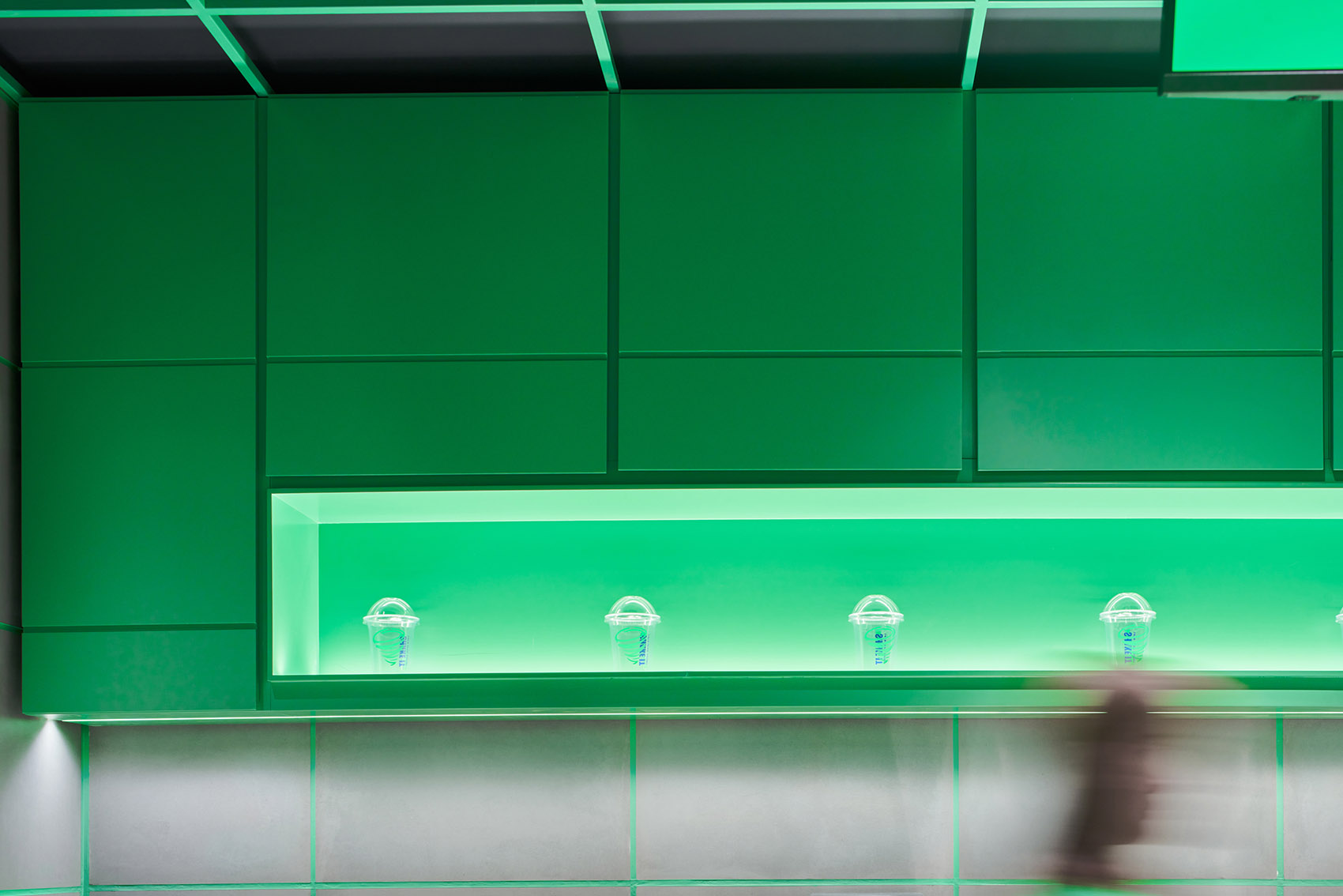

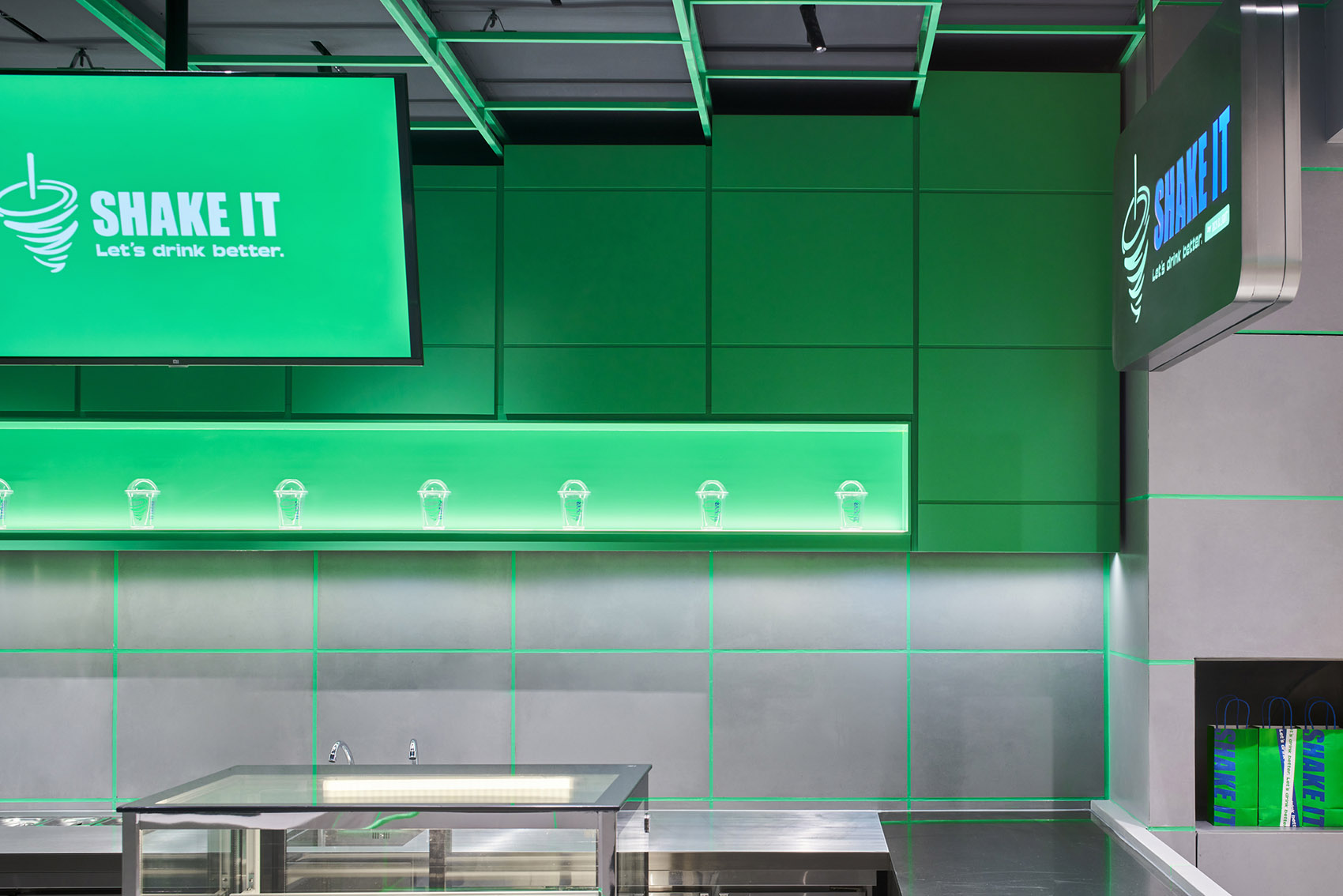

▼吧台细部，details of the bar ©yuuuunstudio

材料只选择了灰色和品牌的绿色来强化矩阵的概念和空间的纯粹性，矩阵“网格”是空间的骨架，绿色的吊柜、屏幕外框则有序的嵌入到矩阵体系中打破单一的规律性。两个模数单元的坐凳外摆散落在空间外，让空间不再局限在租赁的范围内，而有了延展。

Only grey and green color is used to emphasis the matrix concept and its purity. The green frame is the bone and the green cabinet, screen are inserted into this matrix system to break the regularity. Some modular seats outside the leasing area extends the matrix so the space has its final infinity.

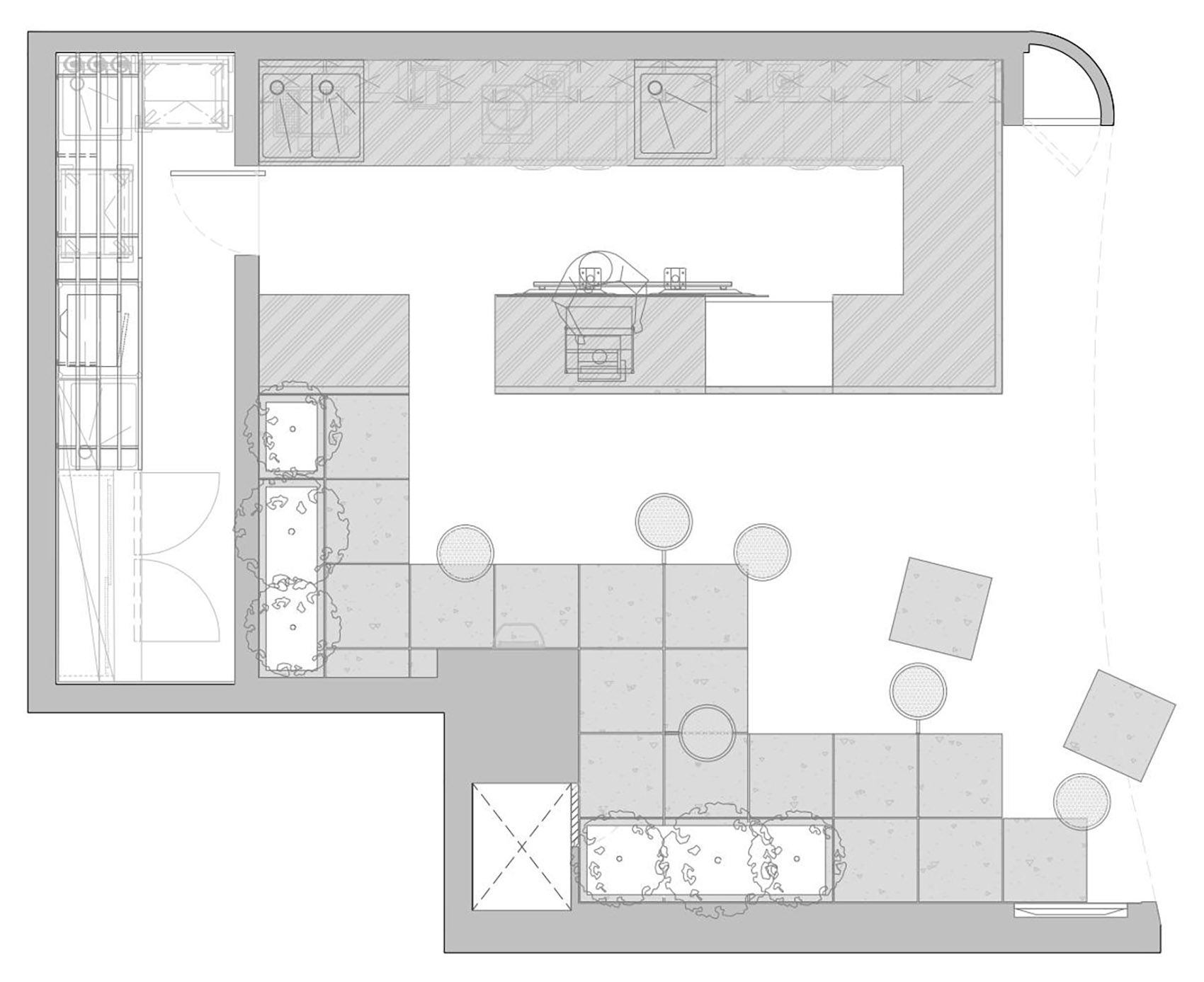

▼平面图，plan ©奕檐建筑

More: 奕檐建筑。更多关于他们：YDESIGN on gooood

Project Specs
