Qiyun Mountain Tree House, China by WISTO DESIGN + Shanghai Atelier Design Continuum + Shanghai JUND Architects Co.,Ltd. + Anhui Xiangyuan Freedom Home Holiday Camp Management Co., Ltd.

(The project is advanced due to the content updates) Science fiction joy in the forest for children

Project Specs

Location:

感谢 纬图设计机构 + 上海境澜建筑设计有限公司 + 上海骏地建筑设计事务所股份有限公司安徽祥源自由家度假营地旅游管理有限公司 予 gooood 分享以下内容。更多关于:WISTO DESIGN on  goooodShanghai Atelier Design Continuum on goooodShanghai JUND Architects Co.,Ltd. on goooodAnhui Xiangyuan Freedom Home Holiday Camp Management Co., Ltd. on gooood
Appreciation towards WISTO DESIGN Shanghai Atelier Design ContinuumShanghai JUND Architects Co.,Ltd.Anhui Xiangyuan Freedom Home Holiday Camp Management Co., Ltd. for providing the following description:

齐云山位于安徽省黄山市休宁县,是中国道教四大名山,地势陡峭,森林密布。山体终年被云雾缭绕,灵秀无双,风景如水墨长卷。自由家树屋世界就在齐云山下,是一群独特的散落林间的独立别墅式酒店客房。

Qiyun Mountain is located in Xiuning County, Huangshan City, Anhui Province. A famous mountains of Taoism in China. It has steep terrain and dense forests. The mountain is surrounded by clouds all the year round, the scenery is unparalleled,like a ink painting. The ZYJ Tree house is located under the Qiyun Mountain which is a unique group of independent villa-style hotel rooms.

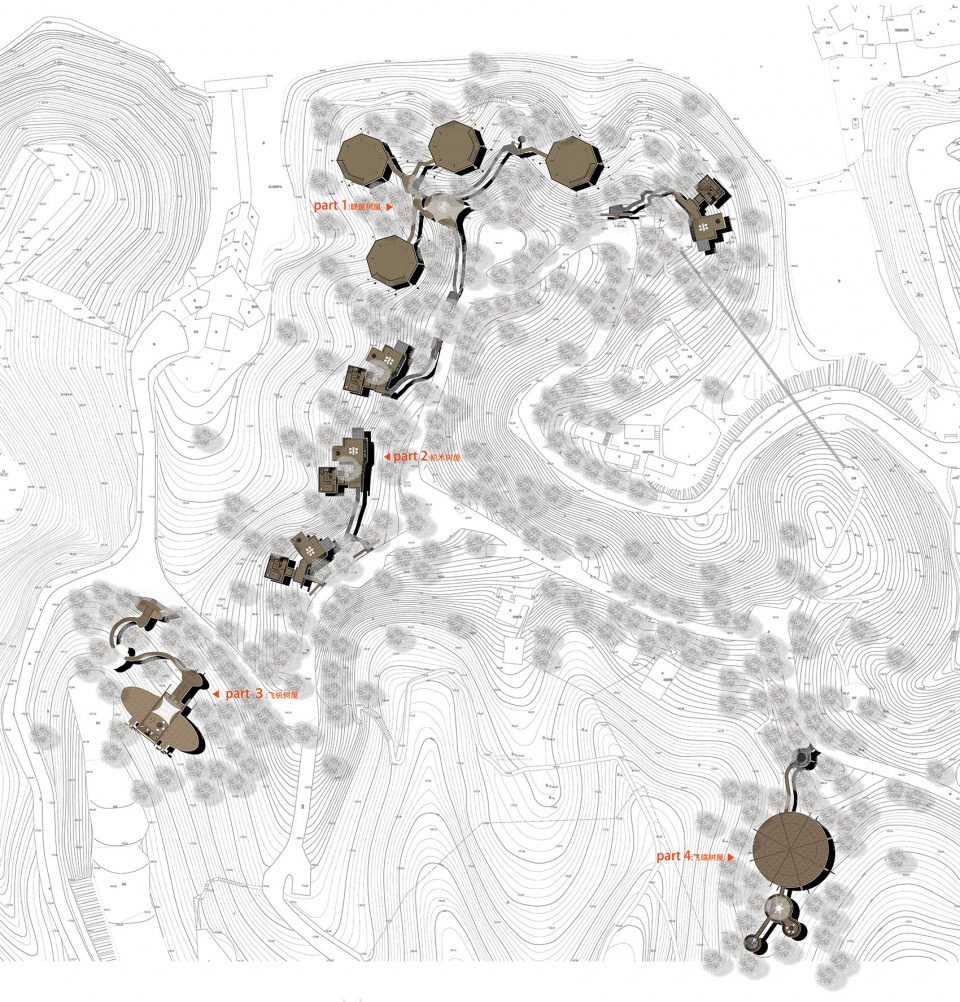

▼总平面图,site plan



设计意图
Design Intention

我们希望通过景观及建筑融合的整体设计,打造一处具有独特记忆点的强IP场所。当第一次来到这片山林,沉醉于齐云山的灵秀风景的同时,我们也思考尽可能有效的保护好大自然赐予的无限美好,让新设计的场所空间既能如同从林中生长出来一般与自然融为一体。景观尽可能最低限度的干预现有山体和植被同时,又能抓取到最美的风景是我们确定选址的第一原则。

We hope to create a strong IP site with unique memory points through the overall design of landscape and architectural integration. When I first came to this mountain forest and indulged in the beautiful scenery of Qiyun Mountain, we also thought about protecting the infinite beauty that nature has given as much as possible, so that the space of the newly designed space can grow like a forest. Integrate with nature. At the same time, the landscape can be minimally intervened at the same time as the existing mountains and vegetation, and the most beautiful scenery can be captured.

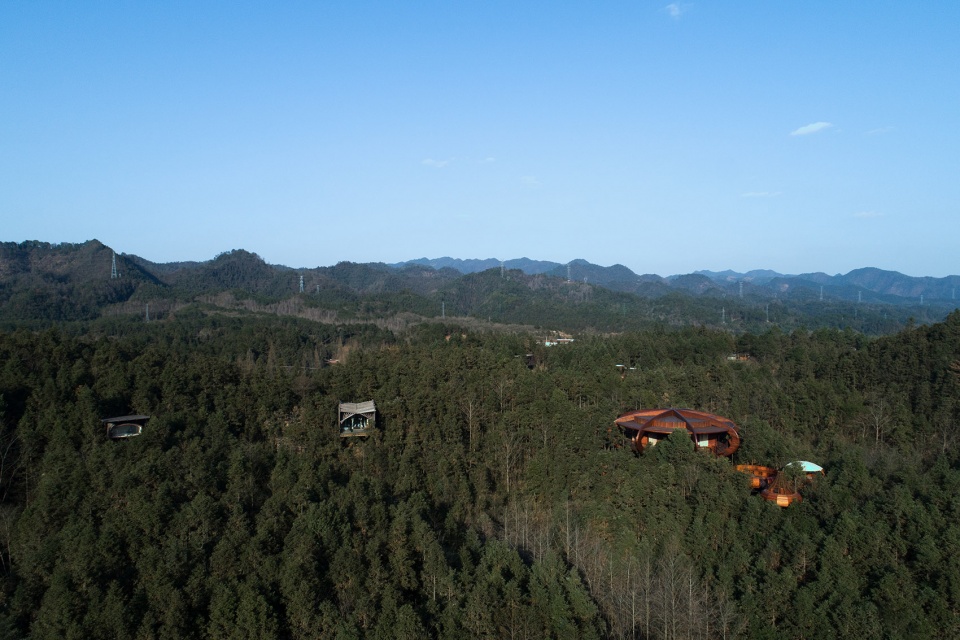

▼自由家树屋世界全景,overview of the Qiyun Mountain Tree House



场地建构原则
Principles of the Site

为有效地保护山林,建构筑物的基底面积都被控制在40-80㎡范围内,这样既能有效的隐现于山林中,也能保证客房面积有较高的舒适度。所有建构筑物,我们都建议采用吊脚楼的方式落地,既不破坏场地的原始地形,也让景观犹如长在树梢,与“树屋”的主题呼应。

林间的交通也尽可能多的使用栈道和少量的山地台阶,最大限度保留原生低矮灌木及地被植物。设计及建造过程中,坚持树木能够穿过建构筑物、穿过道路的一概保留,以“屋让树、路让树”为前提,让森林最大限度的保持原状,也让人在林间居住行走停留时能够每时每刻都真正的融入山林之中。

In order to effectively protect the forest, the base area of the building is controlled within the range of 40-80 m2, which can effectively lie in the mountain forest and ensure the high comfort of the room area. All the buildings and structures, we recommend to use the method of hanging feet to land, neither destroying the original terrain of the site, but also let the landscape grow like a treetop, echoing the theme of the “tree house”.

The traffic between the forests also uses as many plank roads as possible and a small number of mountain steps to maximize the preservation of native low shrubs and ground cover plants. During the design and construction process, the trees are able to pass through the building and the roads, and the premise of “houses and trees”, so that the forests can remain as they are, and people can walk in the forests. When you stop, you can truly integrate into the mountains every moment.

▼自由家树屋世界全景,隐现于山林中,采用吊脚楼的方式落地,overview of the Qiyun Mountain Tree House that lies in the mountain forest, all of houses use the method of hanging feet to land

树屋世界确定了四大主题:飞碟,飞机,积木,联盟。我们希望几大主题不仅停留在用具象的形体来勾勒每一栋建筑体,而是从主题空间的到达开始,构建一系列与主题相关的行为场景,让主题场景的体验可以有更多维度和层次。

The tree house has identified four major themes: airplanes, UFO, blocks, and alliances. From the perspective of planning, we hope that several major themes not only stay in the shape of the appliance to outline each building, but from the arrival of the theme space, construct a series of behavioral scenes related to the theme, so that the experience of the theme scene can be There are more dimensions and levels.



飞碟主题 | UFO

以一个漂浮的UFO为入口,以魔幻的灯光为设计元素,配合建筑的趣味飞碟形态,再辅之以观星跳床与飞碟烤火台、星空餐吧等,开启一连串梦幻的居住生活体验。

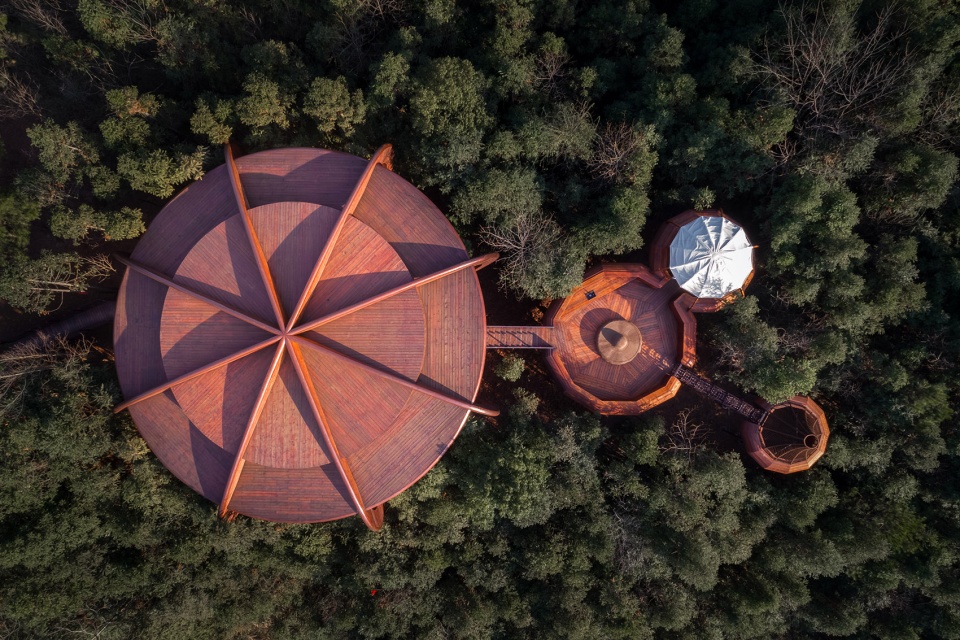

▼飞碟主题树屋俯视图,采用趣味飞碟形态,top view of the UFO with the interesting UFO shape

▼在松林的顶部穿梭,如同漫步在太空中,shuttle in the top of the pine forest, just like walking in the outer space

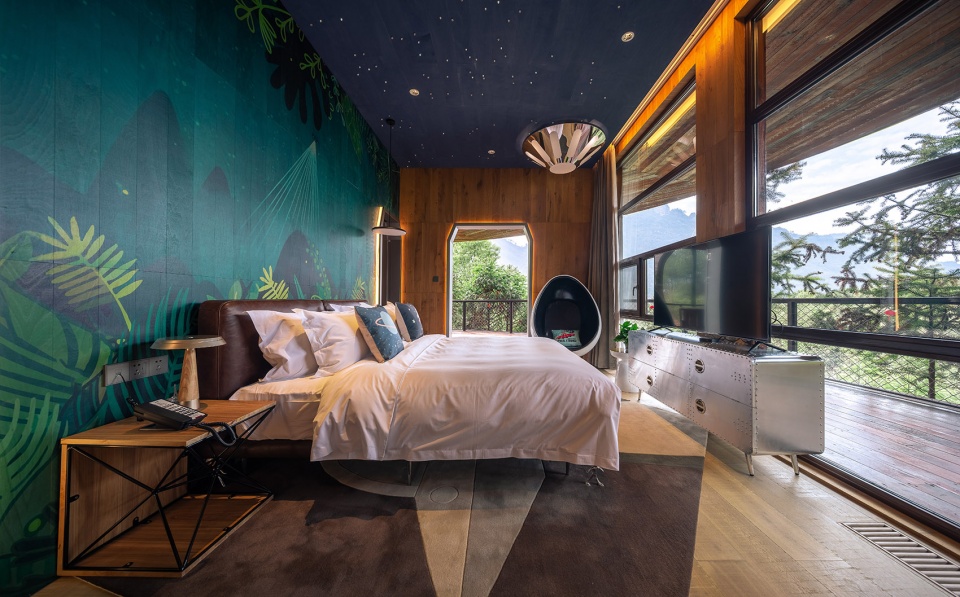

▼飞碟卧室内景,interior view of UFO bedroom

With a floating UFO as the entrance, magical lighting as the design element, and the building’s interesting UFO shape, supplemented by star-gazing trampoline and UFO roasting table, starry sky bar, etc., open a series of dreamy living experience.

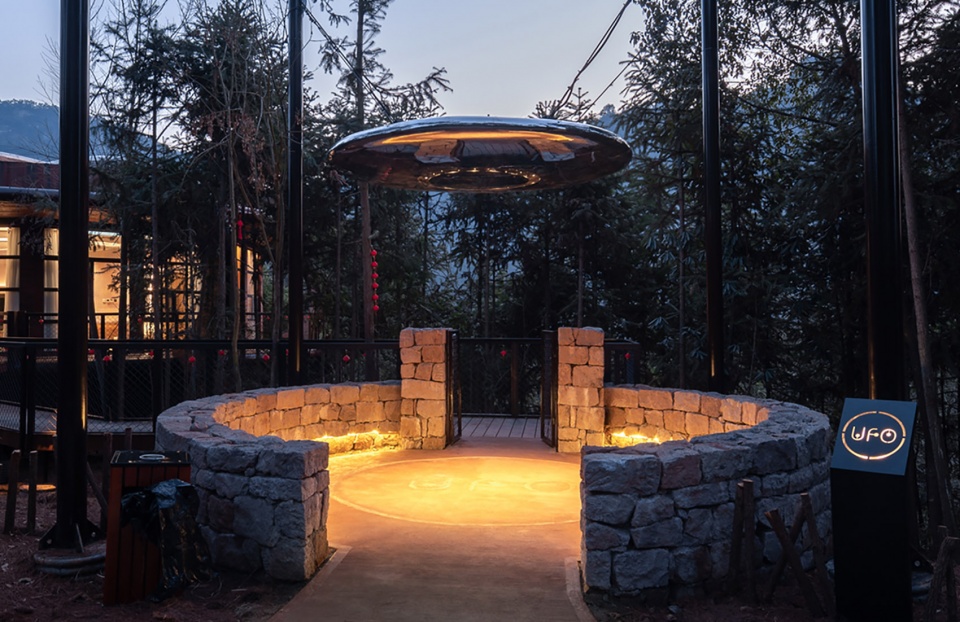

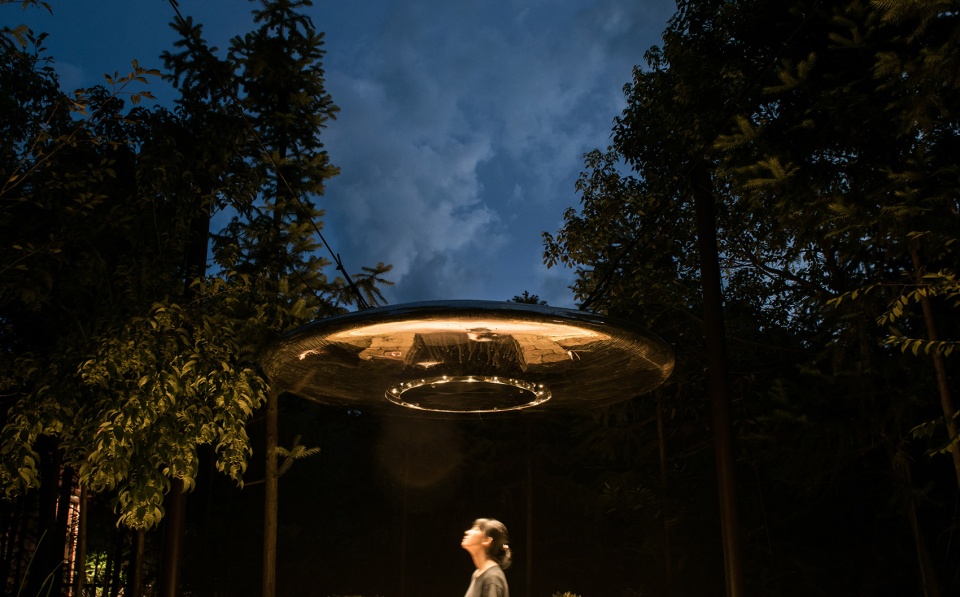

▼悬浮在空中的UFO灯光入口,回家的第一步,是踏入着梦幻般的光芒之中,UFO lighting entrance suspended in the air, the first step back home is to step into the dreamlike light

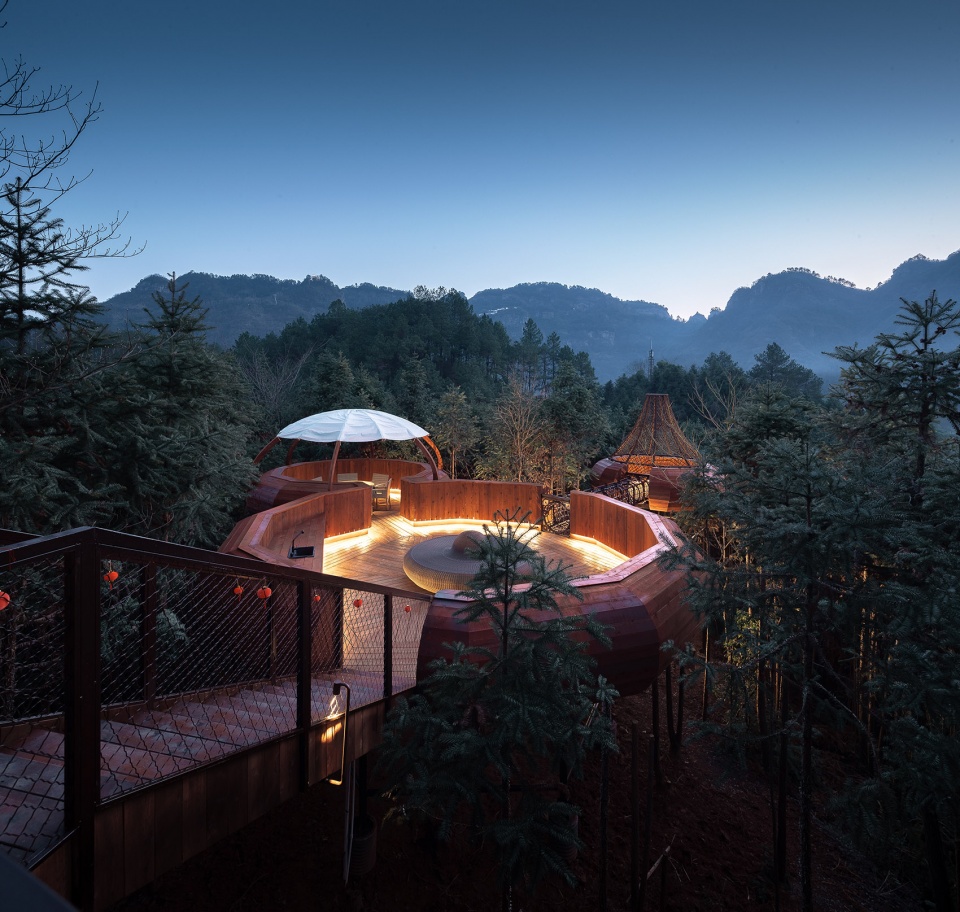

▼经过UFO入口后,从飞碟休闲平台望向飞碟烤火台、星空餐吧及观星跳床,view from the UFO leisure platform after passing by the UFO lighting entrance to the UFO roasting platform, starry sky bar and star-gazing trampoline

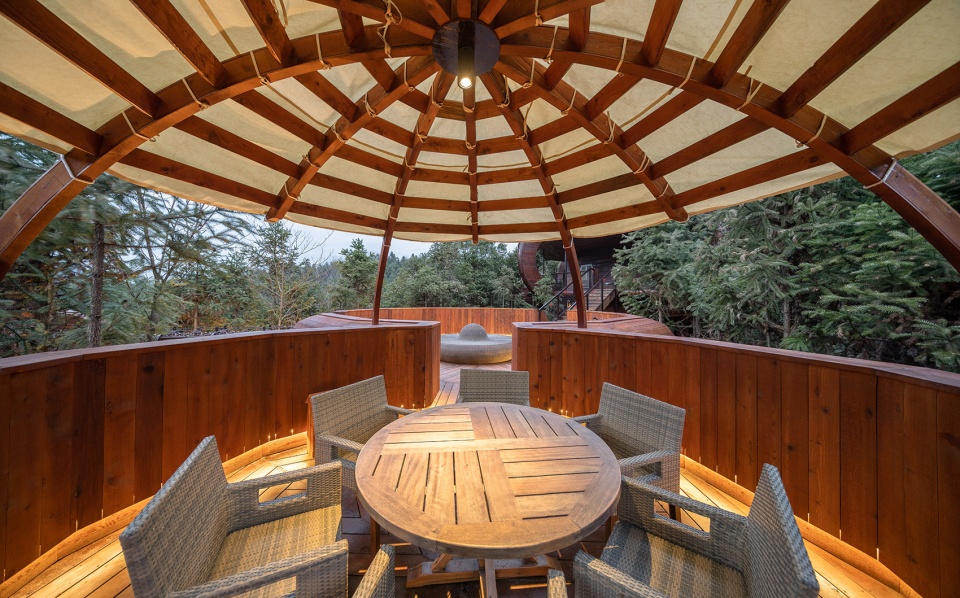

▼星空下的碟形餐厅,苍穹般的屋顶,可以自己烹饪热爱的美食,the dish-shaped restaurant under the stars, the heaven-like roof, people can cook their favorite food by yourself



飞机主题 | Aircraft

林间道路旁停放空中的一架小飞机预示着这个主题场所的到达。利用场地现有的高差,以飞机在蓝天的轨迹构建进入林间的栈道,穿越“漂浮的云朵”,进入“飞机”内部,使全程的体验犹如针对飞行在天空之中。

A small plane parked in the air next to the forest road indicates the arrival of this theme. Using the existing height difference of the site, the plane is built into the plank path between the forests in the blue sky trajectory, crossing the “floating clouds” and entering the “aircraft” interior, so that the whole experience is like flying in the sky.

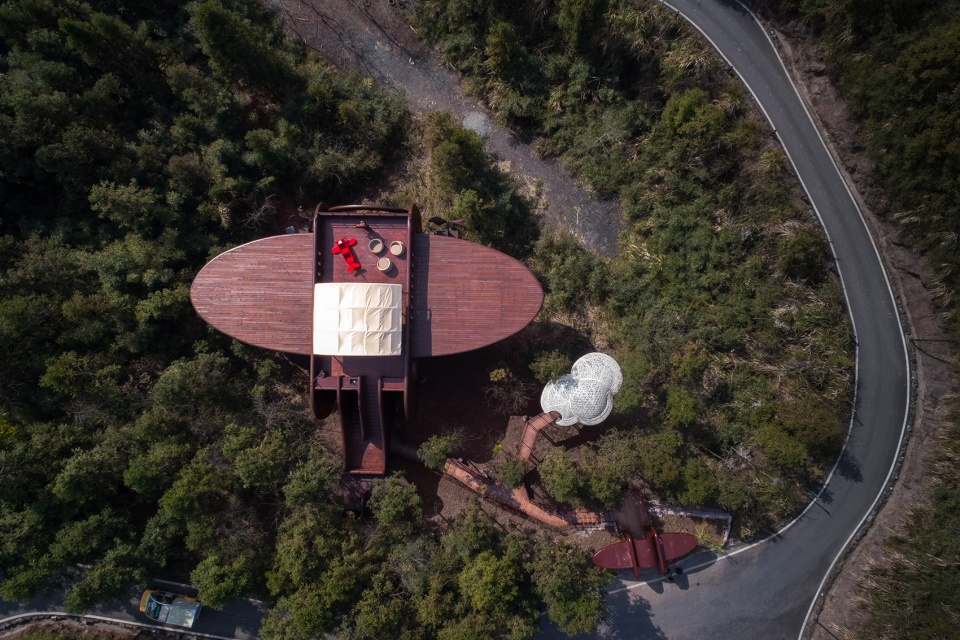

▼飞机主题树屋世界俯视图,建筑采用飞机的形态,top view of the Aircraft with the architectural shape of the plane

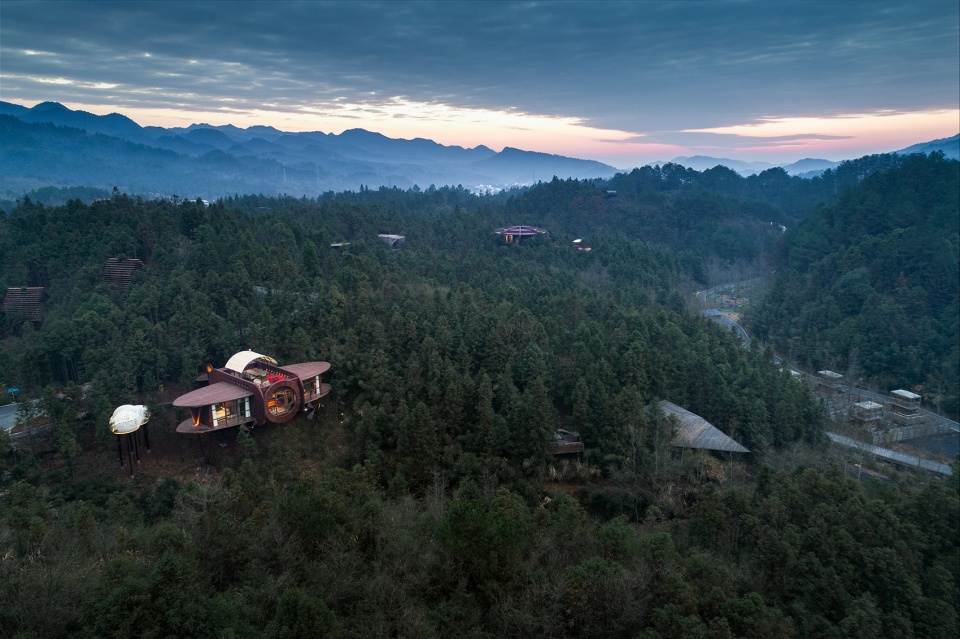

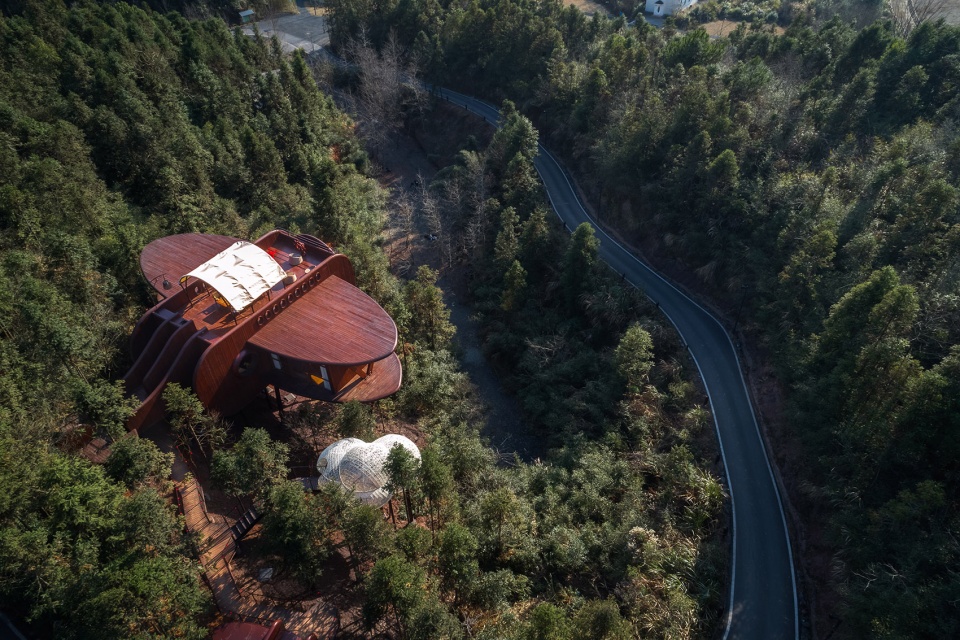

▼飞机主题树屋鸟瞰图,bird-eye’s view of the Aircraft

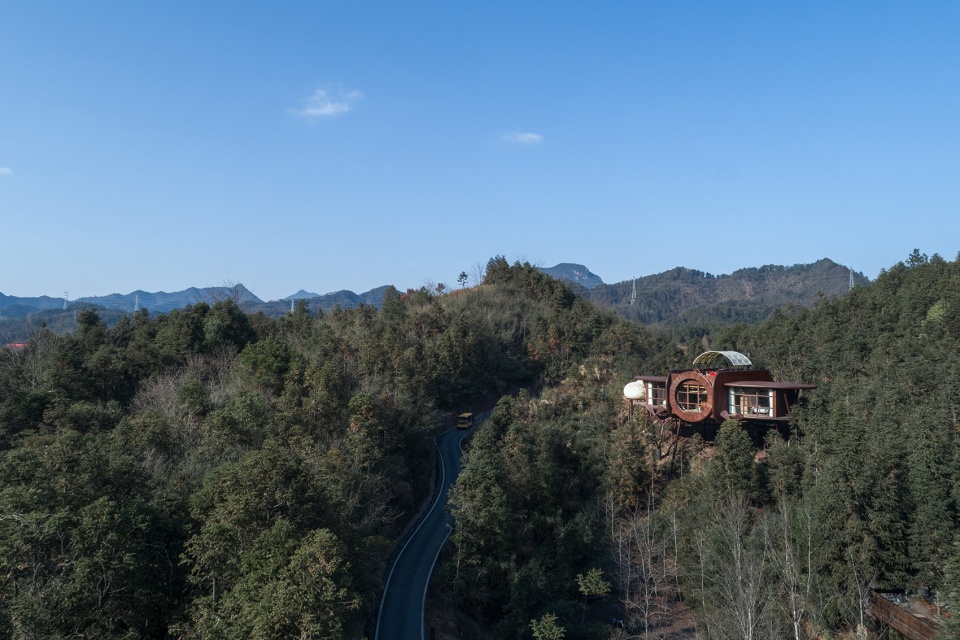

▼飞机主题树屋远景图,distant exterior view of the Aircraft

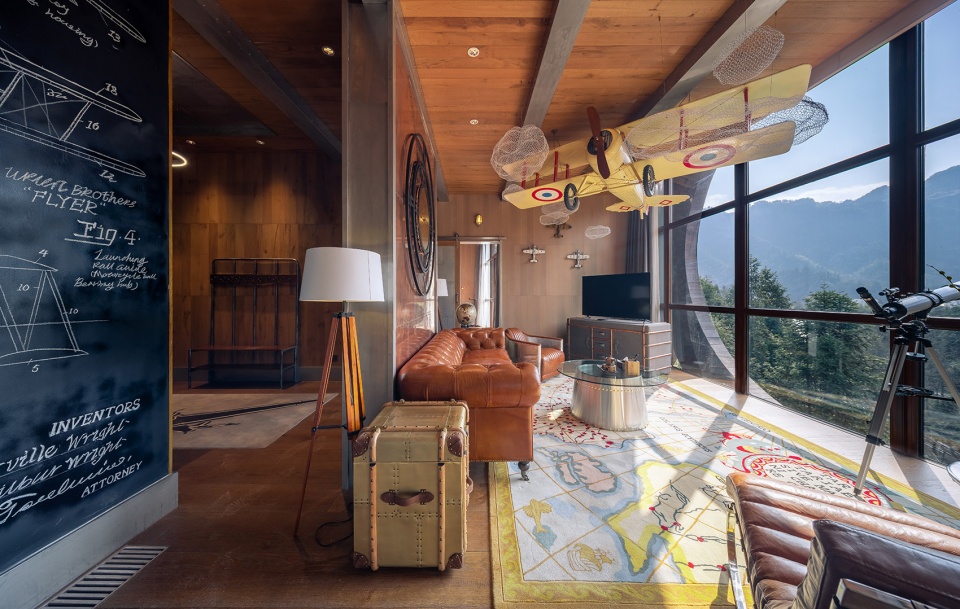

▼飞机主题树屋室内,interior view of the Aircraft

▼飞机主题树屋夜景,night view of the Aircraft

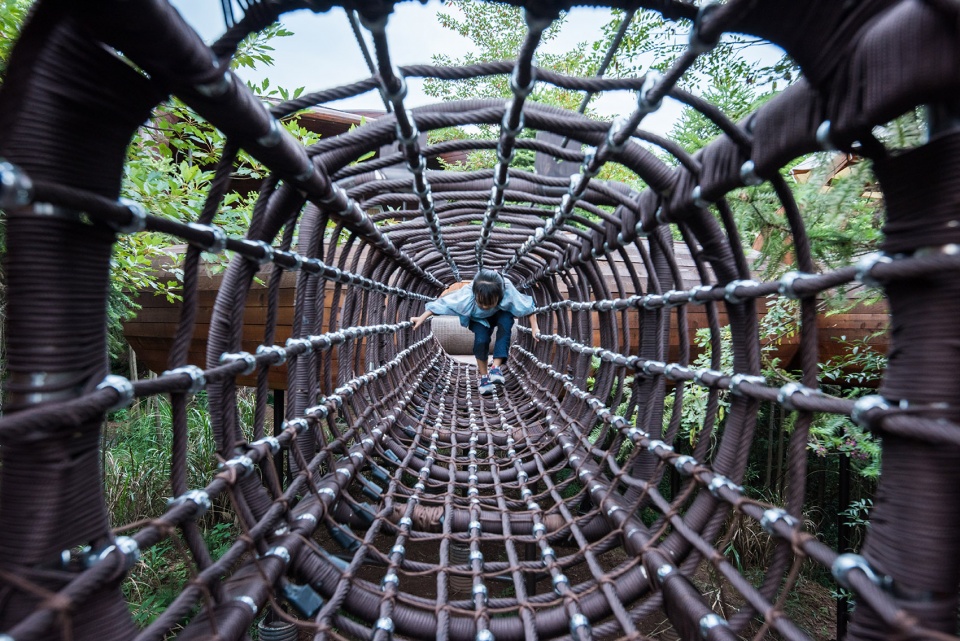

这个系列场景的构建中,轨迹的设计和漂浮的云朵是我们特别设置的一大亮点。为了达成与山林的高度融合,云朵的体量和材质也经过了数轮推敲。云朵约有3米高,4米宽,进深约6米,成为一个可以在天空中停留的空间。飞行的“轨迹”划破天空,钻进云层,透过藤网编织的脉络,形成奇妙的光影。

In the construction of this series of scenes, the design of the trajectory and the floating clouds are a highlight of our special setting. In order to achieve a high degree of integration with the mountains, the volume and material of the clouds have also been refined several rounds.The cloud is about 3 meters high, 4 meters wide and 6 meters deep, making it a space that can stay in the sky. The “trajectory” of the flight cuts through the sky, drills into the clouds, and creates a wonderful light and shadow through the veins weaved by the rattan net.

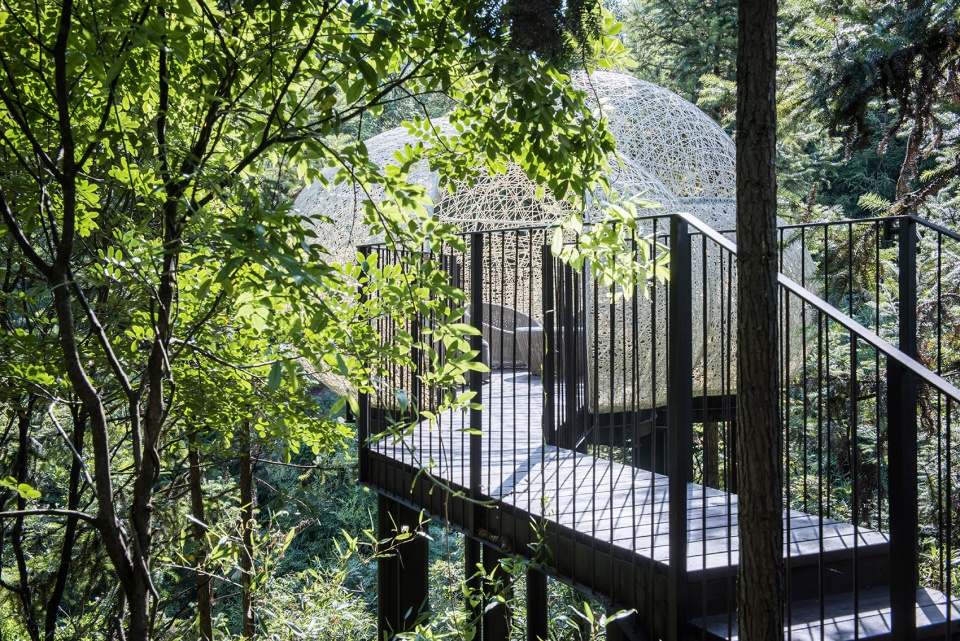

▼漂浮的云朵,与山林的高度融合,the floating clouds that achieve a high degree of integration with the mountains

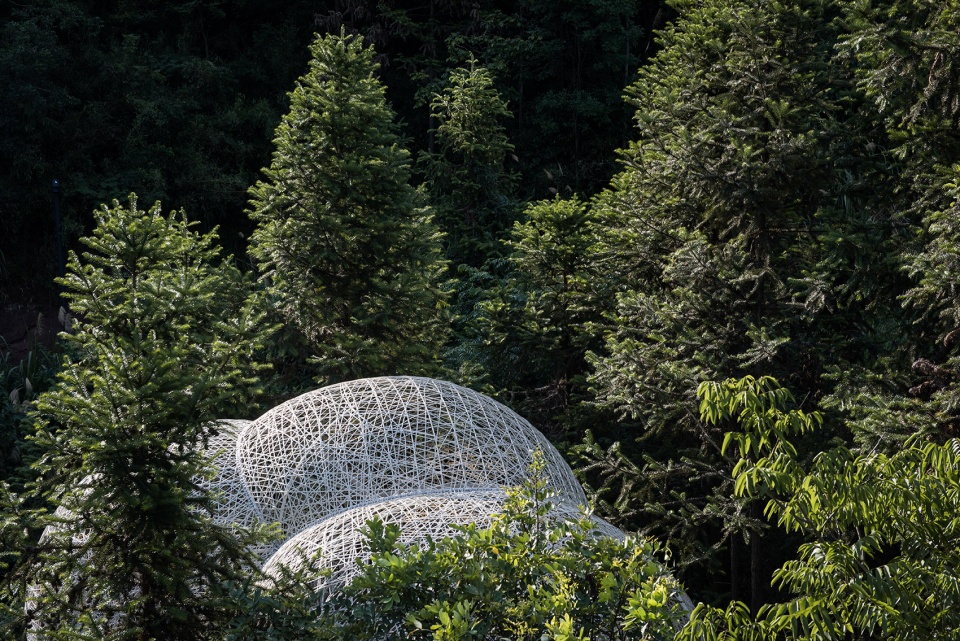

▼漂浮的云朵,掩映在山林间,the floating clouds in the forest

▼漂浮的云朵夜景,藤网编织的脉络形成奇妙的光影,night view of the floating clouds with a wonderful light and shadow through the veins weaved by the rattan net



积木主题 | Blocks

模拟积木搭建的方式建构了一组大小积木盒子,大的积木盒子像山峰一样穿出林间,内部是客房的主体,小的积木盒子则像魔法师的宝盒般,在不同的场景下变幻出不同的内容。

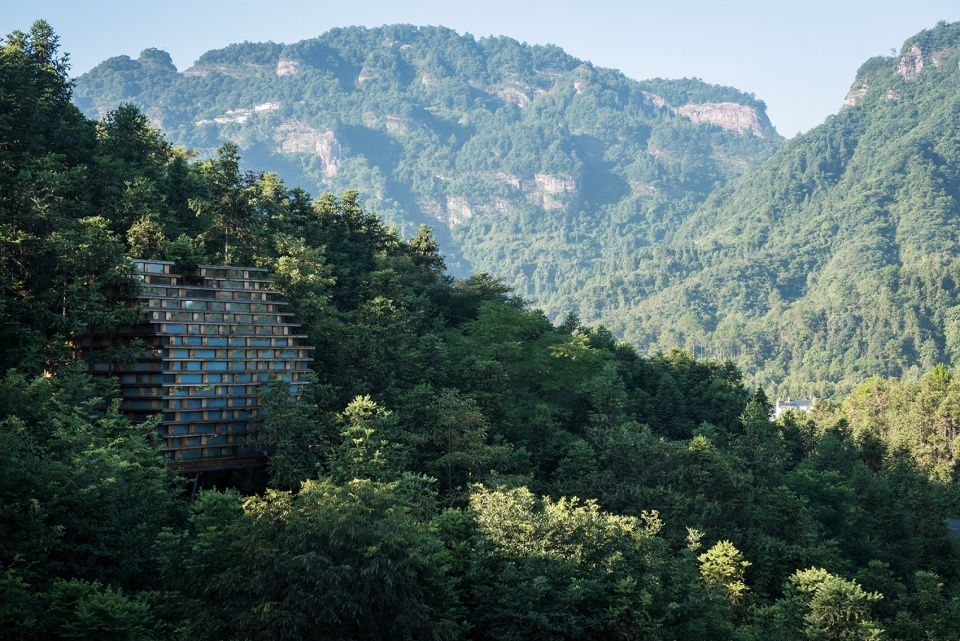

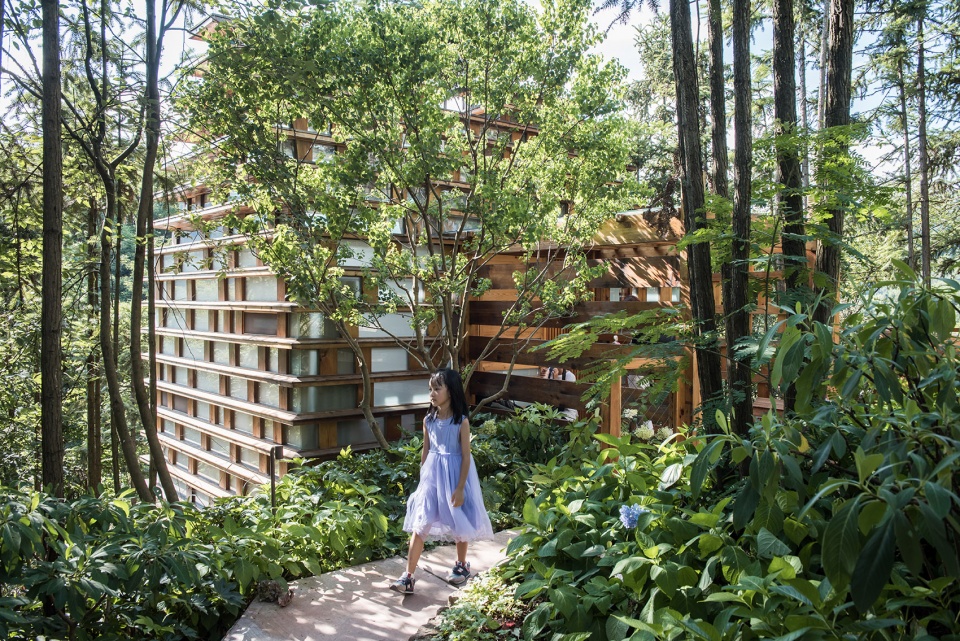

▼积木主题树屋远景,模拟积木搭建的方式建构一组大小积木盒子,大的像山峰一样穿出林间,distant exterior view of the Blocks, constructing a set of large and small building blocks in the way of building blocks, the larger ones are like forests

The way of building blocks is to construct a set of large and small building blocks. The large building blocks are like forests. The interior is the main body of the room. The small building blocks are like the magician’s treasure box. They change in different scenes in Different content.

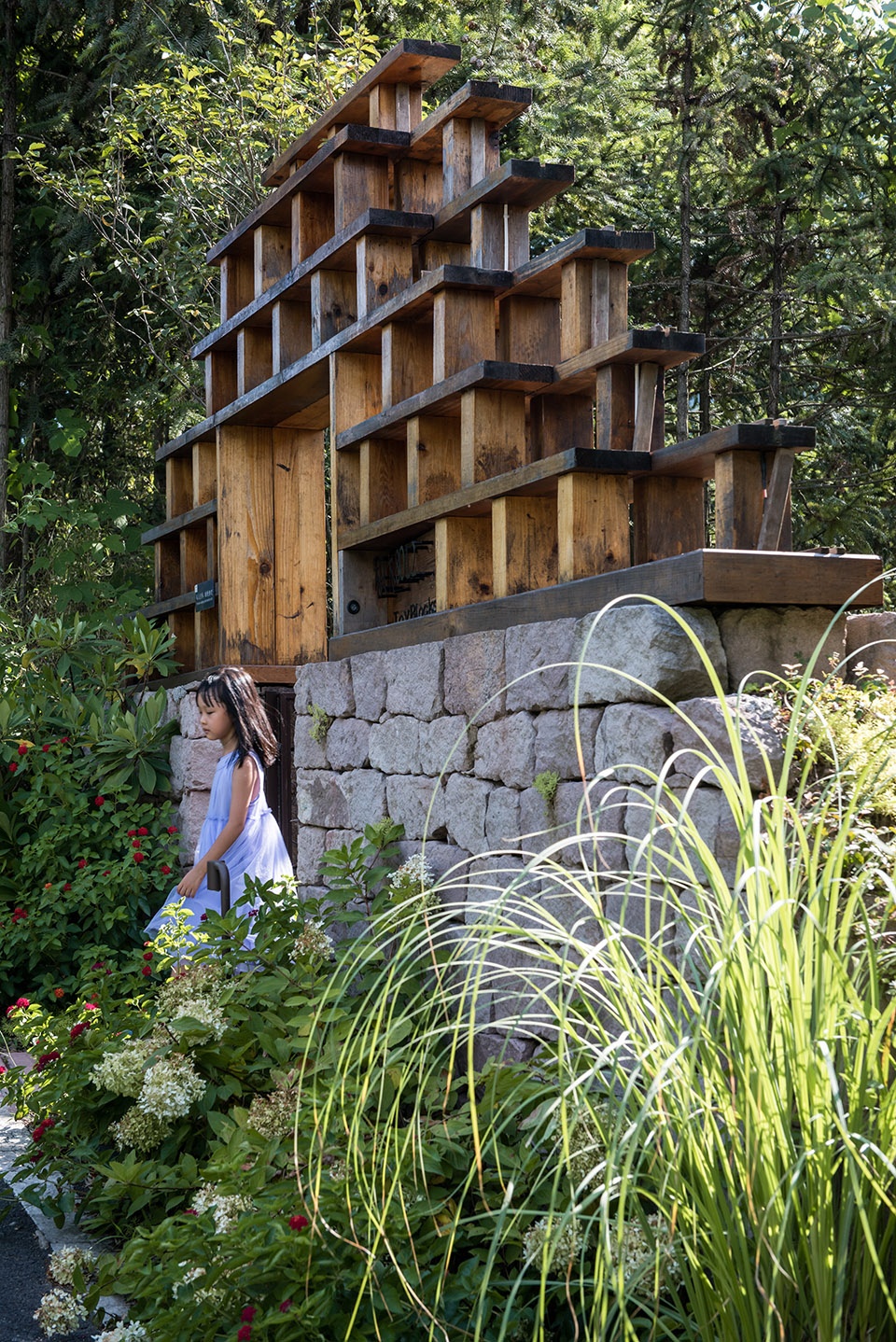

▼积木主题树屋入口,the entrance of the Blocks

▼积木主题树屋近景,close exterior view of the Blocks

▼积木主题树屋的小积木盒子室内,像魔法师的宝盒般,在不同的场景下变幻出不同的内容,interior view of the smaller blocks that are like the magician’s treasure box, changing in different scenes in different content

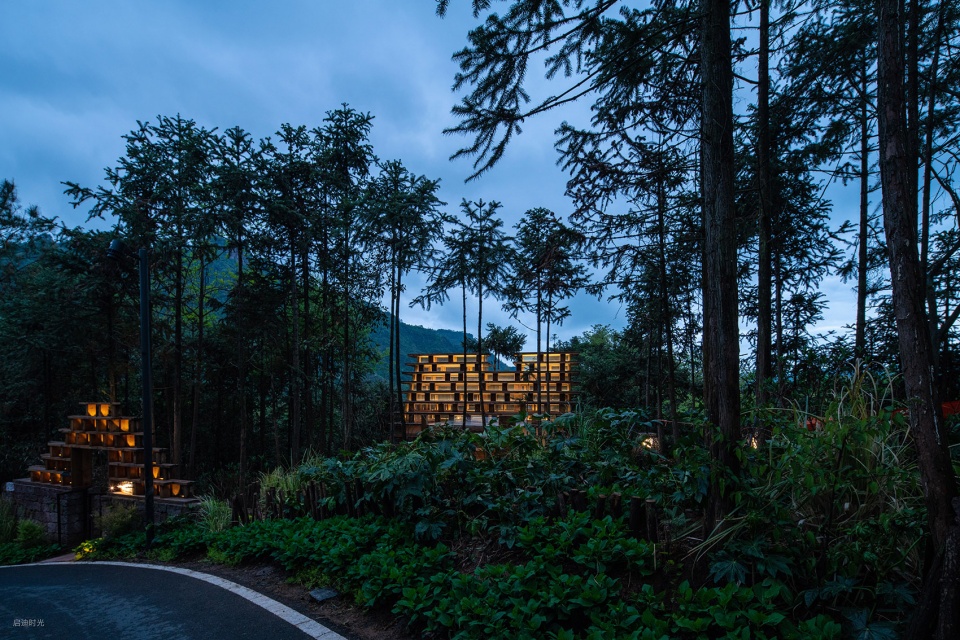

▼积木主题树屋夜景,night view of the Blocks



联盟主题 | Alliance

一组圆形的树屋散落林间,我们用一个联盟平台将他们窜在一起,平台在每一栋树屋回家必经的路上,结合变幻的地形高差,形成了一个可以上下穿梭的奇趣空间。从这里出发,将到达森林里不同的联盟小屋,向这里汇聚,每一个小屋都有了共同的据点。联盟特别适合一群经常在一起玩耍的家庭结伴来游玩居住,各自有各自的领地,又能快速聚集到这个共享的空间。

A group of round tree houses are scattered among the forests. We use a coalition platform to tie them together. The platform is combined with the changing terrain to form a road that can go up and down in the road that every tree house has to go home. Trolly space. From here, you will reach the different Union Cabins in the forest and gather here. Each cottage has a common stronghold. The Alliance is especially suitable for a group of families who often play together to play and live, each has their own territory, and can quickly gather in this shared space.

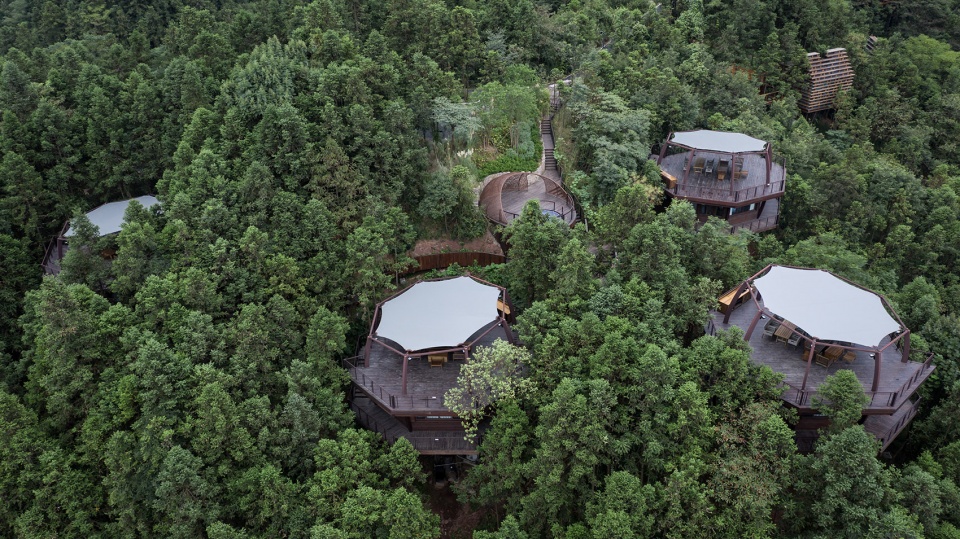

▼联盟主题树屋全景鸟瞰图,一个联盟平台将一组散落林间的圆形树屋联系在一起,overall bird-eye’s view of the Alliance, a group of round tree houses scattered among the forests are tied together through a coalition platform

▼圆形树屋单体,the single round tree house

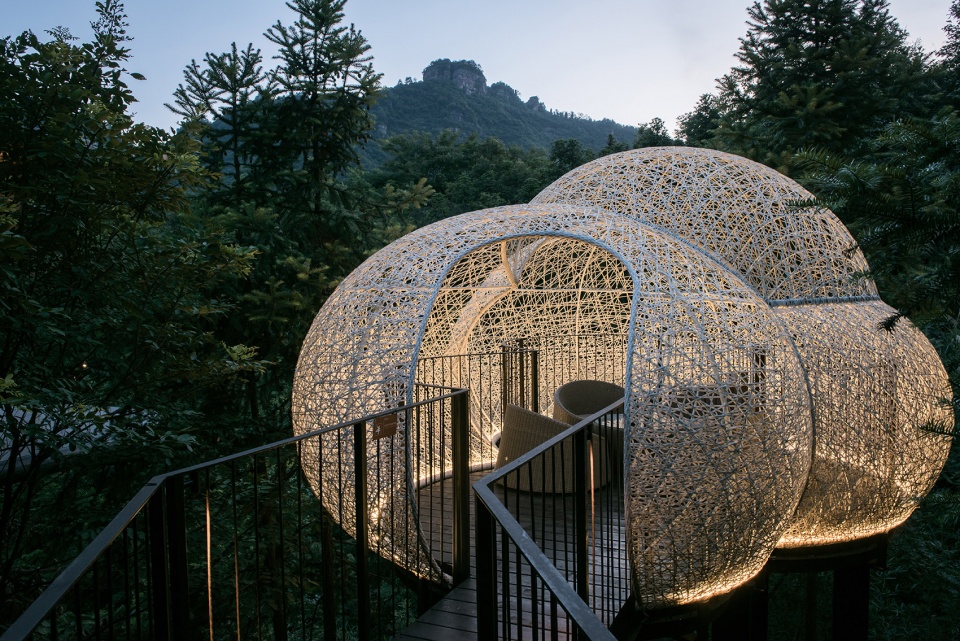

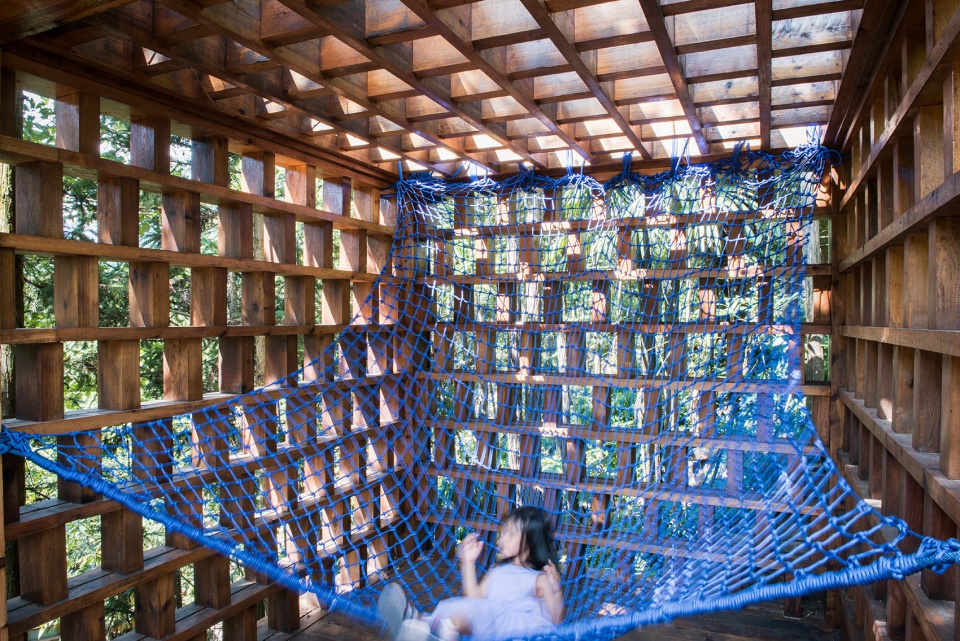

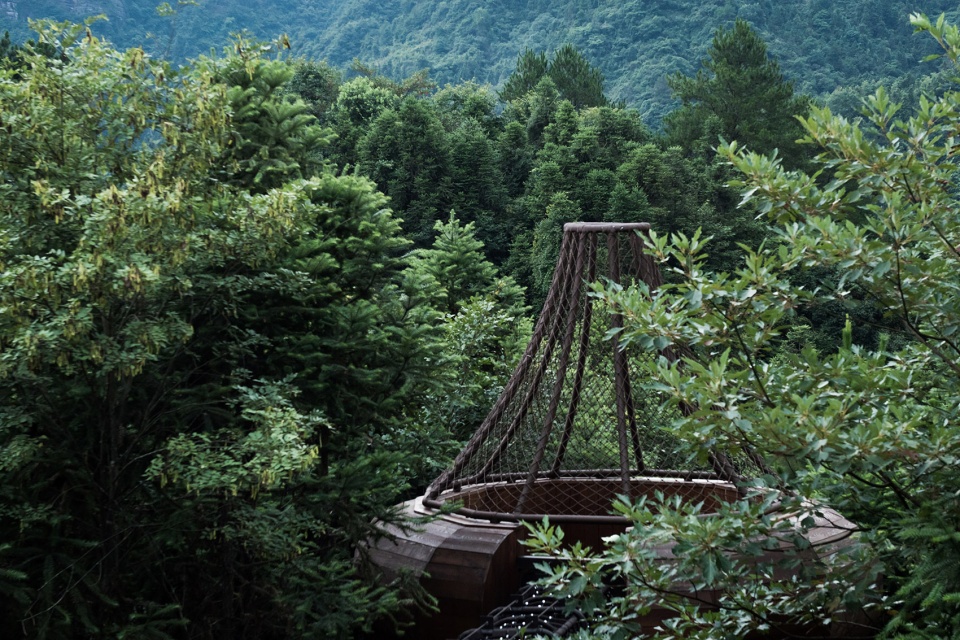

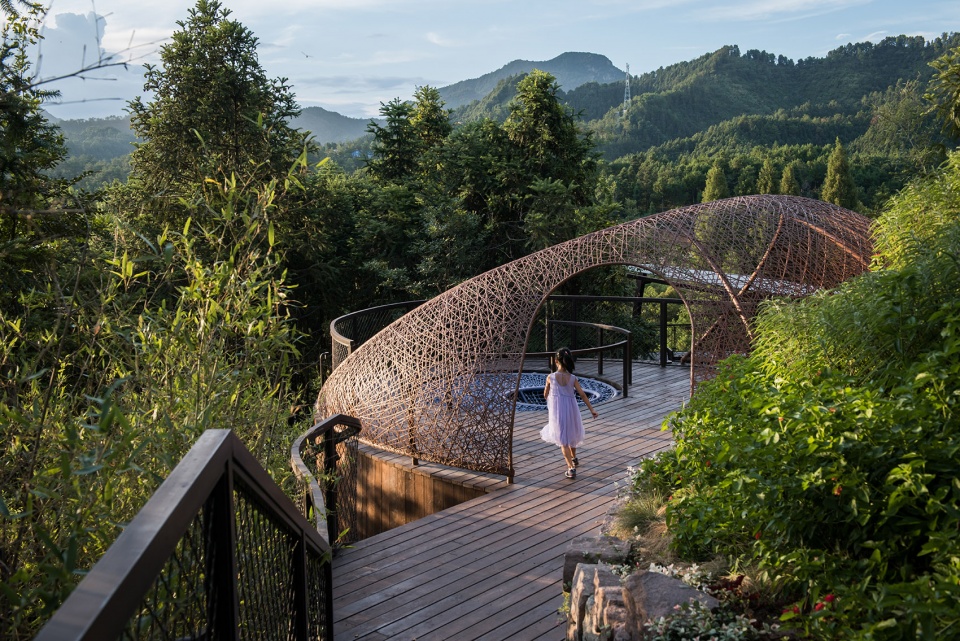

▼联盟平台,设有藤网编织的外壳,the coalition platform with a rattan net shell

▼树屋单体夜景,结合变幻的地形高差,形成了一个可以上下穿梭的奇趣空间,night view of the single tree house, combined with the changing terrain to form a road that can go up and down



山林之美的捕捉
The beauty of the forest

抓住最美的风景,体验别样的生活——这是我们设计的内在驱动。独特的地貌,丰富的植被,山林间变幻的景致,如何通过动线的设置和视线的管理巧妙的捕捉山林之美也成为我们设计的关键动作。

Grab the most beautiful scenery and experience a different kind of life – this is the inner driving force of our design. Unique landforms, rich vegetation, and changing landscapes in the mountains, how to capture the beauty of the forest through the setting of the moving line and the management of the line of sight have become the key actions of our design.

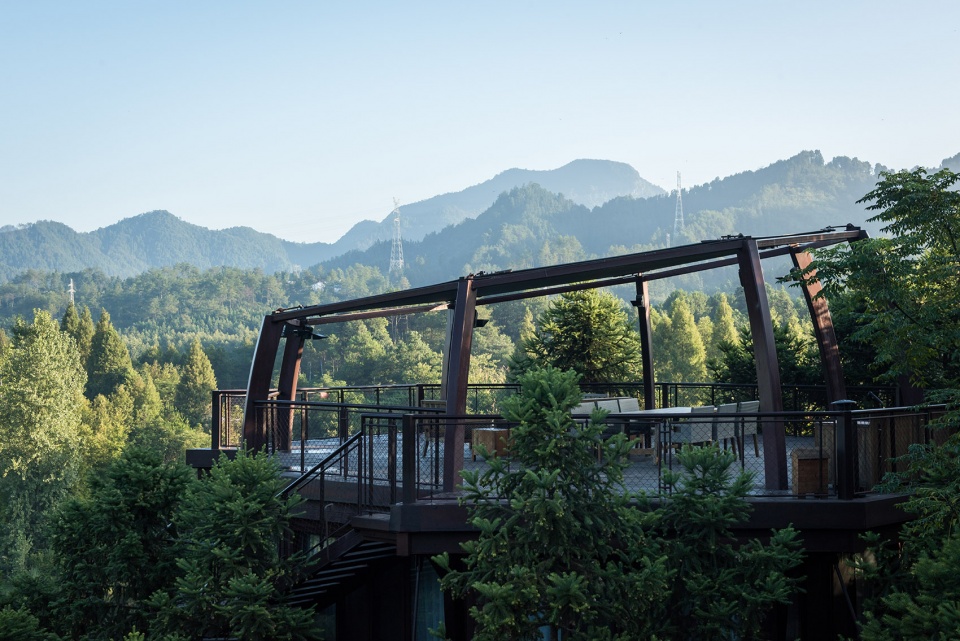

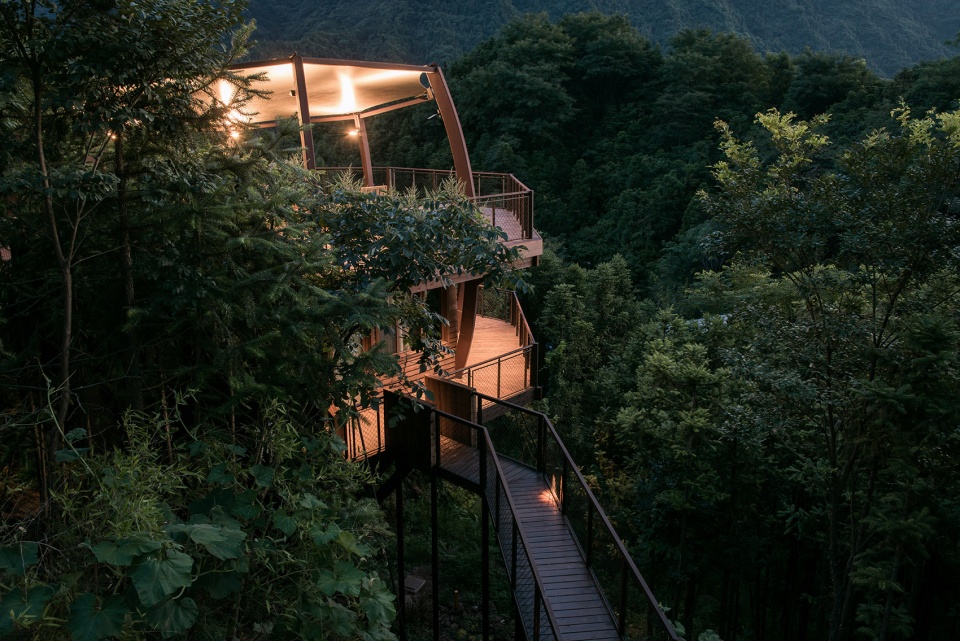

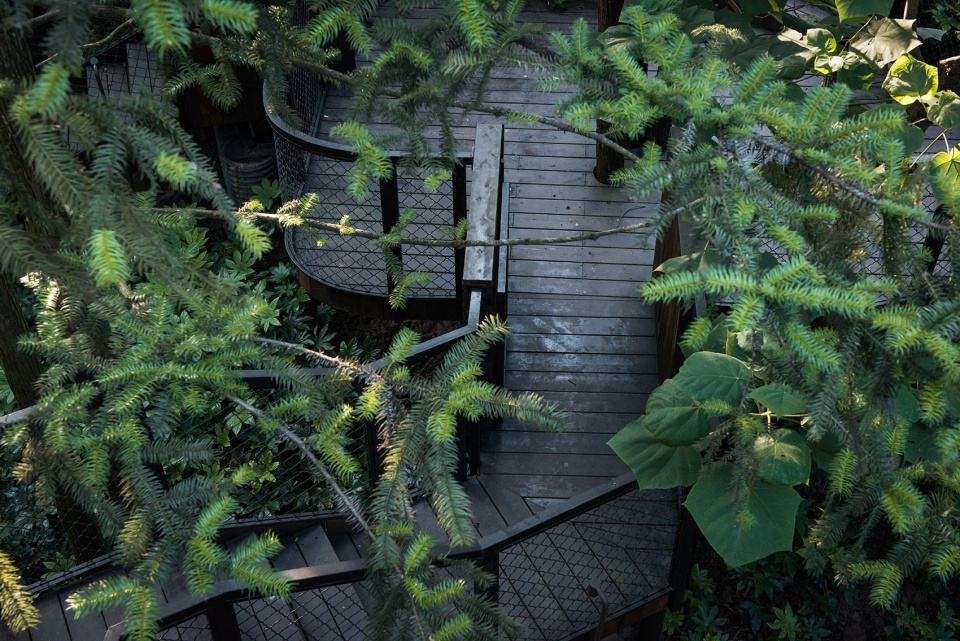

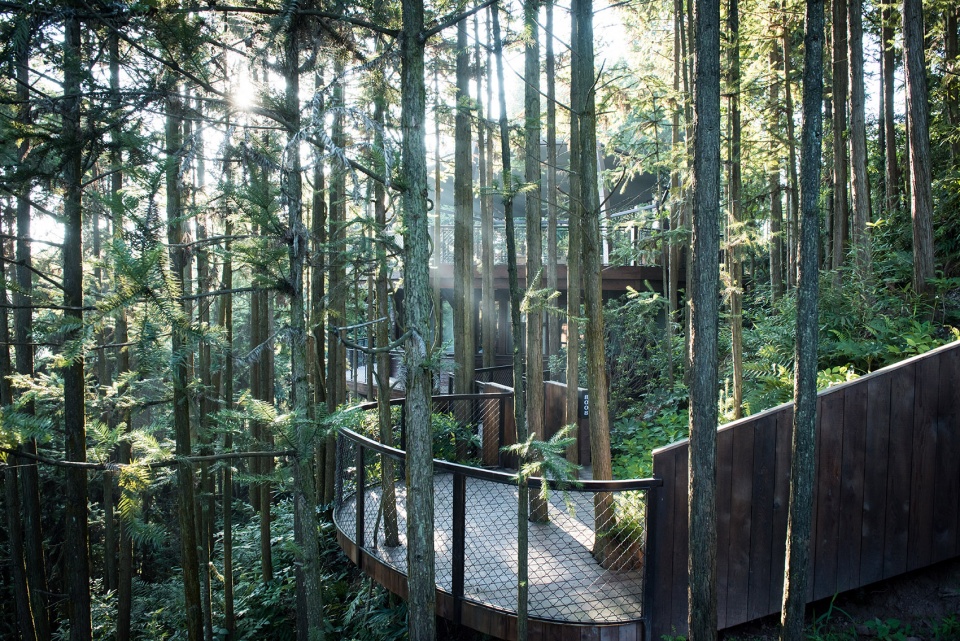

▼掩映在山林间的平台和小路,通过动线的设置和视线的管理巧妙的捕捉山林之美,the platforms and roads in the forest, capturing the beauty of the forest through the setting of the moving line and the management of the line of sight

项目名称:齐云山树屋世界
业主单位:安徽祥源自由家度假营地旅游管理有限公司

景观设计部分

景观面积:13000㎡
项目地址:安徽黄山市休宁县
景观设计单位:纬图设计机构
景观设计团队:李卉 杨灿 李婉婷 谭斐月 武文辰 戴甘霖 李理 余中元 王玥 高源 朱峰 张书桢 兰明姝 张梁
公司网站:http://www.wisto.com.cn/
联系邮箱:hr_cq@wisto.com.cn
灯光设计:启迪时光照明设计(北京·深圳)有限公司
摄 影:鲁冰 邵峰

建筑设计部分

UFO+飞机
用地面积:2600 m2(UFO)2300m2(飞机)
建筑面积:102 m2(UFO)137 m2(飞机)
结构形式:钢木混合结构
建筑层数:1
建筑设计单位:上海境澜建筑设计有限公司
建筑设计:朱子晔(上海境澜建筑设计有限公司)
设计团队:李建硕、吴晏如、陈旭辉(上海境澜建筑设计有限公司)
室内设计:广州木马室内设计有限公司 上海境澜建筑设计有限公司
公司网站:www.ateilerdsc.com
结构设计:上海臻源木结构设计工程有限公司
结构形式:钢木混合结构
项目类型:公共建筑、酒店
主要材料:红雪松
图纸版权:上海境澜建筑设计有限公司
摄 影:邵峰
翻 译:崔若男

联盟X5
用地面积:1650 m2
建筑面积:365 m2
结构形式:钢木混合结构
建筑层数:1
建筑设计单位:安徽祥源自由家度假营地旅游管理有限公司
室内设计:广州木马室内设计有限公司 上海境澜建筑设计有限公司
公司网站:www.ateilerdsc.com
结构设计:上海臻源木结构设计工程有限公司
公司网站:www.zytimber.com
结构形式:钢木混合结构
项目类型:公共建筑、酒店
主要材料:红雪松

积木
用地面积:50㎡
建筑面积:25㎡(室内)+20㎡(露台)
结构形式:钢木混合结构
建筑层数:2
建筑设计单位:上海骏地建筑设计事务所股份有限公司
建筑设计:黎晓明、王培清
室内设计:上海骏地建筑设计事务所股份有限公司
公司网站: www.jundinc.com.cn
结构设计:营口小雨木结构建筑安装有限公司
结构形式:钢木混合结构
项目类型:公共建筑、酒店
主要材料:红雪松
图纸版权:上海骏地建筑设计事务所股份有限公司
摄 影:顾俊、曾江河、胡义杰

Project Name: Qiyun Mountain Tree House
Owner: Anhui Xiangyuan Freedom Home Holiday Camp Management Co., Ltd.
Design time: 2017
Built in: 2019
Project Type: Hotel

Landscape Design
Landscape area: 13000m2
Project address: Xiuning County, Huangshan City, Anhui Province
Landscape design:  WISTO DESIGN
Landscape Design Team: LiHui YangCan LiYuting TanFeiyue WuWenchen DaiGanlin LiLi YuZhongyuan WangWei GaoYuan ZhuFeng ZhangShuzhen LanMingxi ZhangLiang
Company website: http://www.wisto.com.cn/
Contact email: hr_cq@wisto.com.cn
Architectural Design: Atelier Design Continuum,Shanghai (Aircraft &UFO) ,Shanghai JUND Architects Co.,Ltd. (Blocks),Anhui Xiangyuan Freedom Home Holiday Camp Management Co., Ltd. (Alliance)
Lighting Design: QIDI Time Lighting Design (Beijing&Shenzhen) Co.,Ltd.
Photo: LuBing,ShaoFeng

Architectural Design

UFO+Plane
Land area: 2600㎡(UFO)2300㎡(plane)
SBuilding area: 102 ㎡(UFO)137㎡(plane)
tructural form: steel-wood mixed structure
Number of building storey: 1
Architectural Design: Atelier Design Continuum, Shanghai
Architectural Designer: Zhu ziye (Atelier Design Continuum, Shanghai)
Design team: Li Jianshuo, Wu Yanru, Chen Xuhui (Atelier Design Continuum, Shanghai)
Interior Design: Guangzhou Muma Interior Design Co., Ltd.
Atelier Design Continuum, Shanghai
Web site:www.ateilerdsc.com
Structural Design: Shanghai Zhenyuan Timber Structure Engineering Co., Ltd.
Structure form: steel-wood mixed structure
Project Type: Public Building, Hotel
Main material: red cedar
Drawing copyright: Atelier Design Continuum, Shanghai
Photo: ShaoFeng
Translate:Cui Ruonan

League
Land area: 1650 ㎡
SBuilding area: 365㎡
tructural form: steel-wood mixed structure
Number of building storey: 1
Architectural Design: Anhui Xiangyuan Freedom Home Holiday Camp Management Co., Ltd.
Interior Design: Guangzhou Muma Interior Design Co., Ltd. Atelier Design Continuum, Shanghai
Web site:www.ateilerdsc.com
Structural Design: Shanghai Zhenyuan Timber Structure Engineering Co., Ltd.
Structure form: steel-wood mixed structure
Project Type: Public Building, Hotel
Main material: red cedar
Drawing copyright: Atelier Design Continuum, Shanghai

Pinevilla
Land area: 50㎡
SBuilding area: 25㎡(Indoor Area)+20㎡(Terrace Area)
tructural form: steel-wood mixed structure
Number of building storey: 2
Architectural Design: Shanghai JUND Architects Co.,Ltd.
Architectural Designer: Eric Li, Sophie Wang
Interior Design: Shanghai JUND Architects Co.,Ltd.
Web site: www.jundinc.com.cn
Structural Design: Yingkou xiaoyu wooden structure construction installation co. LTD
Structure form: steel-wood mixed structure
Project Type: Public Building, Hotel
Main material: red cedar
Drawing copyright: Shanghai JUND Architects Co.,Ltd.
Photo: Jun Gu,Jianghe Zeng,Yijie Hu
