感谢 OAOA Studio（oaoastudio@yeah.net）予gooood的分享以下内容。更多请至：OAOA Studio on gooood
Appreciation towards OAOA Studio（oaoastudio@yeah.net） for providing the following description:

社会不断发展、经济条件越来越好，消费对个性的追求也随之越来越强，个性化柔性生产也更满足当下时代不同人的需求。早期的工厂是工业时代的流水线生产模式，都是同质化的大批量生产，有很多工厂订单从一款生产几十万件到后来订单减少至几万或几千，现在市场的需求数量越来越少，需要满足更多个性定制的需求，HumCustom是一家专注于提供POD定制柔性供应链解决方案的企业，从选品、生产、物流及售后等一站式服务，中央工厂1.6万平方米，有17个配套工厂，可以做到一件定制到上万件定制。

As society continues to develop and economic conditions improve, consumers increasingly pursue individuality. Personalized flexible production better meets the diverse needs of people in today’s era. Early factories used assembly line production models of the Industrial Age, namely mass-producing homogeneous products. In many factories, the orders decreased from hundreds of thousands of units to tens of thousands or even thousands. Nowadays, market demand quantities are dwindling, necessitating the fulfillment of more personalized customization needs. HumCustom is an enterprise specializing in providing POD customized flexible supply chain solutions, offering one-stop services from product selection, production, logistics, to after-sales. With a central factory covering 16,000 square meters and 17 supporting plants, it can handle customizations ranging from a single piece to tens of thousands.

▼展厅外观，exterior of the showroom ©Wen studio

HumCustom取名来源于蜂鸟，起因是蜂鸟种类有三百多种，每种蜂鸟羽毛色彩都不同，与定制寓意类似，在产品上，所有的产品都来源于一个白胚的基底，从T恤、帽子、包袋、杯子到宠物用品和钥匙扣等，都有基础的单色产品，通过不同设计需求的颜色、图案和工艺赋予在白胚产品上。比如一件T恤可以设计出各式各样的图案，满足不同设计的定制需求。目前工厂多数产品都出口北美国家，此次设计的展厅主要是给海外分销商有直观的产品展示与解说，也是起到对品牌的展示作用。

The name HumCustom is inspired by hummingbirds, of which there are over 300 species, each with uniquely colored feathers, akin to customization. In terms of products, all originate from a white blank base. Whether T-shirts, hats, bags, cups, to pet supplies and keychains, there are basic monochrome products that are adorned with colors, patterns, and crafts based on diverse design requirements. For instance, a T-shirt can be designed with various patterns to meet customized design needs. Currently, most of the factory’s products are exported to North American countries. The exhibition hall designed this time is primarily for intuitive product display and explanation to overseas distributors, also serving to showcase the brand.

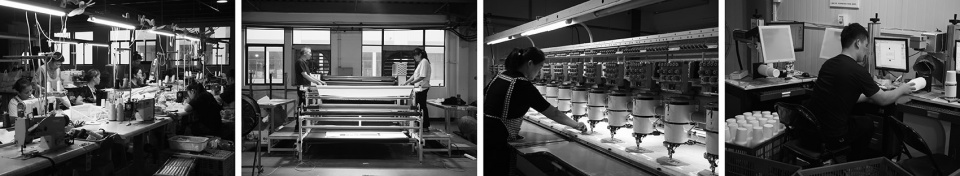

▼工厂生产时的几处场景，Scenes of production in the factory ©OAOA Studio

在外立面处理上，我们把入口的界线往后退，在中间立起了一面混凝土墙，产品的轮廓拓印在了墙上，有帽子、衣服、杯子、开瓶器、匹克球拍、包袋，都是产品设计图案前的白坯基底，与两侧玻璃界面的陈列区实际陈列的产品形成两方的对比，也表达了HumCustom工厂定制的意义。通过拓印混凝土墙和后退的入口界线形成一条廊道的空间关系，形成人进入空间前的缓冲区域，营造出一种特别的仪式感。

For the facade treatment, we set the entrance boundary backwards and erected a concrete wall in the middle, onto which the outlines of products were rubbed, including hats, clothes, cups, bottle openers, pickleball rackets, and bags, all in their white blank state before design patterns were applied. They contrast with the actually displayed products in the display areas on both sides of the glass interface, expressing the significance of HumCustom factory customization. The rubbed concrete wall and the recessed entrance boundary form a corridor spatial relationship, creating a buffer zone before entering the space and building a special sense of ceremony.

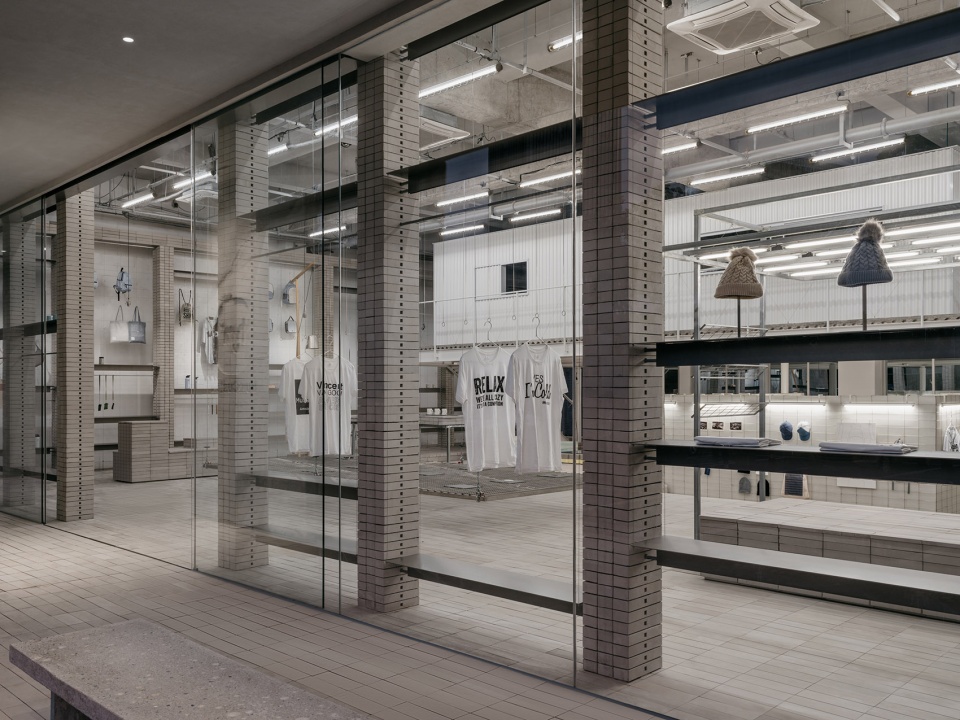

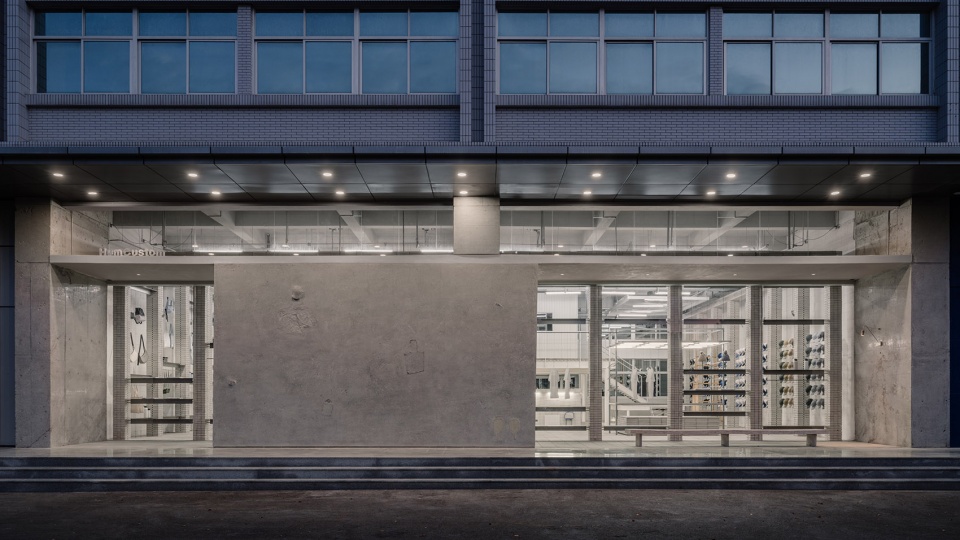

▼外立面，facade ©Wen studio

结合该品牌展示的产品品类丰富且系列多、数量多并且未来将继续增加这一特点，我们思考着如何将这些产品展示。在空间后端，搭建的二层作为仓库储藏与办公区，通过左右两部楼梯和二层走道的连接，空间形成环形流线，方便工作人员的上下沟通与接待。一层则为主要展示区域，除去搭建的二层后端区域，前端和两侧的墙面成为了主要大展示界面，在三处界面置入功能性的立柱，成为陈列中主要结构。

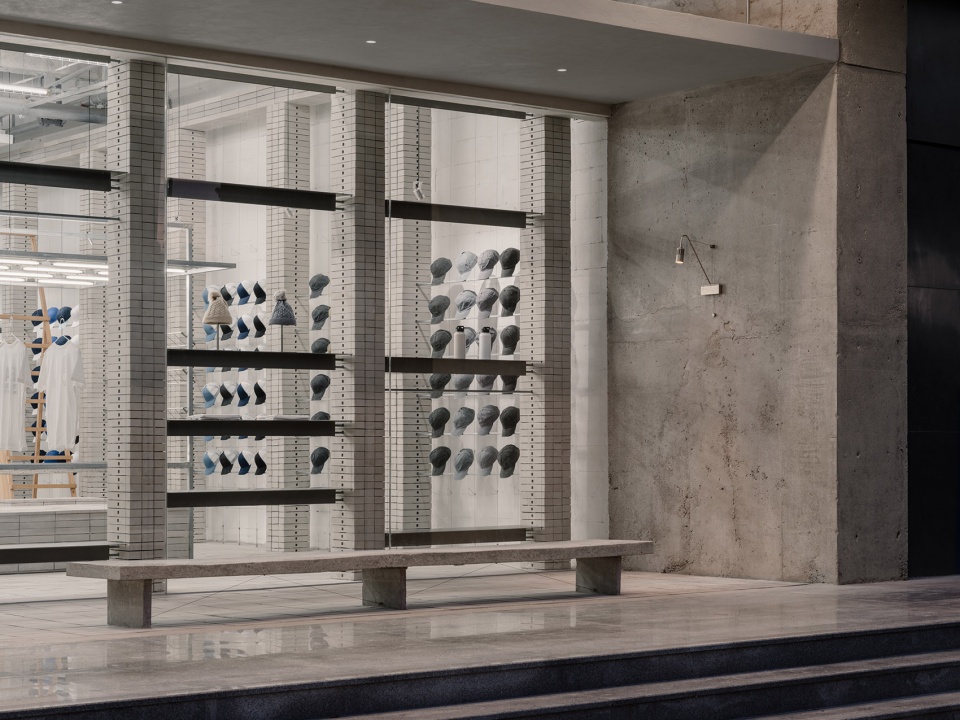

▼由于展厅是预约性质，混凝土长凳也为等候者提供了休息的作用，
Since the exhibition hall should be appointed for usage, the concrete benches also serve as resting ©OAOA Studio

In combination with the characteristics that the brand needs to display diverse and numerous product categories and series, which will continue to increase in the future, we pondered how to display these products. At the rear of the space, a second floor was built for warehouse storage and office areas. Connected by two staircases on the left and right and a second-floor walkway, the space forms a circular circulation route, facilitating communication and reception for staff. The first floor serves as the main display area. Excluding the rear area of the constructed second floor, the front and side walls become the main display interfaces, with functional pillars placed at three interfaces, serving as the main structure for displays.

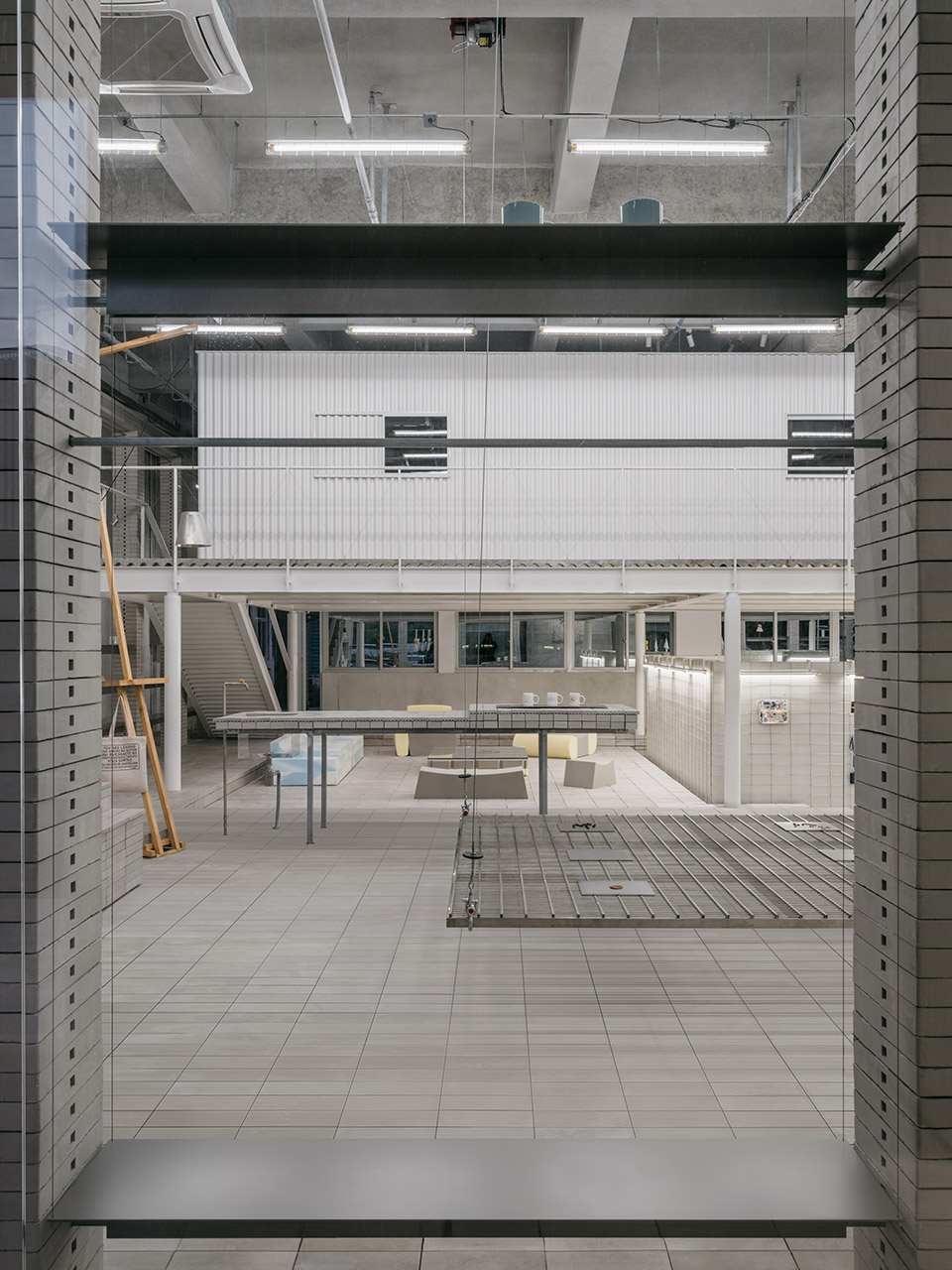

▼橱窗视角看到的室内空间，Indoor space seen from the showcase perspective ©Wen studio

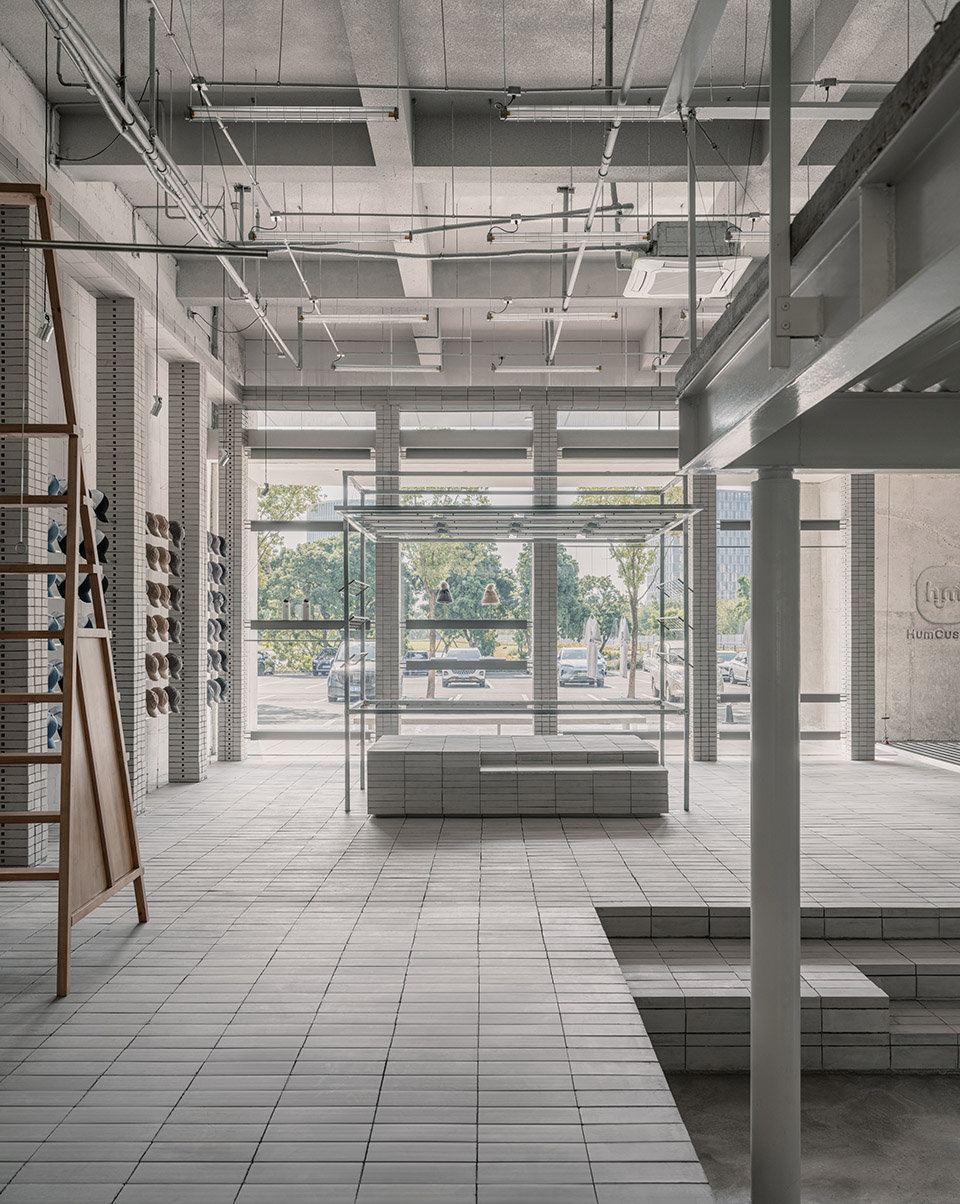

后端搭建的区域，满足两层高度使用上的舒适性，在一楼地面做了区域下挖。

To ensure comfort in using the two-story height at the rear-built area, a sunken section was created on the first-floor ground.

▼现场施工照片，On-site construction photos ©Wen studio

在这个空间设计中，从钢结构骨架、混凝土的浇筑楼承板、柱子的砌筑和装配材料的选择等，都采用了基础的建筑构造做法，每个构件的做法都清晰可见，跟品牌期望表达的想法相似，都同样作为一个基底，把不同的设计图案赋予到这个基底之上，即形成为最终所需的产品，在这个空间中，这些产品也赋予了这些。

In this space design, basic architectural construction methods were adopted for the steel structure framework, concrete pouring floor decks, masonry of columns, and selection of assembly materials. The construction method of each component is clearly visible, resembling the brand’s intended expression—each serving as a base onto which different design patterns are imparted, forming the final desired products. In this space, these products also impart their essence to it.

▼内部空间概览，overview of the indoor space ©Wen studio

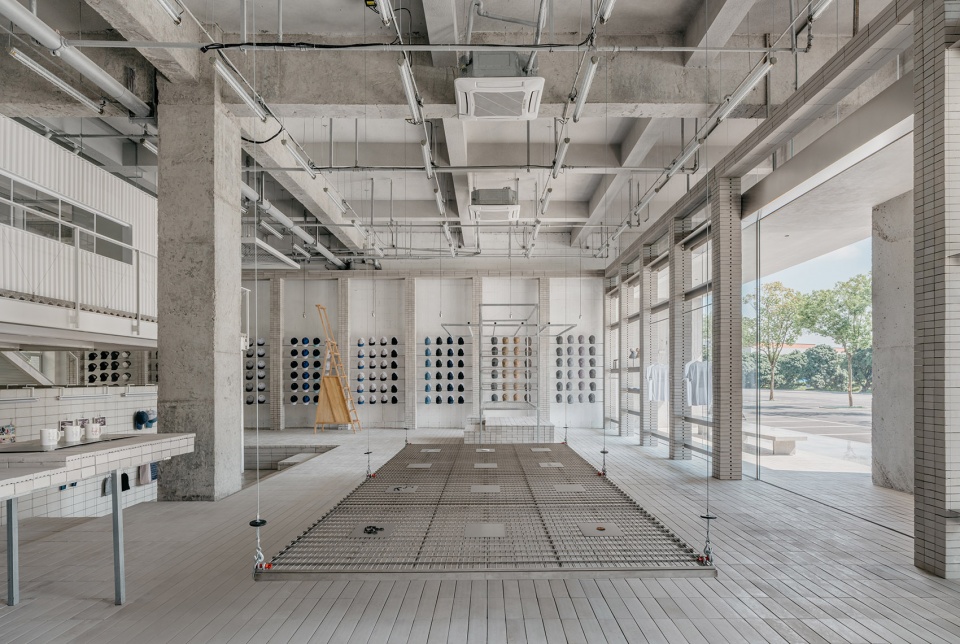

空间中部的金属网，满足节日特别展出的需求，被吊机升起时，作为节日活动的特别展示区域。

The metal mesh in the middle of the space meets the needs of special exhibitions during festivals. When lifted by a crane, it serves as a special exhibition area for festive activities.

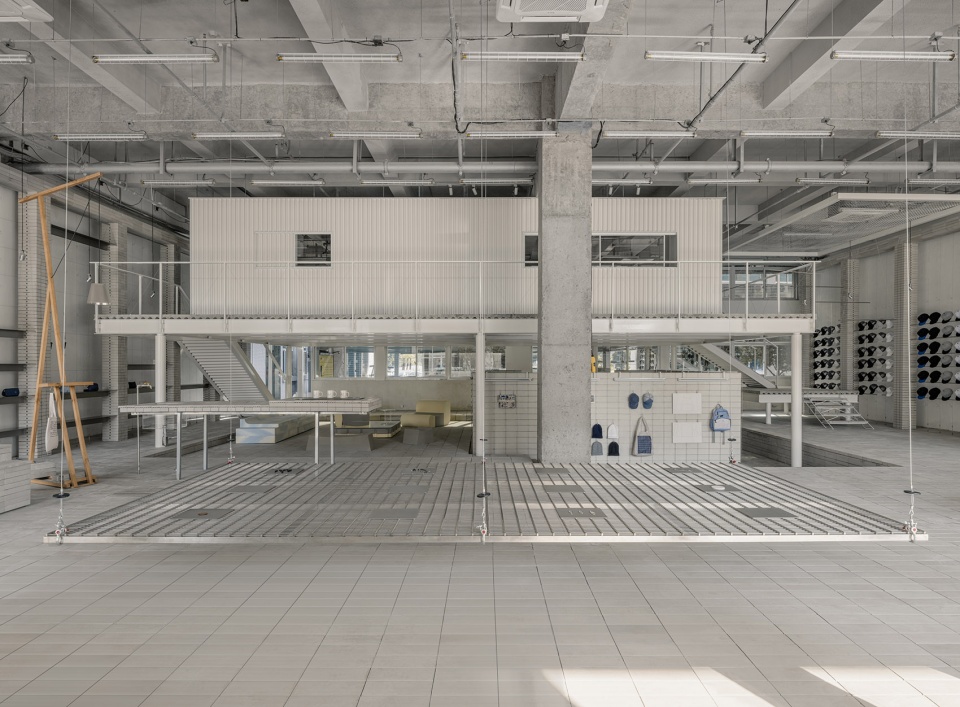

▼金属网被吊起作为节日活动的特别展示区域，
When lifted by a crane, it serves as a special exhibition area ©Wen studio

场地原始柱与大梁，褪去表层被处理的痕迹，恢复原有混凝土最真实的样子。在柱子与搭建的钢架结构之间，中间砌起的新空间墙面也成为了环形流线中需要被展示的部分。

The original columns and beams of the site have had their surface treatments removed, restoring the authentic concrete appearance. Between the columns and the erected steel frame structure, the newly built wall in the middle has also become part of the circular circulation route to be displayed.

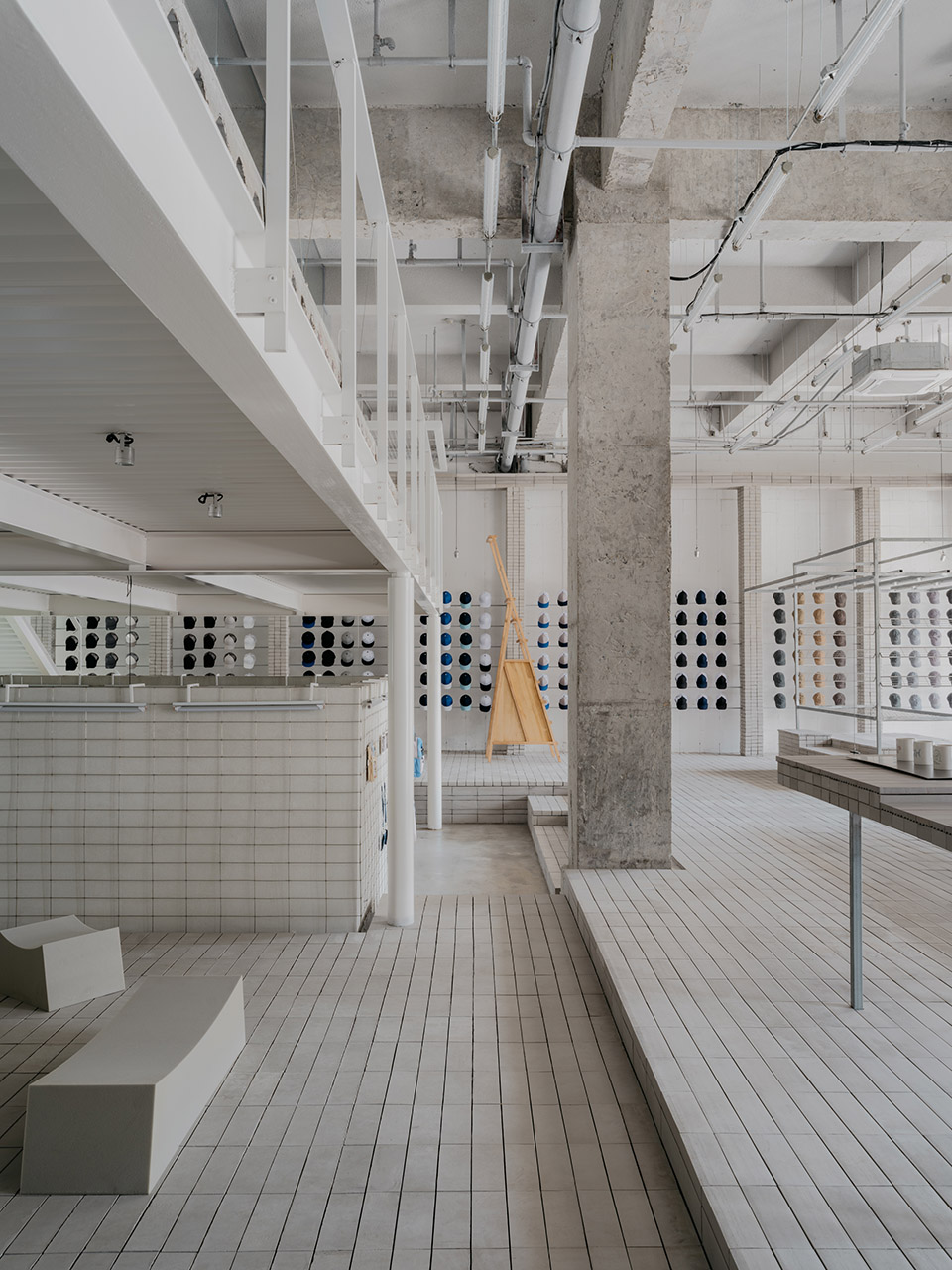

▼场地原始柱与大梁，The original columns and beams of the site ©Wen studio

钢架结构下的区域，作为展示与休息结合的区域，原始海绵作为家具的基础材料，通过裁切与拼接形成功能性的休闲区，也是通过材料以最朴素的方式呈现出来。由于海绵时间久了会出现老化变色的问题，与传统家具工厂做法相同，在现有的海绵家具上包裹新的图案面料，即形成了新的产品，也是一种直接的展示。水吧台作为给客人接水泡茶的功能以外，也是杯类陈列的展台。

The area under the steel frame structure combines the function of both display and rest. Using original sponge as the basic material for furniture, functional lounging areas are formed through cutting and splicing, presented in the most modest manner through materials. As sponge will suffer from aging and discoloration over time, similar to traditional furniture factory practices, wrapping existing sponge furniture with new patterned fabrics creates new products, also serving as a direct display. The water bar, in addition to the role of providing water and tea for guests, also serves as a display stand for cups.

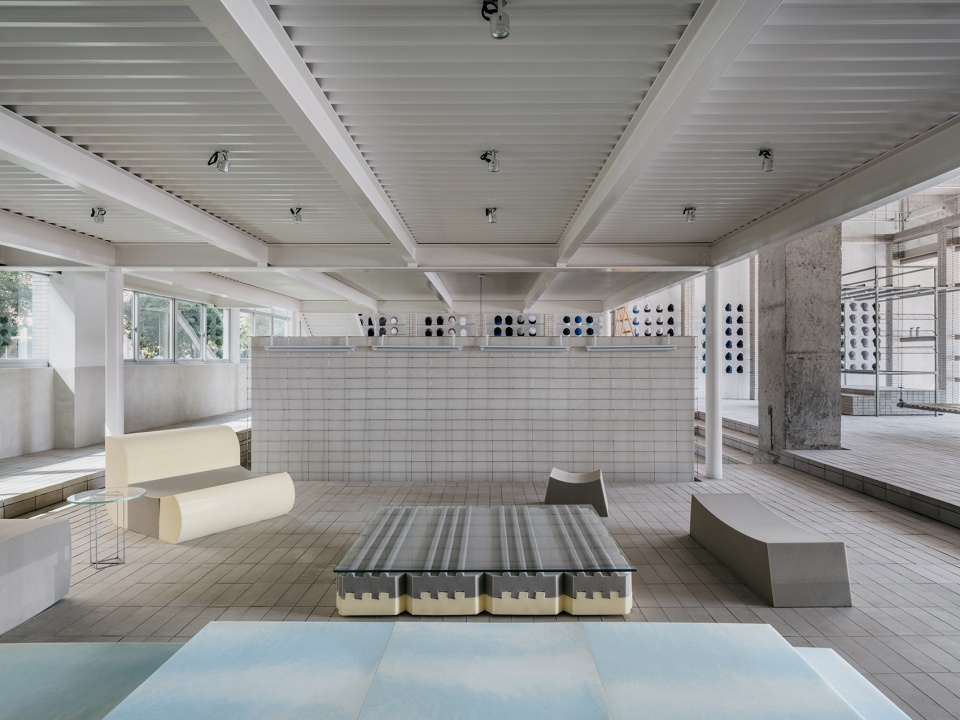

▼展示与休息结合的区域，combines the function of both display and rest ©Wen studio

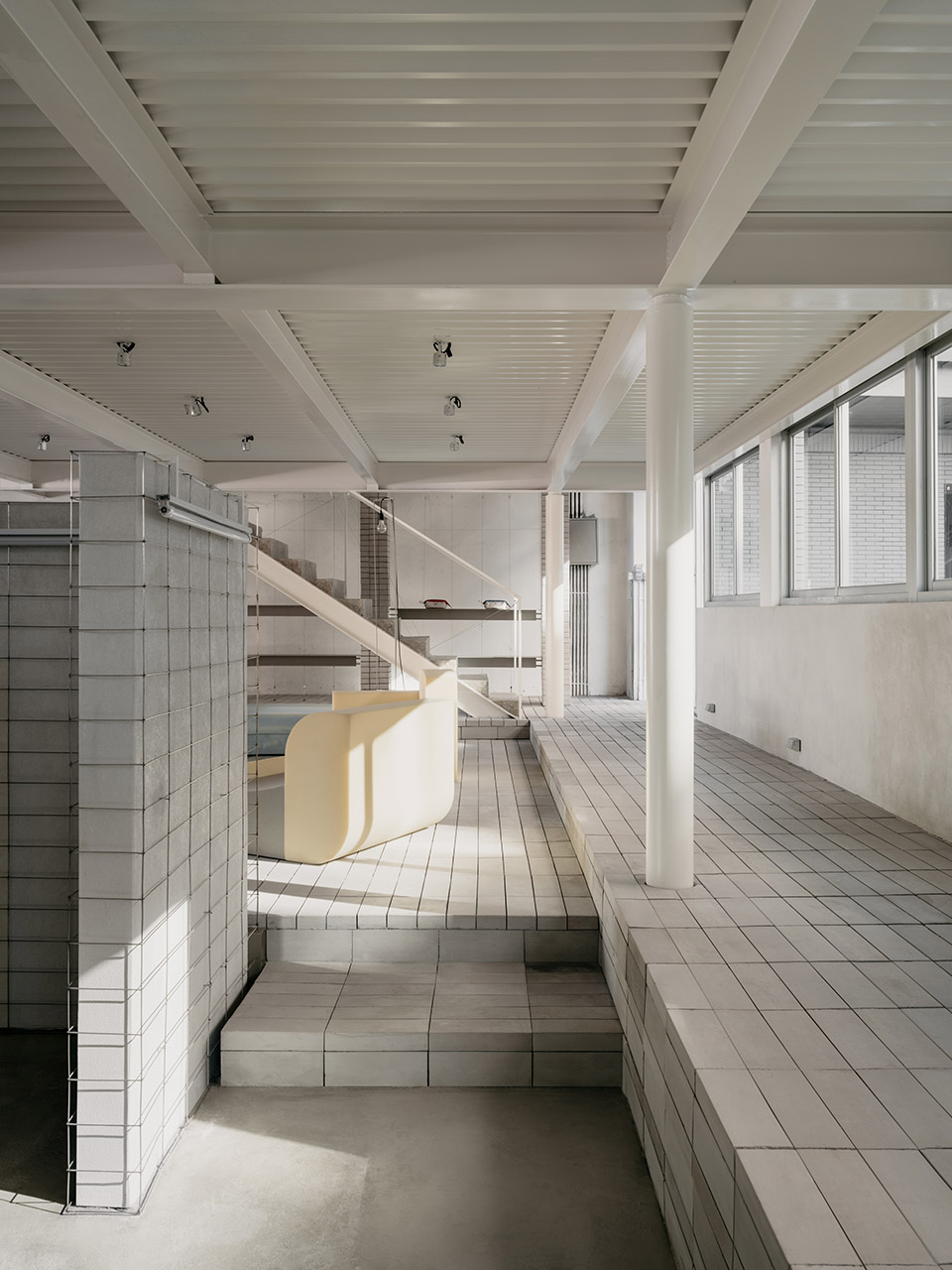

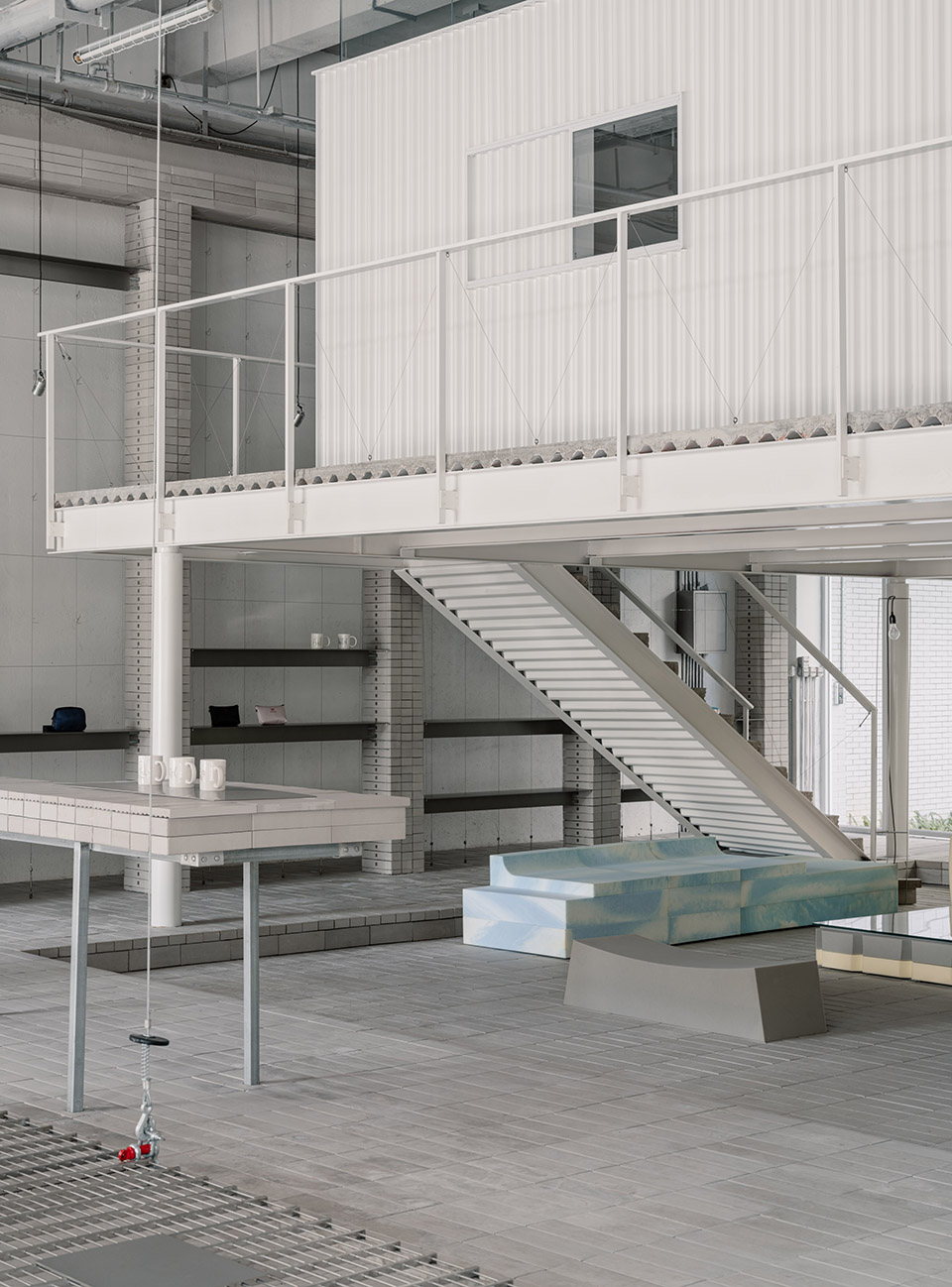

后端钢架结构下的走道，陶砖堆砌的台阶层次满足不同区域人行走时舒适的高度。

The walkway under the rear steel frame structure features a stepped arrangement of ceramic bricks, providing comfortable heights for people walking in different areas.

▼满足不同区域人行走时舒适的高度，
providing comfortable heights for people walking in different areas ©Wen studio

灯管组合支架下的展台，通过不同高度与面积的陈列方式可以放置大小不同的产品，支架两侧的斜面金属网架也提供面域展示。

The display stand under the combined lamp holder bracket can accommodate products of varying sizes through display methods of different heights and areas. The sloped metal mesh racks on both sides of the bracket also provide surface displays.

▼灯管组合支架下的展台，
The display stand under the combined lamp holder bracket ©Wen studio

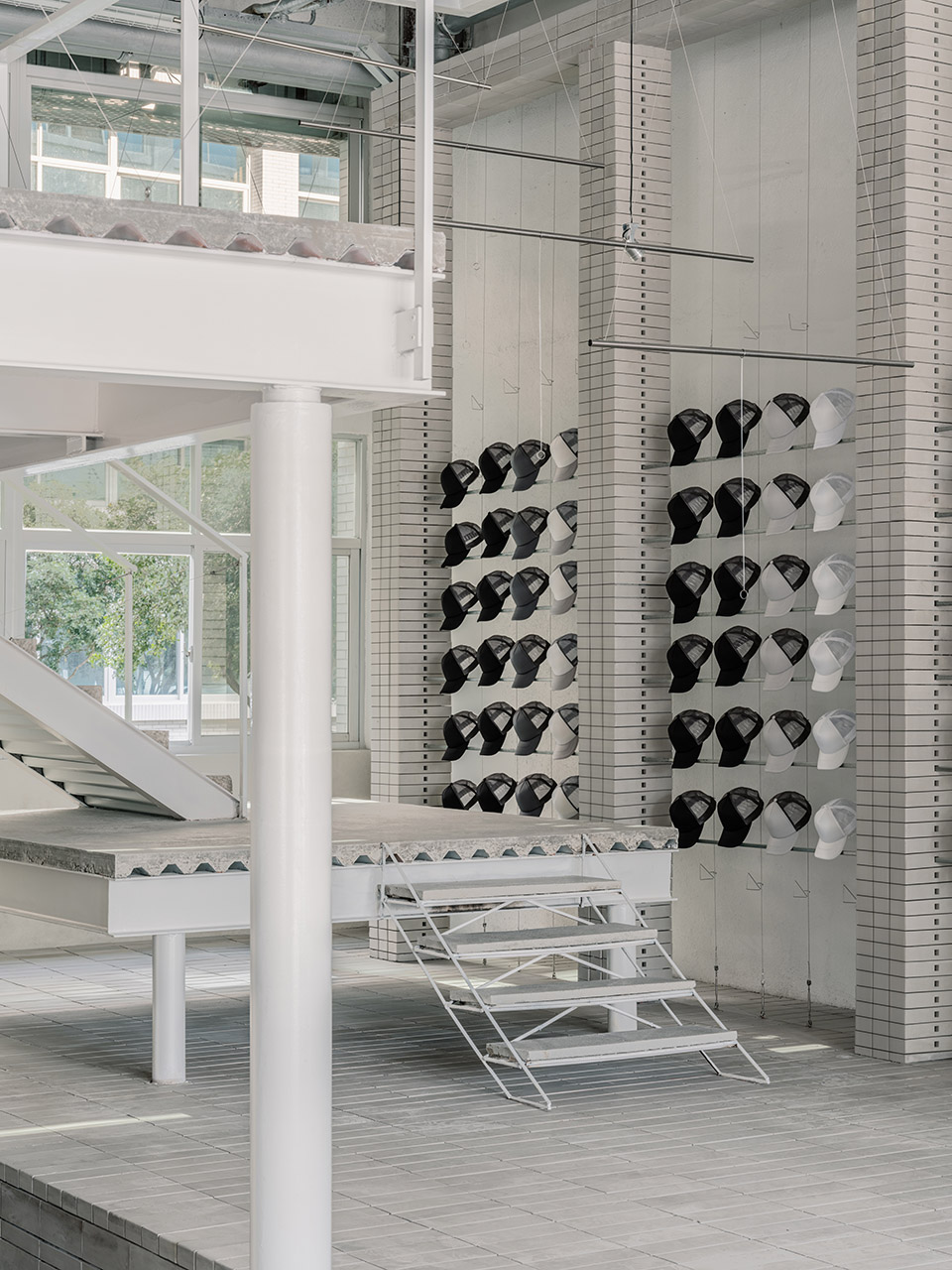

楼梯架出小平台，以三个形式进行转角连接，与前面吊挂式陈列区形成一个纵向的组合陈列区。

The staircase creates a small platform, connected at corners in three forms, forming a vertical combined display area with the front hanging display area.

▼楼梯架出小平台，The staircase creates a small platform ©Wen studio

可以通过增加层板与方管的方式满足后期新增陈列数量的功能灵活性。

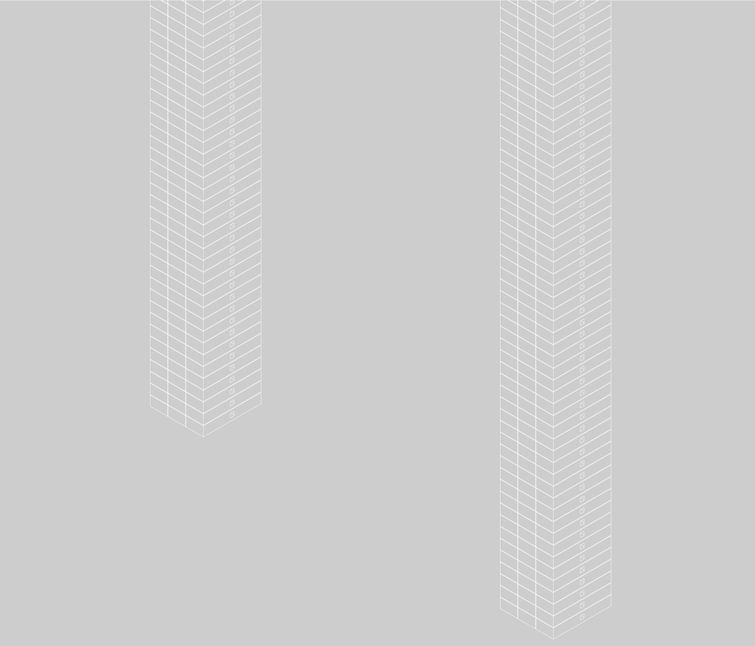

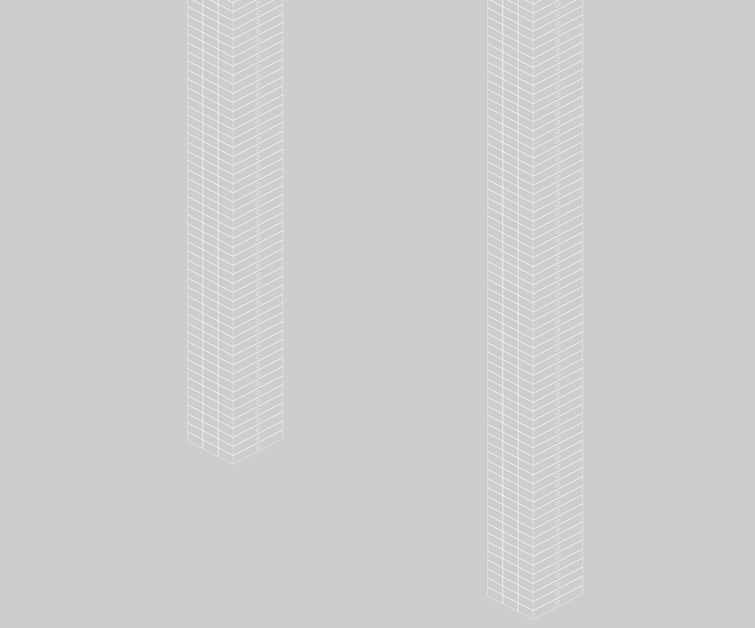

▼灵活陈列示意，demonstration of the display ©OAOA studio

Functional flexibility for later additions to the display quantity can be achieved by the method of adding shelving and square tubes.

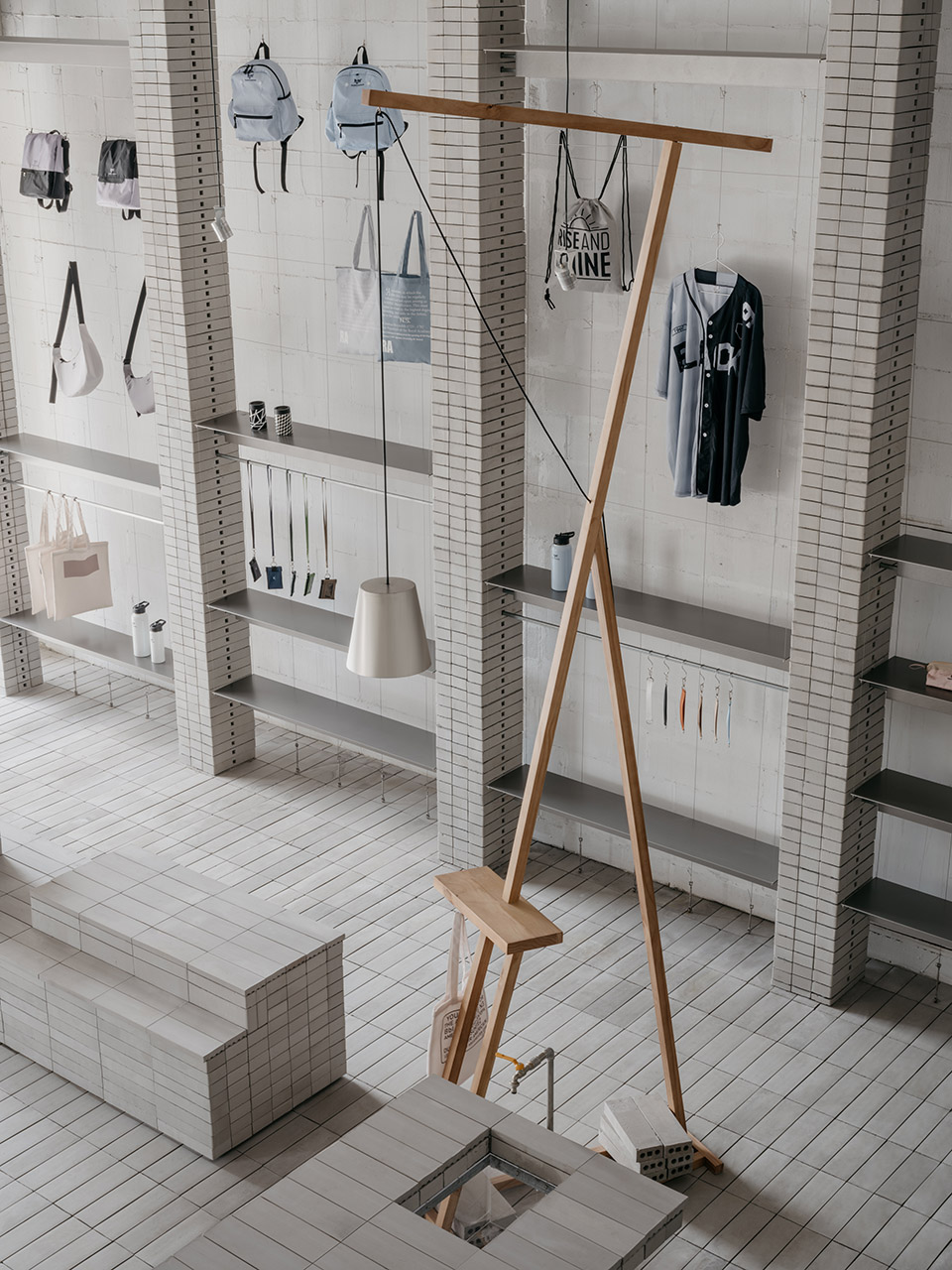

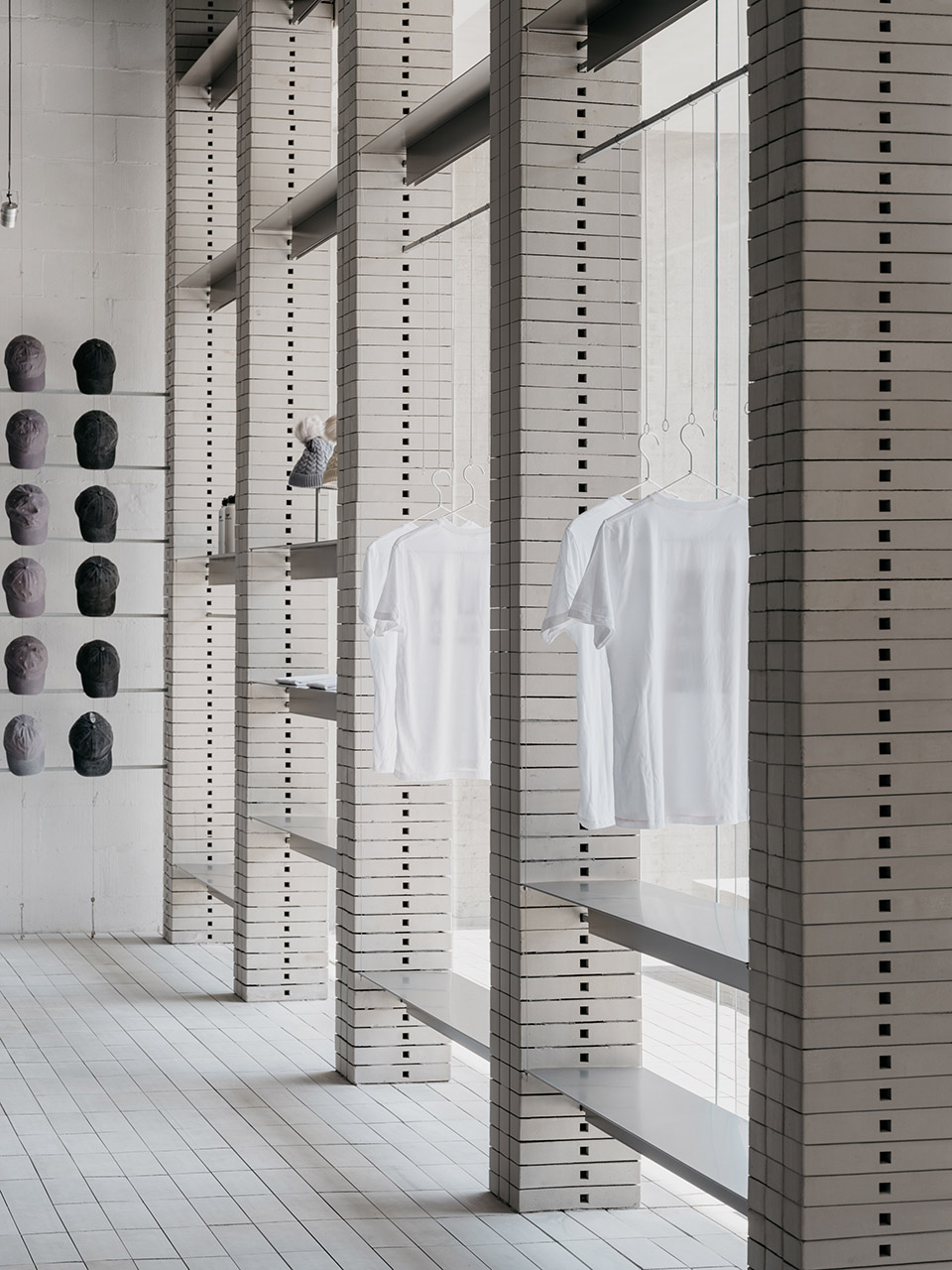

▼陈列展示，display ©Wen studio

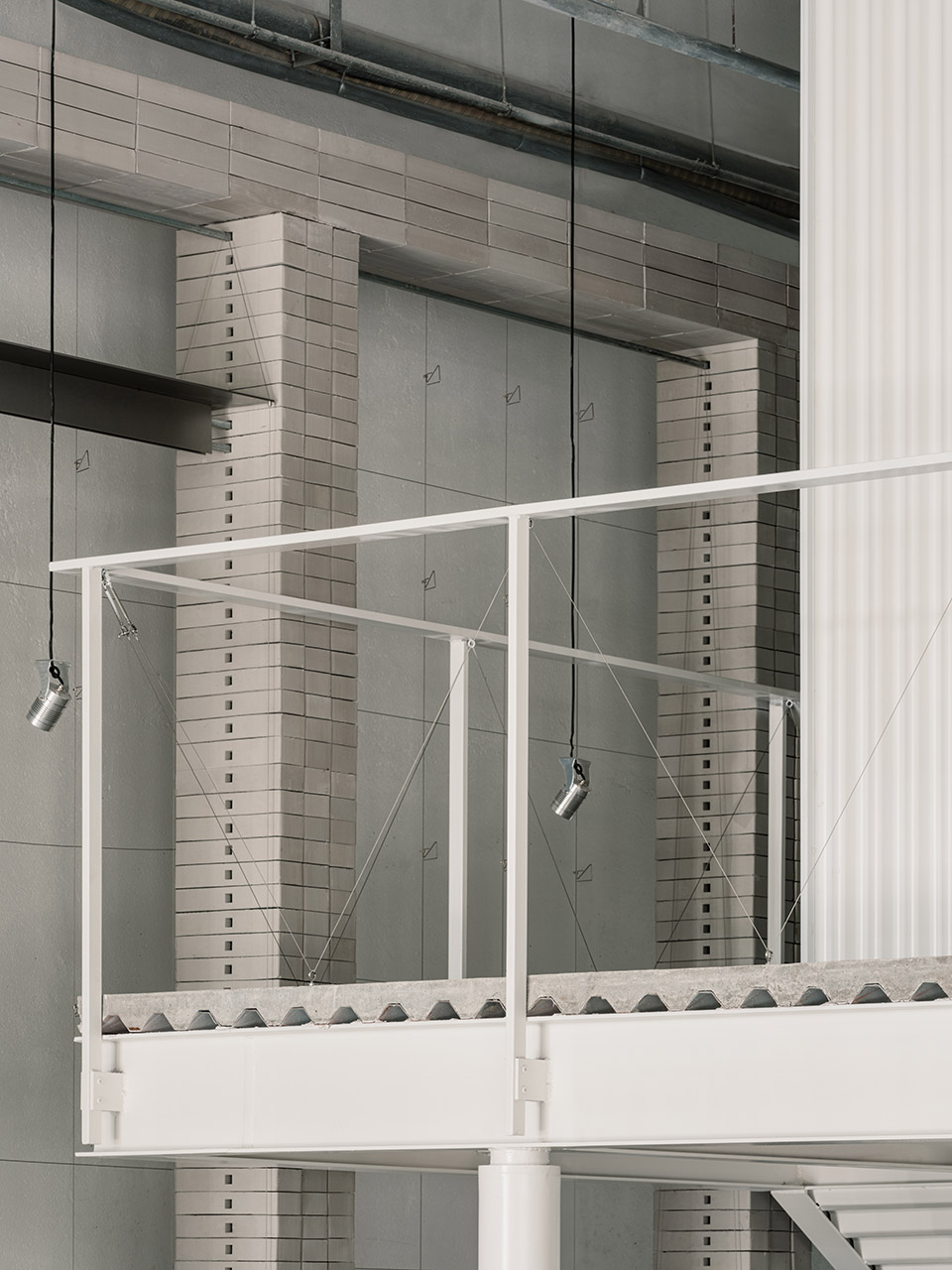

楼板与栏杆细部，楼板使用楼承板上直接浇筑的方式，没有过多的装饰材料，用钢丝绳作为栏杆扶手与地面的安全连接。

For the details of the floor slab and railing, the floor slab uses a method of direct pouring on the floor deck, without excessive decorative materials. Steel wire ropes serve as the safety connection between the railing handrail and the ground.

▼楼板与栏杆细部，the details of the floor slab and railing ©Wen studio

挑高的落地灯，除了水吧照明作用以外，平面的层板上可满足小型配件的陈列需求，层板下的挂钩也可随意挂包袋，挑高的尺度使人视线上移，拉伸空间整体的视觉尺度。

The tall floor lamp, besides its lighting function at the water bar, allows for the display of small accessories on its flat shelf. Hooks under the shelf can also be used to hang bags casually. The tall scale makes people’s gaze shift upwards, stretching the overall visual scale of the space.

▼挑高的落地灯，The tall floor lamp ©Wen studio

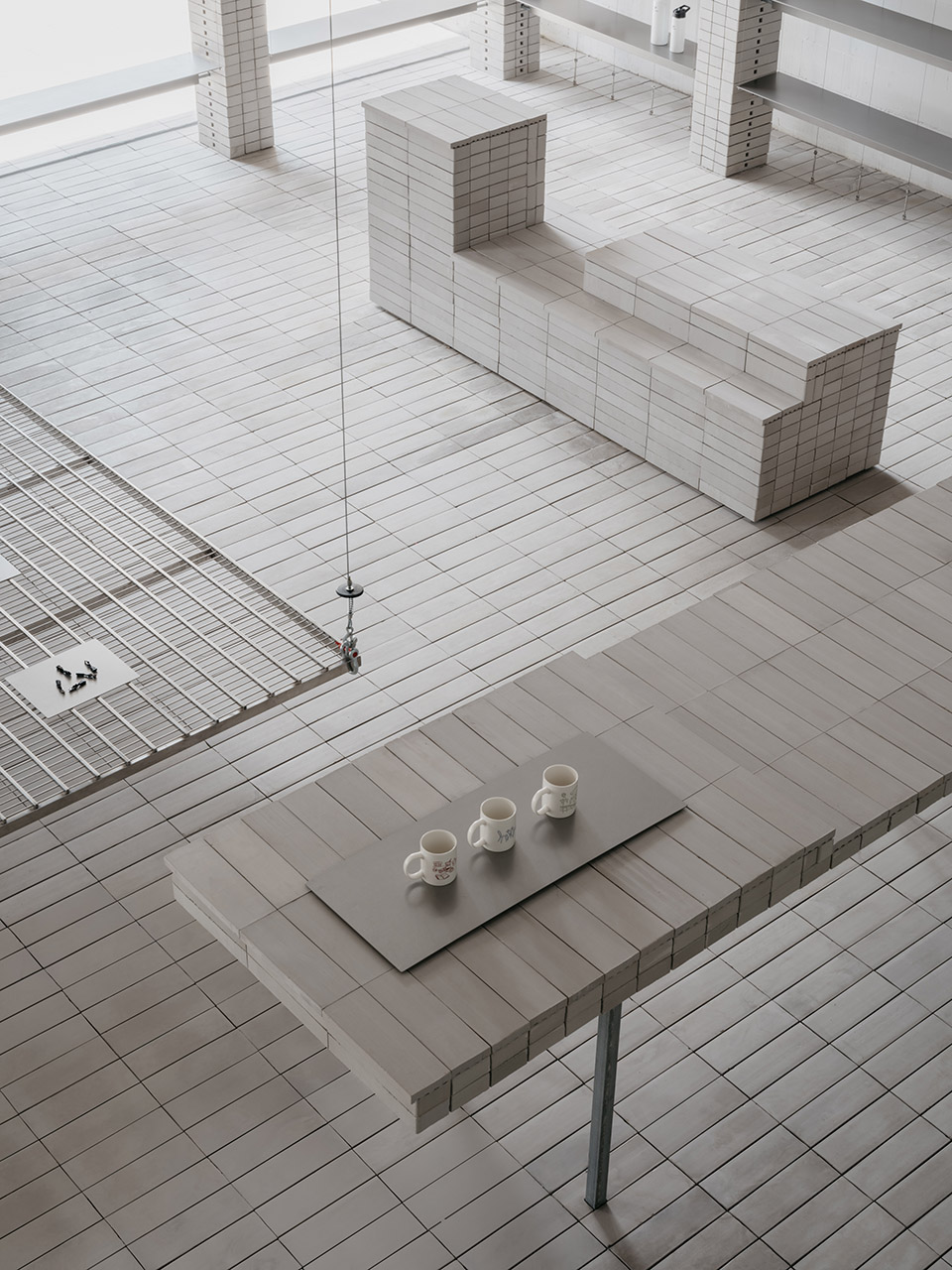

▼陶砖对于不同功能的使用，The use of ceramic bricks for different functions ©Wen studio

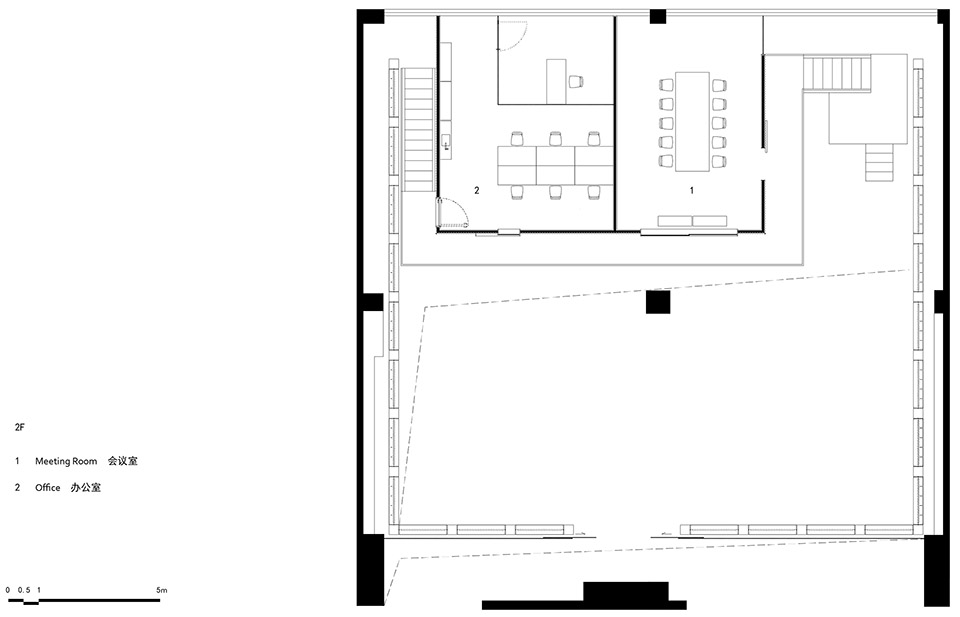

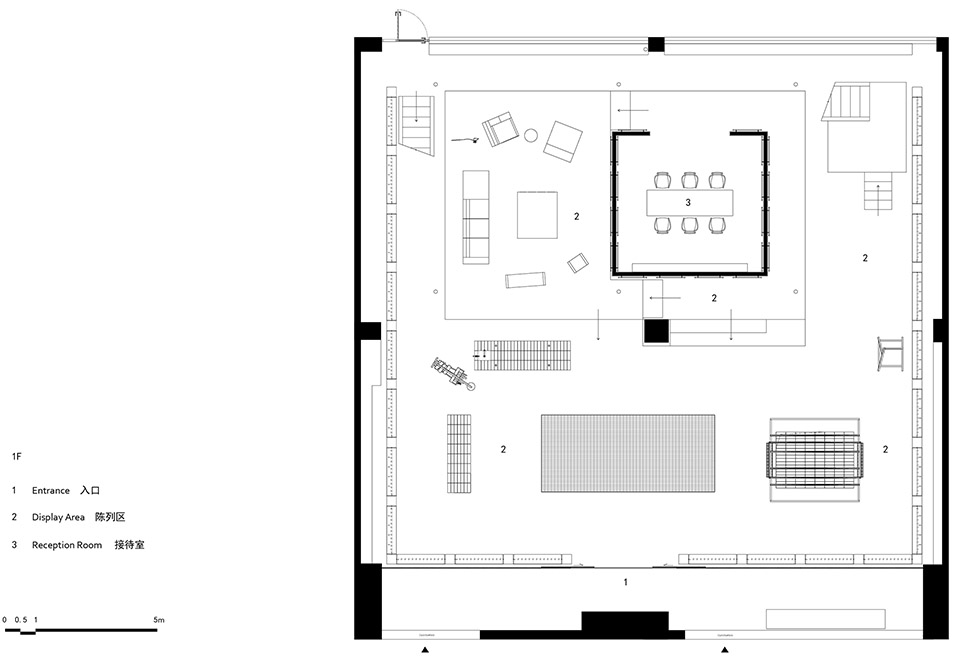

▼平面图，plan ©OAOA studio

项目名称：HumCustom工厂展厅
项目类型：商业空间、展厅
设计方：OAOA Studio
联系邮箱：oaoastudio@yeah.net
完成年份：2024年9月
设计团队：兰丹娜、何程伟、吴涵
项目地址：福建省莆田市
建筑面积：340㎡
摄影版权：Wen studio
材料：混凝土、不锈钢、陶砖、超白钢化玻璃、波纹铝板、海绵、涂料
