ZhangJiang IC Harbor Phase I by Atelier Archmixing + Atelier Liu Yuyang Architects

A high surplus-value office building.

Project Specs

Location:

非常感谢 刘宇扬建筑事务所+阿科米星建筑设计事务所 予gooood分享以下内容。更多关于他们:Atelier Liu Yuyang Architects on gooood ,ATELIER ARCHMIXING on gooood.
Appreciation towards Atelier Liu Yuyang Architects ATELIER ARCHMIXING for providing the following description:

张江集电港一期华鑫智天地,由与阿科米星建筑设计事务所与刘宇扬建筑事务所组成的建筑设计联合团队设计。项目东临丹桂路,西靠中环路。园区规划的主要策略是基于场地形态及周边环境状况,由6栋7层的研发办公楼形成整体性极强的半围合空间结构,并形成一主一次两个绿化庭院,分别对应于今后的两个使用方。设计上用三层挑高的架空空间将这两个绿化庭院联系起来,并期望与北侧张江集电港二期地块的建筑空间建立联系。其中主要的绿化庭院面向城市公园,使得每一栋办公楼都具有很好的景观视野,且对城市街道开放,使其成为人们休憩、放松、交流的场所。

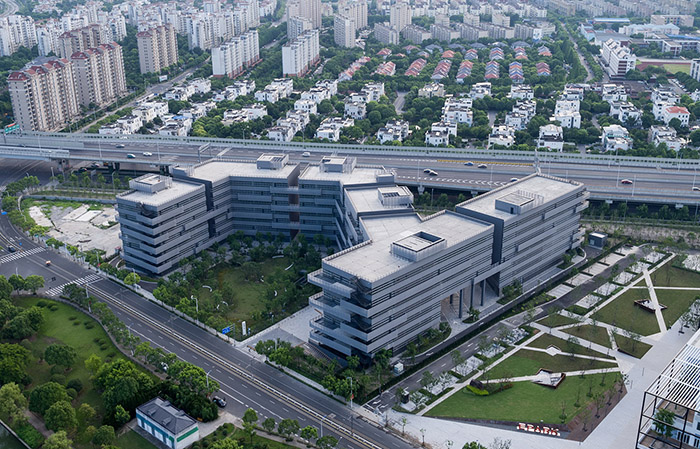

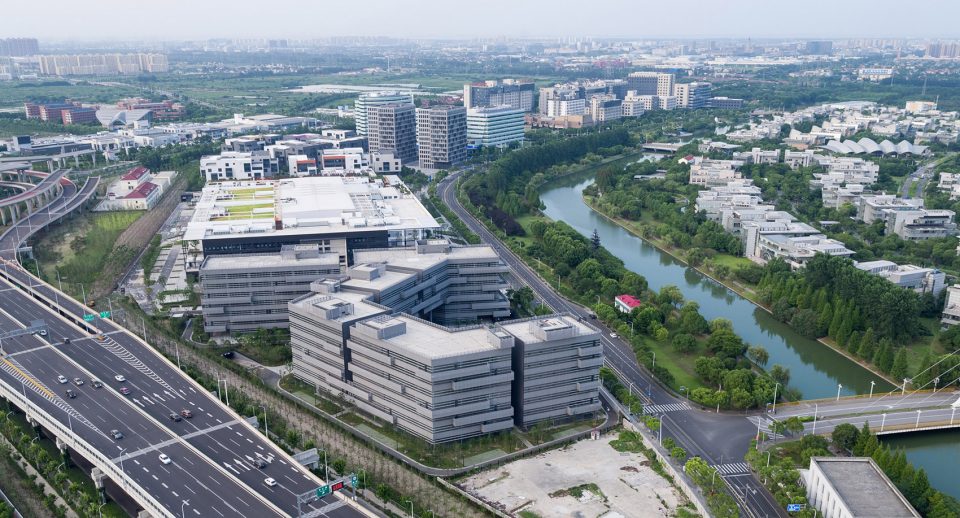

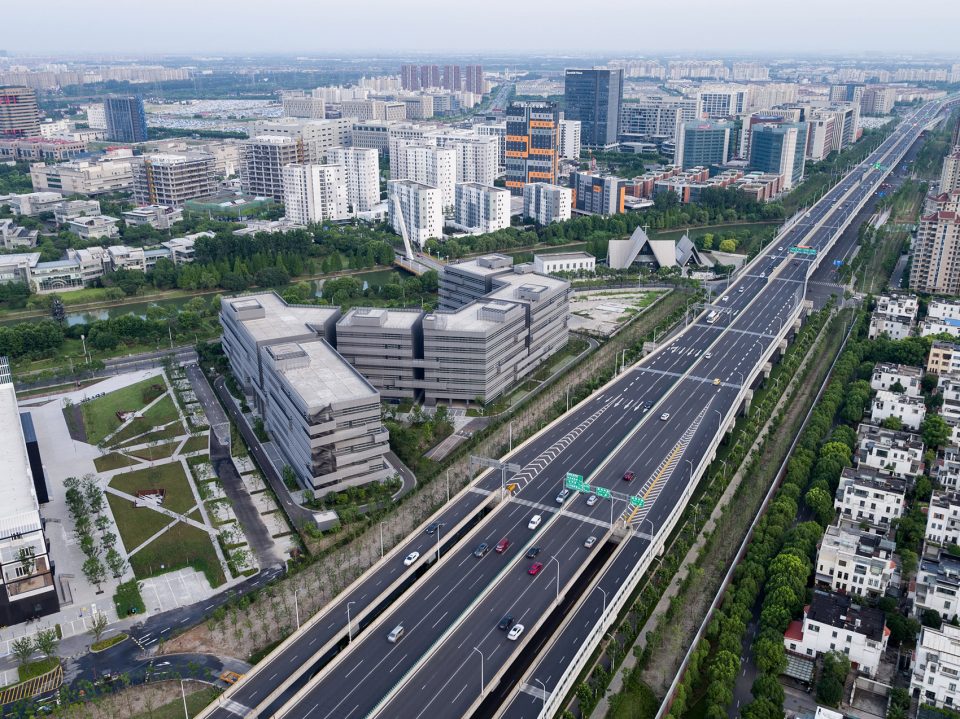

▼鸟瞰图,aerial view

The project ZhangJiang IC Harbor Phase I China Fortune Wisdom Mark is jointly designed by Atelier Archmixing and Atelier Liu Yuyang Architects. The site is east to Dangui road, west to Middle Ring road. The main planning strategy is to form a highly integrated semi-enclosed space structure with six seven-story R & D office buildings, based on the site shape and the surrounding environment, and create two courtyards of different sizes for two future user. These two courtyards are connected with an elevated space of three-story-height, and expected to establish contact with the ZhangJiang IC Harbour Phase II in the north. The main greenery facing the city park introduce nice view for each office. By opening to the streets, it turns into a place for rest, relaxation and communication.

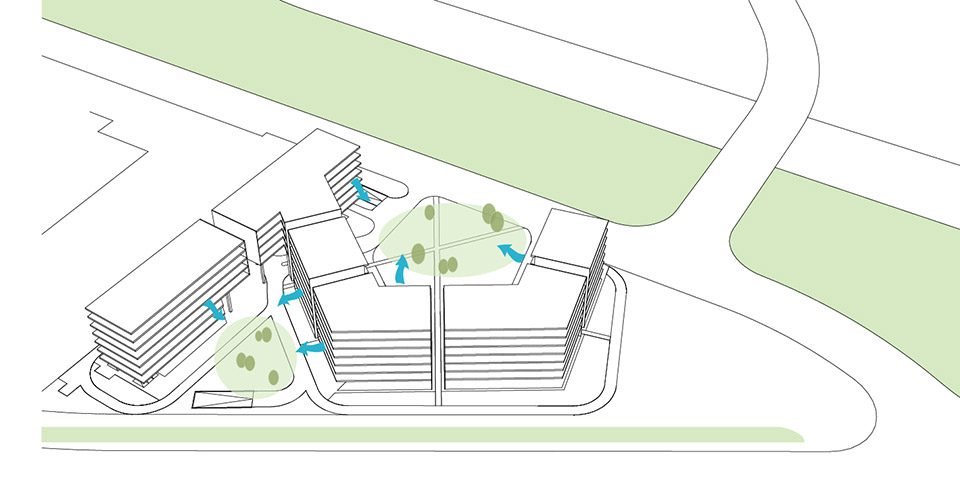

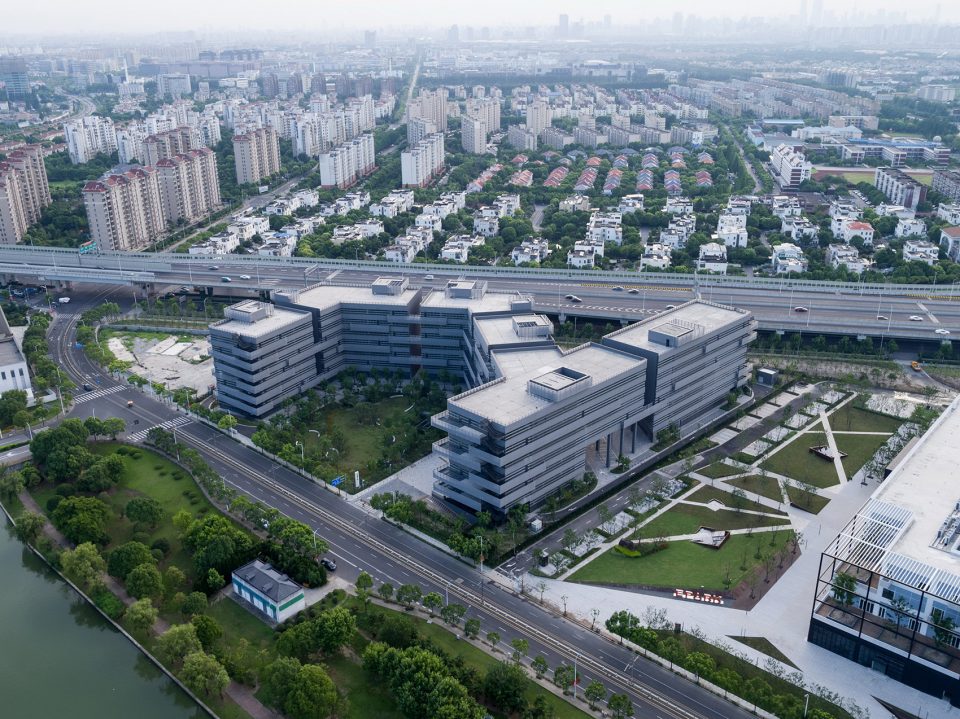

▼半围合结构形成两个绿化庭院,semi-enclosed structure to form two green courtyard

▼6栋7层的建筑形成整体性极强的半围合空间结构, the main planning strategy is to form a highly integrated semi-enclosed space structure with six seven-story buildings

建筑物的每层均在外立面灵活地设置外挑走廊式遮阳,巧妙地将设备平台、休息外廊以及疏散楼梯统一起来,形成错落有致的建筑立面。设计透过对整体环境、建筑形态、和遮阳立面的处理,形成高附加值的办公空间。

Each floor of the building is flexibly equipped with outward-facing hallway sunshades on the façade, which cleverly integrate the equipment platform, the rest verandah and the evacuation staircase and form a vivid elevation.Through the careful control of the overall environment, architectural form and shading facade an office building with high surplus-value has achieved.

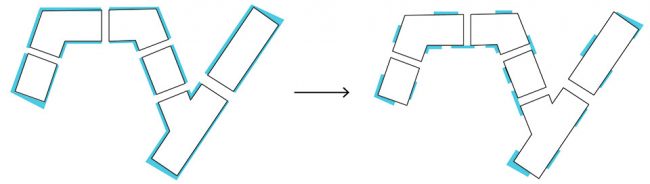

▼减少出挑阳台,丰富立面形态,reduce the balcony, enrich the facade form

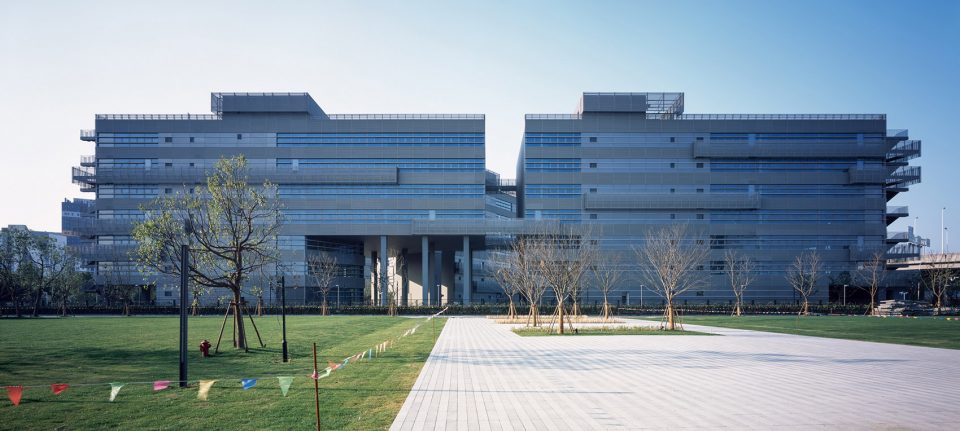

▼建筑立面,front view

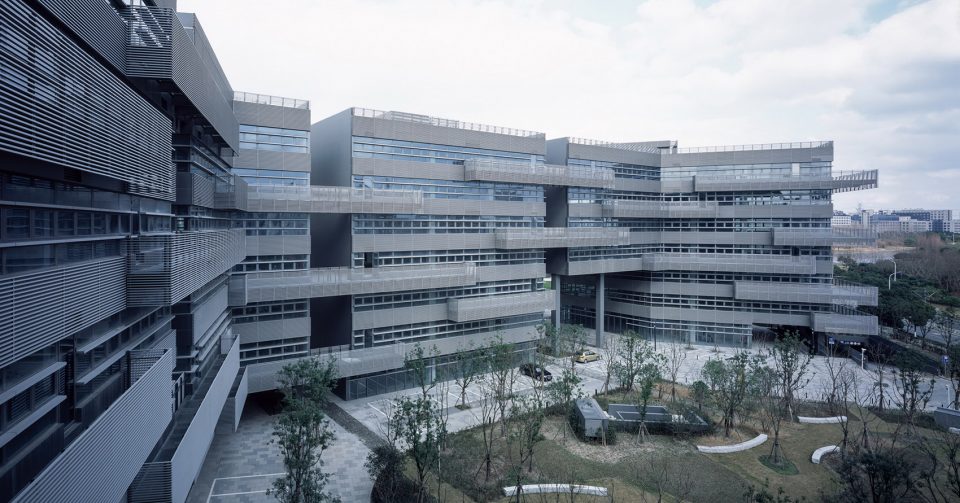

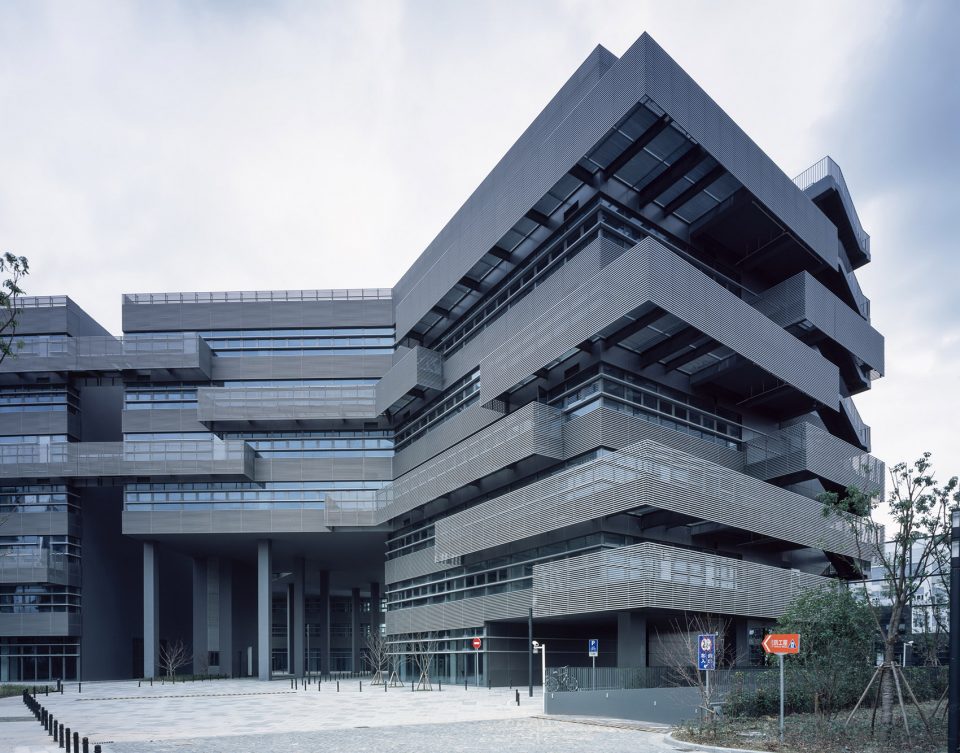

▼错落有致的建筑立面,a vivid elevation

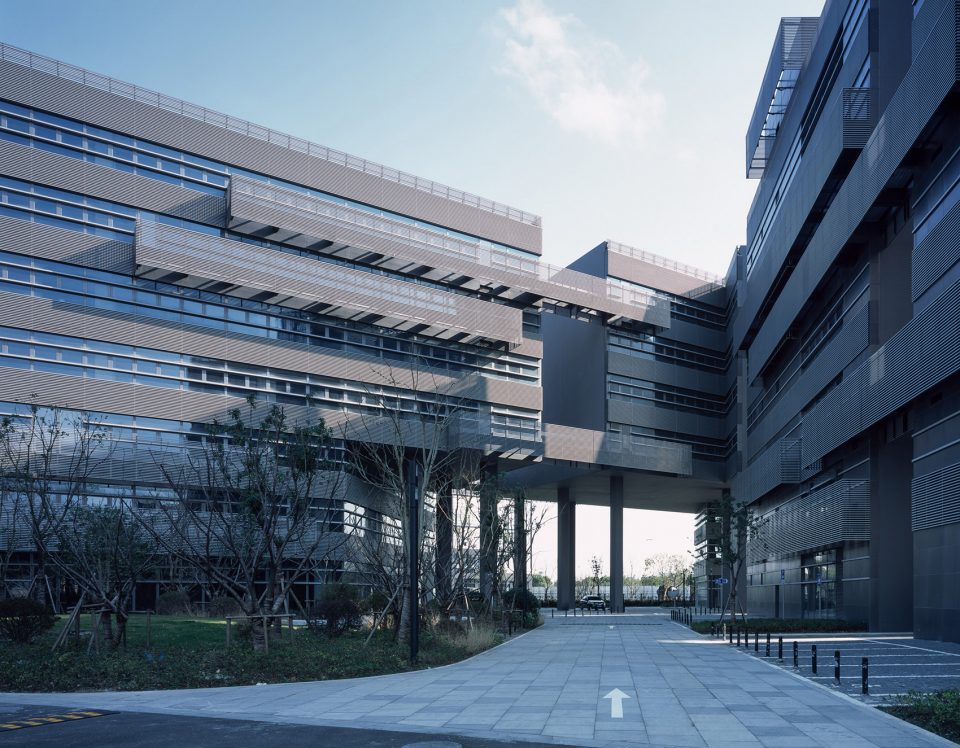

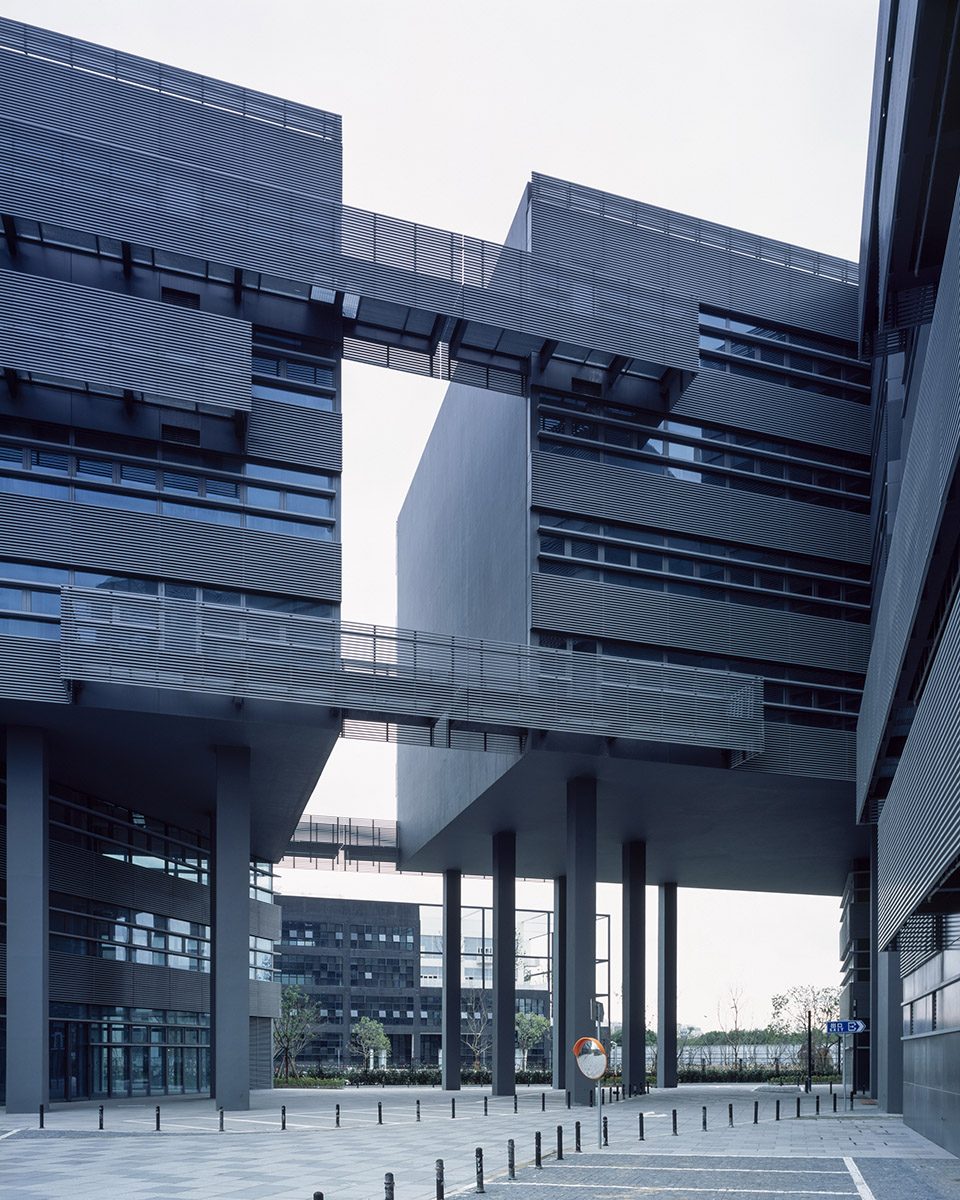

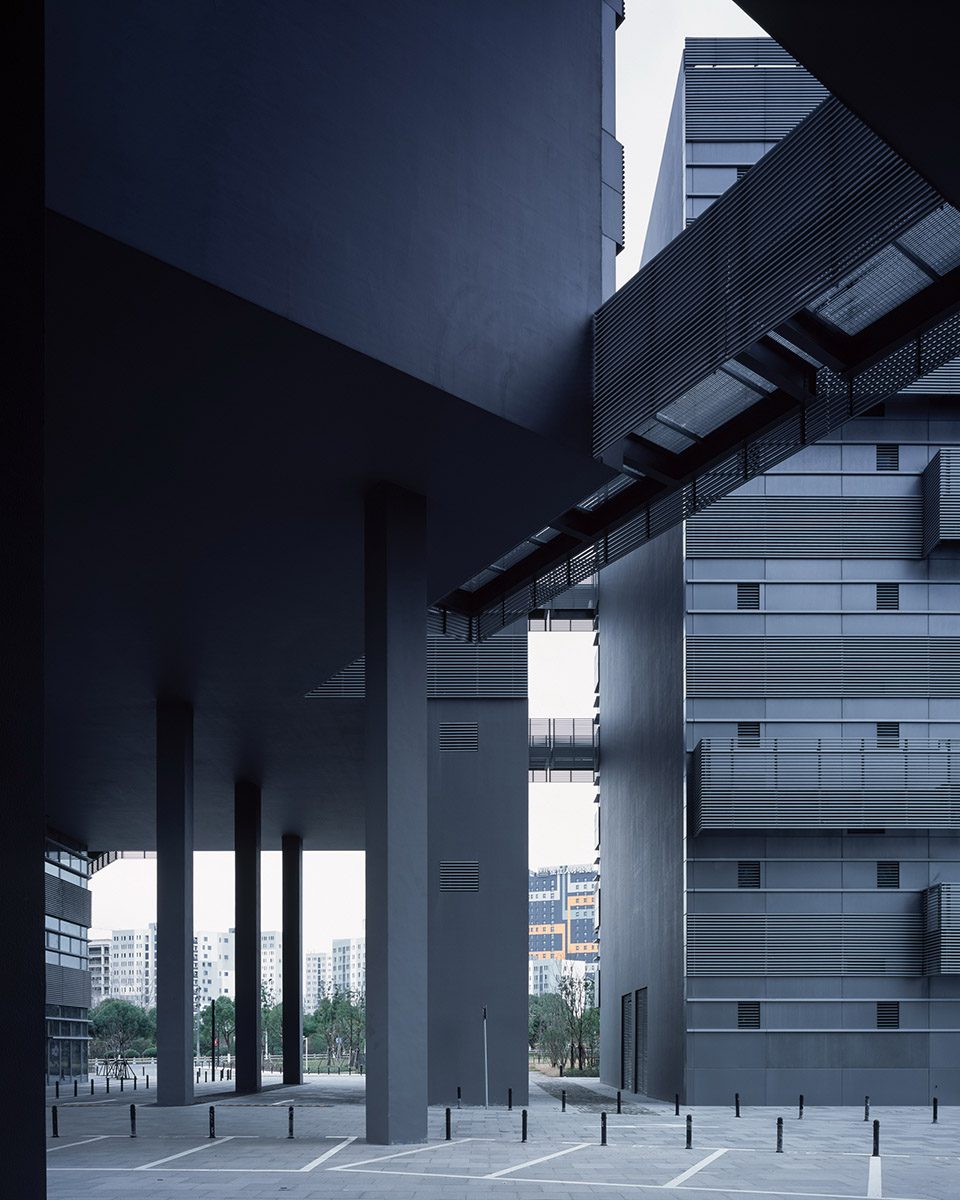

▼三层挑高的架空空间将这两个绿化庭院联系起来,the two courtyards are connected with an elevated space of three-story-height

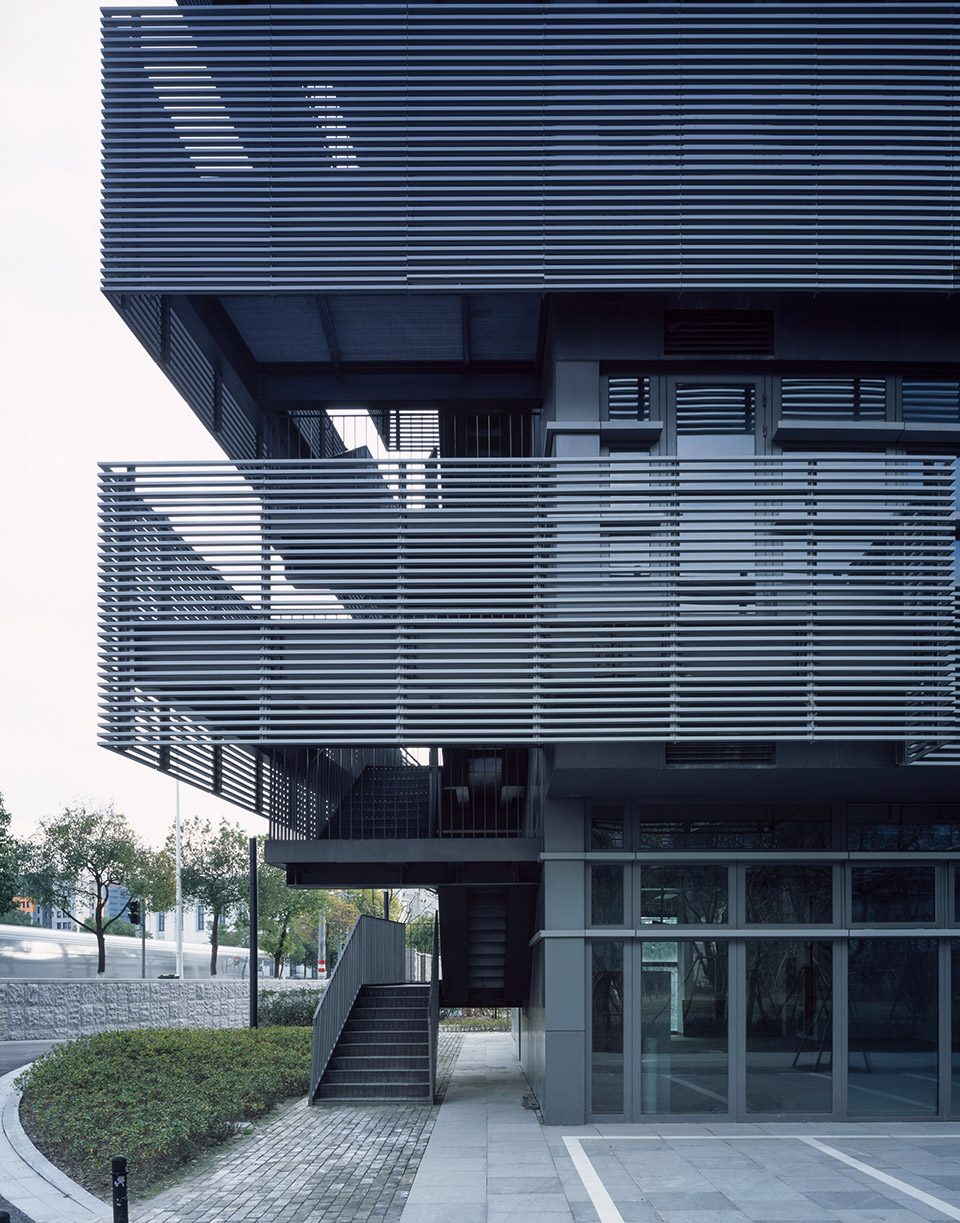

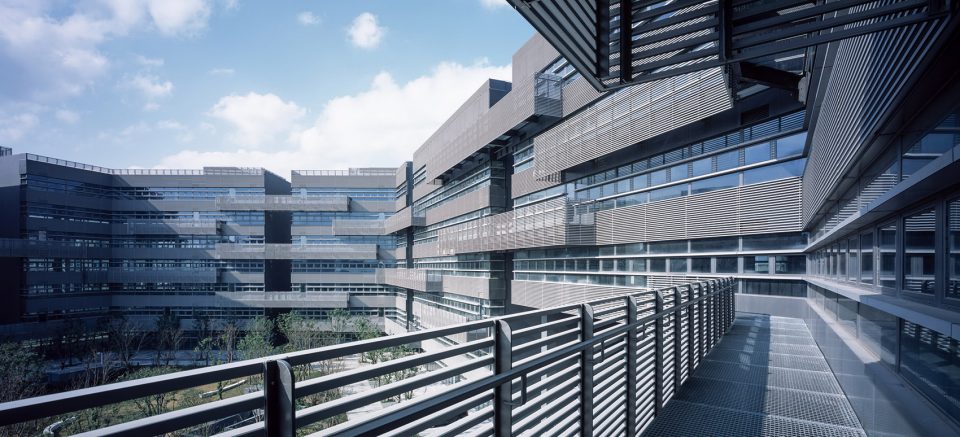

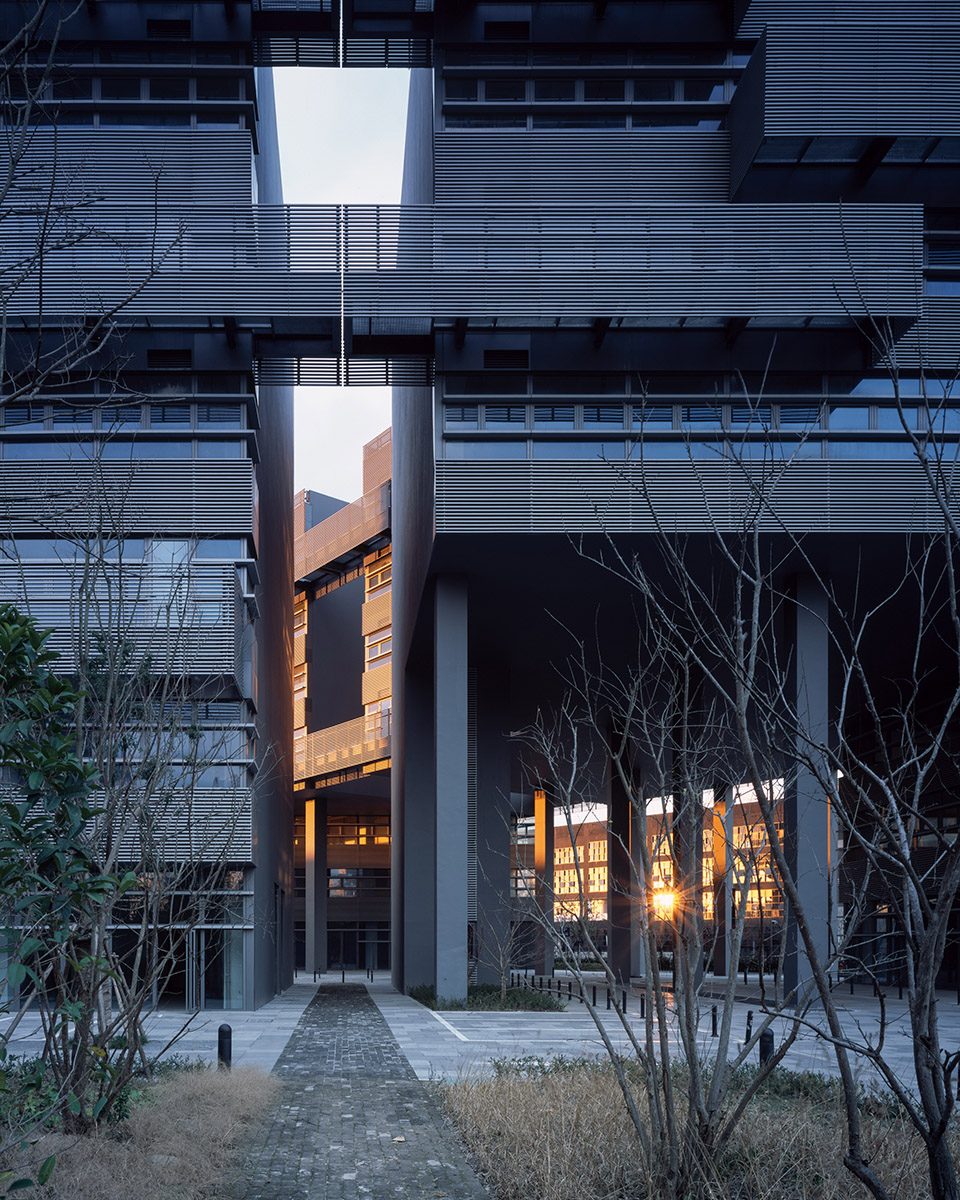

▼巧妙地将设备平台、休息外廊以及疏散楼梯统一起来,integrate the equipment platform, the rest verandah and the evacuation staircase

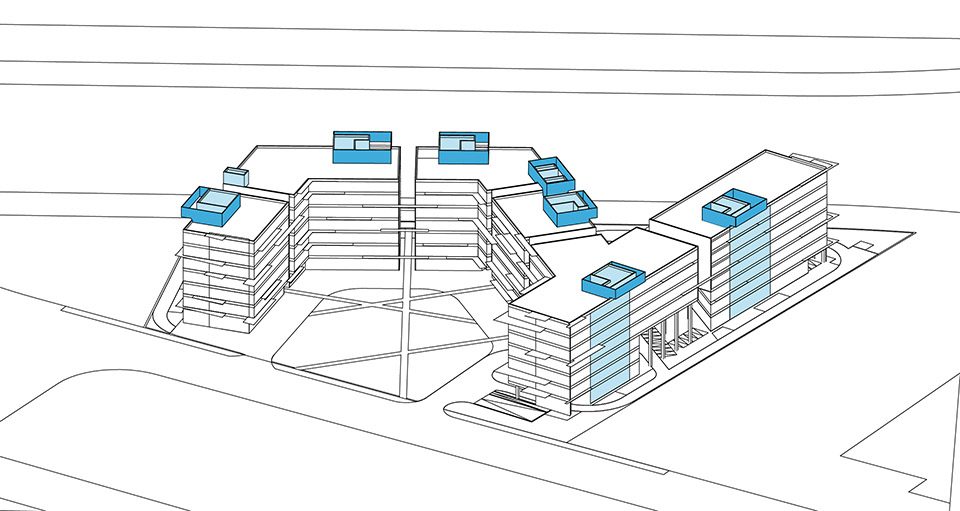

▼交通核位置分析,analysis of traffic nuclear location

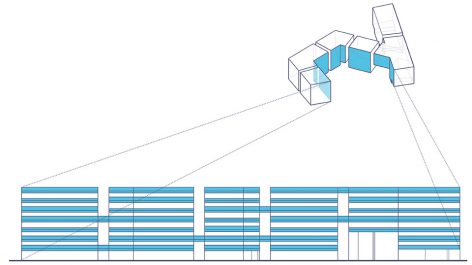

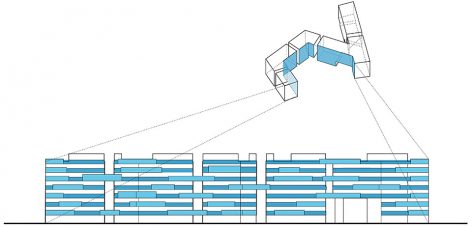

▼立面构成,facade composition

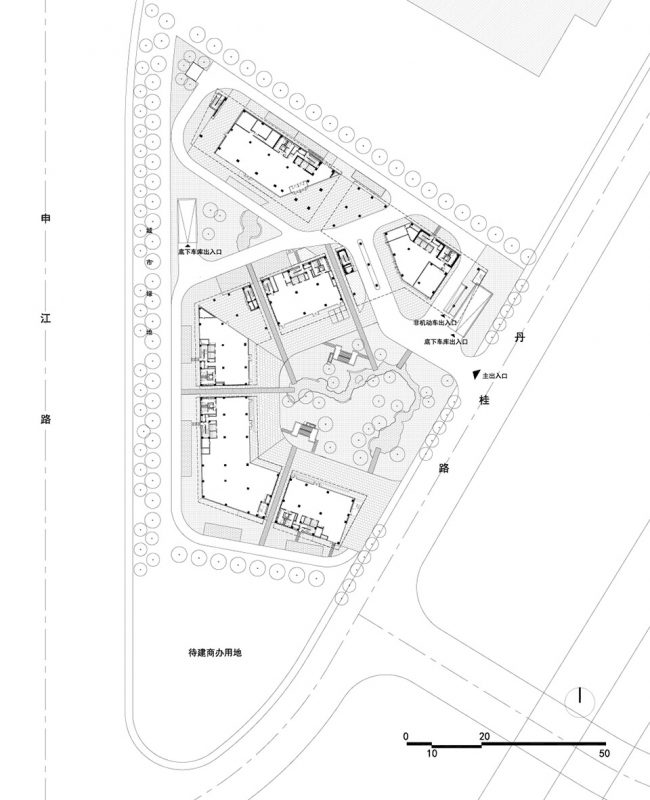

▼一层整体平面图,the first floor plan

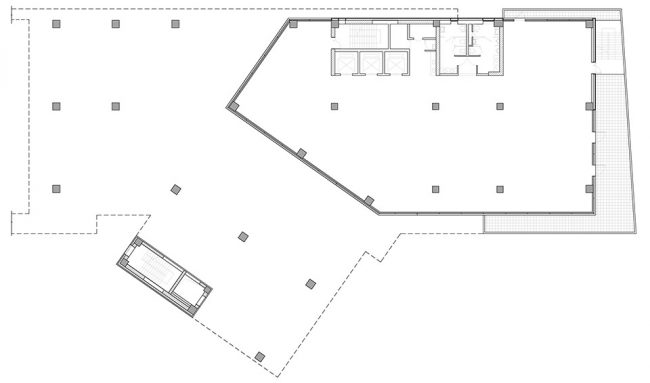

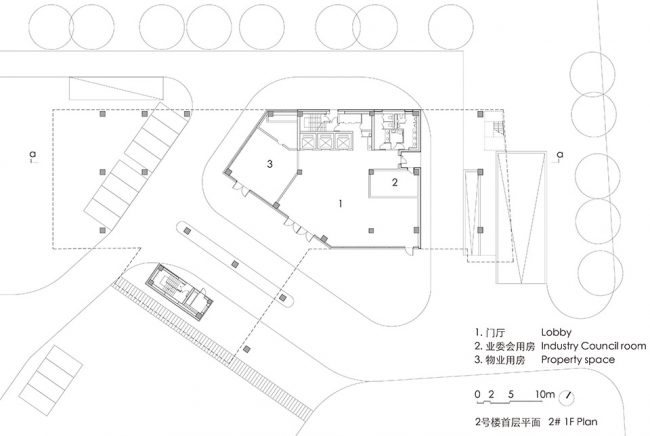

▼2号楼首层平面图,the first floor plan of building 2

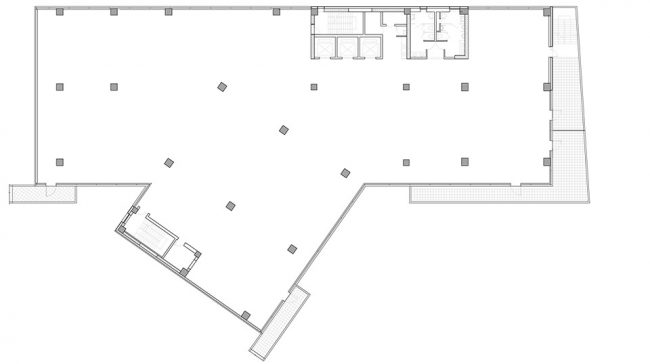

▼2号楼三层平面,the third floor plan of building 2

▼2号楼七层平面,the seventh floor plan of building 2

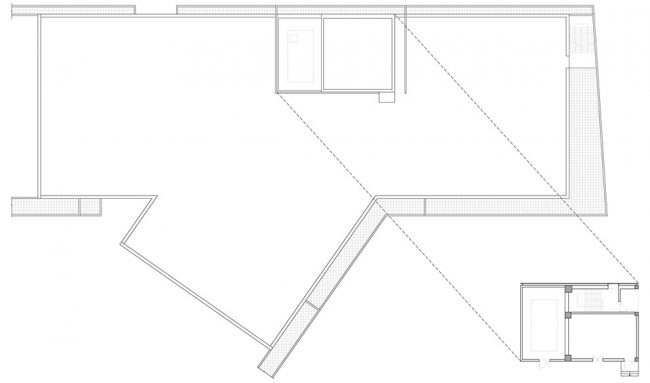

▼2号楼屋顶平面,the roof plan of building 2

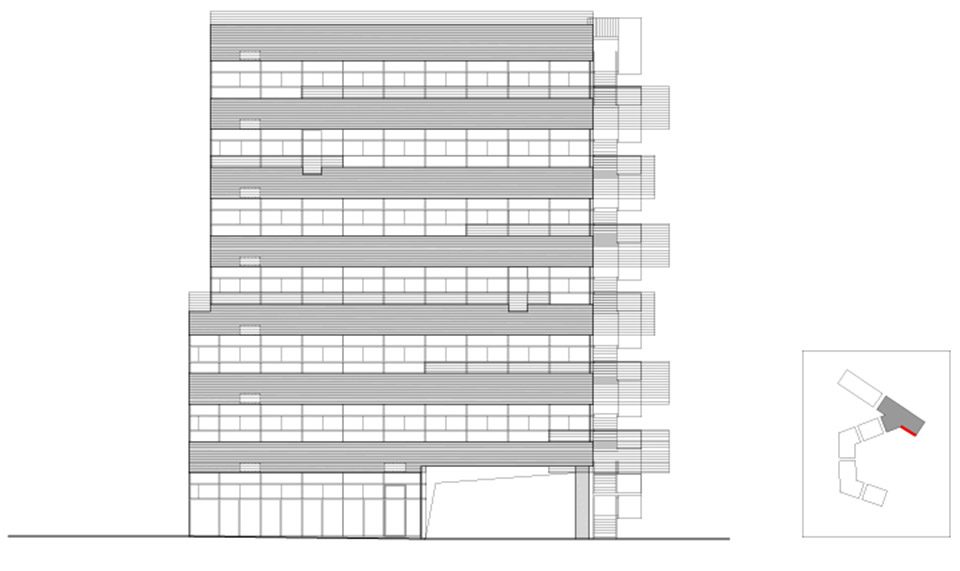

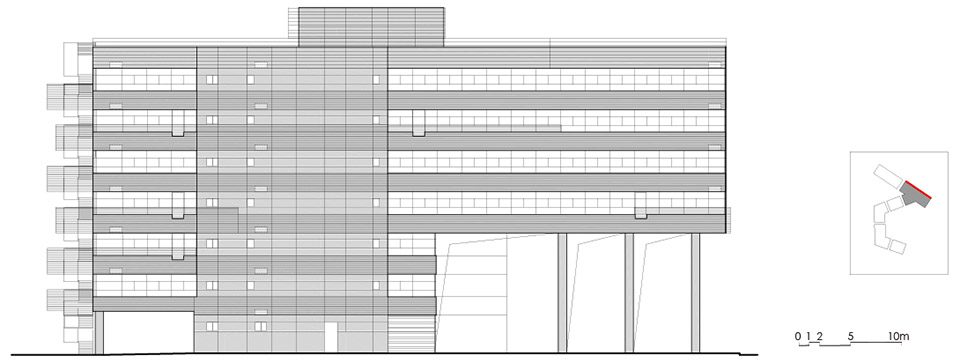

▼立面图,elevation

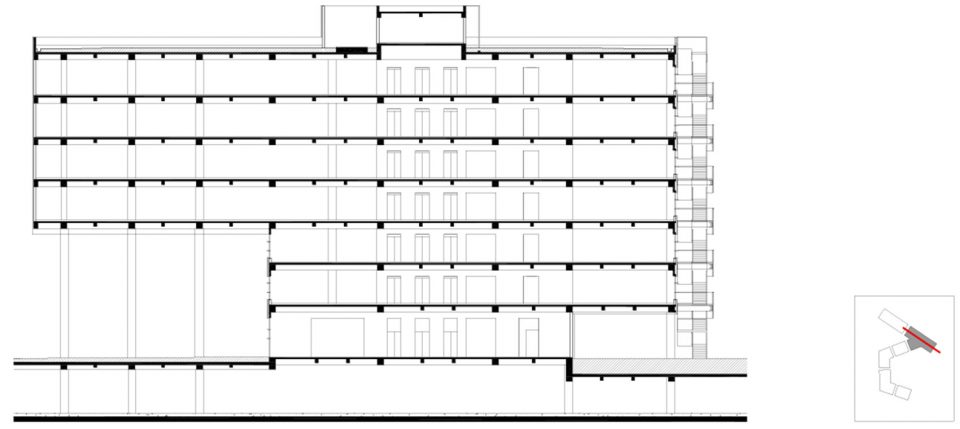

▼剖面图,section

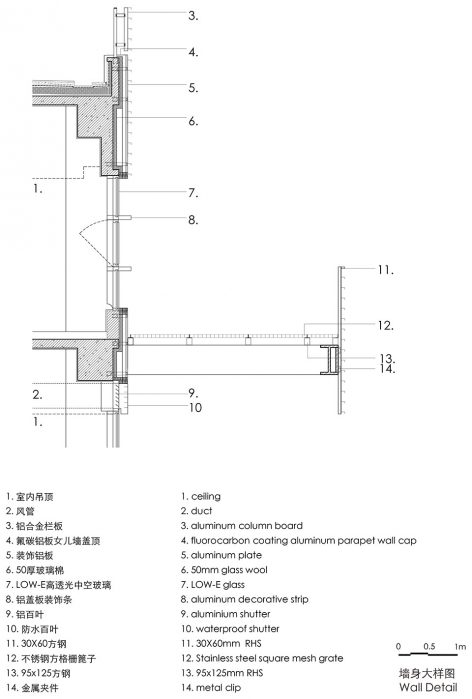

▼墙体细部,detail of the wall

项目名称: 张江集电港一期华鑫智天地
项目地点: 上海市浦东新区丹桂路799号
设计时间:2012-2015
建设时间:2015-2017
项目类型: 研发办公
基地面积:19,000平方米
建筑面积:54,700平方米
建筑层数:7层(地上)
办公层高:4米
办公净高:2.8米
结构类型:钢筋混凝土
设计单位:“ 阿科米星建筑设计事务所(庄慎 任皓 唐煜 朱捷)+刘宇扬建筑事务所”联合工作组、上海建筑设计研究院有限公司
主持建筑师:庄慎、朱捷(AMG)、刘宇扬(ALYA)
项目建筑师:田丹妮(AMG)、曹飞乐、吴从宝(ALYA)
设计团队:顾天恩、陈龙、孙闻良、方昱、龚佳佩(AMG)
王珏、杨凯、李宁、丁晨、文天启(ALYA)
建设单位:华鑫置业集团
结构与机电:上海建筑设计研究院有限公司
幕墙顾问:上海熙玛工程顾问有限公司
建筑施工单位: 上海建工二建集团
建筑材料:
幕墙/上海玻机智能幕墙股份有限公司
涂料/sk化研株式会社
铝板/上海玻机智能幕墙股份有限公司
摄影: 陈颢

Project title: ZhangJiang IC Harbor Phase I
Location: 799 Dangui Rd., Pudong, Shanghai
Design: 2012-2015
Completion: 2015-2017
Main use: R&D Offices
Site area: 19,000 m2
Total floor area: 54,700 m2
Number of floors: 7F
Office floor height: 4,000 mm
Office ceiling height: 2,800 mm
Structure: RC Frame
Architect: Atelier Archmixing + Atelier Liu Yuyang Architects + Institute of Shanghai Architectural Design and Research Co., Ltd.
Design Principal: Zhuang Shen, Zhu Jie (AMG), Liu Yuyang (ALYA)
Project Architect: Tian Danni (AMG), Cao Feile, WU Congbao (ALYA)
Design Team: Gu Tianen, Chen Long, Sun Wenliang, Fang Yu, Gong jiapei (AMG) Wang Jue, YANG Kai, LI Ning, DING Chen, WEN Tianqi (ALYA)
Client: China Fortune Properties
Structure+ Mechanical and Electrical Consultant: Institute of Shanghai Architectural Design and Research Co., Ltd
Facade Consultant:CIMA Project Consultancy Co. Ltd., Shanghai
Constructor: Shanghai Construction No.2 (Group) Co., Ltd
Materials Brands / Products:
1. BRIGHT. Intelligent Curtain Wall Co., Ltd / LOW-E glass
2. BRIGHT. Intelligent Curtain Wall Co., Ltd / Aluminum plate
3. SKK / Planting
Photography: Chen Hao
