非常感谢 ZAP Associates 予gooood分享以下内容。更多关于他们：ZAP Associates on gooood
Appreciation towards ZAP Associates for providing the following description:

我们希望通过对场地中‘地平线’和‘天际线’的重新塑造，形成一段最透气的边界、一座最轻盈夺目的‘路标’、和一处处最炽热的活动场。

With the reshaping of the “horizon” and “skyline” in the venue, we hope to establish a section of the most breathable boundary, the lightest and most eye-catching “signpost”, and many hottest activity fields.

▼项目概览，overall view © 三映景观摄影（任意/黄鹏程）

项目位于包头市新都市区，占地约20,000m²，紧邻串联东西新老城区的城市主轴建设路，与包头市政府仅一街之隔，计划未来两至三年内将在基地以南打造呼包鄂最大的室内冰雪馆。通过和业主的若干轮沟通，冰雪和户外运动不出意外地成为这个带状公园的主基调。然而面对这样一个正对近百米宽的城市快速路和平整细长的场地，如何规划内外交通和功能布局，对外展示界面形象特色，同时在节点上强化冰雪概念，以创造出所有参与者对于项目的归属感便成为我们整体重点考虑的目标。

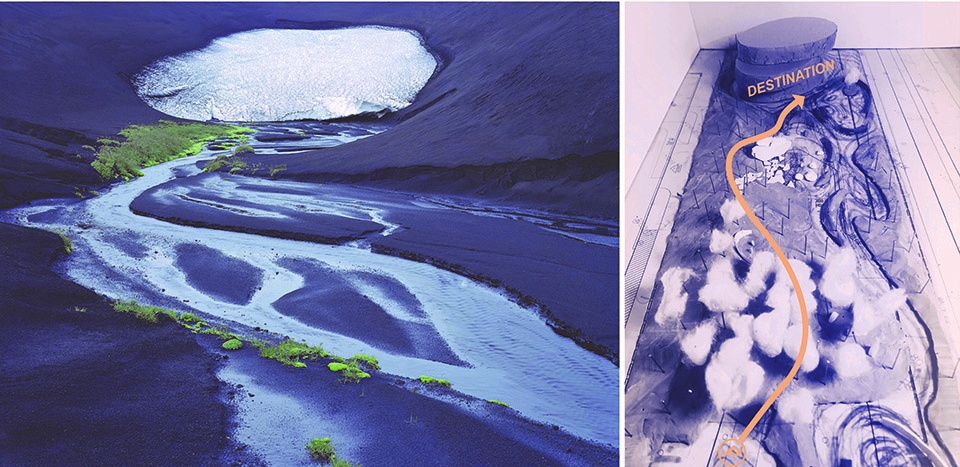

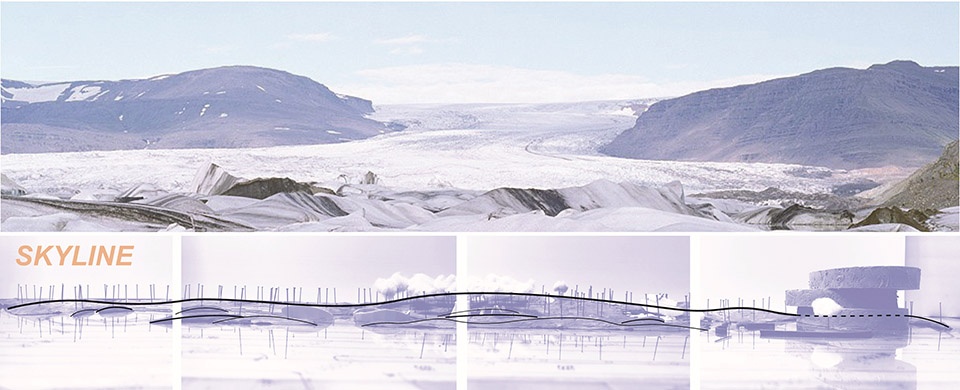

▼冰雪概念，the concept of ice and snow © ZAP ASSOCIATES

The project is located in the New Urban Area of Baotou City, covering an area of about 20000 m2. Adjacent to the construction road, which is the main axis of the city connecting the new and old urban areas in the East and the west, it is only one street away from the Baotou municipal government. It is planned to build the largest indoor ice snow Pavilion in the Hohhot-Baotou-Erdos area in the south of the base in the next two to three years. Through several rounds of communication with the owners, ice and snow as well as outdoor sports have become the main theme of the belt-shape park. However, for such a flat and narrow space facing the urban expressway which is nearly 100 meters long, how to plan the internal and external traffic and functional layout and the image features of the interface showing outward, and strengthen the concept of ice and snow on the nodes to create a sense of belonging for all participants joining the park have become the focus of our overall thinking.

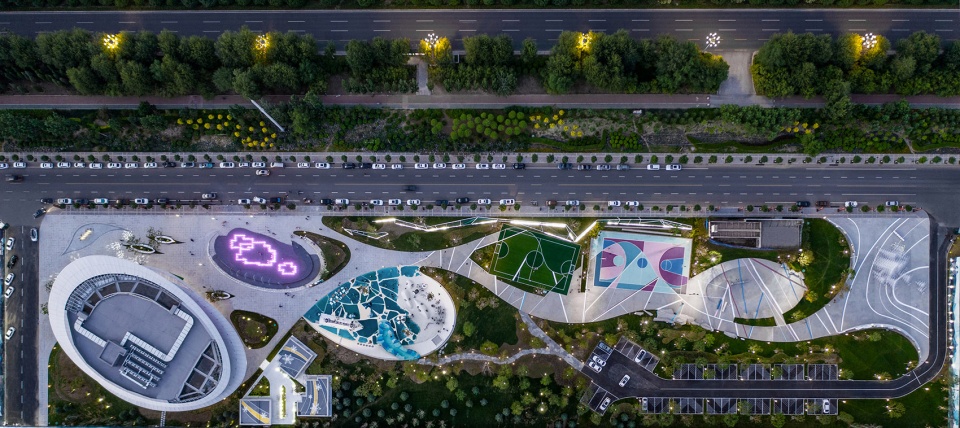

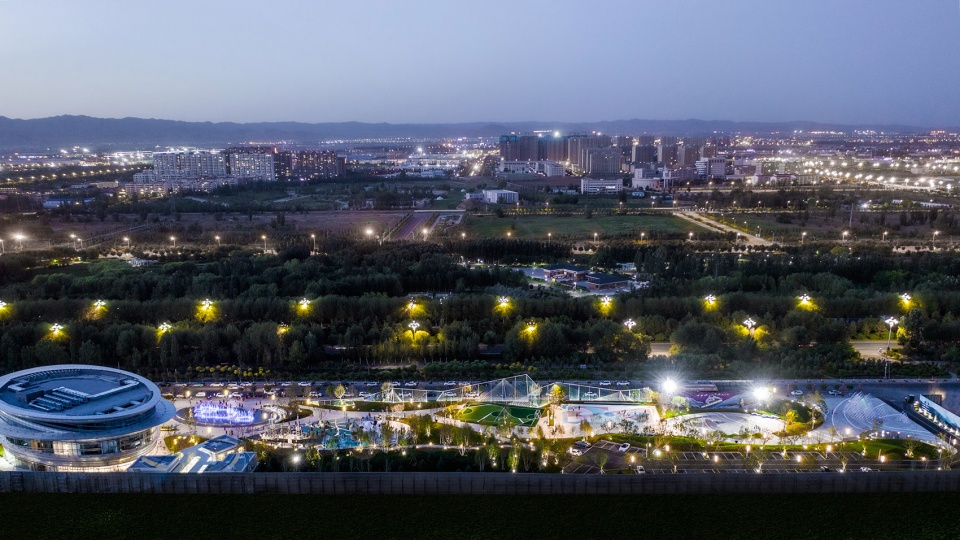

▼ 鸟瞰，bird-view © 三映景观摄影（任意/黄鹏程）

地形的塑造将使场地更加立体，丰富主次动线行进体验的同时，也提供给初入场地的人们一个透过白桦林俯瞰全景的“眺望台”。在功能设置上，极限运动场、篮球场和小型足球场的灵活布局可强化公园户外运动的全域概念。而面向聚揽人气的亲子客群，设计考虑在毗邻冰雪博物馆侧融合隆起的地形中嵌入一处约800m²的“半谷地”，打造一个主题为极地科考的儿童活动区。在公园的主入口，设计构想了一座极具冰雪特色、同时结合参与性的主题雕塑，以增强场地的吸引力和昭示性。

The shaping of the terrain will make the site more fulfilled, enrich the experience of the main and secondary moving lines, and at the same time, it also provides a panoramic “overlooking platform” through the birch forest for people who just enter the venue. In terms of function setting, the flexible layout containing extreme sports field, basketball court and small football field contribute to strengthening the whole area concept of outdoor sports in the park. For the parent-child group that can popularize our venue, the designer considers embedding an 800m2 “Half Valley” in the terrain adjacent to the ice and snow museum to create a children’s activity area with the theme of polar scientific research. At the main entrance of the park, the designer considers a theme sculpture with ice and snow features, as well as combining with people’s participation to increase the attraction and publicity of the site.

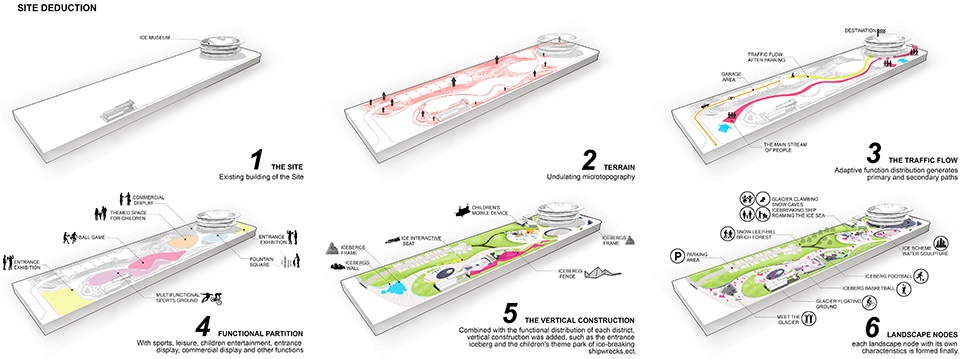

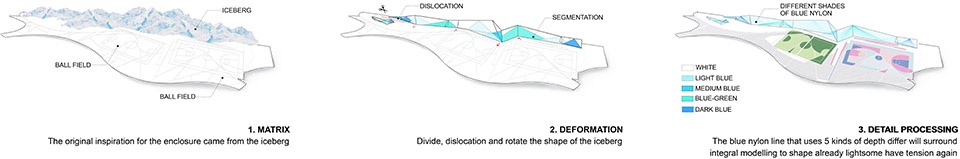

▼ 设计生成，designing progress © ZAP ASSOCIATES

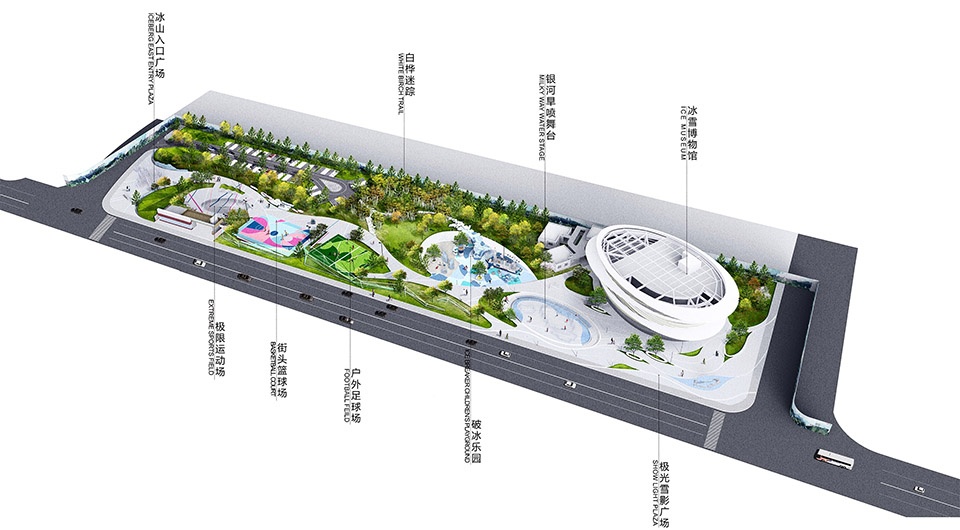

▼ 轴测图，axonometric drawing © ZAP ASSOCIATES

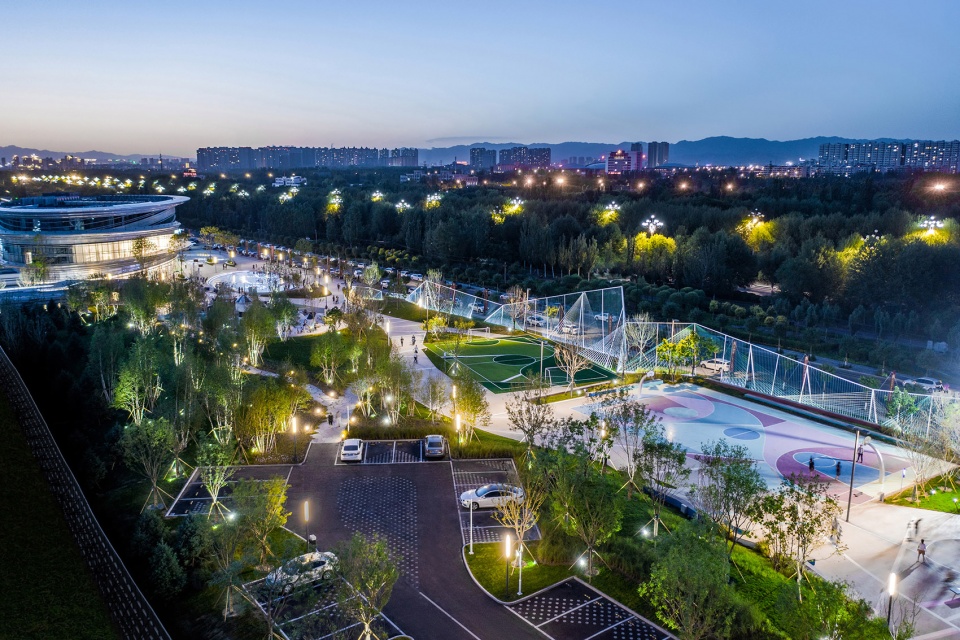

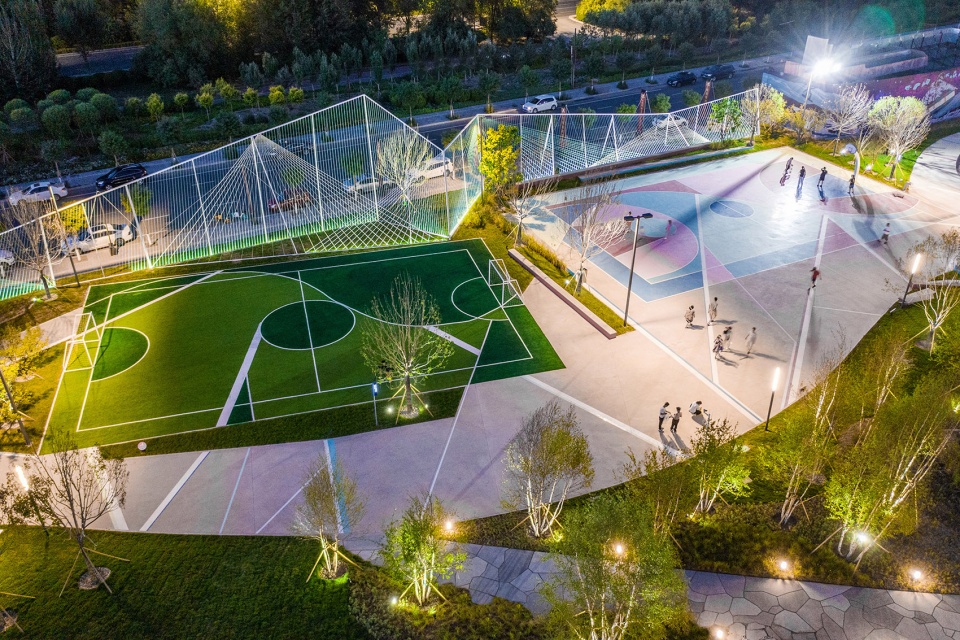

▼ 各功能区鸟瞰，bird-view of different area of the site © 三映景观摄影（任意/黄鹏程）

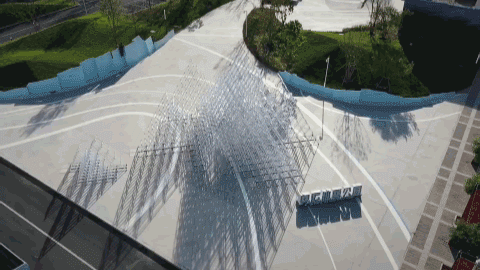

以雕塑感的草坡地形、绿意林带和“蓝冰”景墙作为背景，白天时分的大小冰山显得格外晶莹剔透，仿佛身处冰山内部。可穿梭贯通的设计结构带给慢慢走近的人们以惊喜感和探索欲。灵动交替闪烁的灯光在暮色中熠熠生辉。我们不希望它仅仅在入口静态地矗立，而是通过动态的灯光设计和互动参与性的注入，从而让这座冰山”活”起来。

Take the sculpture-like grass slope terrain, green forest belt and “blue ice” landscape wall as the background, the big and small icebergs during the daytime are particularly crystal clear, is like being inside an iceberg. The design structure with passageways through it brings people a sense of surprise and stimulates people’s desire to explore. The flickering lights sparkle in the twilight. We don’t want it to just stand still at the entrance, but to make the iceberg “alive” through dynamic lighting design and injecting interactive participation

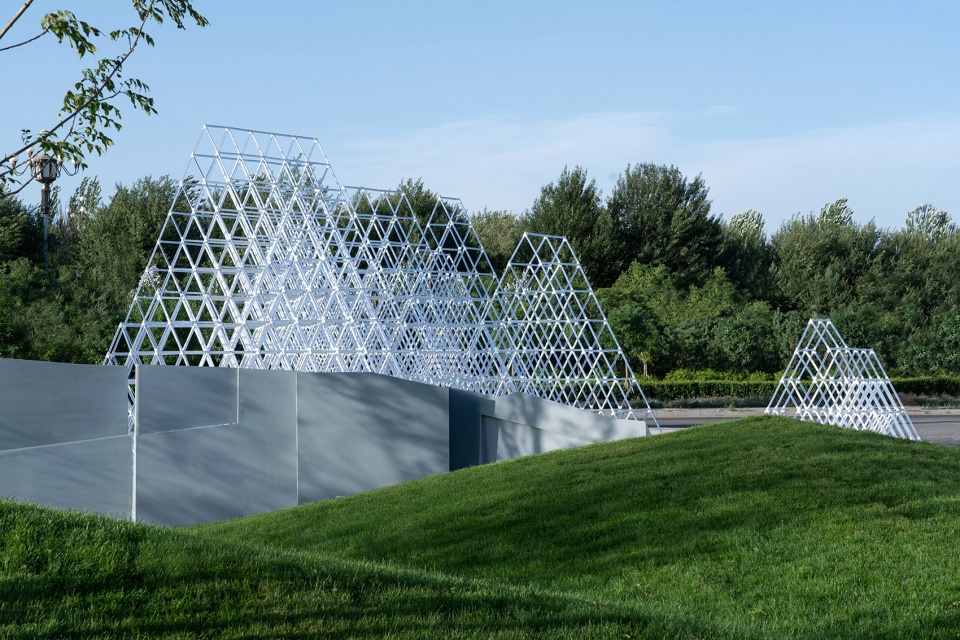

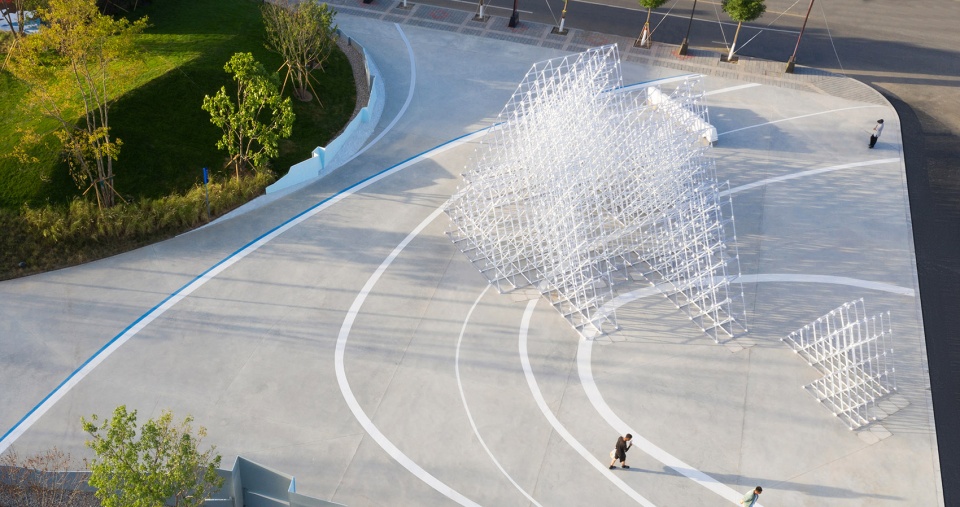

▼ 主入口的冰雪主题性雕塑，ice and snow sculpture at the main entrance © 三映景观摄影（任意/黄鹏程）

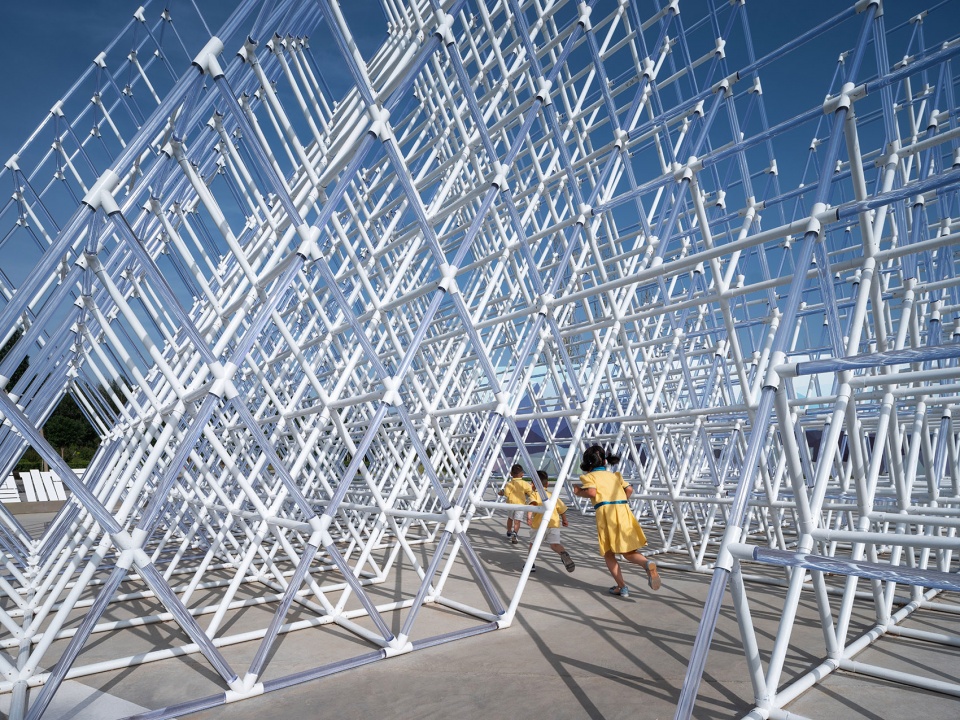

▼ 可穿梭贯通的设计结构带给人们以惊喜感和探索欲，design structure with passageways through it brings people a sense of surprise and stimulates people’s desire to explore © 三映景观摄影（任意/黄鹏程）

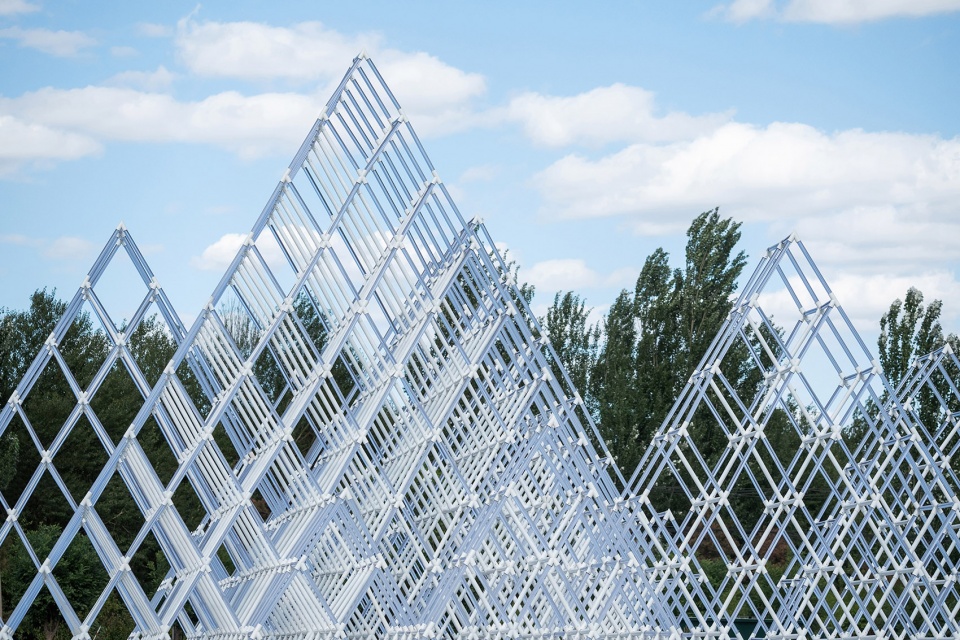

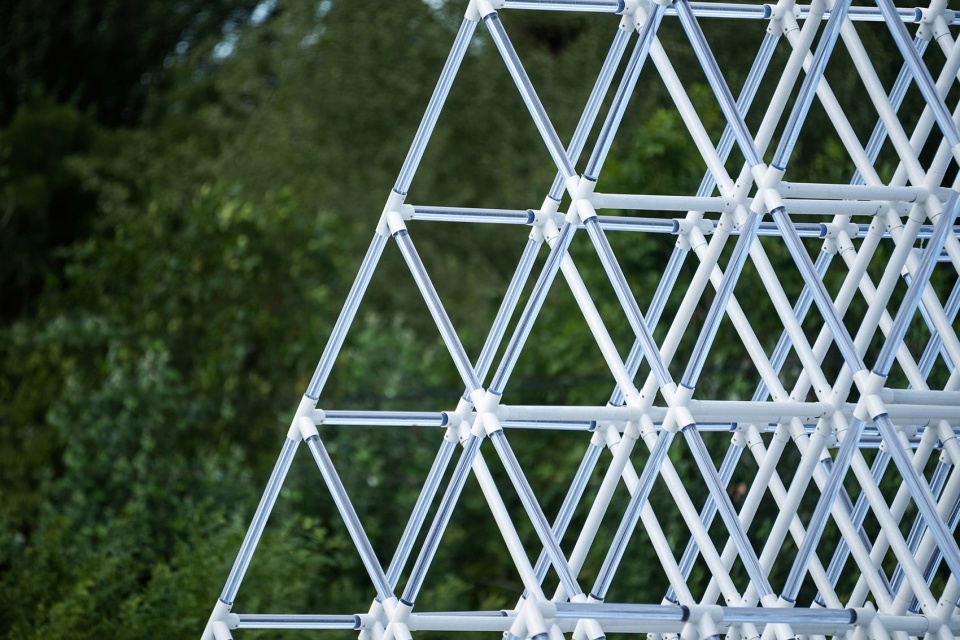

▼ 雕塑结构细节，detial of the sculpture © 三映景观摄影（任意/黄鹏程）

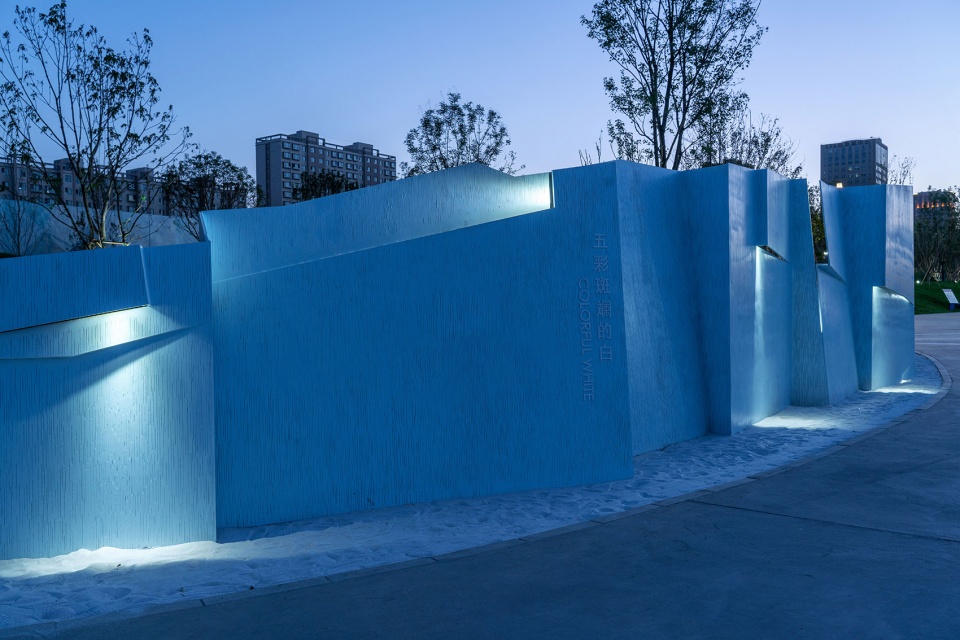

大小冰山拼装调试过程，对于结构、材料和工艺的反复打磨实验和施工现场不断的调试复核。“蓝冰”景墙的日和夜。让大小冰山雕塑闪烁的夜景效果成为入口广场的主景，“蓝冰”景墙发光方式和照度相对克制，仅作为整体环境的晕染托底。

The assembly and testing process of the large and small icebergs, the repeated grind and experiments of the structure, materials and technology and construction site testing and reviewing. Day and night of “blue ice” landscape wall. Make the twinkling night scene effect of the big and small iceberg sculptures become the main scene of the entrance square. The lighting mode and illuminance of the “blue ice” landscape wall are relatively limited, and it only serves as the background of the overall environment

▼ “蓝冰”景墙作为背景，”blue ice” landscape walls serves as the background © 三映景观摄影（任意/黄鹏程）

五彩斑斓的艺术“彩带”拍印在这个地形变化丰富的极限活动体验区，无形中注入的无限活力不断吸引着前来尝试“放飞”自我的年轻人和爱好者们。

The colorful artistic “ribbon” is fixed in this extreme sports experience area with rich terrain changes. The boundless vitality infused in it constantly attracts young people and extreme sports lovers who come to try to free themselves.

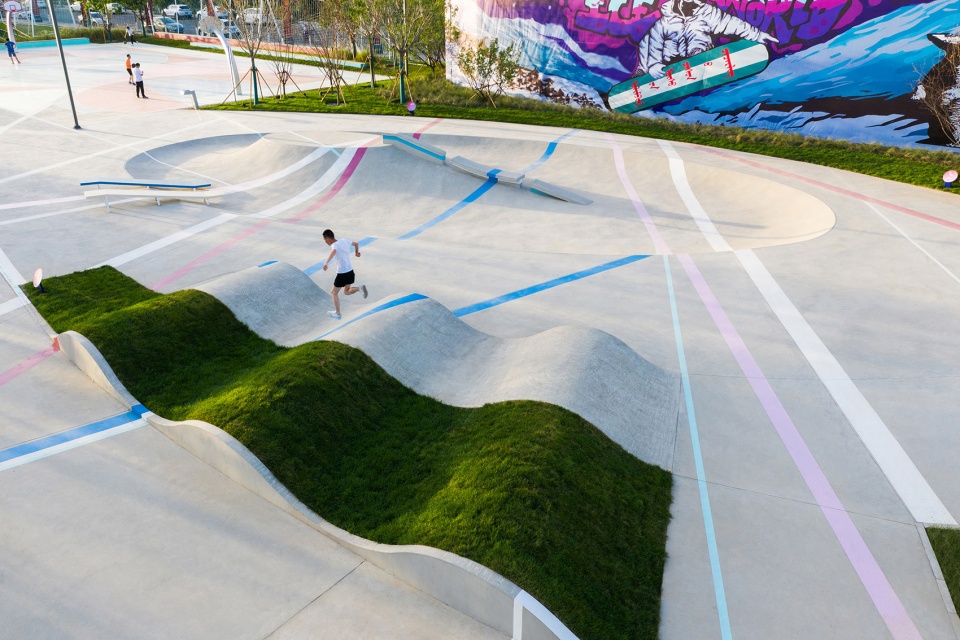

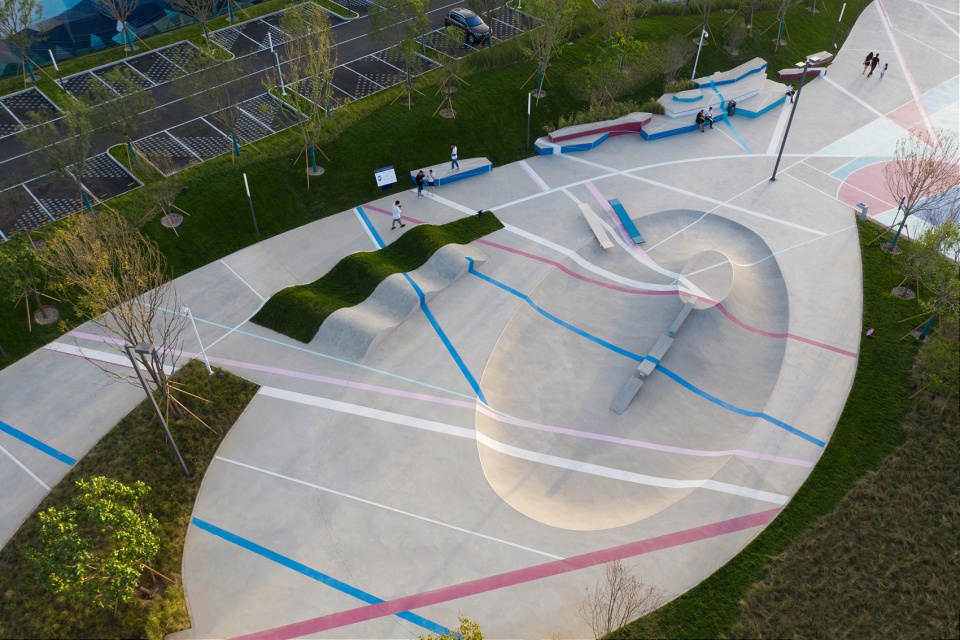

▼极限活动体验区，extreme sports experience area © 三映景观摄影（任意/黄鹏程）

▼地面上印有五彩斑斓的艺术“彩带”，colorful artistic “ribbon” on floor © 三映景观摄影（任意/黄鹏程）

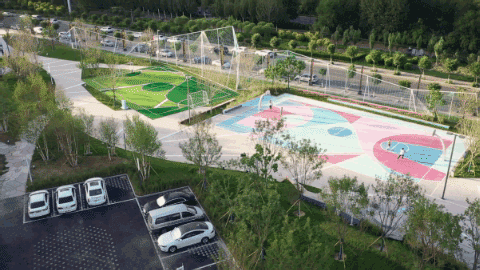

缤纷的球场地面喷涂和艺术造型感的球架，营造出一种自由奔放街头气质。这段模拟冰山天际线、最高处10M、由近4800M蓝色系尼龙绳打造而成的通透“边界”，不仅承载着对外快速主干路的城市形象界面展示，同时也承担着公园内部球类运动的安全围挡。

▼ 运动区轴测图，axonometric drawing of the sports area © ZAP ASSOCIATES

The colorful ground spraying of the ball field and the ball rack with artistic modeling create a free and unlimited street temperament. This segment imitates the iceberg skyline. The transparent “boundary” made of nearly 4800M long blue nylon rope and with the longest height of 10M, is does not only serve as the role of city image display facing the external fast trunk road, but also the safety hoarding of ball games inside the park.

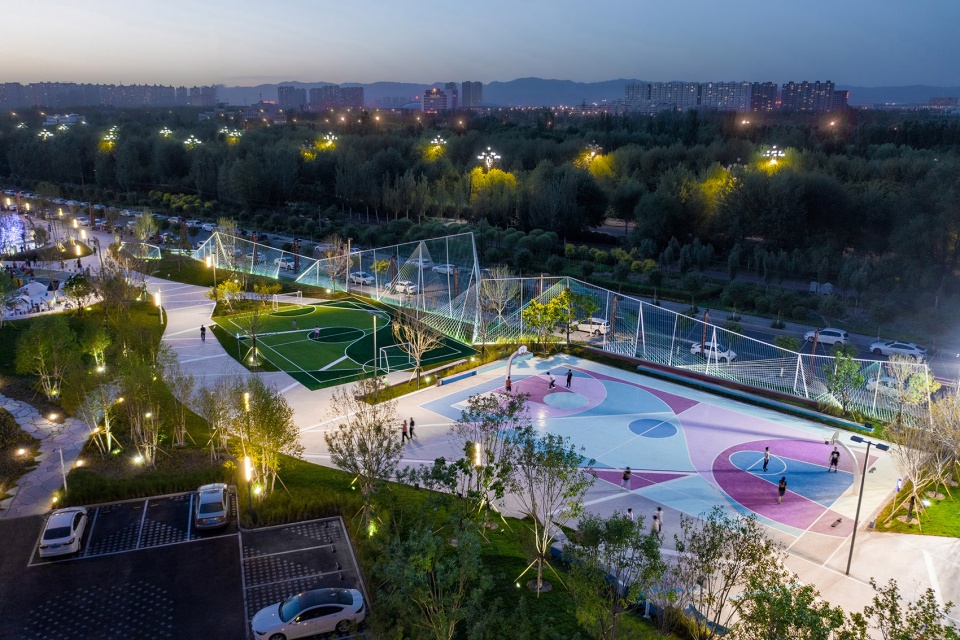

▼缤纷的地面营造出自由奔放的街头气质，colorful ground create a free and unlimited street temperament © 三映景观摄影（任意/黄鹏程）

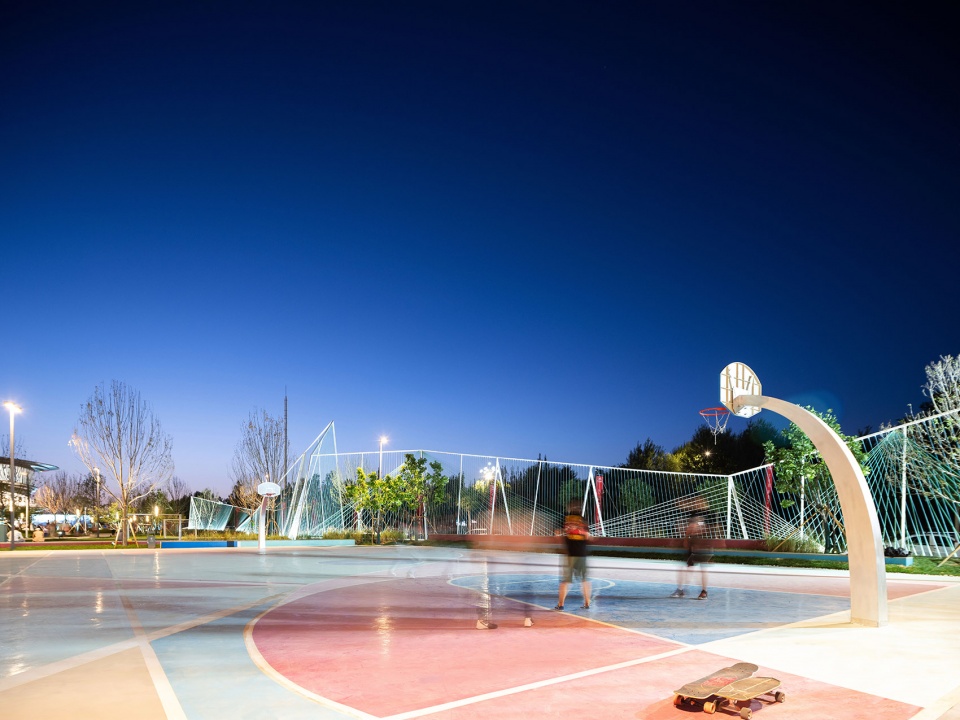

▼篮球场，basketball field © 三映景观摄影（任意/黄鹏程）

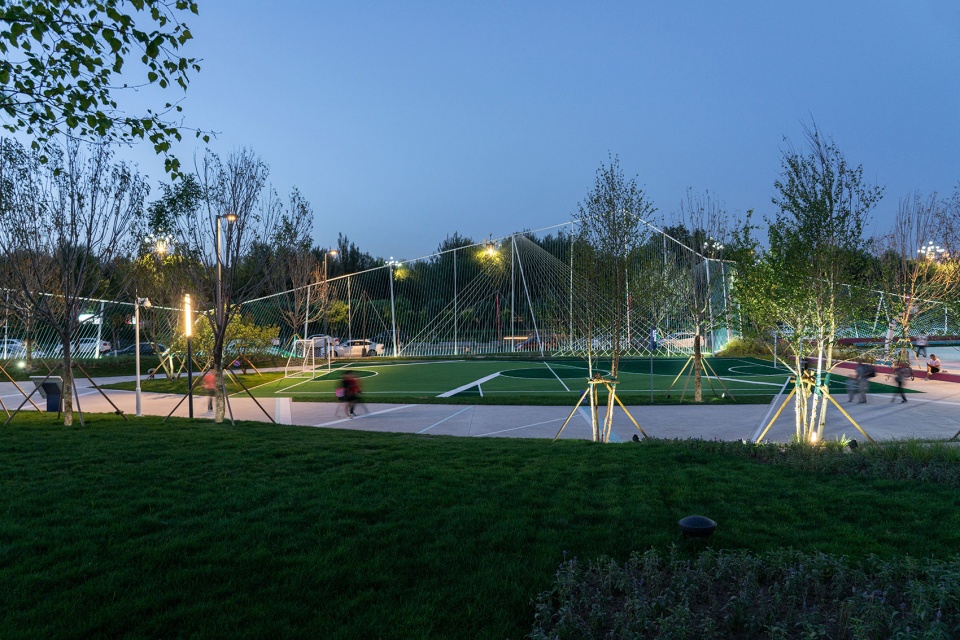

▼足球场，football field © 三映景观摄影（任意/黄鹏程）

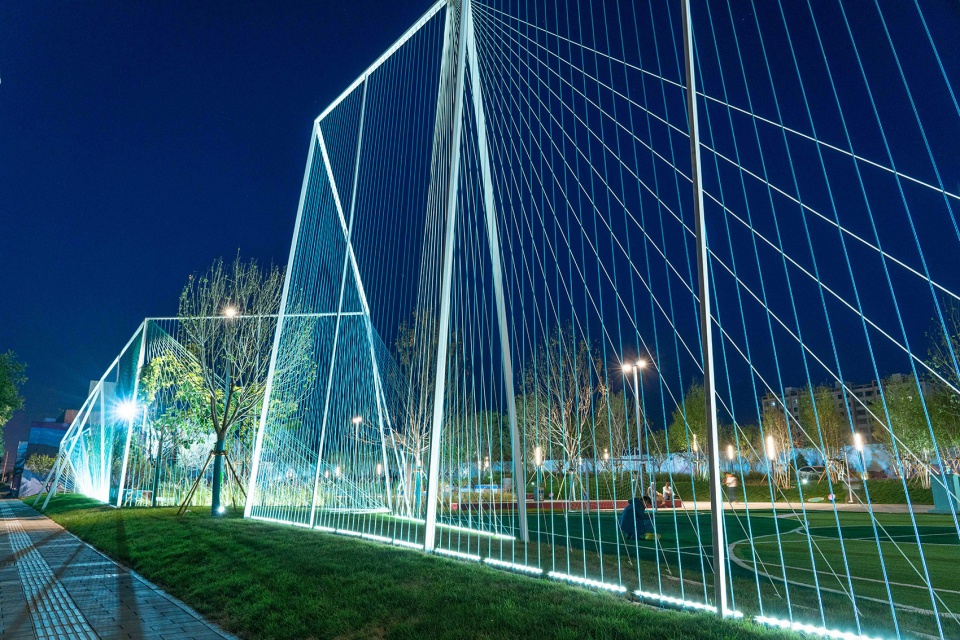

▼蓝色系尼龙绳打造而成的通透“边界”，transparent “boundary” made of nearly 4800M long blue nylon rope © 三映景观摄影（任意/黄鹏程）

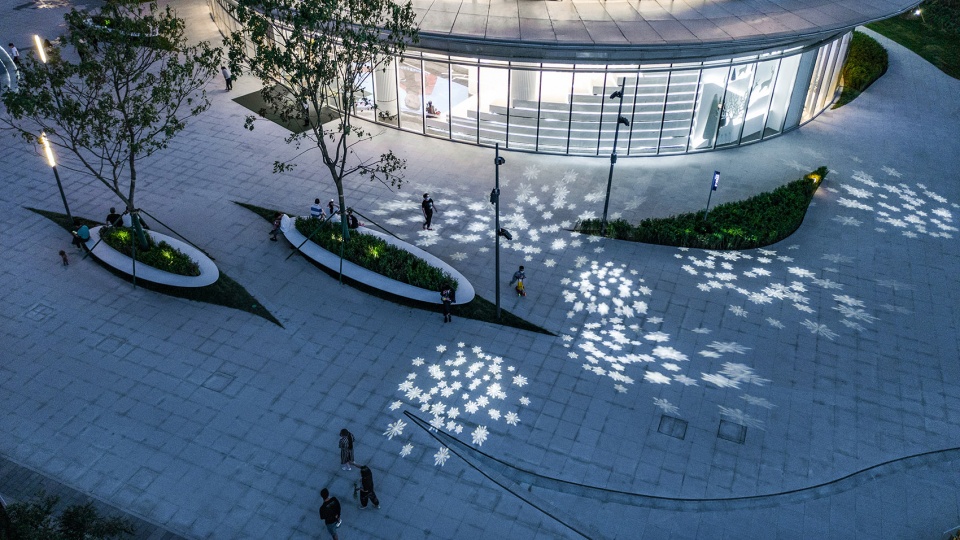

冰雪博物馆西入口的冰雪主题激光投影。设计考虑休憩座椅的形式可以与建筑屋顶的挑檐形成一定程度上的呼应，利用环形座椅镜面不锈钢的内斜向立柱，使其在视觉上可以完全隐匿在植物之中，达到了预期的悬浮效果。

Laser projection of ice and snow theme at the west entrance of Ice and Snow Museum. The form of the rest seats can somewhat echo with the cornice of the building’s roof in the design. The inside inclined column of mirror finished stainless steel of the ring-shaped seat is used to make it look like completely hidden in the plants, which achieves the expected suspension effect.

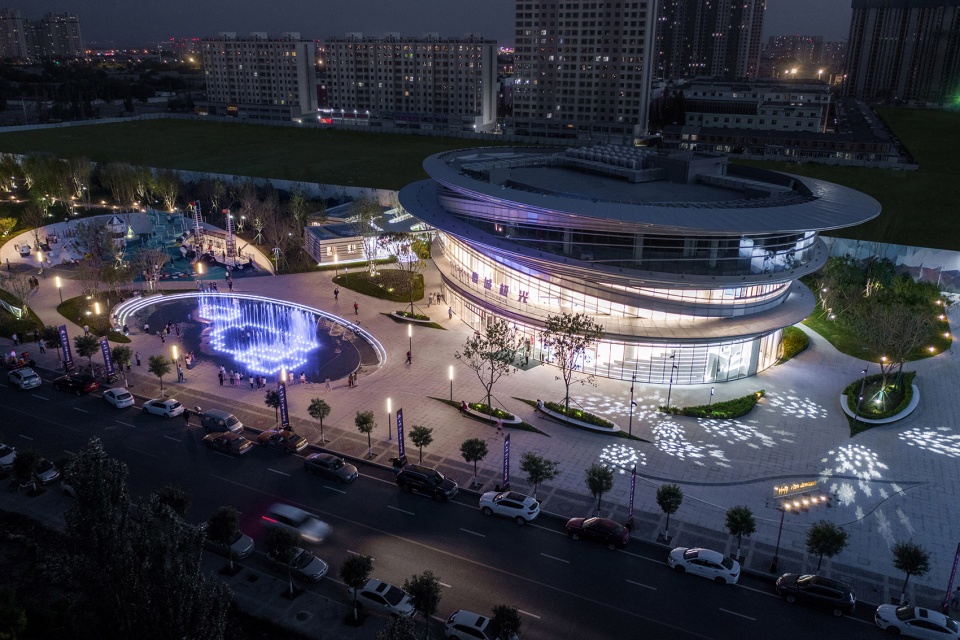

▼博物馆入口广场鸟瞰，birdview of the entrance of Ice and Snow Museum © 三映景观摄影（任意/黄鹏程）

▼广场上的休憩座椅和激光投影，rest seats and laser projection on the square © 三映景观摄影（任意/黄鹏程）

设计通过对广场地平面的半环形“艺术雕刻”，结合数控编程的音乐旱喷舞台、水下银河星光灯、林荫下的层叠座阶看台和下沉通道侧壁缓缓落下的跌水，形成了一处可坐、可看、可玩的水广场；而当场地没有水的时候，它也可以作为户外策展弹性使用的集聚活动场所。

With the semi-ring-shaped “art sculpture” on the ground of the square, combined with the music fountain stage controlled by numerical control programming, the underwater Galaxy starlight, the cascading terrace stand in the shade of the trees and the water fall on the sidewall of the sinking channel, a water square people can sit on, watch and play. When there is no water in the site, it can also be used as a gathering activity venue for outdoor exhibition planning.

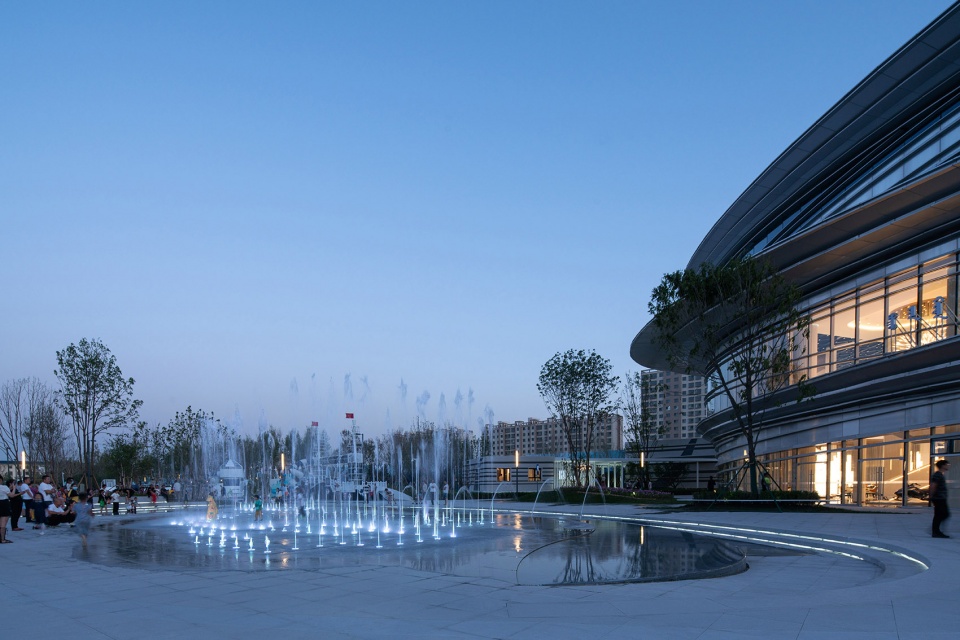

▼音乐旱喷舞台，music fountain stage © 三映景观摄影（任意/黄鹏程）

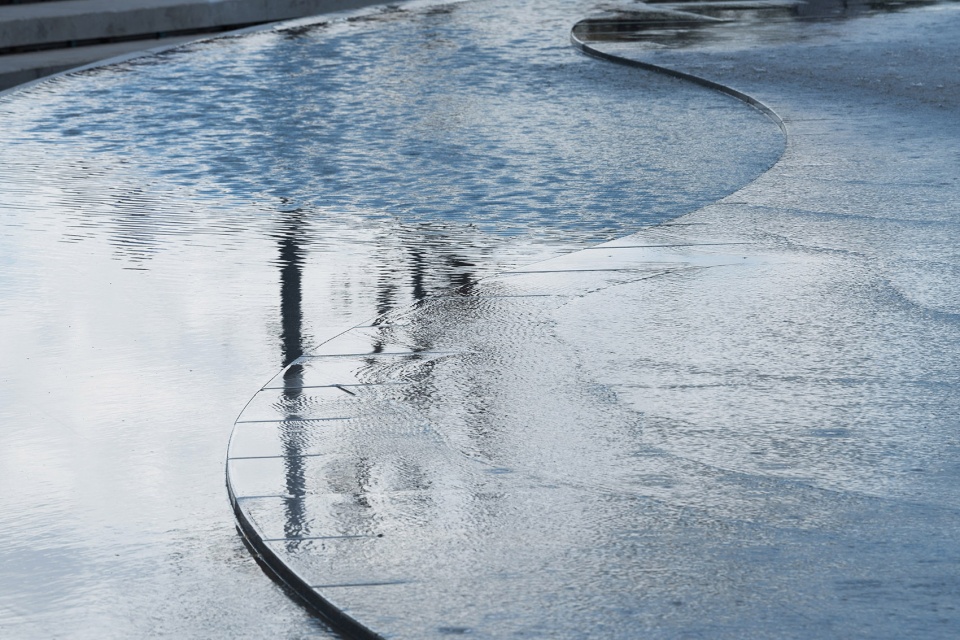

▼水景细节，detail of the pool © 三映景观摄影（任意/黄鹏程）

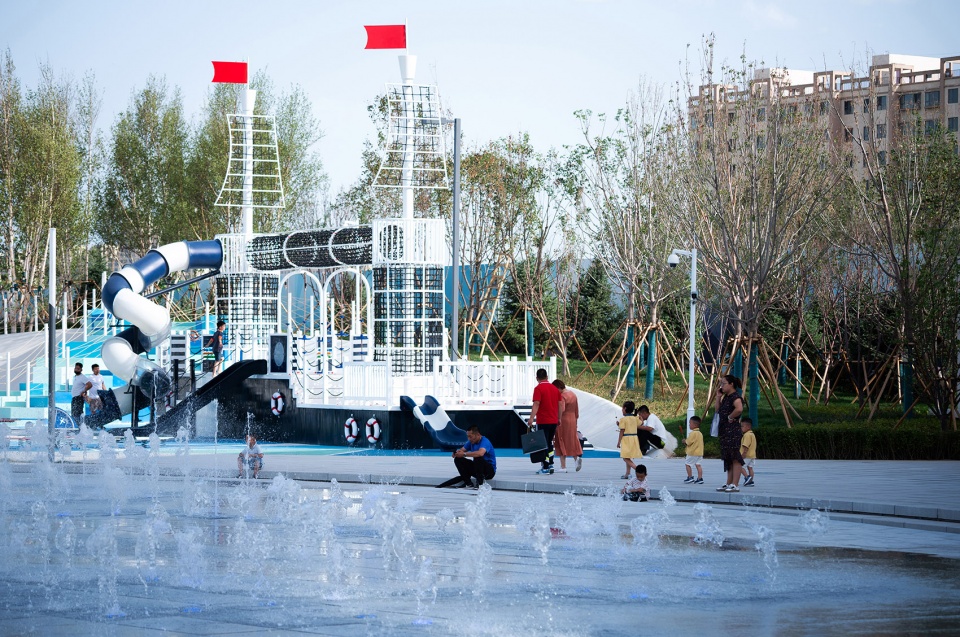

我们在这里模拟了一艘停靠在浮冰之中的巨大破冰科考船、白沙滩岸边照亮四周的灯塔、可藏和钻的极地洞穴群、拾级而上的“冰岩桥”、沙滩里的玩沙游具和坡地上的冰雪攀岩…共同为孩子们营造了一场关于探索冰雪极地风貌的科考旅程和玩乐体验。在这个冰意十足的破冰乐园里，我们希望景是酷爽的，人是鼎沸的。

Here we imitate a huge icebreaking research ship parked in the floating ice, lighthouses on the white beach to light the surrounding areas, polar caves that people can hide in and pass through, the “ice rock bridge” people can climb up with the stairs, the sand playing equipment on the beach and the ice and snow climbing. Together with all these we have created a scientific journey and fun experience about exploring the ice and snow and polar landscape for children. In this icebreaking paradise, we hope the scenery is cool and the people are hot.

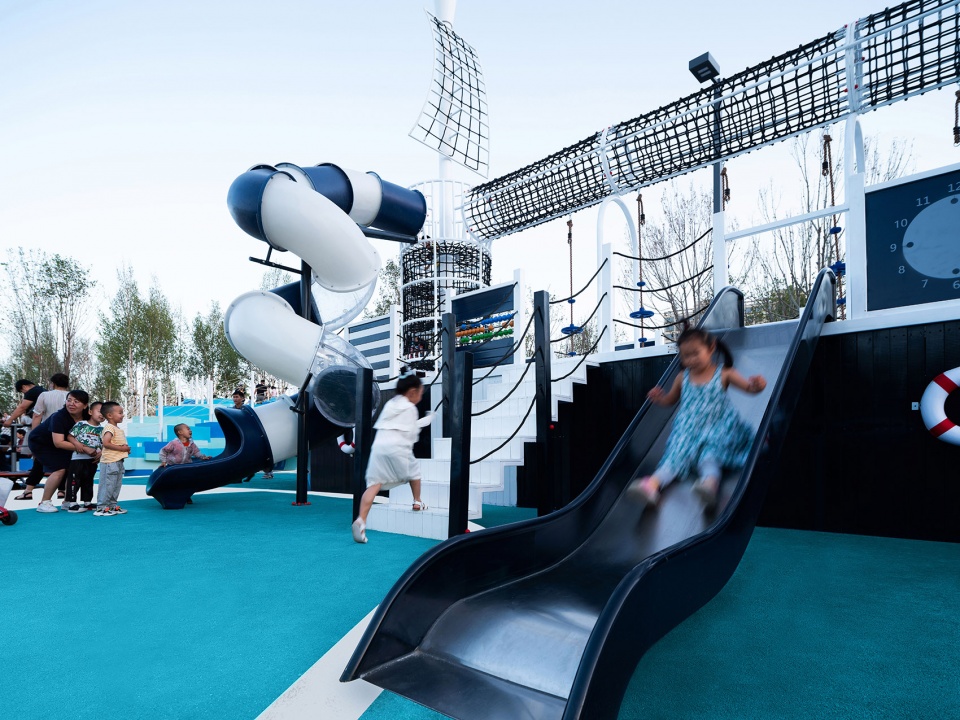

▼模拟的破冰科考船成为游乐设施， huge icebreaking research ship as recreation facility © 三映景观摄影（任意/黄鹏程）

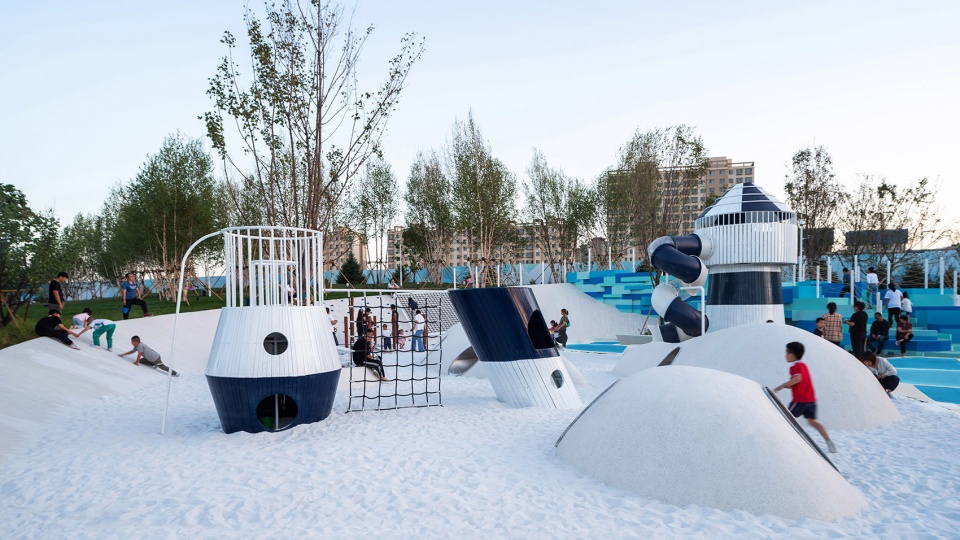

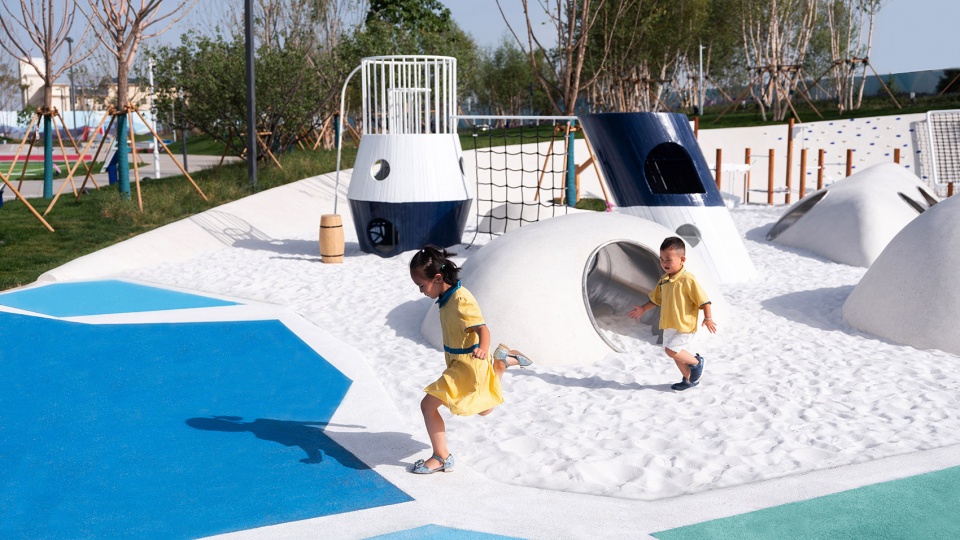

▼模拟的白沙滩儿童游乐场，灯塔和岩洞，white sand beach children’s playground, lighthouses and polar caves © 三映景观摄影（任意/黄鹏程）

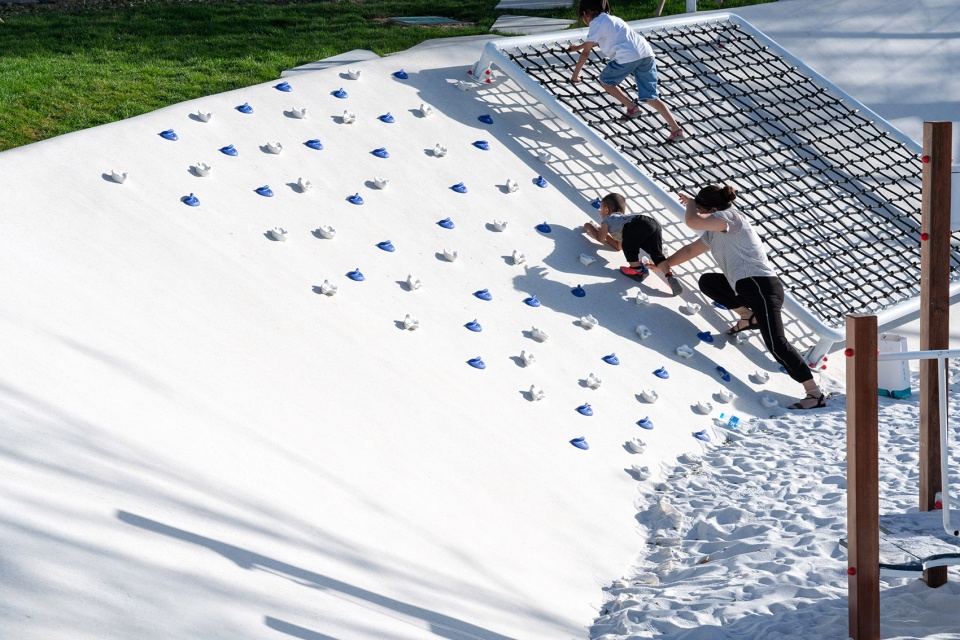

▼攀爬墙，climbing wall © 三映景观摄影（任意/黄鹏程）

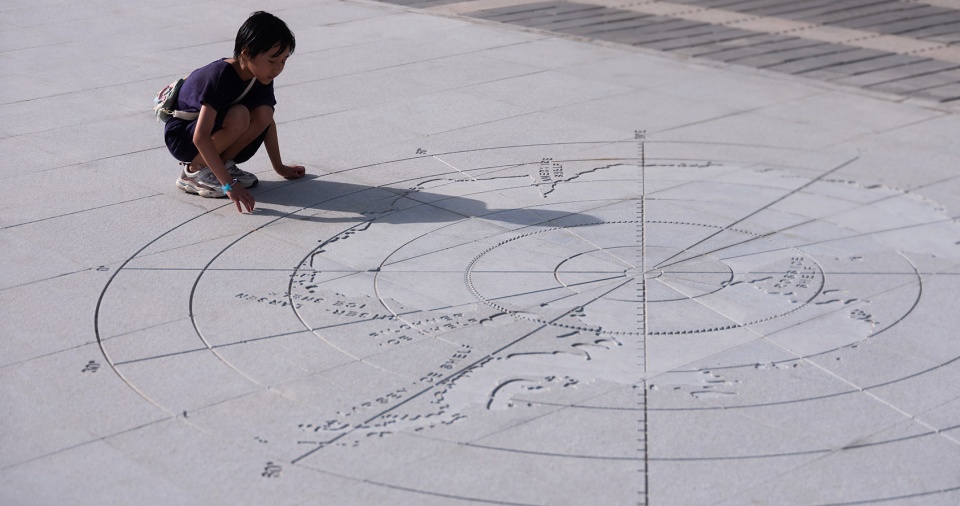

公园西广场地面上的冰川分布科普石材地雕。

Carving on the ground of the distribution of glaciers in the west square of the park.

▼ 石材地雕，carving on the ground © ZAP ASSOCIATES

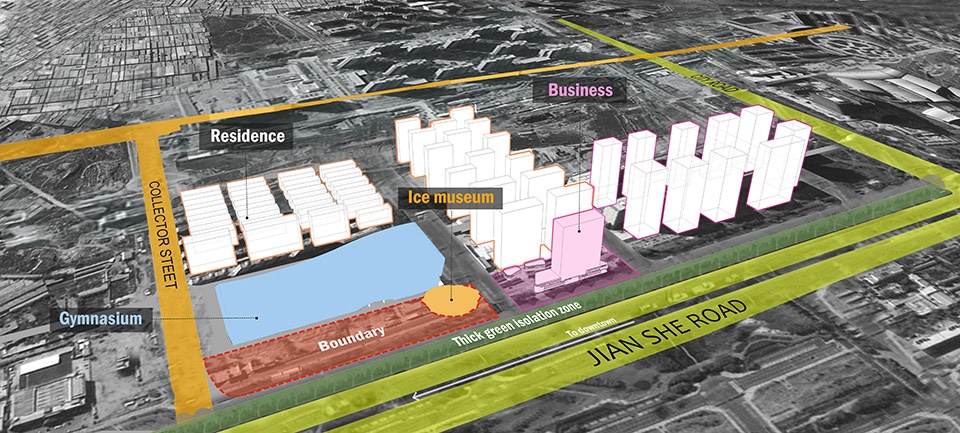

▼ 场地区位图，site location © ZAP ASSOCIATES

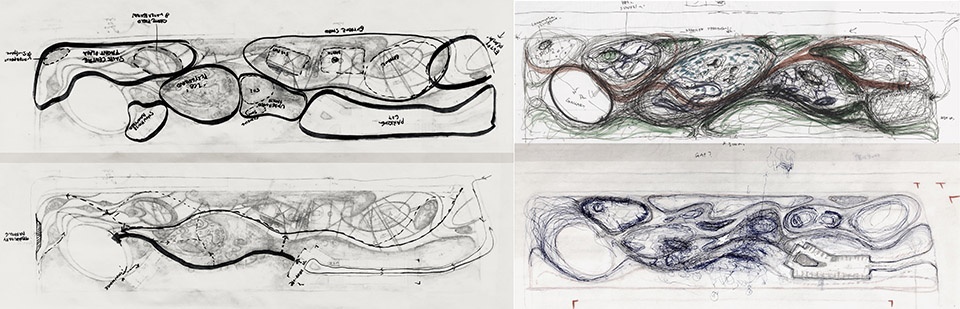

▼ 设计草图，design sketch © ZAP ASSOCIATES

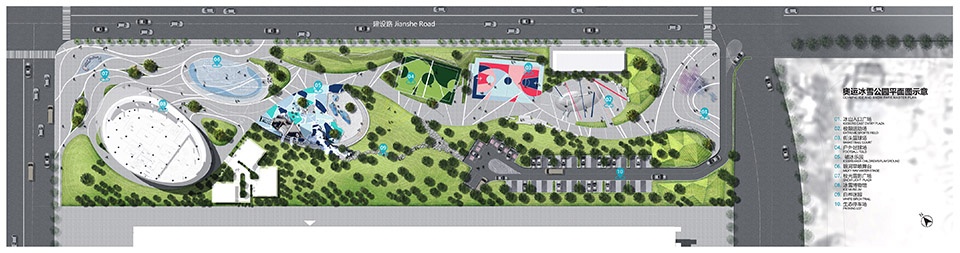

▼平面图，plan © ZAP ASSOCIATES

▼轴测图，axonometric drawing © ZAP ASSOCIATES

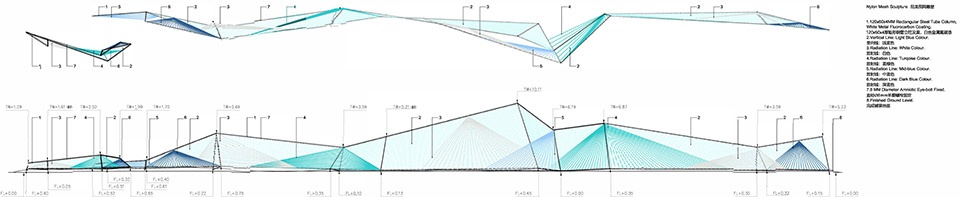

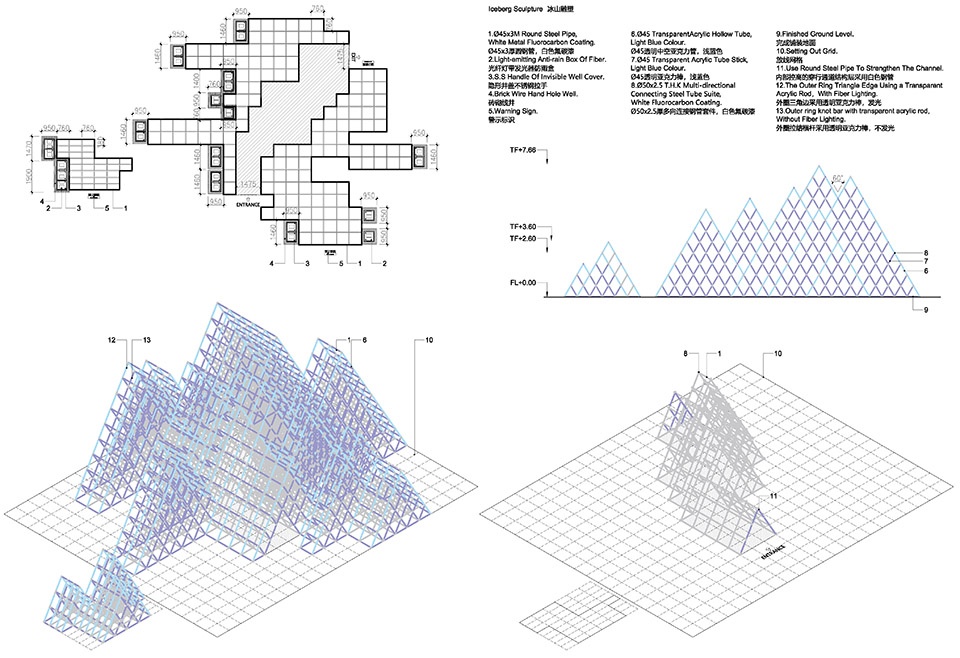

▼装置细节图，detail drawing of the device © ZAP ASSOCIATES

▼造型墙细节，detail of the landscape wall music fountain © ZAP ASSOCIATES

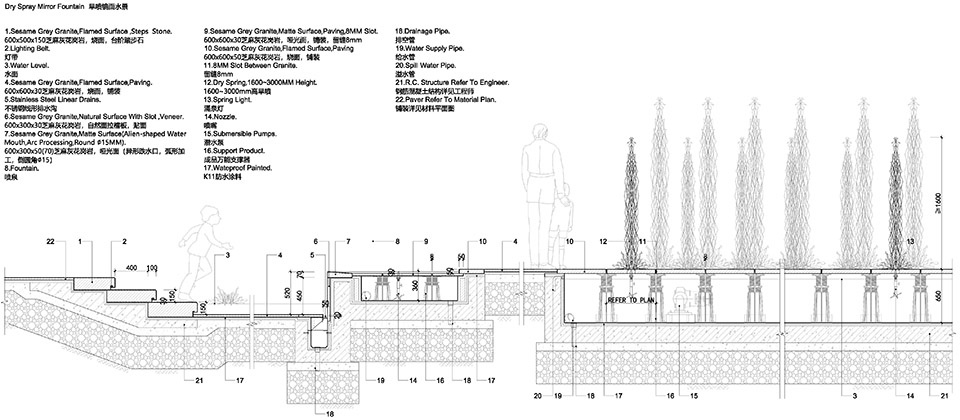

▼音乐喷泉细节，detail of the © ZAP ASSOCIATES

项目名称：包头 · 万科奥运冰雪公园
项目地点：包头新都市区建设路建华路
业主单位：包头万科
设计年份：2020
景观设计：ZAP ASSOCIATES
建筑设计：上海日清建筑设计有限公司
施工单位：北京泰湖环境工程有限责任公司
摄影团队：三映景观摄影（任意/黄鹏程）

PROJECT NAME：BAOTOU · VANKE OLYMPIC ICE AND SNOW PARK
LOCATION: Qingshan Road, Xindushi District, BAOTOU
CLIENT: BAOTOU VANKE
DESIGN DATE: 2020
LANDSCAPE DESIGN: ZAP ASSOCIATES
ARCHITECTURE DESIGN: Lacime Architects
CONSTRUCTION ORGANIZATION: BEIJING TAIHU
PHOTOGRAPHER: SANYING (YI REN/PENGCHENG HUANG)
