感谢厘米制造（邮箱：CMdesign-sz2016@qq.com）、0321STUDIO予gooood分享以下内容，更多关于：厘米制造 on gooood, 0321 STUDIO on gooood
Appreciation towards CM Design (email:CMdesign-sz2016@qq.com) and 0321STUDIO for providing the following description:

这是一个位于城市公园旧有建筑单体的改造项目，原建筑为该公园单层厢式建筑并被公园最核心且难得的巨大草坪包围，拥有极好的视线与被轻易察觉的显著位置。

It’s a single-storey building renovation project that located in the city park,surrounded by a large lawn,with excellent sight and a prominent position that can be easily detected.

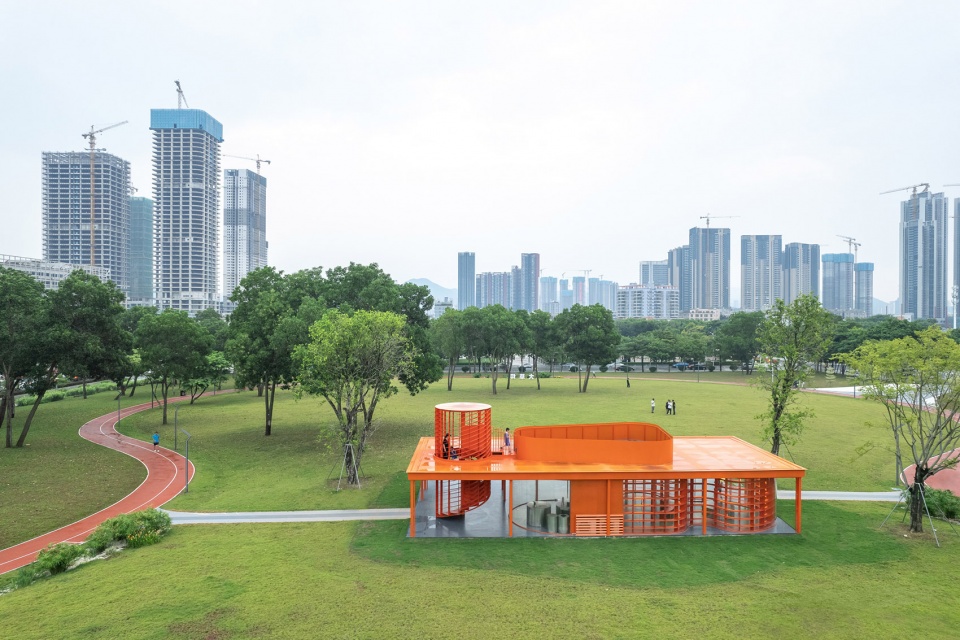

▼项目鸟瞰，bird eye view of the project ©张超

设计希望创造了一个开放、现代并能提供人们阅读的公共空间，同时集合咖啡与饮品零售等商业活动。旨在打造一处富有吸引力并兼具多功能的小型公共建筑体，为城市公园中休闲的人们创造一个充满活力的城市局部，以弥补公园内供人们参与的高品质室内空间的缺乏。

The ideas of design hopes to create an open and modern reading public space,it also offers commercial services as coffee and beverage retail, aims to build up an attractive and multifunctional small public building. As an vibrant part of the city is created for people to relax , it makes up for the short of high quality indoor space for people using in the park.

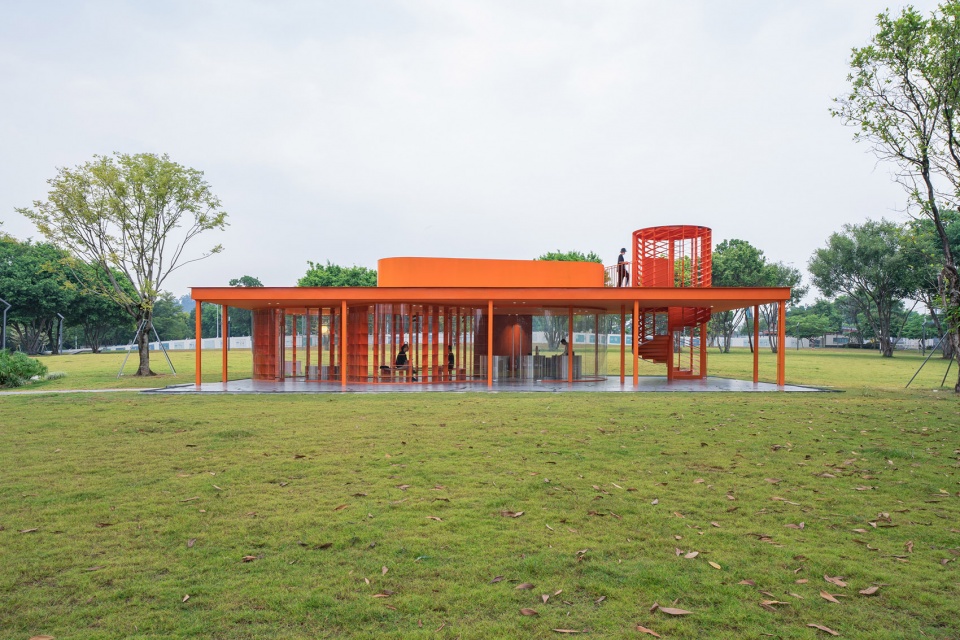

▼项目外立面，the exterior ©张超

设计保留原建筑的钢结构逻辑，拆除原建筑老旧的玻璃幕墙。尽可能的增加建筑内部与外界的视觉交流为建筑立面设计原则，将原本出色的公园景致引入室内，丰富阅读与消费饮品的人们能轻易感受室外的绿色与自然变化。保证建筑立面通透性，建筑幕墙采用曲面高透弧形玻璃，并以此自由的流线顺势得出与之平行的室内书吧功能。

Under the design principles of increasing the visual communication between indoors and outdoors, the original steel structure is remained while the glass curtain wall is dismantled. With the original excellent park scenery is introduced into the room, people are more easily sense the green and natural changes from outdoors while reading or purchasing inside.To ensure the permeability of the building facade, the ultra clear curved glass is adopted and the formation of the book shelf is obtained by the free flow line.

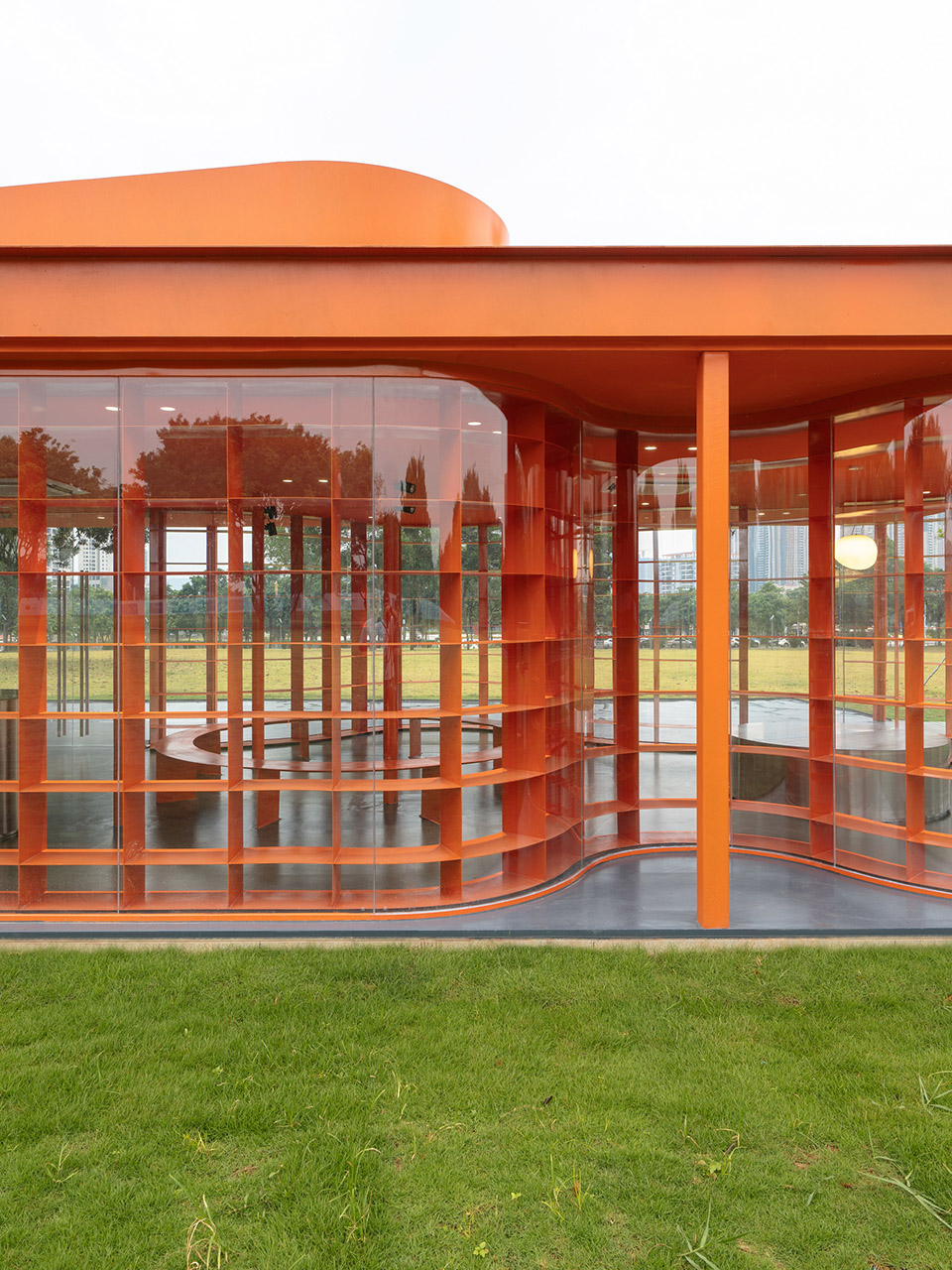

▼外立面近景，close shot of the exterior ©张超

▼外立面近景，close shot of the exterior ©肉山

室内布局为呼应书吧基本功能的需求，将书架这一大面积出现且高度影响室内视觉的物质现实沿建筑幕墙弧线平行布置。书架隔板立板采用3mm厚钢板，通过一定尺寸的排列布置，确保足够书籍陈列的荷载，同时也保证光线的过滤以及景致的引入。

In order to meet the needs of basic function, the layout of the book shelf goes along with the plan of the glass curtain wall. The shelves are made of 3mm thick steel plate, which is arranged in a certain size to ensure enough load for books display, and the filtering of light and the introduction of scenery.

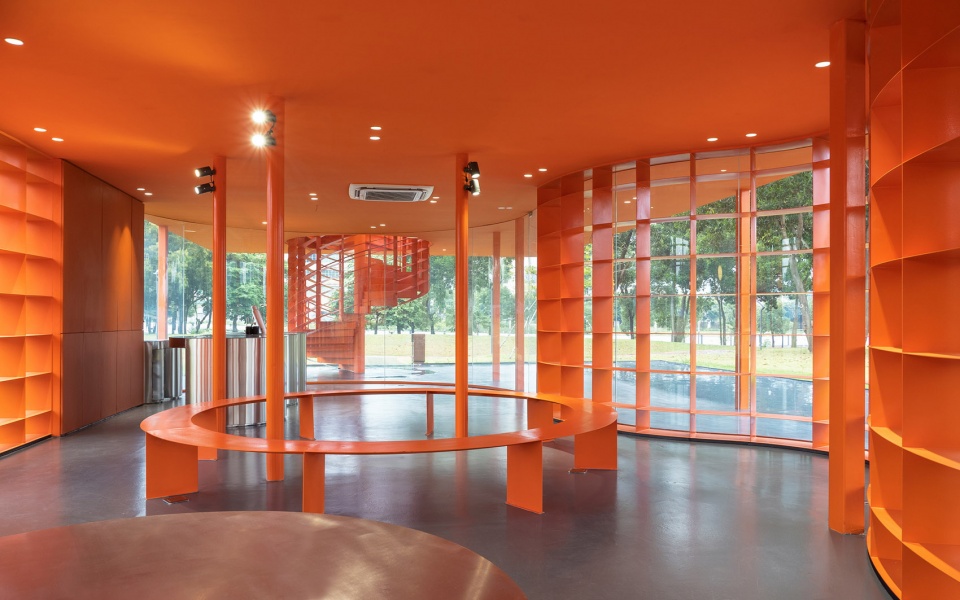

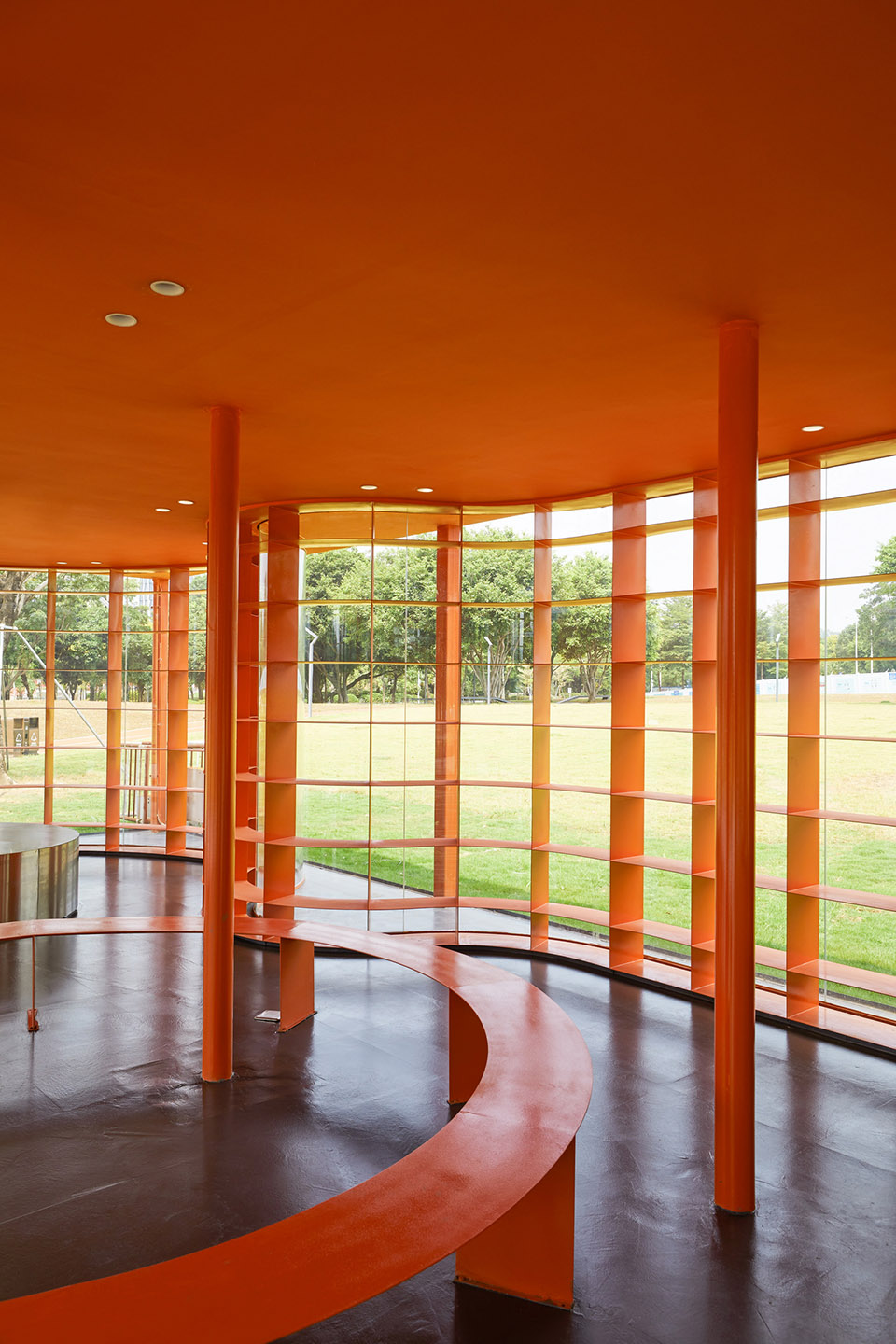

▼室内空间概览，overview of the interior ©张超

基于大面积且纯净的绿色公园作为背景，设计为建筑整体赋予了响亮大胆的橙色，设计尝试使用这一单一极限色彩，营造室内外空间某种连续性。在充满活力的公园草坪中提出新的视觉可能，使建筑与公园绿化形成强烈自由却不失和谐的反差。

Based on the large and pure green park as the background, the design gives the whole building a vibrant orange color. It attempts to use this single color to create a kind of continuity between interior and exterior space. The new visual possibilities are proposed in the vibrant park lawn, so that the building and the park greening have a strong contrast without losing the harmonious.

▼书架近景，close shot of the shelves ©肉山

室内功能化的设置同样遵循简洁高效，将水吧设备及机电，收纳紧凑的安插于三个直径1200mm的圆柱状吧台内。设计希望三个独立的圆柱能够帮助人们在该空间的流畅体验，材质选择干净耐用的不锈钢，其材质拥有的反射属性，维持室内色调的统一，并保有足够的现代性。

The setting of interior functionalization also follows the simplicity and efficiency.The water bar equipment and mechanical and electrical equipment are tightly placed in three cylindrical bar with a diameter of 1200mm.Under the considering of the space experience, the stainless steel is chosen because of its clean and durable, it has the reflective properties to maintain the unity of the interior tone and modernity.

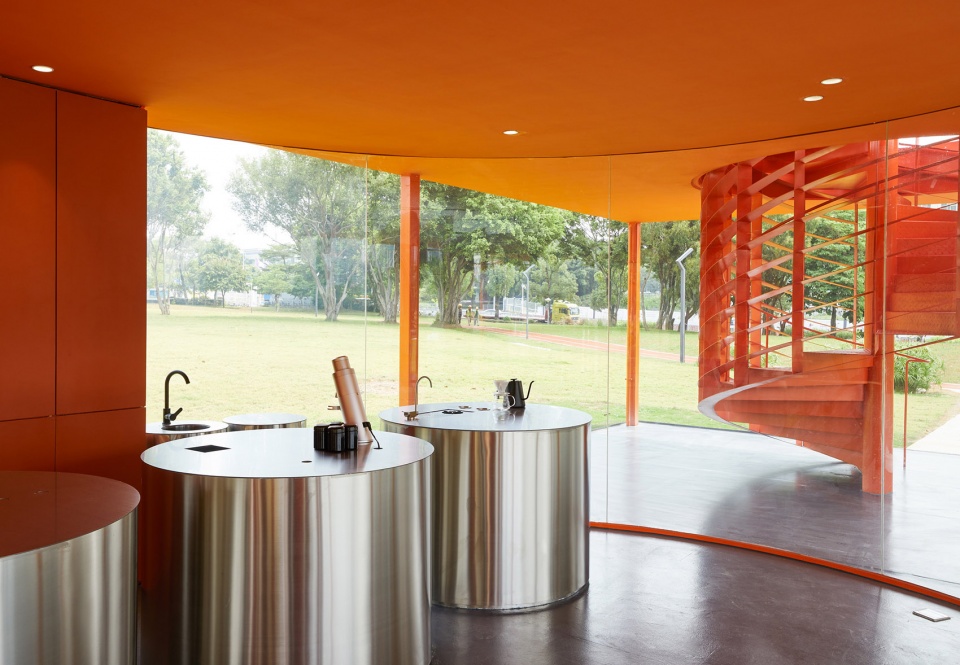

▼水吧，the water bar ©肉山

原建筑并没有屋顶平台，设计为丰富新改造后的建筑与公园的行为与动线的体验，对原建筑新增加固处理于原建筑屋顶悬浮一块屋顶平台，并通过一个呼应书架的隔板结构旋转楼梯连接，完全以建筑的功能与结构因素来获得一个纯粹的建筑形式。

In order to enrich the experience of the behavior and movement between the building and the park after the transformation, an addition platform is built on the roof top with the frame reinforcement. Also, it connects to the spiral staircase that comprised of the customized steel plate, which echoes to the book shelf frame. To the building form, it is totally obtained from the functional and structural factors of the building.

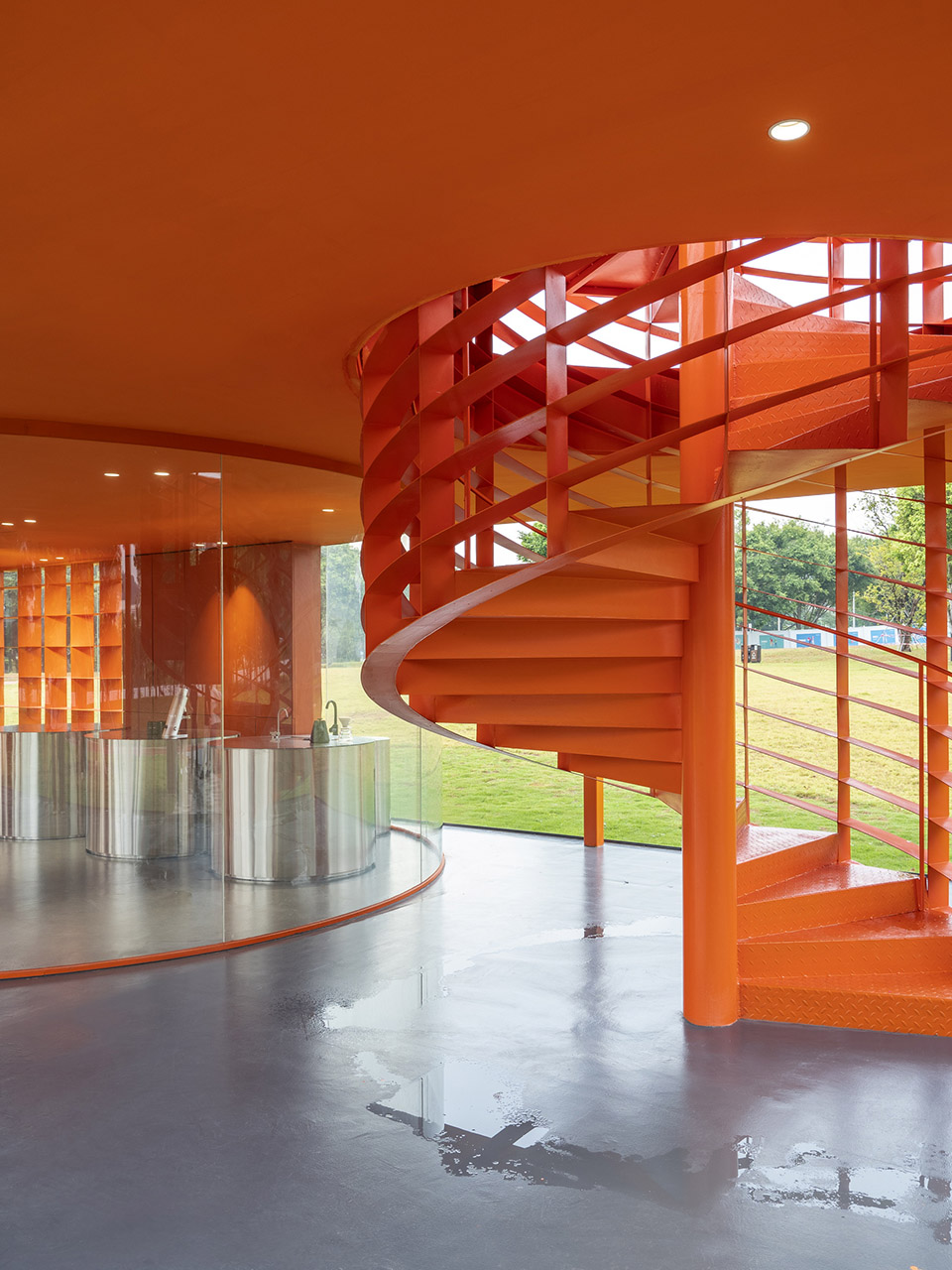

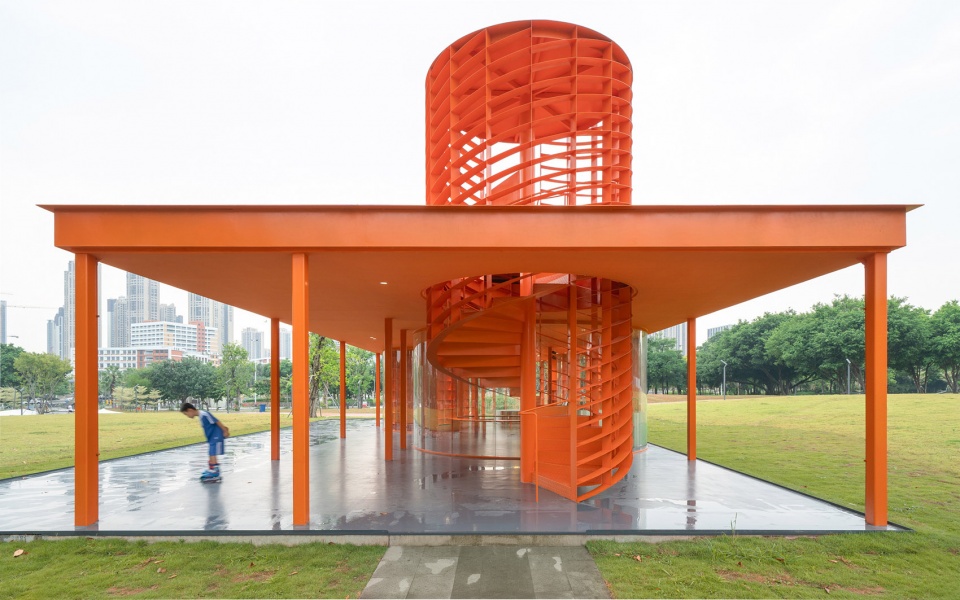

▼旋转楼梯，the spiral staircase ©张超

▼旋转楼梯近景，close shot of the spiral staircase ©张超

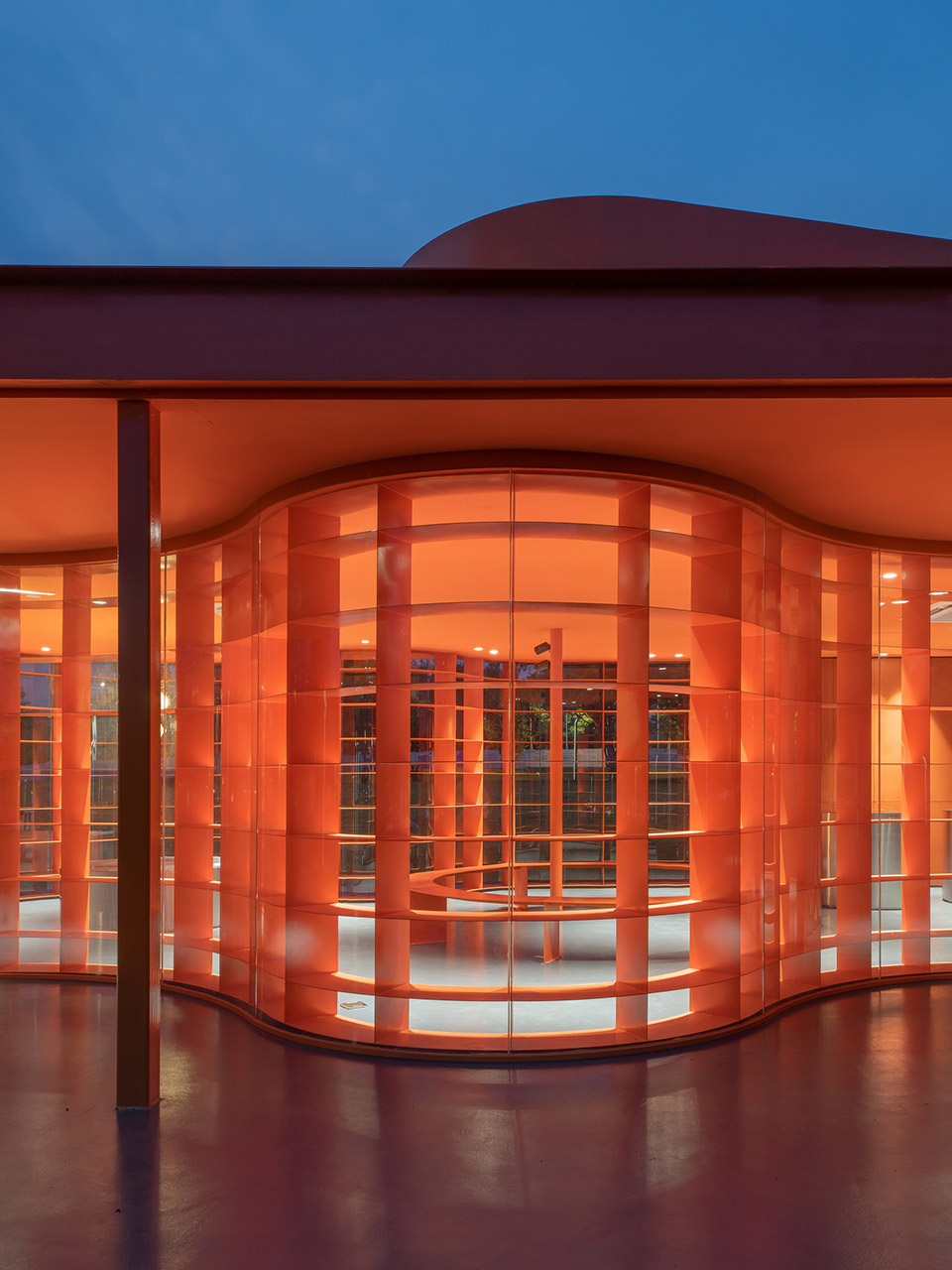

▼夜间立面近景，night view of the facade ©张超

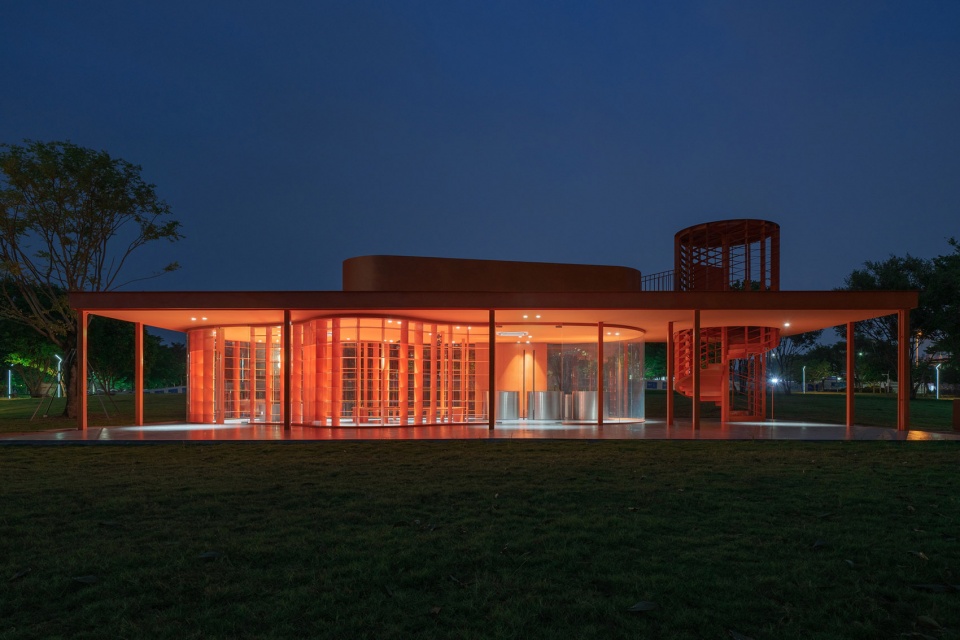

▼夜间立面，night view of the facade ©张超

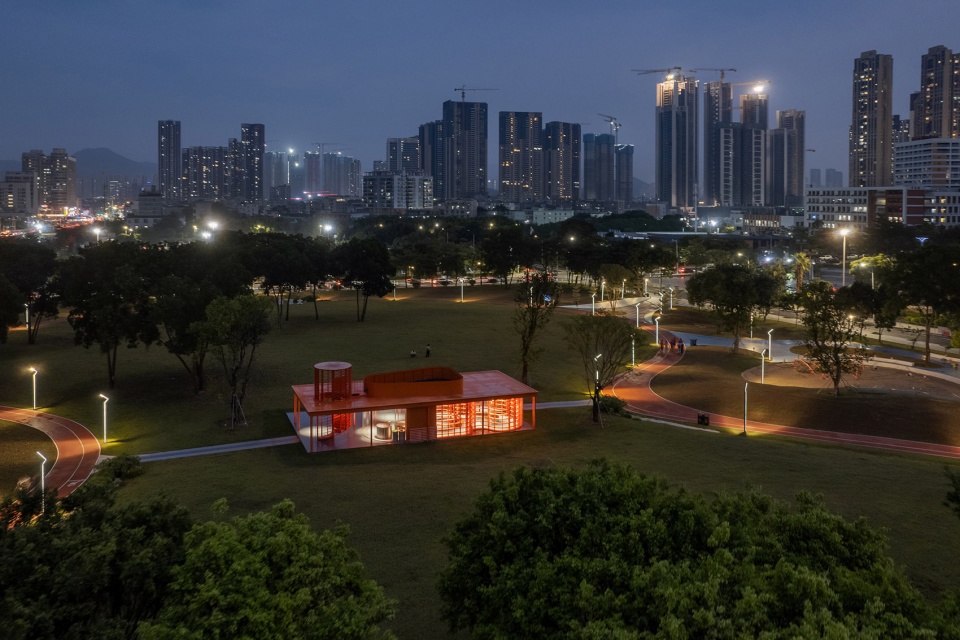

▼夜间鸟瞰图，bird eye view during the night ©张超

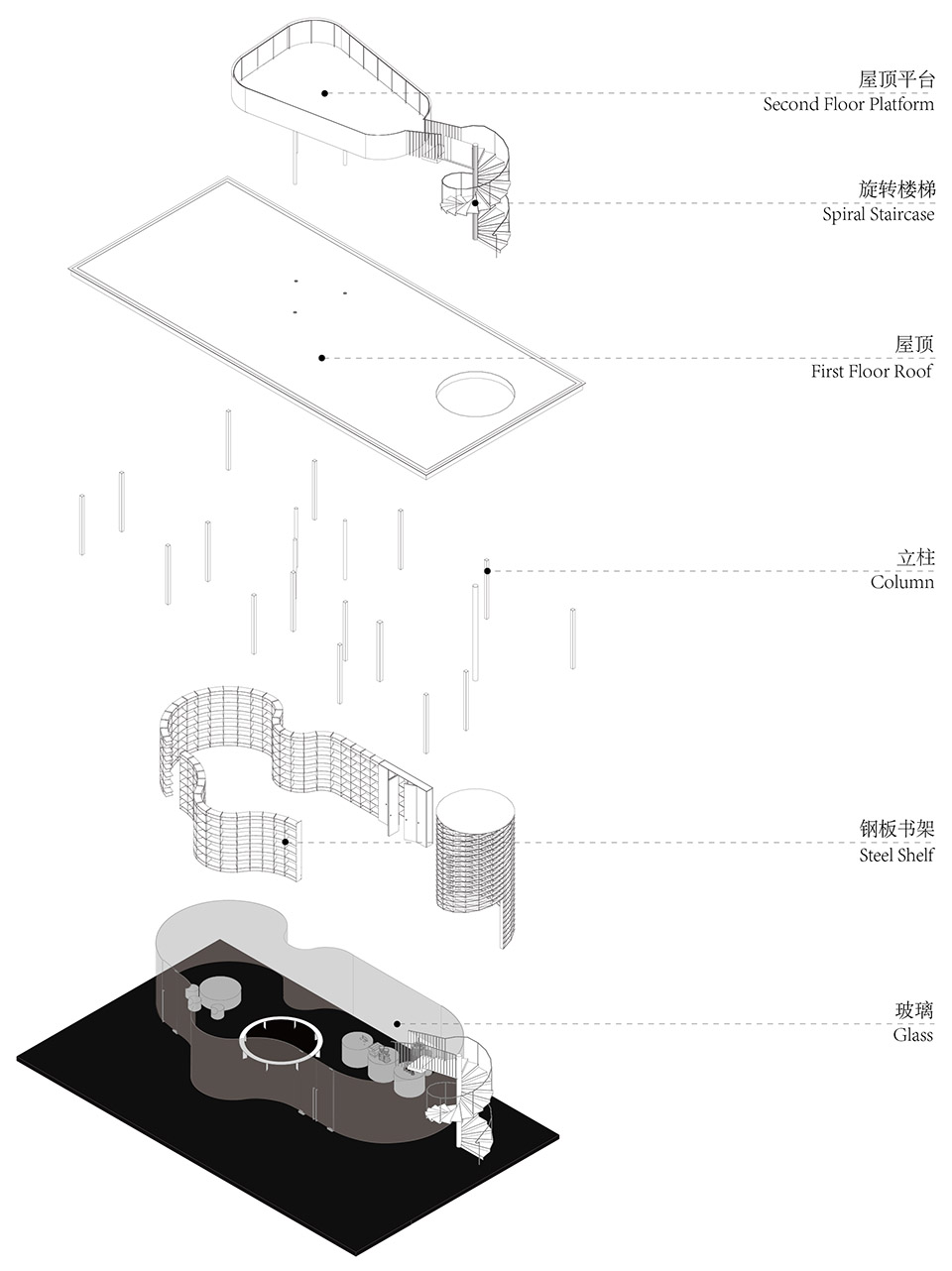

▼轴测图，axonometric drawing ©厘米制造 + 0321STUDIO

▼平面图，plan ©厘米制造 + 0321STUDIO

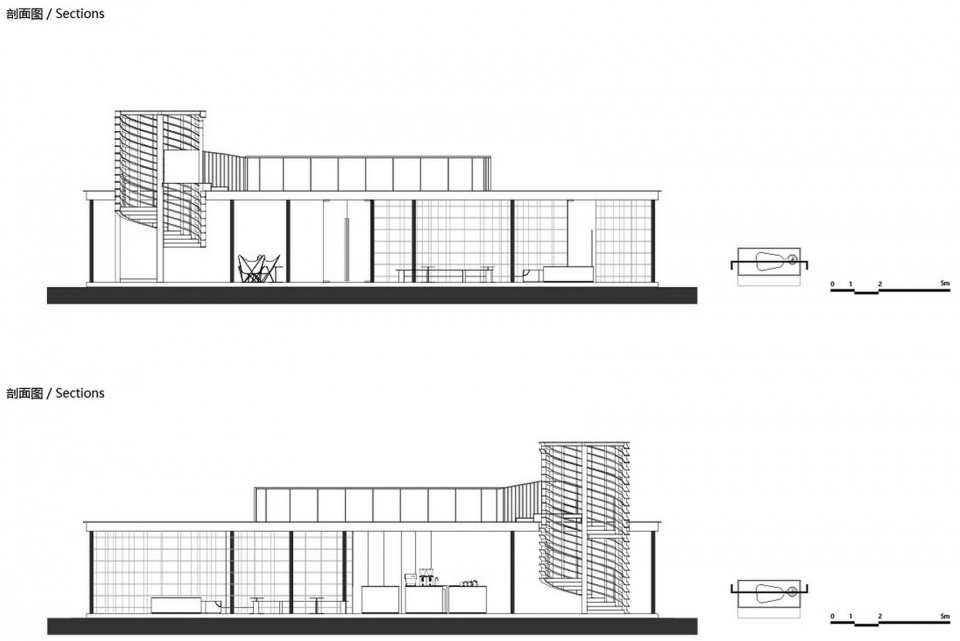

▼剖面图，section drawing ©厘米制造 + 0321STUDIO

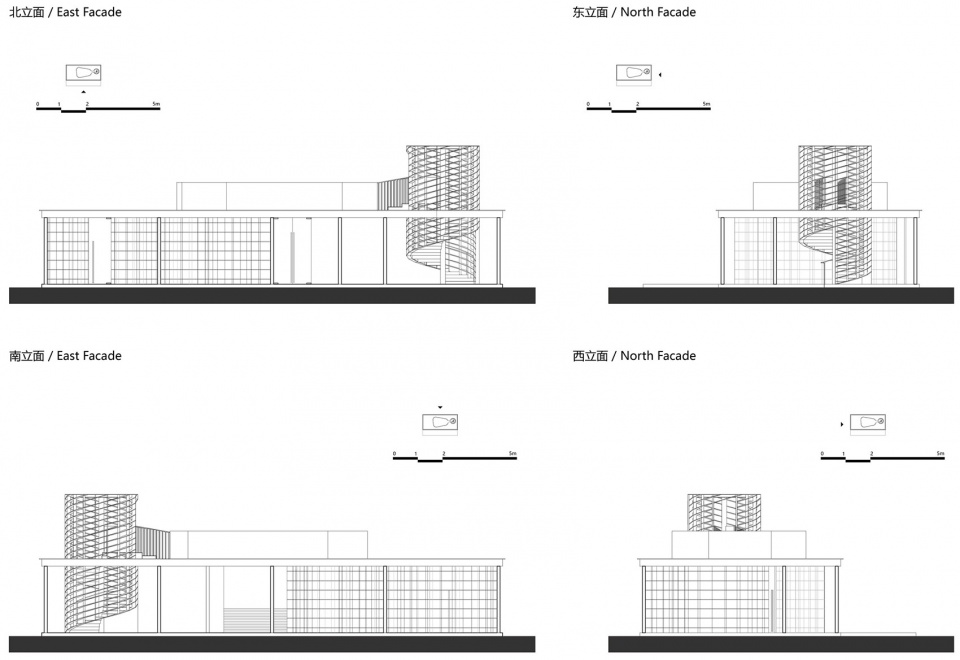

▼立面图，elevation drawing ©厘米制造 + 0321STUDIO

设计顾问：刘晓都
设计团队：厘米制造，0321studio
设计成员：陈丹平，郑卜洋，钟应川，朱丽茵
项目地点：广东省深圳市坪山区
建筑面积：146平米
项目时间：2022年3月-2022年9月
业主：深圳市坪山区文化广电旅游体育局
施工图合作团队：湖北佳境建筑设计有限公司
施工团队：深圳市聚豪装饰工程有限公司，深圳匠心见造工程有限责任公司
项目摄影：张超，肉山
材料：超白弧形玻璃（深圳荔之元建筑科技有限公司）、钢板（东莞市造鑫金属材料有限公司）、不锈钢（东莞市天钢金属材料有限公司）

Design Consultant: Xiaodu Liu
Architects: CM Design,0321Studio
Design Team: Danping Chen, Buyang Zheng, Yingchuan Zhong,Liyin Zhu,
Site Location: Pingshan District,Shenzhen City,Guangdong Province
Floor Area: 146sqm
Project Year: 2022/3-2022/9
Developer: Culture Radio Television and Sports Bureau Of Pingshan District,Shenzhen
Construction Drawings Design: Hubei Jiajing architecture Design Co.,Ltd.
Contractor: Shenzhen Ju Hao Decoration Engineering Co., Ltd., Shenzhen Jiangxin Jianzao Engineering Co., Ltd.
Photographs: Chao Zhang,Meat mountain
Materials: Ultra Clear Curved Glass(Shenzhen Lizhiyuan Building Technology Co.,Ltd.), Steel Panel (Dongguan Zaoxin Metal Materials Co., LTD.), Stainless Steel (Dongguan Tiangang Metal Material Co.,Ltd.)
