场地
Site

本项目坐落于北京Mix岛西西里村主楼二层，原建筑条件是挑空及涵盖夹层的大空间，空间设计上，“取形于自然”的理念，划分多个就餐区域，形成一个个雨林小部落，建立与西西里村度假风相呼应的热带风格酒吧。

This project is located on the first floor of the main building of Mix Island Sicily Village in Beijing, the original building condition is a large space with open space and mezzanine, In terms of space design, we draw inspiration from the nature and adopt the concept of “taking shape in nature” to divide multiple dining areas, form a small rainforest tribe, and establish a subtropical style bar that echoes the holiday wind of Sicily Village.

▼室内概览, interior overview © UK Studio

窗外·半开放
Outside the window · semi -open

原本三面朝外的区域，从围合的角度，西露台最重要，剩下的南面东面重要性递减，被打造为不同空间就餐区。三面露天开窗引入自然天光作为空间的主线，一进门左手面对西西里村，是露天开放式室外就餐区，打开房顶的遮拦掩盖，露台一半为三座形态不同的围合上升式卡座，绿植环绕，一半放空，开拓空间，备餐台位于隔断区中央，绿植根据视线划分层次，减少外部直接干扰，上升式卡座式划分人群区域，但都可以欣赏到周围的景色和西西里村度假“海景”，推开折窗，内外相融，折叠门外落座区外是大片绿茵，相较其他区域更为宁静，在不影响结构功能的情况下，最大化开窗，使人在室内能感到与室外自然的交流；面对公路一侧就餐区，借助窗户的格栅，让自然光渗透进内部。
三种不同面对室外的设计手法，顾客都可以随时感知户外的变化。

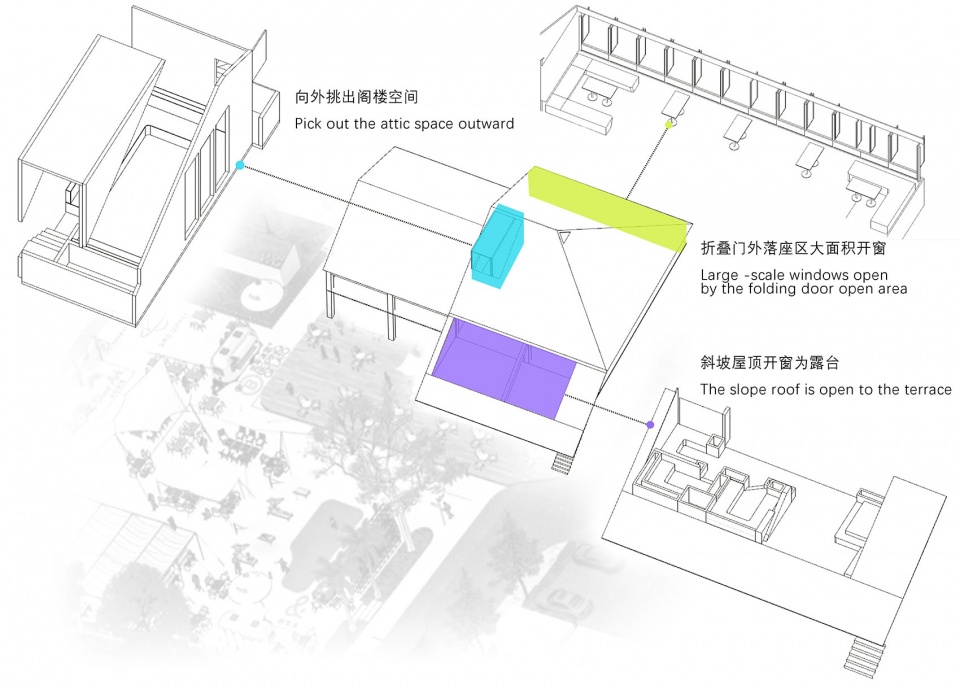

▼重要节点示意图, Schematic diagram of important nodes © DAGA Architects

The original three sides of the area facing the outside, from the perspective of enclosure, the west terrace is the most important, the remaining south side of the east side of the diminishing importance, was created as a different space dining area. Three sides of the open-air windows to introduce natural daylight as the main line of the space, an entrance on the left side facing the Sicilian village, is an open-air open outdoor dining area, open the roof of the cover cover, half of the terrace for the three different forms of enclosure ascending card seating, surrounded by greenery, half of the emptying, to open up the space.The dining counter is located in the centre of the partitioned area, the greenery is divided into levels according to the line of sight, reducing the direct interference from the outside, and the ascending card seating divides the crowd into areas, but all of them can enjoy the surrounding scenery and the Sicilian village holiday “seascape”.Push the folding windows, blend in and outside, and there are large greens outside the seating area outside the folding door. Compared with other areas, it is more quiet than other areas. Without affecting structural functions, the window opens the window, so that people can feel indoors and outdoor nature. Communication; Facing the dining area on the side of the highway, the natural light seeps into the interior with the grille of the window.
Facing different outdoor design methods of the terrace, customers can always perceive the changes of outdoor.

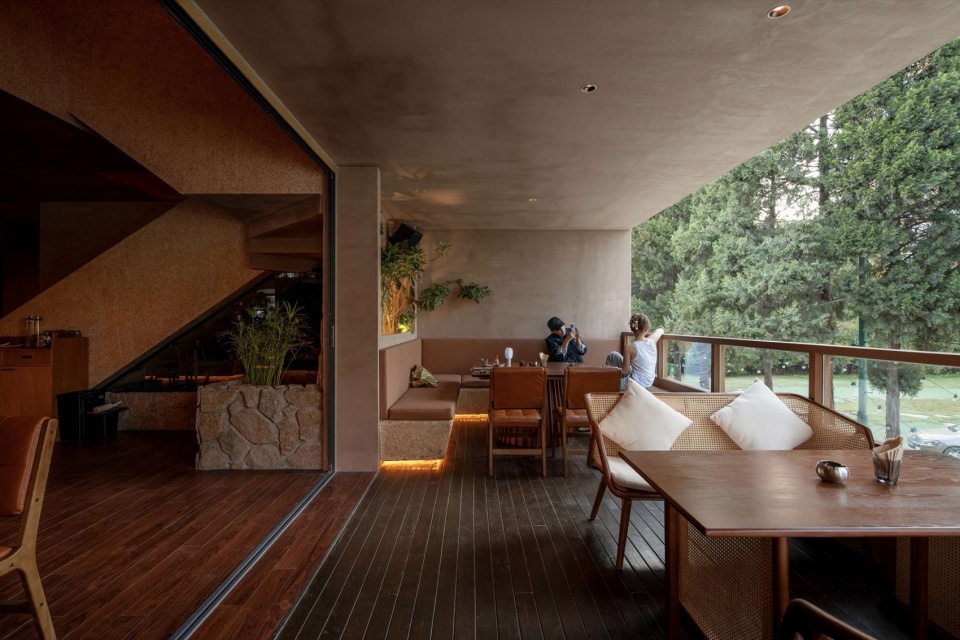

▼窗边就餐区, Dining area by the window © UK Studio

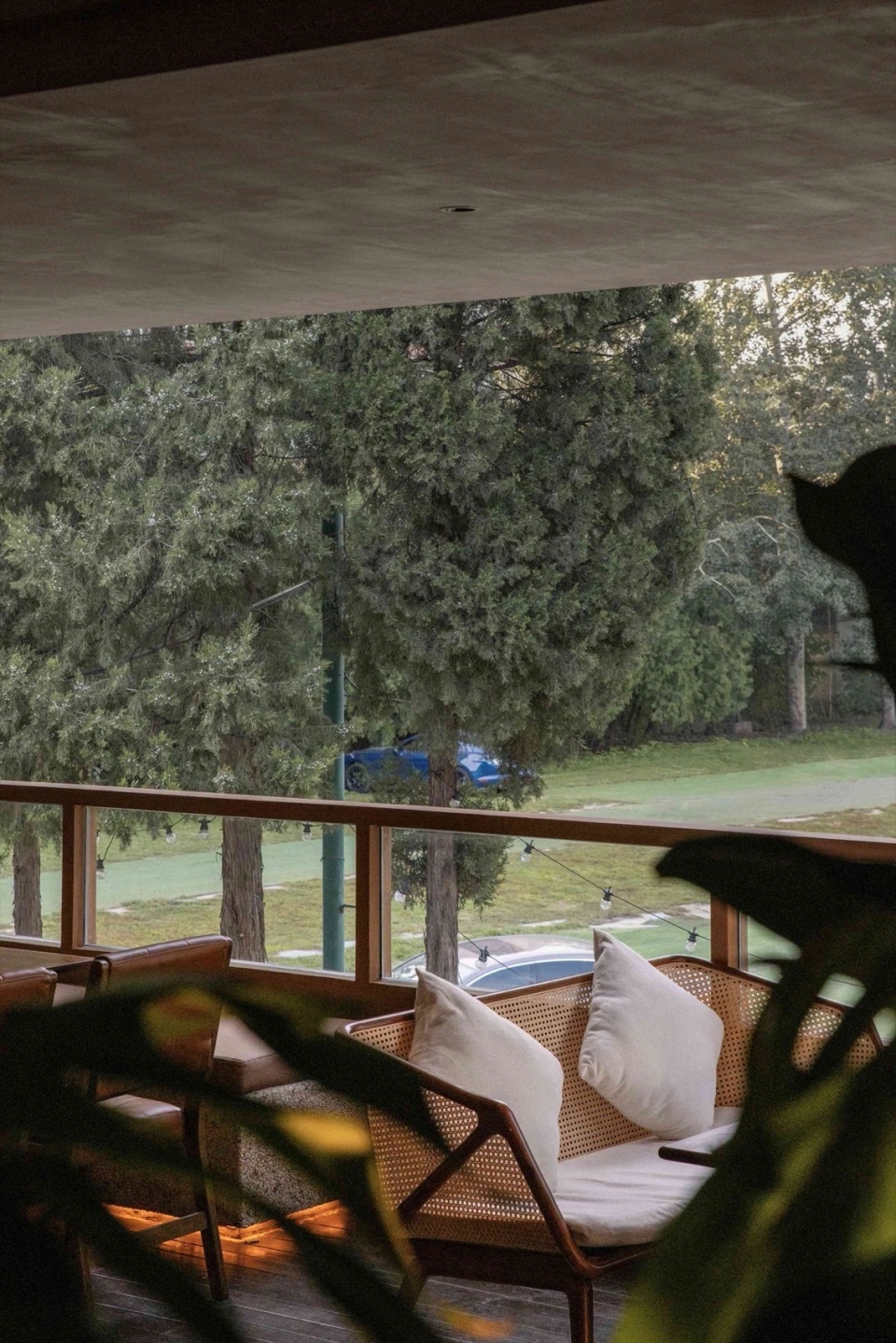

▼窗边景观, landscape view © UK Studio

白盒子
White box

原来是大斜坡的屋顶，如果按照原来的形状效果，屋顶势必被平面化，也不能与内部空间有机结合，我们以退为进在屋顶向外挑出一个白色盒子，尖形的屋顶体量被削去了一角，是二楼夹层向外的延伸，延长了内部空间的长度，打破沉闷厚重的尖形屋顶。麻雀虽小五脏俱全，小盒子的内部是私密包厢空间，围绕盒子构造布置家具，向酒馆内侧开长条格栅窗，站在小型阶梯可以顶部眺望远方。

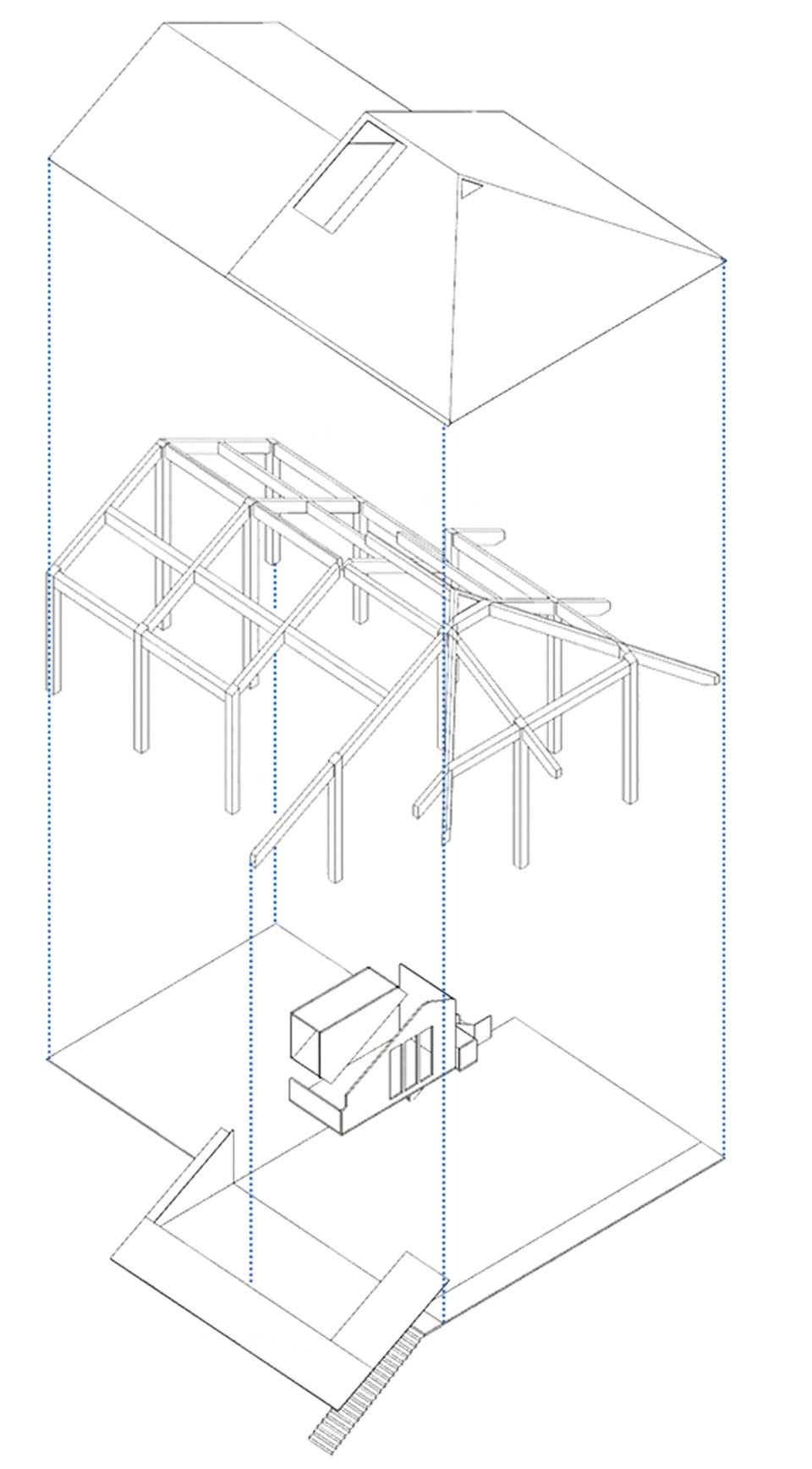

▼屋顶结构轴测, roof structure axon © DAGA Architects

The original is a big slope roof, if follow the original shape effect, the roof is bound to be flat, also can’t be combined with the internal space organically, we take a retreat to advance in the roof to pick out a white box, the corner of the cut is extended outward on the second floor, extending the length of the internal space, and breaking the dull and heavy pointed roof. Although the sparrows are small in or internal organs, the inside of the small box is a private box space. Furniture is arranged around the box structure, and a long grille window is opened to the inside of the tavern. It stands in the small steps to look at the distance.

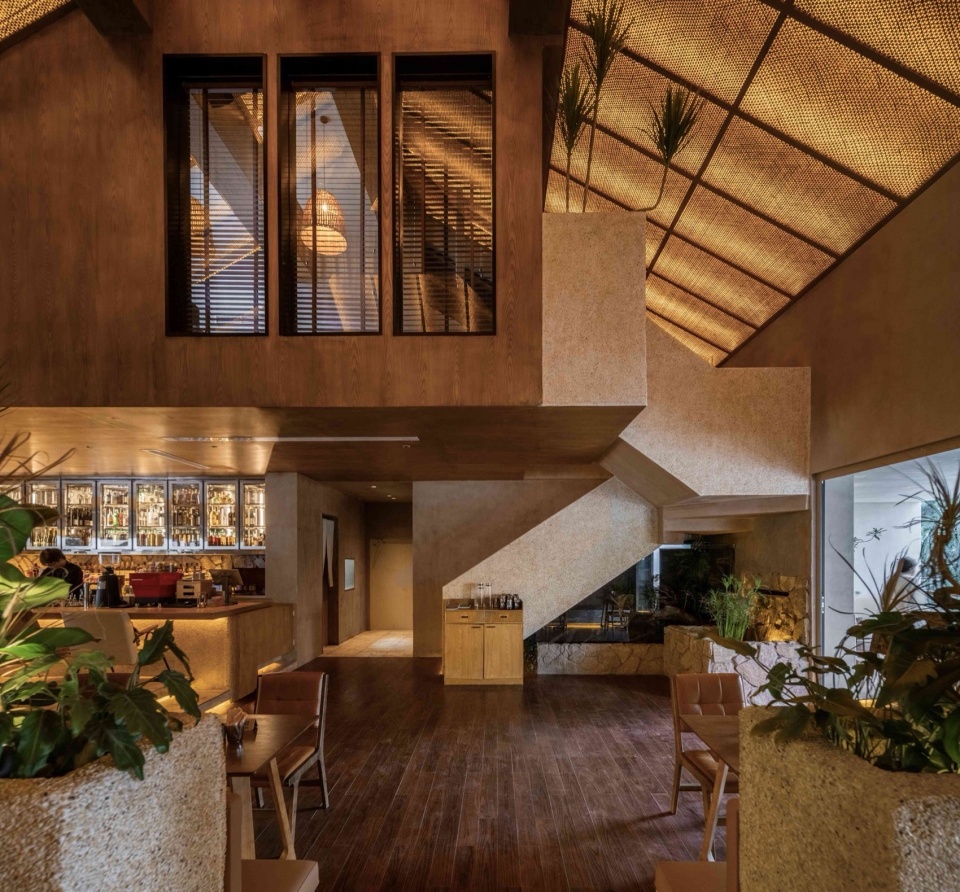

▼楼梯与夹层体块, staircase and mezzanine block © UK Studio

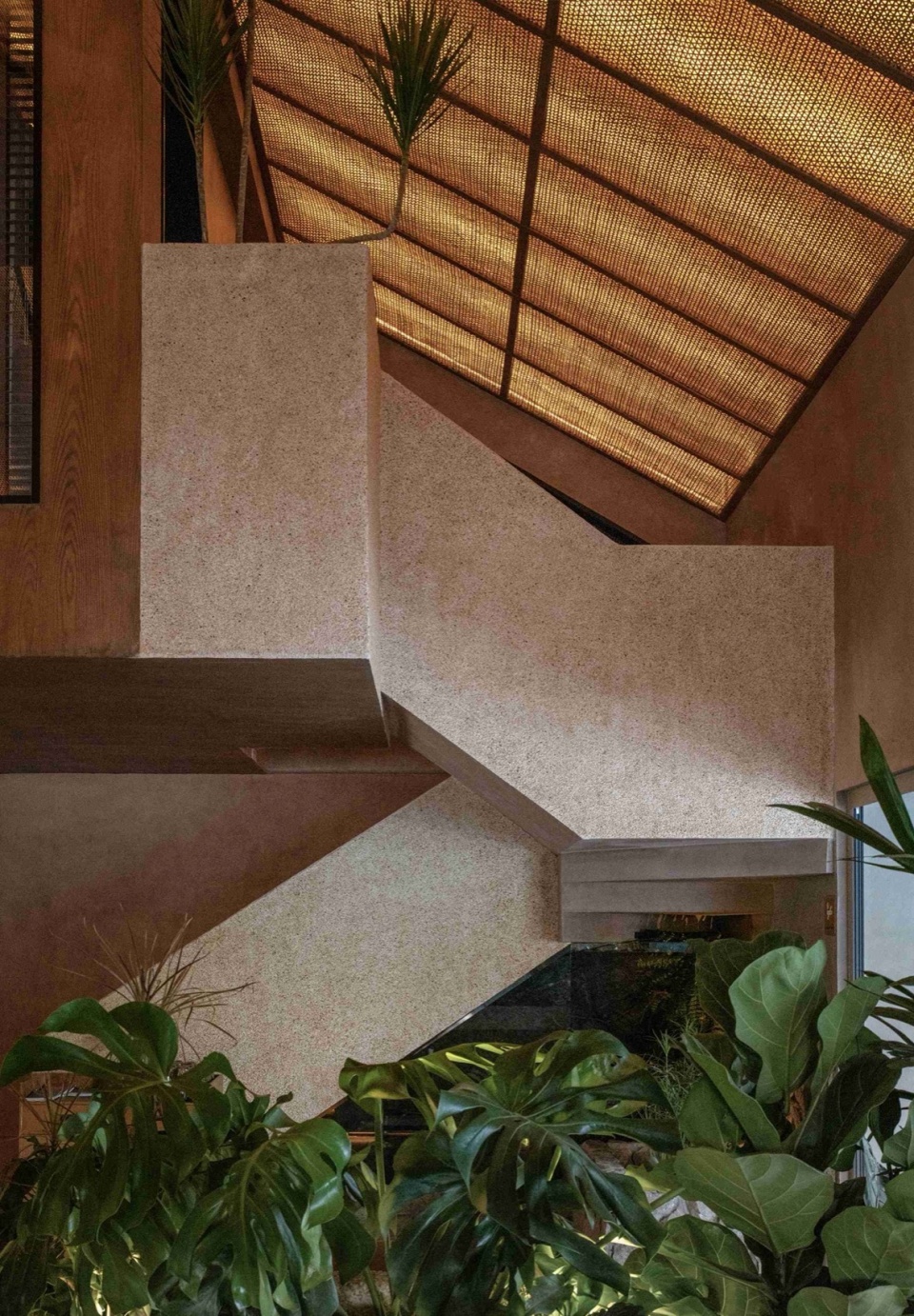

▼通向包厢的折线几何感楼梯,
Folding line geometric stairs to the box © UK Studio

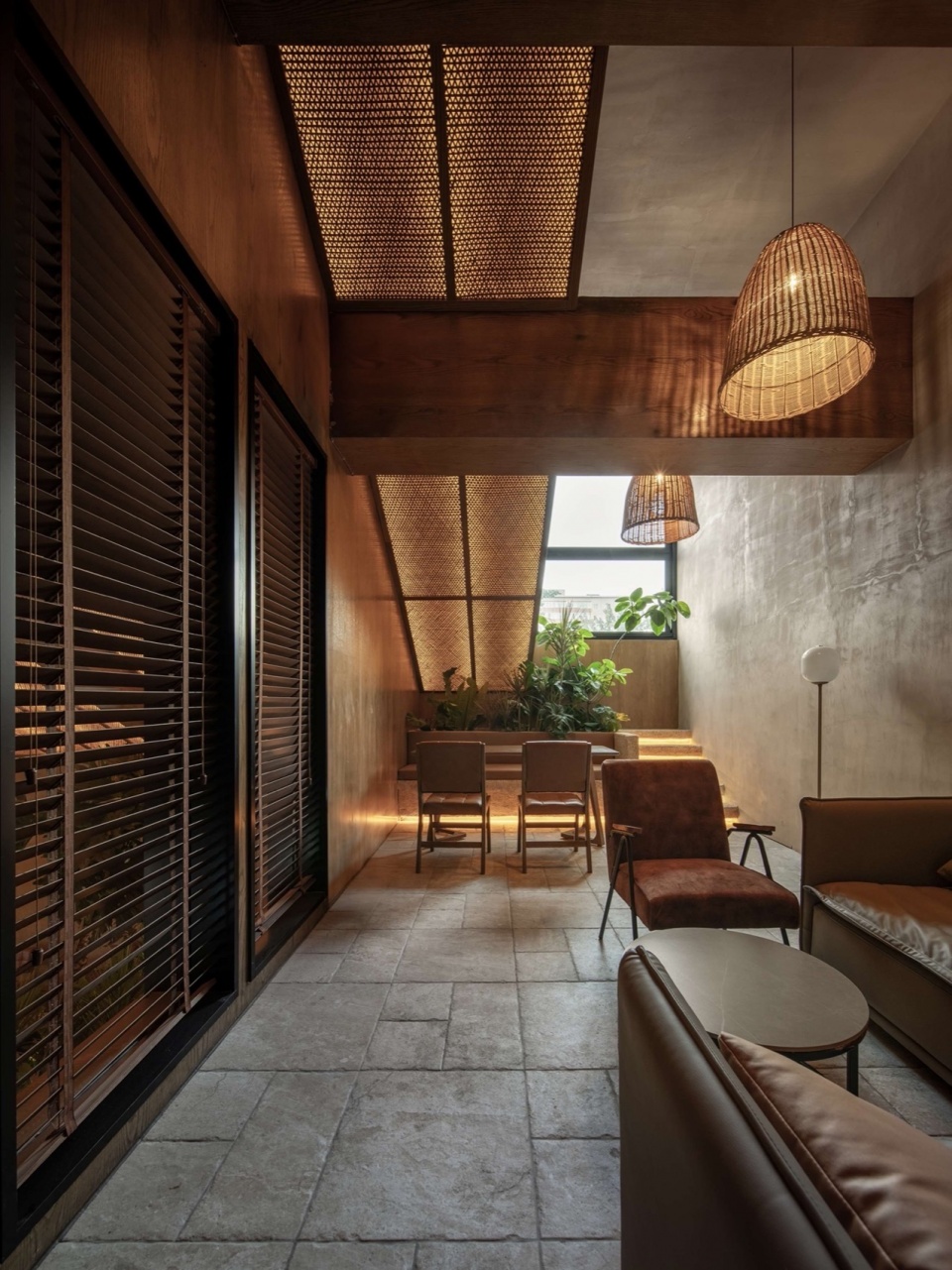

▼私密就餐区包厢内部, Private dining area © UK Studio

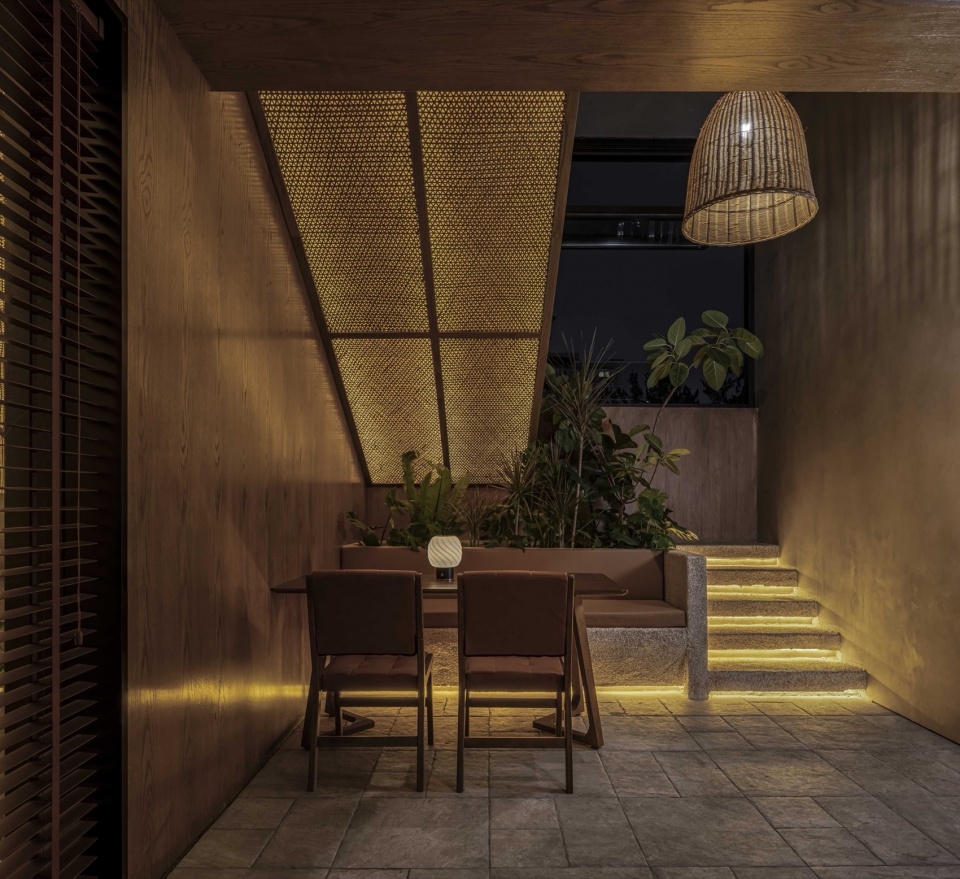

▼私密就餐区包厢内部夜景, Private dining area at night © UK Studio

▼吧台旁的玻璃透明酒柜，顾客与工作人员均可从不同方向进入,
The glass transparent wine cabinet next to the bar, customers and staff can enter from different directions © UK Studio

▼隐藏在水泥盒子里的水电机器,
Hydropower machine hidden in the cement box © UK Studio

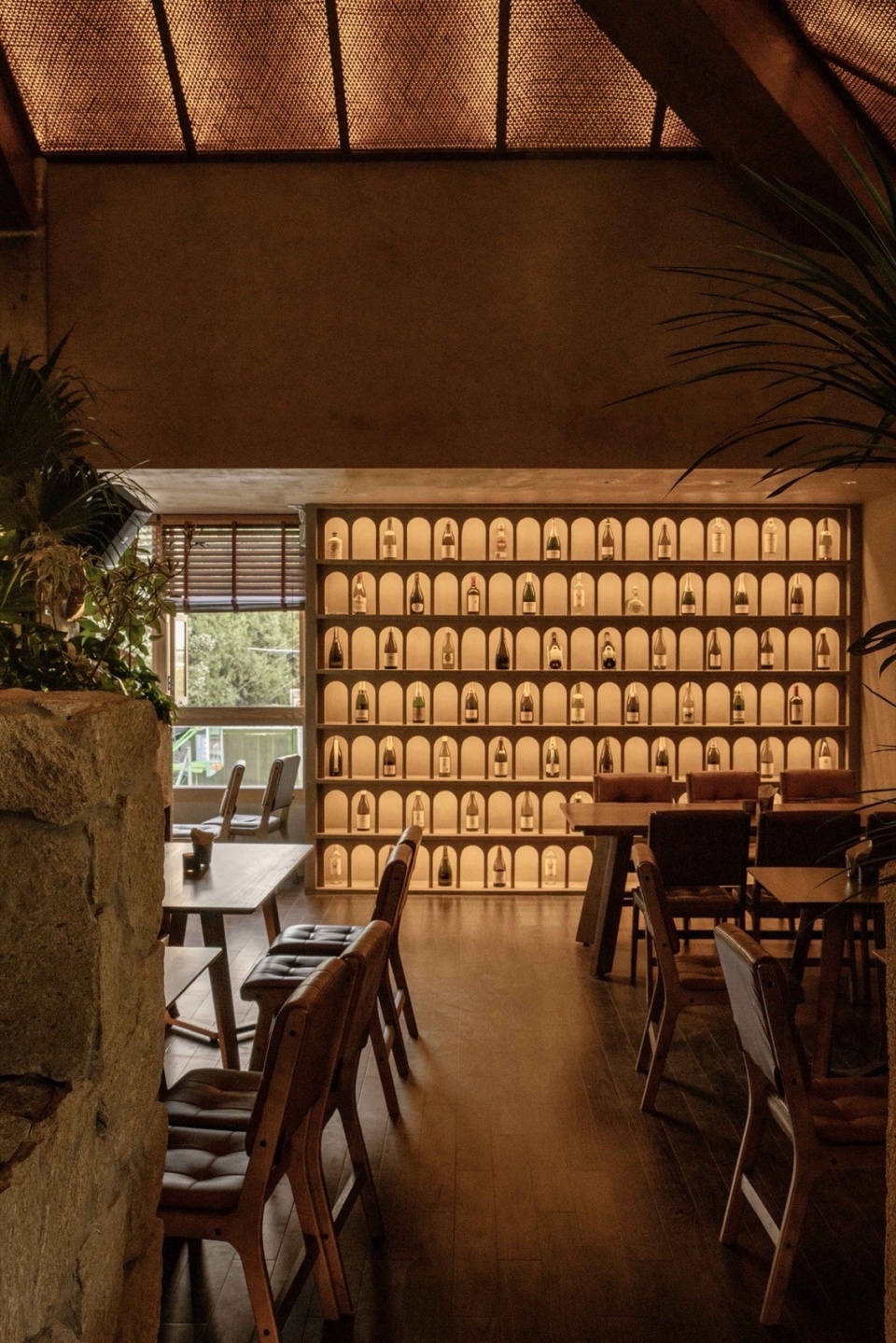

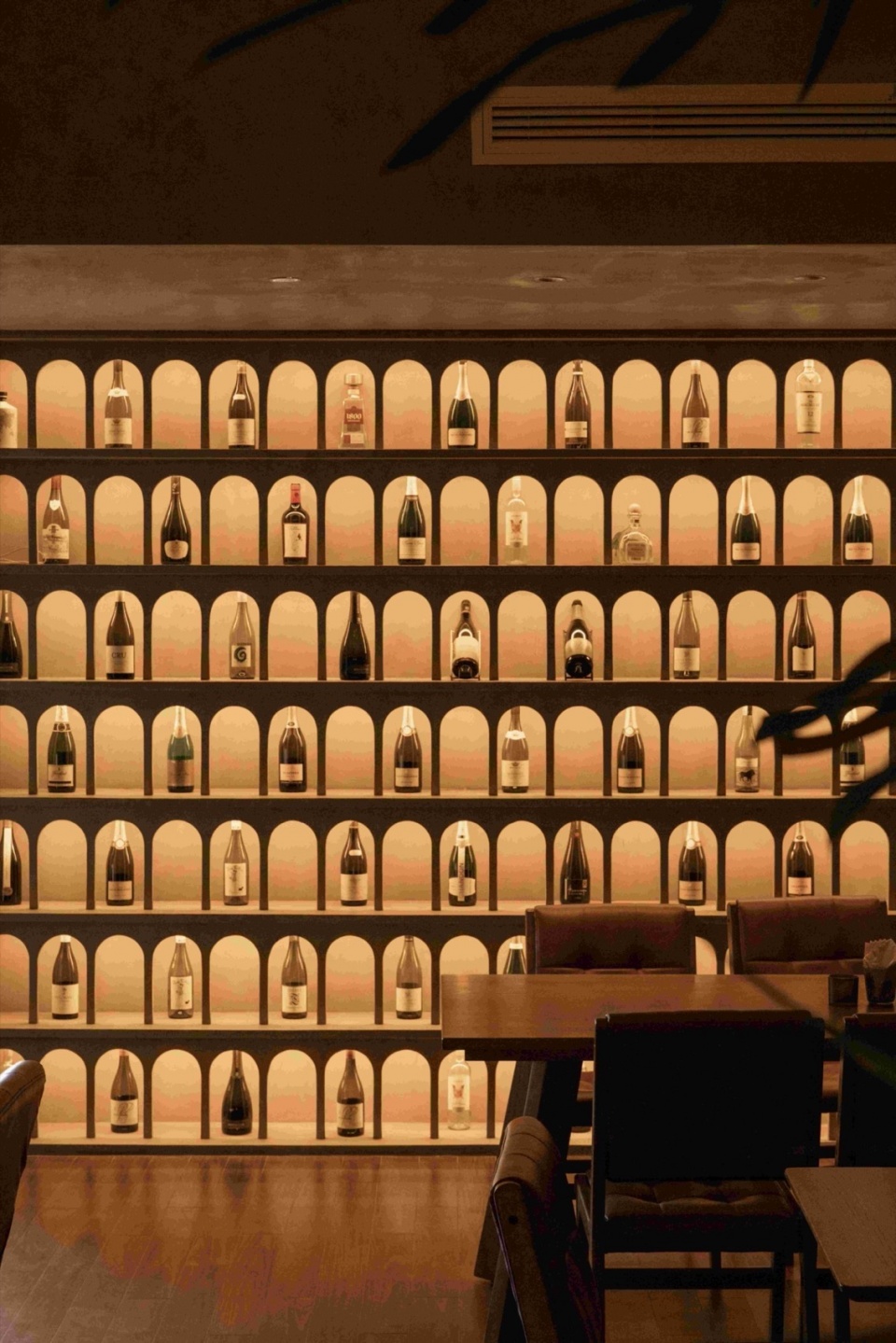

▼装饰性酒柜，丰富立面展示设计,
Decorative wine cabinet, rich display design on the facade © UK Studio

▼酒柜细部, wine cabinet details

热带雨林
Rainforest

空间座位动线的划分是整个酒吧设计的重点，整体分为吧台，露台，中心落座区与包厢等四大部分，以方形流线为中心主动线，设计师思考各个小空间场所最适化的尺度，内部切分出多个独立空间的就餐区，将不同用餐空间的场景进行串联，类似于捉迷藏的设定，顾客可到访位于不同小空间内，感受不一样内容。

The division of space seating line is the focus of the design of the whole bar, the whole is divided into four parts, including the bar, the terrace, the central seating area and the box. With the square streamline as the central active line, the designer thinks about the optimal scale of each small space, the interior is divided into multiple independent space dining areas, and the scene of different dining Spaces is connected in series, similar to the setting of hide-and-seek.,Customers can visit different small Spaces and feel different content.

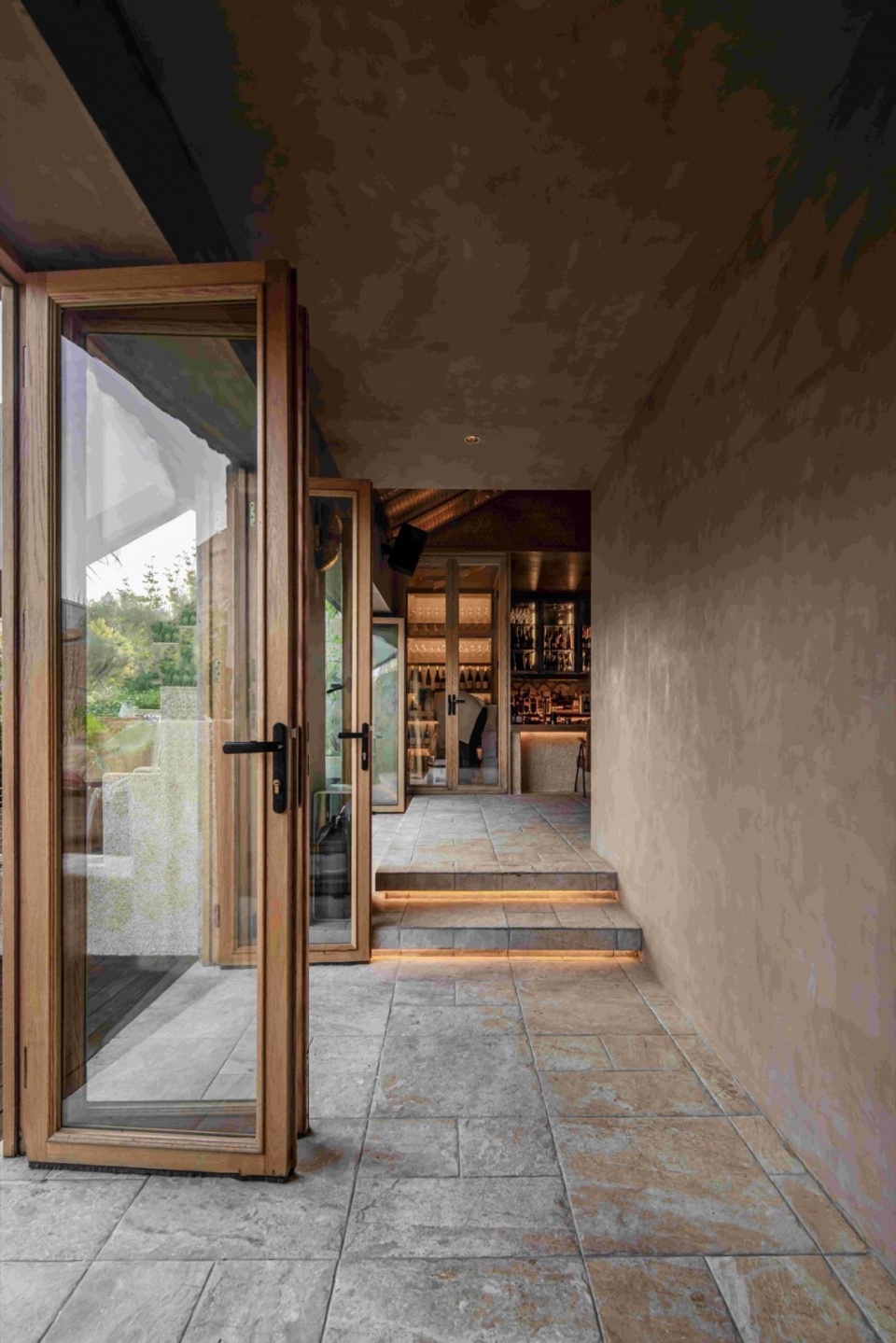

▼酒吧入口处廊道，初极狭，才通人，复行数十步，豁然开朗,
The corridor at the entrance of the bar is very narrow at first, but it is only passable to people, and after a few dozen steps, it opens up © UK Studio

横向设计上，以圆形卡座区为最高点向外部空间依次降低，其他的剩余空间作为零散落座区。我们把多个空间如围合圆形卡座，不规则散客区，角落卡座，私密包厢区等空间的关联性及私密性通过大量绿植和裸露的石材木制家具隔断等进行模糊界定，隔断的概念弱化，封而不闭，隔中有通，保证空间和光线的通透性与拓展性。竖向设计上，在考虑留下尖顶式屋顶的挑空夹层大空间后，利用本身的高低差，保留一部分夹层空间，对梁加固，规范设计保证安全性，改造为木质包裹的私密包厢，客人在登上包厢后通过隔窗也可环绕俯瞰下方。从一层公共多空间到二楼私密包厢，层层递进。运用了见树不见林的手法，让空间充满婉转、抽象、好奇，融入雨林，让观景者本身亦为景，亦使自己成为景的一部分。

In the horizontal design, the circular booth area is the highest point and decreases to the outer space successively, and the other remaining space is the scattered seating area.We define the correlation and privacy of multiple spaces, such as the enclosed circular seating area, irregular seating area, corner seating area, private box area, etc. through a large number of greenery and exposed stone and wooden furniture partitions, the concept of partition is weakened, seal is not closed, and there is common in the interval to ensure the permeability and expansion of space and light. In vertical design,after considering leaving the large space of the open mezzanine of the peaked roof, a part of the mezzanine space is retained by taking advantage of the difference in height, reinforcing the beams, standardising the design to ensure safety, and transforming it into a wood-wrapped private box, which can also be surrounded and overlooked by the guests through the window after ascending to the box. From the public space on the first floor to the private box on the second floor, the layers are progressive. Using the method of from the first small beginning, the space is full of roundabout, abstract and curious, integrating into the rainforest, so that the viewer is also the scene and makes himself a part of the scene.

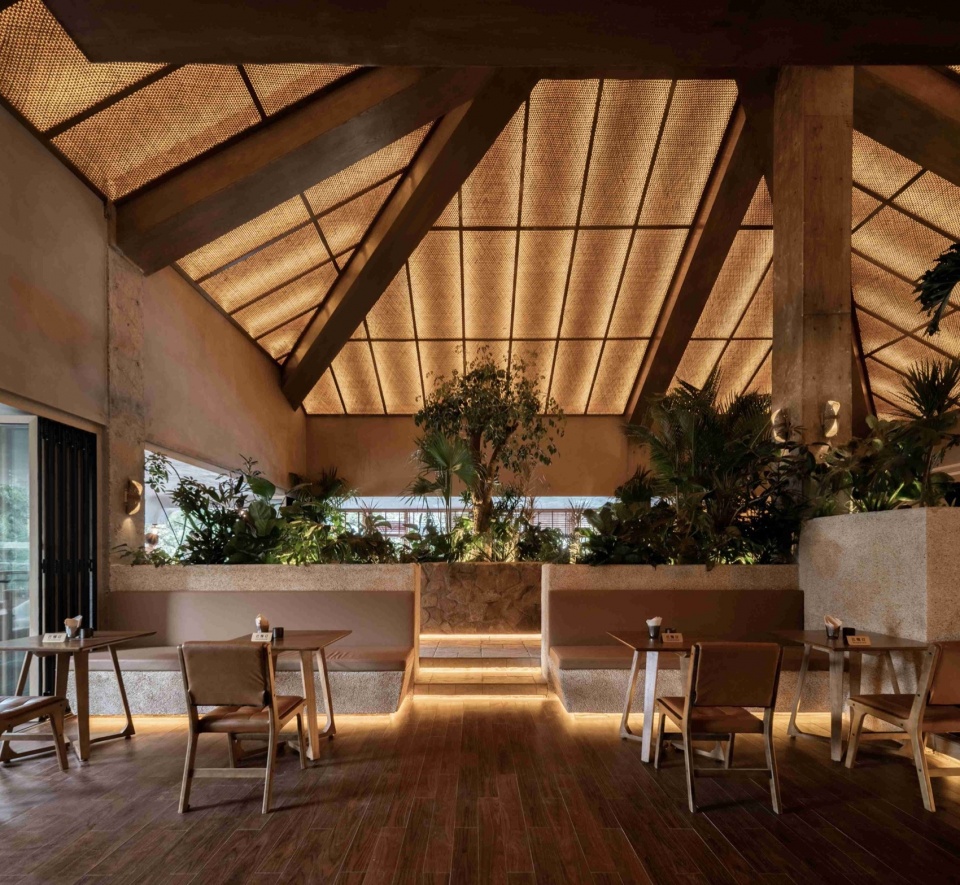

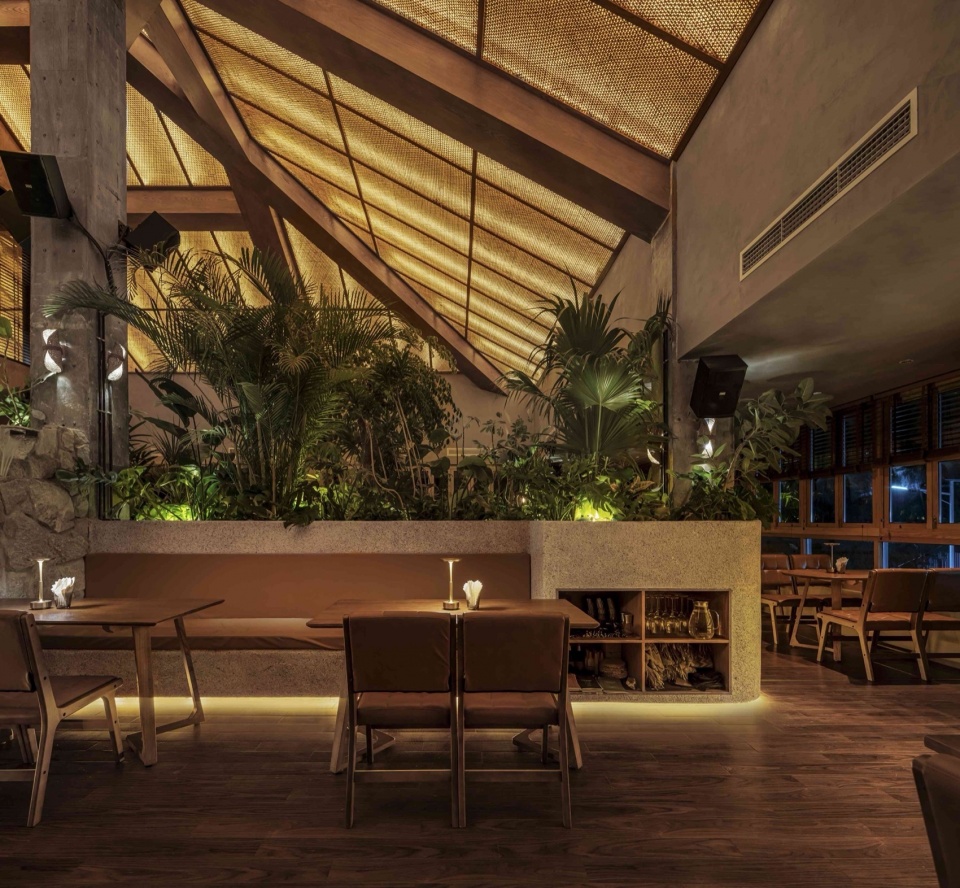

▼内部就餐区, Internal dining area © UK Studio

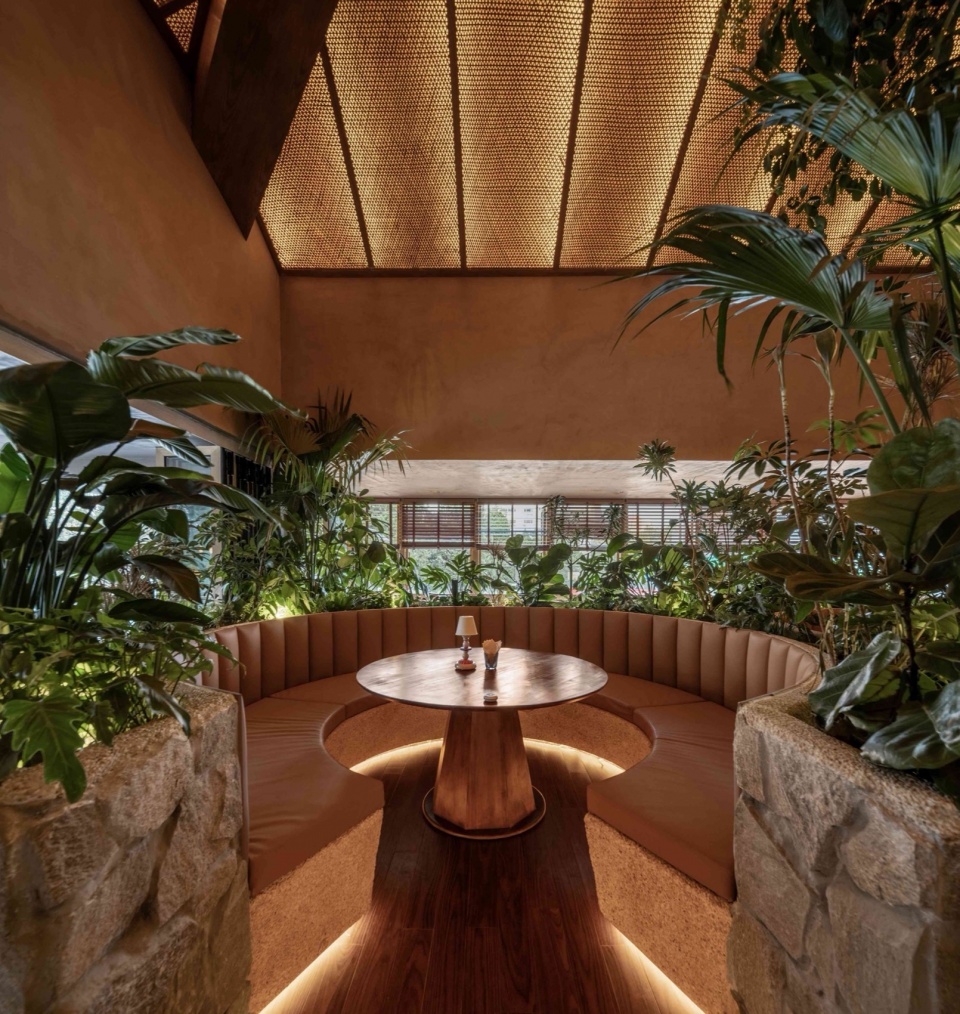

▼环绕围合卡座, Wrap-around enclosures © UK Studio

新自然
New nature

酒吧内以丰富的自然元素为特点，植被赋予生命，石头赋予力量。屋顶和灯光的形状和设计灵感来自充满异域风情亚热带的传统建筑，从主楼外部楼梯进入酒吧内部，可见屋顶通过木结构的连接，传统的藤条编织手艺与灯条结合，具备半透明性和“轻”的状态，便捷地固定在原建筑的结构上，从而大大降低了建造的成本和时间。通高大厅中央由裸露的钢檩条支撑的木制梁依靠撑起，巨柱在垂直向度上暗示结构构件的受力和空间在高度上的方向感。中部隔断以大量高低不一层次分明的绿植和石材肌理打造，梁柱保留原始肌理裸露感，维持了建筑原有的特点；灯条贴于地面，起到引导作用，地面使用石材与木地板的结合，不同的铺装对应不同的动线和空间使用区域。这些元素共同营造沉浸式亚热带风情，置身于原始茂密的雨林中，这为顾客带来独特而难忘的用餐体验。

The bar is characterized by rich natural elements. The vegetation is given life and stones are given power. The shape and design of the roof and lighting is inspired by exotic subtropical traditional architecture. From the exterior staircase of the main building into the interior of the bar, It can be seen that the roof is connected through the wooden structure, the traditional rattan weaving technique combined with the light strip with translucent and “light” state, which greatly reduces the cost and time of construction.The center of the double-height hall is supported by wooden beams supported by exposed steel purlins. The giant columns in the vertical dimension suggest the forces on the structural members and the orientation of the space in height.The central partition is built with a large number of stone texture and varying heights of distinct green plants , and the beams and columns retain the original texture of the bare sense, maintaining the original characteristics of the building;The light bar is attached to the ground, playing a guiding role, the ground using a combination of stone and wood flooring, different paving corresponds to different dynamic lines and space use area. These elements work together to create immersive subtropical styles and be in the original and dense rain forests, which brings unique and unforgettable dining experience to customers.

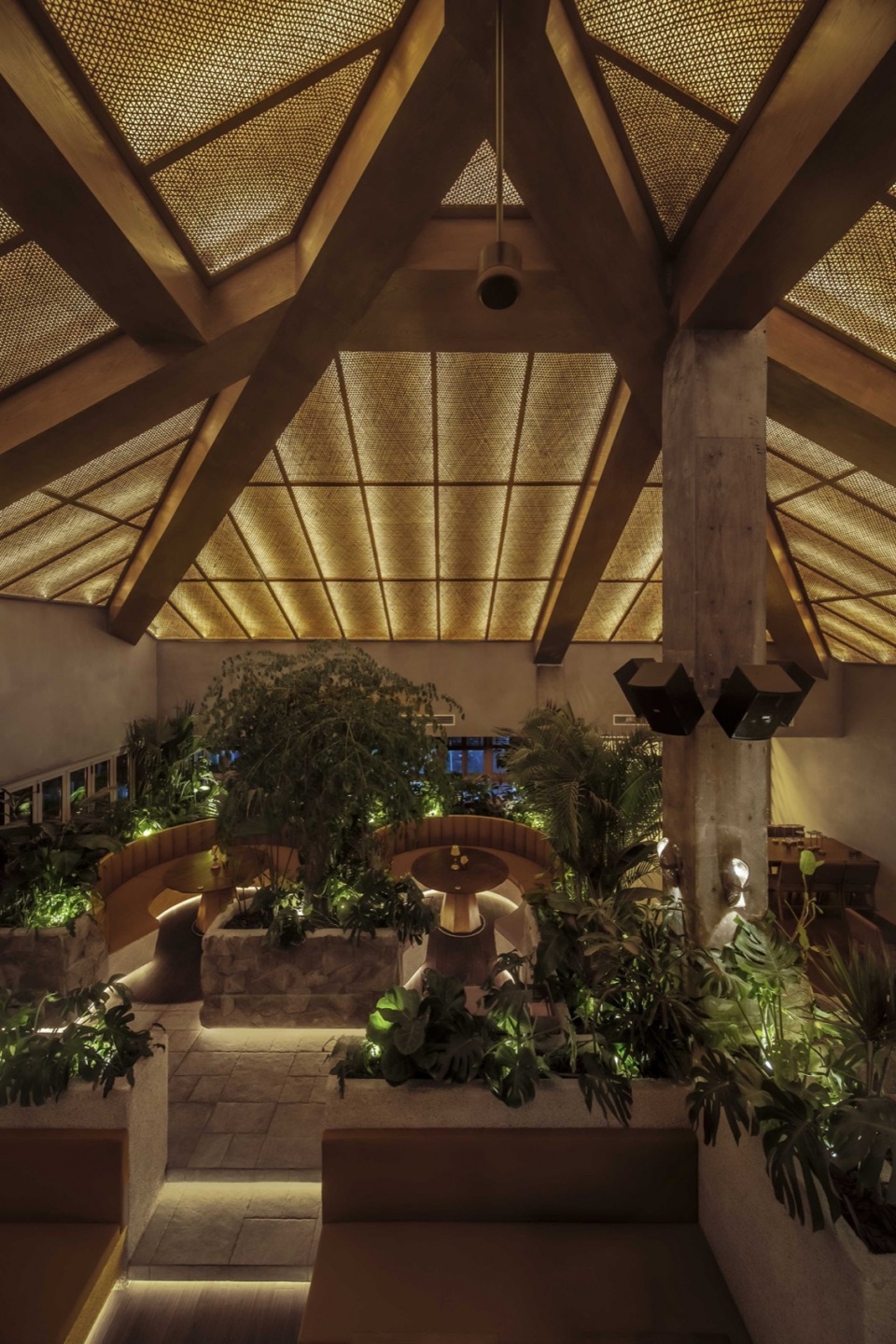

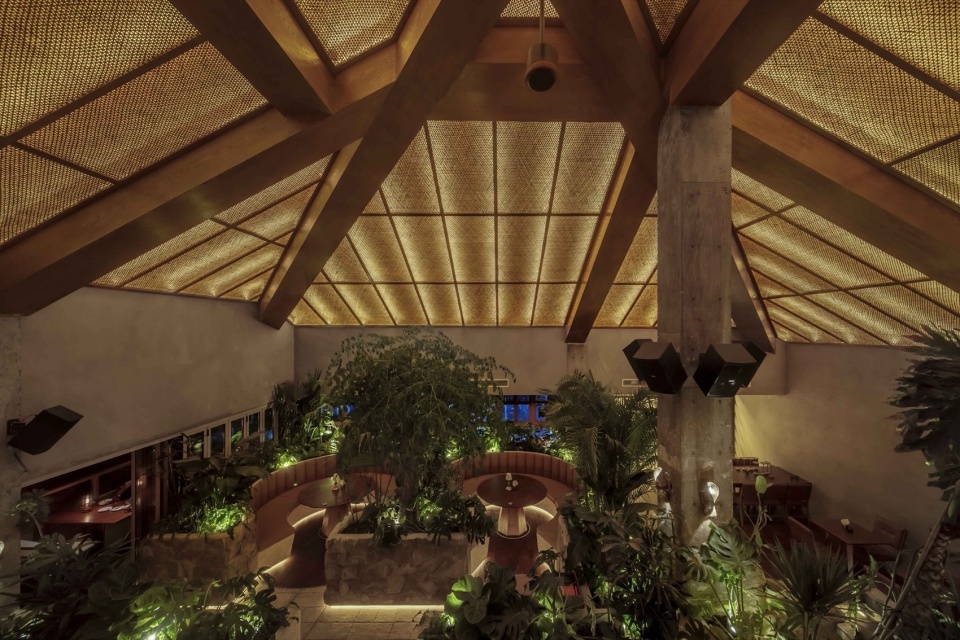

▼屋顶夜晚大面积藤条编织和灯条结合,
The roof combines large areas of rattan weaving and light strips at night © UK Studio

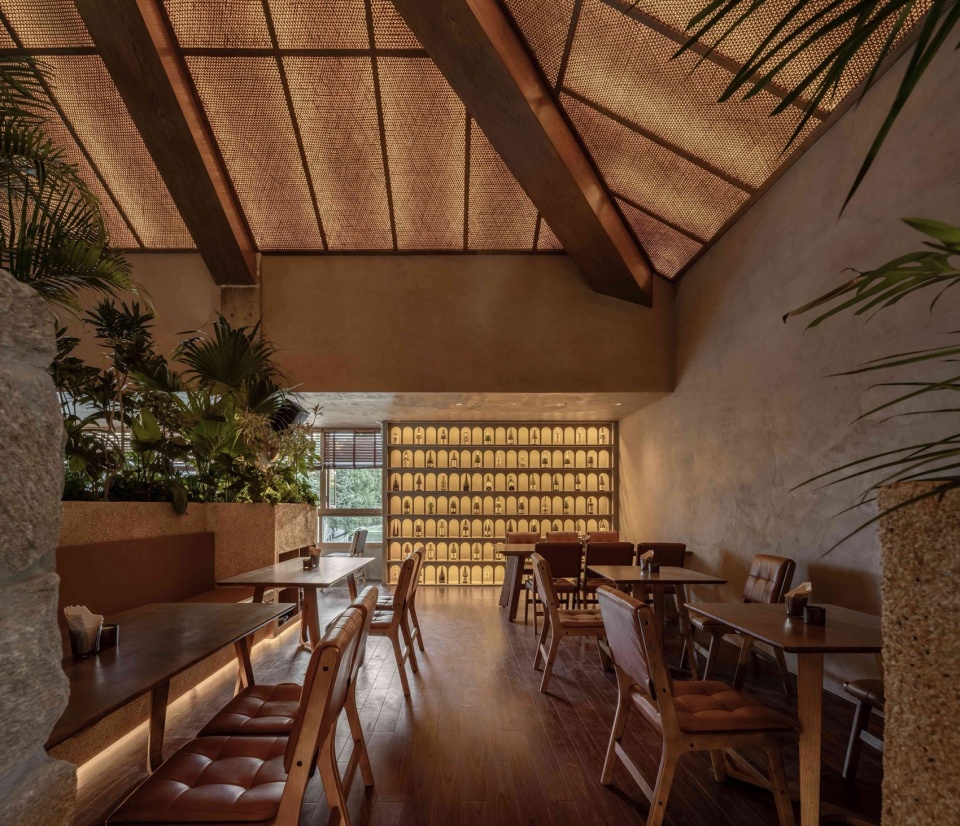

▼植被环绕用餐区域, Dining area surrounded by vegetation © UK Studio

结语
Conclusion

室内自然场景下的大体量挑高空间，更强调空间的场域，体感的划分，在高密度的城市环境中提供接近于原生自然的舒适体验，我们希望传递与自然共生的理念。

The large-volume, high-ceilinged space in the natural interior scenario places more emphasis on the spatial field, the division of the sense of body, and provides a comfortable experience close to native nature in the high-density urban environment, and we hope to convey the concept of symbiosis with nature.

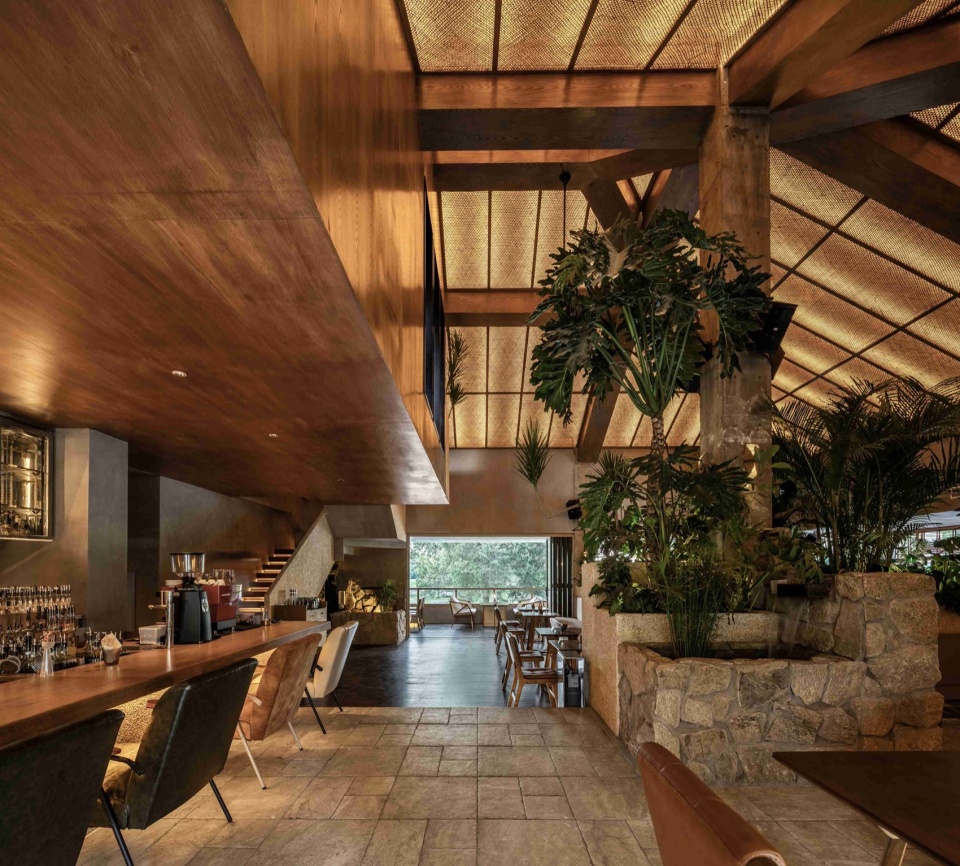

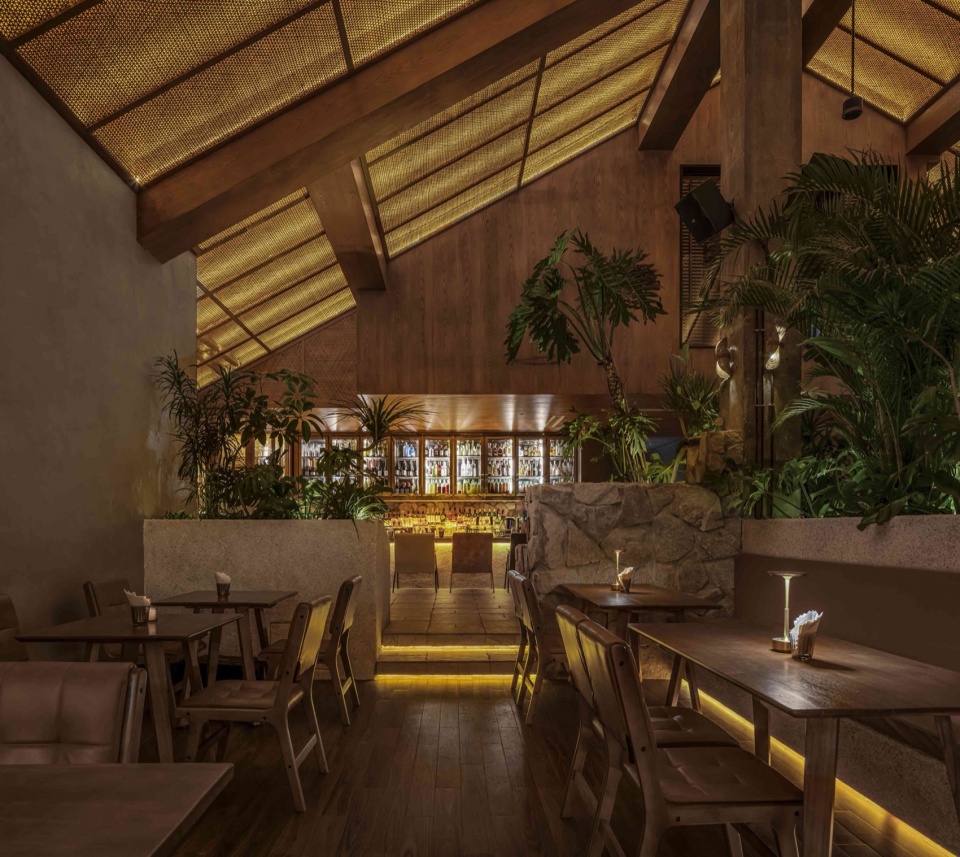

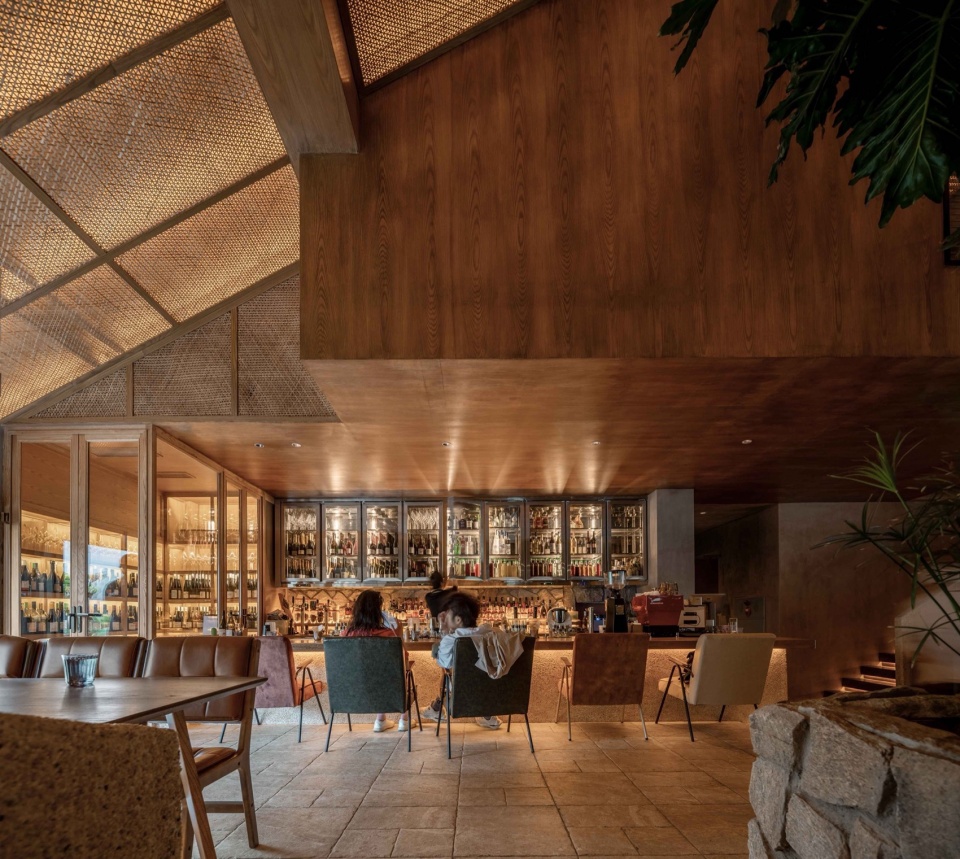

▼用餐区域望向吧台, View of the bar from the dining area © UK Studio

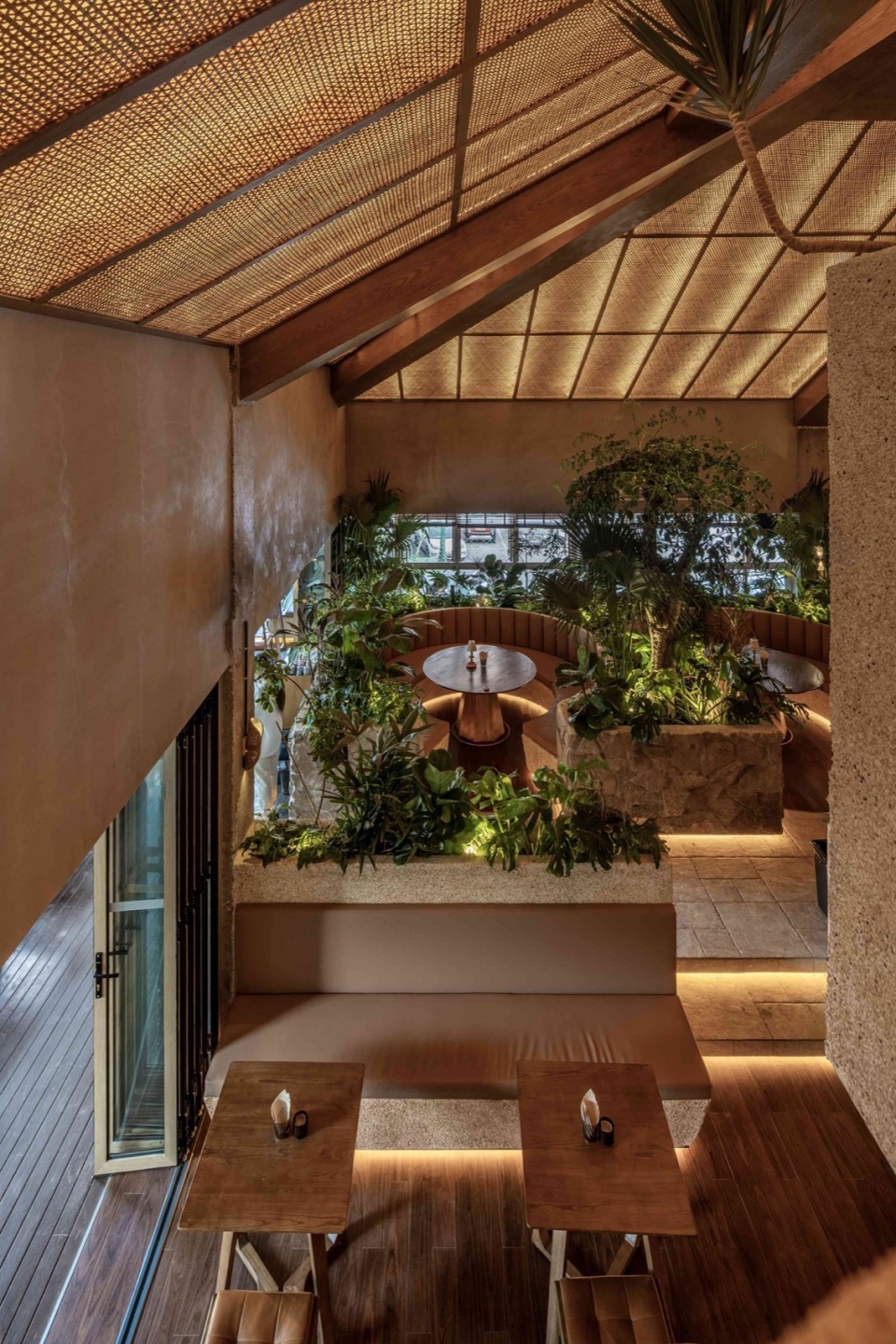

▼楼梯上俯视内部白天与夜晚对比, Rear of the building © UK Studio

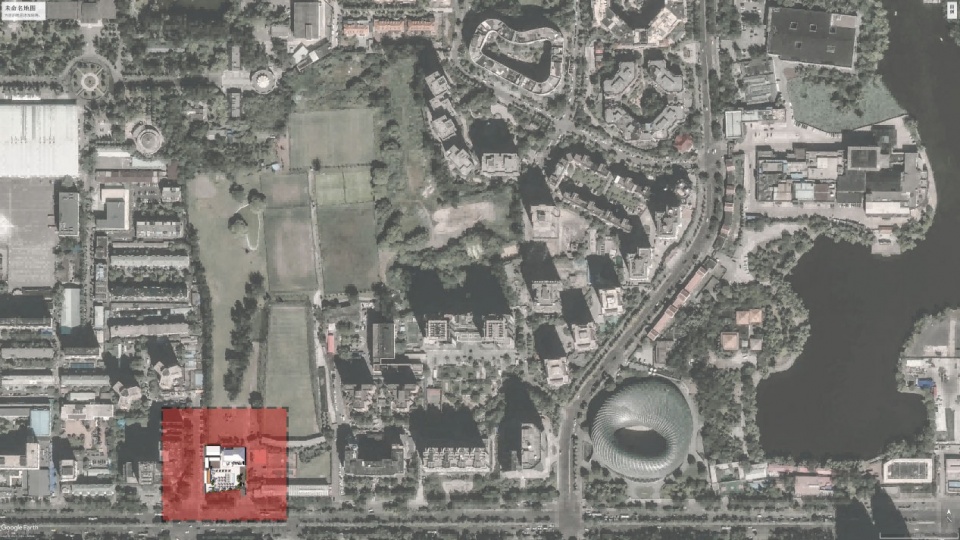

▼项目原址, Site © DAGA Architects

▼二层平面图，Second plan © DAGA Architects

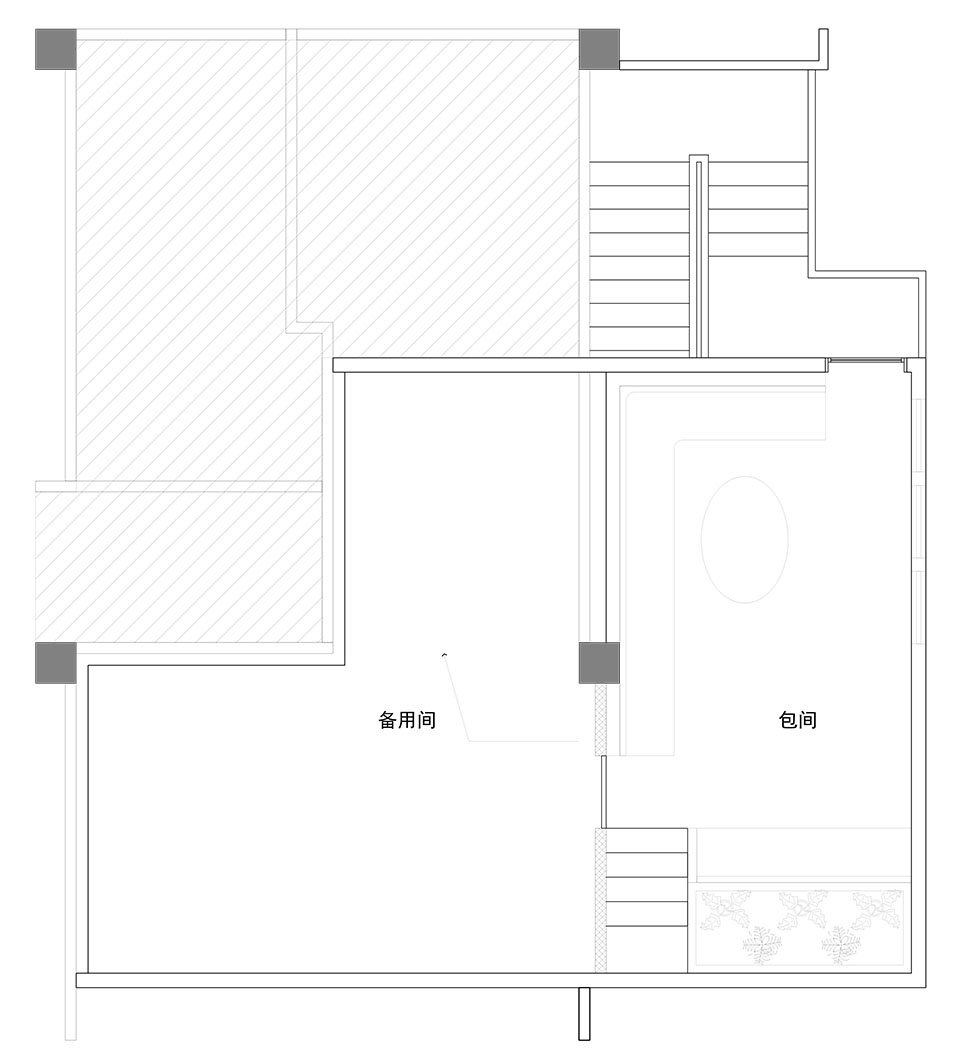

▼夹层平面图，Mezzanine plan © DAGA Architects

项目名称：The Bond by hide&seek
设计公司：DAGA Architects大观建筑设计
客户：hide&seek北京换个地方躲猫猫餐饮管理有限公司
公司网站：www.arcxtec.com
设计团队：申江海，张龙潇，胡芳婷，张贝
项目类型：室内设计
建筑面积：270平方米
设计时间：2023.03-2022.05
建造时间：2023.05-2023.07
项目摄影：UK Studio
撰文：胡璐扬

Project name : The Bond by hide&seek
Design company : DAGA Architects
Clients: hide&seek Beijing change places peek-a-boo catering management Co., Ltd
Company website: www.arcxtec.com
Design Team :Shen Jianghai,,Zhang LongXiao,Hu FangTing,Zhang Bei
Project type : Interior Design
Project area : 270m2
Design time :Mar 2023-May 2023
Construction time :May 2023-Jul 2023
Photographer : UK Studio
Writer:Hu LuYang
