非常感谢 刘宇扬建筑事务所 予gooood分享以下内容。更多关于：Atelier Liu Yuyang Architects on gooood.
Appreciation towards Atelier Liu Yuyang Architects for providing the following description:

视频 VIDEO 点击下方查看视频

滨江爱特公园位于上海北虹桥滨水景观带内，占地面积1.3公顷，兼具运动休闲，社区游憩及环保教育等功能。

Riverfront Aite Park is a 1.3-hectare community open space located within the North Hongqiao Waterfront Landscape Masterplan in Jiading, Shanghai. The park offers perfect occasions for recreation and communal activities, particularly arouses residents’ awareness of environmental protection.

基地位于居民区与工厂交界的灰色地带；土地上堆放着大量建筑垃圾及土方，杂草丛生；周边道路来往着工程车辆，灰尘滚滚，居民们都对这块“废地”避之不及。设计过程中本着土方在地消化及再利用的可持续理念，创新地利用废弃建筑垃圾填充石笼，形成标志性的地景构筑物。既留住了基地的过去，又活化了“废弃空间”成为周边小区的公共社交空间。

Located in the grey zone between residential area and factories, the site was a dump ground for construction waste, occupied by overgrown and surrounded by dusty trucks. No one had ever imagined it would be a welcoming public social space in this community until it is revitalized through an innovative design approach. The park re-utilized a large amount of existing earthwork to form new topography, and waste materials were packed into galvanized metal gabion baskets and piled up as landscape installations.

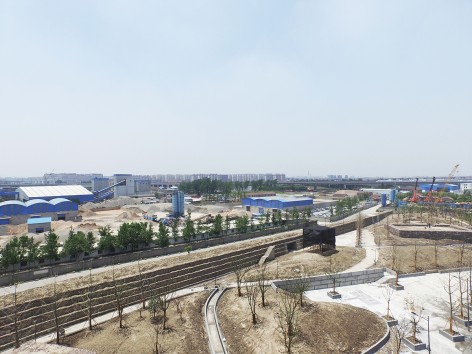

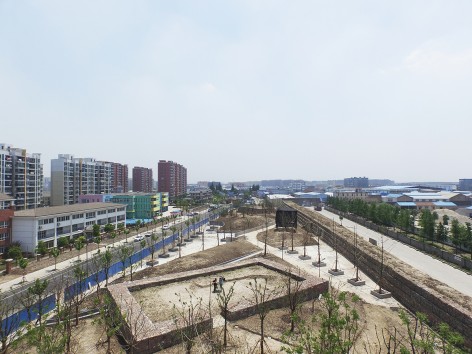

▽ 居民区与工厂交界的灰色地带，the grey zone between residential area and factories

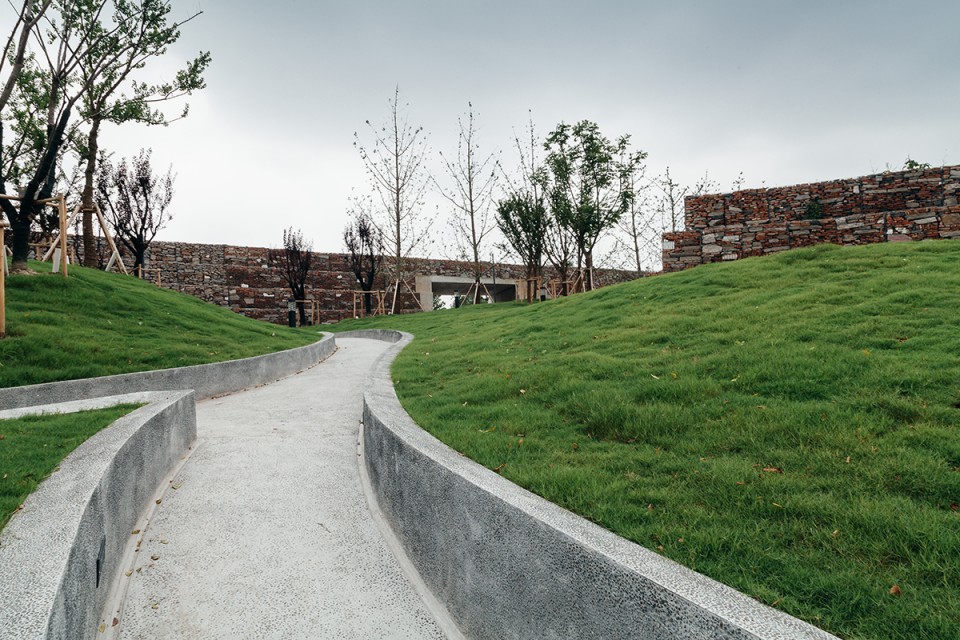

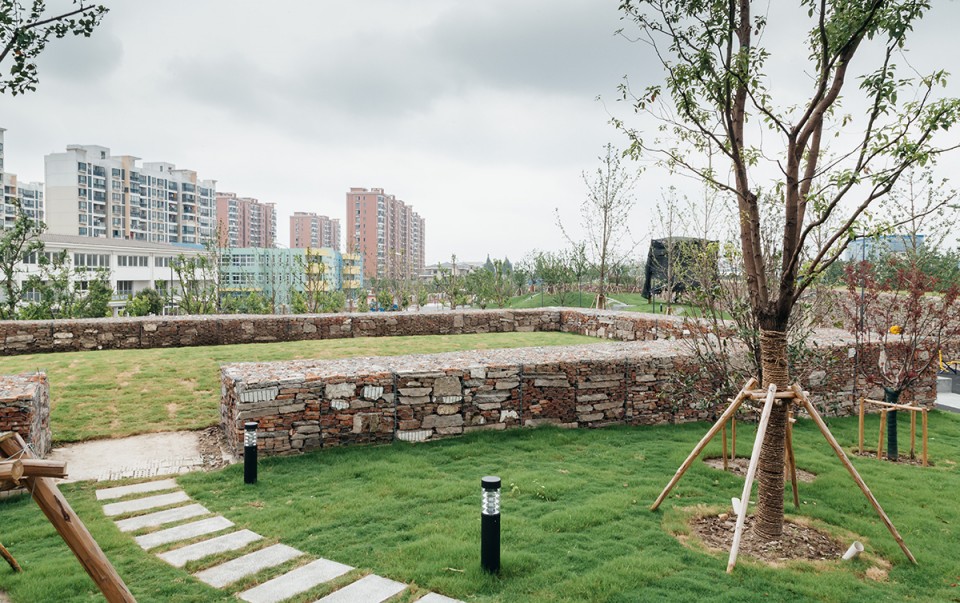

▽ 利用废弃建筑垃圾填充石笼，形成标志性的地景构筑物， waste materials were packed into galvanized metal gabion baskets and piled up as landscape installations

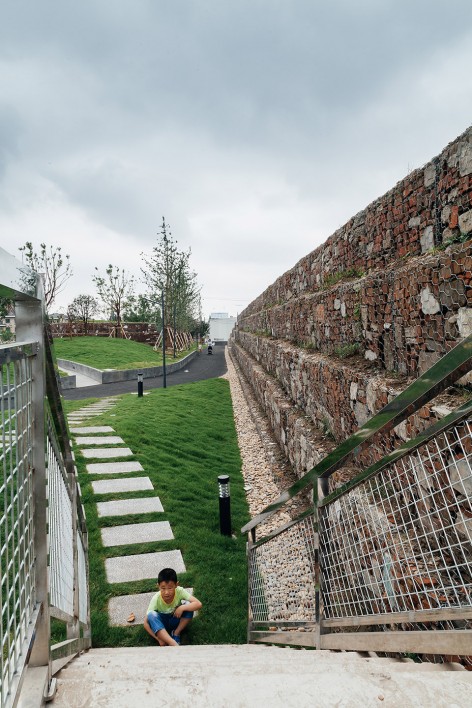

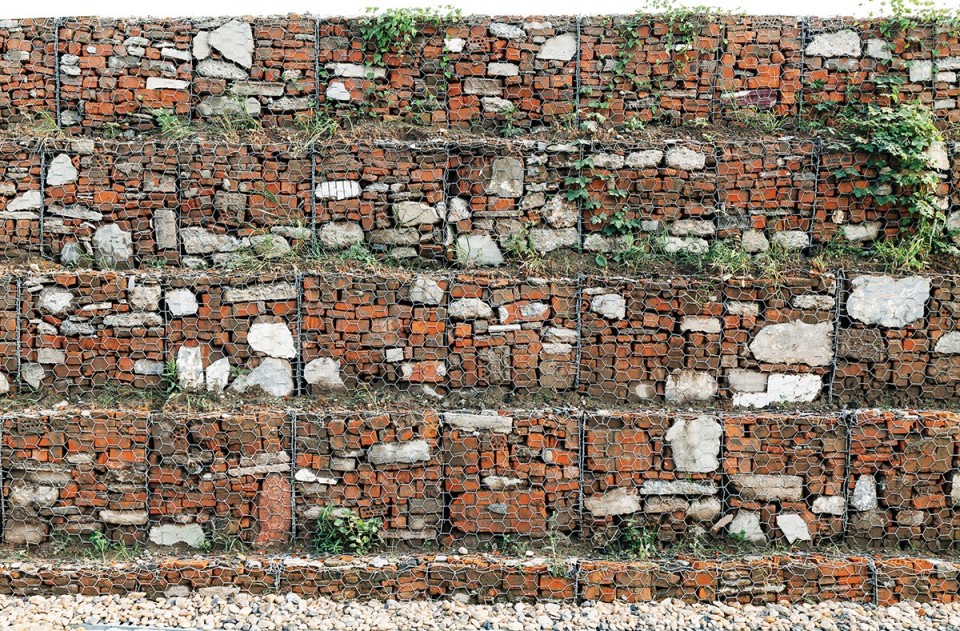

▽ 细看石笼, close view of the metal gabion baskets

最南侧的石笼墙体长202米，高5米，既是贯穿整个公园的标志性景观，也是阻隔周边水泥厂污染的屏障。公园内部由350米长的健身步道串联起入口广场、健身广场、儿童活动区和各个石笼构筑物。花草和乔木搭配形成四季变化的景观，成为具有亲和力的社区公园。

The most iconic landscape in this park is the 202-metre long and 5-metre high gabion wall at the south side, blocking this cosy communal space from adjacent cement factories. Along with a 350-metre long jogging trail, exercise facilities and other gabion installations, this site is successfully turned into a community park.

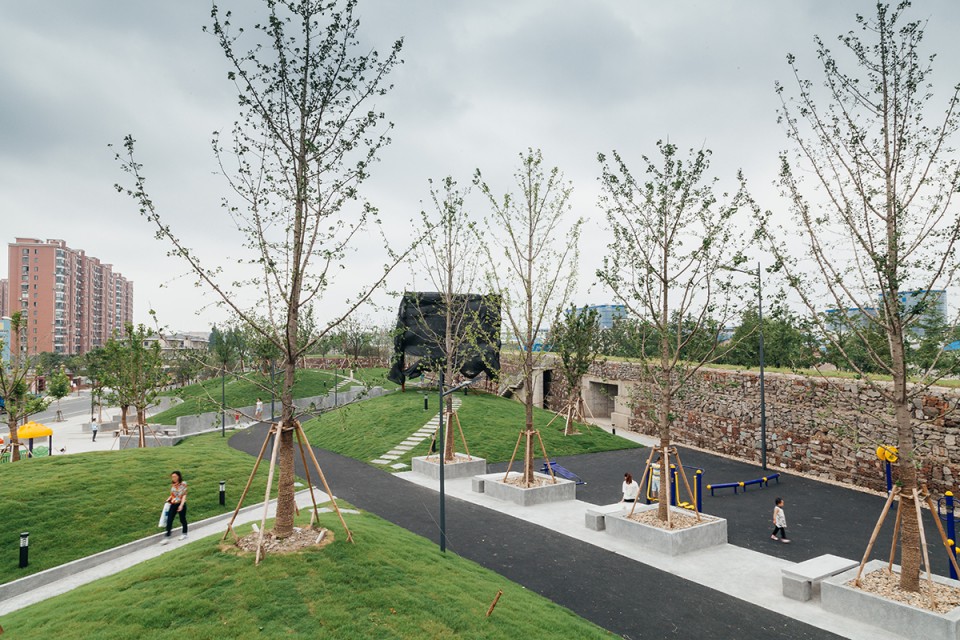

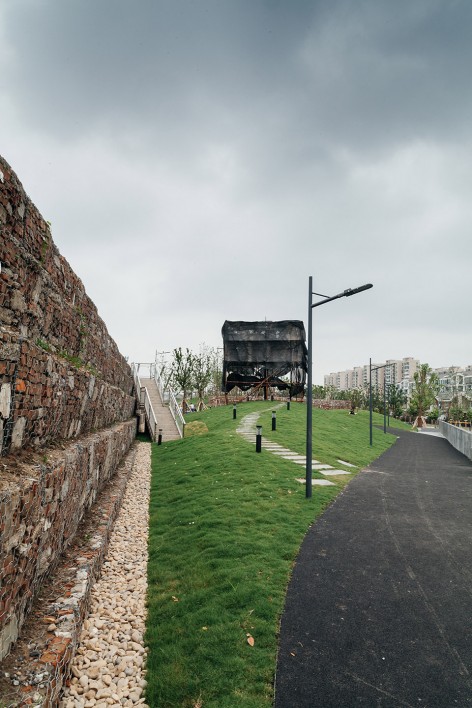

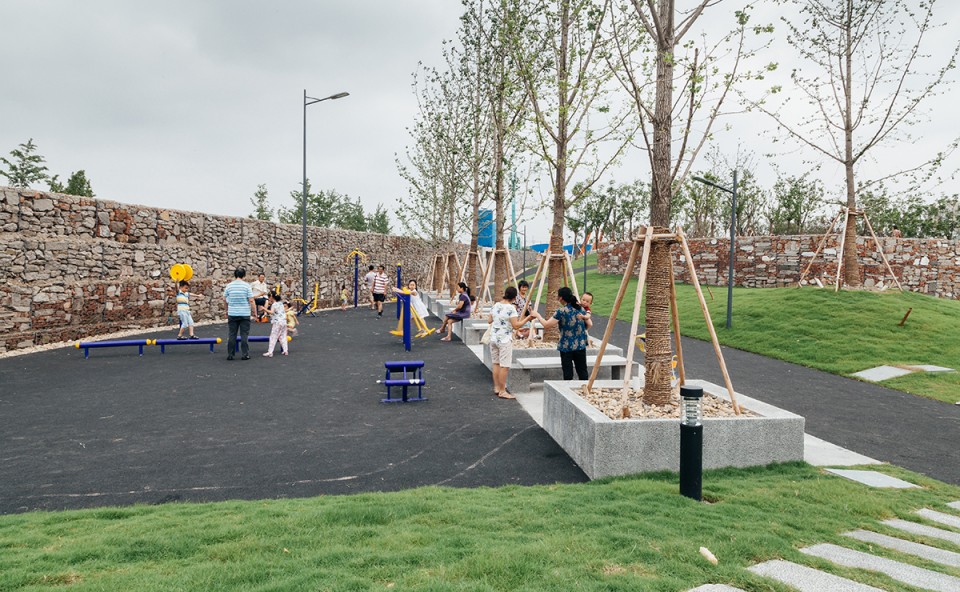

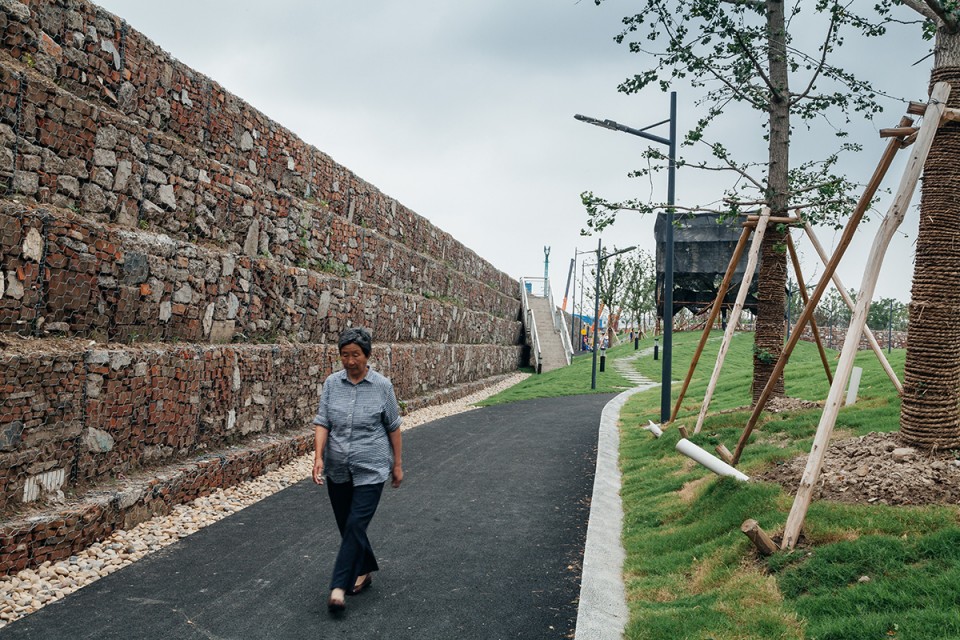

▽ 最南侧的石笼墙体贯穿整个公园, the most iconic landscape in this park is the gabion wall at the south side

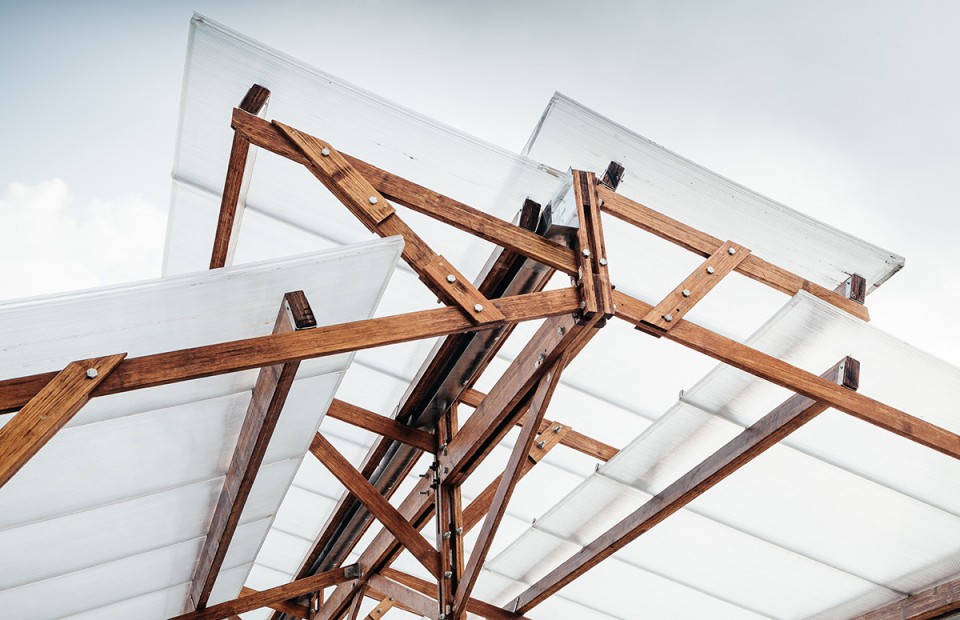

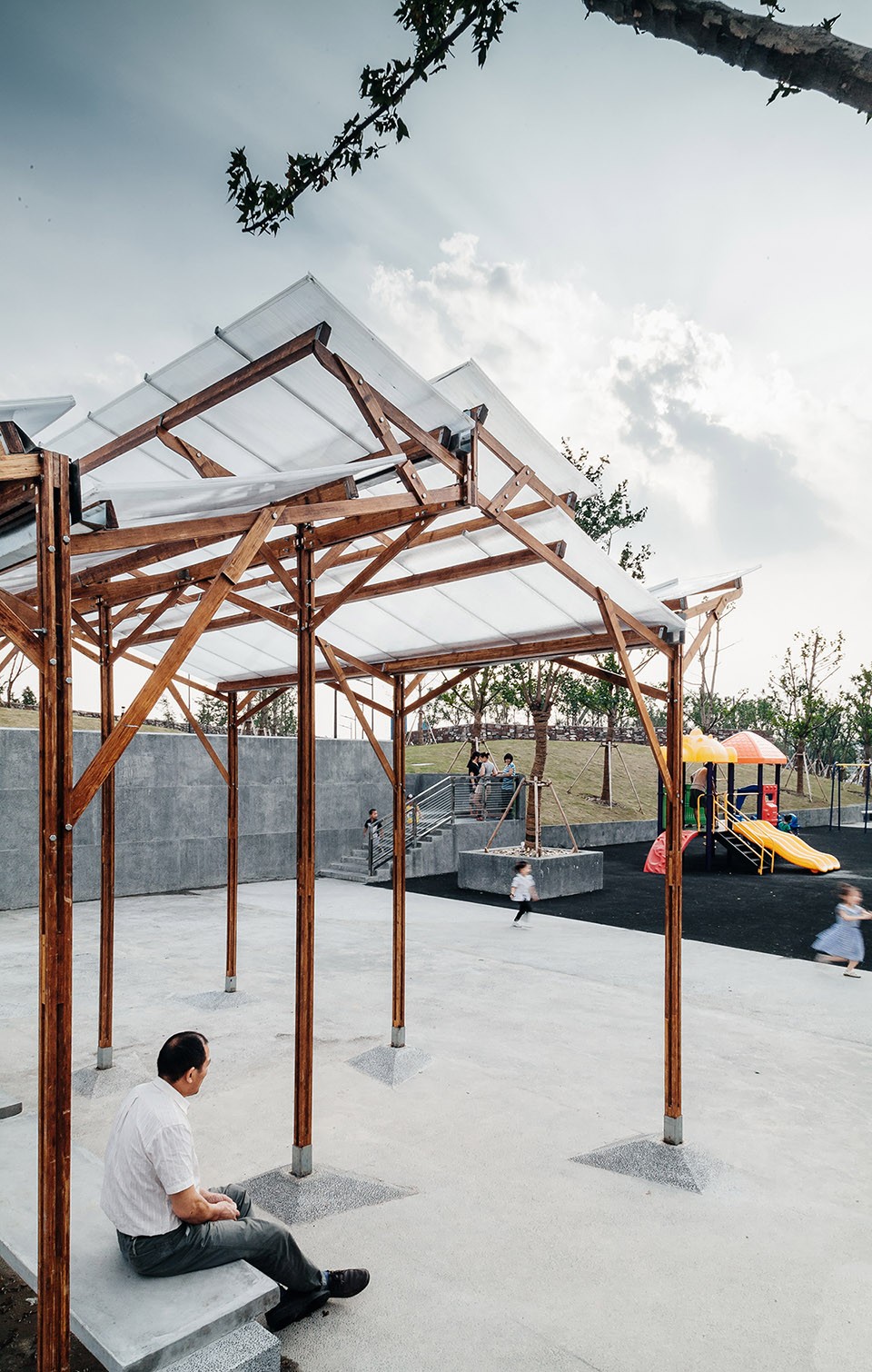

▽ 凉亭， pavilion

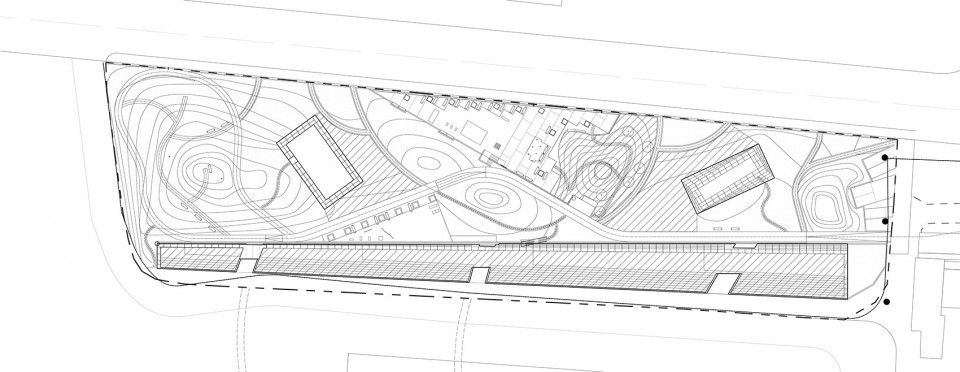

▽ 总平面图，site plan

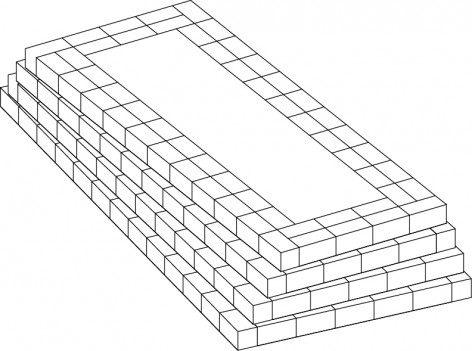

▽ 石笼构筑物，gabion installation

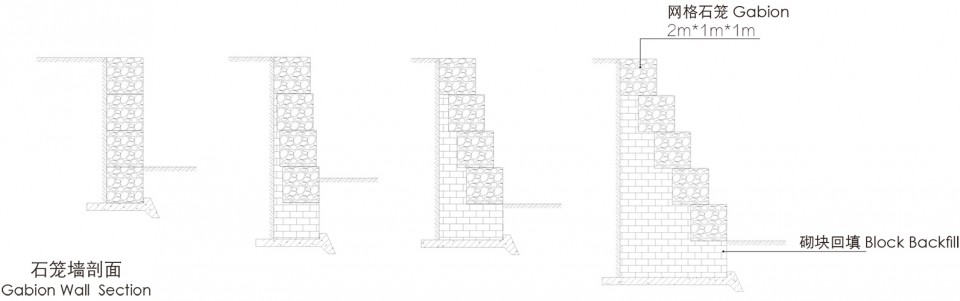

▽ 石笼墙剖面，gabion wall section

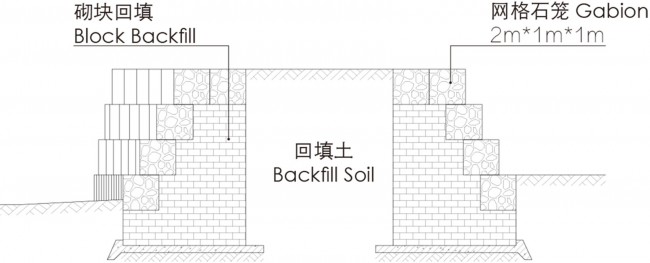

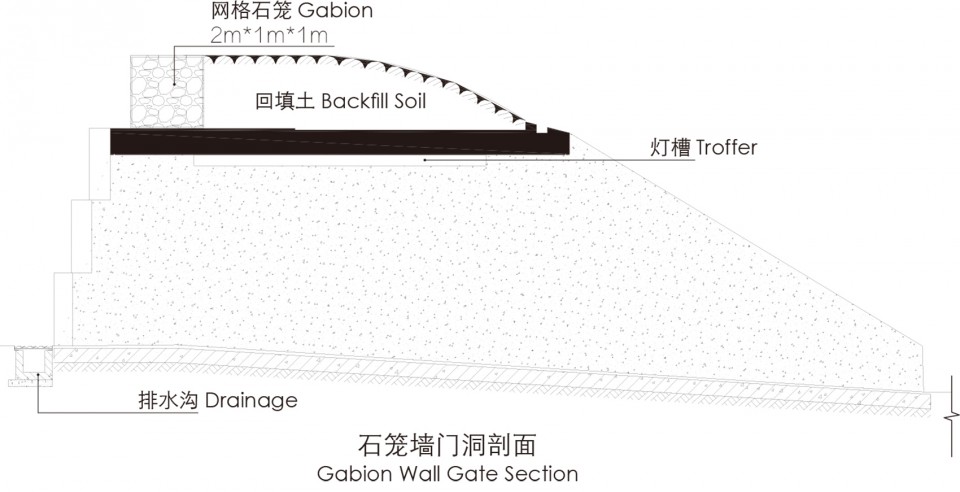

▽ 石笼墙门洞剖面，gabion wall gate section

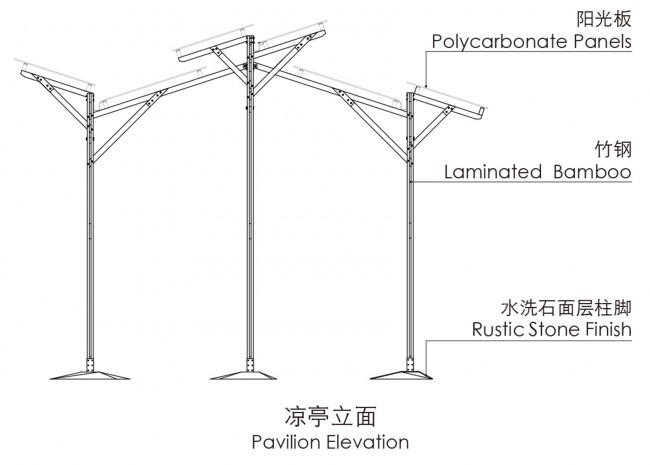

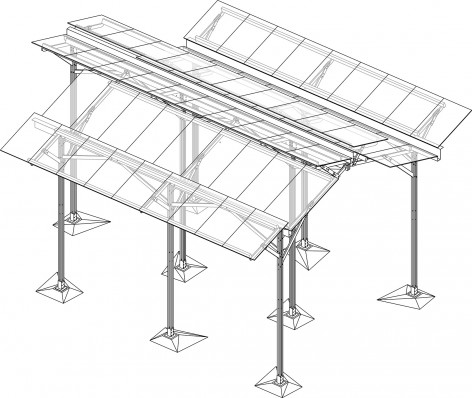

▽ 凉亭，pavilion

名称: 滨江爱特公园
地点: 上海江桥镇爱特路
类型: 生态环保
建筑设计事务所: 刘宇扬建筑事务所，英国CHORA工作室
概念设计，设计深化:刘宇扬建筑事务所，英国CHORA工作室
施工图设计，凉亭设计: 刘宇扬建筑事务所
设计总监: 刘宇扬(ALYA)，Raoul Bunschoten (CHORA)
项目建筑师：曹飞乐王珏(ALYA)， Henry Jones (CHORA)
结构顾问：张准
机电顾问：刘涛颜兆军顾青
灯光顾问：UNOLAI DESIGN
施工单位: 上农园林环境建设有限公司
业主: 上海江桥农业发展有限责任公司
基地面积: 1.3公顷
设计时间: 2014
施工时间: 2015
项目造价 : 1,3000,000RMB
摄影: 朱思宇

Name: Riverfront Aite Park
Location: Aite Rd., Jiangqiao, Shanghai
Type: Environmental protection
Architects: Atelier Liu Yuyang Architects, CHORA
Concept Design, Design Development: Atelier Liu Yuyang Architects, CHORA
Construction Drawing, Pavilion Design: Atelier Liu Yuyang Architects
Design Principals: Liu Yuyang(ALYA), Raoul Bunschoten(CHORA)
Project Architects： Cao Feile Wang Jue(ALYA), Henry Jones(CHORA)
Structure Consultant： Zhang Zhun
Mechanical and Electrical Consultant： Liu Tao Yan Zhaojun Gu Qing
Lighting Consultant：UNOLAI DESIGN
Construction Team: Shang Nong Landscape and Environmental Construction Company
Client: Shanghai Jiangqiao Agricultural Development Co.,Ltd.
Site Area: 1.3 hectare
Design Stage: 2014
Construction Stage: 2015
Cost: 1,3000,000RMB
Photography: ZHU Siyu
