感谢 大小景观 予gooood分享以下内容。更多关于他们，请至：Atelier Scale on gooood
Appreciations towards Atelier Scale for providing the following description:

城市的礼物 – 拼接自然
A Gift from City

淮安，这座在历史上大起大落的城市，如今正处在属于它的发展机遇中。在淮安安澜北路与富准路交界之处，是台资聚集的经济技术开发区，这里的路网整齐划一，城市氛围并不浓厚，配套设施较也相对缺乏并且分散，缺少公共空间；周边的居民基本都是在开发区工作，过着两点一线的上下班打卡生活。然而，与充满野心和欲望的一二线城市不同，在这里生活的人豁达知足，珍视着自己日常的生活片刻。拼图公园就诞生在这片安宁的城市区域，为周边的社区带来活力和生机，也为淮安城区送上了一份珍贵的礼物。

Different from the mega cities, Huai’an is an ancient city with history of rise and fall. People in Huai’an tend to be more calm and content with their life. By the intersection of An’ lan Road and Fuzhun Road, is an area of hard-ware factories, where open public space is in high scarcity. The birth of the Puzzle Park is a precious gift for adjacent neighborhood and even city of Huai’an.

▼公园一瞥
a glance to the park © 南西摄影

淮安周边拥有一片壮丽秀美的有机农田，它与有机的农舍相互拼接、融合，形成了这片区域内独特的城市肌理：它们是大大小小的斑块状组团；它们的边界灵活可变、相互咬合；它们各个组团拥有自身的特色，并能变化出多种多样的组合，犹如一块块散落的拼图。自然与城市咬合紧密，相互拼接。场地内也留存了一片农田，呈现有机斑块状的农田肌理，我们的设计灵感便来源于此。设计希望能将保留这份独特，将自然拼接进冰冷的工业园区，营造一个有温度、有生活、有情感的公共社交场所。

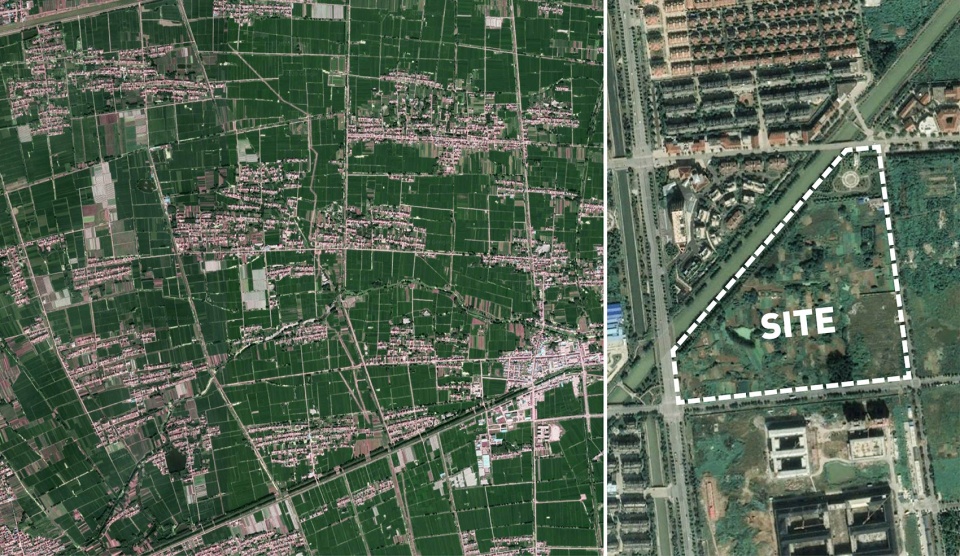

▼场地与农田肌理
the site and the farmland texture © 大小景观

Huai’an is surrounded by patches of farmlands. A unique urban fabric is created when farmlands and industrial factories are mixed together. These patterns are quite flexible and interconnected, as if scattered puzzles. Our design inspiration comes from these beautiful patterns. As a big piece of puzzle, nature is plugged into this cold industrial area, with a warm-hearted social space.

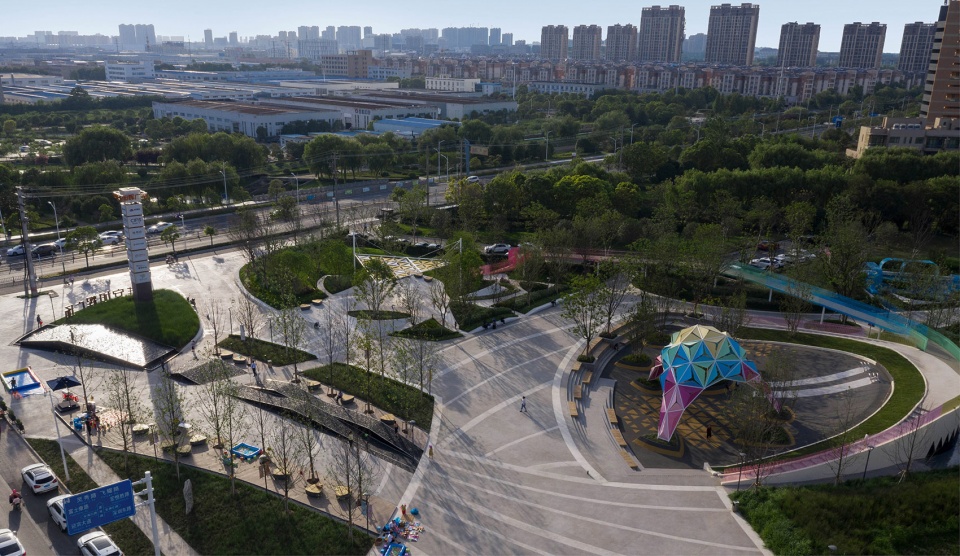

▼公园鸟瞰，aerial view © 南西摄影

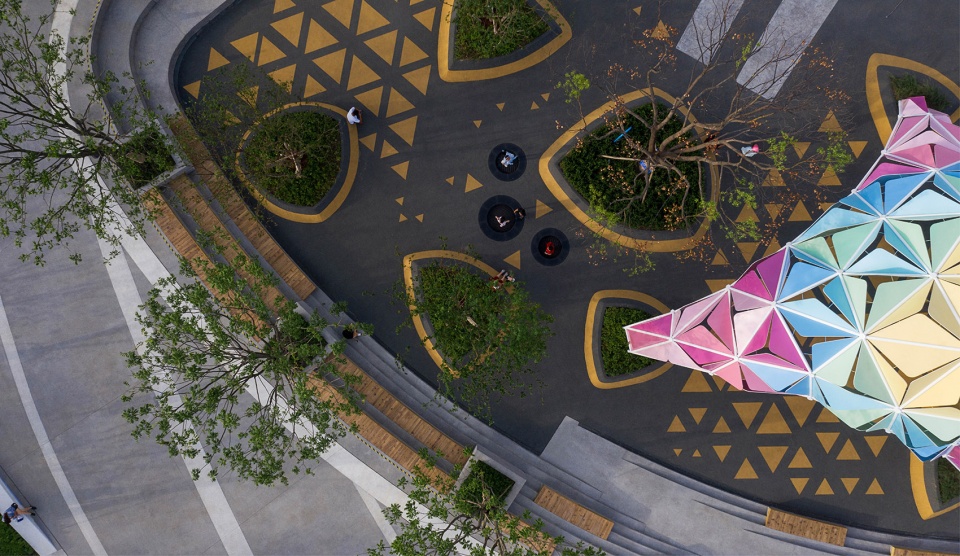

▼局部鸟瞰，partial aerial view © 南西摄影

多彩的生活 – 拼接生活
Colorful Life

与公园紧密衔接的，是复合型的商业综合体及商业街。公园场地宽敞而平坦，横向与纵向边长均在100米以上，我们通过拆分重组的方式，将社交、商业、儿童、运动、休闲生活等功能拼接进来，形成公园内多组团拼接的设计格局。

Adjacent to the park, it is CIFI GROUP’s shopping mall and commercial street. The site of the park is large and flat, with at least 100 meters on both sizes. We break the site into different puzzles with different programs, such as kid space, outdoor gym, recreational space and social space.

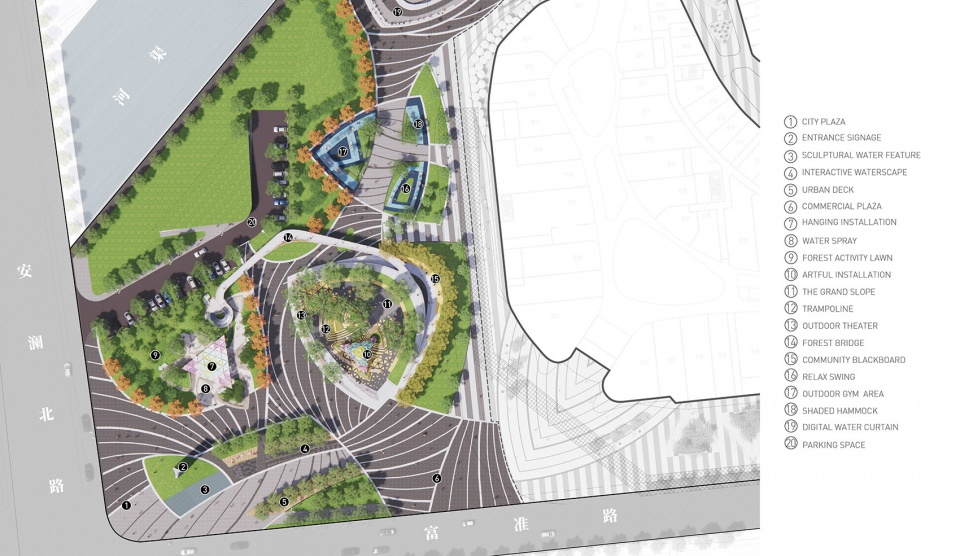

▼总平面图，site plan © 大小景观

社交城市拼图 | The Urban Puzzle

与城市道路交叉口紧密相连的，是主打社交与引导属性的——城市拼图。具有阵列感的榉树树阵、起伏的自然水景和林下的休憩平台，创造出舒适并且有归属感的环境，让人仿佛置身林中。流动的水景和灵动的跳泉吸引着小朋友在这里嬉戏、玩耍。沿着斑驳的树影、顺着清凉的水雾，人们不知不觉的就进入了公园的内部。

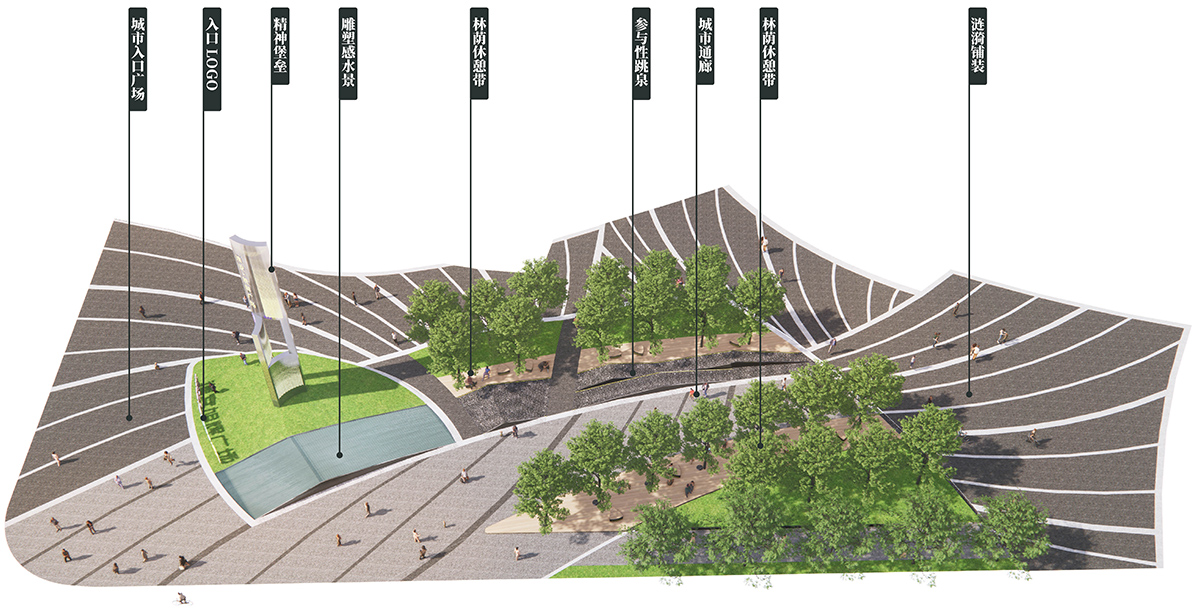

▼城市拼图轴测
Urban Puzzle axon © 大小景观

At the entrance of the park is the Urban Puzzle, in which people are guided into the park and adjacent shopping mall, with great gestures of Zelkova promenade, linear fountain and urban decks.

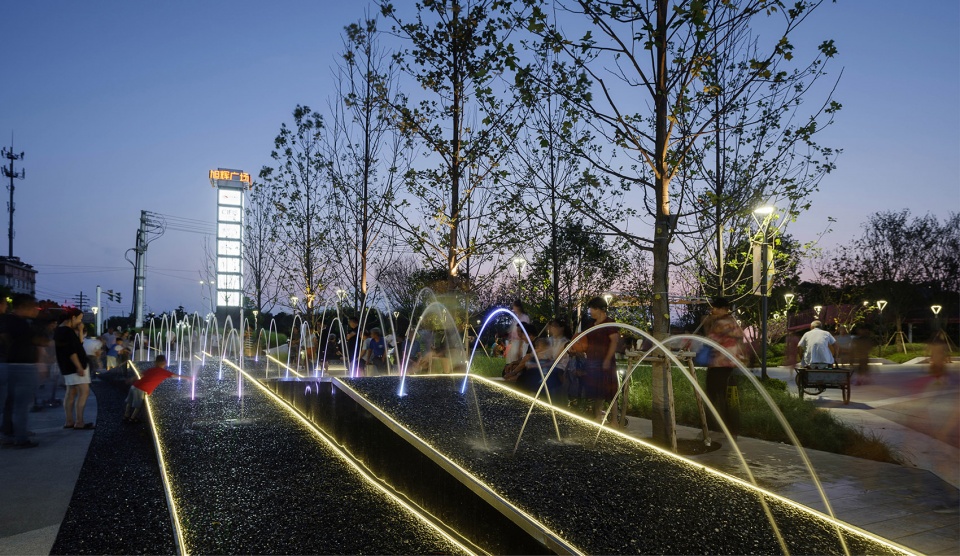

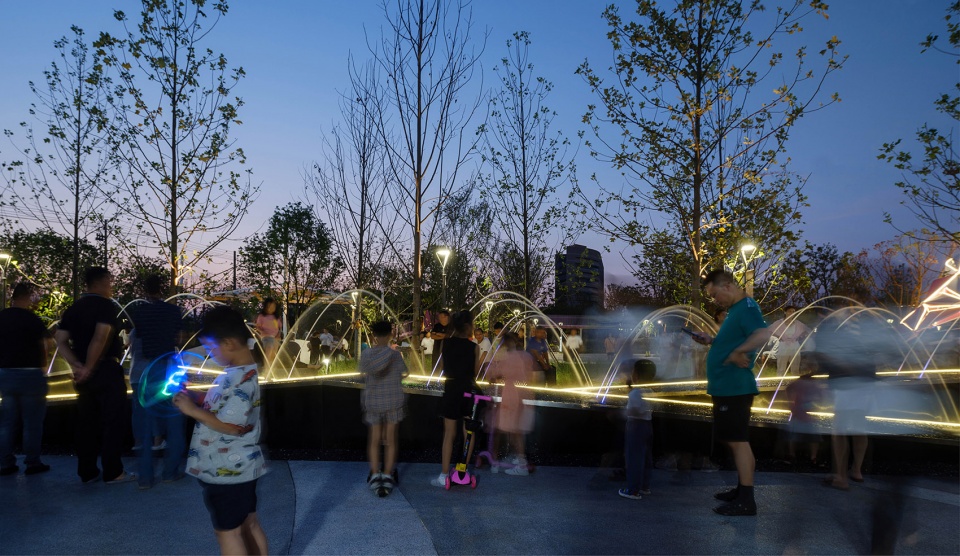

▼沿着自然水景进入公园
arriving at the park along the water scape © 南西摄影

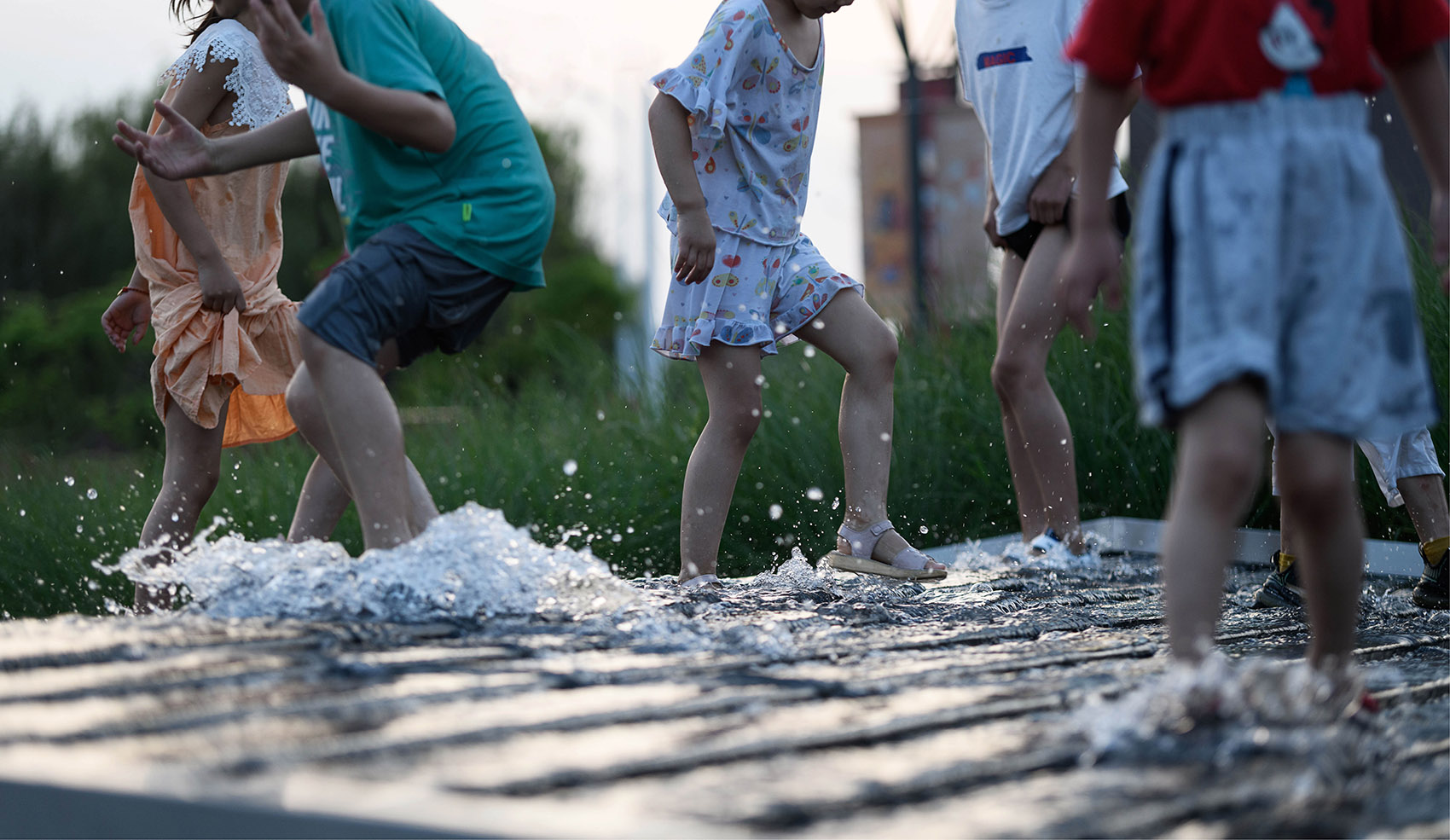

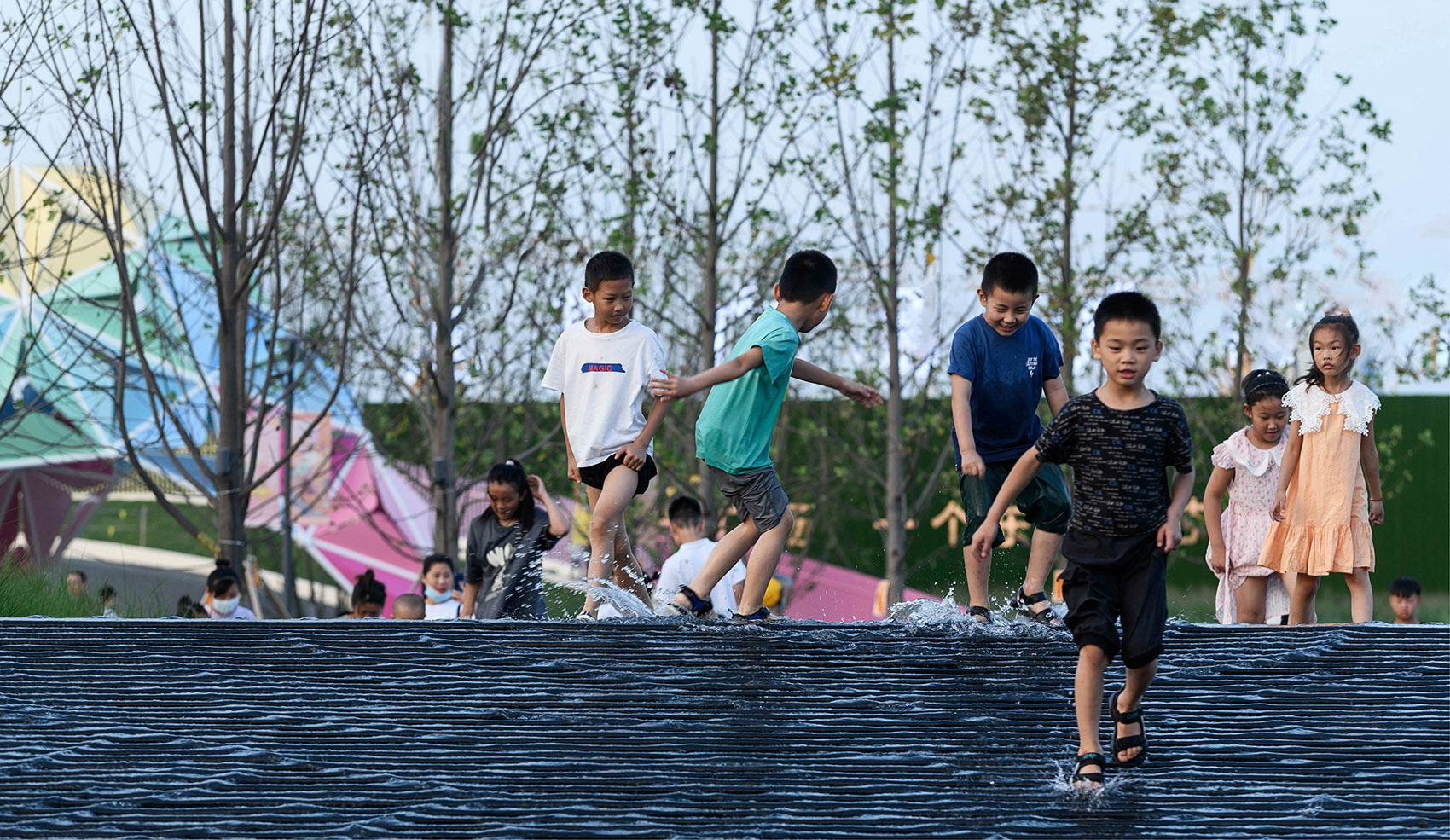

▼戏水，water playing © 南西摄影

动感山地拼图 | The Mountain Puzzle

随之与其相接的，是公园最核心的社交运动版块——山地拼图。场地地形向两侧倾斜，中间形成最陡也最刺激的4米高滑坡，是整个场地中儿童参与度最高、也是最热闹的活动区域。两侧坡度较缓，设置有爬绳，抓手等，供低年龄层的儿童使用。他们在这里跑着跳着，爬着滑着，打着闹着，但这并不影响他们排起长队，等待下一次的“惊险之旅”。在场地的开放活动区，点缀着一组彩色“山洞”，马卡龙的渐变色系让它们在场地中脱颖而出，成为公园全场的视觉焦点。

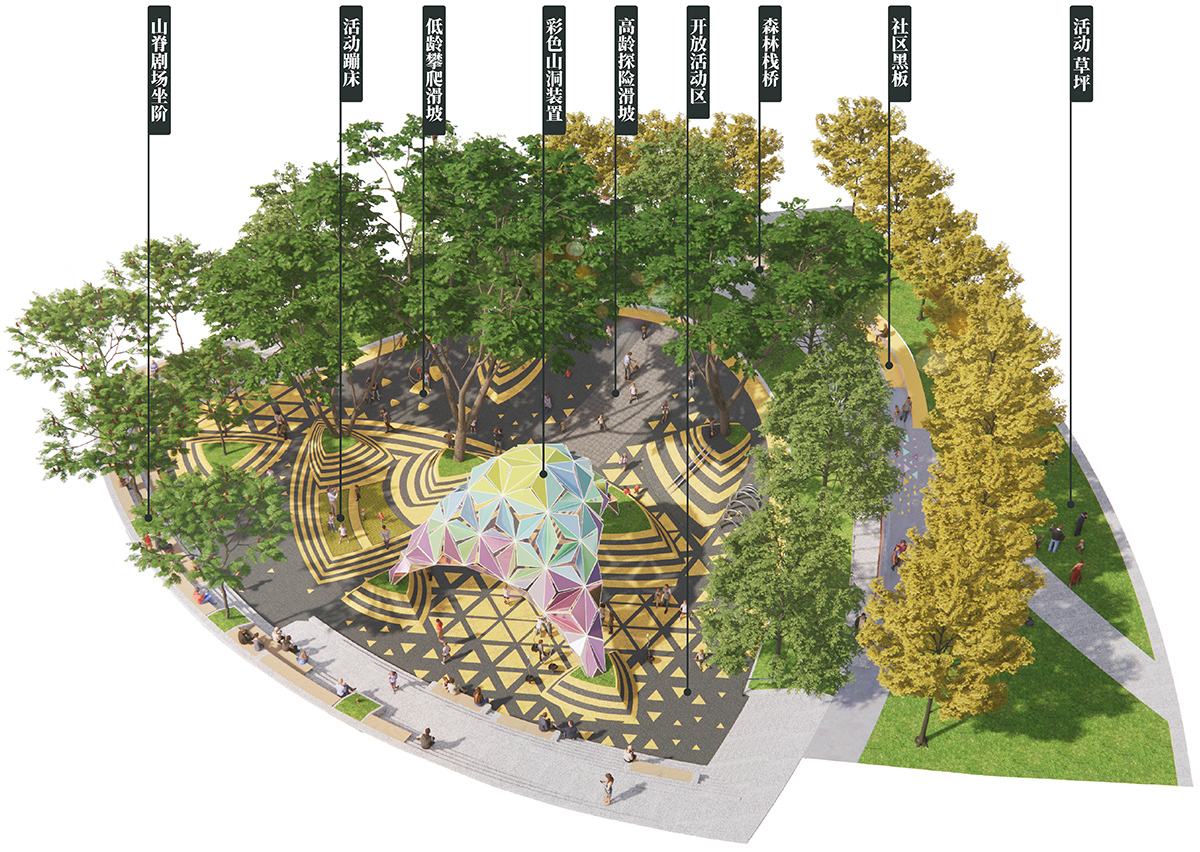

▼山地拼图轴测，Mountain Puzzle axon © 大小景观

Adjacent to the Forest Puzzle is the Mountain Puzzle, which is the climax of the park in terms of spatial sequence. A giant slope with drop of 4 meter high, is the most activated part of the place. The grand slope turns to be more gentle on both sides for kids in lower ages, with climbing rope and grabs. The grand slope is so popular that kids have to wait in line. An installation with the Macaron color pallet stands on an open field, standing out and becomes the focal point all over the site.

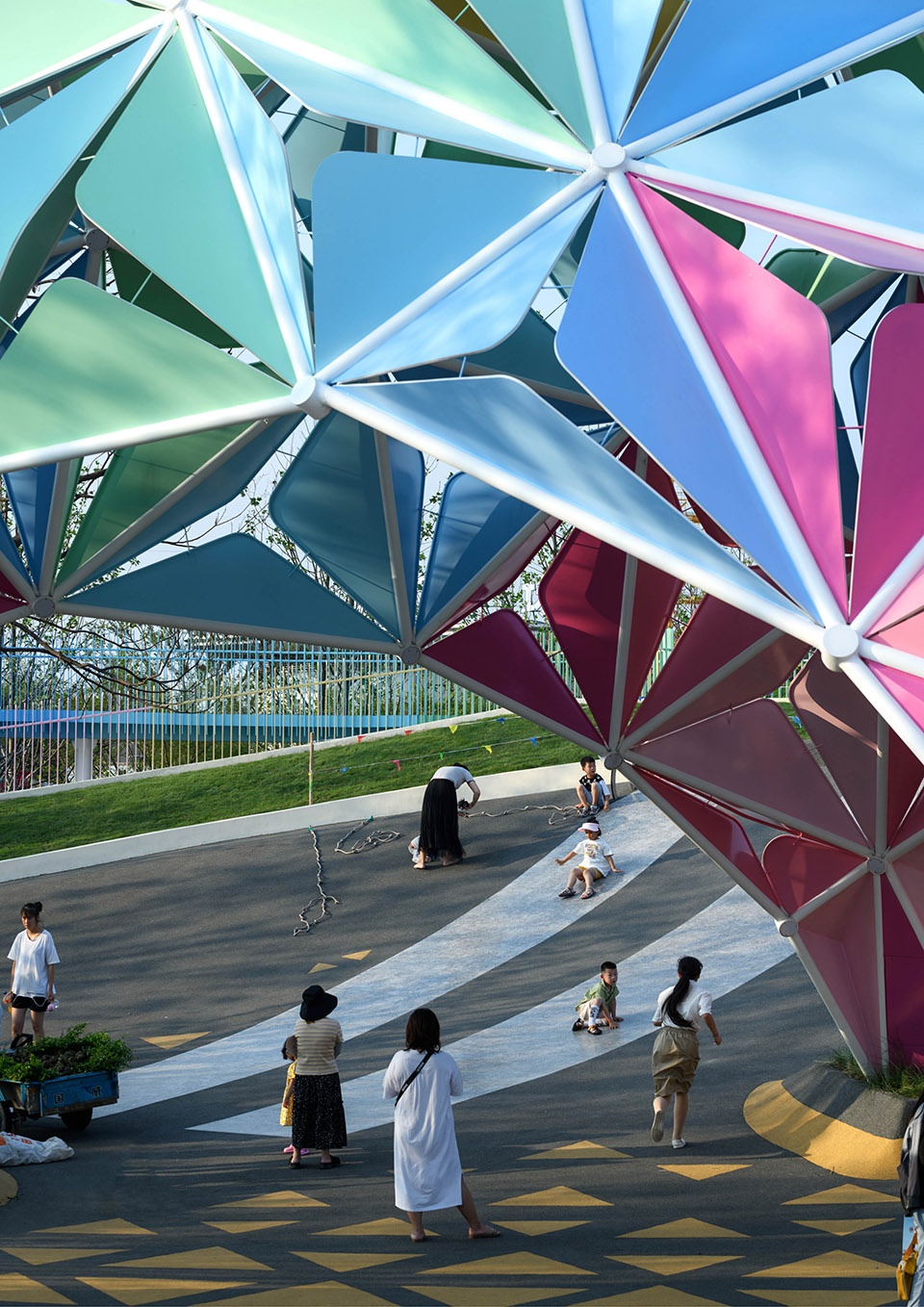

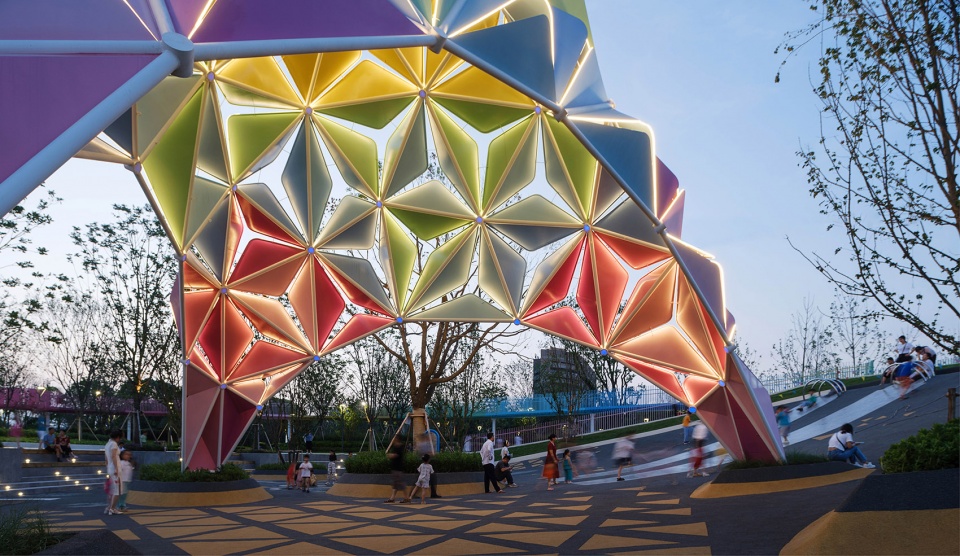

▼开放活动区和彩色“山洞”
the open field with a cave-like installation © 南西摄影

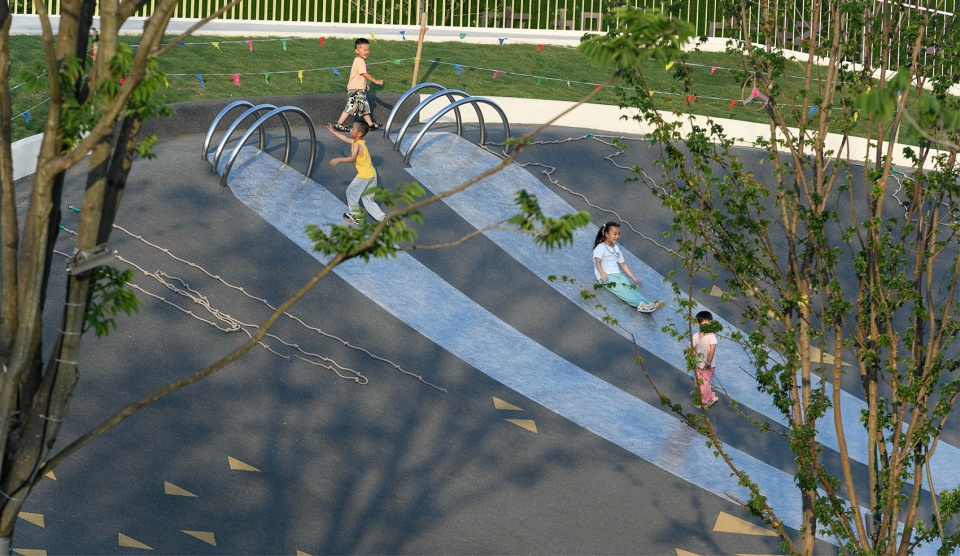

▼4米高的大滑坡
the giant slope with drop of 4 meter high © 南西摄影

我们将滑坡对面设计成下沉1.35米的围合式坐阶。当小朋友们在场地中撒欢的时候，家长可以舒适的坐在树荫下一边歇息聊天，一边看着孩子们玩耍。在有户外活动聚集的时候，它也成为了天然的剧场看台。

Facing the grand slope, there are enclosed sitting terraces where parents watch their kids play by the slope and chat with each other at the same time. The terraces work as an amphitheater too.

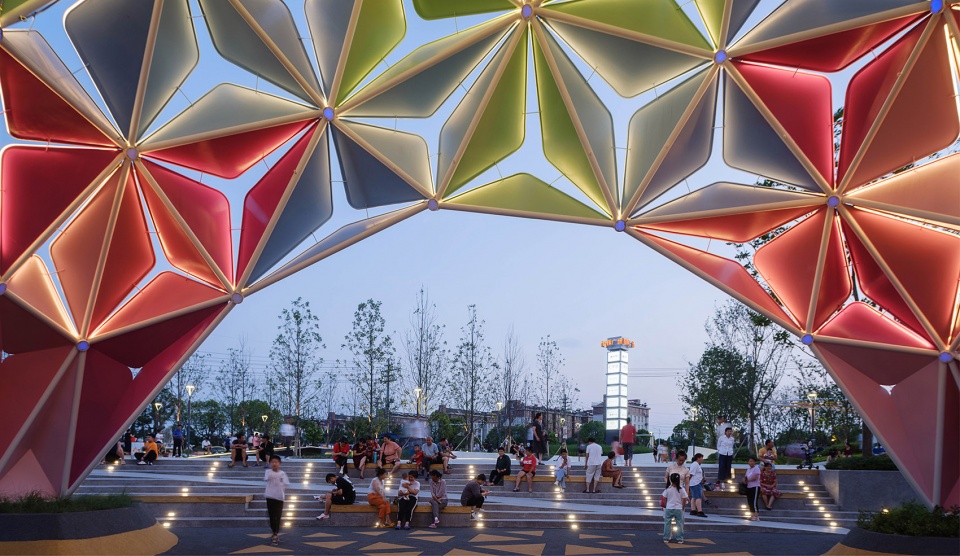

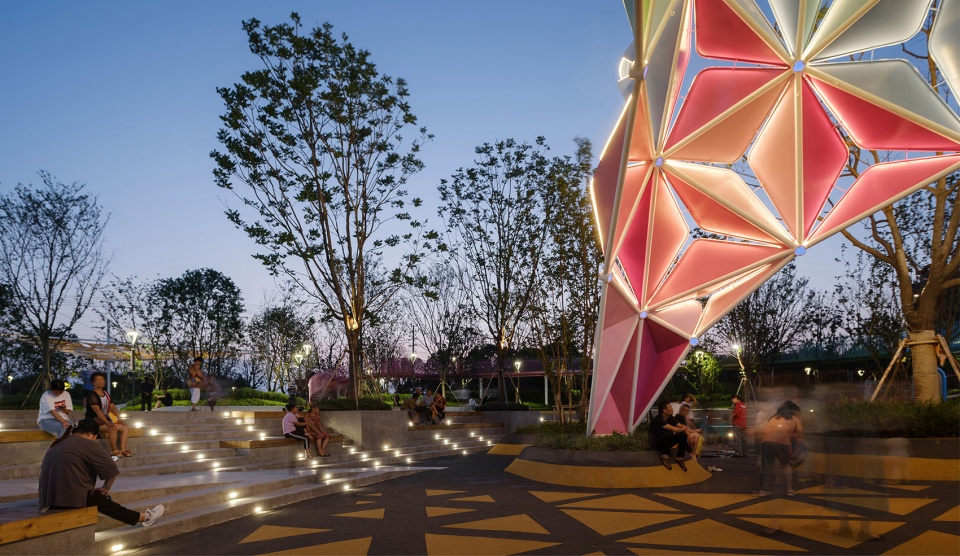

▼夜晚的彩色山洞
night view of the installation © 南西摄影

童趣森林拼图 | The Forest Puzzle

靠近北侧入口的是一个以儿童为主题的——森林拼图，这是公园中最具有自然野趣的部分。起伏错落的草坡为小朋友们提供亲近自然植物的场所，中间围合出的互动旱喷水景区域，成为炎热夏日下最清凉的一角，放学后的小朋友们都喜欢聚集在此嬉戏打闹，甚至带上水枪，“激战”一番。

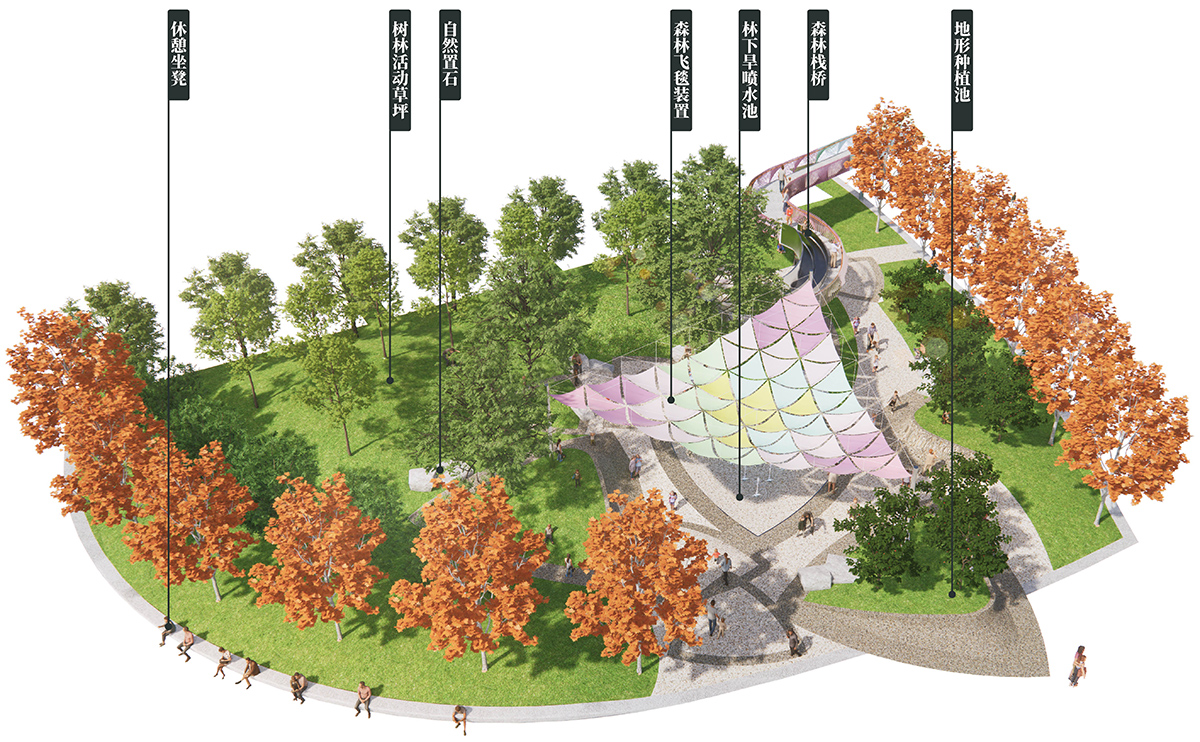

▼森林拼图轴测
Forest Puzzle axon © 大小景观

By the north is the Forest Puzzle, which is the most natural area of the park, where undulating wash aggregate and natural plants dominate the this part. The central jet fountain is the most popular space for students after school, where they “fight” heavily with their own water guns.

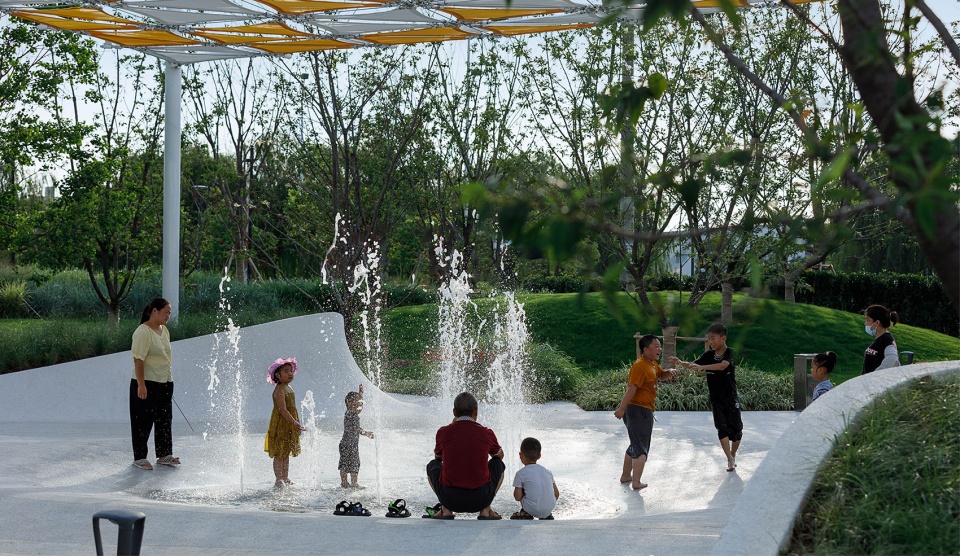

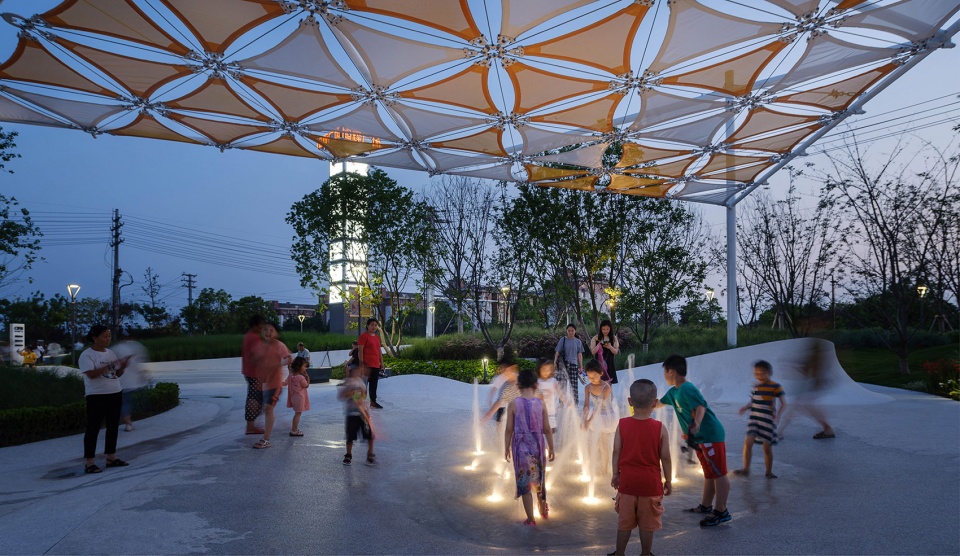

▼“森林飞毯”下的喷水池
the water installation covered by the “forest flying carpet” © 南西摄影

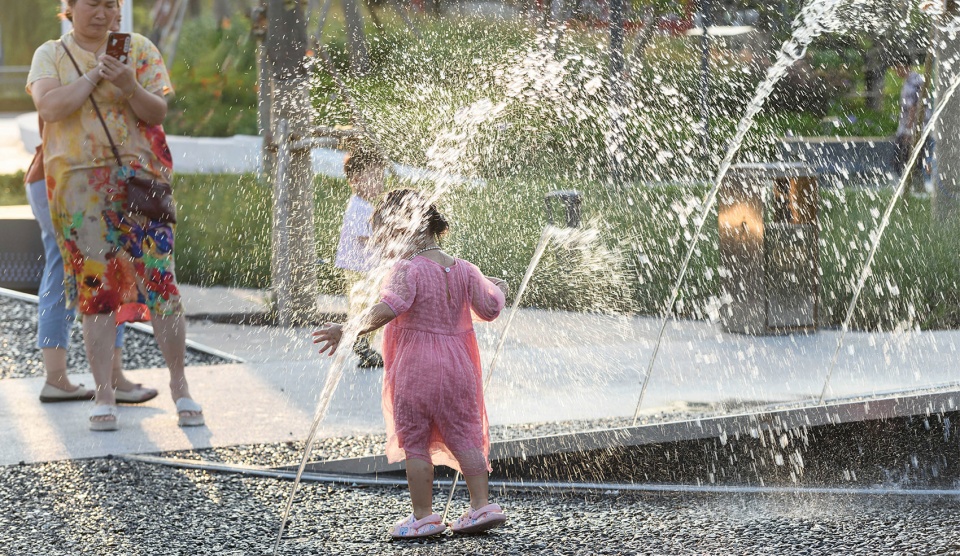

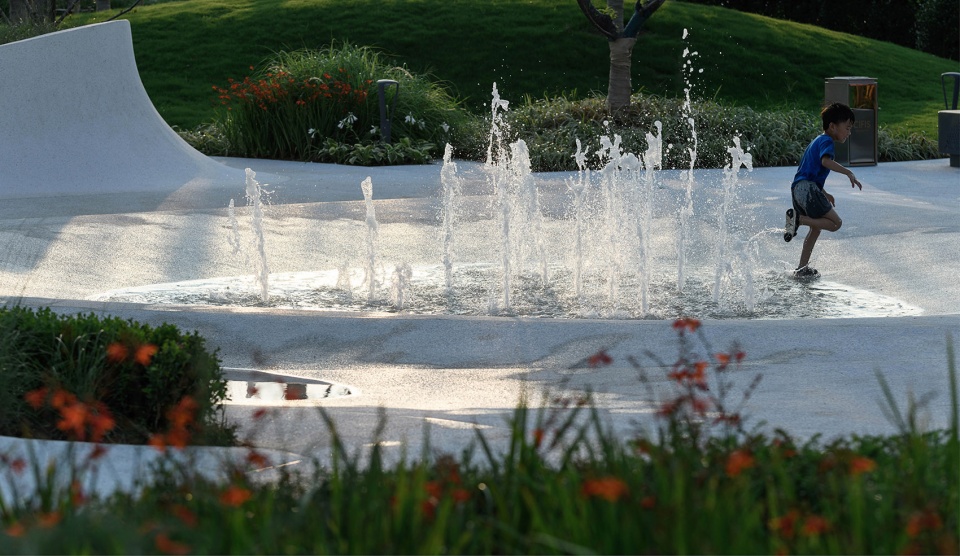

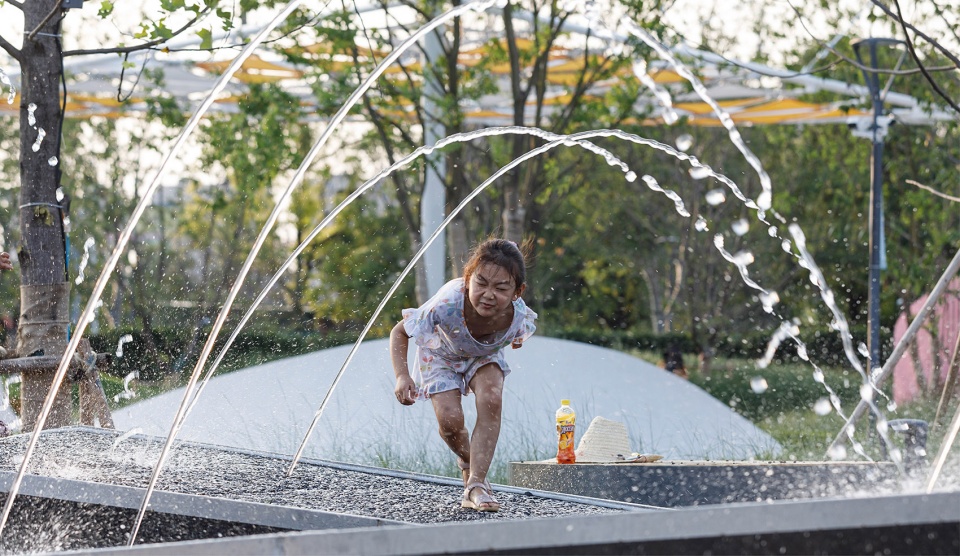

▼互动旱喷水景，the jet fountain © 南西摄影

休闲海洋拼图 | The Ocean Puzzle

再往前走，来到了属于休闲健身版块的——海洋拼图。这里，有家长带着小朋友们荡秋千，有三三两两的年轻人躺坐在椅子上闲聊，也有拉着吊环试图运动，最终还是决定玩手机的大叔。视线穿过树稍，还能隐约地看到孩子们在桥上奔跑的身影。

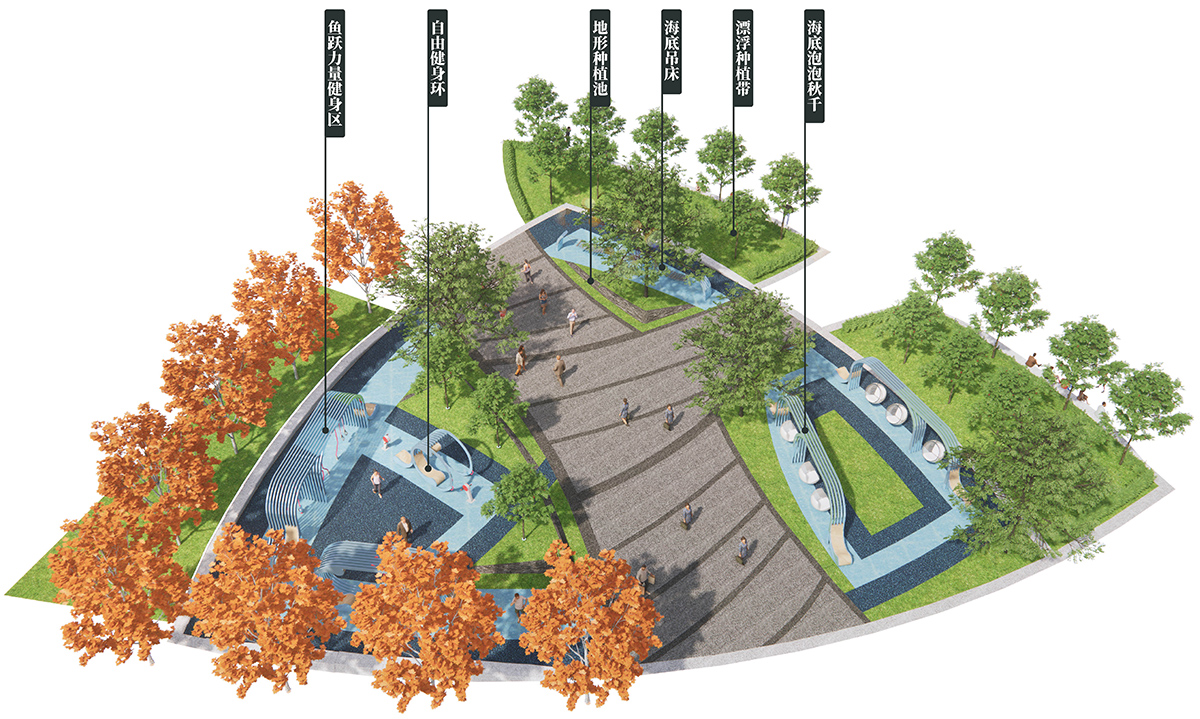

▼海洋拼图轴测，Ocean Puzzle axon © 大小景观

The Ocean Puzzle shows up as people walk deeper in the park. This is a casual outdoor gym, where children and parents play with the swing and swing chairs. Some older adults tempt to do some gym activities but end up with cell phone reading.

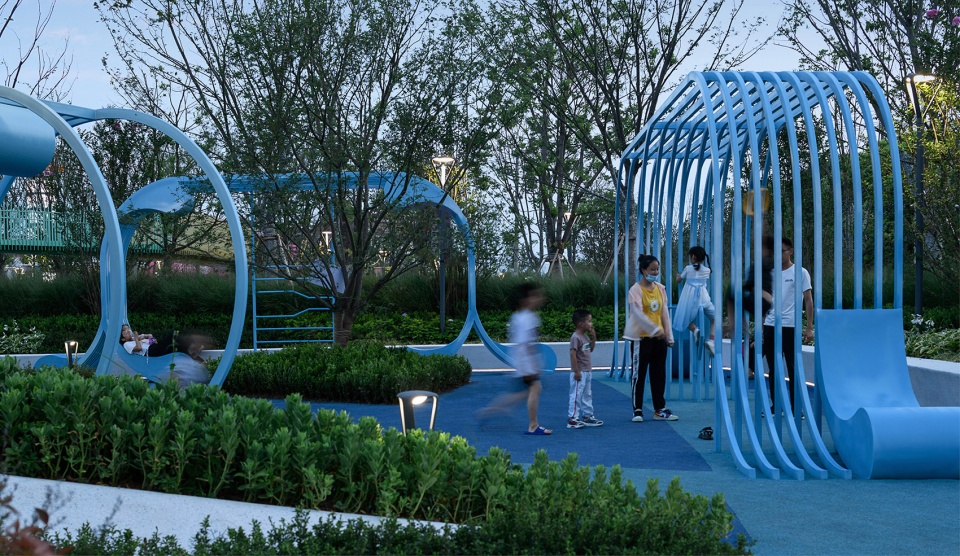

▼健身区，outdoor gym © 南西摄影

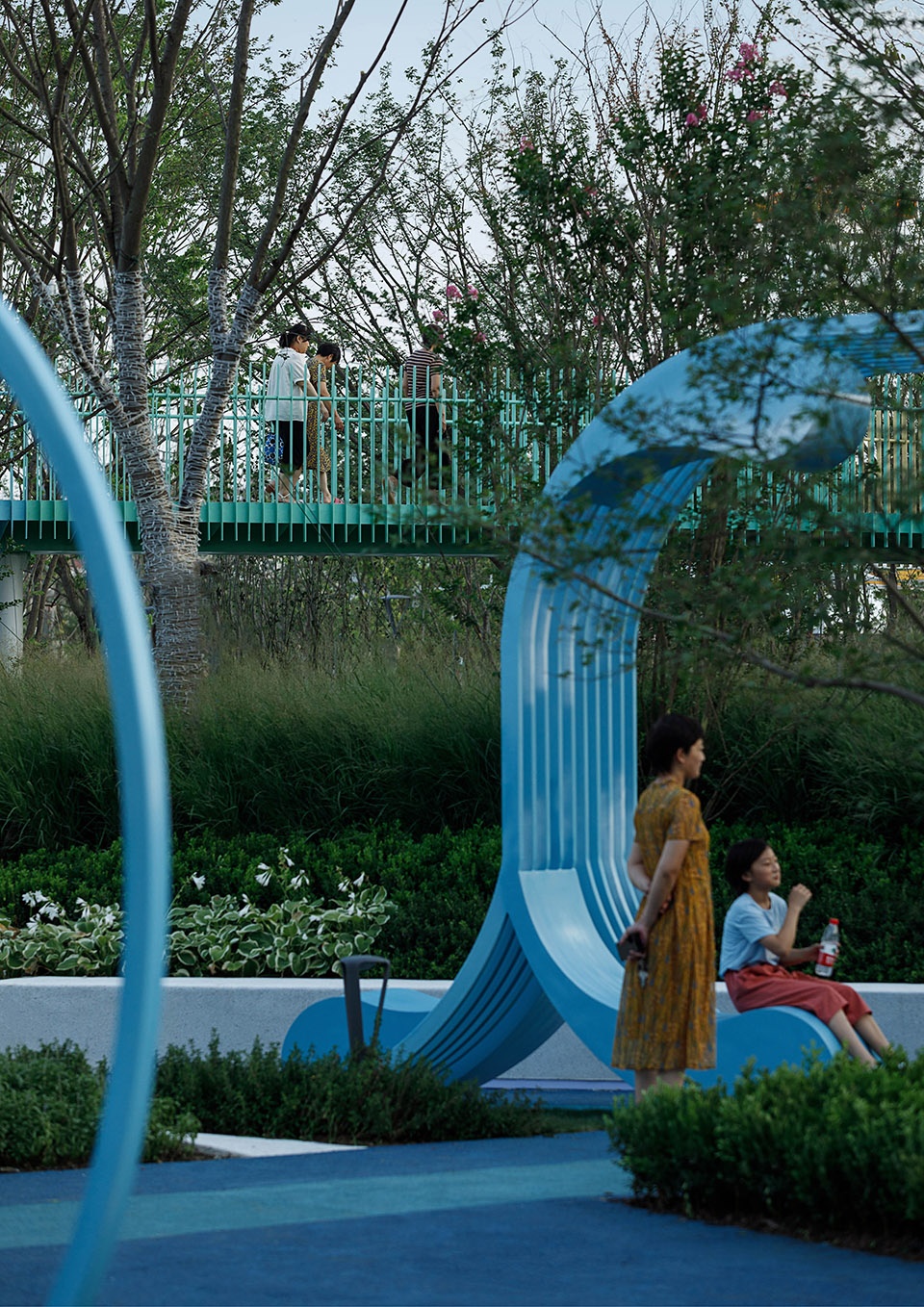

▼健身器械与桥
the gym facilities and the bridge © 南西摄影

展示花园拼图 | The Garden Puzzle

在公园的尽头，是商业街入口的开端——花园拼图，这是一个拥有大型数字水帘的活动剧场。当有活动举办时，人们都慢慢向此聚集，为商业带来了活力与人流。

At the north end of the park, is the beginning of the commercial street. A commercial plaza anchors this spot with a digital waterfall, which brings crowds for commercial activities.

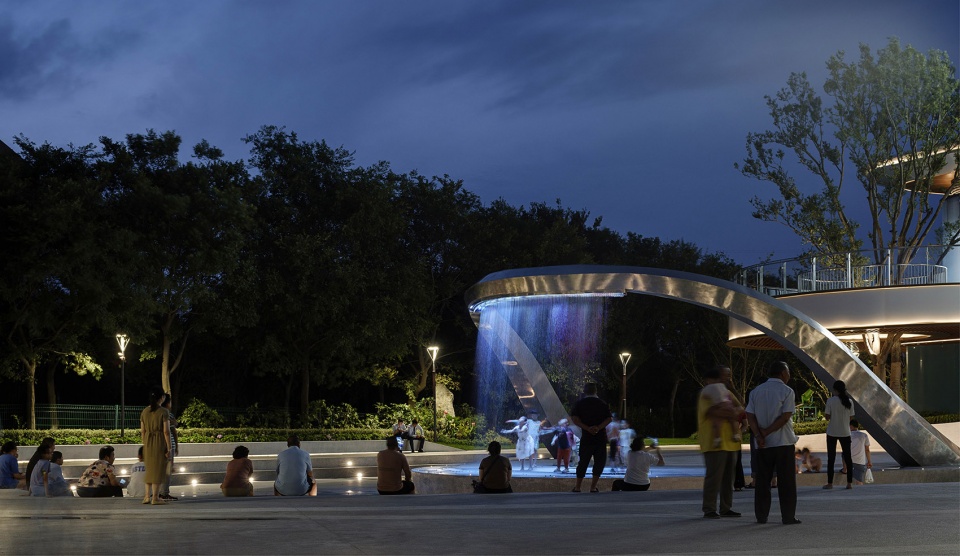

▼大型数字水帘，digital waterfall © 南西摄影

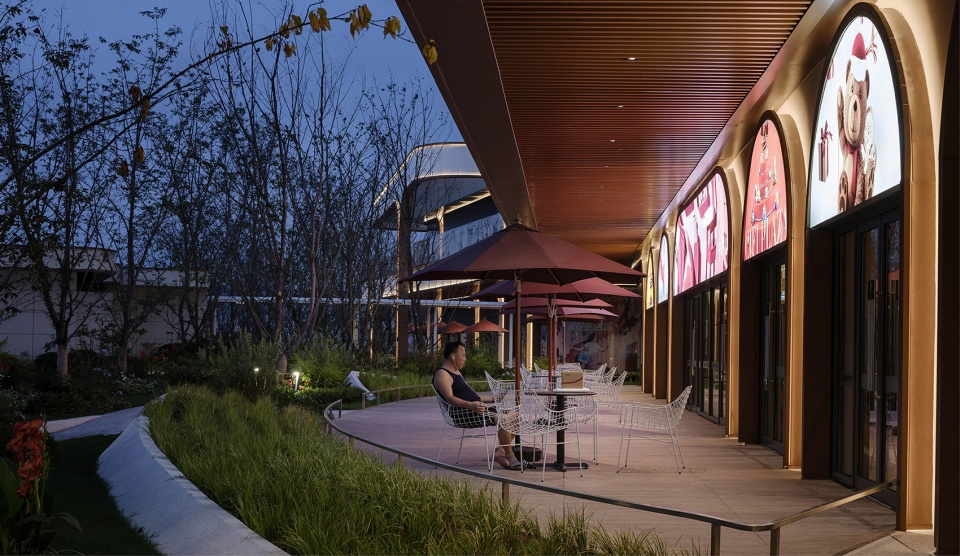

▼花园空间，garden area © 南西摄影

肆意的笑容 – 拼接情感
Wild Smile

在这里，不管什么年龄的人，都能找到属于自己的那份惬意与快乐。

孩子们在高达4米的大坡地上不知疲倦地爬着、奔跑着。或从光滑的水磨石滑坡上滑下，因下滑加速而张大嘴巴欢笑着。或在跳泉和水景旁，与夕阳下的水花一同游戏，即使全身湿透了也并不在意。或与小伙伴们一起，坐在高高的种植池壁上，在夏日的夜晚聊着属于小孩子们的秘密话题。

Everyone – no matter what age you are – finds his or her own happiness in the Puzzle Park.

Children climb, run and slide on the grand slope tirelessly, with big smile, especially when they slide down from the grand slope of 4-meter drop. Children can be found on the linear fountain too, with entire body wet without noticing. The planters are sculpted with seat space in different elevation, some children move up to the place where others can’t reach, chatting secretly.

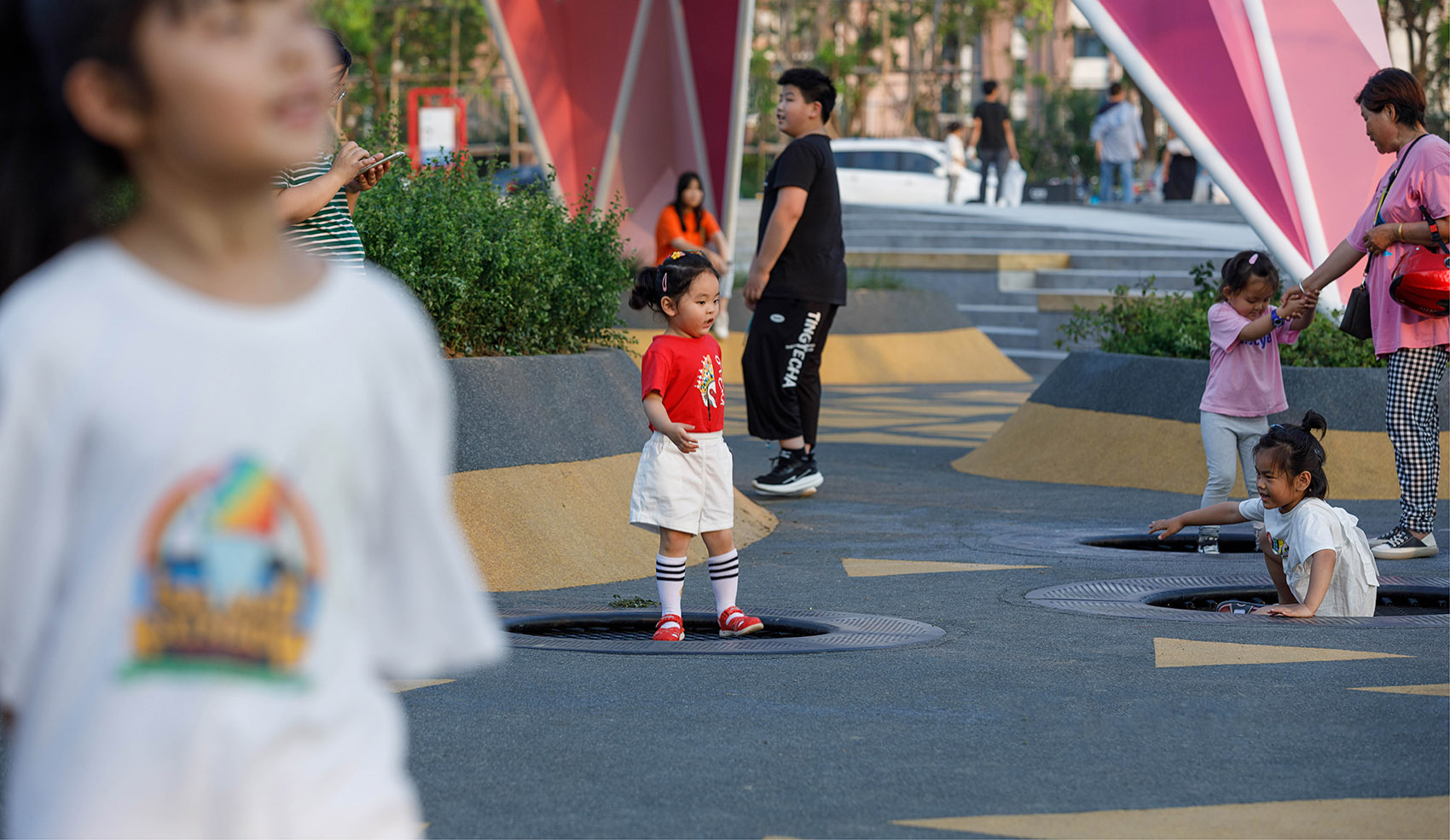

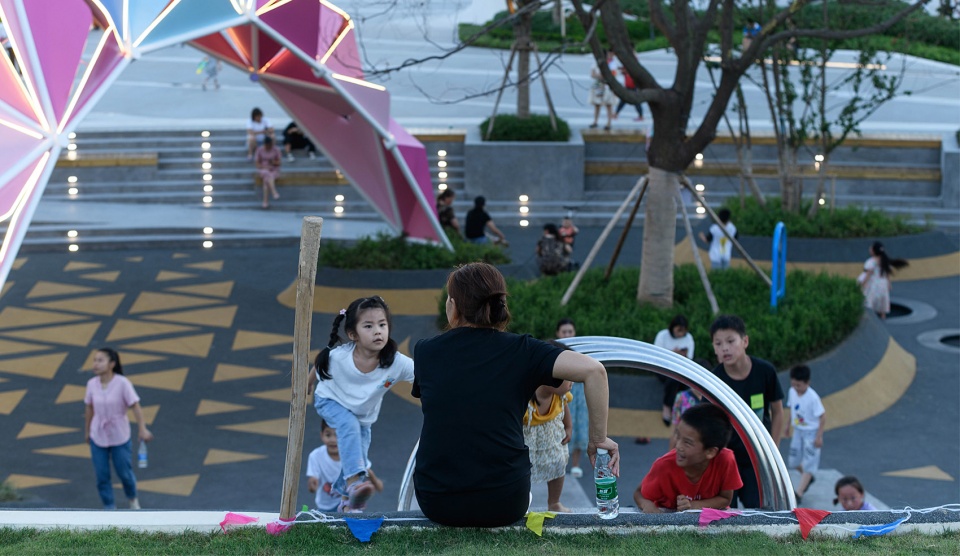

▼玩耍的孩子们
children are having fun in the park © 南西摄影

父母们坐在剧场台阶上，微笑着看孩子们撒欢儿。一些“童心派“家长，也会参与到孩子们的游戏当中，一起感受这座公园带来的恣意与快乐；一些“稳重派”家长，则静静地站在旁边观察与记录，给孩子提供无声温暖的陪伴。

老人们白天带着孙孩，闲适的在树下乘凉；晚上与老伙伴们一起，在公园的平地上跳着激情肆意的广场舞。他们悠然自得，或坐、或躺、或闲逛，嘴角微微上扬地浅笑着，享受着公园的舒适与惬意。

Parents sit along the seat terrace, watching their kids playing. Of course, some parents with a playful heart join their children, enjoying the beauty of the grand slope.

During daytime, seniors enjoy the shade while looking after their grandchildren under the trees. In the evening, they dance passionately with their old fellows. They feel so comfortable that smile is always on their faces.

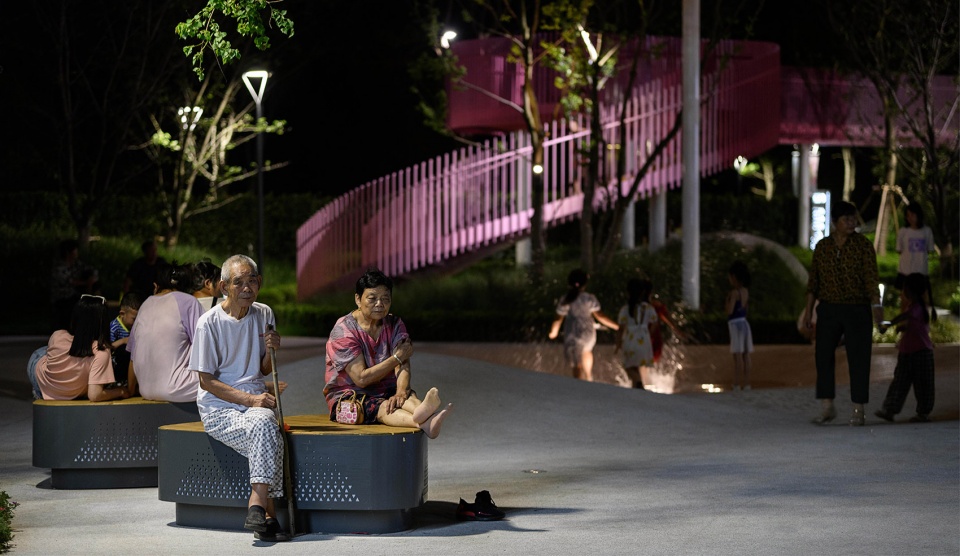

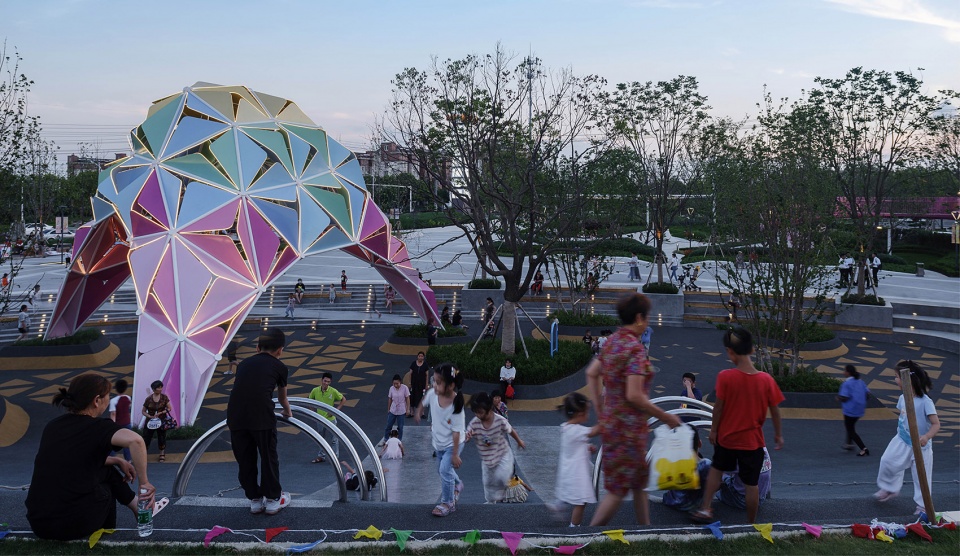

▼适合所有人的公园，a park for all © 南西摄影

年轻人在公园里嗅到了无限“商机”，将公园入口的林荫大道视作“自贸区”，从黄昏起开始“占座”，摆起了五花八门的地摊：服装摊、饮料摊、玩具摊等等、还有做套圈游戏的。当夜幕降临的时候，公园的人气为这些年轻商人带来了“好生意”，通过劳动“致富”的他们脸上洋溢着成就感满满的笑容。

Some younger generations smell the opportunity of business, using the promenade as a “free trade zone”. When sun starts falling, the young businessmen/businesswomen begin setting up their booths – clothes, drinks, toys and games. Obviously they are quite happy with what they gain from the crowds at night.

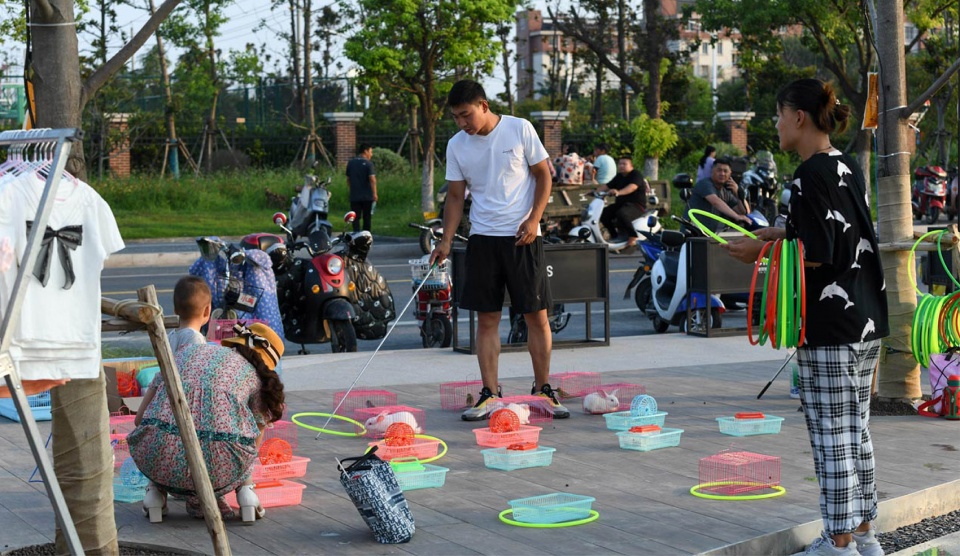

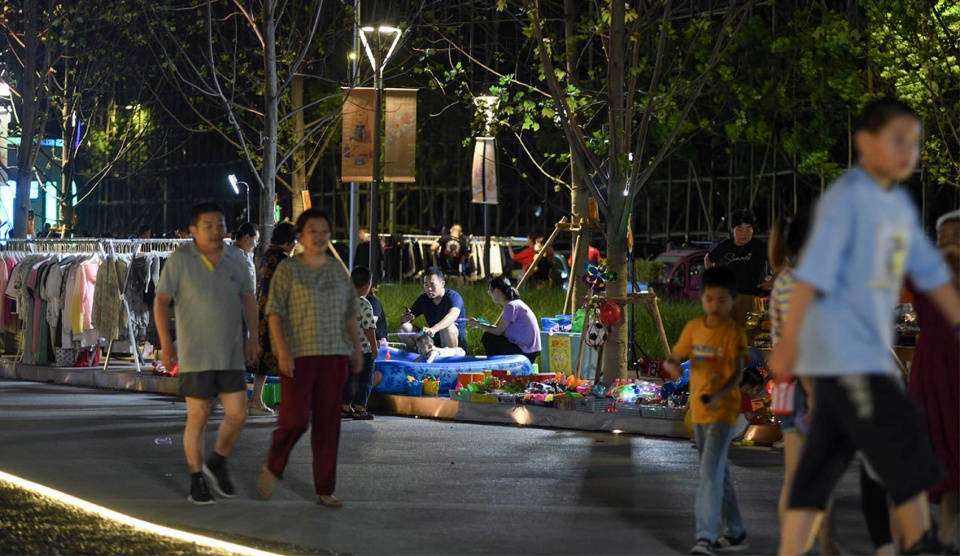

▼“自贸区”的地摊，the booths in the “free trade zone” © 南西摄影

拼图公园的诞生，拼接了城市与自然，弥补了周边城区公共空间的不足。它拼接了社区与生活，让人们在疲乏的工作、琐碎的家务、生活的压力中，找回对生活的观察与掌控。最重要的，它拼接了人与情感，让不同年龄的人，能够享受当下生活中这份平凡而珍稀的快乐。

The birth of Puzzle Park is a gift from a small city, it connects nature with city. Furthermore, the Puzzle Park brings vibrant life to the communities, people find more balanced life from heavy-duty work, trivial housekeeping job and pressure. Most importantly, the Puzzle Park brings joy to people, no matter what ages they are, people learn to enjoy the ordinary but rare happiness from their daily life.

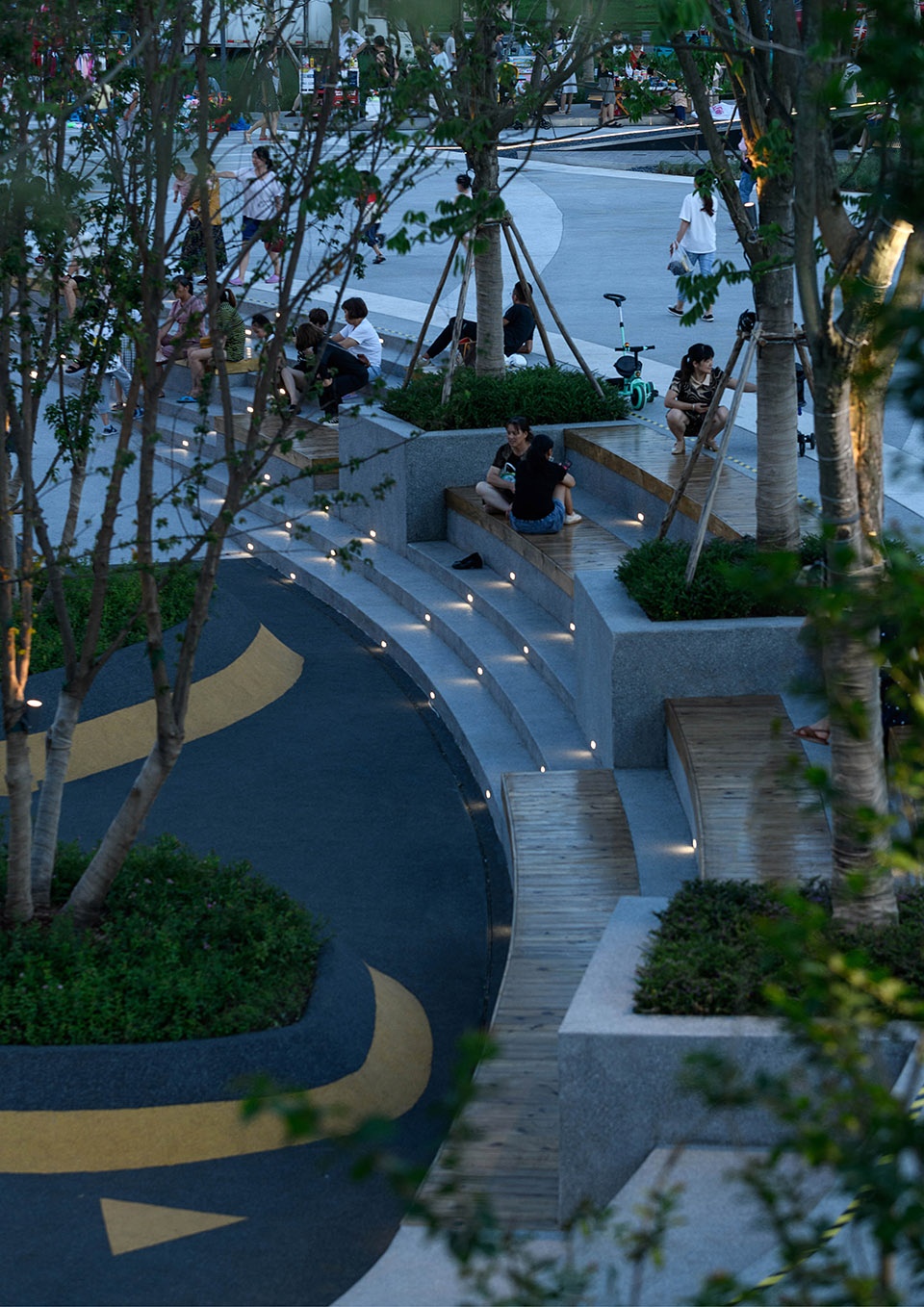

▼剧场台阶，the outdoor theatre © 南西摄影

设计名：拼图公园
项目名：淮安旭辉广场公园
地点：淮安，江苏
景观设计：大小景观
设计团队：钟惠城，叶婉璐，陈志华，颜琴，陈翔，叶星，许敏，林娟，王帆，宋妃敏
业主：旭辉集团
业主团队：熊湘桂，杨华，李华，胡华程
景观施工图设计：笛东规划设计（北京）股份有限公司，上海分公司
景观施工单位：苏州绿大地园林营造有限公司
装置设计与深化：大小营造
装置施工：南京德力体育用品有限公司
建筑规划设计：爱坤（上海）建筑设计有限公司
摄影：南西摄影

Design Name: Puzzle Park
Project Name: Huai’an Cifi Commercial Plaza
Project Location: Huai’an, Jiangsu
Landscape Design: Atelier Scale
Design Team: Huicheng Zhong, Wanlu Ye, Zhihua Chen, Qin Yan, Xiang Chen, Xing Ye, Min Xu, Juan Lin, Fan Wang, Feimin Song
Client: CIFI Group
Client Team: Xianggui Xiong, Hua Yang, Hua Li, Huacheng Hu
LDI (Local Design Institute): Ddon Planning And Design Co.,Ltd.
Construction Contractor: Suzhou Greenland Garden Construction Co., Ltd.
Installation Design：Atelier Scale Fabrication Lab
Installation Contractor: Nanjing Deli Sporting Goods Co., Ltd.
Architecture Design: Ai Kun (Shanghai) Architectural Design Co., Ltd.
Photo Credit: Nancy Studio
