感谢 深圳易加设计有限公司 对gooood的分享。更多请至：Eplus Group on gooood
Appreciation towards Eplus Group for providing the following descript

密度挑战
Chanllenge of Density

深圳是一个极高密度的新兴都市，却又是公园数量最多的一个城市。很大程度上得益于散落的山脉，提供了令人愉悦的绿肺。

宝安区是深圳人口密度最高的区，昔日的工业区正在快速成长为林立高楼。凤凰智谷项目临近大空港与107国道，项目本身的密度也非常惊人，项目总用地面积19,323m²，总建筑面积168,000㎡，容积率达到8.7，包括两栋办公塔楼、一栋公寓塔楼以及公交首末站和商业社区。

Shenzhen is a emerging city of very high-density, but it also has the largest number of parks. Much of it benefits from the scattered mountains, which provide pleasant green lungs.

Bao’an District is the most densely populated district in Shenzhen, and the former industrial area is rapidly growing into a large number of tall buildings. The Phoenix Intelligent Valley project is close to the airport and National Highway 107. The density of the project itself is also amazing. The total site area of the project is 19,323 m², GFA is 168,000 m², and the FAR reaches 8.7. It includes two office towers, an apartment tower, a bus terminal and a retail podium.

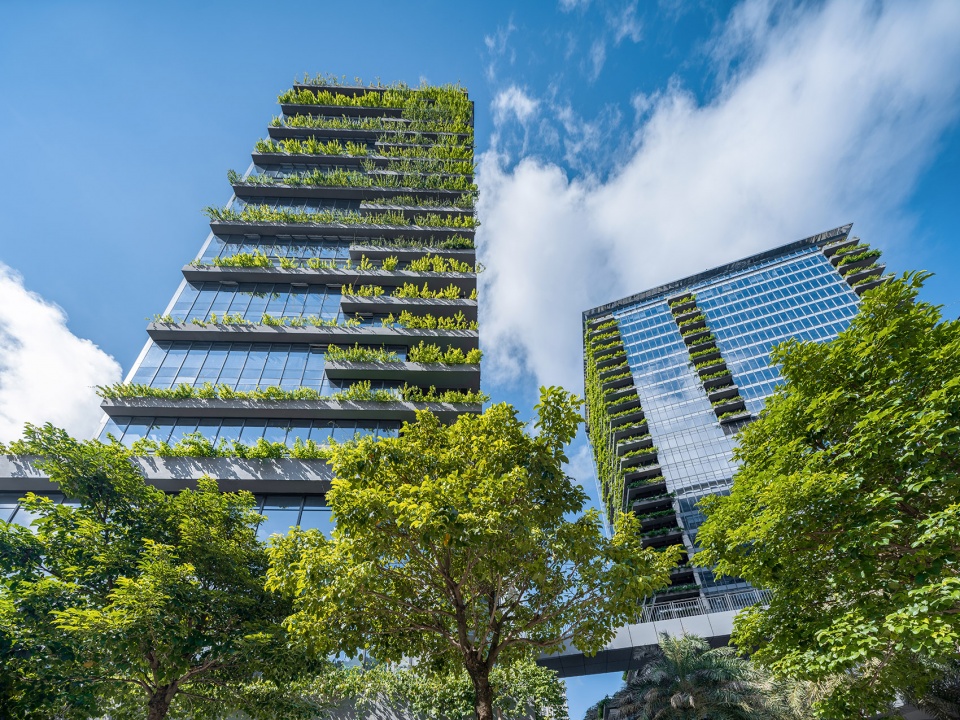

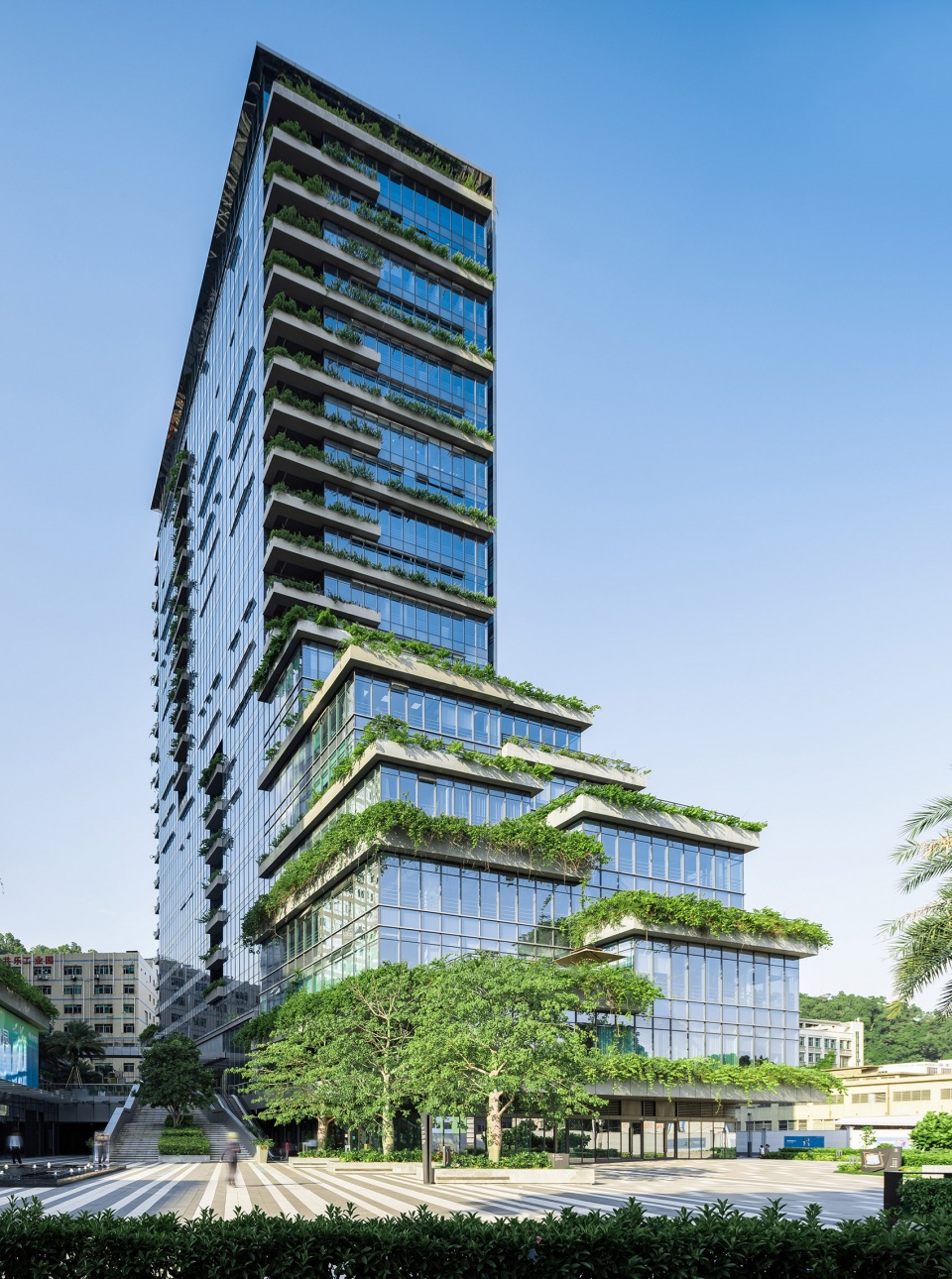

▼塔楼仰视，Tower building © ACF域图视觉

项目毗邻铁仔山山野公园。这样庞大的的体量，狭小的用地，在密集都市的包围下，怎样才延续铁仔山宝贵的景观资源，为城市引入生态与活力？
这样高容积率的产业园区，怎样才能获得舒适的品质和增加的价值？
在业主非常有限的预算及标准化的材料选择下，如何体现与众不同的独特气质？

The project is adjacent to Tiezaishan Mountain Park. With such a large volume and small land, surrounded by dense cities, how can we continue the precious landscape resources of Tiezai Mountain and introduce nature and vitality into the city? How can such a high-density business campus obtain comfortable quality and added value? With the owner’s very limited budget and standardized material selection, how to reflect the unique identity?

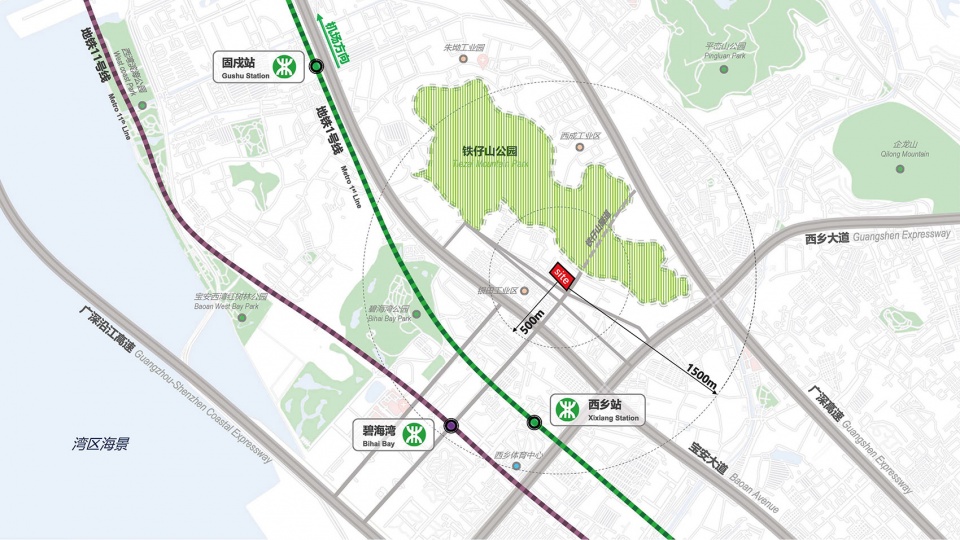

▼项目位于大空港，毗邻铁仔山，远眺珠江口
The project is located in the airport area,adjacent to Tiezai Mountain,overlooking the Pearl River Estuary © UV独特视野

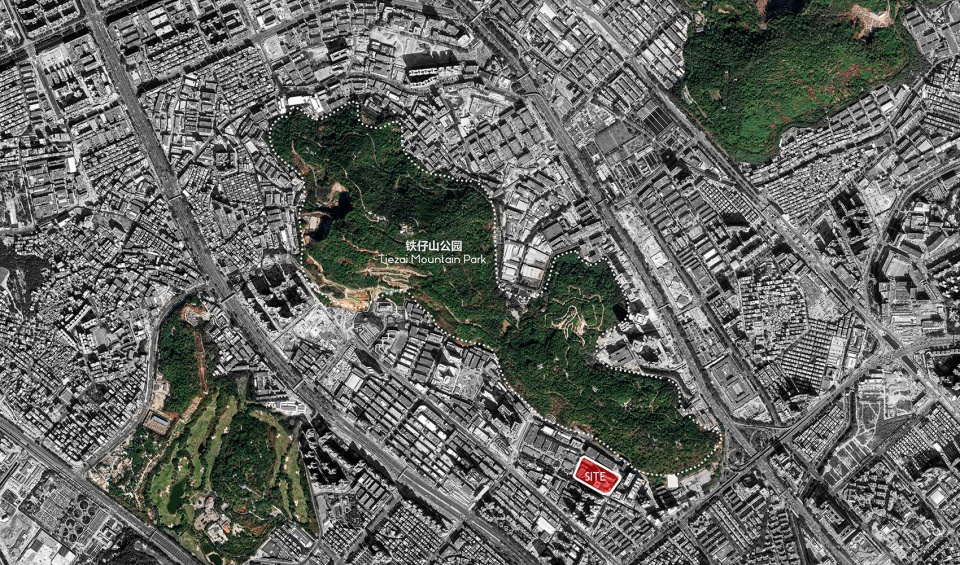

▼被城市包围的铁仔山公园，Tiezai Mountain Park surrounded by the city

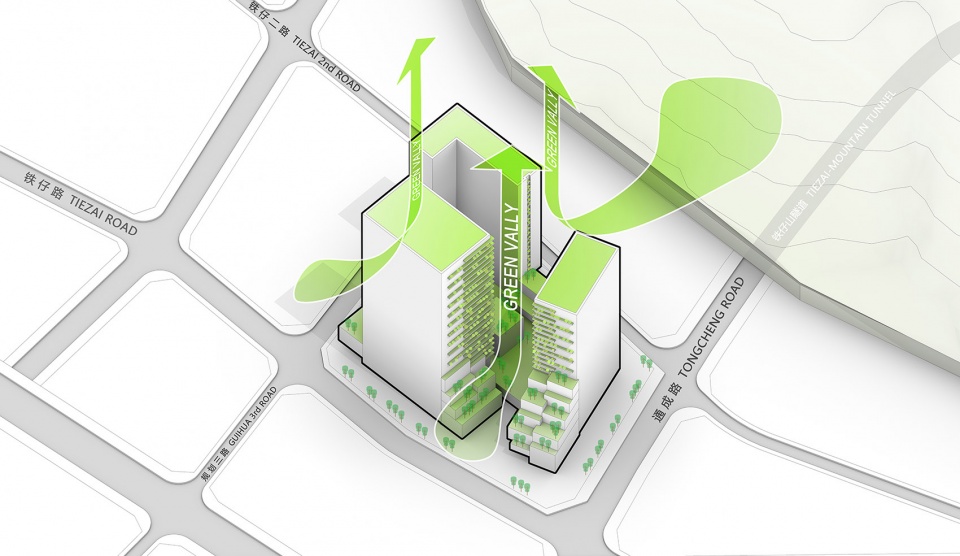

设计概念：城中山，山中谷
Design Concept: Mountain in the city, valley in the mountain

两栋办公与一栋公寓形成三足鼎立的格局，立面和层层退台郁郁葱葱，仿佛一座生气盎然的绿色山谷，凸显低碳生活方式。

Two office buildings and one apartment building form a Trio. The lush facades and terraces form a vibrant green valley, highlighting the low-carbon lifestyle.

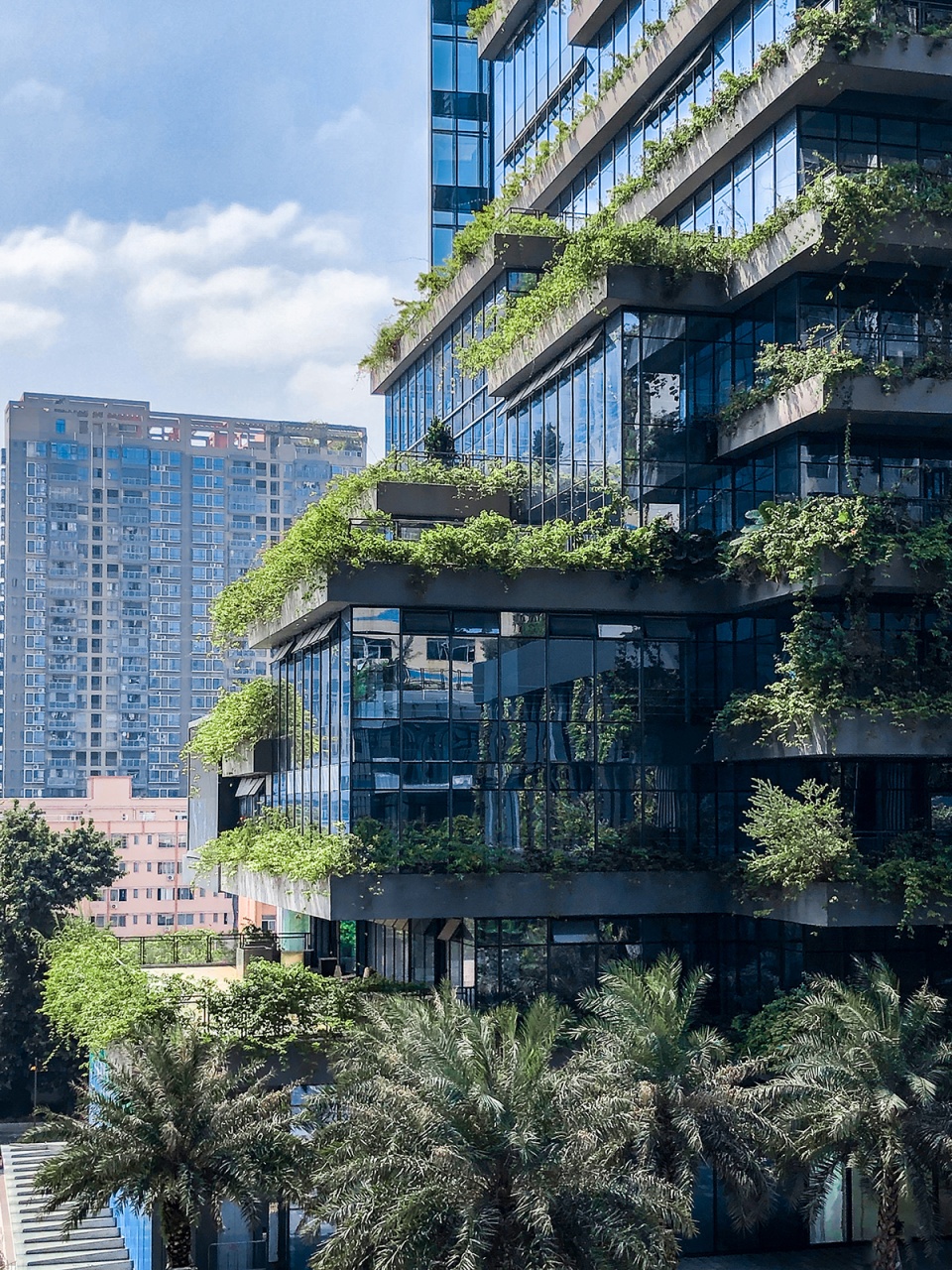

▼令人愉悦的绿色山谷，A pleasant green valley

建筑体量围绕内院，在街角打开，谦虚地退让，获得最佳视线与通风，并引入绿化和人流。

The volume of the building surrounds the inner courtyard, open to the street corner, obtains the best view and ventilation, and introduces greenery and pedestrian flow.

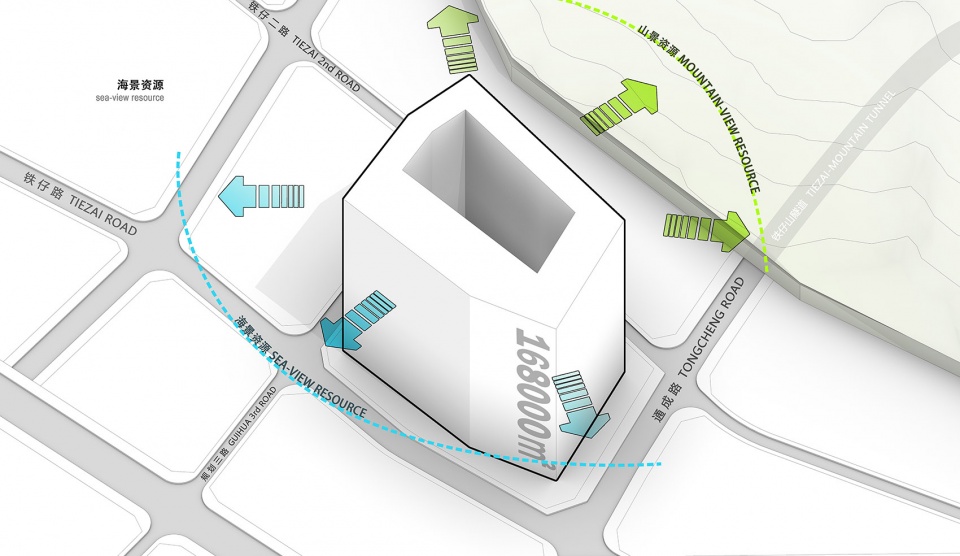

▼周边布局，最大化山海景观
Maximize mountain and ocean view © UV独特视野

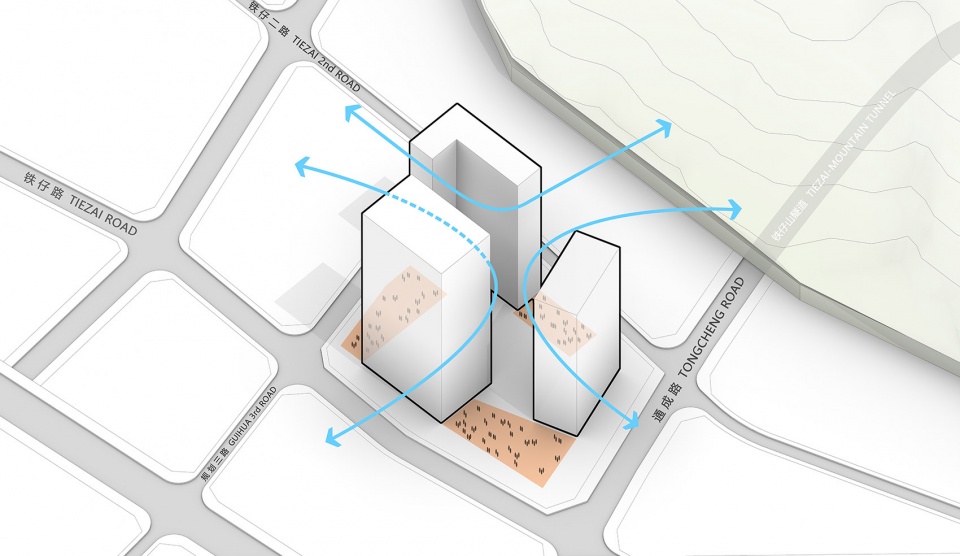

▼打开角部，引入通风和人流，Introducing ventilation and pedestrian © UV独特视野

▼街道层扩大，退台叠加，让绿色渗透
Introducing terraces for greenery © UV独特视野

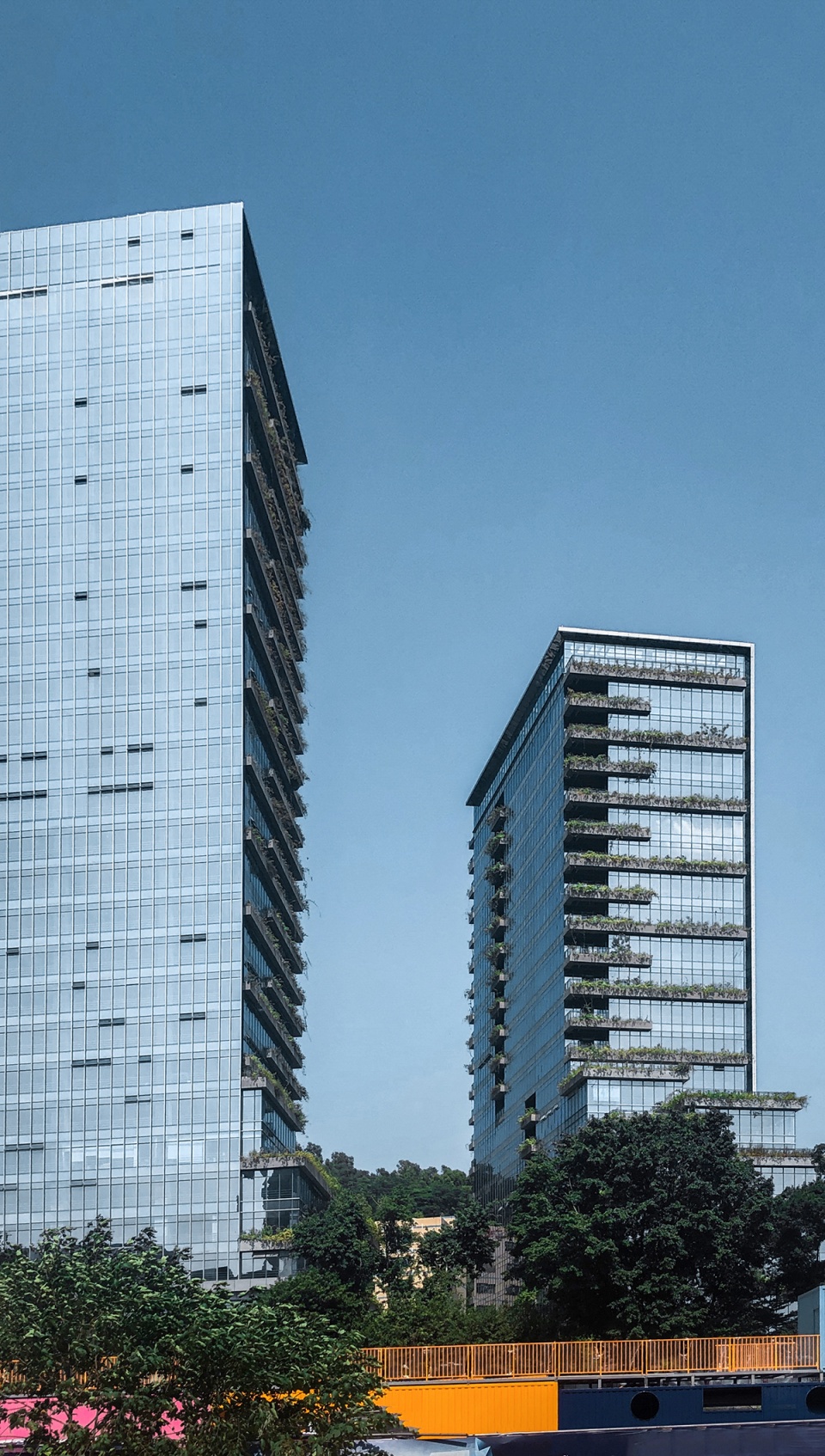

▼从城市远眺，干净挺拔的外立面形成昭示性地标
Clean and upright façade stand out as landmark ©李甫

▼园区主入口，Main entrance of the campus © ACF域图视觉

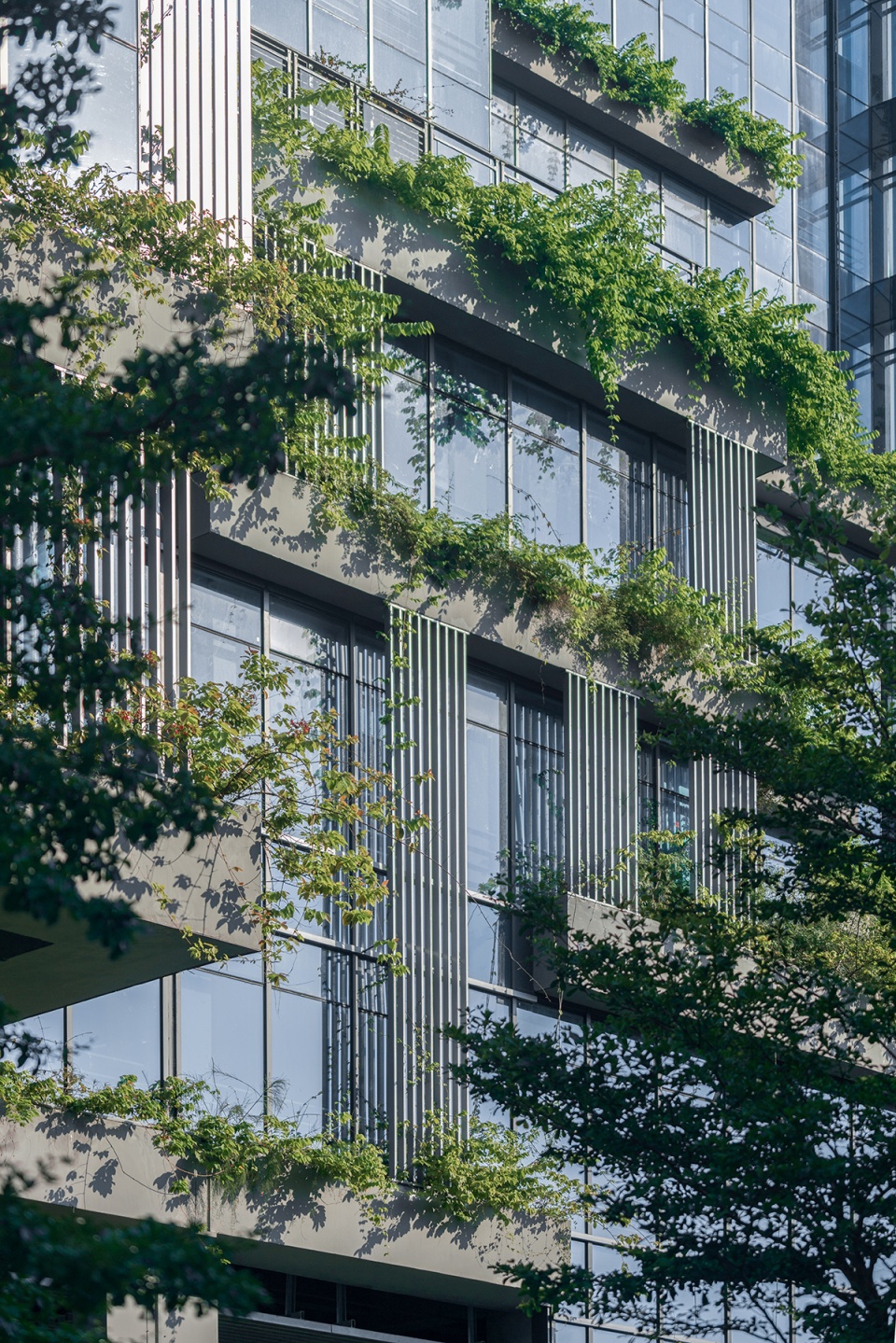

▼四季的枯荣，带来建筑质感变化
Seasonal changes of the façade texture © ACF域图视觉

▼隐蔽在基座平台下方的公交站场和后勤设施
Concealed bus terminal and logistics facilities under the base platform © ACF域图视觉

复合的街道界面
Street Interfaces

方案将底层面积尽量加大，形成街道层的内外商业街。营造连续的骑楼空间，强化街道界面的亲和力。提升首层商业价值。

The project increase the ground floor area as much as possible to form an internal and external commercial street on the street level. Create a continuous arcade space and strengthen the affinity of the street interface, which enhance the first-tier commercial value.

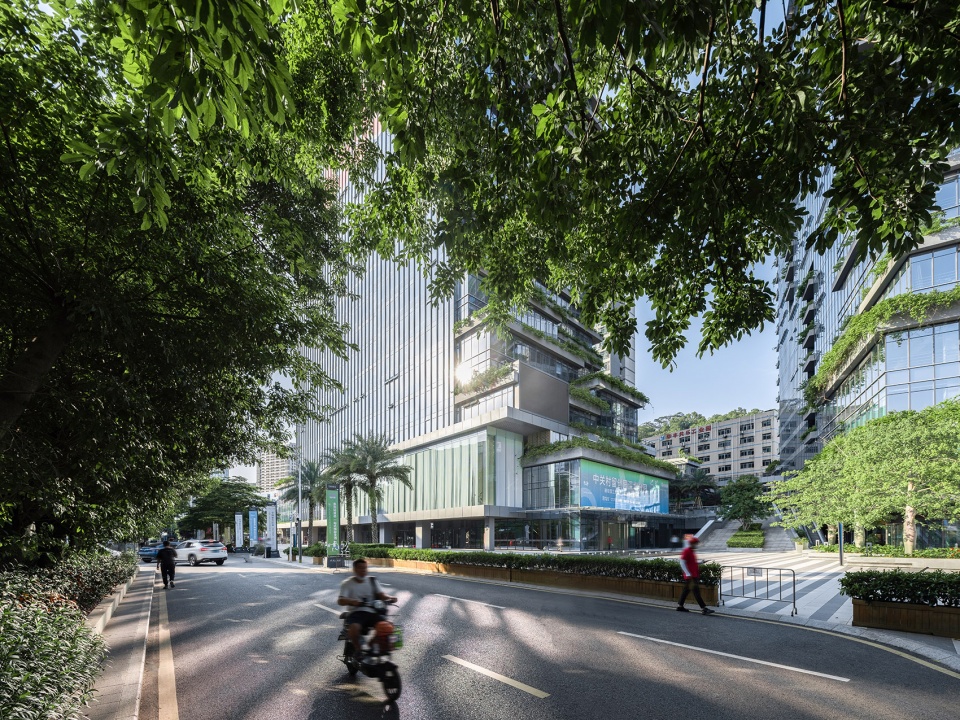

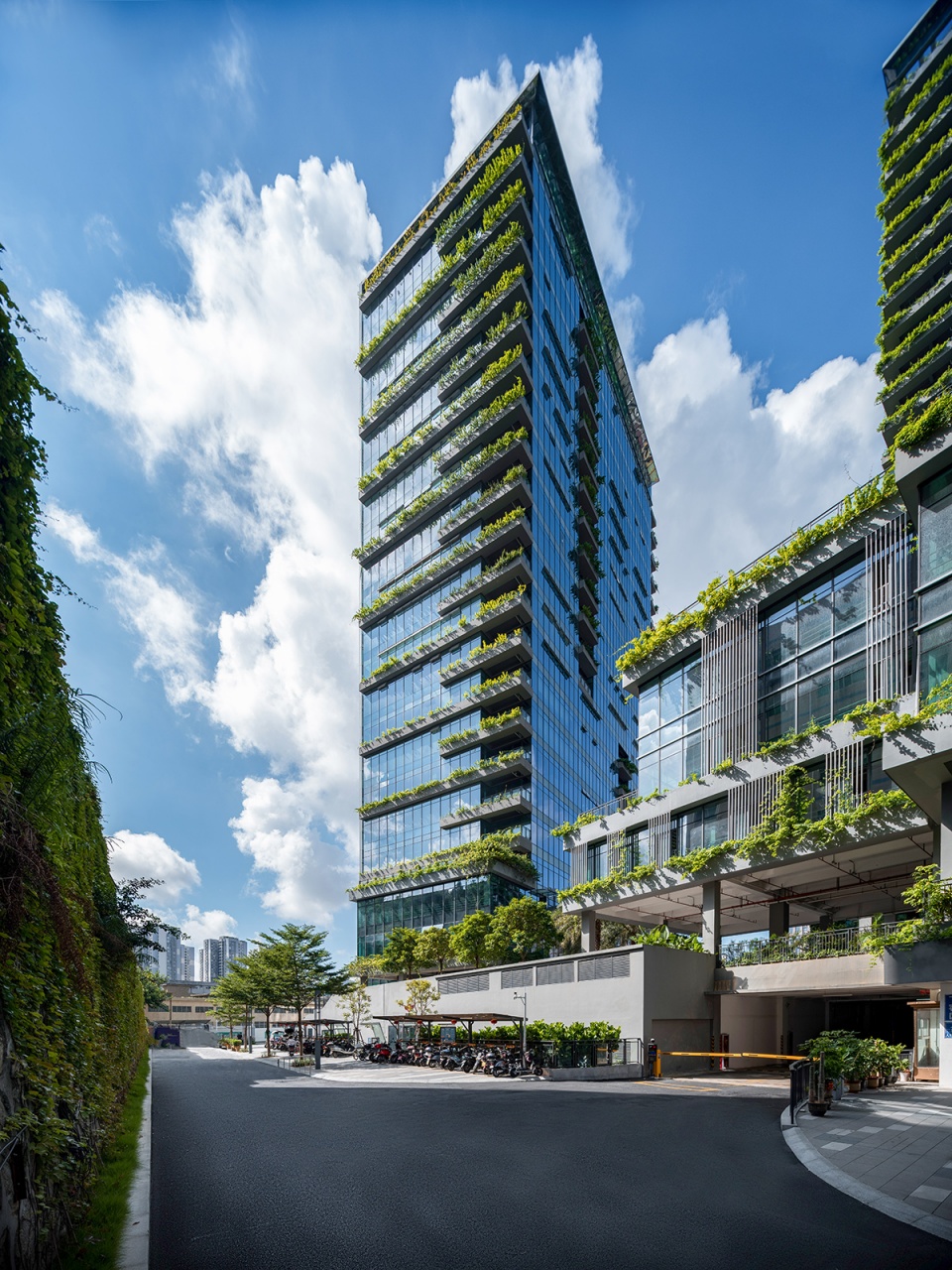

▼从铁仔路看主入口，融入南方绿荫的街道，Main entrance from Tiezai Road, it blends into the southern green streets © ACF域图视觉

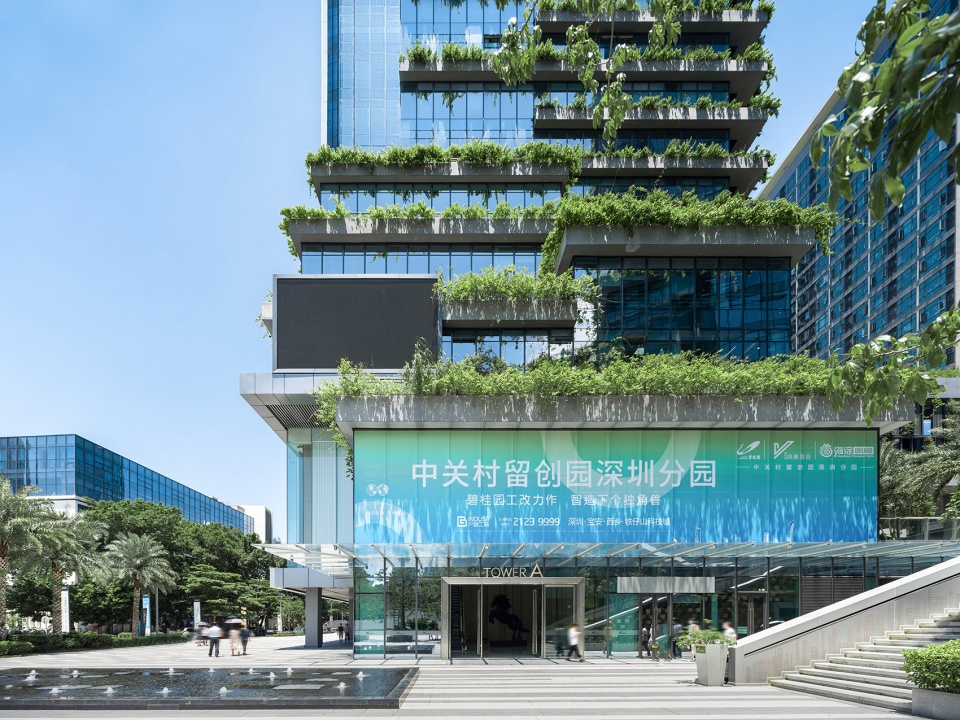

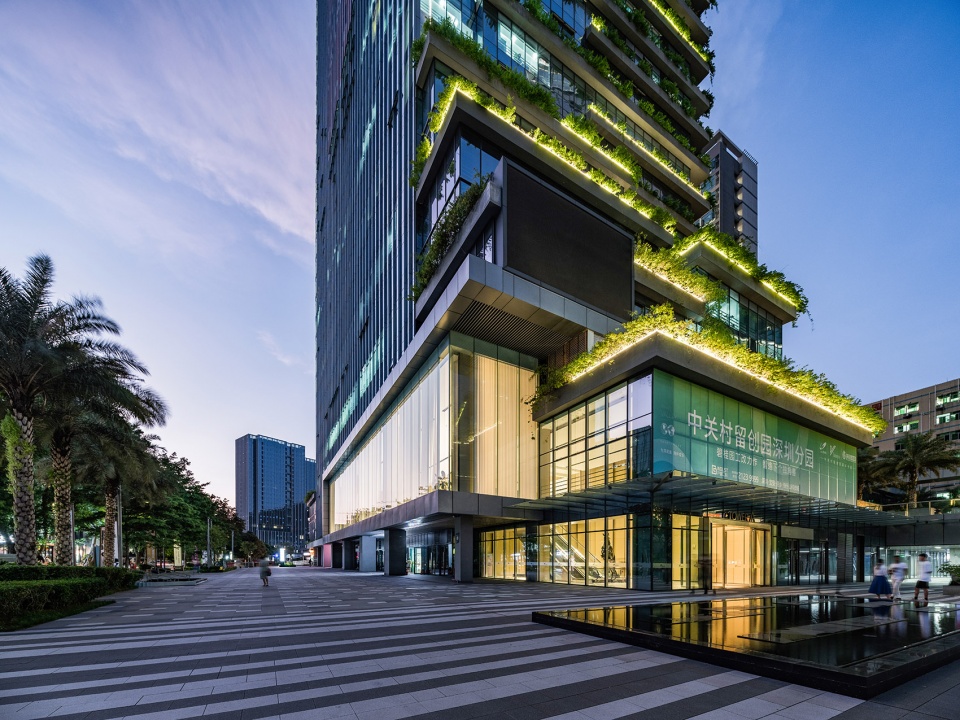

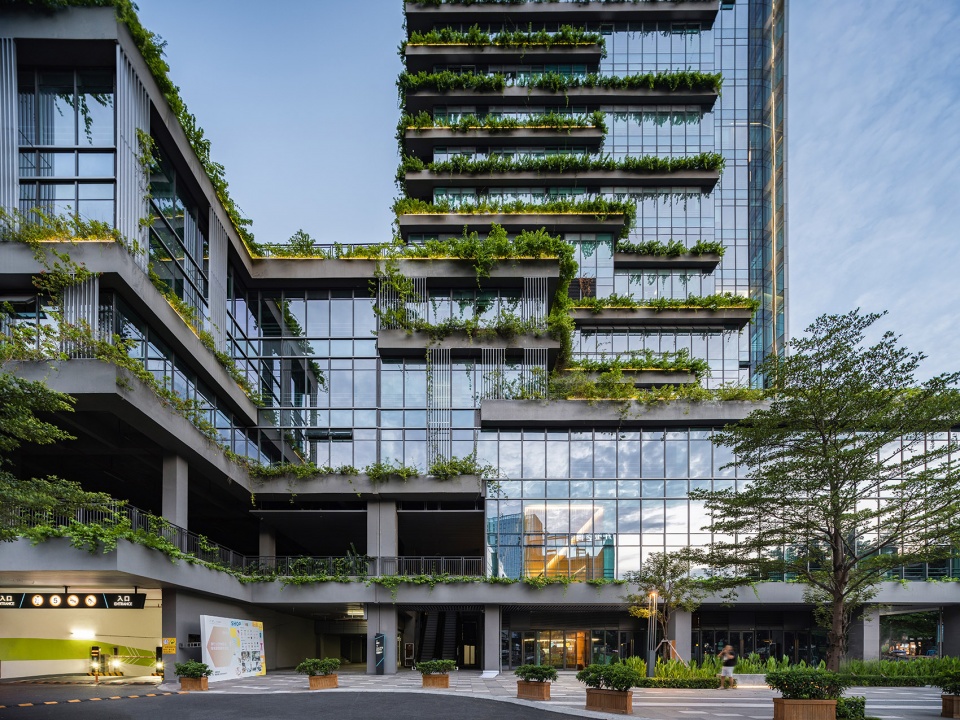

▼塔楼A街道层入口，Entrance to the street level of Tower A © ACF域图视觉

▼漂浮的塔楼入口大堂，Floating Tower Entrance Lobby © ACF域图视觉

▼街道层的商业骑楼和二层的会议中心，The commercial arcade on the street level and the conference center on the second floor © ACF域图视觉

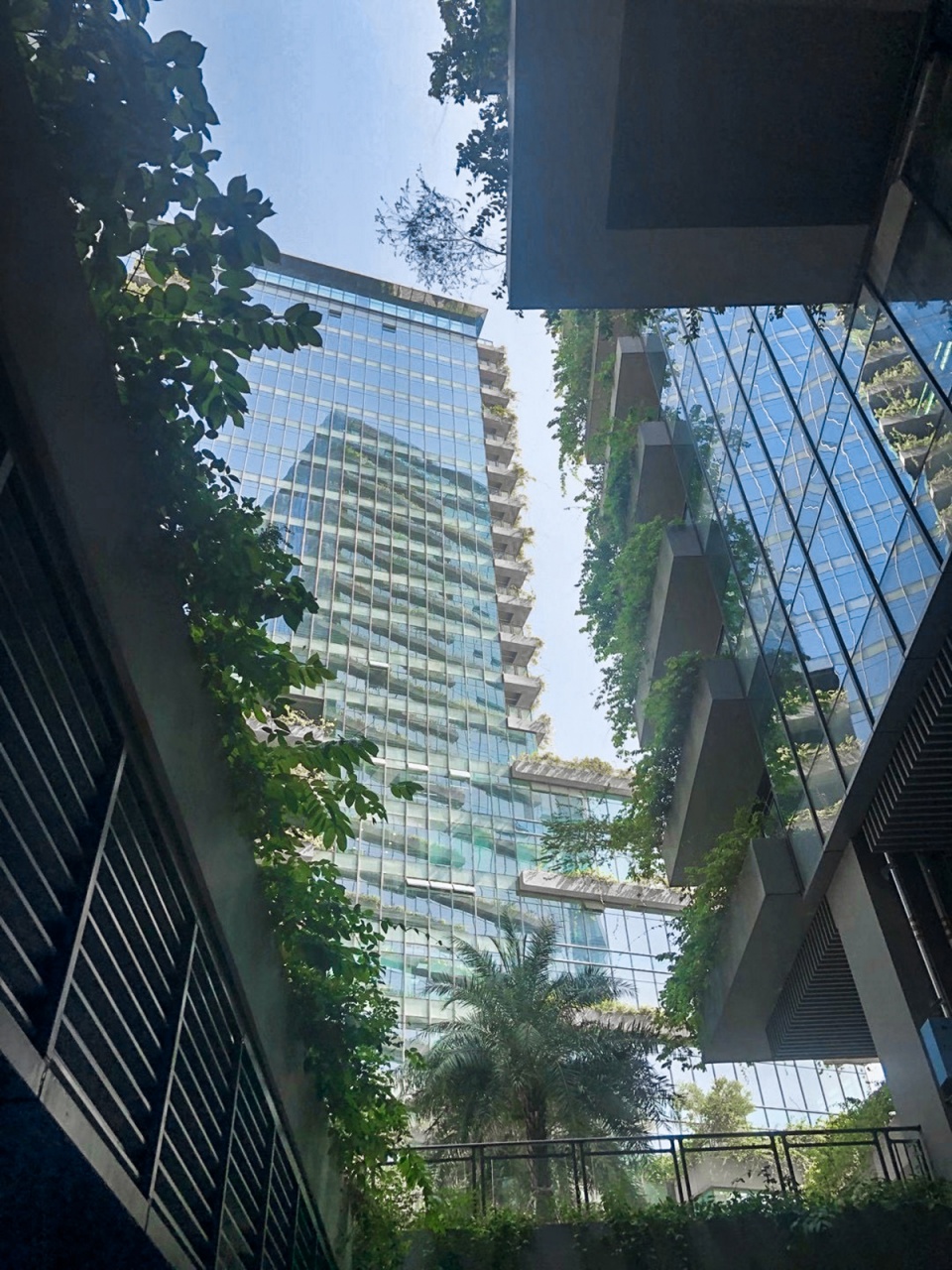

▼从内街仰望塔楼，Looking up at the tower from the inner street © 李甫

堆叠的裙房露台
Stacked podium terraces

利用公交首末站的屋顶形成二层平台。景观台阶与自动扶梯将人流带到这里，两栋写字楼的大堂在这里汇聚。共享会议设施，高大的架空层提供了企业展览展示的开放活动空间。公寓入口则闹中取静，形成工作居住咸宜的24小时活力社区。

The roof of the bus terminal forms a second-level platform. Landscape steps and escalators bring the flow of pedestrian to the lobbies of the two office buildings. They share meeting facilities, tall overhead floors, which provide open spaces for corporate exhibitions and community events. The entrance of the apartment located in a private corner. It creates a 24-hour vibrant community suitable for work and living.

▼裙房盒子的堆叠，Stacking of podium boxes © ACF域图视觉

▼内院的架空层遮阳避雨，提供各种活动的可能性，The overhead layer of the inner courtyard provides various possibilities for activities © ACF域图视觉

由二层朝上，利用裙房的灰空间和退台，尽量扩大个性化办公空间的数量，形成差异化的办公产品，这些办公盒子也可以灵活转化为特色商业空间。从而提升低楼层办公空间的价值。

From the second floor up, the gray space and setback of the podium maximize the number of personalized office spaces on the lower floors, and offer different office products. These office boxes can also be flexibly transformed into characteristic commercial spaces.

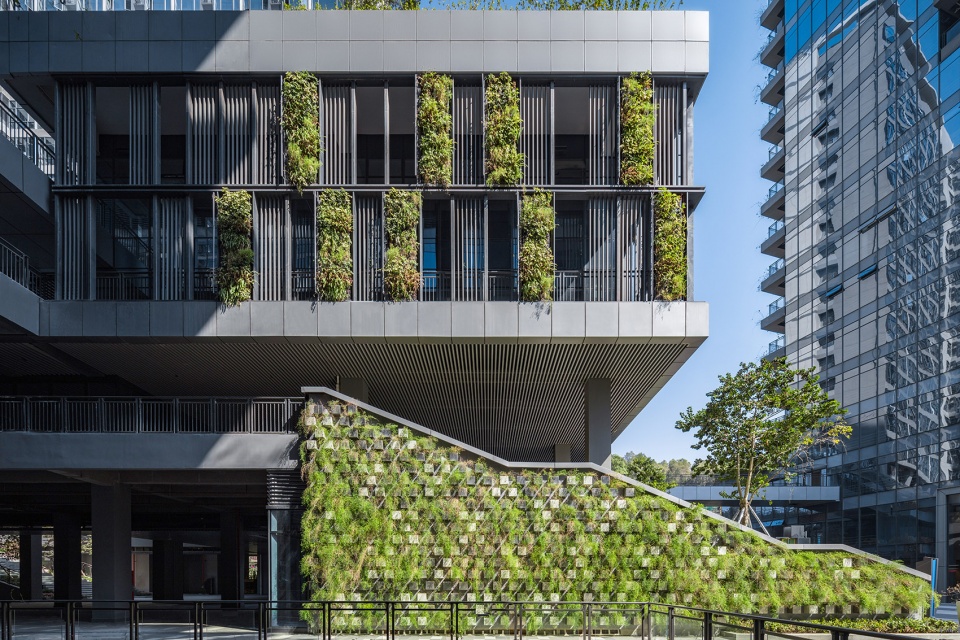

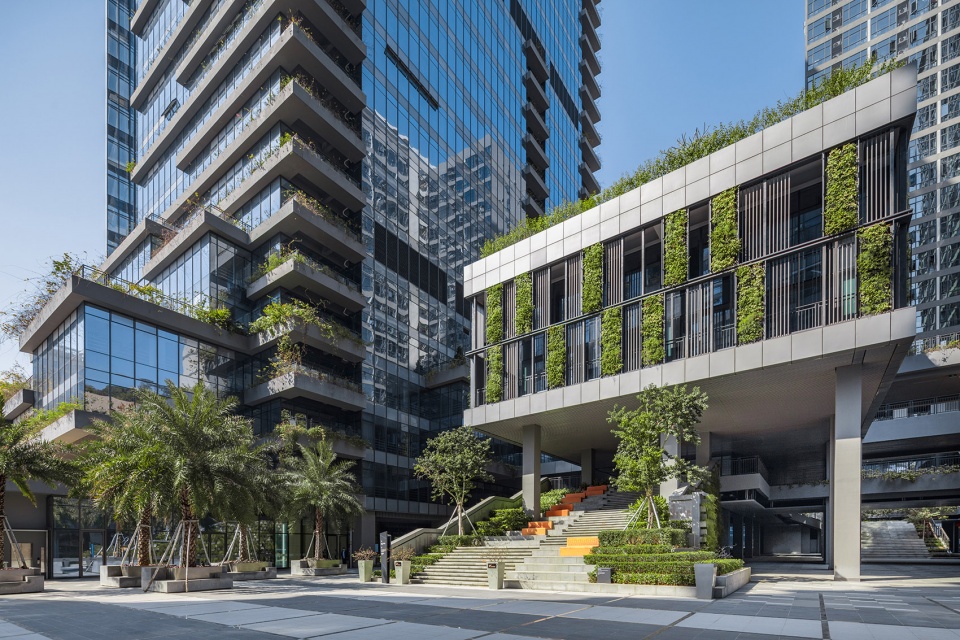

▼绿化墙面覆盖的办公/商业盒子，Office and commercial boxes covered by green walls © ACF域图视觉

裙房的玻璃盒子体量相互搭接，形成个性化而且富有吸引力的独立办公空间。盒子的错动形成大小各异的私享露台或公共花园，让绿色向上延伸。

The glass boxes of the podium overlap each other to form a personalized and attractive independent office space. The movement of the boxes forms private terraces or public gardens of various sizes, allowing the green to extend upward.

▼城市中心的绿色山谷，Green valley in the center of the city © 李甫

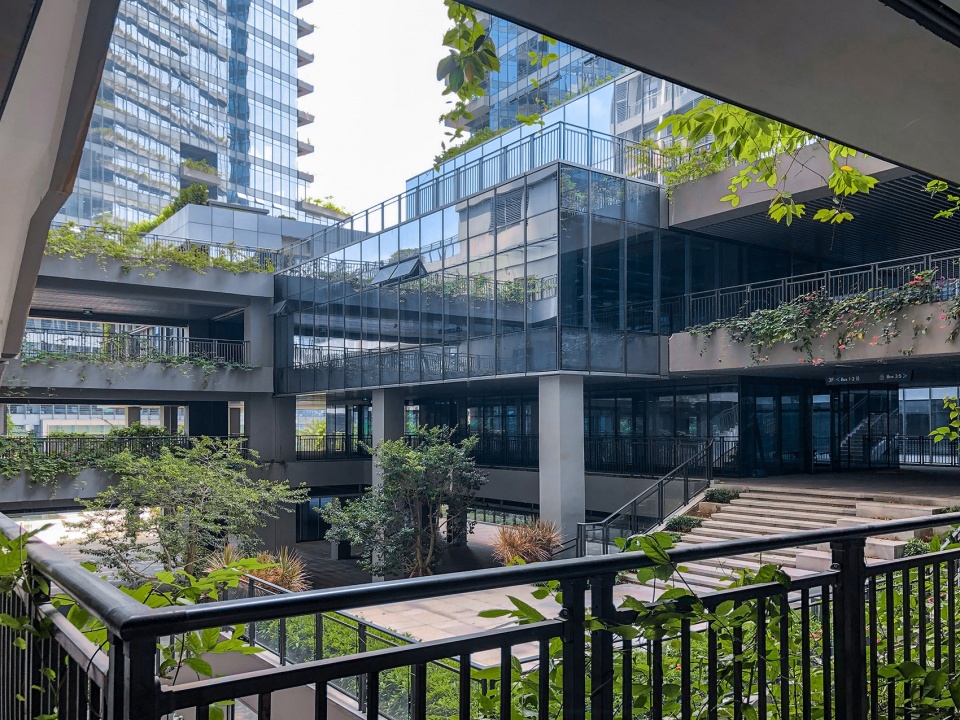

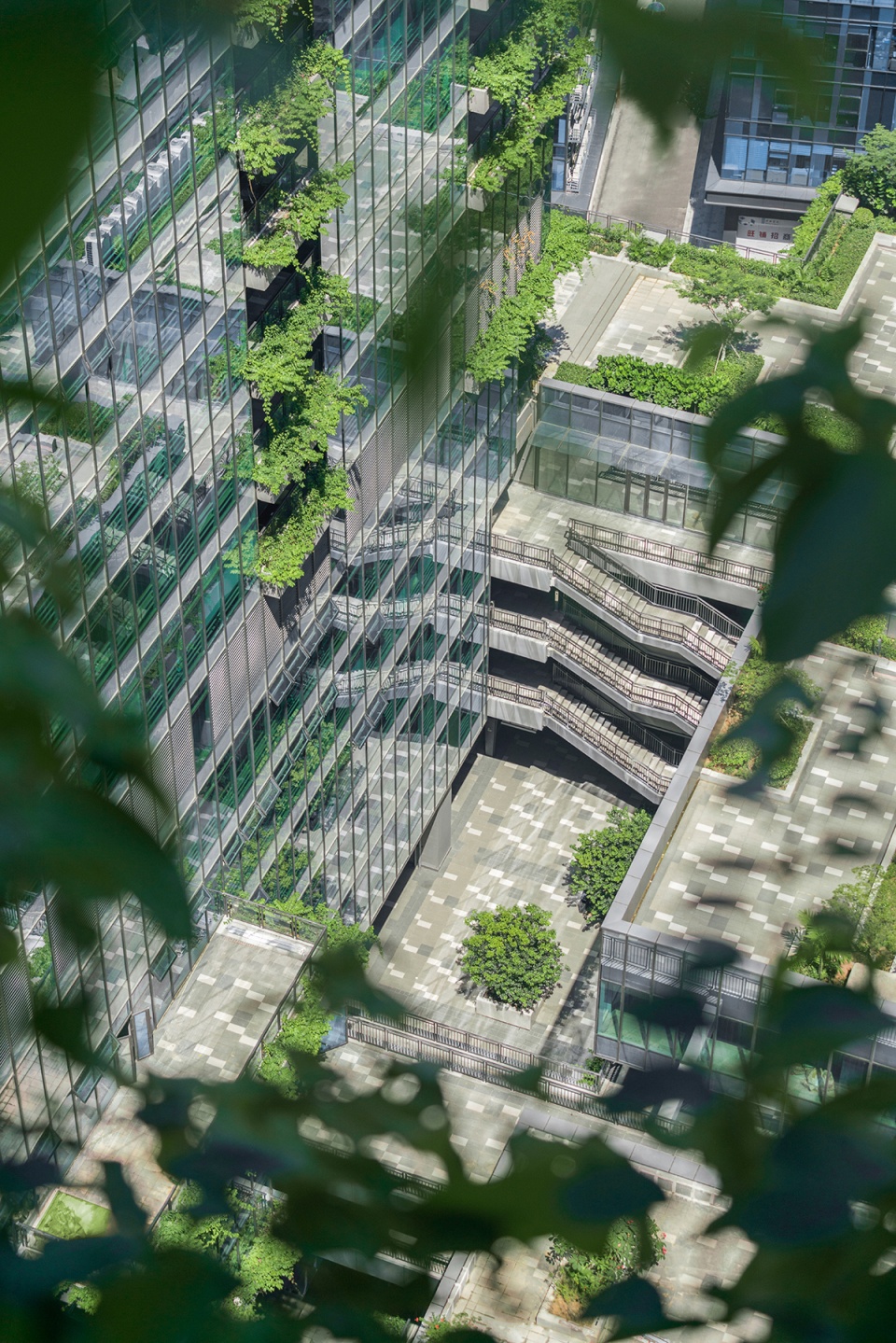

▼从办公室俯瞰内院, View of the inner courtyard from the office tower © ACF域图视觉

公共架空与连廊，形成遮阳避雨，而通风采光的公共空间，充分凸显南方特色。连廊体系围绕中庭展开，通过开放的楼梯台阶联系，成为社区交流的核心。

Public overheads and corridors form shading and rain protection, while the ventilated and lighted public space fully highlights the southern characteristics. The corridor system is developed around the atrium, connected through open stairs and steps, and becomes the core of community communication.

▼由连廊与台阶串联的中庭商业/办公盒子, Atrium commercial and office boxes connected by corridors and steps ©李甫

务实的立面策略
A Practical façade strategy

塔楼外立面简洁挺拔，采用玻璃幕墙与竖线条遮阳板，与内立面的质感形成鲜明对比，给人以清爽高效的整体印象。

The external facade of the tower is simple and straight forward, with glass curtain walls and vertical sunshades, which contrasts sharply with the texture of the internal facade, giving a refreshing and efficient overall impression.

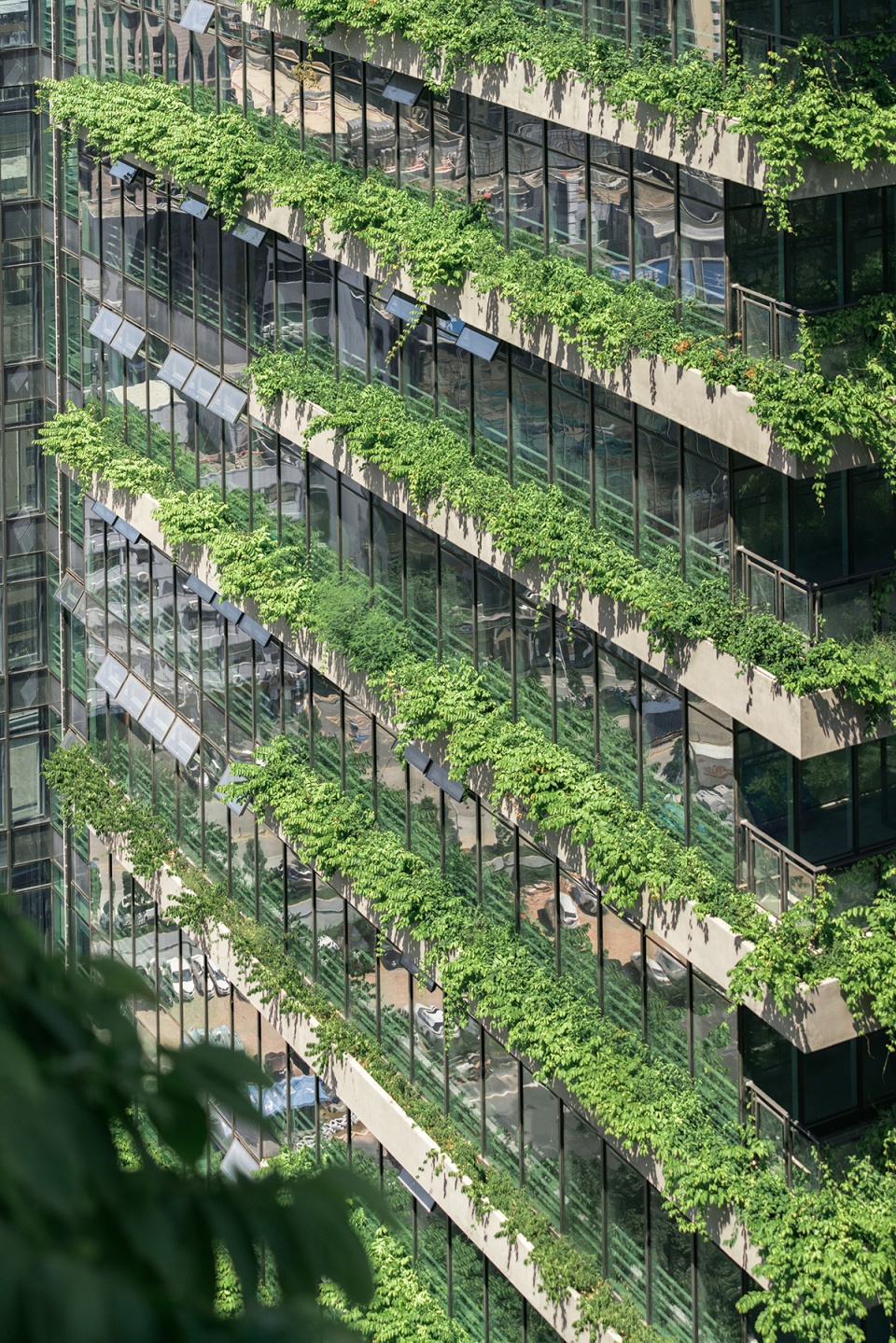

▼立面质感三要素：绿化挑檐、办公阳台、玻璃幕墙 © ACF域图视觉
Three elements of inner facade texture: green overhanging, office balcony, glass curtain wall

塔楼内立面采用水平横线条，近人而丰富。沿着楼层边缘，和退台边缘，出挑通长的绿化种植池，栽种勒杜鹃等易于打理的本土藤本植物。塑造郁郁葱葱的建筑表面。随着春夏秋冬四季变换，立面呈现出变化的效果。凸显绿色低碳的理念。

The inner facade of the tower adopts horizontal lines, which is close to people and rich. Along the edge of the floor and the edge of the retreat, there are long green planting ponds that are planted with low maintenance native vines such as Rhododendron. To shape the lush building surface. As the seasons change in spring, summer, autumn and winter, the facade presents a changing effect. Highlight the concept of green and low-carbon.

▼塔楼山墙立面节奏感，Rhythm of the tower gable facade © ACF域图视觉

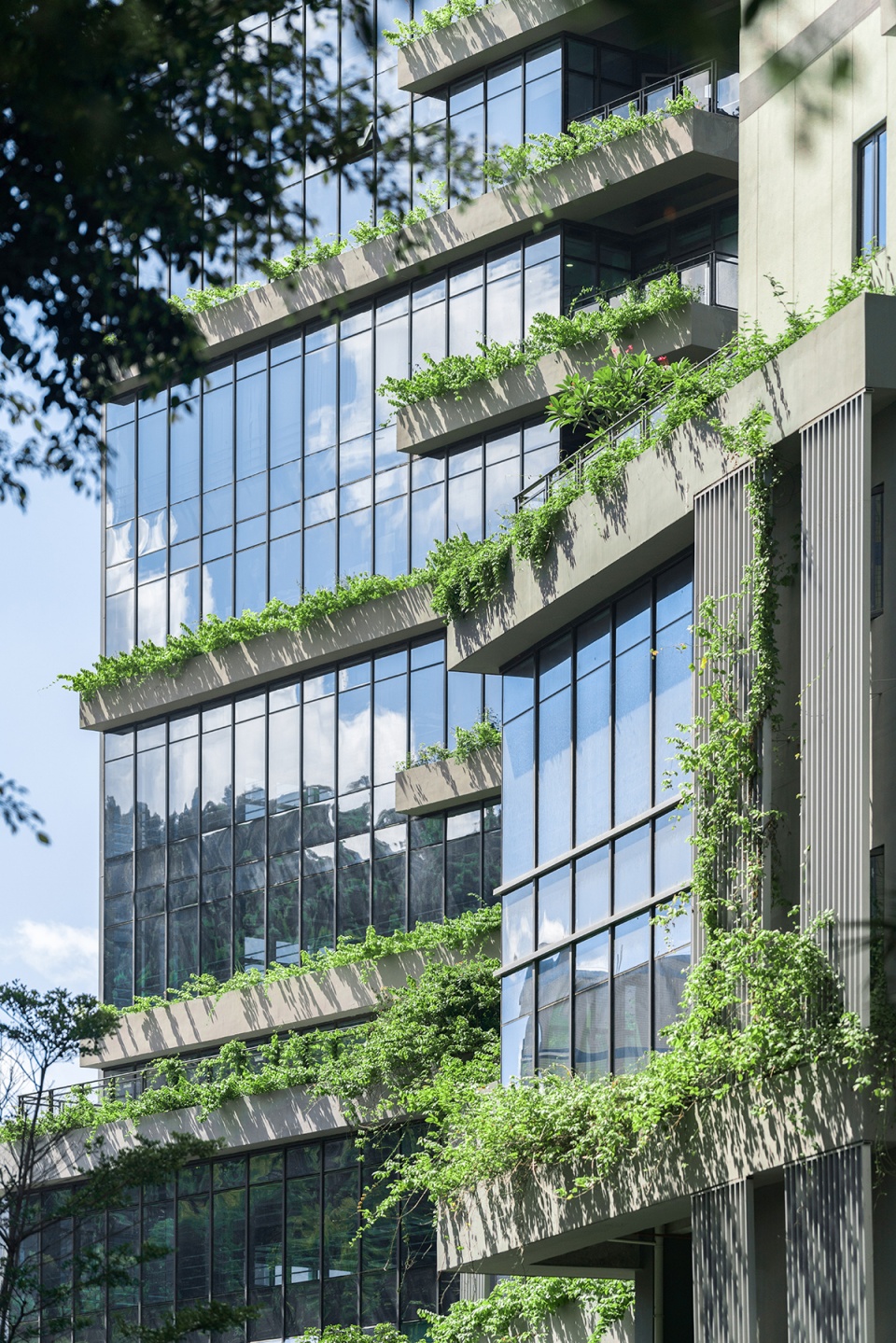

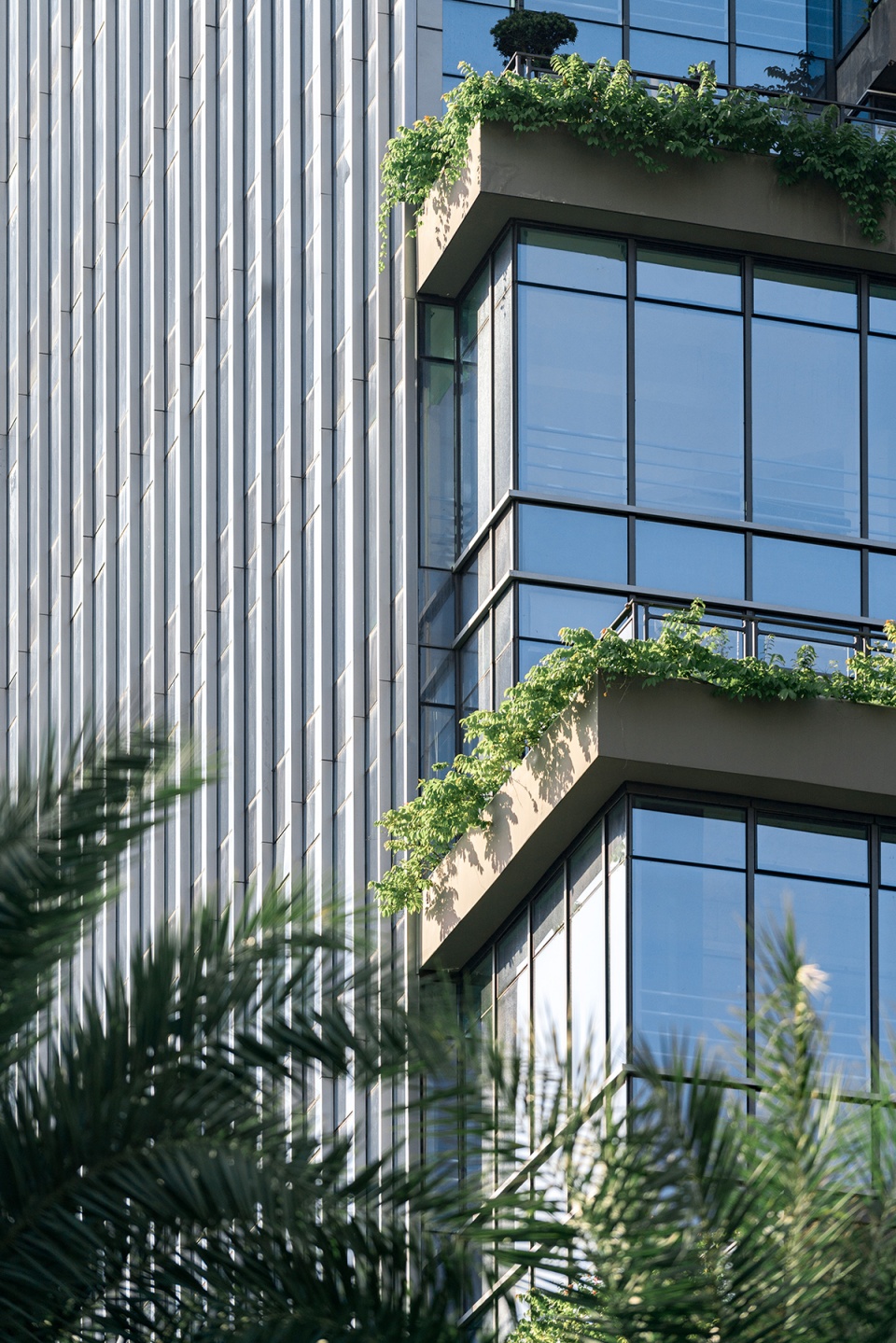

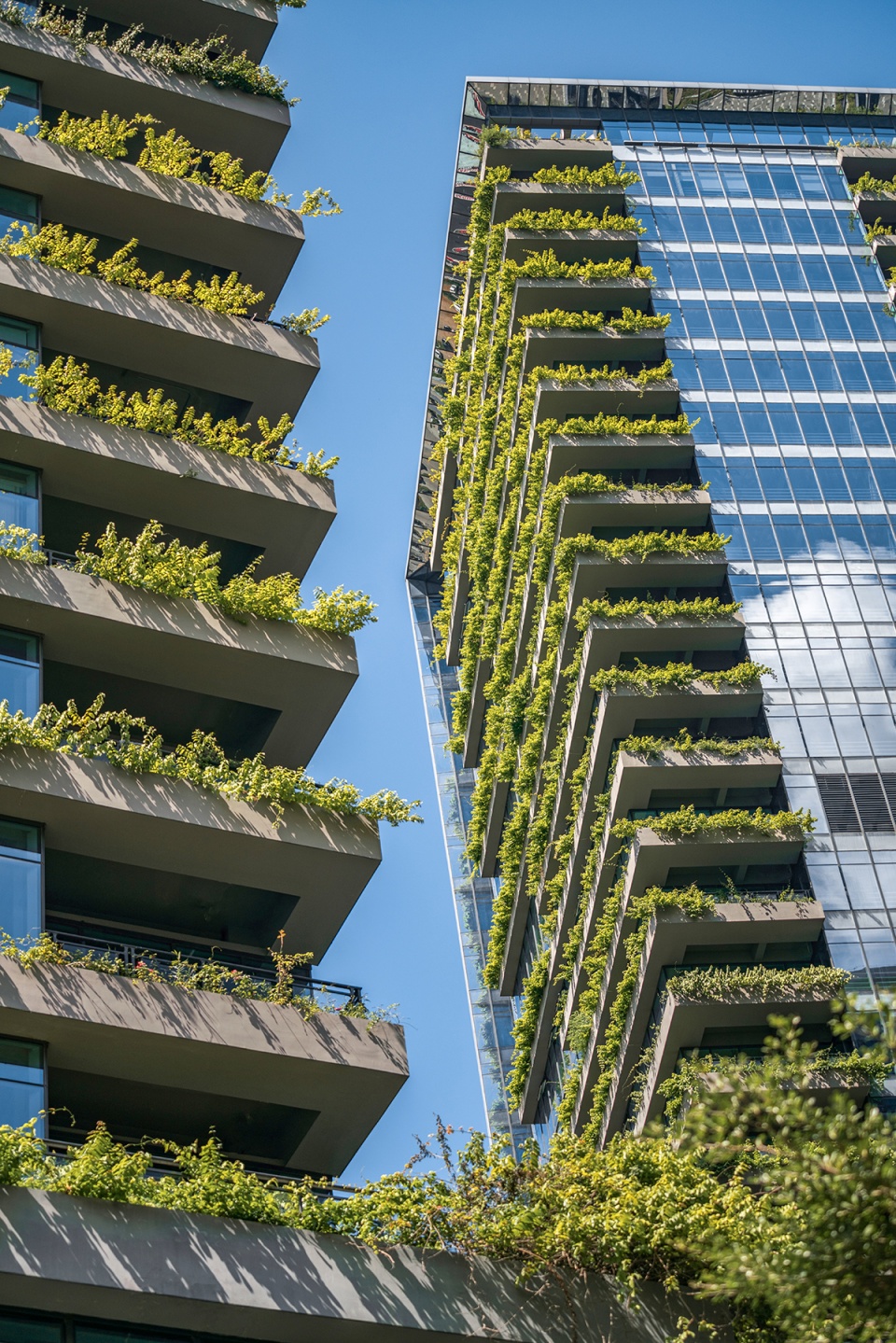

▼塔楼外立面竖线条和绿化露台横线条的交接 © ACF域图视觉
The transition between the vertical lines of the tower’s façade and the horizontal lines of the green terrace

裙楼外立面结合绿植与竖向金属格栅，形成绿色基座，建立起小尺度的街道感。内部庭院主要材料采用混凝土涂料与木质平台、铁艺栏杆搭配的色调，以低调睿智的风格凸显科技创意的园区氛围。

主要立面和景观材料均为标准化产品，使项目造价和工期都得到了非常有效的控制。

The façade of the podium combines green plants and vertical metal grids to form a green base, creating a small-scale street feel. The main materials of the inner courtyard use concrete paint, wooden platform and iron railings, highlighting the atmosphere of scientific and creative park in a low-key and intellectual style.

Using standardized products on facade and landscape units, the project cost and construction period have been very effectively controlled.

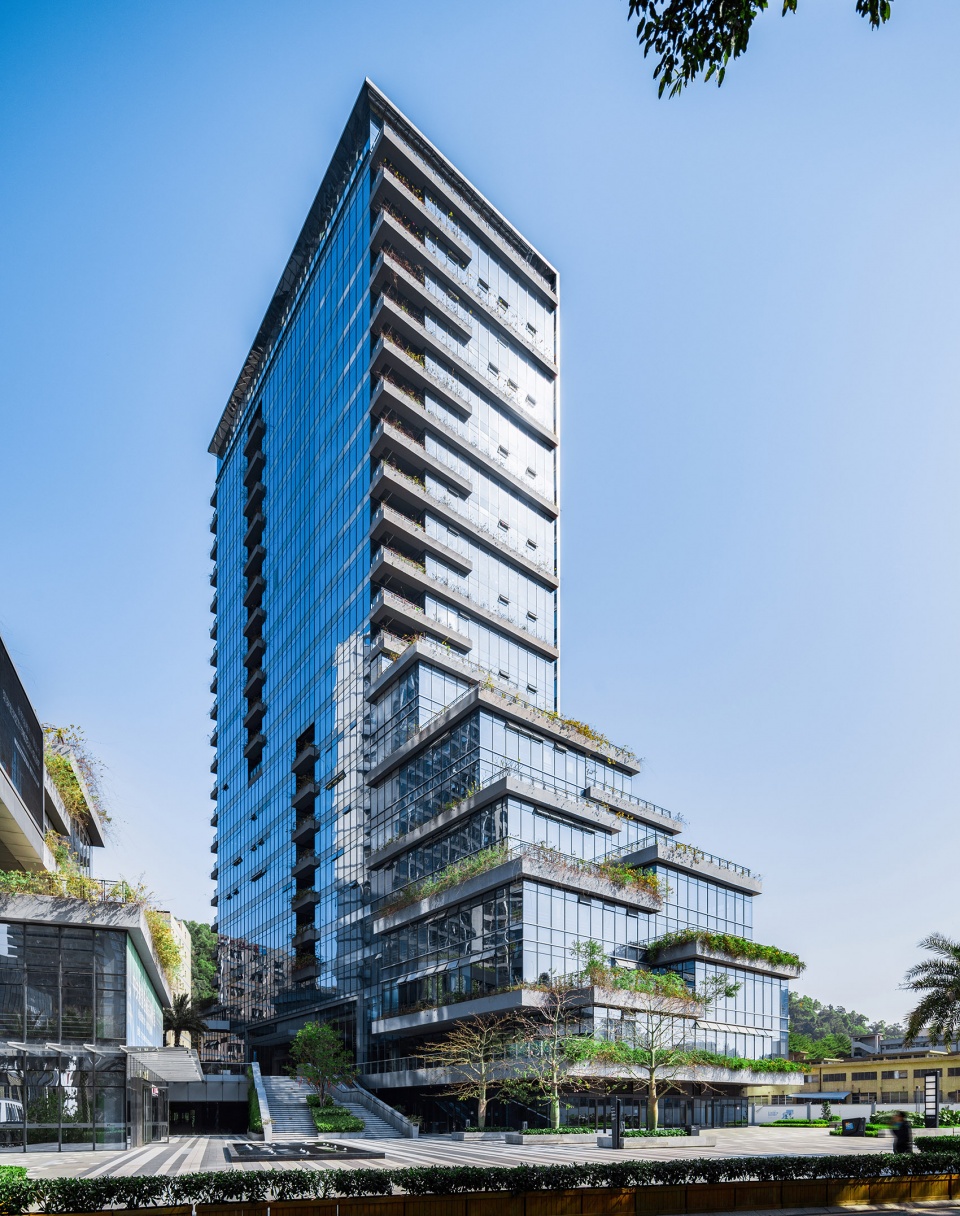

▼裙房体块与塔楼的过渡, Transition between podium volume and tower © ACF域图视觉

▼小尺度的裙房肌理塑造街道尺度感
The small-scale podium texture creates a sense of street scale © ACF域图视觉

低维护的垂直绿化
Low-maintenance vertical planting system

飘台绿化采用防水阻根作为基底的传统技术配合栽植藤本植物。项目设计快排体系保证多余雨水快速排空，不增加瞬时荷载，保证种植飘台的安全性，同时考虑高层的抗风性，飘台内置抗风结构保证植物的稳定。藤本植物选择常绿无果的品种，保证效果的同时减少高空掉物的风险，如使君子、勒杜鹃、龙吐珠、天门冬等。

智能生境监控和水肥一体化系统可以实时监测环境温度、风向风速、光照强度、氧离子含量和土壤温湿度等气象参数，在无人值守的情况下，根据植物生长需求，实现精确供水、供肥，自动调控植物生境。

垂直绿化采用模块式工艺，模块具有独立的九宫格种植穴，可防止基质下沉，植物更换简单快捷。模块内置农用岩棉，可极大增强根系延展空间以及基质的蓄水能力，为植物提供最适宜生长的气水比。

Vertical planting adopts the traditional technique of waterproofing and blocking roots as the base and planting vines. The project designed a quick drainage system to ensure that excess rainwater is quickly drained without increasing instantaneous load, ensuring the safety of the planted floating platform, while considering the wind resistance of the high-rise buildings, the built-in wind-resistant structure of the floating platform ensures the stability of the plants. The vines choose evergreen fruitless varieties to ensure the effect while reducing the risk of falling objects at high altitudes.

The intelligent bio-environment monitor and irrigation-nutrition system will update temperature, wind, solar, oxygen and moisture data, help to supply water and fertilize automatically and accurately.

Vertical planting uses vertical modules of aluminum grids and strips. The built-in agricultural rock wool in the module can greatly enhance the root extension space and the water storage capacity of the substrate, and the plants can be replaced at any time.

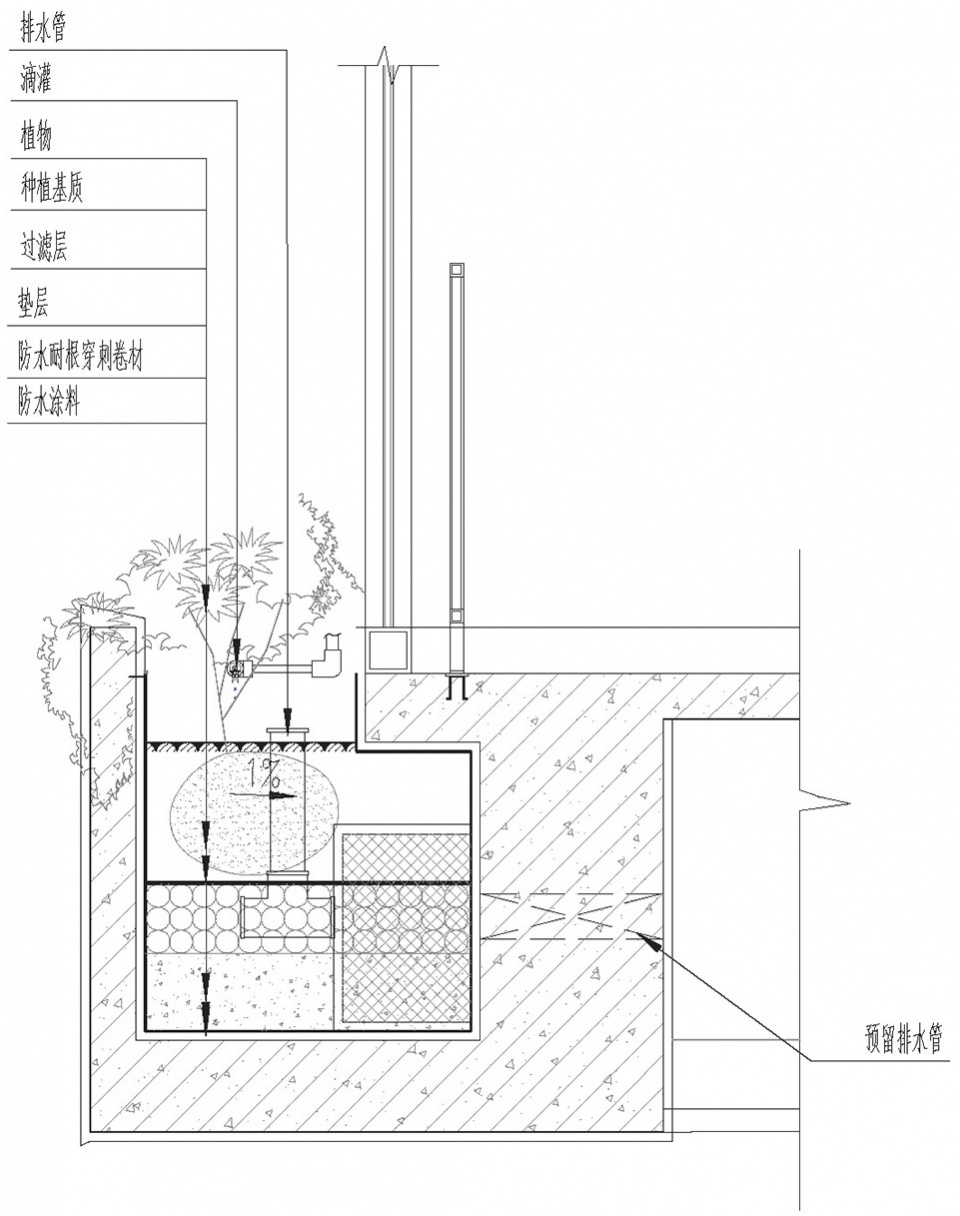

▼飘槽花池绿化大样图, Gutter flower pond greening detail © 深圳风会云合生态环境有限公司

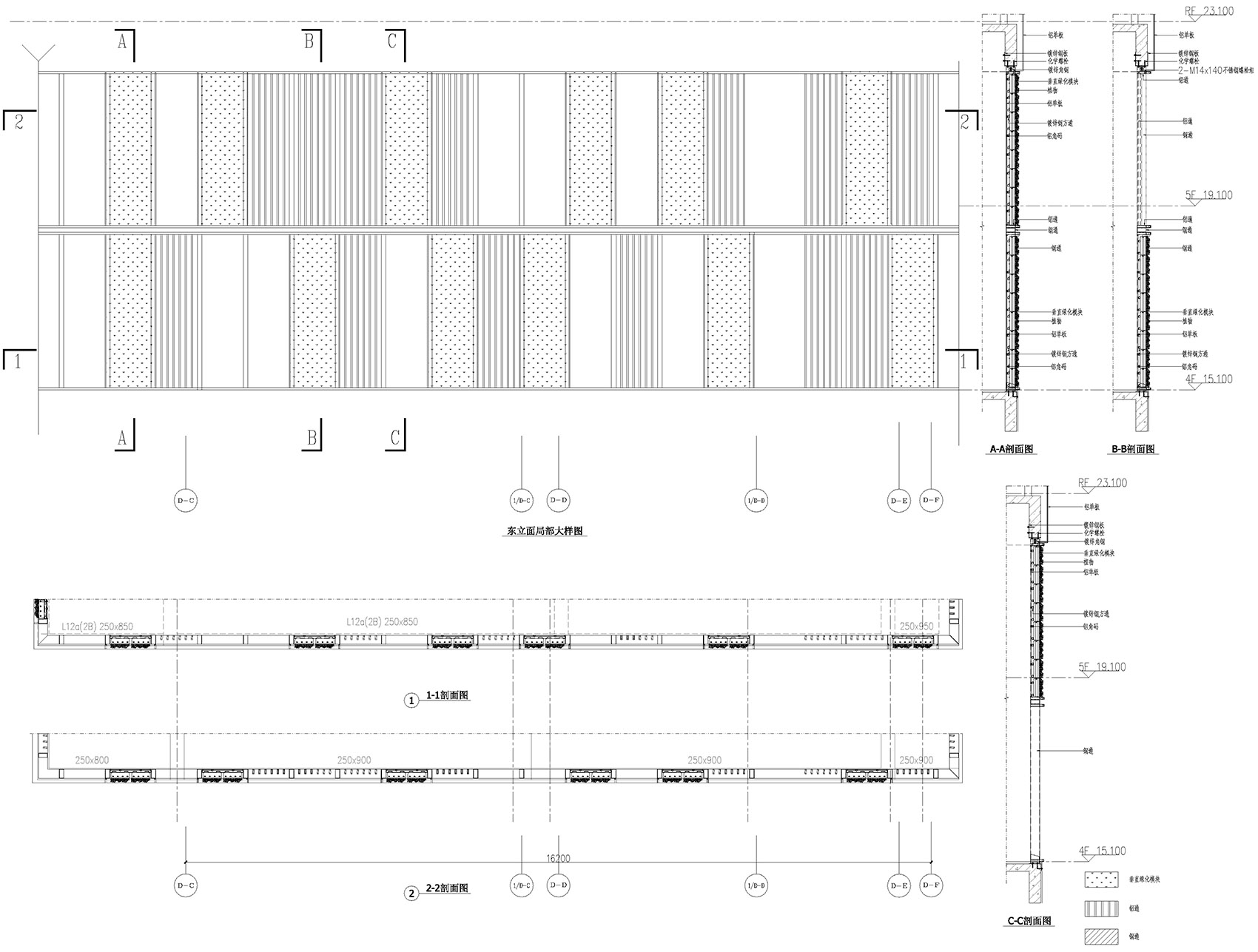

▼垂直绿化结构剖立面图, Vertical greening structure sectional elevation © 深圳风会云合生态环境有限公司

可以呼吸的园区
A Breathable Campus

凤凰智谷不是一个炫酷张扬的园区。她朴实无华，却有着令人愉悦的独特气质。她不只是消费公园绿肺，而是使其强化延展，将铁仔山公园的绿荫延续到了园区内部，蔓延到塔楼顶端。虽然用地狭小，这里的每一个楼层却都被绿色所包围，每一个窗口都能看到垂下的藤蔓，呼吸到浓郁的草和灌木的气息。每一个员工，都能眺望山体公园，感受到自然环境的馈赠。

Phoenix Intelligent Valley is not flamboyant. It is unpretentious, and yet offers a pleasant and unique temperament.It extends the green lung of Tiezai mountain Park inside the campus, spreading to the top of the tower. Although the site is small, every floor here is surrounded by green, and from every window can see the hanging vines and breathe the rich smell of grass and shrubs. Every employee can look at the mountain park and enjoy the gift of the natural environment.

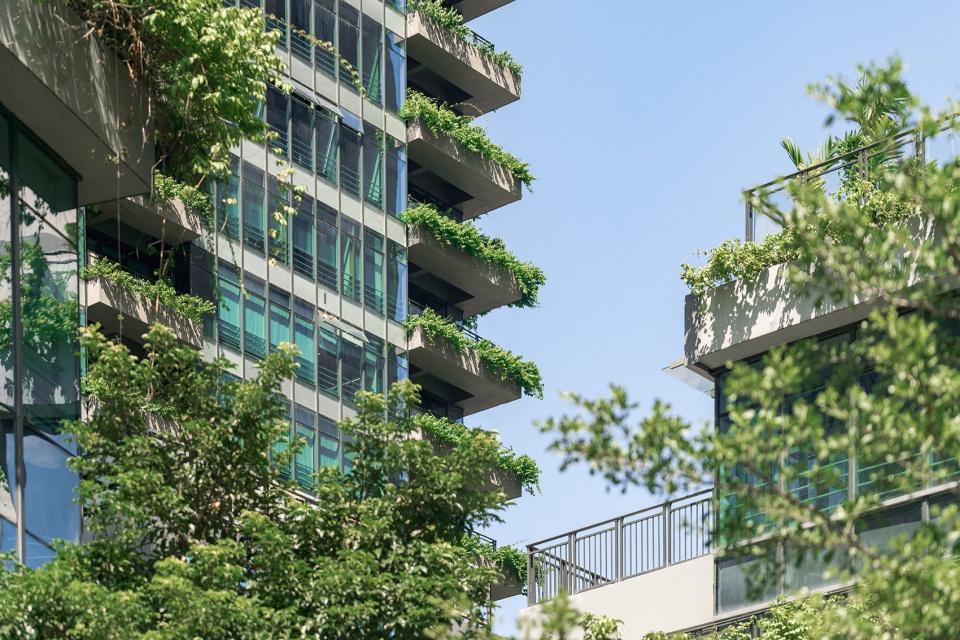

▼绿化挑檐形成舒适的遮阳和阴影
Green overhangs form comfortable shading and shadows © ACF域图视觉

▼郁郁葱葱的内院空间, Lush inner courtyard space © ACF域图视觉

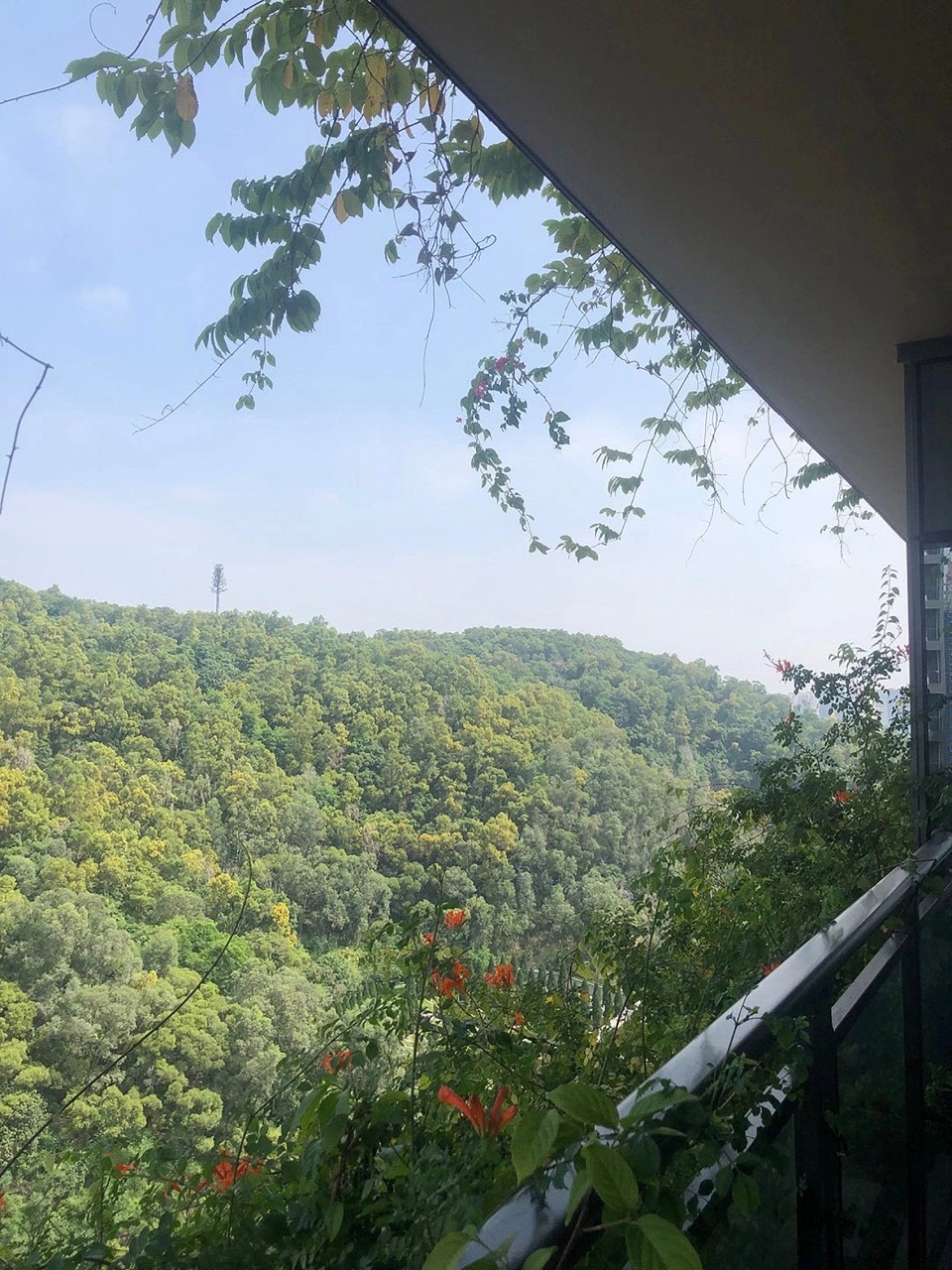

▼从办公阳台眺望铁仔山
View of Tiezai Mountain from the office balcony © 李甫

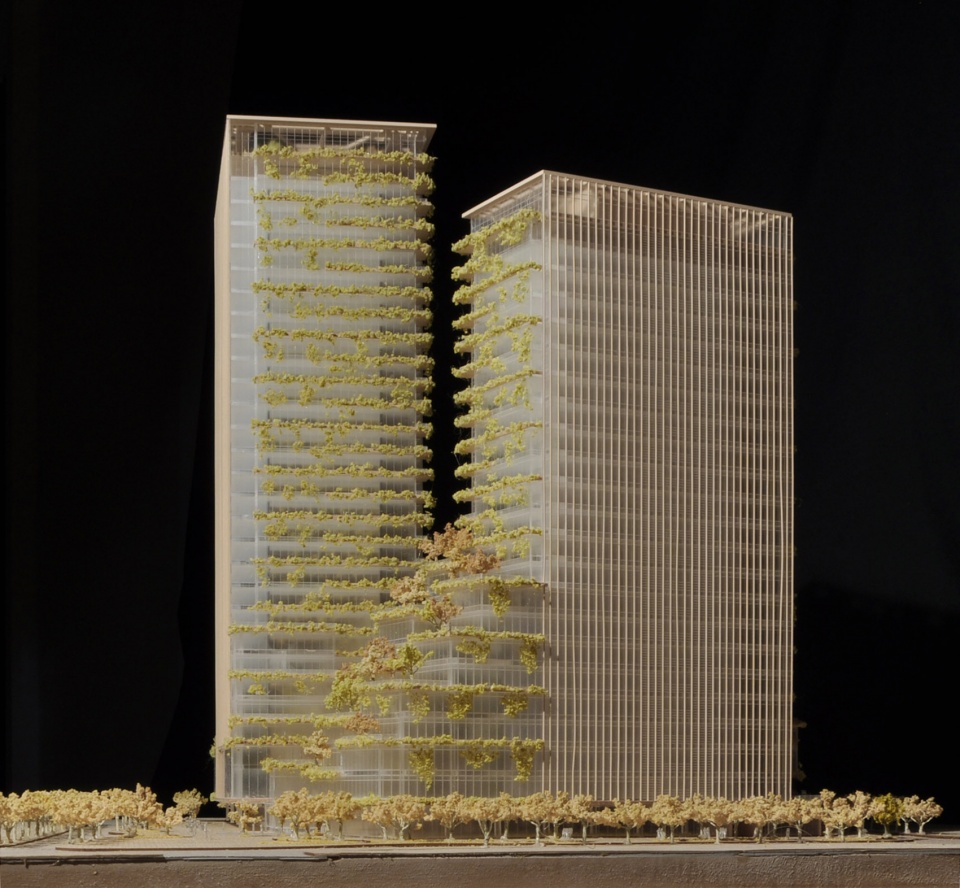

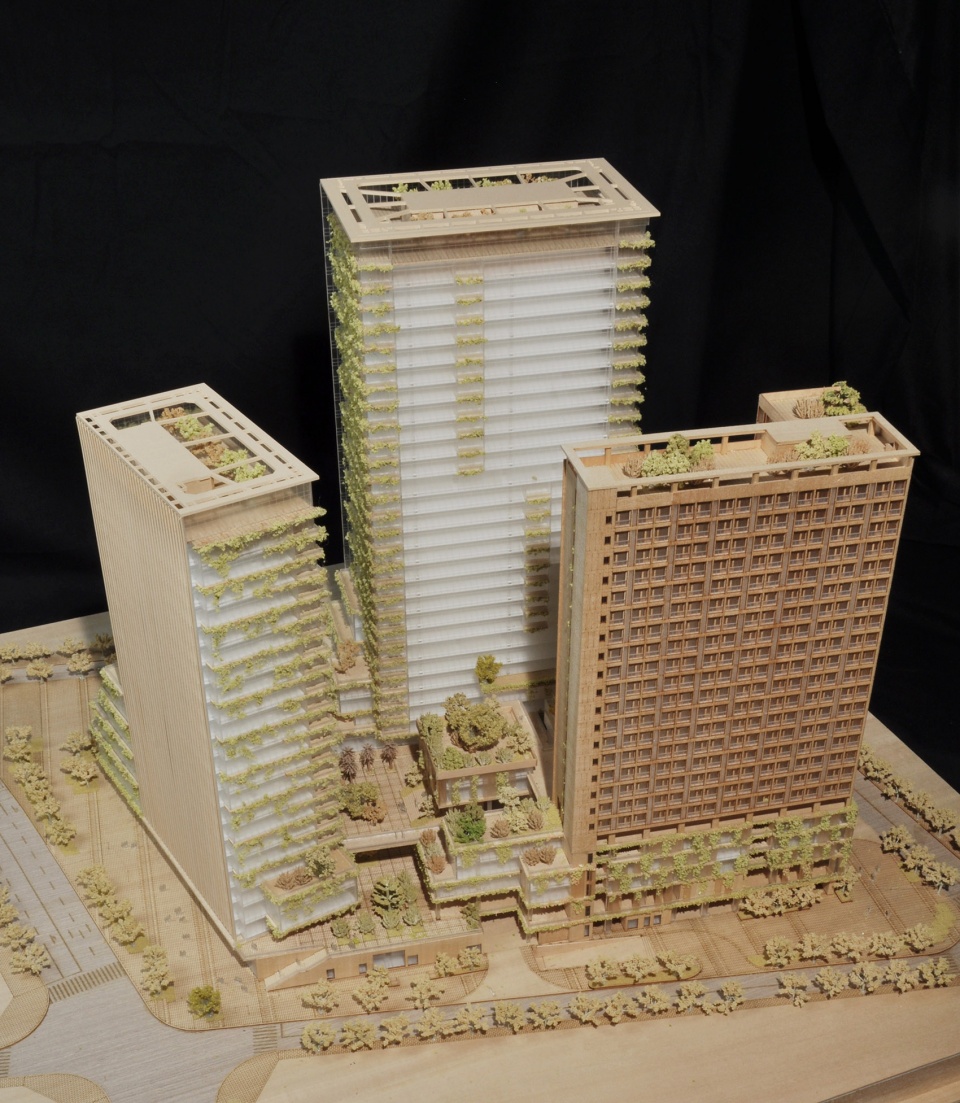

▼模型照片，Model photos ©张旭斌

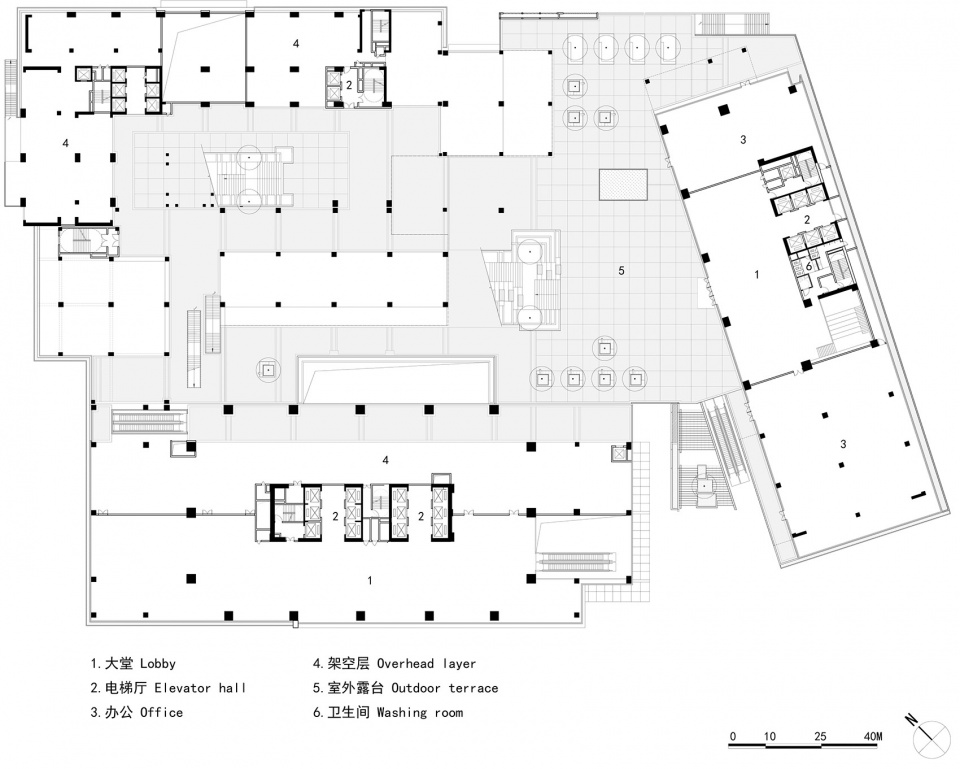

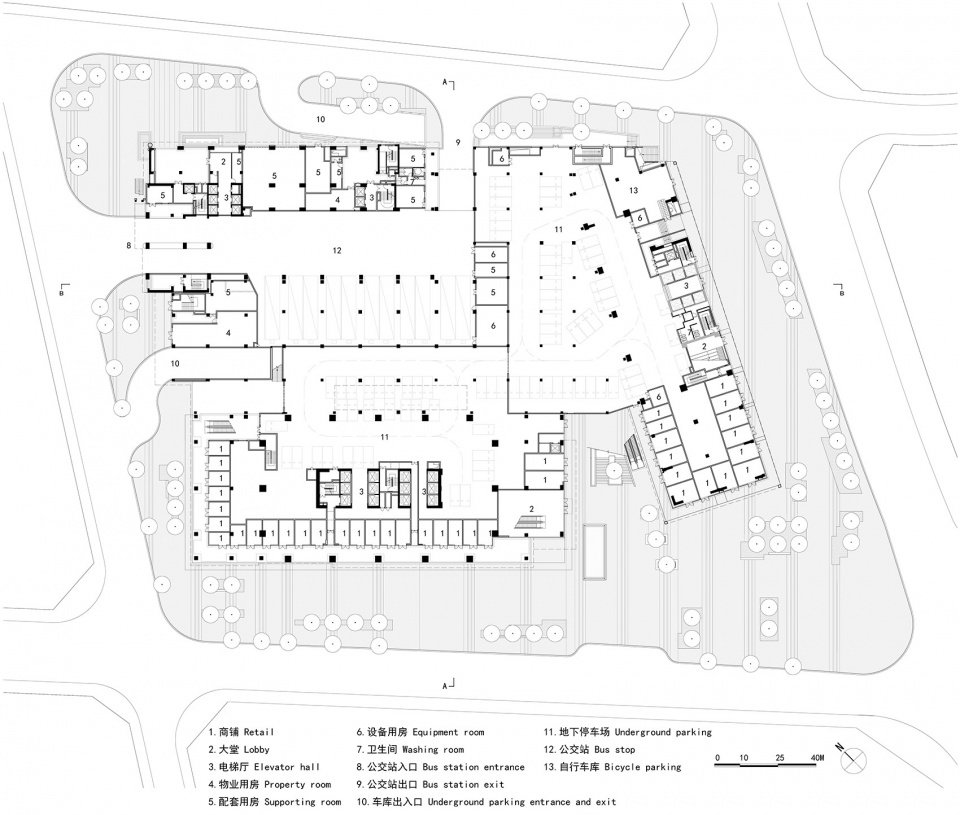

▼一层平面图，First floor plan © UV独特视野

▼二层平面图，Second floor plan © UV独特视野

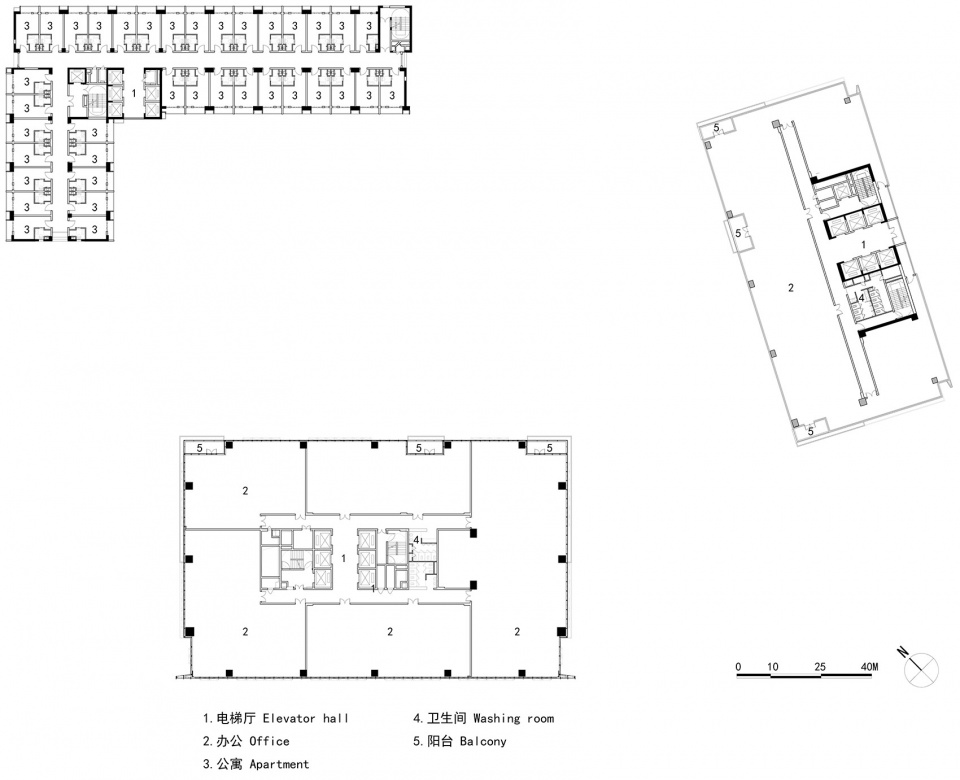

▼标准层平面图，Standard floor plan © UV独特视野

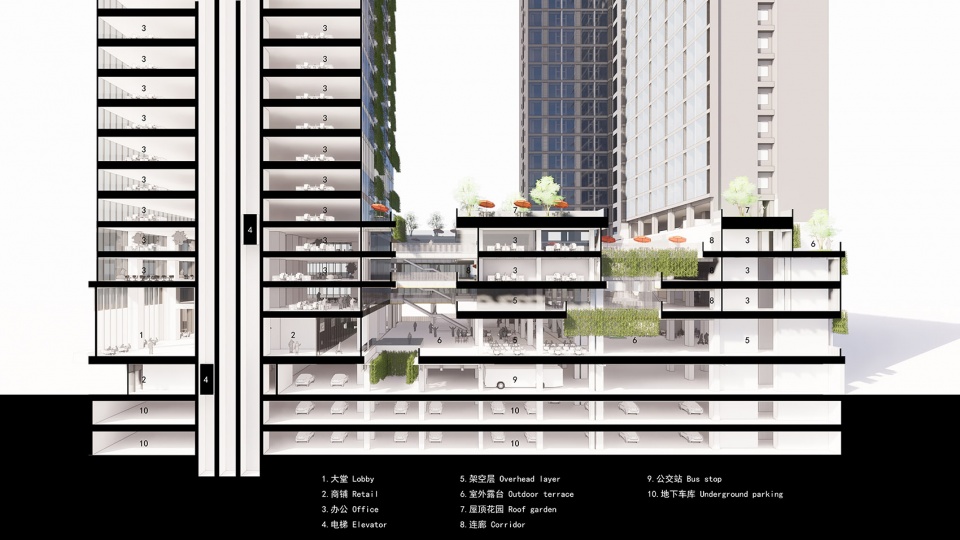

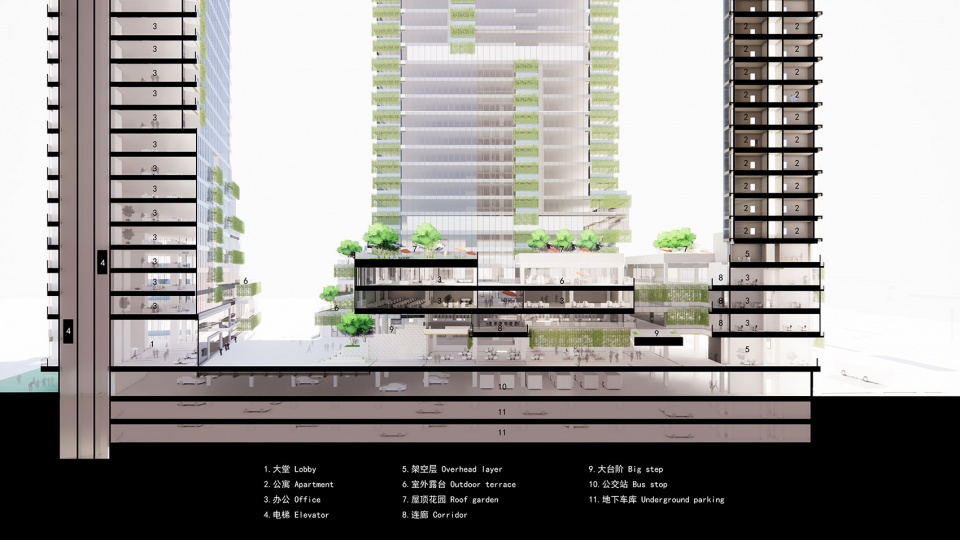

▼ A-A剖面透视图，A-A section perspective © UV独特视野

▼B-B剖面透视图，B-B section perspective © UV独特视野

项目名称：碧桂园凤凰智谷
设计方：深圳易加设计有限公司
公司网站：https://www.eplus.group/
联系邮箱：pr@eplus.group
项目设计 & 完成年份：2017年7月-2021年3月
主持建筑师：李甫
设计顾问：王哲
团队：李甫，周奕奕@深圳独特视野建筑设计有限公司，李童洋，林兆梅
王哲@北京盛哲建筑设计咨询有限公司，时微，高会来，刘梦晨，洪伟”
项目地址：深圳市宝安区西乡街道办铁仔路50号
建筑面积：168000㎡
摄影版权：ACF域图视觉，李甫，张旭斌
合作方
精装设计：广东博意建筑设计院有限公司
施工图设计：北京森磊源建筑规划设计有限公司
幕墙顾问：深圳市中筑科技幕墙设计咨询有限公司
景观设计：ACLA
照明顾问：A&L照明
标识设计：深圳市问道标识有限公司
客户：碧桂园深圳分公司
