感谢 Zaha Hadid Architects 予gooood分享以下内容。更多关于：Zaha Hadid Architects on gooood。
Appreciation towards Zaha Hadid Architects for providing the following description:

扎哈·哈迪德建筑事务所近期在国际竞赛中胜出，将为中国节能环保集团（CECEP）打造其位于上海的新总部。

CECEP是中国领先的专注于可再生能源技术的公司，由其发起和注资的项目涉及太阳能、水力发电和风力发电；各类环保举措如水资源的收集、处理和循环利用；以及针对于建造行业的节能减排技术的创新性研发等。

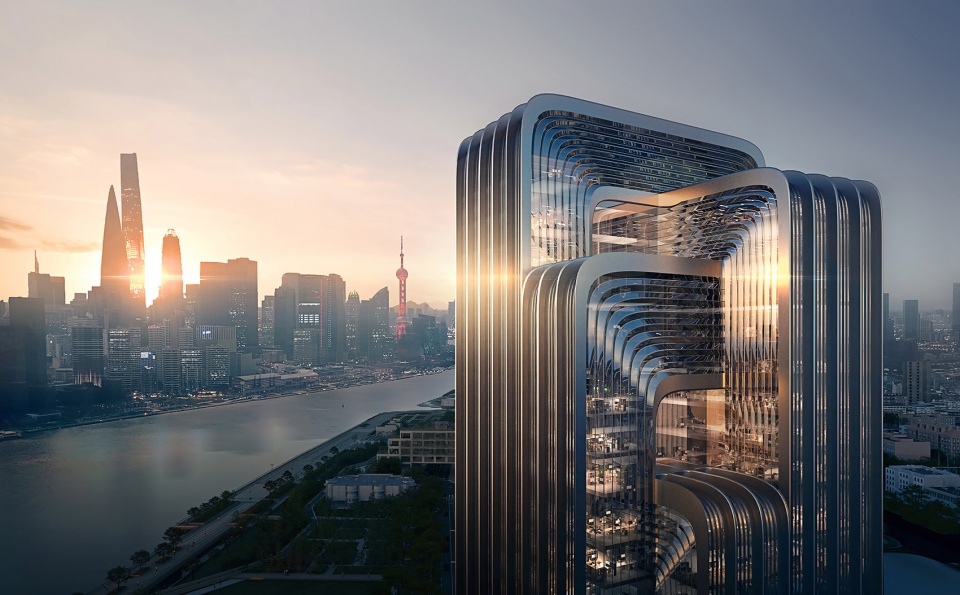

Following the international design competition, Zaha Hadid Architects has been selected to build the new Shanghai headquarters of the China Energy Conservation and Environmental Protection Group (CECEP).

CECEP is the country’s leading company initiating and funding projects with a focus on renewable energy technologies that include: solar, hydroelectric and wind power generation; environmental conservation initiatives such as water collection, treatment and recycling; as well as developing innovations to reduce energy consumption and emissions throughout the construction industry.

©Render by Negativ.com

延续该公司在可再生能源和环境保护方面的承诺，新CECEP总部大楼的可持续性将体现在设计和建造的每一个环节，旨在成为全上海“最绿色”的建筑，同时在中国三星绿色建筑认证系统的严苛标准下获得超过90分的评分，这也是上海所有建筑中的最高分数。

建筑面积为218000平方米的新总部为上海在能源节约、能源的高效利用以及可持续性方面树立了全新标杆。项目场地毗邻横跨黄浦江的杨浦大桥，对上海历史悠久且充满活力的江滨环境做出了回应。

新的总部园区由三座办公塔楼和集购物、餐饮和休闲于一体的公共设施构成，并借助与城市接壤的公园实现了空间的互联。通过创造意义重大的全新公共空间，新总部回应了CECEP在环保教育方面的承诺，为公司员工和附近社区带来令人愉悦的自然环境。

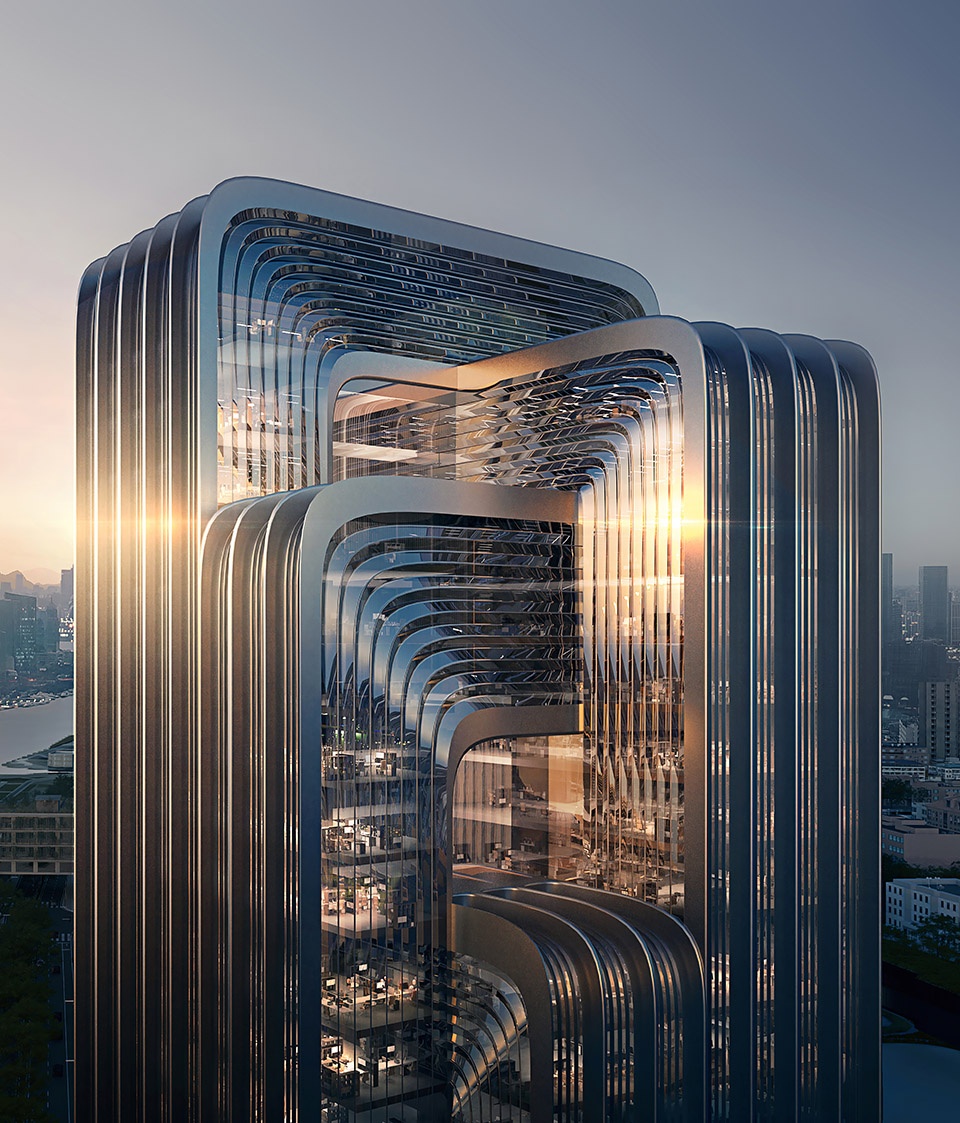

Continuing their commitment to renewable energy and environmental conservation, the new CECEP headquarters in Shanghai has been designed to be the ‘greenest’ building in the city with sustainability embedded into every aspect of its design and construction to achieve more than 90 credits in China’s exacting Three Star Green Building Rating system – the highest score for any building in Shanghai.

The 218,000 sq.m headquarters sets new benchmarks for the city in energy conservation, energy efficiency and sustainability. Located adjacent to the Yangpu Bridge on the Huangpu River, the design responds to its riverfront site and is defined by the history and dynamism of Shanghai.

A mixed-use urban campus of three office towers, shopping, dining and leisure facilities linked together by a park that connects directly with the city, the new headquarters echoes CECEP’s commitment to environmental education by creating vital new public spaces for its staff and neighbouring communities to enjoy the natural world.

©Render by Negativ.com

雨水收集系统结合了亲生物设计，在为广阔的绿地景观提供灌溉的同时还增强了室内与室外的连通性。此外，优化的外部遮阳系统有效地降低了内部的制冷需求。

基于上海较显著的昼夜温差，每座建筑物的热质量形成相互协调的关系，可令供暖和制冷的耗能同时降低。建筑中还大量采用了当地生产的预制构件，在采购中优先选择再生材料，不仅减少了项目的隐含碳排放，还对当地经济提供了支持。

屋顶和立面内装置的光伏电池板与电池和微电网相连接，能够在现场产出能量，从而降低25%的能耗。

除了基于废热回收的高效供暖和通风系统以及采用非饮用水的制冷系统，新的总部大楼还将利用冰蓄冷技术来制造冷气：冷却器在夜晚的用电低谷期产生冰块，并将其存储在蓄冰桶内以供日间制冷时使用，这样可以显著地降低白天冷负荷达到峰值时的耗电量。

建筑管理系统将持续检测室内环境，并会自动对温度、空气质量、自然光线和使用者数量等内部状态的变化做出反应。为了减少能耗并延长使用寿命，这些智能系统还将对数据进行整理，以便预测和优化能量的损耗。

新总部还将使用5G网络来运行智能管理和生物识别安全系统，从而能够消除员工和访问者与公共表面产生的接触。

©Render by Negativ.com

Incorporating rainwater harvesting to irrigate expansive green spaces and landscaping in a biophilic design that enhances indoor-outdoor connectivity, the design also minimises cooling demand through optimised external shading.

With Shanghai’s significant temperature differences between day and night, each building’s integrated thermal mass also provides reductions in both heating and cooling consumption. Extensive use of locally-produced, prefabricated components will reduce the project’s embodied carbon and also support the local economy while procurement will prioritize the use of recycled materials.

Photovoltaics located at roof level and within the façades are connected to battery storage and a micro-grid to provide on-site energy production that will reduce energy consumption by 25%.

In addition to high-efficiency heating and ventilation with waste heat recovery, together with cooling systems using non-potable water, the new headquarters will also use thermal ice storage for cooling. Ice generated by chillers at night using off peak electricity is stored in thermal tanks then used for cooling during the day to significantly reduce peak daytime electrical consumption when the cooling load is highest.

The building management system will continually monitor the interior environment and automatically react to changes in internal conditions such as variations in temperature, air quality, natural daylight, or number of occupants. To reduce energy consumption and prolong their lifespan, these intelligent systems will also collate data to predict and optimise energy usage.

The new headquarters will use 5G network capability to operate intelligent management and biometric security systems that will eliminate contact with communal surfaces by staff and visitors.

Project Team
Architects: Zaha Hadid Architects (ZHA)
Design: Patrik Schumacher
ZHA Project Directors: Satoshi Ohashi, Michele Pasca di Magliano
ZHA Project Designer: Maria Tsironi
ZHA Project Associate: Yang Jingwen
ZHA Project Architect: Johannes Elias
ZHA Competition Team: Nan Jiang, Maria Touloupou, Martina Rosati, Nicolas Tornero, Serra Pakalin, Chantal Matar, Yihui Wu, Ying Xia, Zheng Xu, Carlos Bausa Martinez, Lorena Espaillat Bencosme, Irfan Bhakrani, Federico Fauli, Stefano Iacopini, Shi Qi Tu, Sara Criscenti, Andres Madrid, Arian Hakimi Nejad, Valentina Cerrone, Stefano Paiocchi, Kate Hunter, Nelli Denisova, Che-Hung Chien
Consultants
Civil, Structural, MEP & Sustainability engineers: Ramboll
Local Design Institute: China Academy of Building Research
