感谢 HENN 予gooood分享以下内容。更多请至：HENN on gooood
Appreciations towards HENN for providing the following description:

西湖大学是一所社会力量举办、国家重点支持的新型高等学校，2018年2月14日正式获教育部批准设立，举办方是杭州市西湖教育基金会。它位于杭州西湖区，拥有先进的学术设施、实验室、办公室、体育设施、食堂以及学生和教师宿舍。

▼项目视频，video © 方方的田

The new Westlake University solidifies China’s position as a global leader in scientific and technological research. Founded by a private initiative of some of the country’s top scientists and businesspeople, Westlake University is a new type of research institution on par with the world’s leading universities. Located in the west of Hangzhou, the campus houses state of the art academic facilities, laboratories, offices, sports facilities, canteens, and housing for an international body of students and faculty.

▼项目概览，Overall view © 田方方

西湖大学的设计回应了不同规模体量的需求，大到城市规模级别的总体规划，小到独栋建筑。校园场地以一系列同心环为特色，分别为学术环、水环和生活环，这些同心环在场地布局和概念两个层面上将校园组织起来。

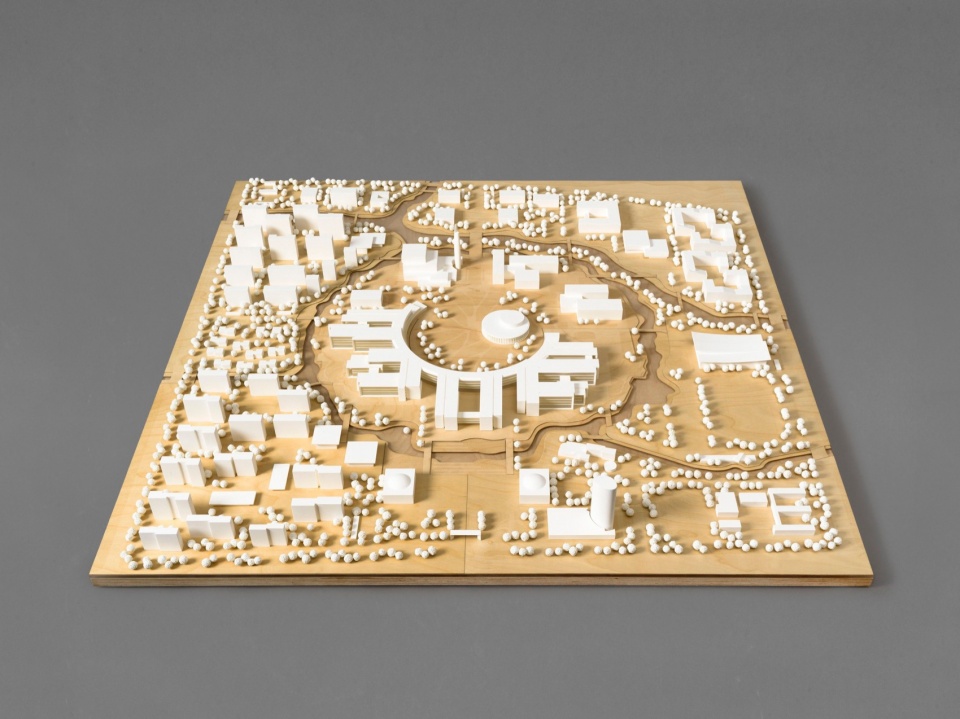

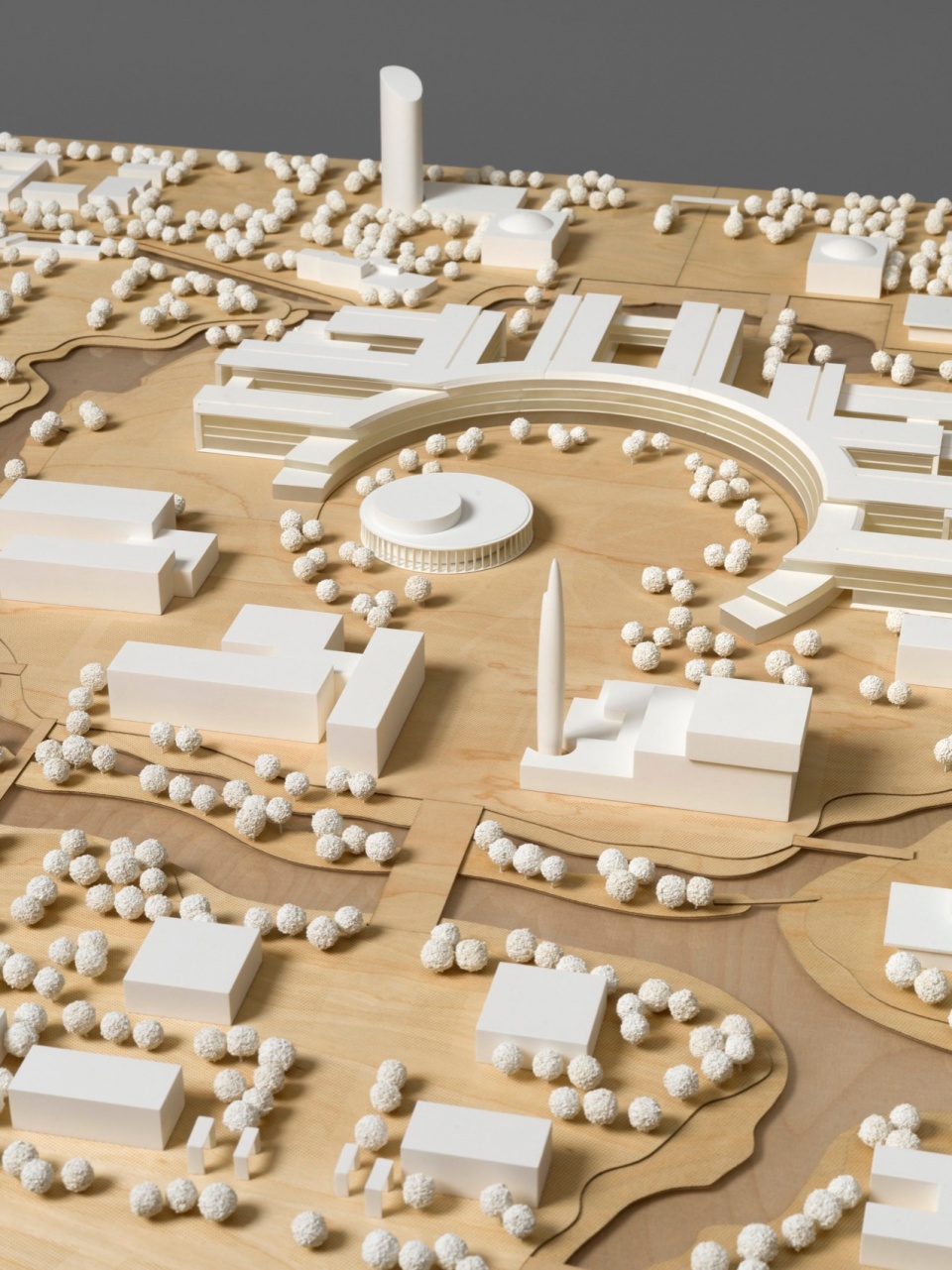

▼项目模型，model © HENN

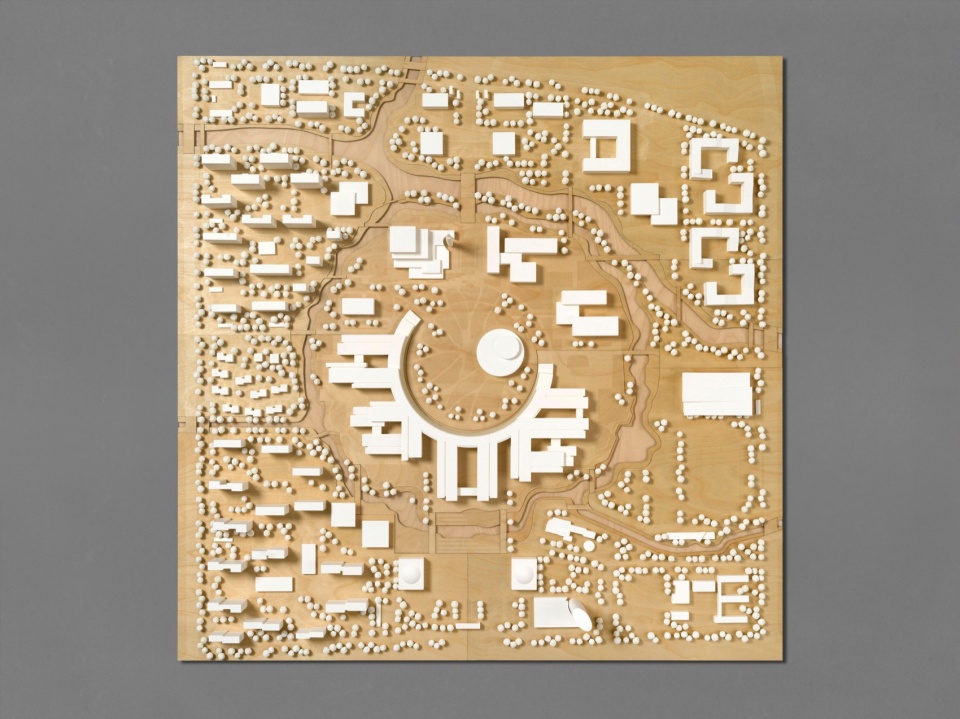

▼模型细节，model details © HENN

The design for the Westlake campus addresses a range of scales and needs, from its urban- scale master plan to individual buildings. The site is defined as a series of concentric rings that organize the campus both physically and conceptually: the Academic Core, the Water Loop, and the Living Loop.

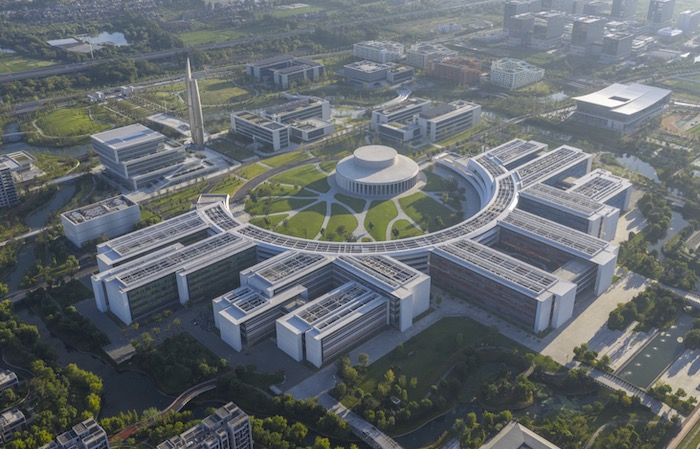

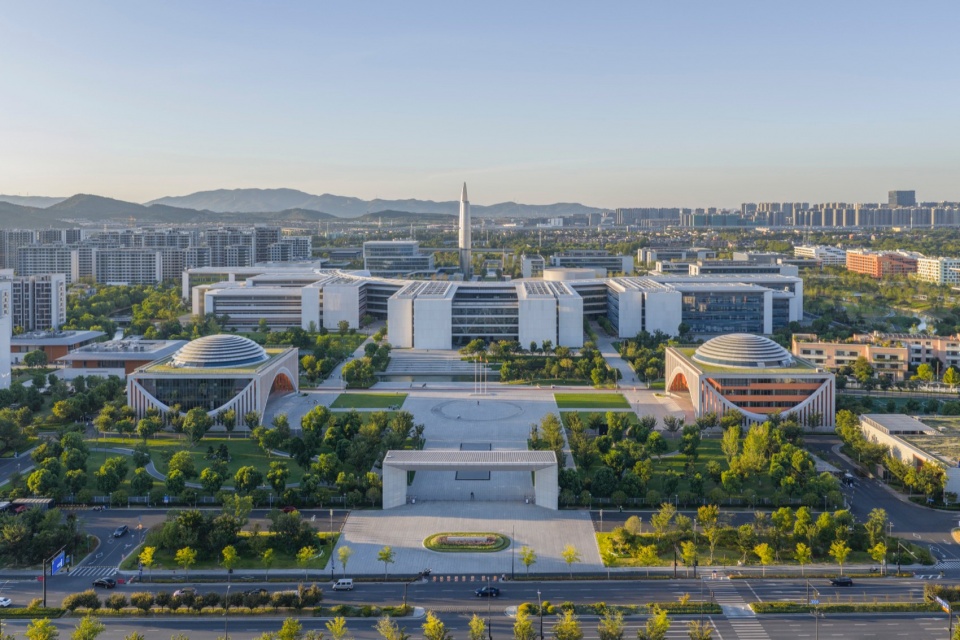

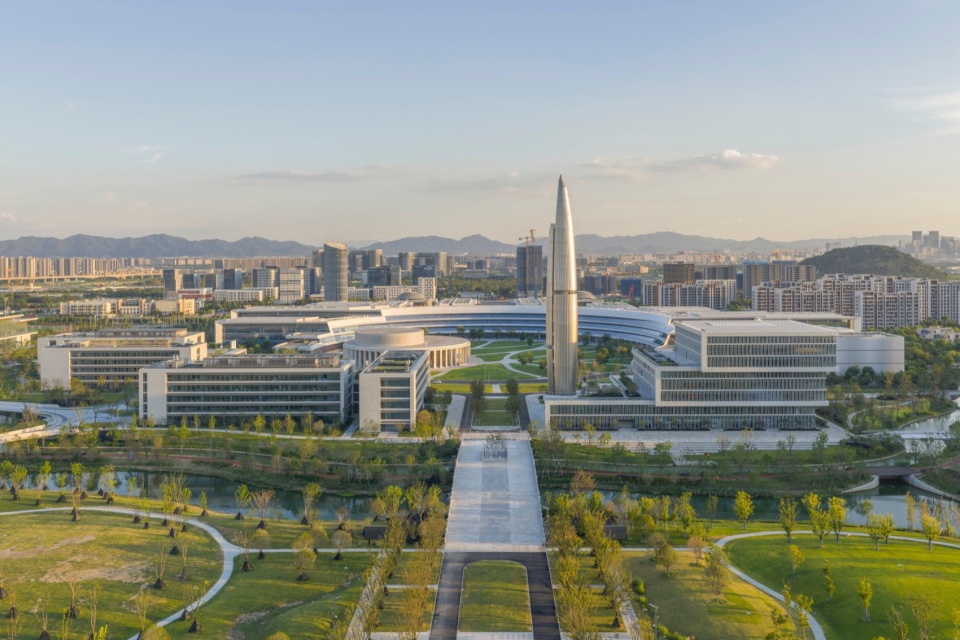

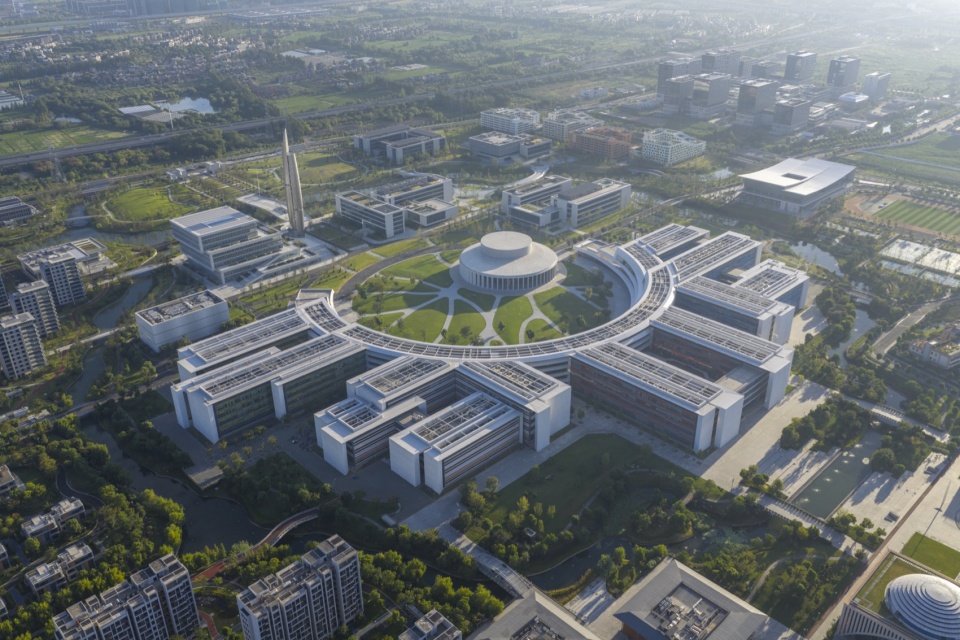

▼鸟瞰，Bird’s eye view © 田方方

▼景观鸟瞰，Bird’s eye view of landscape © 田方方

生命科学学院、理学院、医学院和工程学院分别坐落于独立建筑中。这些由错落有致的体量构成的建筑群拥有独特的预制混凝土框架结构，同时每栋建筑的外立面均拥有独特的色彩装饰和定制竖框图案。这些具有鲜明特色的庭院式建筑通过学术环路相互联结，旨在促进学科间的交流与跨学科合作。

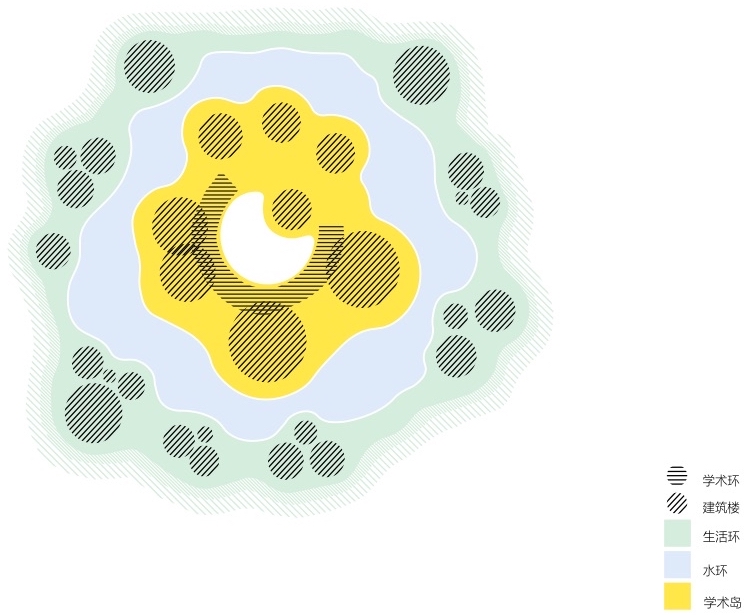

▼总平面分析图，masterplan diagram © HENN

The School of Life Science, the School of Science, the School of Medicine, and the School of Engineering are housed in separate buildings. Composed of staggered volumes, all the buildings share the same distinctive precast concrete frame, while each façade is uniquely detailed with colorful accents and custom mullion patterns. These articulated courtyard buildings are interlocked with the Academic Loop in order to promote connection and interdisciplinary exchange.

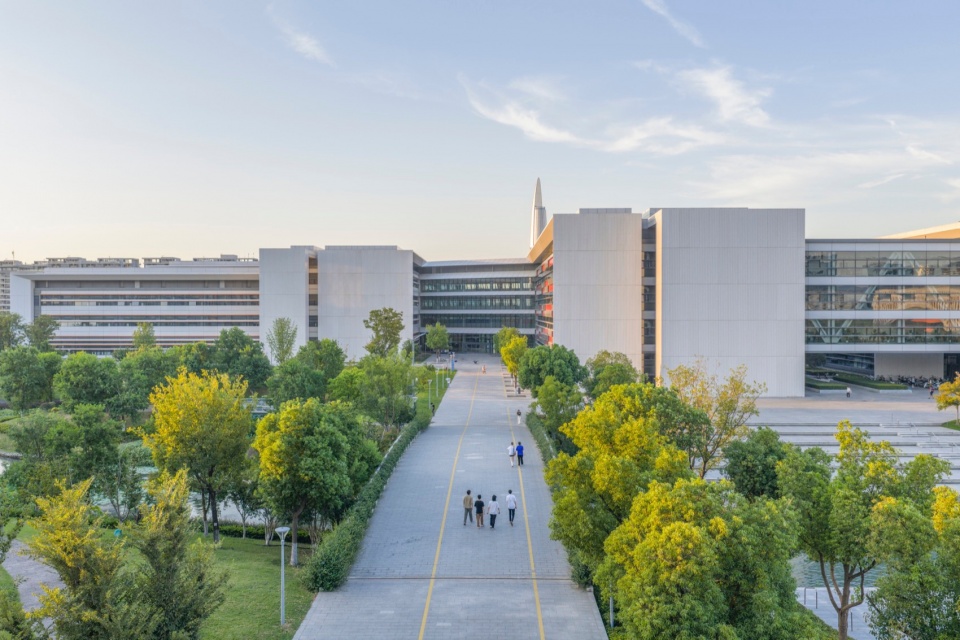

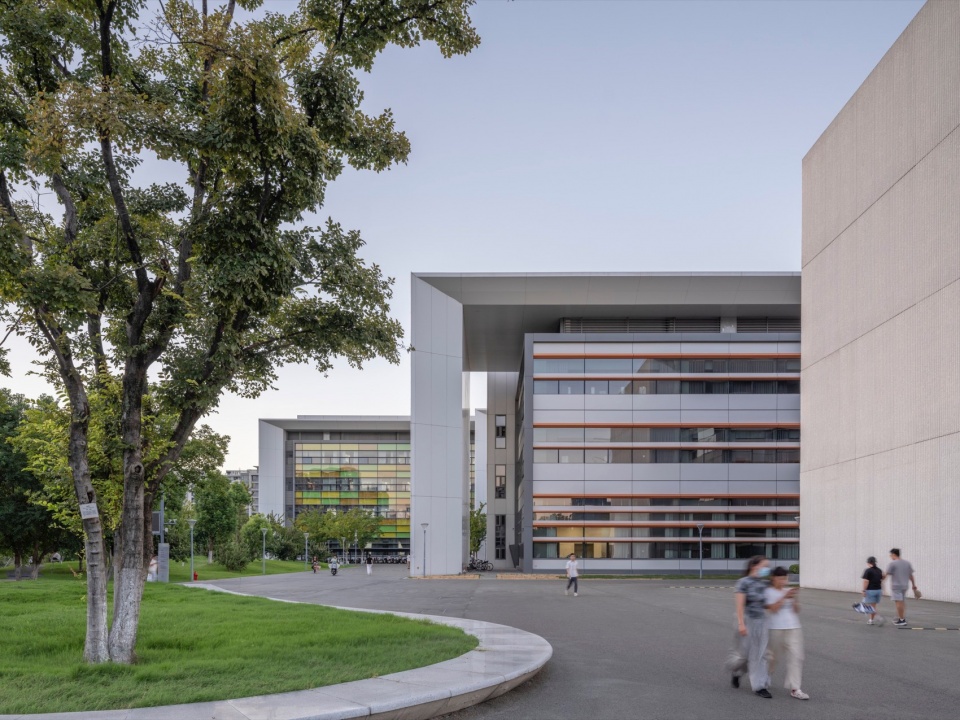

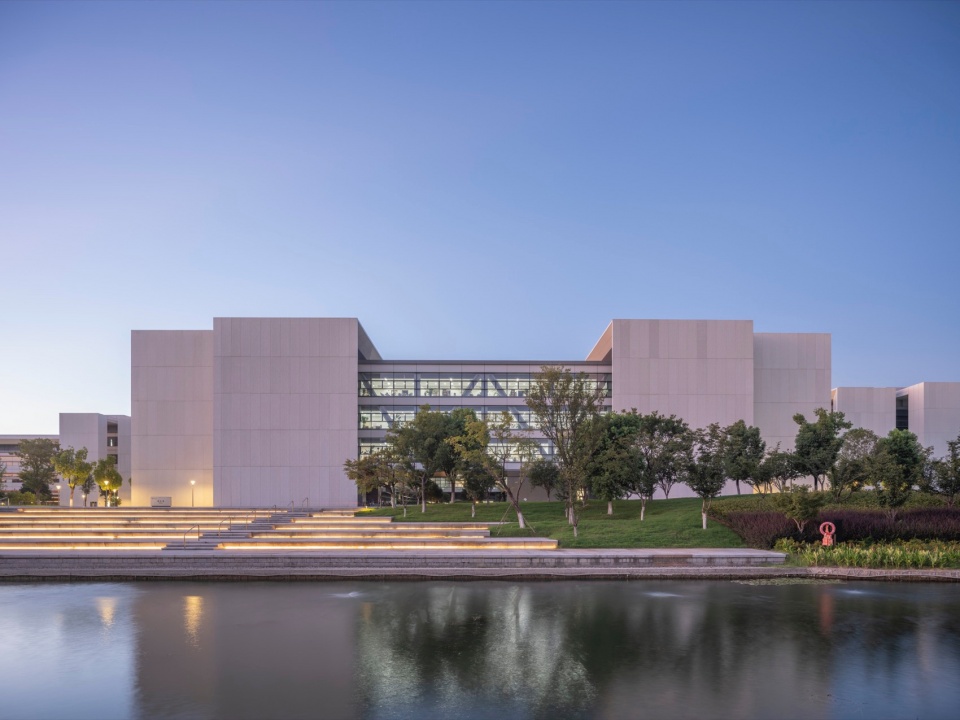

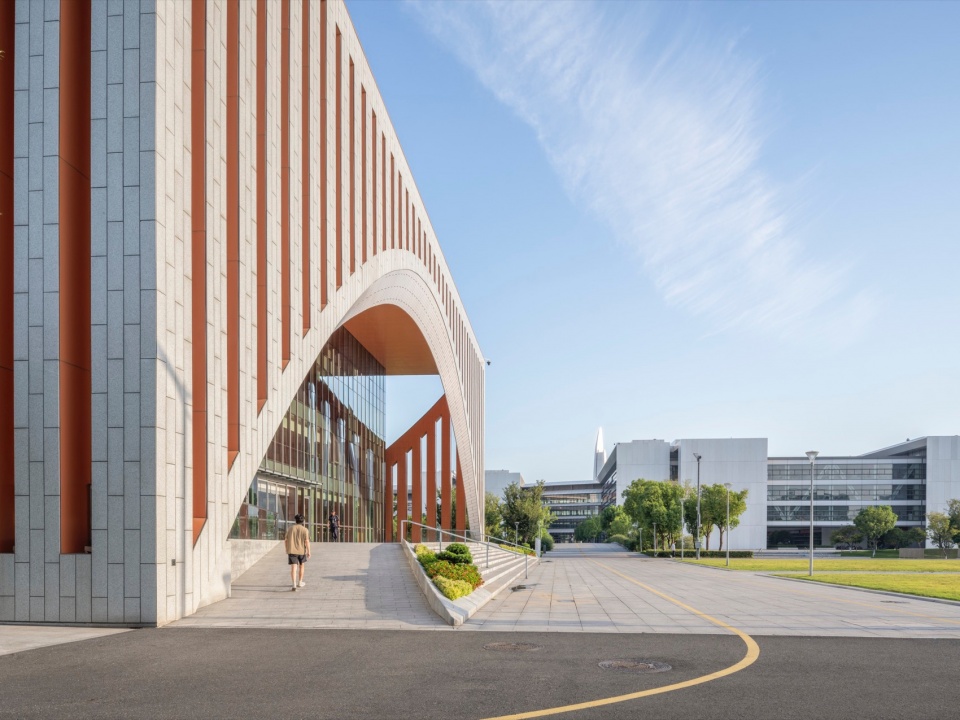

▼教学楼，Faculty building © 田方方

学术环是大学密集的知识和社交核心。这个充满活力的三层通高空间穿过其所连接的建筑物，并提供了全景视野。它的圆形形式包含公共空间、会议空间、研讨室和实验室。设计刻意将圆弧留作未完成——营造出开放的氛围，为未来发展预留了可能性。

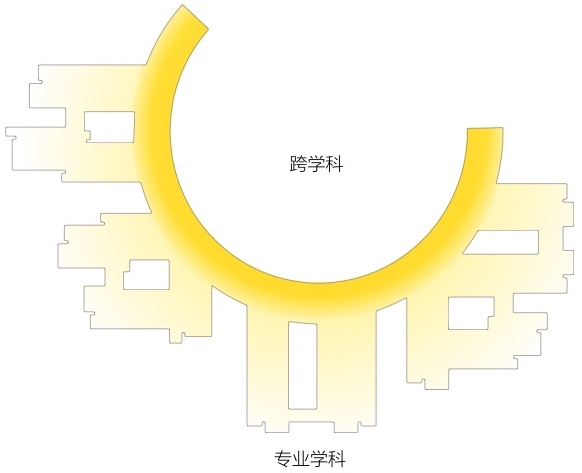

▼学术环分析图，academic loop diagram © HENN

The Academic Loop is the dense intellectual and social core of the university. The dynamic, triple- height space offers panoramic vistas through and into the buildings it connects. Its circular form contains communal spaces, meeting spaces, seminar rooms, and laboratories. The design deliberately leaves the circular arc incomplete – evoking a sense of openness and possibility for future development.

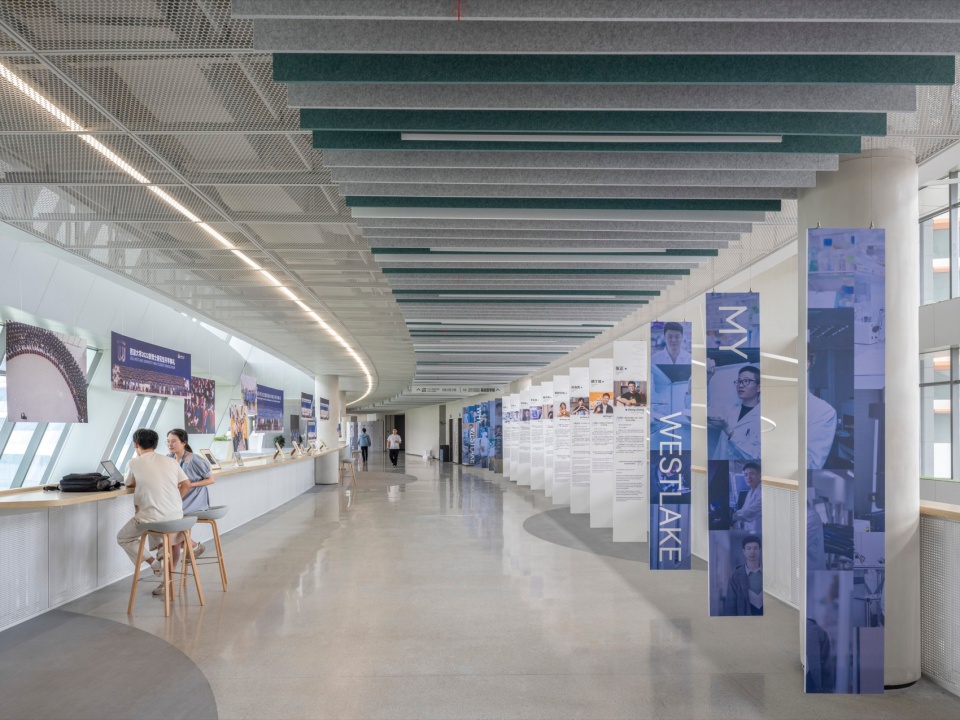

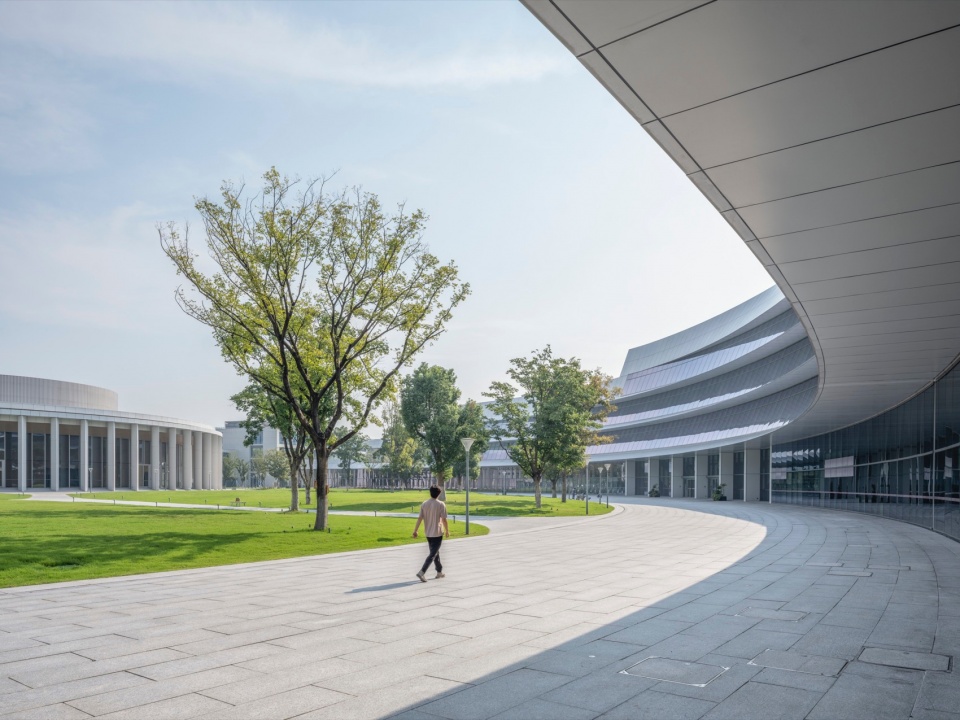

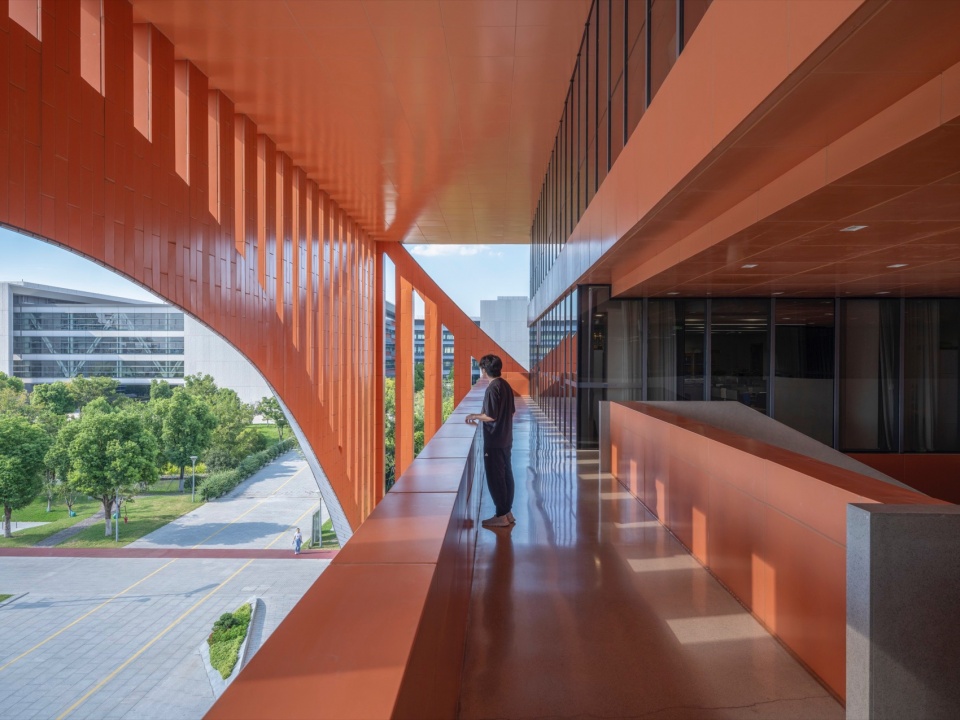

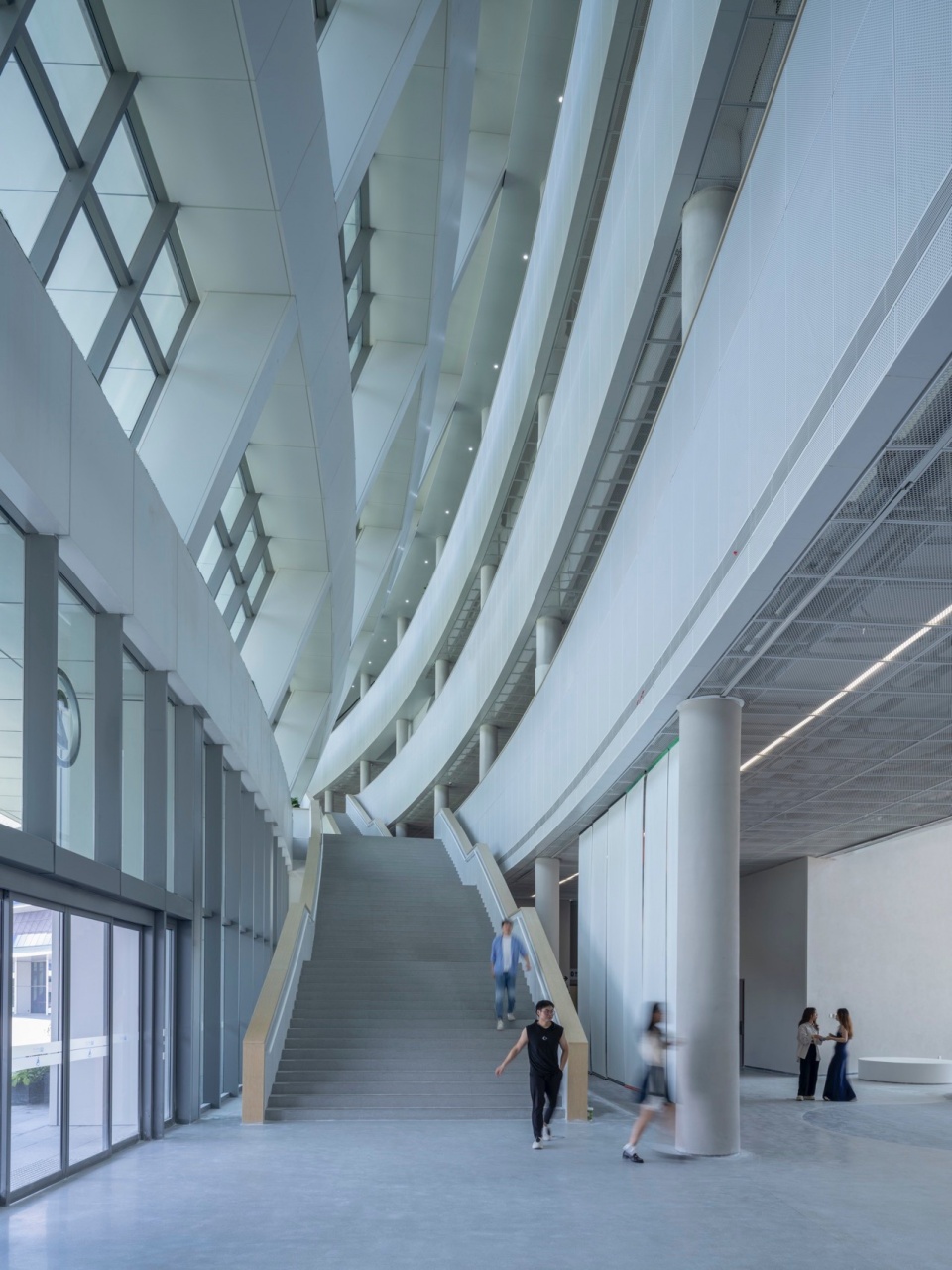

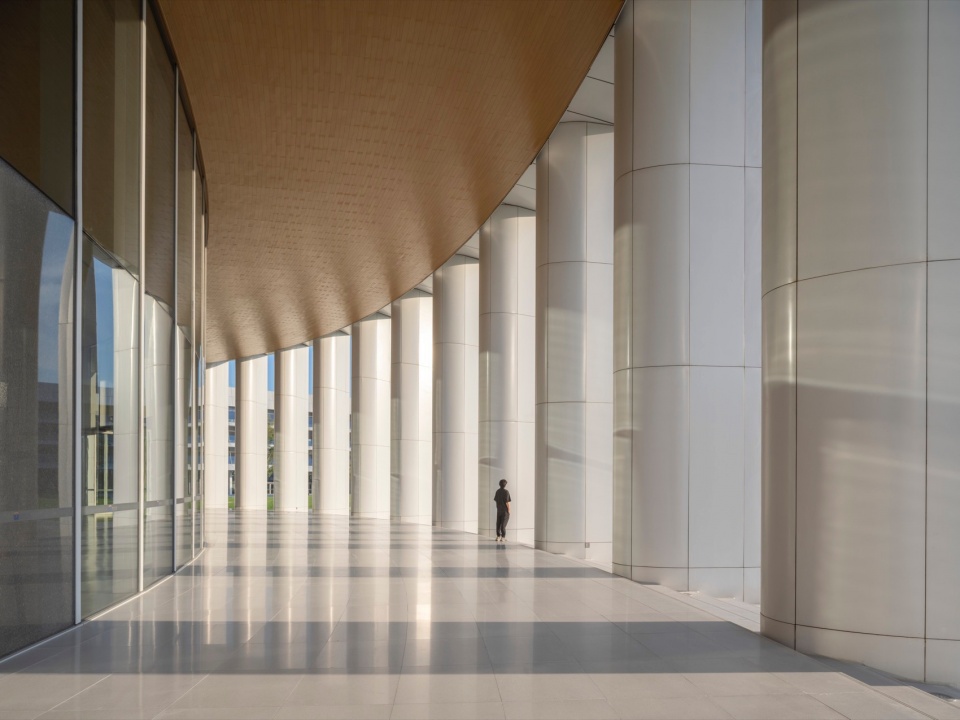

▼学术环，The Academic Loop © 田方方

▼学术环，The Academic Loop © 田方方

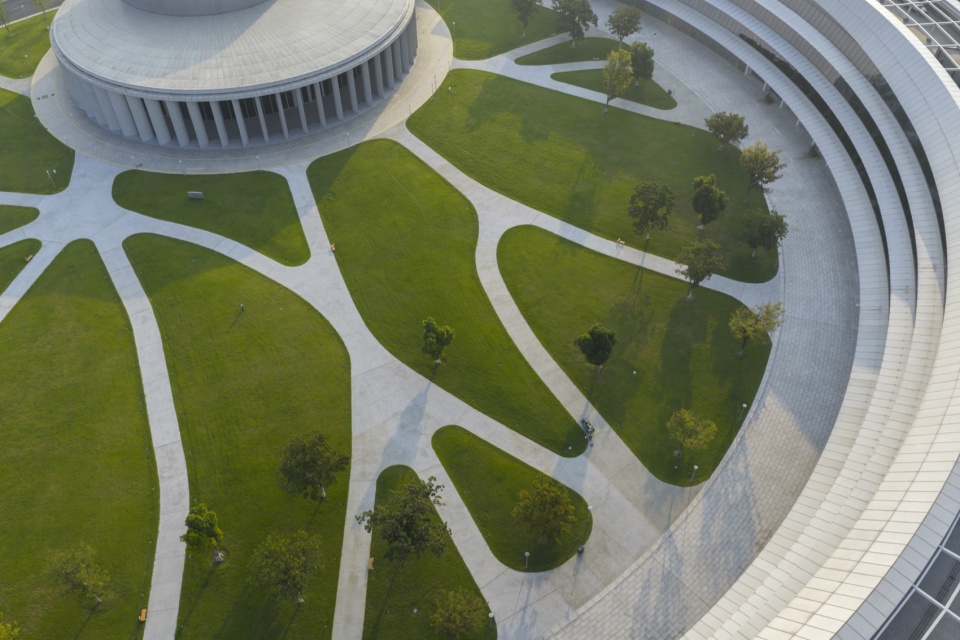

学术环的中心是大学的中央公园——一个适合静修、沉思和社交的美丽花园。坐落于花园中央的学术堂是一座大型礼堂，既是毕业典礼和学术活动的正式场所，又能化身为举办音乐会与文化活动的热闹空间。

At the center of the loop is the University’s central park—a beautiful garden for retreat, contemplation and socialization. Set amidst the garden is the Academic Hall, a large auditorium that serves as the formal venue for graduations and academic ceremonies, and regularly transforms into a lively space for concerts and cultural occasions.

▼学术环核心，The center of the loop © 田方方

校园周围环绕着一条宁静的水道，上面的十二座桥就像车轮上的辐条一样，将校园与葱郁的生活环紧密相连，生活环内错落分布着供师生居住的独立住宅楼。而生活环外围的商店、食堂与体育设施，则让校园变身为一座活力聚落。

The campus is encircled by a tranquil waterway. Twelve bridges, like spokes on a wheel, connect the campus to the verdant Living Loop where freestanding residential buildings for students and faculty are located. Surrounded by shops, canteens, and sports facilities, the outer ring is a vibrant hub of private and social life.

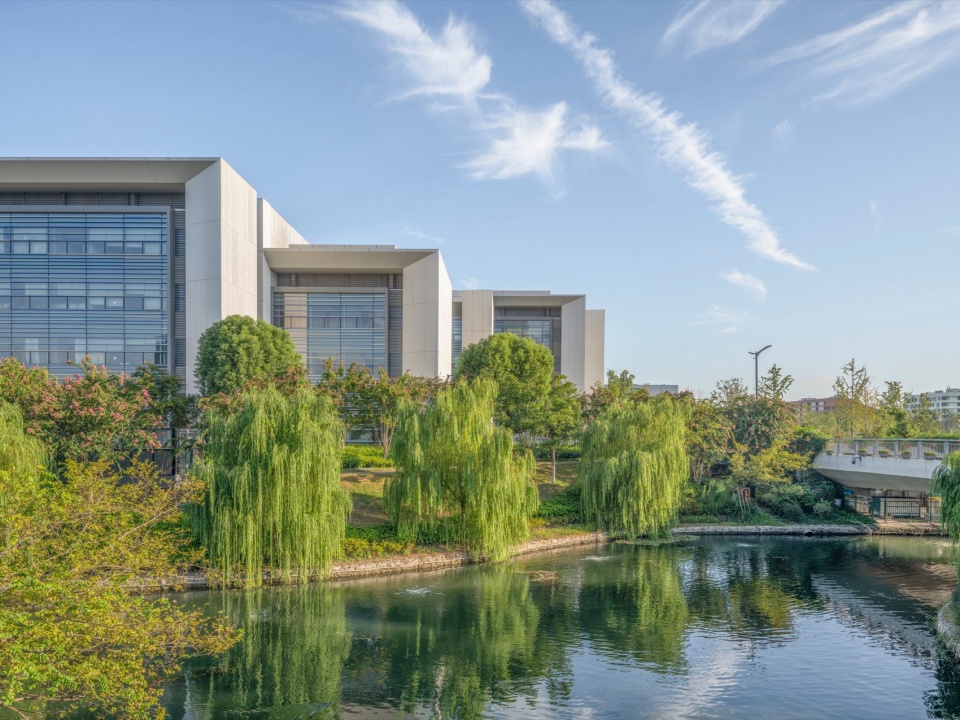

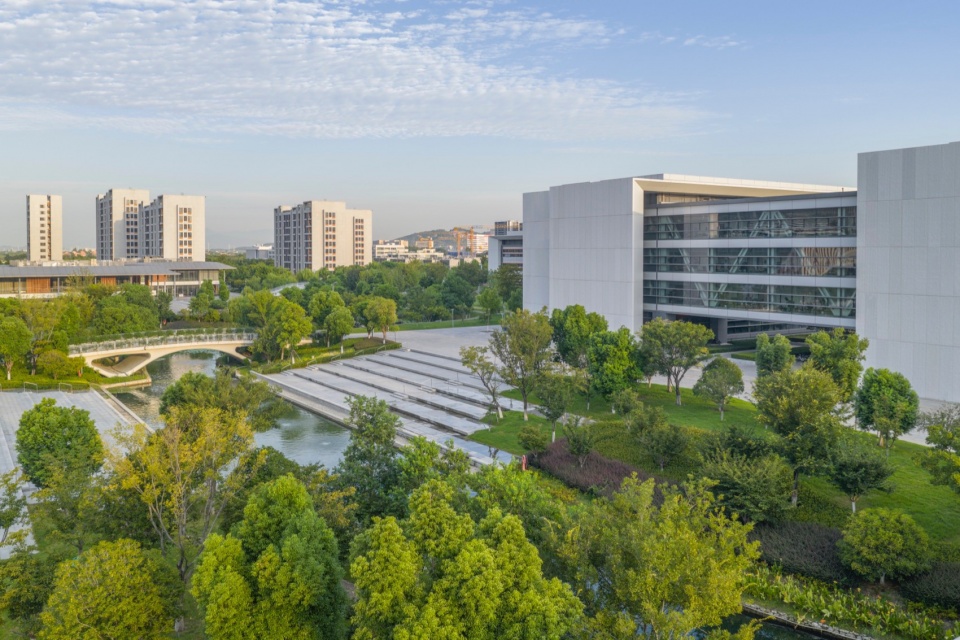

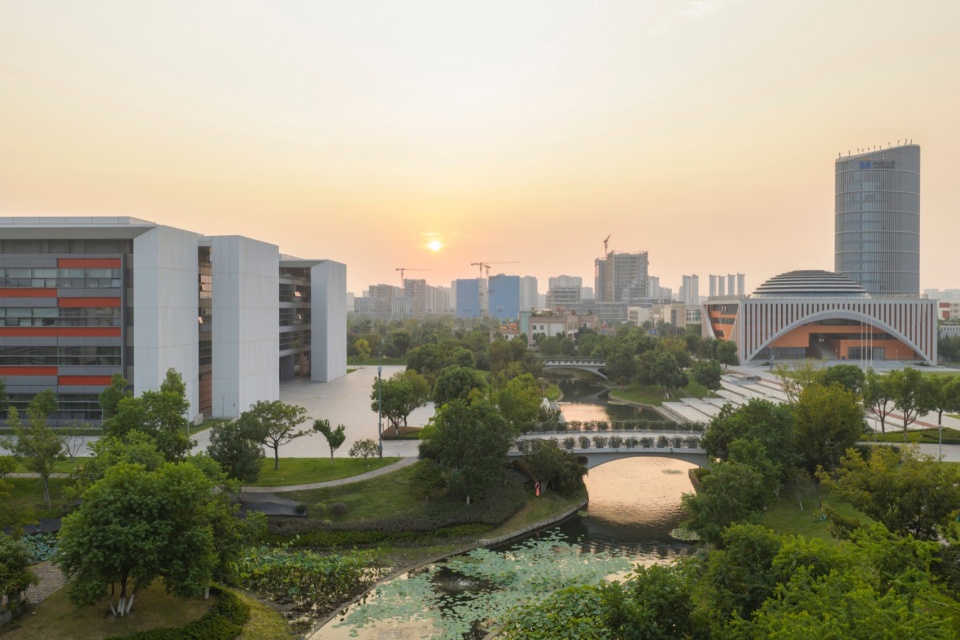

▼校园周边的水道，Waterways around the campus © 田方方

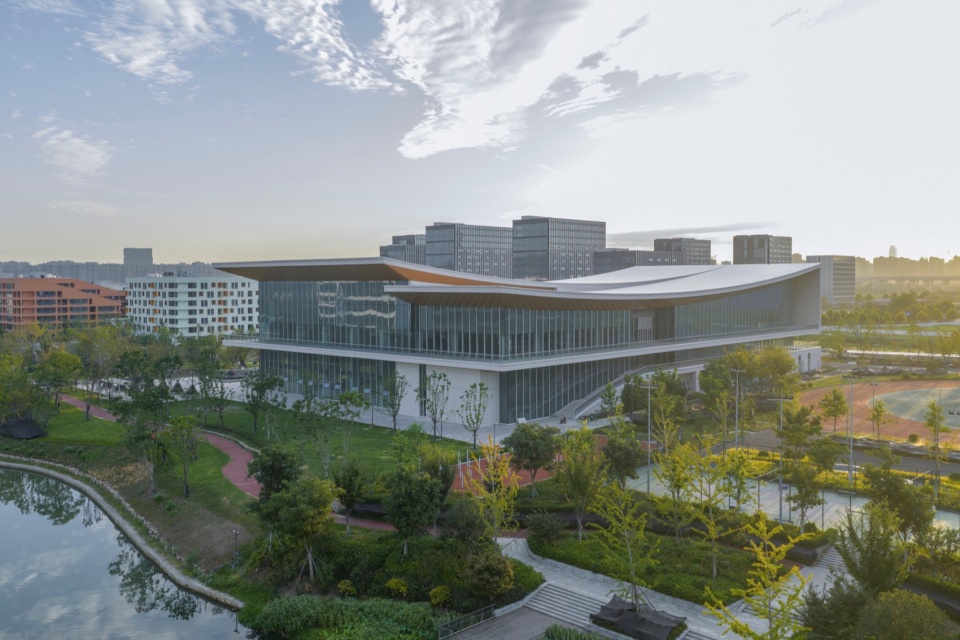

▼体育中心建筑，Sports center © 田方方

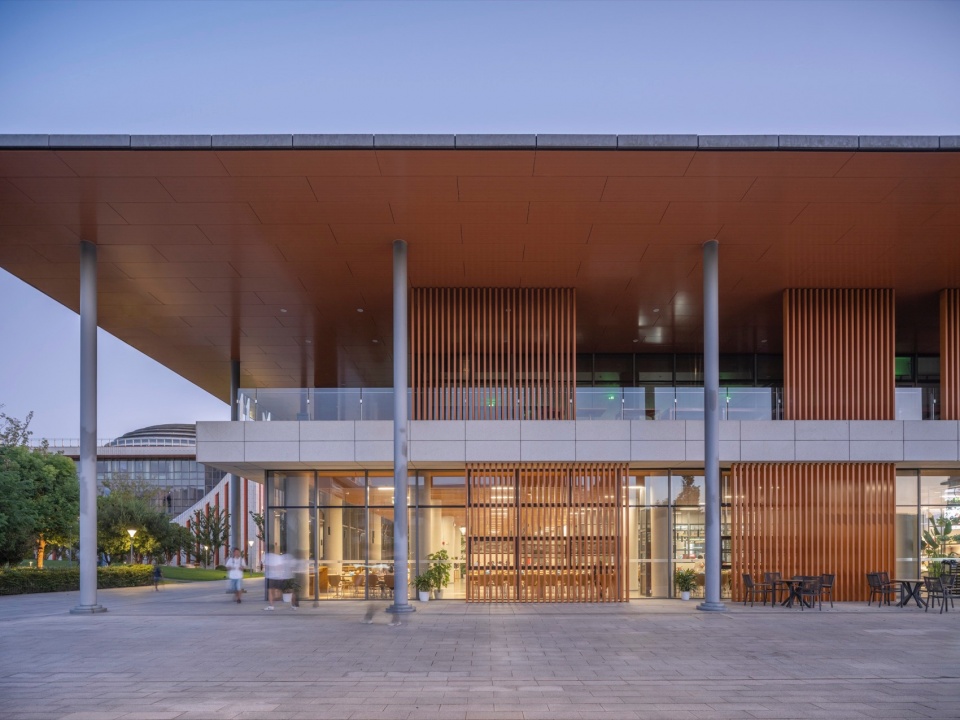

▼食堂，Canteen © 田方方

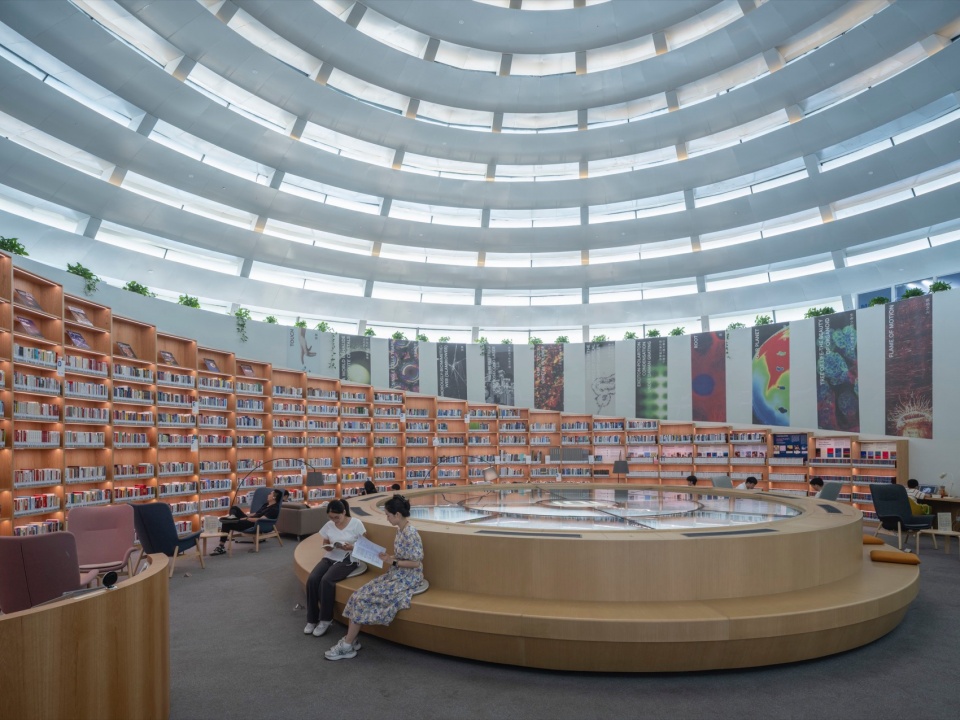

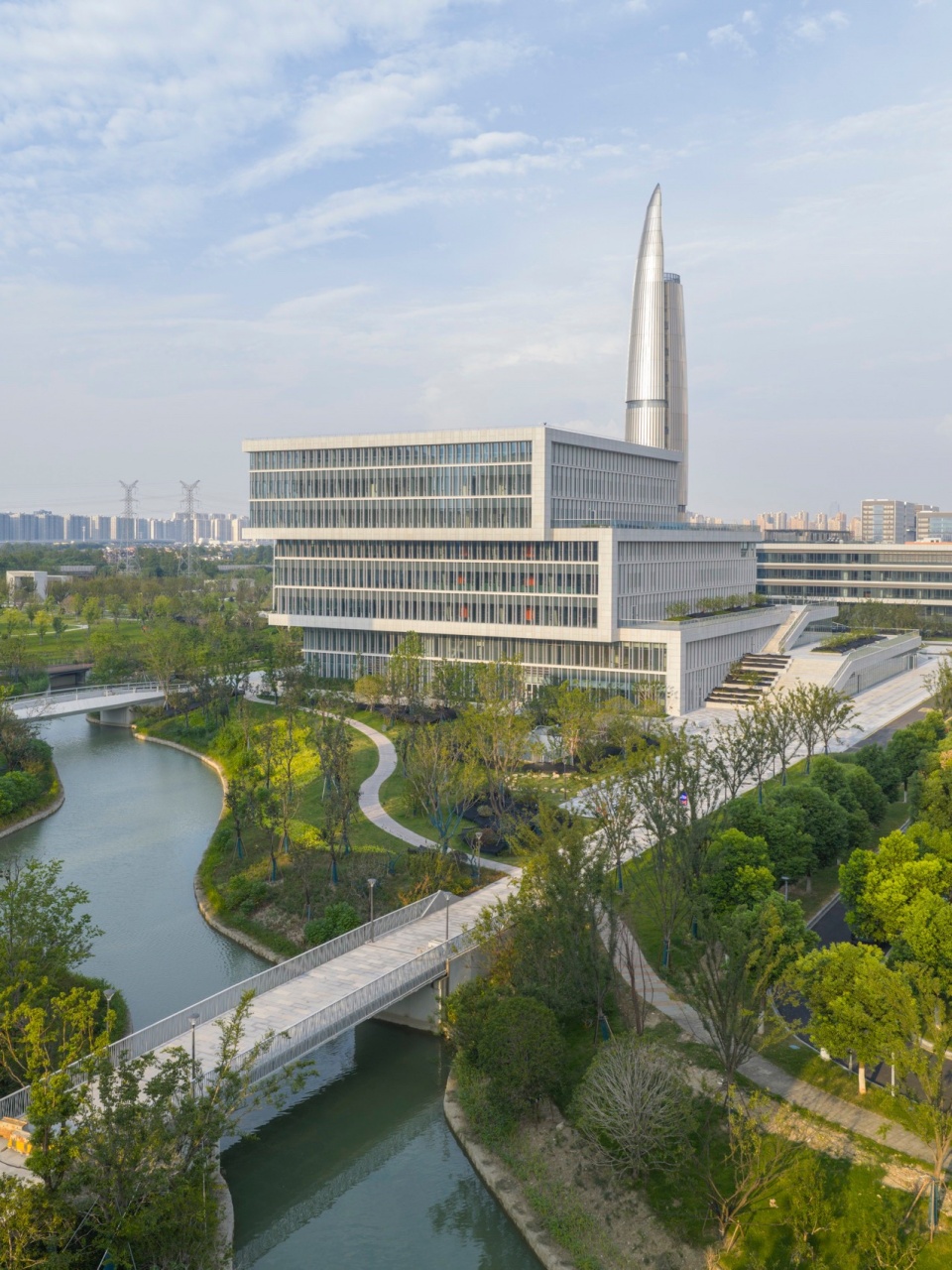

▼图书馆建筑，Library © 田方方

校园设计以中心区域为引力核心展开构思。它并非优先考虑最短路径，而是引导人们穿行于各具特色的环形空间，提供多元体验、激发灵感与促进交流。偶然的相遇往往能点燃新的创意与思维方式。

The design of the campus is conceived from the center as a gravitational core. Rather than prioritizing short routes, it encourages and guides movement through the rings – each with its own character – offering diverse experiences, opportunities for inspiration, and vibrant exchange. Serendipitous encounters spark new ideas and ways of thinking.

▼学生活动中心，Activity center © 田方方

校园融合了自然意趣与人文灵感：学术礼堂既举办讲座又承办音乐会，成为区域内领先的文化地标，更将外部活力引入西湖大学的核心区域，模糊了学术生活与社交生活的边界。

The campus combines inspiration from nature as well as culture: The Academic Hall hosts lectures as well as concerts, making it a leading cultural venue in the region and inviting life from outside into the center of Westlake University, blurring the boundaries between academic and social life.

▼夜览，Night view © 田方方

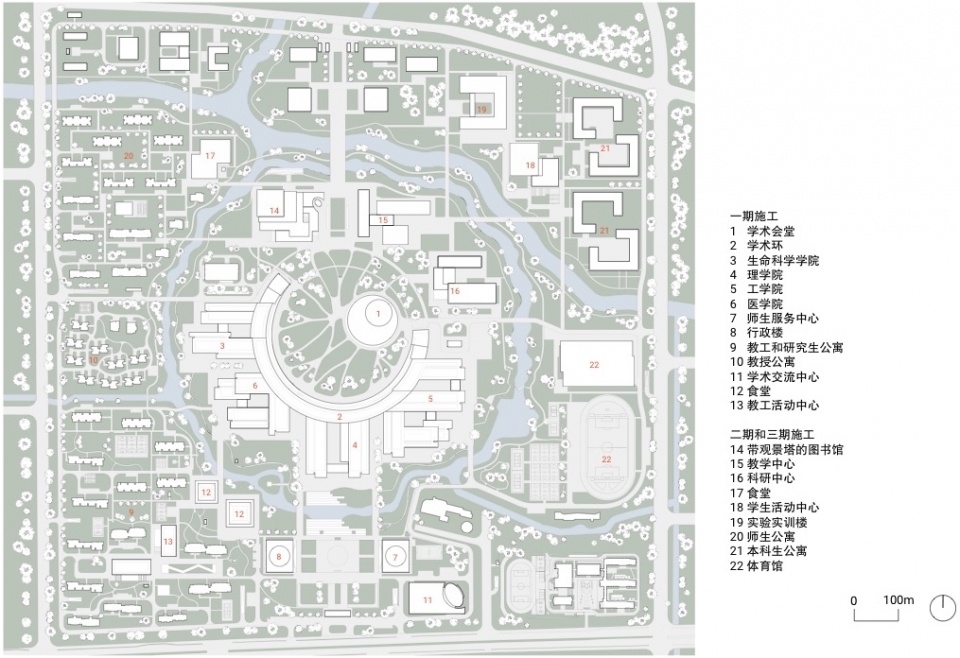

▼总图，masterplan © HENN

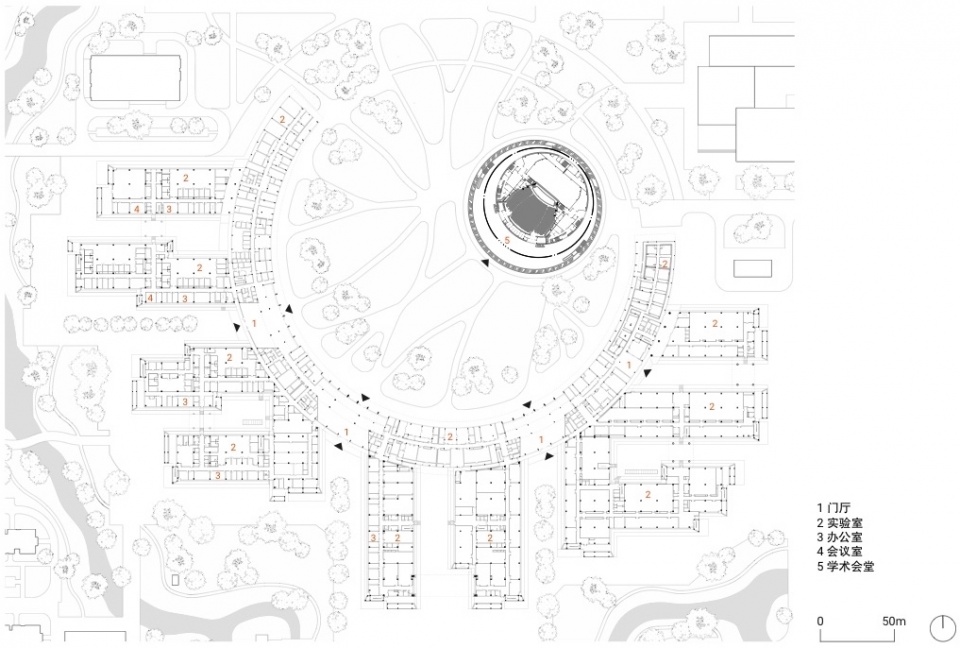

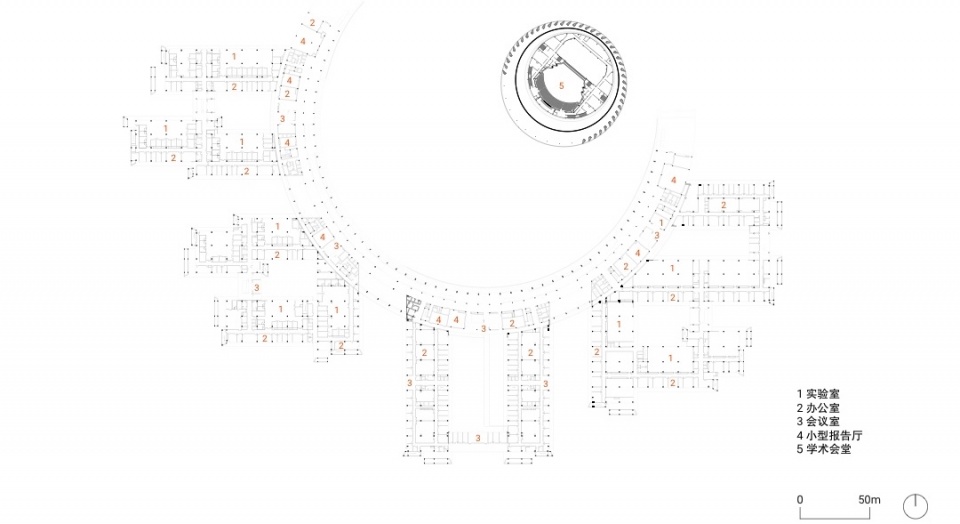

▼首层平面图，ground floor plan © HENN

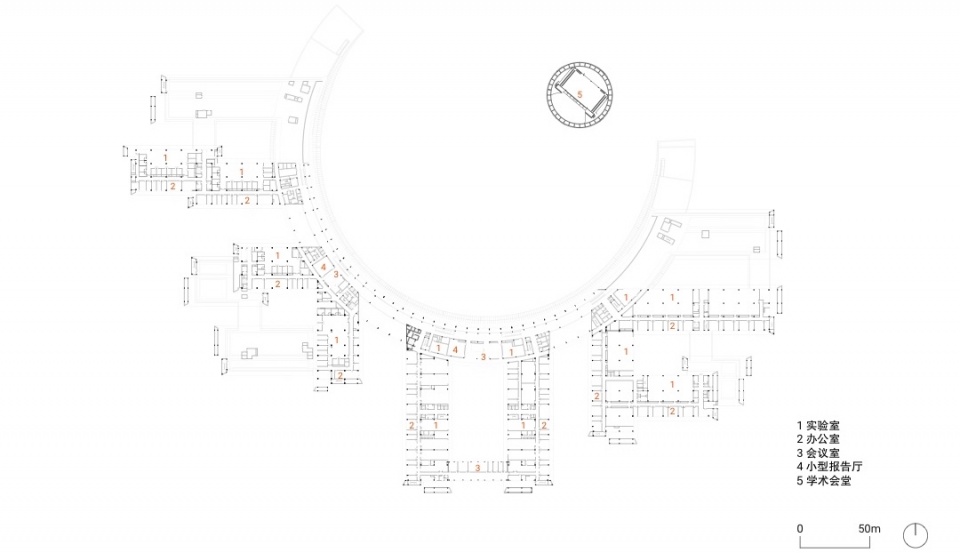

▼二层平面图，first floor plan © HENN

▼四层平面图，third floor plan © HENN

▼剖立面图，circulation plan © HENN

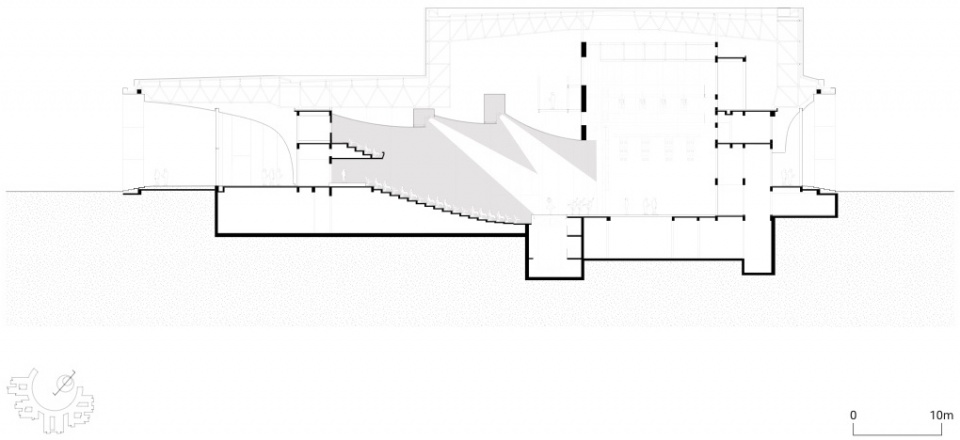

▼学术中心剖面图，academic hall section © HENN

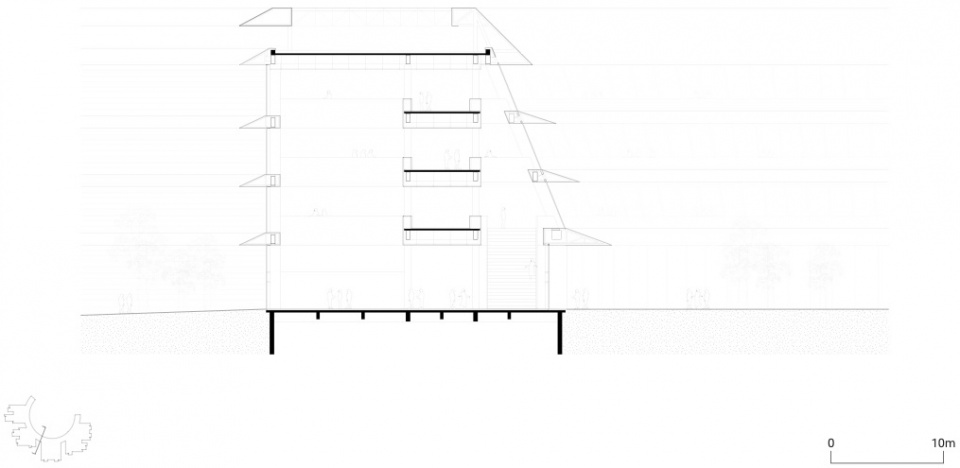

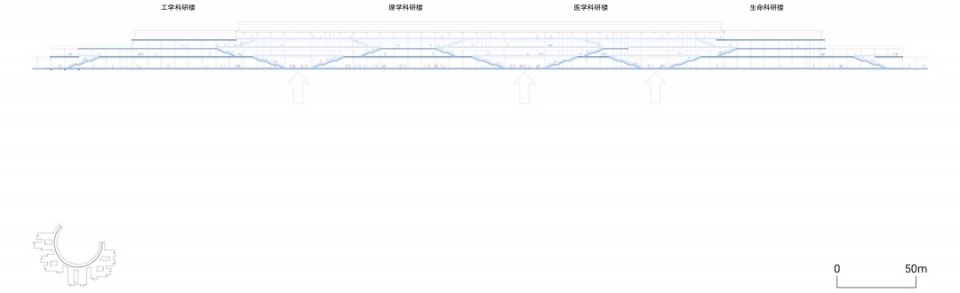

▼学术环剖面图，academic loop section © HENN

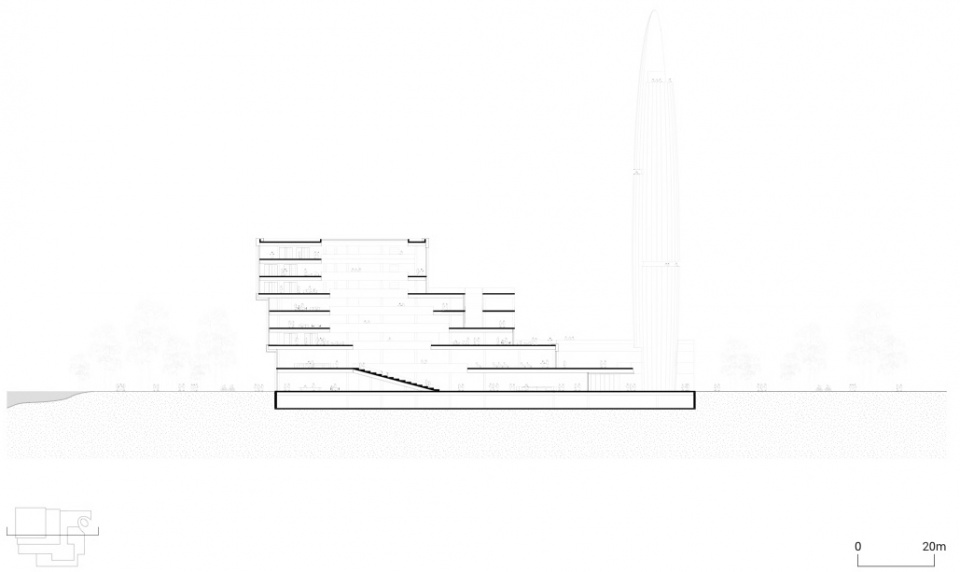

▼图书馆剖面图，library section © HENN

竞赛：2017
起始时间：
2019 (一期与二期)
2021 (三期)
竣工时间
2021 (一期与二期)
2025 (三期)
工作范围：
一期
建筑/总体规划：概念设计、方案设计；
立面设计：概念设计、方案设计、初步设计；
照明设计：概念设计、方案设计；
室内设计（主要公共空间）：概念设计、方案设计
三期
建筑/总体规划：概念设计
立面设计：概念设计
项目类型：总体规划，新建建筑
业主：杭州市推进西湖大学项目建设指挥部西湖大学
地址：中国浙江省杭州市西湖区墩余路600号
占地面积：920,000 m2
总建筑面积：910,000 m2
功能：
礼堂
食堂
交流区
展览空间
实验室
教学区
图书馆及标志塔
办公区
住宿区
酒店
体育设施
建筑设计：HENN建筑事务所
项目团队：
项目负责人：Hans Funk, Georg Pichler
项目总监：Yuchen Wang
设计主管：Martin Henn
Leander Adrian, Lida Alibe- govic, Phyllis Buschmeyer, Anna Cwik, Daniel da Rocha, Martina Fabre, Sahra Gehrke, Denise Gellinger, Tongtong Gong, Wei Guo, Katrin Jacobs, Rachna Kothari, Paul Langley, Peter Lee, Yuanhao Li, Sha Liao, Tu Ba Hoang Ly, Ayk Martirosyan, Janine Parvis, Jekaterina Porohina, Katrin Schiffelholz, Clemens Schiffer, Mostafa Seleem, Andre Serpa, Yuekang Shu, Kathrin Stamm, Tiffany Taraska, Yaxi Yang, Zhe Zhang, Jingyi Zhou
本地规划和建筑合作设计（LDI）：UAD – 浙江大学建筑设计研究院有限公司
顾问单位：
瑞国际照明设计 (照明顾问),
WES LandschaftsArchitektur (景观顾问)
施工单位：上海建工集团
摄影：田方方
视频：方方的田

Competition: 2017
Construction start:
2019 (phases 1 and 2)
2021 (phase 3)
Completion:
2021 (phases 1 and 2)
2025 (phase 3)
Scope of work:
Phases 1
Architecture/Masterplan: Concept, Schematic Design;
Façade Design: Concept, Schematic Design, Preliminary Design;
Lighting Design: Concept, Schematic Design;
Interior Design (Main Public Spaces): Concept, Schematic Design
Phase 3
Architecture/Masterplan: Concept
Façade Design: Concept
Typology: Masterplan, New build
Client:
Hangzhou Municipal Command Center for the Promotion of Westlake University Project Construction
Westlake University
Address:600 Dunyu Road, Xihu District, Hangzhou City, Zhejiang Province, China
Site area: 920,000 m2
Gross floor area: 910,000 m2
Program:
Auditorium
Canteen
Communications area
Exhibition space
Laboratory
Lecture hall
Library with Observation tower
Office
Residential
Hotel
Sports facilities
Architecture: HENN
Project team:
Partners in charge: Hans Funk, Georg Pichler
Project director: Yuchen Wang
Design Principal: Martin Henn
Leander Adrian, Lida Alibe- govic, Phyllis Buschmeyer, Anna Cwik, Daniel da Rocha, Martina Fabre, Sahra Gehrke, Denise Gellinger, Tongtong Gong, Wei Guo, Katrin Jacobs, Rachna Kothari, Paul Langley, Peter Lee, Yuanhao Li, Sha Liao, Tu Ba Hoang Ly, Ayk Martirosyan, Janine Parvis, Jekaterina Porohina, Katrin Schiffelholz, Clemens Schiffer, Mostafa Seleem, Andre Serpa, Yuekang Shu, Kathrin Stamm, Tiffany Taraska, Yaxi Yang, Zhe Zhang, Jingyi Zhou
Local Design Institute (LDI): UAD – The Architectural Design & Research Institute of Zhejiang University Co. Ltd.
Consultants:
RDesign International (Lighting consultant),
WES LandschaftsArchitektur (Landscape consultant)
Construction company: Shanghai Construction Group
Photography: Tian Fangfang
Video: Studio Fang
