藤本壮介事务所联名laisné roussel参加了波尔多Bordeaux一塔楼招标，提出一个高50米的群塔方案，在这些塔楼中，遍布着大小不一的空中花园，阳台，菜园。室内外生活的界限就此被模糊。

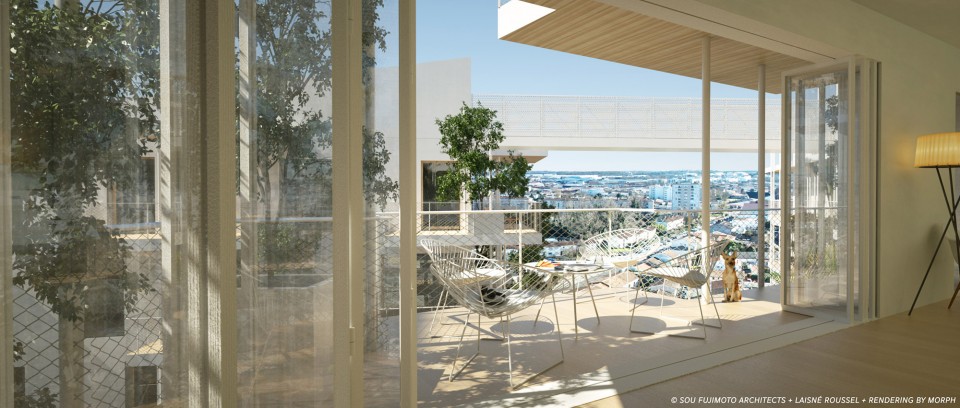

“The Canopia project presents a variety of outdoor spaces (hanging gardens, generous apartment balconies, vegetable gardens, etc.), developing a continuation between indoor and outdoor living environments. “

此项目由波尔多政府在2015年12月发起招标，总面积为17000平方米，允许建立高度超过50米的木结构住宅楼，若顺利实施，将成为全世界最高木结构建筑。群塔项目也是一个综合功能开发项目，拥有住宅，酒吧，商店，共享空间等系列功能。住宅199户，零售空间500平方米，ce空间3770平方米。项目旨在成为城市中具有里程碑意义的标识物，天际线中的明星，夜空中的灯塔。群塔体量适宜，造型帅气，户外空间慷慨，还具有环保理念。居住在这里的居民还能享受俯瞰全市景观的屋顶花园。

AN ICONIC PROJECT

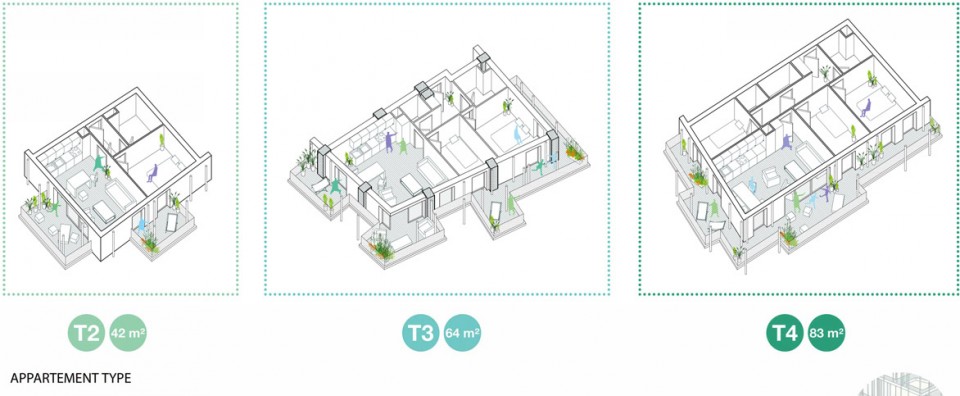

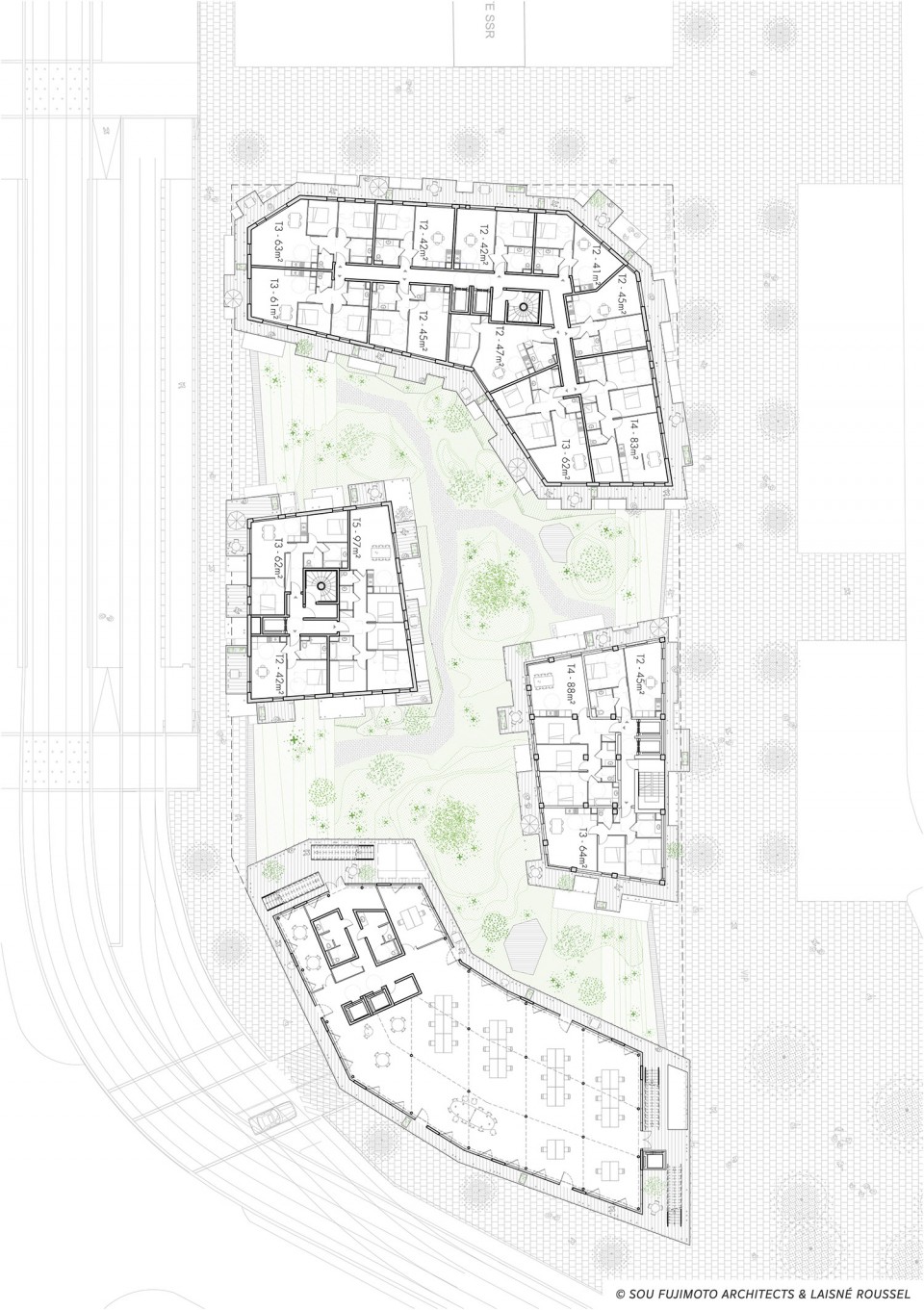

This mixed-use development (residential properties, of ces, panoramic bar, shops, shared spaces) is to be found at the intersection of Rue Cazeaux and Rue Beck in Bordeaux’s Gare Saint Jean neighbourhood. It includes 199 homes, 3,770 m2 of of ce space and 500 m2 of retail outlets.

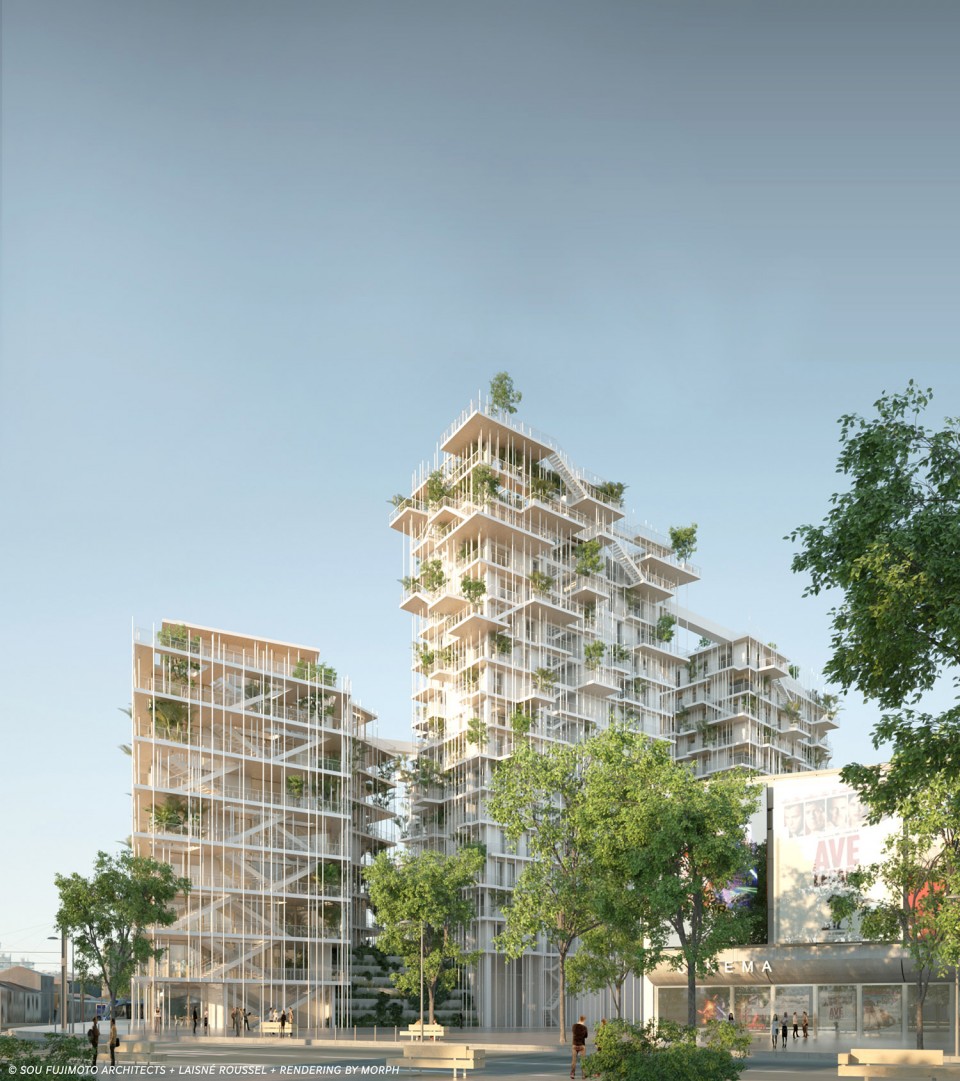

Canopia, as the development is known, aims to become a focal point within the city. It is an urban landmark which, come nightfall, becomes a lighthouse or a star in the skyline of this regional city.

Residents and visitors to the city will enjoy a unique vantage point over the surrounding region.

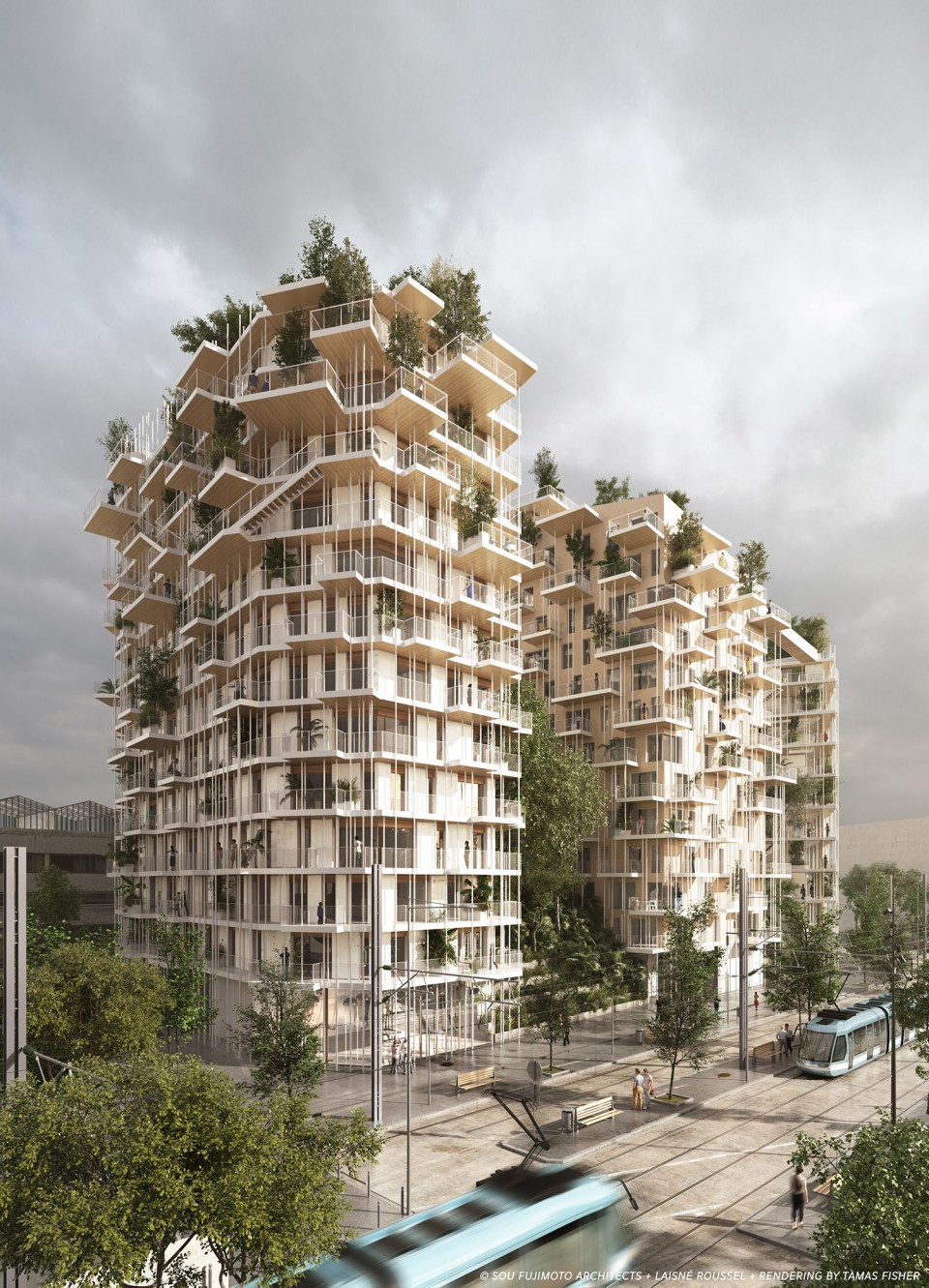

With its handsome proportions, generous outdoor spaces, and environmentally friendly qualities, the tower proposed for Canopia has plenty to recommend it. All the residents in the development will be able to enjoy the panoramic views from the collective roof gardens.

PROJECT BACKGROUND

The Bordeaux city planning authorities put out an invitation to tender in December 2015 for a mixed-use development including a 50 m tall residential building with a timber frame structure. On completion, this will be one of the tallest structures of this type in the world.

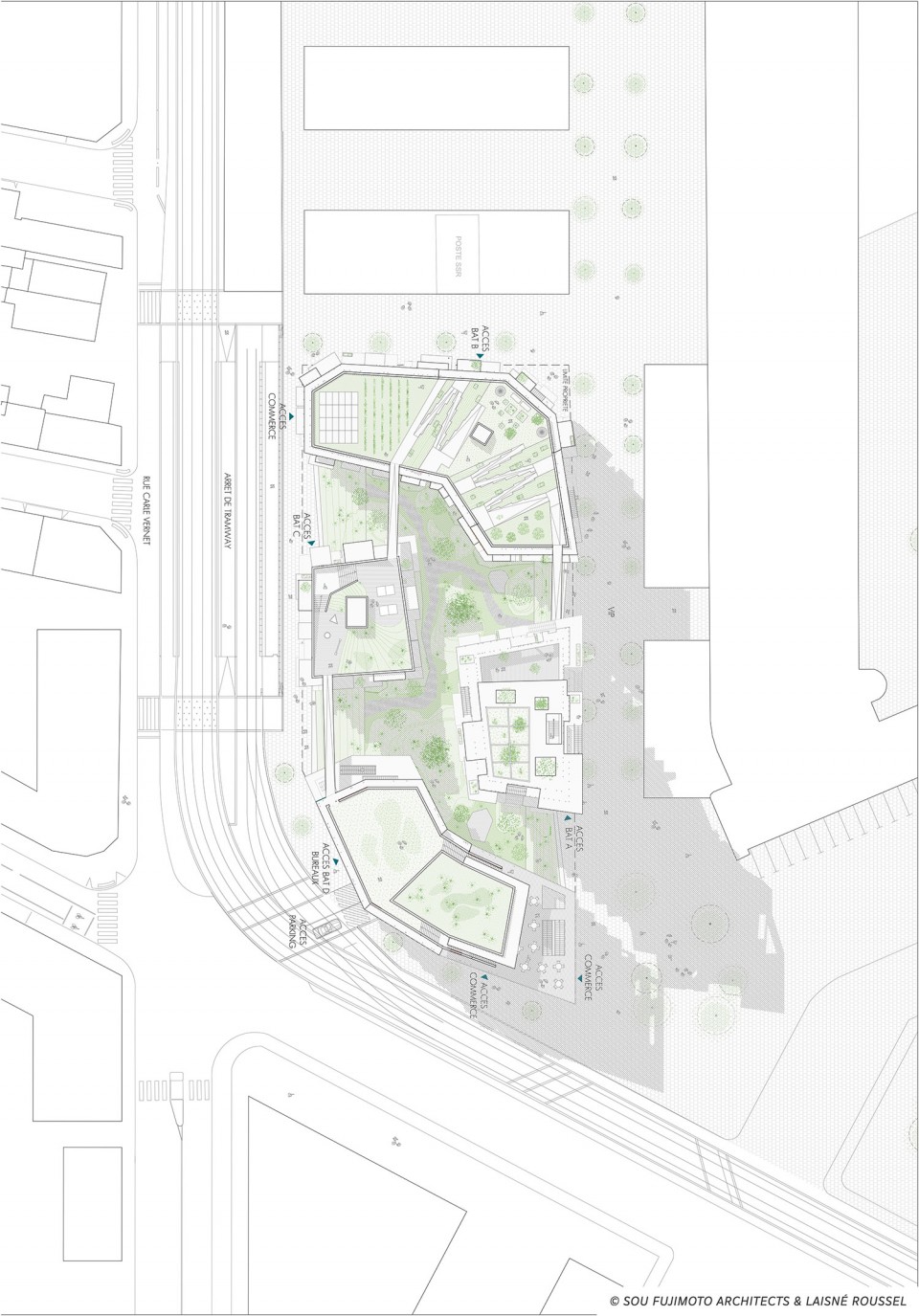

Developers and architects were consulted in relation to a 17,000 m2 plot, as part of phase two of the Amargnac sector of the Bordeaux Saint-Jean Belcier ZAC (urban development zone). As well as supporting the development of an entire sector, this initiative contributes to ghting climate change.

The multi-disciplinary team made up of developer Pitch Promotion, architects Sou Fujimoto Architects and laisné roussel, timber construction engineering rm Mathis, economist Faure, environmental engineering agency Le Sommer Environnement, landscaping team Etablissement, acousticians Emacoustic and the building control of ce Apave, worked together closely to put forward this proposal.

最让该项目与众不同的便是附在建筑表面的诸多空中花园。在这些花园中不仅能饱览城市优美景观，也能允许居民种植蔬菜瓜果，实现都市农业。塔楼顶层相互联系的人行道也是城市独一无二的观景廊道。

该创新的景观大楼体现出波尔多市的雄心。

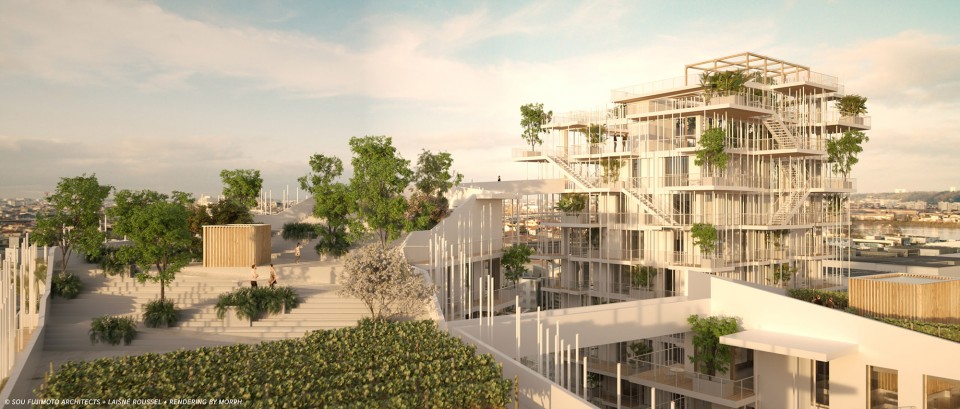

THE CANOPY, A HANGING GARDEN

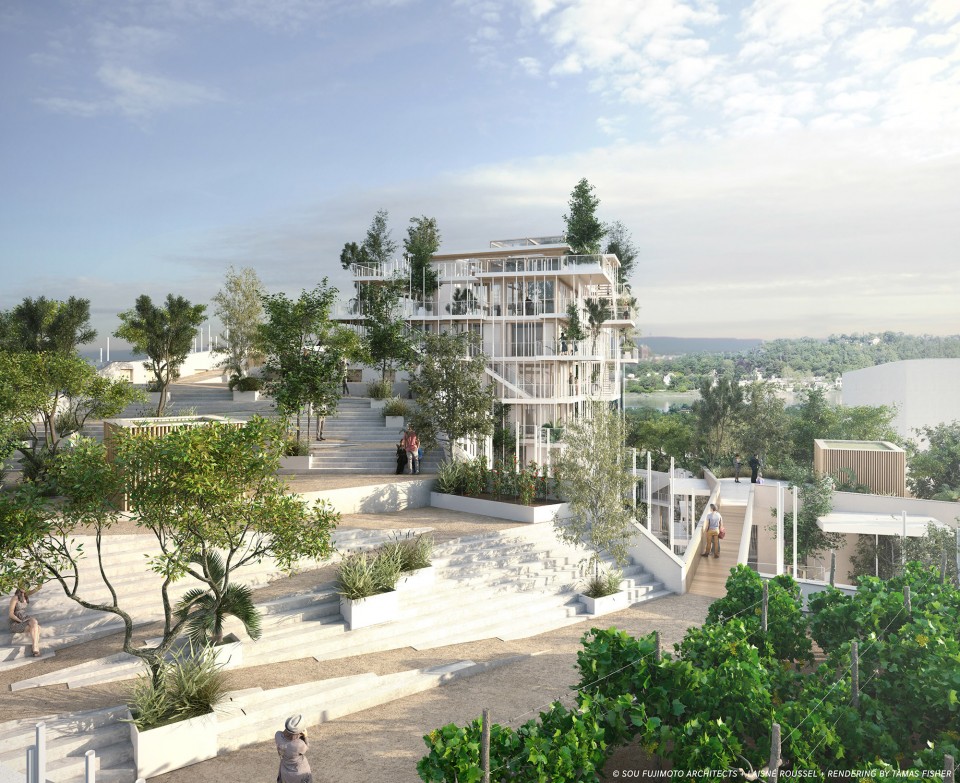

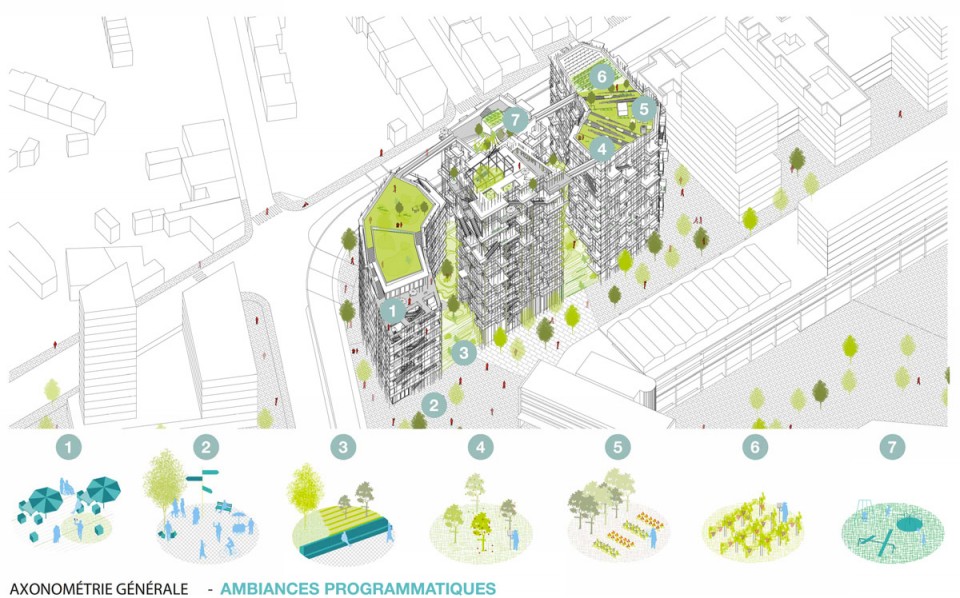

What sets this project apart is the proposal for a collec- tion of themed rooftop gardens connected by walkways. Particular attention has been paid to delivering quality shared spaces, both on the fringes of the site with the terrace gardens or at the heart of the development with the green oasis.

This playful experience invites residents and visitors to wander, relax and contemplate the landscape of the Bordeaux region. Residents are thus given ac- cess to a series of gardens: an agricultural space with vegetable gardens, fruit trees, vines, a com- post area and water reservoirs, a winter garden, a terrace for the restaurant and a rooftop playground.

These raised walkways are unique in Bordeaux, and offer unparalleled views of the hills and the Garonne.

Canopia emerges as a major architectural innovation in the contemporary landscape, with the inclusion of a structure which embodies the ambitions of the city of Bordeaux.

AN EXEMPLARY WOODEN TOWER

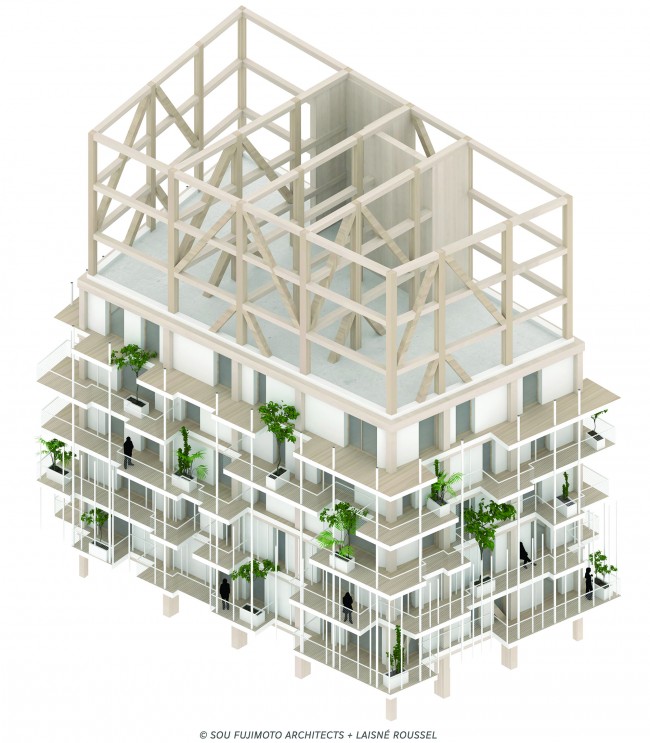

The wooden frame for the high-rise building has been meticulously studied since the tender phase to validate the different technical construction solutions and put in place a design and innovation management team re- sponsible for implementing the project (phasing and identi cation of key phases, problem solving, etc.)

The structure is made from silver r or spruce beams and posts. The oors are made from cross-laminated timber (silver r or spruce) using the Mathis ATEX technique for high-rise buildings.

Glued laminated timber bars are incorporated into the post and beam frame to stabilise the tower. All the build- ings in the project therefore aim to achieve “Biosourcé” certi cation.

An H&E A-rating is being sought for the homes. As for the of ces, they have double HQE® BREEAM certi ca- tion to guarantee their environmental performance.

$\aqmaAQMA1_PROJETS2015-10_NLA_BDX1_Travail1_Plans2015-$

$\aqmaAQMA1_PROJETS2015-10_NLA_BDX1_Travail1_Plans2015-$

TECHNICAL INFORMATION
Project – Canopia
Location – plot 8.4, Bordeaux Saint Jean Belcier ZAC, France Developper – Pitch Promotion
Architecture team – laisné roussel, Sou Fujimoto Architects Area – 17,000 m2
Status – 2016 competition

PROJECT TEAM

PITCH PROMOTION
Bordeaux, France
Project Manager: Sylvain Piel

SOU FUJIMOTO ARCHITECTS
Tokyo, Japan
Managing partner: Sou Fujimoto
Project Manager: Marie de France
Team: Amandine Quillent, Augustin Caradec

LAISNÉ ROUSSEL
Paris, France
Managing partner:
Nicolas Laisné, Dimitri Roussel Project Manager : Louis Bauchet Team: Victor Deplus, Mathias Aguilar

ECONOMIST – CABINET FAURE
Bordeaux, France

BET TCE – ARCADIS
Bordeaux, France

ENVIRONMENTAL ENGINEERING – LE SOMMER Paris, France
WOOD CONSTRUCTION – MATHIS
Bordeaux, France

LANDSCAPING – ETABLISSEMENT
Bordeaux, France

ACOUSTICIAN – EMACOUSTIC
Bordeaux, France

BUILDING CONTROL OFFICE – APAVE
Bordeaux, France

RENDERS
Tamàs Fischer, Morph, laisné roussel, Sou Fujimoto Architects,

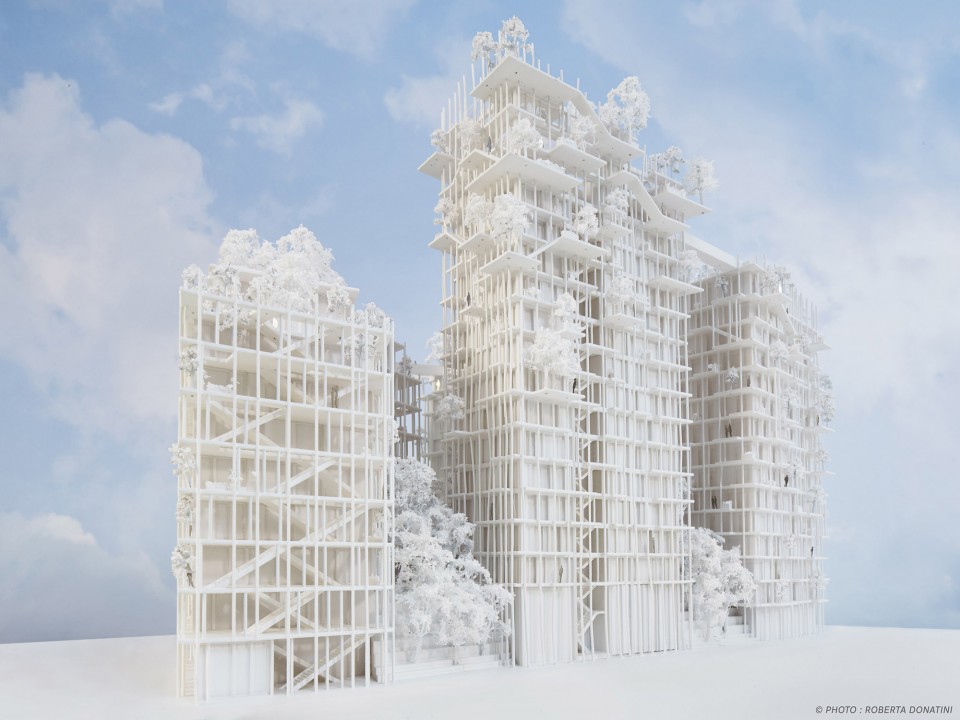

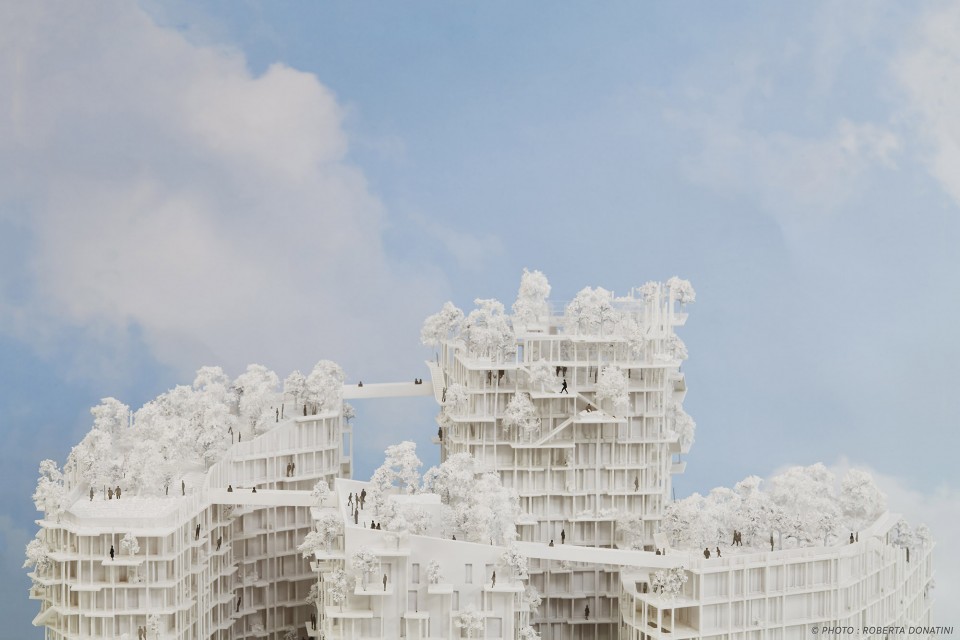

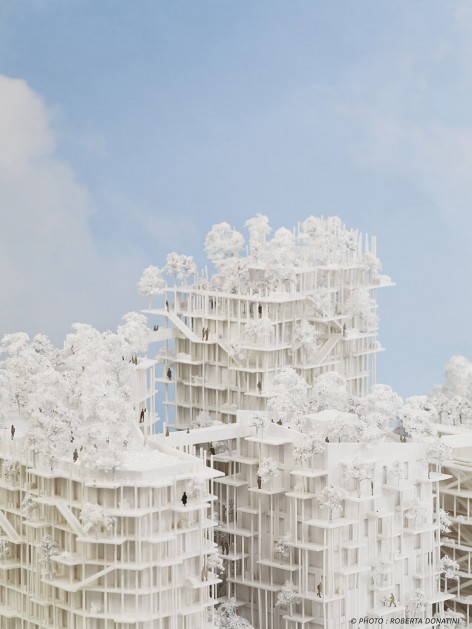

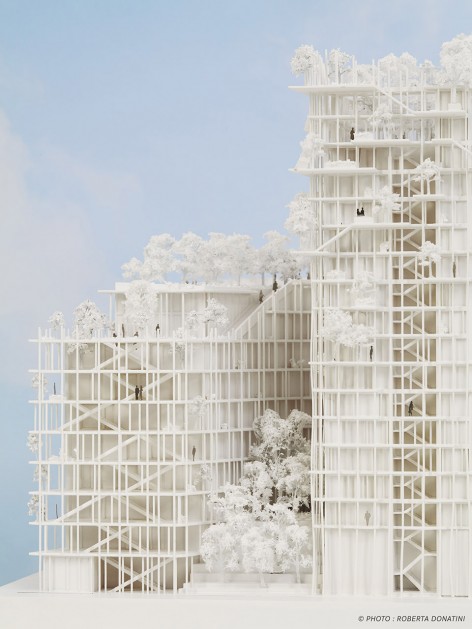

MODEL Jean Louis Courtois Model and Co.
