非常感谢 立方设计 将以下内容授权gooood发行。更多关于：Cube Design on gooood
Appreciation towards Cube Design for providing the following description:

项目概况
Project overview

桃园小学坐落在深圳罗湖笋岗片区，位于未来新罗湖会客厅，具备得天独厚的区位条件。学校周边主要为住宅区和工业、商业混合用地，人口高度密集；一公里内学校较少，仅有笋岗小学、桂园中学两所，且现有学校因年代久远面貌陈旧，设施老化。

Taoyuan Elementary School is located in Sungang, Luohu, Shenzhen and in the reception hall of New Luohu in the future. It has unique geographical conditions. The school is mainly surrounded by residential areas and mixed industrial and commercial land, with a high population density; There are few schools within one kilometer, only Sungang Primary School and Guiyuan Middle School, and the existing schools are old and the facilities are aging due to the age.

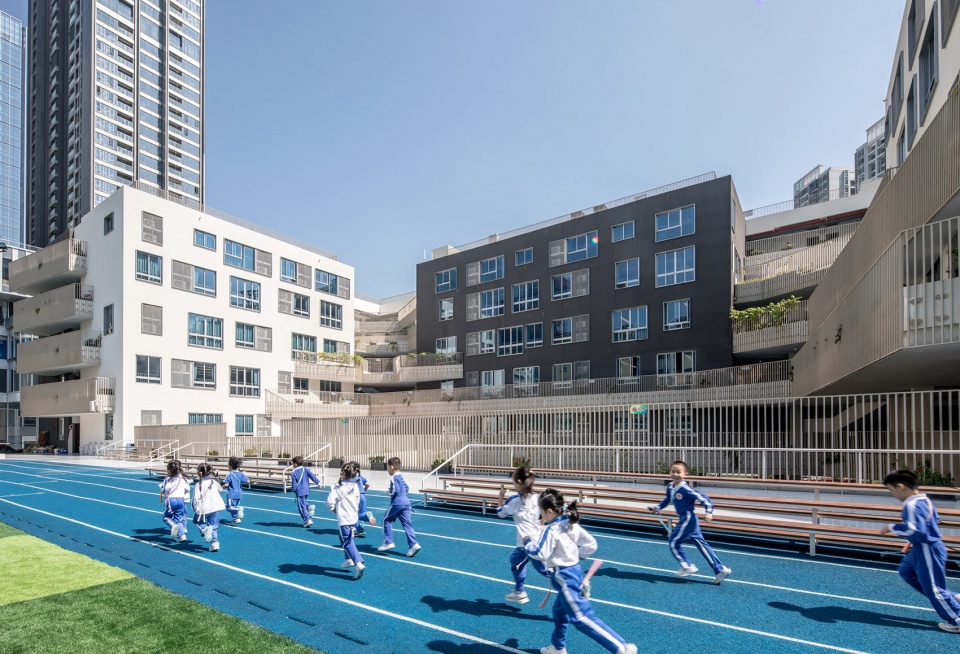

▼项目概览，Overall view © 陈俊伟

根据“新罗湖”的科技、生态、人文、创新的区域特征，桃园小学致力要打造成一所代表罗湖教育质量的区域一流名校，缓解周边学位紧张的情况，提升片区教育综合实力。

According to the regional characteristics of “New Luohu” in terms of science, technology, ecology, humanities and innovation, Taoyuan Elementary School is committed to building itself into a regional first class school that represents the quality of Luohu education, easing the degree tension around and improving the comprehensive strength of education in the region.

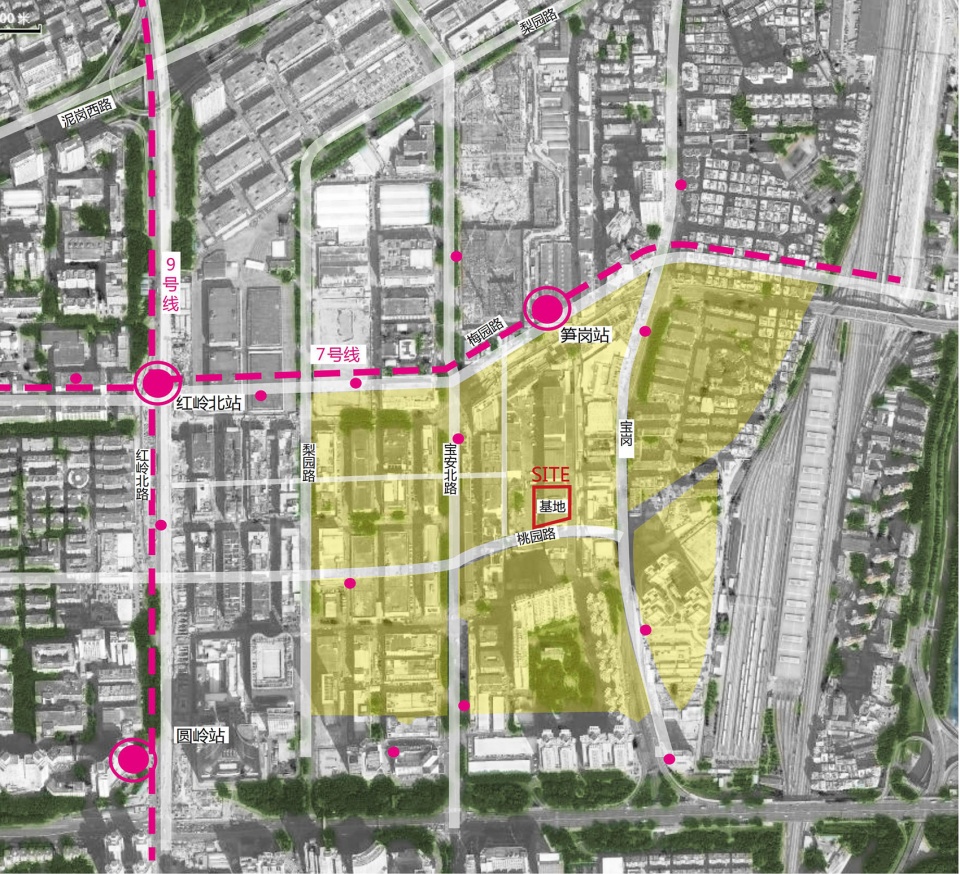

▼基地分析，Site analysis © 立方设计

设计思考
Deliberate

项目占地面积约为1.3万平方米，在这种尺度用地上需要打造一所36班+12个机动教室的规模的学校，面对这种属于典型城市更新下的高密度学校案例，设计团队不得不思考：如何满足高容积率的同时，打造一个友好宜人的校园环境？

综合考量过后，我们决定打造一个高楼林立下的“城市绿洲”，这也意味着学校将拥有立体的花园绿化、良好的通风、采光、日照条件。

让建筑本身变得舒适宜人，希望它不是城市未来的阻碍，而是一个充满绿化的场所。孩子们能在有限空间的校园生活里满足对无限知识的探索，实现科教共赢，资源共享和生态共生的设计愿景。

The project covers an area of about 13000 square meters. On this scale of land, it is necessary to build a school with 36 classes+12 mobile classrooms.In the face of this high density school case, which belongs to the typical urban renewal, the design team has to think: how to meet the requirements of high plot ratio and create a friendly and pleasant campus environment?

After comprehensive consideration, we have decided to build an “urban oasis” surrounded by tall buildings, which also means that the school will have three dimensional garden greening, good ventilation, lighting and sunshine conditions.

Let the building itself become comfortable and pleasant. I hope it is not an obstacle to the future of the city, but a place full of green. Children can meet the exploration of infinite knowledge in the campus life with limited space, and realize the design vision of win win science and education, resource sharing and ecological symbiosis.

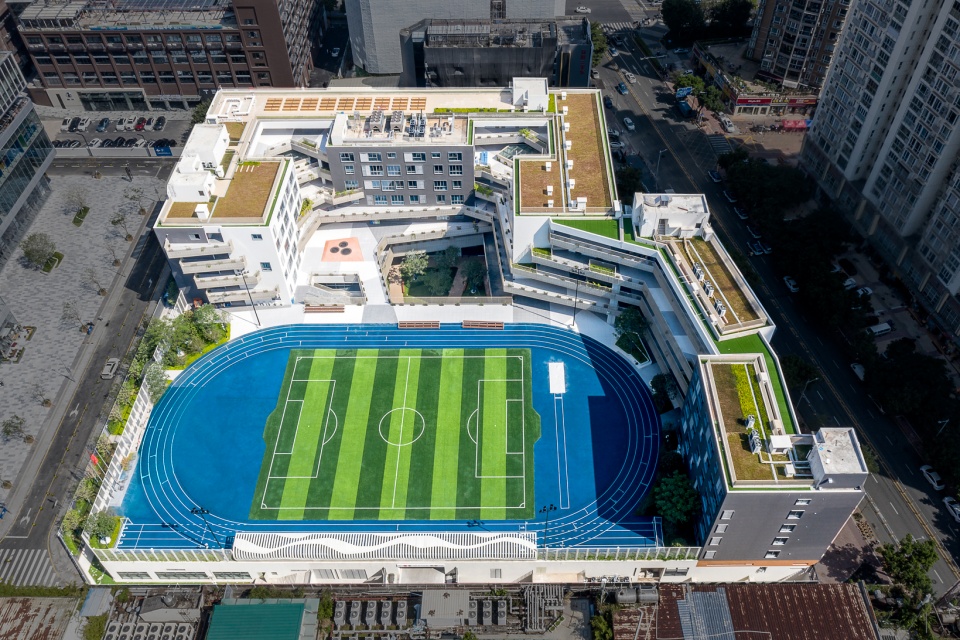

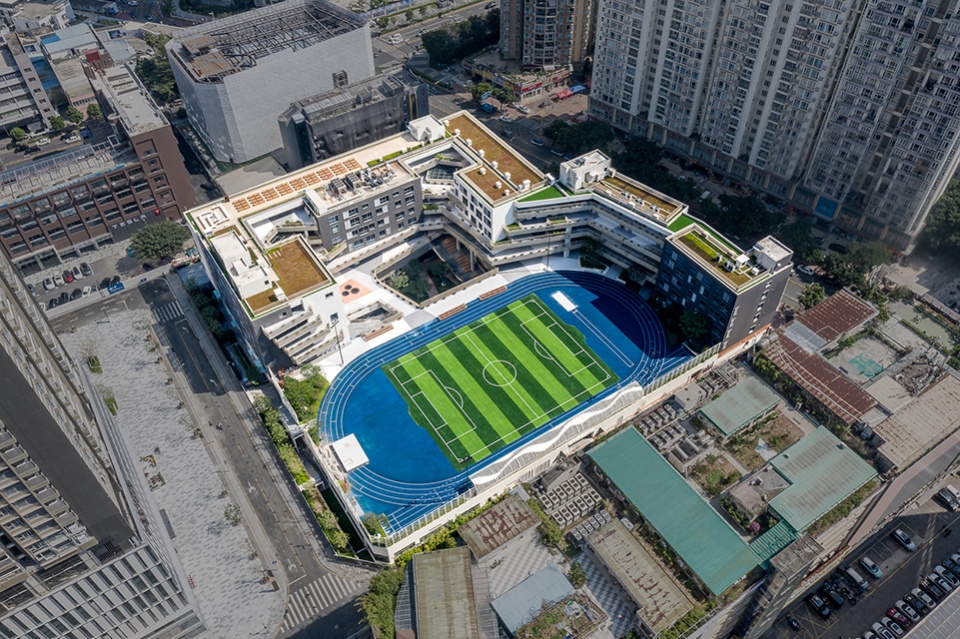

▼鸟瞰图，Aerial view © 陈俊伟

立体功能布局
Functional layout

01. 弹性功能，垂直划分
Functional layout of flexible sharing of the campus

传统的校园建筑组成可分为教学区、体育区、学术区和生活四大功能区，但现有的用地条件已经不能利用简单的水平分区来划分。于是我们将四大功能区的各项功能重新拆分，其中学生中心和体育中心部分功能交叉，可进行动态重组。

在城市高密度限制条件下，我们引入“复合教育空间”的概念，结合“地面架高、多首层设计”等手法，将大空间、小空间有序垂直组织，功能更加便捷高效。

At present, the building composition of primary and secondary schools can be divided into four functional areas: teaching, academic, sports and living. The functions of the four major functional areas are redivided, among which some functions of the academic and sports centers can be dynamically reorganized under a certain degree of “compatibility”.

Under the restriction of urban high density,we introduce the concept of “composite education space”, combined with the techniques of “high ground, multiple first floor design” and so on, to organize large space and small space vertically in order to make the function more convenient and efficient.

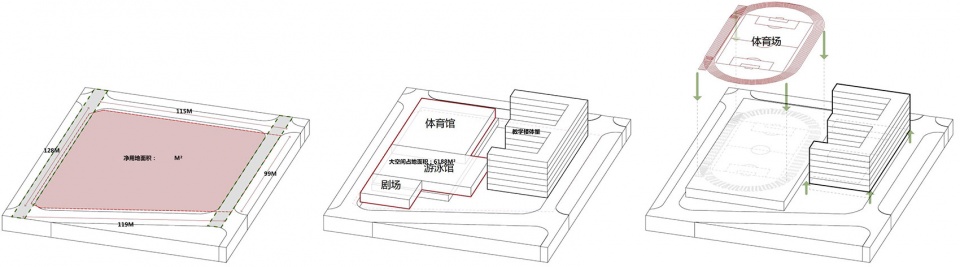

▼架空逻辑，The logic of elevating © 立方设计

体育功能与学术功能均布置于首层及负一层，方便与外界分享。教学中心较为私密则单独布置，办公空间往往布置于建筑顶层。

The sports functions and academic functions are arranged on the first and negative floors to facilitate sharing with the external . The relatively intimate spaces of the teaching center are arranged separately, while the relatively intimate spaces of the office space are often arranged on the top floor of the building.

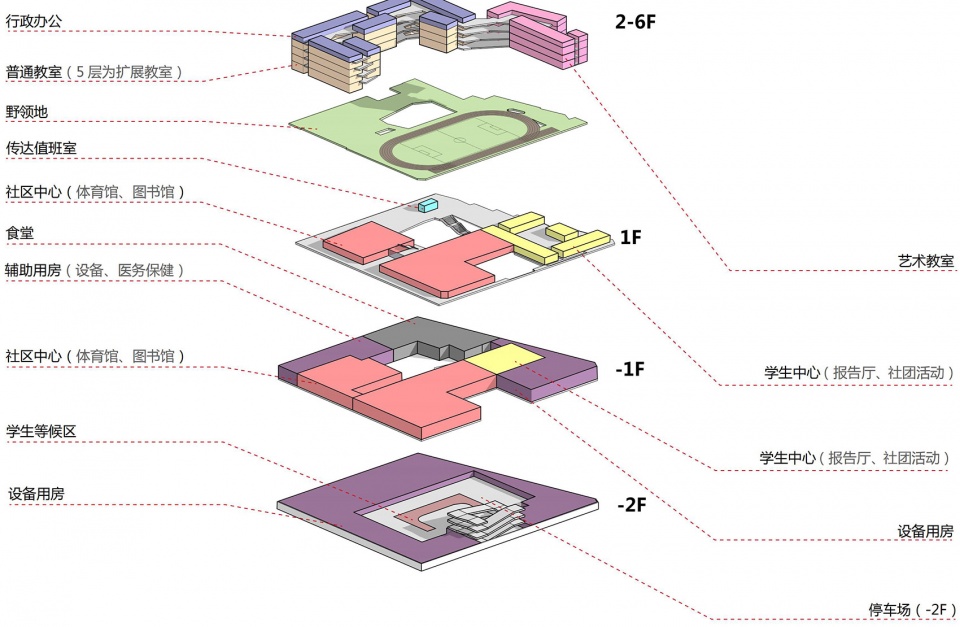

▼功能分区，Programme © 立方设计

因此，在集约用地限制下，通过加强垂直方向的弹性功能布局以满足共享理念。

Therefore, under the restriction of intensive land use, the vertical layout of flexible functions is strengthened to meet the concept of sharing.

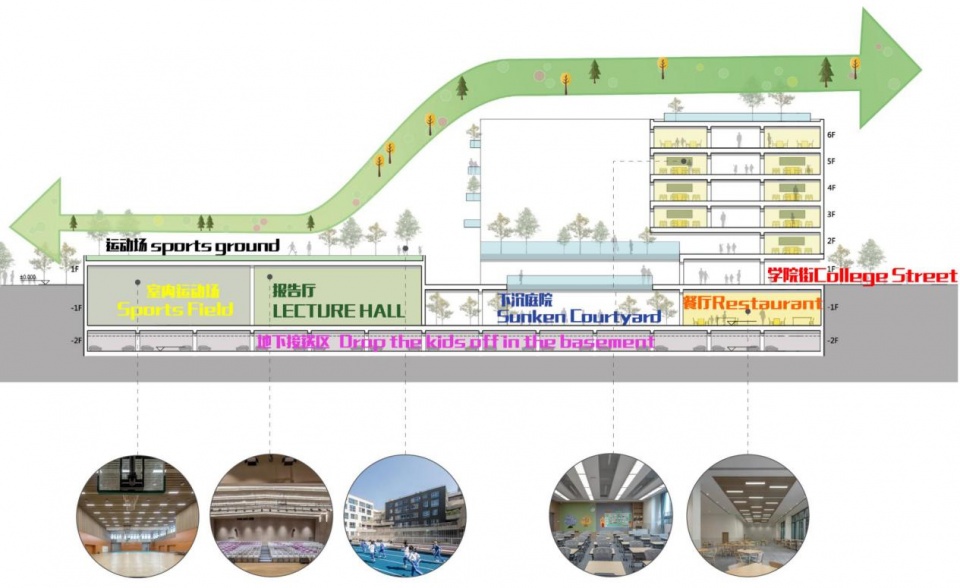

▼剖面关系，Section © 立方设计

02. 高效集约的“四层”垂直空间
Efficient and Intensive “Four-Level” Vertical Space

在建筑中间引入一个宽敞的庭院，团队从自然汲取灵感，通过层层后退、不断蜿蜒变换的连续景观平台打造“半盆地”的形态，使其成为一个趣味场所。

By introducing a spacious courtyard in the middle of the building, the team drew inspiration from nature, creating a “half basin” shape through successive terraces that receded and meandered, making it a place of interest.

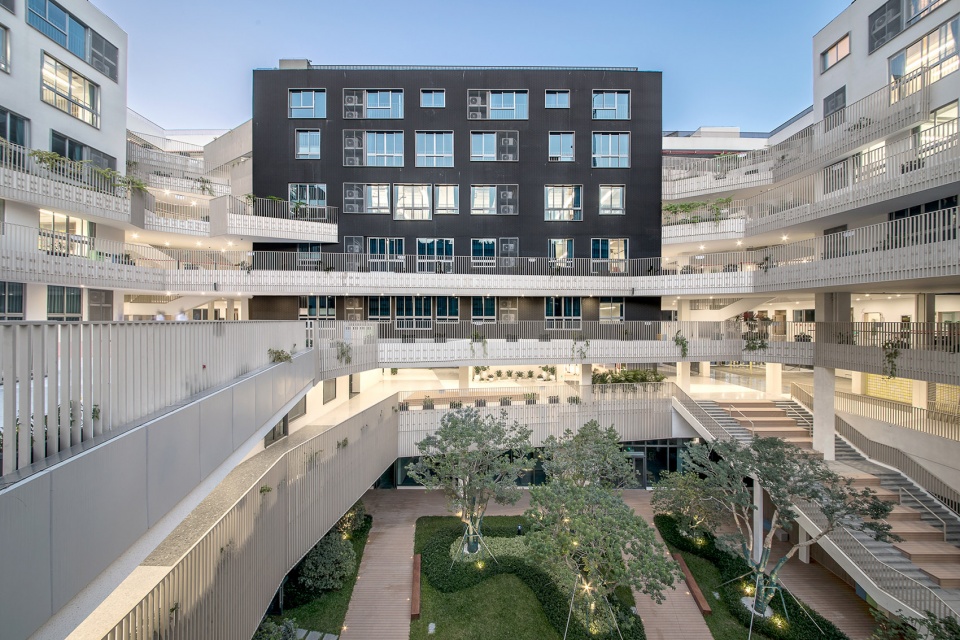

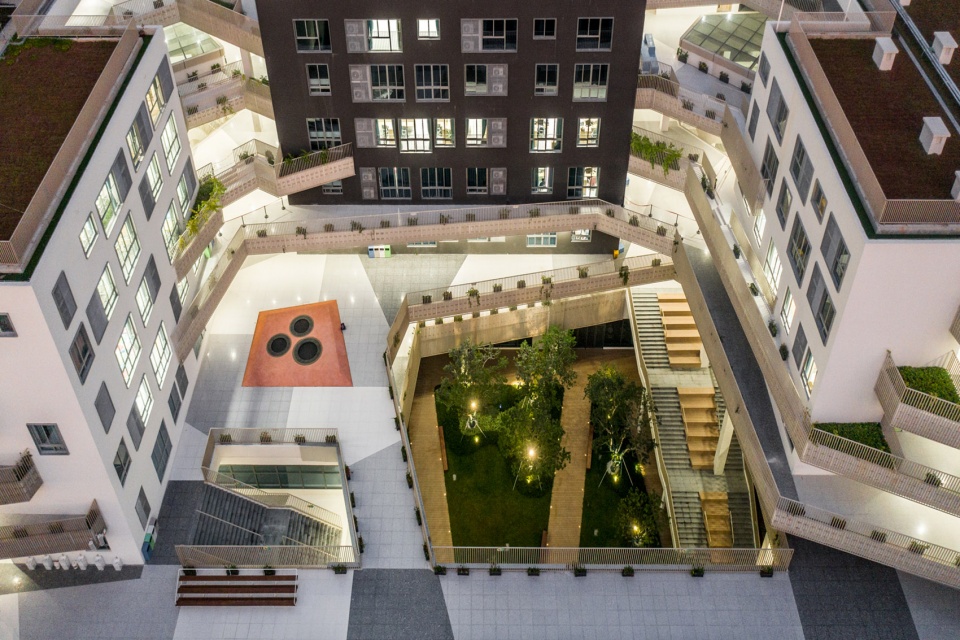

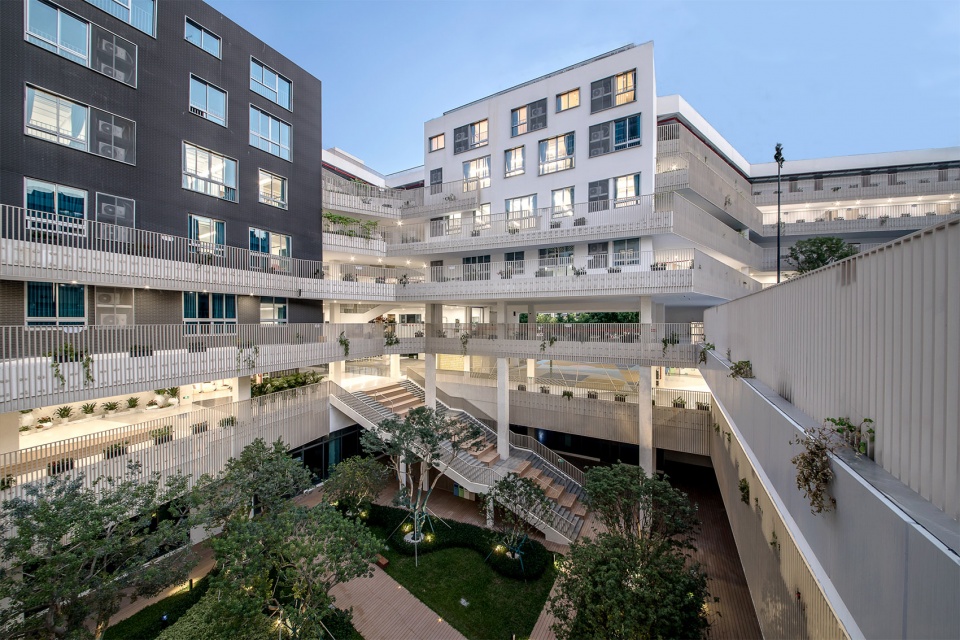

▼俯瞰庭院，Aerial view to the courtyard © 陈俊伟

地下共享层：围绕院子组织我们学校的食堂、图书馆、游泳馆、体育馆等大空间，借助中心庭院，各空间都拥有良好采光通风。

这里既是整座校园的共享区域，也可在非教学期间对周边社区居民开放，作为其社区中心，资源利用最大化。

Underground shared level: The interior of the basement is not only arranged for parking lot and equipment rooms, some large spaces of cultural and sports are also arranged on the negative floor, such as the library, swimming pool, basketball court and other functions.

This is not only a shared area of the campus, but also can be open to the surrounding community during non-teaching time, as its community center, to maximize the use of resources.

▼地下共享层，The underground shared level © 陈俊伟

▼地下共享层，The underground shared level © 陈俊伟

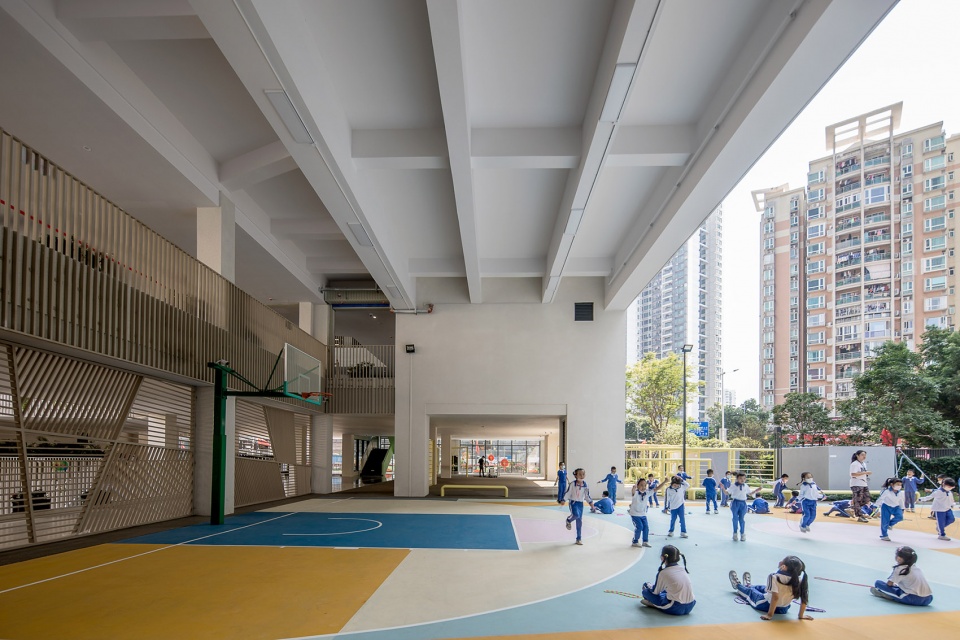

地面活力层：“多首层”设计，将负一层、首层、二层结合架空层、庭院、大台阶来营造城市与校园活力的流动及延续，形成“四重地面”体系。

Ground vitality level: The “multi first floor” design of the Taoyuan Elementary School combines the basement level, first and second floor with overhead floors, courtyards, and large steps to create the flow and continuity of urban and campus vitality and forming a “Four fold ground floor” system.

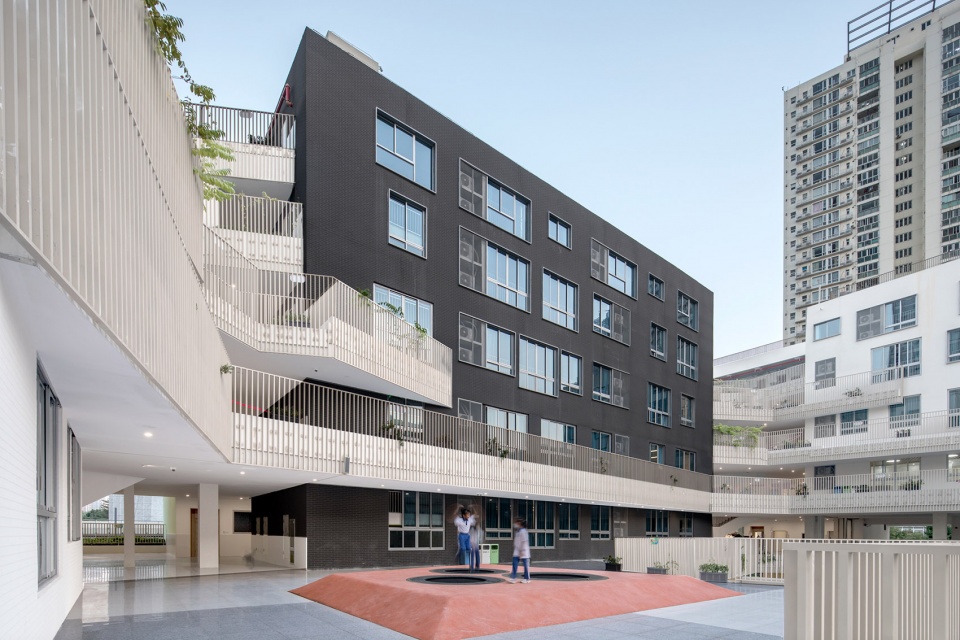

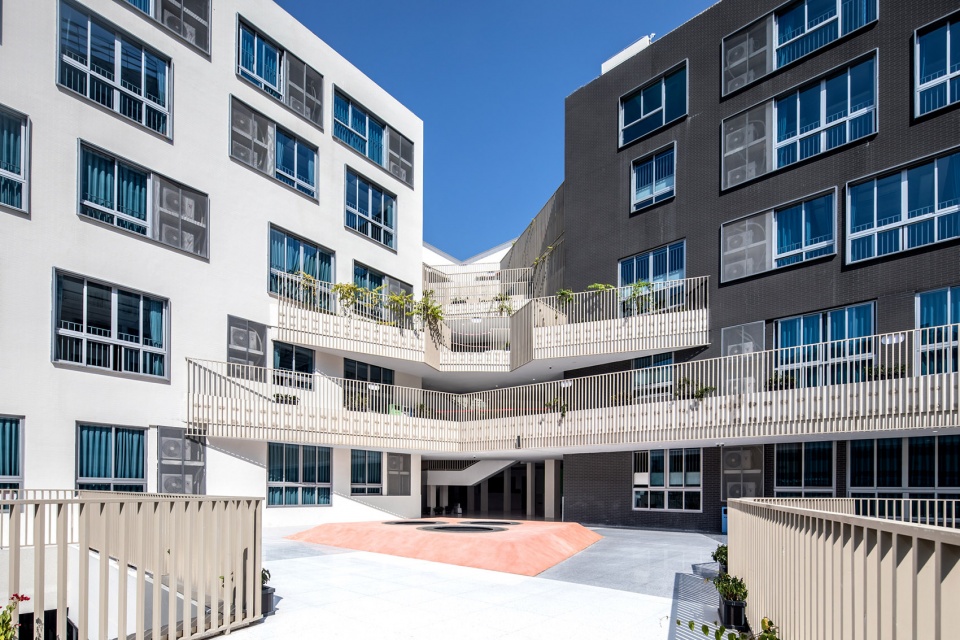

▼地面活力层，Ground vitality level © 陈俊伟

中部秩序层：打破传统布置的教学空间，将教学空间与活动交流空间、连廊景观空间融合为一体。

Middle order level:Breaking the traditional layout of arranged teaching space, integrating teaching space with activity communication space and connecting landscape space.

▼中部秩序层，Middle order level © 陈俊伟

顶部交往层：屋面的功能不断复合多样化，集合运动、景观、社交等多重功能，使屋面活动交往丰富及趣味化。

Top interaction level: the functions of the roof are constantly compounded and diversified. The roof activity interactions become abundance and interesting through integrating multiple functions such as movement, landscape, and activity.

▼顶部交往层，Top interaction level © 陈俊伟

叠园景观
Stacked garden

通过平台绿化、竖向绿化及屋顶绿化打造“叠园”景观，将弹性的教学组团结合院落的空间变化，对不同尺度、不同层次空间进行渗透，强化学习活动之间的联系，从而建筑与景观形成复合型学习空间，支持丰富、多元的教学需求。

Through the landscape integration of the “overlap courtyard”, the flexible teaching groups are combined with the spatial changes of the courtyard to penetrating the different scales and levels of space and to strengthen the connection and penetration between learning and activities,therefore a composite learning space is formed by the architecture and landscape to support the abundant and diversified teaching requirements.

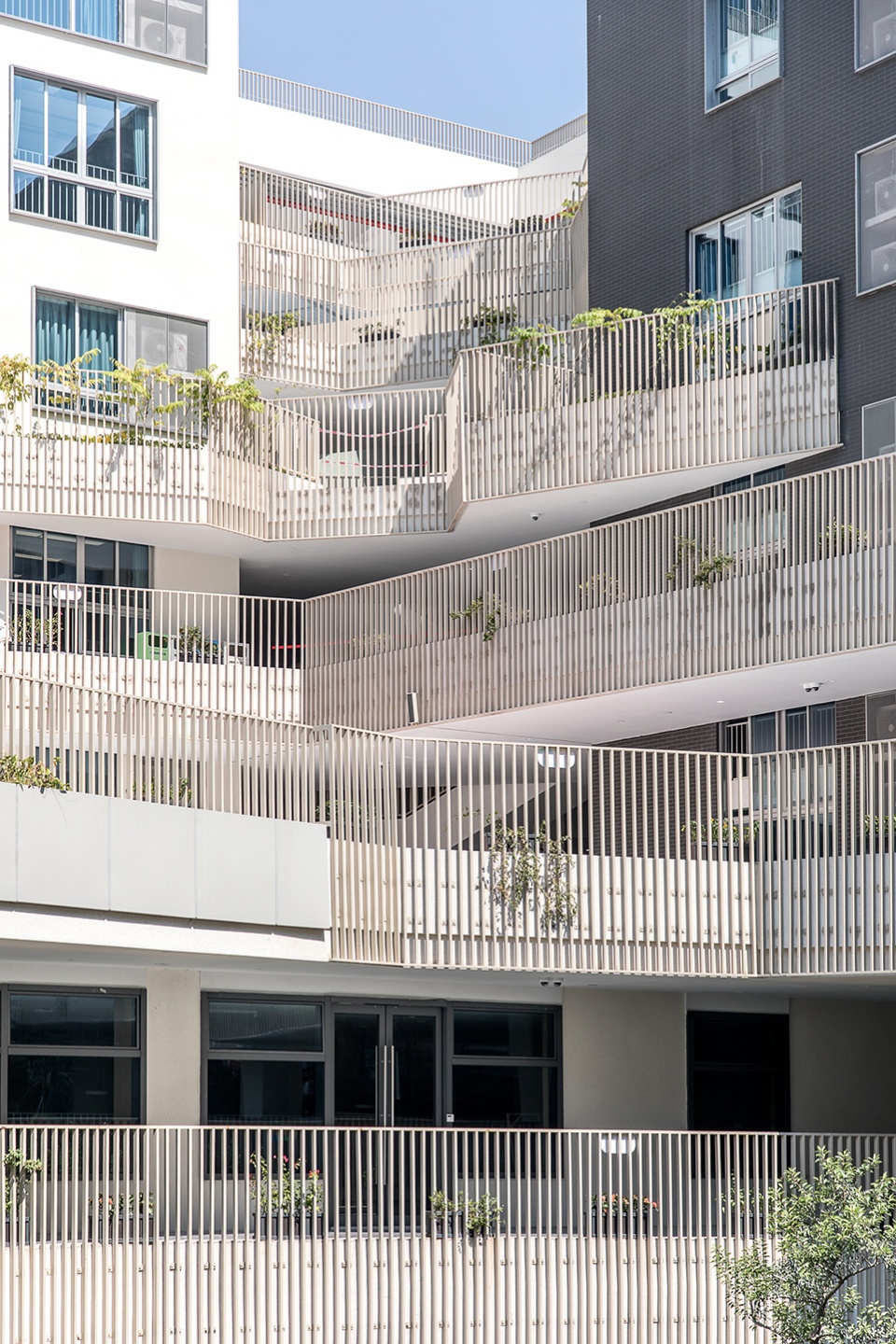

▼叠园景观，Stacked garden © 陈俊伟

我们借助三种类型营造“漫游空间”，首先舒展建筑形态，使建筑面向景观，让建筑拥有最大视野。

It is divided into three types, create space of “roaming space” . First, stretch the architectural form, make the building face to the landscape, so that the building has the largest view of landscape .

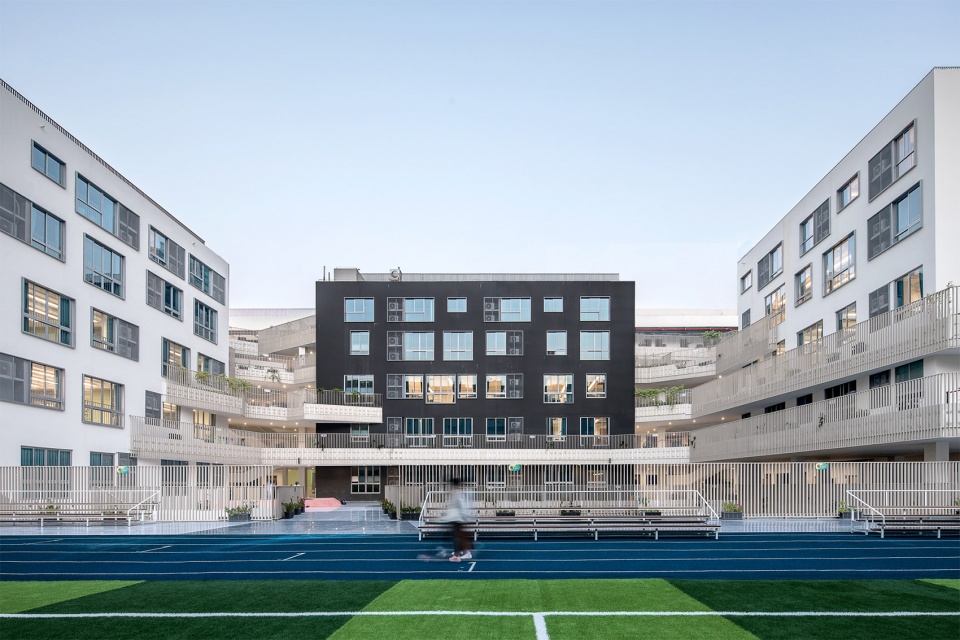

▼建筑面向景观，The buildings face to the central landscape © 陈俊伟

分化中庭景观：不同于建筑围合一个院落的布局，在教学组团中引入两个垂直景观。

Dividing atrium landscape, different from the layout of the buildings surrounding a courtyard by introducing two vertical landscapes into the teaching group.

▼分化中庭景观，Dividing atrium landscape © 陈俊伟

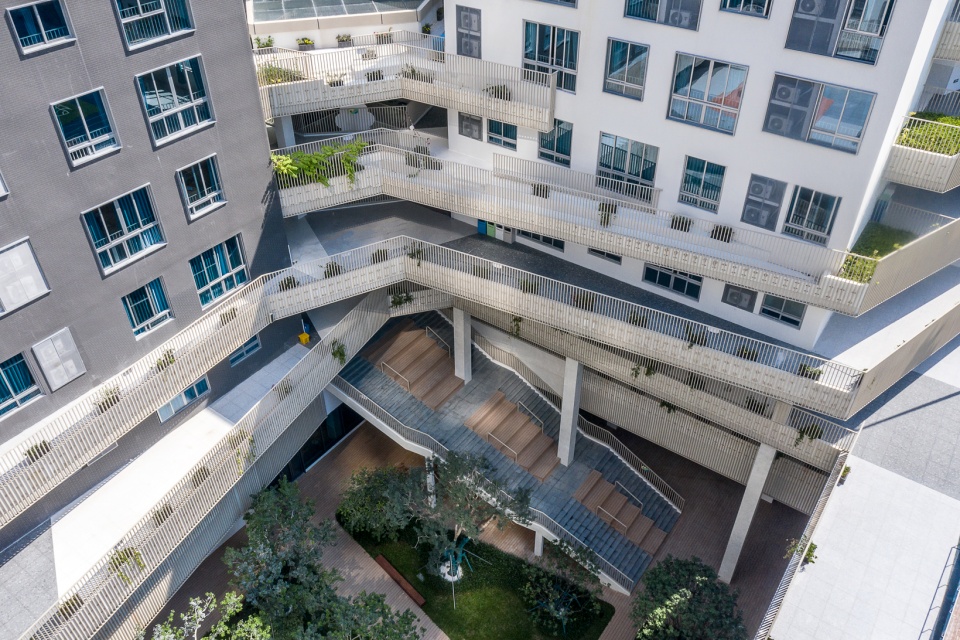

垂直景观平台：每层平台结合叠落景观花园，让学生有更多接触自然的活动空间，以服务学生课间行为。

Vertical landscape platform, each floor of the platform is combined with stacked landscape garden, providing students with more activity space to contact with nature, and serving students’ activity between classes.

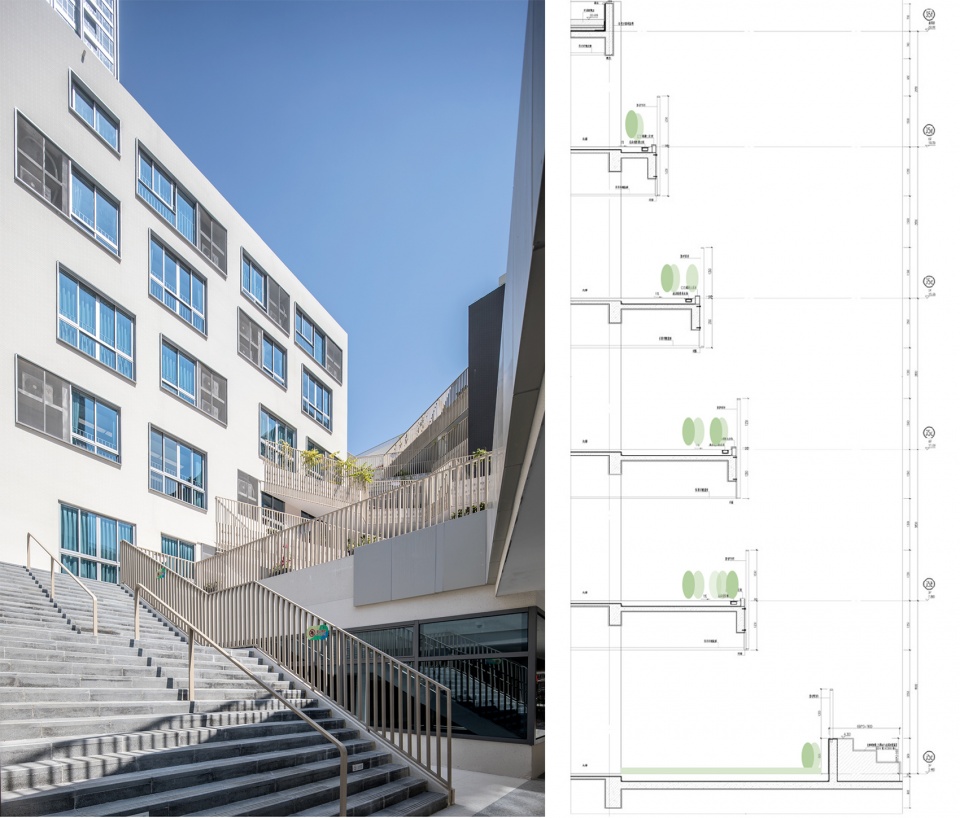

▼垂直景观平台，Vertical landscape platform © 陈俊伟

“教与学”边界的拓宽
Broaden the boundary of “teaching and learning”

学习不再局限于教室，我们需要拓宽“教与学”的边界，从传统的授课模式变为鼓励学生更多的互相交流，每层通过利用不同拓宽走廊界面变化创造丰富的教学空间，打破传统狭窄的交通空间。

Learning is no longer limited to the classroom.We expand the boundary of “teaching and learning”, change from the traditional teaching mode to encourage students to communicate more with each other.Each floor creates rich teaching space by using different broadening corridors and interface changes, breaking the traditional narrow single corridor into a traditional single traffic space.

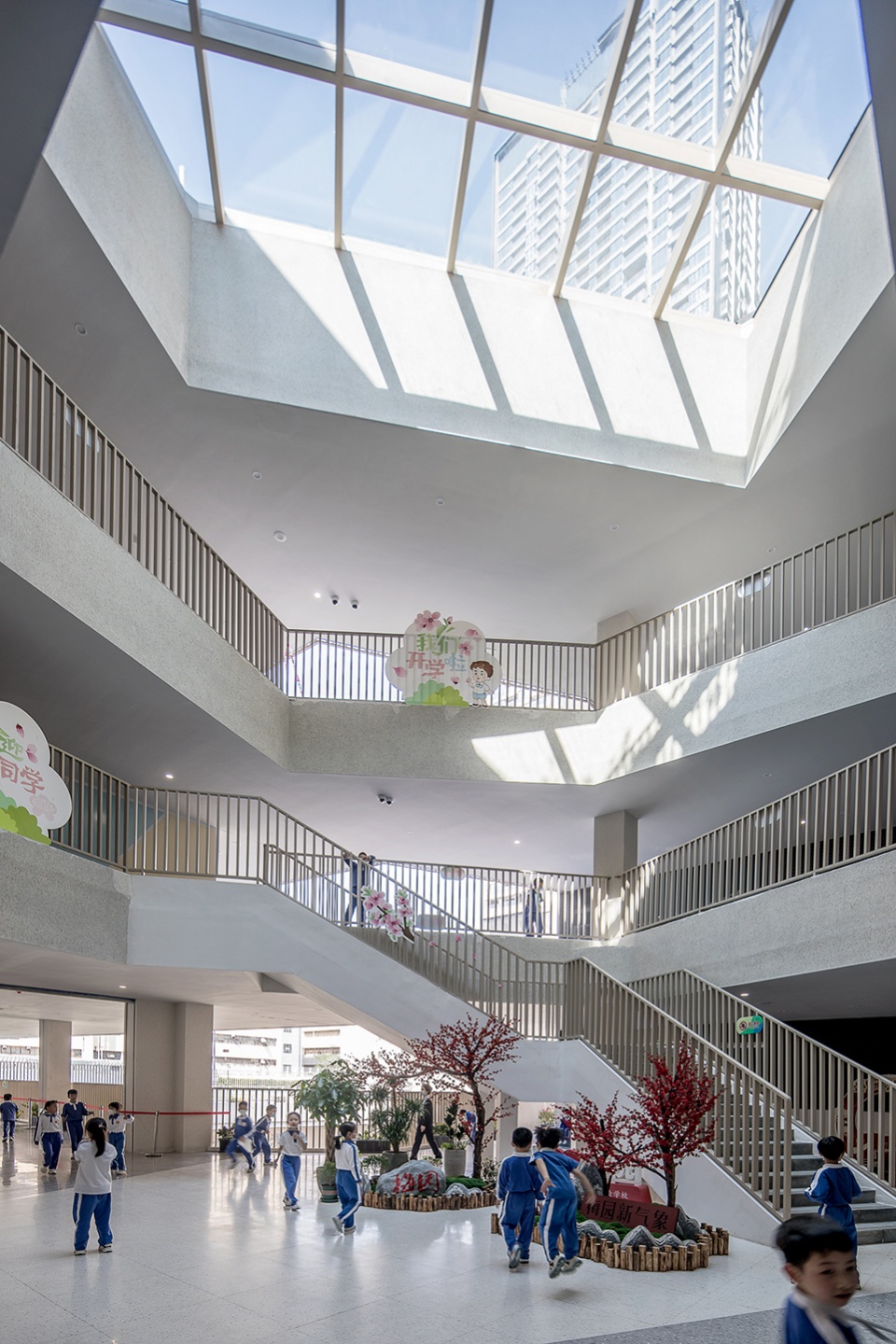

▼阳光中庭，The sunlight atrium © 陈俊伟

在拓宽区域形成丰富的“阅读角”“讨论区”等，打造课室+非正式学习空间+交往廊的模式，开放交融、灵活性强。

通过建筑的适应性设计，让教学空间更加开放化和组团化以适应教学模式及学生不同的学习需求，模糊教学与活动的边界。

In the expanded area, a variety of informal learning Spaces such as “reading corners” and “discussion areas” are formed, and the model of classroom + informal learning space + social gallery is formed, so as to form an open and adaptable teaching space.

Adapt to the different learning needs of the teaching mode and students.

▼泛学习空间，Informal learning space © 陈俊伟

典雅简约的建筑气质
Elegant and simple building facade

校园整体采用具有北欧风格的黑白灰色调，局部穿插一些大面积的色彩，窗户形式大小有序，使得整个立面在简约中又富有变化，表达出教育建筑既严肃又活泼的氛围特质。

The whole campus adopts the black and white gray tone with Nordic style, and some large areas of colors are interspersed in some parts. The window form and size are orderly, which makes the whole facade simple and full of changes, and expresses the serious and lively atmosphere characteristics of the education building.

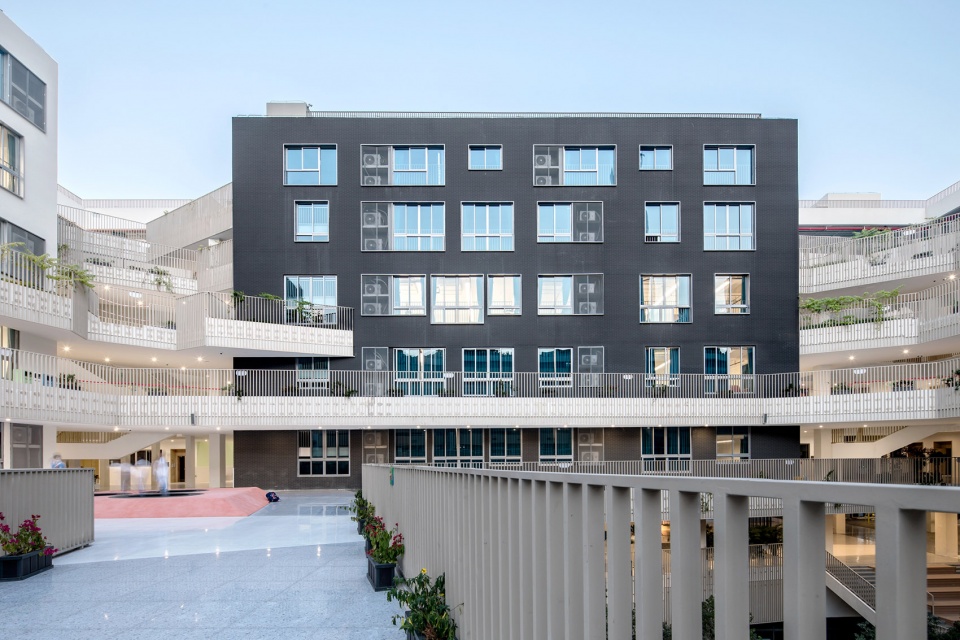

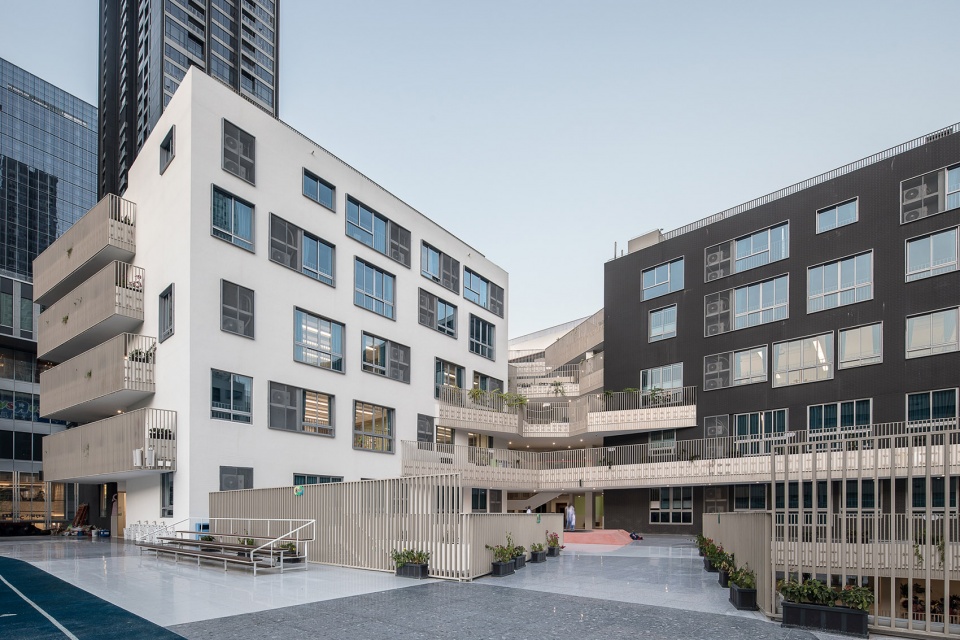

▼建筑立面，Building facade © 陈俊伟

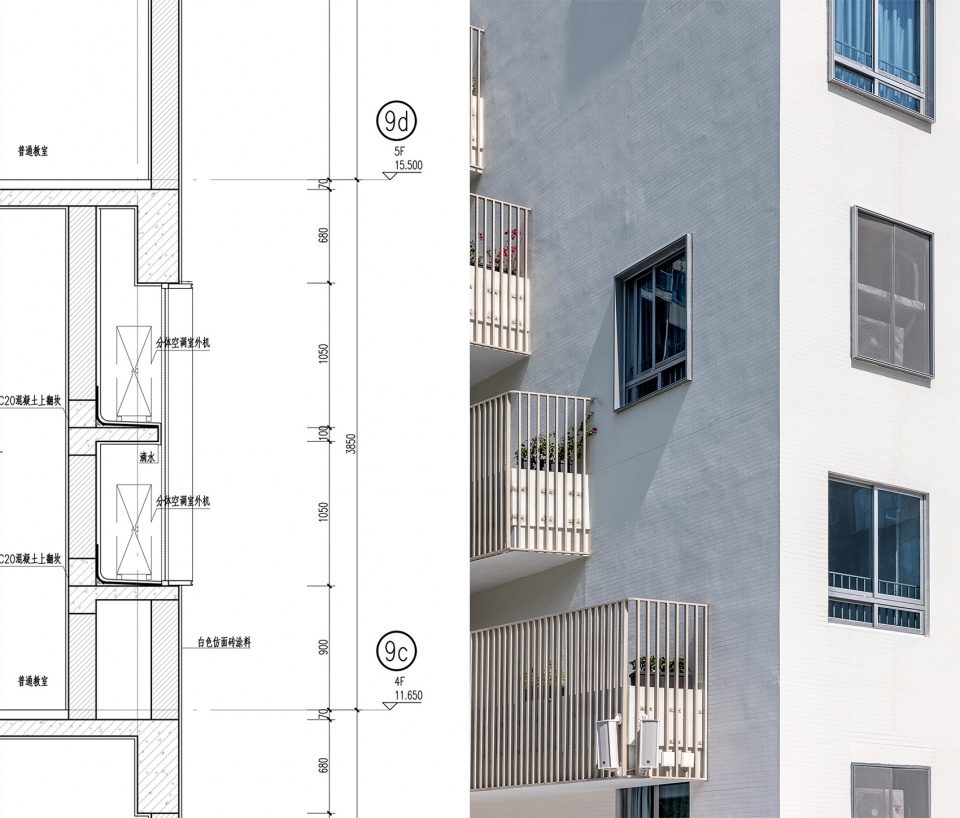

▼建筑立面细部，Facade detail © 立方设计

在室内空间的色彩选择上，我们采用质朴平和的木色为主，利于学习氛围的营造。局部选用较为鲜艳的色系，比如在负一层和风雨操场等位置，我们使用蓝色装饰。

In terms of color selection of indoor space, we mainly use simple and peaceful wood color, which is conducive to the creation of learning atmosphere. Some of them use bright colors, such as blue decoration on the ground floor and the stormy playground.

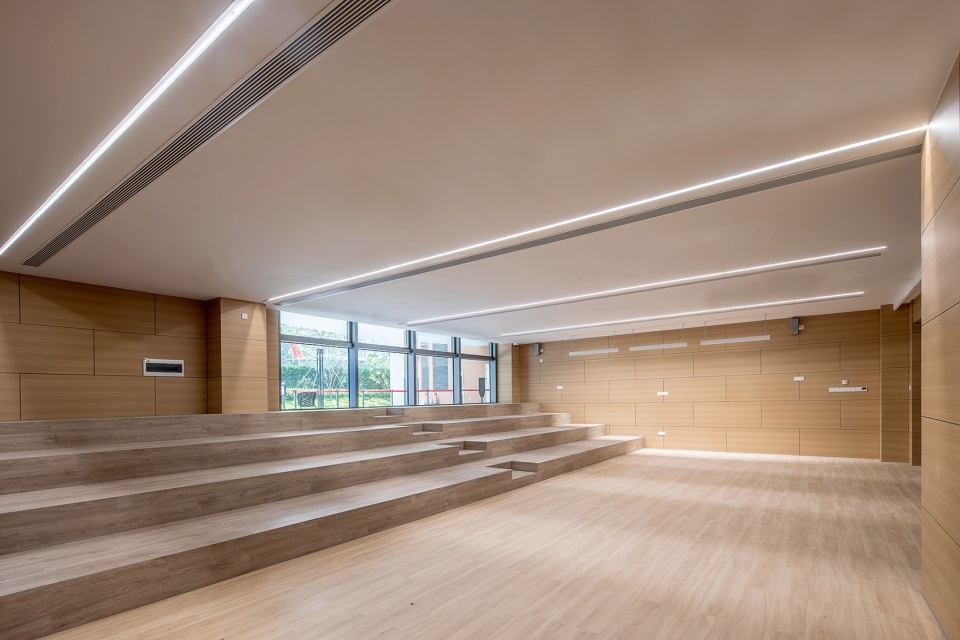

▼排练室，Rehearsal room © 陈俊伟

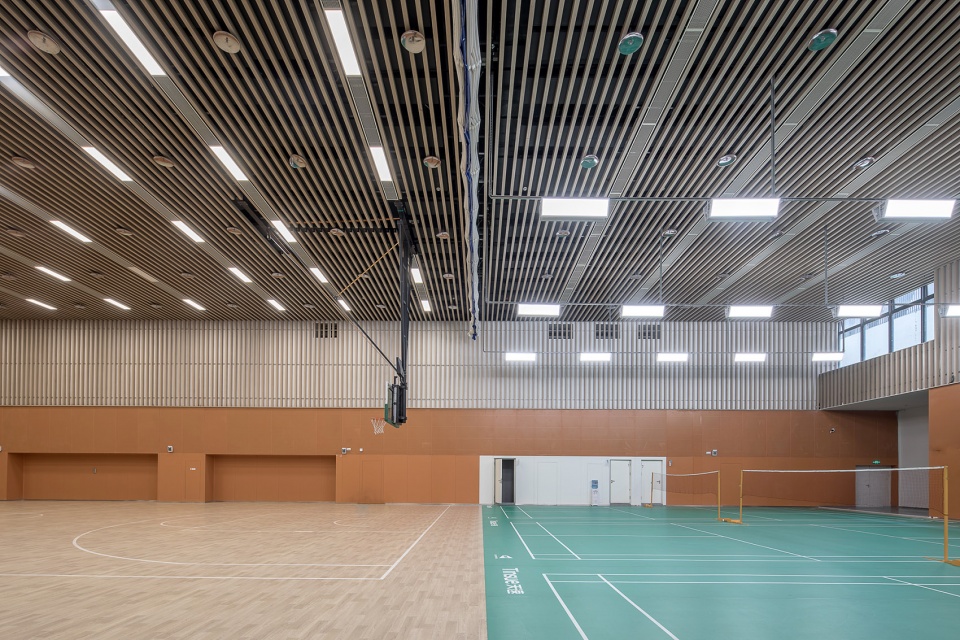

▼体育馆，Gym © 陈俊伟

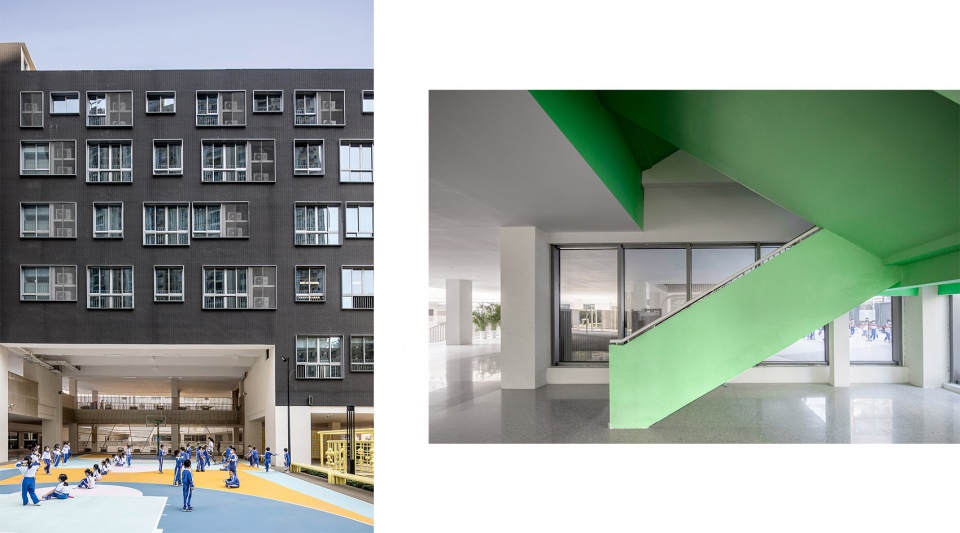

富有生命力的橙色主要被用于运动场所，还有清新的绿色则用于楼梯点缀。多元化色彩不仅可以很好的界定不同的公共空间范围，为空间增添一份趣味性；还能调节学生的心理情绪，促进青少年健康成长。

Vital orange is mainly used in sports places, and fresh green is used for stair decoration. Diversified colors can not only well define the scope of different public spaces, but also add a sense of interest to the space; It can also regulate students’ psychological mood and promote the healthy growth of teenagers.

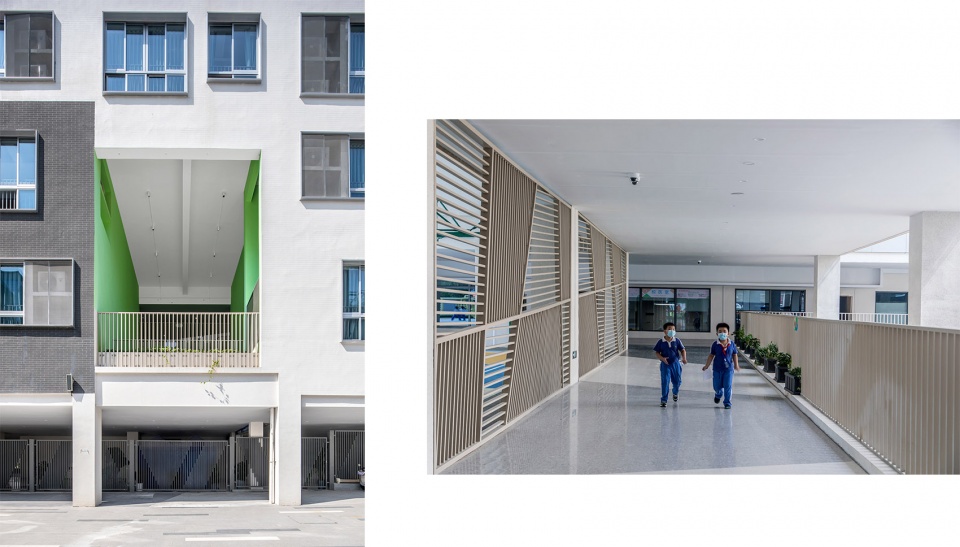

▼色彩在校园中的运用，Color palette © 陈俊伟

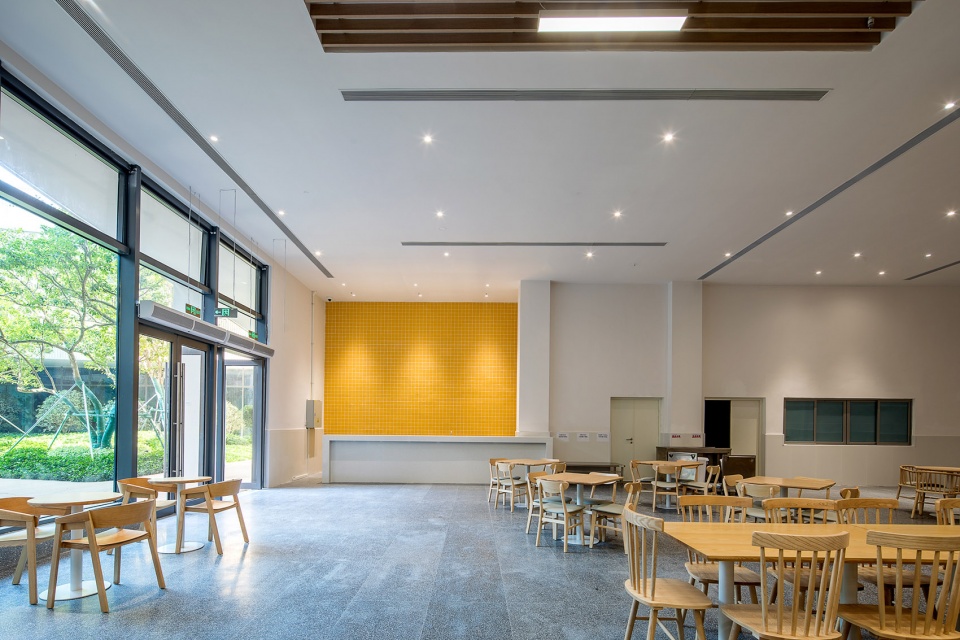

▼食堂，Canteen © 陈俊伟

结语
Epilog

如今高密度与标准化的现代校园俨然成为城市建设的大势，但是教育建筑垂直化发展在一定程度上破坏了学生从校园—社区—自然的连续空间体验。

本项目重点解决了高密度之下如何创造有趣的空间关系，我们希望在满足基本教育需求的同时，力所能及地去创造一些充满活力与趣味的室外场所，正如之前与老师的沟通，学习知识不仅限于教室，也来源于自然。

Nowadays, high density and standardized modern campus has become the trend of urban construction, but the vertical development of educational buildings has destroyed the continuous space experience of students from campus to community to nature to a certain extent.

This project focuses on how to create interesting spatial relationships under high density. We hope to create some dynamic and interesting outdoor places within our ability while meeting the basic educational needs. As we communicated with teachers before, learning knowledge is not only limited to the teaching room, but also comes from nature.

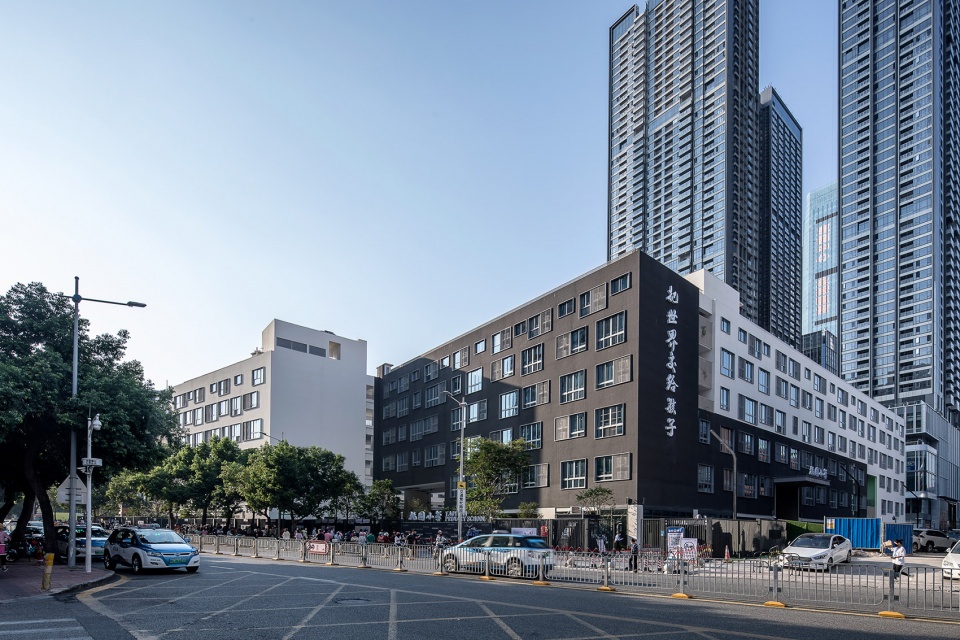

▼城市街道视角，View form the city’s street © 陈俊伟

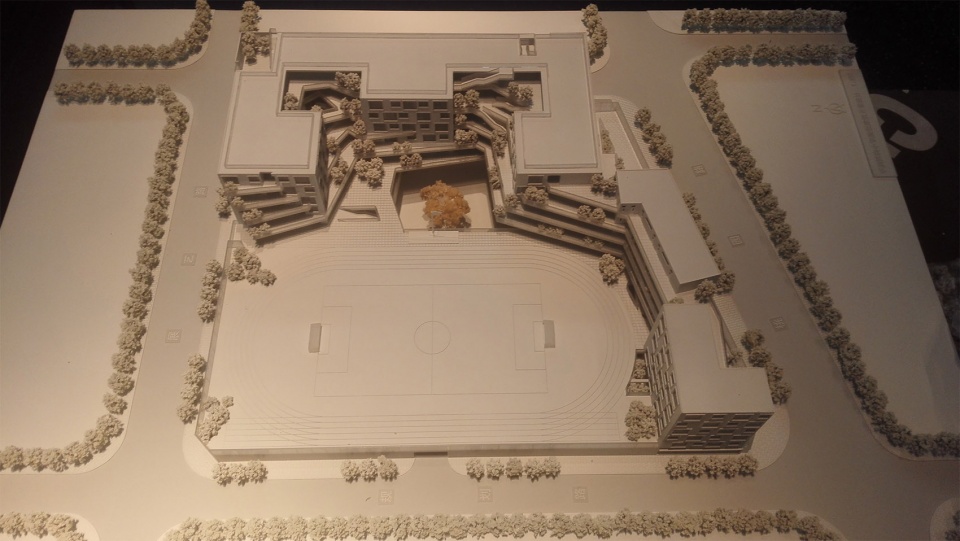

▼项目模型，Model © 立方设计

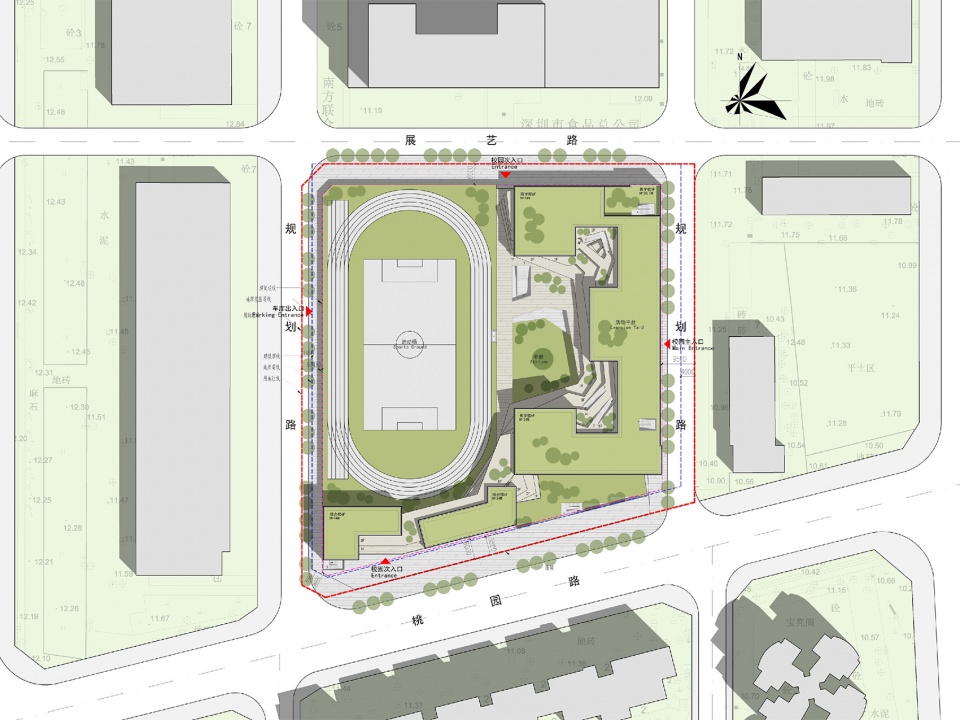

▼总平面图，Master plan © 立方设计

项目名称：桃园小学
项目类型：教育建筑
项目地址：广东，深圳，罗湖
建筑面积：4.2万平方米
竣工时间：2022年
业主单位：罗湖区教育局、桃园小学
代建单位：华润集团
设计单位：深圳市立方建筑设计顾问有限公司
服务范围：建筑设计+室内设计
设计总负责：邱慧康
建筑设计人员：郭江波、姬国威、谢飞飞、谢冲、孔晓莉、赵雪晴、张慧
室内设计人员：贺鹏、熊芬、付亚楠、黄雷、王华
合作单位：华阳国际设计集团
摄影版权：深圳罗汉摄影工作室-陈俊伟
公司网站：https://www.cube-architects.com/
联系邮箱：brand@cube-architects.com

Project name:Taoyuan Elementary School
Project type: Education Building
Project location:Luohu,Shenzhen,Guangdong
Gross built area: 42000㎡
Completion Year:2022
Employer: Luohu District Education Bureau, Taoyuan Primary School
Construction agent: China Resources
Design:Cube Design
Service scope: architectural design+interior design
Lead architect: Huikang Qiu
Architectural designers: Jiangbo Guo,Guowei Ji,Feifei Xie, Chong Xie,Xiaoli Kong,Xueqing Zhao,Hui Zhang
Interior designers:Peng He,Fen Xiong,Yanan Fu,Lei Huang, Hua Wang
Partner:CAPOL
Photo credit: Junwei Chen
Website:https://www.cube-architects.com/
Contact e-mail:brand@cube-architects.com
