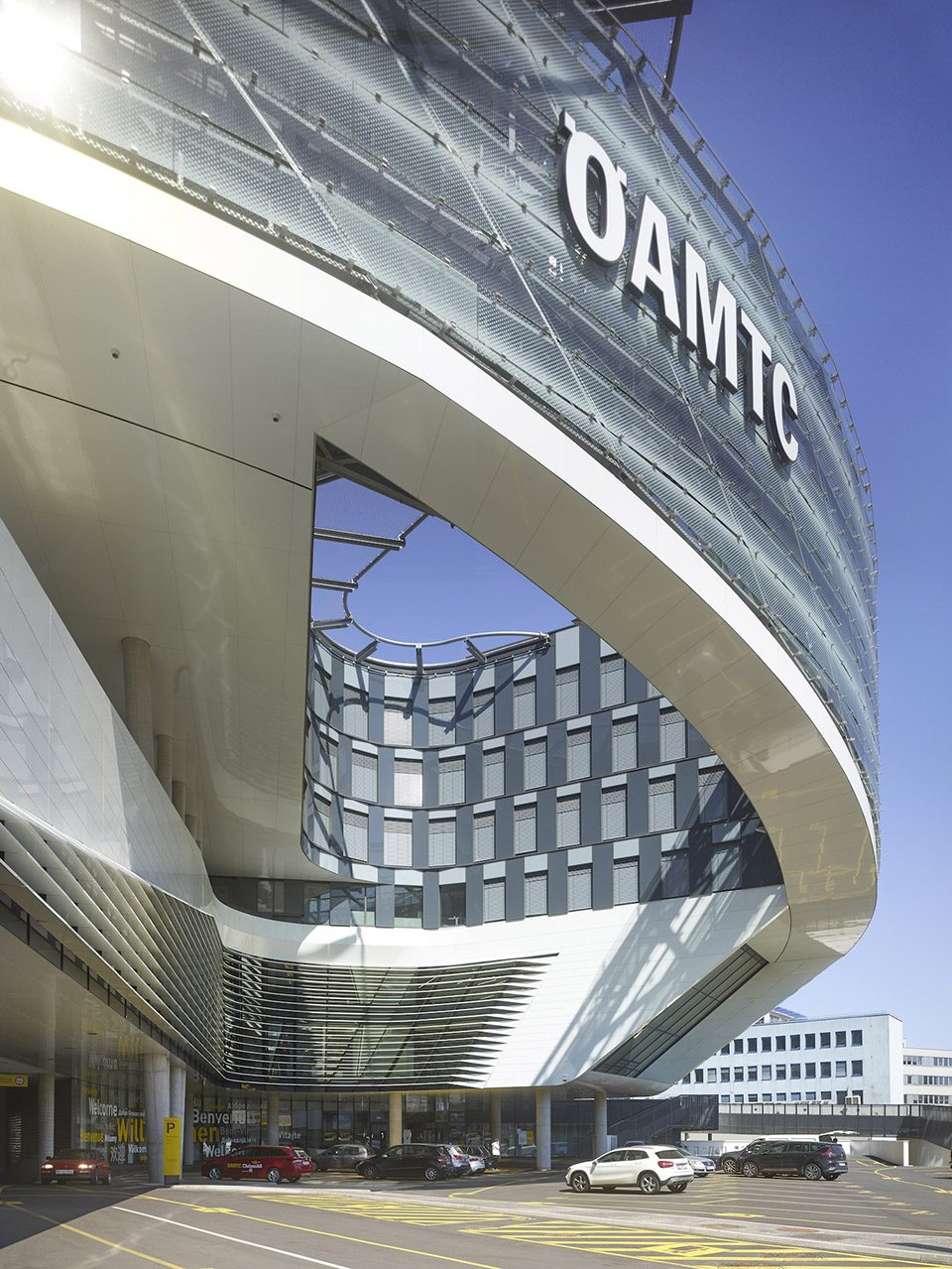

OEAMTC 总部大楼，维也纳 / Pichler & Traupmann Architekten

来自 Pichler & Traupmann Architekten 对gooood的分享。
Appreciation towards Pichler & Traupmann Architekten for providing the following description:

从底层服务中心到顶层停机坪，从柜台到接待处，再从宴会大厅到中央天井，建筑功能沿垂直轴线依次排开。紧凑的空间布局和高效的空间利用成为该建筑的核心支撑，并引导其形成为现代化的办公建筑。

From the service workshops to the heliport all the elements of the programme are laid out along a single vertical axis, i.e. also from the counter to the reception and the event areas to the large atrium of the offices. Logistically compact contents with high degree of efficiency, which is essentially what support points are, are here transformed and applied to the building in a translated form.

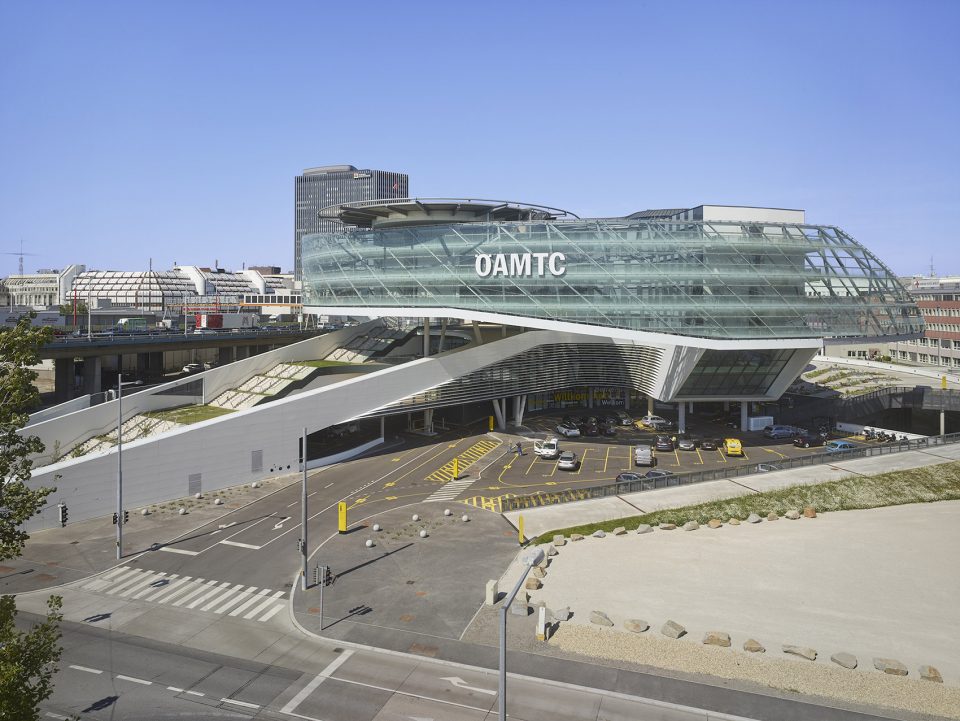

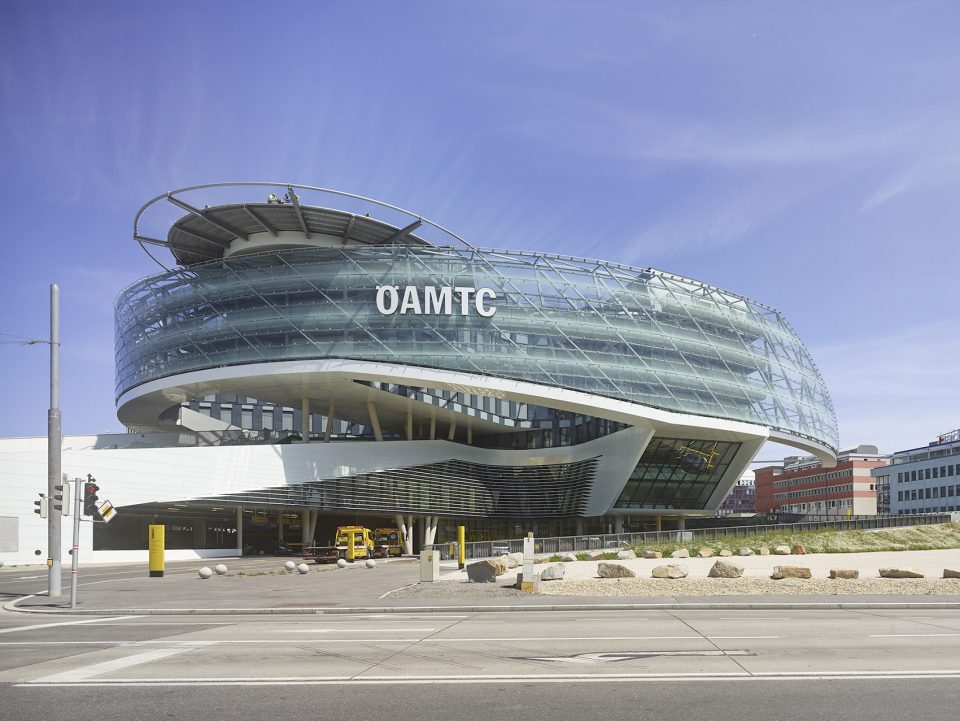

▼远眺建筑，view from distance

透明
transparency

走近接待柜台，来访者仿佛置身于巨大的船舱；地下层的运行车间里，庞大的机器正在处理着刚刚移入的汽车。而这一切，都在到访客户的观察之下，他们甚至可以直观的看到自己的汽车是如何在这其中运行的。从柜台开始，一个壮观的环形楼梯缓缓向上延伸。若是你刚好从不远处的地铁U3线Erdberg出站，你便可以顺着站点，直接步入建筑上层。ÖAMTC大厦在这样的设计下，与城市居民无障碍全面连通。

On approaching the counter you find yourself on an oversized glazed cockpit, in the middle of the workshop one level below, where the mechanics have driven the cars that have just been handed over to them down a ramp. The clients can comfortably view all of this from above – if their car is raised they see it “eye to eye”, as it were. From the counter a generously sized void opens upwards, through which a prominent stairs leads to the lobby. You also enter the building on this level if you come by foot from the U3 metro station at Erdberg, a short distance away. The building – and with it the ÖAMTC – is open to everyone in all directions.

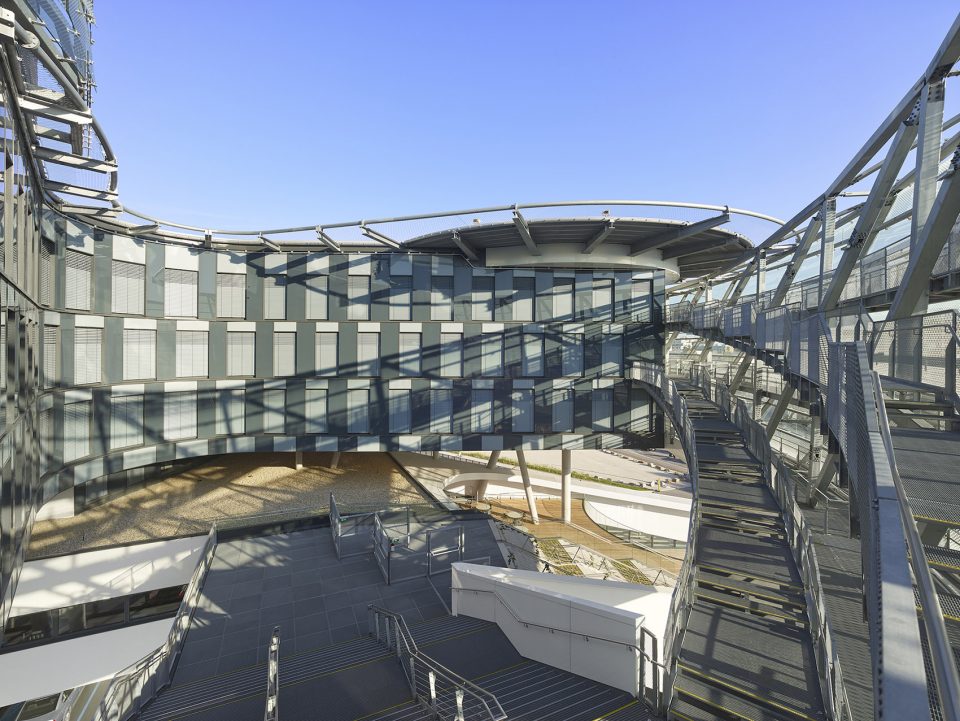

▼与城铁直接相连的外部通道，the connections to the U3 metro

象征
the sign

建筑象征着流动。它环状星形的造型不断强调着其作为移动与交流的功能性，又强调了其功能组织的速率与高效。因此，不论从功能上还是形式上，该建筑都展现为连贯的流通空间，使来访者可以在其中的任何地方都感受到自己拥有一个强大而可靠的合作伙伴。这也是大厦工作人员对企业的信心表现，通过出色的组织和协调能力，设备设施的高效利用，各部门之间的良好沟通，大厦正在一个整体的形式，为来访者、客户以及工作人员提供最贴心的服务。

The building is a sign, a symbol of mobility. Its unique, circular and star-shaped form emphatically conveys the fact that here everything revolves around mobility and the means related to it and at the same time demonstrates the efficiency and speed of the organization. Therefore both in formal terms and as regards content, it is a coherent, architecturally articulated symbol of an organization headquarters and for viewers and users evokes at all levels the feeling of having a strong and reliable partner. It is also a sign of the business’s self confident understanding of itself, with which staff and members can identify – with excellently organized, harmonized facilities offering a high level of interaction and communication, expressed in the form of clear, open and transparent spatial connections oriented to meeting the needs of customers and staff alike.

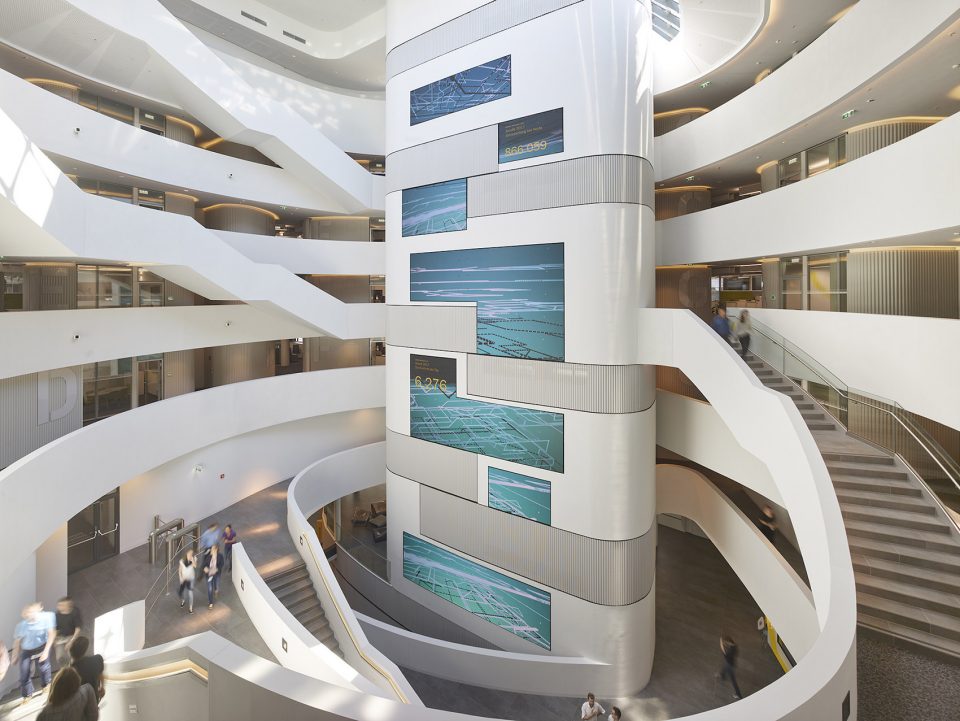

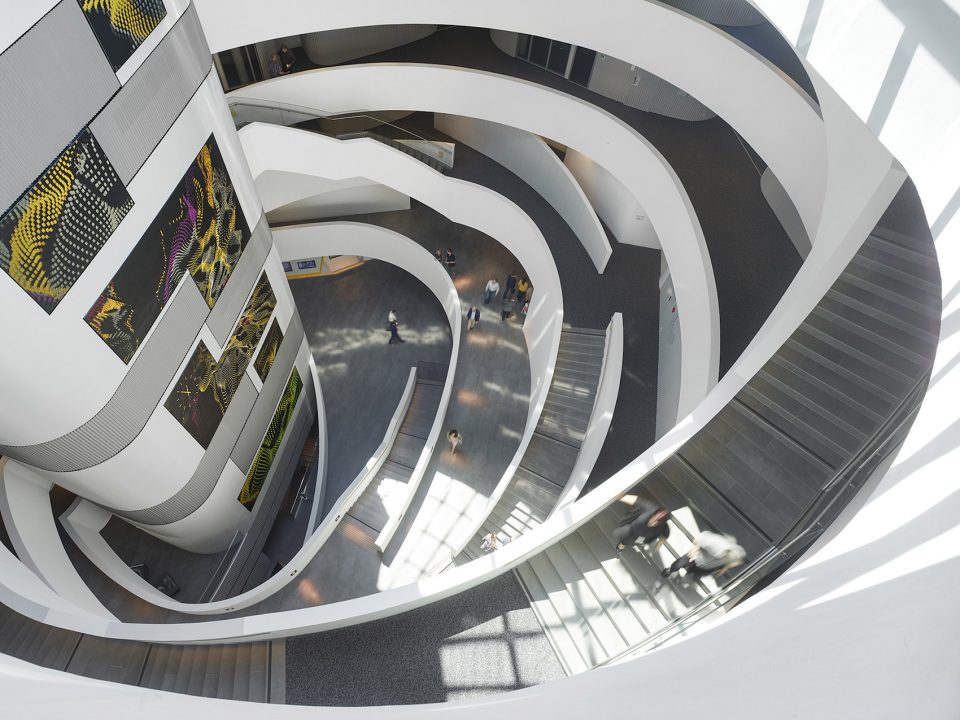

▼巨大的环形楼梯增加空间的连通性，generously sized void opens upwards, through which a prominent stairs leads to the lobby

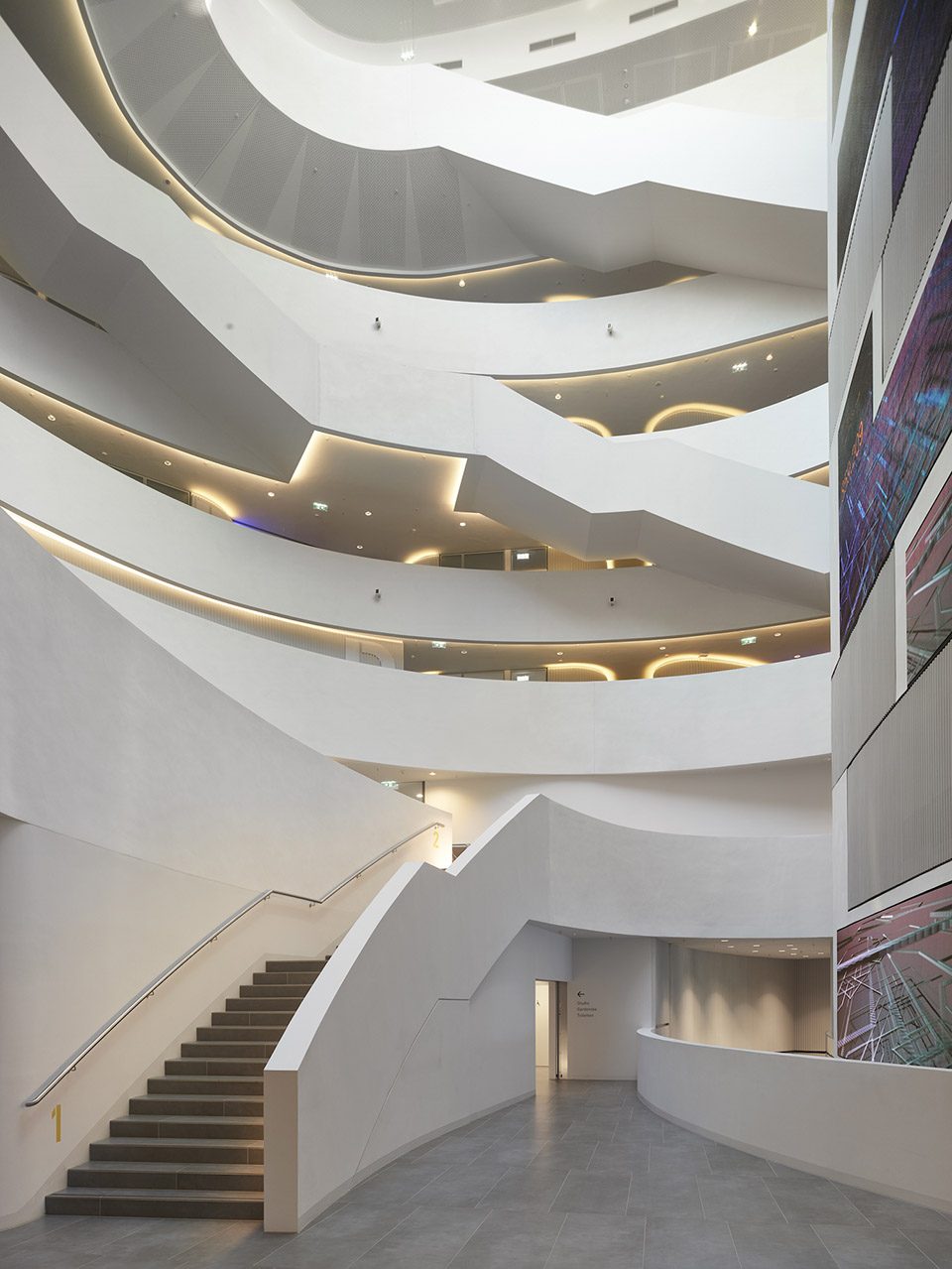

▼各层拥有良好的连通性，good connections

交流
communication

建筑的各个部分都是密切相关的，然而，营造良好的外部连接也十分必要。因此，一系列公共和半公共空间如活动大厅，会议室，媒体播放室在入口层设立。而呼叫中心作为建筑最重要的部分被安置在其上一层。它良好的体现了实时在线、内外连通的功能理念，并以此彰显了其重要地位。以上两个重要组成部分均布置在两层大厅中。这里是建筑的入口层面，各层使用者在此往来穿行，视觉与功能的联系在此交融。

All the parts of the building communicate with each other – but communication outwards is also important. This takes place in the public/semi-public area: the events hall, conference rooms, and TV studio are on the entrance level, on the level above is the highly important call-centre, which is indeed constantly on-line and in contact with the outside world and which is emphatically and functionally made as a centralized space. All these areas are organised around a two-storey foyer. This is also the first level of the large office atrium, from which routes and visual connections lead upwards. This completes the internal flow of communication.

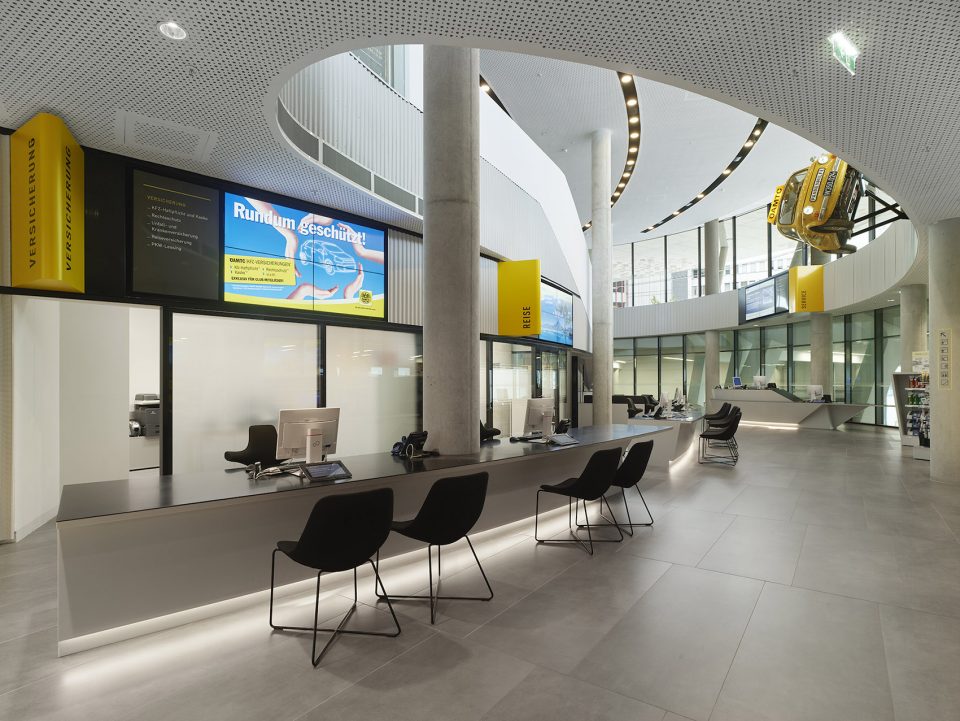

▼服务柜台，the counter

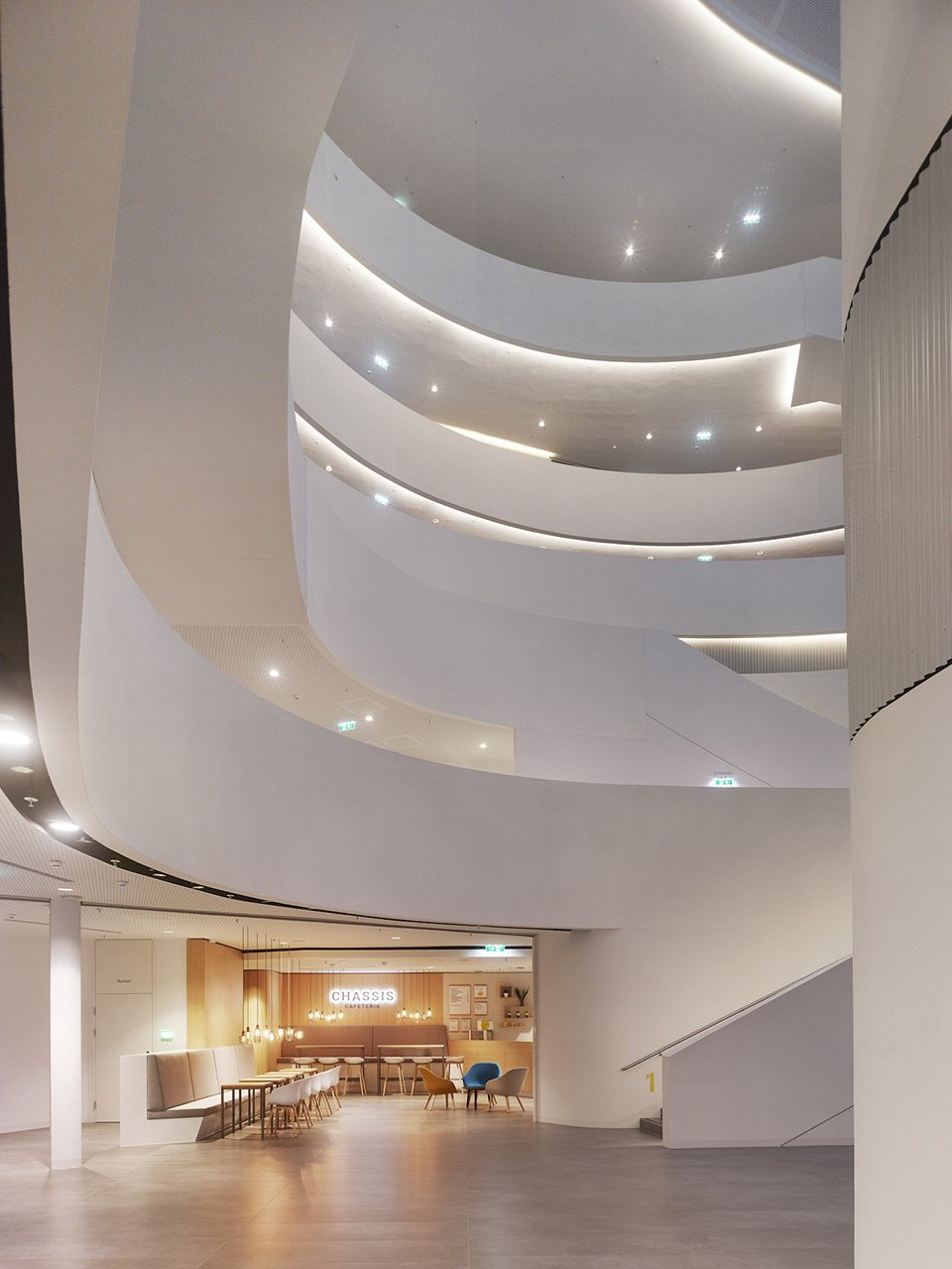

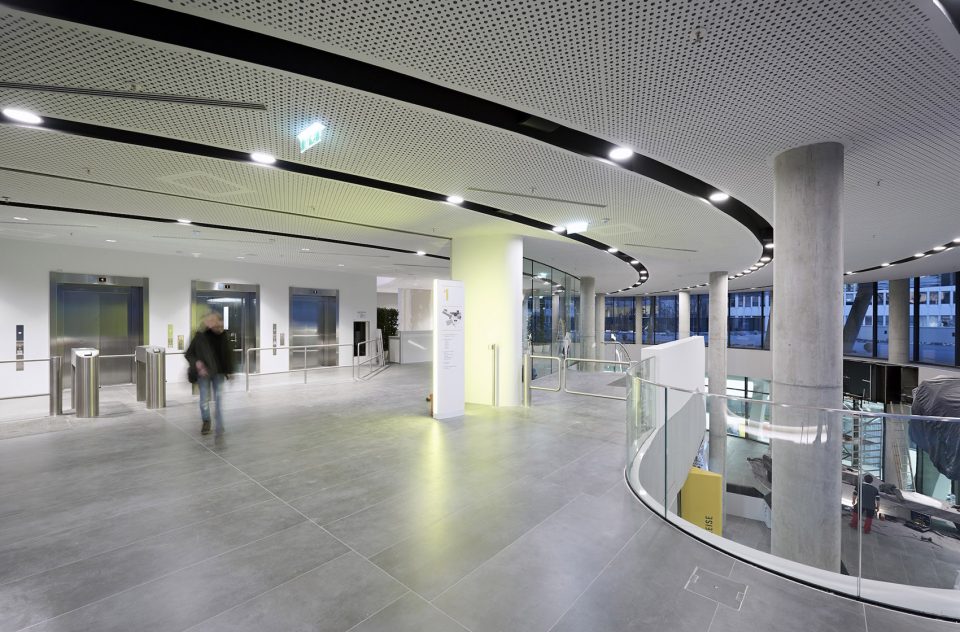

▼二层的大厅，lobby

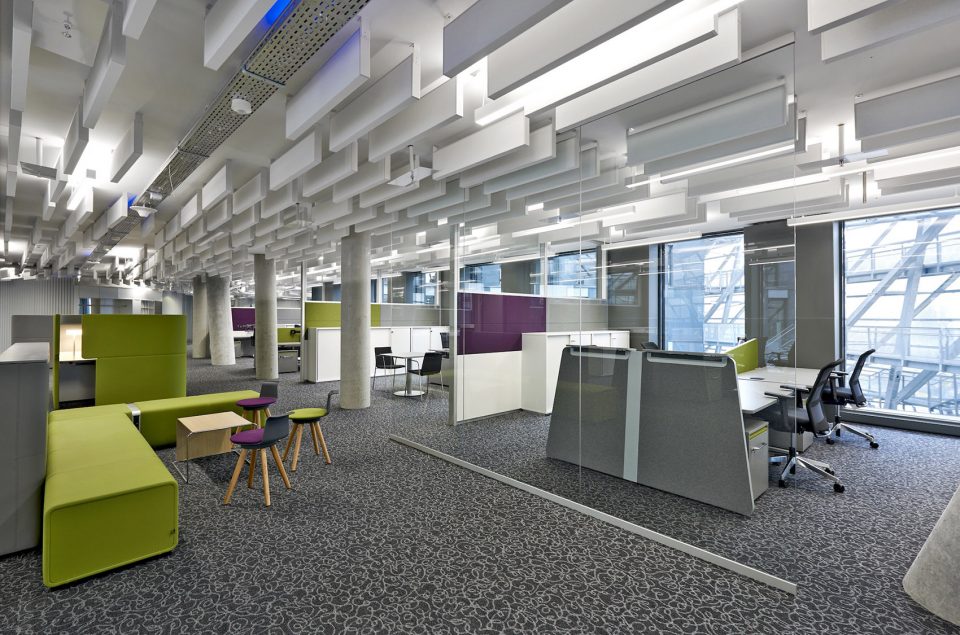

▼办公室，office

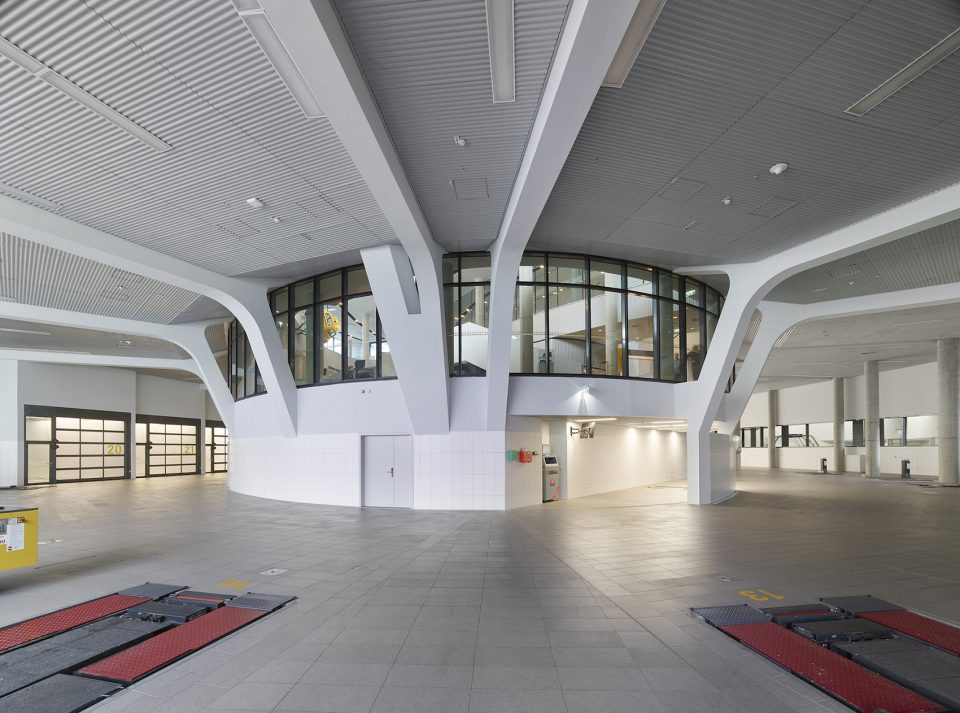

▼地下工作间，the underground floor

地标
the landmark building

ÖAMTC总部大楼经清晰的与周围单调平庸的板式建筑区别开来，其形式由商业建筑演变而来，在优越的功能分区下变得与众不同。而相比之下，该大厦更注重于社会层面的设计如救助与协助，并融入到庞大的服务与救护网络中。使其既可以作为宏观层面的交流因素，也可以在微观层面成为个人组织单元。矗立在花园般的景观规划中，多层立体停车场与防火楼梯间在一侧布局，另一侧城铁和Baumgasse与大厦完美衔接，该总部大厦拥有者不可撼动的城市地位。

Through its shape the ÖAMTC headquarters clearly and deliberately distinguishes itself from the monotonous, yet heterogeneously scattered, block and slab-type buildings in the surroundings whose form is derived exclusively from their commercial and industrial contents and optimising their functions. Here, in contrast, the focus is far more on the social components of aid and support and being integrated in a network of service and care – both as a communication factor in the macro area of the building’s overall structure and in the layout of the individual organisational units. The icon stands in a park and garden-like landscape which develops on the one hand on the roof of the multi-storey car park and the escape staircases, on the other along the connecting clasp between the U3 and Baumgasse that is kept free of buildings.

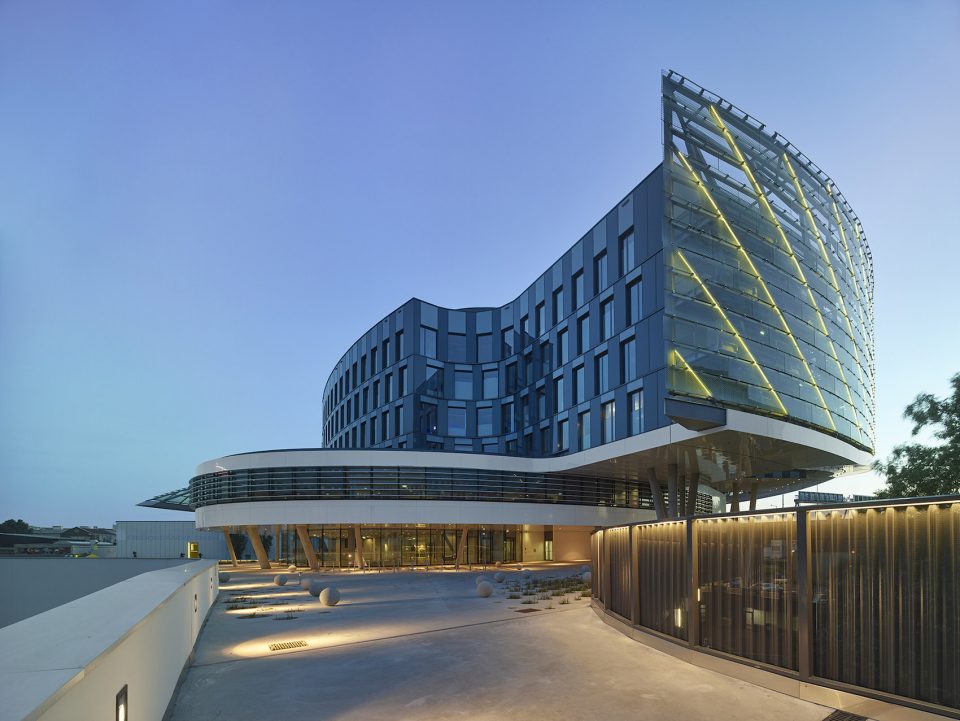

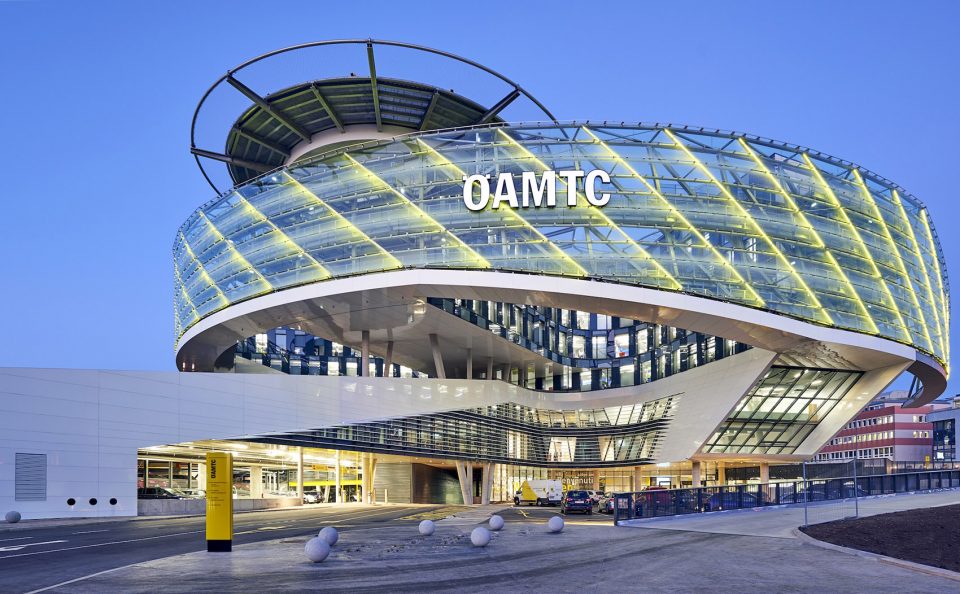

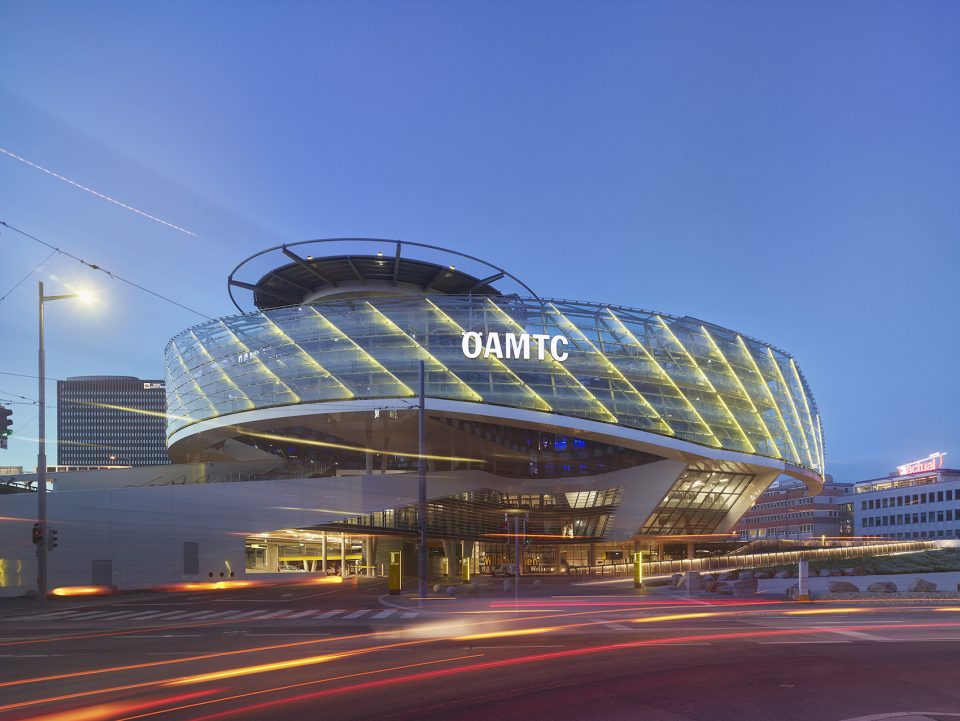

▼夜景建筑，architecture in the dark

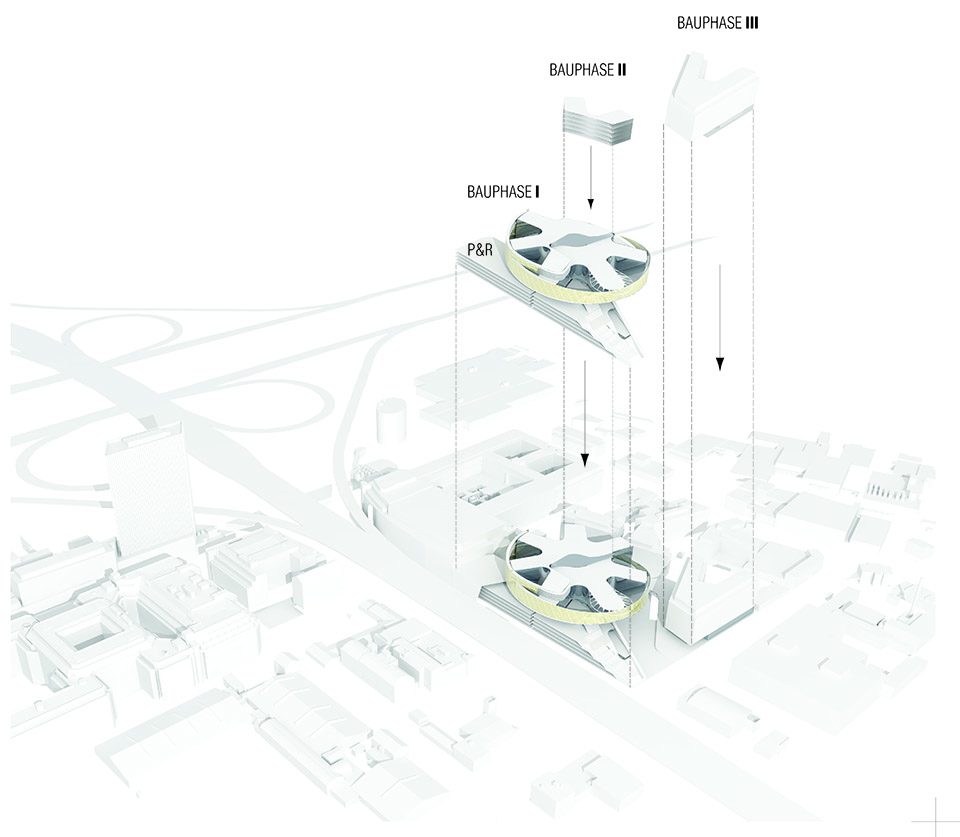

▼分期工程，program phase

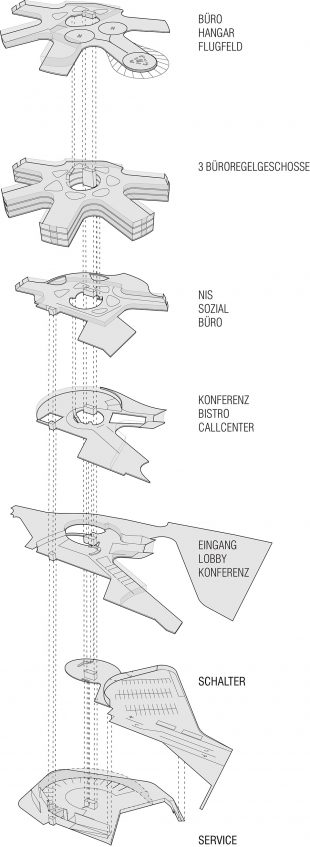

▼垂直功能分布，the functions

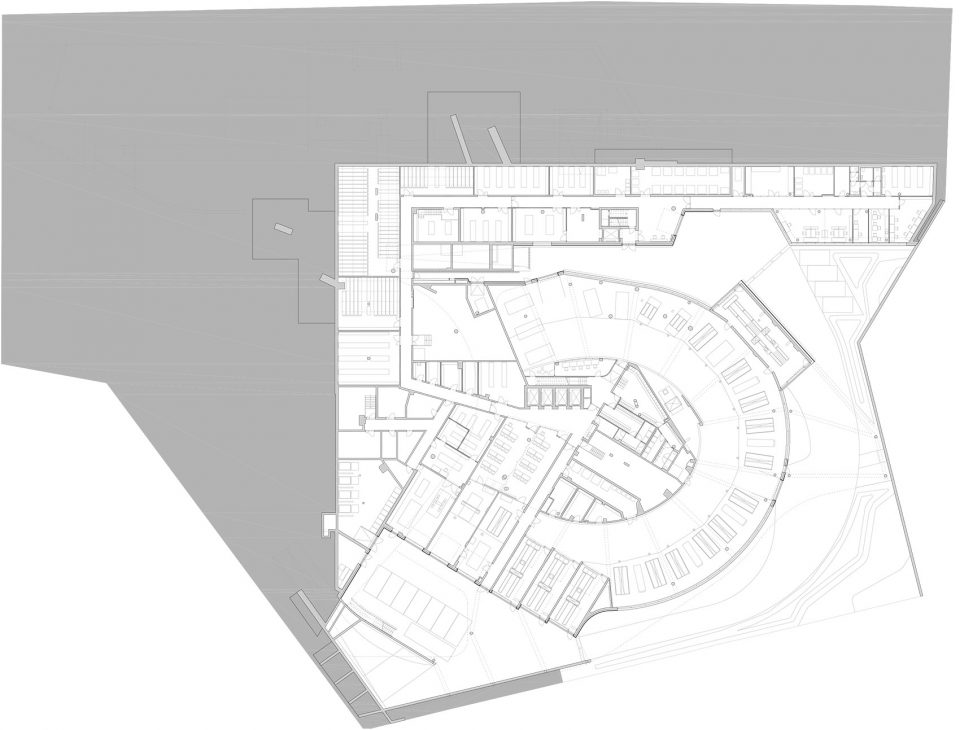

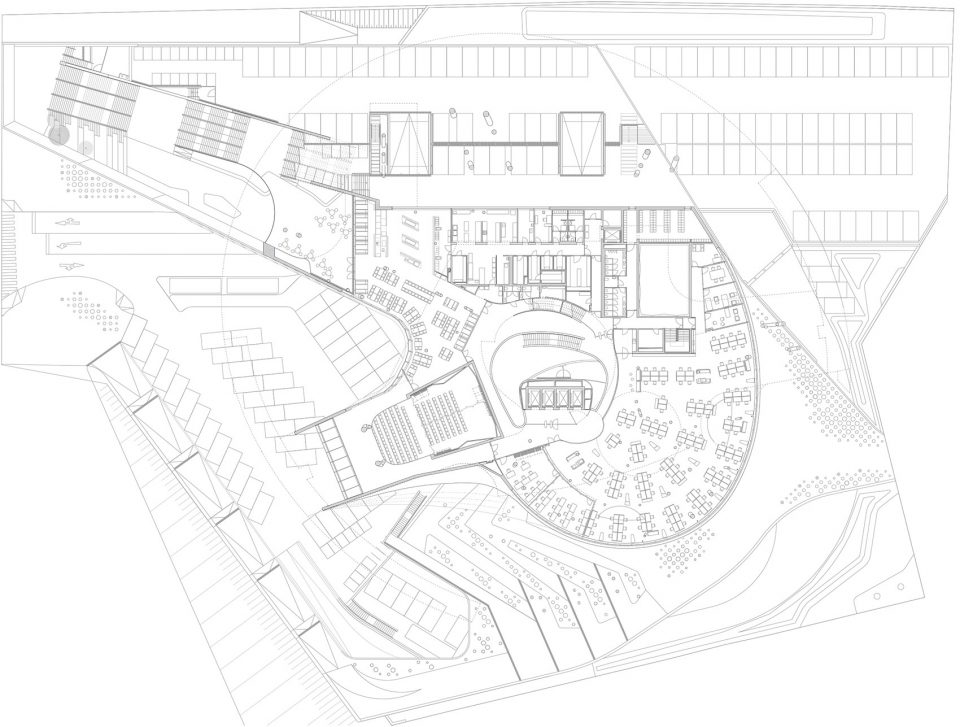

▼底层平面图，the ground floor

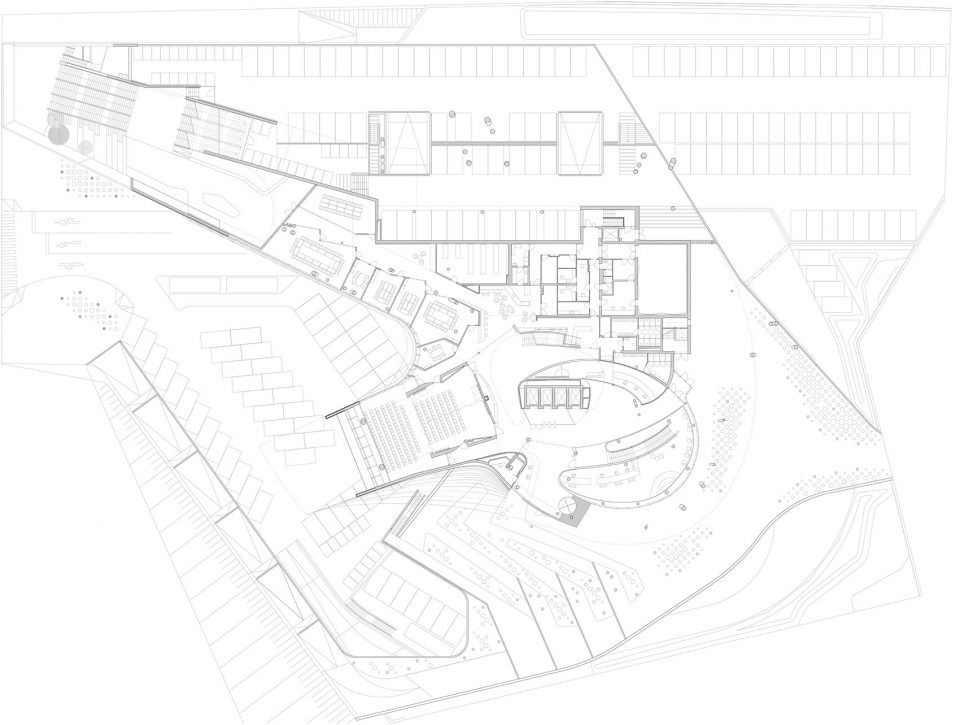

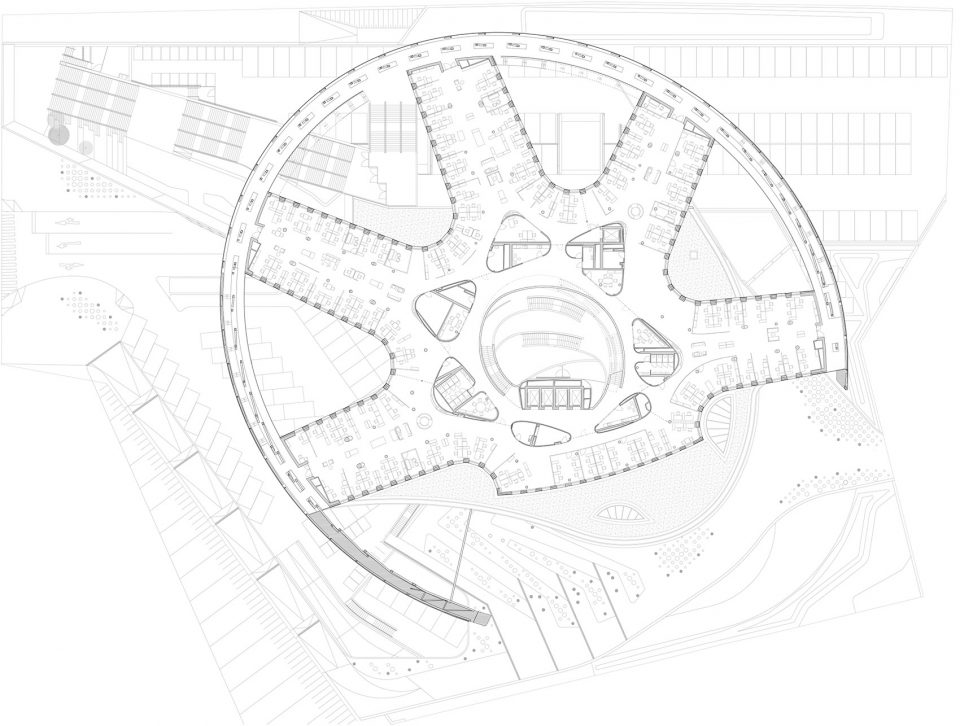

▼二层平面，the first floor

▼三层平面图，the second floor

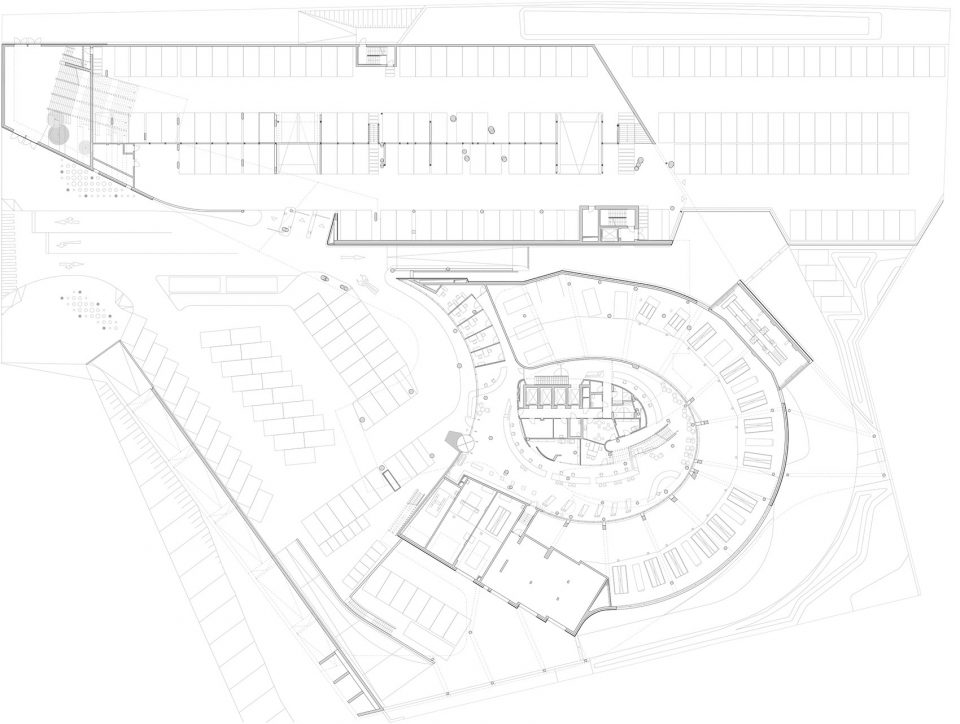

▼地下一层，first underground floor

▼地下二层，second underground floor

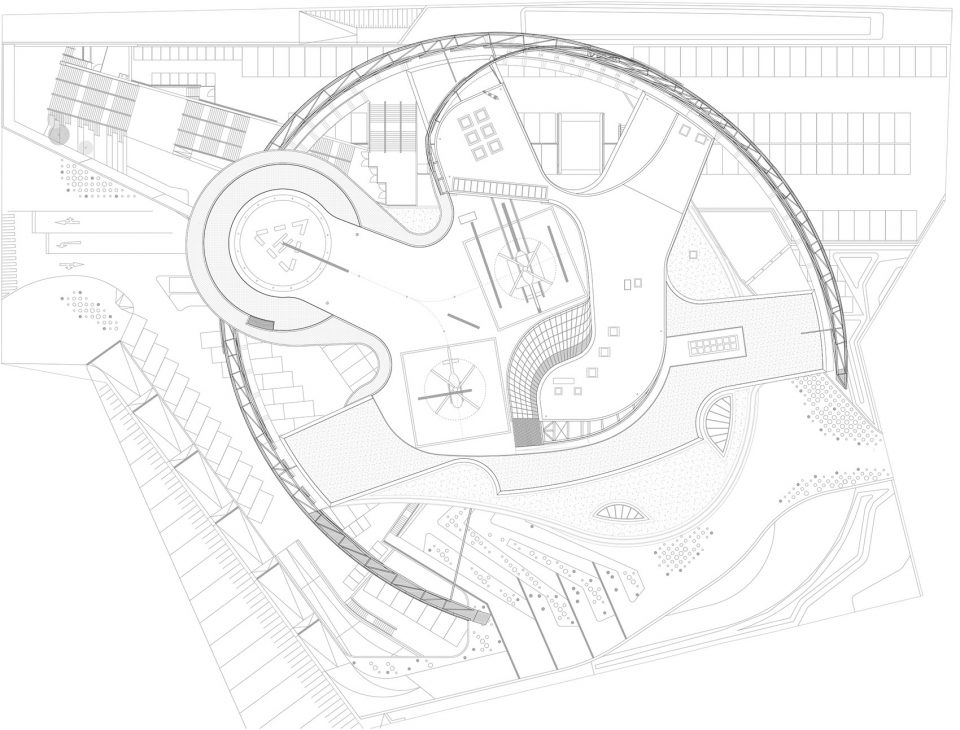

▼屋顶层，the roof plan

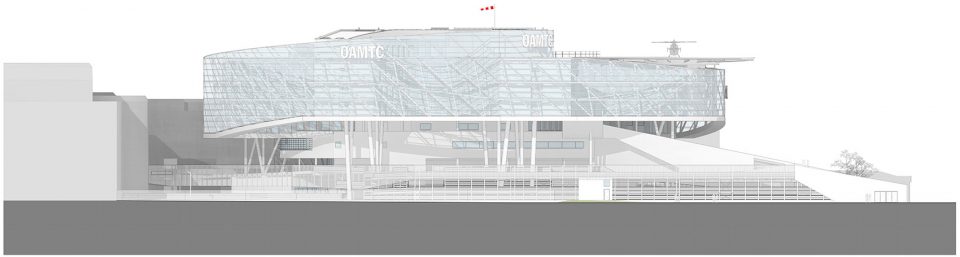

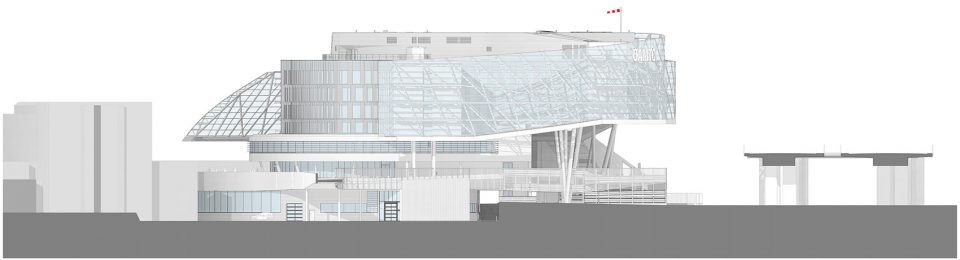

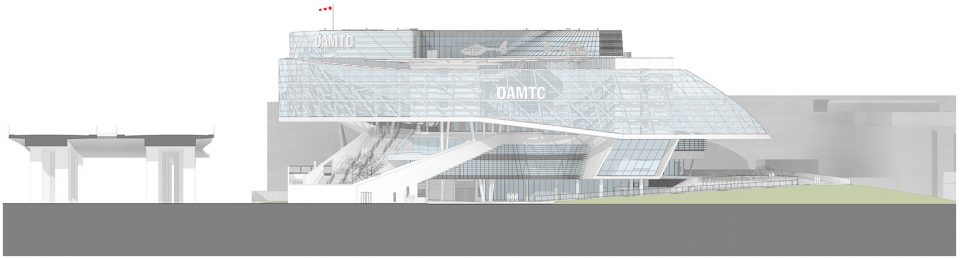

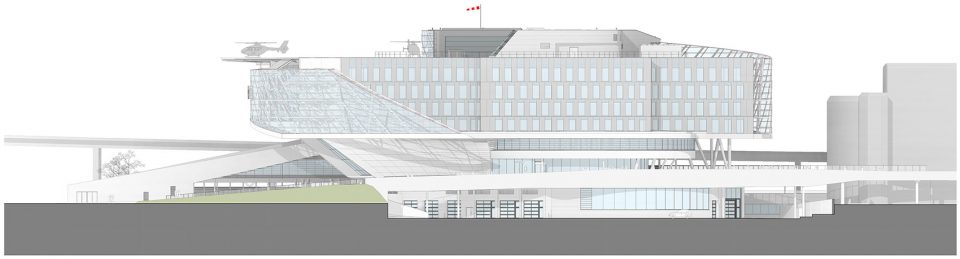

▼立面图，elevation

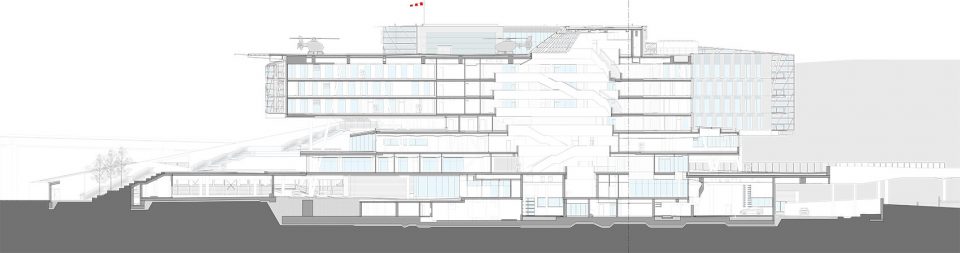

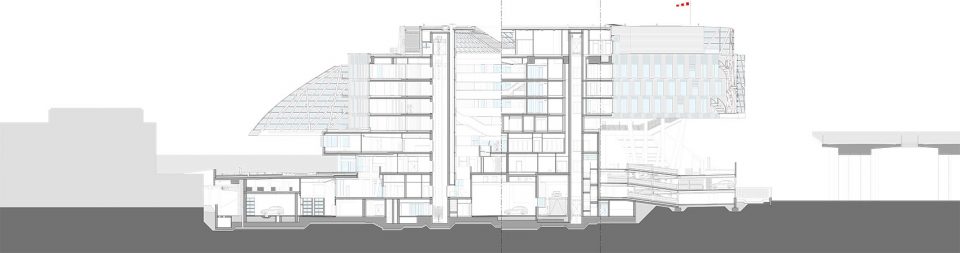

▼剖面图，section

Project Name: OEAMTC Headquarters
Year: 2013
Project location: Vienna 3rd district
Function: Headquarters OEAMTC
Client: OEAMTC Headquarters, Vienna 1
Scope: Designer with responsibility for all design services
Project team:
Pichler & Traupmann Architekten ZT GmbH
Pichler & Traupmann Architekten ZT GmbH
Johanna Maria Priebe (project leader)
Barbara Aull
Christoph Degendorfer
Andrea Ehrenreich
Mohammad Ekhlasi
Peter Grandits
Alexander Grass
Clemens Hasler
Barbara Jarmaczki
Joachim Kess
Bartosz Lewandowski
Till Martin
Daniel Moral Trigueros
Competition:
Christoph Degendorfer
Clemens Hasler
Bartosz Lewandowski
Milan Suchánek
Start of planning: 2013
Start of construction: 2015
Completion: 2016
Site area: 14,913 m²
Usable floor area: 20,027 m²
Built area: 9,325 m²
Gross floor area: 29,447 m²
Building volume: 161,133 m³
Renderings: Visualisierung © Tomaselli . VISUAL SENSATIONS, Vienna
Photos: Roland Halbe, Stuttgart
Model: Harald Schmidt, Vienna
Award: Competition 1st prize
Structural design / project coordination:FCP – Fritsch, Chiari & Partner ZT GmbH, Vienna
Structural fire protection:Norbert Rabl ZT GmbH, Graz
Building services / electrical planning:DIE HAUSTECHNIKER Technisches Büro GmbH, Jennersdorf
Building physics / facade:Dr. Pfeiler GmbH, Graz
Lighting design:
pokorny Lichtarchitektur, Vienna
Heliport planning:
Ing. Günther Jakubec GmbH, Vienna
Surveying:Dipl.-Ing. Johanna Fuchs-Stolitzka Ingenieurkonsule, Vienna
Landscape architecture:DnD Landschaftsplanung ZT KG, Vienna
Wind comfort:Weatherpark GmbH, Vienna
Hydro engineering:Dipl. Ing. Michael Gollob ZT GmbH, Vienna
Traffic engineering:Traffix Verkehrsplanung GmbH, Vienna
Gastronomy:IB Ronge Stria GmbH, Baden
General contractor:Bauunternehmung Granit GmbH, Feldkirchen bei Graz
