来自瑛泊对gooood的分享。更多关于：Inbo on gooood
Appreciation towards Inbo for providing the following description:

在上百名嘉宾的见证下，万科·万创科技城在2020年12月9日正式开园！开园仪式在刚刚建成的南昌国际创新科技馆举办，这座博物馆很快将成为南昌赣江新区的新地标，也将成为世界级园区万创科技城的生命核心。万科·万创科技城首期项目全部由瑛泊设计，预计2021年3月将完成全部建设工作。

Witnessed by a few hundred distinguished guests, the first phase of the new Wanchuang Science City for future technologies in Nanchang was officially opened on December 9 2020. The ceremony took place in the newly built Science museum, which soon will be a recognized landmark in the Ganjiang district and the lively center point of the world class Wanchuang Science City community. The whole campus was designed by Inbo and expected to be completed by mid 2021.

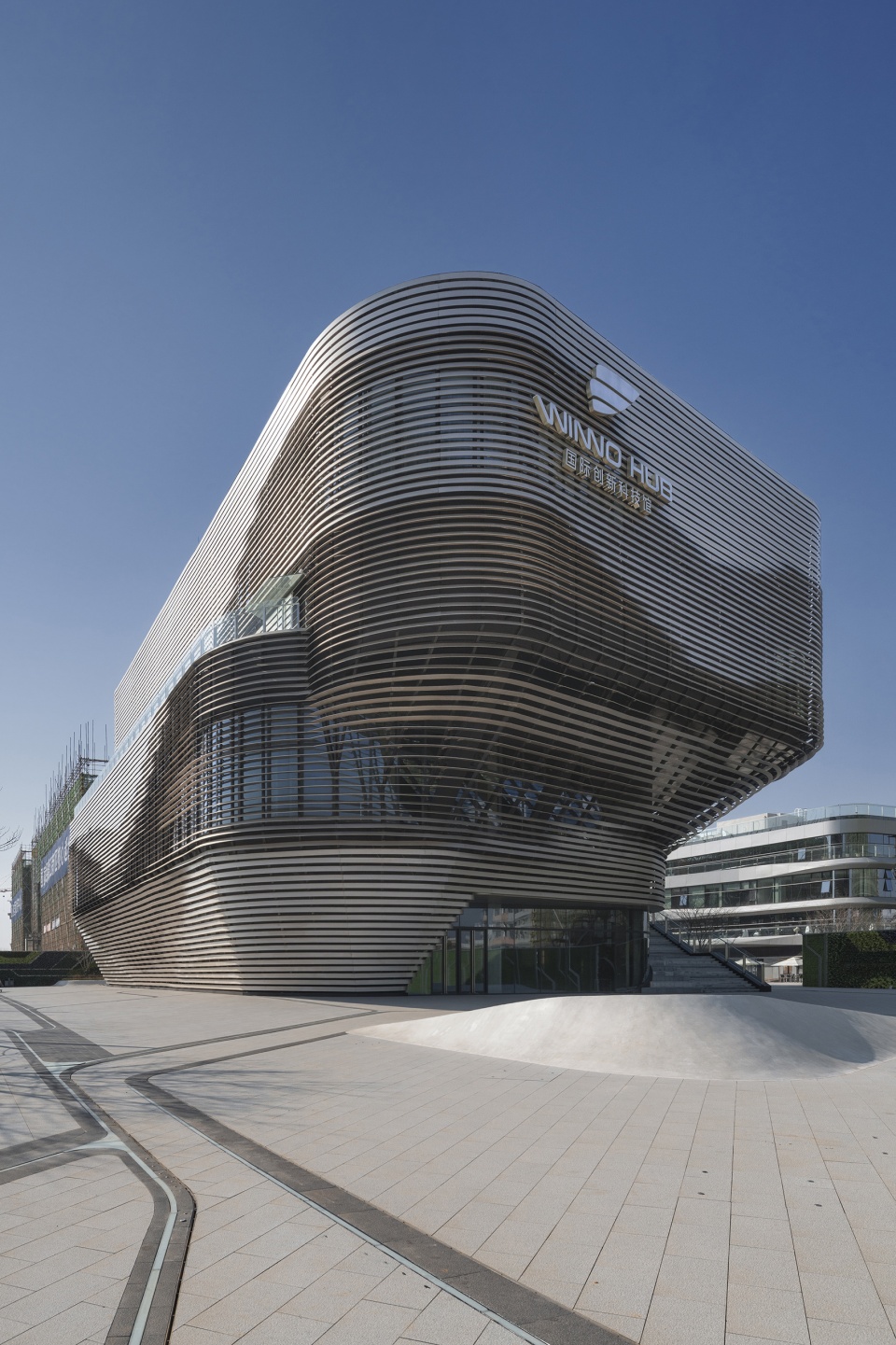

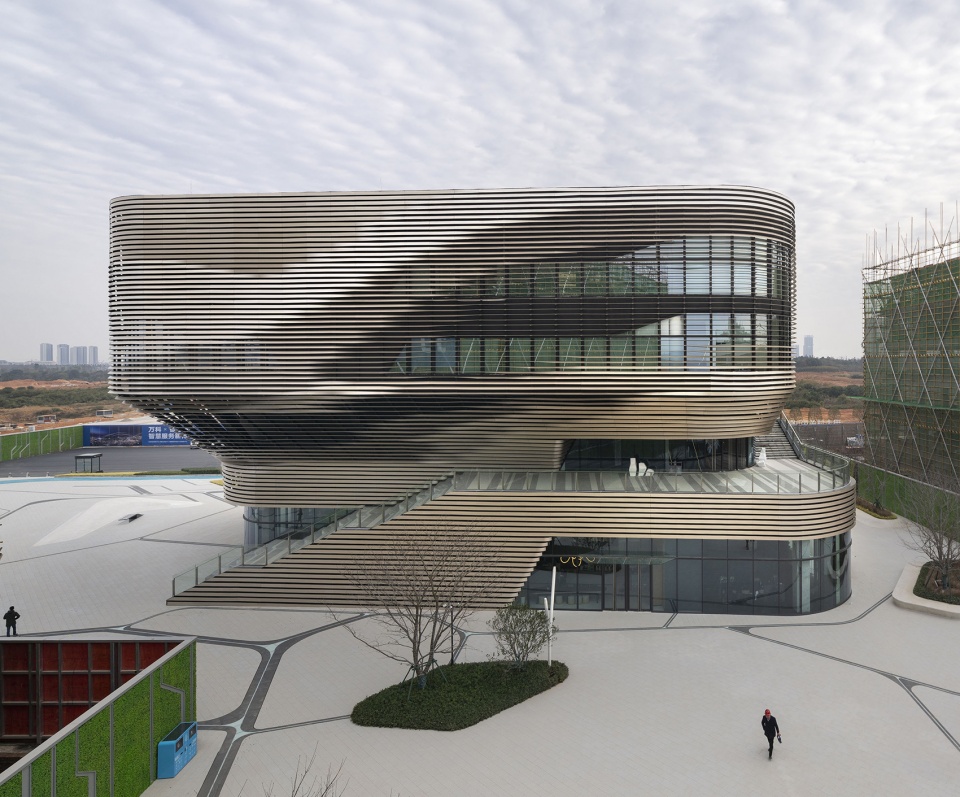

▼建筑外观，exterior view © Highlite

01.赣江新区的标志
Icon for Ganjiang

坐落在江西省省府南昌市北部、赣江沿岸的赣江新区是国家级高新产业区。在未来几年，这个规划面积为465平方公里的新区将成为中国最绿色和健康的产业环境。万创科技城位于赣江新区的中心，紧邻即将建成的新CBD，拥有直达机场和市中心的便捷交通系统。沿贯穿赣江新区的核心道路，万创科技城将成为新区的核心，南昌国际创新科技馆也将随之成为整个新区的地标性建筑。

Ganjiang is a new national level district on the banks of the Gan river, in the north of Nanchang City, the capital of Jiangxi province. In the coming years the planned 465km2 will be realized with the ambition to become one of the greenest and healthiest living and working environment in China. The Wanchuang Science City is located in the center of Ganjiang, close to the yet to be built CBD and directly connected to the highway that links the campus to the airport and downtown Nanchang. Situated on one of the main crossings along the major central road of the district, the Wanchuang campus will be a strong focus point and the museum an iconic landmark for the whole district.

▼赣江新区的新地标，a new icon for Ganjiang district © Highlite

02.i-CAM 模型
i-CAM methodology

万创科技城的设计理念源于瑛泊搭建的园区开发模型‘i-CAM‘的评估结果。i-CAM 是Inbo Campus Assessment Model 的缩写，翻译为瑛泊园区评估模型。i-CAM模型搭建于埃因霍温高科技产业园区的成功规划和设计经验。在业内，荷兰埃因霍温高科技产业园区因为员工人均专利权数最高而被认为是全世界发展最好的高科技创新园区。开放的创新环境和搭建’智慧中枢‘的战略是园区的成功关键。

The general concept for Wanchuang Science City is the outcome of intensive research with Inbo’s i-Cam methodology as its guidance. i- CAM stands for Inbo Campus Assessment Model and it was developed after Inbo designed the High Tech Campus Eindhoven in The Netherlands (HTCE). The HTCE is known by experts as the best performing technology driven campus in the world, measuring the output of patented innovations per capita. Key for its success is the open innovation environment and ‘brainhub’ strategy.

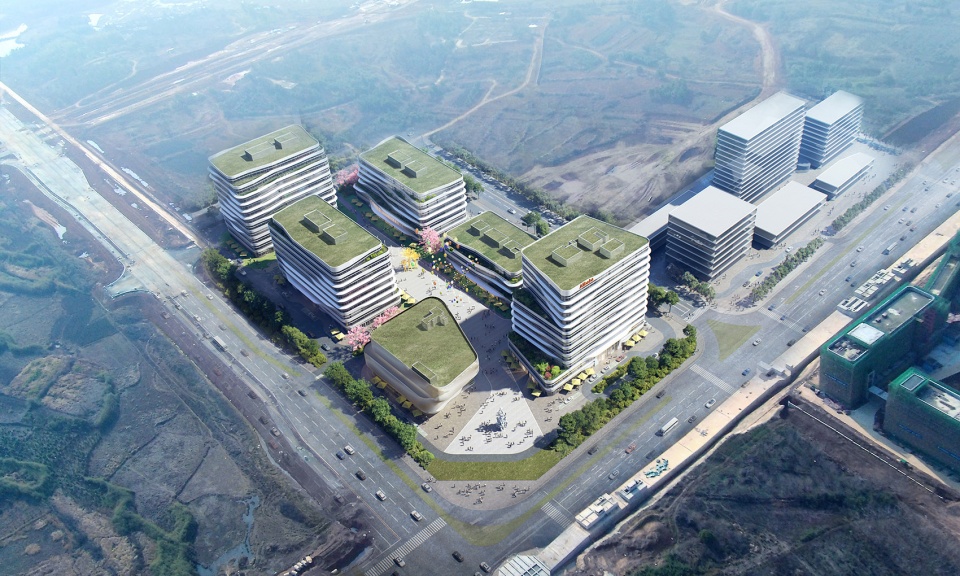

▼园区鸟瞰，campus birdview © Inbo

03.区域的智慧中枢
Regional Brainhub

麻省理工大学的研究证明，超过80%创新产生在不同背景的人在非正式场合的沟通中。瑛泊的‘智慧中枢’的战略正是建立共享设施和空间以增加人们聚集的机会，增加非正式会面的机会，刺激人群的交流。博物馆、联合办公和会议中心三大功能的结合是在万创科技城项目中对这一战略的核心实践，期待这里将成为整个赣江新区的“智慧中枢”。

MIT studies estimate that 80% of innovations are the result of knowledge exchange during informal encounters between people with different background. Concentrating shared functions in ‘brainhubs’ aims to intensify the density of people in one place and increase the chance of those informal encounters, with the goal to stimulate exchange. The integration of a science museum, co-working space and conference center is the centerpiece in this strategy with the intention to become a brainhub for the whole region.

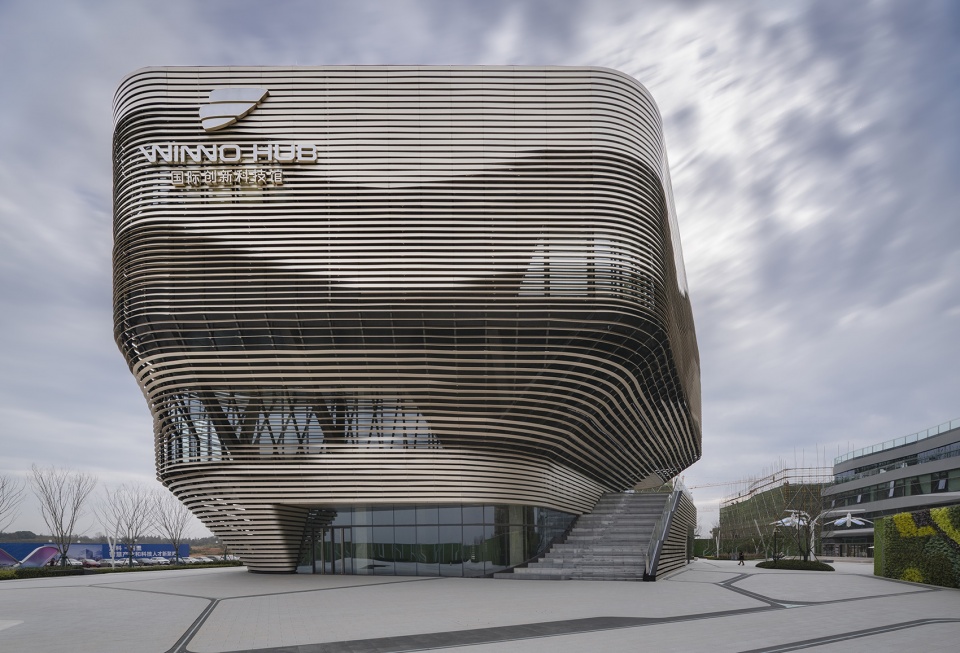

▼建筑立面，facade © Highlite

04.流线与视角
Flow & view

坐落在两条主干道的交叉处，南昌国际创新科技馆是科技城的入口标志。博物馆的初始造型源于行人路线的分析以及主干道直接看到园区中央庭院的希望。博物馆底部两层是展示空间，顶部两层是可以容纳10-200人不等的会议室。这两个功能在体块上有细微的区分，但是精致的建筑表面，将两个体块融合和包裹在一起。

Located on the corner of two main roads, the museum marks the entrance to the campus. Its initial shape is derived from pedestrian flow analysis and the desire to have clear views from the main roads to the central square of the campus. The first two floors offer exhibition space for the science museum, the top two floors provide conference facilities with rooms ranging from 10-200 people. The two functions are subtly visible in the massing, melted together and wrapped with an elegant fluent skin.

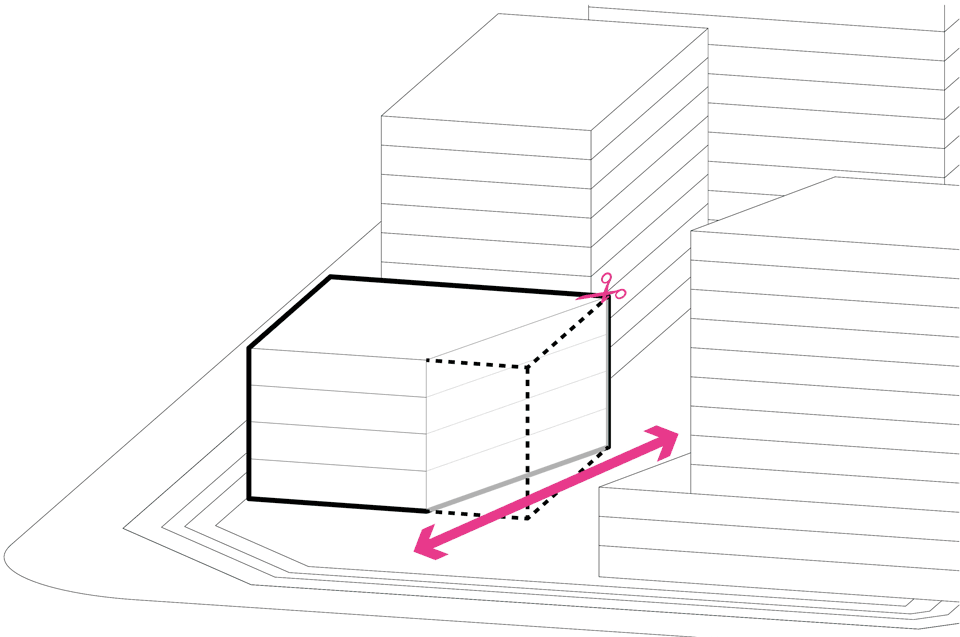

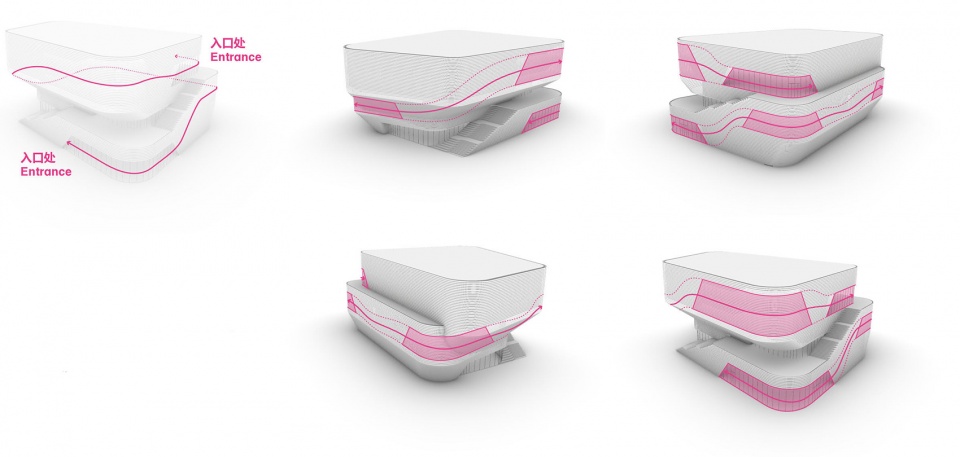

▼设计示意，diagram

▼流线示意，circulation diagram © Inbo

05.社区平台
Community platform

南昌国际创新科技馆的入口广场将被用于公共活动的举办。一个表现欢迎姿态的大楼梯是公共空间的延伸，它不仅仅可以创造更多的室外座位，也是可以直达不同观景台的开放空间。它邀请人们更多的使用户外空间，帮助这里成为一个充满活力的社区交换平台。

The entrance square in front of the museum will be used as a space for outdoor events. The welcoming ‘grand stairs’ is an extension of the public space and includes not only covered outdoor seating for events, but also is the start of a public route that connects several viewing terraces. In combination with the shared functions and the café along this public route, it invites people to use the outdoor spaces of the building and become a vibrant knowledge exchange platform for the community.

▼室外楼梯，external staircase © Highlite

▼大楼梯和室外平台，grand stair and outdoor terrace © Highlite

▼从入口广场望向建筑，view from the entrance square © Highlite

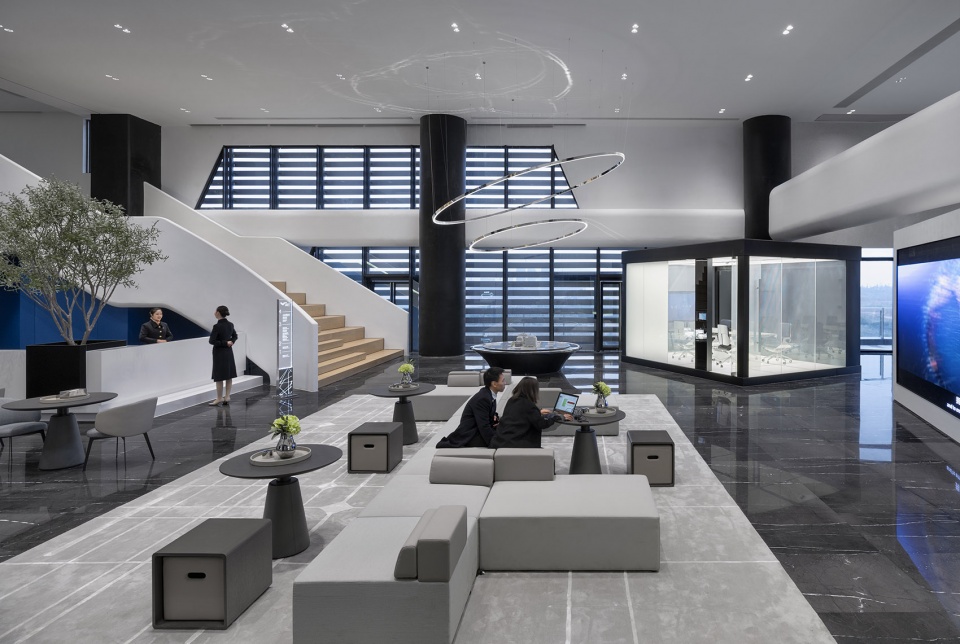

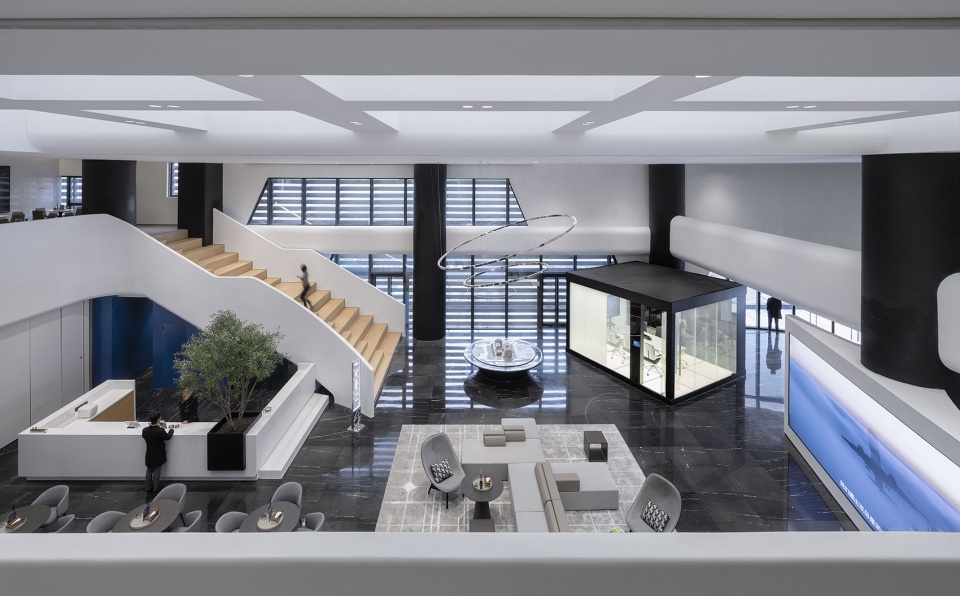

▼室内空间，interior view © Highlite

06.参数化设计的创新
Parametric novelty

建筑外皮的百叶铝板设计将这个建筑复杂的形态包裹在一起，形成了一个流畅的形态。铝板流线从横向波动到竖向，形成的外壁形态符合开窗的逻辑、满足日照视线以及透明的需求。为实现造型复杂的建筑与曲面流线型外壁的结合，节约成本，使用最少的曲面铝板，我们寻求瑛泊荷兰的专业人员的参数化设计的技术支持。

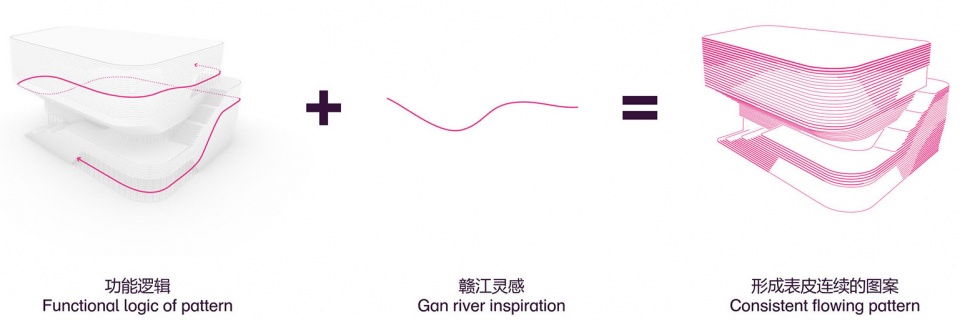

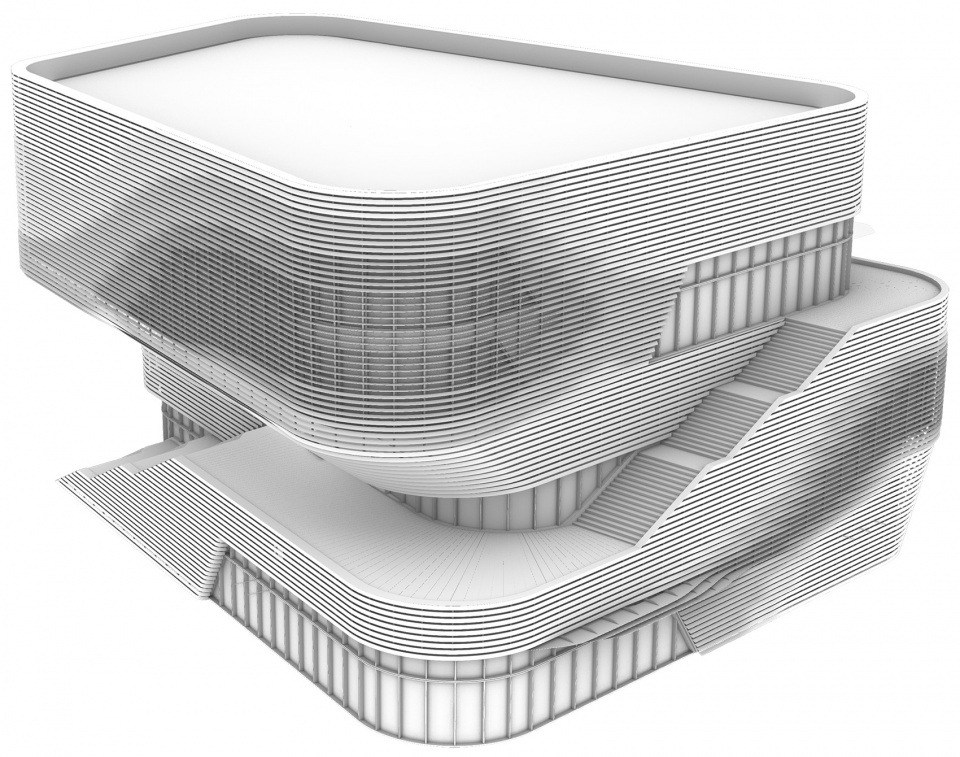

▼立面示意，facade diagram © Inbo

▼立面展开图，facade unfolded © Inbo

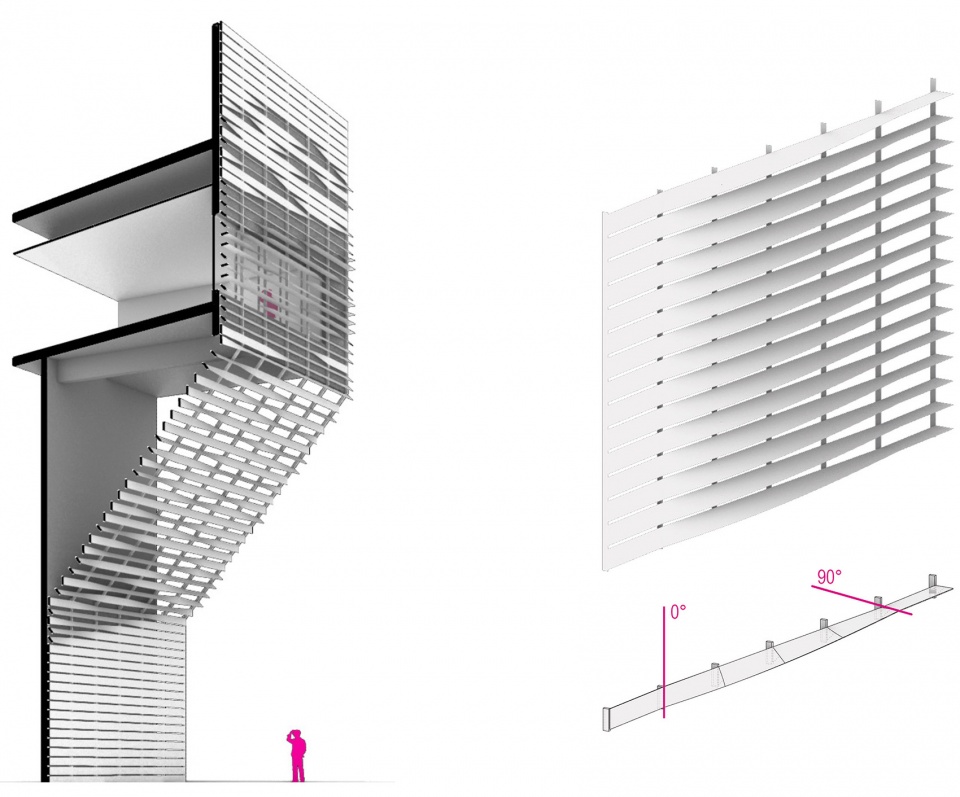

▼剖面图和百叶铝板，general section & facade lamella © Inbo

The building skin of horizontal aluminum lamellas wraps the complex volume into one fluent shape. The lamellas ‘flux’ from horizontal to vertical and compose a skin pattern that follows the logic of the window openings and guarantee day-light, views and transparency when needed. The complex building massing in combination with the fluxing panels required the latest parametric design techniques from the expert team in Netherlands to limit the amount of panel types and minimize waste.

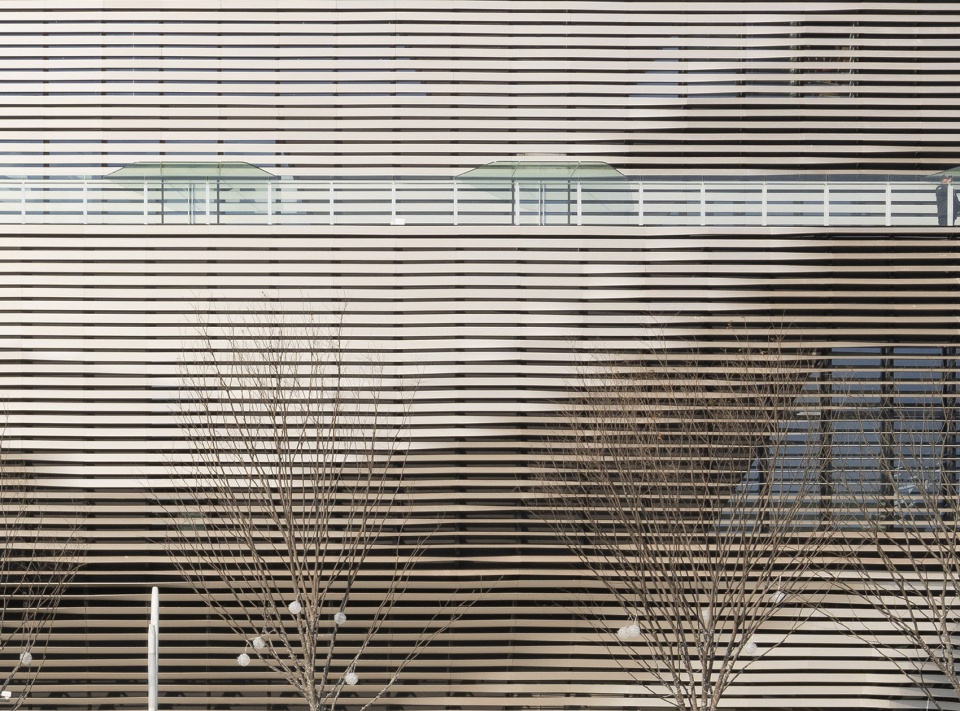

▼立面细节，facade detailed view © Highlite

07.未来的可塑性
Future adaptability

南昌国际创新科技馆的开放是一个更大区域的开发项目的开端，这个项目包含学校、商业区、居住区和配套设施。由于园区的开发刚刚开始，博物馆的顶部两层将首先被用于销售中心和联合办公区。随着项目的进展，这里将成为国际会议中心。建筑师们无法预测未来，为了使这个建筑可以灵活、适应地未来的需求变化，瑛泊不仅仅设计了宽阔无竖柱的内部空间，也让每一层都拥有单独的入口。由此，在未来需要的时候，每一层都可以独立运营。

The opening of the museum is the start of a much bigger area development, including a school, retail areas, residential areas and supporting facilities. Due to the current start-up character of the campus, the top two floors will be initially used as sales center and co-working space. When the development moves forward it will be changed to a world class conference center. Since architects can’t predict the future, buildings should be flexible for a longer period of time to accommodate future changes. Besides flexible big column-free spaces, every floor has its own entrance, allowing every them to be operated independently in case future use requires to do so.

▼园区夜景，campus night view © Highlite

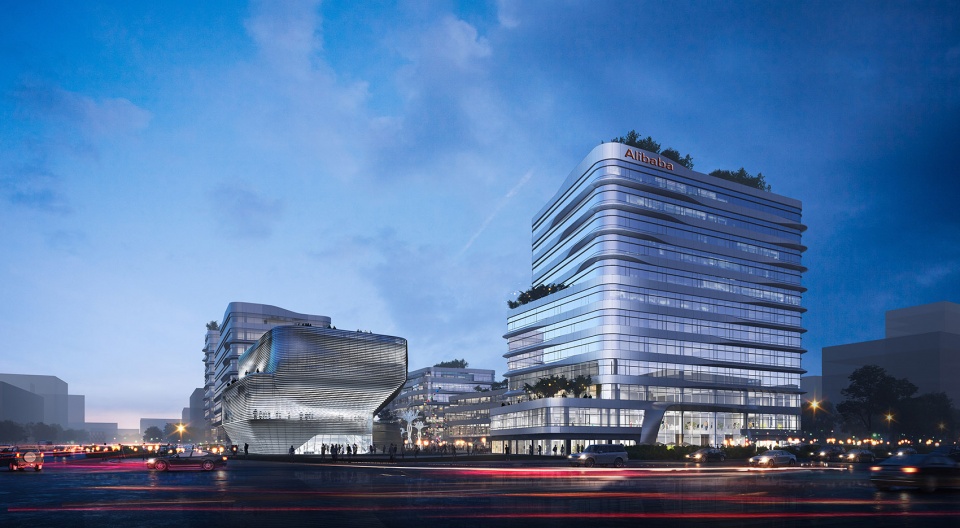

▼西南向透视，perspective southwest © Inbo

▼一层平面图，plan level 1 © Inbo

▼三层平面图，plan level 3 © Inbo

项目名称：万创国际创新科技馆
设计方：Inbo 瑛泊
公司网站：www.inbo.com
联系邮箱：shuozhao.sun@inbo.com
项目设计 & 完成年份：2019-2020
主创及设计团队：Mark Dekker, 潘文黎，Joan Rufián Pujol，王战，金不为，Jihong Duan,Lars van Vianen
项目地址：中国江西省南昌市
建筑面积：4500平方米
摄影版权：Highlite
客户：江西万科
