莱里达是加泰罗尼亚地区继巴塞罗那之后的第二大城市，山顶历史悠久的Seu Vella大教堂和Segre河分别标志了城市的最高和最低点。La Llotja剧场和会议中心坐落在Serge河岸，离市中心有一段距离。Mecanoo事务所将建筑安置在稍远离河道的地方，这样可以欣赏莱里达炫目迷人的景观。剧场分为三种尺度建造而成。建筑最大的区域连接了河道和山川。从城市尺度上来看，建筑和河道的比例相当。从沿街立面开卡，悬挑结构为建筑提供了保护，远离了日光和雨水的侵害。

The mountain with its historic cathedral Seu Vella and the Segre River marks the high point and low point of Lleida (Lerida), the second city of Catolonia, following Barcelona. La Llotja theatre and conference center sits on the banks of the Segre, somewhat outside the centre of the city. Mecanoo’s design interprets the landscape of Lleida as the exciting scenery before which the building has been placed, somewhat further from the river. The mise-en-scène is elaborated on three levels of scale. Regarded from the large scale of the region, the building forms a link between the river and the mountain. Viewed from the urban scale, La Llotja and the river form a balanced composition. At street level the cantilevers of La Llotja de Lleida provide protection from sun and rain.

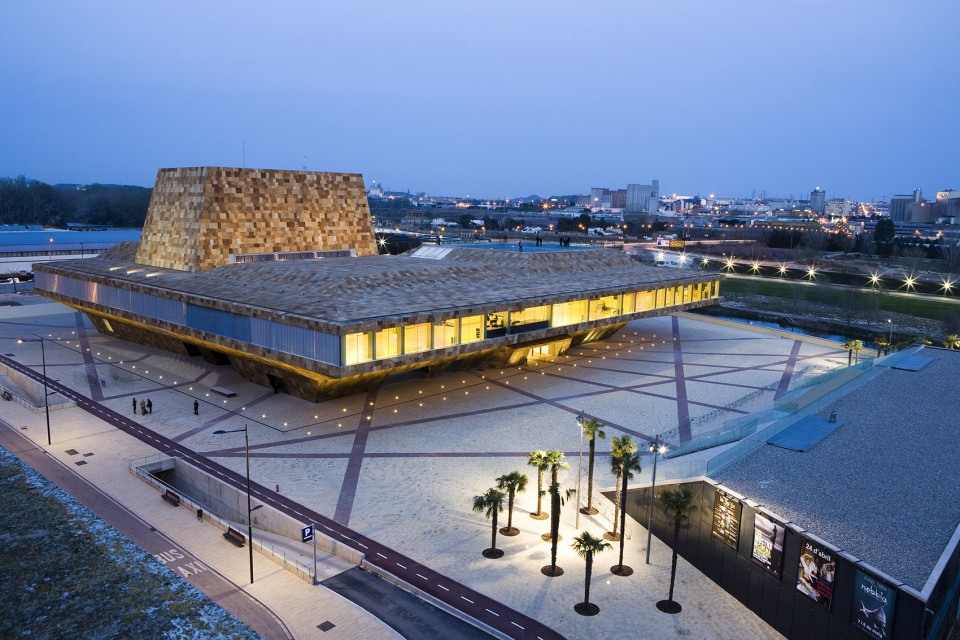

▼从城市尺度上来看建筑和河道的比例相当，Viewed from the urban scale, La Llotja and the river form a balanced composition.

这个宏伟的建筑如同从西班牙大地上破土而出的天然巨石。建筑水平的屋顶上自然而然的形成了一个花园，悬臂结构下的广场可举办各项活动，附近建筑的楼梯可作为看台使用。停车场位于建筑地下，地面层设有卡车装载区。剧场舞台，化妆间和餐厅厨房也处于地面层。小卡车的装载区位于一层。

The large stone edifice seems to have sprouted from the Spanish earth. The building’s horizontal form provides a large garden on the roof, while under the cantilevers begins a square for events, with the stairs of the adjacent building serving as a tribune. Parking has been created underground with the loading area for trucks on the ground level, the same level where the theatre stage, dressing rooms and restaurant kitchen are found. Small trucks can load and unload on level -1.

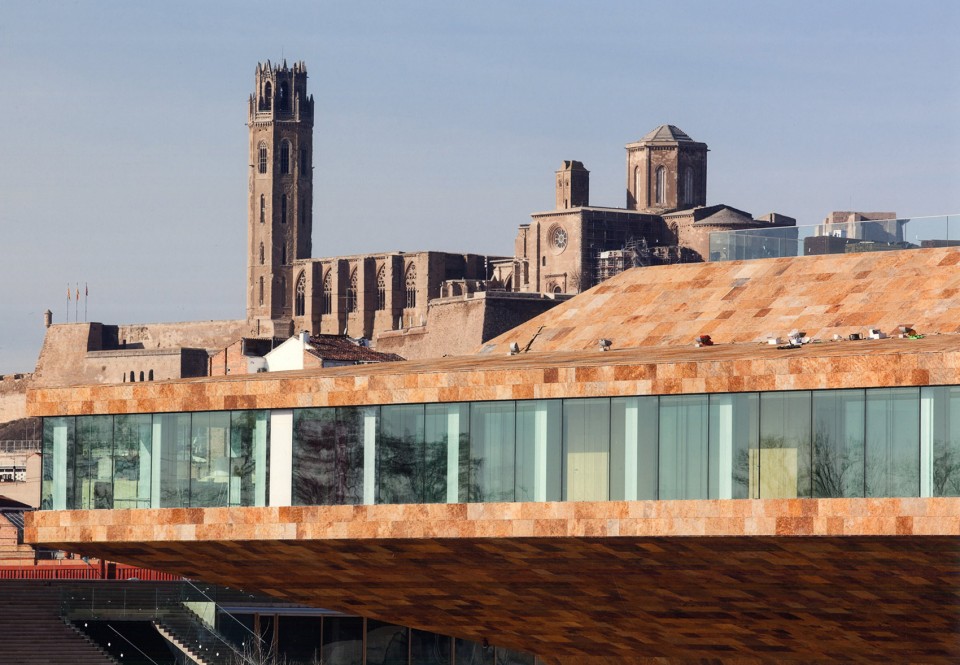

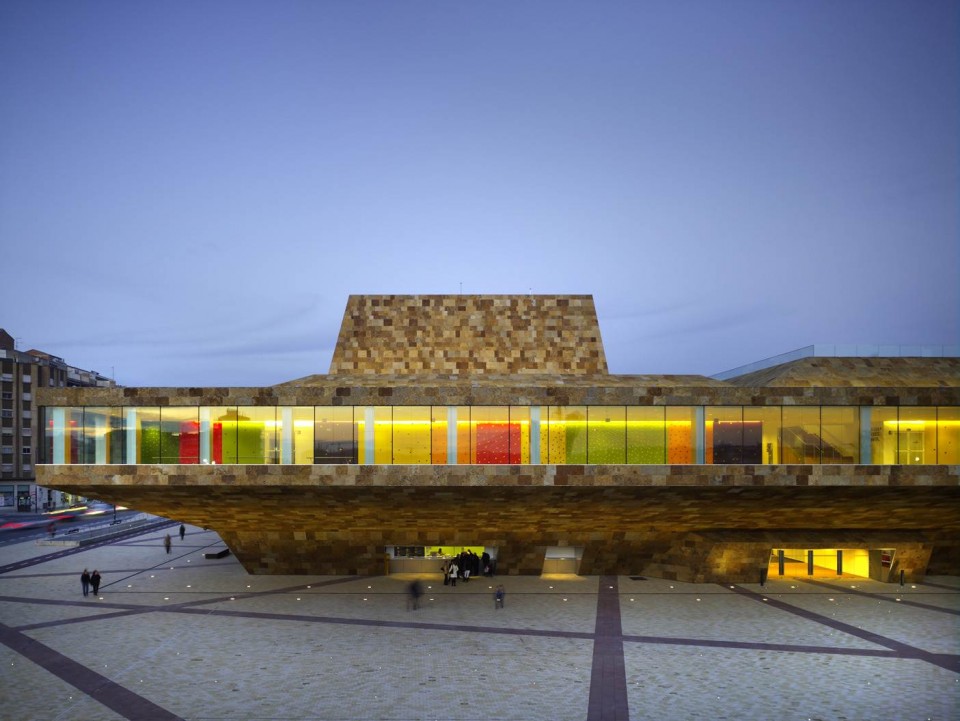

▼宏伟的建筑如同从西班牙大地上破土而出的天然巨石，The large stone edifice seems to have sprouted from the Spanish earth

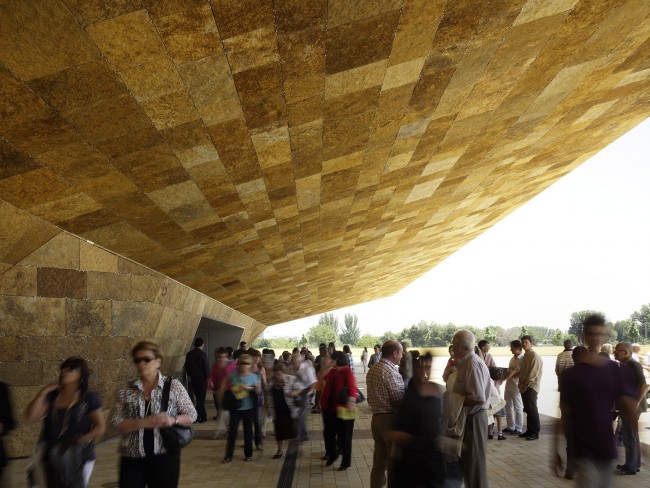

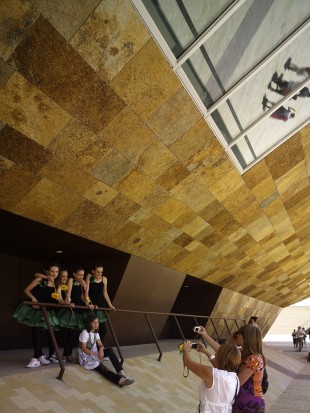

▼悬臂结构下的广场可举办各项活动，while under the cantilevers begins a square for events

建筑的中心有洒满阳光的中庭，沿着宏伟的楼梯从地面层拾级而上可以到达一层的多功能厅。坡道通向位于二层带有全景窗的门厅，可以欣赏全城的建筑景观和河景。

In a light court in the centre of the building, a monumental staircase rises from street level to the multifunctional hall on the first floor. A ramp leads on to the foyer on the second level where there is a panoramic window looking out across the city and the river.

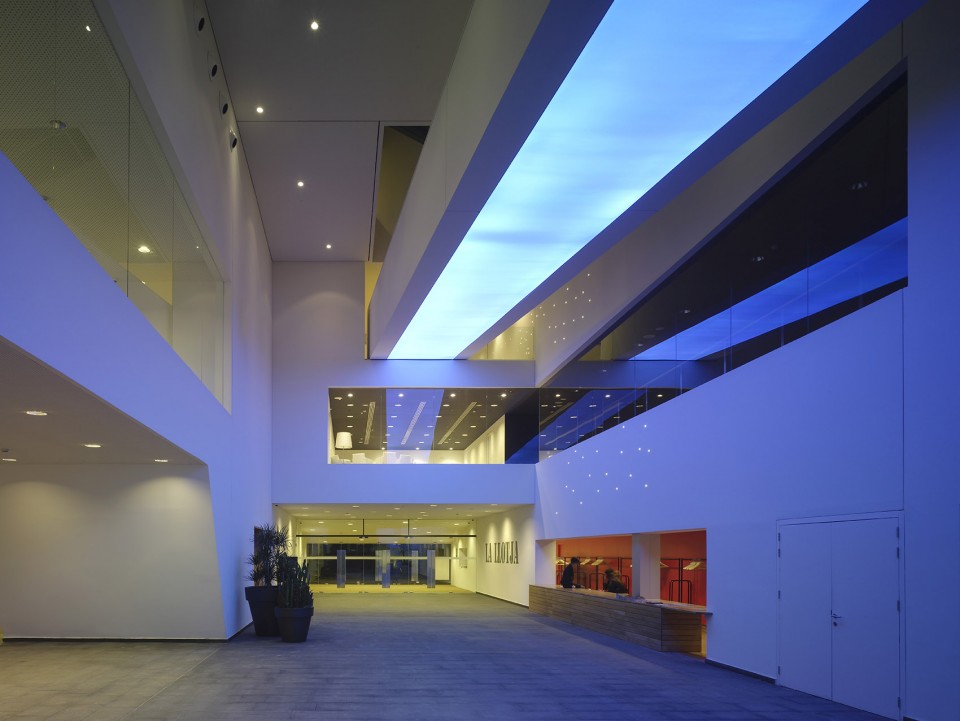

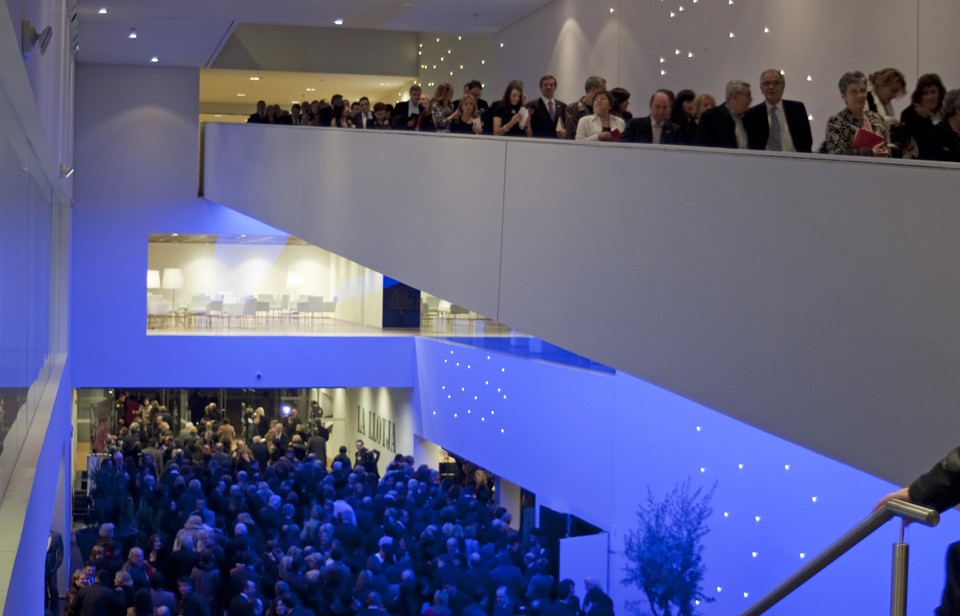

▼洒满阳光的中庭，a light court in the centre of the building

▼坡道通向位于二层带有全景窗的门厅，A ramp leads on to the foyer on the second level

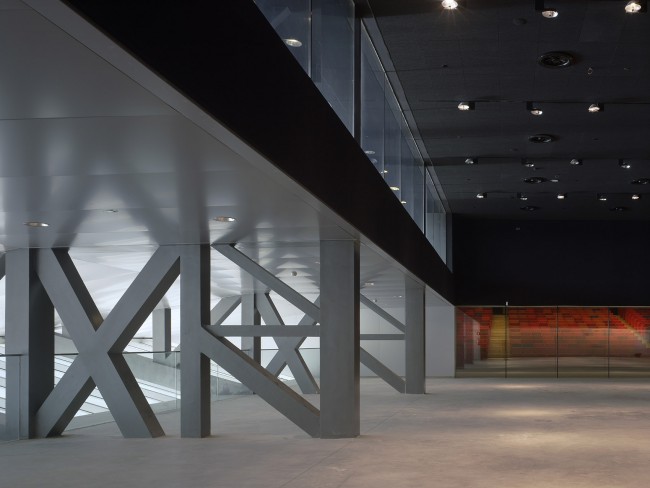

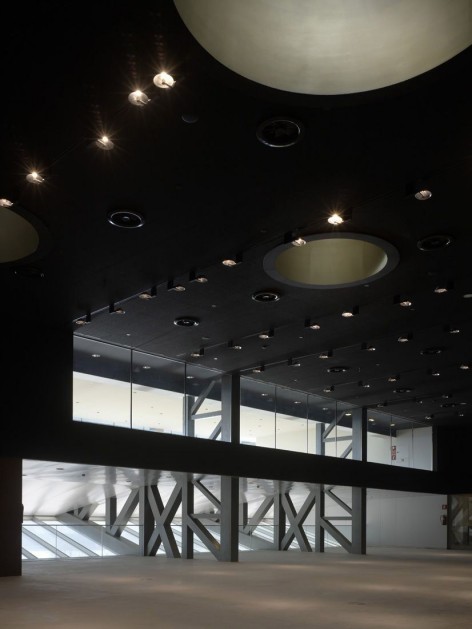

剧场的入口同时也可以当做大会议厅使用，会议室和小会议厅位于门厅。剧场营造了一种果园的气氛，墙壁使用深色木材质以几颗灯光树装饰，天花板数千个树叶形灯光照亮了剧场。小会议厅与多功能厅中间的倾斜看台被一道玻璃墙分割开来，但保留了两者的视觉联系。通过建筑内部的走廊可以到达媒体室，VIP室，和会议中心，他们位于建筑靠近城市中心的一侧。剧场和会议中心的功能布置逻辑虽难以察觉但功能极其强大。带有酒吧的餐厅坐落于La Llotja面对河道和广场的一侧。这个庞大的建筑由几个不同的体块组成，通过几个吸声的门厅连为一体。

The entrances to the theatre, which also serve as a large conference hall.The theatre has the atmosphere of an orchard with walls of dark wood in which trees of light have been cut out. Meeting rooms and a small conference room are located in the foyer. The latter is visually connected to the multifunctional hall by means of a raked tribune separated by a glass wall. The press office, VIP rooms and a meeting centre are situated on the city side of the building, accessed by an internal corridor. The entire functional logistics for the theatre and the conference centre are situated inconspicuously but extremely functionally. Restaurants with bars are located on the side of La Llotja facing the river and the square. The monolithic building is in fact composed of different pieces of buildings linked together by sound-absorbing foyers.

▼剧场的入口同时也可以当做大会议厅使用，The entrances to the theatre, which also serve as a large conference hall

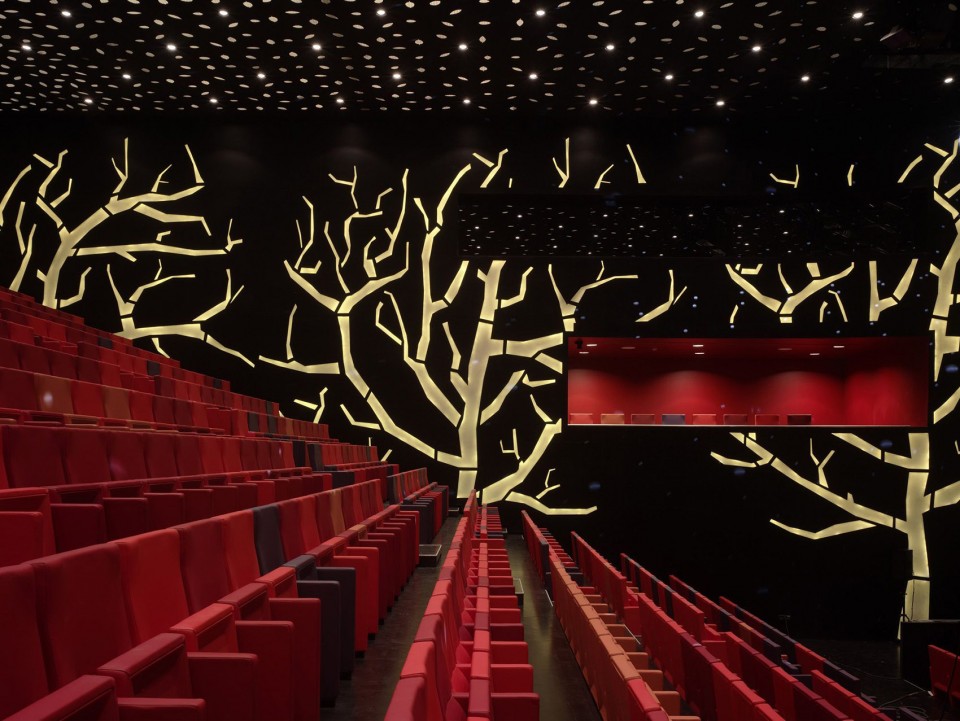

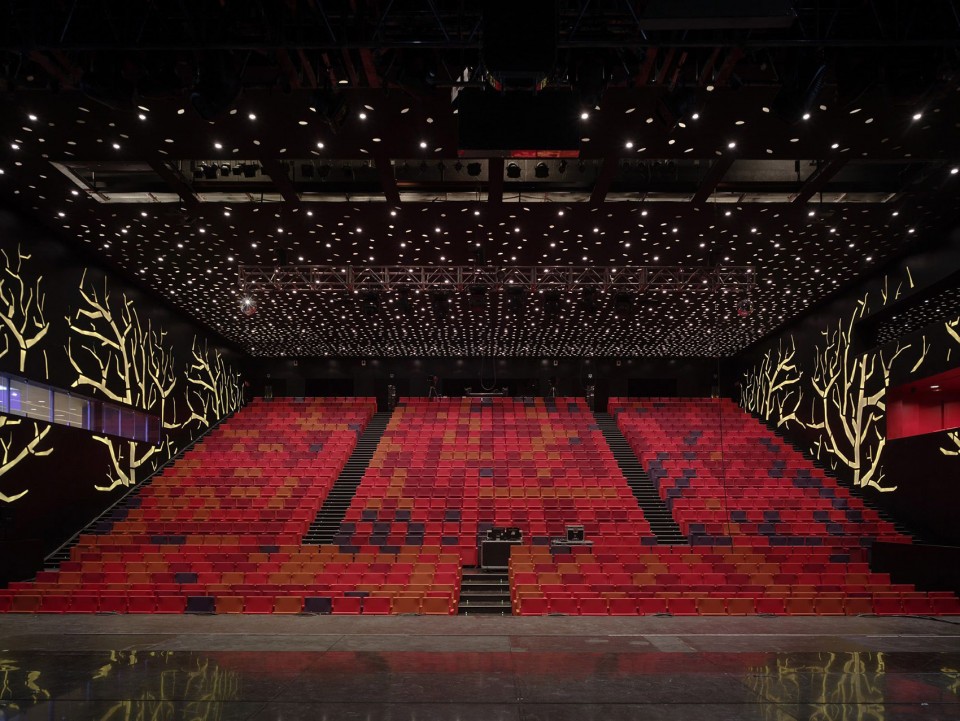

▼剧场营造了一种果园的气氛，The theatre has the atmosphere of an orchard

▼墙壁使用深色木材质以几颗灯光树装饰，dark wood walls in which trees of light have been cut out

不同的材质区分了室内不同的功能和方向，外部主要运用石材。内部以白色的抹灰墙壁或木质和大理石地板为主。入口大厅和多功能厅运用了大理石地板，前厅则使用了混合硬木地板。建筑整体使用水果为主题的配色，丰富了其细节。Lleida地区以盛产水果而闻名。

Materials ensure distinction and orientation in the interior. The exterior is of stone. Inside there are mainly white, plastered walls and either wooden or marble floors. The entrance hall and the multi-functional hall have a marble floor, while the foyer has a floor of mixed hardwood. Thousands of leaves on the ceiling light the hall. The colour palette of fruit is a theme that recurs in small details throughout the building. After all, the region of Lleida is famous for its fruit production.

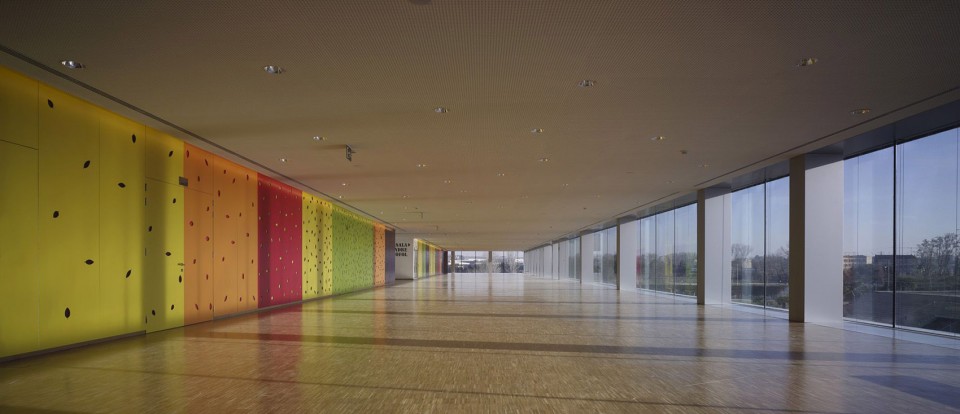

▼建筑整体使用水果为主题的配色，丰富了其细节，The colour palette of fruit is a theme that recurs in small details throughout the building

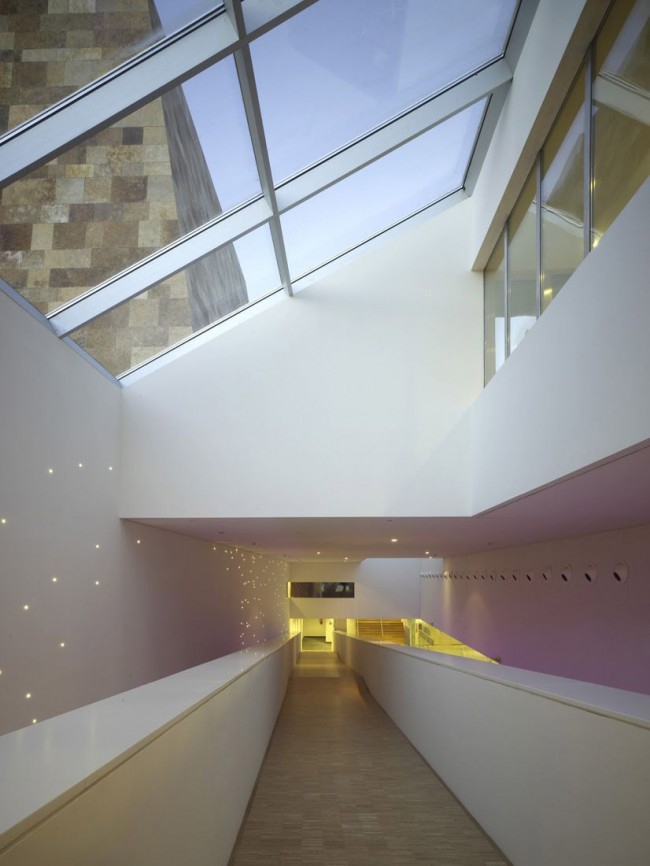

▼坡道与天窗，Ramps and skylight

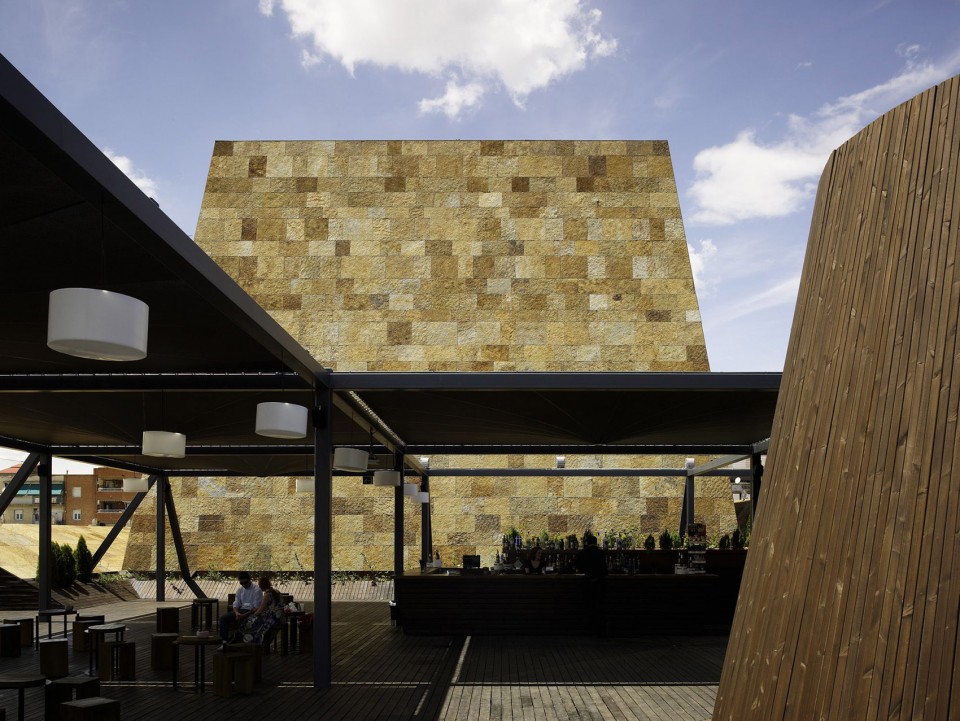

屋顶颜色丰富，凉棚上面缠绕了一些列的攀藤植物如玫瑰，茉莉和常春藤。夏天来临时，带有遮盖的花园凉爽惬意，凸窗提供了一个可以休憩玩耍的地方，同时还为周边街区的人们塑造了优美的景观并为前来开会的人们提供了短暂停留的场所。

The roof is colourful: pergolas support a range of creepers and climbers like roses, jasmine and ivy. The garden with its mirador is not only pleasant but also useful since the roof cover keeps the building cool in the summer, provides a beautiful view for people living in the neighbourhood and serves an extra place for conference guests to sojourn.

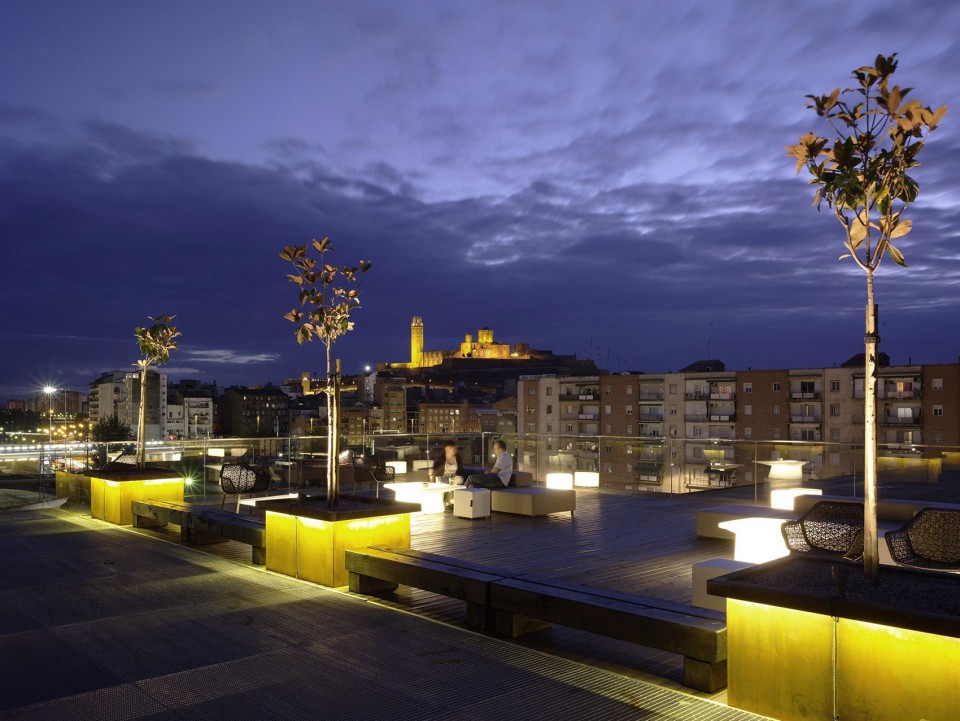

▼屋顶夜景，Roof Top Night View

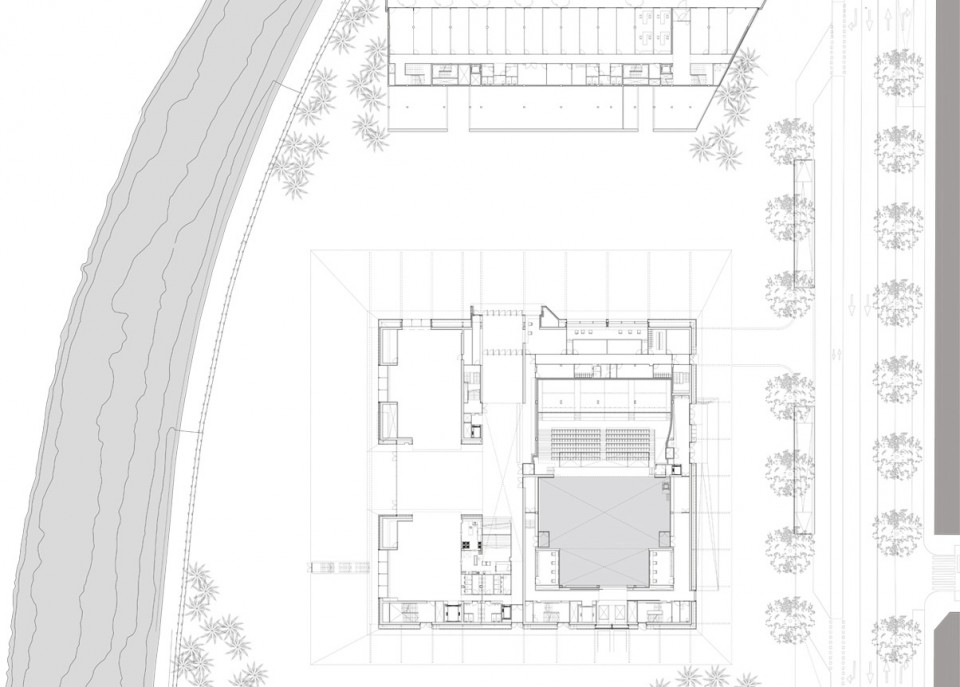

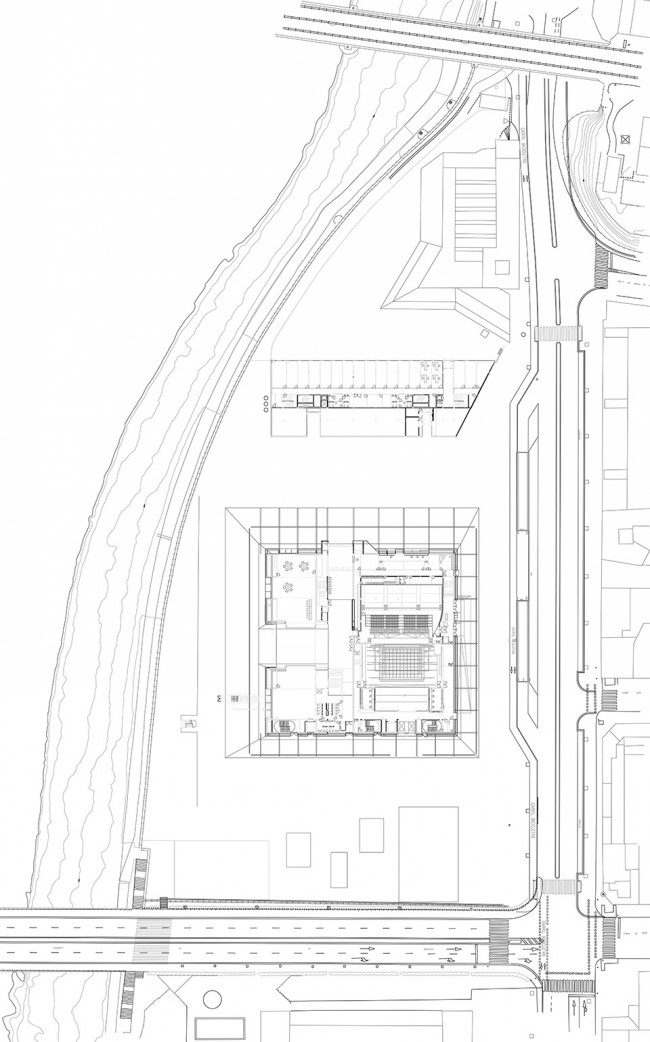

▼总平面，Master Plan

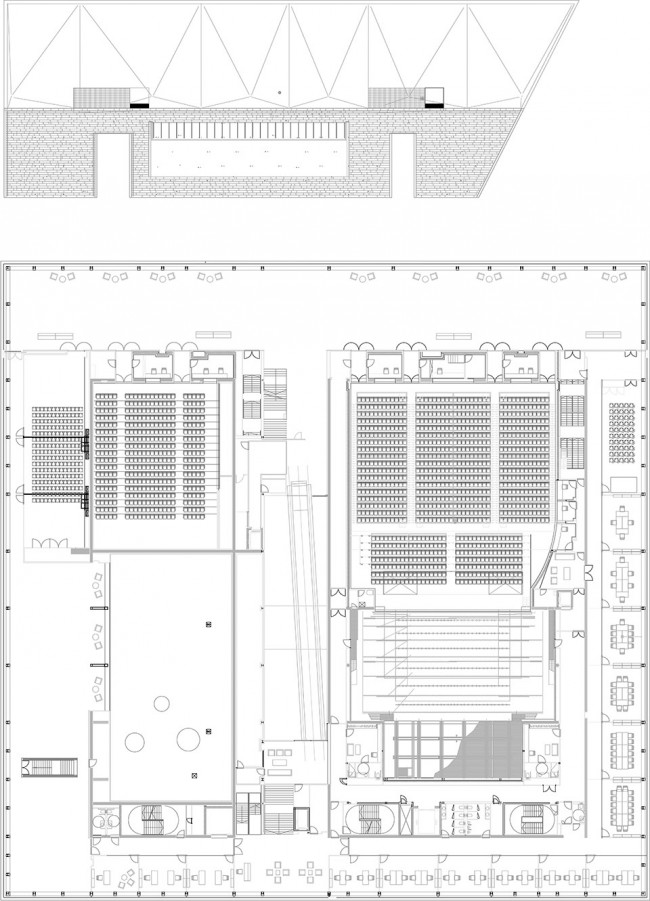

▼基地平面图，Ground Plan

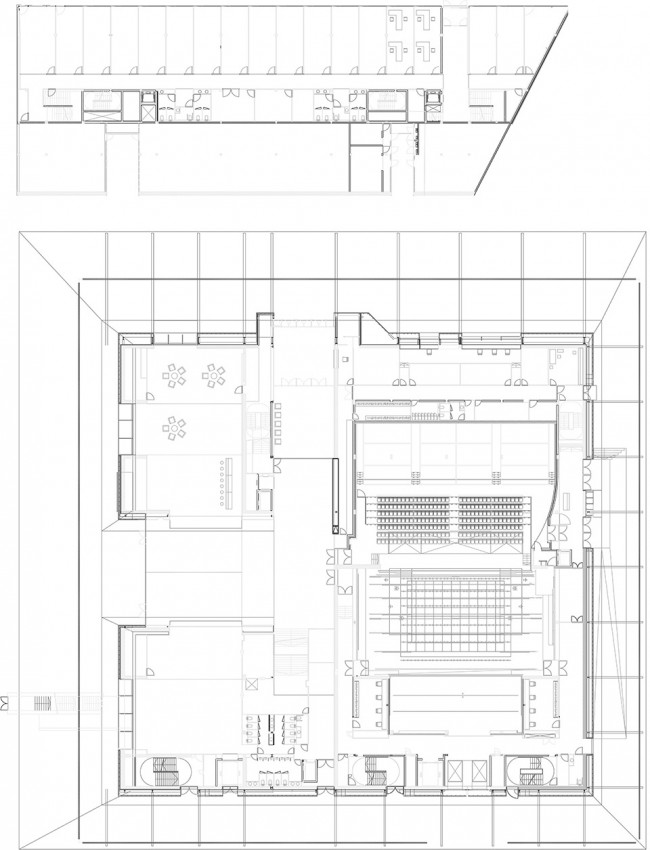

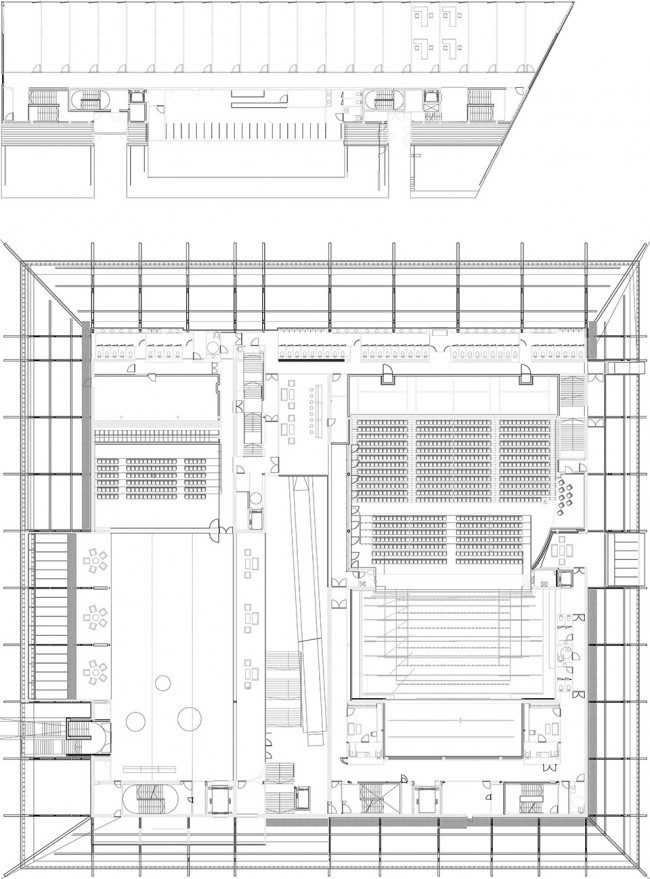

▼一层平面图，1st Floor Plan

▼二层平面图，2nd Floor Plan

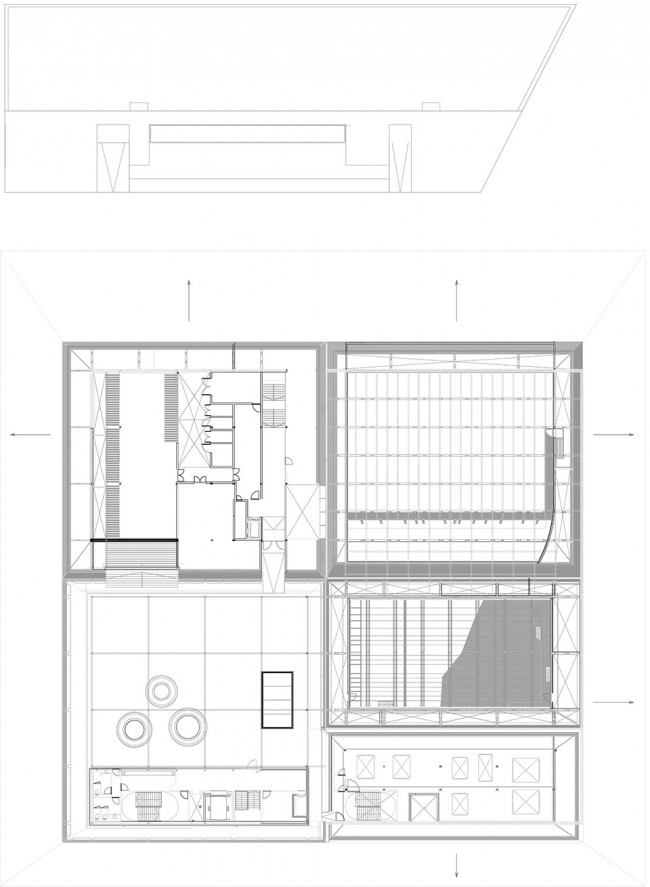

▼三层平面图，3rd Floor Plan

▼四层平面图，4th Floor Plan

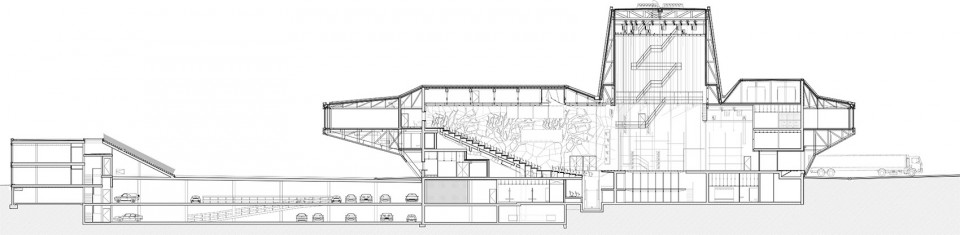

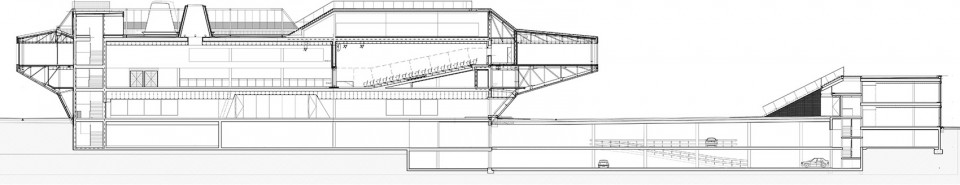

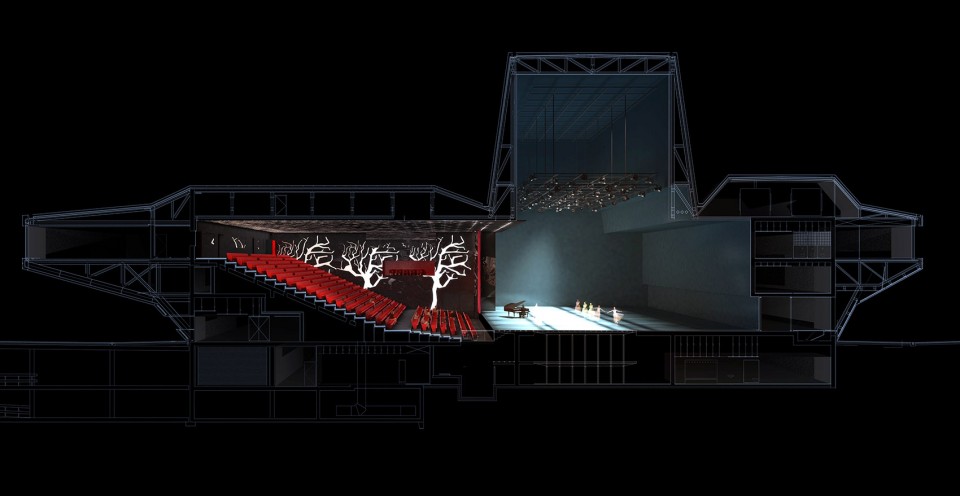

▼剖面图，Section

Programme

Theatre and congress centre of 37.500 m² with a theatre hall (1.000 seats), also functioning as a congress hall
2 congress halls with 400 and 200 seats
A multifunctional space, 2 foyers
9,500 m2 of parking, lounge, terraces
A public square of 15.325 m2
Mercolleida office and retail of 2.591 m2
1st prize competition
Client Centre de Negocis i de Convencions S.A., Lleida, Spain (project);
Municipality of Lleida (competition)

Competition
Design 2004-2005
Architect Mecanoo architecten, Delft
Structural engineer ABT b.v., Delft
Acoustics consultant Peutz b.v., Zoetermeer
Electrical and mechanical engineer Deerns Raadgevende Ingenieurs bv, Rijswijk
Costs consultant Basalt Bouwkostenadvies b.v., Nieuwegein

Project Realisation
Design 2005-2006
Execution 2006-2010
Architect Mecanoo architecten, Delft in collaboration with Labb arquitectura S.L, Barcelona
Contractor UTE Dragados + Obrum, Barcelona
Structural engineer BOMA, Barcelona
Acoustics consultant Higini Arau, Barcelona
Electrical and mechanical engineer Einesa Ingenieria S.L., Lleida
Technical architect J/T Ardèvol i Associats S.L, Barcelona
Costs consultant J/T Ardèvol i Associats S.L, Barcelona
Security and fire safety consultant Einesa Ingenieria S.L., Lleida
Project manager Eptisa S.A. Direcció Integrada, Barcelona
