LA MURALLA ROJA / Ricardo Bofill Taller de Arquitectura

Mediterranean Red and Blue Concerto

Project Specs

Location:
Tags:

来自Ricardo Bofill Taller de Arquitectura对gooood的分享。更多请至:Ricardo Bofill Taller de Arquitectura on gooood
Appreciation towards Ricardo Bofill Taller de Arquitectura for providing the following description:

红墙(La Muralla Roja)是环境中一个显眼的存在。建筑融入了阿拉伯地中海地区极受欢迎的建筑形式,尤其是北非高耸的土砖塔楼。红墙如同矗立的城堡一般,沿着岩石绝壁延伸开来。

Within the context of La Manzanera, La Muralla Roja (The Red Wall) asks to be considered as a case apart. It embodies a clear reference to the popular architecture of the Arab Mediterranean, in particular to the adobe towers of North Africa. The Red Wall is like a fortress which marks a vertical silhouette following the contour lines of the rocky cliff.

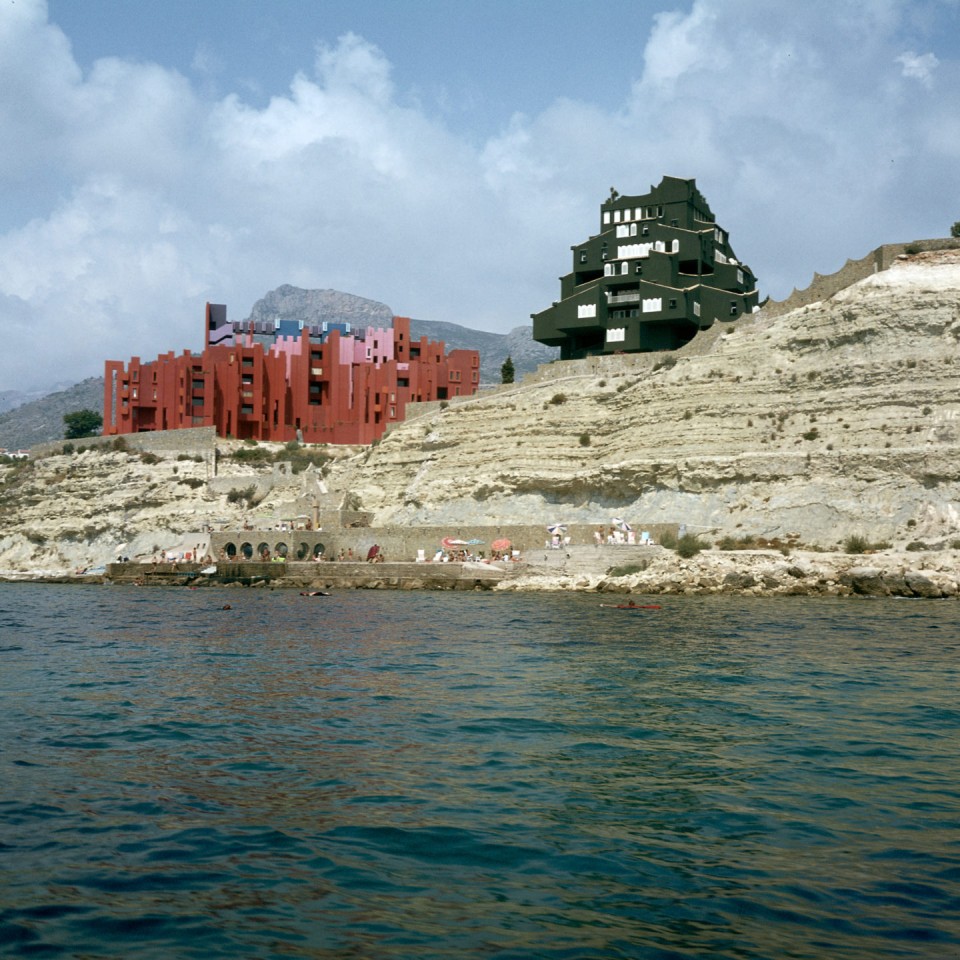

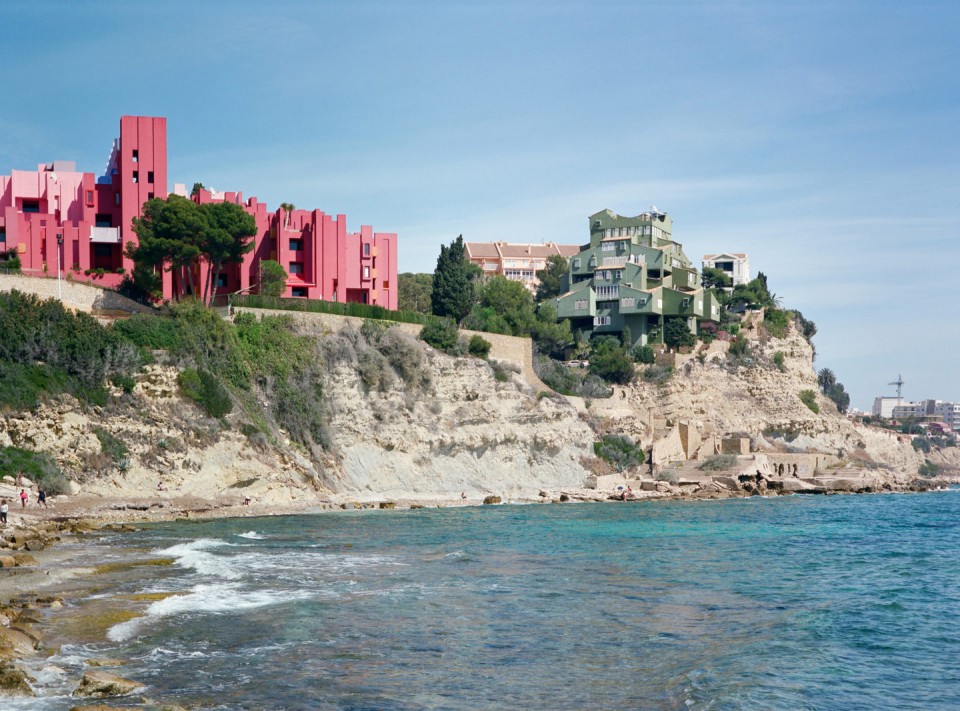

▽ 悬崖旁的红色建筑,a red building along the rocky cliff

001-LA MURALLA ROJA by Taller de Arquitectura

002-LA MURALLA ROJA by Taller de Arquitectura

Taller de Arquitectura试图通过这栋建筑重新阐释地中海文明的城堡传统,从而打破后文艺复兴时代中公共和私人空间的分隔。这座城堡迷宫般的构造形式基于五米长的希腊十字架几何构造,厨房、卫生间如同塔楼般连接着各个不同的空间,组合出多样化的平面布局方式。建筑的几何学构造与其建构方式遥相呼应,让La Muralla Roja成为了数学与建筑的连接。

With this building the Taller de Arquitectura wanted to break the post-Renaissance division between public and private spaces reinterpretating the Mediterranean tradition of the casbah. The labyrinth of this recreated casbah corresponds to a precise geometric plan based on the typology of the Greek cross with arms 5 meters long, these being grouped in different ways, with service towers (kitchens and bathrooms) at their point of intersection. The geometric basis of the layout is also an approximation to the theories of constructivism, and makes La Muralla Roja a very clear evocation of these.

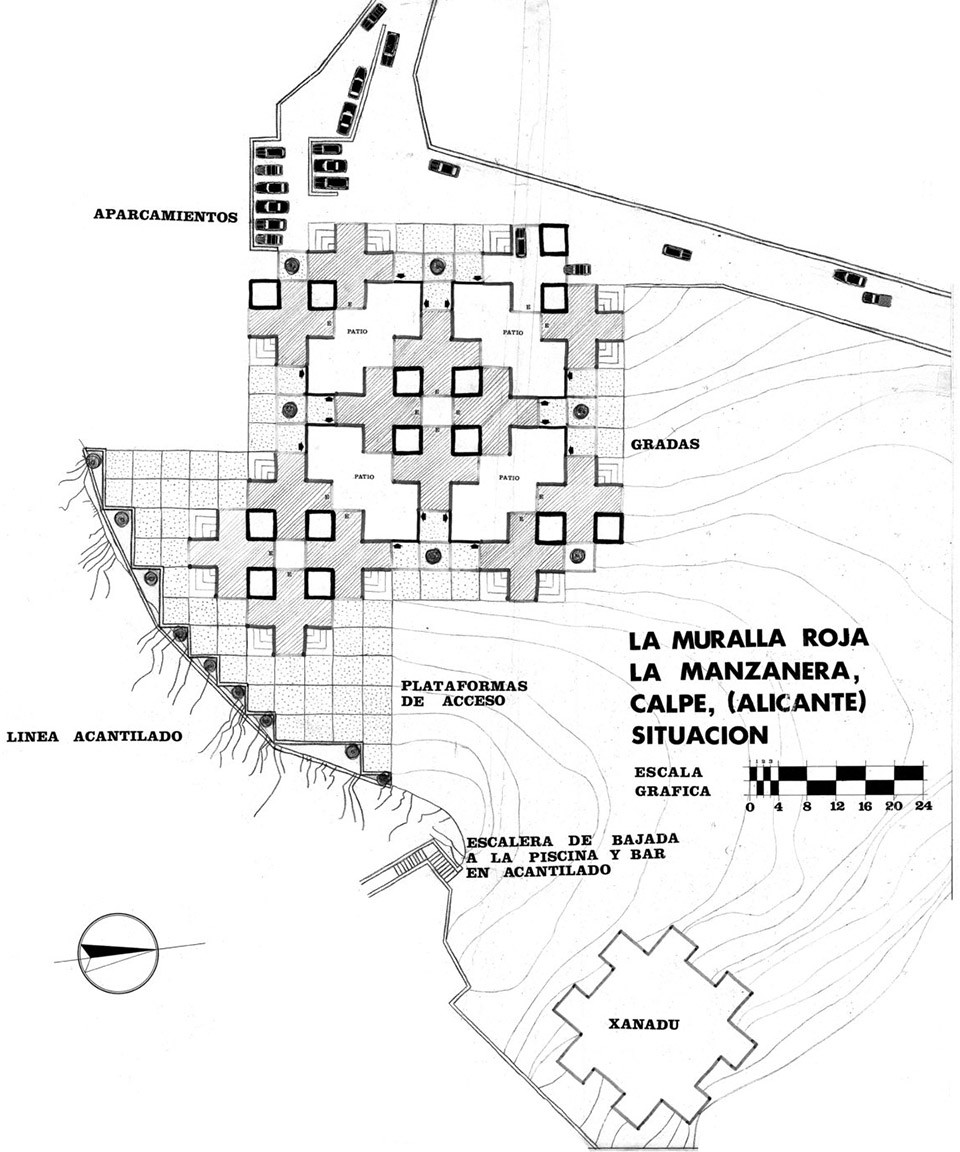

▽ 十字架形的平面构成,geometric plan based on the typology of the Greek cross

054-LA MURALLA ROJA by Taller de Arquitectura

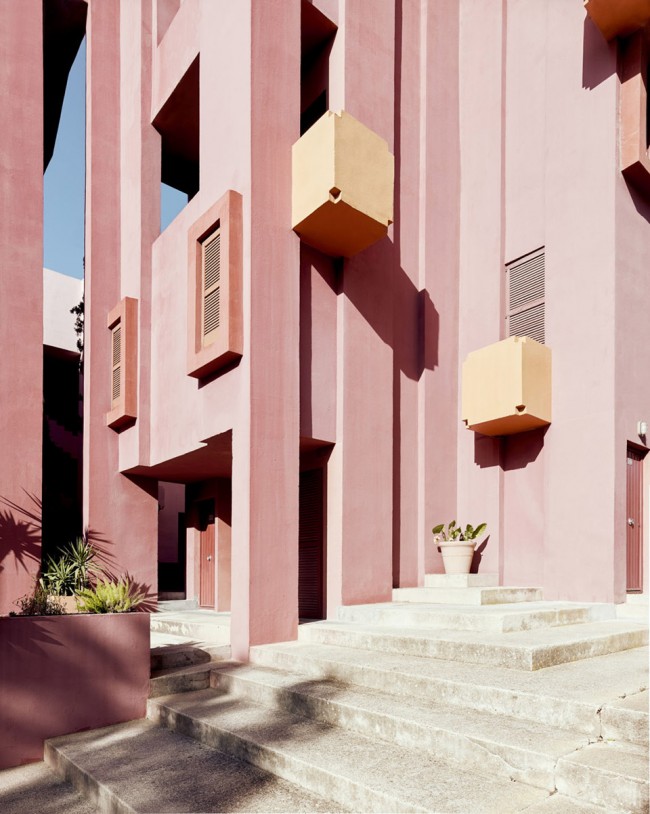

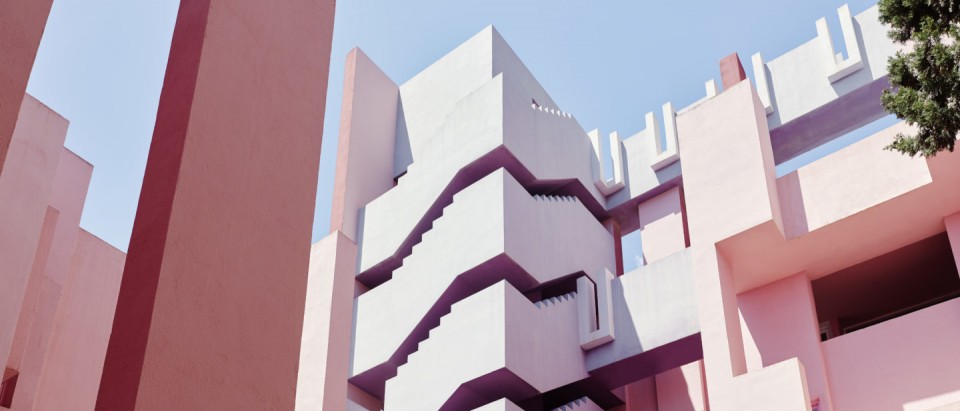

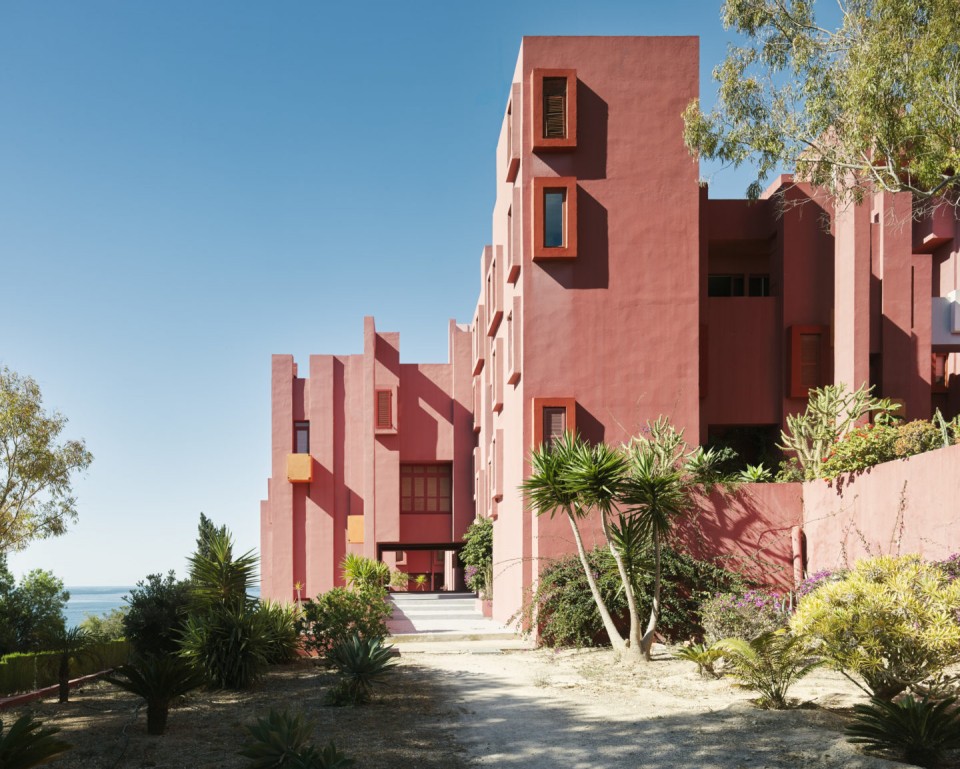

▽ 建筑外观,external view

005-LA MURALLA ROJA by Taller de Arquitectura

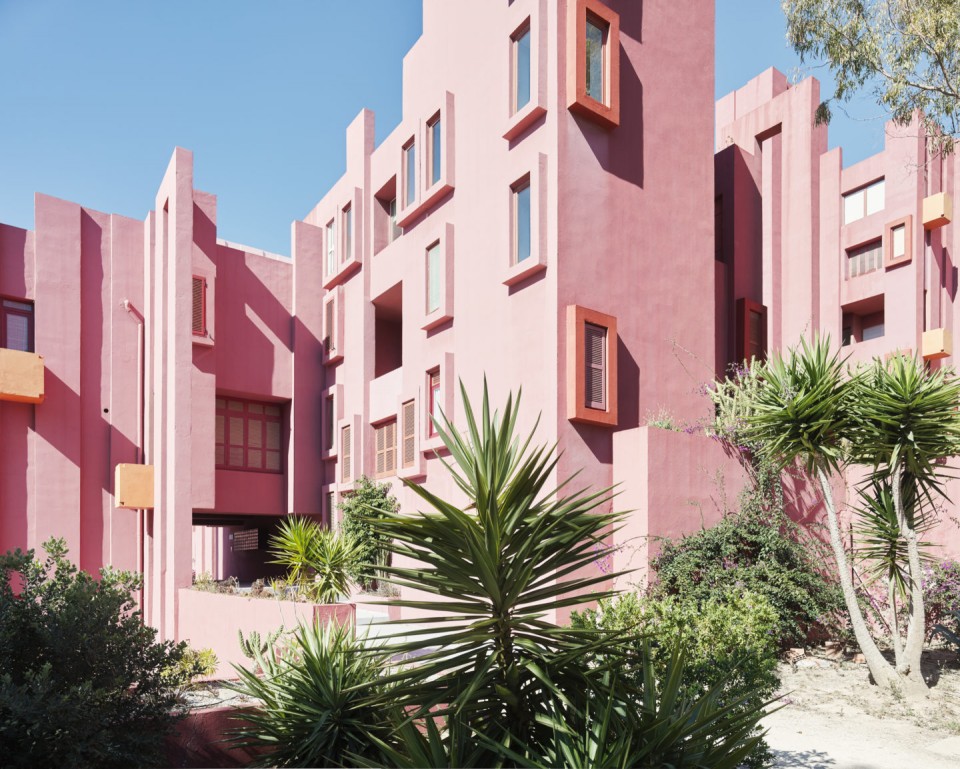

006-LA MURALLA ROJA by Taller de Arquitectura

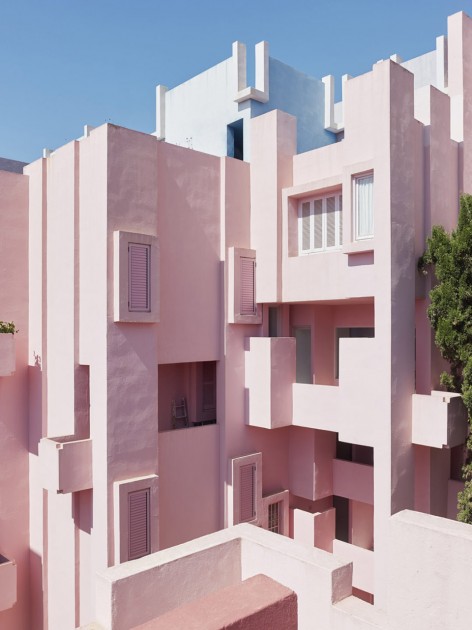

011-LA MURALLA ROJA by Taller de Arquitectura     012-LA MURALLA ROJA by Taller de Arquitectura

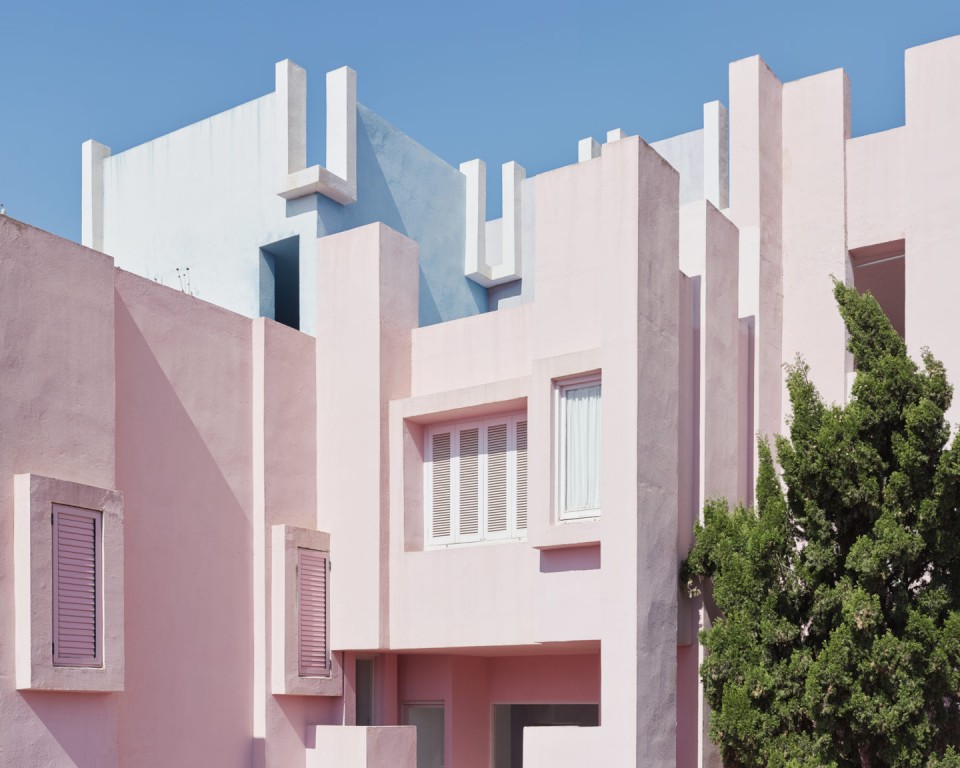

019-LA MURALLA ROJA by Taller de Arquitectura

014-LA MURALLA ROJA by Taller de Arquitectura

这座建筑的形式蕴藏着构造美,一系列相连的天井四通八达,连通着50间公寓,或为60平米的小开间,或为80平的两卧住宅,或为120平的三卧住宅。顶层平台上的日光浴室,一个游泳池和一间桑拿房则开放给所有居民使用。

The forms of the building, evoking a constructivist aesthetic, create an ensemble of interconnected patios which provide access to the 50 apartments, which include 60 sqm studios, and two- and three-bedroom apartments of 80 and 120 sqm, respectively. On the roof terraces there are solariums, a swimming pool, and a sauna for resident’s use.

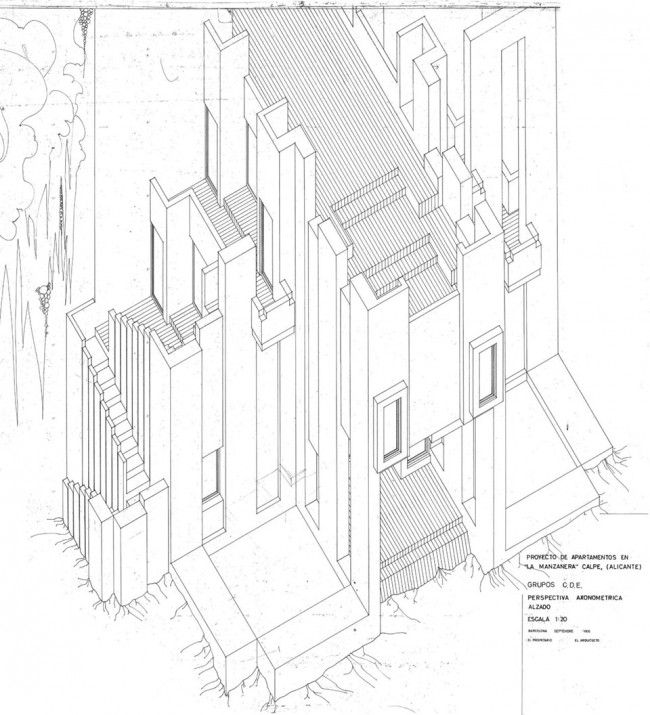

▽ 建筑单体,axonometric drawing

052-LA MURALLA ROJA by Taller de Arquitectura

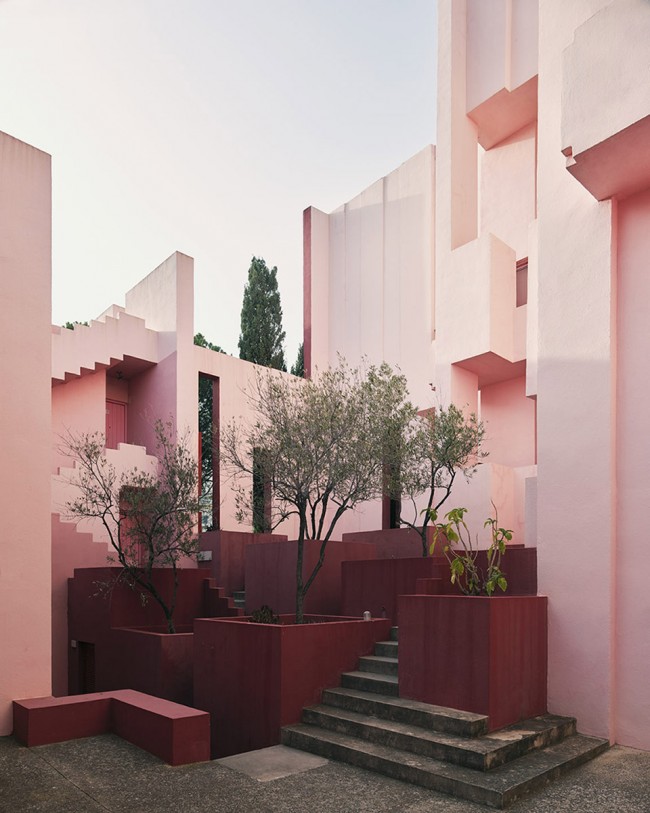

▽ 中庭空间与交错的楼梯,patio and the staircases

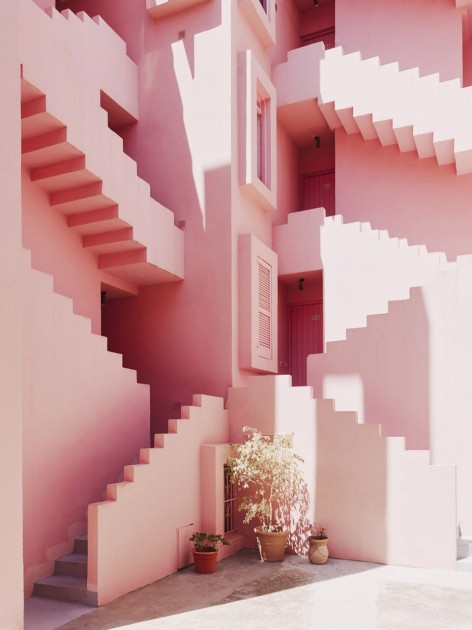

007-LA MURALLA ROJA by Taller de Arquitectura     010-LA MURALLA ROJA by Taller de Arquitectura

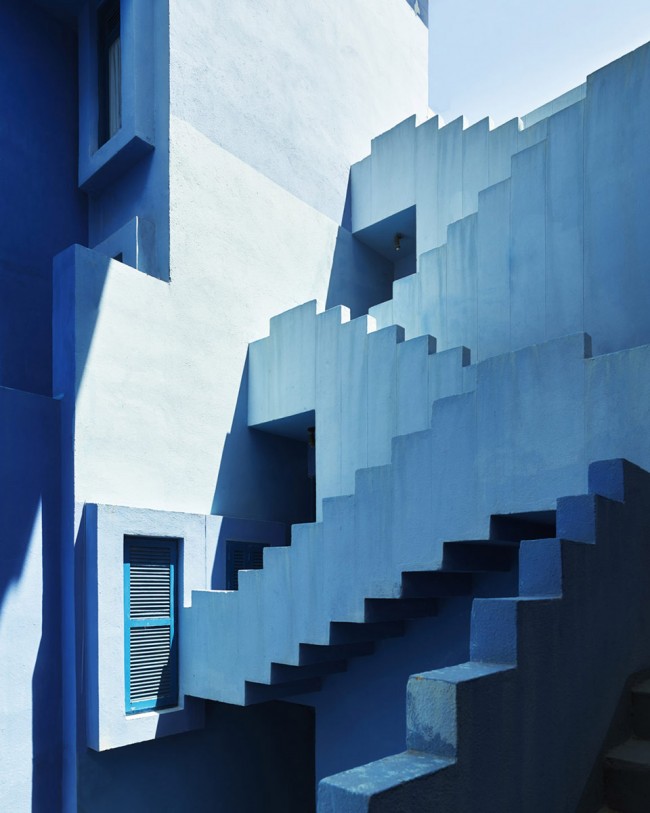

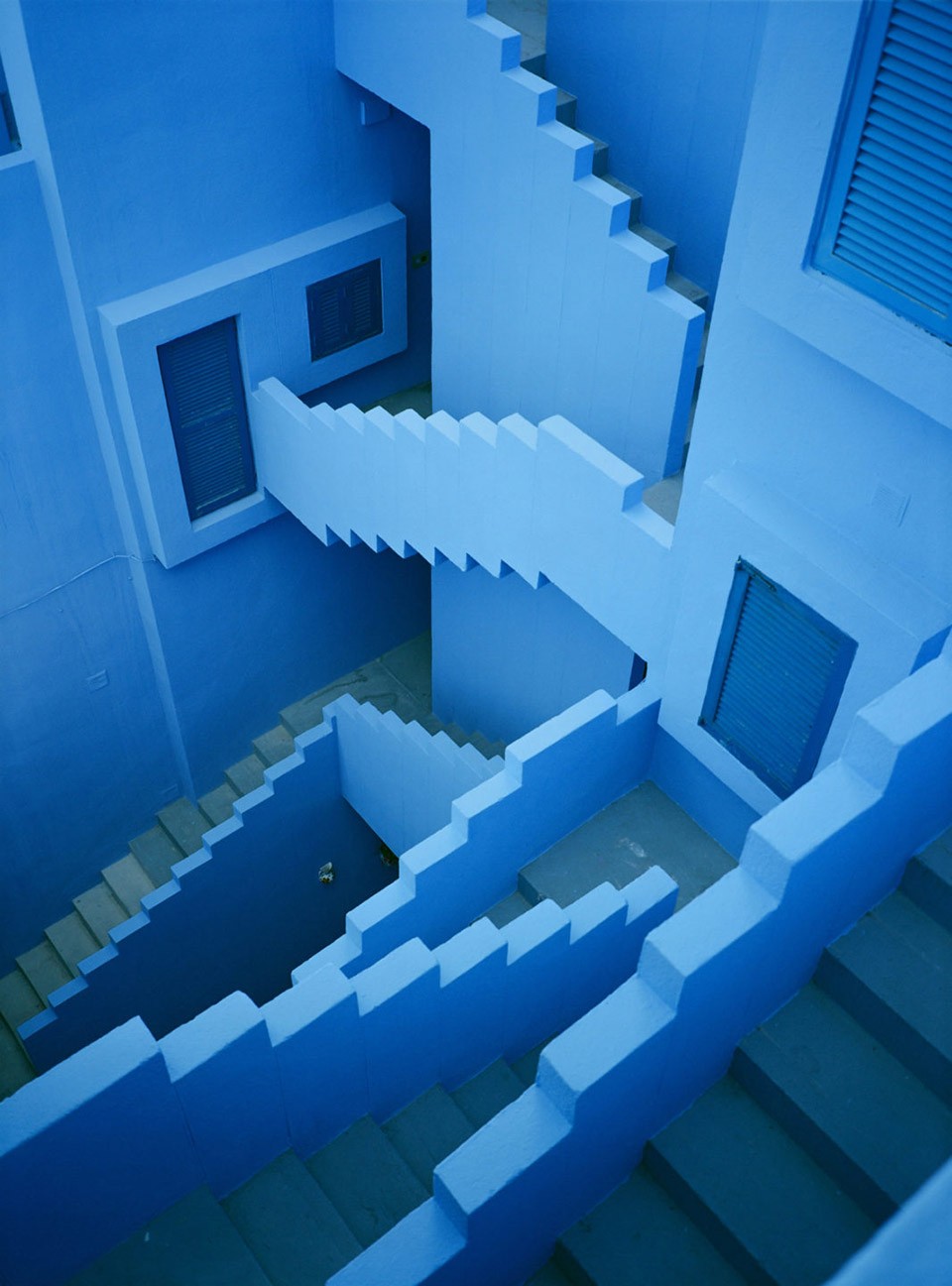

▽ 蓝色中庭空间,patio in blue

047-LA MURALLA ROJA by Taller de Arquitectura     048-LA MURALLA ROJA by Taller de Arquitectura

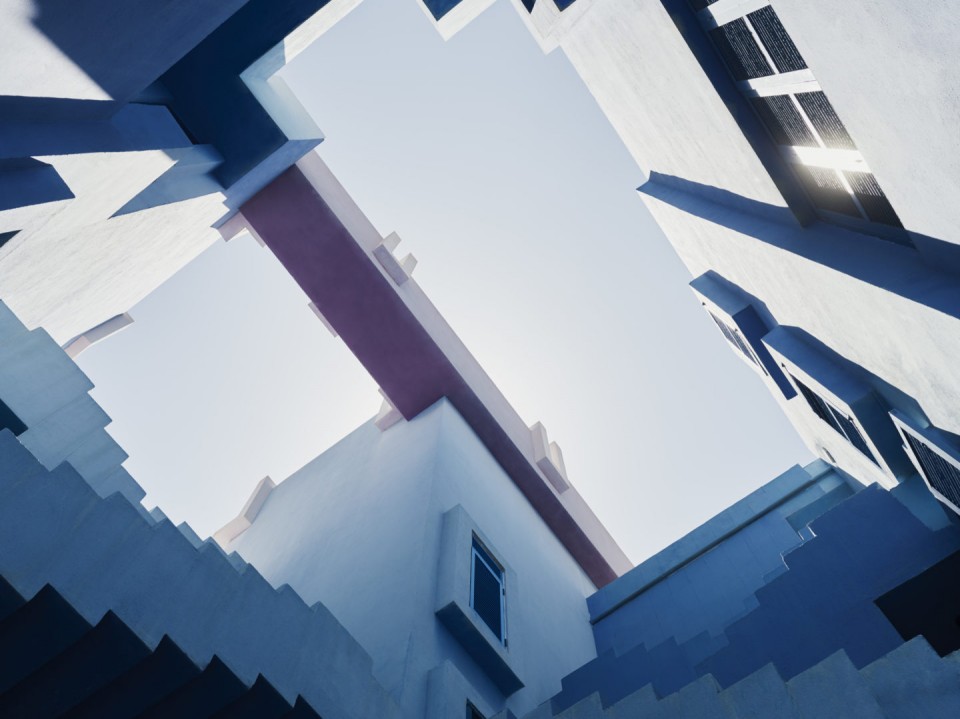

051-LA MURALLA ROJA by Taller de Arquitectura

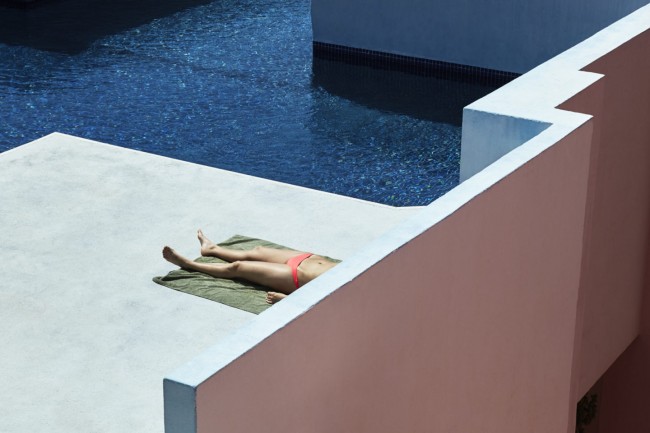

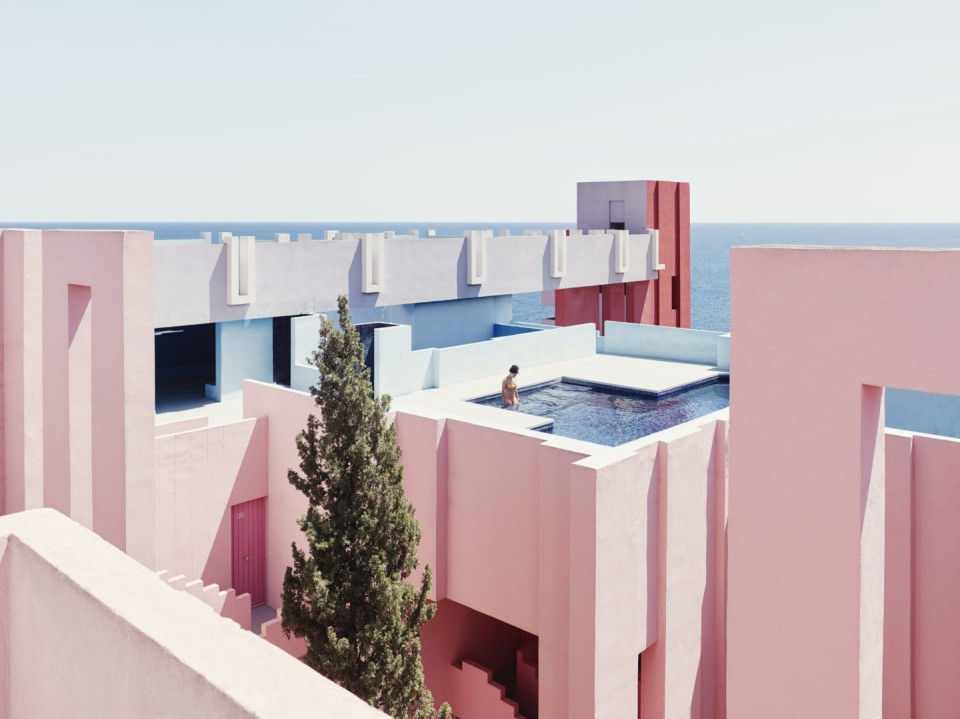

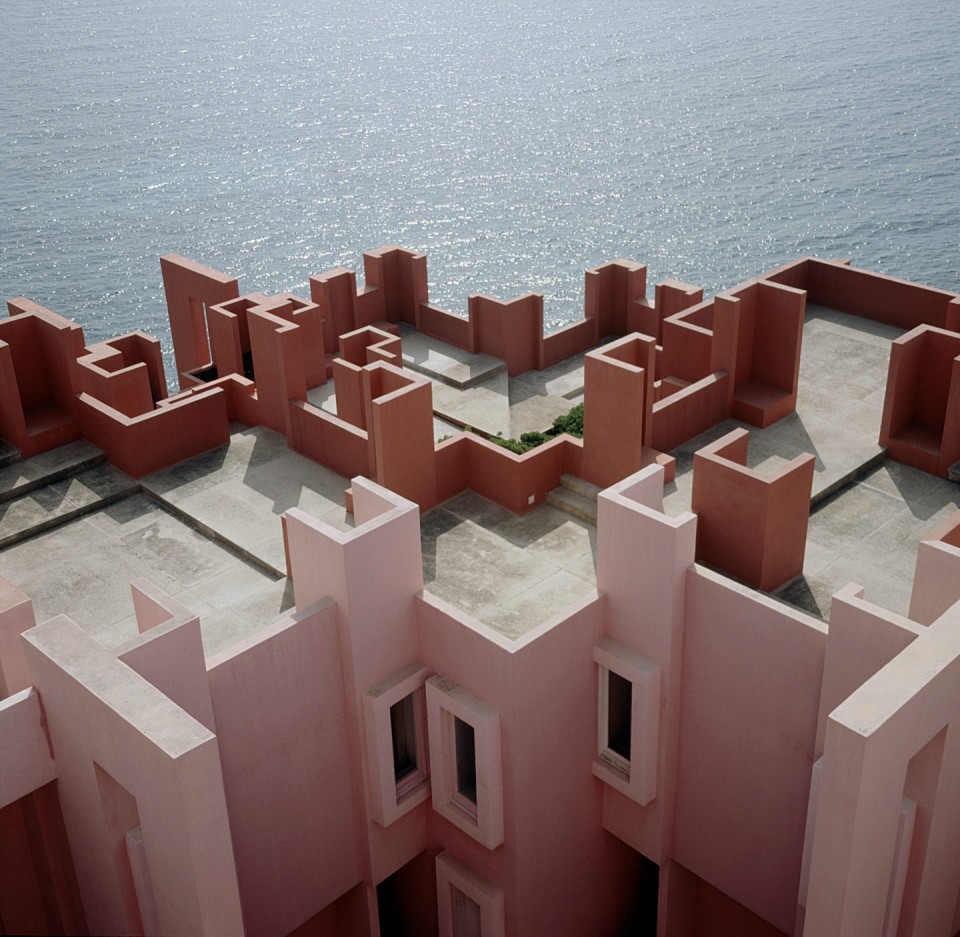

▽ 屋顶的露台,rooftop terrace

020-LA MURALLA ROJA by Taller de Arquitectura

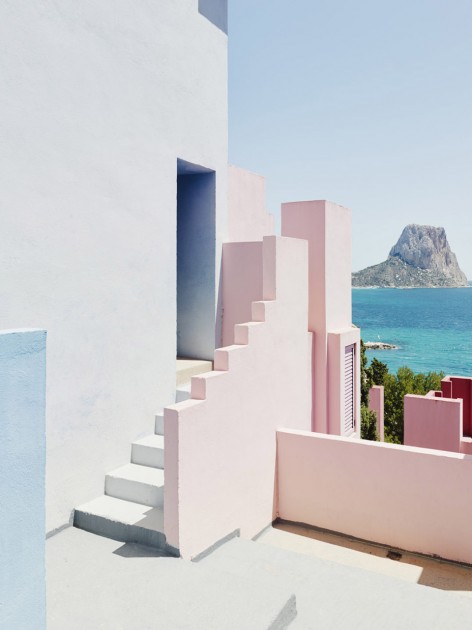

021-LA MURALLA ROJA by Taller de Arquitectura     042-LA MURALLA ROJA by Taller de Arquitectura

033-LA MURALLA ROJA by Taller de Arquitectura

绚丽的色彩被涂抹在建筑的表皮之上,根据不同的结构功能划分出既定的建筑单元。深深浅浅的红色与周围的景观形成了鲜明的对比。而楼梯和露台则被渲染城不同的蓝色-天蓝、靛蓝或是紫罗兰,与天空相比或深、或浅、或融为一体。色彩强度随光线变化而慢慢的变幻着,营造出无与伦比的空间感受。

The criterion of applying to the building a gamut of various colours responds to the intention to give a determined relief to the distinct architectural elements, according to their structural functions. The outside surfaces are painted in various tones of red, to accentuate the contrast with the landscape; patios and stairs, however, area treated with blue tones, such as sky-blue, indigo, violet, to produce a stronger or weaker contrast with the sky or, on the contrary, an optical effect of blending in with it. The intensity of the colours is also related to the light and shows how the combination of these elements can help create a greater illusion of space.

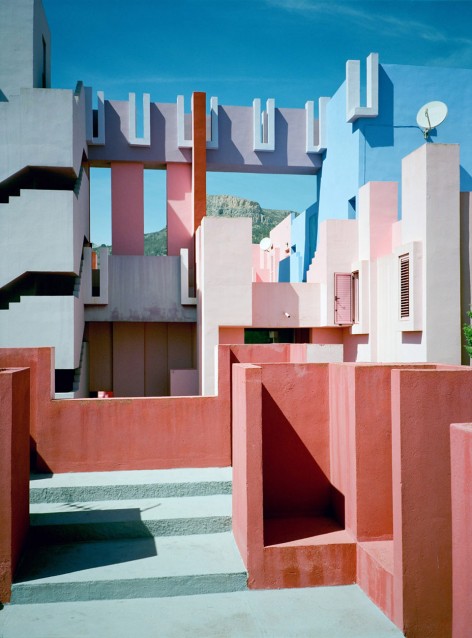

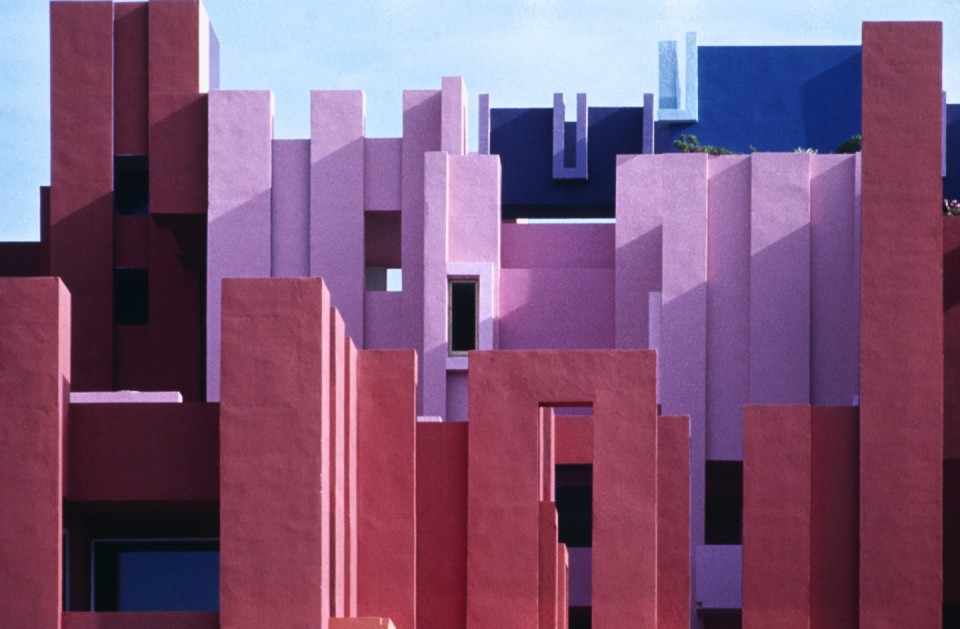

▽ 绚丽的色彩, a gamut of various colours

028-LA MURALLA ROJA by Taller de Arquitectura

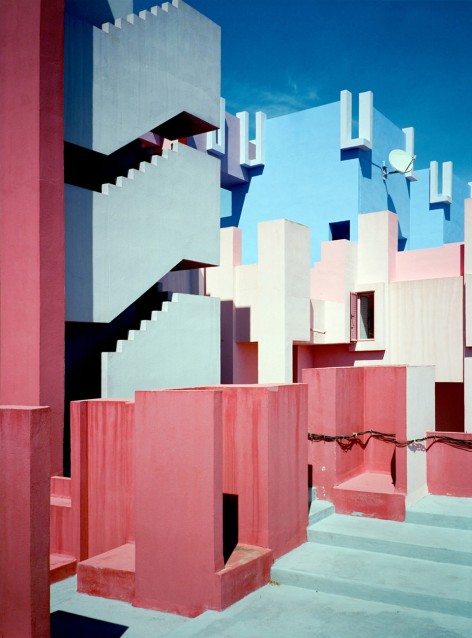

040-LA MURALLA ROJA by Taller de Arquitectura     039-LA MURALLA ROJA by Taller de Arquitectura

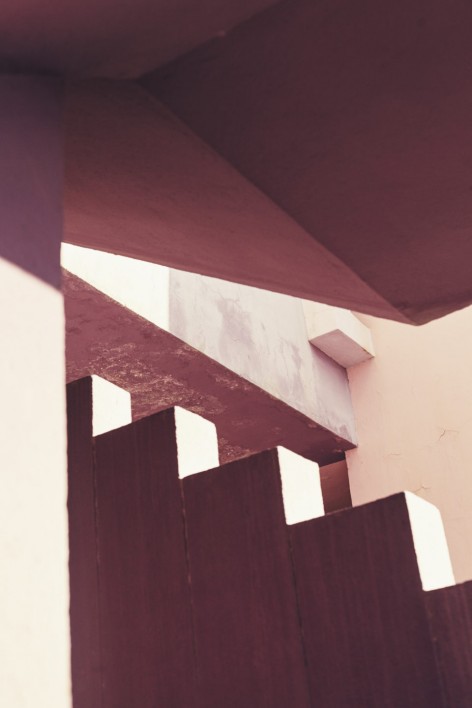

▽ 色彩强度随光线变化而慢慢的变幻着,the intensity of the colours is also related to the light and shows

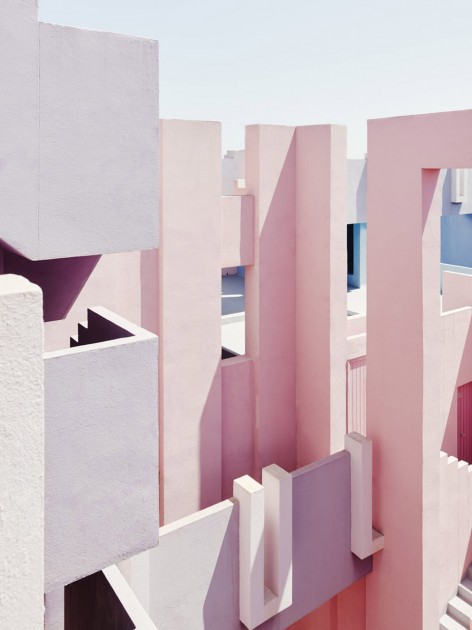

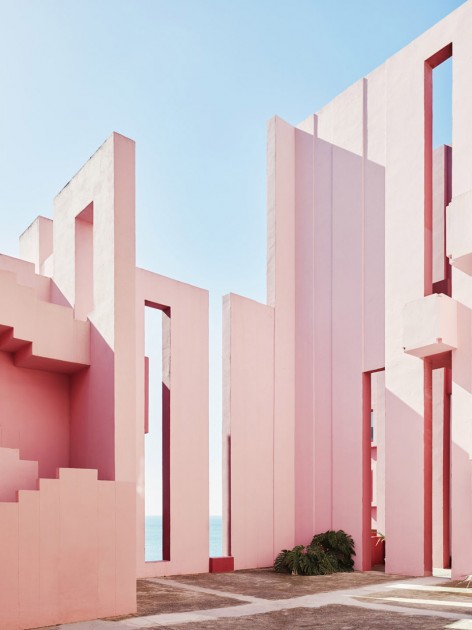

015-LA MURALLA ROJA by Taller de Arquitectura     016-LA MURALLA ROJA by Taller de Arquitectura

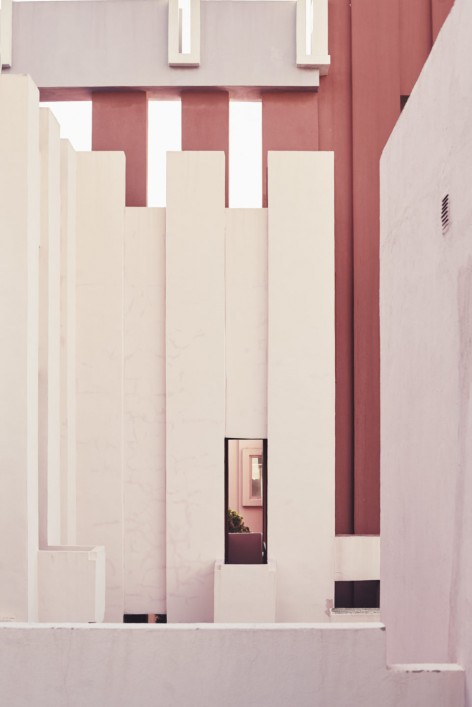

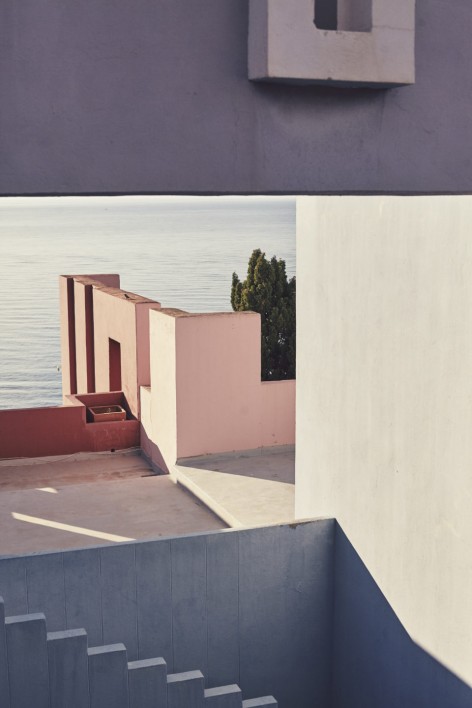

022-LA MURALLA ROJA by Taller de Arquitectura     026-LA MURALLA ROJA by Taller de Arquitectura

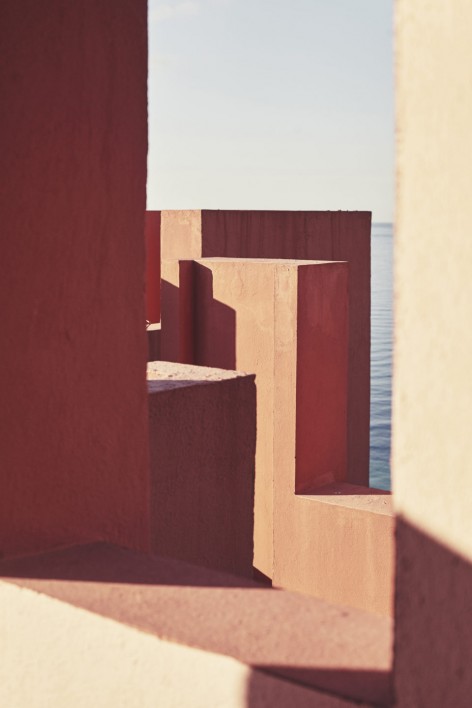

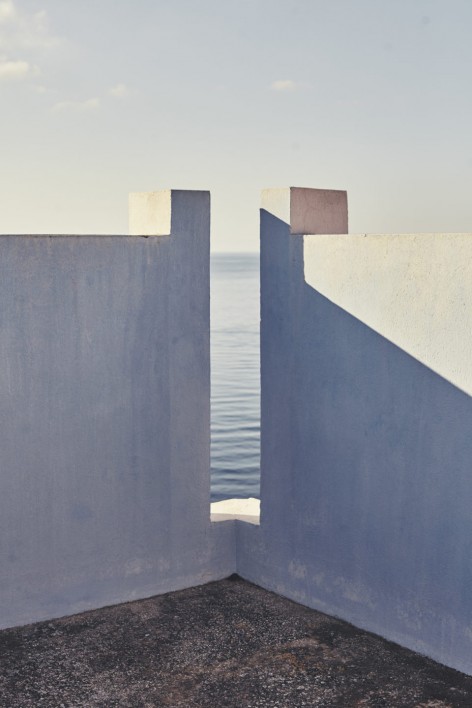

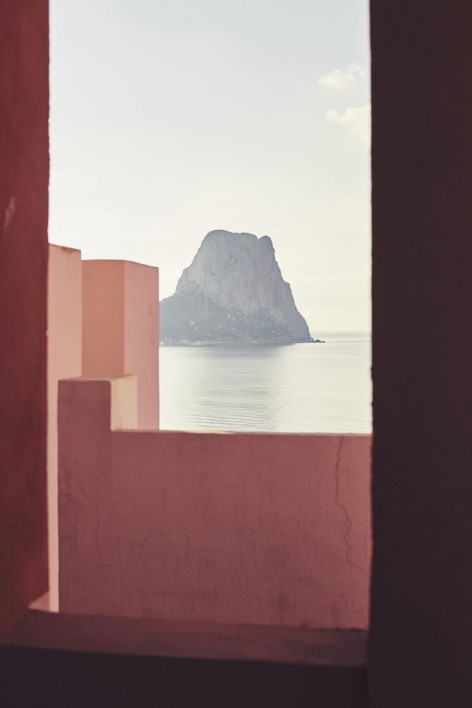

027-LA MURALLA ROJA by Taller de Arquitectura     025-LA MURALLA ROJA by Taller de Arquitectura

023-LA MURALLA ROJA by Taller de Arquitectura     024-LA MURALLA ROJA by Taller de Arquitectura

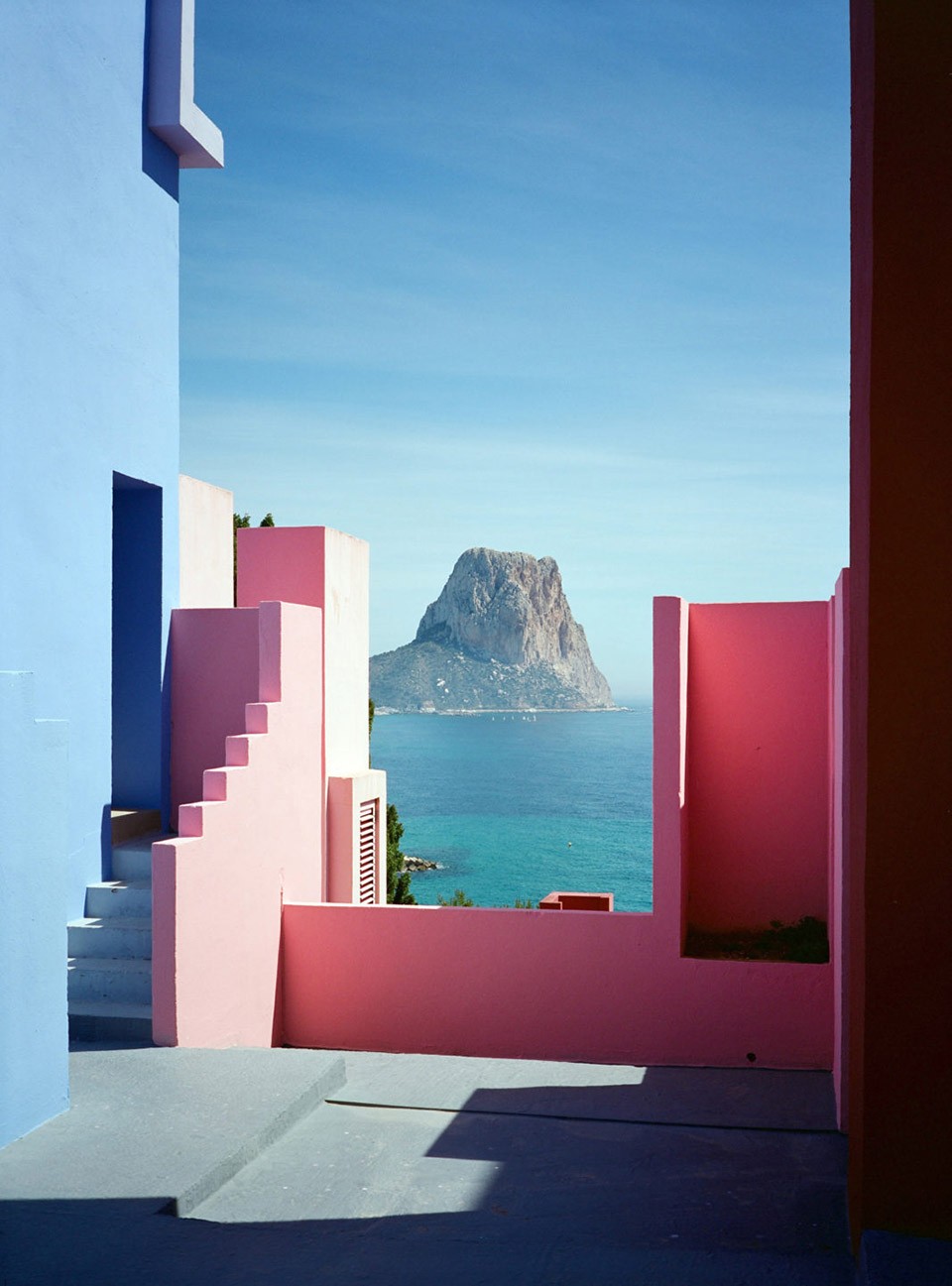

▽ 好魔幻 amazing

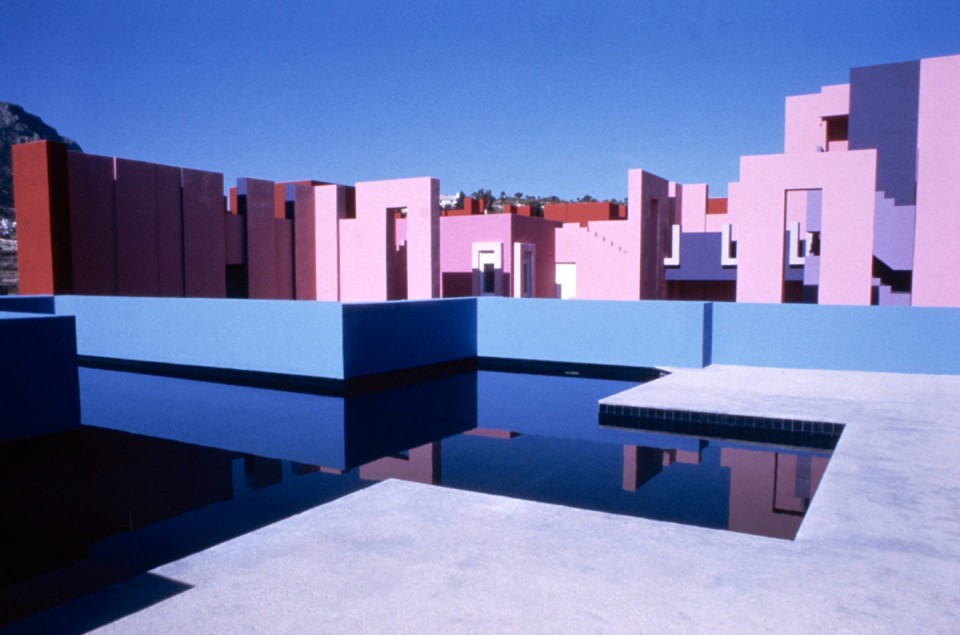

029-LA MURALLA ROJA by Taller de Arquitectura

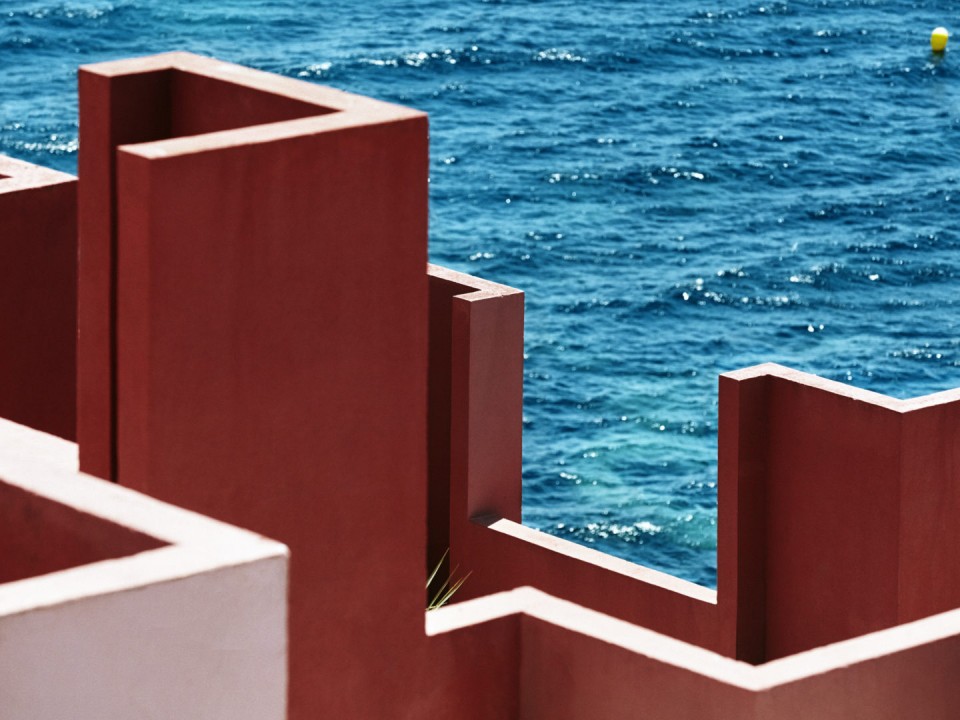

034-LA MURALLA ROJA by Taller de Arquitectura

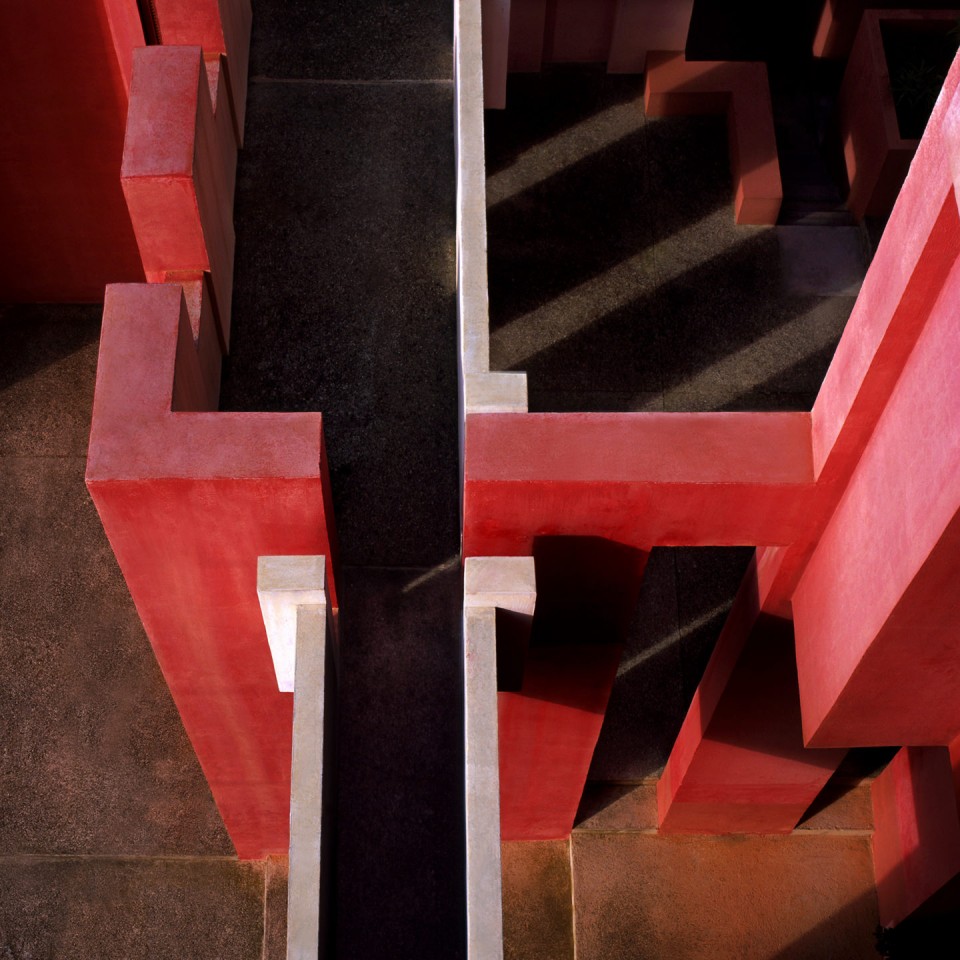

037-LA MURALLA ROJA by Taller de Arquitectura

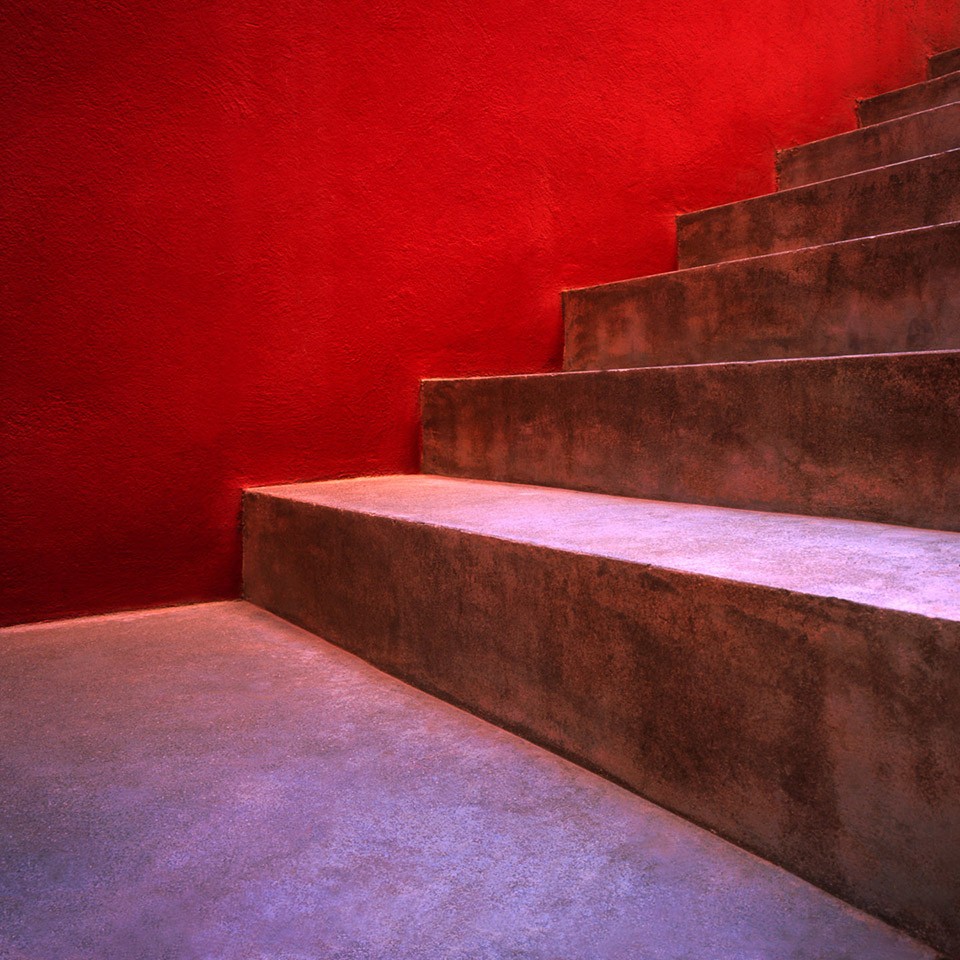

038-LA MURALLA ROJA by Taller de Arquitectura

041-LA MURALLA ROJA by Taller de Arquitectura

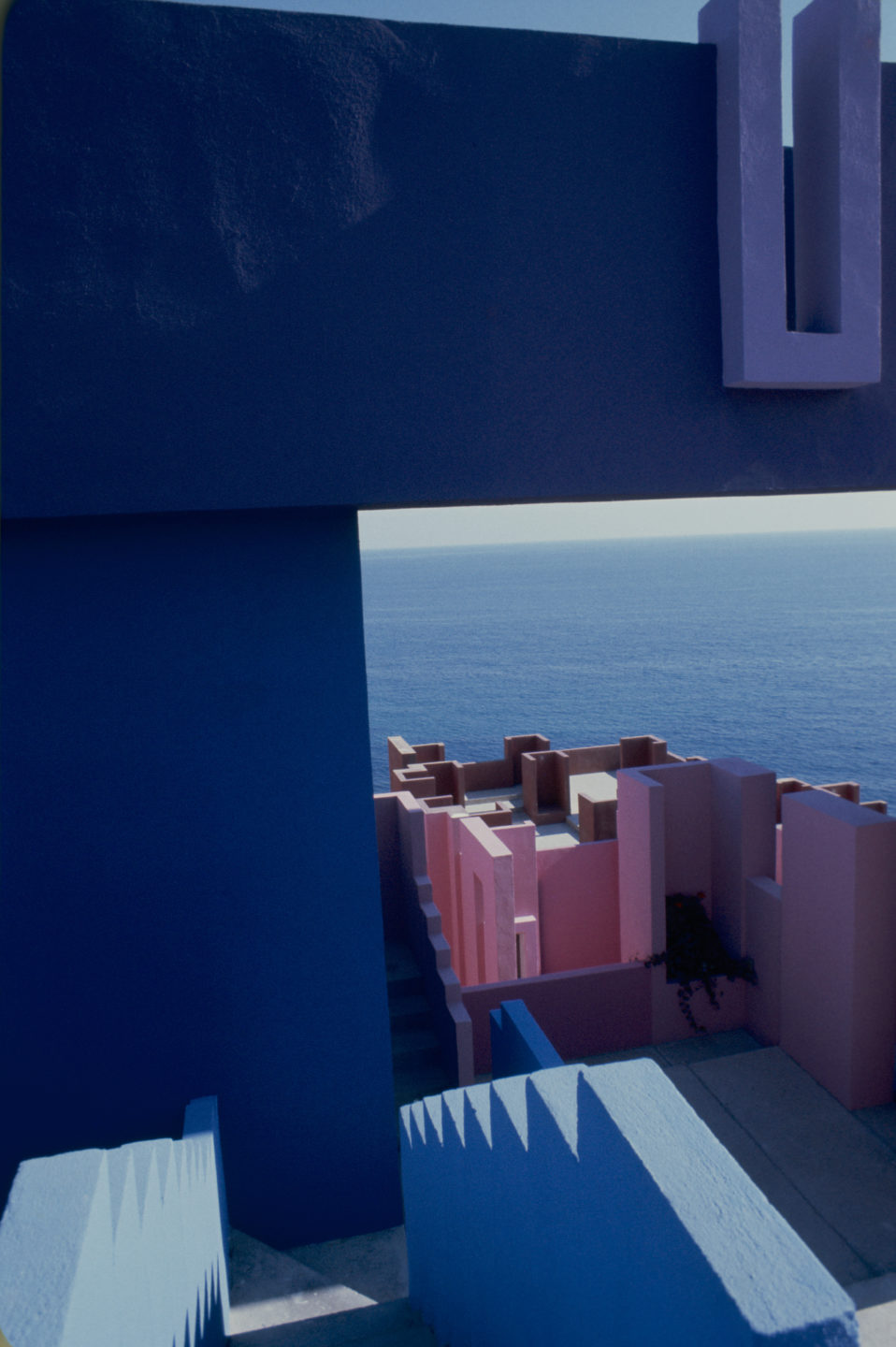

043-LA MURALLA ROJA by Taller de Arquitectura

047-LA MURALLA ROJA by Taller de Arquitectura

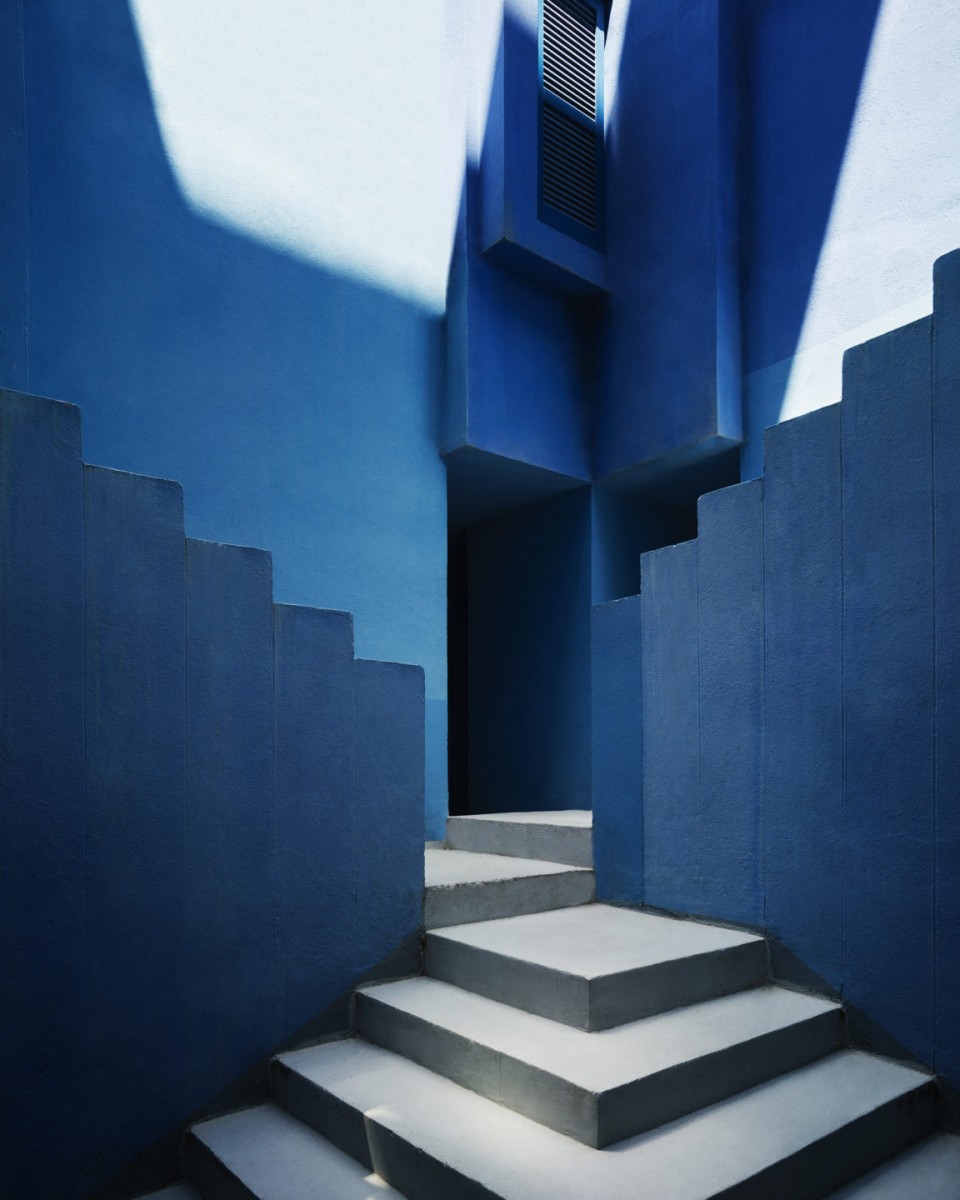

050-LA MURALLA ROJA by Taller de Arquitectura

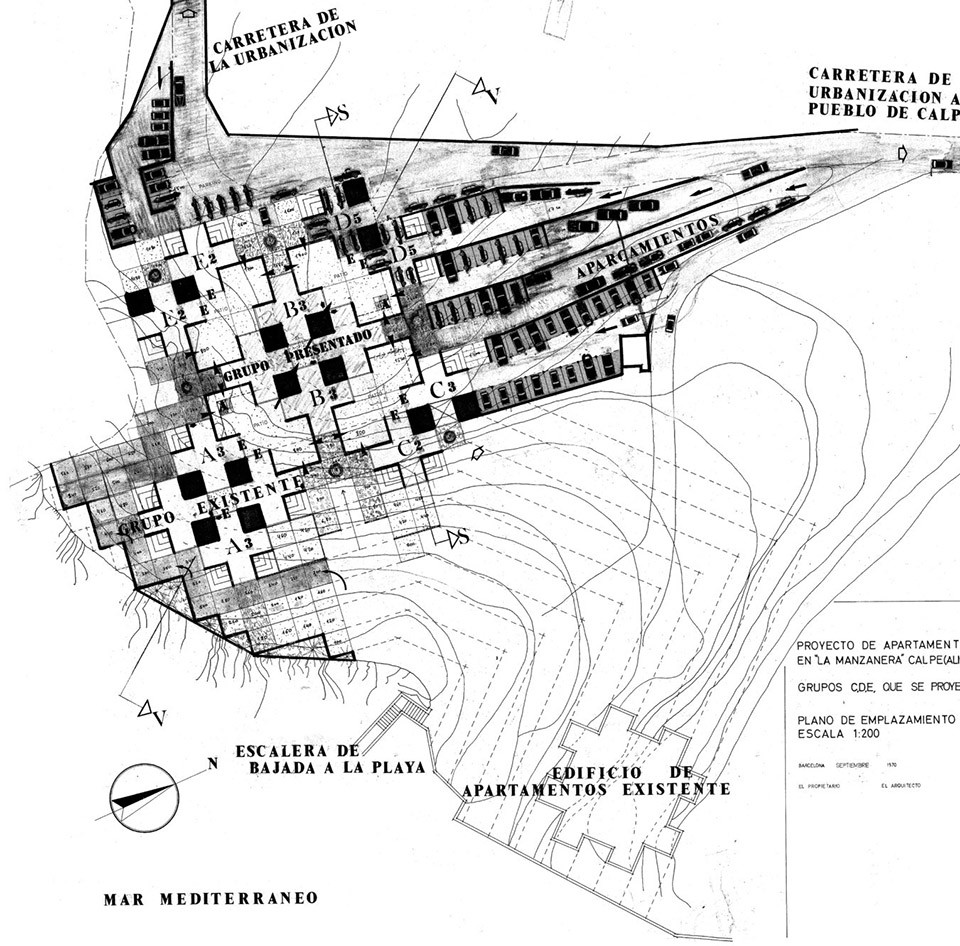

▽ 总平面图,site plan

053-LA MURALLA ROJA by Taller de Arquitectura

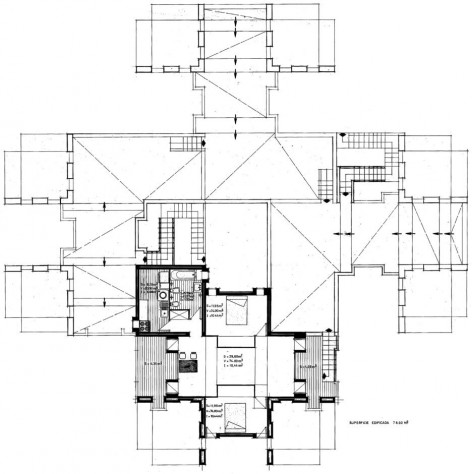

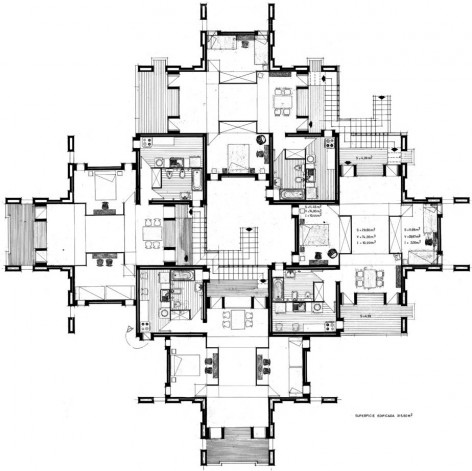

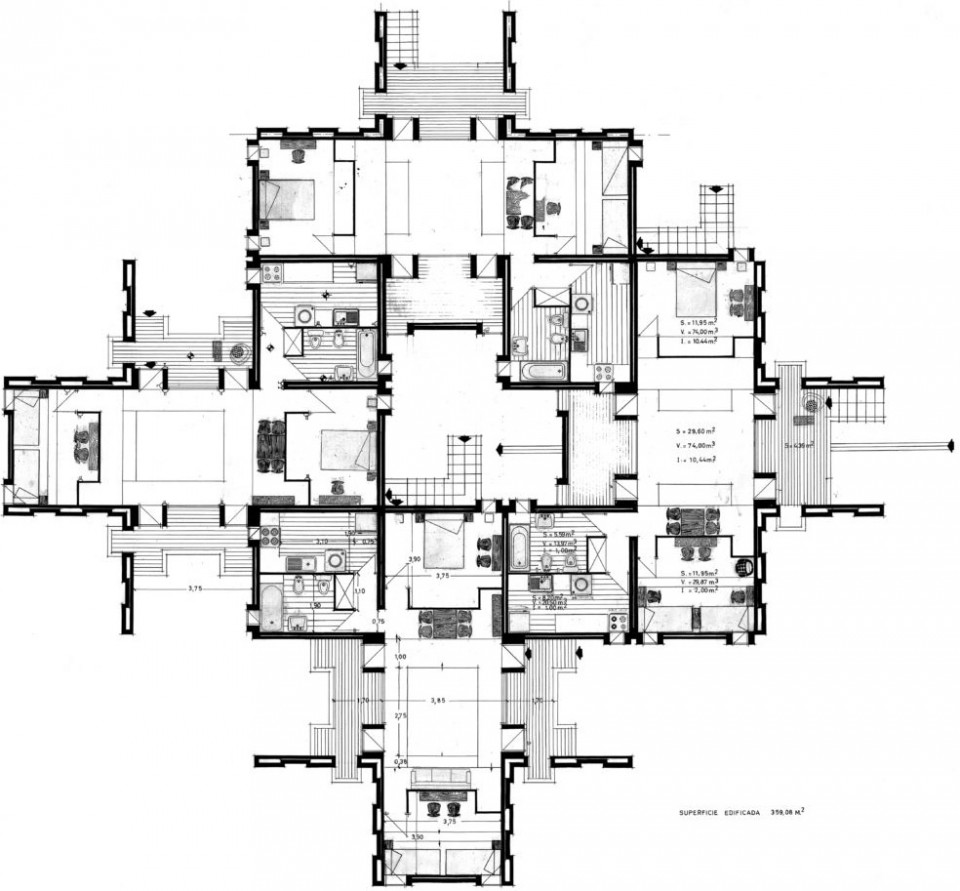

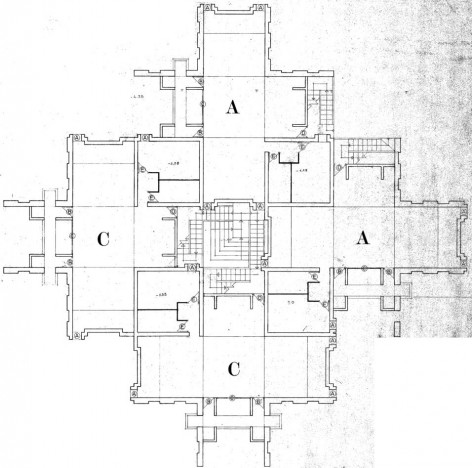

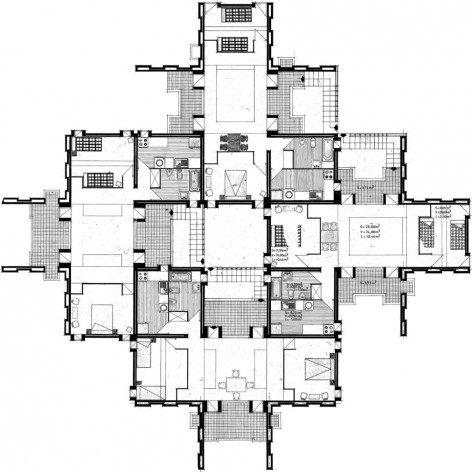

▽ 平面图,plan

059-LA MURALLA ROJA by Taller de Arquitectura

055-LA MURALLA ROJA by Taller de Arquitectura     056-LA MURALLA ROJA by Taller de Arquitectura

058-LA MURALLA ROJA by Taller de Arquitectura     057-LA MURALLA ROJA by Taller de Arquitectura

PROJECT: LA MURALLA ROJA
YEAR: 1973
LOCATION: CALPE, ALICANTE, SPAIN
CLIENT: PALOMAR S.A.

MORE: Ricardo Bofill Taller de Arquitectura ,更多请至:Ricardo Bofill Taller de Arquitectura on gooood
