项目位于金基·红五科技双创产业园的西北角,坐落于南京市鼓楼区洪庙一巷,毗邻金川河,紧靠南京财经大学,是金陵机械厂的旧址。19年工厂搬迁后,该地块经过金基集团改造,成为鼓楼区的科技产业集聚区。

The project is located in the northwest corner of Jinji Hongwu science and Technology InnovationIndustrial Park, in Hongmiao 1st lane, Gulou District, Nanjing, adjacent to Jinchuan River and Nanjing University of Finance and economics. It is theformer site of Jinling machinery factory. After the relocation of the factory in 19 years, the plot was transformed by Jinji group into a science and technology industry cluster in Gulou District.

▼视频,video ©反几建筑

项目地处蕴含历史记忆以及市井烟火的金川河片区。金川河为南京人始祖聚居之地,与秦淮河相媲美,有“南秦淮,北金川”之美誉。金川河也是红五月科技双创产业园项目别具特色的文化名片。老城区中历史工业遗存的更新,也是反几建筑的重要研究方向。

The project is located in the Jinchuanhe area, which contains historical memory and city fireworks. Jinchuan River is the place where the first ancestors of Nanjing people lived together. It is comparable to the Qinhuai River and has the reputation of “South Qinhuai, North Jinchuan”. Jinchuan River is also a unique cultural business card of the Red May Science and Technology Double Innovation Industrial Park project. The renewal of historical industrial remains in the old city is also an important research direction of FANAF.

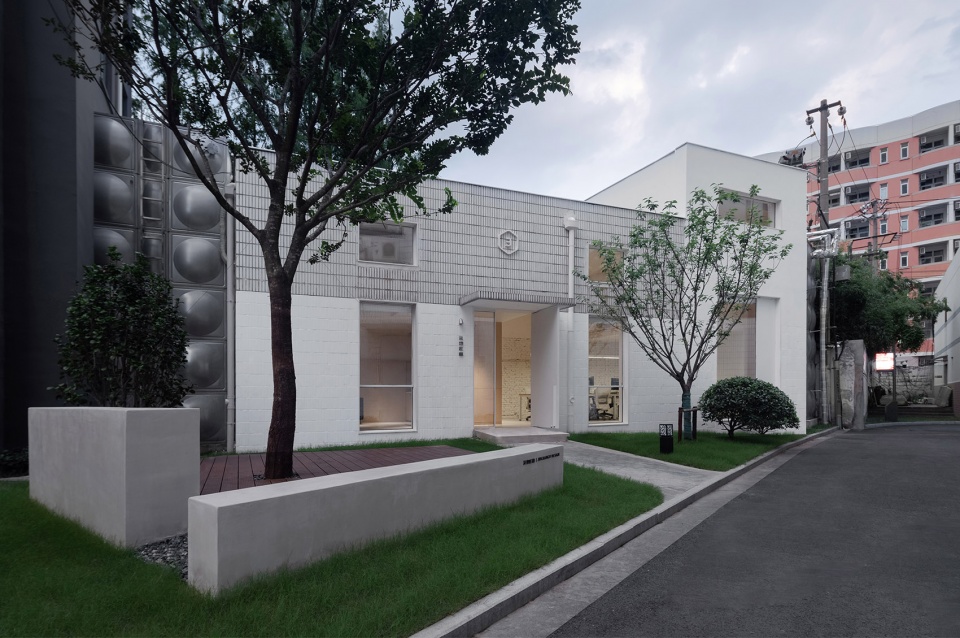

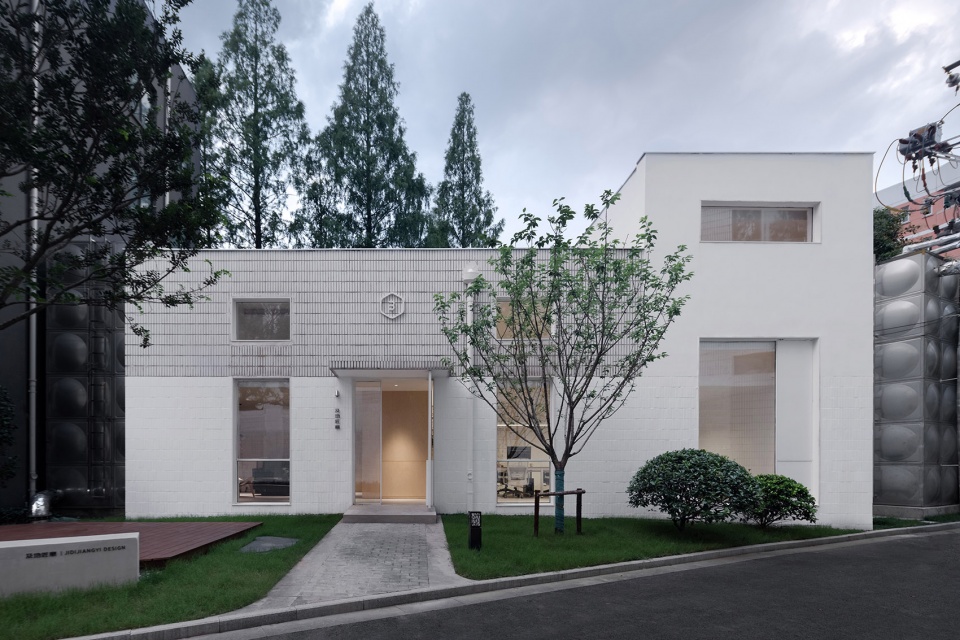

▼外观概览,overall of the project ©ingallery金啸文

该建筑原本是旧厂房的配电室,园区改造后作为独栋建筑规划使用。房屋年代久远,出现瓷砖老化,墙皮脱落,业主邀请反几对该建筑进行整体改造设计。外立面改造策略并不追求“流行”,较为克制,基本保留原有建筑形体和色调,将立面通过德国STO外墙涂料的不同工艺,分为三种不同质感。

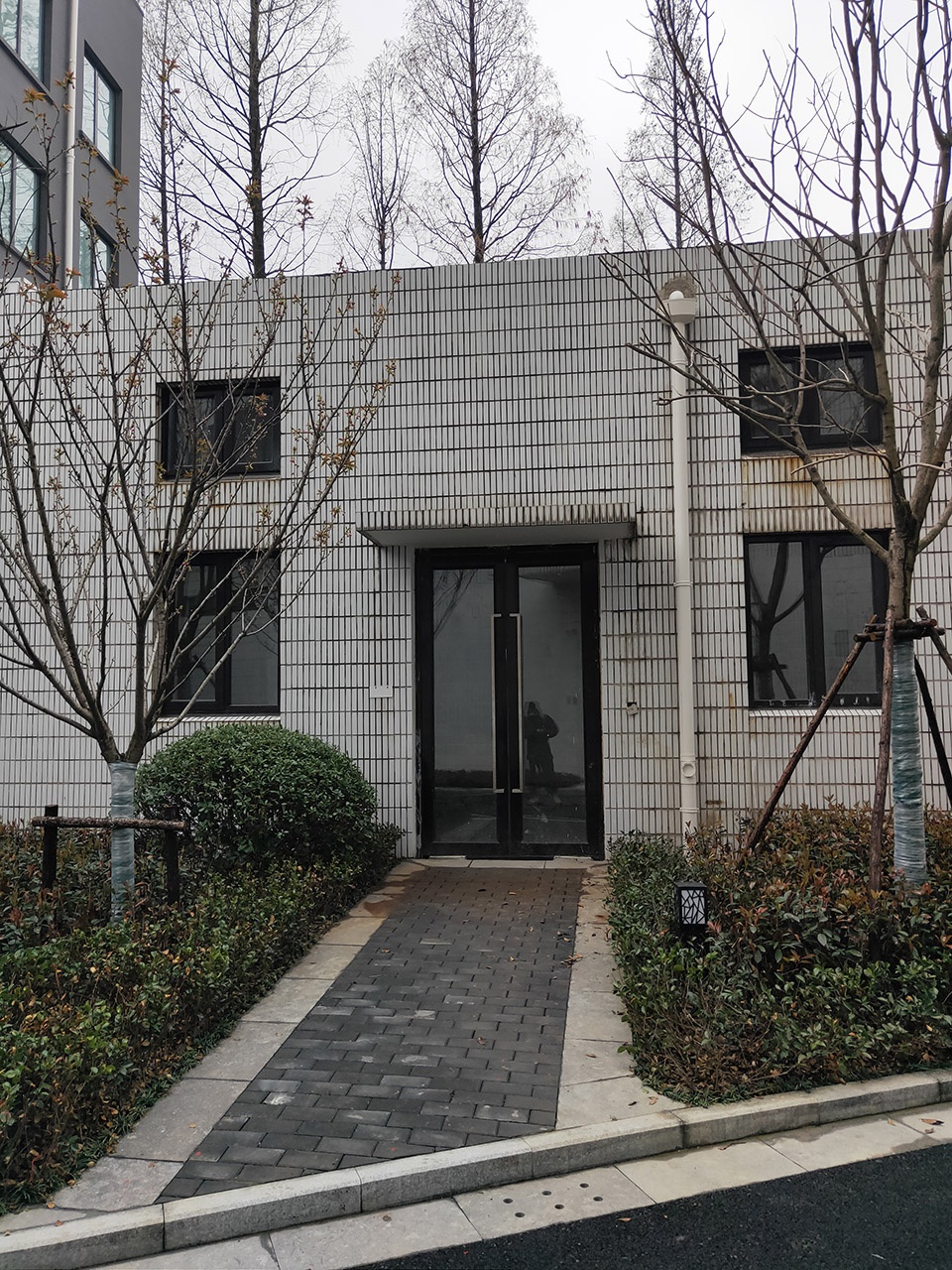

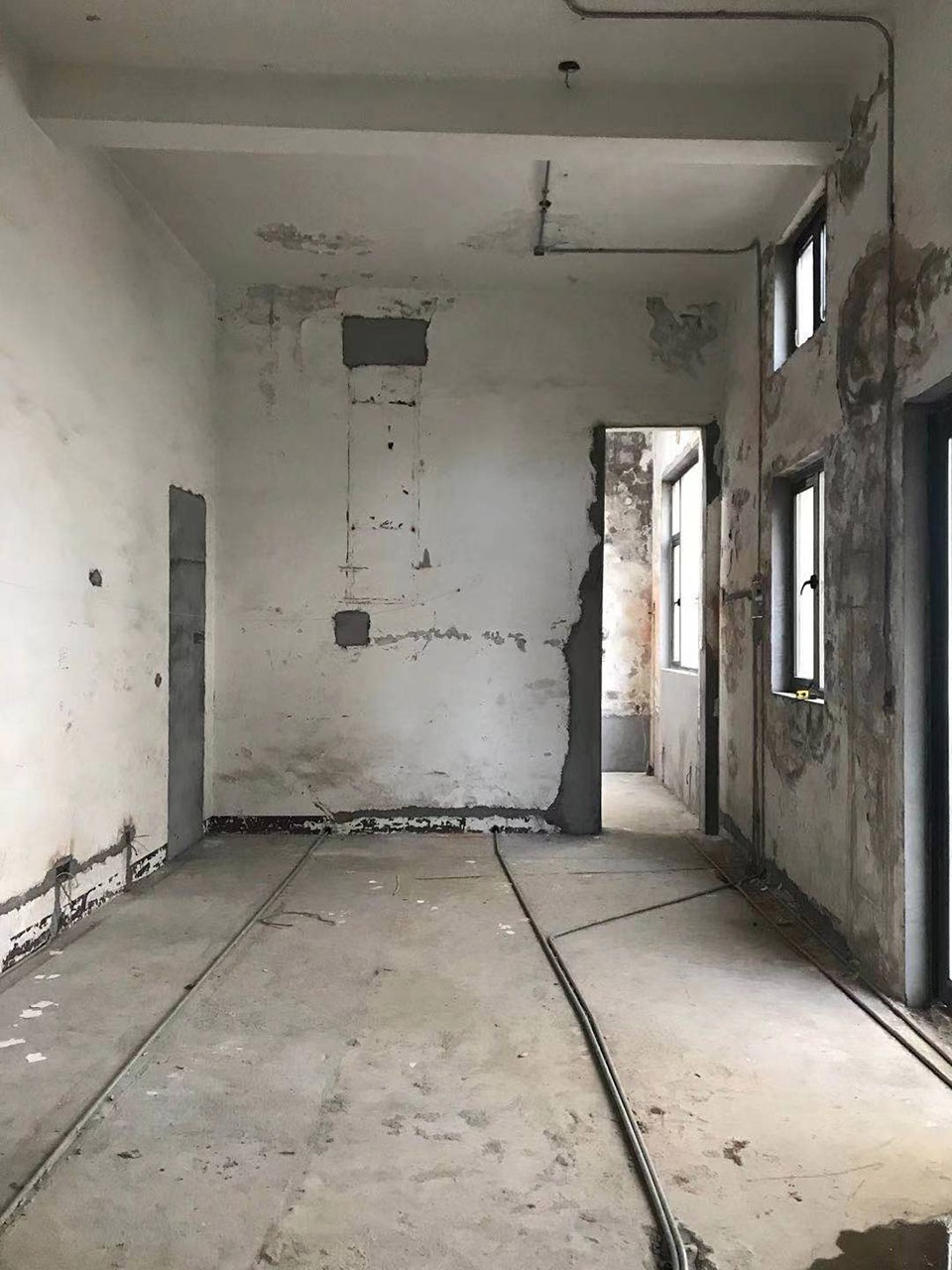

▼改造前,before renovation ©金鑫

The building wasoriginally the power distribution room of the old plant, which was planned tobe used as a single building after the transformation of the park. In view ofthe aging of ceramic tiles and the falling off of wall skins, the owner invitedthe project team to carry out the overall transformation design of thebuilding. The façade renovation strategy does not pursue “popularity”, it is more restrained, and basically retains the original building shape and color. The façade is divided into three different textures through different processes of German STO exterior wall paint.

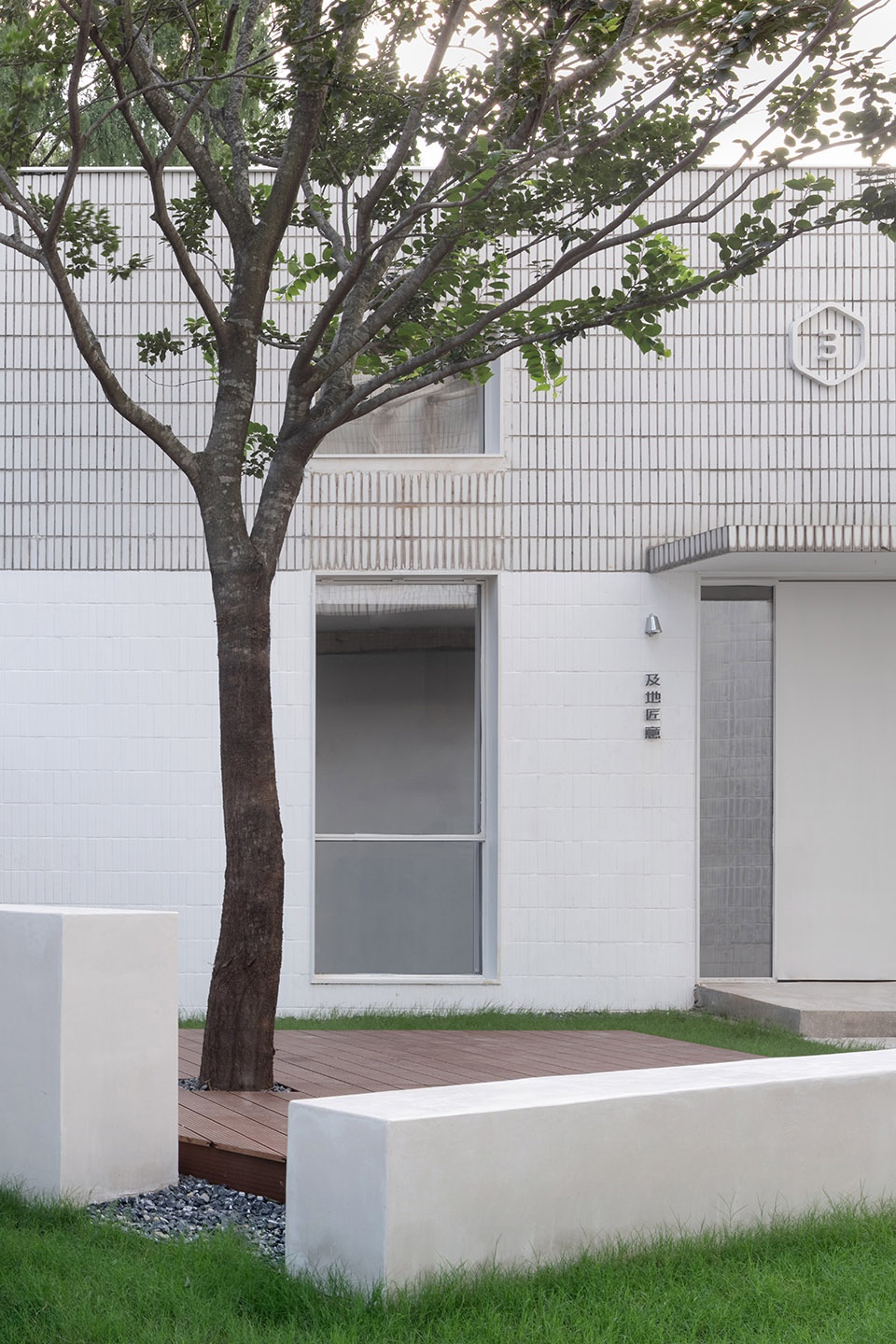

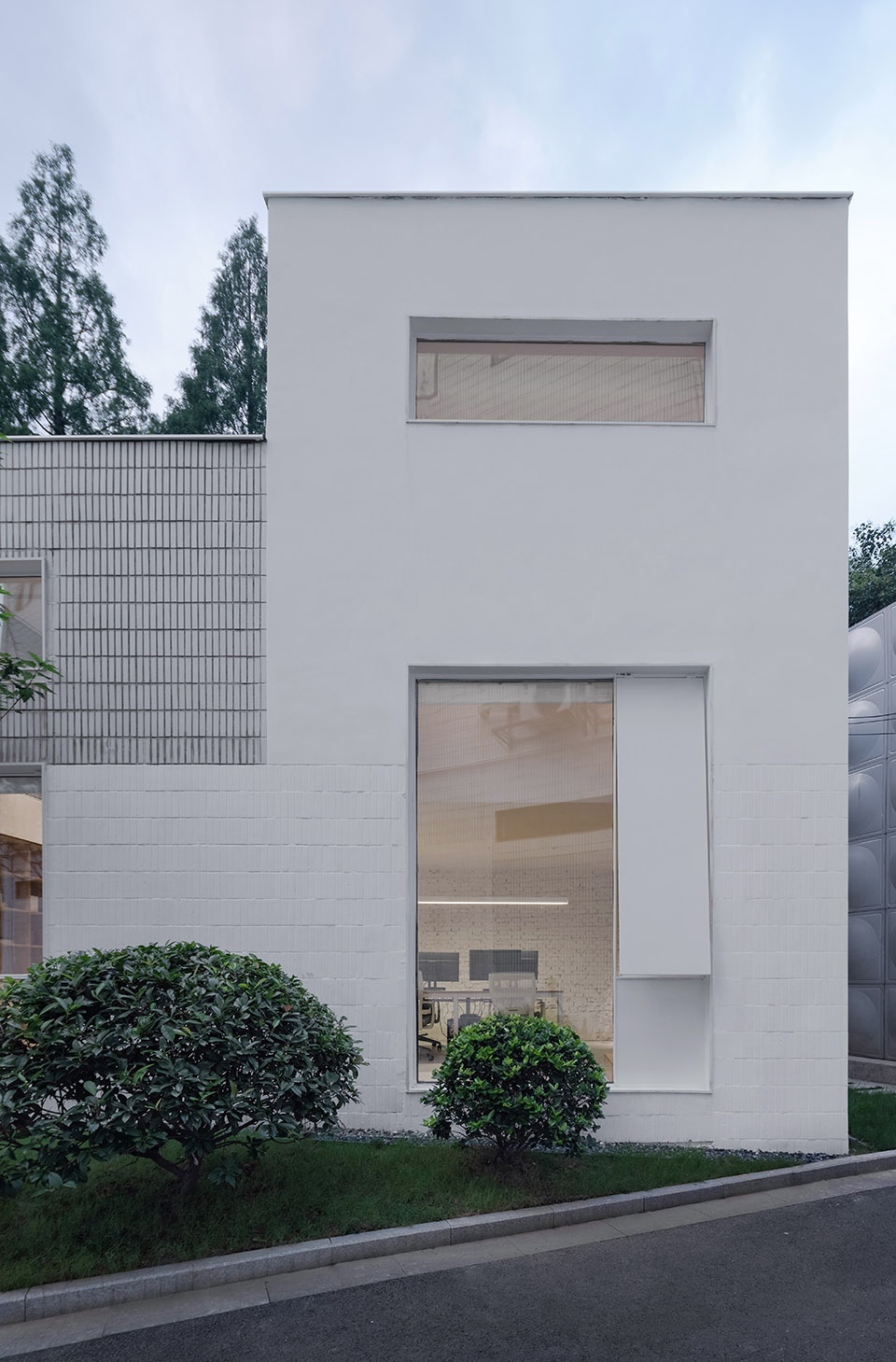

▼改造后的建筑立面,facade after renovation ©ingallery金啸文

人体尺度范围:薄型滚涂,保留瓷砖肌理;六米层高尺度范围:厚型喷涂,维持体块感;其余区域:打磨清理,保留原有瓷砖颜色。让人没有距离感,很亲切,在感知曾经的历史基础上,察觉新的活力。三种质感也同时暗喻室内空间分隔的状态。户外庭院顺延道路与建筑的边缘形状,与高矮墙形成户外休憩空间。

Human body size range: thin roll coating, retaining the texture of the tiles; six-meter high size range: thick spraying to maintain a sense of bulk; the rest of the area: polishing and cleaning, retaining the original tile color. It makes people feel no sense of distance, very kind, and perceives new vitality on the basis of perceiving the past history. The three textures also allude to the state of separation of indoor spaces. The outdoor courtyard follows the edge shape of the road and the building, and forms an outdoor resting space with the high and low walls.

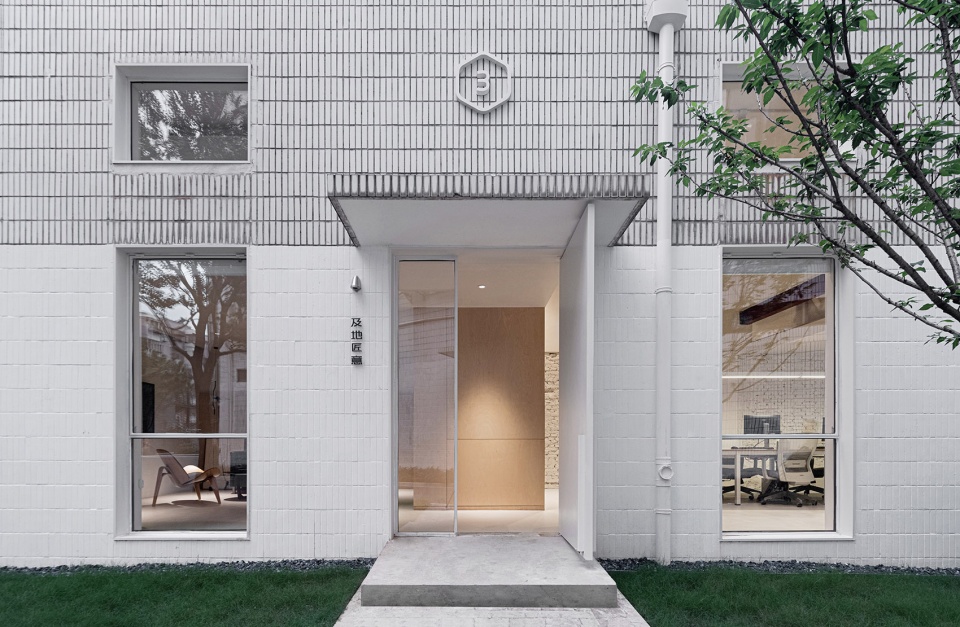

▼主入口,main entrance ©ingallery金啸文

▼入口左侧室外休闲区,
Outdoor leisure area to the left of entrance ©ingallery金啸文

▼外立面改造后三种不同肌理,
Three different textures of the facade after renovation ©ingallery金啸文

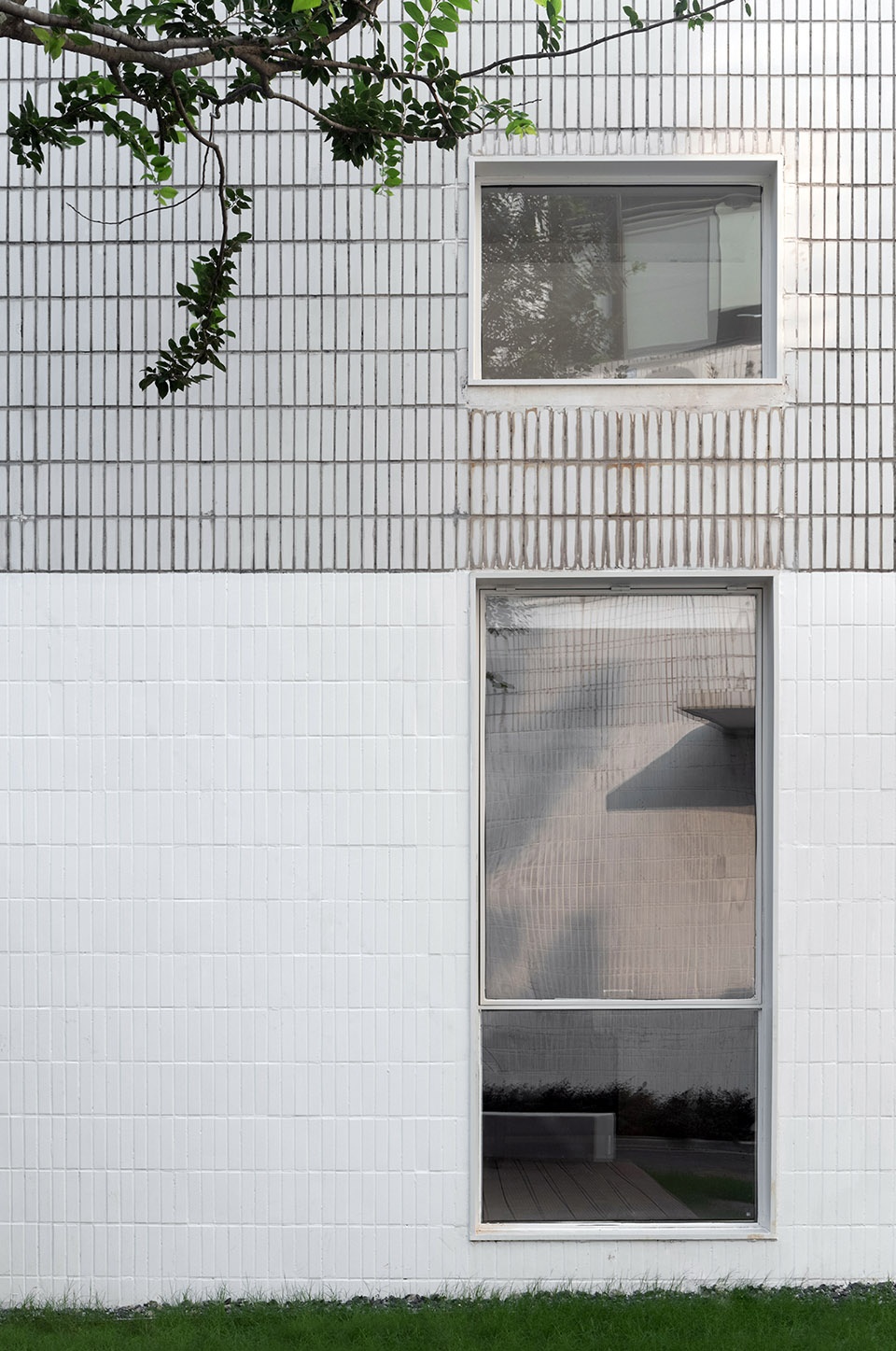

▼立面细部,detail of the facade ©ingallery金啸文

建筑原为砖混结构,由于之前配电设备需求,建筑分为一个四米空间与一个六米空间。中间分隔墙体为砖砌墙,不做主要结构作用。为提高整体空间利用率,反几进行结构加固设计,增设隔层,打开两空间之间的分隔墙体,创造新的空间联系。

The building was originally a brick-concrete structure. Due to the previous demand for power distribution equipment, the building was divided into a four-meter space and a six-meter space. The middle partition wall is a brick wall, which does not serve as the main structural function. In order to improve the overall space utilization, a structural reinforcement design was carried out, and partitions were added to open the partition wall between the two spaces and create new spatial connections.

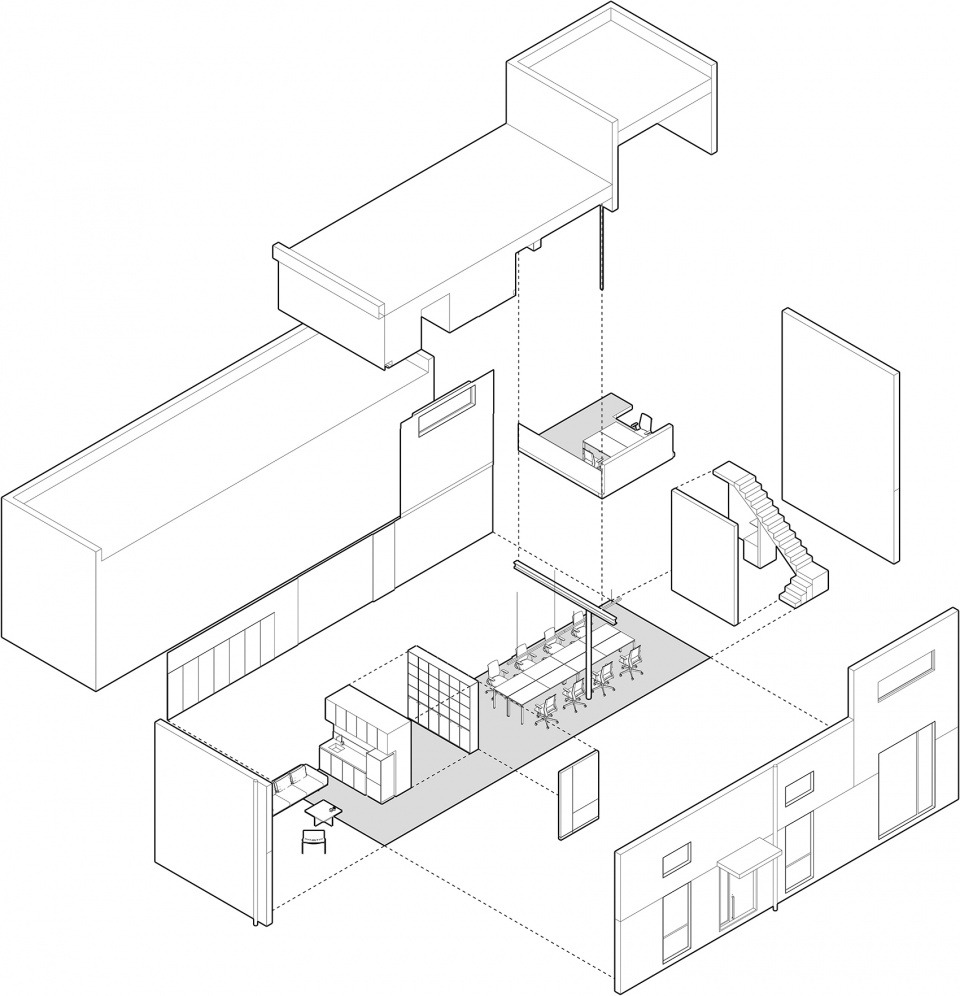

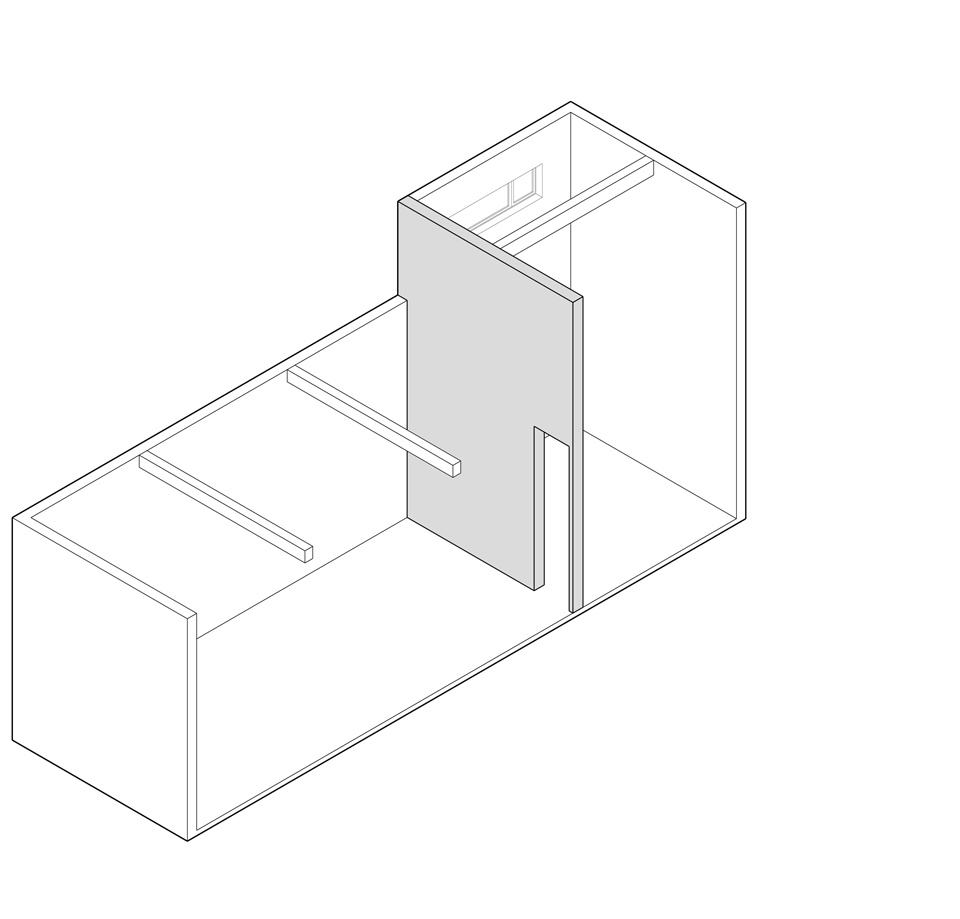

▼轴测图,the axon of the project ©反几建筑

平面布局上延续原建筑入口关系,入口背景墙后面为设备及服务区,并以此将内部空间分隔为左侧的休闲接待区域和右侧的办公会议区域。原本窗下墙取消,扩大采光面,增加室内外的互动。低矮的入口及会客区,略低的层高给人一种”想坐下来“的感觉,提供更多的舒适感。

The layout continues the original building entrance relationship. Behind the entrance background wall is the equipment and service area, and the internal space is divided into the leisure reception area on the left and the office meeting area on the right. The original wall under the window was cancelled to expand the lighting surface and increase the interaction between indoor and outdoor. The low entrance and reception area, and the slightly lower floor height give people a feeling of “want to sit down” and provide more comfort.

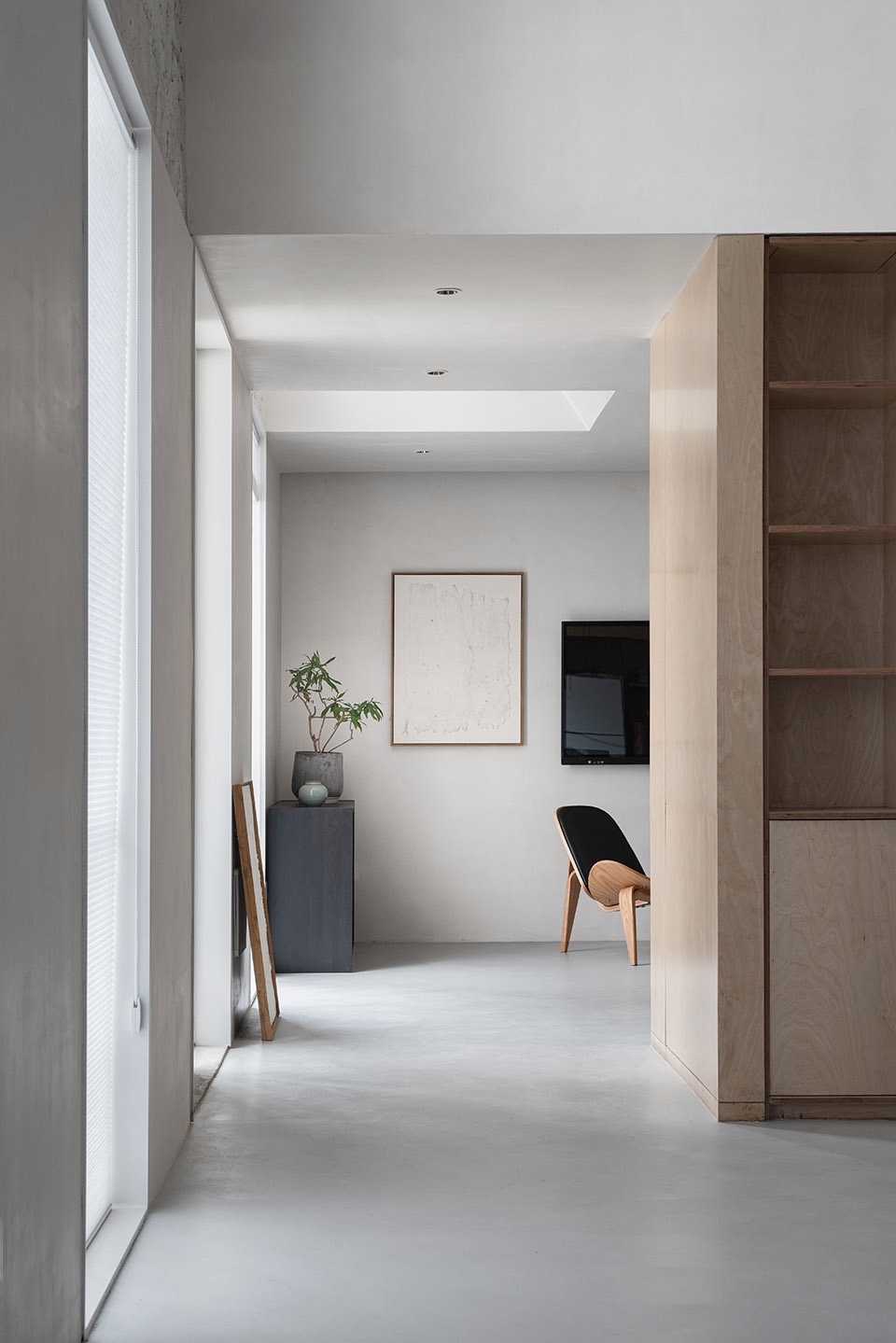

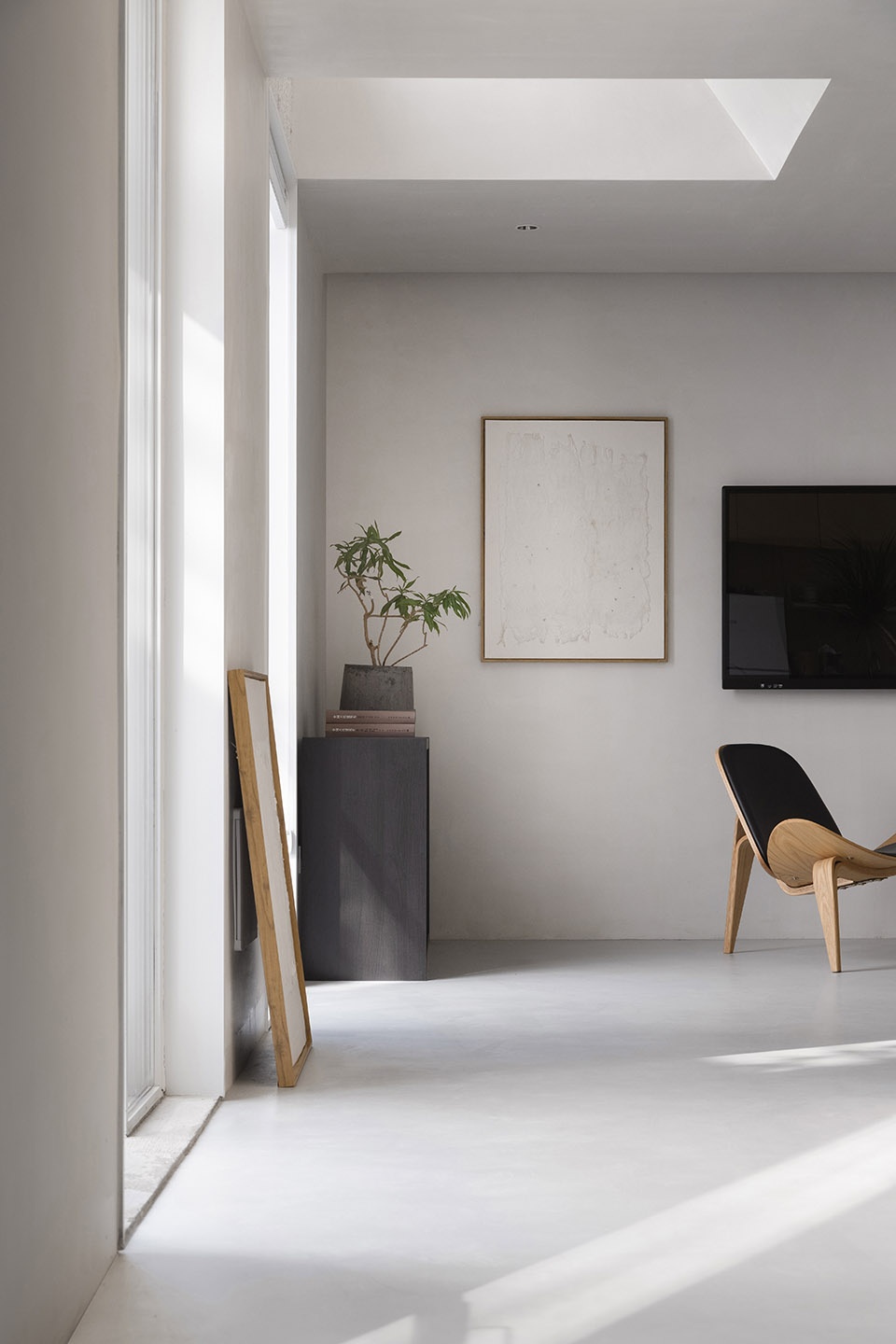

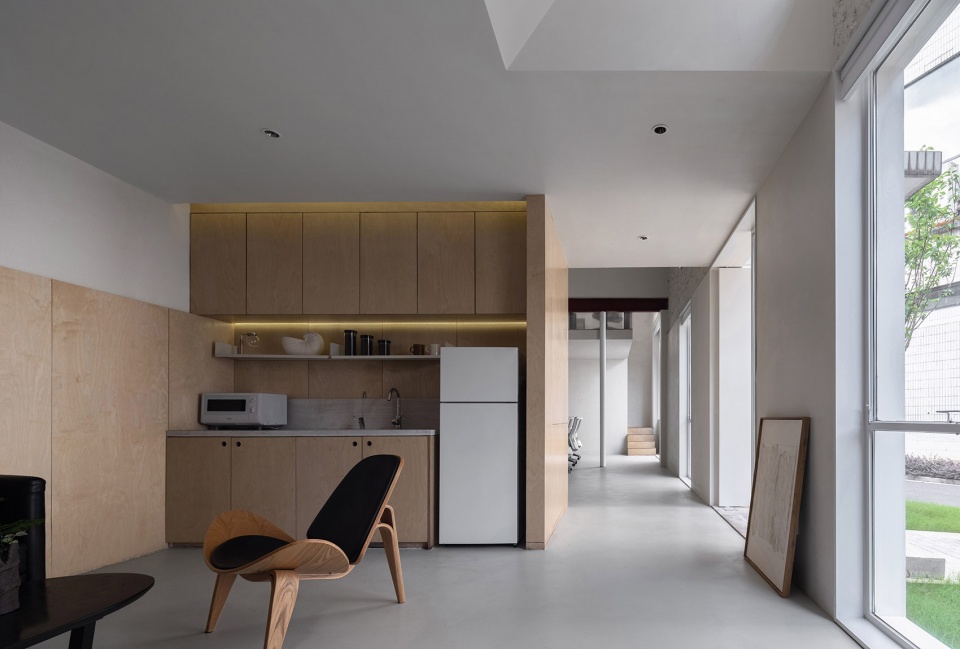

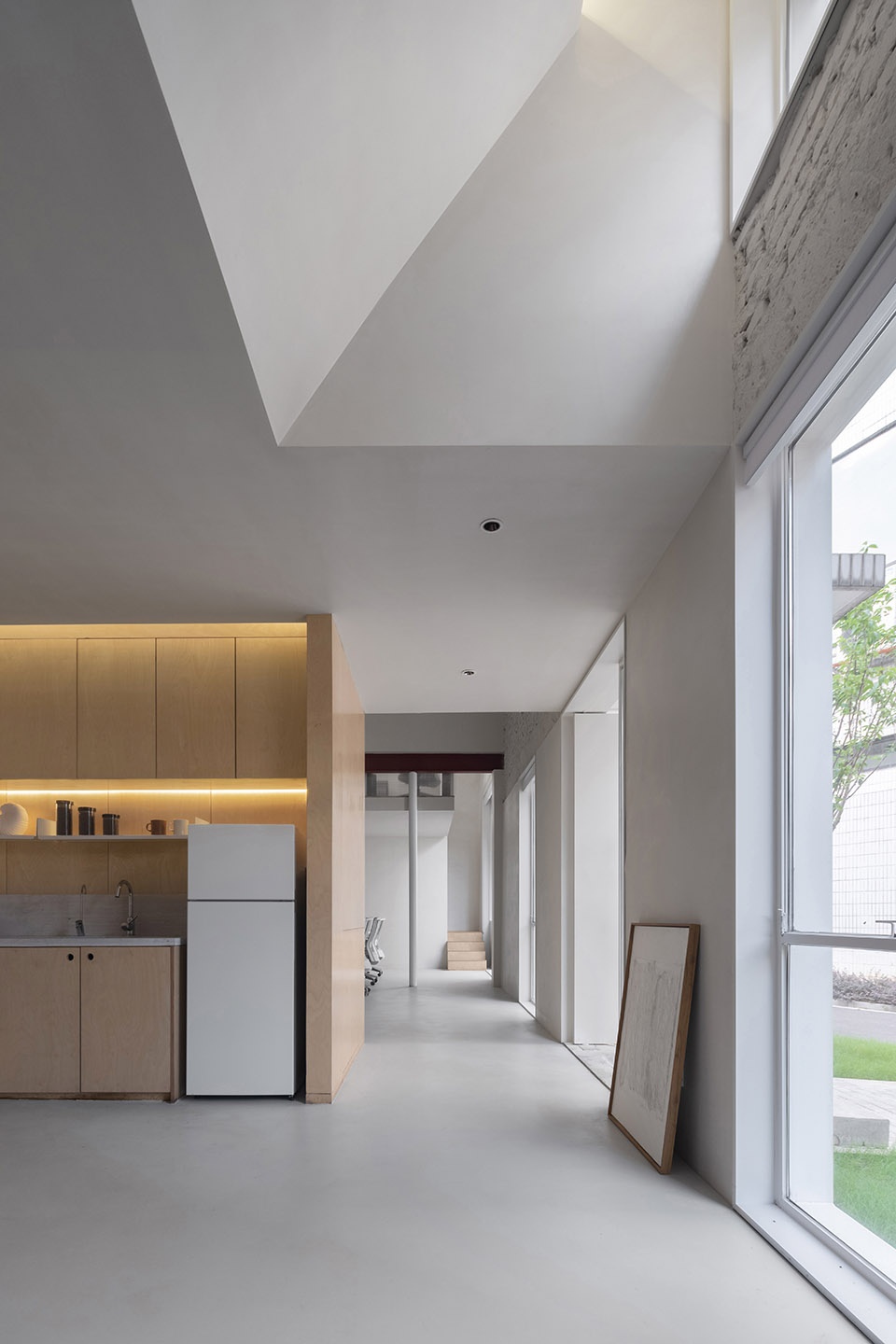

▼入口左侧接待会客区,lobby on the left of entrance ©ingallery金啸文

前厅和会客区设置了大尺度的吊顶,隐藏了空调新风设备;同时,顶部的变化也拉开了与办公区之间的节奏。会客区的层高和布局与住宅建筑更相近,这让空间变得带有家庭感。而吊顶在高窗处的退让,也增加了会客区与室外庭院之间的贯通性,这些都区别于传统的办公印象。

Large-scale ceilings are set up in the lobby and meeting areas to hide the air conditioning and fresh air equipment; at the same time, the changes at the top also open up the rhythm with the office area. The floor height and layout of the reception area are closer to that of residential buildings, which makes the space feel like a family. The retreat of the suspended ceiling at the high window also increases the connectivity between the reception area and the outdoor courtyard, which is different from the traditional office impression.

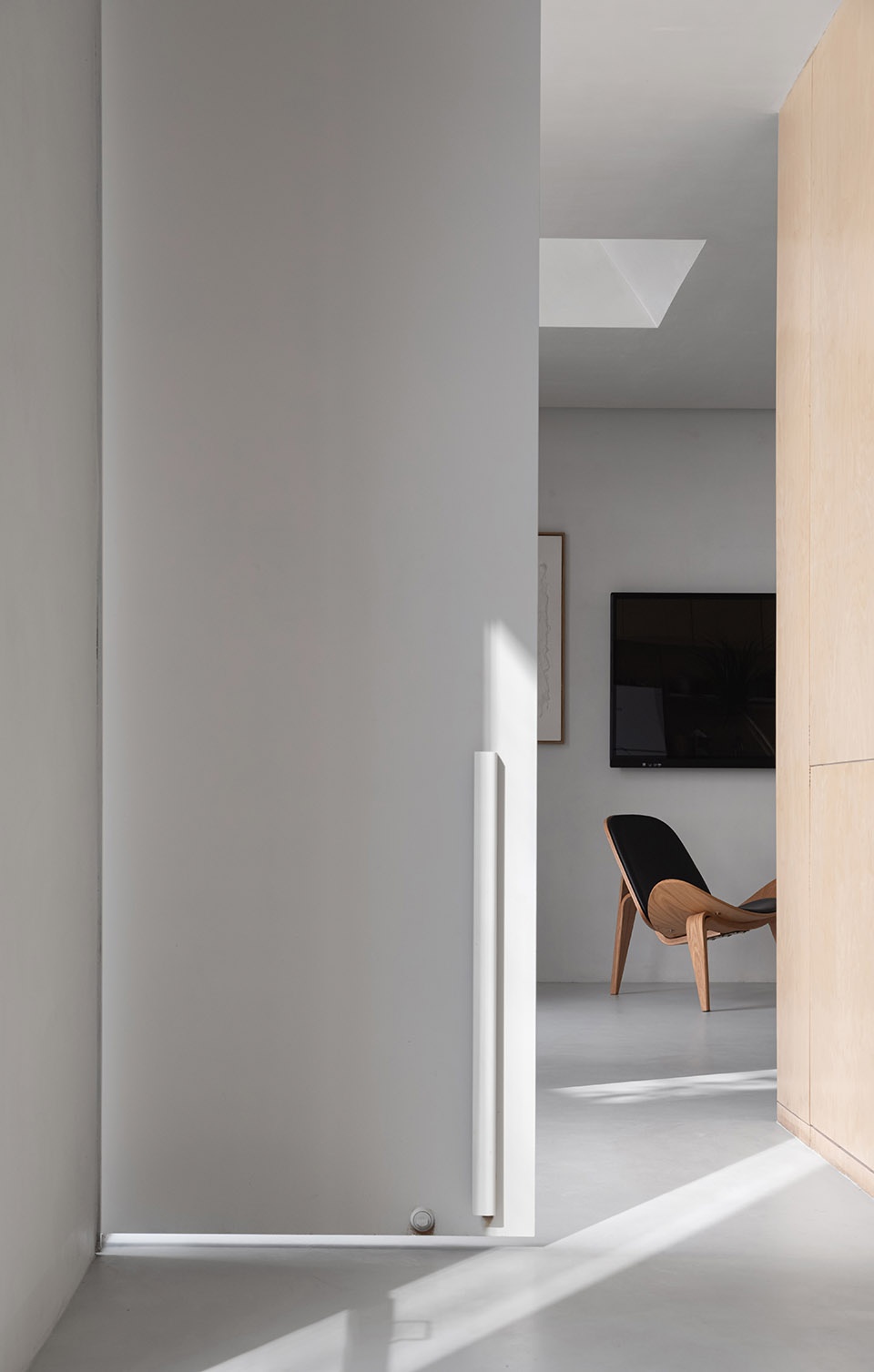

▼接待会客区看向办公区,viewing the office area from the lobby ©ingallery金啸文

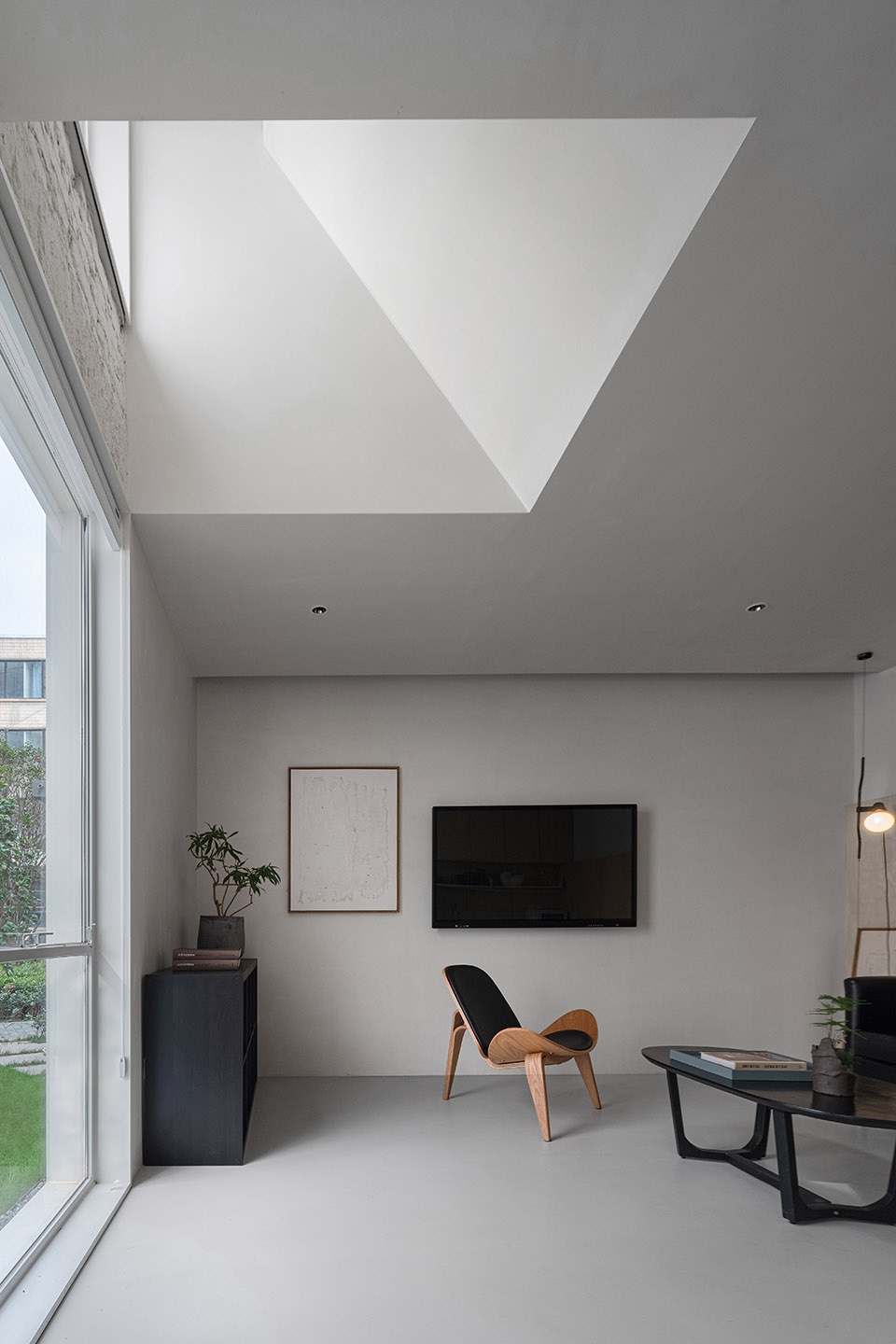

▼接待会客区的天窗,Skylight in the lobby ©ingallery金啸文

▼入口区与接待区的天花板相对较低,
The ceilings in the entrance and the lobby are relatively low ©ingallery金啸文

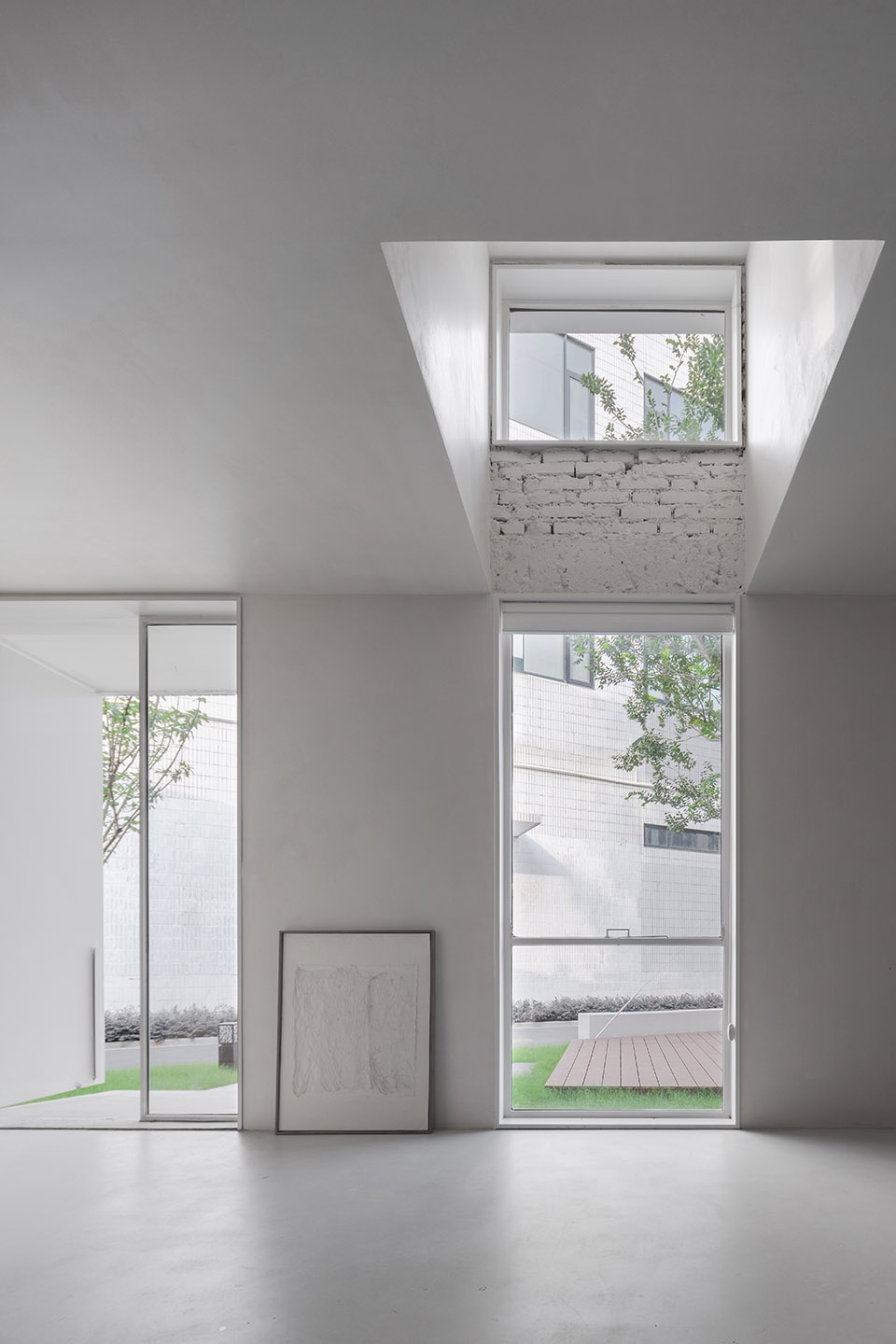

▼室内外的通透感,Internal and external ©ingallery金啸文

入口右侧为办公区,整体以功能为主,简洁明了。红色的横向结构与圆柱竖向结构,成为空间的视觉焦点。隔墙取消后,用工字钢梁替换原有凝土梁,用钢柱替换原有洞口旁混凝土柱。让结构成为办公空间中的视觉中心。

▼分析动图,analysis gif ©反几建筑

The right entrance is the office area, the whole is mainly functional, concise and clear. The red horizontal structure and cylindrical vertical structure become the visual focus of the space. After the partition wall is cancelled, the original concrete beams are replaced by I-beams, and the concrete columns next to the opening are replaced by steel columns. Let the structure become the visual focus of the office space.

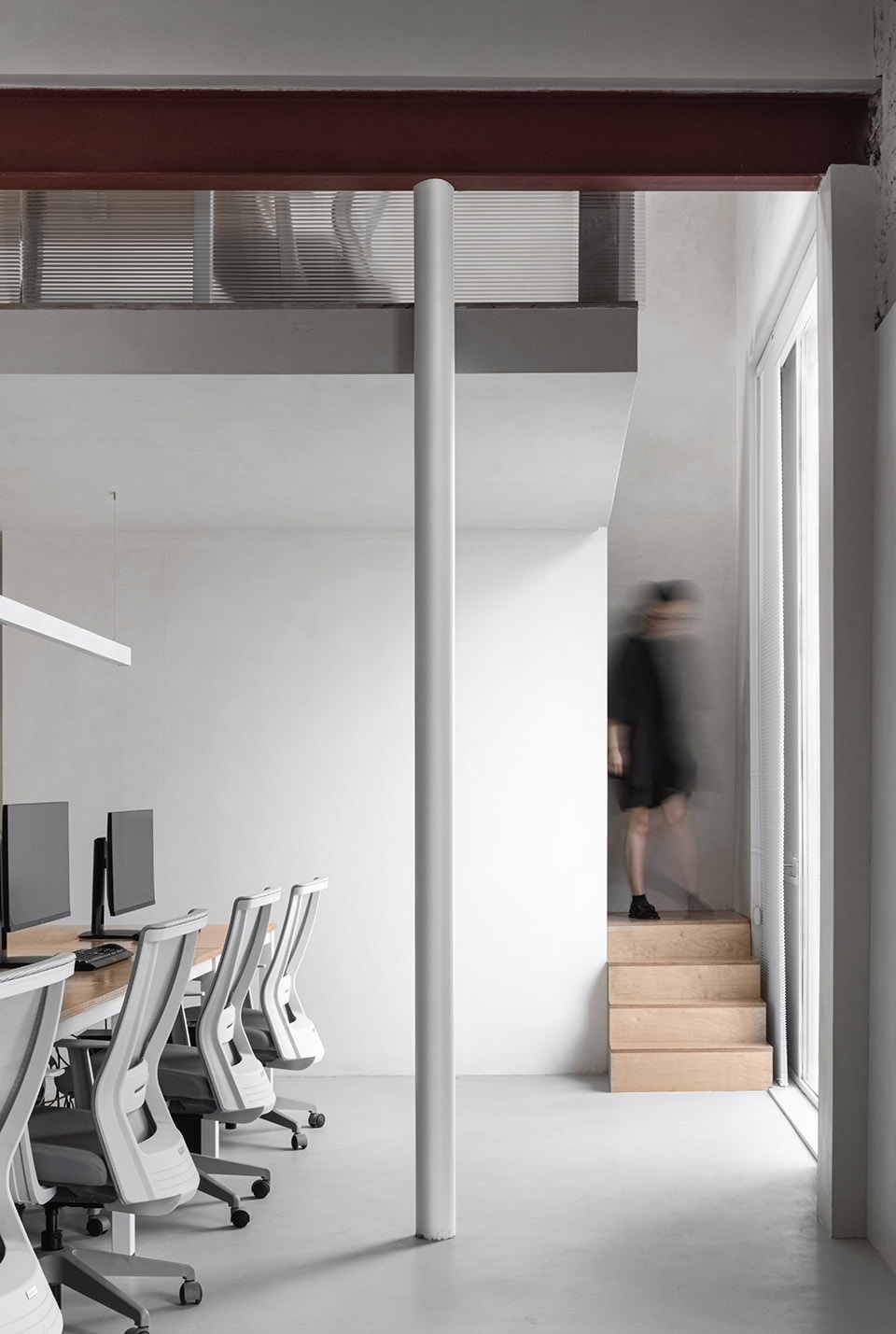

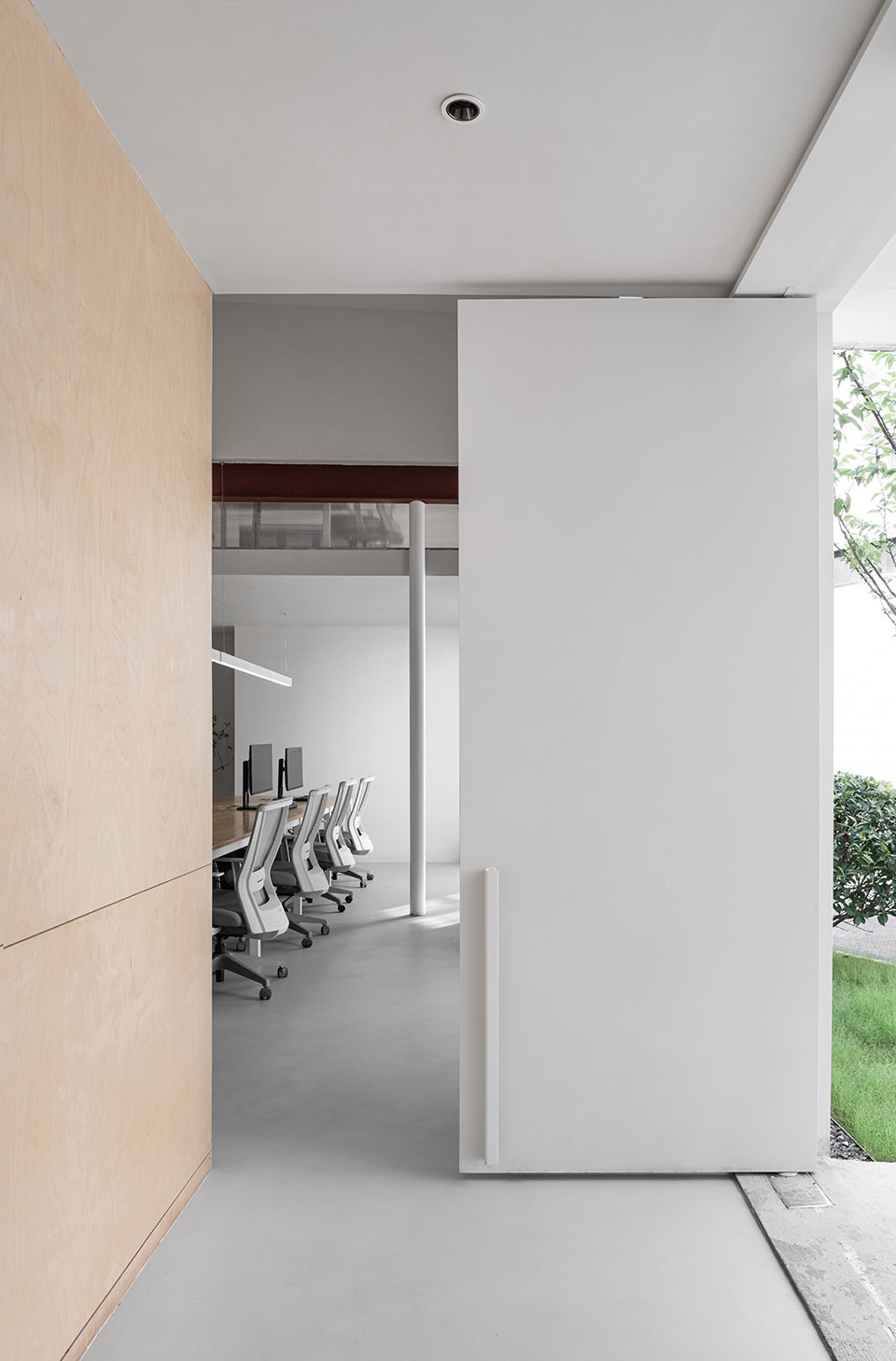

▼入口右侧为办公区, office area on the right of the entrance ©ingallery金啸文

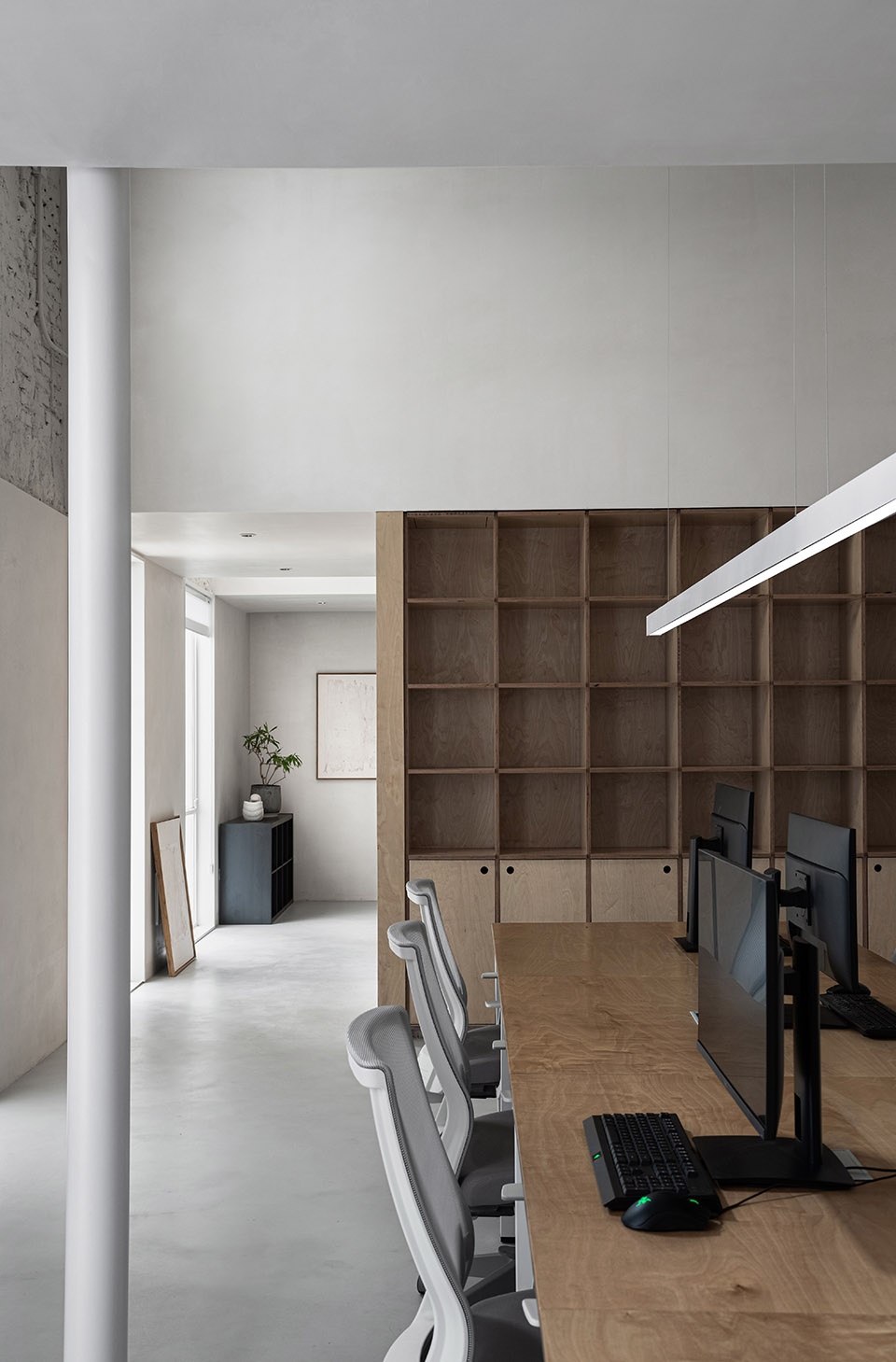

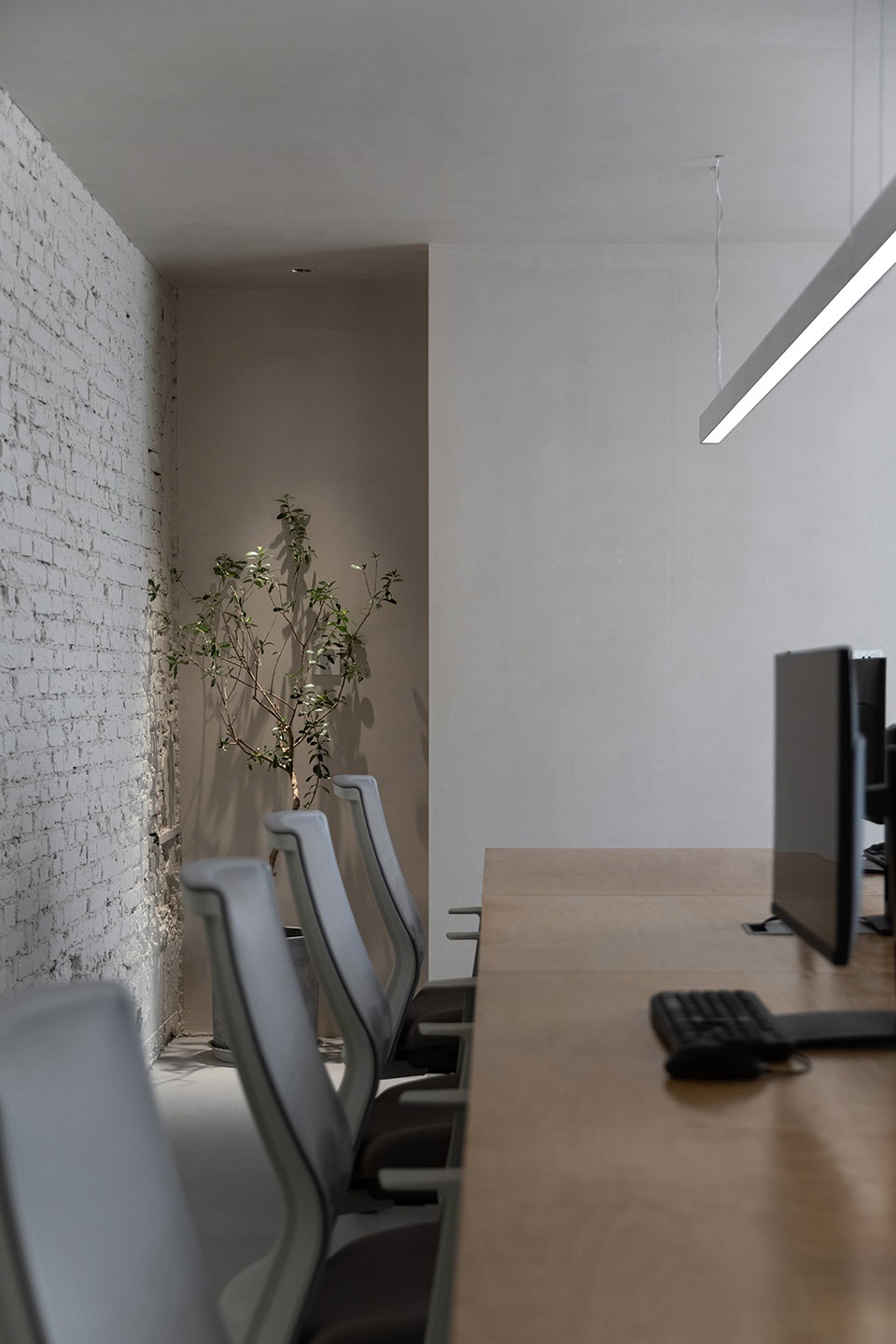

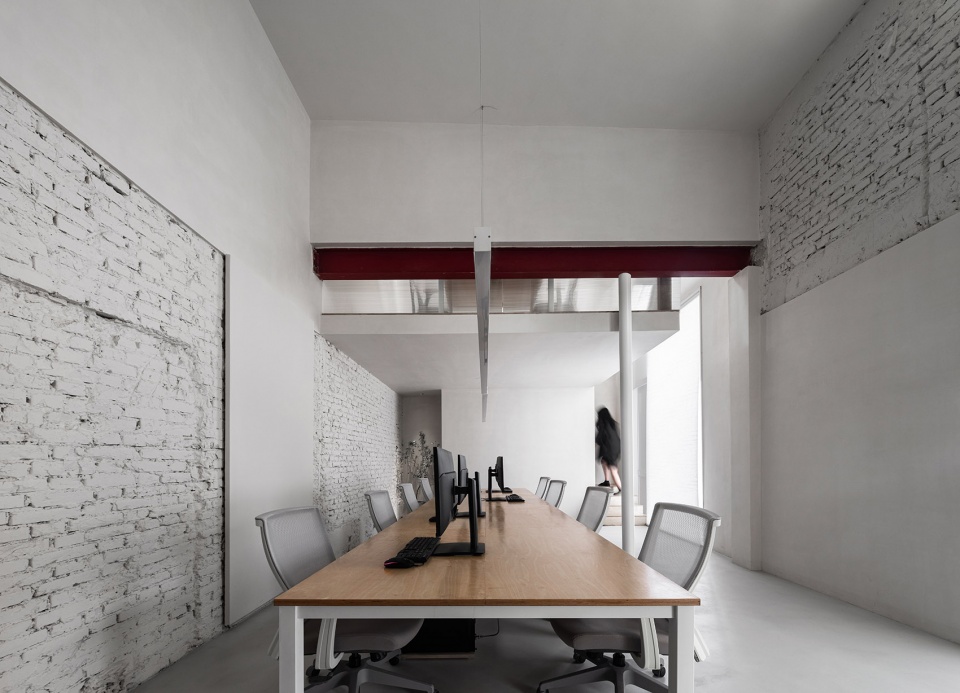

▼简洁明了的办公区,Simple and clear office space ©ingallery金啸文

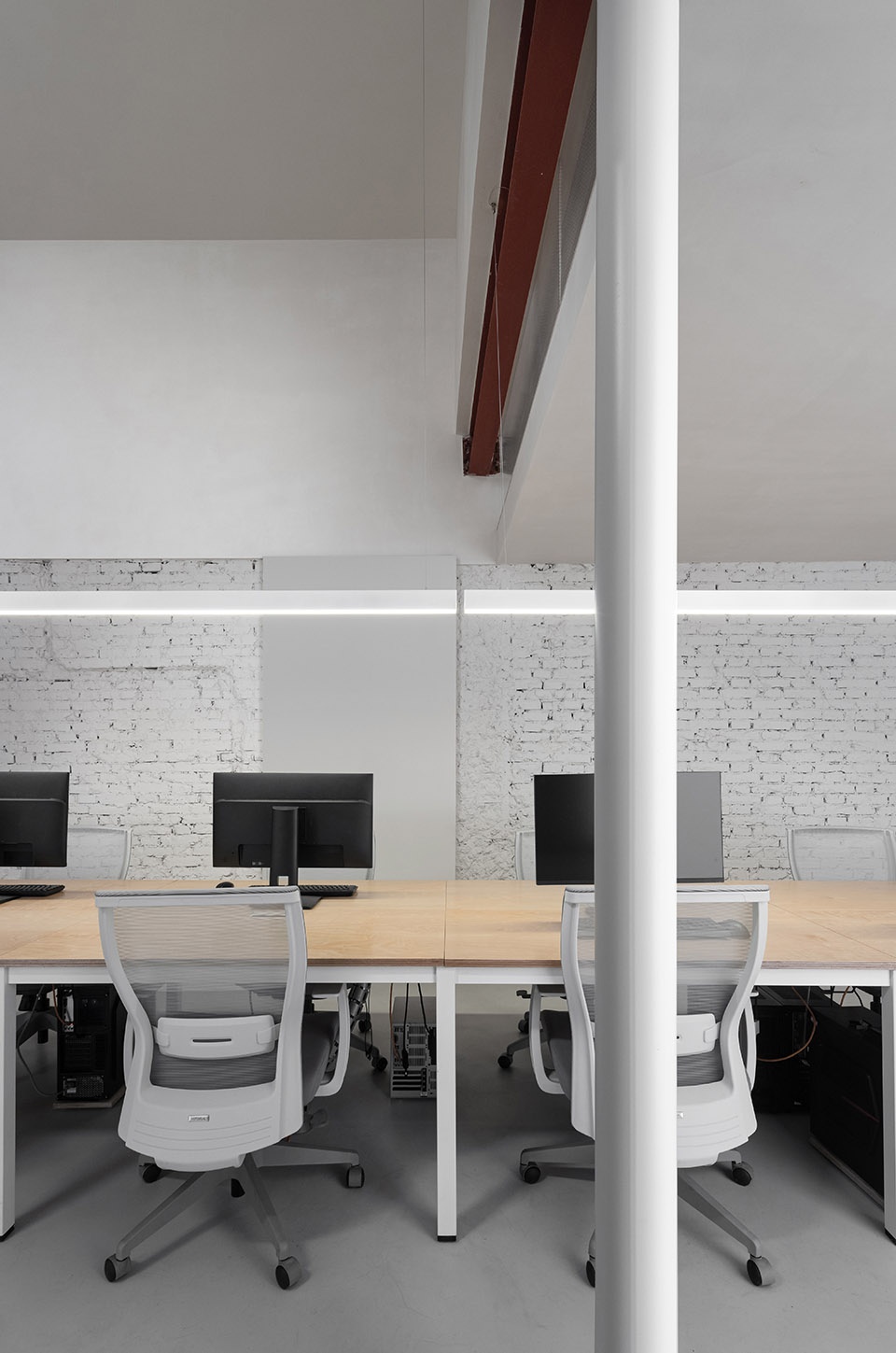

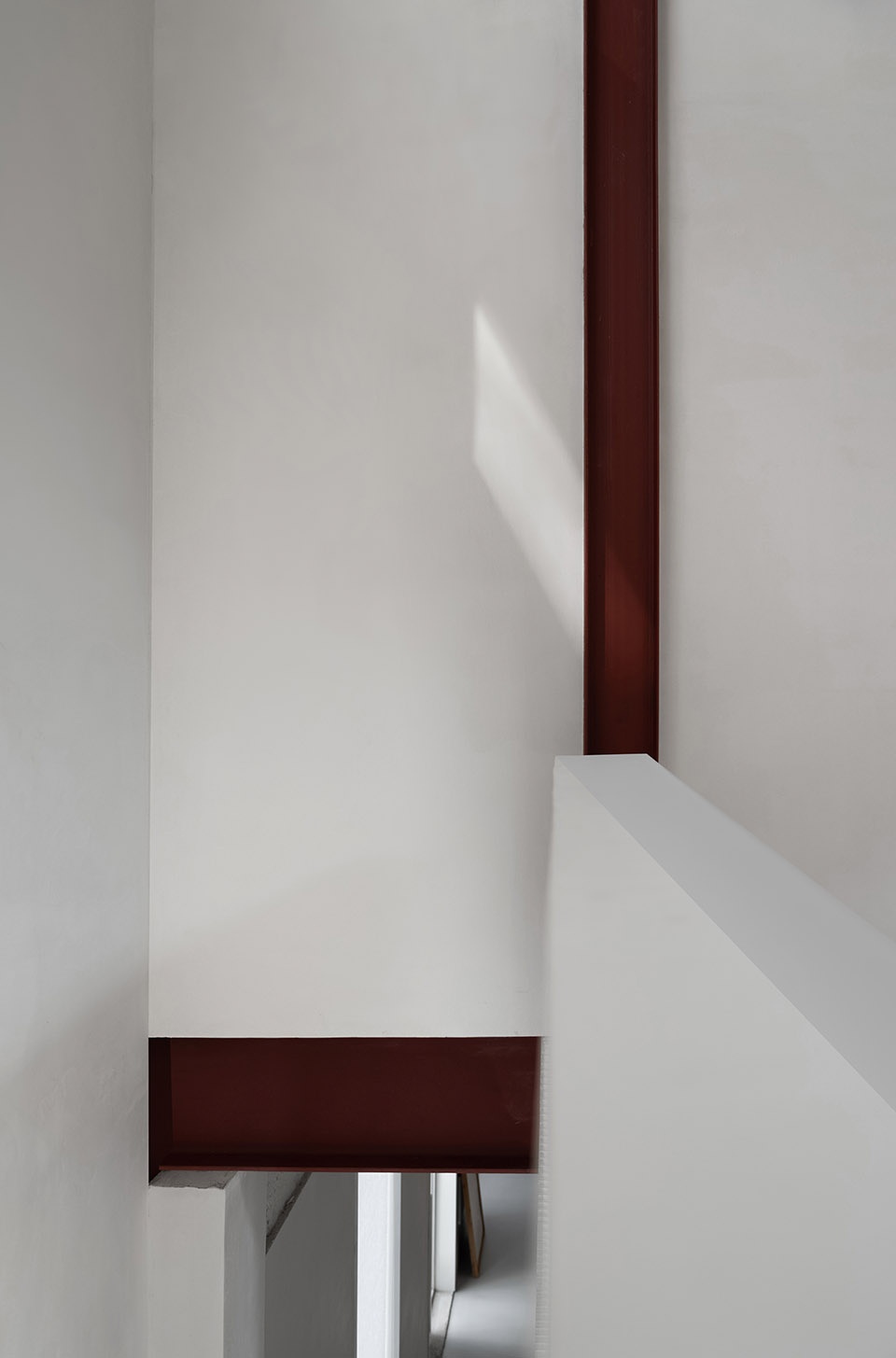

▼办公区内的横向与竖向结构,
Horizontal and vertical structure in the office area ©ingallery金啸文

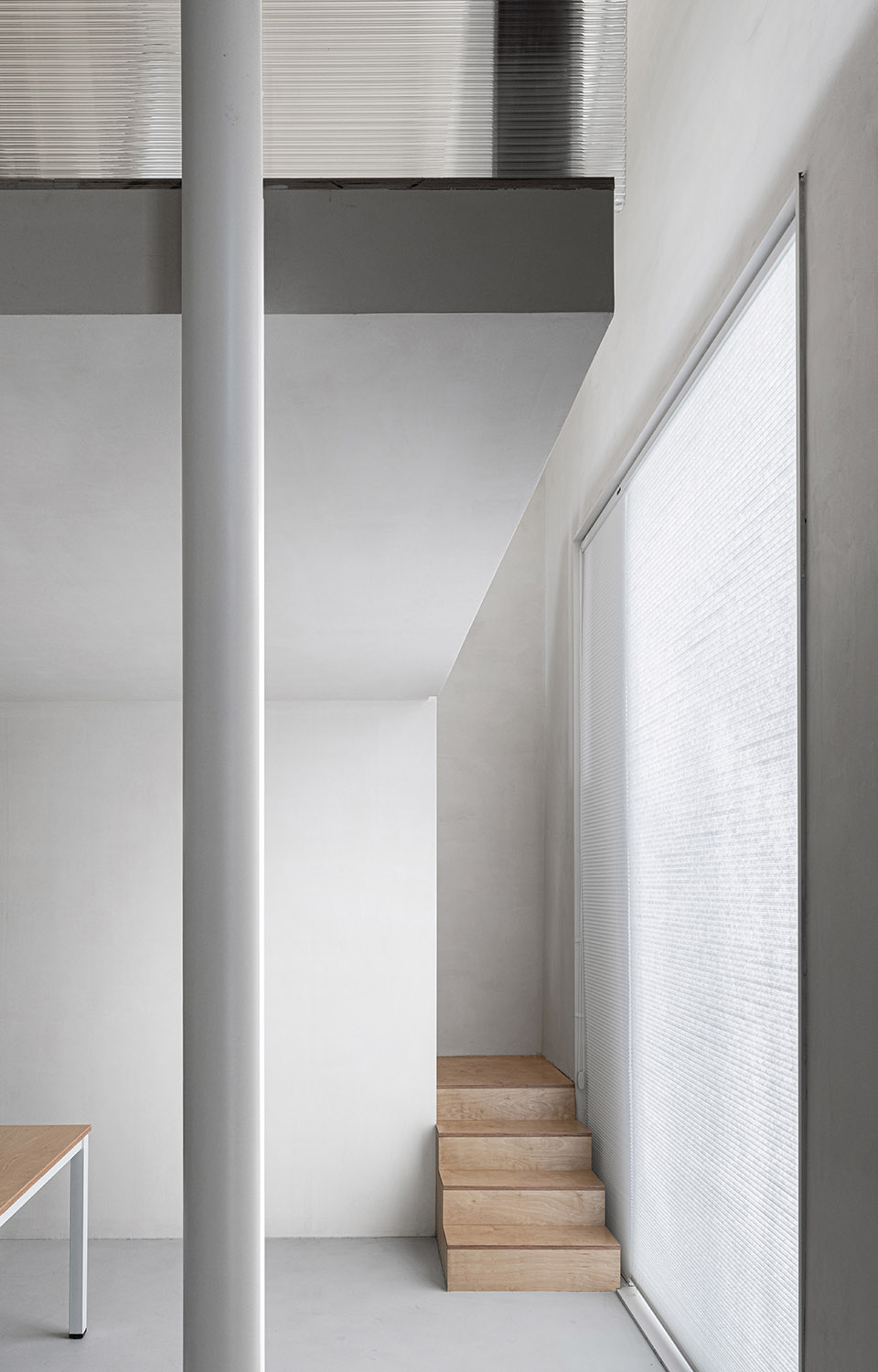

▼楼梯踏步与窗户关系,Stair step and window ©ingallery金啸文

▼办公区主要肌理,Main texture of office area ©ingallery金啸文

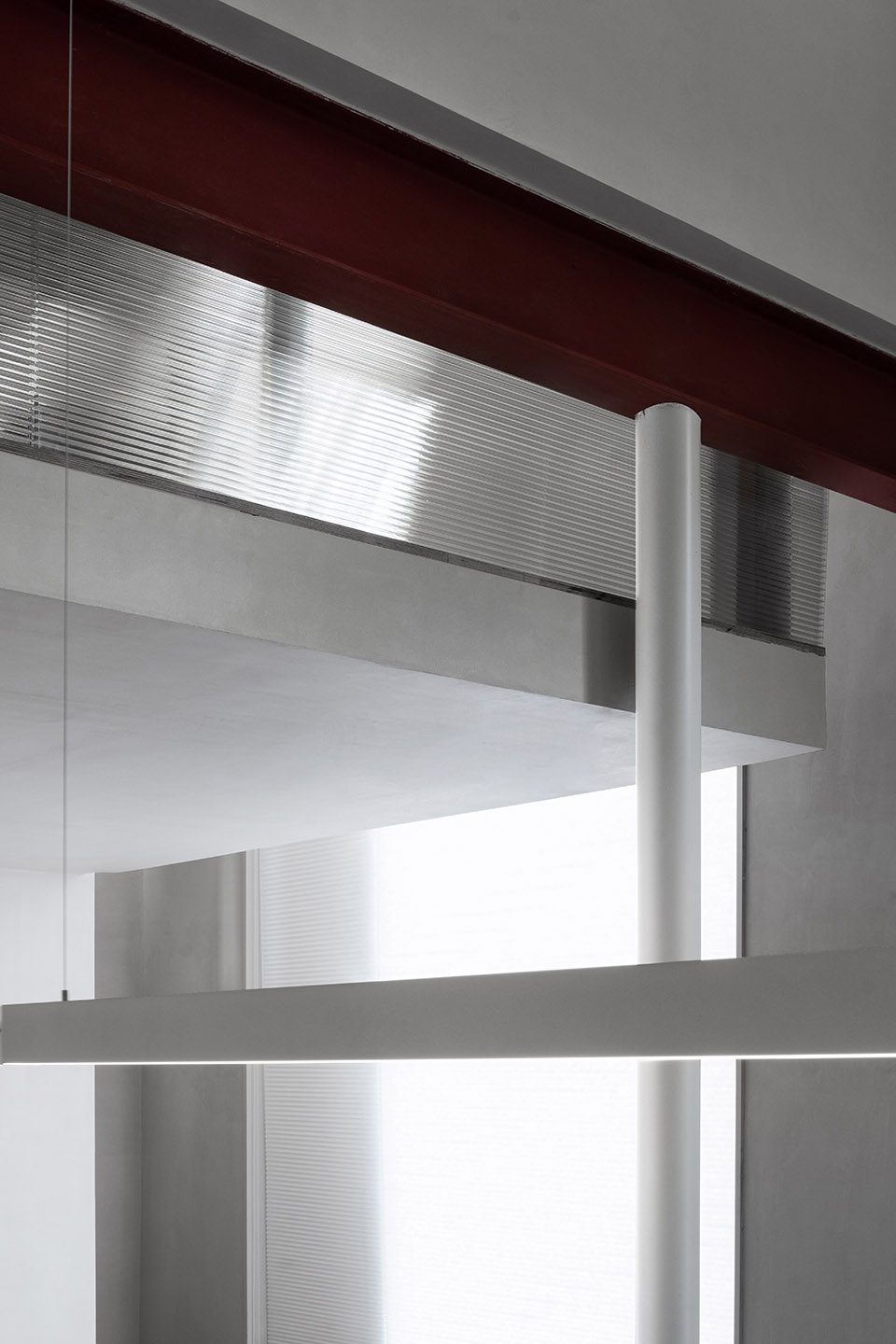

▼正面工字钢横梁与背部拉杆,details of the structure ©ingallery金啸文

隔层部分则与墙体之间脱开,由单侧结构柱和链接吊杆保持结构稳定。通过设计让墙体与隔层之间没有硬性连接,形成悬浮感;用阳光板覆盖体块间的空隙,增加了隔层与办公区之间的贯通性。

The partition part is separated from the wall, and the structure is stabilized by a single-sided structural column and a link boom. Through the design, there is no rigid connection between the wall and the partition, forming a sense of suspension; the gap between the blocks is covered with solar panels to increase the penetration between the partition and the office area.

▼楼梯踏步与墙体及窗户的关系,The relationship between stair steps and walls and windows ©ingallery金啸文

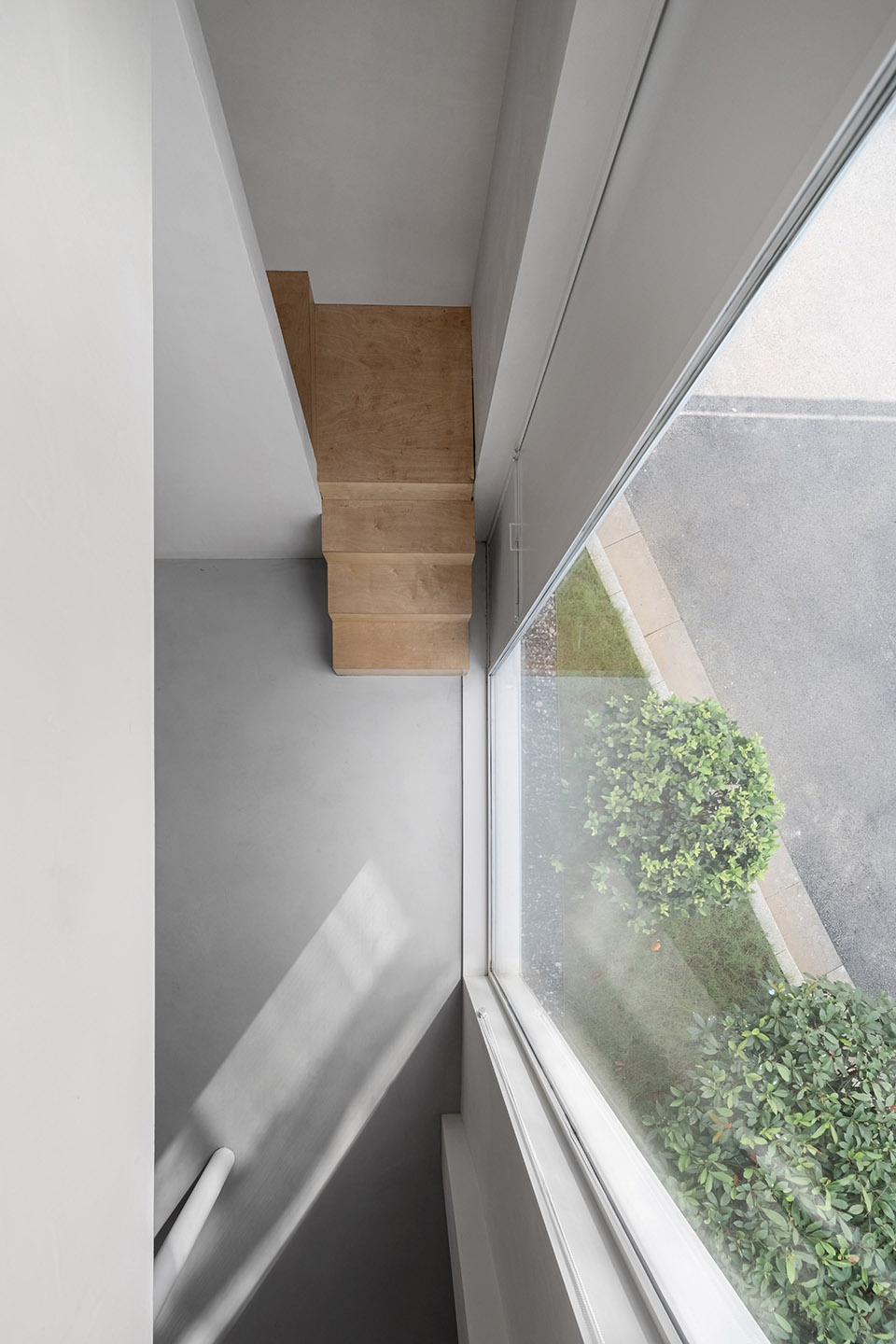

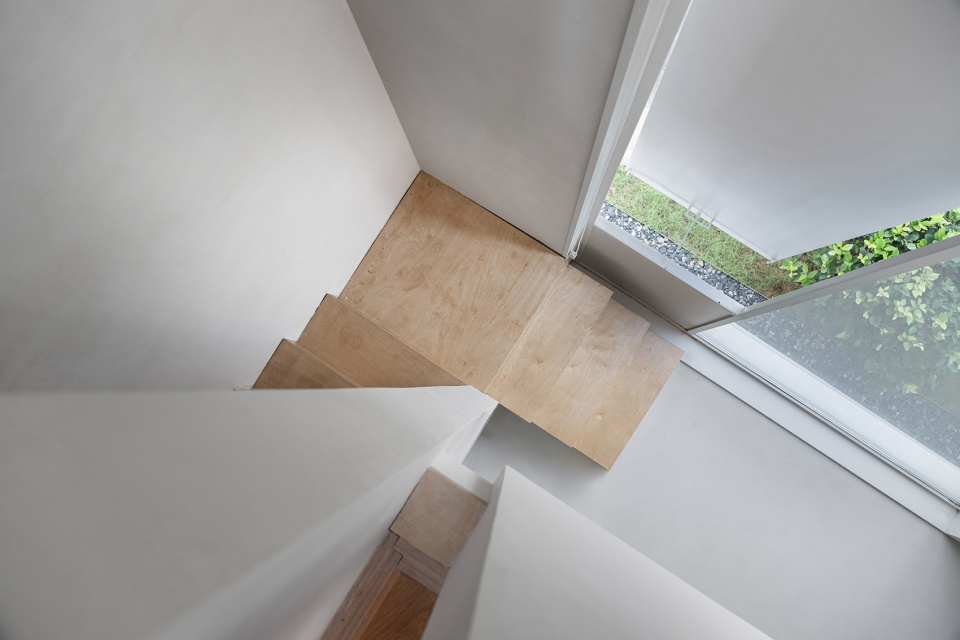

▼俯瞰踏步空间,overlook the stair steps ©ingallery金啸文

在材质和细节处理方面,采用桦木多层板与白色乳胶漆结合,营造极简氛围。通过铲除墙砖涂刷乳胶漆与通体光滑肌理形成新与旧的对比,裸露原有结构梁柱,保留历史砖墙肌理感。

In terms of material and detail processing, birch multi-layer boards are combined with white latex paint to create a minimalist atmosphere. By removing the wall tiles, applying latex paint and the smooth texture of the whole body, the contrast between the new and the old is formed, and the original structural beams and columns are exposed, retaining the texture of the historical brick wall.

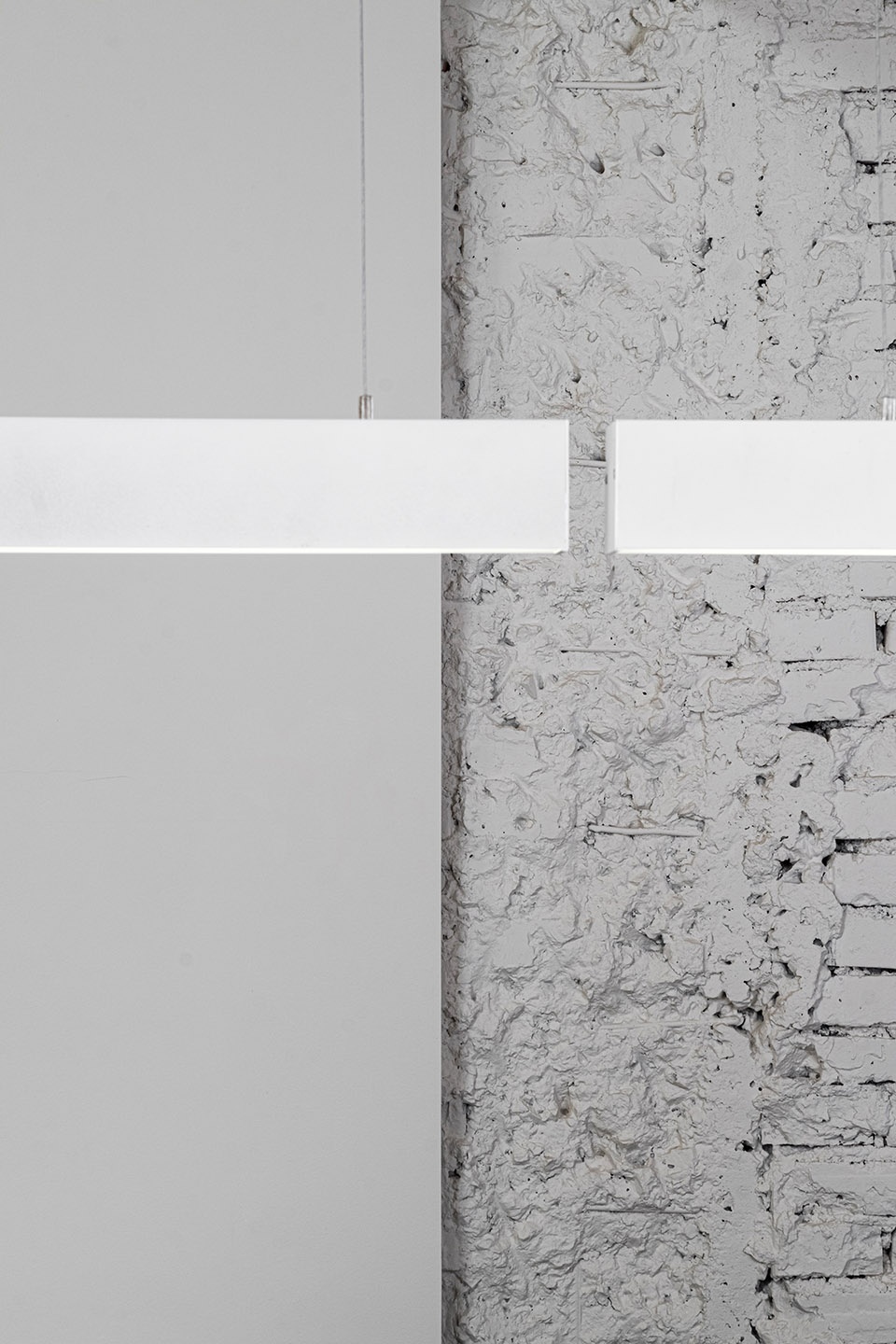

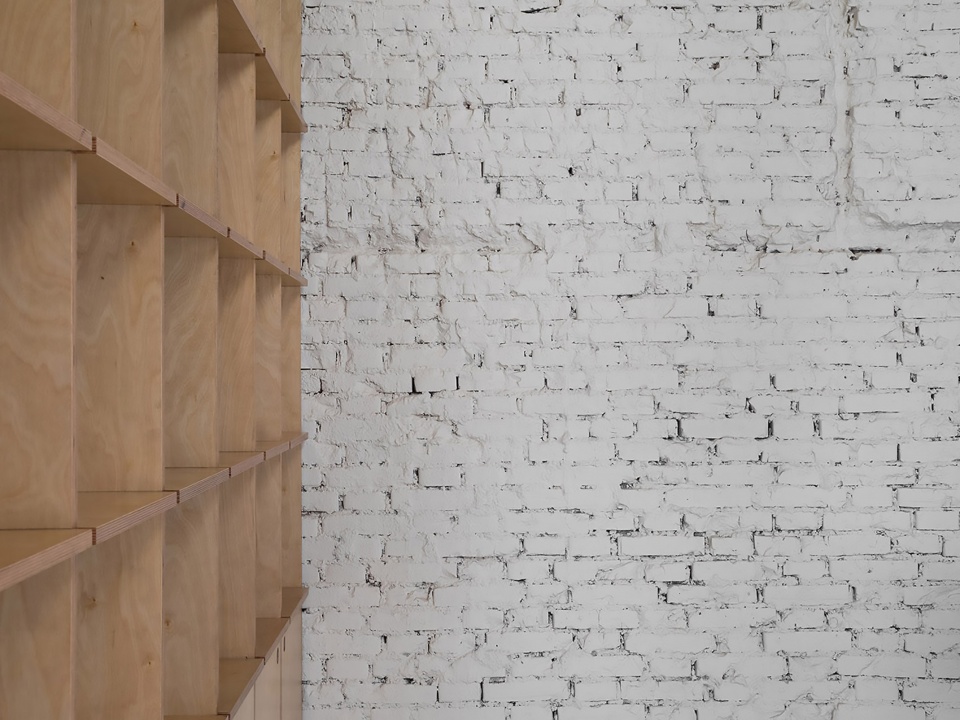

▼墙面细部,details of the wall texture ©ingallery金啸文

在城市更新的过程中,保留下来的工业园区周围,规划建设大量的居住区。工业园区功能置换后,也非单一办公园区,包含商业、办公、休闲等各种功能。这使得园区与周围居民,形成一种全新的,和谐共生的状态。

In the process of urban renewal, a large number of residential areas are planned to be built around the remaining industrial parks. After the functional replacement of the industrial park, it is not a single office park, but includes various functions such as commerce, office, and leisure. This makes the park and the surrounding residents form a new and harmonious state of symbiosis.

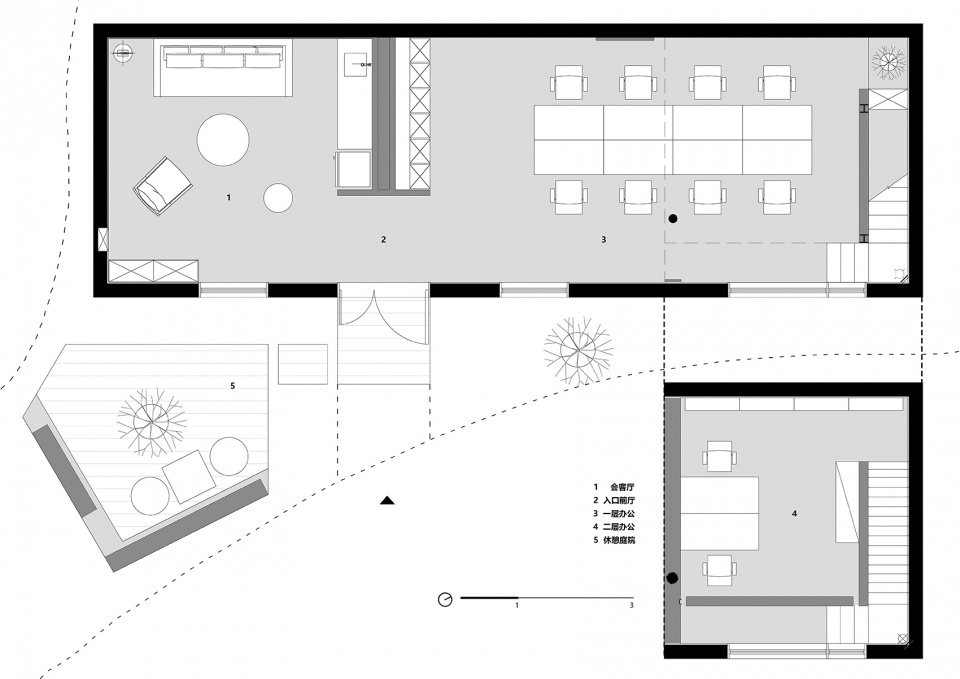

▼平面图,plans ©反几建筑

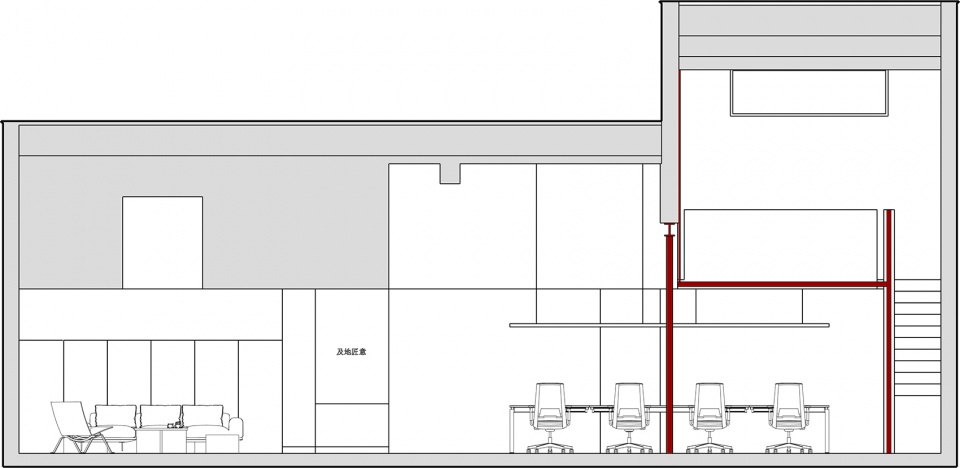

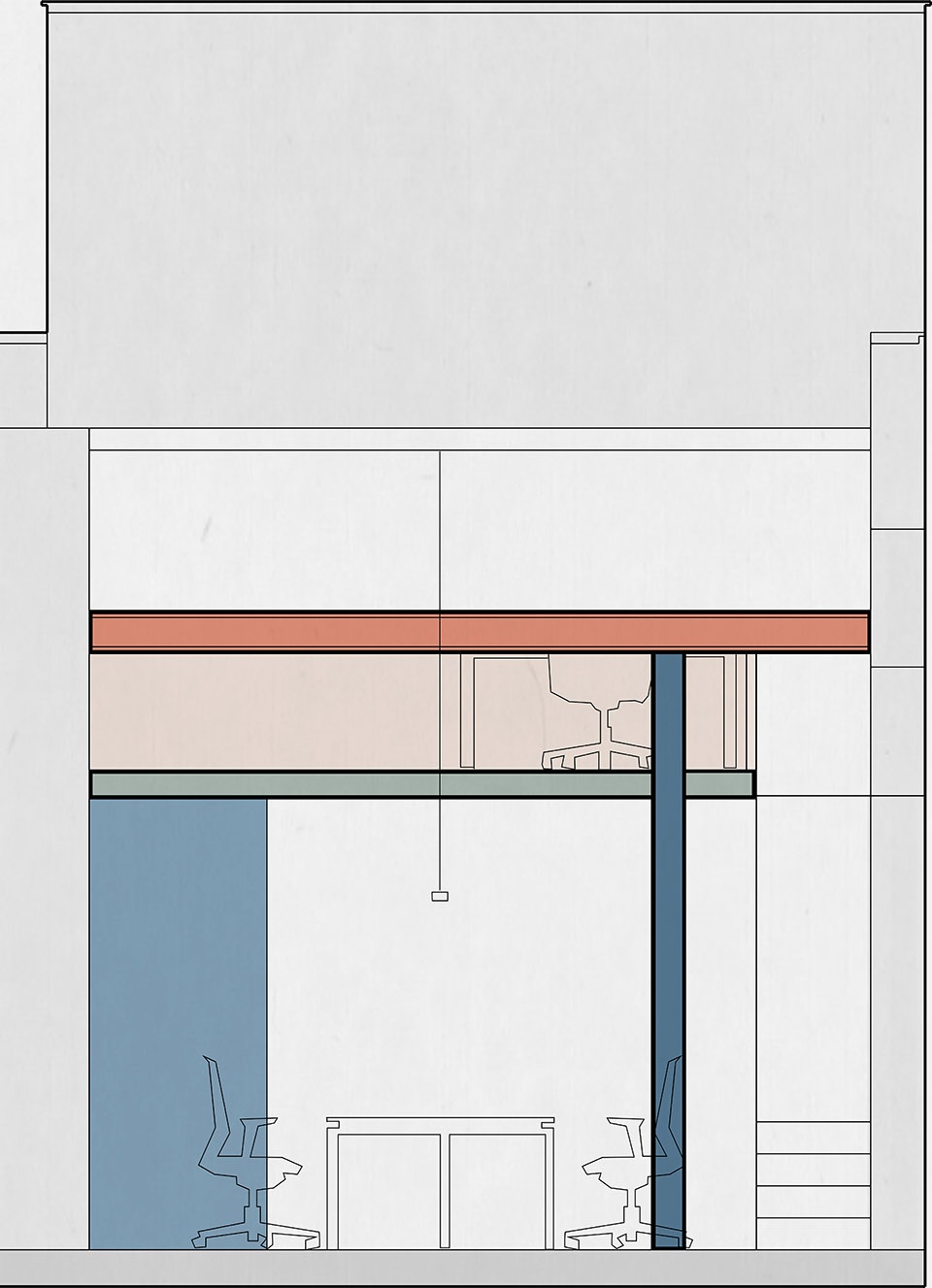

▼剖面图,section ©反几建筑

▼局部剖面示意图,Section diagram ©反几建筑
