非常感谢 小写建筑事务所 予gooood分享以下内容。更多关于: Describing Architecture Studio on gooood
Appreciation towards Describing Architecture Studio for providing the following description:

项目位于宜昌宜都市五眼泉镇，业主命名为石羊山壹号。场地是国道下道1.5公里处一片闹中取静的乡村，用地正在石羊山的山脚下，背山面林，是周围地形的高点，极目远眺，视野开阔。业主徐老师夫妇希望在这片土地上实现逃离都市，回归田园的梦想。石羊山，山多白石，状类如羊，故名。雨季，水从山上冲刷下来，带走山脚下部的泥土。裸露出部分岩石，经过泥土和雨水的冲刷，常年的风化，呈现出有层次的泥黄色。岩石之间并未紧贴在一起，业主尝试慢慢挖去中间的泥土，可以裸露大小不一的“缝隙“，成为场地无法回避的“奇观”。

The project is located in Wuyanquan Town, Yidu City, Yichang, which is called Shiyangshan No. 1.The site is a quiet rural area 1.5 kilometers down the national highway. Located at the foot of Shiyang Mountain, the land with mountains on the back and forests on the front is the highest point of the surrounding terrain, which has a wide view of the horizon. The owner, Mr. Xu, and his wife hope to realize their dream of escaping the city and returning to the countryside on this piece of land.Shiyang Mountain is named after the many white stones on the mountain, which resemble sheep. During the rainy season, water flows down the hills, carrying away the soil from the bottom. The exposed part of the rock, after being washed by soil and rain and weathered for years, presents different layers to muddy yellow color. However the bare rocks are not tightly together, the client tried to slowly dig out the soil between them, revealing various sizes of “gaps”.

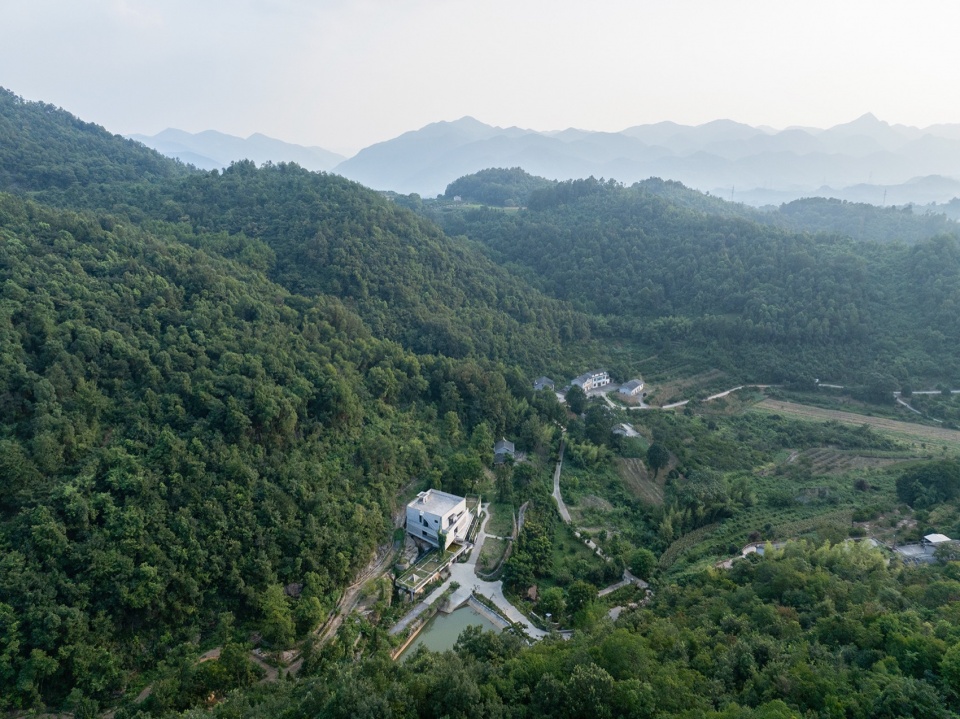

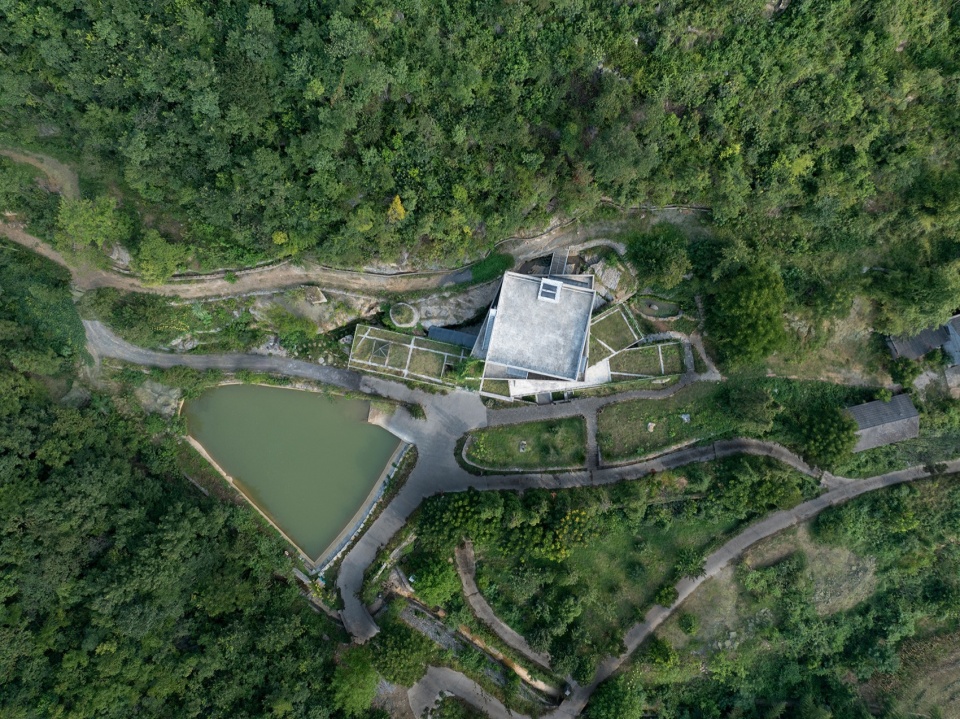

▼场地鸟瞰，site aerial view © 直译建筑摄影

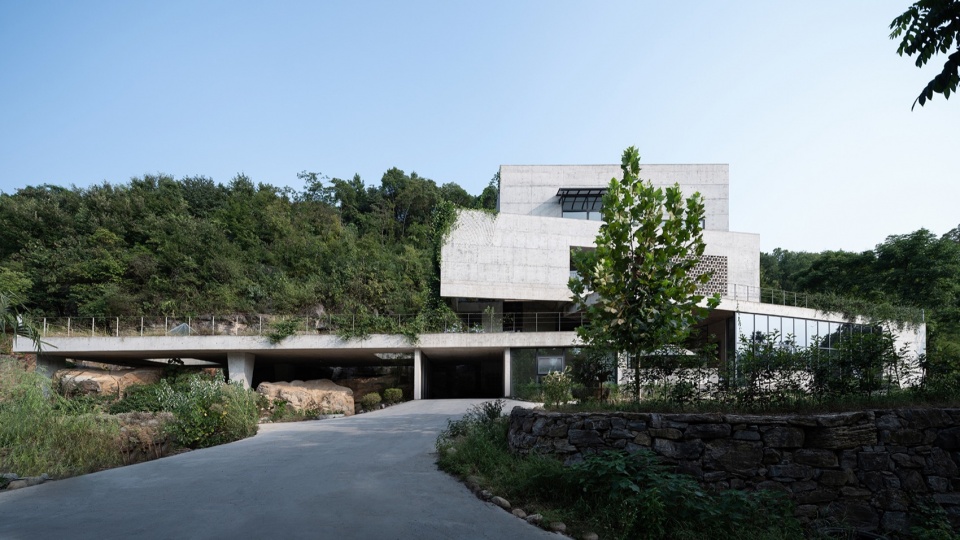

▼正立面，front facade © 直译建筑摄影

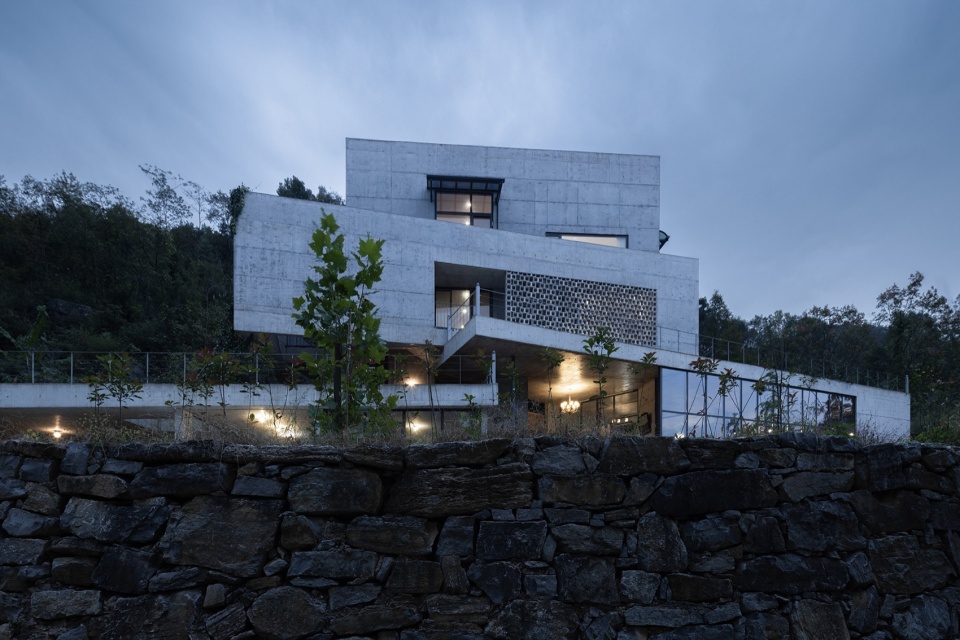

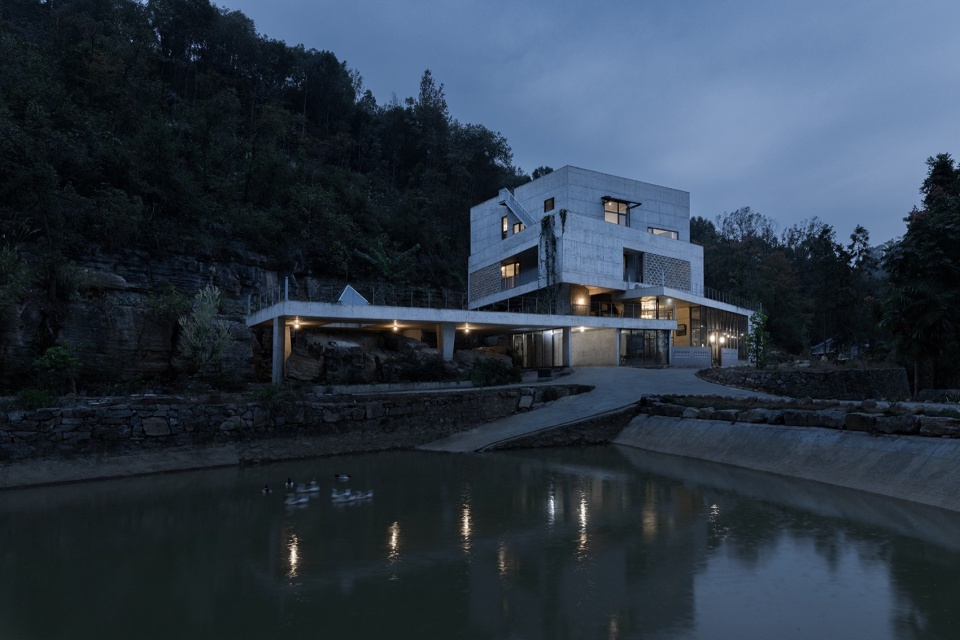

▼外观夜景概览，exterior overview at night © 直译建筑摄影

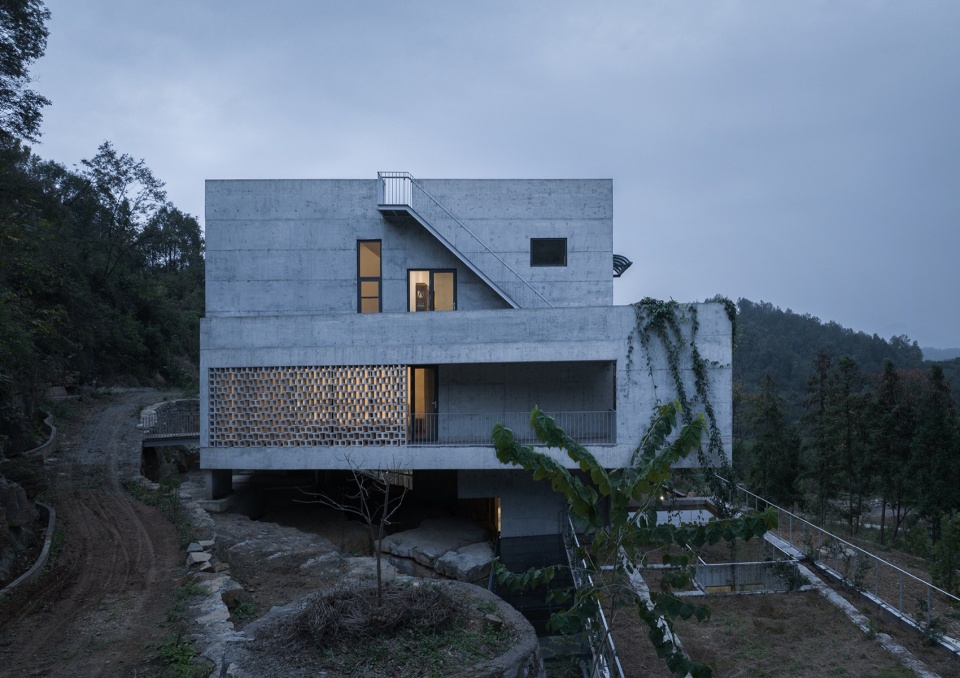

▼北侧立面，north facade © 直译建筑摄影

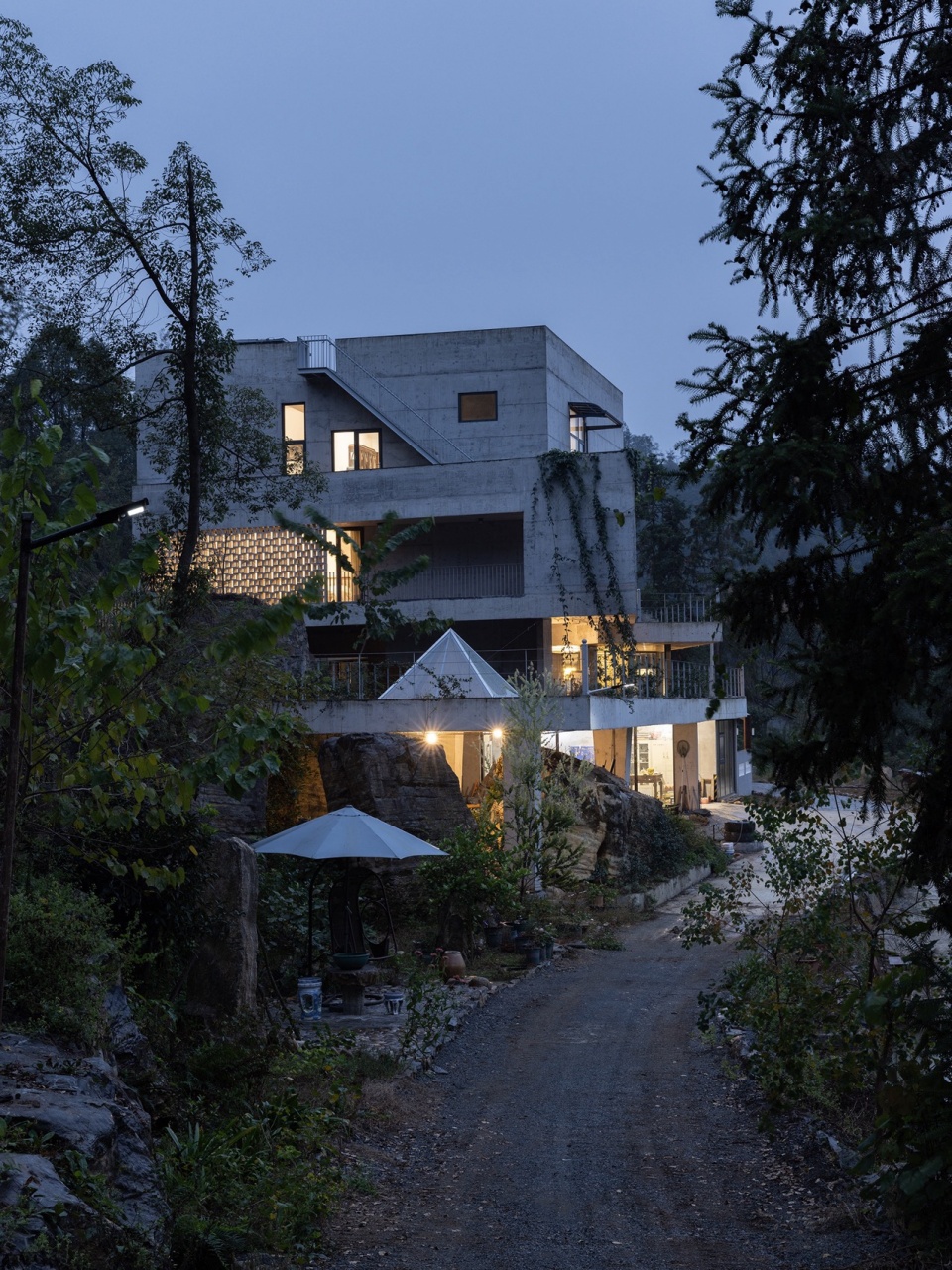

▼从北侧小路看向建筑，view from north pathway © 直译建筑摄影

借石
Working on stones

建筑布局是在考虑场地东侧留出后山的道路后，让建筑尽量靠近山体，落在裸露的岩石之上。底层以板为“顶”，以石为“墙”。岩石的疏密不一而形成不同的“厅”。在岩石最为密集的北侧，作为开放的“厅”，而稀疏的南面则用玻璃围合成餐厅，其背后的近山空间有山石作为背景，最为宁静，是徐老师的画室。其余被清理出来的石缝，非常狭窄，有的在建筑二层楼板的下部，可遮风雨；有点则裸露在外面，形成独特的石缝游廊。

▼概念草模，conceptual models © 小写

In terms of the spatial building layout, after leaving a path to the back mountain, the building is as close to the mountain as possible, landing on exposed rocks. The bottom of the volume is composed of slabs as the ceiling and stones as the walls. Due to various arrangements of the rocks, the “gaps” create different “hall” spaces. The north side, where the rocks are most concentrated, is an open “hall”. Meanwhile, the south sides with scattered stones is enclosed by glass to form a restaurant. The space behind it, with mountains and rocks as a backdrop, is the most peaceful place and Mr. Xu’s studio. The rest of the stone gaps are very narrow. Some are below the second floor slabs, providing shelter from wind and rain. The others are exposed to the outside, forming unique stone gaps’ corridors.

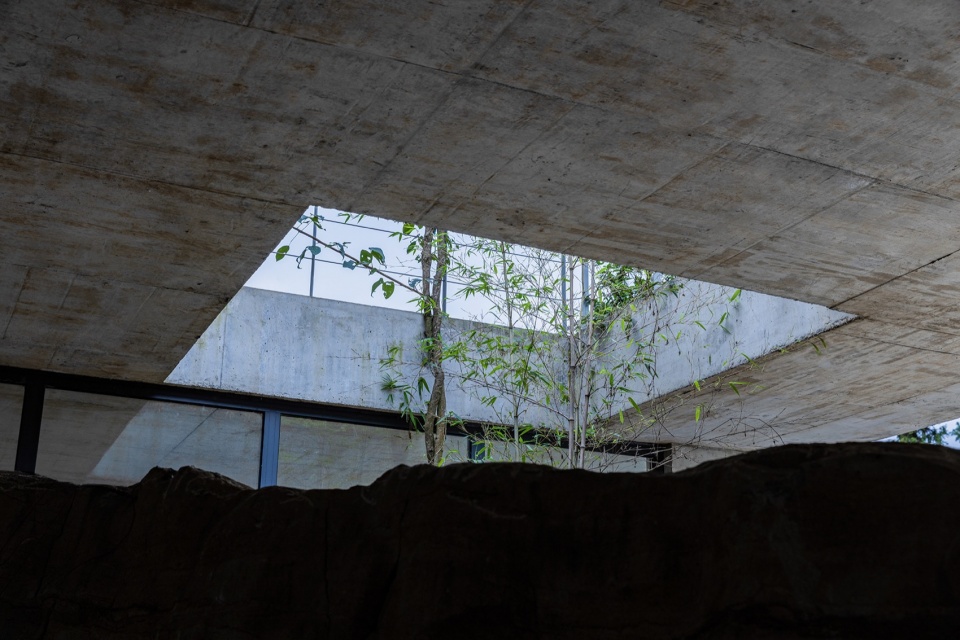

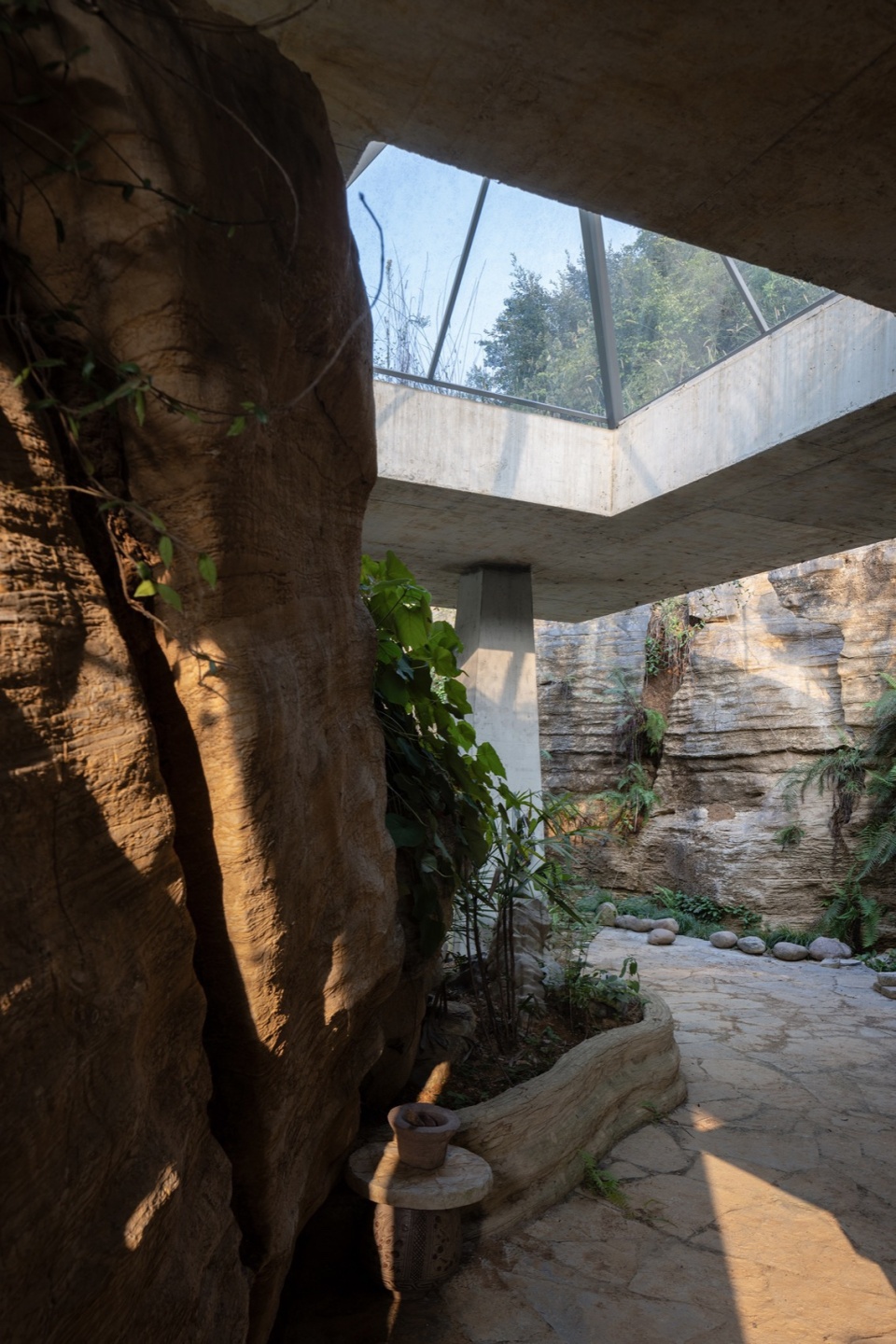

▼“顶”，以石为“墙”，slabs as the ceiling and stones as the walls © 直译建筑摄影

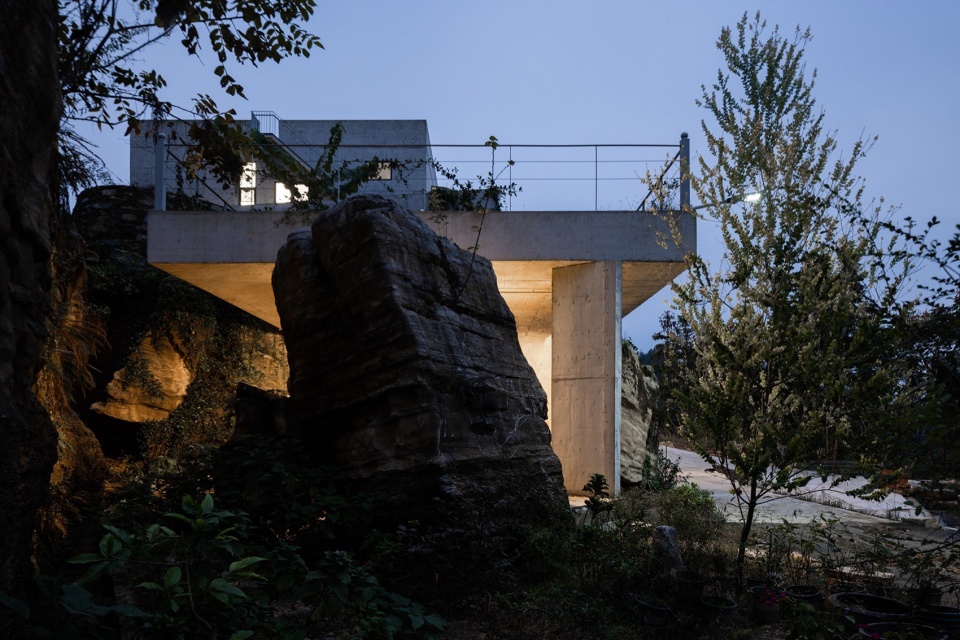

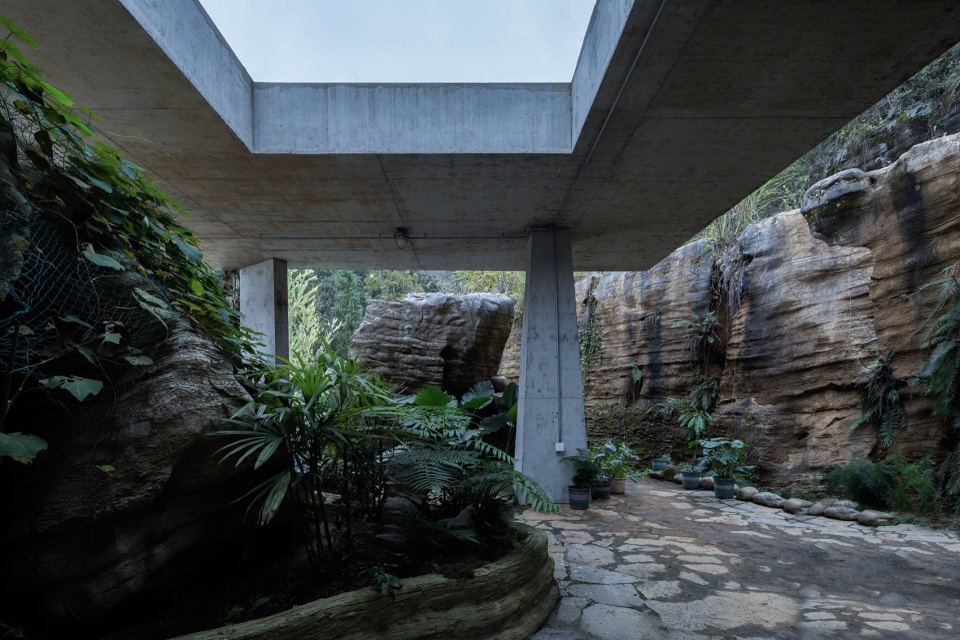

▼花园与石头，stone garden © 直译建筑摄影

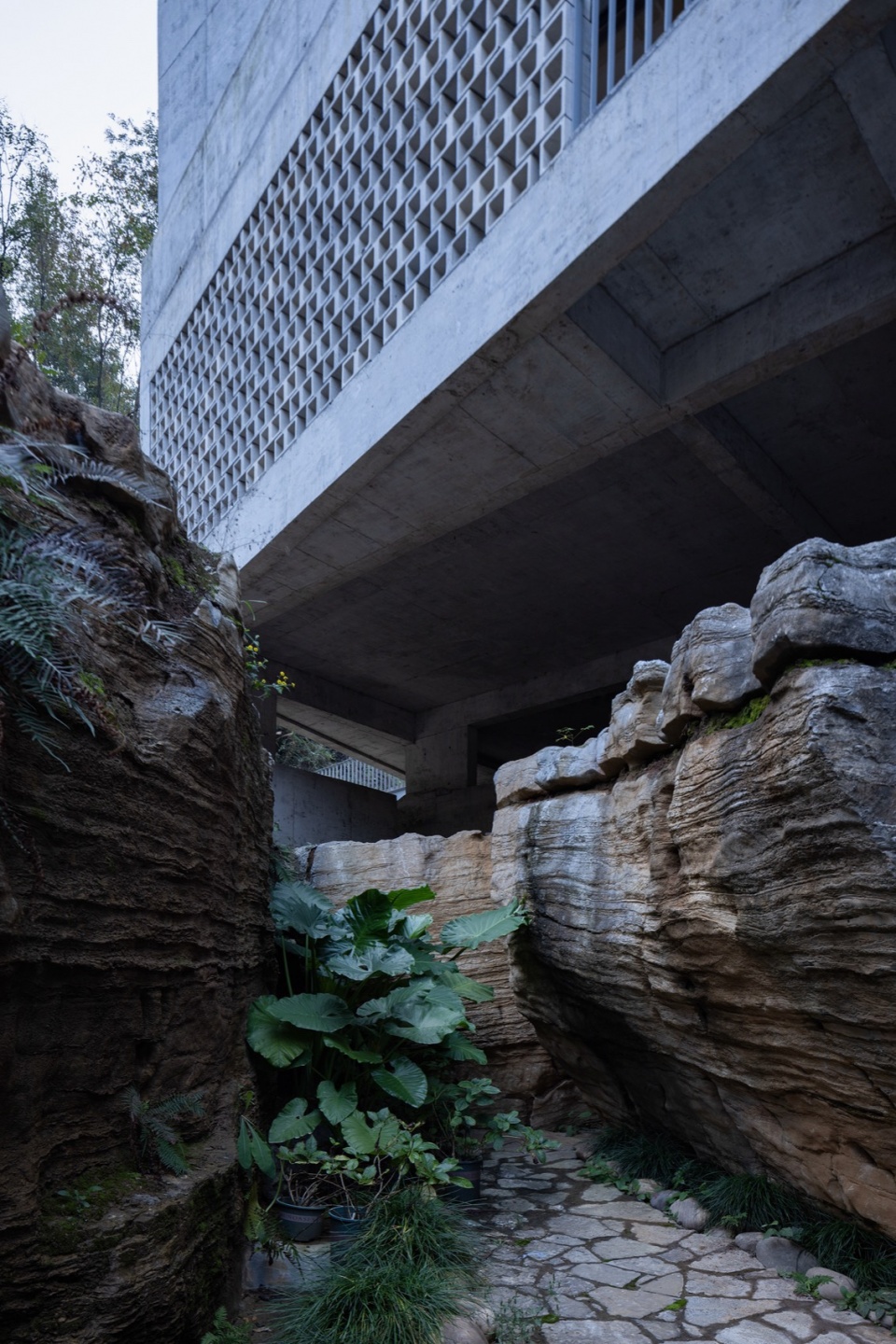

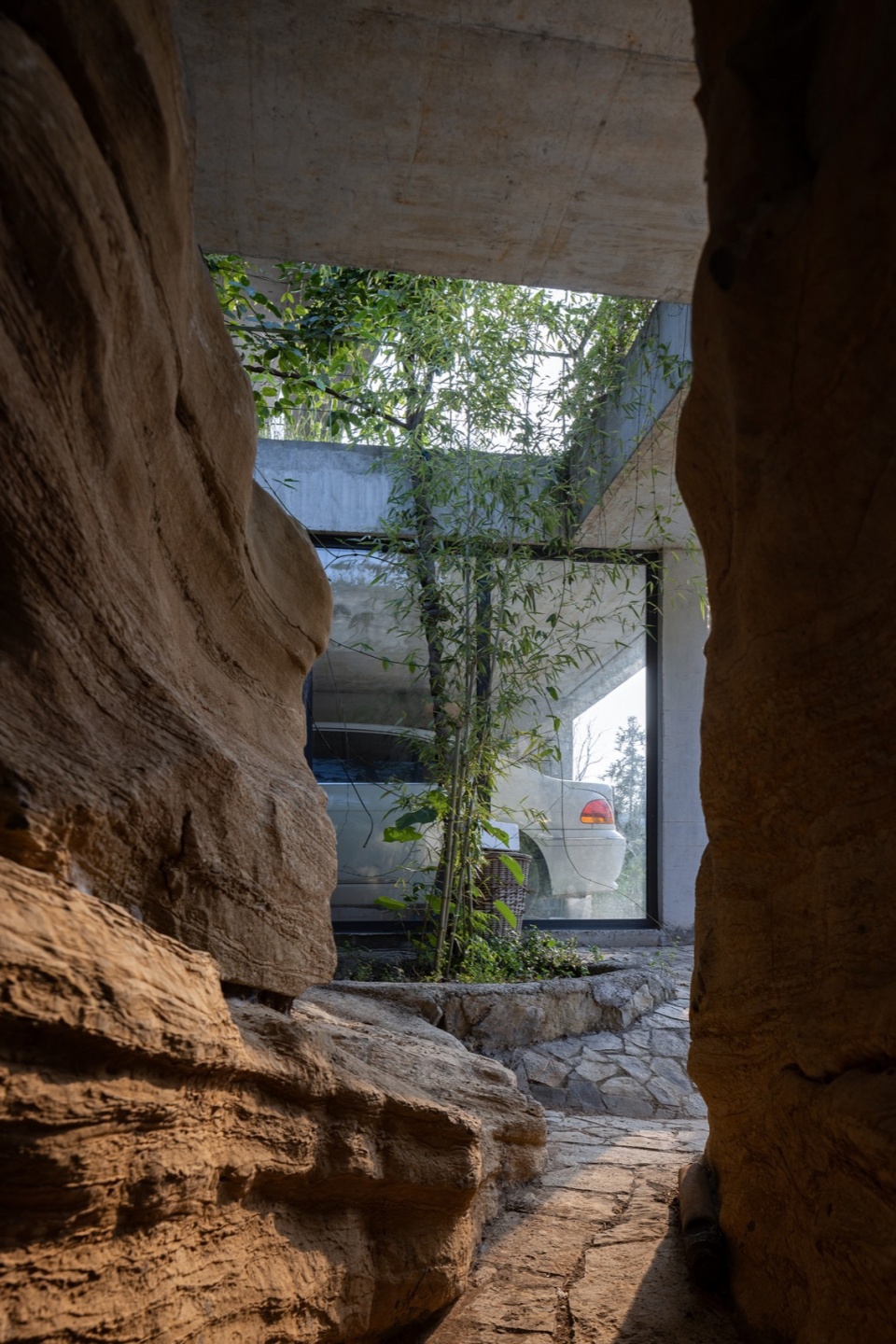

▼石缝游廊，stone gaps’ corridors © 直译建筑摄影

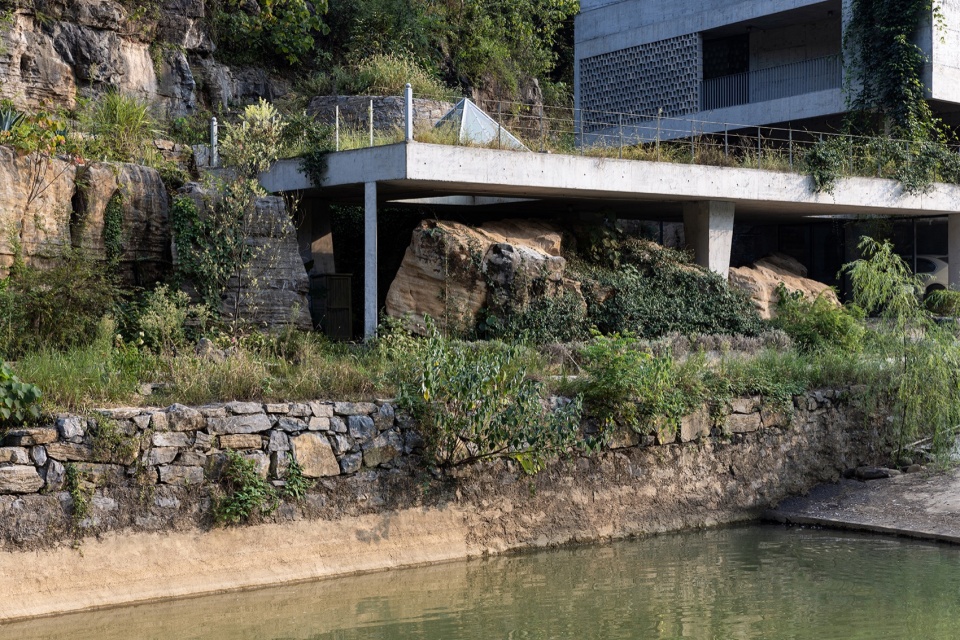

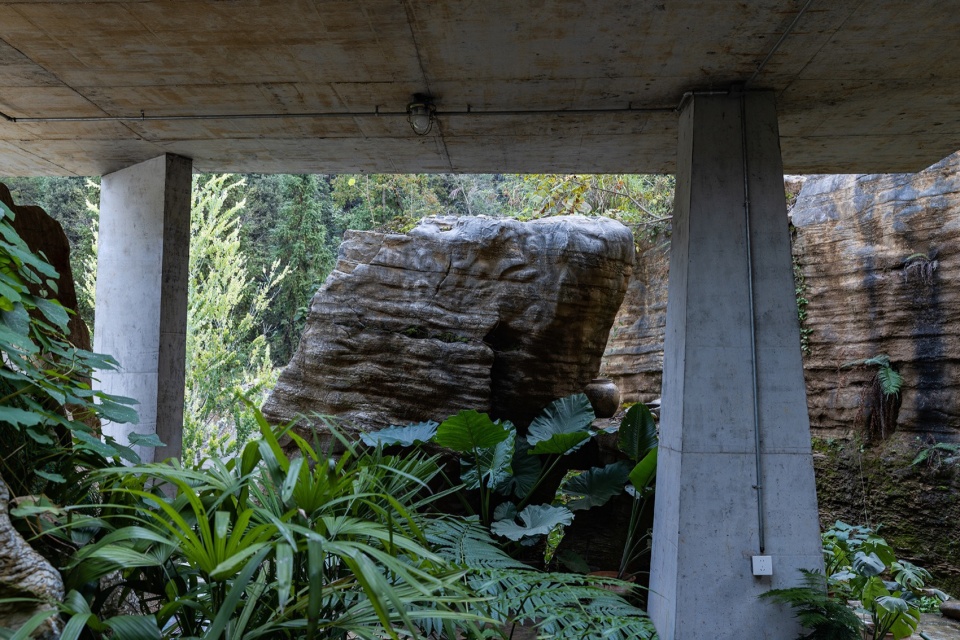

▼原石花园，stone garden © 直译建筑摄影

▼底层局部，partial view of the ground floor © 直译建筑摄影

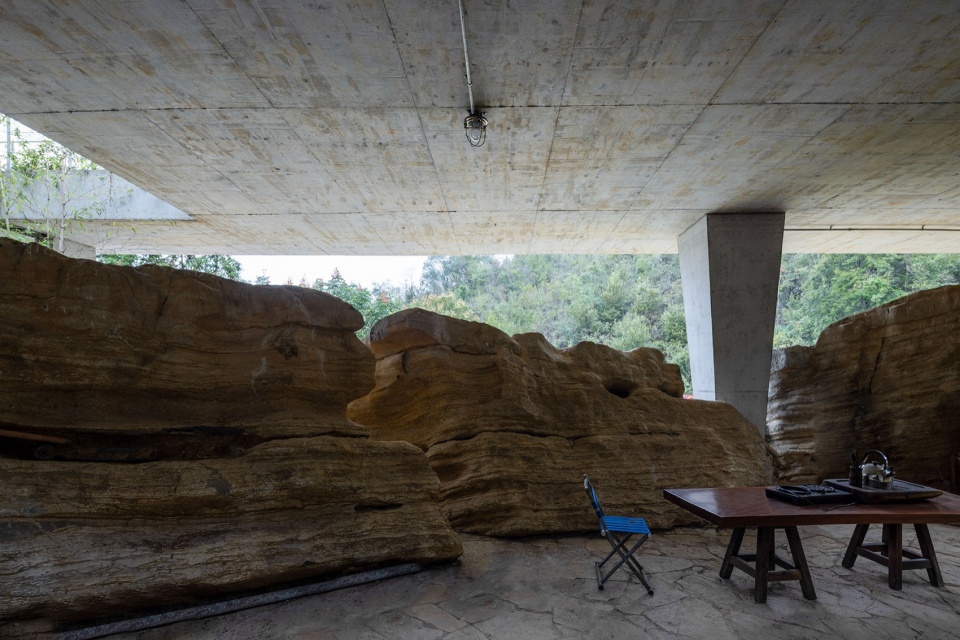

▼原石花园中的休憩空间，relaxation space in the stone garden © 直译建筑摄影

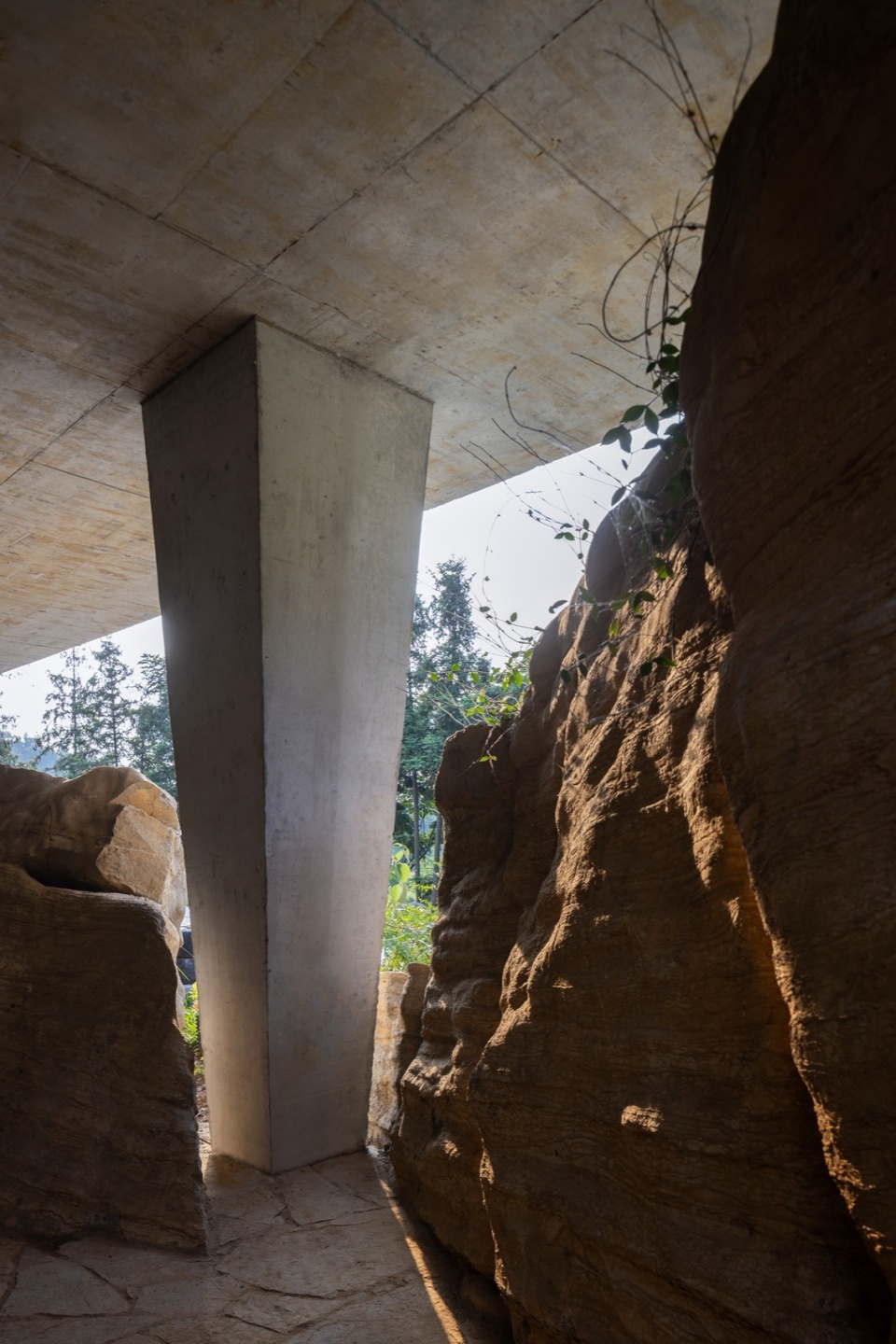

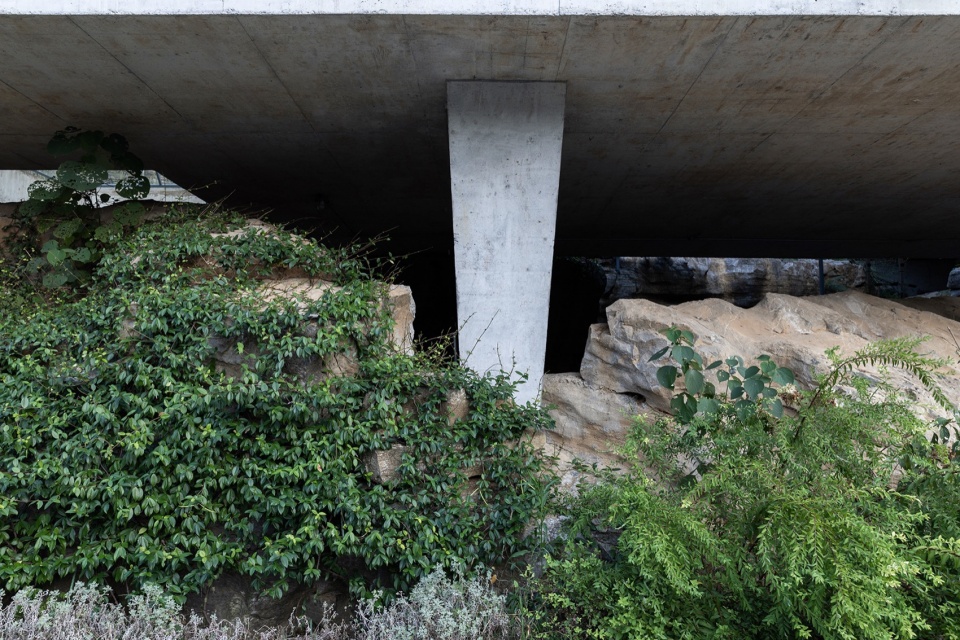

▼石头、柱子与底板，stone, pillar and slab © 直译建筑摄影

置房
Deal with space

由于占地面积的限制，相对于底层的舒展，上部的“居”则是像两块石头堆叠在一起。场地中部设置的楼电梯，在首层开放，并便捷的联系其余各层居室空间。每个居室各占一角，拥有相对独立的风景。两层“石”块以水平12度旋转，通过形体结构的错动形成二层阳台和三层露台的空间，房间的分体空调也藏于此旋转的夹缝之中。从后山可进入建筑二层并通过楼梯进入各个空间。阳台用空心砖稍作围合，获得阳光的同时，相对屏蔽外部视线的干扰。三层自身已具有私密性，用开放的露台可以得到远眺的视野。

Due to the limitation of floor space, the upper dwelling is like two stones stacked together, unlike the flowing space in the bottom. A staircase and elevator in the middle of site open to the first floor, which provide accessibility to the living rooms on the other floors. Each room occupies a corner and has a relatively independent view. The two layers of stone blocks are rotated at a horizontal angle of 12 degrees, and the staggered structure creates a space where the second floor is a balcony and the third floor is a terrace. The split air conditioning is also hidden in this rotating crevice. Clients can enter the second floor of the building directly from the back hill and access to the various spaces via stairs. The balcony is enclosed with hollow bricks, which allows for sunlight while relatively shielding external visual interference. The third floor has its privacy, and an open terrace provides a distant view.

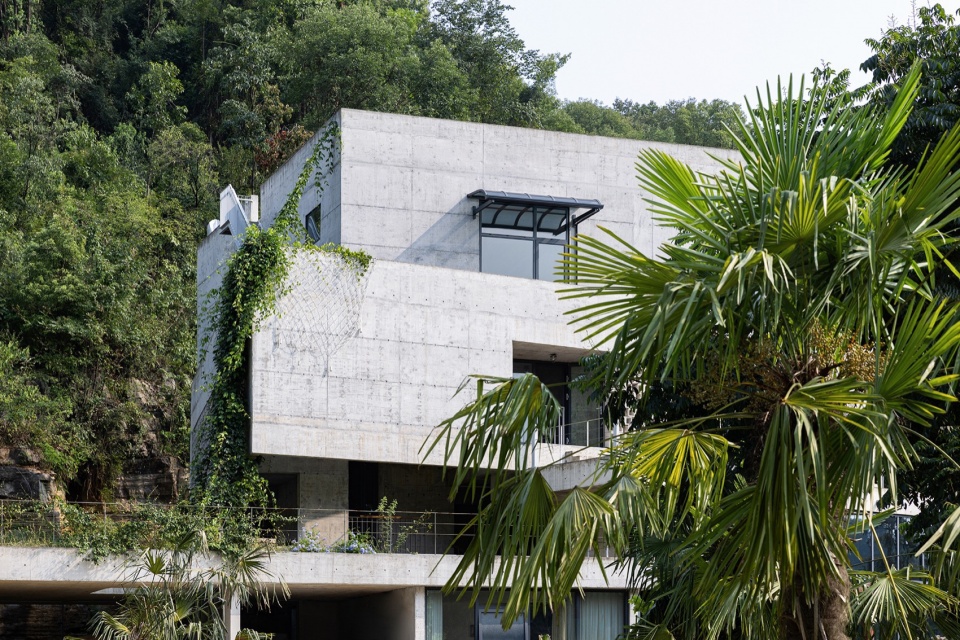

▼堆叠的“石头”，stacked “stones” © 直译建筑摄影

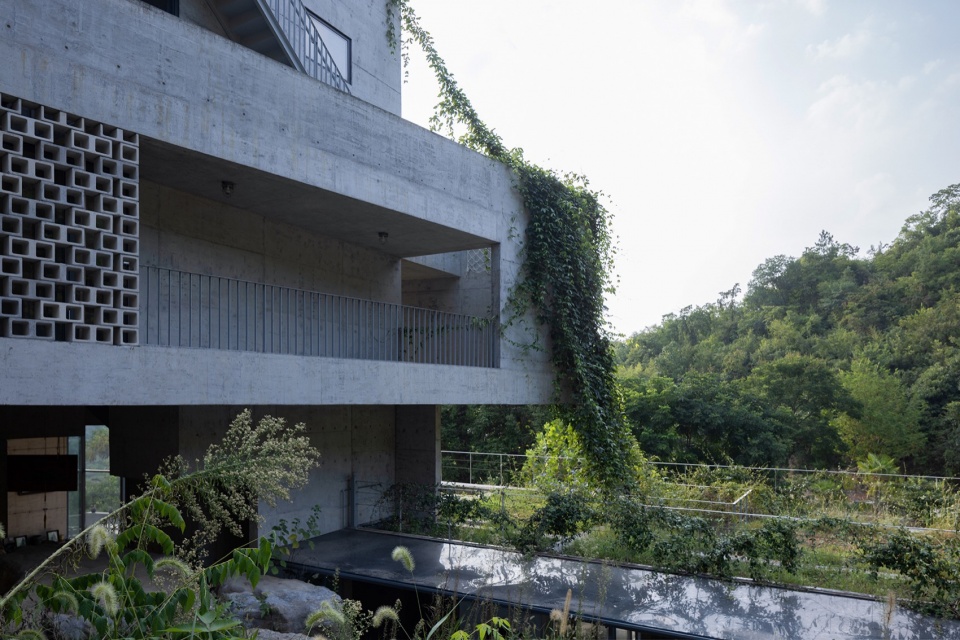

▼开放的露台，open terrace © 直译建筑摄影

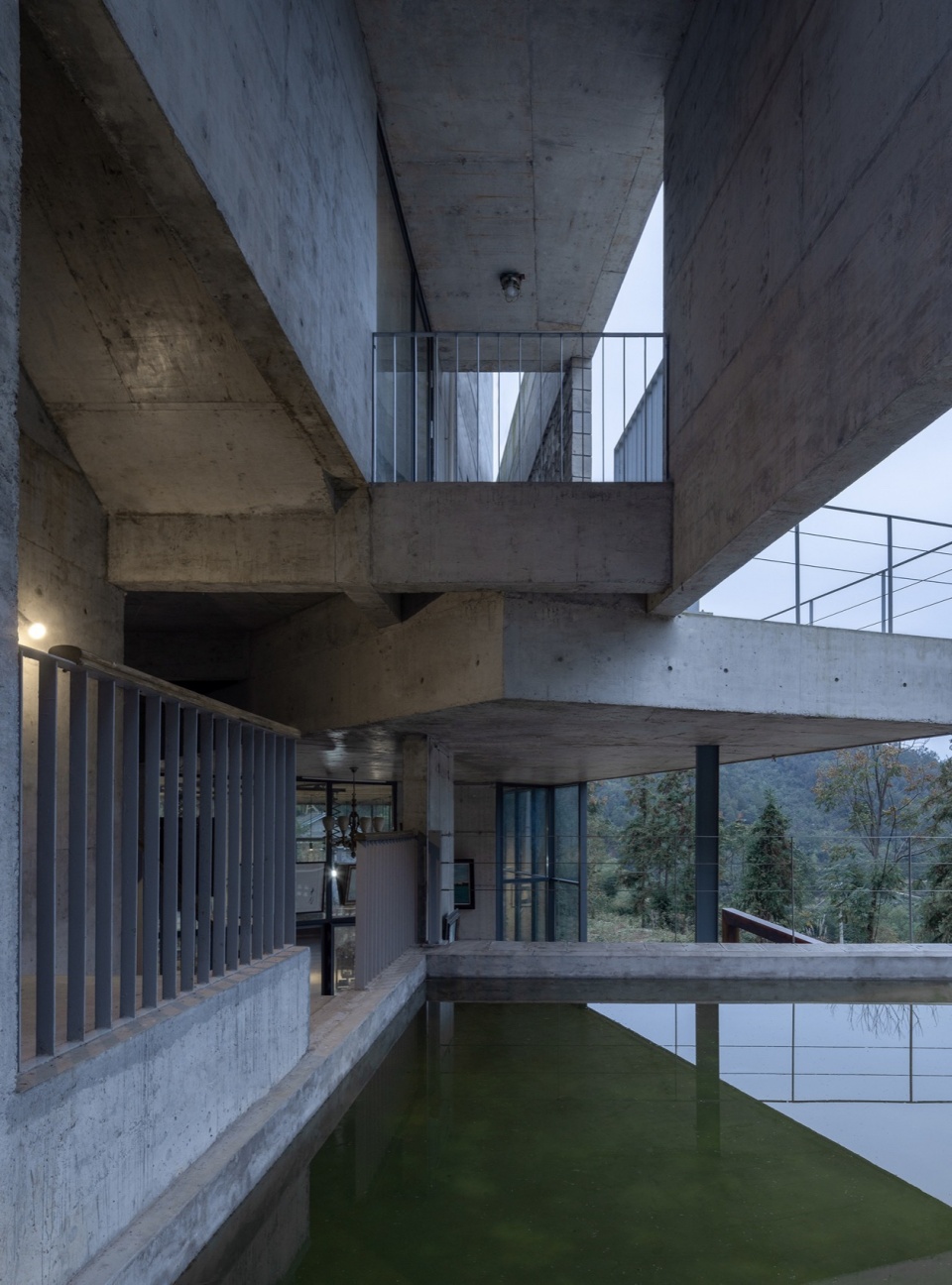

▼穿透的露台空间，staggered space © 直译建筑摄影

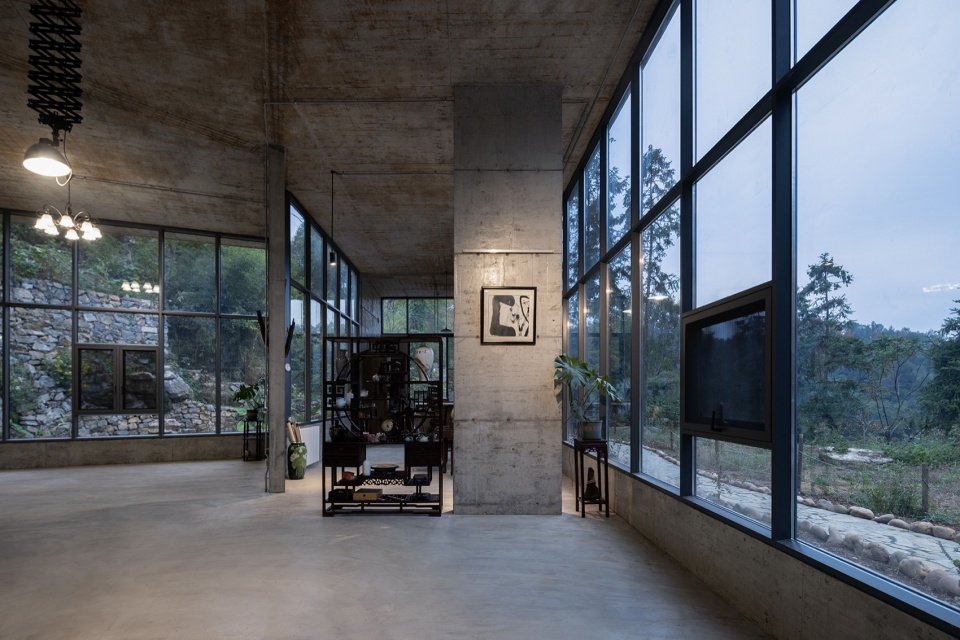

▼首层画室空间，drawing studio on the ground floor © 直译建筑摄影

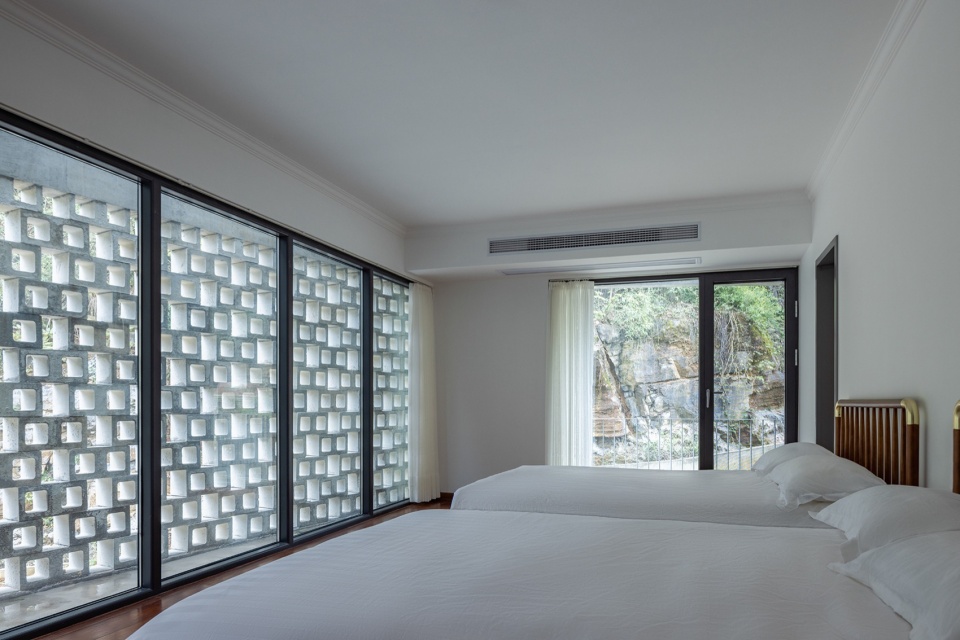

▼客房，guest room © 直译建筑摄影

建构
Construction

基地裸露的岩石足够作为持力层，纳入房屋结构体系的一部分。但其高低错落形状各异，放线后结构柱部分落于石上，而局部落在夹缝里。为了尽量减少基础开挖对石缝空间的影响，同时减少雨季对于基础结构的侧推力，部分承重构件通过抬梁转换。建筑主体部分全部采用剪力墙结构，利于室内空间的完整。非承重部分同样现浇，但配筋量减少。入口处设置的钢柱，作为异质存在，意在强化其公共性。原石花园区域的楼板，靠四根形态各异的混凝土柱体支撑，与包浆的原石形成对照。

The exposed rock at the base is sufficient to serve as a bearing stratum incorporated into the structural system of the house. Due to the different shapes of the rock, after setting out, some structural columns fall on the rocks, while others fall in the gaps. To minimize the impact of foundation excavation on the space of the rock crevices and reduce the lateral thrust on the foundation structure during the rainy season, some of the load-bearing elements are converted by lifting beams. The main part of the building is made of a shear wall structure, which is conducive to the integrity of the interior space. The non-load-bearing parts are also cast in place, but the amount of reinforcement is reduced. The steel columns installed at the entrance, as a heterogeneous presence, are intended to reinforce its publicity. The floor slabs of the stone garden area, supported by four concrete columns with various shapes, contrast with the raw stone.

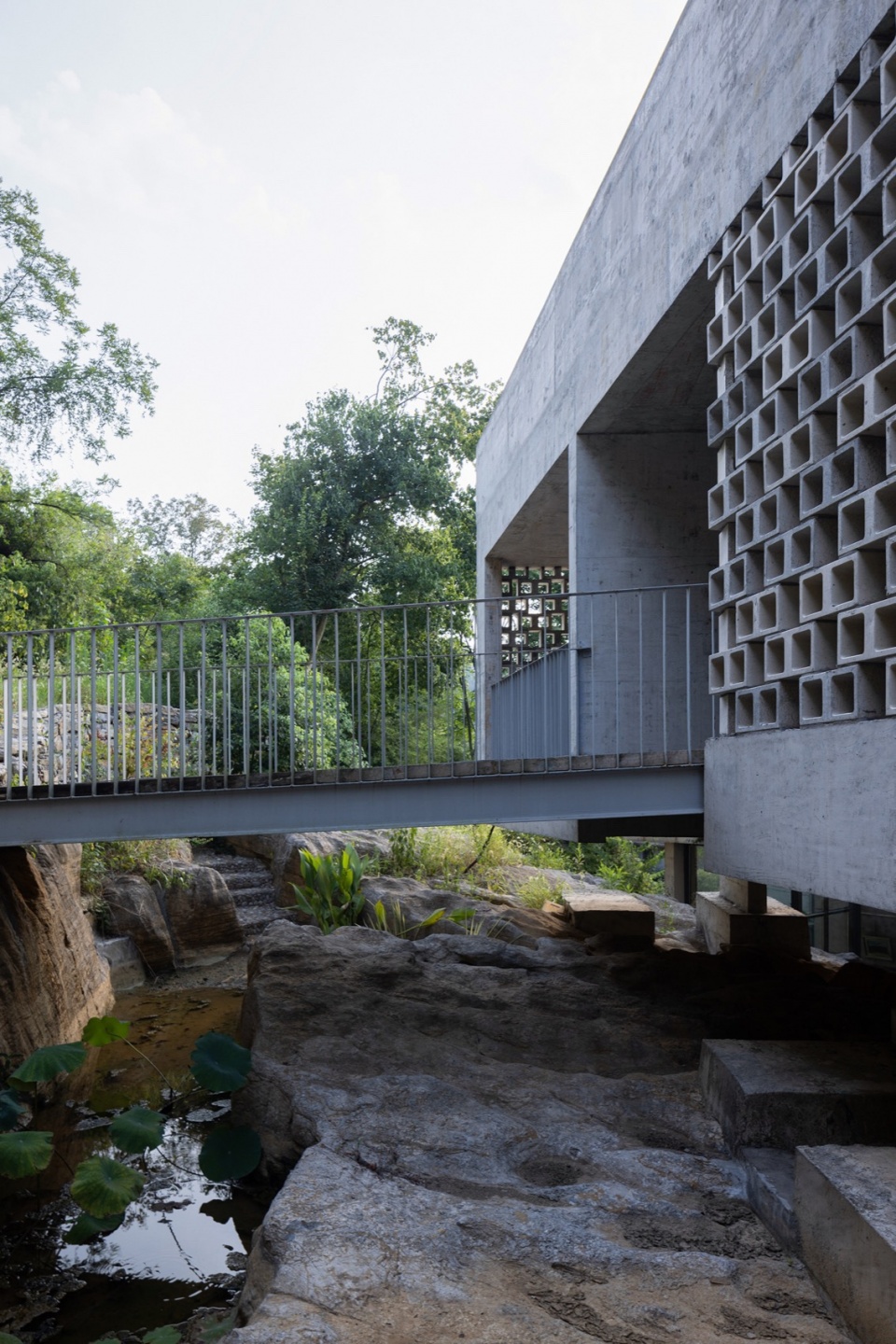

▼北侧连廊，northern bridge © 直译建筑摄影

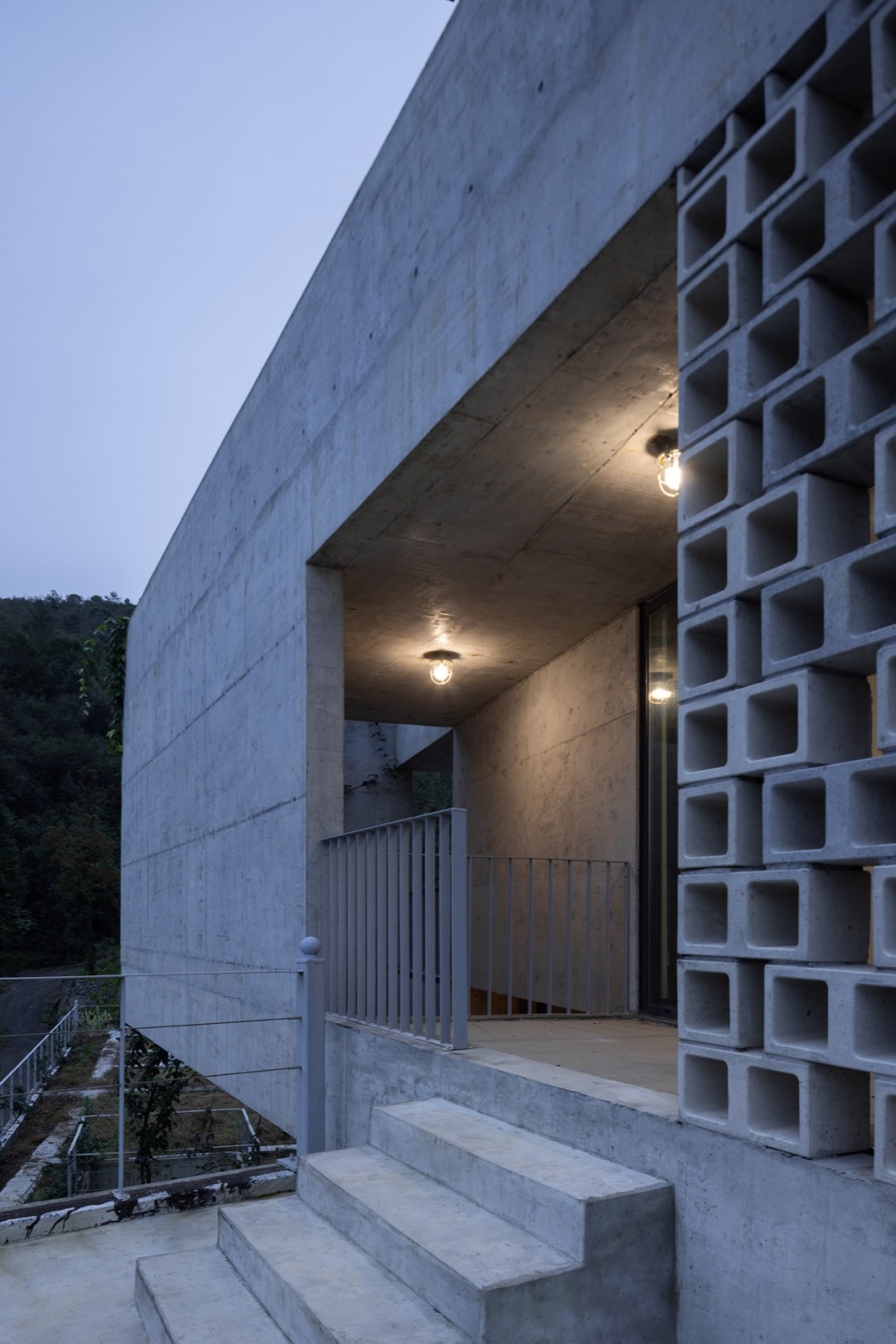

▼露台局部，terrace © 直译建筑摄影

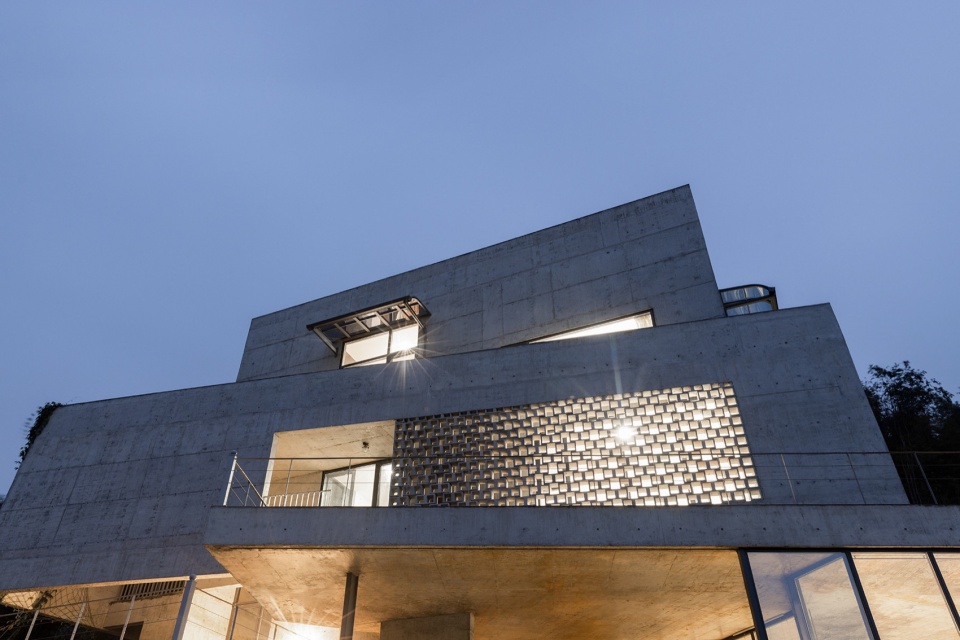

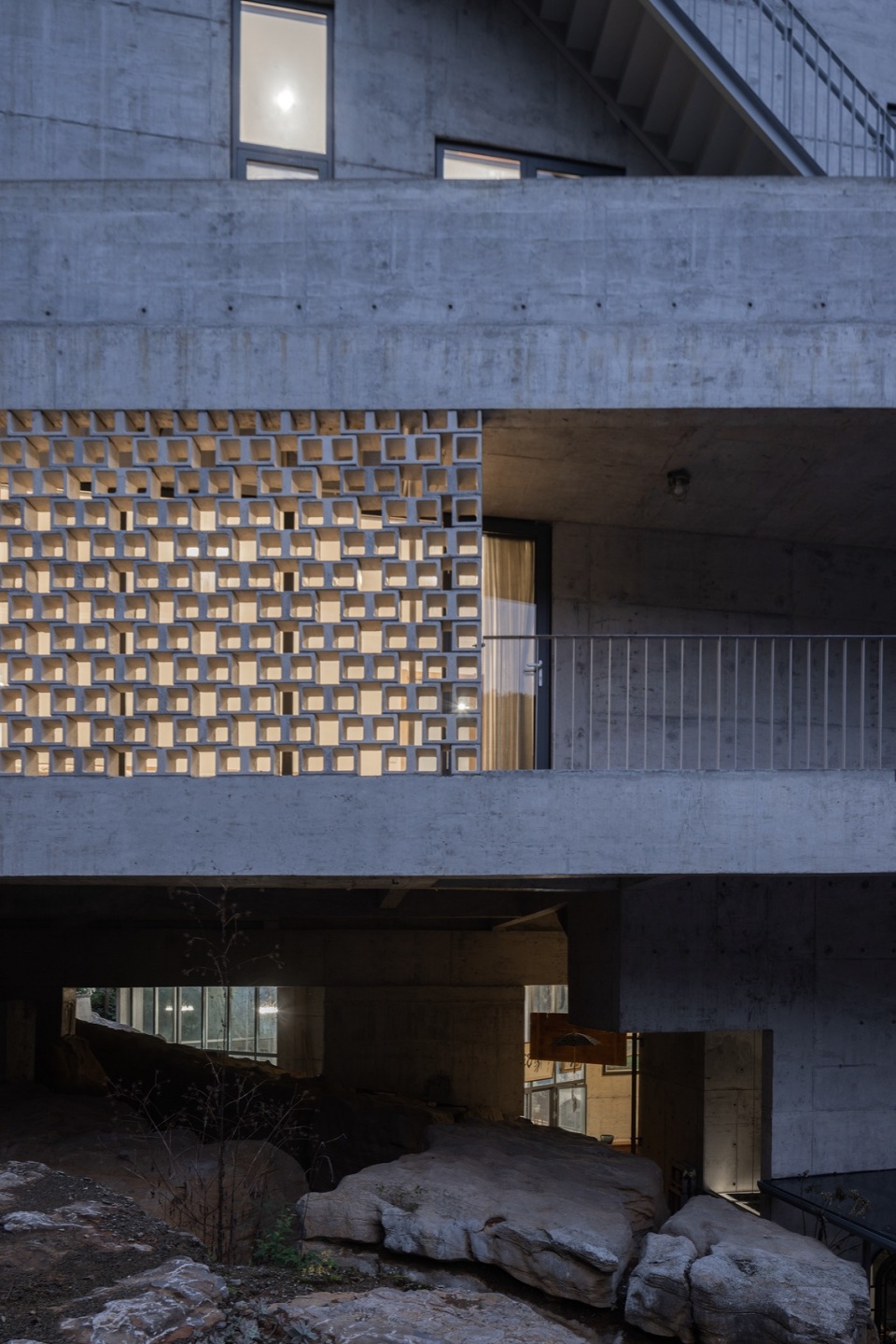

▼立面局部，facade close-up © 直译建筑摄影

得体
Harmony

建筑采用混凝土现浇，一层局部以石为柱，顶板覆土插入山体之中，取得与自然一体的使用空间，同时削弱建筑的体量感。混凝土墙体作为自然的背景，其旋转产生的或虚或实的空间，用爬藤覆盖，在半山之中若隐若现。非重叠部分的上层采用上翻梁的做法，使结构体系看起来层层脱开，呈现出石块般的自然堆叠感。

The building is constructed with cast-in-place concrete, with some of the first floor using stone columns and the roof covered by soil inserted into the mountain, which creates a space that is in harmony with nature while reducing the sense of volume of the building. The concrete wall serves as a natural backdrop, and the rotating space, which is either virtual or real, is covered with climbing vines, looming in the mountains. The upper layer of the non-overlapping section adopts the upturned beams, making the structural system appear layered and stacked like stones.

▼石块般的自然堆叠感，layered and stacked structure like stones © 直译建筑摄影

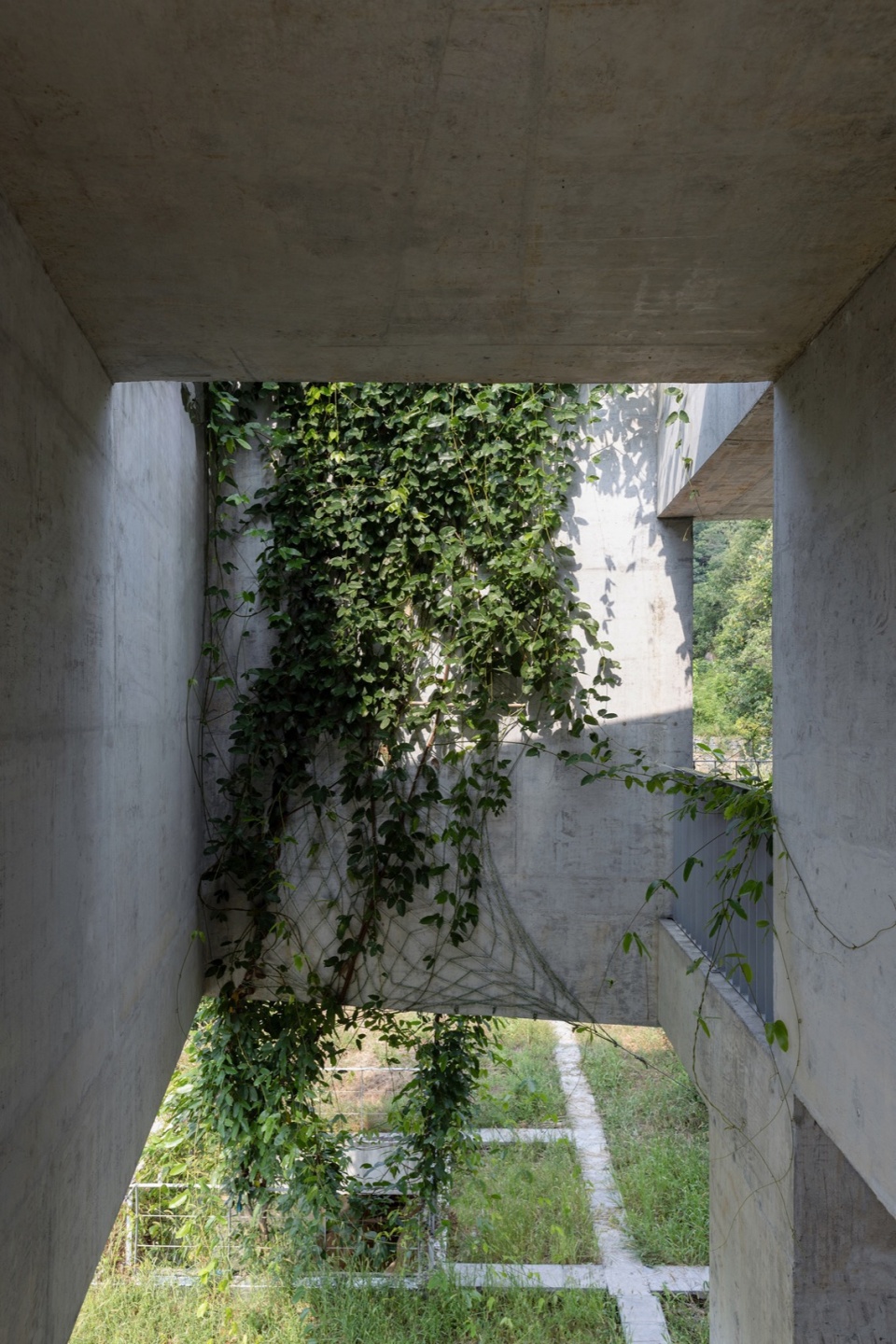

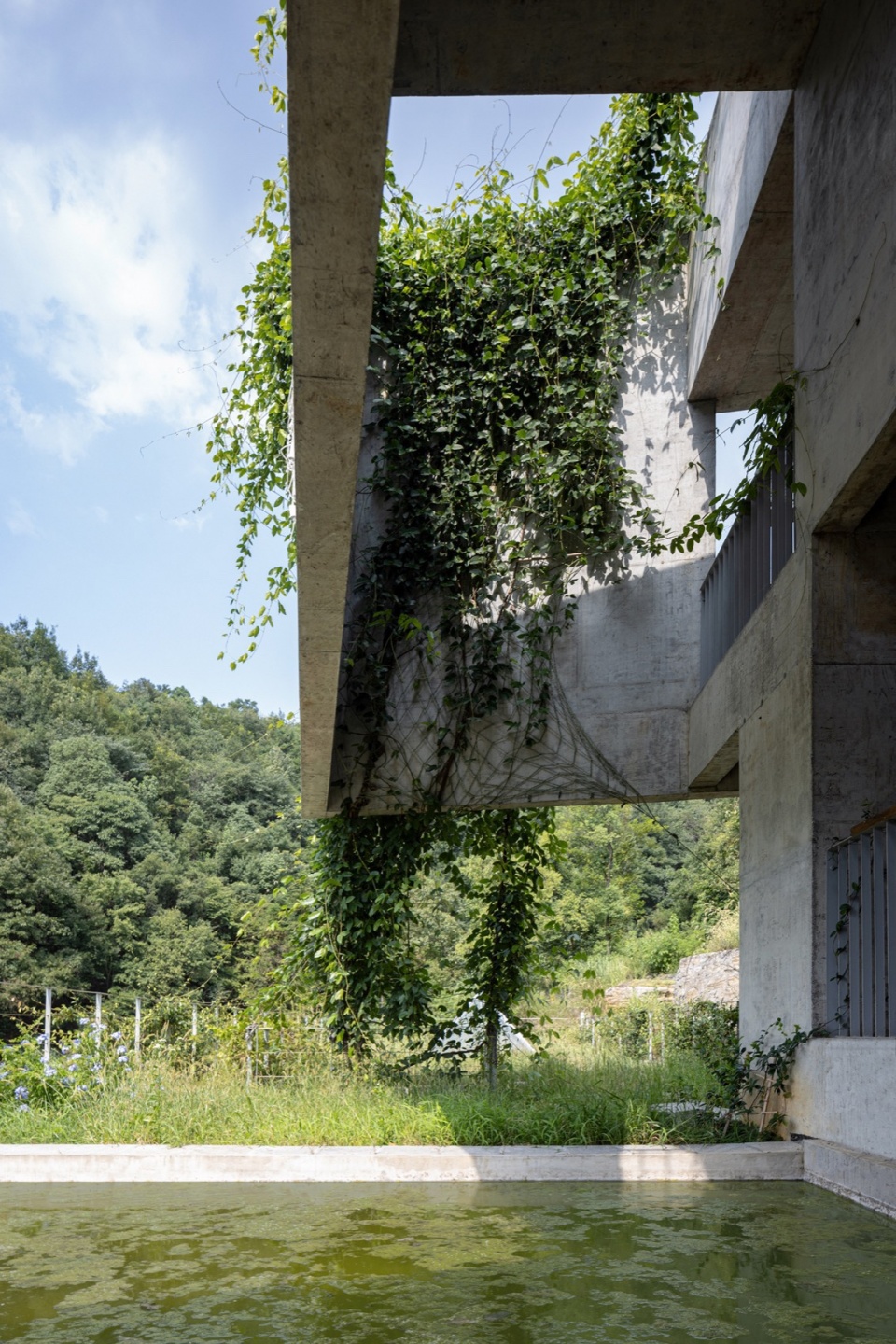

▼爬藤覆盖的或虚或实的空间，void and solid spaces covered with climbing vines © 直译建筑摄影

作为建造条件的一种回应，建筑粗粝的表面鲜有修饰，同时拥抱了就地取材的配件以及房主在使用中的调整。藤曼，落叶，昆虫，飞鸟随意抵达，他们和房主一起，在菜地，池塘和田间，自然徜徉。

As a response to the conditions of the building, there is less decoration in the coarse surface, while embracing locally sourced components and the adaptations made by the users. Vines, fallen leaves, insects, and birds arrive at will. Meanwhile, they wander naturally with the owners, in vegetable plots, ponds, and fields.

▼粗粝的建筑表面，coarse surface of the building © 直译建筑摄影

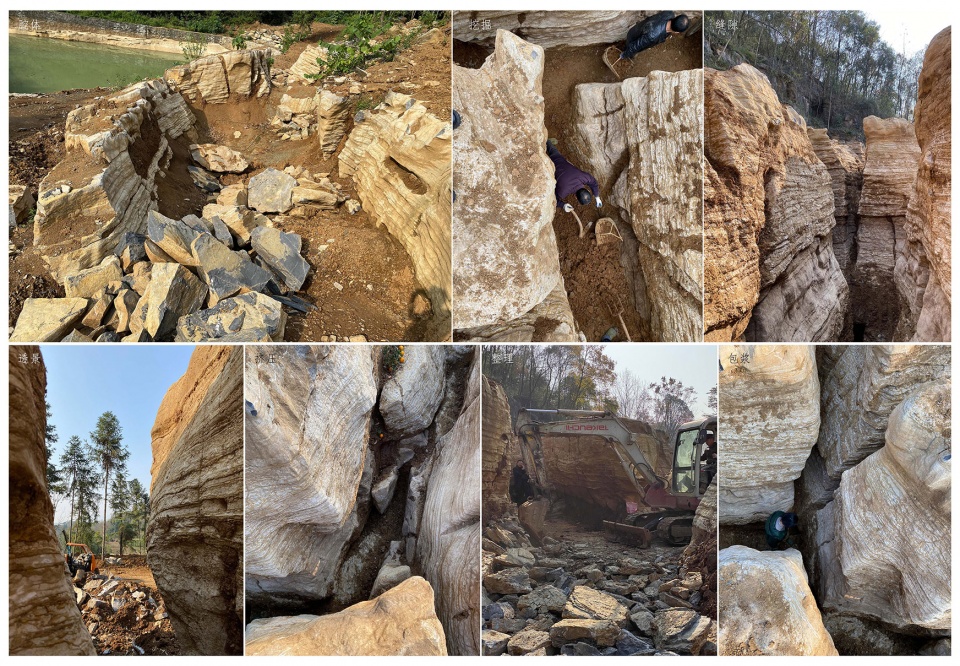

▼场地特征，original site © 小写

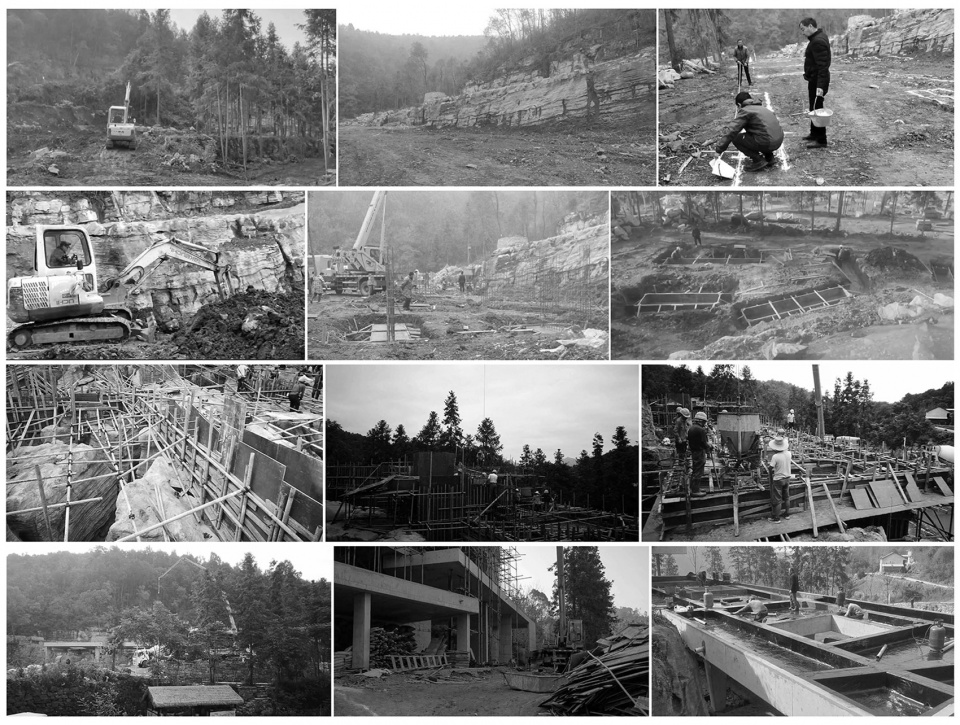

▼建造过程，under construction © 小写

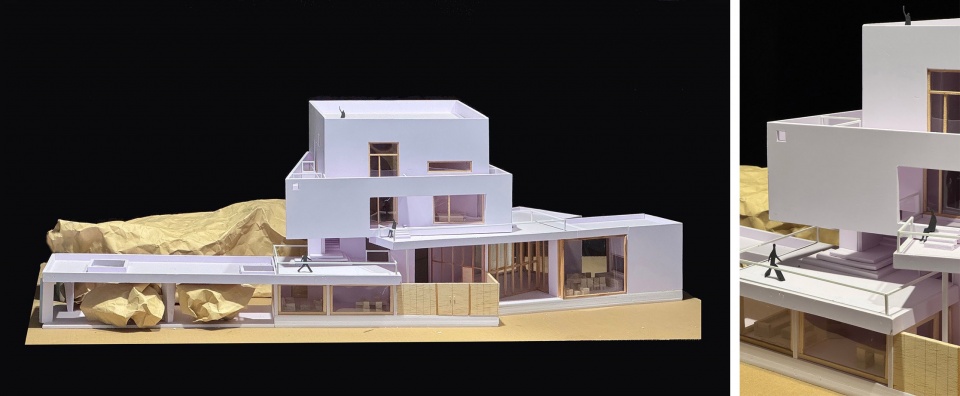

▼模型，models © 小写

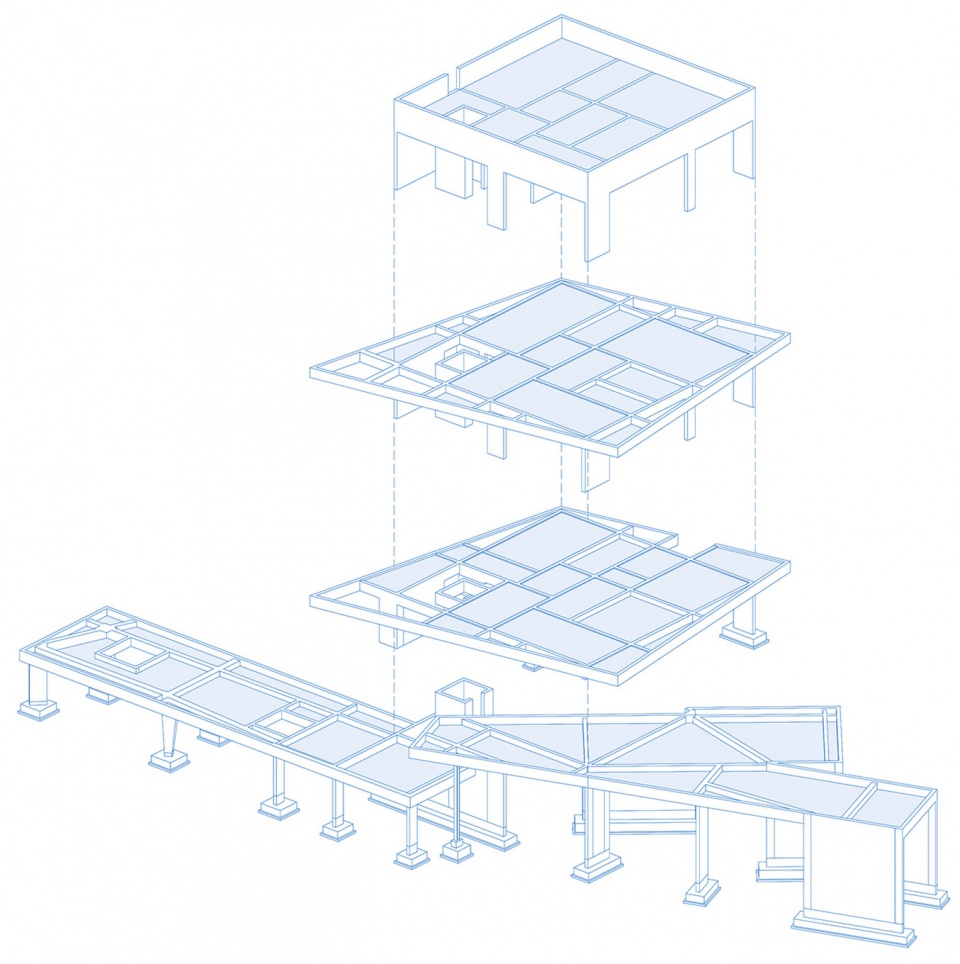

▼结构分解，exploded structure axon © 小写

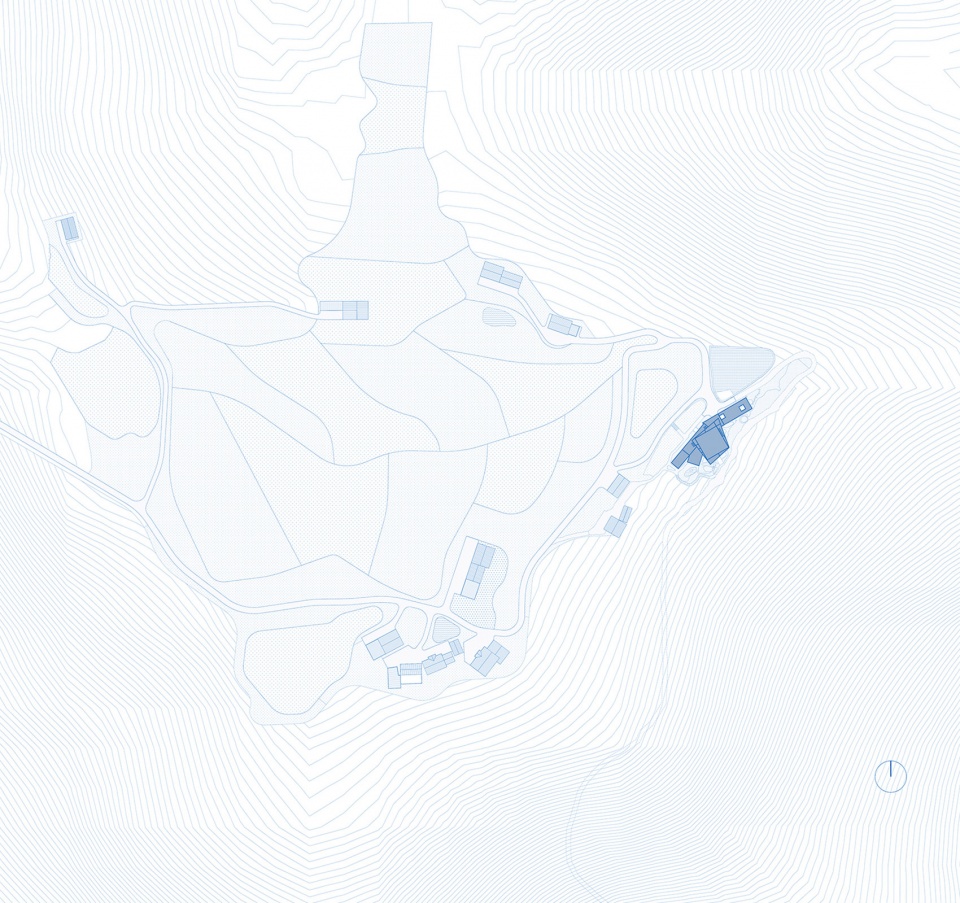

▼总平面图，site plan © 小写

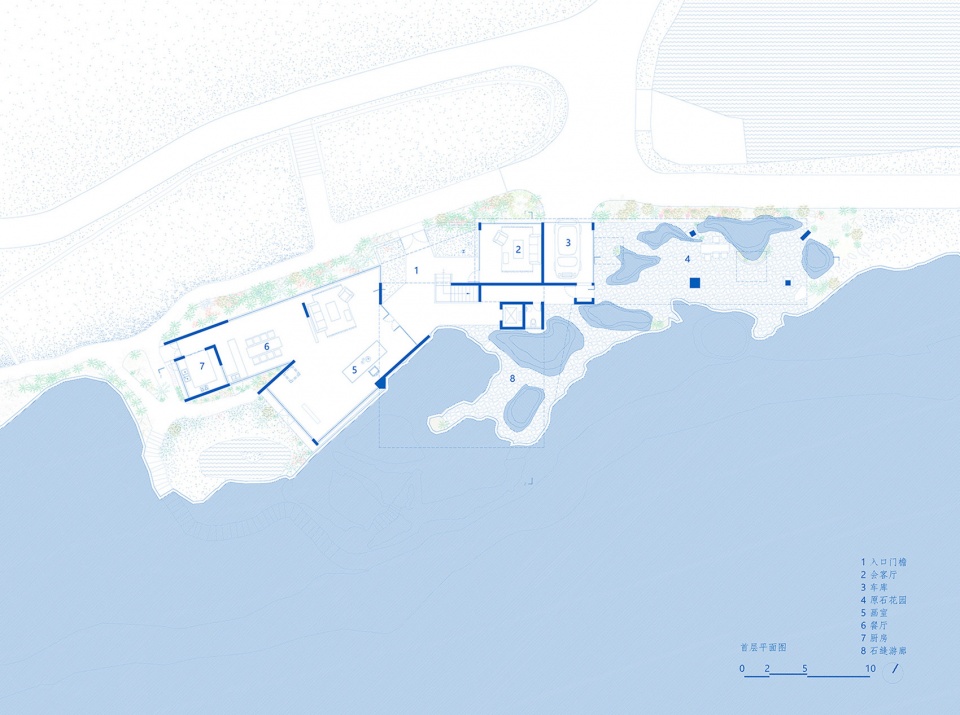

▼一层平面图，1F plan © 小写

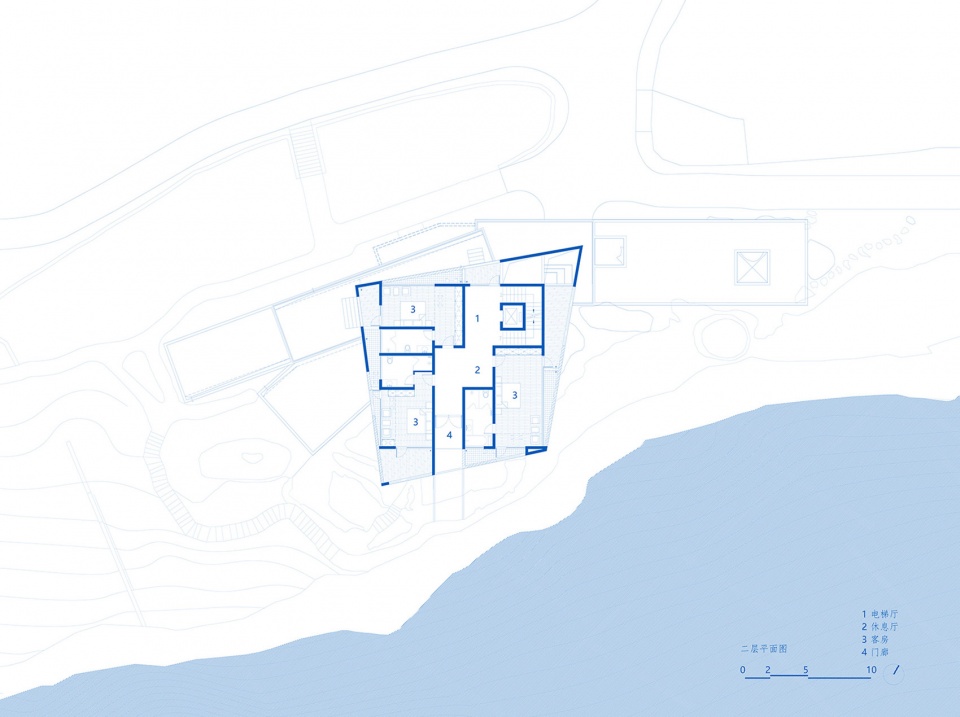

▼二层平面图，2F plan © 小写

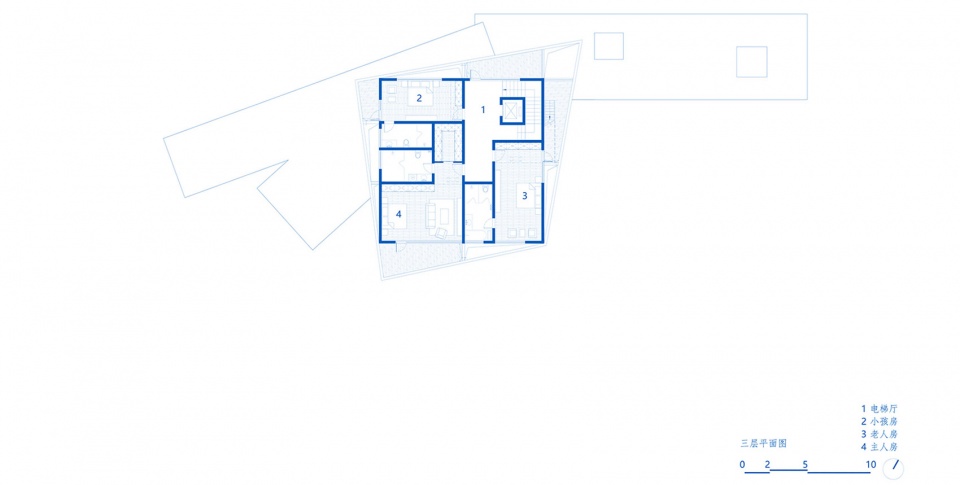

▼三层平面图，3F plan © 小写

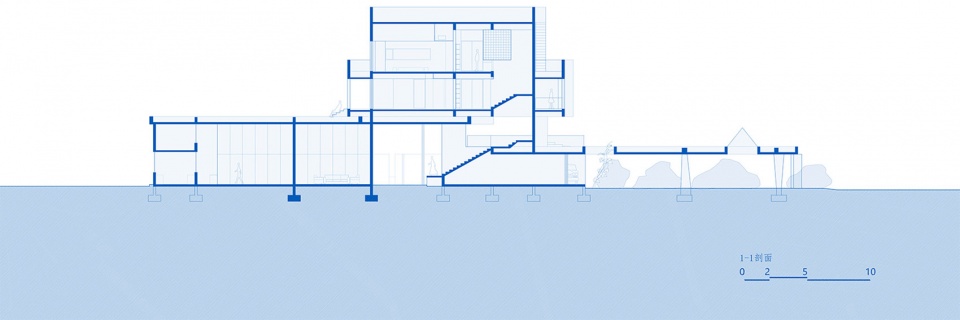

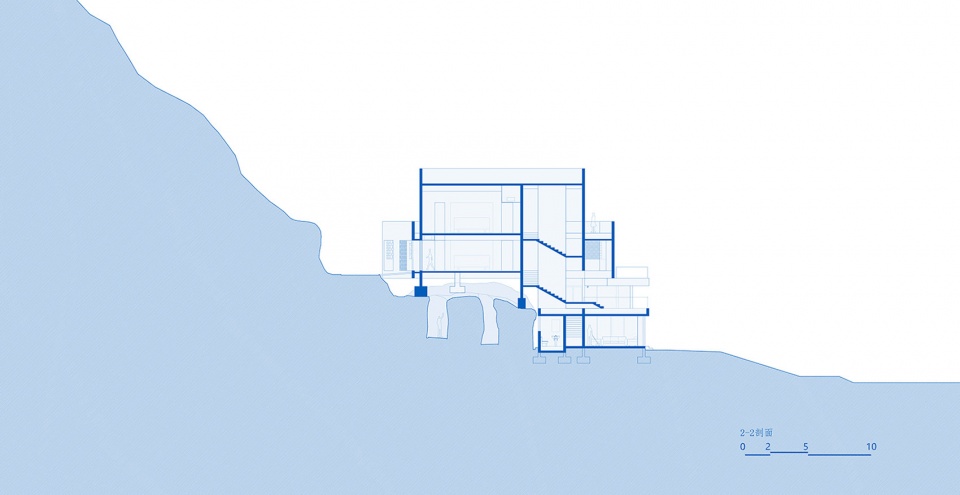

▼剖面图，sections © 小写

项目名称：石羊山壹号住宅
项目类型：建筑 /室内/景观
设计方：小写建筑事务所
公司网站：http://describingarch.com
联系邮箱：describing_das@qq.com
项目设计：李伟、袁媛
完成年份：2023年6月
设计团队：雷玲袁帅姜鹏马薇肖旭东范海涛王浩朱竹清李亮田梦
项目地址：宜昌宜都市五眼泉镇
建筑面积：560㎡
摄影版权：何炼直译建筑摄影
合作方：结构咨询吴海胜
客户：徐老师
材料：清水混凝土
品牌：佛山市泊尔英菲门窗

Project name: House Shiyangshan No. 1
Project type: Architecture, Interior, Landscape
Design: describing architects
Website: http://describingarch.com
Contact e-mail: describing_das@qq.com
Design year: August 2021
Completion Year:June 2023
Leader designer & Team: LI Wei ,YUAN Yuan& LEI Ling,YUAN Shuai, JIANG Peng, MA Wei,XIAO Xudong, FAN Haitao, WANG Hao, ZHU Zhuqing, LI Liang,Tian Meng
Project location: Wuyanquan Town, Yidu City, Yichang
Gross built area: 560㎡
Photo credit: HE Lian. Literal translation architectural photography studio
Partner: Structural Consultant: Wu Haisheng
Clients: Mr. Xu
Materials: Fair-faced concrete
Brands: parinfi doors and windows
