感谢 华南理工大学建筑设计研究院有限公司 予gooood分享以下内容。更多关于他们：Architectural Design & Research Institute of SCUT on gooood.
Appreciations towards Architectural Design & Research Institute of SCUT for providing the following description:

白云山自古有“羊城第一秀”之称，是广州的城央山体公园，也是市民休闲游玩的好去处。摩星岭是白云山最高峰和广州城区的海拔最高点，为实现广州市民的无障碍登山，在摩星岭修建以观光扶梯及栈道为主体的便民工程。

▼项目视频，video

Baiyun Mountain has long been renowned as the “First Beauty of Yangcheng,” serving as a central urban park in Guangzhou and a popular leisure destination for residents. Moxing Ridge, the highest peak of Baiyun Mountain and the highest point in Guangzhou’s urban area, now features a public convenience project to ensure accessible mountain climbing for all citizens. This project primarily includes the construction of a sightseeing escalator and a boardwalk.

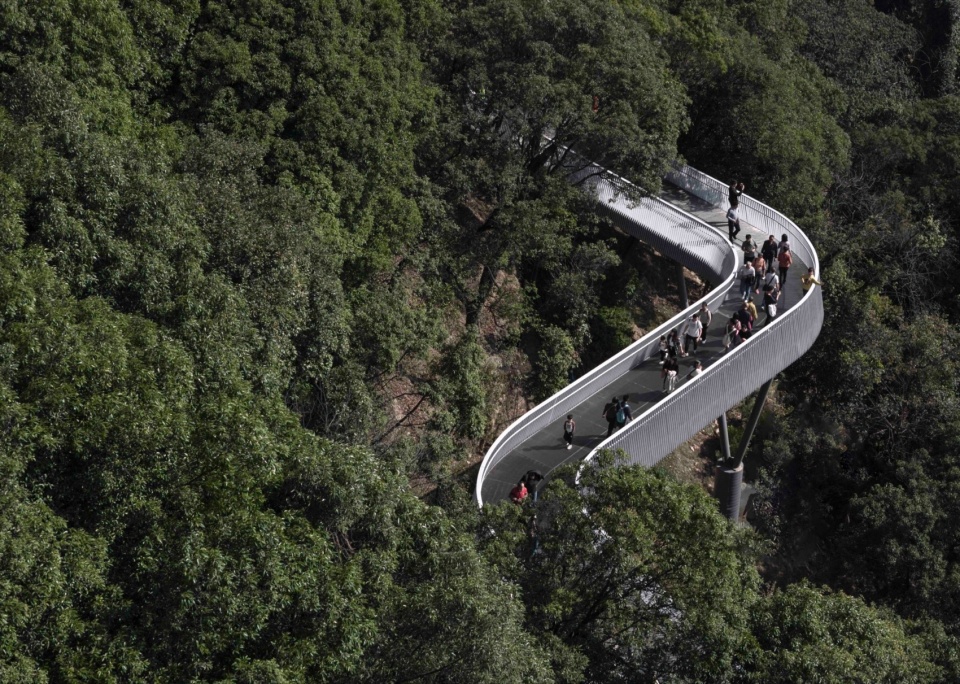

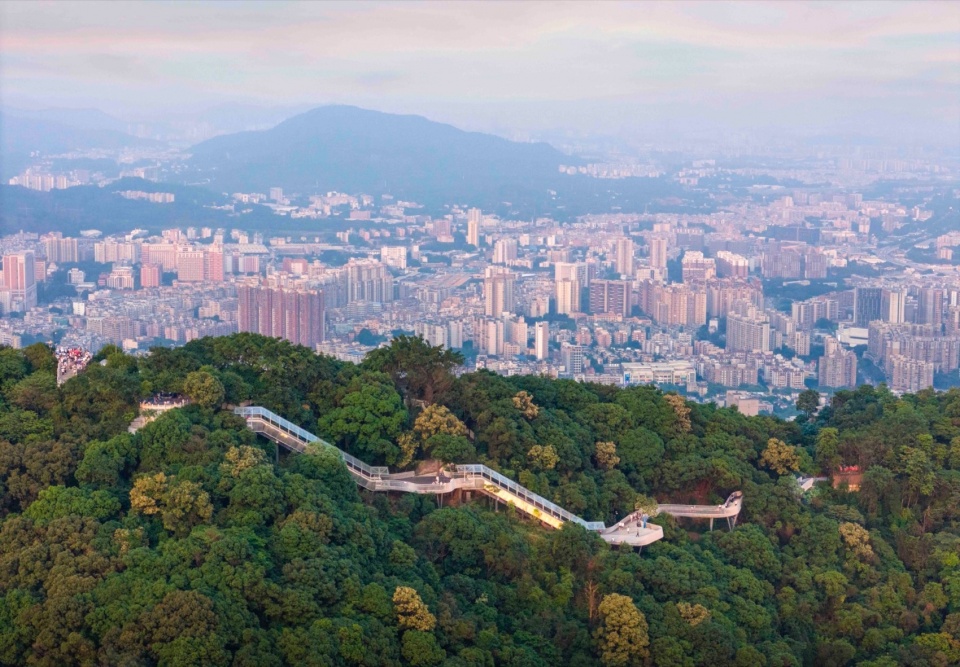

▼摩星岭鸟瞰，aerial view of Moxing Summit © 诺金浮图摄影工作室

项目概况
Project Overview

观光扶梯位于白云山摩星岭山脊西侧，采用“栈道+扶梯”的组合形式，全程210米，其中栈道总长150米，扶梯总长60米，抬升高度26米。设计上采用最小限度影响自然景观的方式，丰富游客游览体验路线，实现白云山最后“一公里”无障碍通行。项目注重于人性化设计，对于游客上下摩星岭山顶可有步行现状台阶和搭乘扶梯两种路径体验的选择，解决了老人小孩等行动不便的特殊人群登顶困难需求。

The scenic escalator is located on the west side of the ridge of Moxing Summit in Baiyun Mountain, utilizing a combination of “walkway + escalator” with a total length of 210 meters. The walkway spans 150 meters, and the escalator extends for 60 meters, with a vertical rise of 26 meters. The design minimally impacts the natural landscape, enhancing the visitor experience and achieving barrier-free access for the final “kilometer” of Baiyun Mountain. The project focuses on human-centered design, offering visitors the option to either walk or use the escalator to reach the mountaintop, catering to the needs of the elderly, children, and others with mobility issues.

▼摩星岭鸟瞰，aerial view of Moxing Summit © 诺金浮图摄影工作室

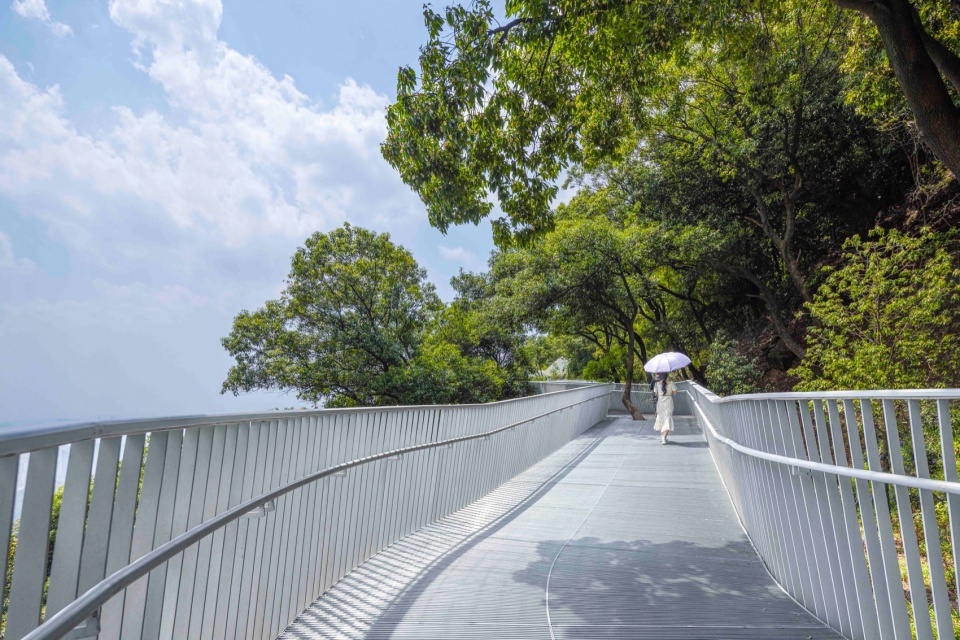

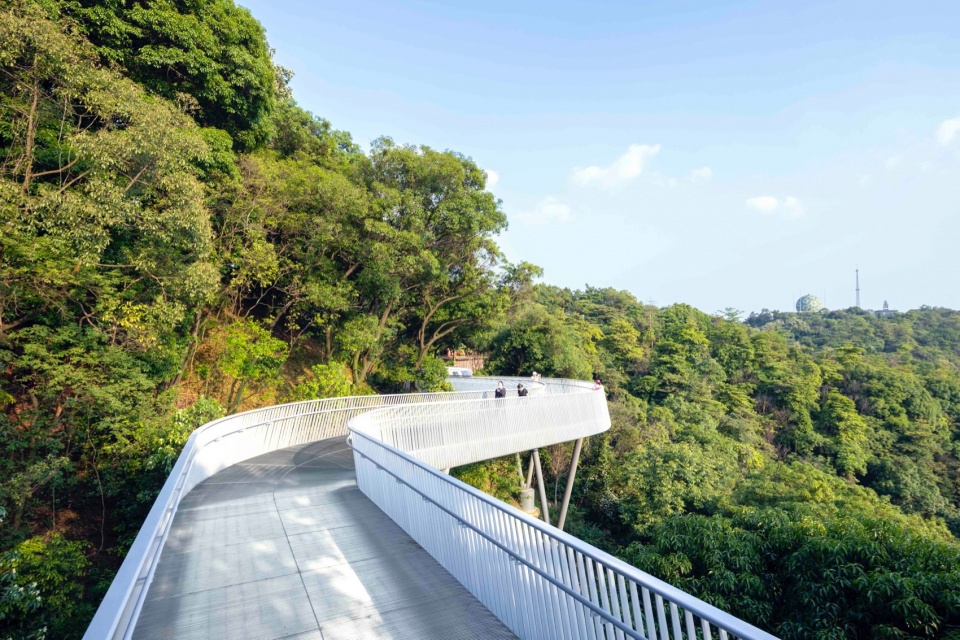

▼摩星岭栈道，walkway of Moxing Summit © 诺金浮图摄影工作室

设计思路
Design Idea

通达便捷的无障碍流线
Accessible and Convenient Flow Lines

为解决老人小孩等行动不便的特殊人群登顶困难需求，观光扶梯设置于摩星岭山脊西侧，采用“栈道+扶梯”的组合形式，全程210米，其中栈道总长150米，为游客提供舒适的爬山体验，栈道坡度设计为4%；扶梯总长60米，抬升高度26米。栈道与扶梯的组合连接，使游览流线和空间布局更加连贯、和谐。游客可以通过栈道进入扶梯，随着路径的引导，逐步登山摩星岭山顶观景。让人们在此漫步、欣赏风景的同时，亭受观览山野的美景并进行运动健身活动。

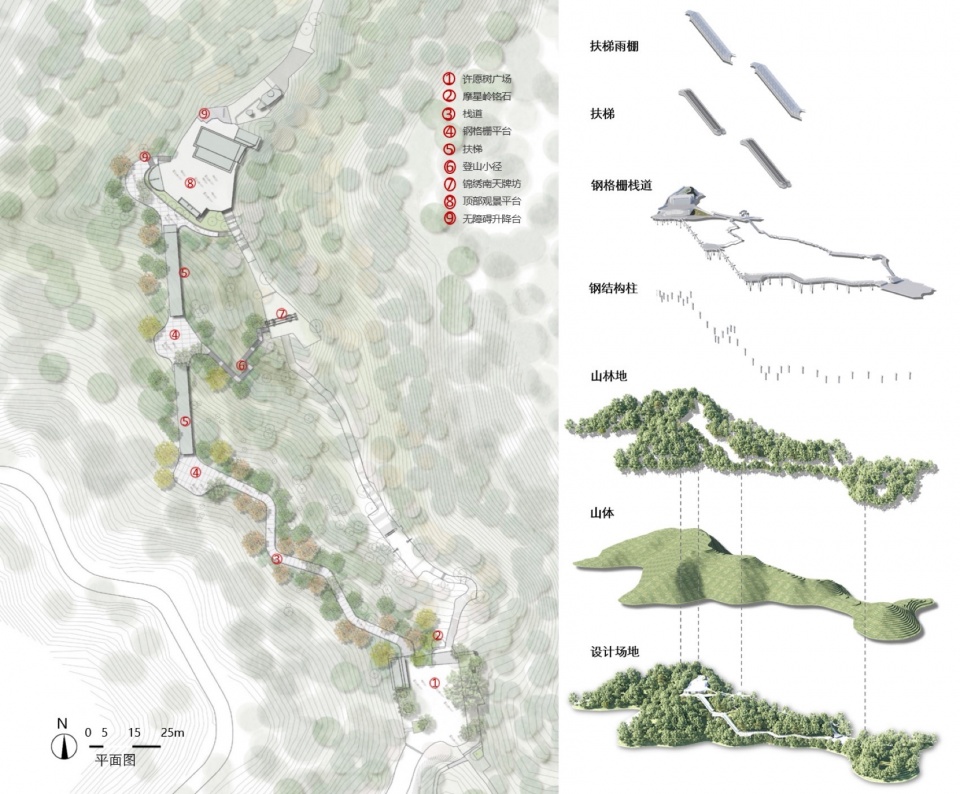

▼平面图及景观结构，design plan & landscape structure © 华南理工大学建筑设计研究院有限公司

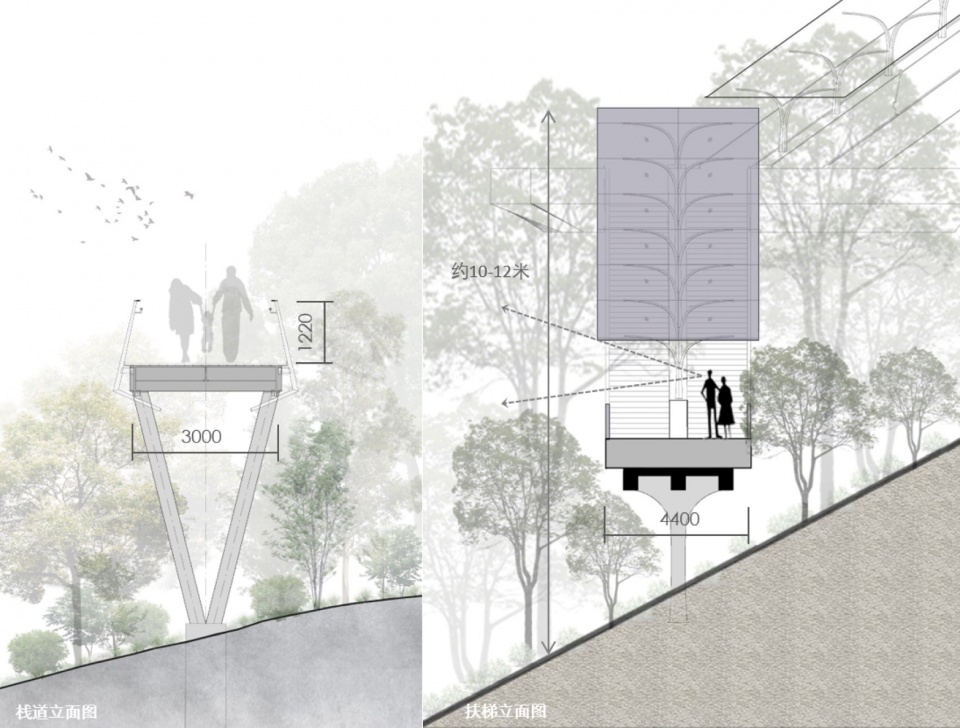

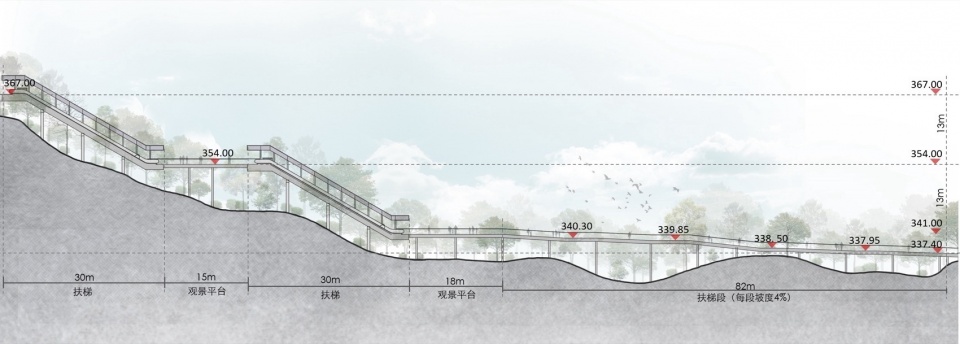

▼扶梯栈道剖面图，section of escalator plank road © 华南理工大学建筑设计研究院有限公司

To address the climbing difficulties for the elderly, children, and others with mobility issues, the scenic escalator is set on the west side of Moxing Summit’s ridge, using a combination of “walkway + escalator” over 210 meters (150 meters walkway with a 4% gradient and 60 meters escalator with a 26-meter vertical rise). The combination ensures a continuous and harmonious flow, allowing visitors to enter the escalator via the walkway, gradually reaching the peak while enjoying the scenic views and engaging in fitness activities.

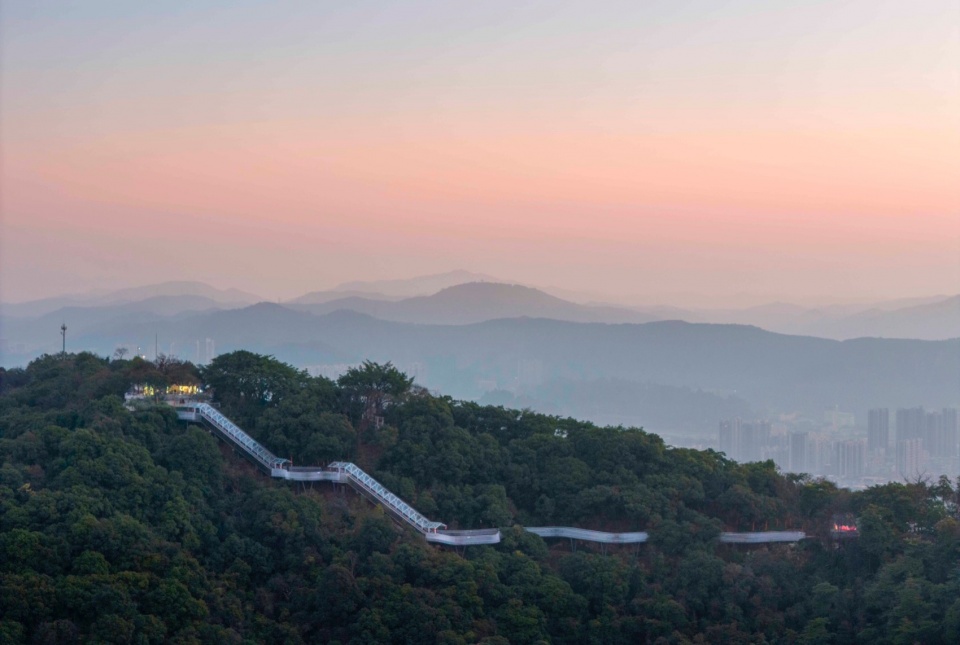

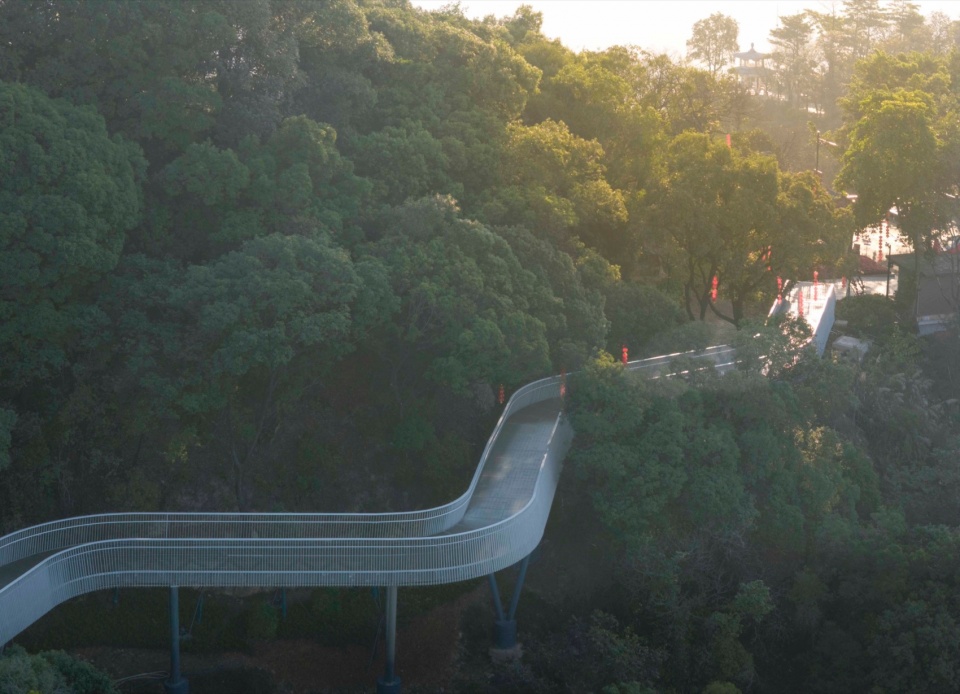

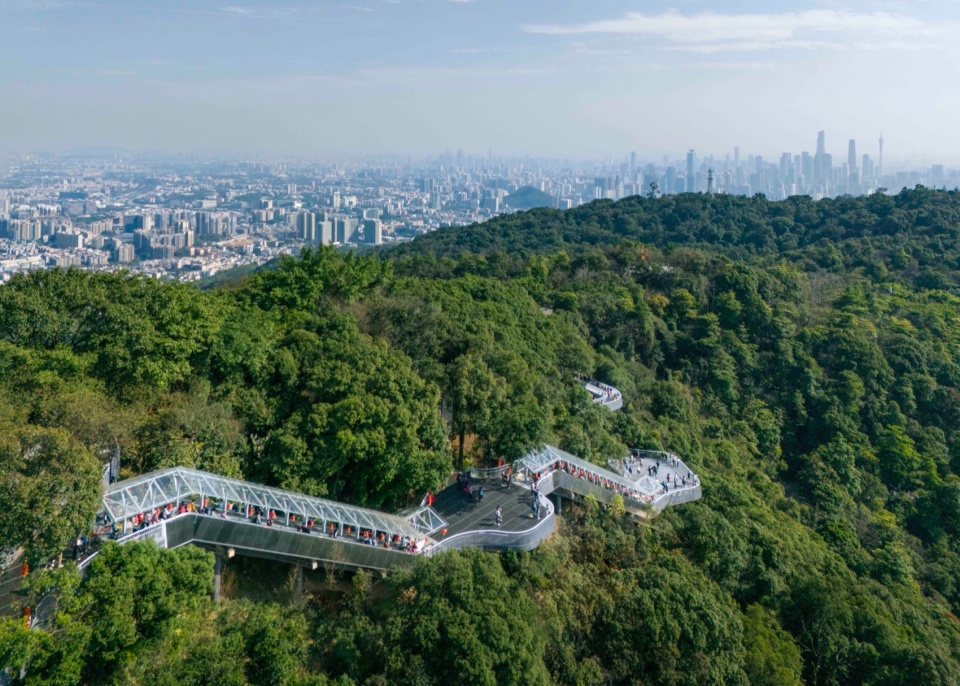

▼扶梯栈道远景鸟瞰，distant view aerial perspective of escalator and walkway © 诺金浮图摄影工作室

敬畏山林的低干预设计
Low-Impact Design Respectful of the Mountain Forest

在设计中应最大限度地对场地原有自然面貌进行保护和利用，因此栈道在不破坏现状地貌的条件下架起。与此同时，在尊重场地现状地形，合理设计栈道路线走向。栈道走向尽量避开大树位置，对原有的大乔木也进行了保留。

The design maximizes the preservation and utilization of the site’s natural features, with the walkway elevated to avoid damaging the existing terrain. The walkway route respects the current topography and avoids large trees, preserving significant trees.

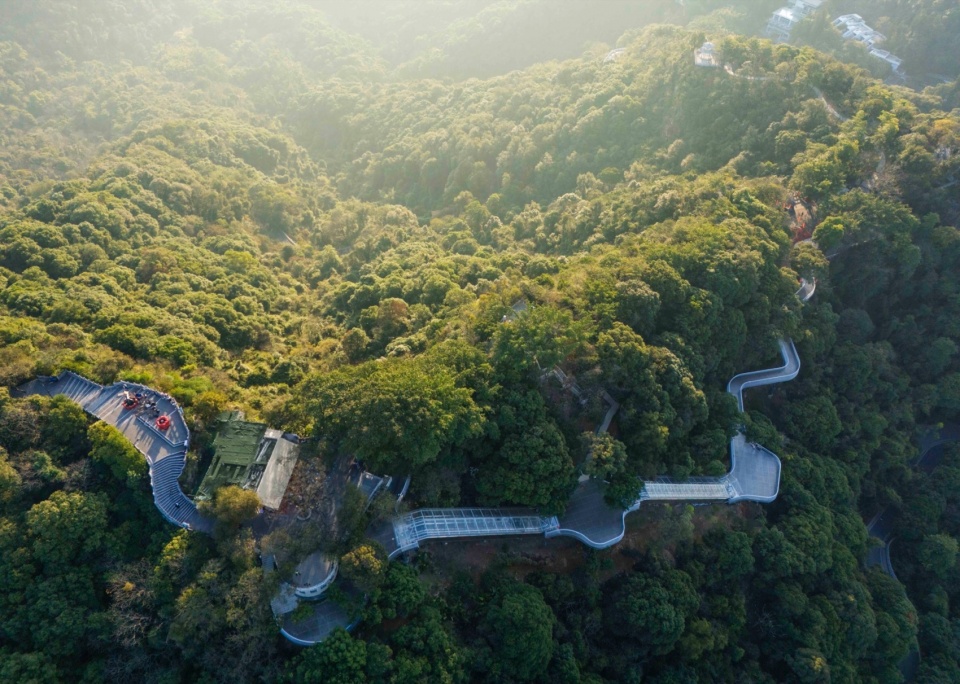

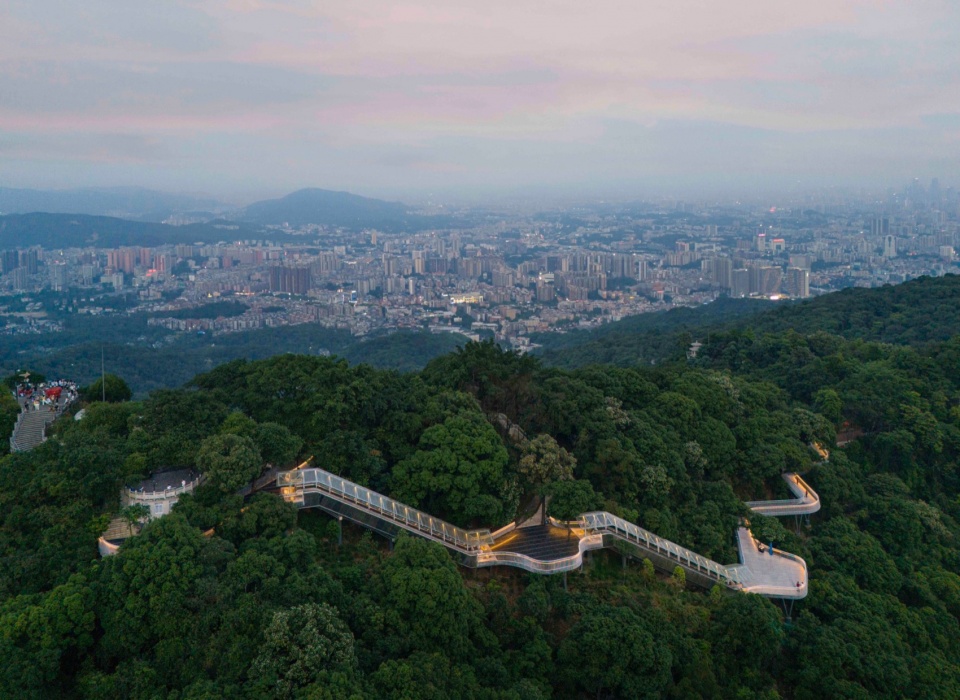

▼扶梯栈道鸟瞰，aerial view of escalator and walkway © 诺金浮图摄影工作室

尊重山体植被资源，合理保护与迁移植被，设计保留并充分利用现有可用大树资源，尊重自然、尊重生态自然资源。

The design protects and utilizes the existing vegetation, ensuring the preservation of large trees and respecting ecological resources.

▼扶梯栈道主要节点，the main landscape nodes of escalator plank road © 诺金浮图摄影工作室

▼扶梯栈道细部，detail of escalator and walkway © 诺金浮图摄影工作室

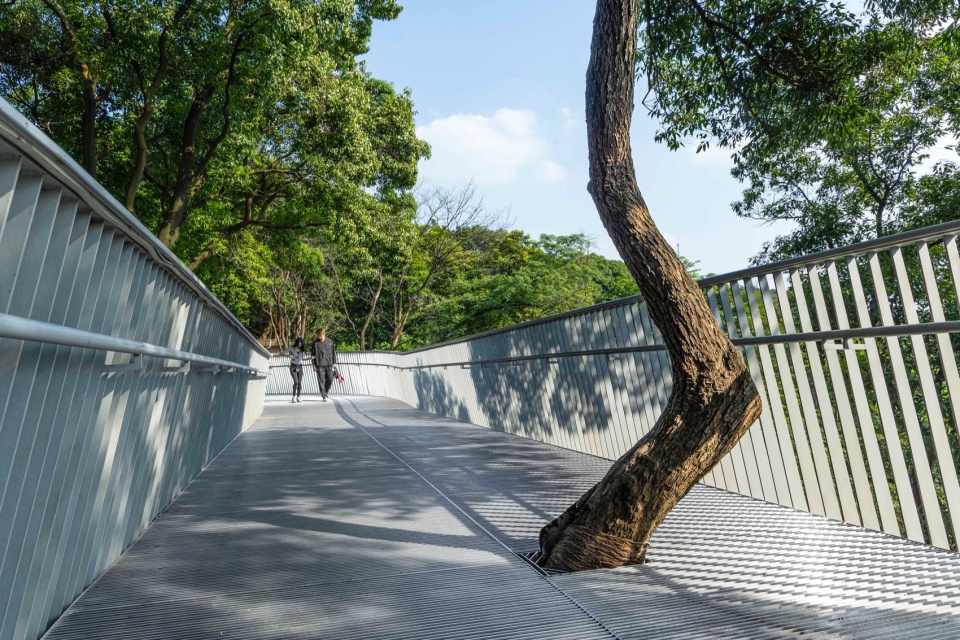

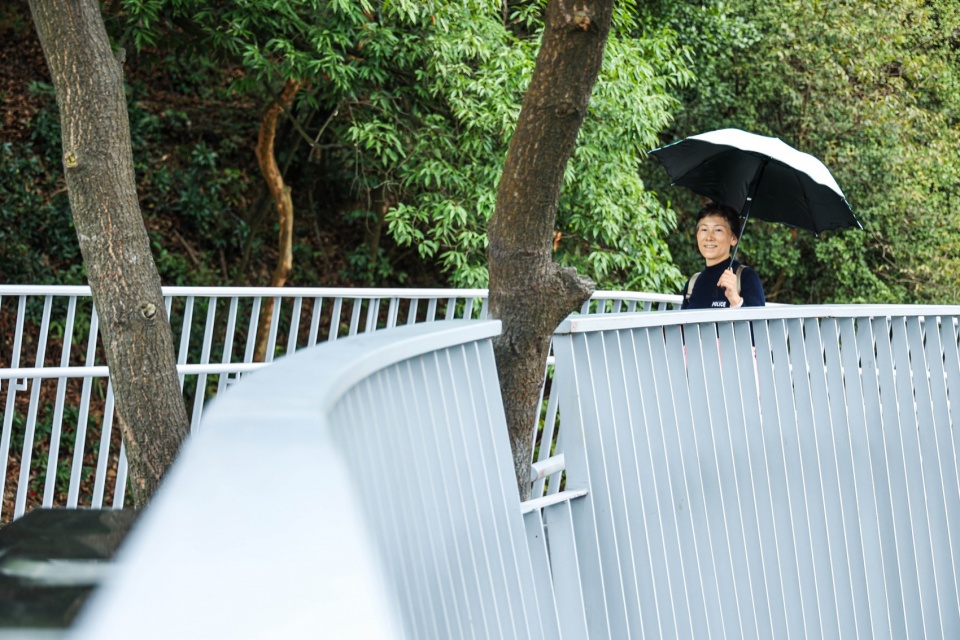

主体结构采用对山体环境低破坏、低冲击的单柱钢框架结构形式。钢梁及地面格栅最大限度避开现状大树，有效地保护了山体和植被，对环境的影响降到最低。栈道与林木完美融合，保留的树木从平台预留开口穿出，为栈道增添一点诗意；人也能顺畅通行，绘制出人与自然和谐相处的美好图景。

The main structure employs a low-impact, low-disturbance single-column steel frame, with beams and ground grates designed to avoid large trees, minimizing environmental impact.The walkway blends with the forest, with openings allowing trees to pass through, creating a harmonious human-nature coexistence.

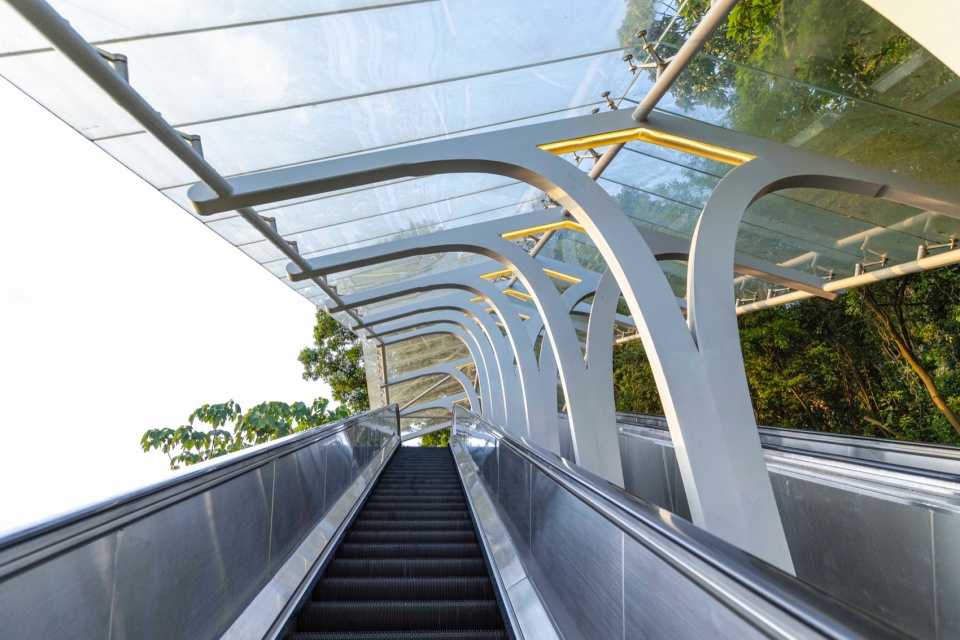

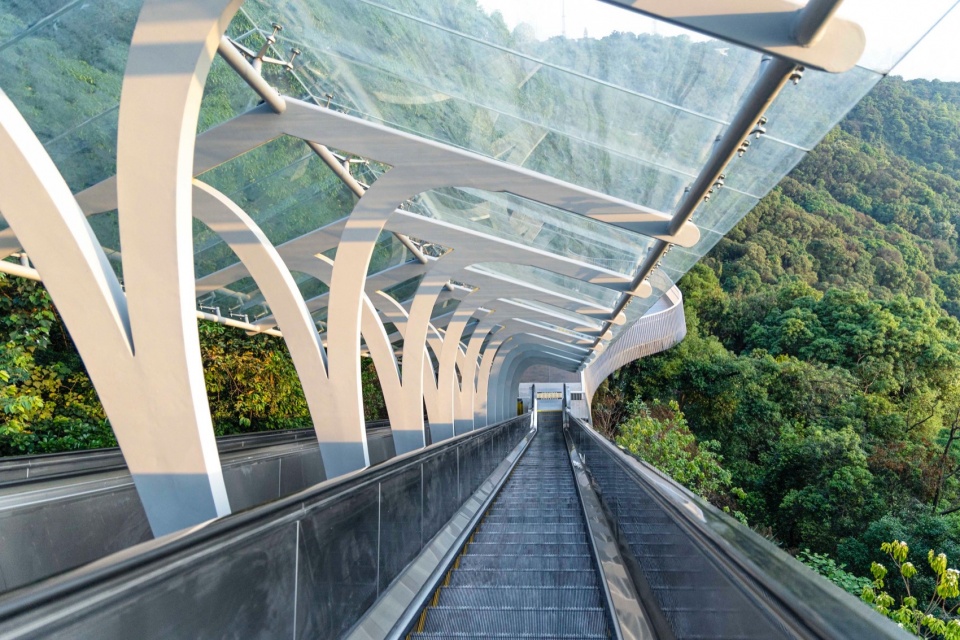

▼扶梯细部，detail of escalator © 诺金浮图摄影工作室

▼扶梯细部，detail of escalator © 深圳市紫墨设计咨询有限公司

扶梯段的钢构件雨棚柱被设计成简洁明快的“羊角”造型，呈张开迎接之势，寓意着羊城之巅，真诚待人，谦卑接物的理念，为项目增添更多人文关怀与文化标志性。

▼扶梯栈道立面图，elevation view of escalator plank road © 华南理工大学建筑设计研究院有限公司

Escalator shelters are designed in a welcoming “goat horn” shape, symbolizing Guangzhou’s hospitality and humility, adding cultural and humanistic elements. Anti-glare lamps are used for handrails, creating a unique nighttime climbing experience.

▼扶梯细部，detail of escalator © 诺金浮图摄影工作室

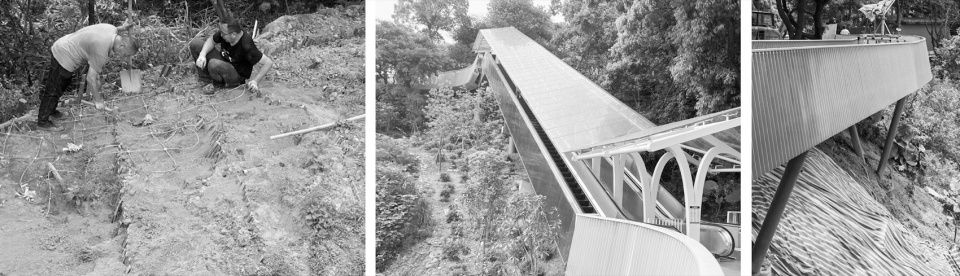

施工过程中对底部的现状施工便道进行回填土堆地形复绿处理，较陡处的边坡挡土方式采用小木桩加钢网，边缘放置环保沙袋，以防止水土流失。栈道的走向也尽量避开现状大树。若实在无法避让时，对现状大树就地保护，采用钢格栅结构开洞形式进行避让。

During construction, existing paths are restored with soil and vegetation. Steep slopes use wooden stakes and steel nets with eco-friendly sandbags to prevent erosion. The walkway avoids large trees, protecting them where necessary with steel grates.

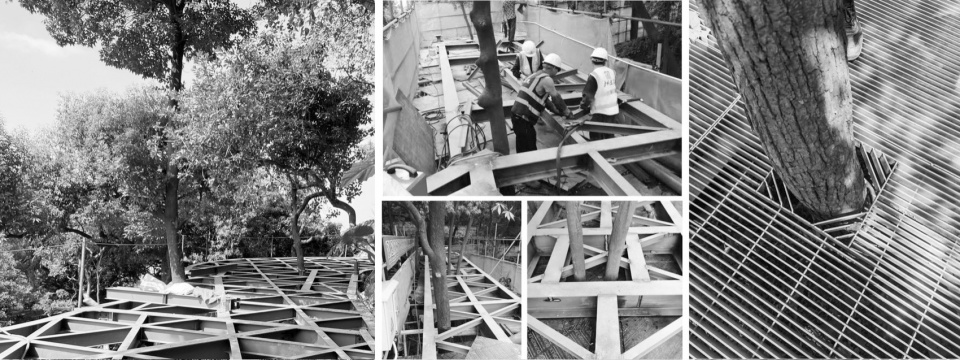

▼钢格栅结构开洞避让现状大树，the steel grille structure opens holes to avoid the current situation of big trees © 华南理工大学建筑设计研究院有限公司

▼小木桩加钢网方式进行边坡挡土，small wooden piles and steel mesh to retain soil on the slope © 华南理工大学建筑设计研究院有限公司

层叠错落的观景空间
Layered and Diverse Viewing Spaces

充分利用原有山体的落差，塑造丰富的地形及竖向变化，形成不同的趣味游览路线。无障碍通达的“环线”系统，将带领游客无痛感登山，解决了无障碍人群登顶困难的需求。同时增设多个不同标高的出挑平台，营造最佳观赏日落的打卡点。

Utilizing the mountain’s natural elevation changes, the design creates varied terrain and vertical experiences, forming different scenic routes. The accessible “loop” system allows effortless climbing, addressing accessibility needs. Elevated platforms provide optimal sunset viewing spots, becoming popular photo locations.

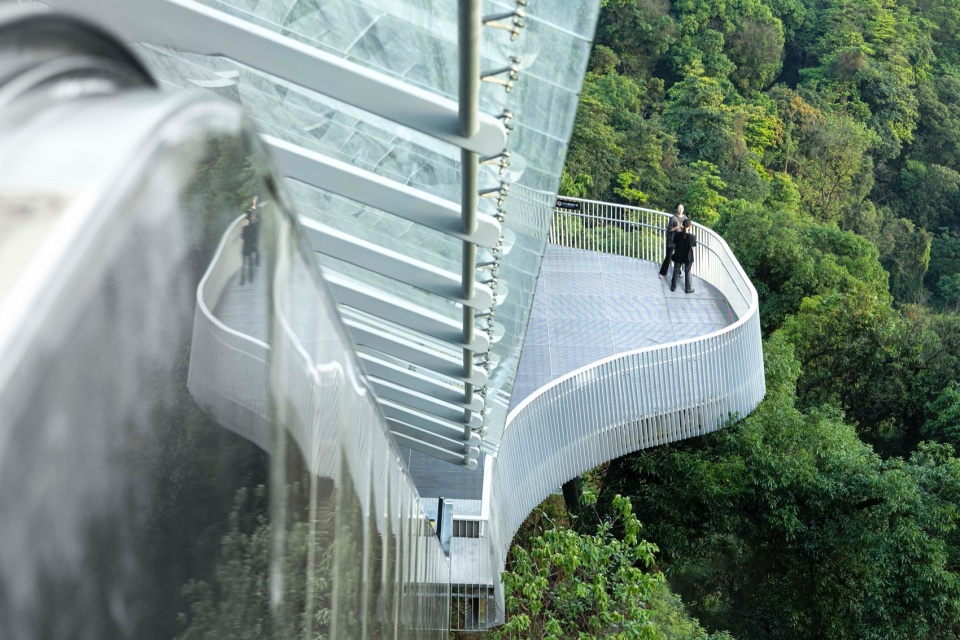

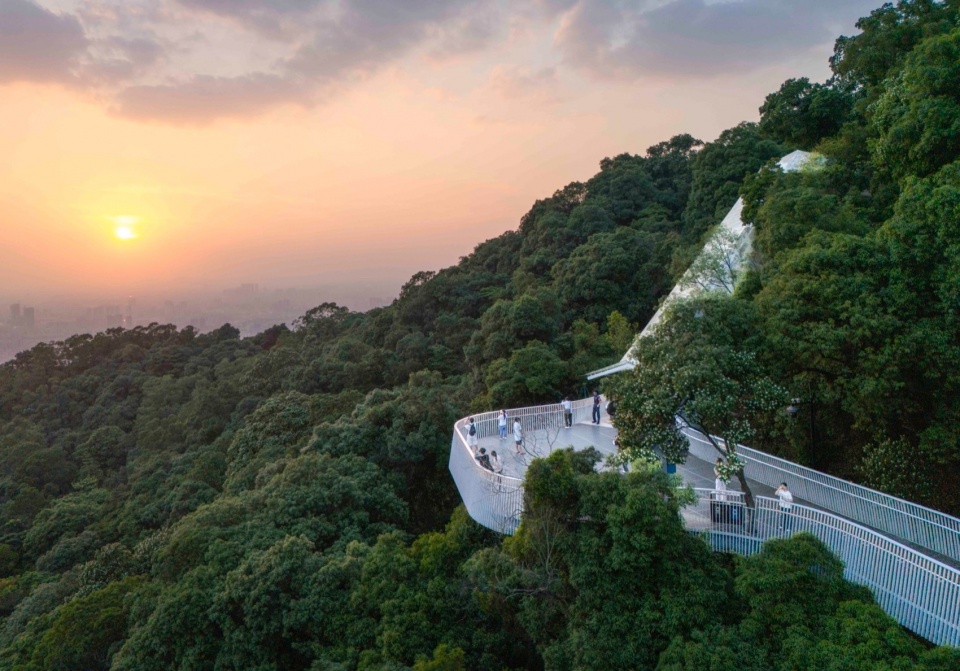

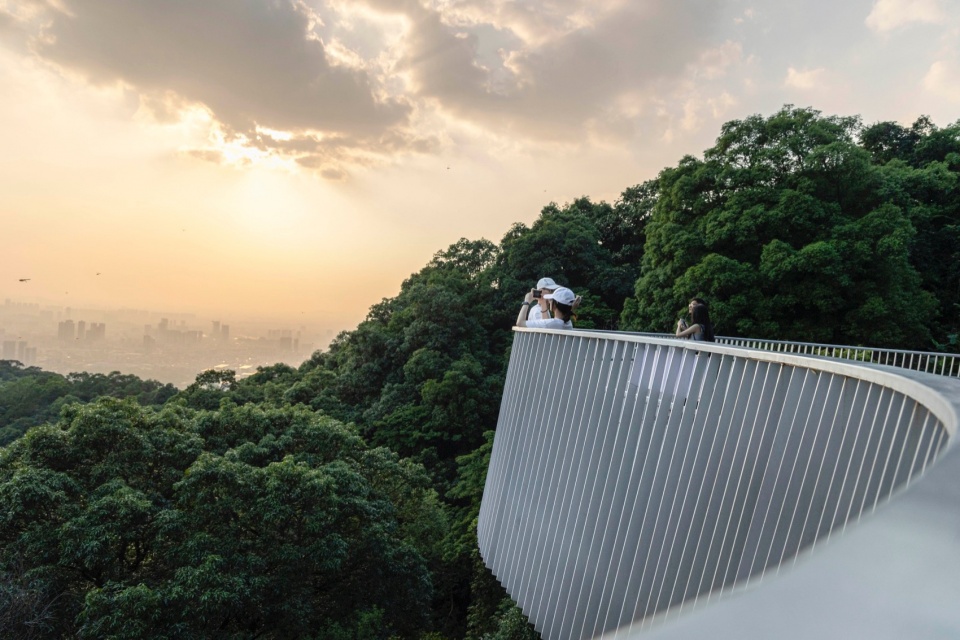

▼扶梯栈道观景空间，the viewing space of escalator plank road © 诺金浮图摄影工作室

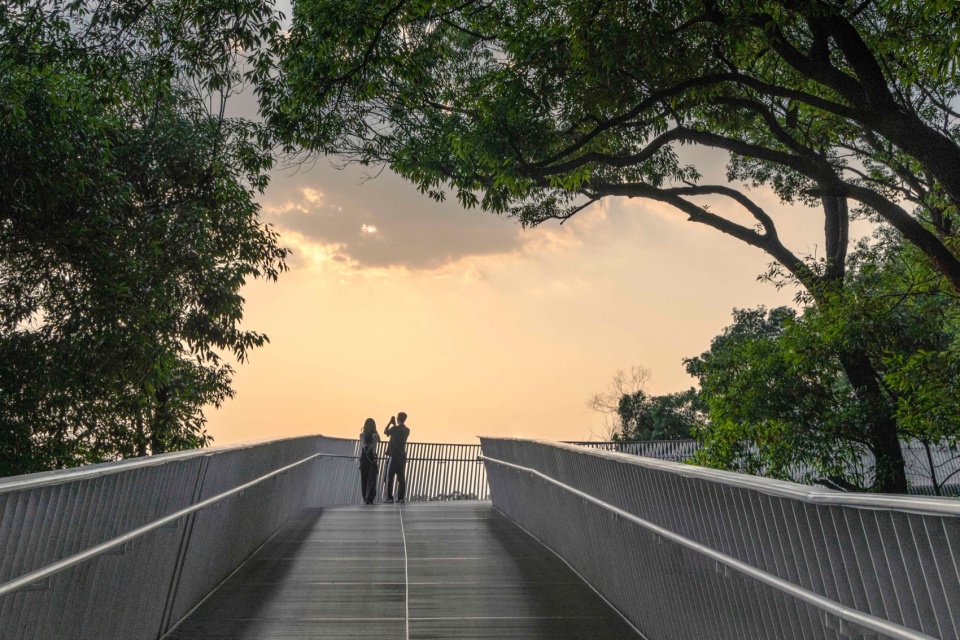

▼扶梯栈道观景空间，the viewing space of escalator plank road © 诺金浮图摄影工作室

友好亲切的节点设计
Friendly and Detailed Design

为适用山上气候，材料上选用耐久易维护的耐候材料，栈道铺地采用304不锈钢格栅，利于阳光和雨水的渗透，保证了山体地面植被的生长。在栈道扶手的细部上采用导圆角形式，地面采用防滑钢格栅。设置一键求助设施、监控设施，增强爬山的安全度及舒适度。

Materials are chosen for durability and ease of maintenance, with stainless steel grates ensuring sunlight and rain penetration, supporting ground vegetation growth. Handrails feature rounded edges, and the walkway uses non-slip grates. Emergency call and monitoring facilities enhance safety and comfort.

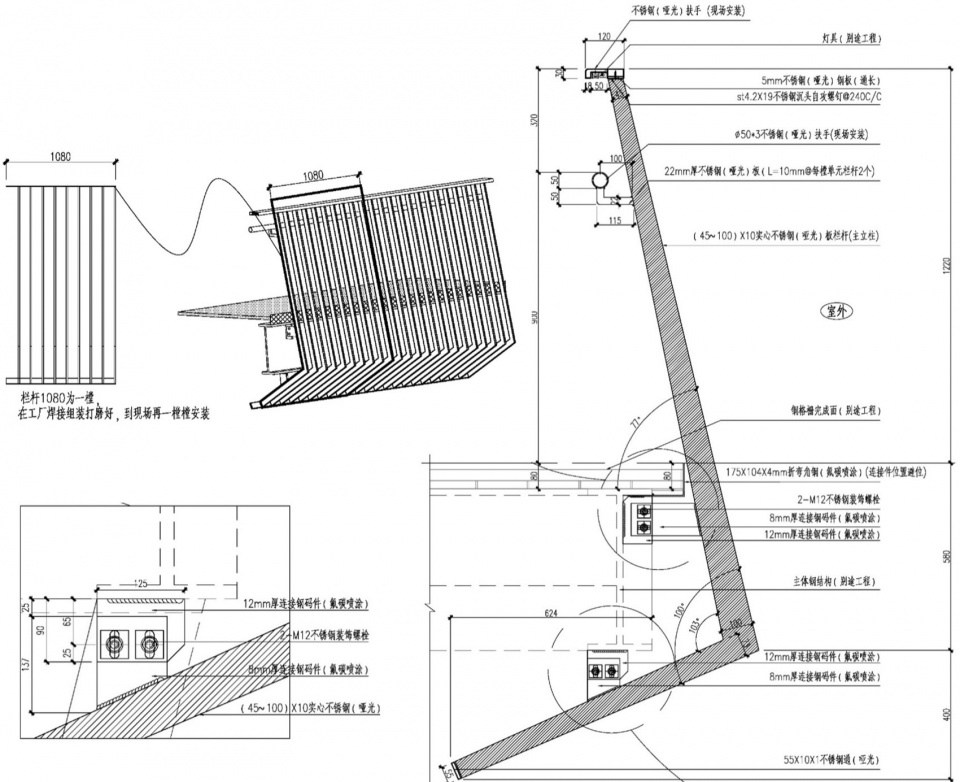

▼栈道细部设计，detail design of plank road © 华南理工大学建筑设计研究院有限公司

灯光设计
Lighting Design

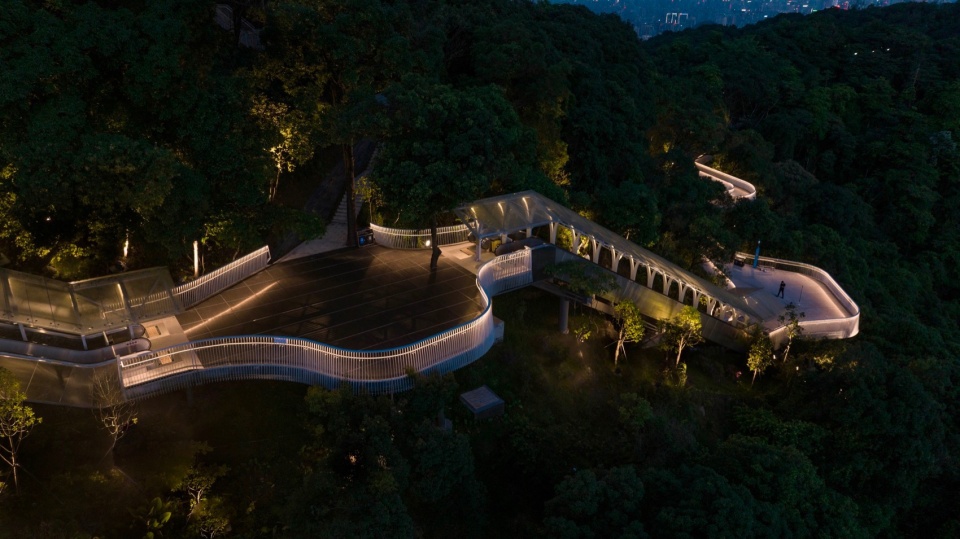

扶手灯提供功能性照明底部下照灯环境微渲染。不锈钢格栅路面，通过底部下照制造悬浮于空中的神秘灯光氛围。扶手灯的选型采用的是防炫目灯，为夜景登摩星岭创造了不一样的体验感。

Handrail lights provide functional lighting with a soft ambient glow. Stainless steel grate surfaces create a mysterious floating light effect with underlighting. Anti-glare lamps ensure a pleasant nighttime climbing experience.

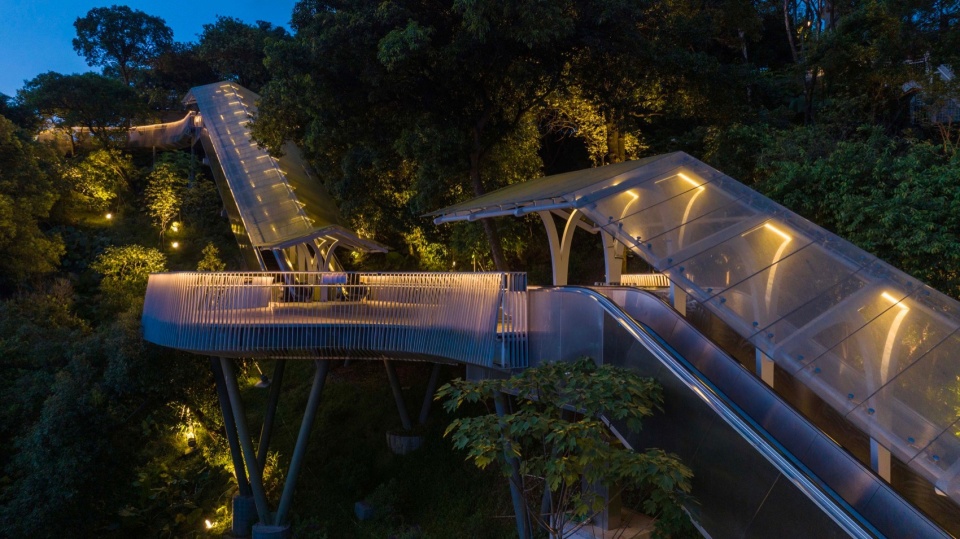

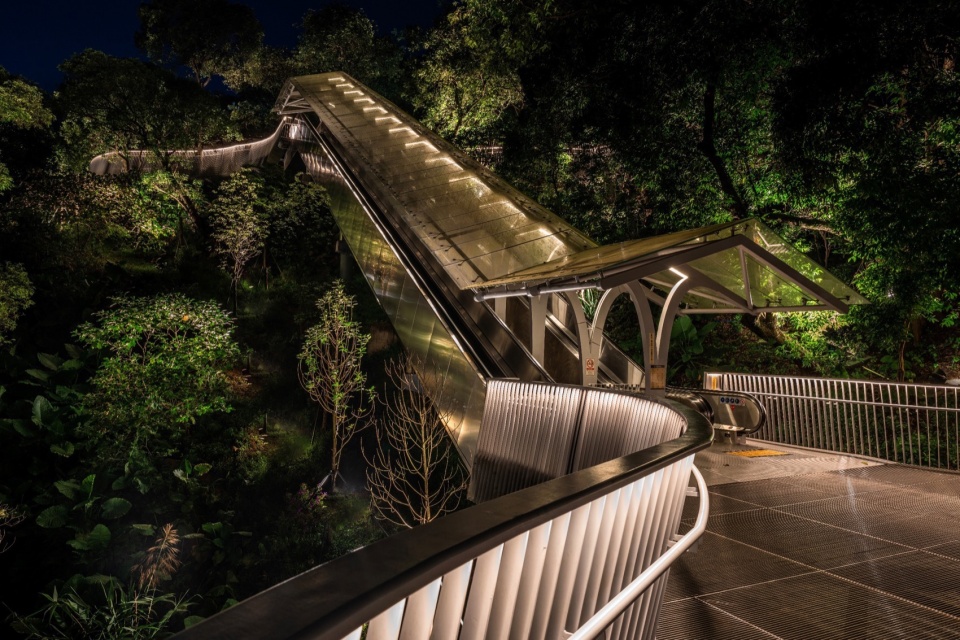

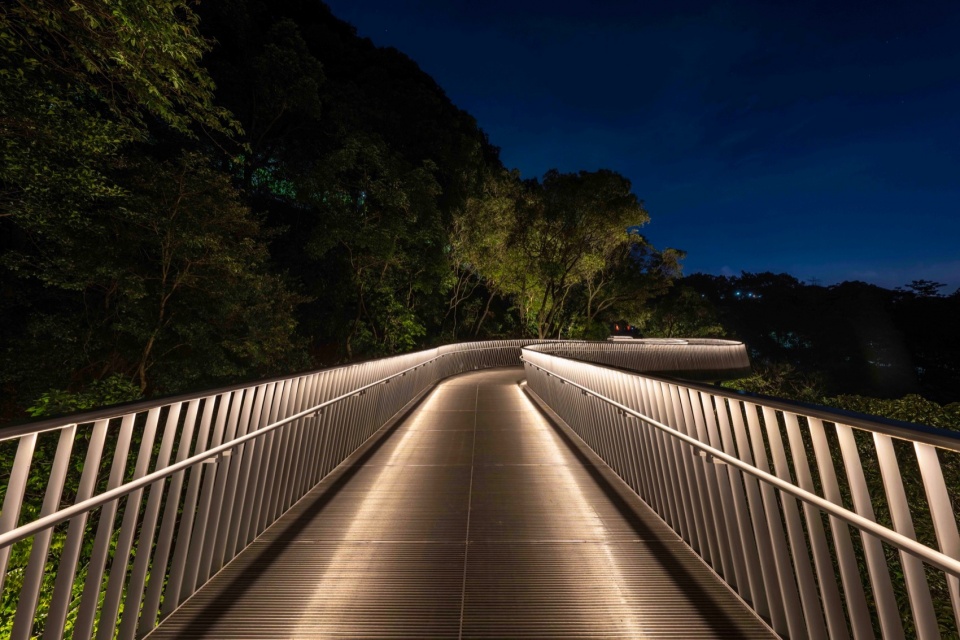

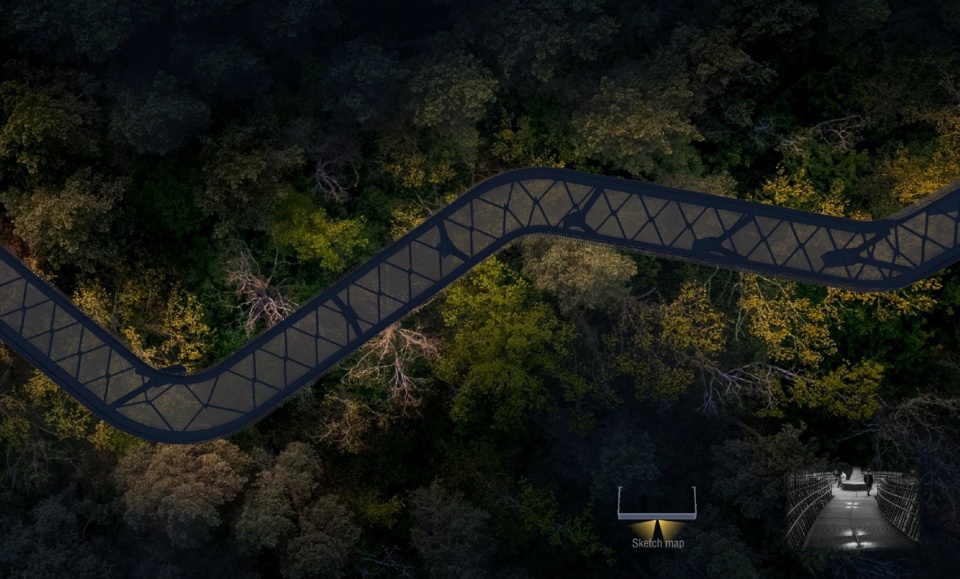

▼扶梯栈道灯光设计，lighting design of escalator plank road © 深圳市紫墨设计咨询有限公司

在扶梯运行的过程中，可以欣赏到广州市区的美丽风景。行走在栈道中，可以俯瞰整个白云新城全景。新增的观景平台视野开阔，可以欣赏夕阳西下、晚霞满天的绚丽景象。成为众多游客新的网红拍照打卡点。

During the escalator ride, visitors can enjoy beautiful city views. Walking along the walkway provides a panoramic view of Baiyun New City. The new viewing platforms offer stunning sunset vistas, becoming popular spots for photos.

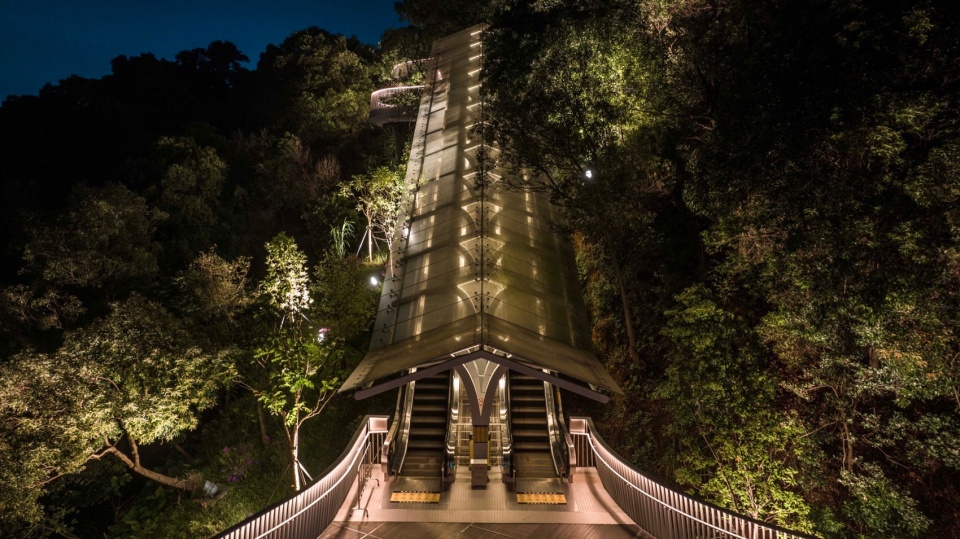

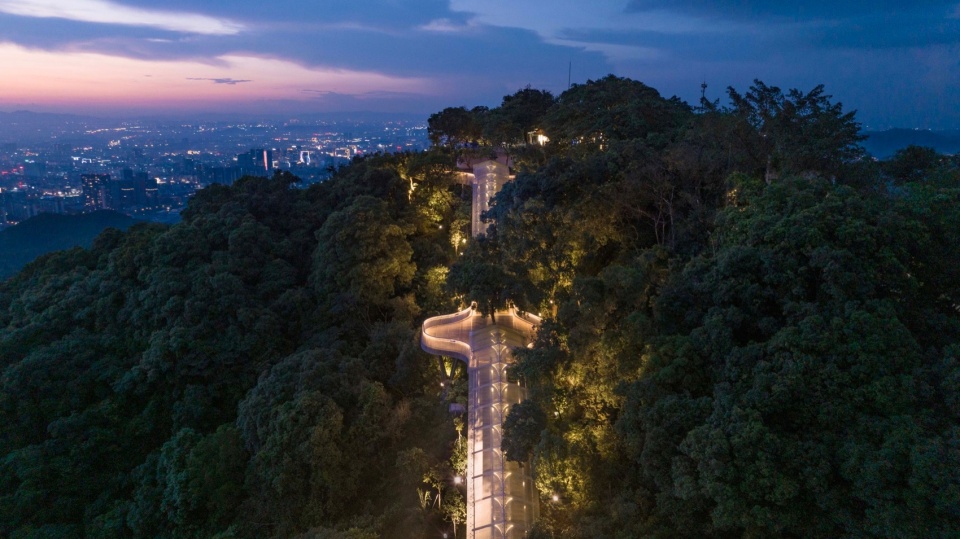

▼扶梯栈道灯光设计，lighting design of escalator plank road © 深圳市紫墨设计咨询有限公司

项目使用后评价
Post-Occupancy Evaluation

70多岁的老人时隔20年首次登顶摩星岭，观光扶梯让山顶的风光不再只是他的回忆。以往游客从摩星岭南门登顶，需要攀爬一段陡峭的楼梯，导致不少游客望而却步。扶梯开放后，游客从摩星岭南门处前行约150米，便可乘坐扶梯，登顶时间从最初的15分钟缩短至5分钟，轻松实现“无痛登顶”。

A 70-year-old revisited Moxing Summit after 20 years, now able to enjoy the peak view thanks to the scenic escalator. Previously, visitors had to climb a steep staircase from the south gate, deterring many. The escalator now allows them to ascend in just 5 minutes instead of 15, achieving “painless climbing.”

▼扶梯栈道夜景，lighting design of escalator plank road © 深圳市紫墨设计咨询有限公司

项目名称：广州白云山摩星岭观光扶梯及栈道
项目类型：景观建筑
设计方：华南理工大学建筑设计研究院有限公司，何镜堂建筑创作研究院&环境艺术设计一所
公司网站：http://www.scutad.com.cn/
联系邮箱：644141471@qq.com
项目设计/完成年份：2019.12 / 2023.12.
项目地址：中国广东省广州市白云区
扶梯栈道长度：全程210米（栈道总长150米，扶梯总长60米，抬升高度26米）
项目总负责：何镜堂、丘建发
建筑：姜帆、黄文耀、何健
景观：晏忠、沈蕾、陈凌锋、林晓婷、伍朝晖
结构：郭远翔，廖韶山，越国明
电气：杨翔云、张邦图
智能化：耿望阳、黄光伟
给排水：杨石泉
造价：陈艳、肖思雀、江焯强、曾博
摄影版权：诺金浮图摄影工作室、深圳市紫墨设计咨询有限公司
泛光设计合作单位：北京同衡和明光电研究院有限公司：李静，余佩兰，胡韵萩，林少萍，李训智
幕墙设计合作单位：深圳朋格幕墙设计咨询有限公司：徐宜友，王拥江
建设单位：广州裕城房产开发有限公司
项目获奖情况：2024年广东园林学会科学技术奖规划设计二等奖

Project name: Guangzhou Baiyun Mountain Moxing Summit Scenic Elevator and Walkway
Project type: Landscape
Design: He Jingtang Architectural Creation Institute & Institute of Environmental Art Design, Architectural Design & Research Institute of SCUT Co., Ltd.
Website: http://www.scutad.com.cn/
Contact e-mail: 644141471@qq.com
Design year/Completion Year: 2019.12 / 2023.12.
Project Location: Baiyun District, Guangzhou, Guangdong Province, China
Escalator boardwalk length: 210 meters (Walkway: 150 meters, Escalator: 60 meters, Vertical Rise: 26 meters)
Principal architects: He Jingtang, Qiu Jianfa
Architectural Design：Jiang Fan, Huang Wenyao, He Jian
Landscape Design：Yan Zhong , Shen Lei , Chen Lingfeng，Lin Xiaoting，Wu Zhaohui
Structural Engineering：Guo Yuanxiang, Liao Shaoshan, Yue Guoming
Electrical Design：Yang Xiangyun，Zhang Bangtu
Intelligentize Design：Geng Wangyang，Huang Guangwei
Water Supply and Drainage Design：Yang Shiquan
Manufacturing Cost：Chen Yan, Xiao Sique, Jiang Zhuoqiang, Zeng Bo
Photo credit: Nuojinfu Photography Studio、Shenzhen Zimo Design Consulting Co., Ltd. Xu Yiyou, Wang Yongjiang
Lighting design cooperation unit：Beijing Tongheng Heming Optoelectronics Research Institute Co., Ltd. Li Jing, Yu Peilan, Hu Yunhao, Lin Shaoping, Li Xunzhi
Curtain wall design cooperation unit: Shenzhen Pengge Curtain Wall Design Consulting Co., Ltd.: Xu Yiyou, Wang Yongjiang
Clients: Guangzhou Yucheng Real Estate Development Co., Ltd.
Project award status: The second prize of Guangdong Society OF Landscape Architecture Society Science and Technology Progress Award in 2024
