光明花博邨东风会客厅 – 小镇未来展示厅,上海 / 同济原作设计工作室

地景化的生长曲面

项目标签

位置:
类型:
标签:

非常感谢 同济原作设计工作室 将以下内容授权gooood发行。更多关于他们:Original Design Studio on gooood
Appreciation towards Original Design Studio, TJAD for providing the following description:

与一般的项目不同的是,“东风农场”的使用者正是当初的建设者,整整一代人在这里扎根、成长,其中的一草一木、一砖一石都蕴藏着这代人的回忆。“老场部”这个名字本身就有一种令回望的力量,时至今日,这里的使命,是展望未来。

花博会配套项目中,东风会客厅项目有其特殊的意味:作为花博会的配套设施,既要立足当下,但场所本身的转变又串联着过去和将来。老场部承载着过去的记忆、带着新一轮的开发诉求启动了整个东平特色小镇的建设。如何将历史记忆与未来发展诉求相结合成为项目进展的难点与契机。

▼西侧鸟瞰,Aerial view from the west ©章鱼见筑

Unlike ordinary projects, the users of the site are the same people who built it in the first place, and a generation of people have grown up here. Every grass, tree, brick and stone in the site contains their memories. The name ‘Old Field’ itself has an air of looking back to the past. But nowadays, looking forward to the future has become a new task for the long-abandoned field.

As a supporting project of China Flower Expo, the Dongfeng Parlor project has its own special meaning. Although it is a project based on the present as a supporting facility for China Flower Expo, it is a link between the past and the future. The old field is the memory of the past, and its new development has initiated the construction of the whole Dongping Special Town. How to combine the historical memory with the future development demands has become the focus of our consideration.

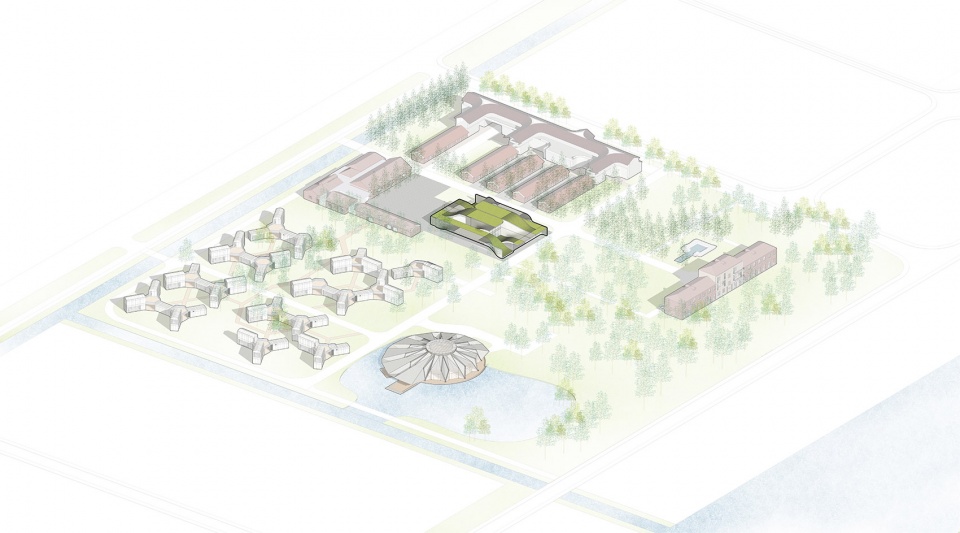

▼场地关系图,Axonometric drawing ©同济原作设计工作室



小镇未来展示厅
EXHIBITION HALL OF THE FUTURE TOWN

小镇未来展示厅选在了历史轴与未来轴的交界处,位于整个场部的核心位置。

Exhibition Hall of the Future Town is located at the junction of the historical axis and the future axis, also the heart of the entire site.

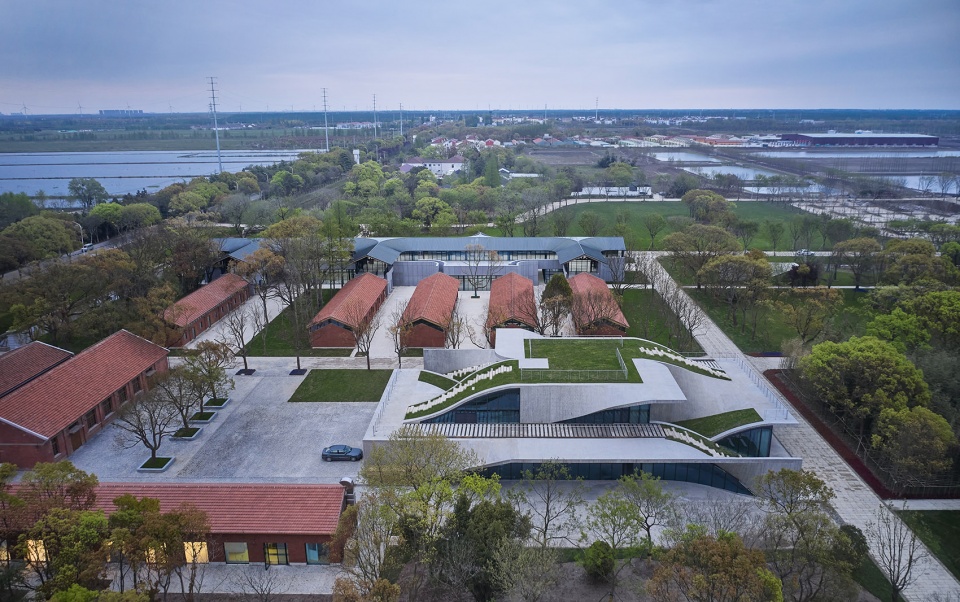

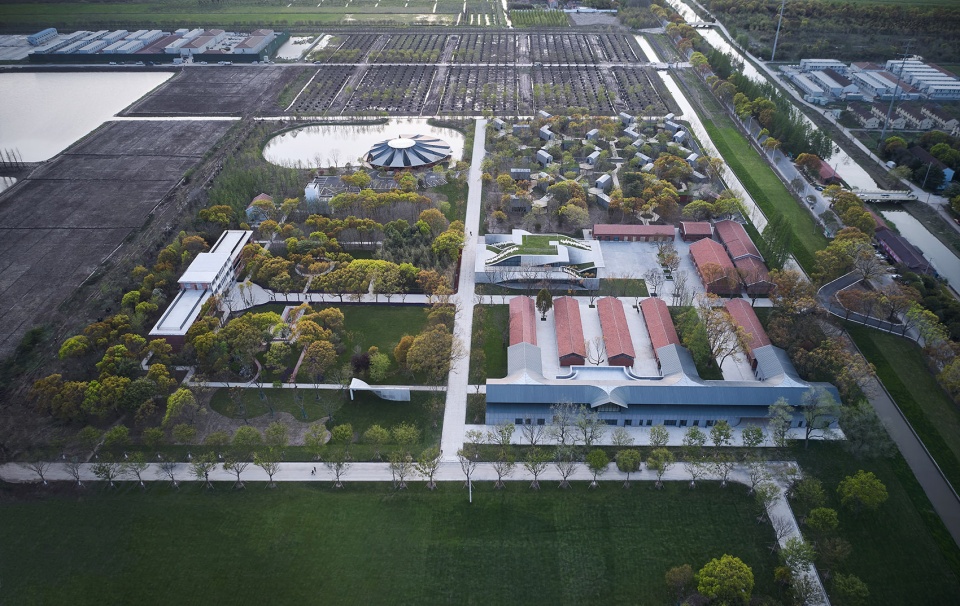

▼东侧鸟瞰,Aerial view from the east ©章鱼见筑

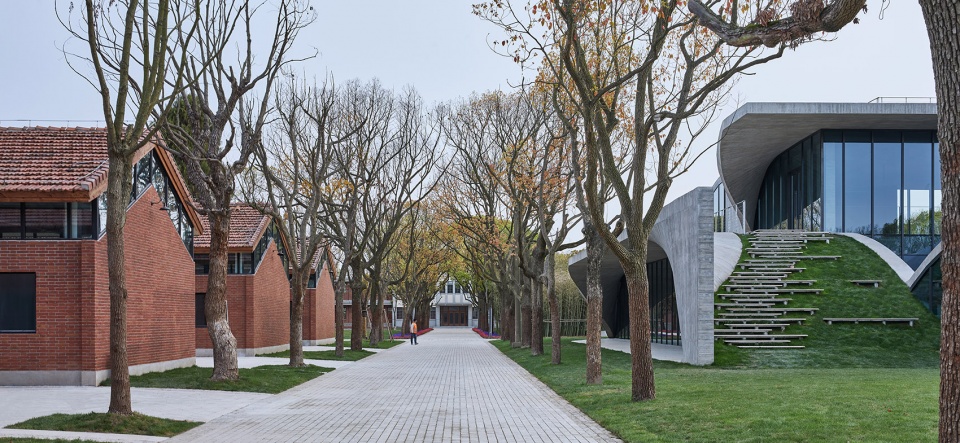

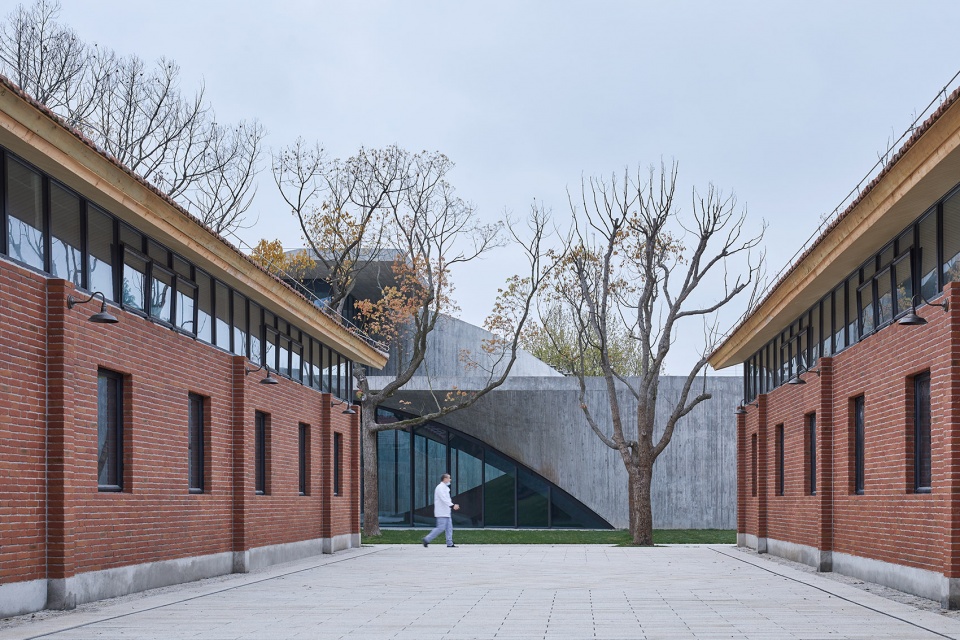

▼历史轴两侧的新老对望,The relationship between the old and the new ©章鱼见筑

墙顶一体的形态模式让建筑呈现出地景化的发展趋势。一种简单的单元作为整体形态的启发点,延伸、拼接形成了无边界的空间布局。这种不同于传统的空间模式最大程度的减少了对场地的阻隔。顺应历史轴线与场地脉络方向,一片片的墙体生长出来,其扭转的同时形成楼板,营造出了一体性的展陈空间,场地脉络蔓延至室内,与展览功能沟通互动,漫游路径抬升形成二层,围合丰富的挑高空间,形成了标志性小镇未来展示厅。

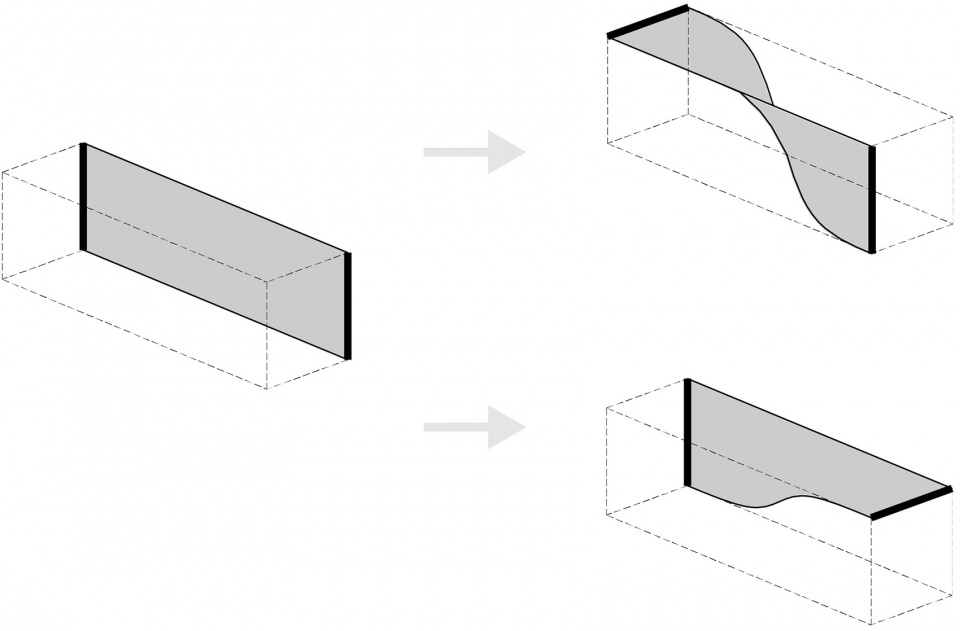

▼墙顶一体的基本曲面单元演绎,Basic curved unit ©同济原作设计工作室

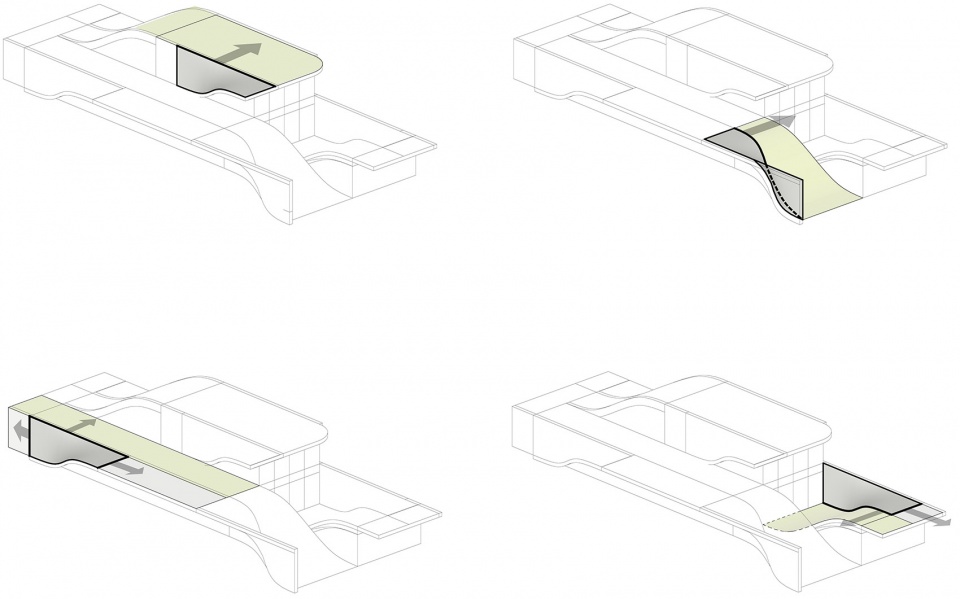

▼基本单元的生长衔接,Articulation of basic units ©同济原作设计工作室

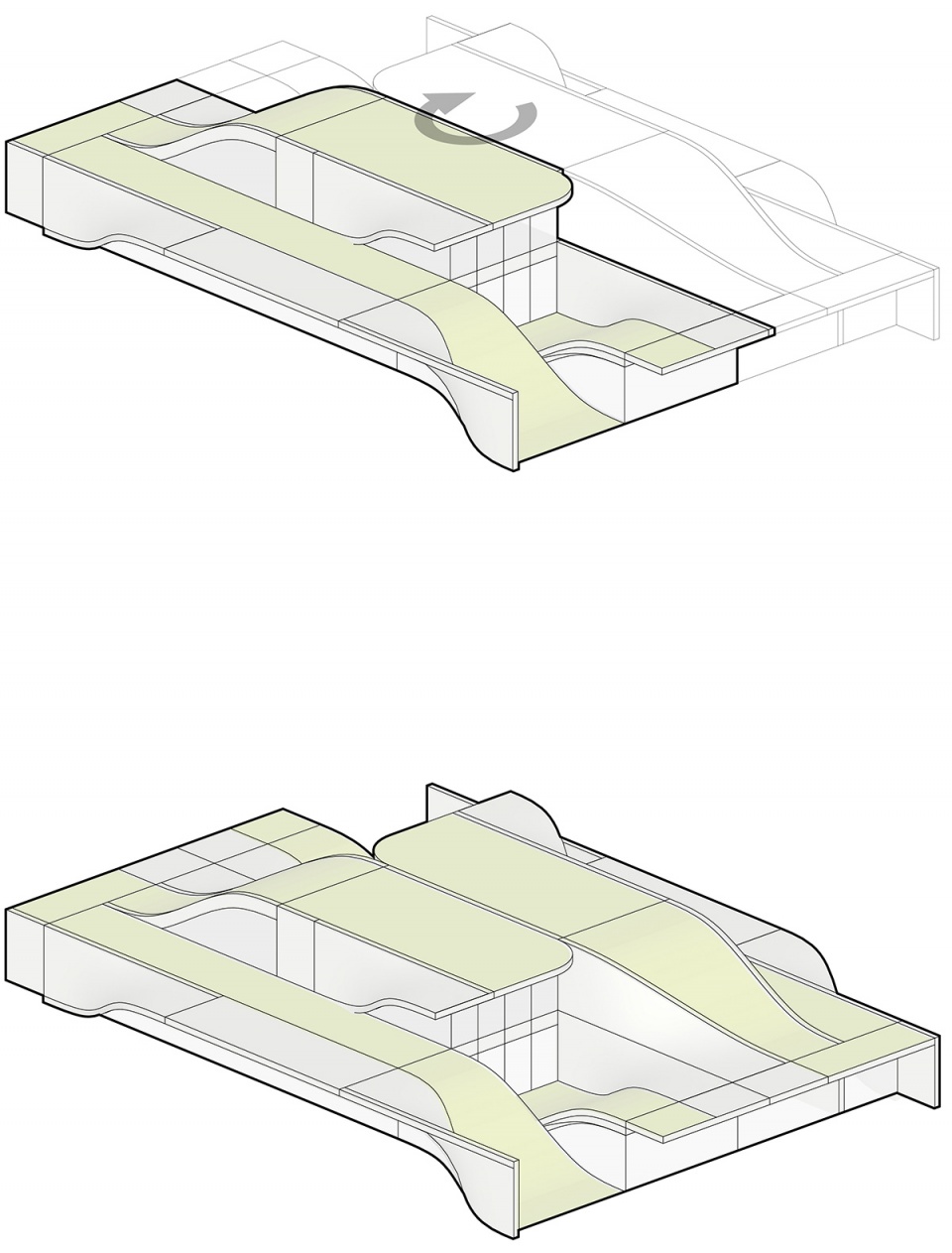

▼镜像对称总体形态,Overall form of mirror symmetry ©同济原作设计工作室

The morphological pattern of the integration of the wall and roof gives the building a trend of landscaping. A simple unit extends and splices to form a spatial layout without boundaries, which serves as an inspiration point for the overall form. This different spatial pattern from the traditional one minimizes the obstruction to the site. Following the direction of the historical axis and the site pulse, pieces of walls grow out, and it forms a floor slab by twisting itself at the same time, creating an integrated exhibition space. The site pulse spreads to the interior, communicating and interacting with the exhibition function, and the roaming path lifts up to form the second floor, enclosing a high-ceilinged space, which forms the iconic exhibition hall of the future town.

▼项目概览:地景化的生长曲面,Preview: landscaping growth surfaces ©章鱼见筑

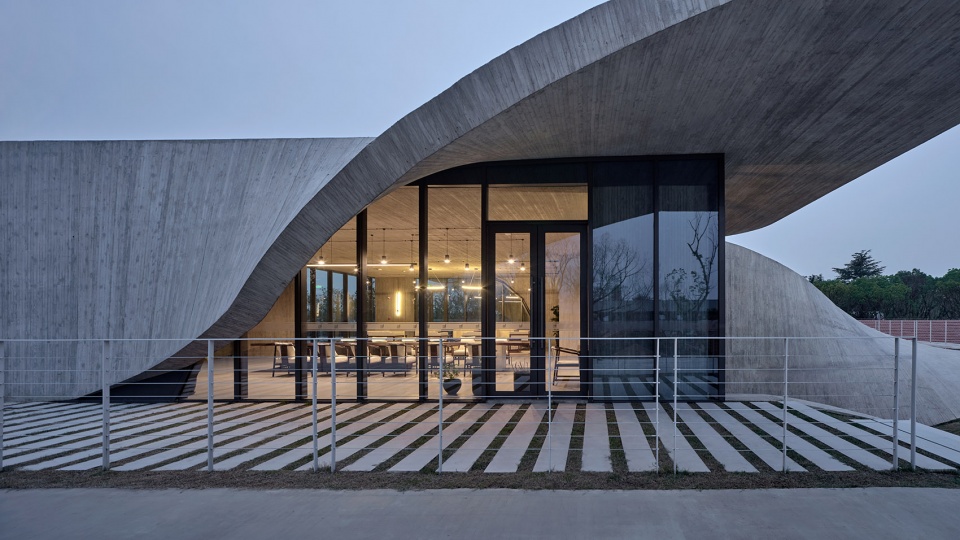

▼墙顶一体的扭转曲面,Twisted curved surface ©章鱼见筑

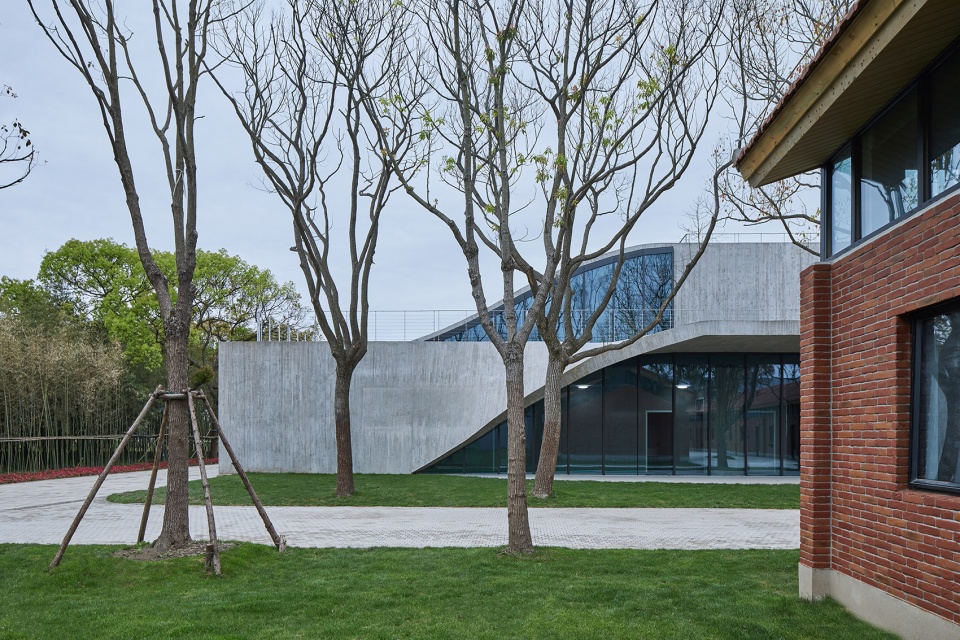

▼与大师工作坊相协调,Coordinated with the master workshop ©章鱼见筑

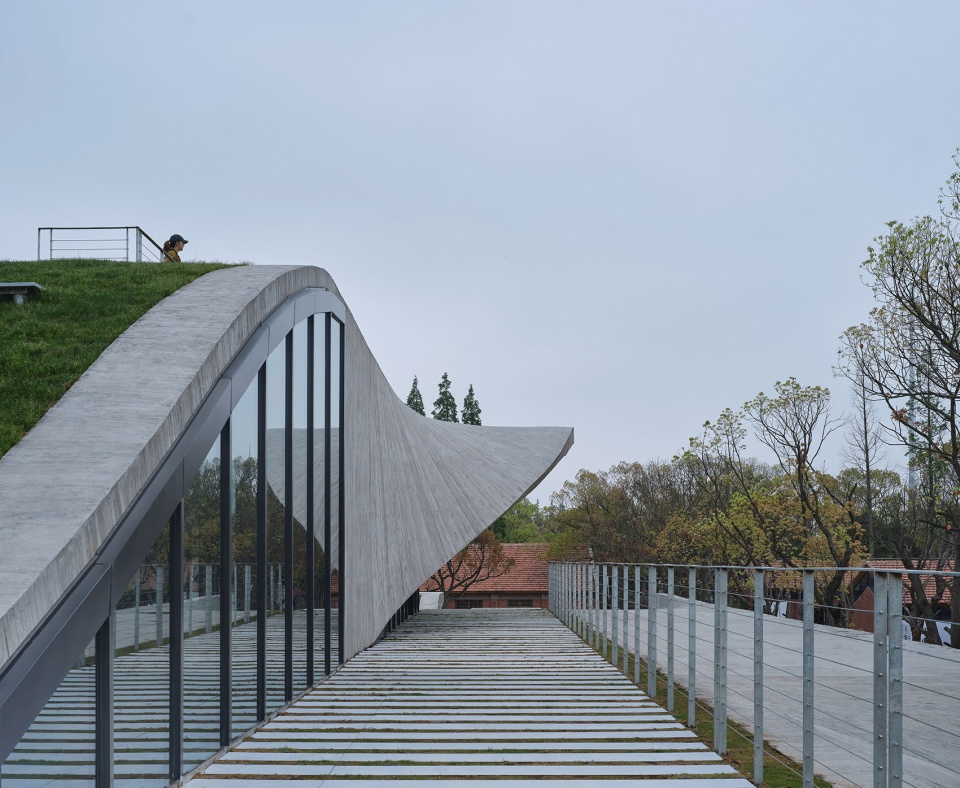

▼旋转挑出雨棚,The canopy ©章鱼见筑

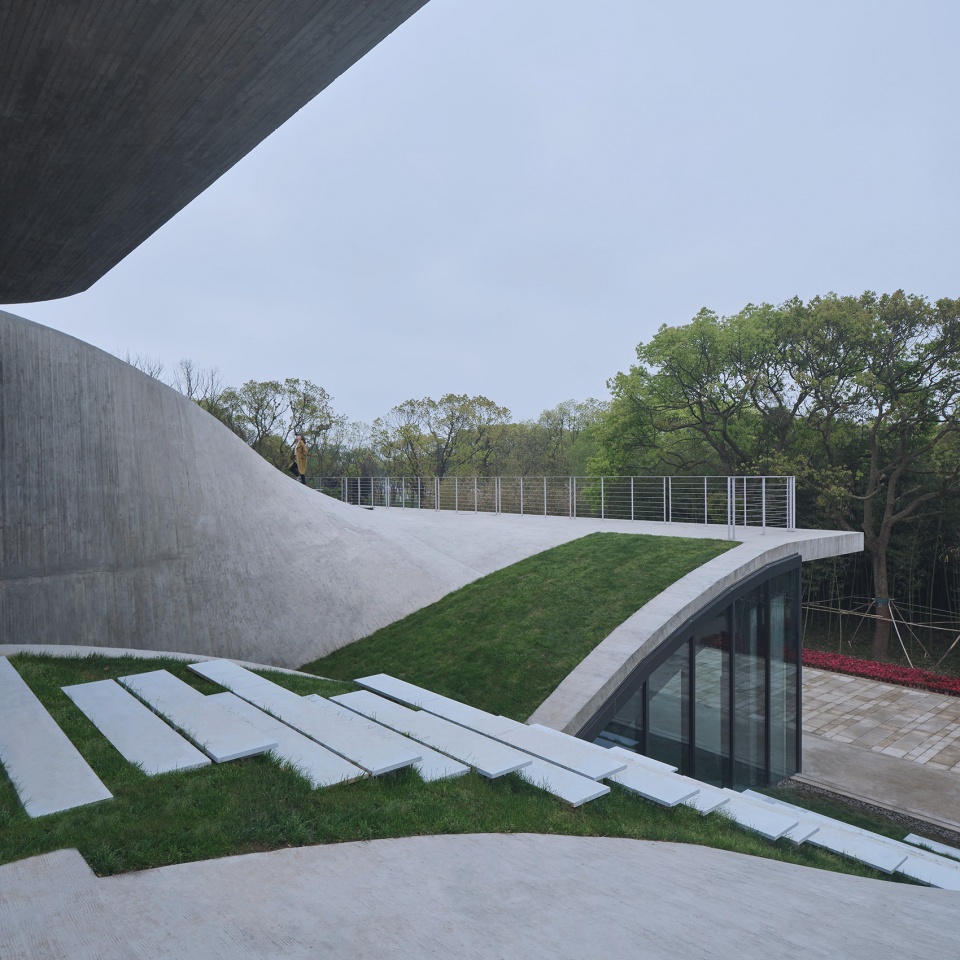

▼二层上人屋面,First floor roof ©章鱼见筑

为了配合未来展厅从过去走向未来的建筑氛围,整体选用了木纹混凝土材质。一方面,混凝土的材质较为朴素,与老场部的气氛比较融洽,连续的小木纹为其提供了更多质感变化,与场地大量的保留树木相互融合;另一方面,混凝土良好的可塑性也让墙顶一体化的空间有了落地实际操作性。

In order to match the architecture atmosphere of the future exhibition hall from the past to the future, we chose the wood-grained concrete as the overall material. On the one hand, the concrete is plainer and more harmonious with the atmosphere of the old field; the continuous small wood grain provides more textural changes and blends with the large number of preserved trees on the site. On the other hand, the good plasticity of concrete also makes it more practical to form the space with the integration of the wall and roof.

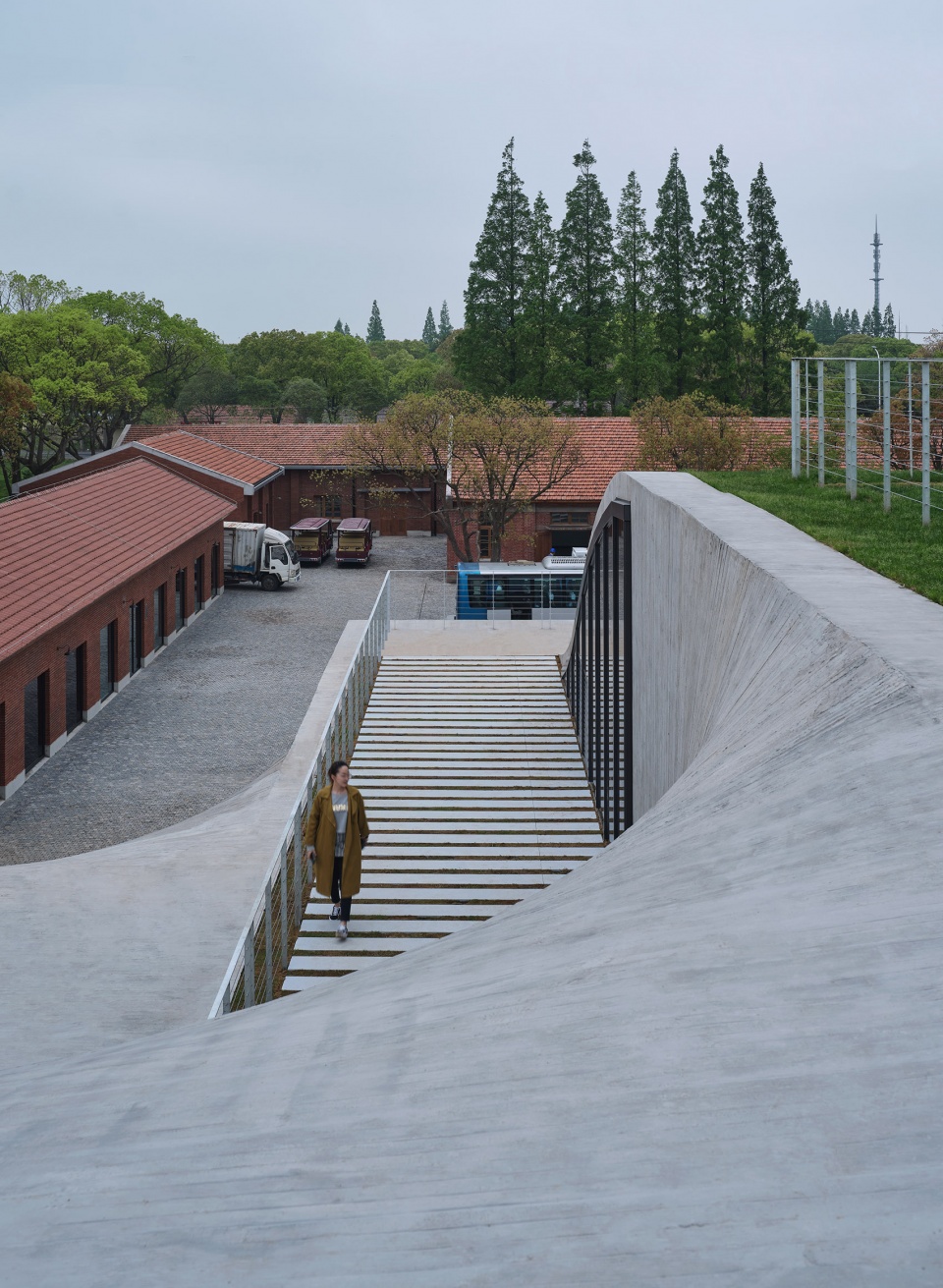

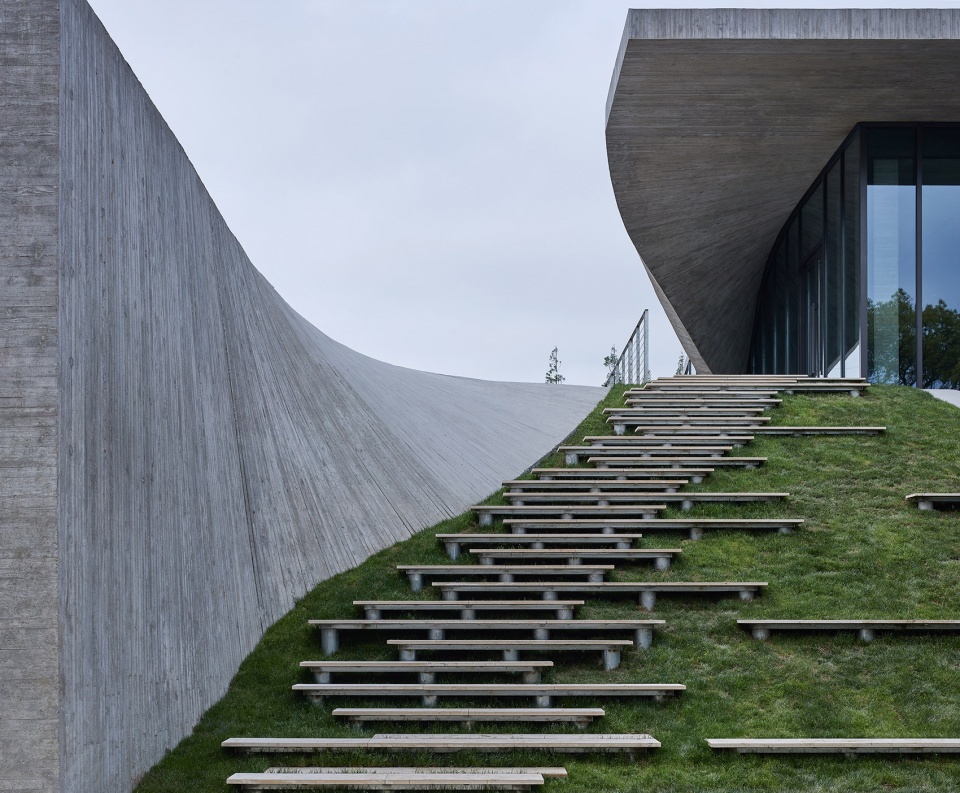

▼上人坡道,The ramp ©章鱼见筑

▼流动交错的绿化平台,Green platforms ©章鱼见筑

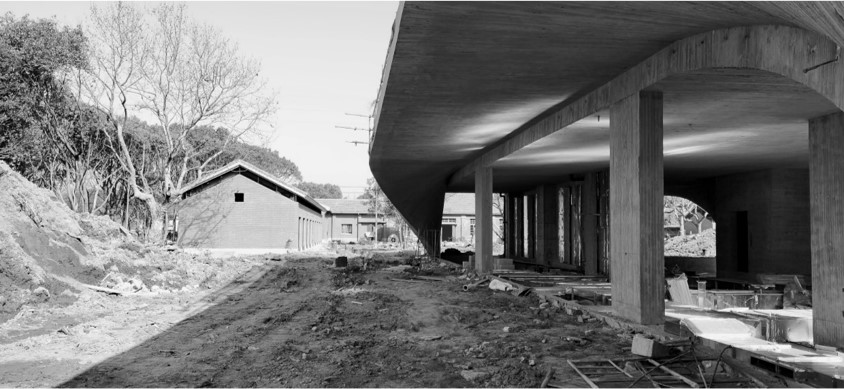

曲面的造型,木纹肌理,墙顶一体的形态特征,每一项在实际实施时都具有较大的难度。经过与施工单位多轮沟通,确定了一种新型的三层模板体系。最内侧为5厘米密拼的通长木模板,中层通过木工板进行固定,最外侧以木龙骨进行加固。所有模板单元通过放样后的钢筋进行曲面拟合,以这种方式完成了整体混凝土模板的建构工作。

The curved shape, the wood-grained texture, and the morphological characteristics of the integration of wall and roof, each of which has a great difficulty in construction. After many rounds of communication with the construction unit, a new type of three-layer formwork system was determined. 5cm wood formworks are in the innermost side, which are tightly spliced. The middle layer is fixed by woodworking board, and the outermost side is reinforced by wooden keels. All the formwork units were surface fitted by the lofted steel, and the construction of the concrete formwork was completed in this way.

▼流线汇聚至入口空间,Entrance space ©章鱼见筑

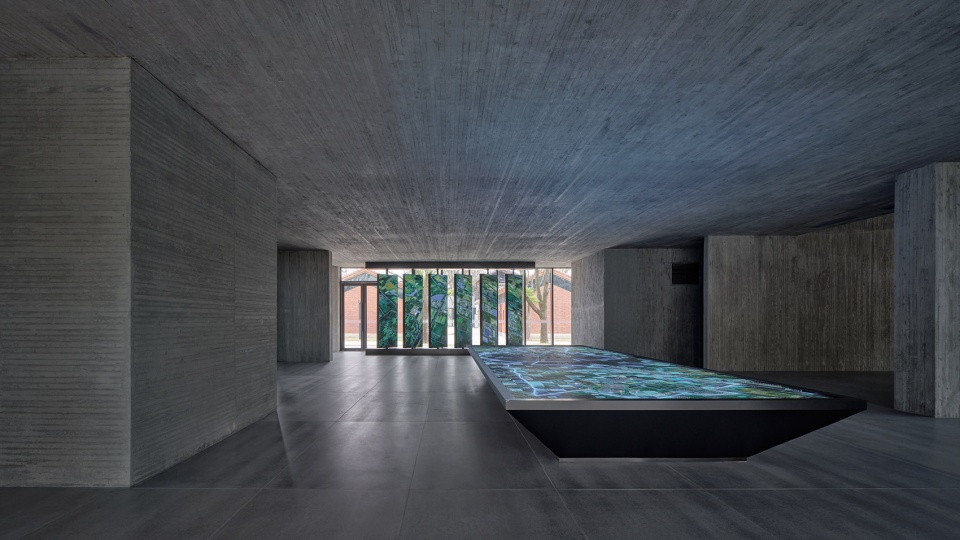

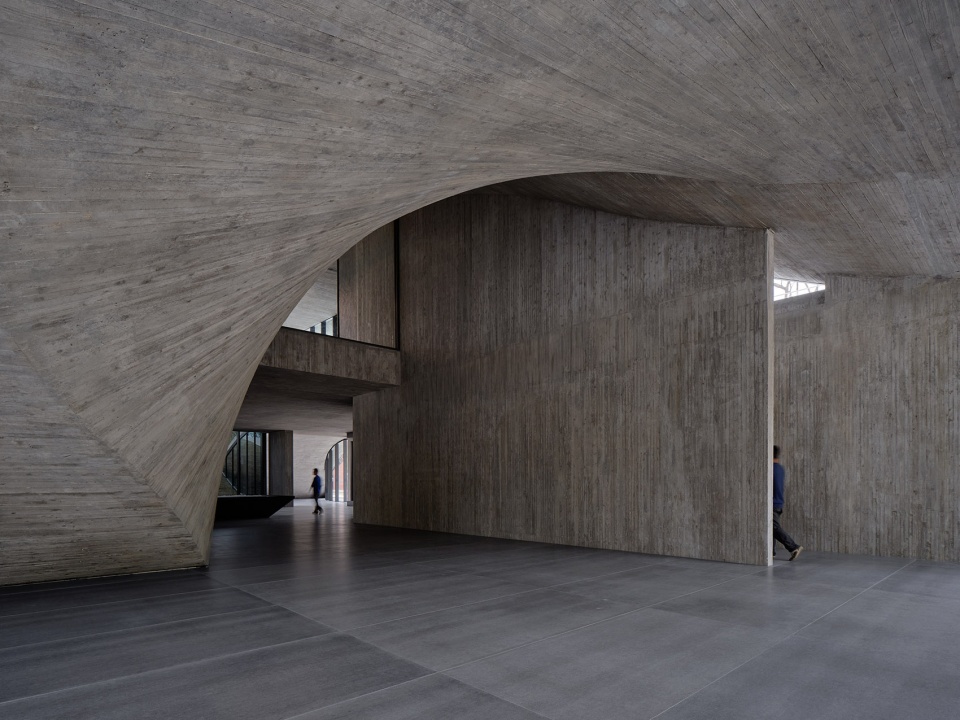

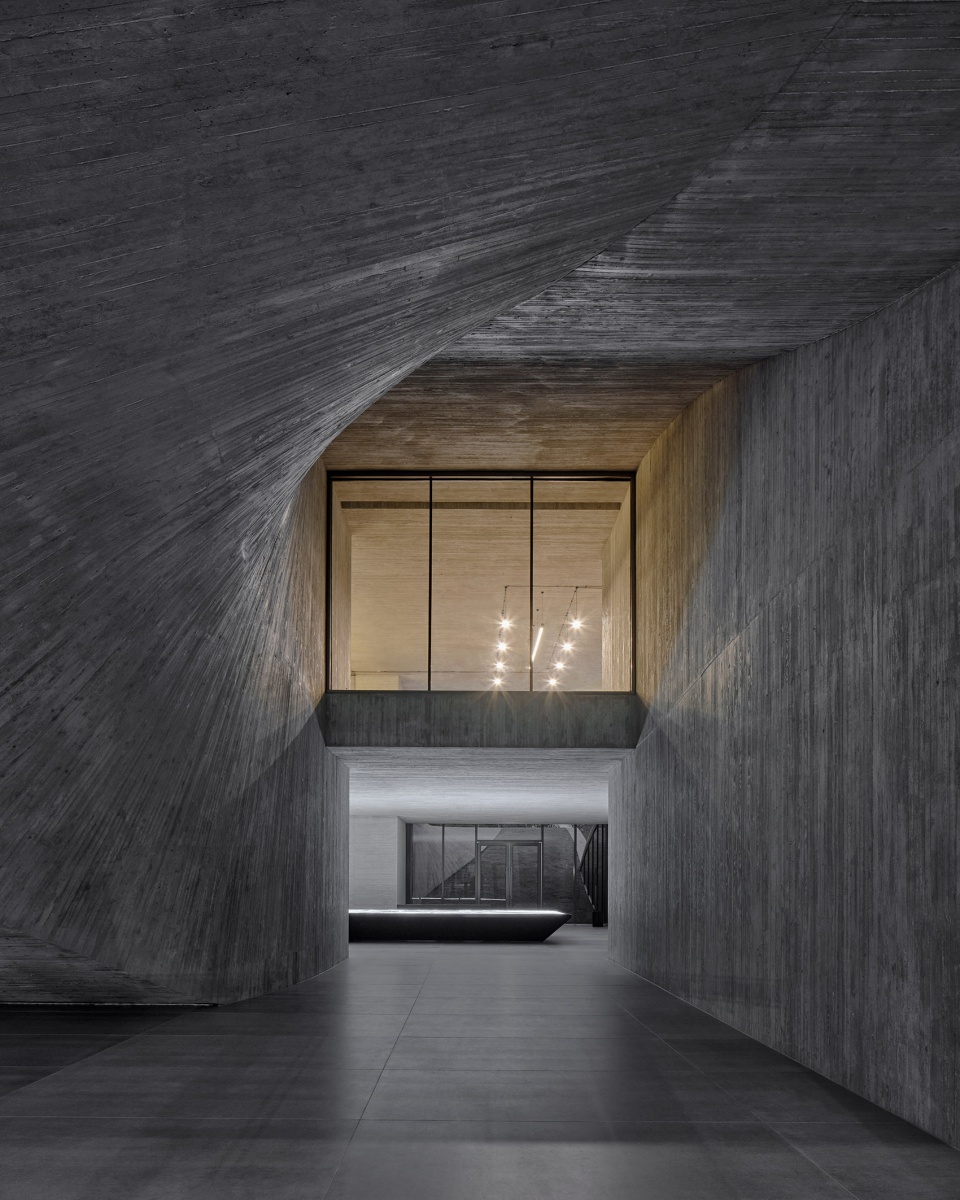

▼一层展厅,Ground floor exhibition hall ©章鱼见筑

▼北侧入口空间,North side entrance space ©章鱼见筑

▼入口挑高区域空间延伸,Entrance space extension ©章鱼见筑

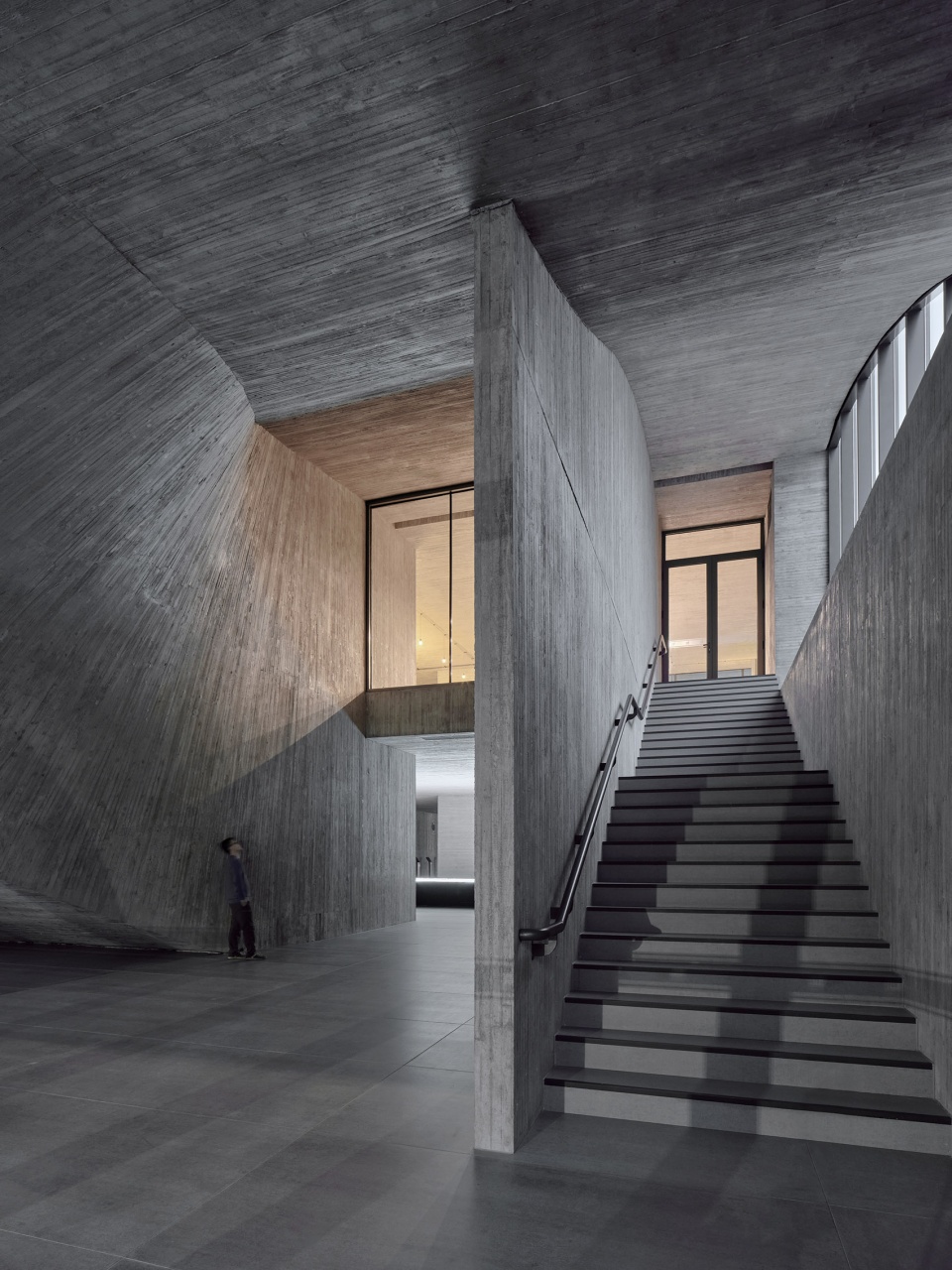

▼顺应空间走向形成的台阶,Steps formed in accordance with the space ©章鱼见筑

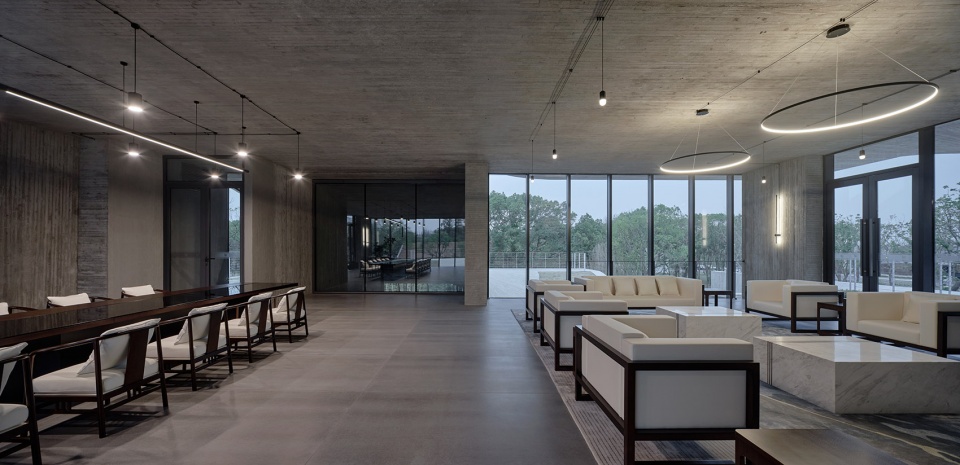

▼二层接待空间,First floor reception space ©章鱼见筑

▼二层平台出入口 First floor platform entrance ©章鱼见筑

为了保证最后的成型效果,同时试验模板体系的可操作性性,我们要求在场部内进行了一个曲面单元的1:1样板段试验,经过多次尝试,最终确认了模板及混凝土修复的具体工艺。为整体浇筑提供了完整的技术流程和效果样板。

In order to ensure the final effect and to test the operability of the formwork system, we requested a 1:1 sample test of a curved unit in the site. And after several attempts, we finally confirmed the specific process of formwork and concrete repair. A complete technical process and effect sample was provided for the overall pouring.

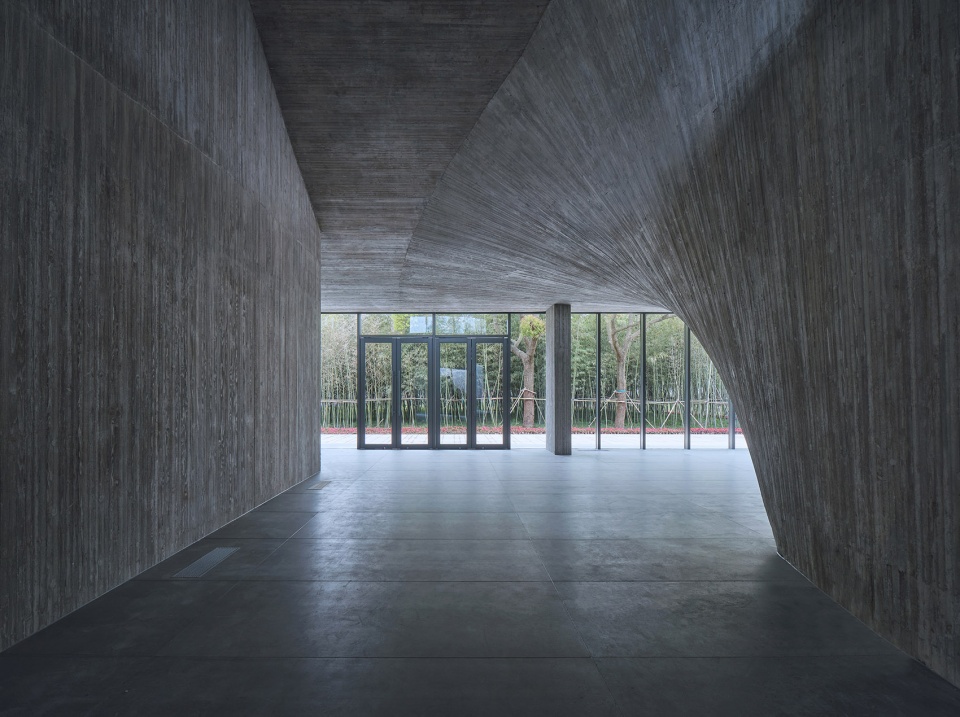

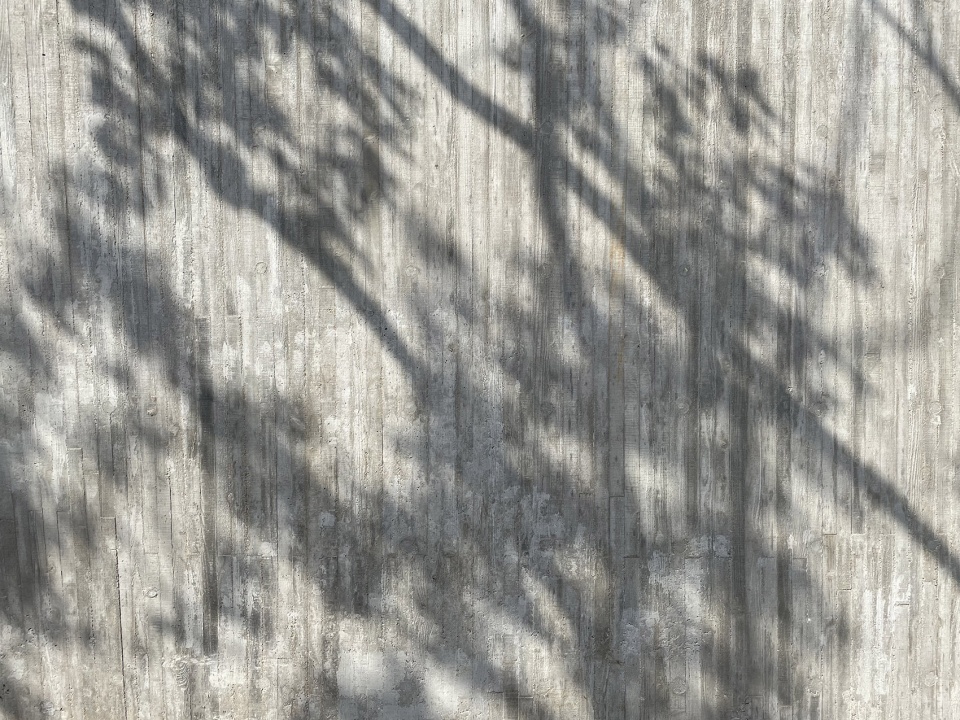

▼木纹清水砼,Wood grain fair-faced concrete ©章鱼见筑

▼拆模效果 Demoulding effect ©同济原作设计工作室

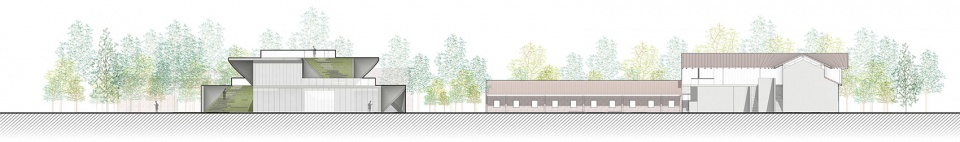

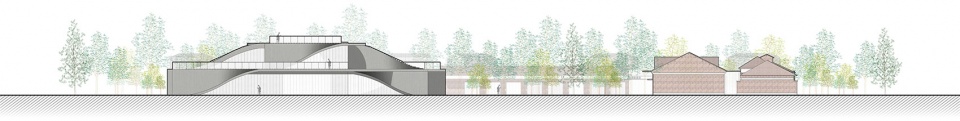

▼东立面,East elevation ©同济原作设计工作室

▼南立面,South elevation ©同济原作设计工作室

项目名称:东风会客厅——小镇未来展示厅
建筑事务所:同济大学建筑设计研究院(集团)有限公司原作设计工作室
电邮联系方式:zmz3388@126.com
主创建筑师:章明、张姿
建筑设计团队:肖镭、范鹏、费利菊
结构设计团队:曹炜、林壮斌、
设备设计团队:郭长昭、焦学渊、曹阳、李菡茜
项目地点:上海市崇明区东风公路833号
建成时间:2021年4月
项目面积:1500平方米
摄影:章鱼见筑
摄影师网站:http://www.zyarch.cn
业主:光明房地产集团股份有限公司
施工总承包:中交第三航务工程局
二层会客厅室内设计:三裕建筑设计(上海)事务所

Project Name: Dongfeng Parlor —— Exhibition Hall of the Future Town
Architect: Original Design Studio/TJAD
Contact E-mail: zmz3388@126.com
Lead Architects: Zhang Ming, Zhang Zi
Architecture Design Team: Xiao Lei, Fan Peng, Fei Liju
Structure Design Team: Cao Wei, Lin Zhuangbin
Facility Design Team: Guo Changzhao, Jiao Xueyuan, Cao Yang, Li Hanqian
Location: No.833 Dongfeng Highway, Chongming District, Shanghai
Completion: April 2021
Gross Built Area: 1500㎡
Photographer: ZY Architectural Photography
Photographer’s Website: http://www.zyarch.cn
Client: Bright Real Estate Group Co.,Ltd
Construction: CCCC Third Harbor Engineering Co.,Ltd
2F Interior design:PINES ARCH

More:同济原作设计工作室 。更多关于他们:Original Design Studio on gooood
