DD16 by BIO Architects

A floating tourist equipment

Project Specs

Design Firm:
Location:

感谢 BIO Architects 将以下内容授权gooood发行。更多关于他们:BIO Architects on gooood.
Appreciation towards BIO Architects for providing the following description:

DD16是一座体量紧凑的模块化住宅,适合安装在较为偏僻或气候较为极端的地区。该住宅由两个在工厂制造的模块构成。

DD16 is a prototype of modular compact house that was made for installation in remote places and extreme conditions. The house consists of 2 modules that are made at the factory.

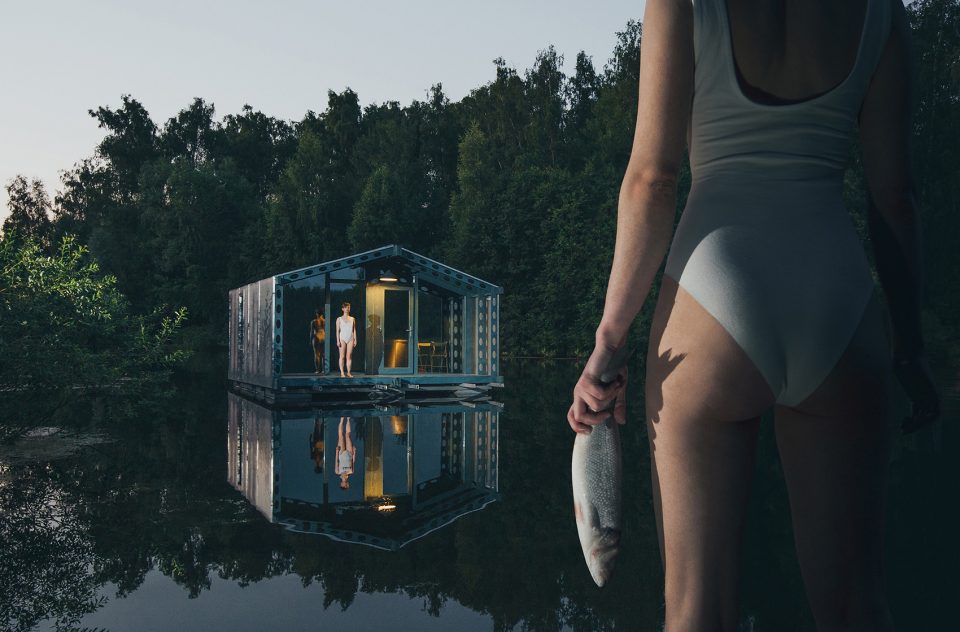

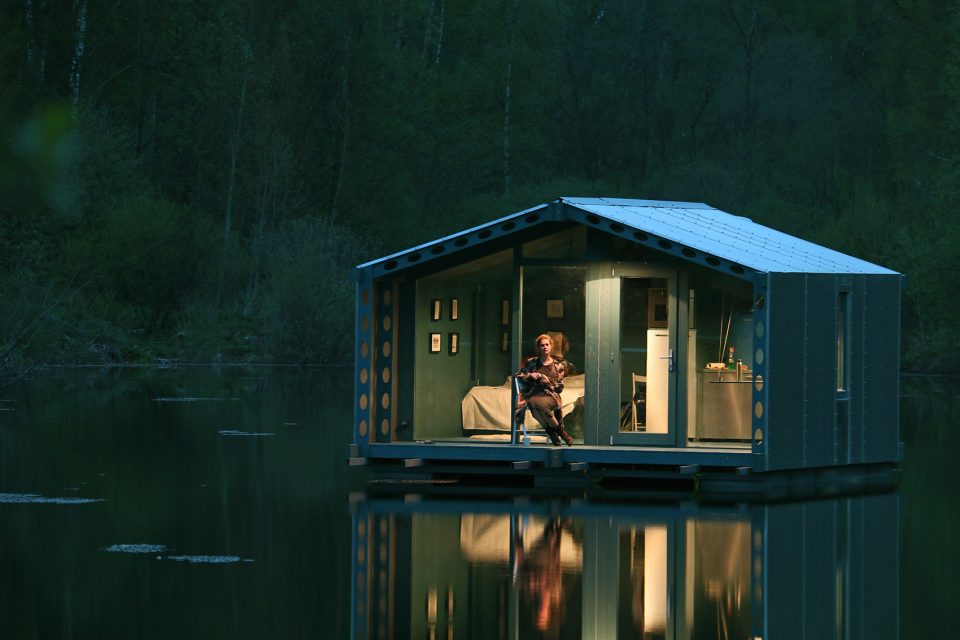

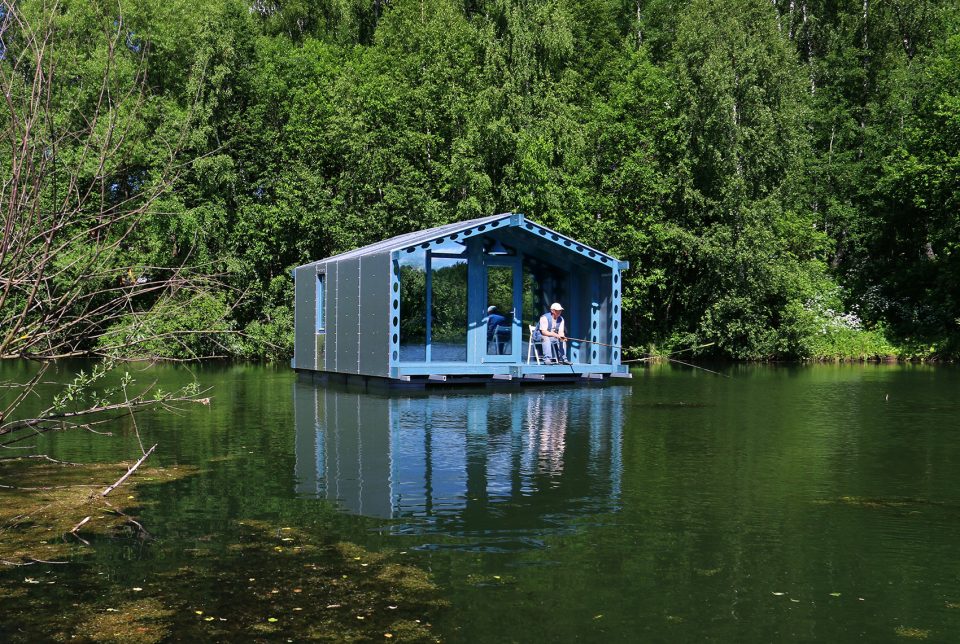

▼住宅外观,exterior view

该房屋被构想为一个可以随处移动的旅行设施,其每个细节均经过了仔细考量,可适应非常恶劣的气候条件。相比于普通的住宅,该所有的结构部件和内部装饰均能够根据使用需求进行调整。建筑的框架由带有卡口的层压木构成,能够帮助降低结构的重量并减少冷桥的出现。

The prototype was designed and made as a tourist equipment where the weight of every detail is taken into account so it can be used in very harsh conditions. All the constructive elements were subject to change as well as the interior finishing compared to the regular houses. The frame is made of laminated wood with a milled ports. The ports helped to decrease the weight and cold bridges and gaps.

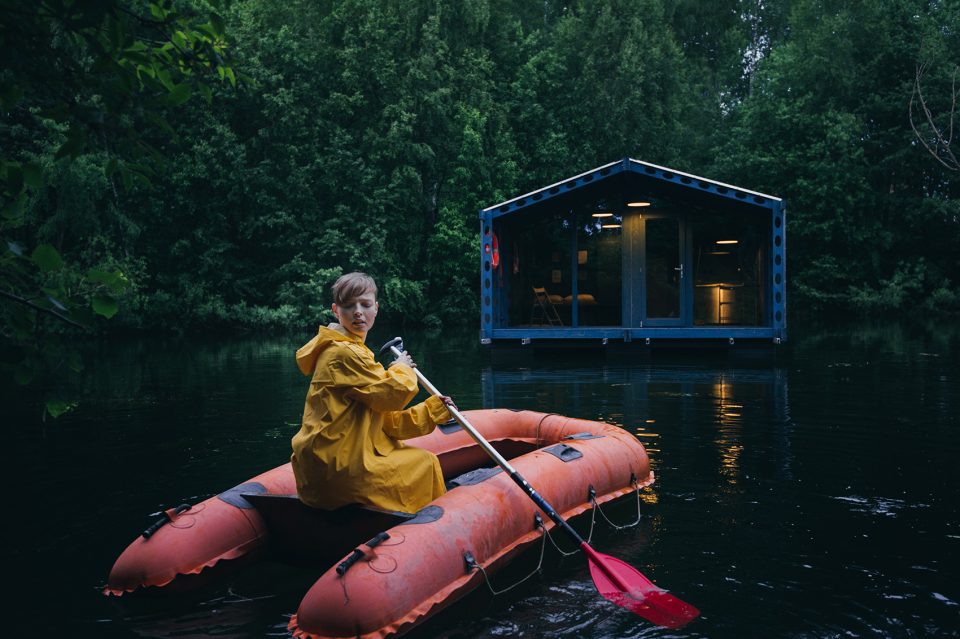

▼一个可以随处移动的旅行设施,the prototype was designed and made as a tourist equipment

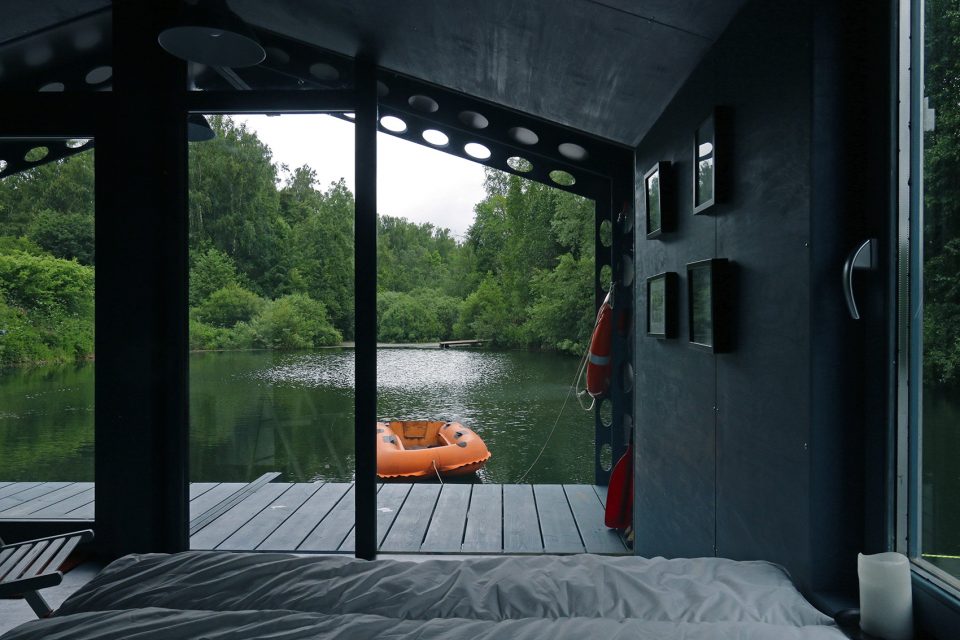

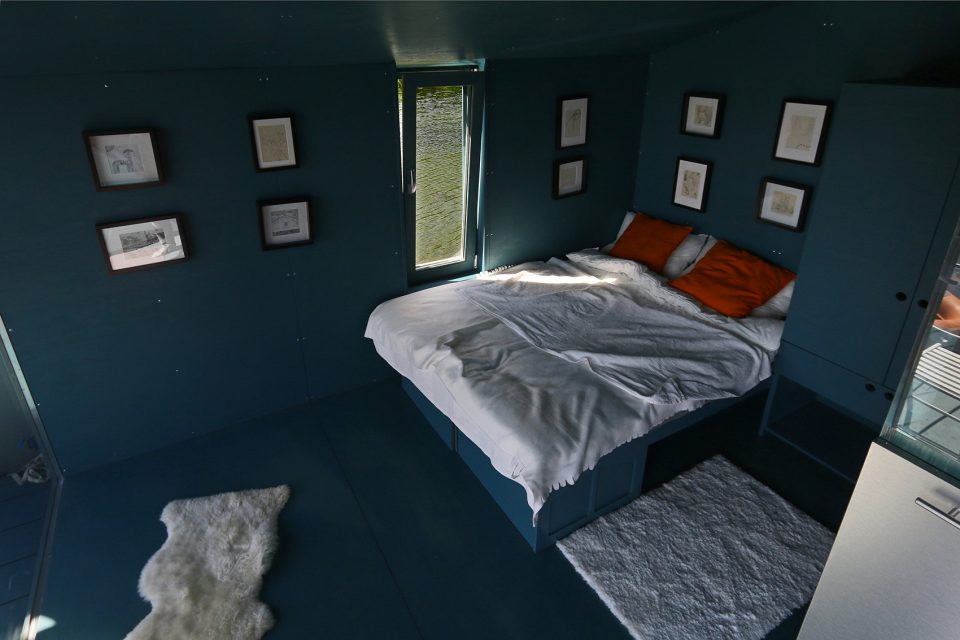

▼卧室,bedroom

聚氨酯泡沫塑料被用作保温层,其硬度能够帮助减少内部包层材料的使用。外墙饰面采用了复合铝板,形成完整的无缝表面。这种轻型的材料能够抵挡来自环境的侵袭,同时也被运用在厨房的墙面。室内空间充分地展现了小体量所蕴含的潜力,同时提供了尽可能舒适的空间。住宅中包含了带有淋浴间的浴室、双人床、餐桌以及可以安装柴火炉的自由空间。

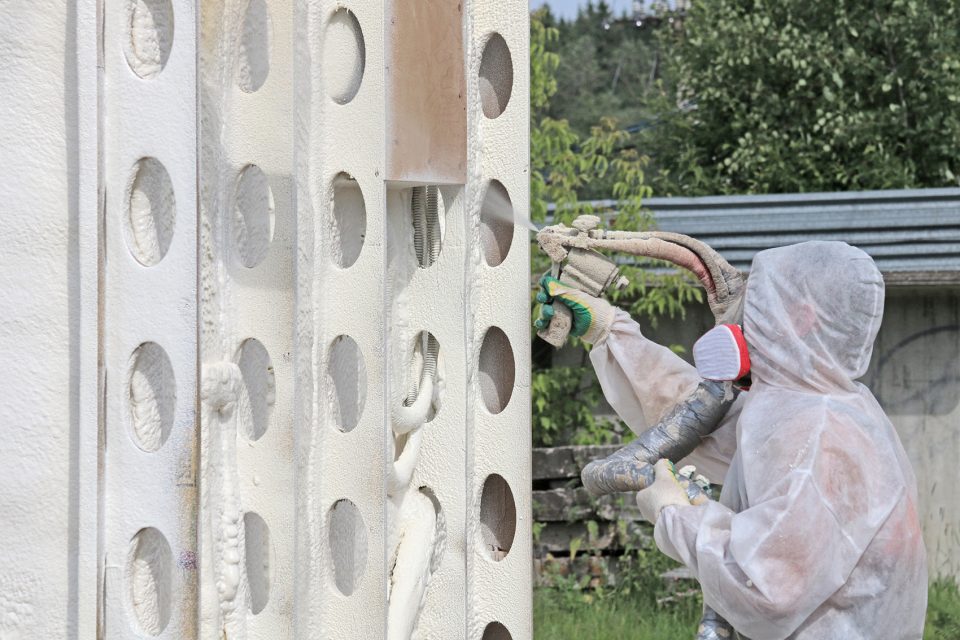

Polyurethane foam is used as an insulation, the rigidity of which helped to decrease the weight of inner finishing materials. The exterior finishing is made of composite aluminium sheets which allowed to make seamless surface from the top to bottom. This is a lightweight material that is resistant to the environment. The same material gets used as a kitchen facade. The internal space shows all the potential of compact buildings while saving all the comfortableness. There is a bathroom with the shower, double bed, dining table and some free space where the wood stove can be installed.

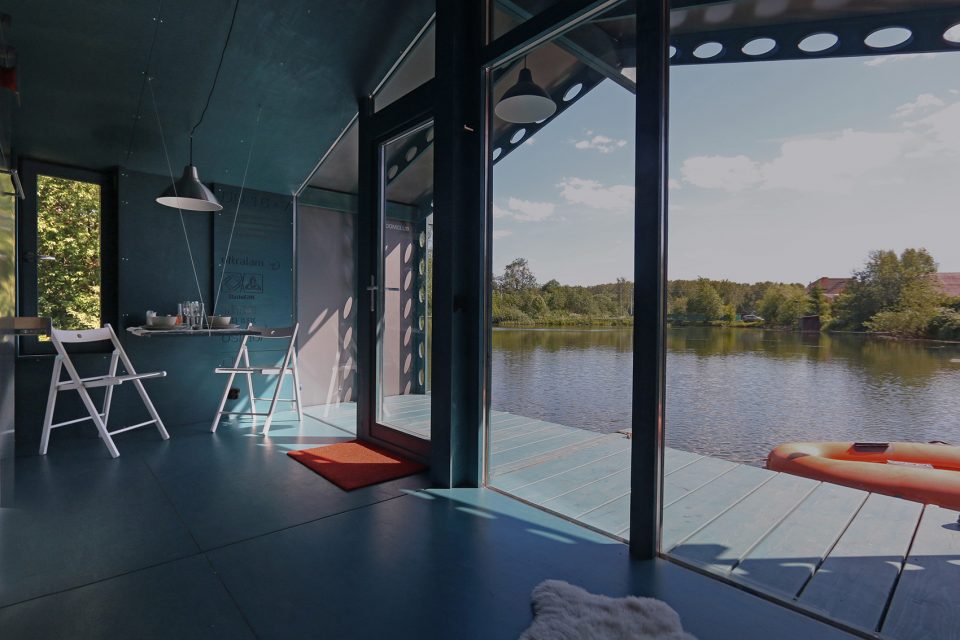

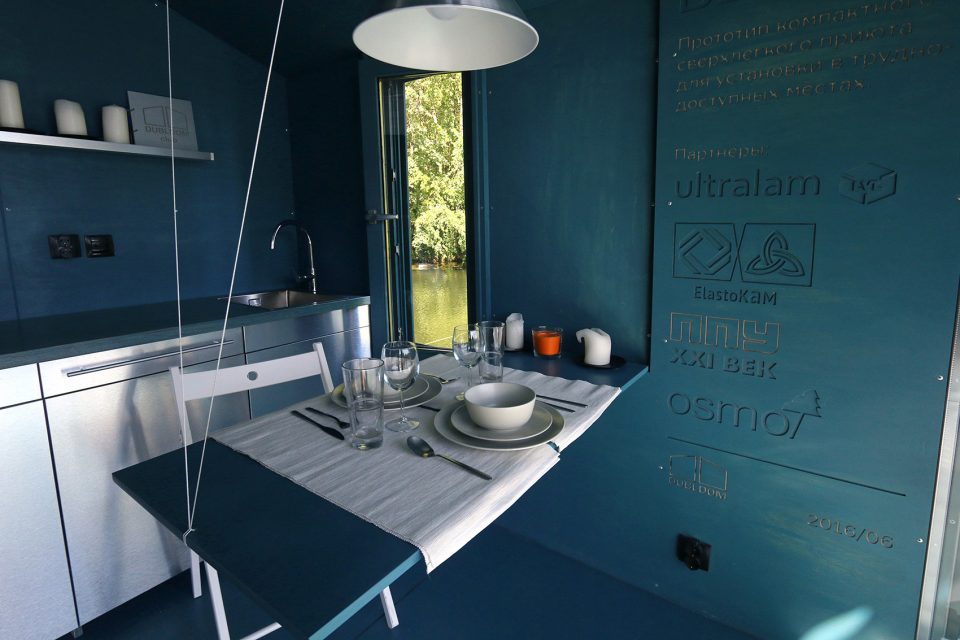

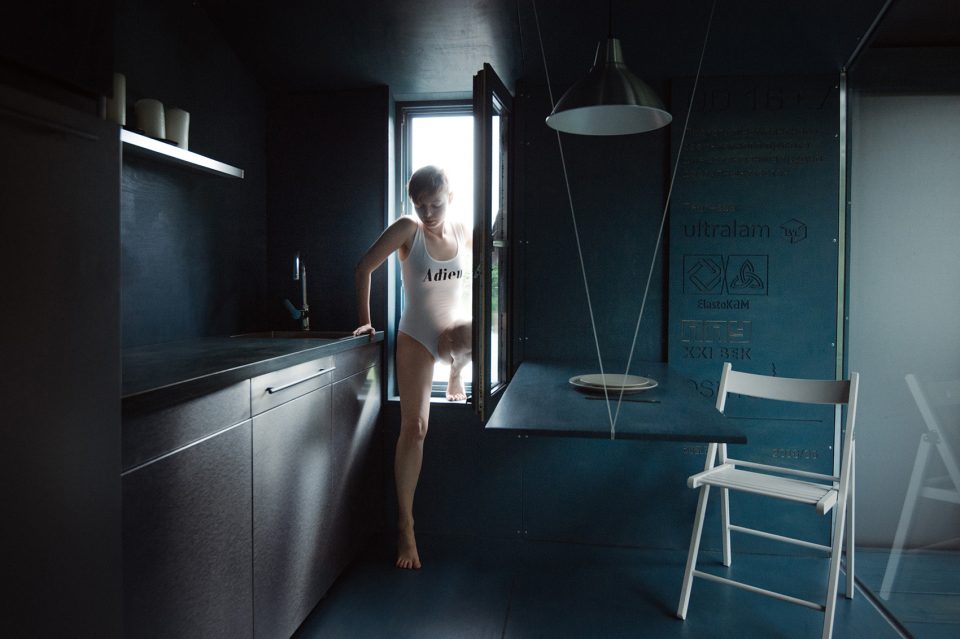

▼室内细部,interior detailed view

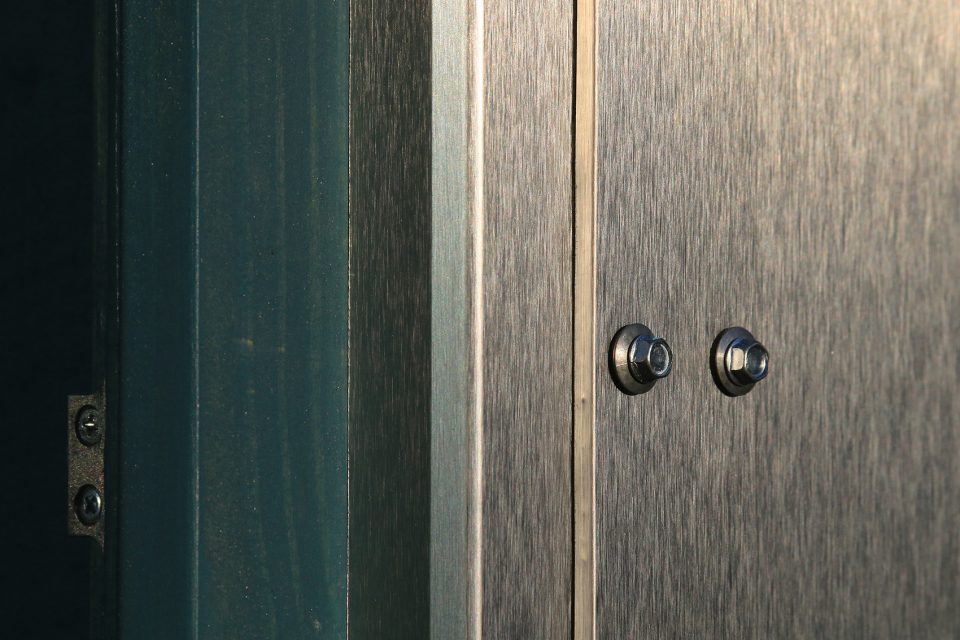

▼墙面细部,facade detail

宽阔的窗户和充足的光线增强了空间的视觉效果。室内装饰也采取了相同的手法,呈现出坚固、轻盈且高效的特征。隐藏的壁龛被用于存放物品,部分家具还可以进行改装或折叠。

Due to large glazing and the great amount of light, the space inside visually increases. The same principles are used in furnishing – rigidity, weight reduction and maximum use of space. Hidden niches are used for storage. Some furniture can be transformed or folded.

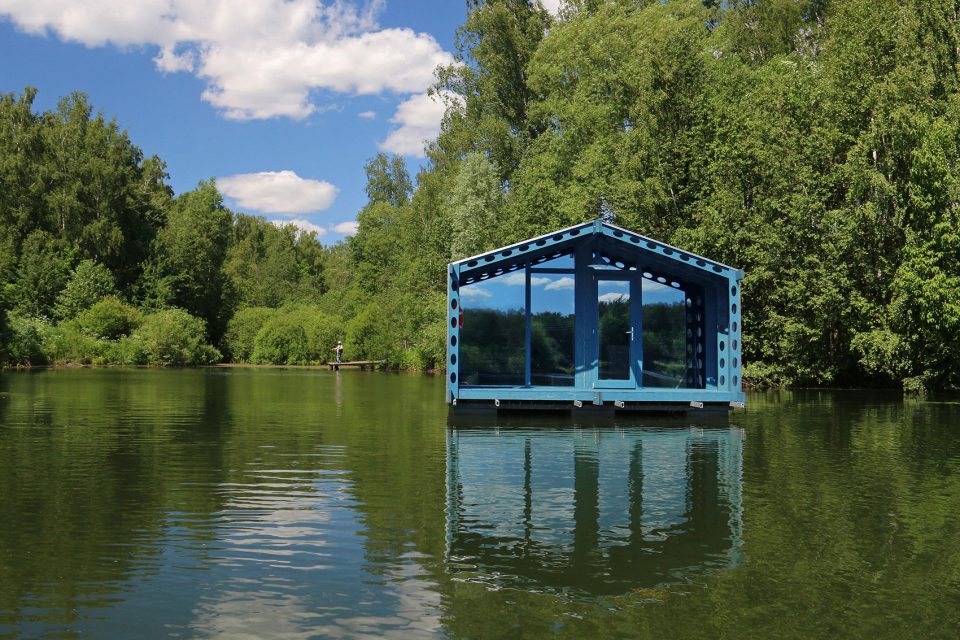

▼房屋可以利用隐藏在下方的模块化浮筒直接漂浮在水上,modular pontoons are made together with the frame that can be dissembled so it can be transported inside the house and set on water

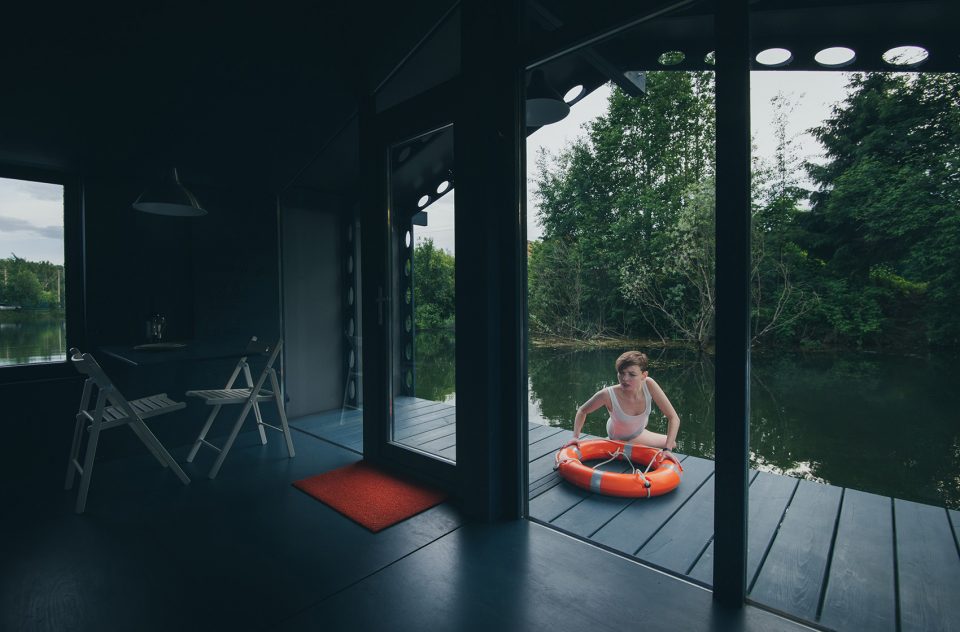

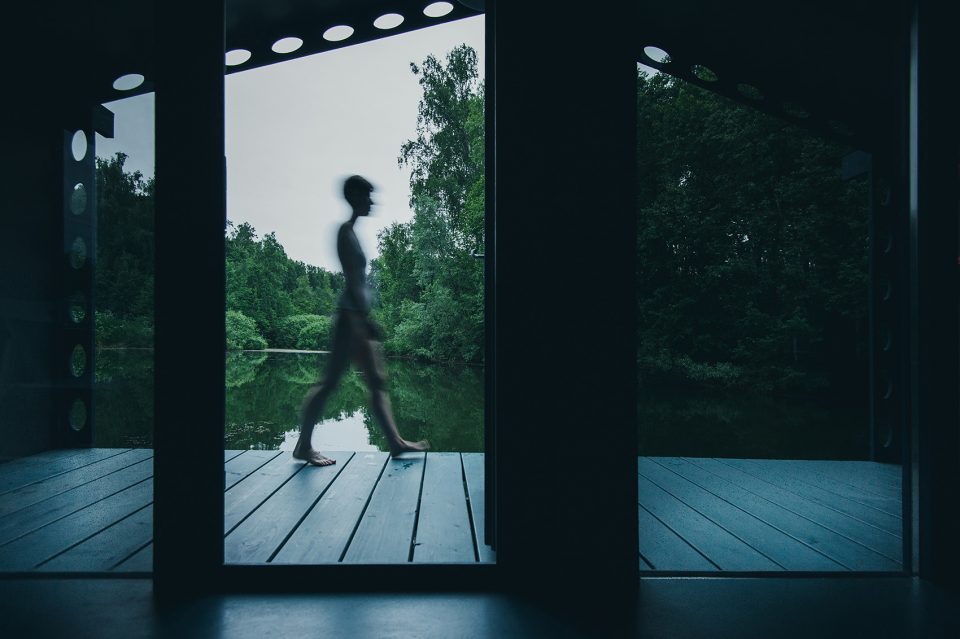

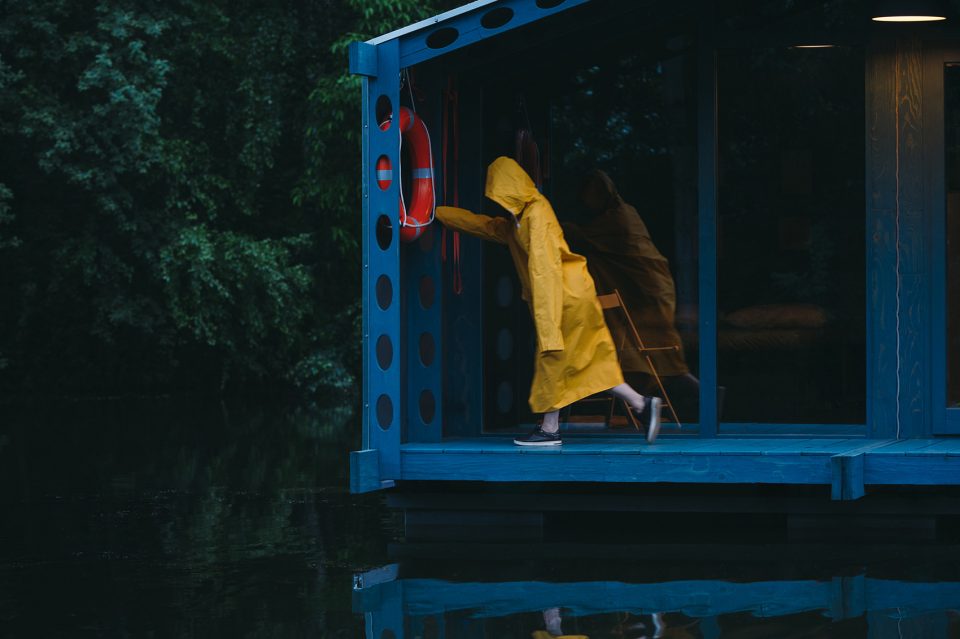

▼室外平台,outdoor deck

项目在不同的条件下对房屋进行了测试。2016年11月,该住宅被安装在湖面的浮桥上。隐藏在下方的模块化浮筒与房屋的框架是同时制作的,因此可以使房屋直接漂浮在水上。多孔的房梁使房屋可以通过吊车或直升机进行搬运,从而在各种环境条件下轻松地完成所有的装配工作。房间内运用了各种自动化系统,包括太阳能发电、湖水再利用和生态厕所等。该结构还可以很轻松地适应其他类型的环境条件。

The plan is to test the house in different condition. In November 2016 the house was installed at the lake using pontoons. Modular pontoons are made together with the frame that can be dissembled so it can be transported inside the house and set on water. Beam releases allow to attach the house to the crane or helicopter so all the rigging work can be done easily by one person in any weather conditions. The autonomous systems are used in house – solar power for electricity, water from the lake and bio toilet. The construction can be easily adapted for other conditions.

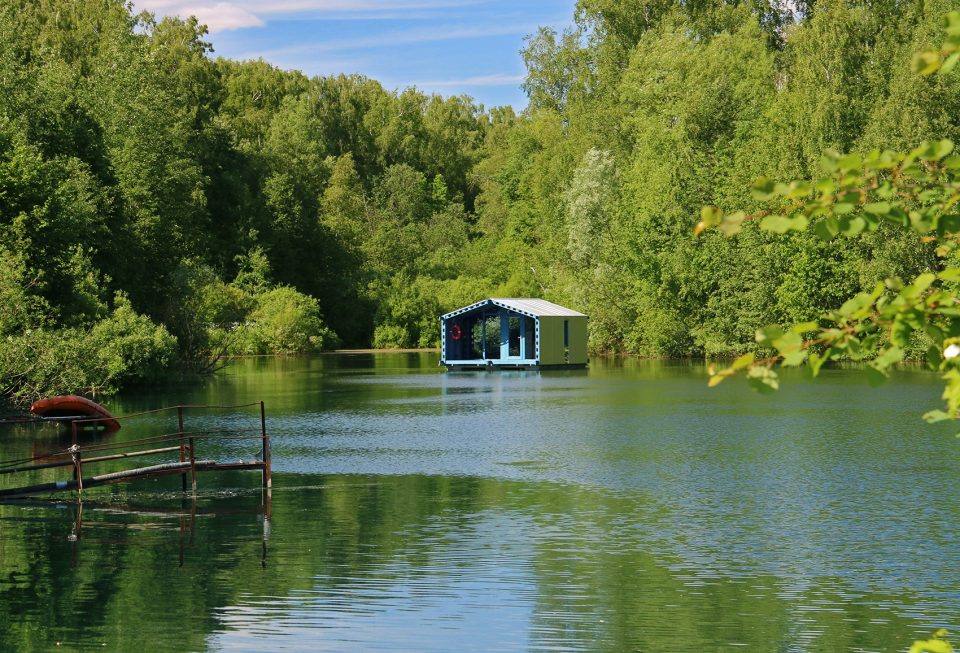

▼房屋结构可以很轻松地适应各种类型的环境条件,the construction can be easily adapted for other conditions

在DublDomClub的支持下,住宅目前正在以出租屋的形式进行测试,在众多客户的使用之后,住宅将得到来自不同人群的测试反馈。被测试者将会划船进入漂浮在水上的住宅,并在里面度过一整天。被测试的住宅位于莫斯科附近,朝向树木的玻璃立面会使人如同置身于森林地带的野湖。房屋随着风吹转向不同的方向,带来持续变化的室外图景。

The house now is being tested in a rent out format under the DublDomClub aegis. This allows to have some feedback from different people and test the house as it it intensely used by the great number of customers. it is an uncommon experience for our visitors to swim on a boat and spend a day in a compact floating house. The house is located close to Moscow but due to glazed facade that is facing the wood it feels like you are on a wild river somewhere in the forest thicket. The wind turns the house to the different sides and the picture outside changes all the time.

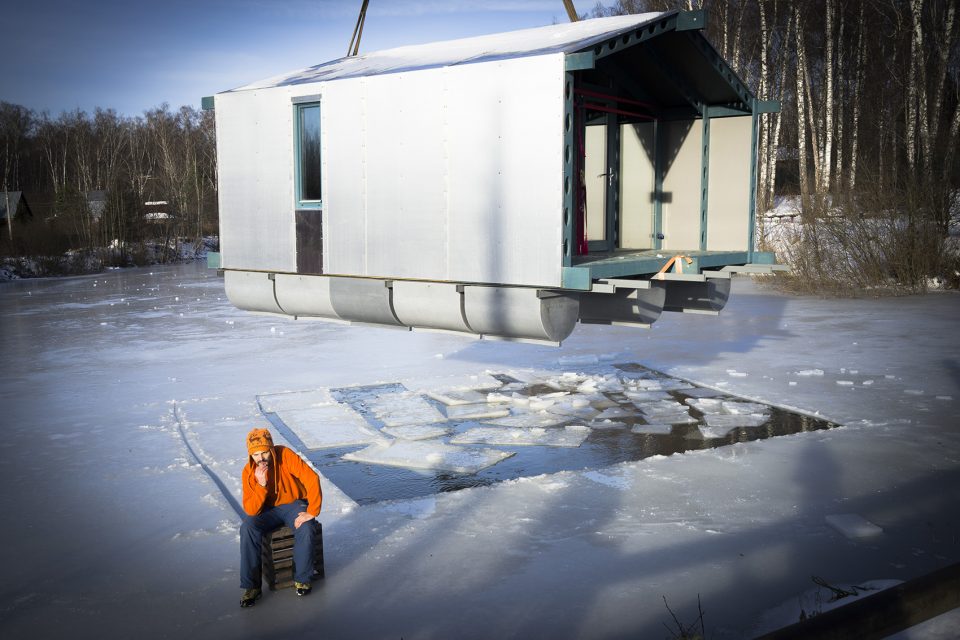

▼搬运和装配过程,transporting and assembling phase

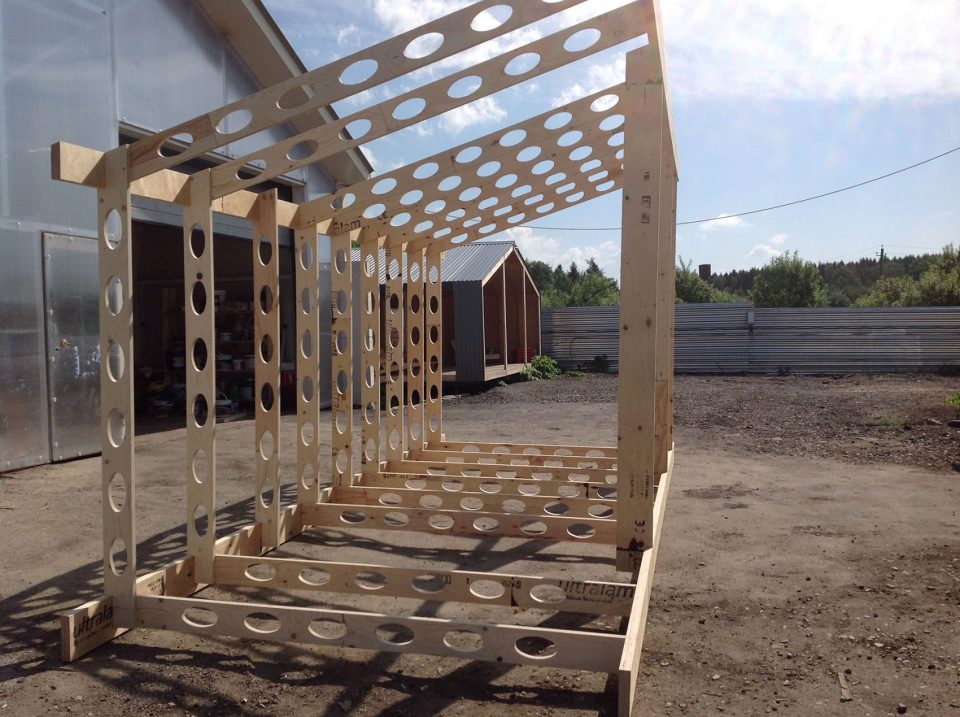

▼层压木框架,laminated wood frame

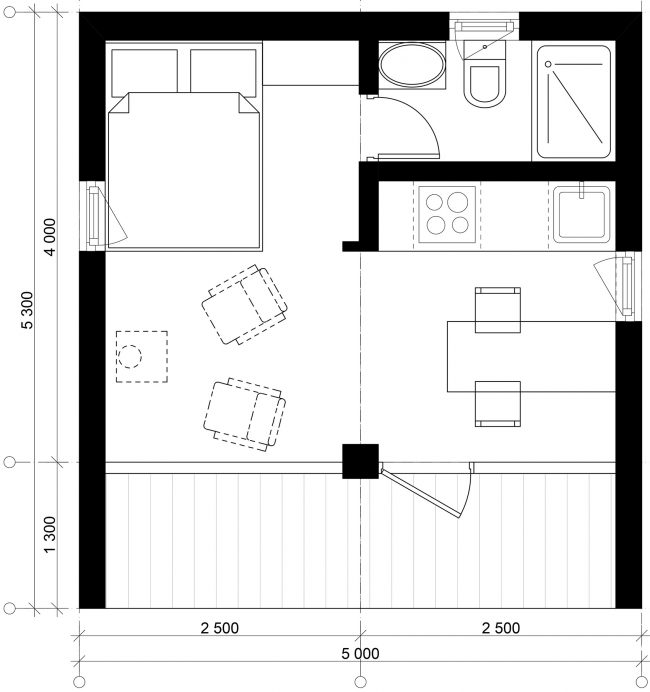

▼平面图,plan

Name: DD16
Authors: Ivan Ovchinnikov (www.bio-architects.com)
Photos: Ivan Ovchinnikov, Vlad Mitrichev (www.mitrichev.com)
Production: DublDom (www.dubldom.com)
Dates: design and production – 2016
Address: universal
Video: https://vimeo.com/192971666
Partners: DublDom, ULTRALAM, ElastoKAM, ППУ21ВЕК, OSMO, EcoVolt
