非常感谢 本哲建筑 予gooood分享以下内容。更多关于他们：Benzhe Architecture on gooood.
Appreciations towards Benzhe Architecture for providing the following description:

「53°」位于上海浦东新区金桥板块的EKA•天物艺术街区，在街区最里端，紧邻西沟港，由中船航海仪器厂工业遗产中的绿化组温室花房改建而来。原绿化组共有三栋建筑，分别为原楼号497、499、530，为上世纪五六十年代的旧筑，均已年久失修，闲置数年。受业主方委托对该场地旧筑一一更新改造，我们希望更新后的530既要有记忆中的温情，又有崭新的面貌。

「53°」 is located at the innermost end of the EKA Art District in Jinqiao, Pudong New Area, Shanghai, adjacent to Xigou Harbour. 53° was converted from a greenhouse for Greening Group of the industrial heritage of the China Shipbuilding Naval Instrumentation Factory (CSNIF). There are three buildings in the original greenhouse group, namely the original buildings No. 497, 499 and 530, which were built in the 1950s or 1960s, being desolated and unused for several years. We were commissioned by the owner to renew and renovate the old buildings on the site, and we hope that the renewed 53° will have both the warmth in the memory and a brand new look.

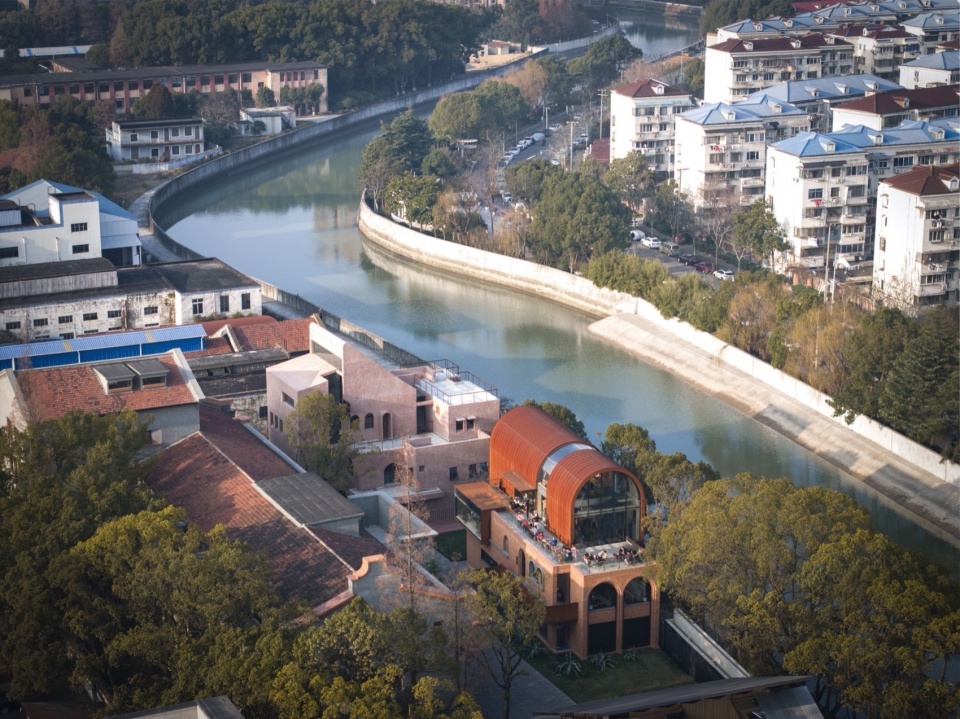

▼ 由南到北鸟瞰图，Aerial view from south to north ©存在建筑－建筑摄影

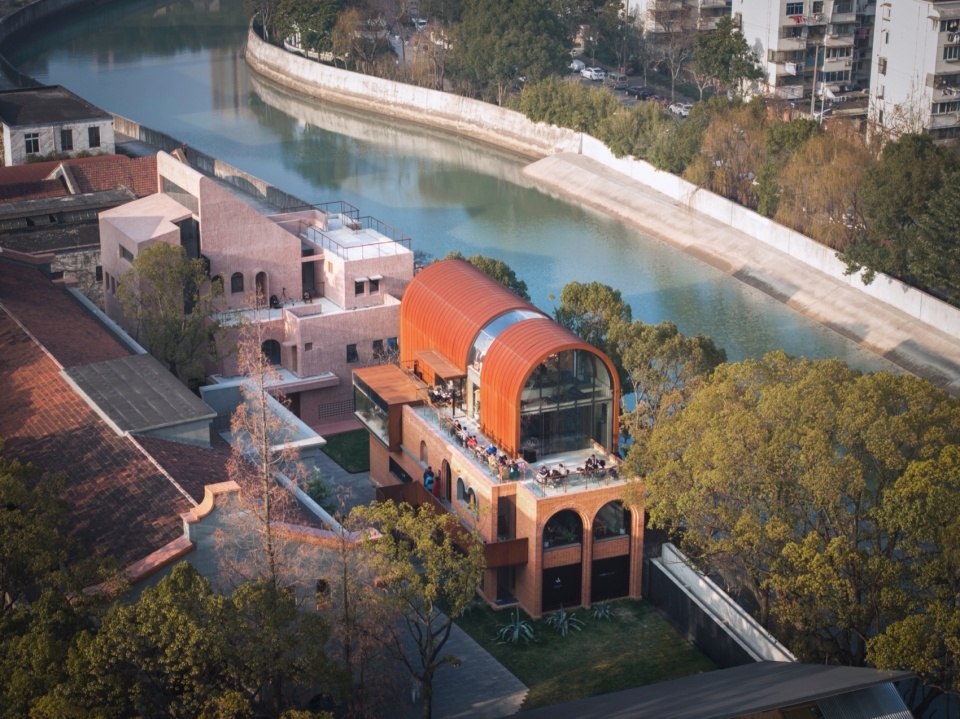

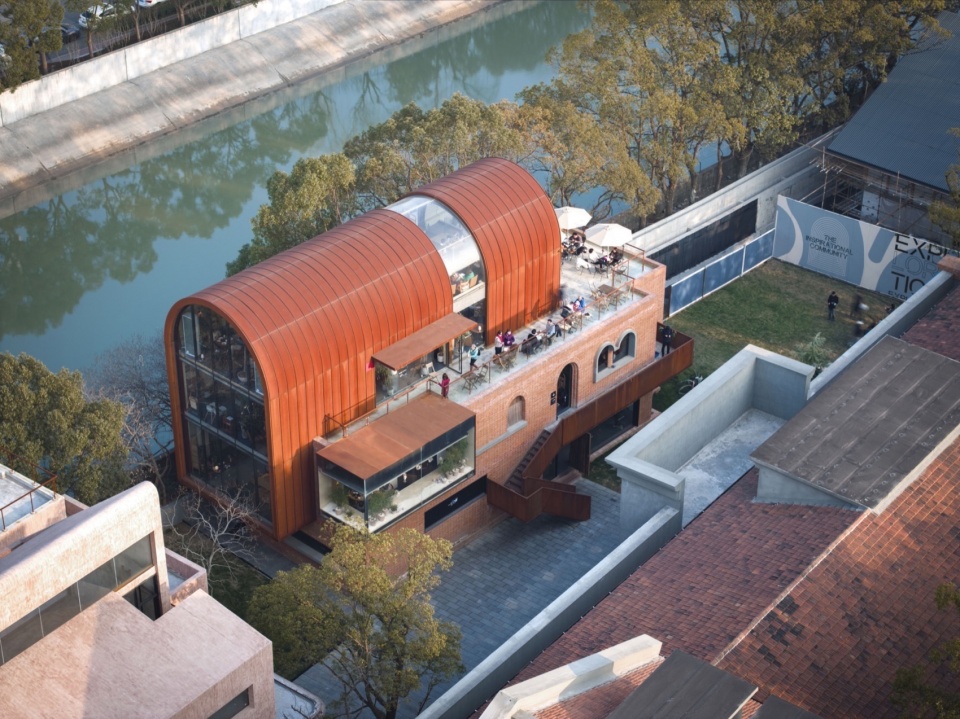

▼ 由北到南鸟瞰图，Aerial view from north to south ©存在建筑－建筑摄影

我们为建筑取名「53°」，一为呼应温室花房及原建筑编号530，将「53°」作为园区历史底蕴的一个注释；二是考量到建筑当下的商业属性——“一尺花园”已入驻该场地，而53°恰好是咖啡和茶饮入口的适宜温度。温而不灼，适意为乐，这也是我们希望通过这件作品传达出的一种人生态度。

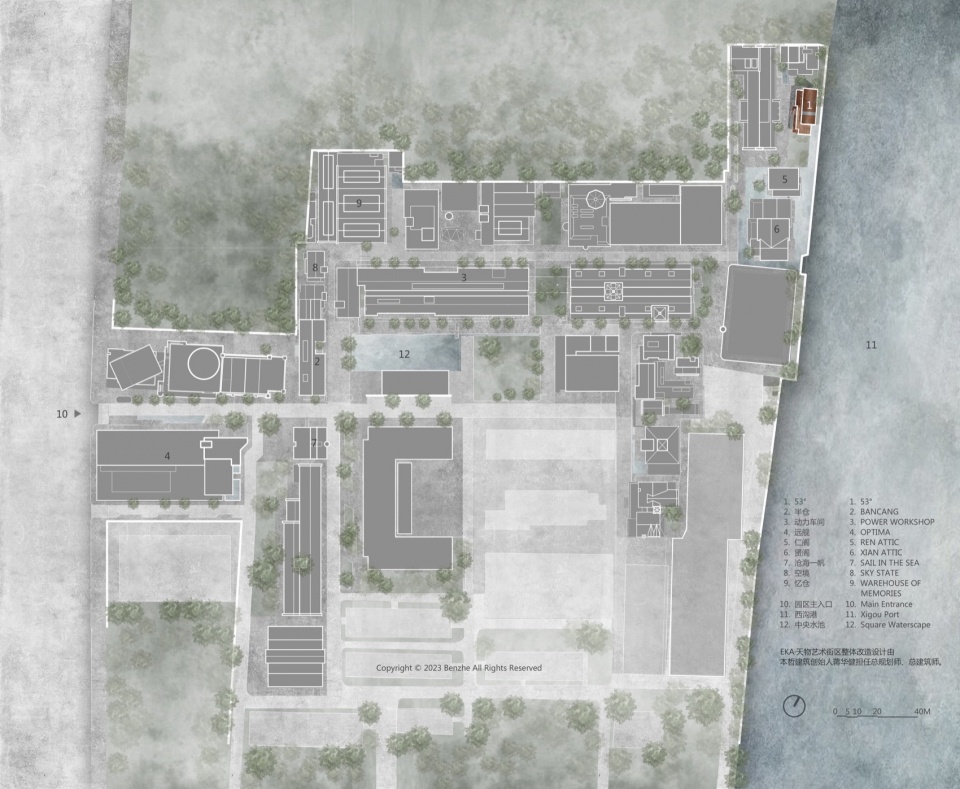

▼53°在EKA·天物街区的定位，Positioning of Yuan Jian in the EKA district © 本哲建筑

We named the building「53°」 to echo the greenhouse and the original building No. “530”, and leave a comment on the historical heritage of the district. Secondly, we considered the current commercial properties of the building – One Step Garden has already settled, and 53° is the right temperature for the coffee and tea to be drunk, which is warm but not hot, making it agreeable and enjoyable. This is the human attitude that we hope to convey through this work.

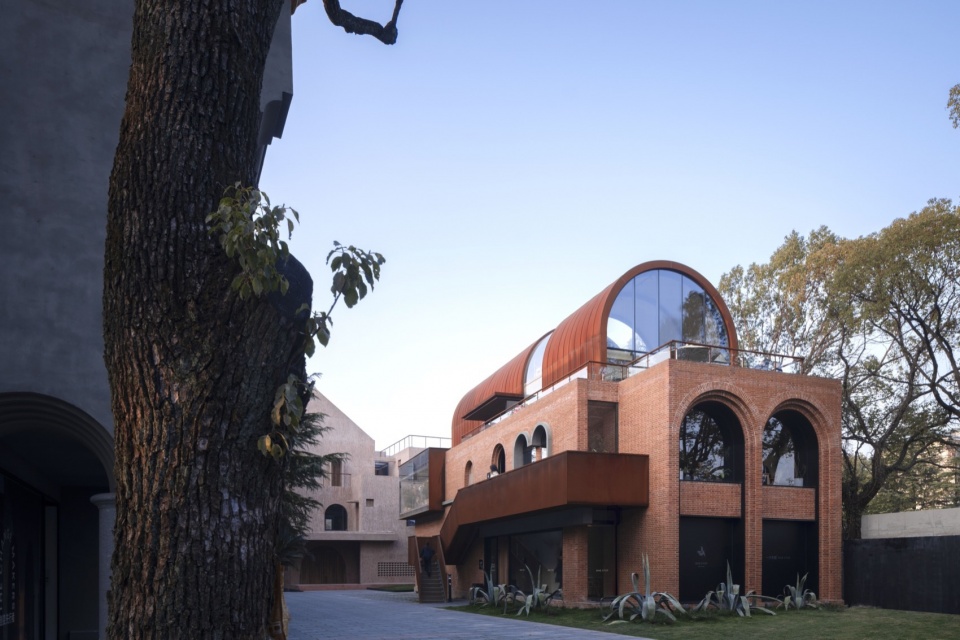

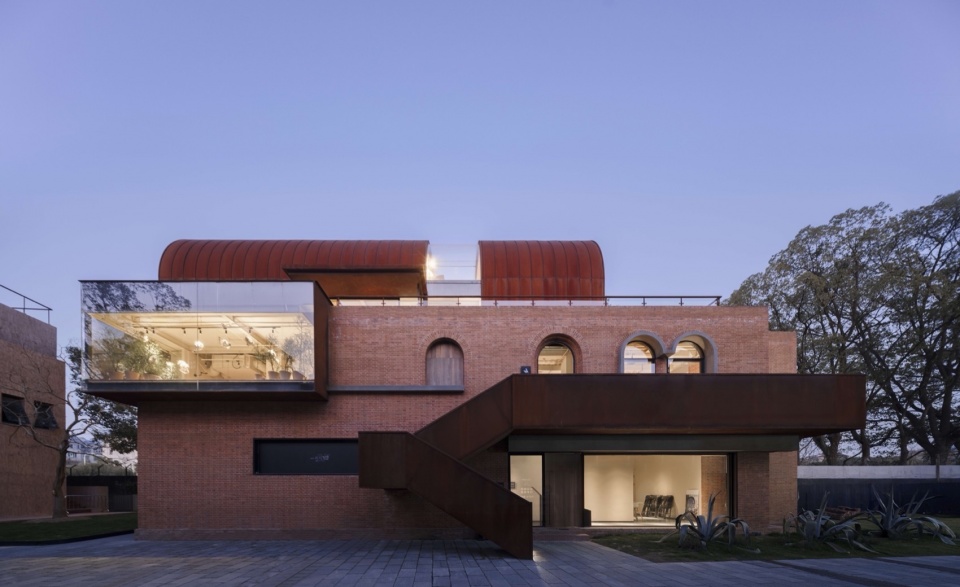

▼建筑整体立面，Overall elevation of the building ©存在建筑－建筑摄影

▼透过夹缝看到的53°，53° seen through the crack ©存在建筑－建筑摄影

▼人与建筑的互动，Interaction between people and architecture ©存在建筑－建筑摄影

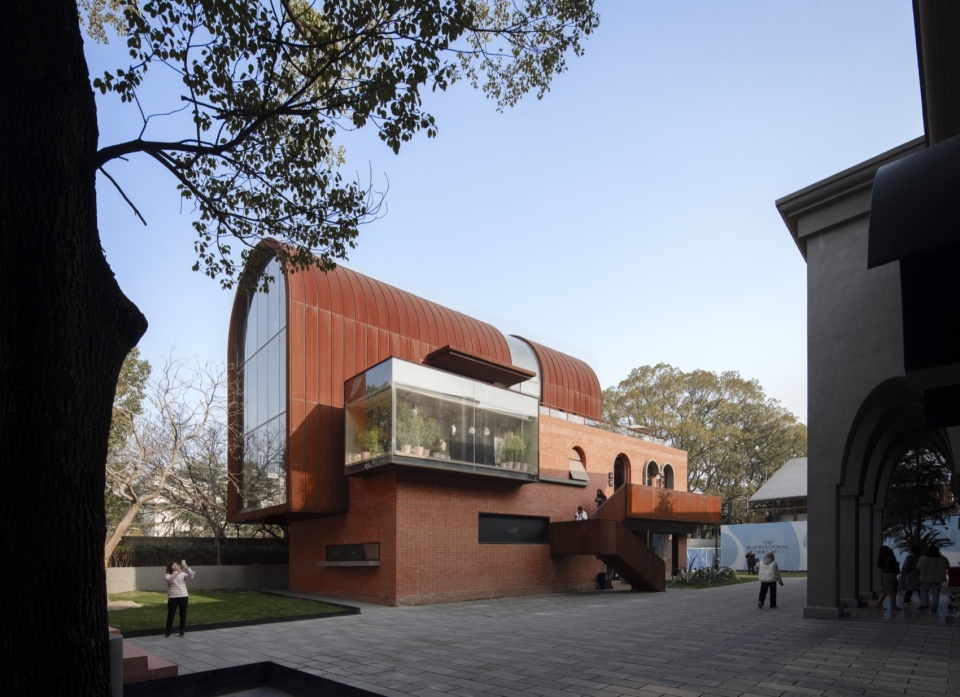

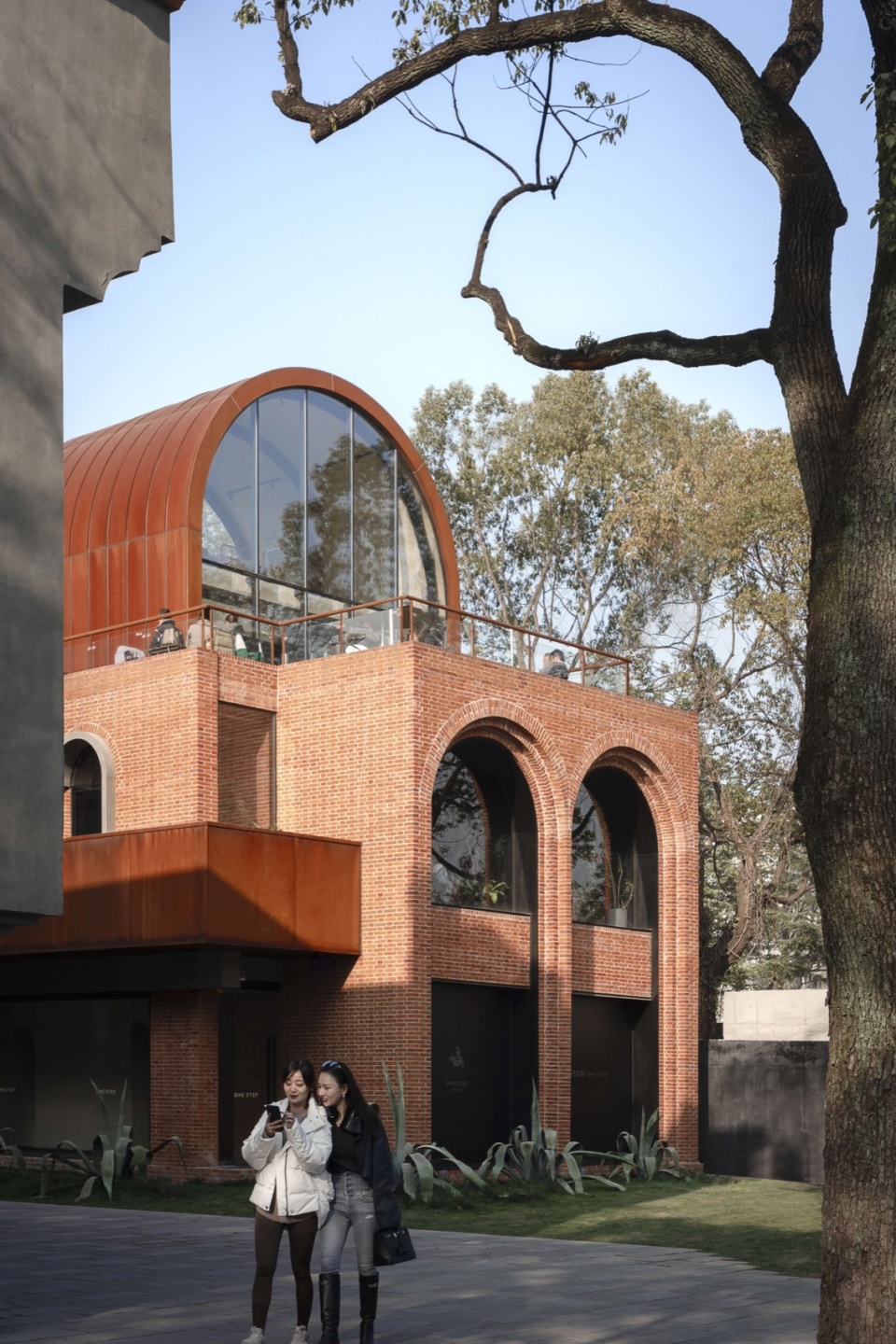

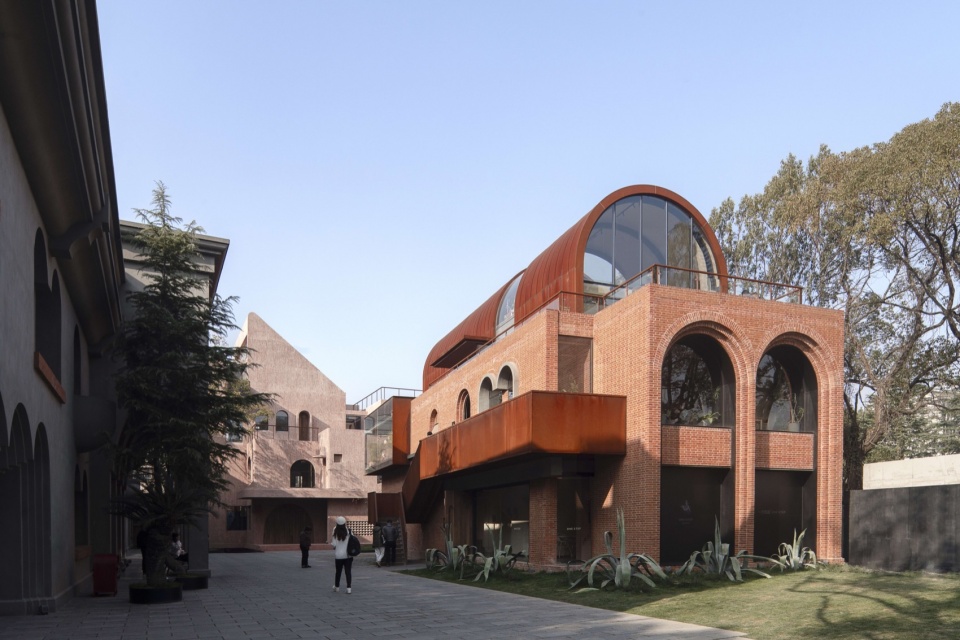

▼建筑西北立面，North-west elevation of the building ©存在建筑－建筑摄影

更新中运用了大量的拱形元素，包括西面的圆拱门窗、南面的连续拱形落地窗，以及顶部的拱形穹顶，形成的体块，相互咬合、重置，呈现建筑整体的几何美与力度感。

A large number of arched elements are used in the renovation, including round-arched windows and doors on the west side, continuous arched floor-to-ceiling windows on the south side, and an arched dome on the top. Formed blocks present occlusion and resetting, which shows the overall geometrical beauty and sense of strength of the building.

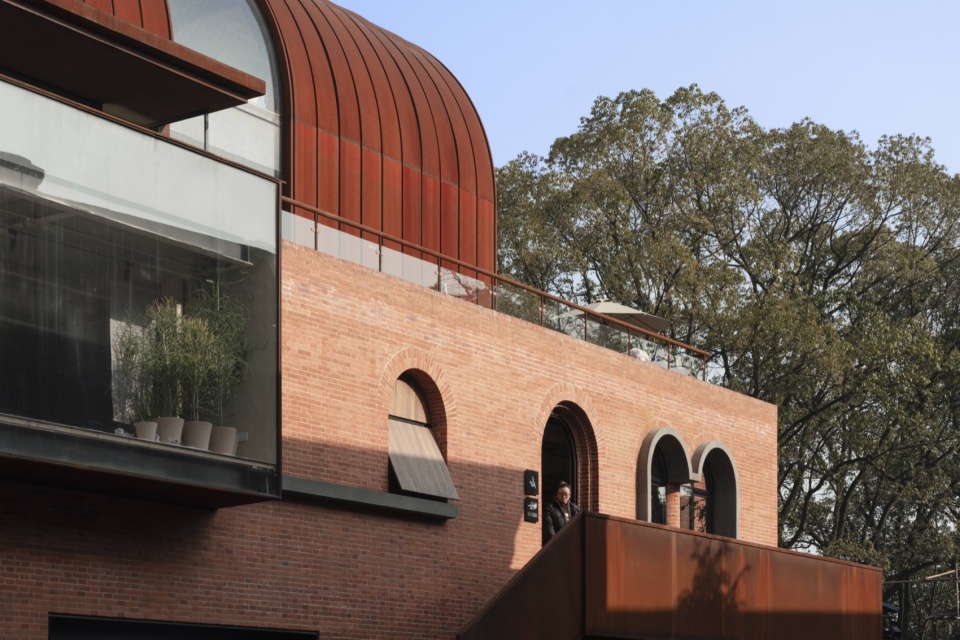

▼建筑局部图，Partial view of the building ©吕晓斌

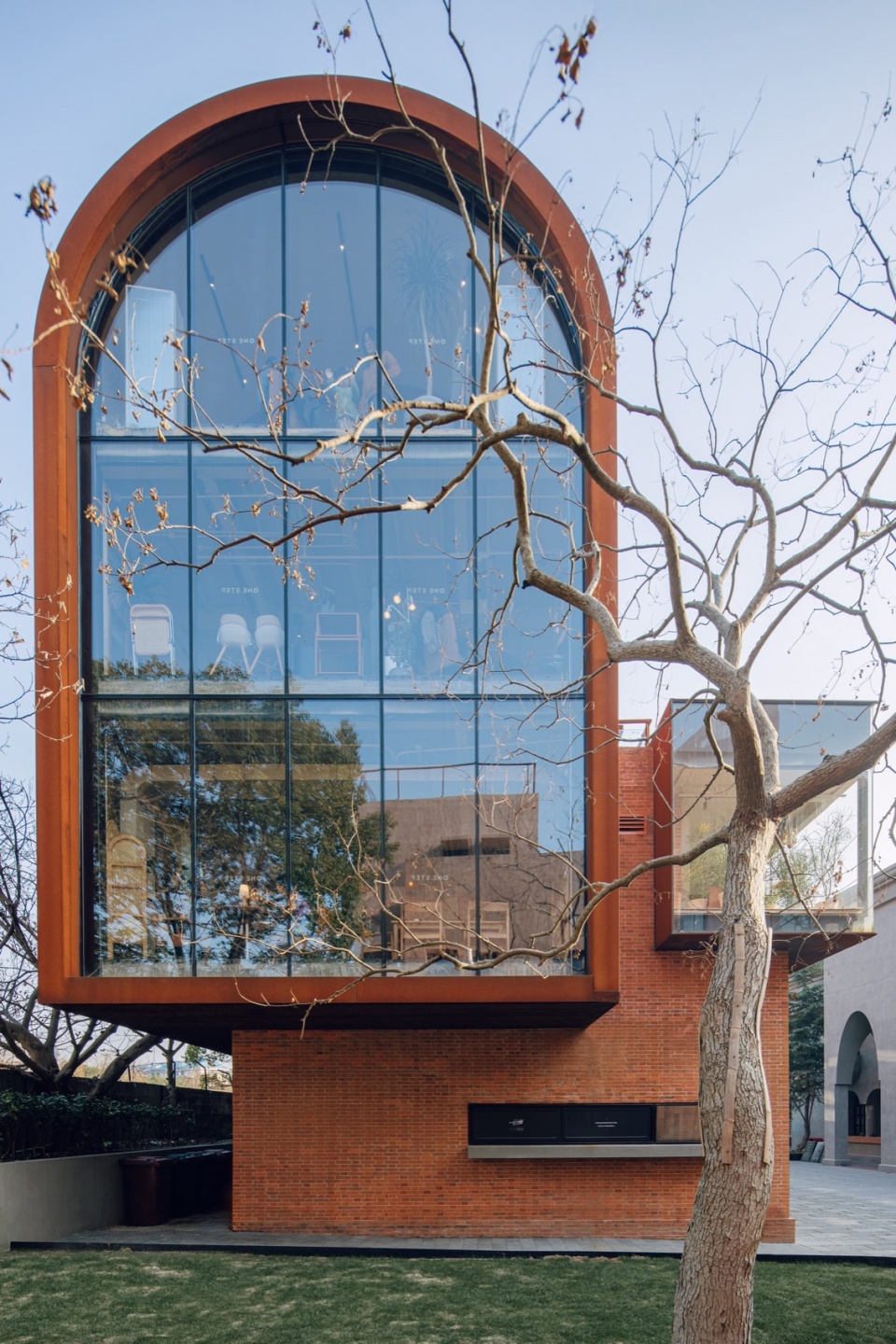

▼建筑北立面，North elevation of the building ©吕晓斌

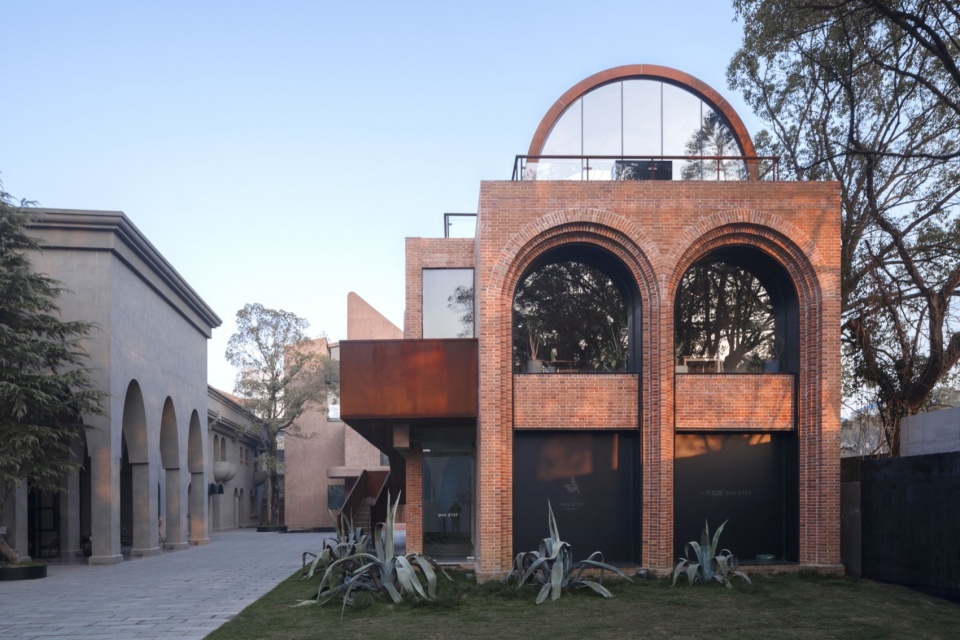

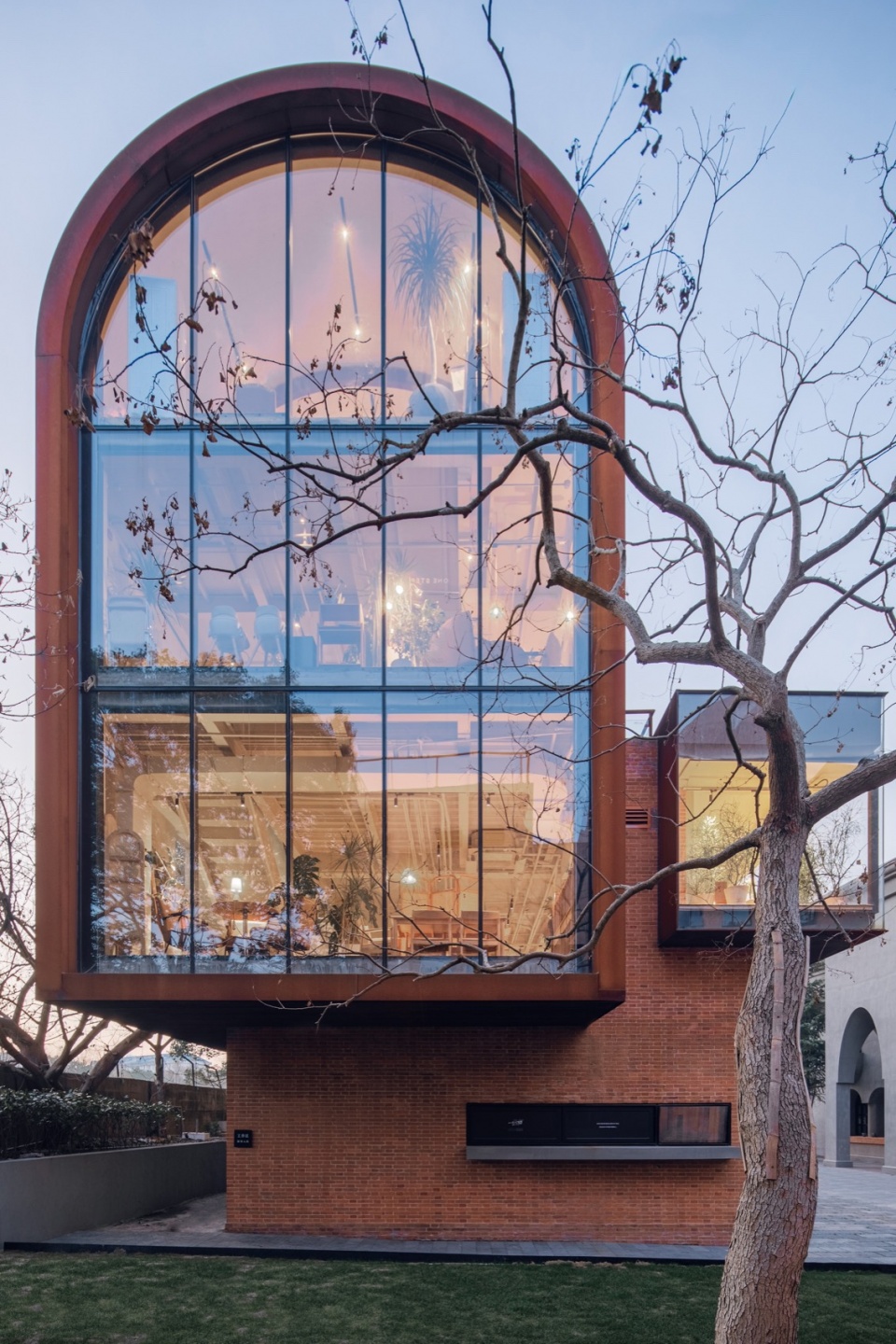

▼建筑南立面，South elevation of the building ©存在建筑－建筑摄影

▼建筑与周边环境，The building and surroundings ©存在建筑－建筑摄影

「53°」整体延续了原本温室花房的温暖之感，外观运用清水红砖和暗红色耐候锈钢板，呈现出两种不同色阶与质感的红。红砖传统素雅，而锈钢工业复古，局部又以混凝土线条收边，几种表皮元素叠合，统一中又有所变化，简约明快。

「53°」 carries over the warmth of the original greenhouse. For the exterior, Isshiki Shimizu red brick and dark red weathering steel plates were used, which present two kinds of red with different colour gradations and textures. The red bricks are traditional and elegant, while the stainless steel is industrial and retro. In addition, the concrete lines were used for the edges. The several elements of surface coincide, with variations in unity, being simple and bright.

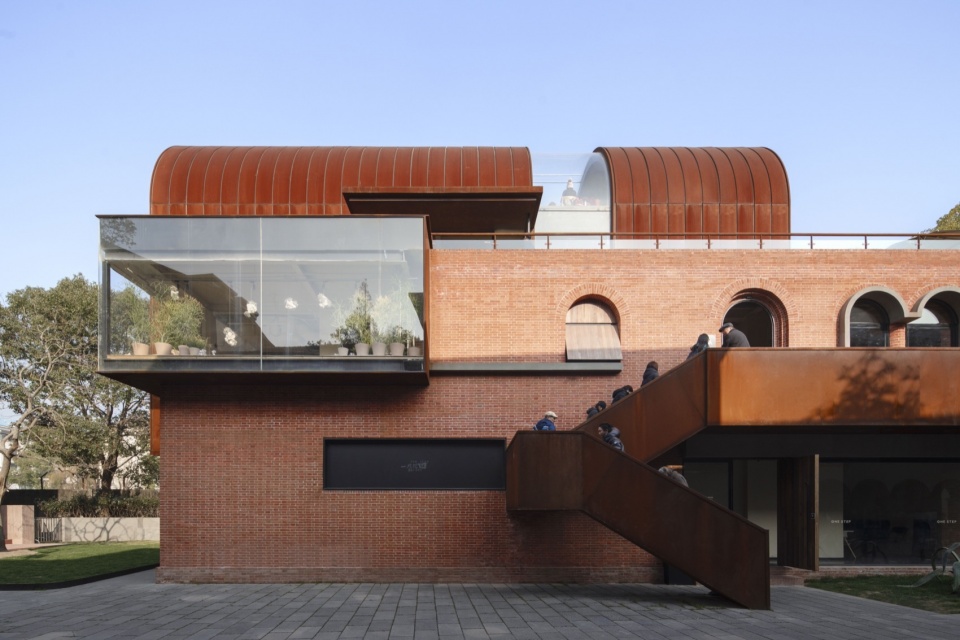

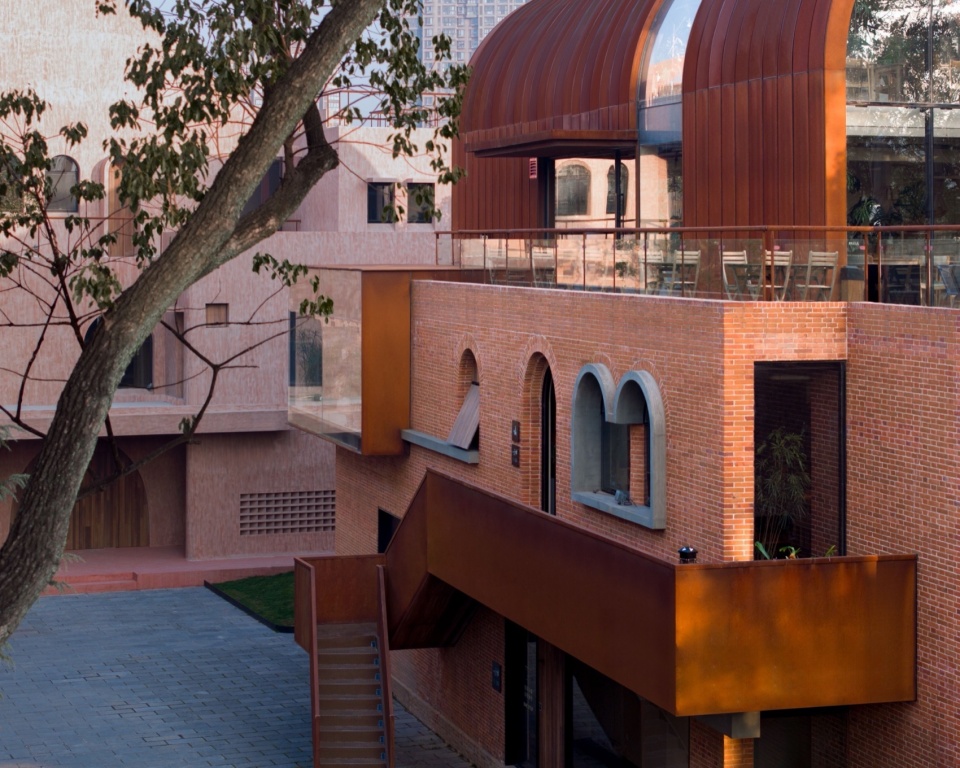

▼建筑西立面钢楼梯折叠而上，Steel staircase folding up on the west elevation of the building ©存在建筑－建筑摄影

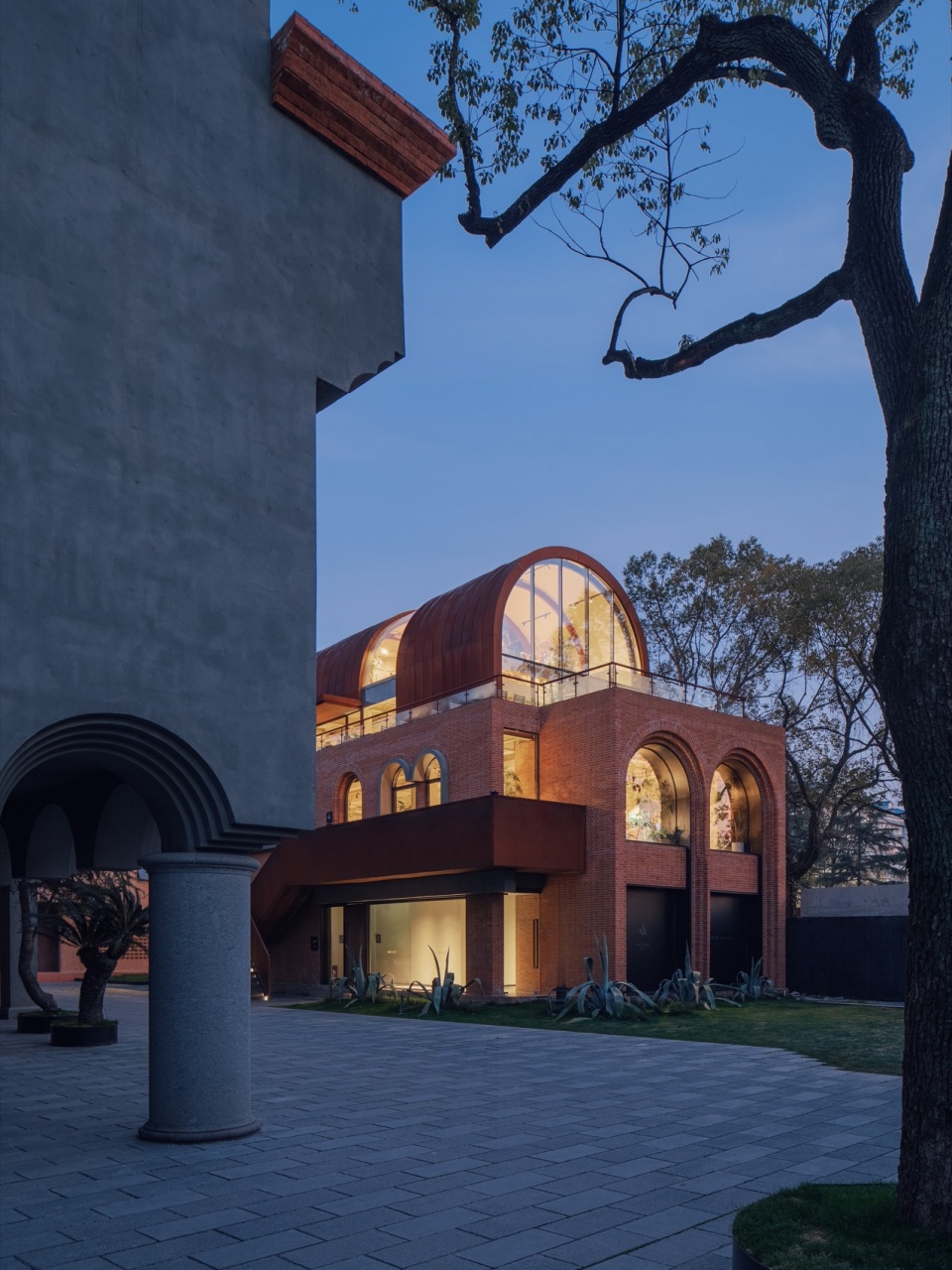

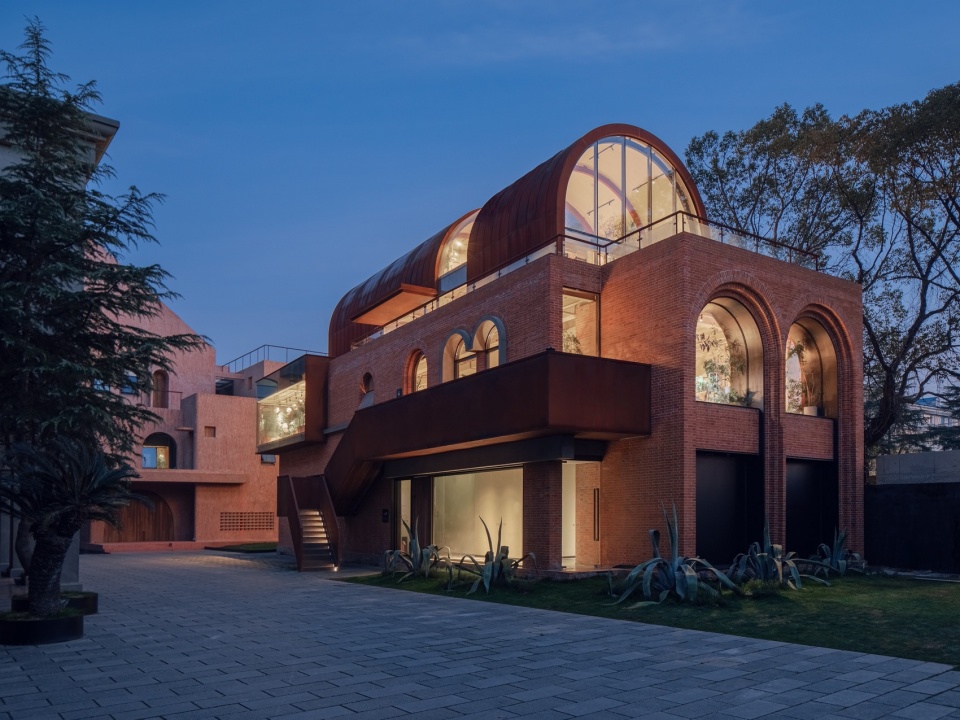

▼晨曦中的53°，53° in the morning sun ©吕晓斌

▼53°与周边建筑的关系，
The relationship between the building and surroundings ©吕晓斌

西面邻街，外置锈钢楼梯，折叠而上，与二楼连廊相通，便于人们交流与互动。二楼西北角红砖墙面向内嵌入锈钢框架的玻璃盒子，虚实对比，层次更为丰富。

The west side is facing the street, with the external stainless steel staircase folding up and connecting with the corridor on the second floor. It can facilitate communication and interaction. The red brick wall in the north-west corner of the first floor is embedded with stainless steel framed glass boxes, contrasting the virtual with the reality, making the level richer.

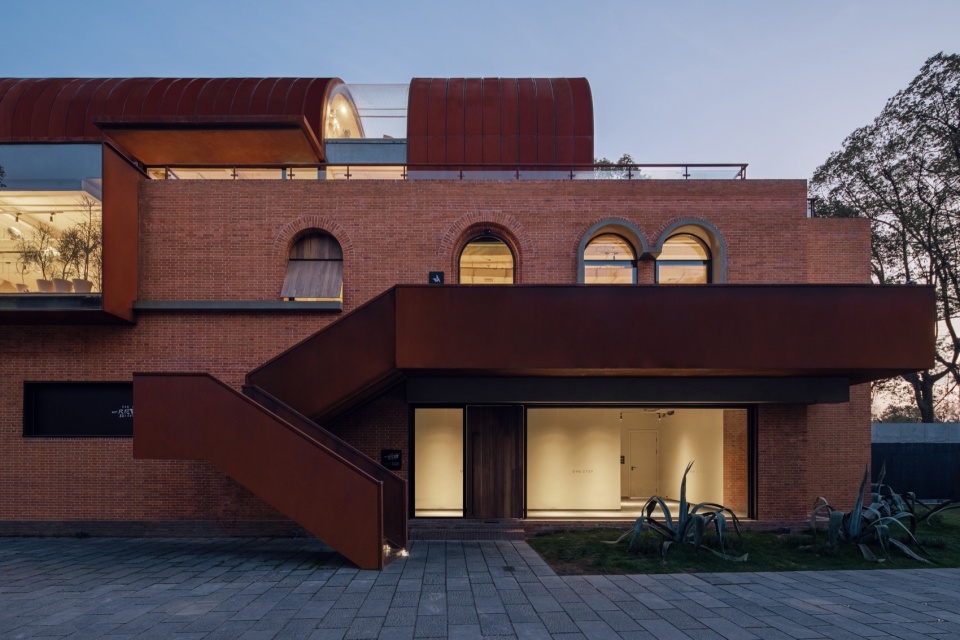

▼西立面主入口，Main entrance on the west elevation ©吕晓斌

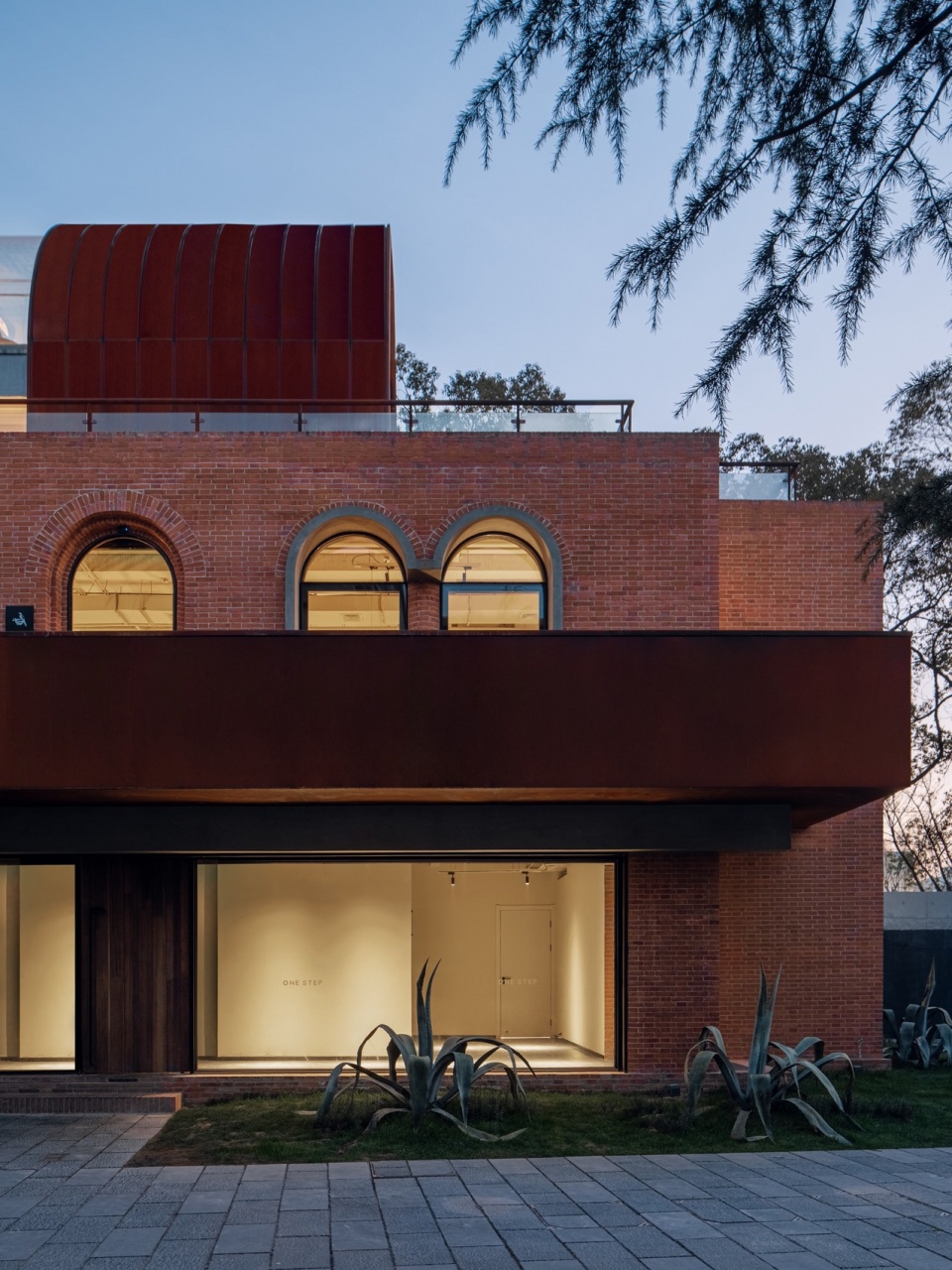

▼建筑西立面局部，
Part of the west elevation of the building ©吕晓斌

三楼开放露台的设计增加了商业外摆及休闲区域，南北面超大落地玻璃窗的设置，视野开阔，南北通透。东侧紧邻西沟港，原场地植被被大量保留，立面构成式开窗，水景及植被引入室内，为53°增添了与自然共生的独特魅力。

On the open terrace on the third floor, the commercial outlook and leisure area were increased. The large floor-to-ceiling glass windows on the north and south sides provide a wide view and a transparent north-south environment. The east side is adjacent to Xigou Harbour. The original vegetation area has been preserved to the large extent. On the facade, there are constructive open windows. The water view and vegetation are introduced into the interior, which adds a unique charm of symbiosis with nature to 53°.

▼晨曦中的北立面，
North elevation in the morning sun ©吕晓斌

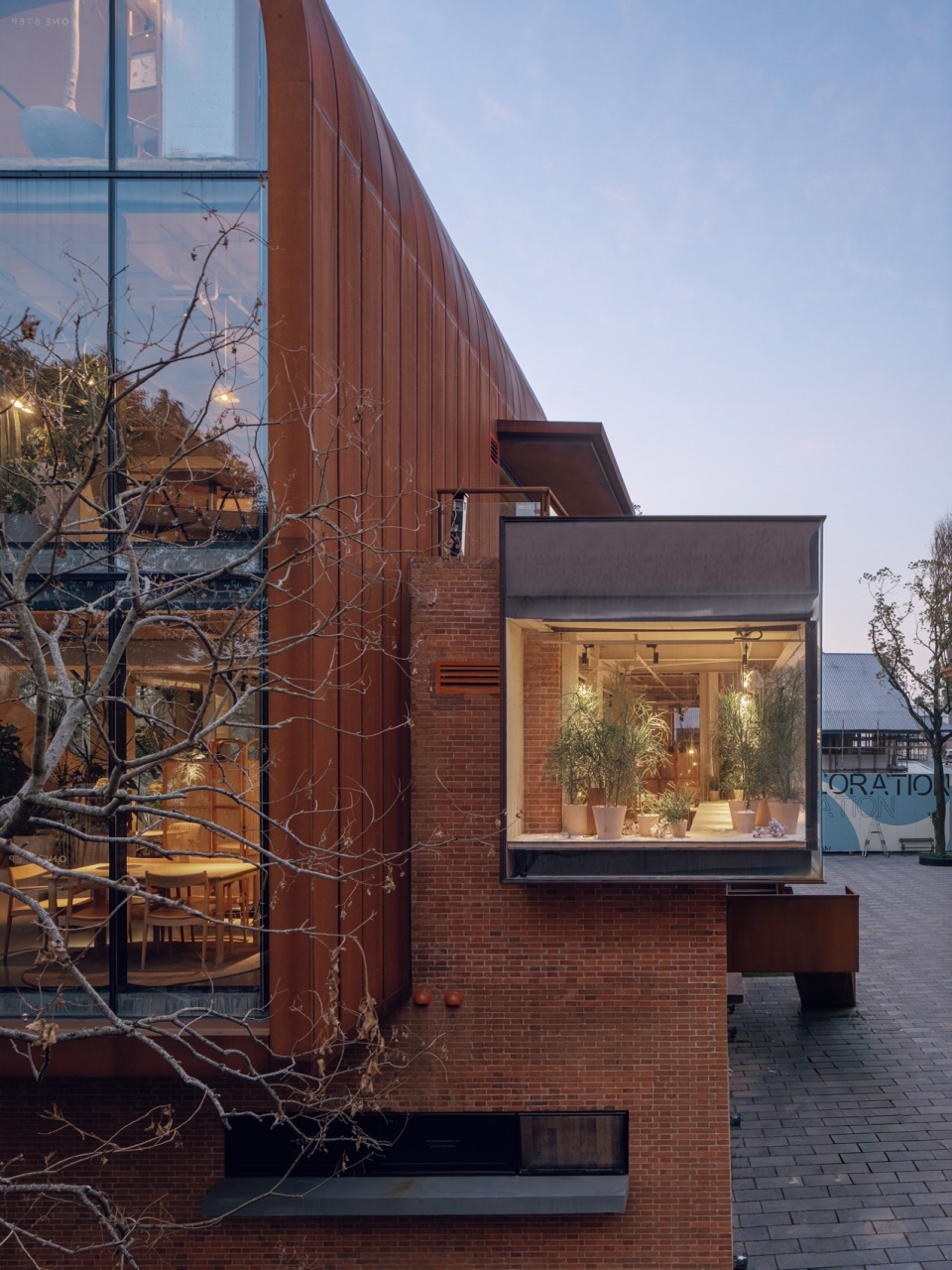

▼西北立面嵌入玻璃盒子，
Glass box embedded in the north-west elevation ©吕晓斌

室内延续了温暖和自然风格的设计，用肌理墙面营造出明亮温和的氛围，并在拱形穹顶内采用挑高loft设计，将穹顶一部分做断开处理，嵌入一段拱形玻璃天幕，与光影共舞，模糊与自然的边界。三、四楼空间以一段旋转楼梯贯通，视线随之穿梭，空间灵动婉约。

The interior continues the warm and natural style design, using textured walls to create a bright and gentle atmosphere. In addition, a high loft was designed for the arched dome to disconnect part of the dome. A section of the arched glass canopy was embedded, which allows a dance with light and shadow, blurs the boundaries with nature. The space on the third and fourth floors is connected by a rotating staircase, which allows the line of sight to run through, making the space dynamic and elegant.

▼模糊了室内外的边界，Blurred boundaries between indoors and outdoors ©存在建筑－建筑摄影

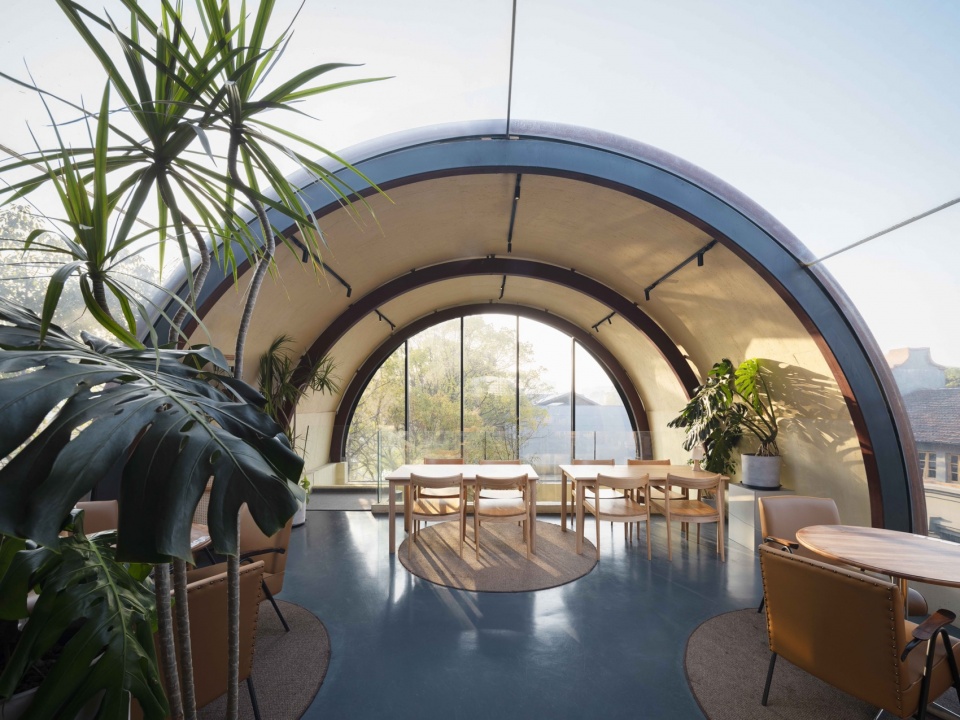

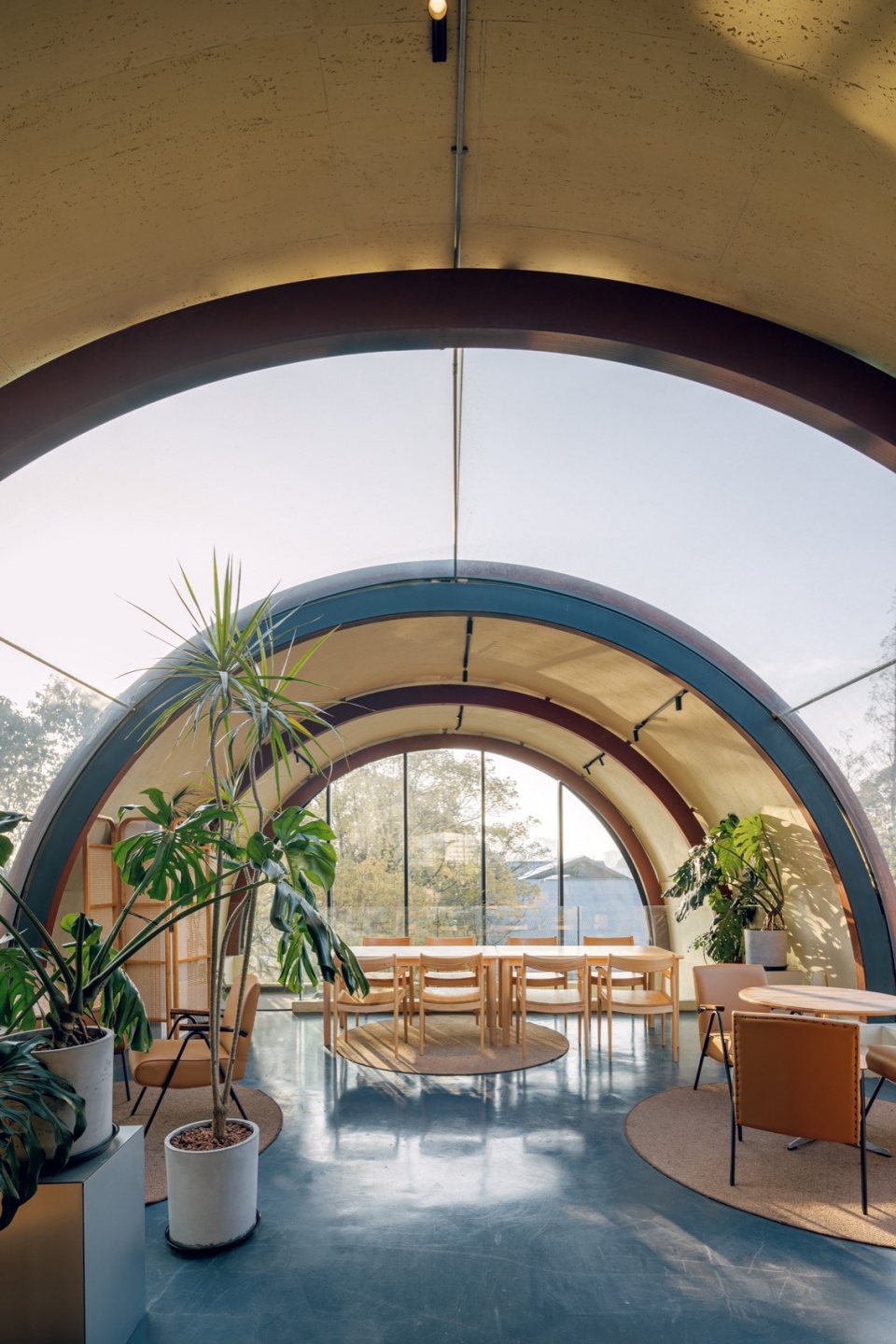

▼室内拱形穹顶，Interior vaulted dome ©吕晓斌

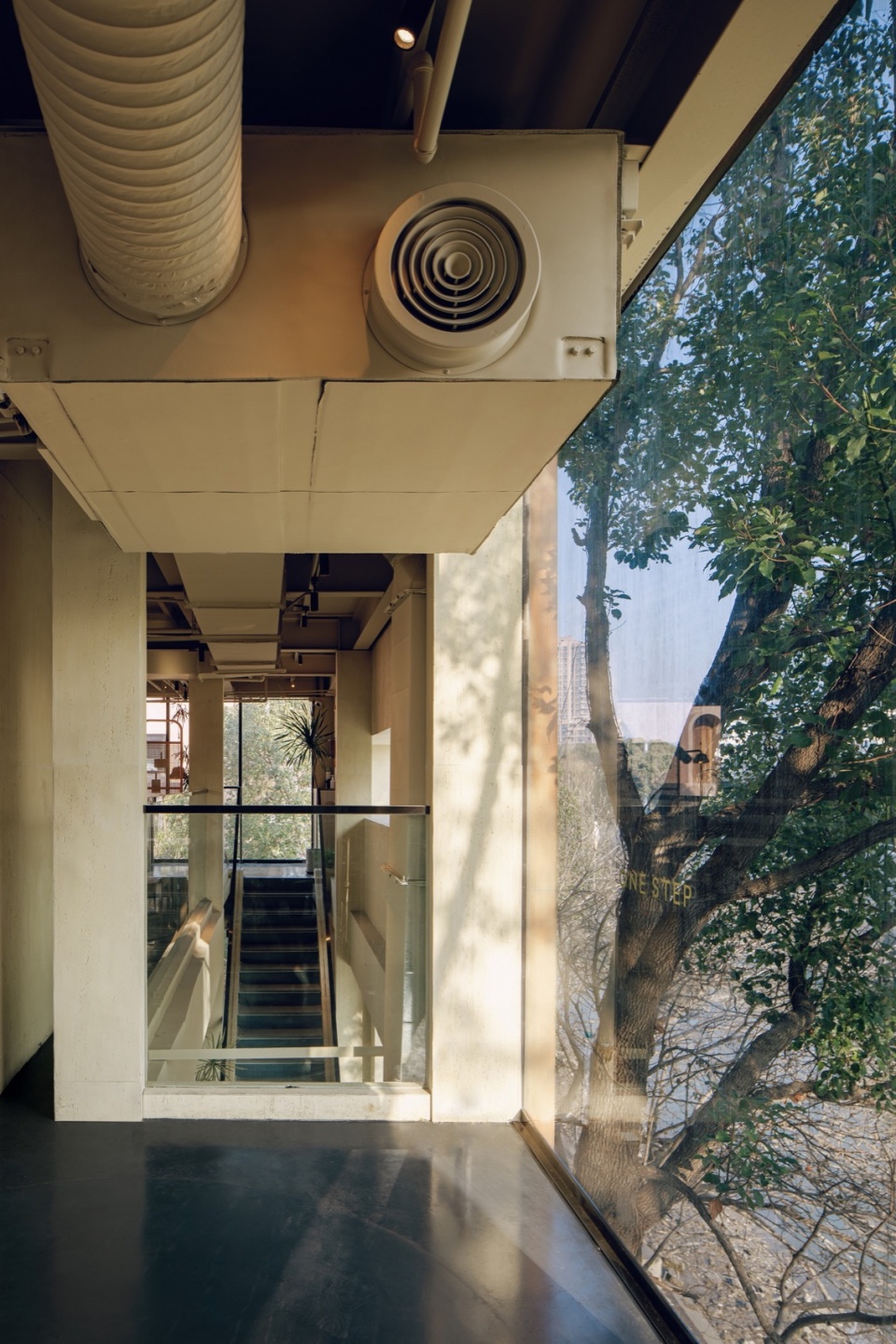

▼室外植被映入眼帘，Outdoor vegetation in view ©吕晓斌

也再次诠释了本哲建筑的理念：致力于实践建筑、人与自然之间的关系。

It once again interprets the philosophy of Benzhe Architecture Design: Dedicated to practising the relationship between architecture, man and nature.

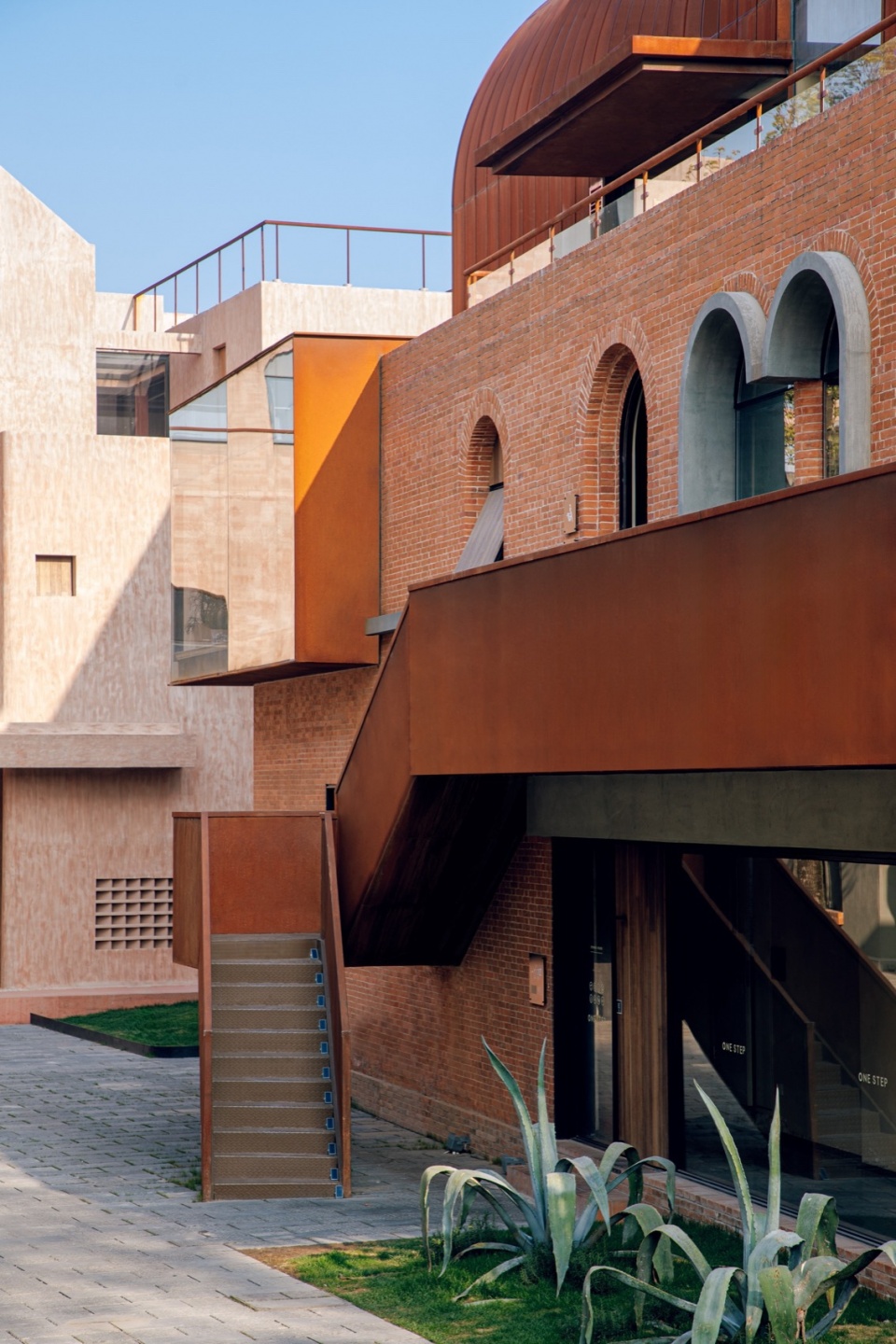

▼折叠而上的锈钢楼梯，Folded stainless steel staircase ©吕晓斌

▼建筑局部，Building part ©存在建筑－建筑摄影

所谓适意，温而不灼，「53°」恰到好处。

Agreeable, warm but not hot, 「53°」 is just right.

▼植被包裹的53°，Vegetation-wrapped 53° ©存在建筑－建筑摄影

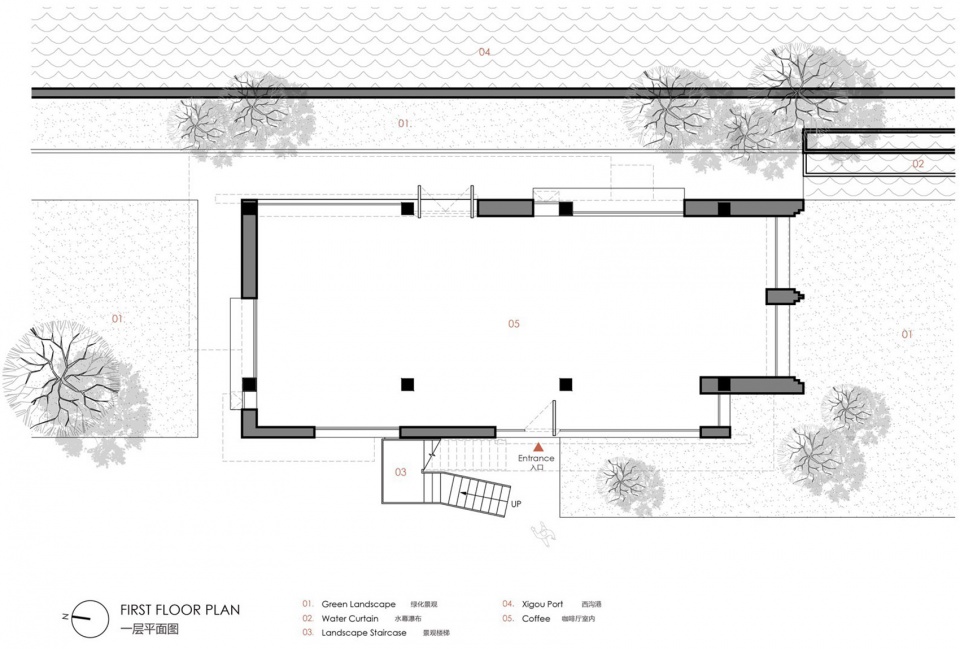

▼1F平面图，1F Plan © 本哲建筑

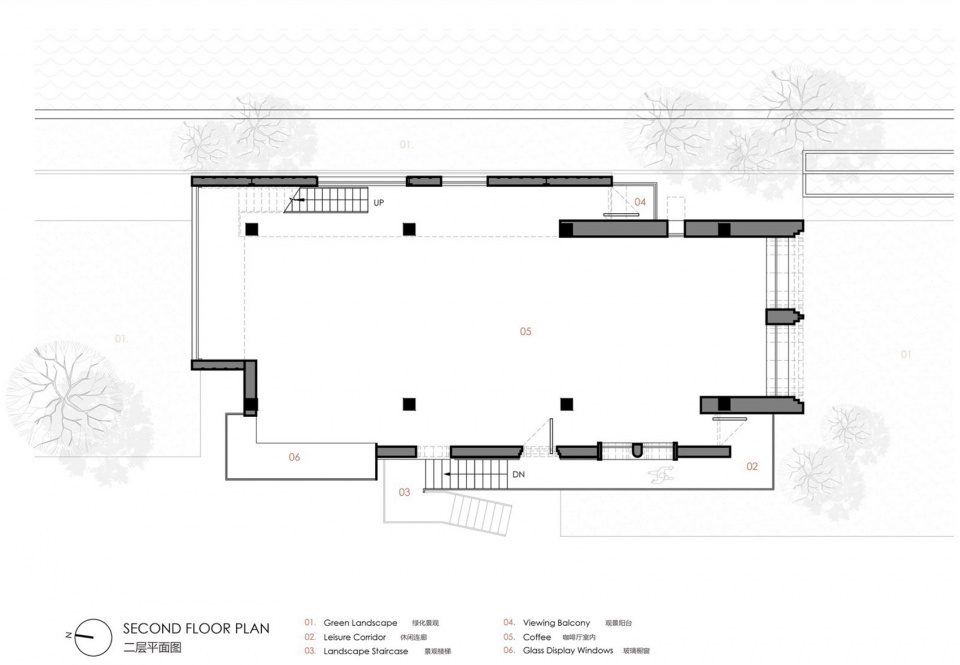

▼2F平面图，2F Plan © 本哲建筑

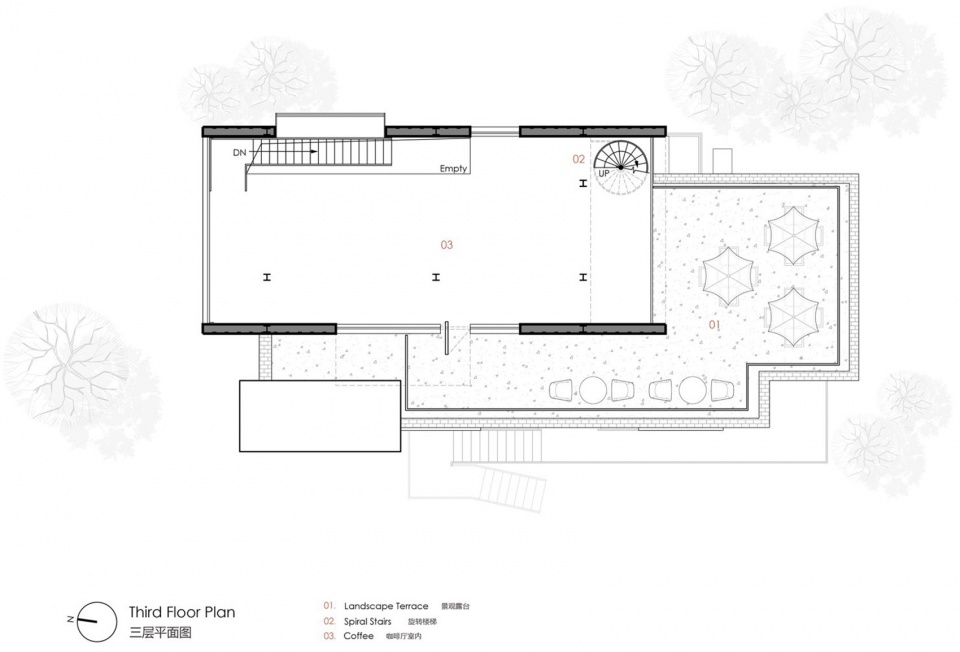

▼3F平面图，3F Plan © 本哲建筑

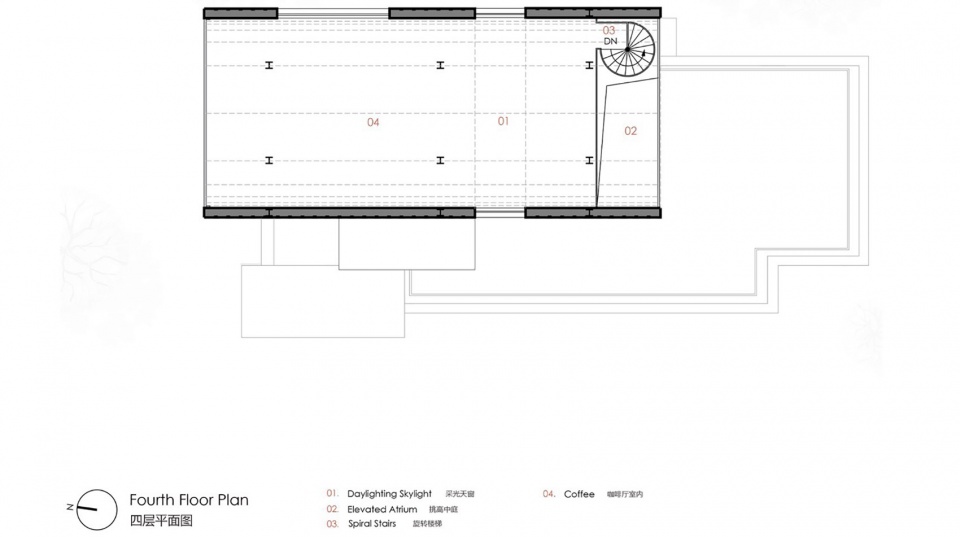

▼4F平面图，4F Plan © 本哲建筑

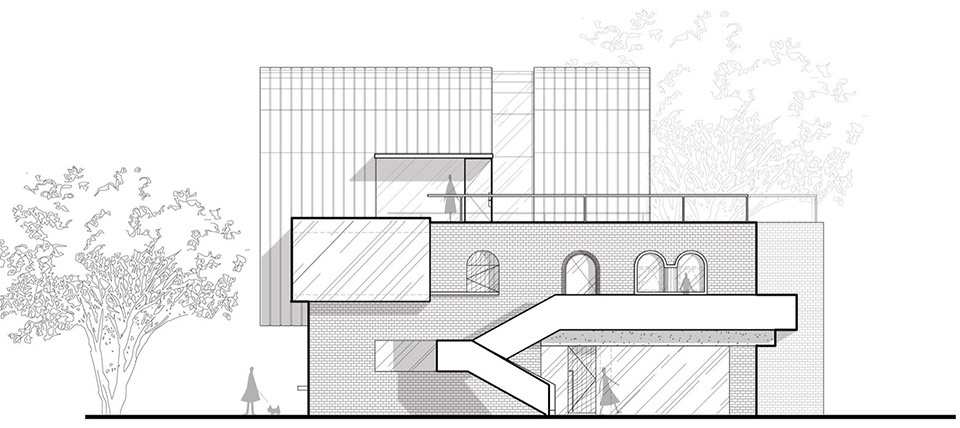

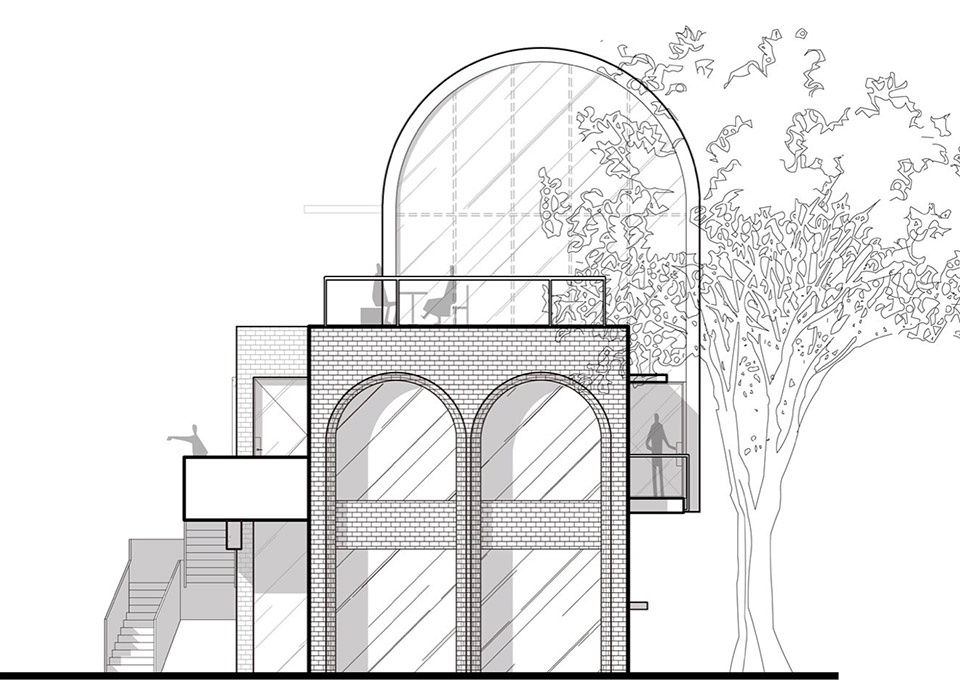

▼西立面图，West elevation © 本哲建筑

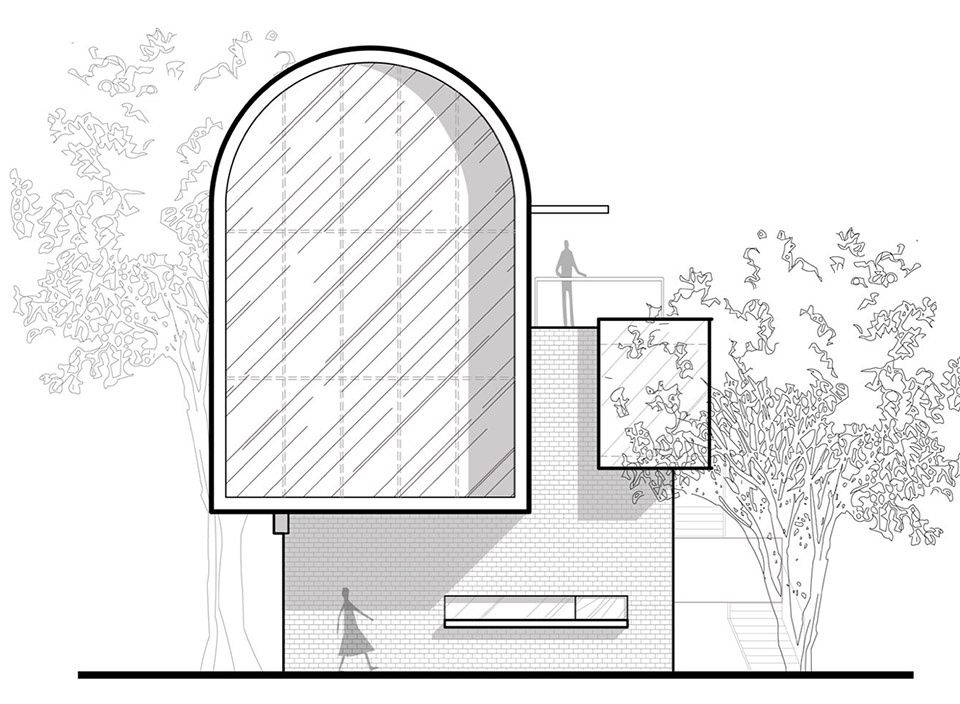

▼南立面图，South elevation © 本哲建筑

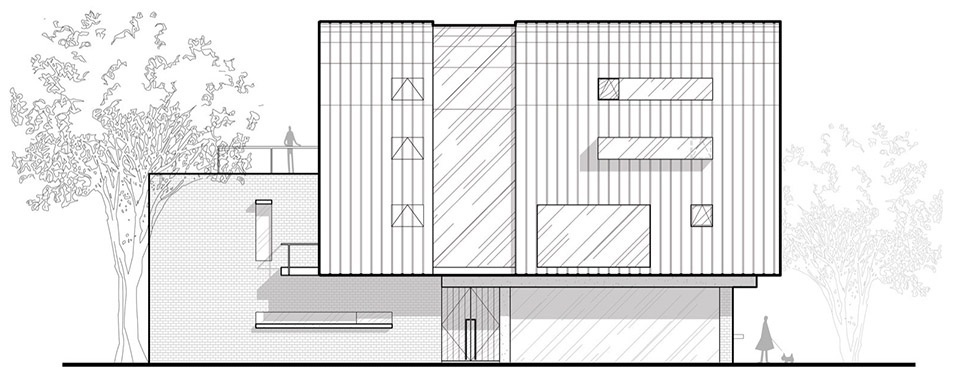

▼东立面图，East elevation © 本哲建筑

▼北立面图，North elevation © 本哲建筑

项目名称：53°·EKA天物
项目地点：中国上海市浦东新区金桥路535号EKA·天物
建筑/景观设计：本哲建筑
主创建筑师：蒋华健
设计团队：姚瑞艮林桐
建筑面积：665 m²
设计时间：2022年8月-2022年12月
竣工时间：2023年11月
公司网站：http://www.benzhedesign.com/
公司邮箱：bd@benzhedesign.com
业主方：上海嘉韵投资管理发展有限公司
结构设计：上海同宴土木工程咨询有限公司
摄影：存在建筑－建筑摄影、吕晓斌

Project name: 53°·EKAtianwu
Location: 535 Jinqiao Road, Pudong New Area, Shanghai, China (EKA)
Building/landscape designer: Benzhe Architecture Design
Senior architect: Jiang Huajian
Design team: Yao Ruigen, Lin Tong
Building area:665 m²
Design time: August 2022- December 2022
Completion time: November 2023
Company website: http://www.benzhedesign.com/
Company Email: bd@benzhedesign.com
Owner: Shanghai Jiayun Investment Management Development Co.,Ltd
Structure Designer: Shanghai Tongyan Civil Engineering Consulting Co.,Ltd
Photography: Arch-Exist Photography, Xiaobin Lv

More: 本哲建筑。更多关于他们：Benzhe Architecture on gooood
