项目背景
Project background

109Things位于南京市秦淮区莫愁路上，越界梦幻城东南门处，与朝天宫对望，莫愁路是单行道路，西面是各式五金机电商家，如今已融入多种商业业态。109Things是和委托人见面详聊后当天碰出来的名字，是一家主营进口零食、袜子、彩妆用品的商业零售空间，是非常有趣的组合。

109Things is located in Mochou Road, Qinhuai District, Nanjing City, at the southeast gate of Yuejie Magic City, opposite Chaotian Palace. Mochou Road is a one-way road. On its west are hardware fitting and electromechanical stores, but now several business forms have appeared. The name of 109Things is produced after a detailed and face-to-face discussion with the client. It is a commercial retail store mainly with imported snacks, stockings and color makeup products, reflecting an interesting combination.

▼项目概览，overall of the project ©邱文锏

场地是街边门店，内部留有原先的钢构隔层，隔层区域上下的高度都伸手触顶，可概括为三段递进式空间和一条贯彻整个空间的过道。印象深刻的是三段空间之间的两面墙体上有两个尺寸不一的矩形窗口，透过窗口可产生一条斜向的视野线贯彻整个场地。带着较为克制的态度去塑造这个场地，围绕着三类产品展示去建立内部秩序体系。

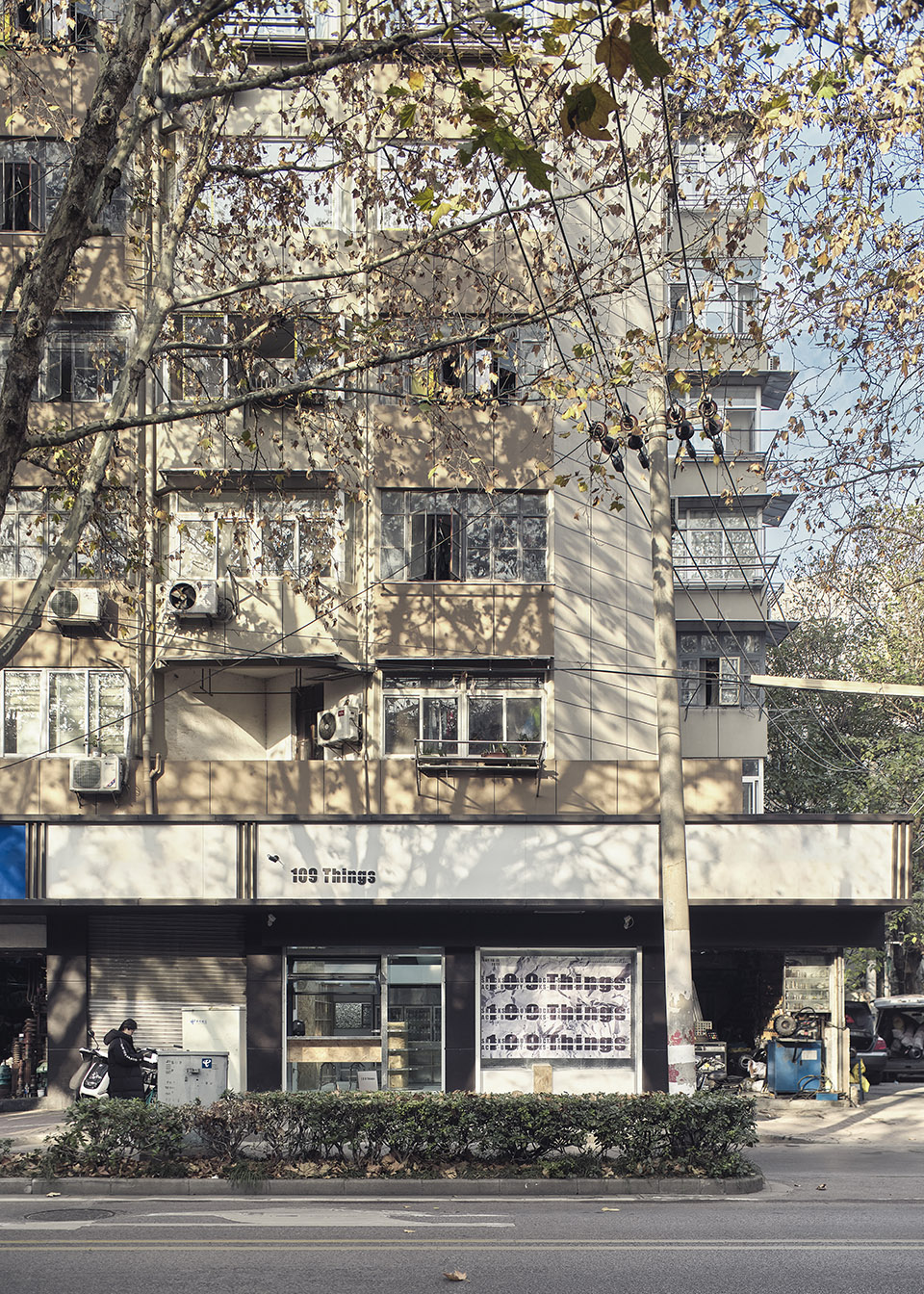

▼沿街立面，storefront ©邱文锏

It is located on the street. The original internal steel structure interlayer remains. The heights of spaces above and beneath the interlayer are within the reach of a person’s arm. The total space includes a three-section stepped space and a throughout passage. The most impressive items are two square windows of different sizes on both walls in the three-section space. A man can look through these two windows and view the entire space obliquely. With a conservative method to create this place, an internal order will be built based on three types of products.

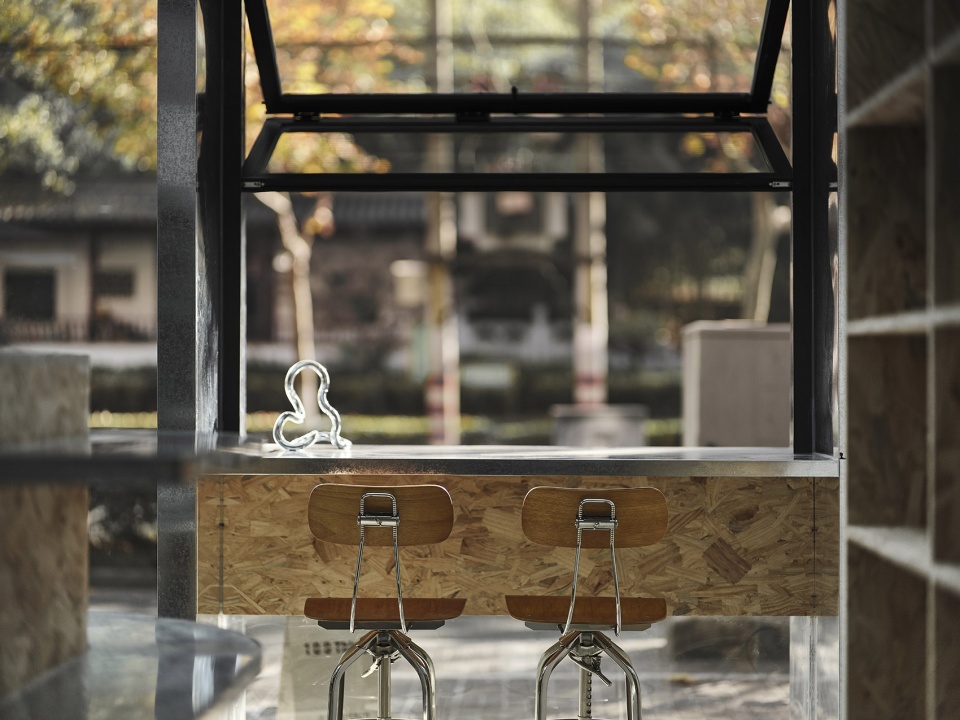

▼入口等待区，waiting area at the entrance ©邱文锏

高度-两个两米
Height – two 2m spaces

入口处中庭层高4米，隔层区域上下层层高2米，中庭处顶部安置整块矩形软膜天花，视觉感官上这里的高度似乎更高，一直向上延伸，并且均匀柔和的光照向下方展示区。向内走，以一条通长软膜天花作为过道主照明，不强烈的区域照明对于客人在空间流线上的视觉感受也颇为友好，弱化层高产生的压抑感。隔层上在局部打开了矩形和方形空洞，打通上下界限，裸露出的钢构也呈现着过往的痕迹。

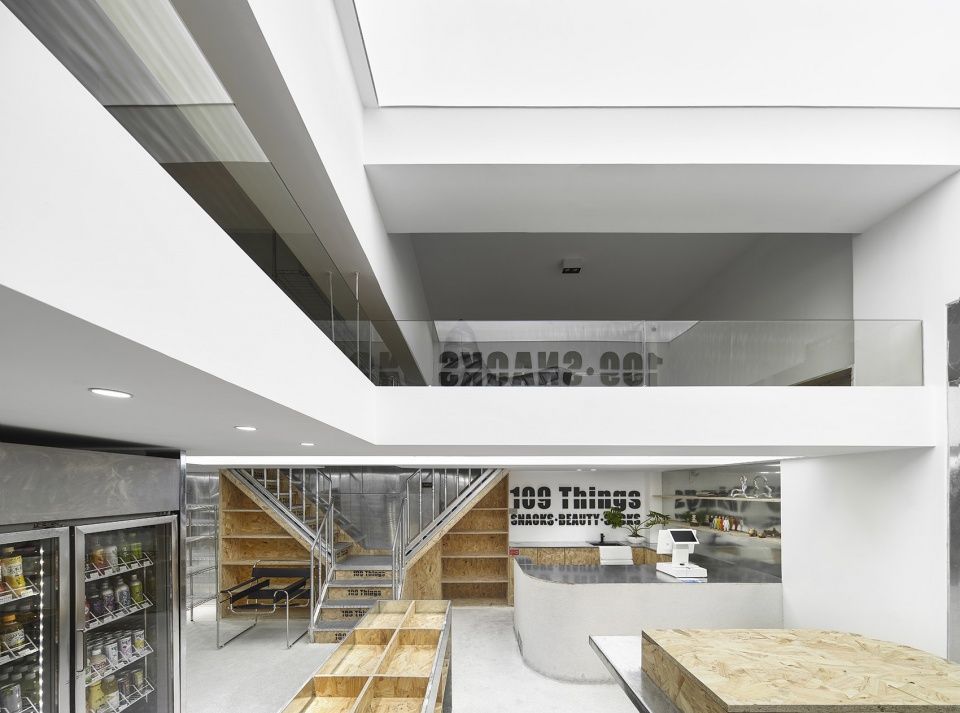

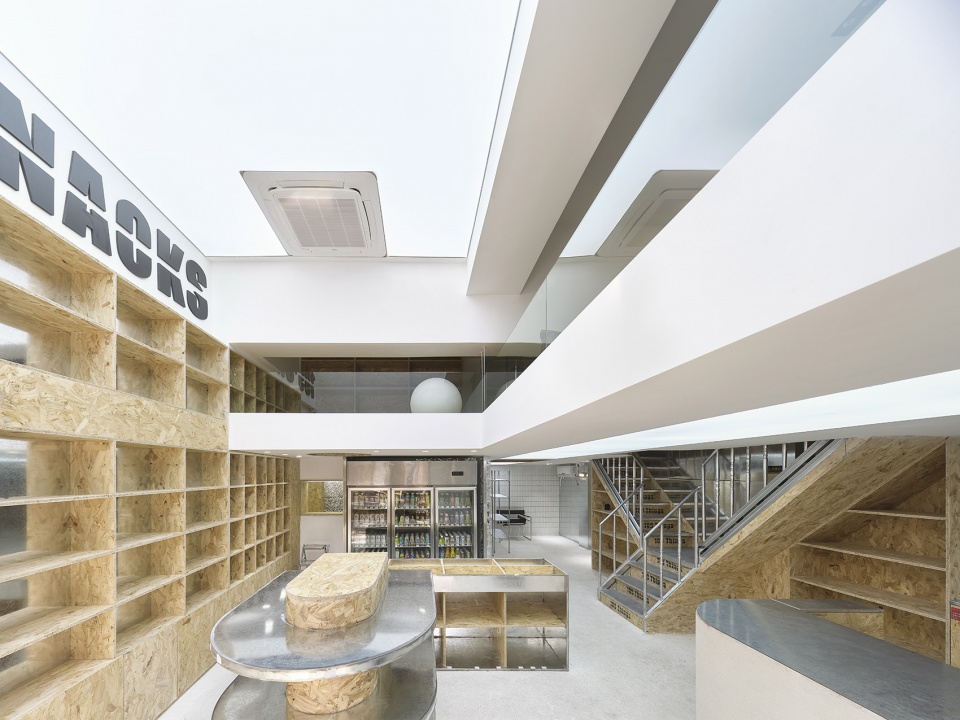

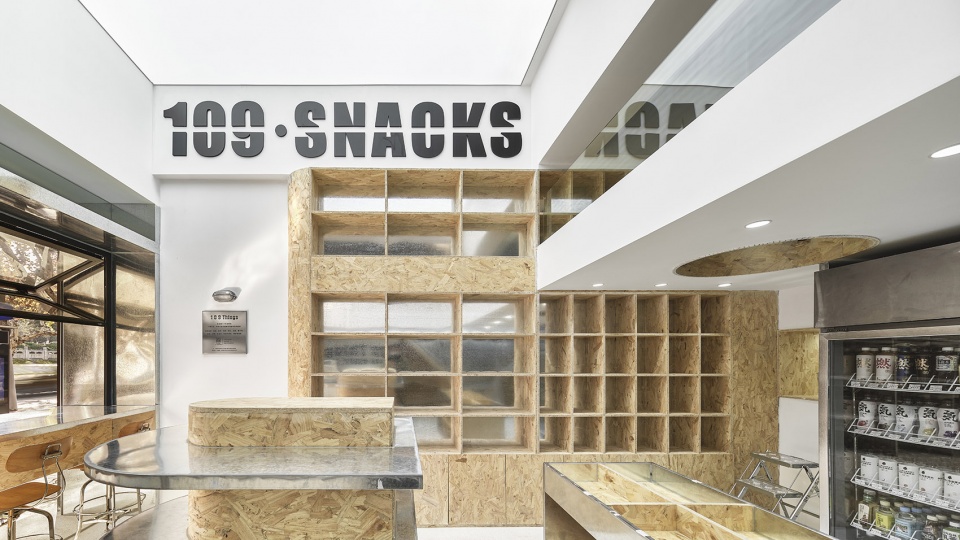

▼入口中庭，the atrium at the entrance ©邱文锏

▼中庭处顶部安置整块矩形软膜天花，A one-piece square flexible film is adopted for the ceiling at the top of the atrium ©邱文锏

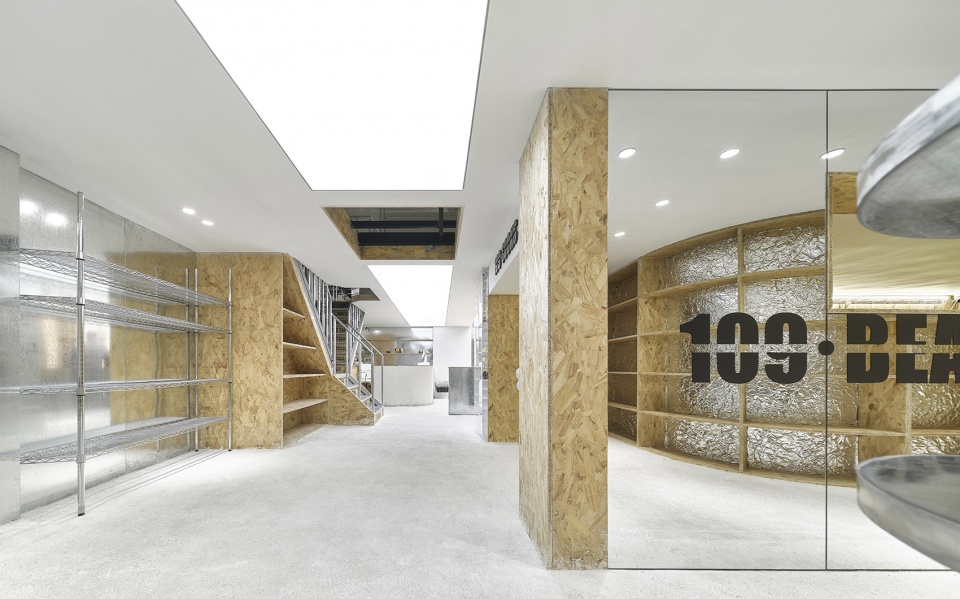

▼隔层区域上下层层高2米，the spaces above and beneath the interlayer are 2m high ©邱文锏

At the entrance, the atrium is 4m high and the spaces above and beneath the interlayer are 2m high. A one-piece square flexible film is adopted for the ceiling at the top of the atrium, to make it seem higher and extend upward. The uniform and soft light covers the lower display area. Going inside, visitors can see a throughout and flexible film ceiling that provides the main lighting at the passage. The mild regional lighting ensures the soft visual experience of guests for the spatial streamline, weakening the sense of repression due to the limited layer height. Local square and rectangular openings are made in the interlayer to connect the upper and lower space. The exposed steel structure also reveals its past.

▼楼梯，staircase ©邱文锏

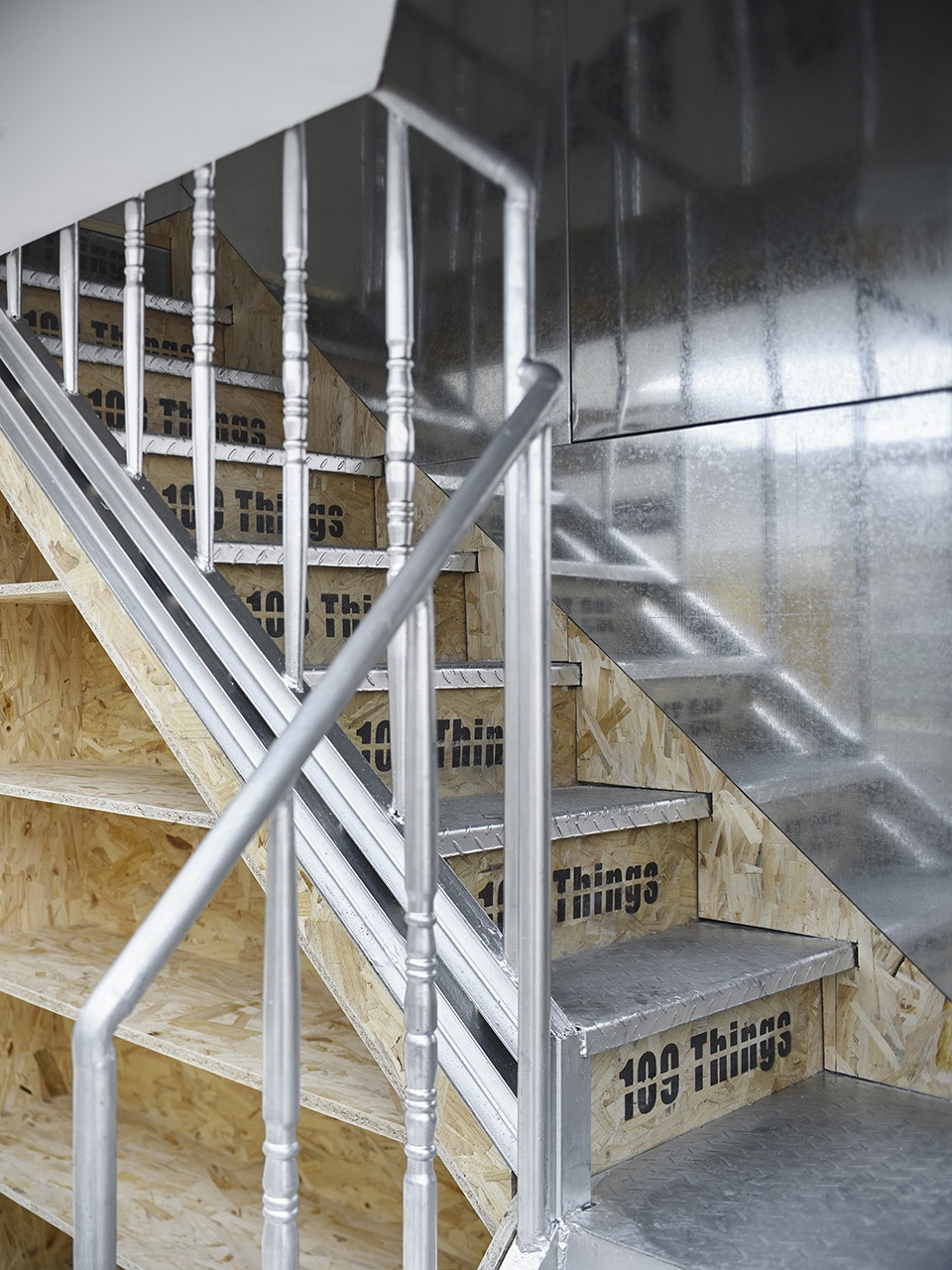

▼楼梯细部，details of the stairs ©邱文锏

材料与连接
Materials and connection

选择刨花板、镀锌板、水洗石作为空间设计的材料语言，三类产品展示区域在空间内是相对独立而又通过材料作为媒介连接着。入口处新增了个窗口，外面向内看去透过三层窗口看到内部却也只能望到局部，视野就像一根线串连着内部的三个“盒子”。内部所有的柜、架、板、盒等展示方式皆以刨花板作为基底衔接，以刨花板表面的颗粒碎片和镀锌板表面的雪花纹路作为空间的立面肌理，水洗石地面也透着自然质朴的感觉，通面的水洗石也连接着内部的所有区域，模糊了界限。

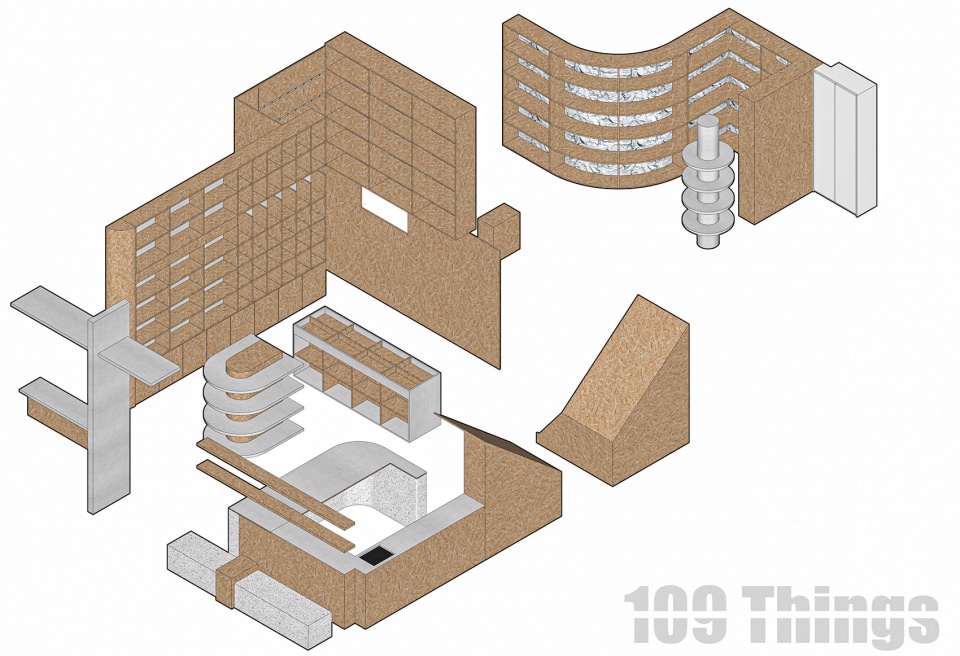

▼分析图，diagram ©MUTUAL LAB

Particleboards, galvanized boards and water-washed stone are used as the material language in the space design. The display areas of the three types of products are isolated and connected by materials at the same time. A window is added at the entrance. Visitors looking through the three-layer window to view the interior can only see local areas and find three “boxes” inside connected by a string. All cabinets, racks, boards, boxes and other containers inside are subject to the base material of particleboards. The granular segments on the surface of particleboards and the snow-flake-shaped patterns on the surface of galvanized boards add the stereoscopy of the space. The floor made of water-washed stone leaves a natural and plain impression as well. The water-washed stone covers all internal floor areas, blurring the boundary.

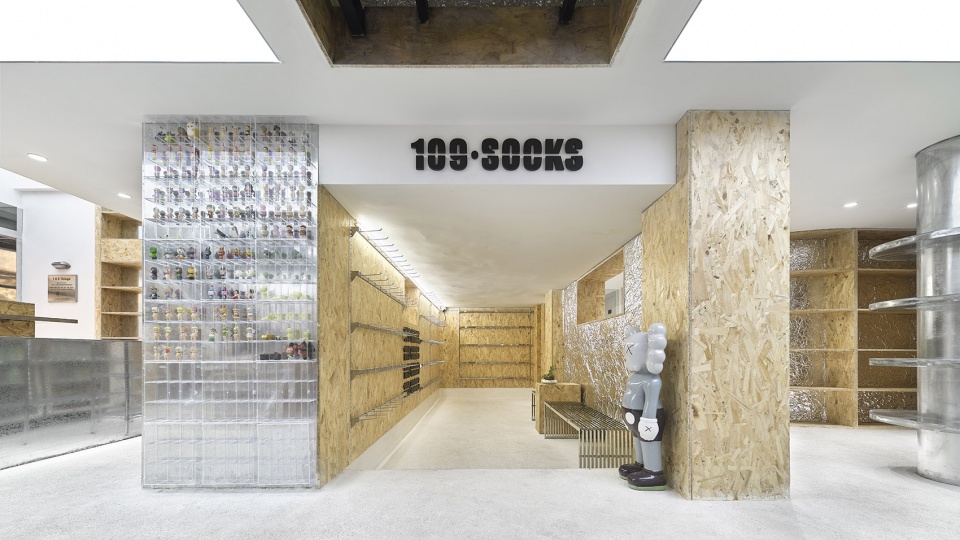

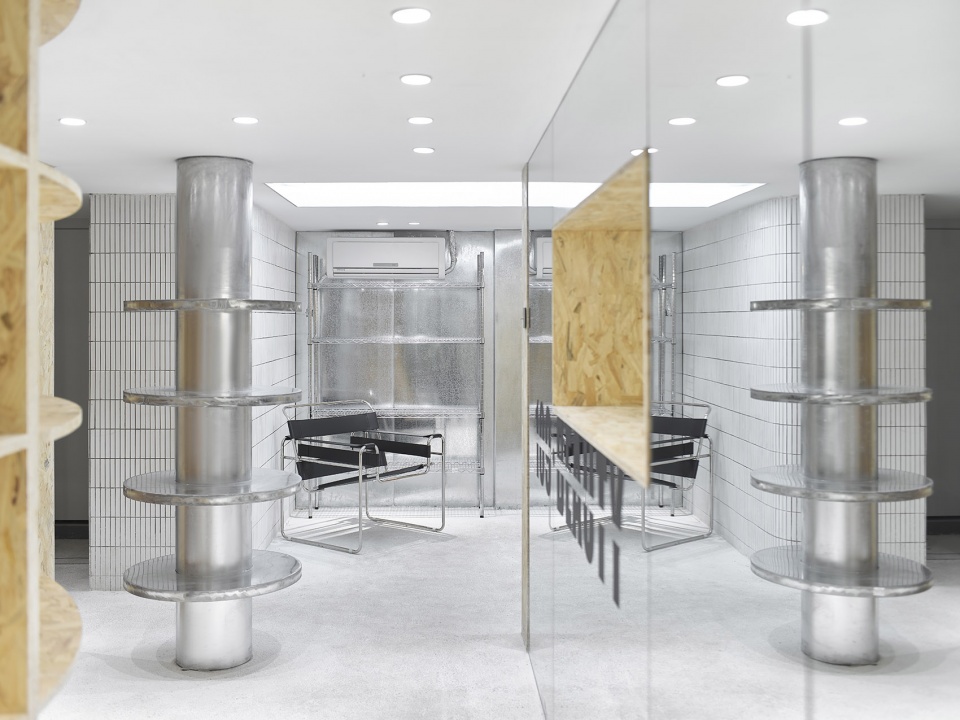

▼袜子零售区，Socks Retail area ©邱文锏

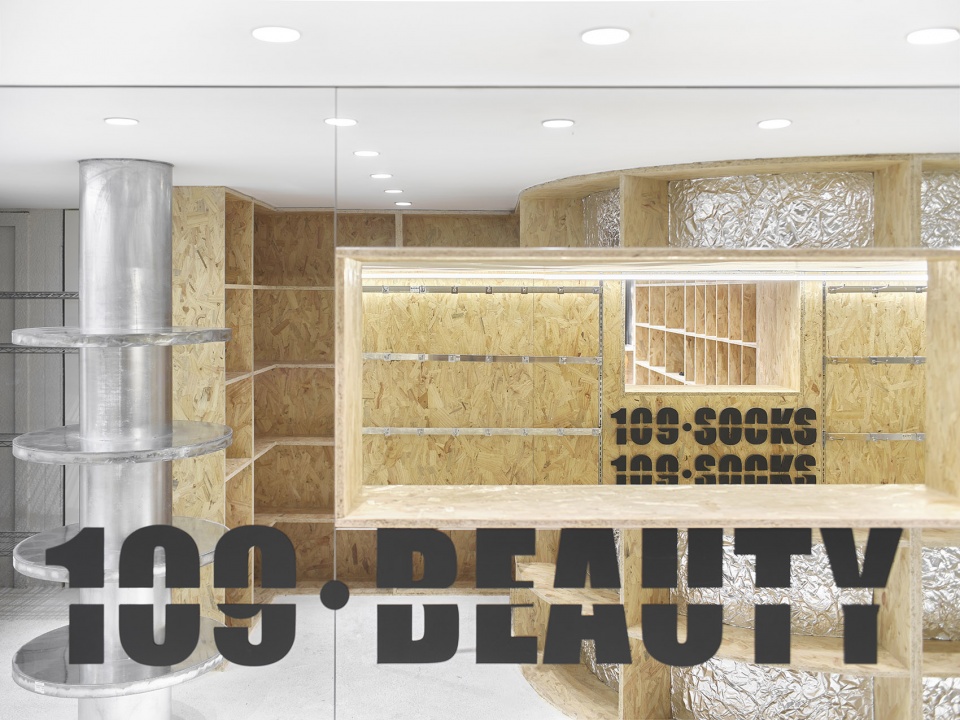

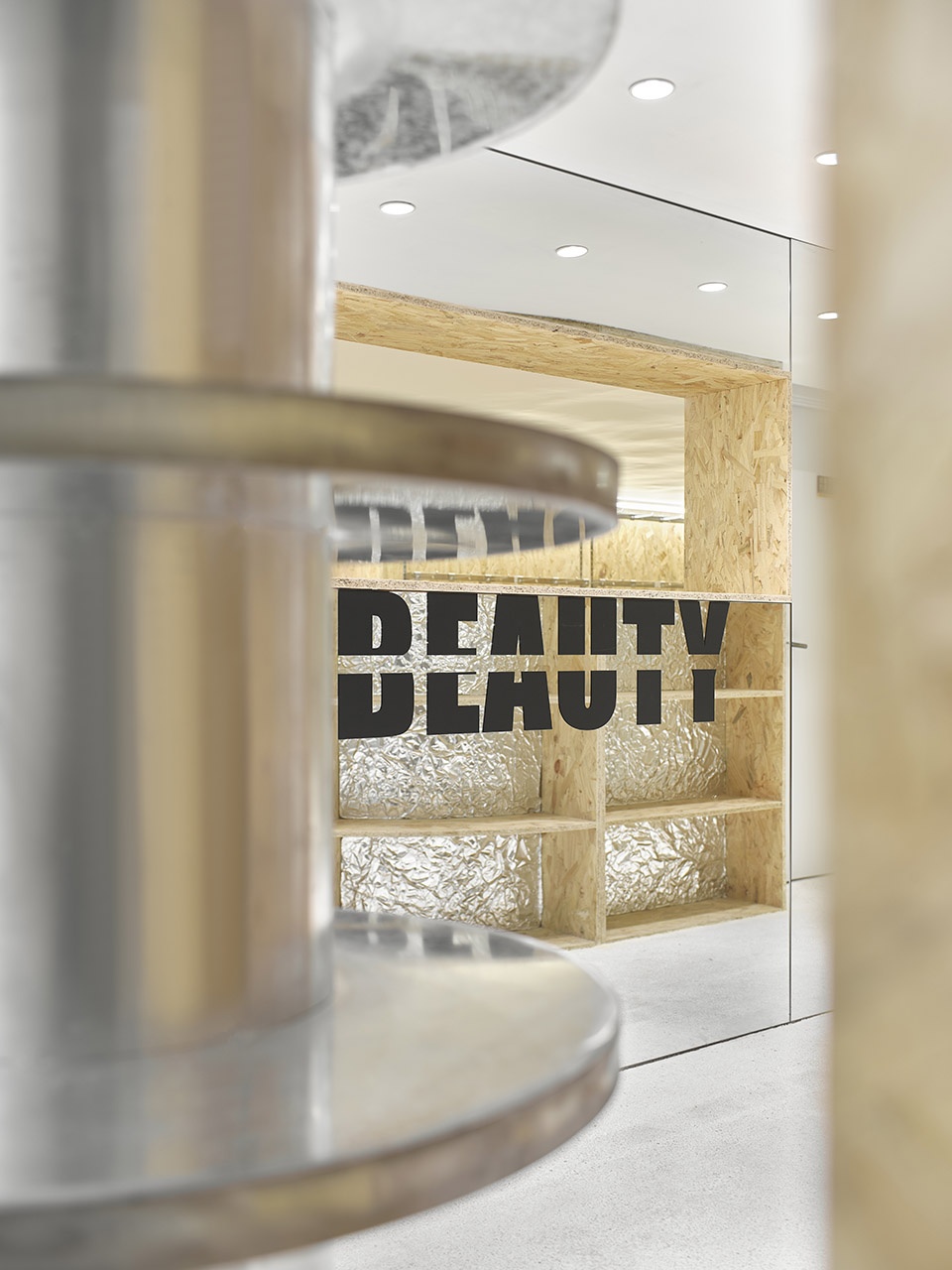

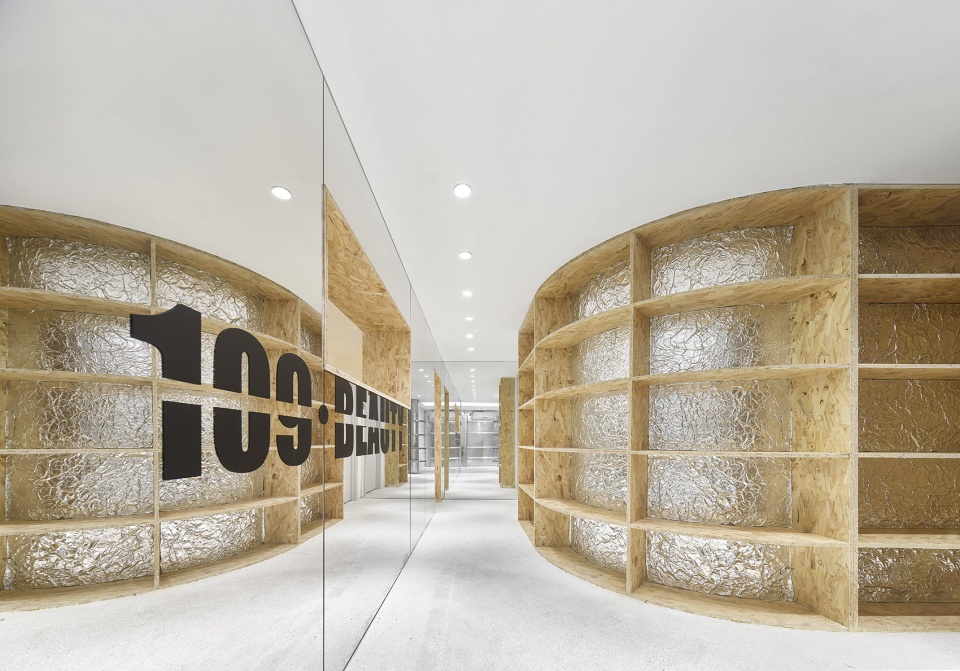

▼化妆品零售区，Cosmetics Retail Area ©邱文锏

▼三类产品展示区域在空间内是相对独立而又通过材料作为媒介连接着，All cabinets, racks, boards, boxes and other containers inside are subject to the base material of particleboards ©邱文锏

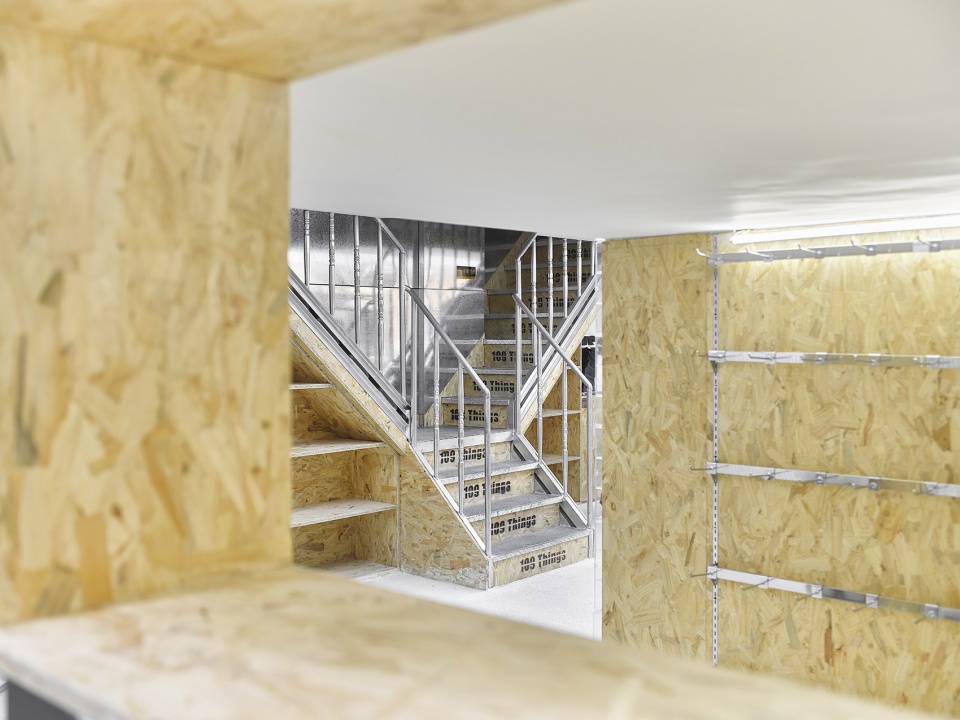

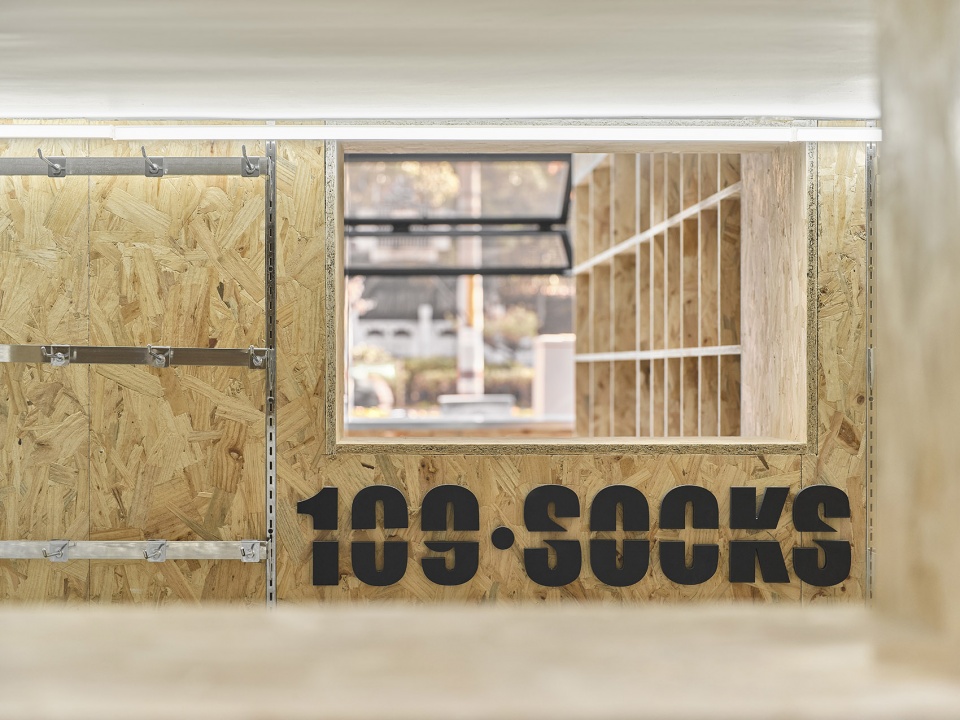

▼三层窗口增强了室内的视觉连接，Three-layers windows enhance the visual connection of the interior ©邱文锏

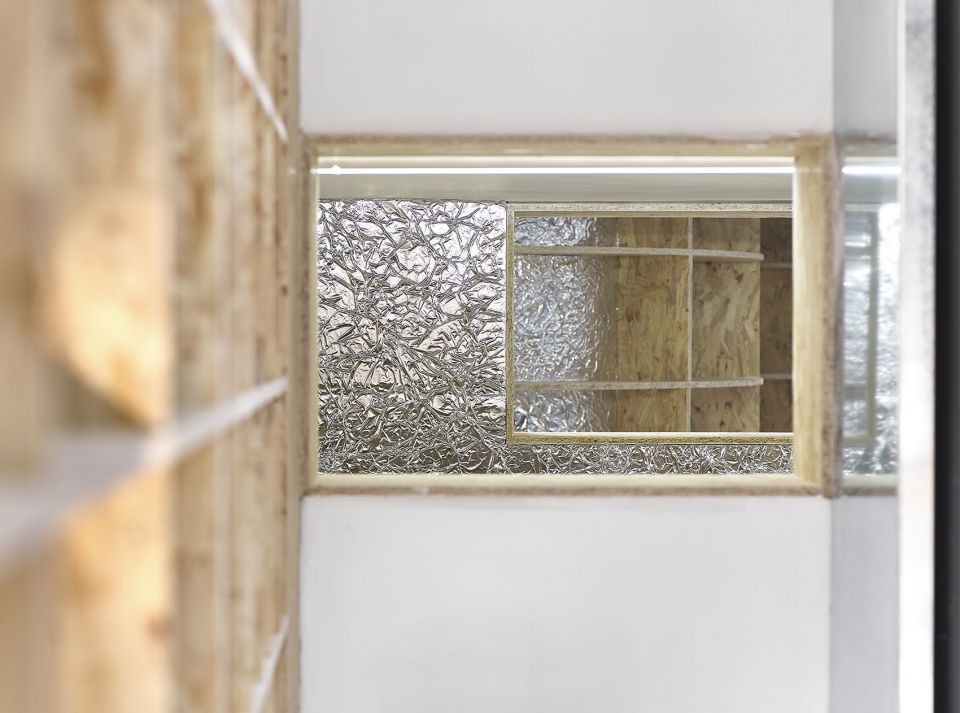

▼窗口细部，detail of the window ©邱文锏

部分墙面及展示柜内用了锡纸，揉捏出褶皱肌理的形式，镀锌板、锡纸有着不同程度的漫反射属性，对产品产生抽象的反射肌理感。人工揉捏的锡纸，机械加工而出的镀锌板配合上刨花板使立面具有节奏性的变化。

Partial walls and display cabinets are subject to tin foils that are rubbed and folded. Galvanized boards and tin foils feature a diffuse reflection property to a varying extent, resulting in the abstract sense of reflective textile of products. The manually folded tin foils, machined galvanized boards and the particleboards create a change in rhythm for the façade.

▼部分墙面及展示柜内用了锡纸，揉捏出褶皱肌理的形式，Partial walls and display cabinets are subject to tin foils that are rubbed and folded ©邱文锏

▼镀锌板、锡纸有着不同程度的漫反射属性，Galvanized boards and tin foils feature a diffuse reflection property to a varying extent ©邱文锏

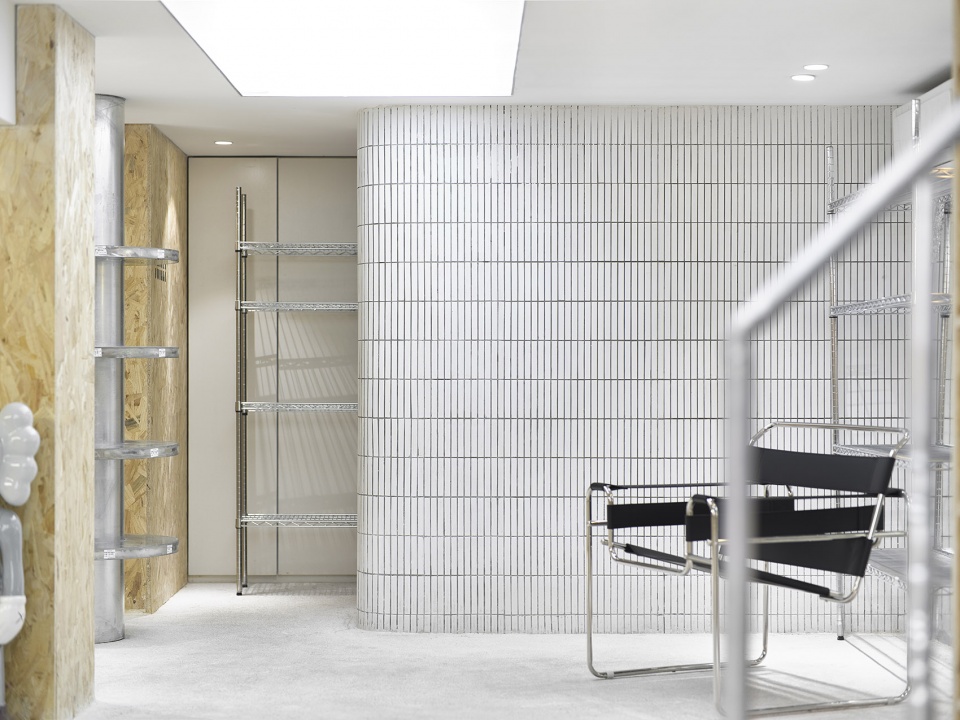

▼卫生间前部区域，space in front of the toilets ©邱文锏

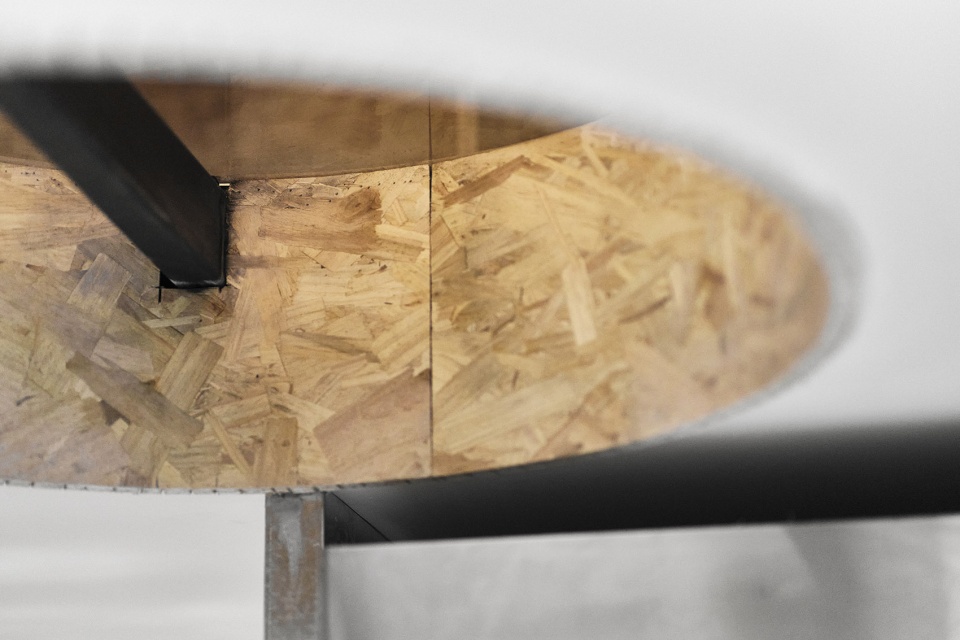

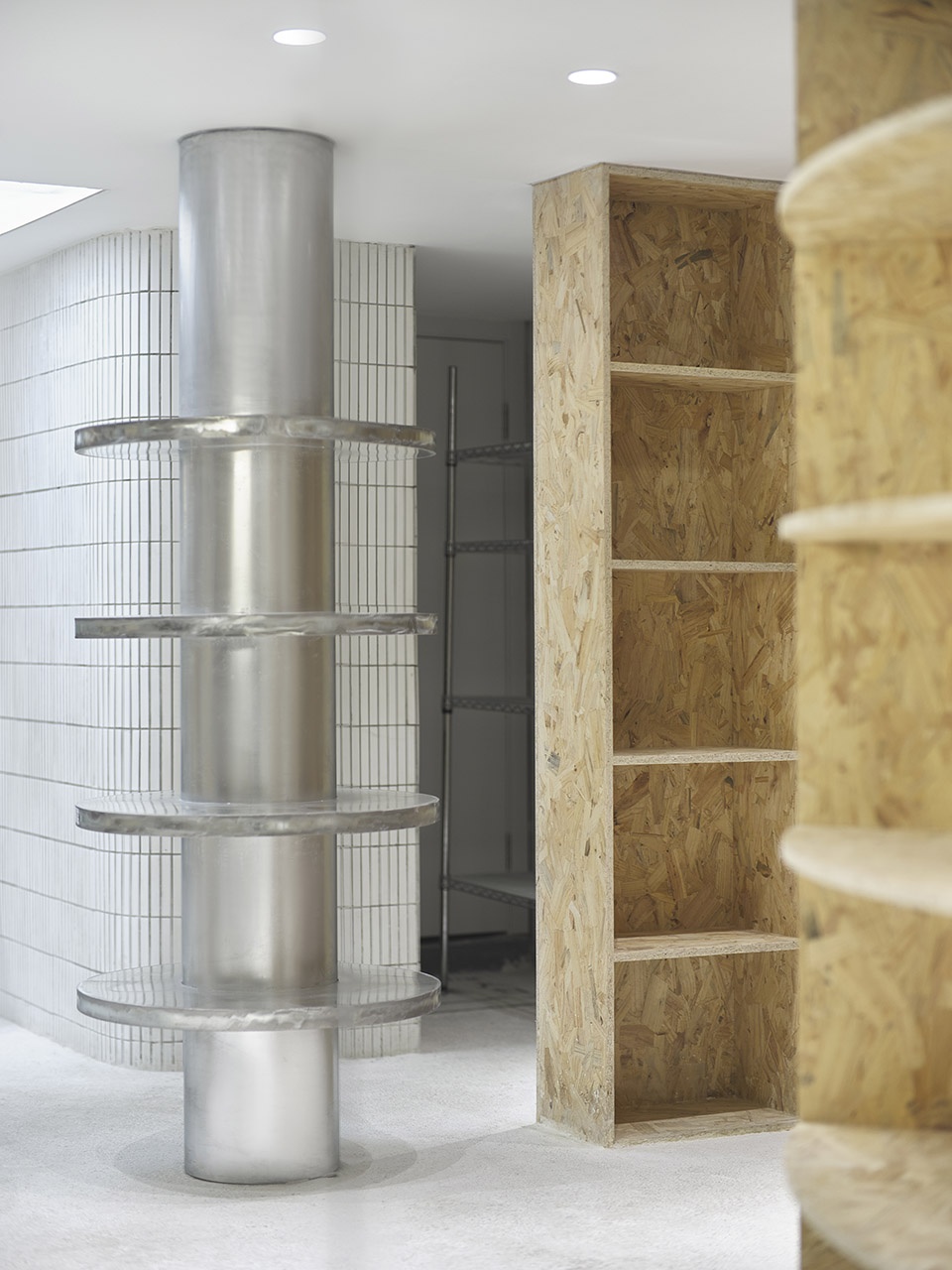

▼展台细部，details of the display shelves ©邱文锏

克制与接受
Restraining and acceptance

空间塑造上是克制的，所有展示形式皆服务于产品，在低预算的条件下去完成空间更新，材料上选用易加工低价格的，空间性质上反而呈现得纯粹且丰富，入口处敞开的折叠窗和整块的玻璃门模糊了室内外的边界。晴天时阳光会透过路边的梧桐树照下来，部分照在外立面上产生斑驳光影，部分透过窗口照在店内，那又是另一番空间与自然的对话。运用的材料会有自然的丰富肌理同时也须接受上面的瑕疵。对于109Things最终是达到了预想上的好的呈现，或许材料上细节上的不完美，会留有遗憾，但接受这样的不完美。

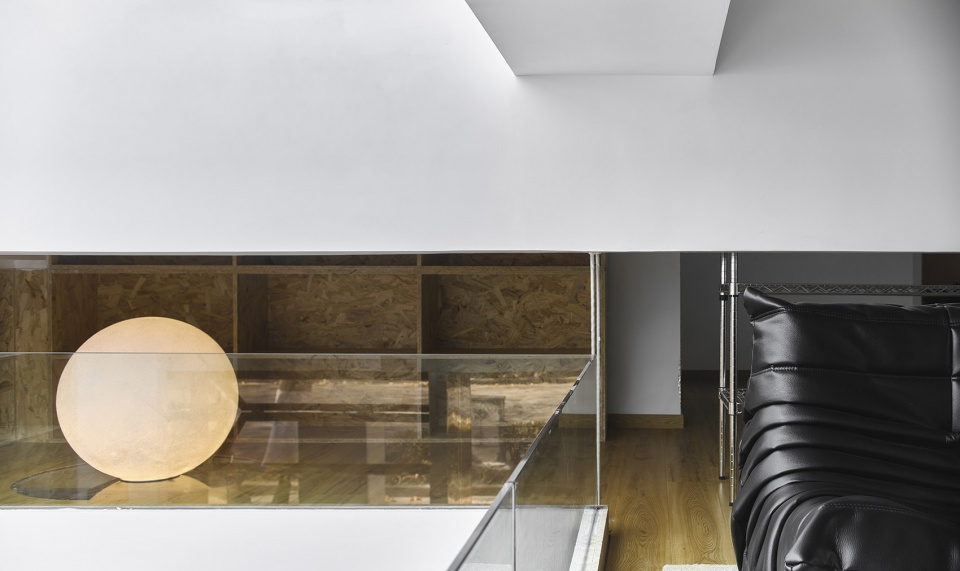

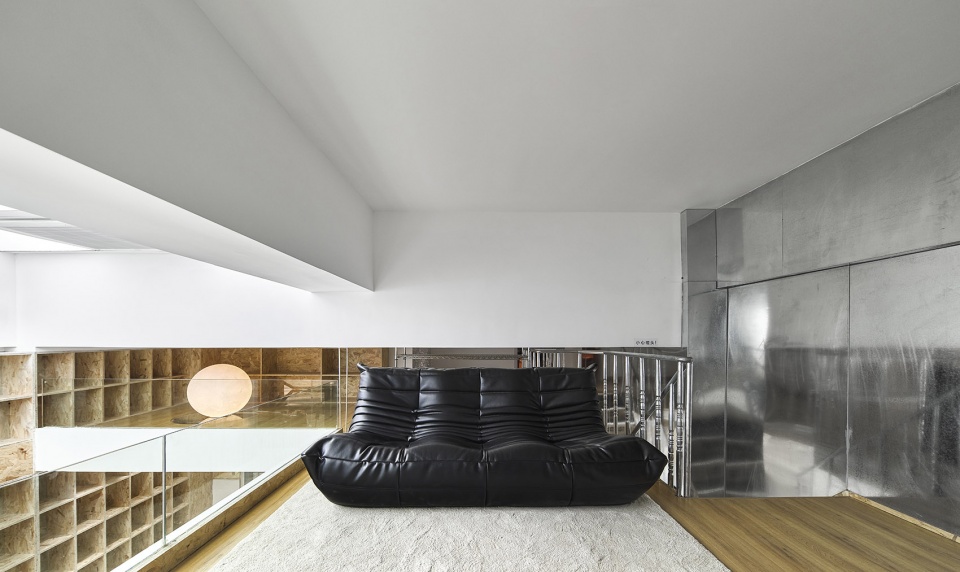

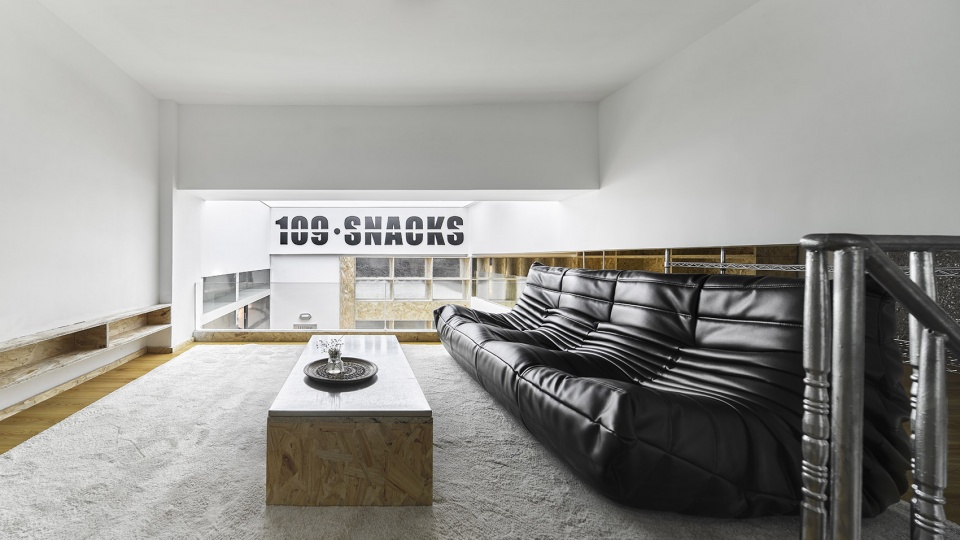

▼夹层休息区，lounge on the mezzanine ©邱文锏

▼夹层空间入口，entrance of the mezzanine ©邱文锏

▼夹层细部，details of the mezzanine ©邱文锏

Space design is restrained and all display patterns are for the purpose of products. With a limited budget, the space update is completed with cheap and easy-to-process materials. However, the spatial representation tends to be pure but rich. The opened folding window and the one-piece glass door at the entrance blur the indoor-outdoor boundary. On sunny days, the space is exposed to sunshine but the sycamore trees on the roadside result in shadows on the façade. Sunshine also may be cast into the space via windows, showing the interaction between the space and nature. The materials adopted feature natural and rich textiles and are equipped with defects as well. However, all efforts have been made to perfect the space design of 109Things as expected. The defects in details may make us feel sorry, but we need to accept such defects.

▼材料细部，material details ©邱文锏

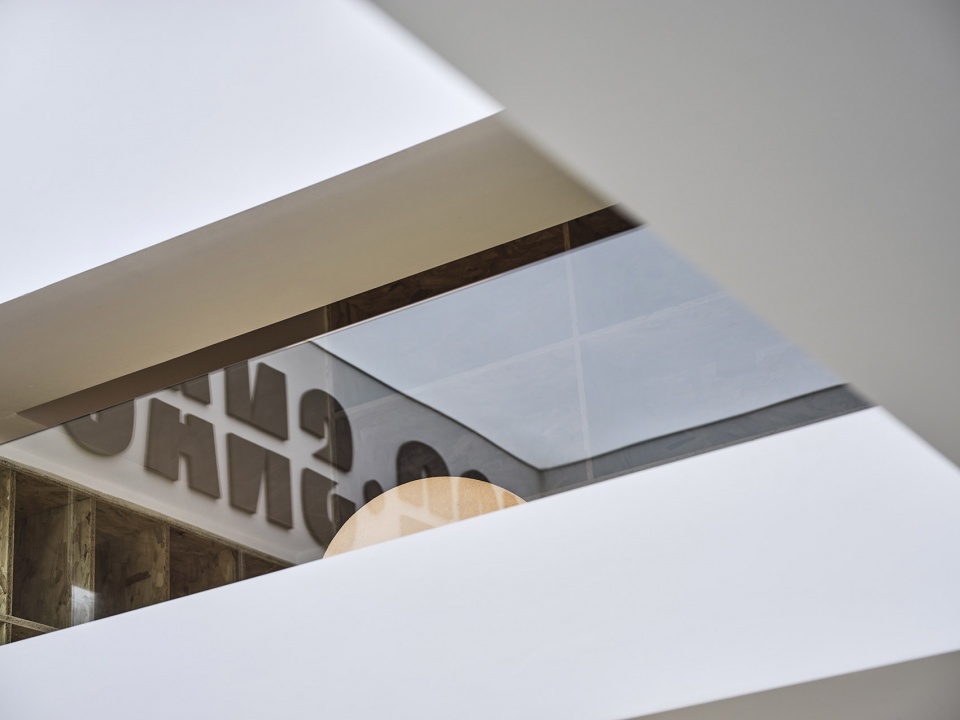

▼天花板细部，ceiling details ©邱文锏

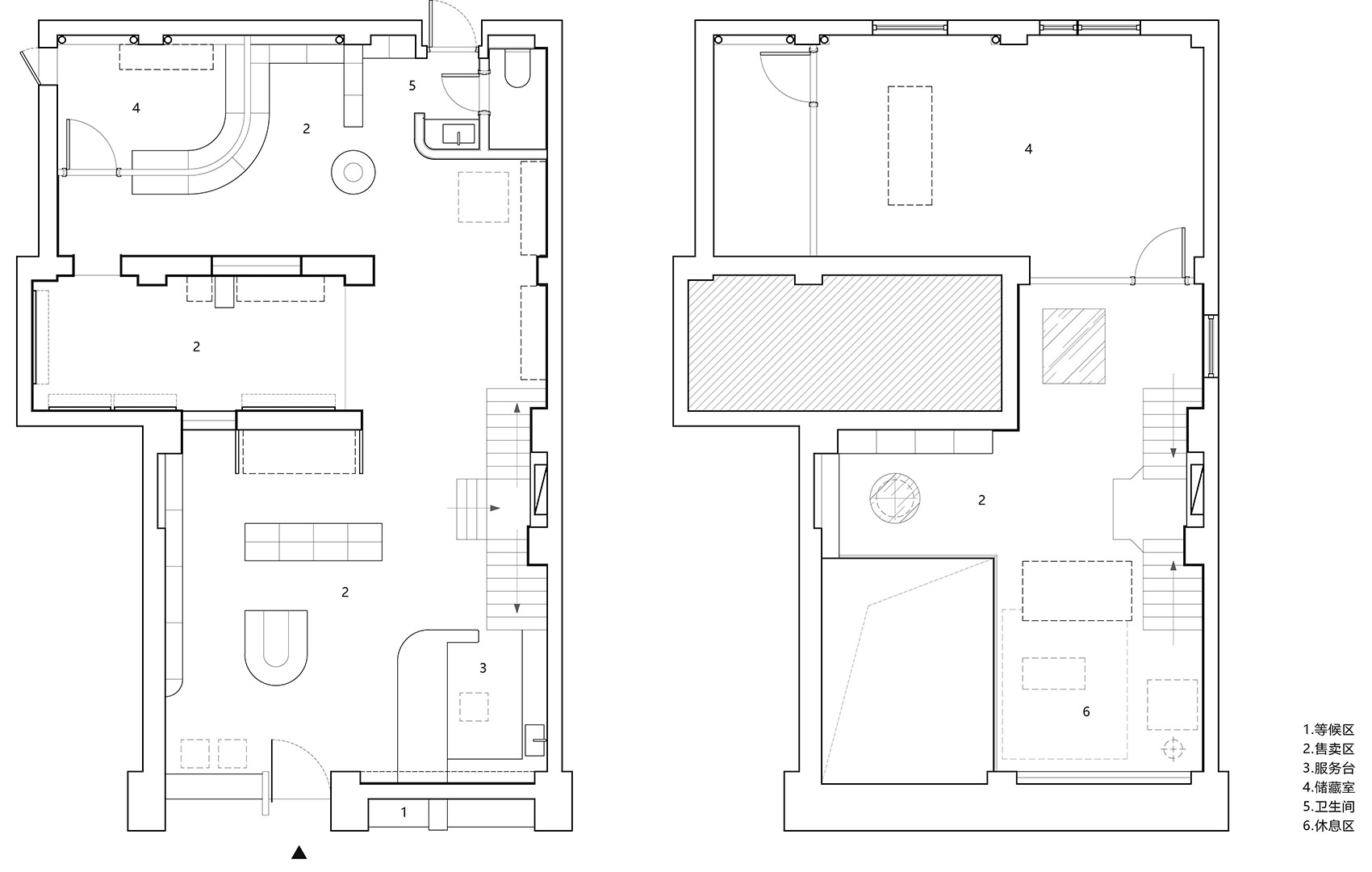

▼平面图，plans ©MUTUAL LAB

项目名称：109Things
地点：江苏省南京市秦淮区莫愁路283号
面积：1F-88㎡/2F-58㎡
设计师：胡啸
设计时间：2021年09月
竣工时间：2021年11月
摄影：邱文锏
材料：刨花板，镀锌板，水洗石，锡纸

Project Name: 109Things
Address: No. 283, Mochou Road, Qinhuai District, Nanjing City, Jiangsu Province
Area: 1F-88㎡/2F-58㎡
Designer: Hu Xiao
Design time: September 2021
Completion time: November 2021
Photography: Qiu Wenmao
Materials: Particleboard, Galvanized Sheet, Washed Stone, Tin foil
