感谢 畎亩建筑（联系邮箱：acrepress@163.com）予gooood分享以下内容。更多请至：ACRE ATELIER on gooood
Appreciations towards A.C.R.E Atelier ( contact: acrepress@163.com ) for providing the following description:

星河学校作为深圳市龙岗区建筑工务署重点推进的高品质校园，通过系统性设计推演化解高密度复杂场地的空间矛盾。项目以创新性空间范式推动基础教学模式革新，通过建筑构造创新实践绿色低碳校园建设目标。

Xinghe campus, a high-quality campus project prioritized by the Longgang District Construction Bureau of Shenzhen, resolves spatial challenges of high-density sites through systematic design strategies. The project pioneers innovative spatial paradigms to transform fundamental teaching models, while achieving green and low-carbon campus goals through architectural innovation.

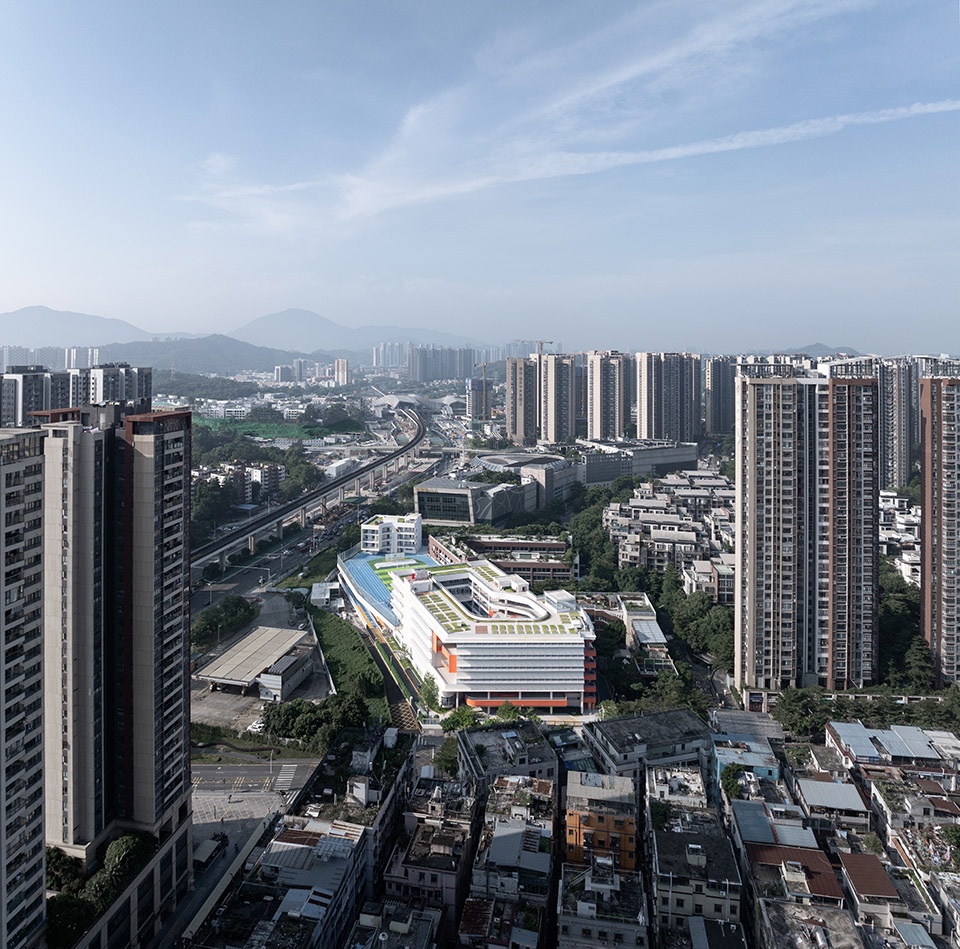

▼⾼密度城区中的星河学校，Xinghe campus in the high density city ©直角建筑摄影

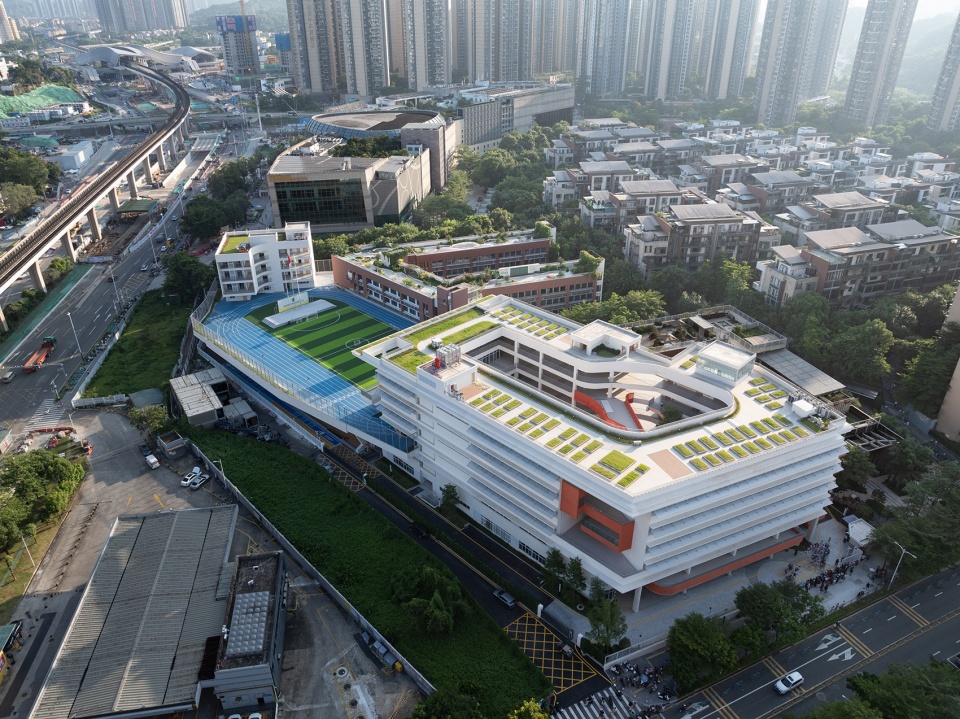

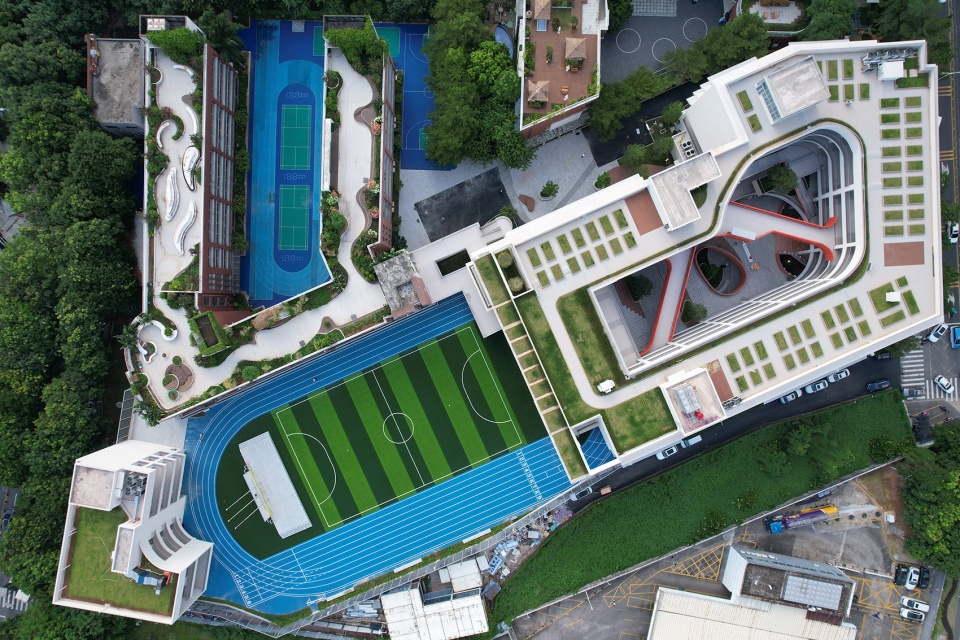

▼校园鸟瞰，aerial view of the campus ©直角建筑摄影

▼校园街景，street view of the campus ©直角建筑摄影

▼庭院概览，overview of the courtyard ©直角建筑摄影

▼校园概览，overview of the campus ©直角建筑摄影

高密度环境应对策略
关键词：围屋布局 | 地形嵌套 | 立体镂空
High-Density Environment Strategies
Key words: Walled House Layout | Topographic Nesting | 3D Permeability

围屋布局
Walled House Layout

星河的“围屋”，既是对龙岗地域文脉的当代转译，亦是高密度约束下的空间解题策略。在新建区建筑密度达3.4且需容纳200米环形跑道的严苛条件下，采用六层围合式教学体量高效集约教学功能。基于周边城市肌理特征，布局呈现”北密南疏”的梯度密度响应。通过精确控制各边距离于规范临界值，塑造适宜的高宽比空间参数，围合出具有人文尺度的院落体系。这种空间拓扑结构形成的灰空间界面，有效催化了非正式学习行为的发生。

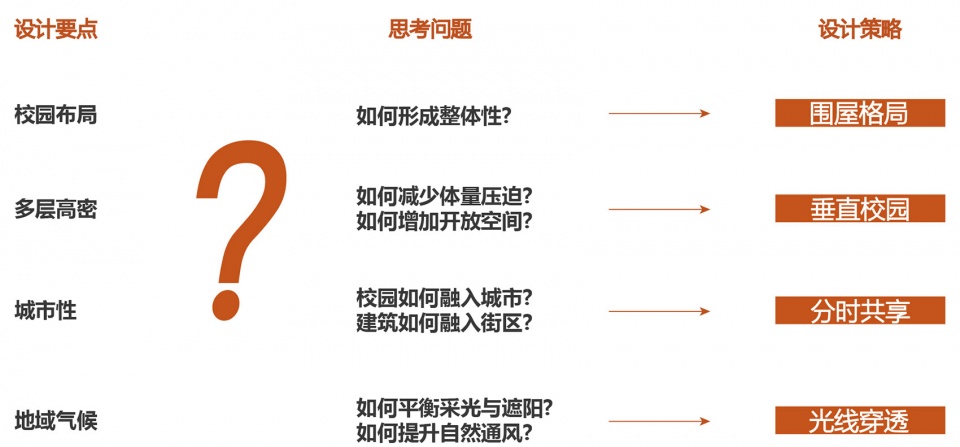

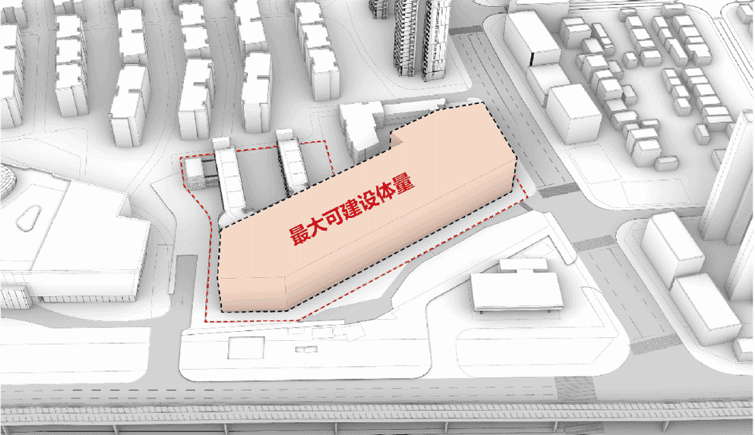

▼设计策略，design strategy ©畎亩建筑

The “walled house” design of Xinghe Campus serves as both a contemporary reinterpretation of Longgang’s cultural heritage and a spatial solution for high-density constraints. Under strict requirements (3.4 FAR with a 200m circular running track), the six-story enclosed structure efficiently consolidates teaching functions. Responding to surrounding urban patterns, the layout adopts a gradient density strategy – dense north, sparse south. By precisely controlling boundary distances to regulatory limits, we achieved optimal height-width ratios and human-scale courtyards. The resulting transitional spaces actively catalyze informal learning activities.

▼完⼯前整体校园，Overall campus before completion ©李锦辉

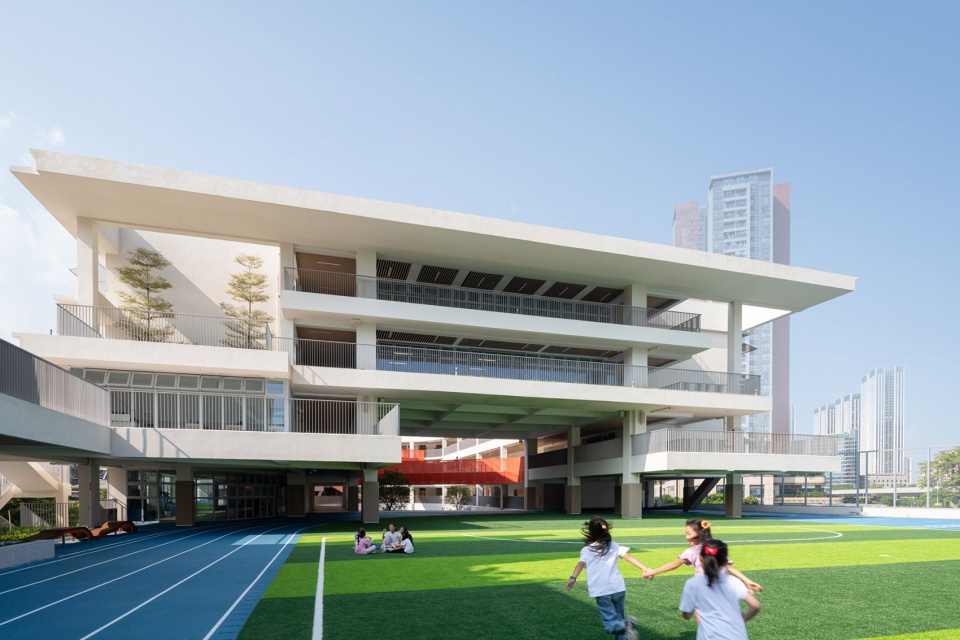

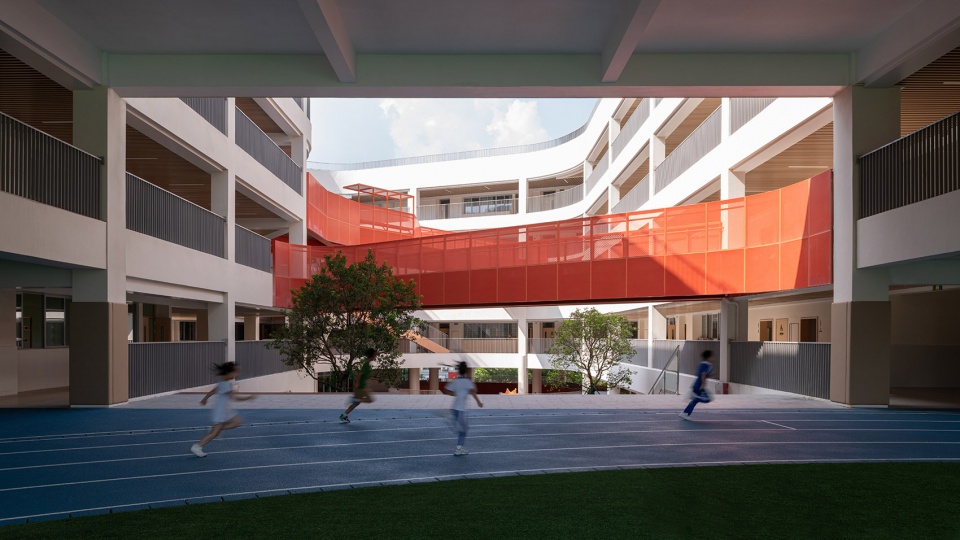

▼运动场回望教学院落，Sports ground looking back at the teaching compound ©直⻆建筑摄影

地形嵌套
Topographic Nesting

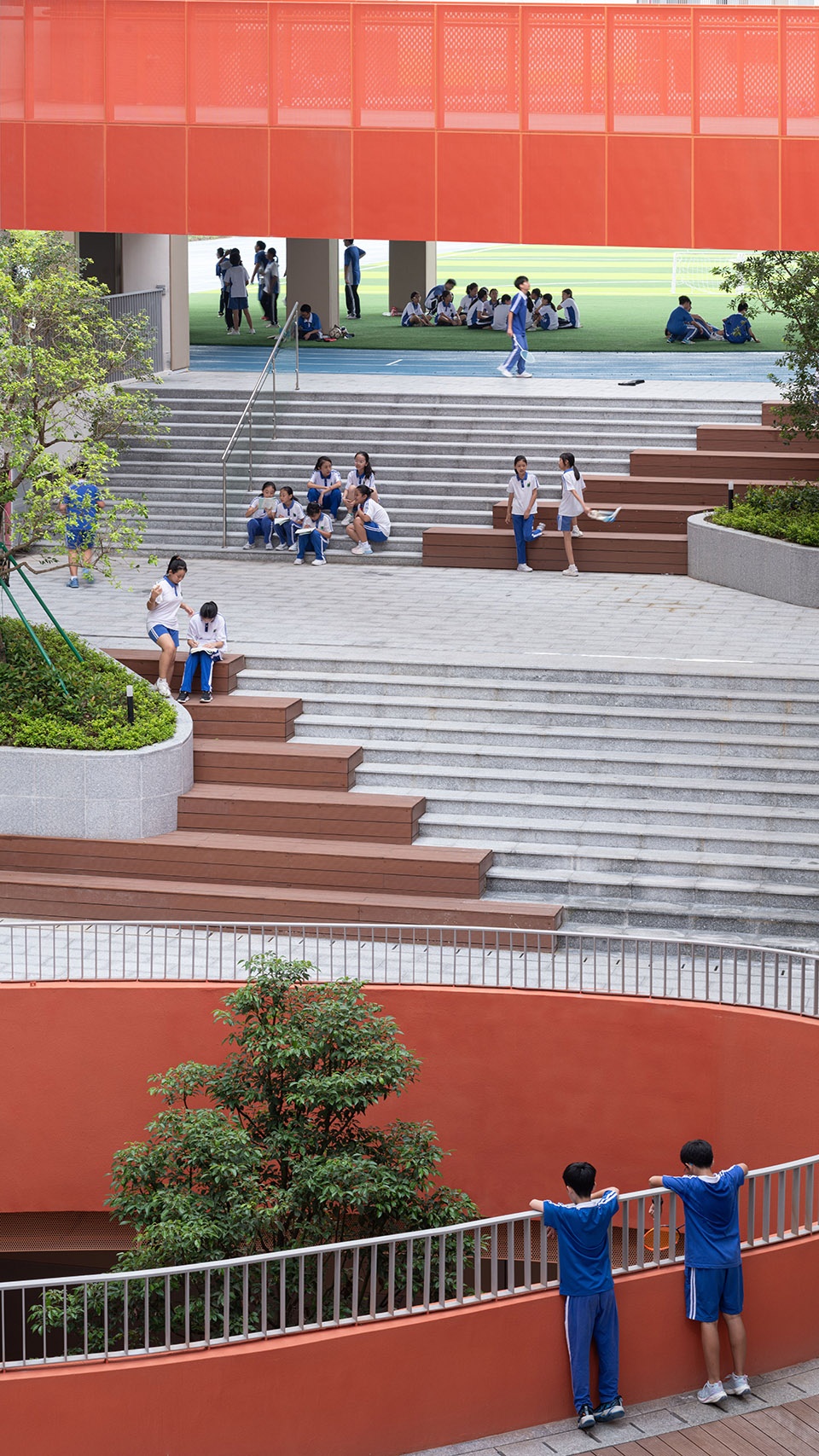

采用垂直向度的地形学处理手法，将体育馆、报告厅等大体量功能单元作为基座层嵌入场地，使教学组团以悬浮姿态建构于场地之上。二者之间逐级跌落的台地产生空间活力，成为孩子们嬉笑翻闹的“山谷”。

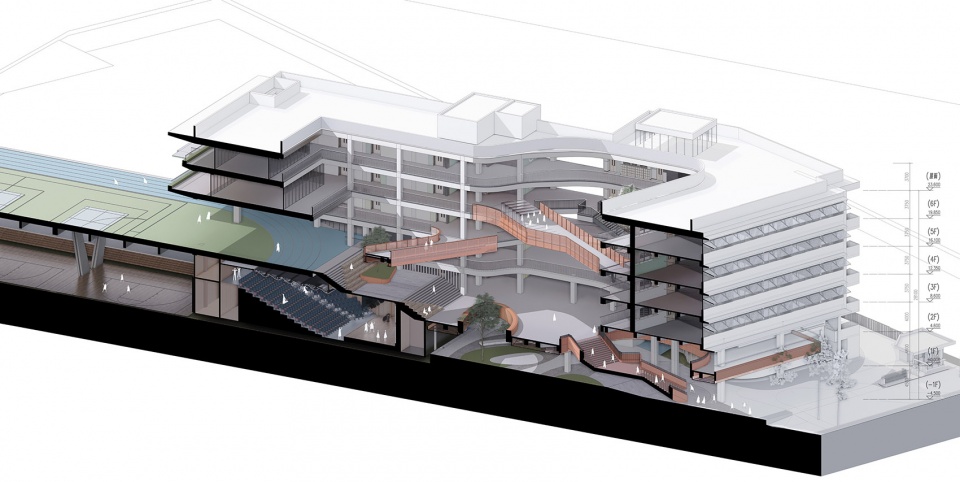

▼剖透视，perspective section ©畎亩建筑

Using vertical terrain manipulation, large functional units like the gymnasium and auditorium are embedded as foundational plinths. Teaching clusters then “float” above this base, with cascading terraces forming vibrant transitional spaces – a playful “valley” for children’s activities.

▼运动场回望教学院落，Sports ground looking back at the teaching compound ©直⻆建筑摄影

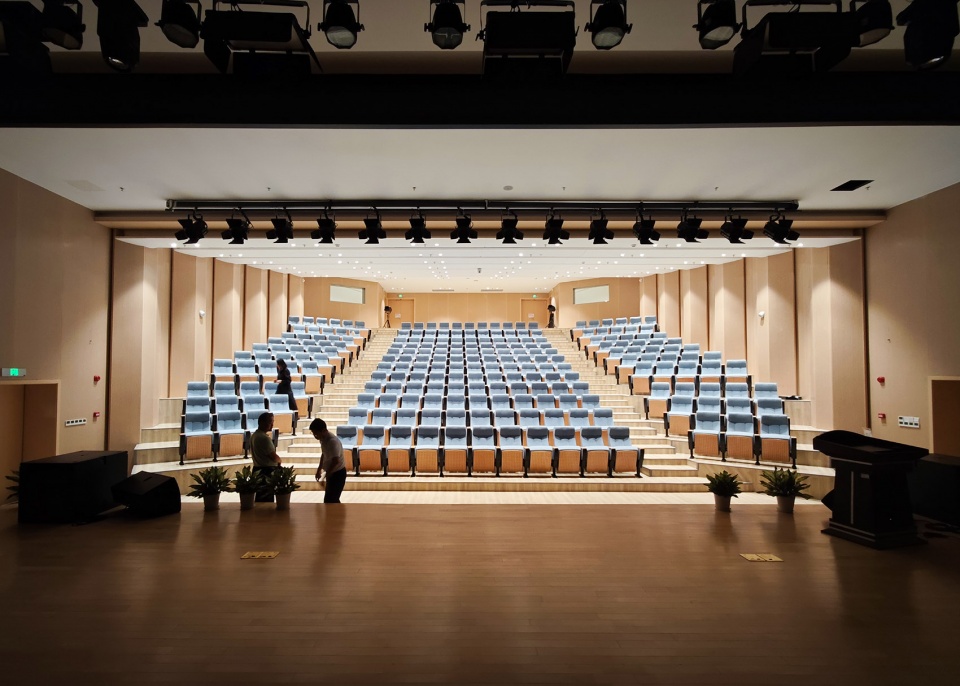

▼报告厅，performance hall ©肖潇

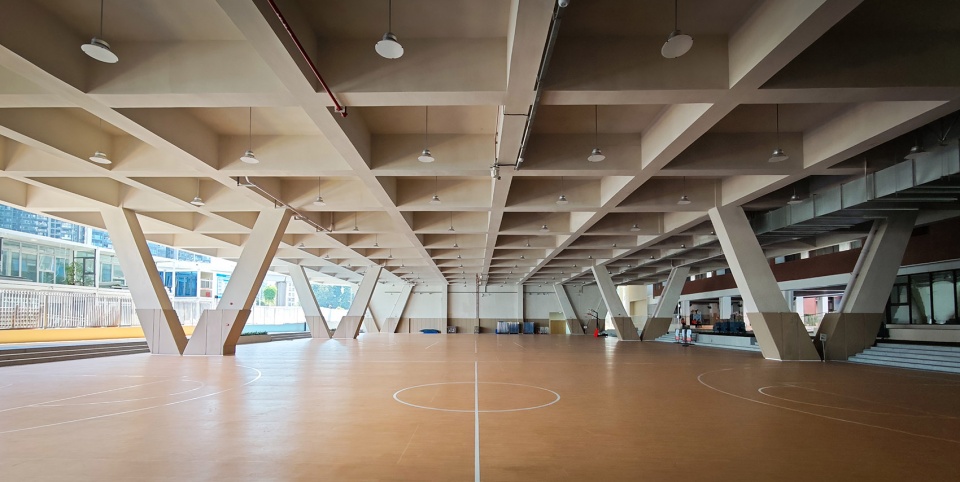

▼风⾬操场，Indoor playground ©肖潇

立体镂空
3D Permeability

立体廊桥在校园中流动，带着灵动色彩编织出自由而多义的立体校园。悬空种植的大树让孩子们在课间10分钟也能接触绿色自然，伸展的廊桥作为课间操平台，在垂直维度中拓展活动场所。“镂空”高密度的建筑体量，让光与风穿透进来，形成舒适的微气候，同时也可以让孩子们看出去，观城市生长，知社会冷暖。

Colorful aerial walkways weave through the campus, creating multi-layered spatial connections. Suspended tree plantings bring nature within 10-minute breaks, while extended bridges serve as vertical exercise platforms. Strategically carved voids allow light and wind to permeate the dense structure, improving microclimate comfort and offering city-view perspectives that connect students to urban growth.

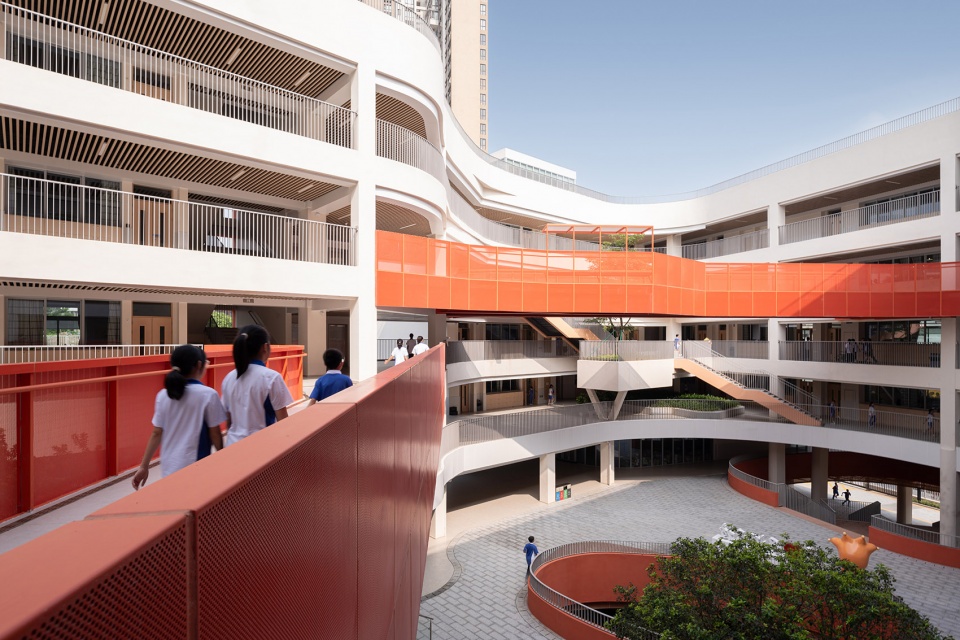

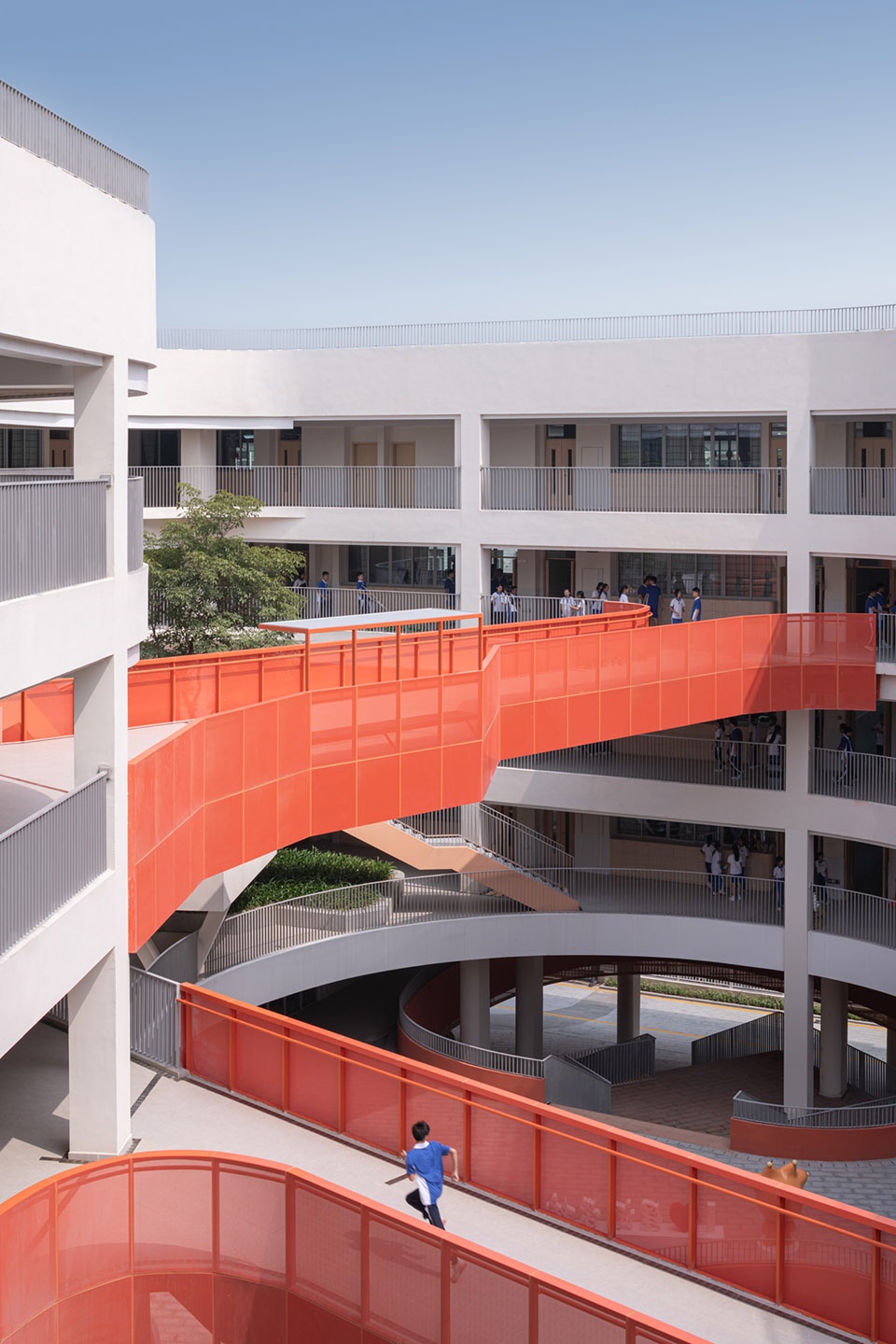

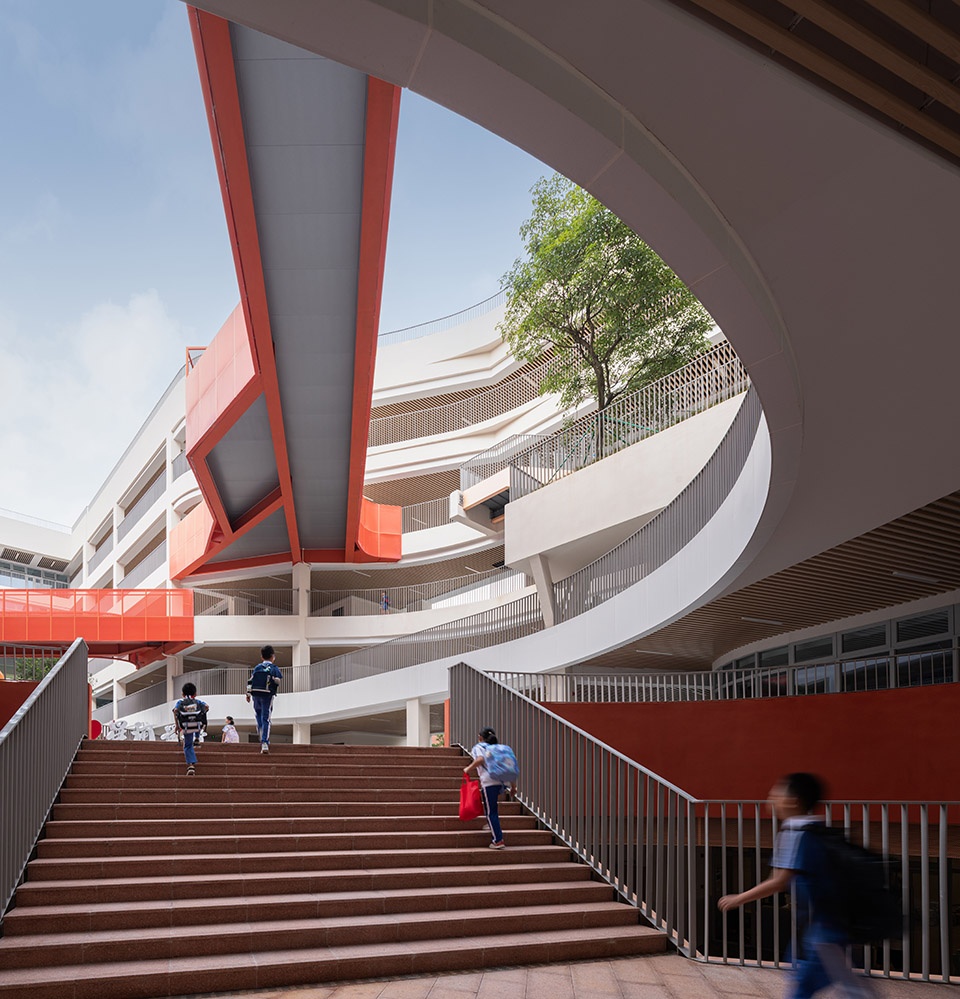

▼立体廊桥，aerial walkways ©畎亩建筑

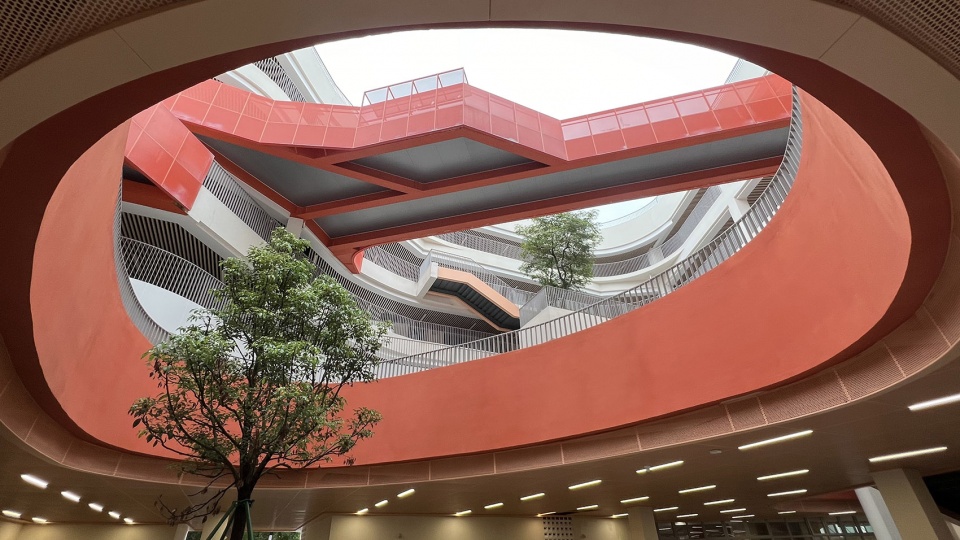

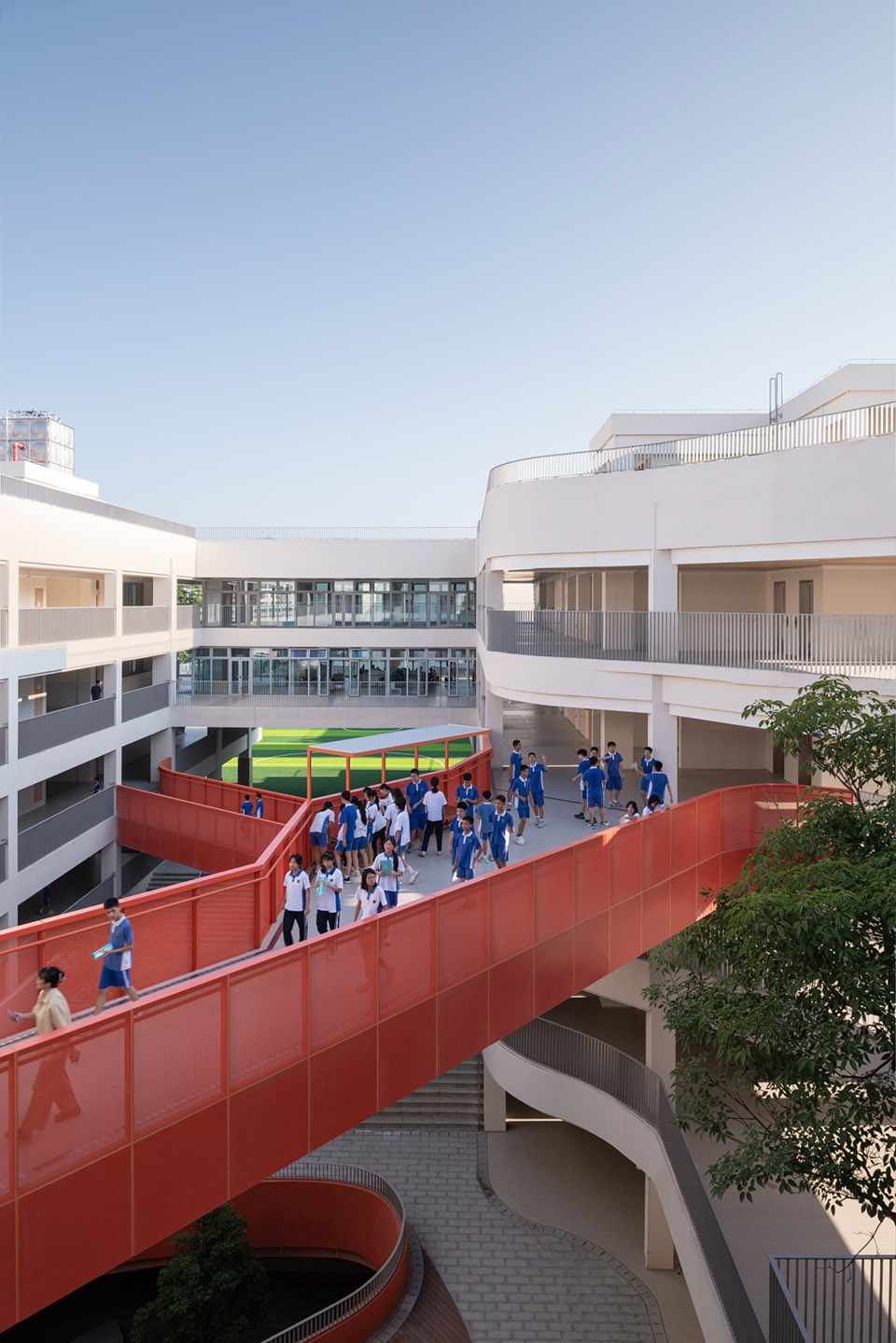

▼立体廊桥，aerial walkways ©直⻆建筑摄影

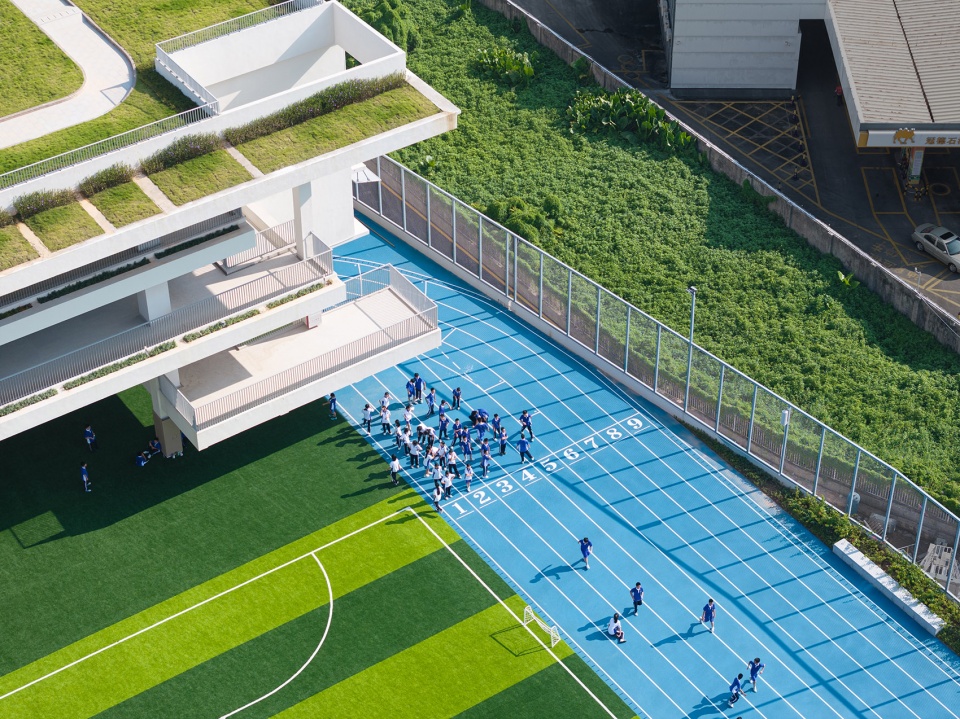

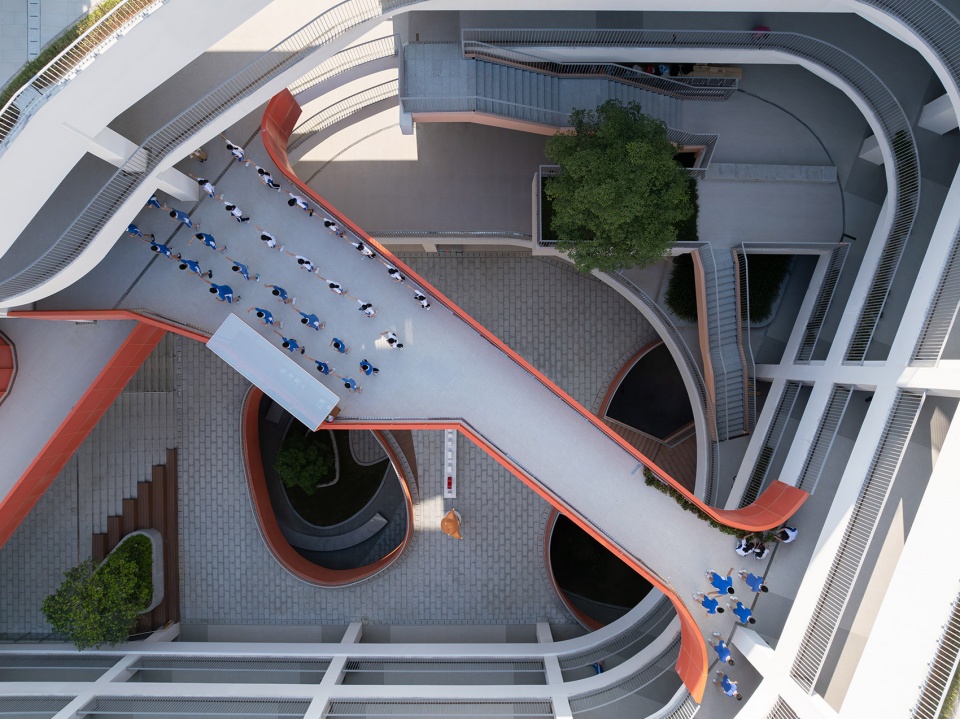

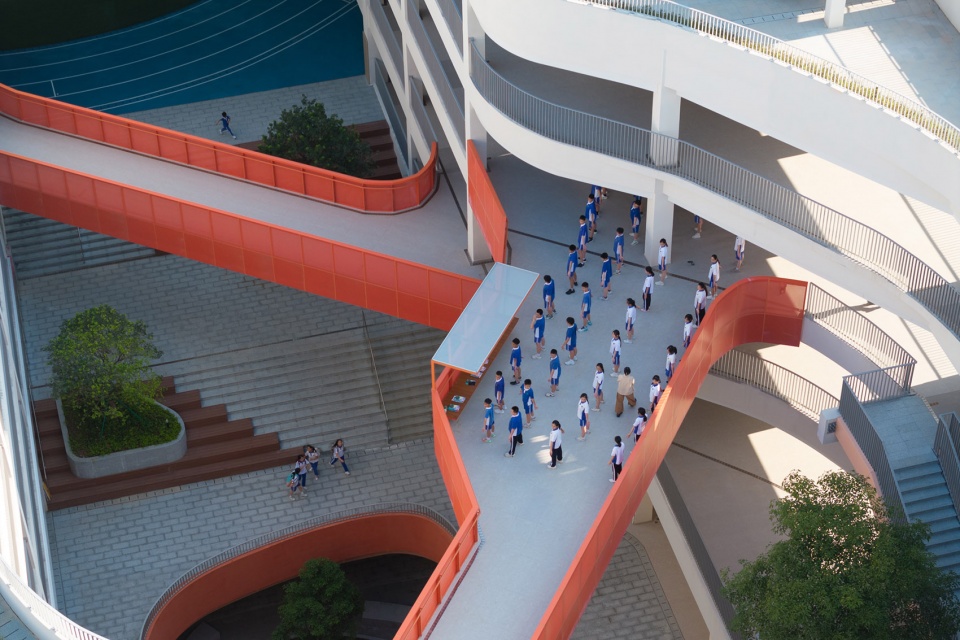

▼伸展的廊桥作为课间操平台，Stretching corridor bridge as a platform for recess exercises ©直⻆建筑摄影

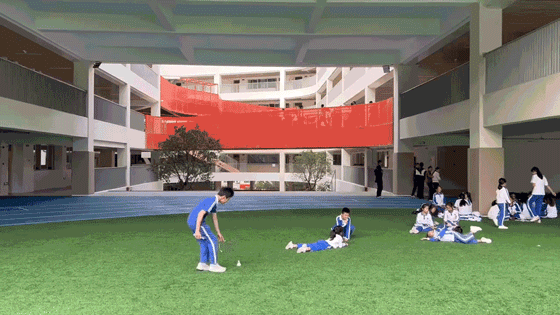

▼孩⼦们在地上打滚，children play on the ground ©畎亩建筑

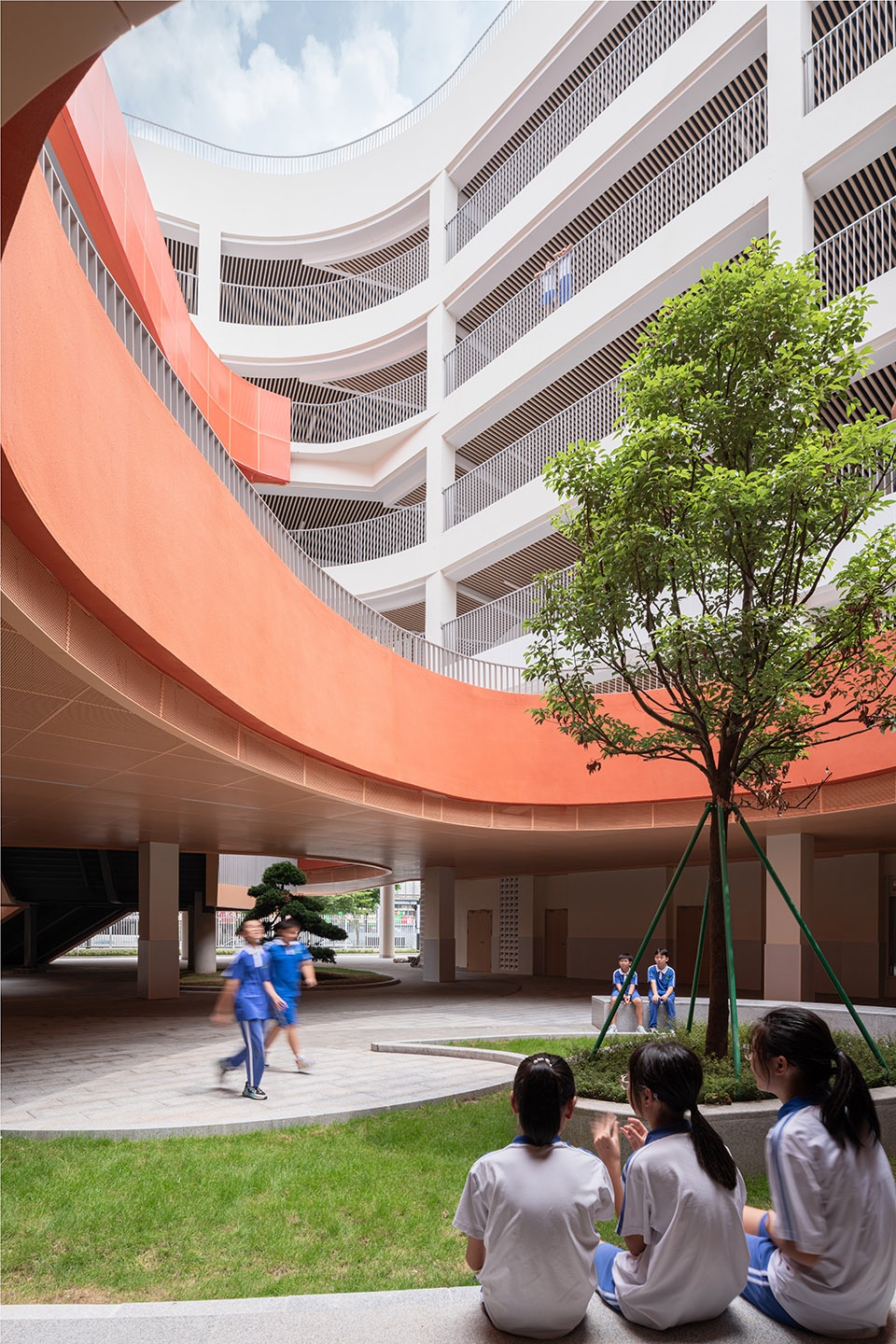

▼课间⼗分钟的树下⼩憩，taking a nap under a tree in the middle of the school day ©畎亩建筑

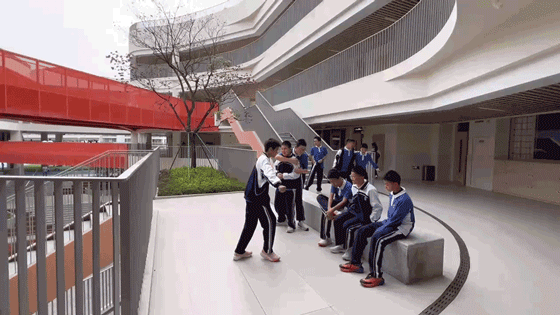

“围屋”像是一间大教室，巨型教学容器通过空间粘性促进生生互相学习。

This “Walled House ”as a giant classroom where spatial cohesion stimulates peer-to-peer learning.

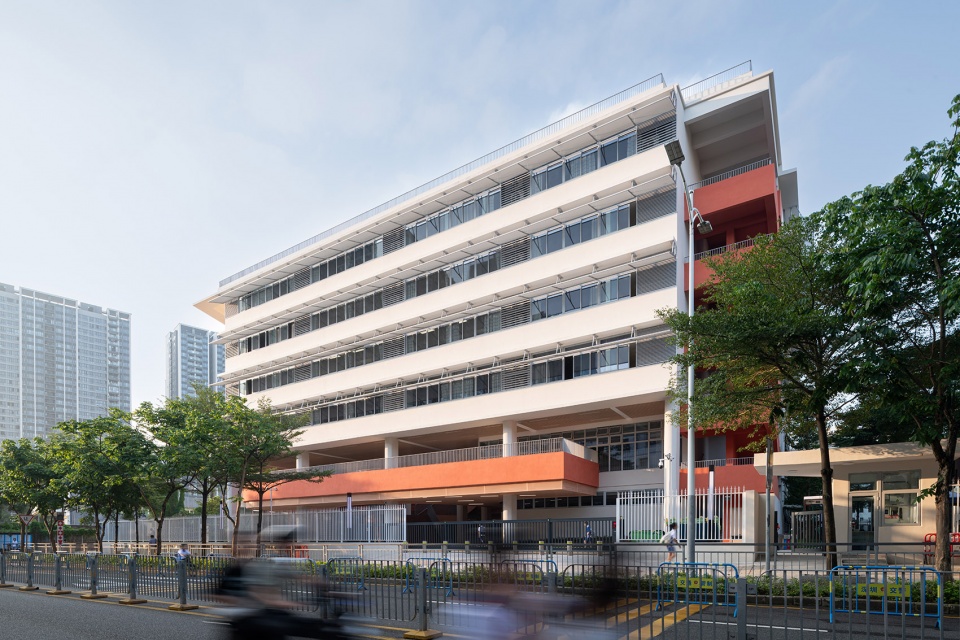

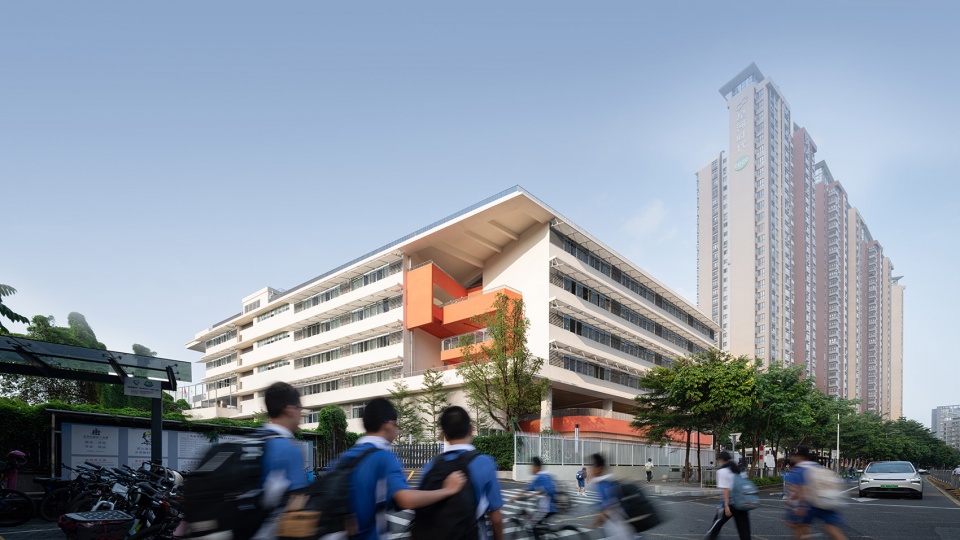

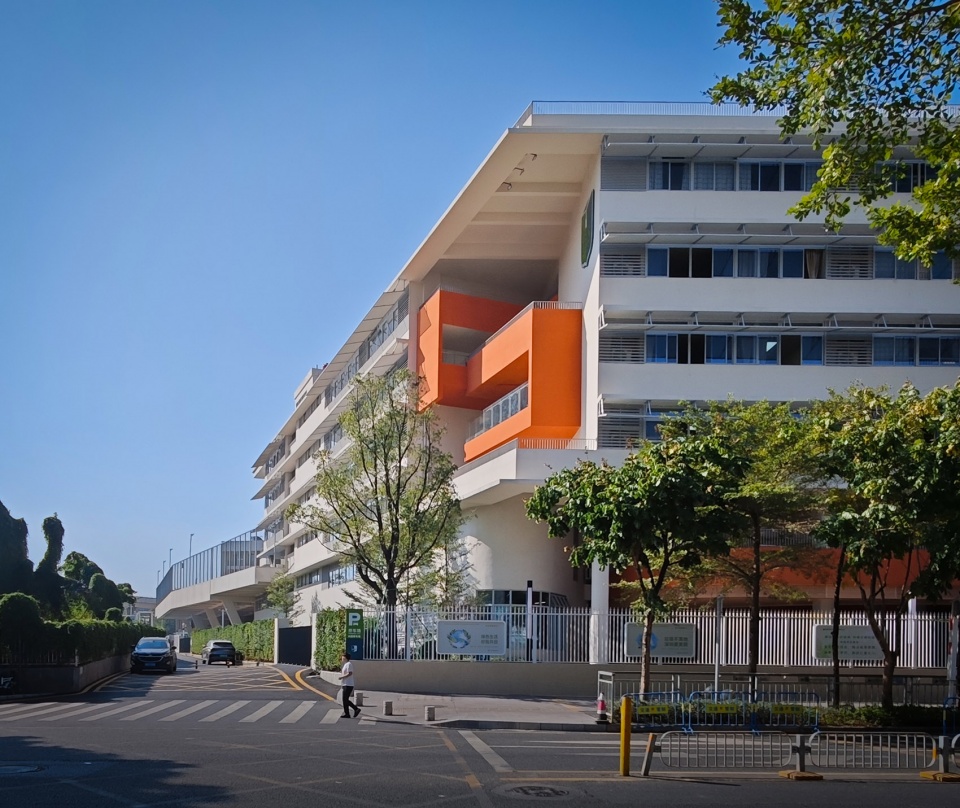

▼建筑街景，street view of the building ©肖潇

与城市对话
关键词：分时共享 | 双首层 | 无墙运动场
Dialogue with the City
Keywords: time–share plaza | double first floor | boundary-free sports field

在入口区需同时解决家长集散、学段分流与高密度挤压的矛盾语境下，设计通过建筑体量内收策略，创新建构双首层交通体系与分时共享广场。采用”空间折叠”技术消解校园与城市的对抗性边界：日间作为接送缓冲区，非教学时段转化为社区共享空间。

At the entrance zone addressing parent circulation, student flow separation, and density challenges, we developed an innovative dual ground floor system with a time-shared plaza. Spatial folding techniques dissolve urban-campus boundaries, serving as a parent drop-off buffer during school hours while transforming into community-shared spaces during non-instructional time.

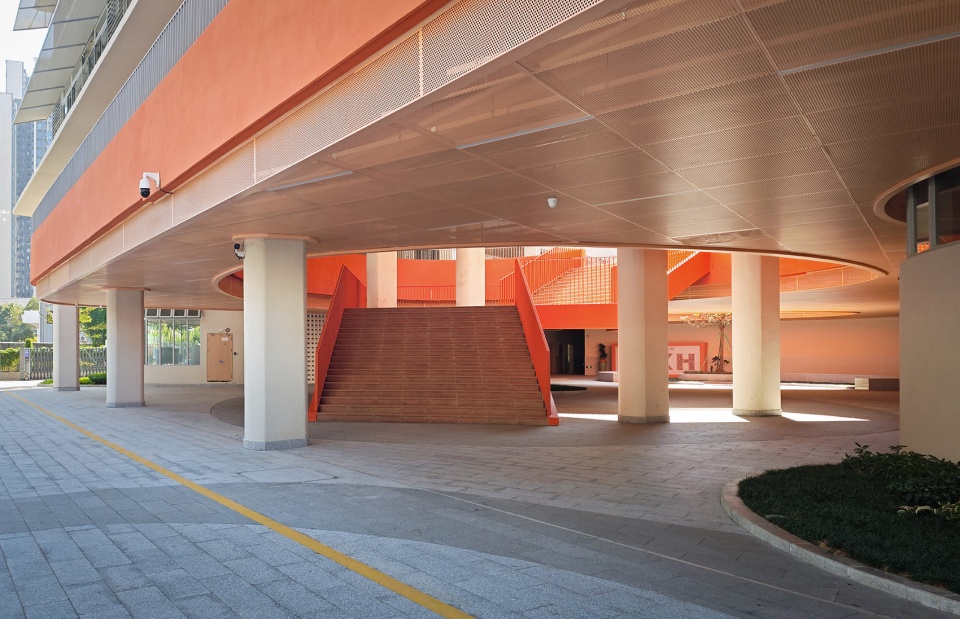

▼⾸层架空：消解校园与城市的对抗性，the overhead: dissolving the antagonism between the campus and the city ©直⻆建筑摄影

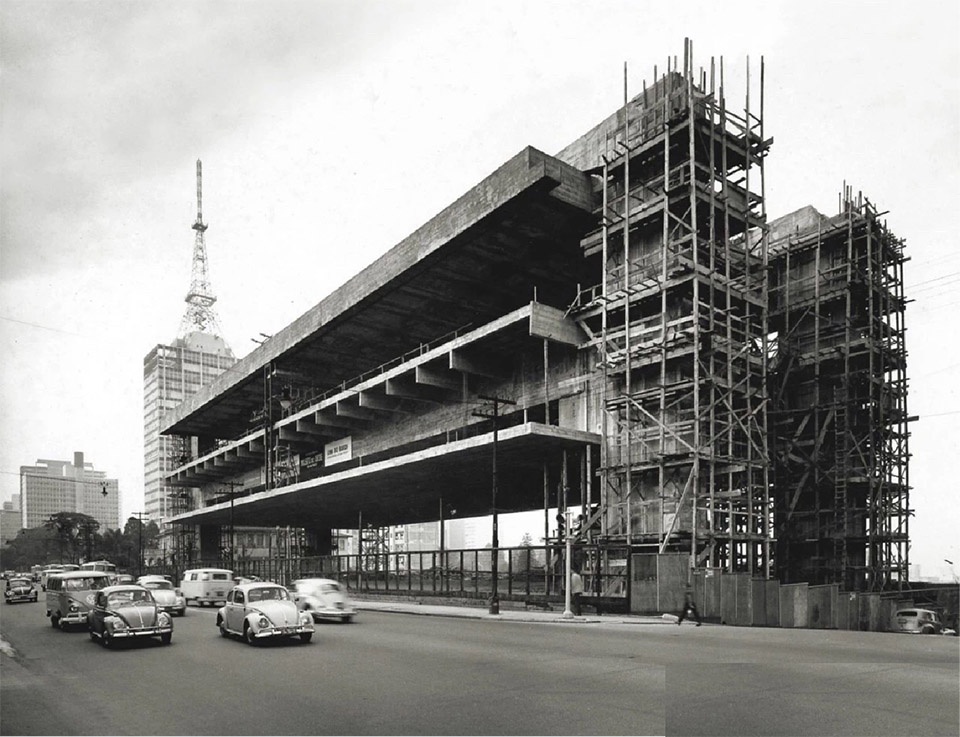

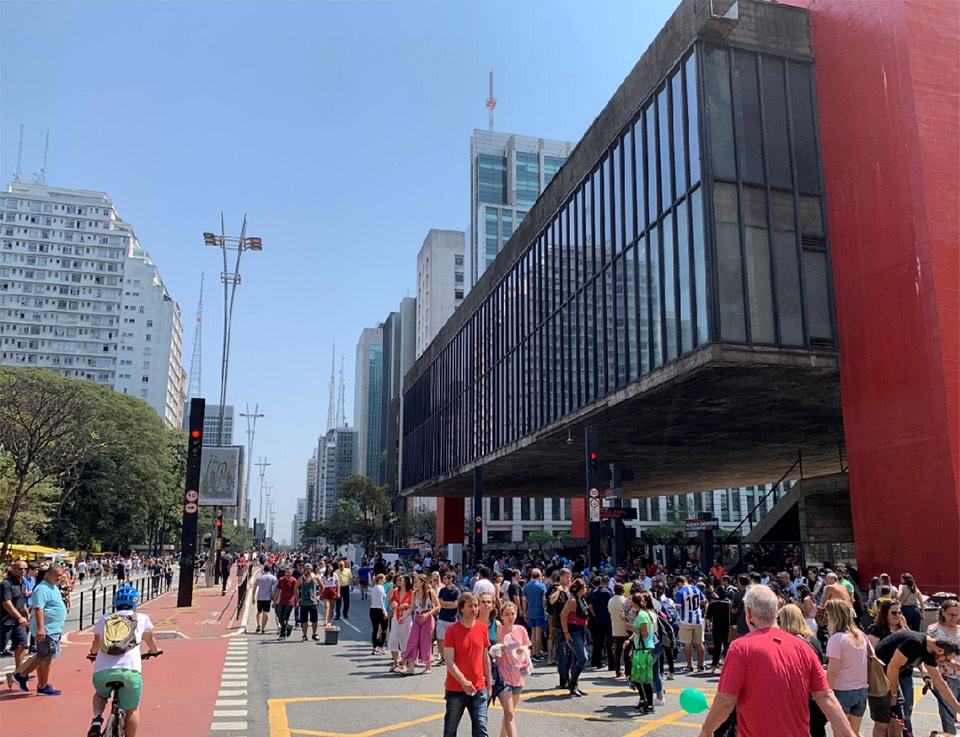

▼圣保罗艺术博物馆(MASP)，MASP ©(左图为畎亩自摄，右图：Lina Bo Bardi 1956）

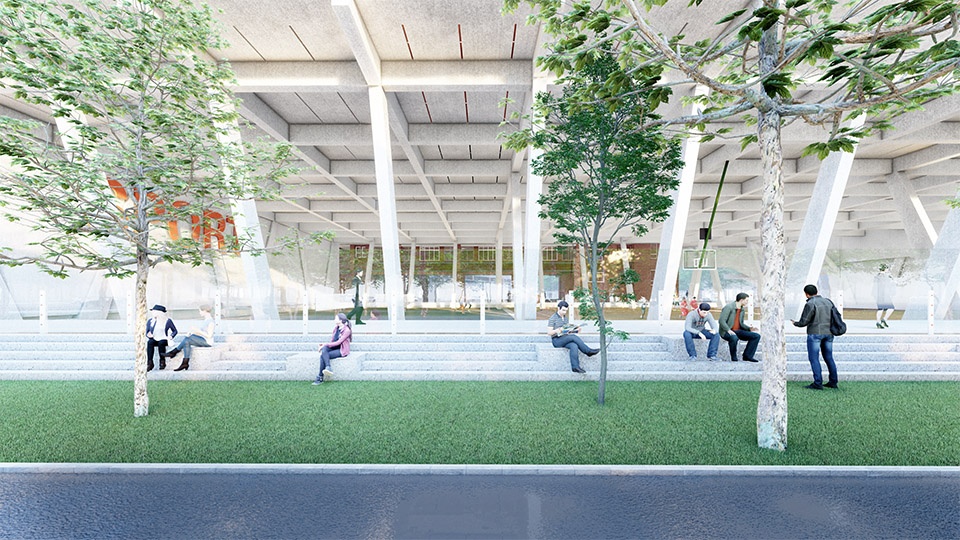

▼空间折叠：双⾸层与社区共享⼴场，folding space: double storey and community share the space ©肖潇

通过拆除传统围墙的实体隔离，将运动场域与城市街道建立视觉渗透；居民可以实时观望运动场中的孩子，使校园活力反向滋养社区。

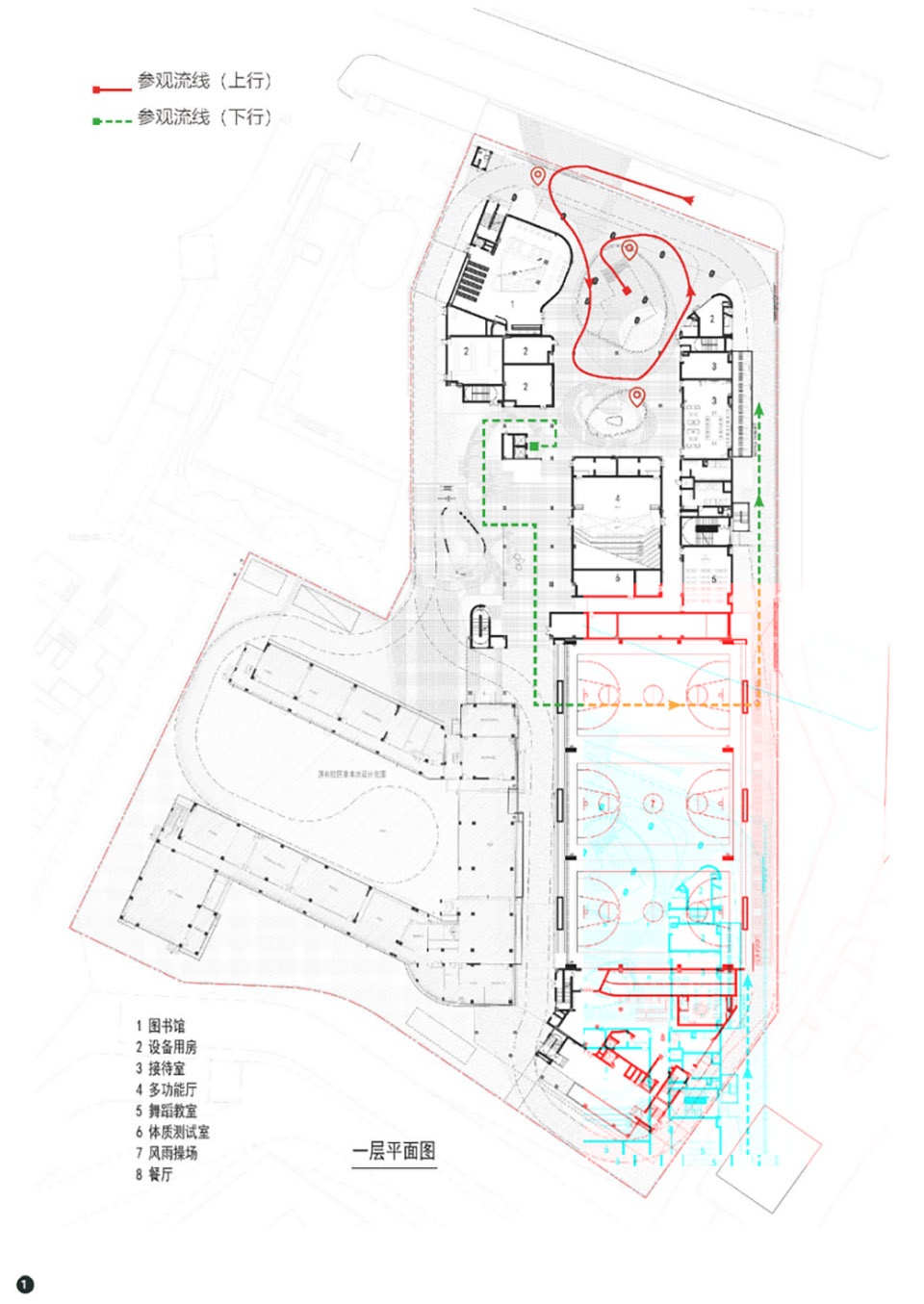

▼一层平面图，ground floor plan ©畎亩建筑

By eliminating traditional walls, the sports field visually connects to city streets. Residents can observe active students, allowing campus energy to nourish the neighborhood.

▼双⾸层与社区共享⼴场，double storey and community share the space ©直角建筑摄影

设计“打开”校园的围墙，把空间对抗转化为分享与融合。

The design “opens up” the walls of the campus, transforming spatial confrontation into shared vitality through boundary dissolution

▼理想：打开围墙的校园，让活⼒渗透⾄社区中，Ideal: Open up the walled campus and infuse strength into the community ©畎亩建筑

与自然的对话
关键词：轻型遮阳系统 | 可持续校园
Dialogues with Nature
Keywords: lightweight shading system | sustainable campus

针对深圳典型亚热带气候特征，设计需要回应太阳辐射与极端降雨的双重挑战并化解遮阳效率与视线通透的矛盾。

Given the subtropical climate typifying Shenzhen, the design must address the dual challenges of solar radiation and extreme rainfall, while resolving the contradiction between shading efficiency and visual permeability.

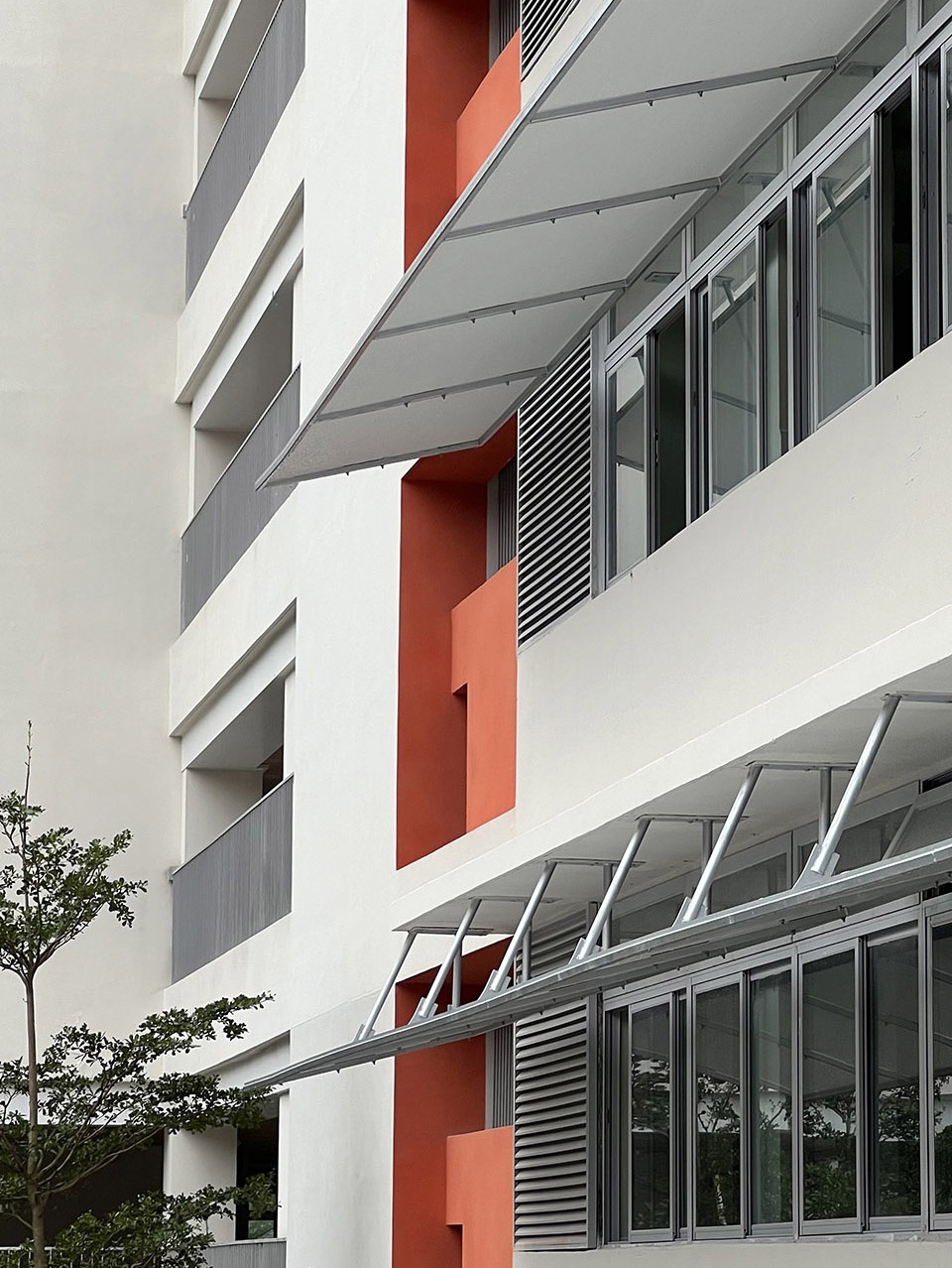

▼结合功能设置⽴⾯遮阳系统，Combining functionality with facade shading systems©畎亩建筑

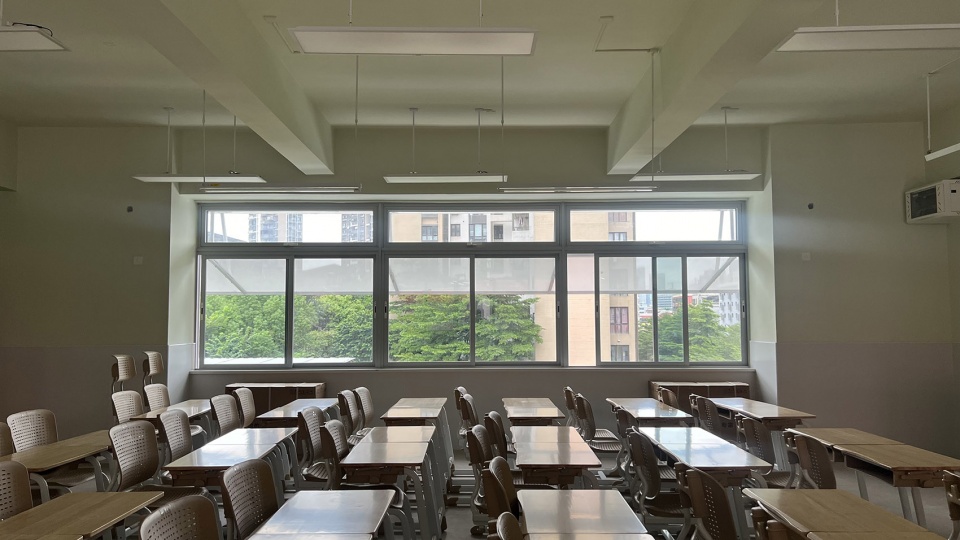

▼从室内看⽴⾯遮阳系统，facade shading systems from indoor space ©畎亩建筑

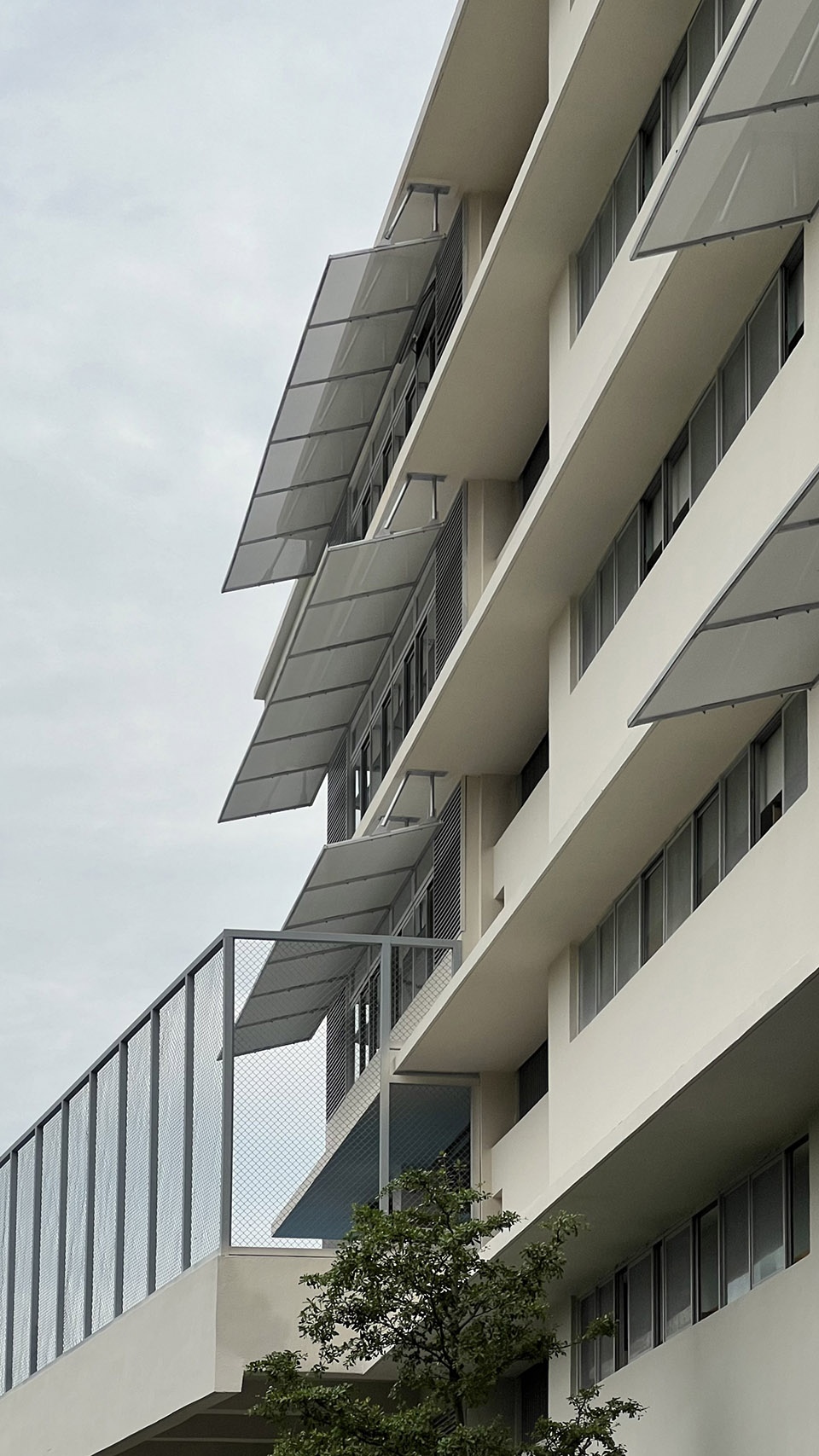

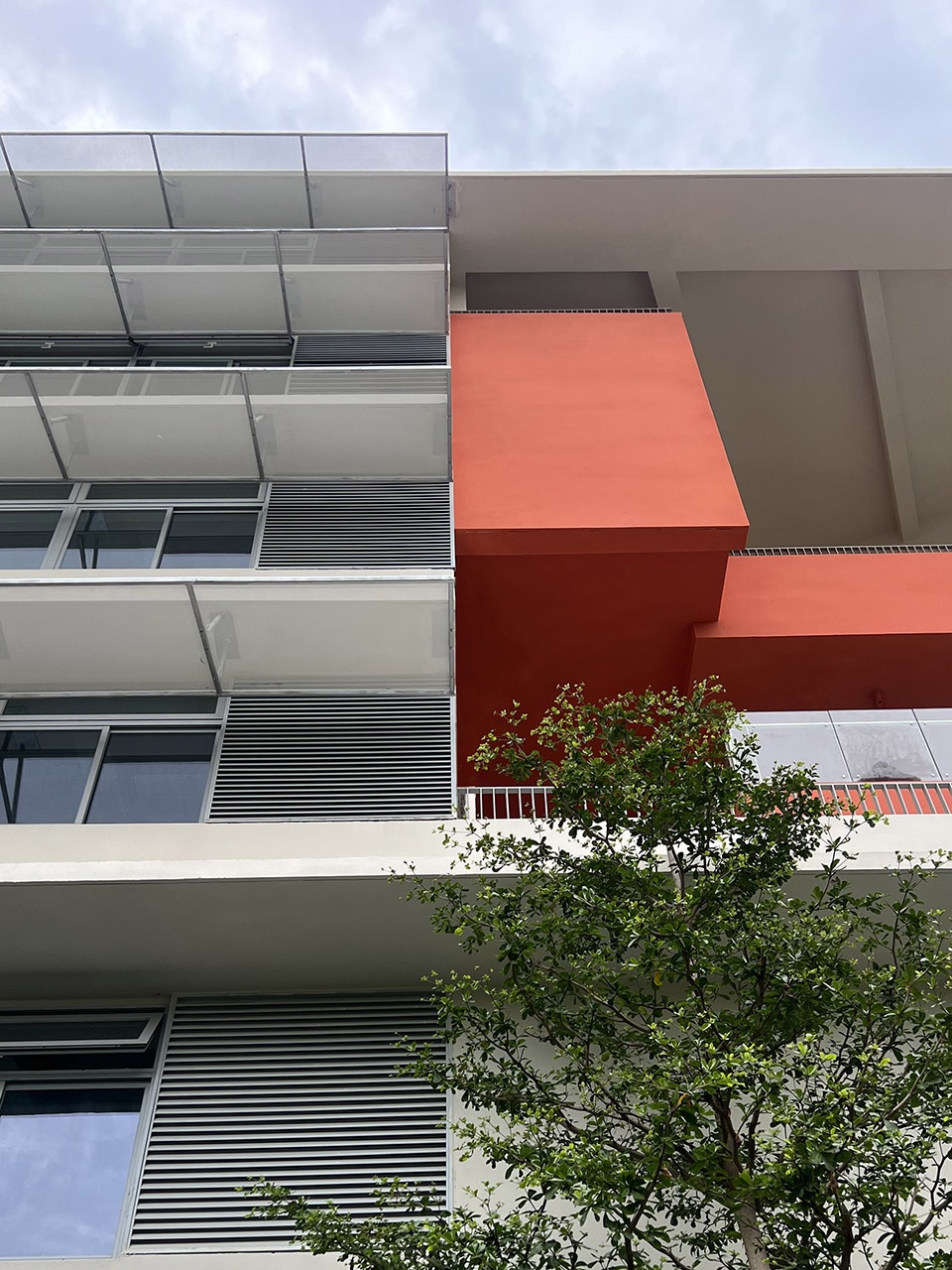

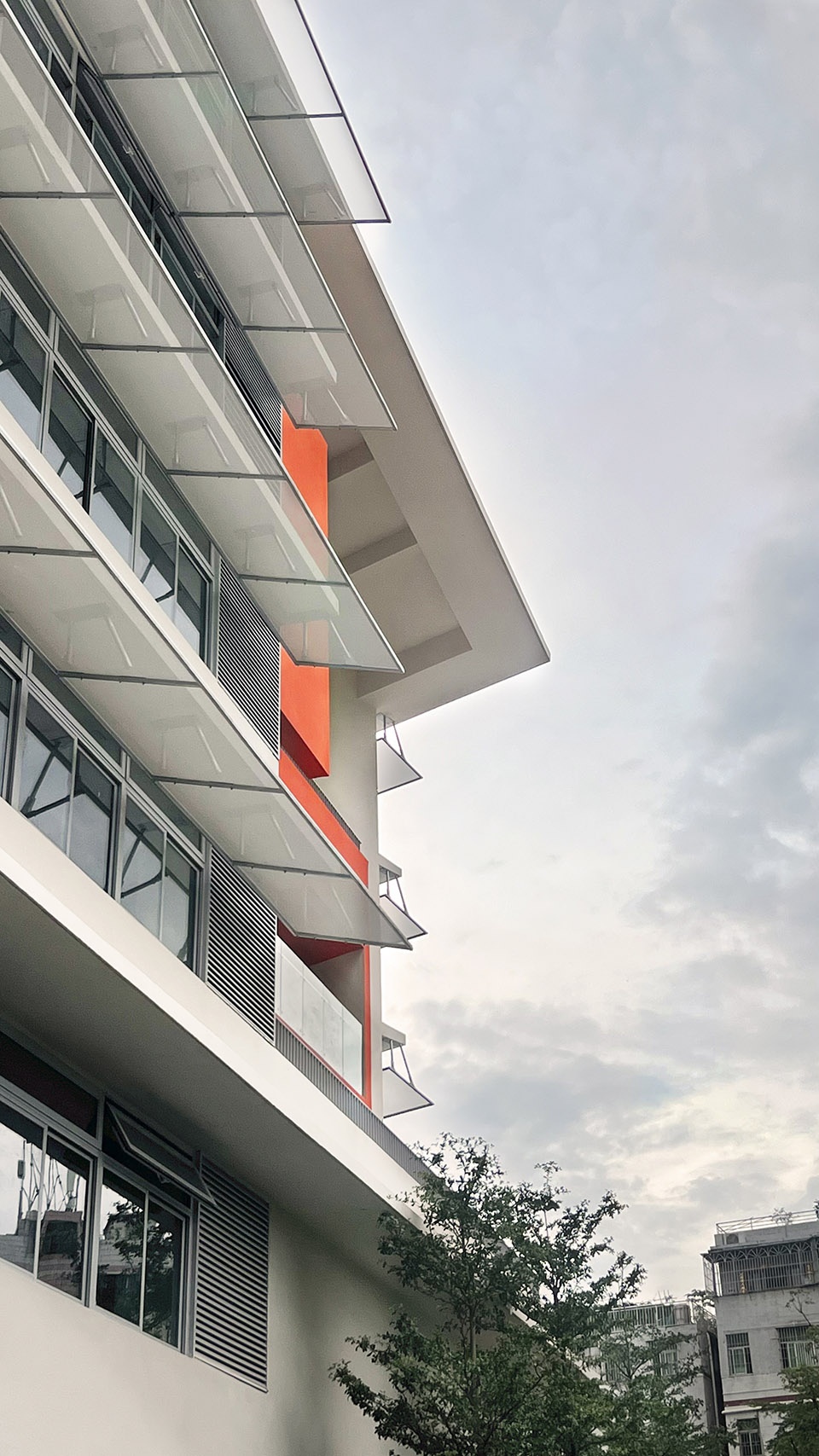

▼⽴⾯遮阳系统，facade shading systems ©畎亩建筑

通过自主研发的半透明为网格膜遮阳系统，经模拟验证，在保证sDA（空间日光自主性）和UDI（日光照度）的同时，可有效降低sGA（空间眩光）和热辐射强度，从而改善教室光环境并节省能源。

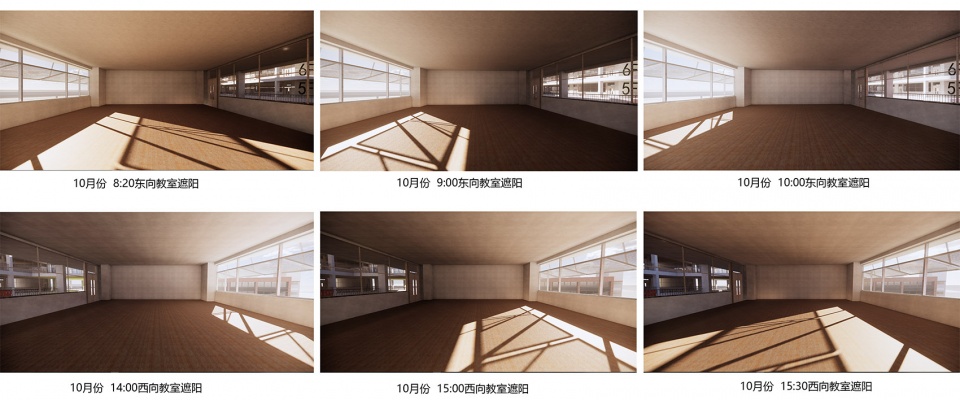

▼遮阳变化，shading variations ©畎亩建筑

The simulation results, obtained through the implementation of a translucent grid film shading system developed in-house, have demonstrated that while ensuring sDA (spatial daylight autonomy) and UDI (Useful Daylight Illuminance), the system can effectively reduce sGA (Spatial Glare Avoidance) and thermal radiation intensity. Consequently, this enhances the classroom light environment and conserves energy.

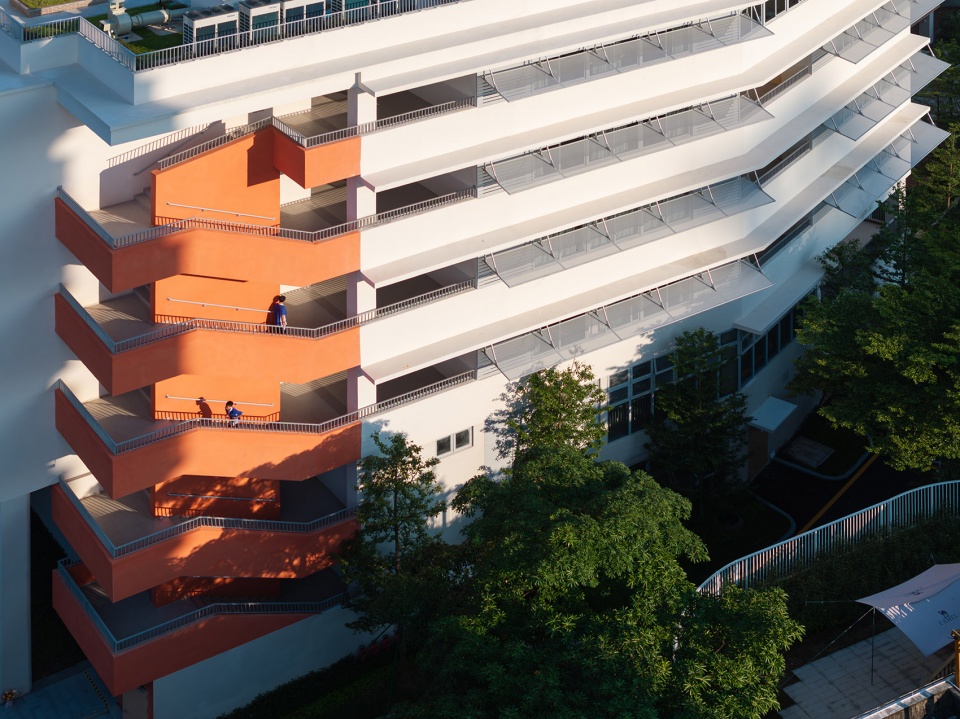

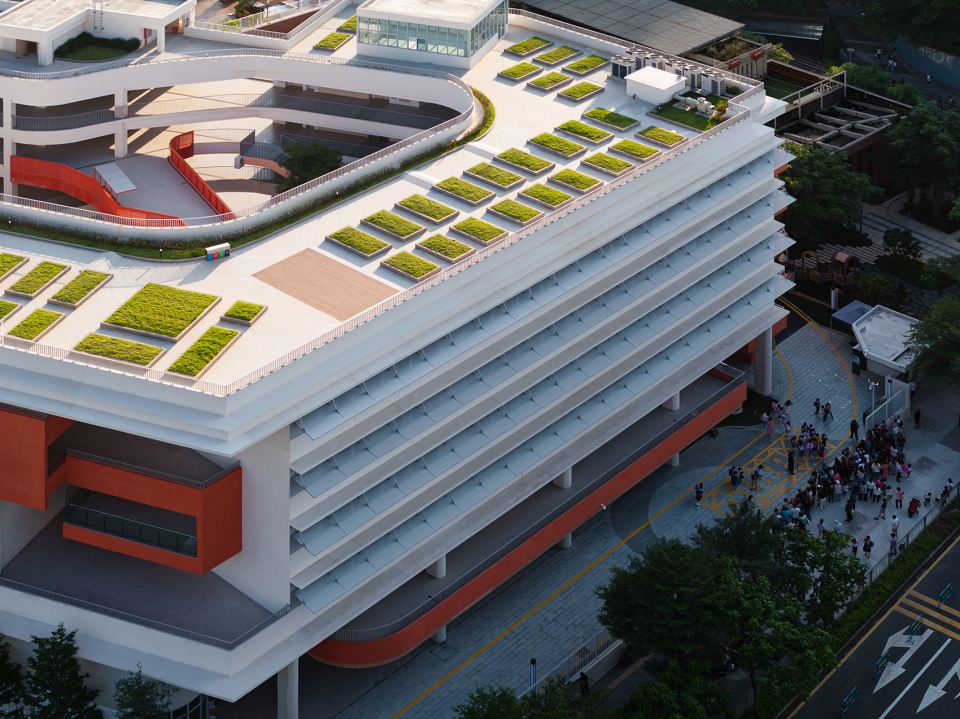

▼建筑立面，building facade ©直⻆建筑摄影

▼设计策略，design strategy ©畎亩建筑

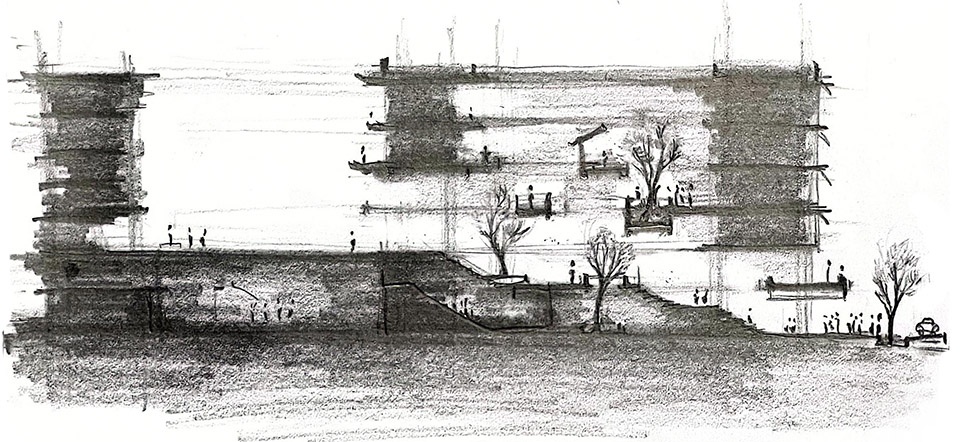

▼草图，sketch ©畎亩建筑

建设单位：深圳市龙岗区建筑工务署
设计单位畎亩建筑（方案）、中国建筑科学研究院（施工图）
项目地点广东深圳
完成时间 2024年9月
用地面积：15137㎡
建筑面积 29960㎡平方米
设计单位：畎亩建筑（ACRE ATELIER）+中国建筑科学研究院
主创建筑师：尹舜 Yin shun
竣工时间：2024年9月
业主：深圳市龙岗区建筑工务署
畎亩建筑团队：
师琦、卢欣和、卫季尧、刘珅、张世远、赵程扬、徐佳佳、蒲云辰
中国建筑科学研究院团队：
赵英超，孙勇，李锦辉，杜婉婷、李靖瑶，张静明，邹万铮，梁洁妮
技术顾问：法拉利织物Serge Ferrari
摄影：直角建筑摄影，肖潇，李锦辉，畎亩建筑
