感谢 个个世界 + 先进建筑实验室 予gooood分享以下内容。更多关于他们，请至：Wiki World on gooood, Advanced Architecture Lab on gooood
Appreciations towards Wiki World + Advanced Architecture Lab for providing the following description:

该木屋位于湖北省武汉市江夏区，是个个世界自然共建计划的一部分，该计划将在自然里建造一些列设计独特的自然之家。艺术家似乎是我们重要的合作伙伴，从纯蓝色的房子到迷路的房子，这次我们迎来了调色盘之家。

This cabin is located in Jiangxia District, Wuhan City, Hubei Province, and ispart of the Wiki World Co-Building Plan that will build a series of unique natural homes in nature. It seems our projects are so popular by artists friends, from pure blue cabin to cabin of maze, this time another artist works with us for a cabin of palette.

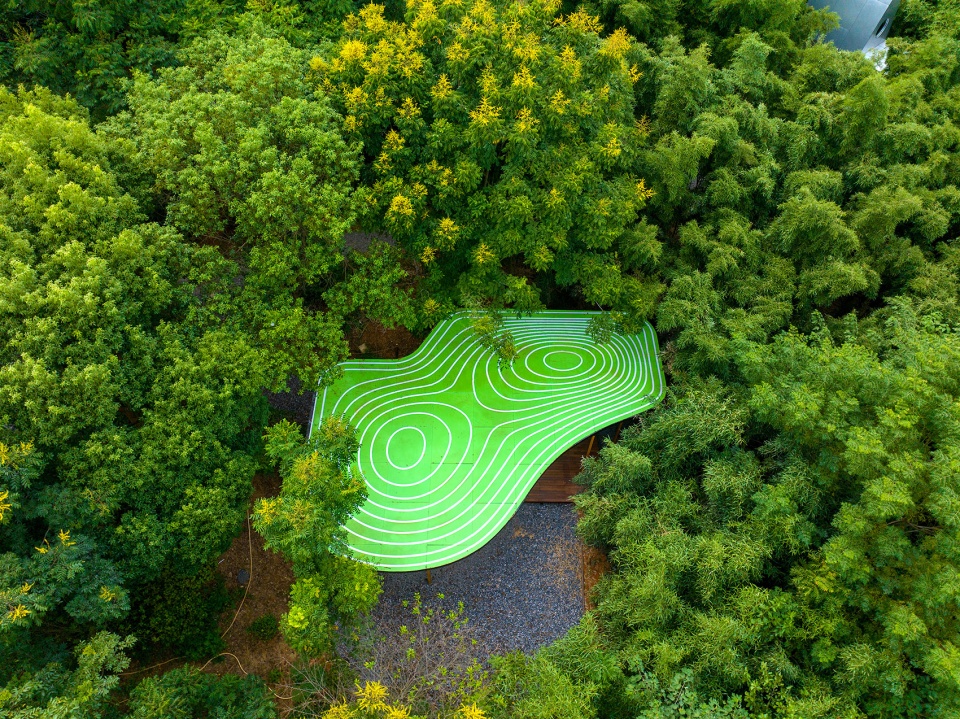

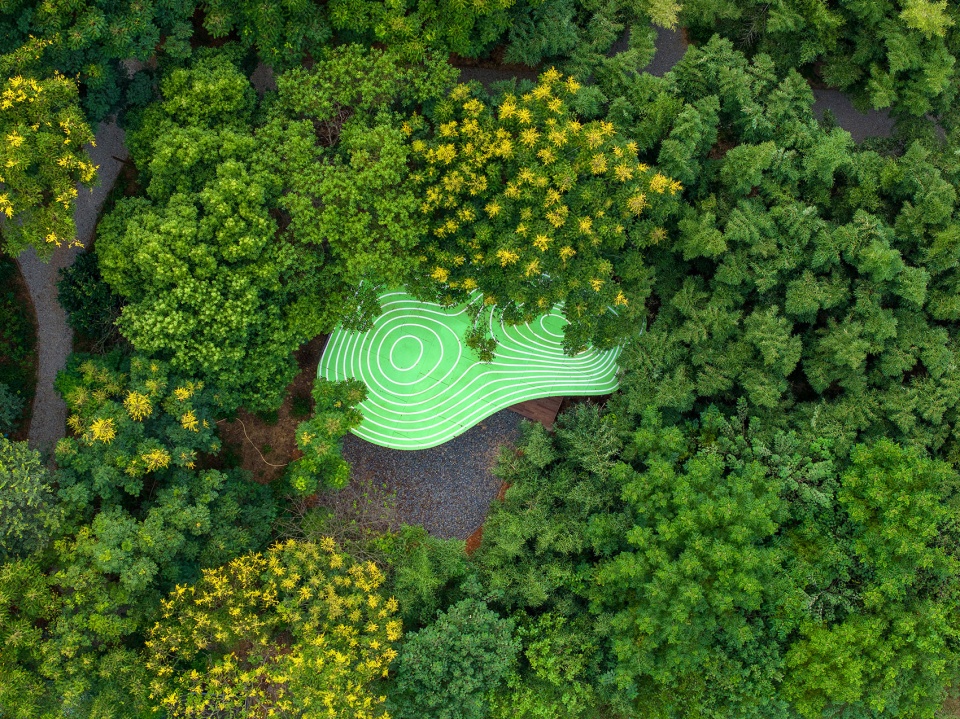

▼项目鸟瞰，aerial view of the project ©个个世界/潘彦均/蔡沐桉

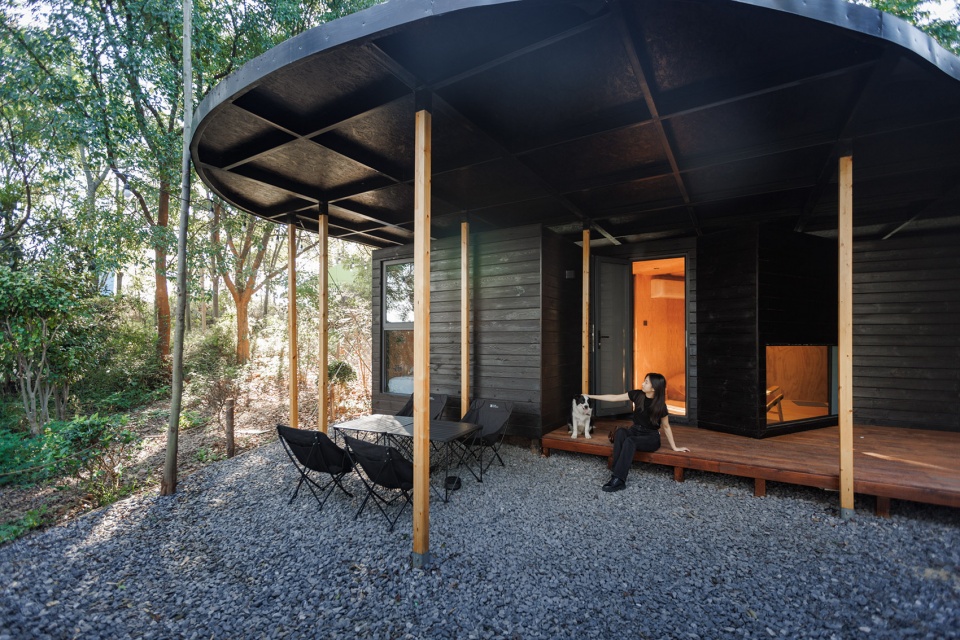

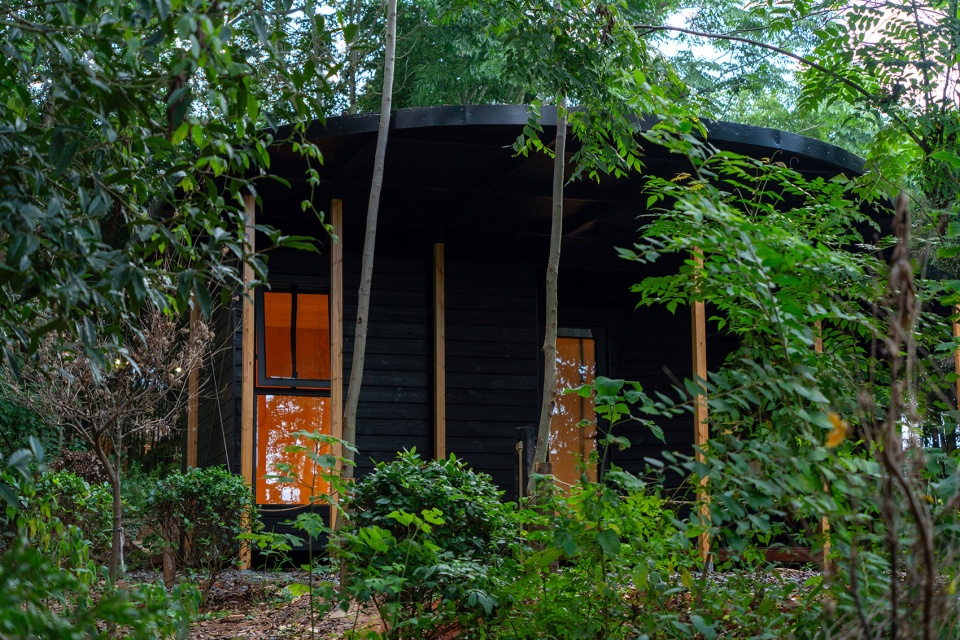

▼项目外观，exterior view of the project ©个个世界/潘彦均/蔡沐桉

彩色隐居
Colorful Hidden

场地是一片森林，除了森林自身的包裹感，我们希望房子能够提供足够的遮蔽，结合所在地冬冷夏热的气候和艺术家的身份，我们建造了一个抽象化的调色盘形态屋顶，用等高线的图案来标注这栋木屋，屋面架空60厘米，用随机的轻型木结构支撑，形成便于空气流通的功用。

The site is within a forest. In addition to the wrapping feeling of the forest itself, we hope that the cabin can provide enough shelter. Combining the cold winter and hot summer climate of the location and the identity of the artist, we built an abstract palette-shaped roof, marked the wooden cabin with contour lines, and the roof is 60 cm higher and supported by random light wooden structures to facilitate air circulation.

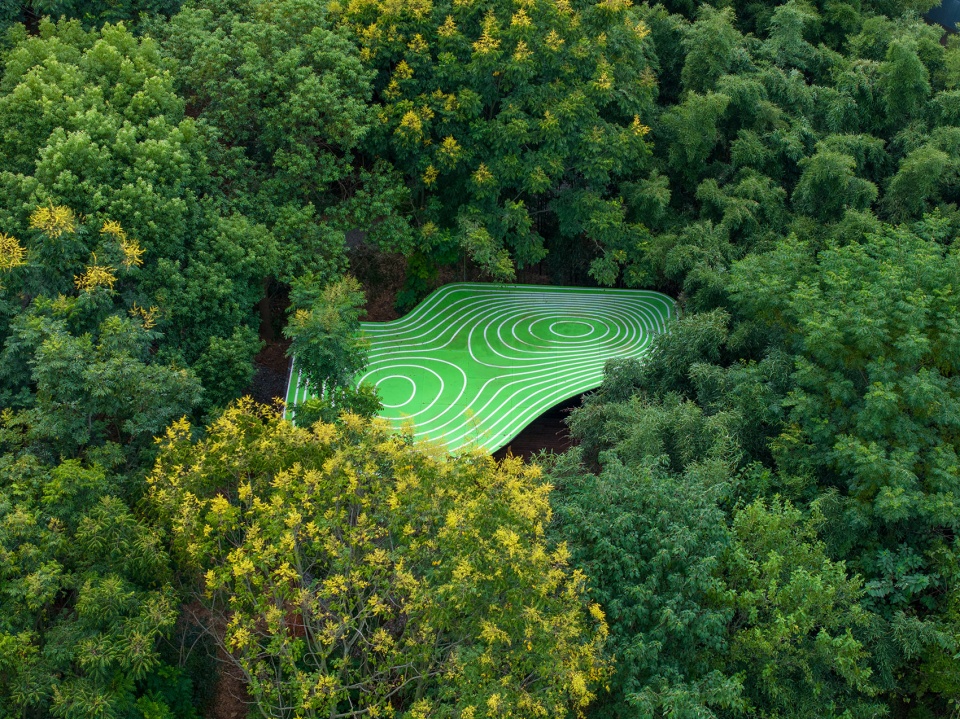

▼抽象化的调色盘形态屋顶，built an abstract palette-shaped roof ©个个世界/潘彦均/蔡沐桉

▼屋面用随机的轻型木结构支撑，the roof is supported by random light wooden structures ©个个世界/潘彦均/蔡沐桉

木屋由三个体块构成，分别是卧室、起居室和卫浴，三个体块旋转并融合在一起，形成面对自然的不同视角，木屋前后有被屋顶覆盖的巨大露台，炎热夏季和雨季，这里是遮阳和避雨的好地方。木屋还拥有自己的院落，可以生起篝火。

The cabin consists of three blocks, bedroom, living room and bathroom. The three blocks rotate and merge together to form different perspectives facing nature. There are huge terraces covered by roofs in front and behind the cabin. In hot summer and rainy season, this is a good place to shade and shelter from the rain. The cabin also has its own courtyard where you can have a bonfire.

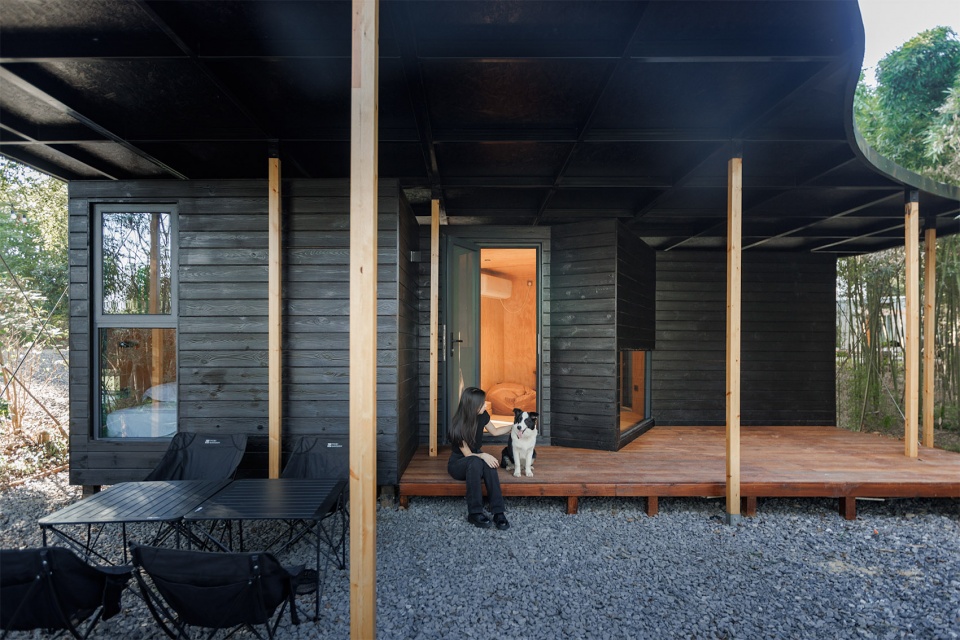

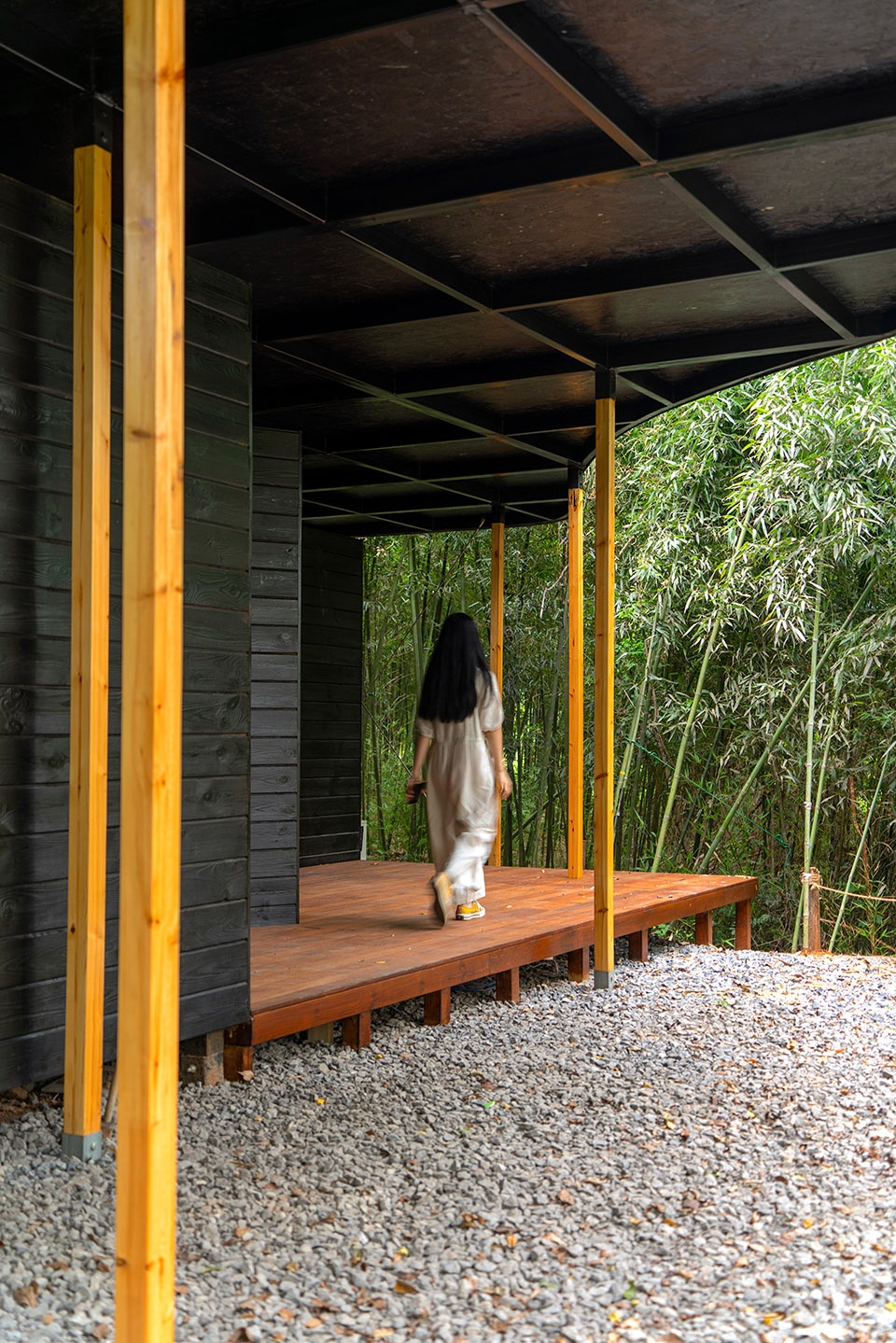

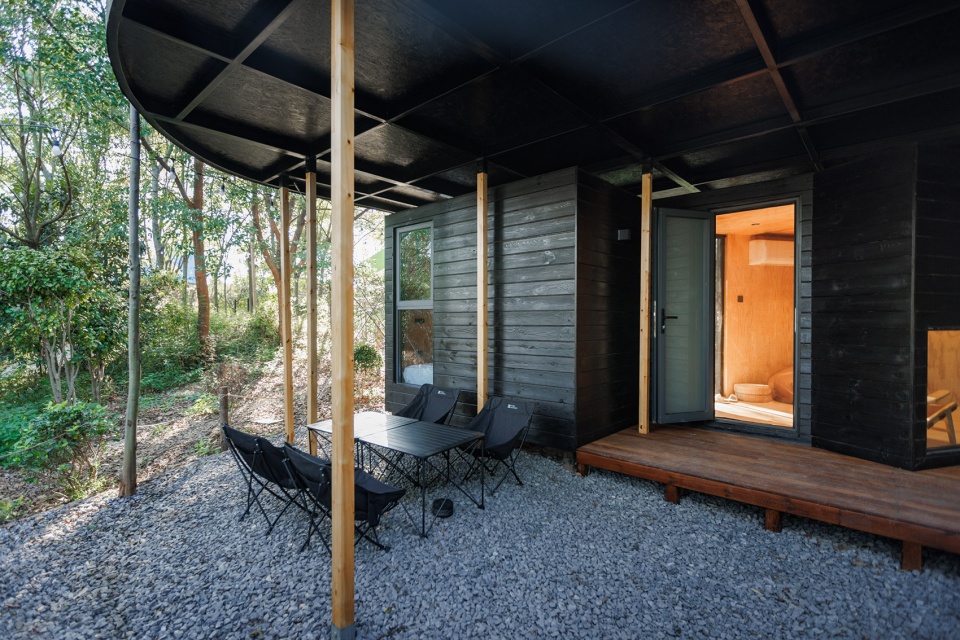

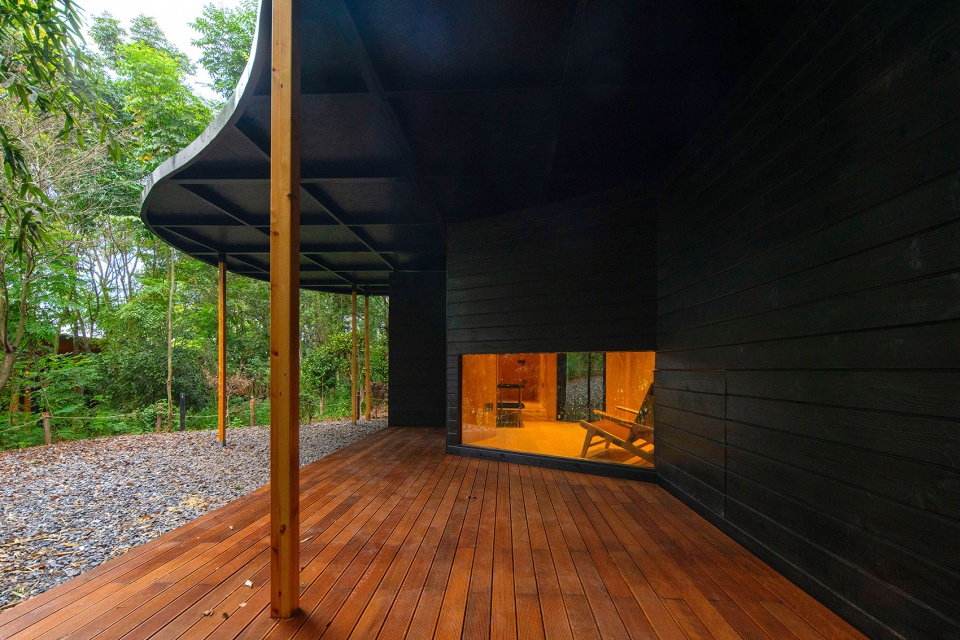

▼木屋前被屋顶覆盖的巨大露台，There are huge terraces covered by roofs in front of the cabin ©个个世界/潘彦均/蔡沐桉

除了绿色的调色盘形状的屋顶，整个木屋被黑色碳化木包裹，支撑屋顶的木结构空间也是空间的一部分，支撑结构是10cmx10cm的木结构，随机分布在房子周围。我们希望房子呈现出内外的反差，天上看起来这是一个抽象和张扬的艺术倾向性设计，走入其中，是真实质朴的质感，真实的木头，碳化的立面和可以光着脚漫游的室内外空间，和自然充分融合在一起。

In addition to the green palette-shaped roof, the entire cabin is wrapped in black carbonized wood. The wooden structure space supporting the roof is also part of the space. The supporting structure is a 10cmx10cm wooden structure randomly distributed around the cabin. We hope that the cabin will present a contrast between the inside and the outside. From the sky, it looks like an abstract and flamboyant design with artistic tendencies. But when you walk into it, you will feel the real and rustic texture, real wood, black carbonized facades, and indoor and outdoor spaces where you can roam barefoot, which is fully integrated with nature.

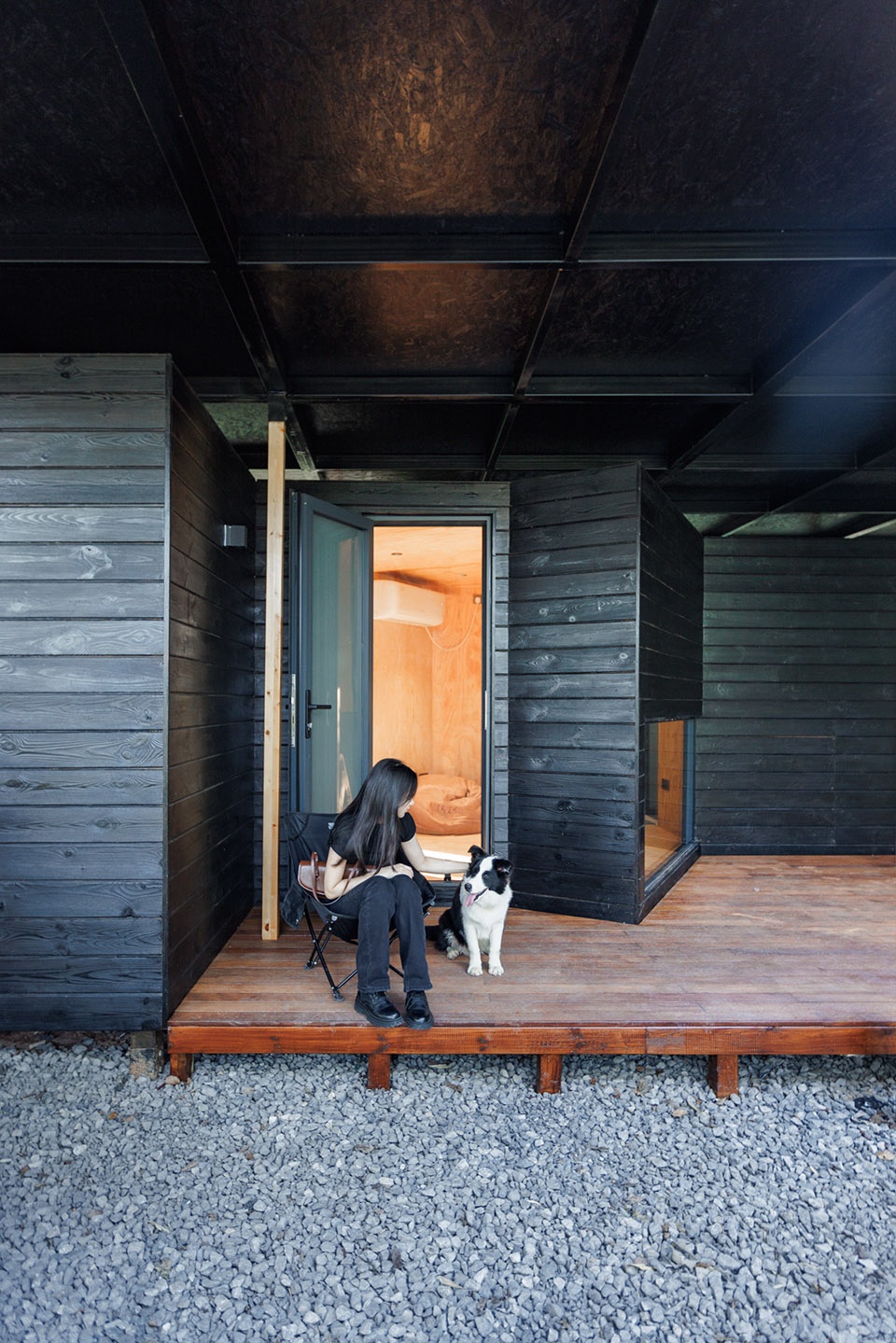

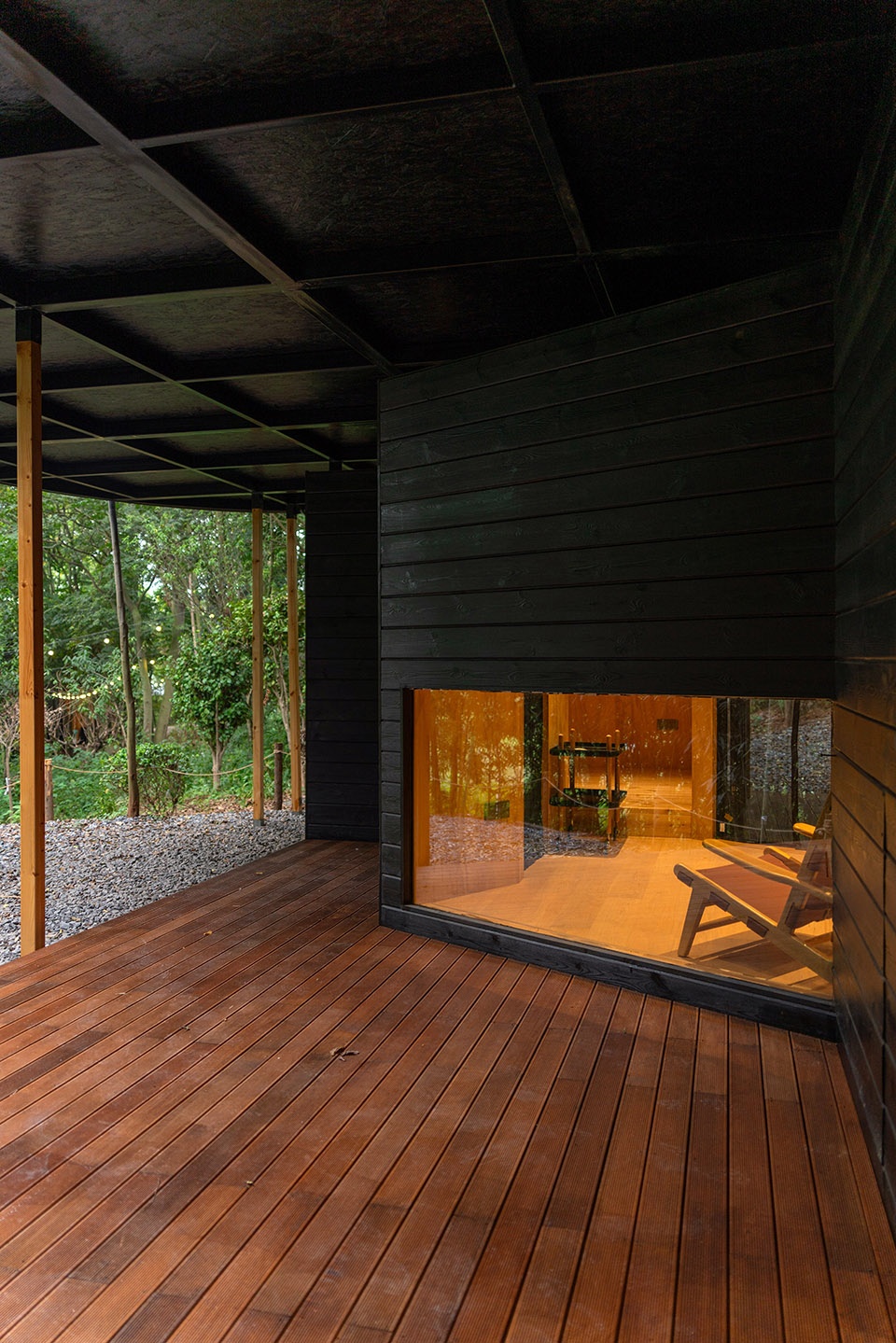

▼整个木屋被黑色碳化木包裹，
the entire cabin is wrapped in black carbonized wood ©个个世界/潘彦均/蔡沐桉

▼支撑结构是随机分布在房子周围，
wooden structure randomly distributed around the cabin ©个个世界/潘彦均/蔡沐桉

个个世界-小房子，大梦想
Wiki World-Build Small, Dream Big

“个个世界 WikiWorld”是由来自中国、法国和瑞士等顶级设计师和教育家创立的开源建筑社区，提供人人可以造房子的自然建筑产品，打造回归自然的主动式生活，让每一个人建造自己的荒野之家。

“Wiki World” is an open-source architectural community founded by top designers and educators from China, France, Switzerland, and other countries. It provides natural building products that anyone can enjoy their own cabins, promoting proactive living in harmony with nature and allowing everyone to build their own wilderness homes.

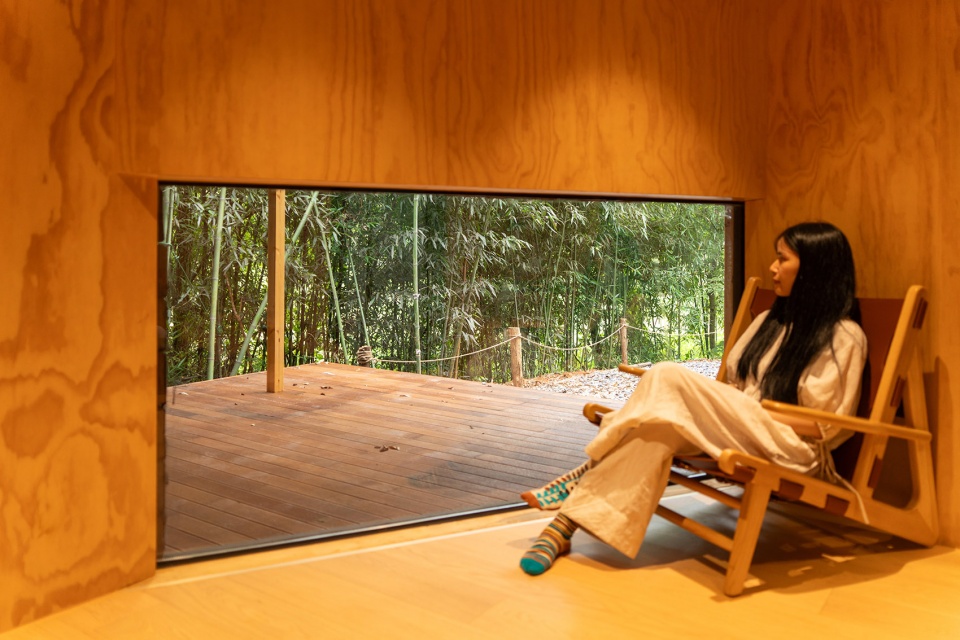

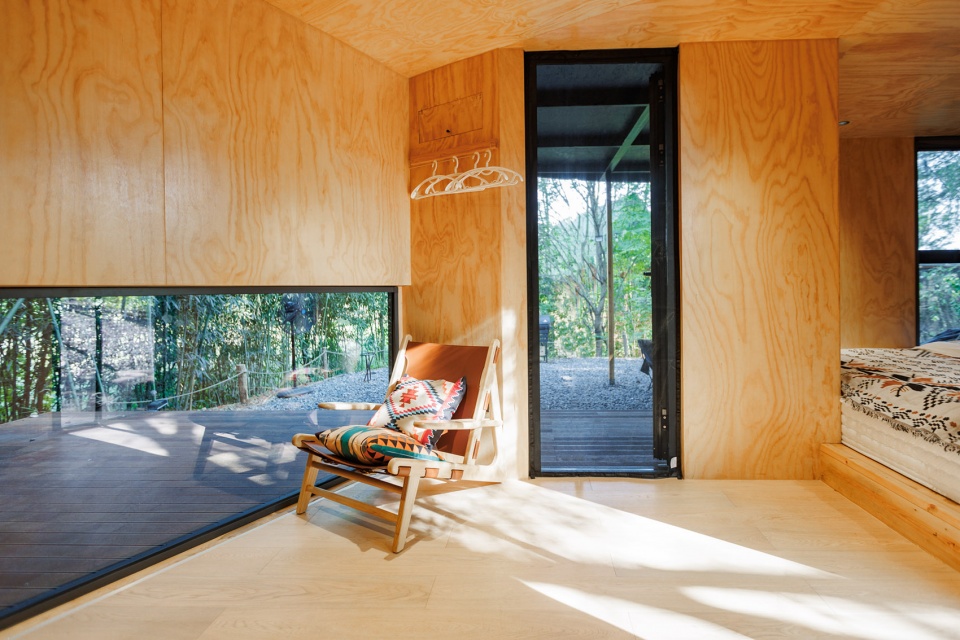

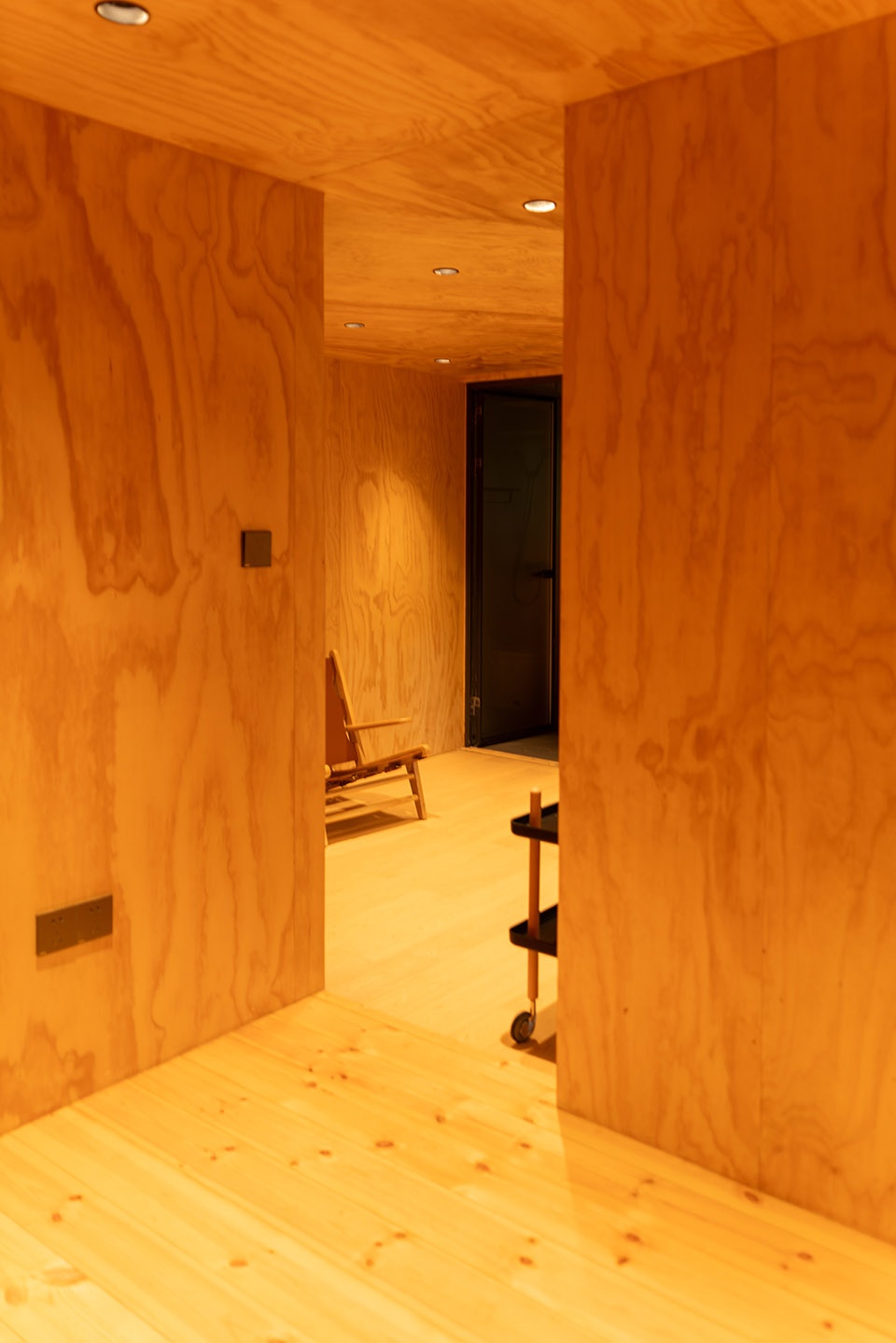

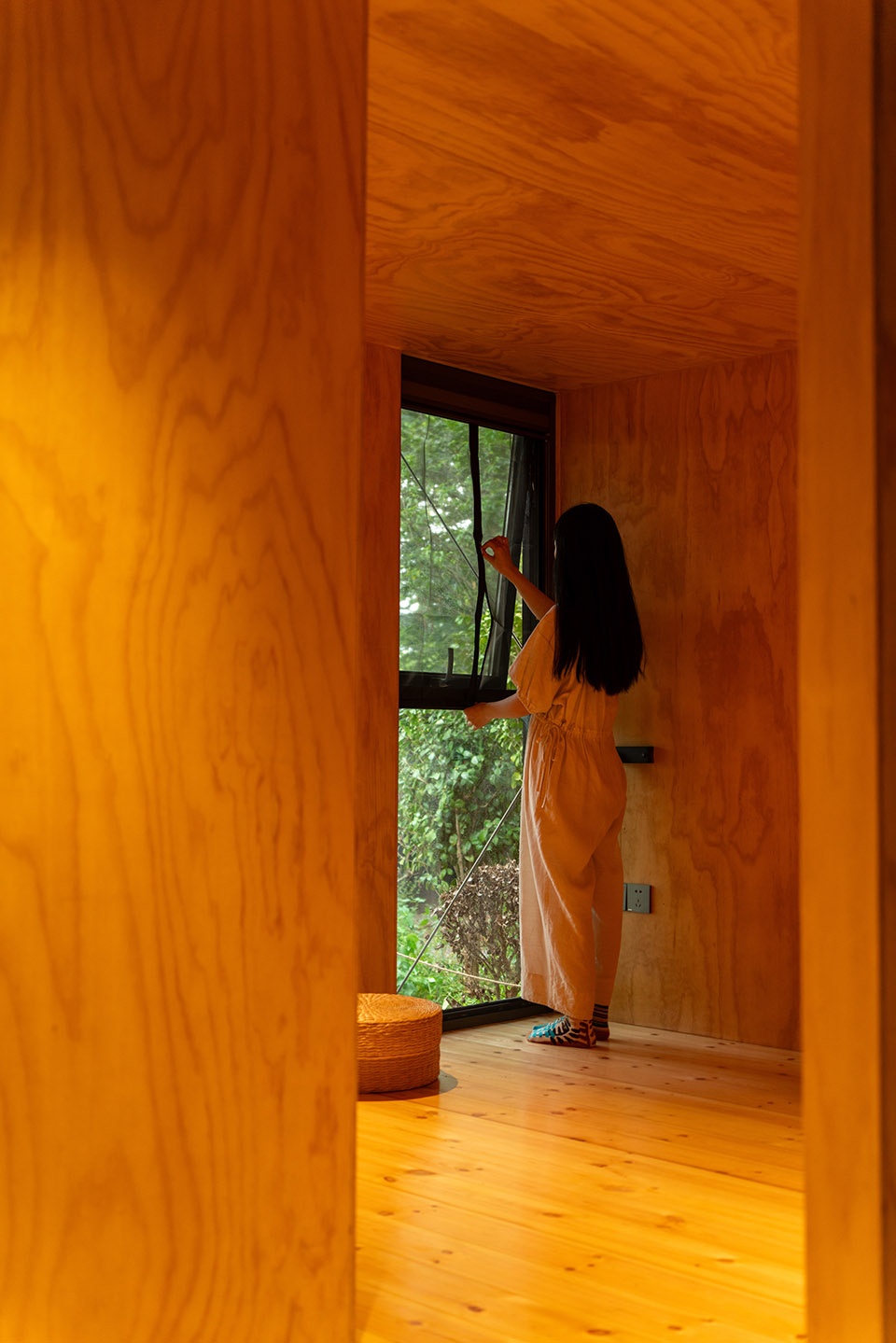

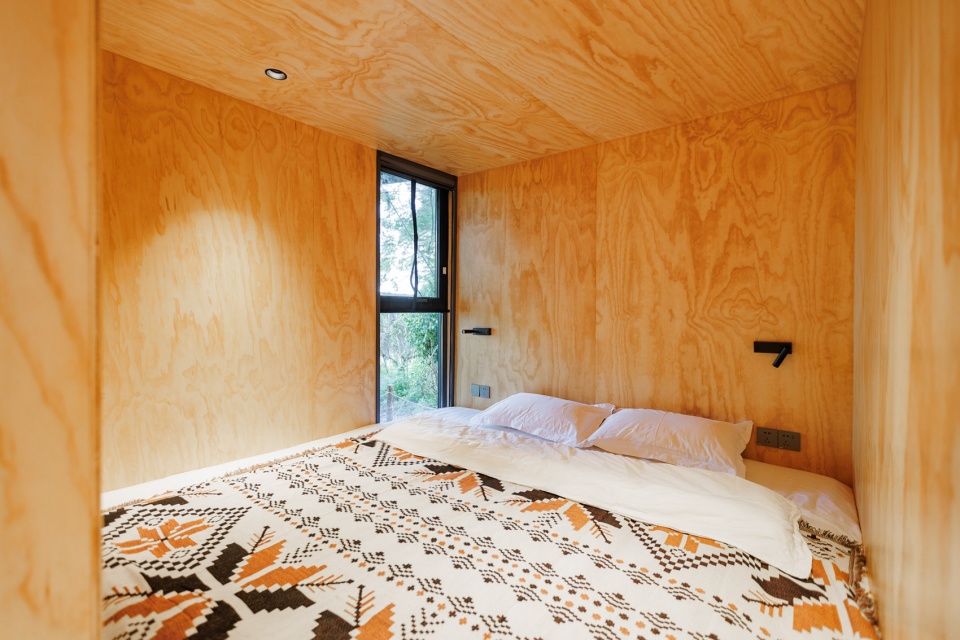

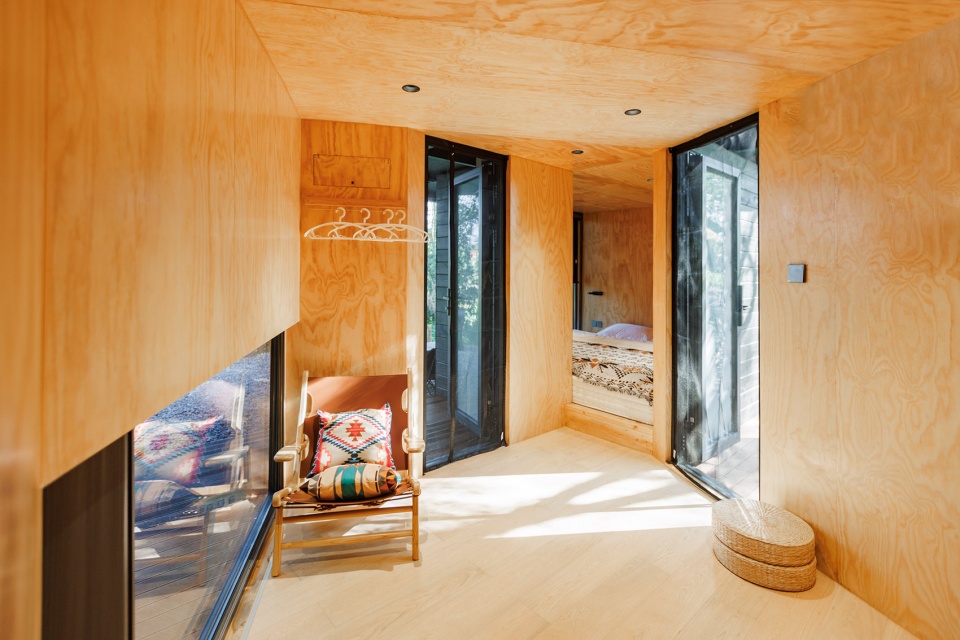

▼室内空间，indoor space ©个个世界/潘彦均/蔡沐桉

个个世界一直致力于通过自然地建造回归自然生活，调色盘之家屋延续了这样的自然野居试验，跳出面积大小的思维惯性，将注意力放在居住行为和环境的关系，空间的答案一定与日常的居住体验相距甚远，甚至有些偏执。“调色盘”会让家的隐秘在屋顶之下，“小”会让人离材质更近，因此我们变得更加敏感，既然已经来到了森林，不妨光脚待上一天，听一听枯树叶在露台上被踩碎的声音。

Wiki World has been committed to returning to natural life through natural construction. The maze cabin continues such a natural wild house experiment, jumping out of the inertia of the size of the thinking, focusing on the relationship between living behaviour and environment, the answer of space must be far from the daily living experience, even a little paranoid. The Pallette makes the cabin hidden, ‘Small’ brings us closer to the material, so we are more sensitive. Now that we are in the forest, let’s go barefoot for a day and listen to the sound of dead leaves being crushed on the terrace.

▼自然野居试验，a natural wild house experiment ©个个世界/潘彦均/蔡沐桉

自然建造
Build Naturally

建筑的整体采用胶合木结构，通过数字化技术对每一根异形构件和节点进行设计定制，实现了百分之百的全装配建造。关于居住，一定没有标准答案，每个人都希望居所能够传达自身对于生活的理解，于是有了“住在调色盘下”这样的设定。

The whole building adopts glue-lam structure, and each special-shaped component and node is designed and customized through digital technology, realizing 100% fully assembled construction. There is no standard answer to living. Everyone hopes that the residence can convey their understanding of life, so there is a setting like “living under the palette”.

▼整体采用胶合木结构，the whole building adopts glue-lam structure ©个个世界/潘彦均/蔡沐桉

个个世界延续了一直以来的自然建造理念，我们保留场地内的每一棵树和竹子，延续了原有林地和小径肌理，房子完全架空于地面，全部的建筑均为自主研发的装配式木结构，由团队和用户一起建造完成。

Wiki World continues the natural construction concept that has always been in place. We retain every tree and bamboo in the site, continue the original woodland and trail texture, and the house is completely suspended from the ground. All buildings are self-developed prefabricated wood structures, built by the team and our communities together.

▼全部建筑均为自主研发的装配式木结构，all buildings are self-developed prefabricated wood structures ©个个世界/潘彦均/蔡沐桉

自然的建筑，可以像乐高一样被建造。小小的房子，像积木一样被放置在森林里。我们坚持原始野生的木构技术，亲手烧制外立面的碳化木板。木屋的连接方式全部是小巧的金属构件，可以反复拼装。

Natural buildings can be built like Lego. Little cabins, like building blocks, were placed in the forest. We stick to the original wild wood construction technique that we hand fired the façade of the carbonized wood boards. The cabins are all connected by small metal components that can be repeatedly assembled.

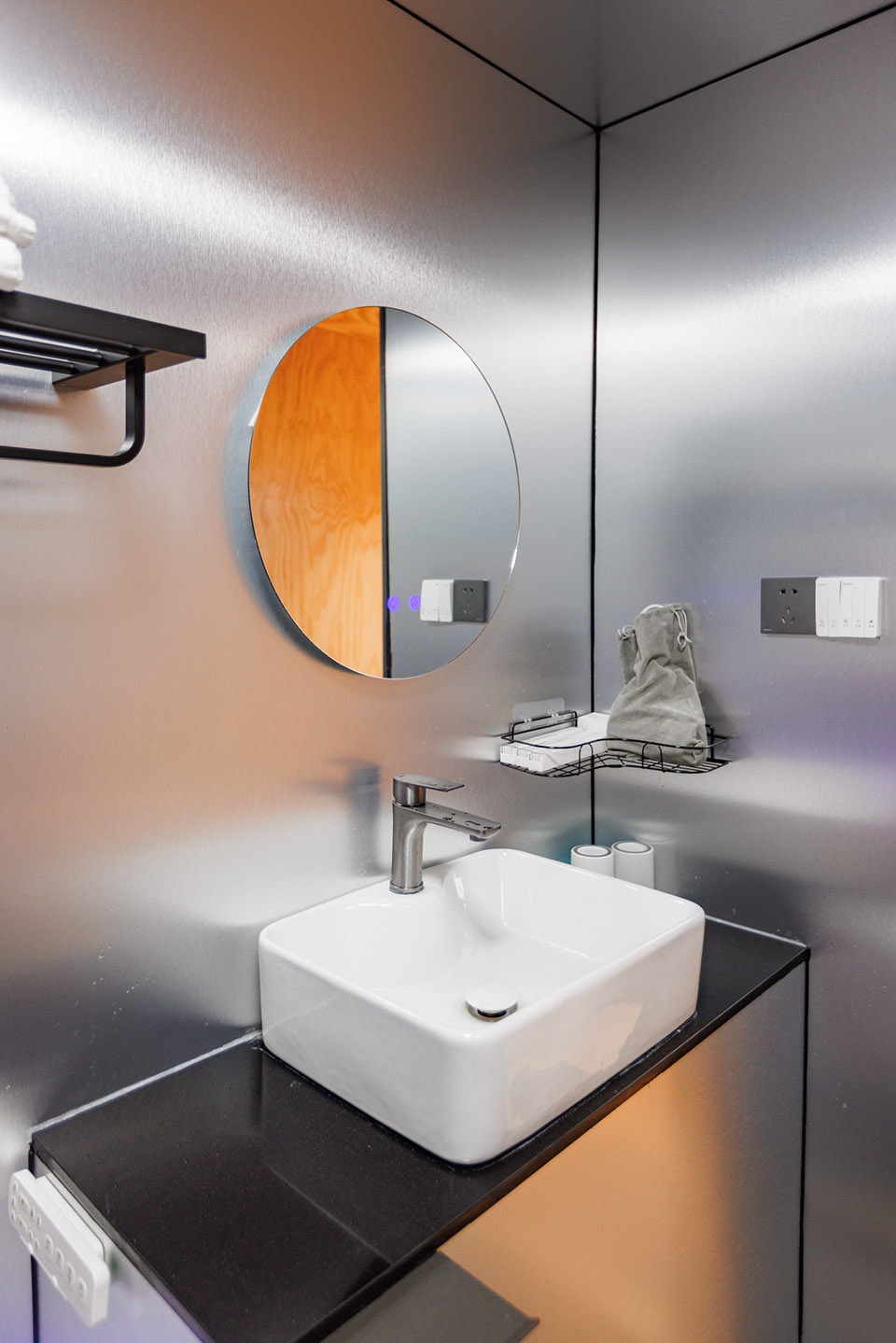

▼卫生间采用的金属构件，metal components used in the restroom ©个个世界/潘彦均/蔡沐桉

我们尝试在自然里经营出房子的和环境的精准关系，每个木屋都是架空结构，房子不接触地面，也不设置围墙和人工景观，自然是最好的包裹物。

We try to create a precise relationship between the cabins and the environment in the nature. Each wooden cabin is elevated above the ground, and no walls or artificial landscapes are used. Nature is the best package.

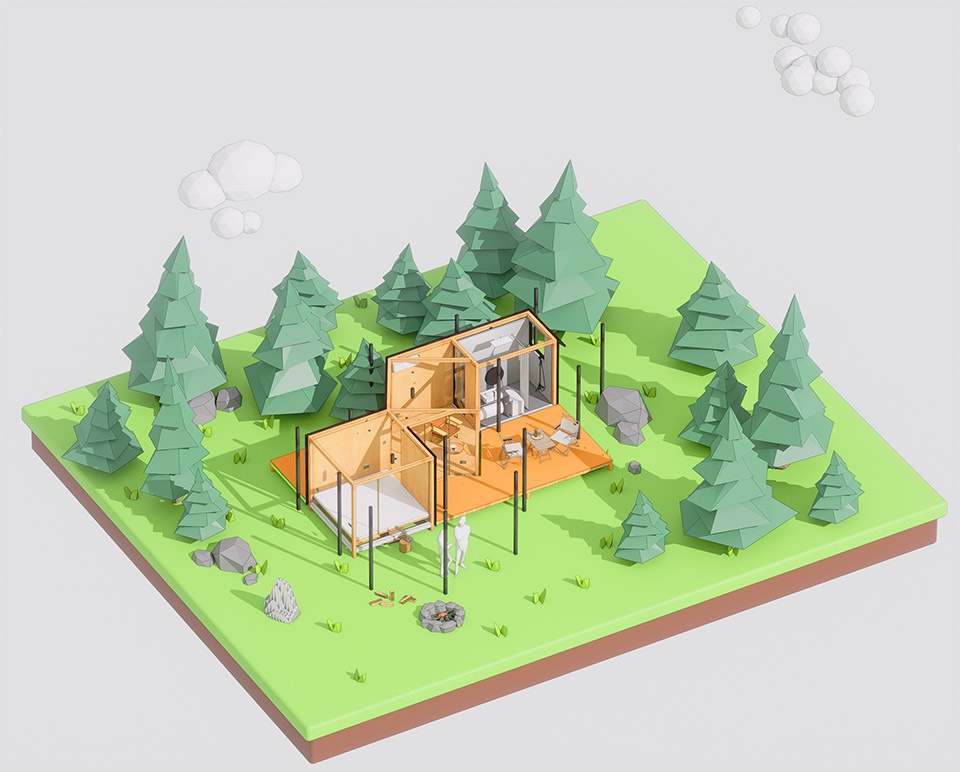

▼轴测图，axonometric ©个个世界+先进建筑实验室

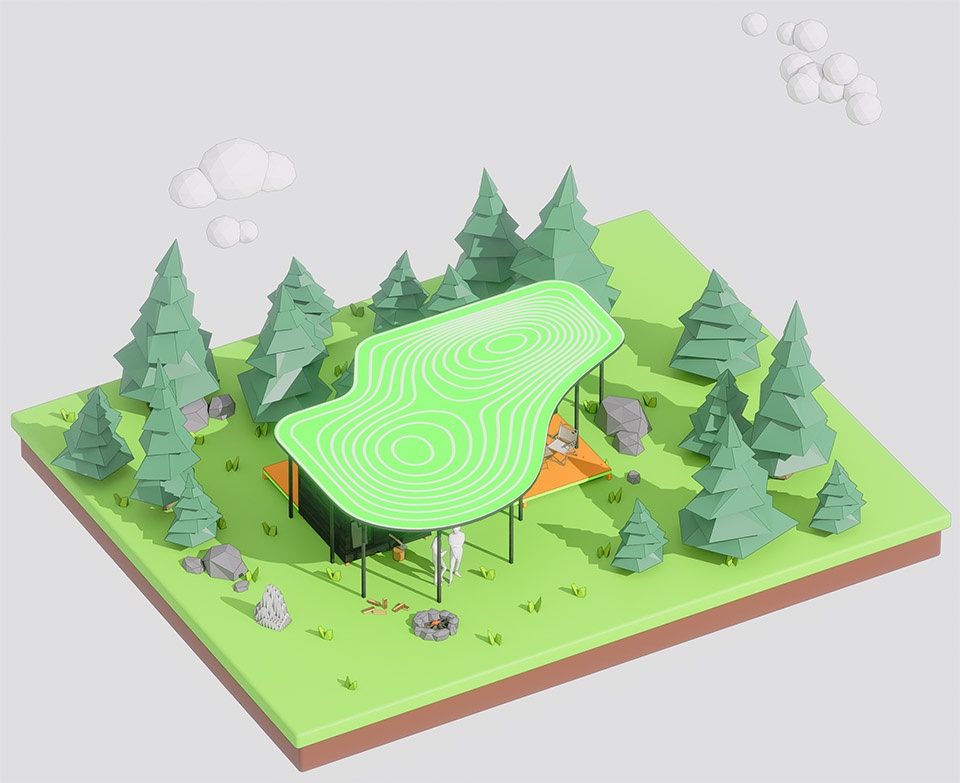

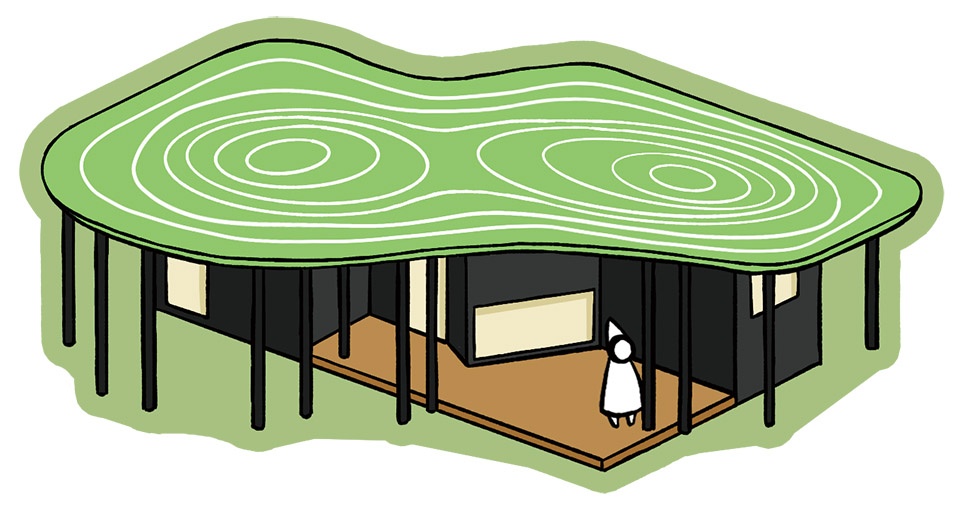

▼插画，illustration ©王元英

项目地点：中国湖北，武汉
设计时间：2024
建筑面积：60平方米
材料：木结构
项目名称：个个世界-[荒野之家 #118#] -调色盘之家 The Cabin of Palette
设计机构：个个世界 Wiki World(www.wiki-building.com)+先进建筑实验室AaL
建筑师：穆威、冯钊显、武保荣、何闻、许晓冬、廖晓天、王元英
结构：装配式木结构，芬兰胶合木，智利辐射松
气密性材料：意大利Rothoblaas
室内饰面：智利松木胶合板
木油漆：德国巴赫水性漆
施工：个个世界 Wiki World
摄影：个个世界，潘彦均，蔡沐桉
插画：王元英

Location: Wuhan, Hubei province, China
Date: 2024
Floor area: 60m2
Materials：Timber
Project Name: Wiki World-[Wild Home #118#] – The Cabin of Palette
Design firm: Wiki World(www.wiki-building.com)+Advanced Architecture Lab
Client: Private
Architect: Mu Wei, Feng Zhaoxian, Wu Baorong, He Wen, Xu Xiaodong, Liao Xiaotian, Wang Yuanying
Matrials: Pre-fabricated timber, Isoplam, Bach
Construction: Wiki World
Wood supplier: Glue laminated wood from Finland
Isolations: Rothoblaas, Italy
Photo by: Wiki World, Pan Yanjun, Cai Muan
Illustration: Wang Yuanying
