The You Art Centre, China by Atelier Global

City Stage of Light

Project Specs

Design Firm:
Location:

来自 香港汇创国际建筑设计 对gooood的分享。更多关于他们: Atelier Global on gooood
Appreciation towards Atelier Global for providing the following description:

右岸文化艺术中心项目位于常德市,桃花源记的发源地,占地面积1600平方米。右岸文化艺术中心,是右岸城”艺术介入,城市更新”的重要实践,以艺术介入城市发展,以美学介入未来生活,构建滋养城市文明的卓越公共艺术空间,提升城市品牌,使之成为世界常德的人文IP,成为世界了解东方的新“窗口”和凝聚湘西北人文情怀“纽带”。

The You Art Center is located in Changde, the origin city of famous Chinese fable Land of Peach Blossoms. The building footprint is around 1600sm. The project vision is to use urban art as medium and catalyst for city upgrade and redevelopment, promote aesthetic education for better public spaces, urban art and life style. Hence, It helps rebrand the old city identity for greater exposure and understanding through this new art portal.

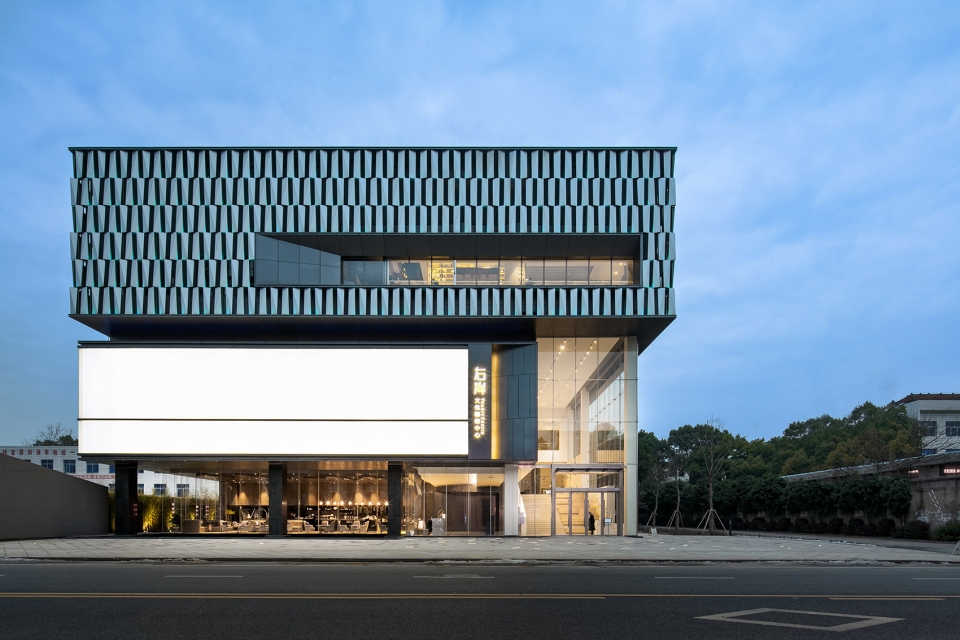

▼建筑外观,exterior view

我们心中理想的艺术空间应有更多公共性、灵活性和参与性,替代封闭性与固态静止的传统美术馆模式。未来美术馆不单单再是成功艺术家呈现辉煌的圣殿,而是激发公众和艺术作品及艺术家互动、交流的艺术场所。一些灵活可变,功能多元,留白的空间,却可以激发艺术家和公众的创作激情,为特定环境和场地而创作,让艺术品,公众和沅水艺术中心融为一体。形成常德在保留自有的人文生态的同时,更具有独特的精神气质。本案建筑设计概念以常德之光为主题,构成一个城市光之舞台,光是每人所向往的,而通过多元的建筑空间呈现一个丰富文化生活的舞台。建筑体量直接体现了立体多元空间的叠加,我们从沅江荡漾起伏的水面汲取灵感,透过金属表皮折面的不同反光和透光的处理,白天黑夜在人逐渐走近建筑的过程中,建筑的表面也在进行着微妙而有趣的虚实变化,形成步移景迁,波光粼粼的视觉效果。

We envision an art space with more publicness, flexibility and public engagement. Unlike many other enclosed white boxes in traditional art exhibition center, the future of the art center is not just a stage for the art pieces but more about promoting interaction between public and artists. Hence we design a vertical public atrium as an informal public space for exhibition, events, and circulation. It reflect the traditional social characters of the lanes and streetscape in a vertical manner to interface art with the public. The architectural design concept of Changde YOUAN Art Centre takes “The Light of Changde” as the main theme, using architectural space as the medium, we aspire to create a stage/platform for the cultivation of art and spiritual lifestyle.The building massing honesty reflects the stacking space and functions within. Inspired by the shimmering quality of the Yuan River and indigenous roof tile craftsmanship, we use faceting aluminum cladding modules to create an animating envelope effect from various viewing angles and daylight conditions.

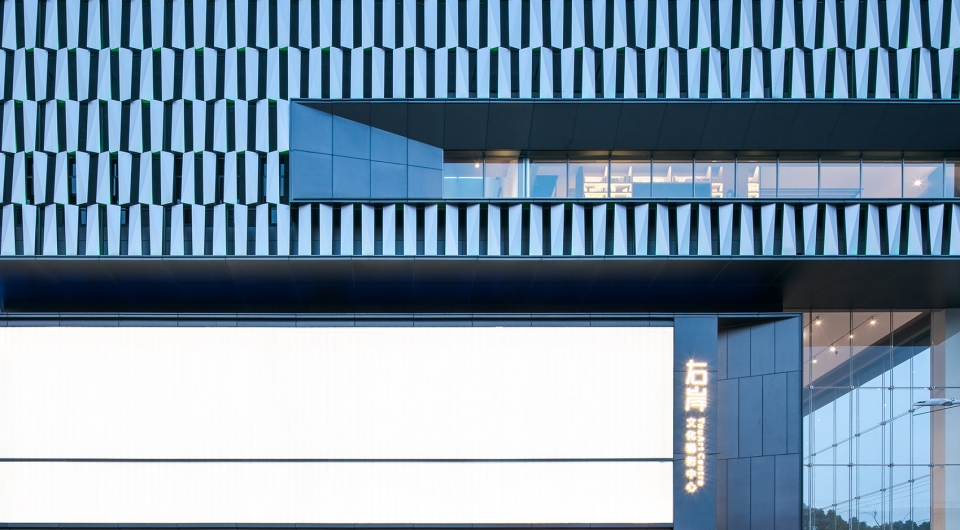

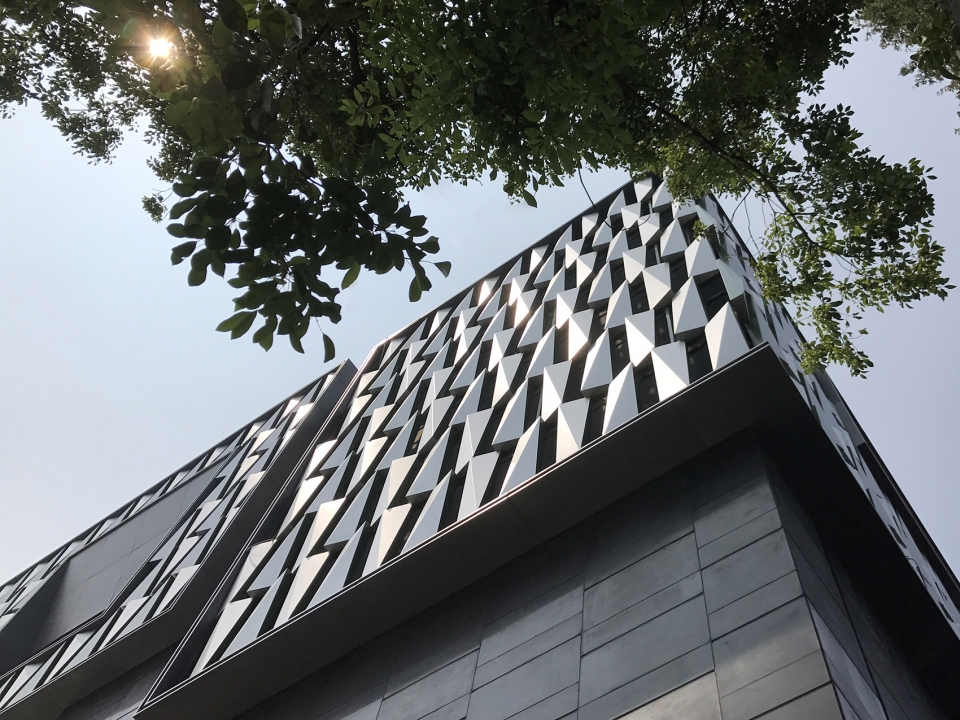

▼金属表皮折面的不同反光和透光的处理实现波光粼粼的视觉效果,Different reflective and translucent treatments of facade achieved a sparkling visual effect

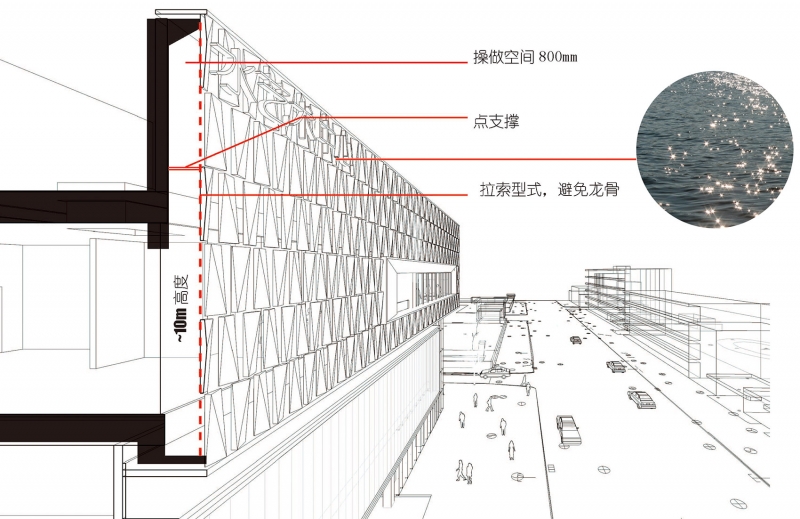

▼表皮构造,facade construction

当代艺术的一个显著特征是其表现形式的多元化,与这种特征相对应的空间在沅水美术馆不仅塑造了传统美术馆中充分高度的经典空间,更有大小不一,尺度各异,层高显著不同的空间相互立体构成,大空间、中空间、小空间、书院空间、黑盒子(多功能表演,会议,展览空间)去应对不同艺术形式的需求。

Contemporary art is unique in its diverse way of expressions and formats, to tailor for this uniqueness, our building end up in a series of stacking boxes of various size, height and proportions.

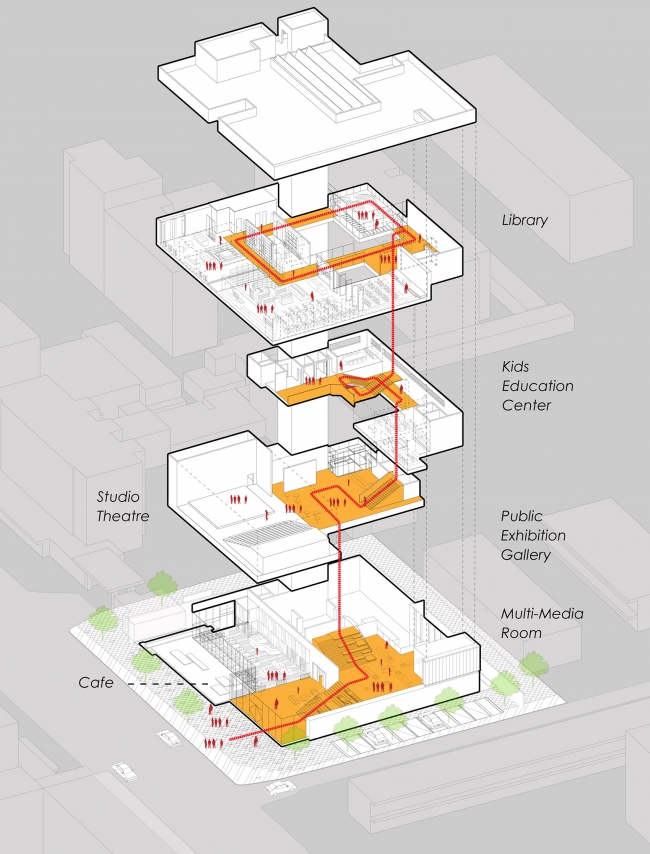

▼建筑空间构成,space composition

▼建筑由大小不一,尺度各异,层高显著不同的空间组成,the building end up in a series of stacking boxes of various size, height and proportions



上行美术馆——没有墙体的垂直艺术馆|Ascend art gallery – a vertical museum without wall and boundary

空间艺术与人文生活的复合美学形态交融,是本土艺文的对话现场,也是常德与世界艺术同步的交叉点。

It is an informal public space for interaction, cultural and social exchange.

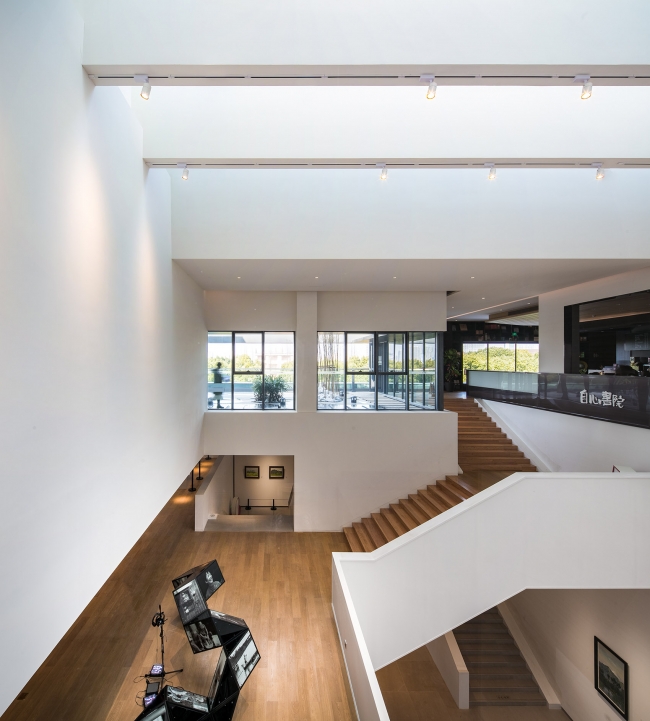

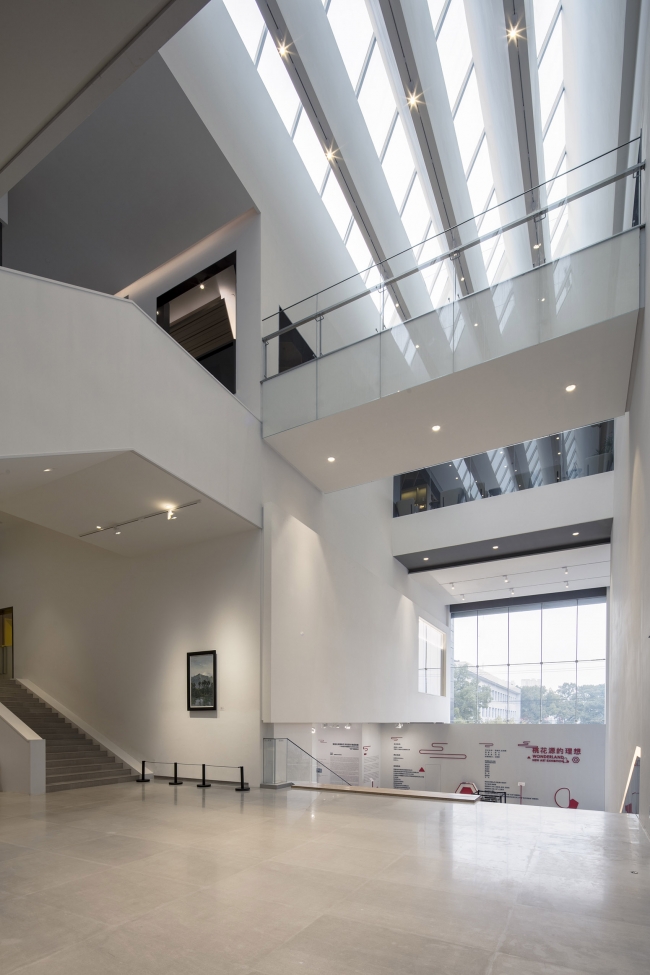

▼上行美术馆,Ascend art gallery

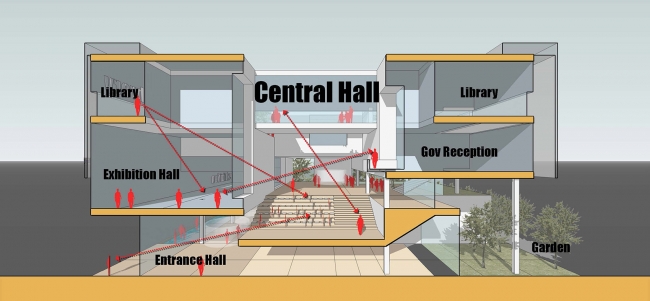

▼空间关系分析图,Spatial relation diagram

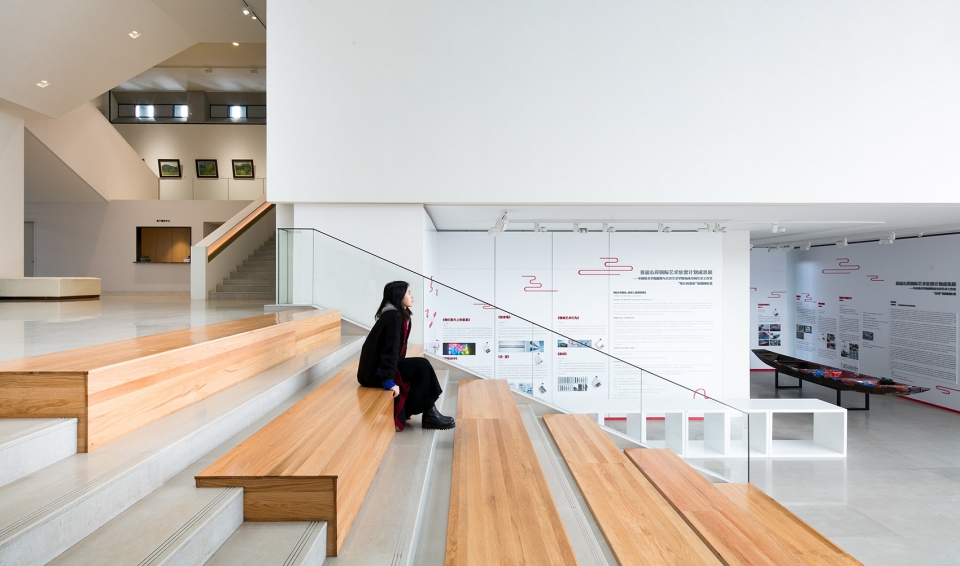

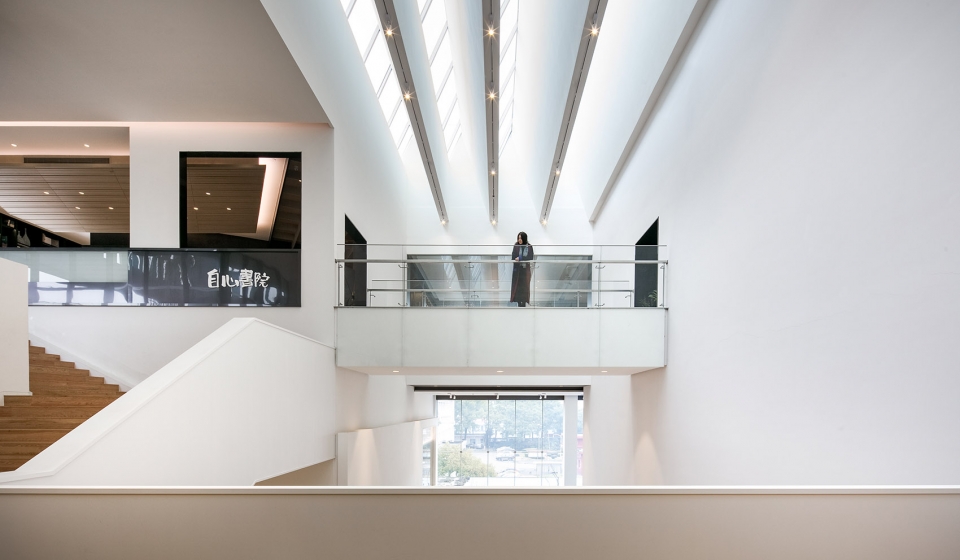

▼艺术空间随着交通空间在建筑中上升,Art space rises with transportation space in architecture

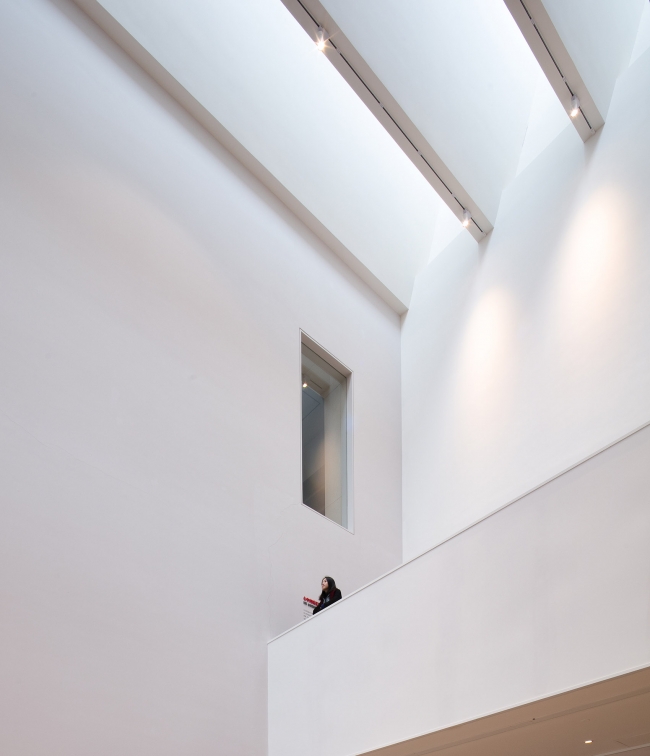

▼在路径的尽端驻足,Stop at the end of the path



自心书院——常德人文的修心之地|Peace of mind library

阅读是为了内观最真实的自心本性。自心书院为市民提供修身自省的空间,为城市点一盏不灭的灯。

A library and reading lounge where salon and forum can take place.

▼从夹层交通空间看向书院入口层,Looking at the layer of the library entranc from the mezzanine transportation space

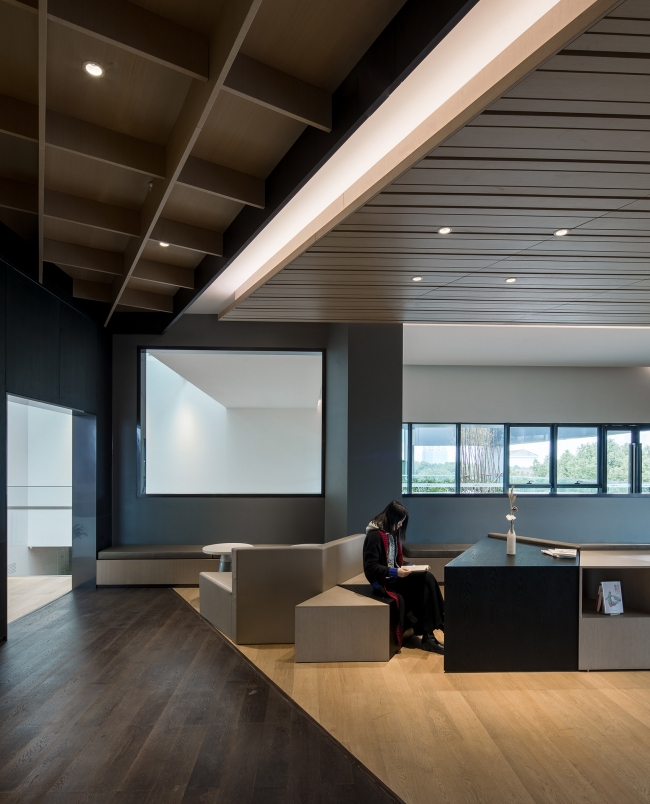

▼书院内部空间,interior view

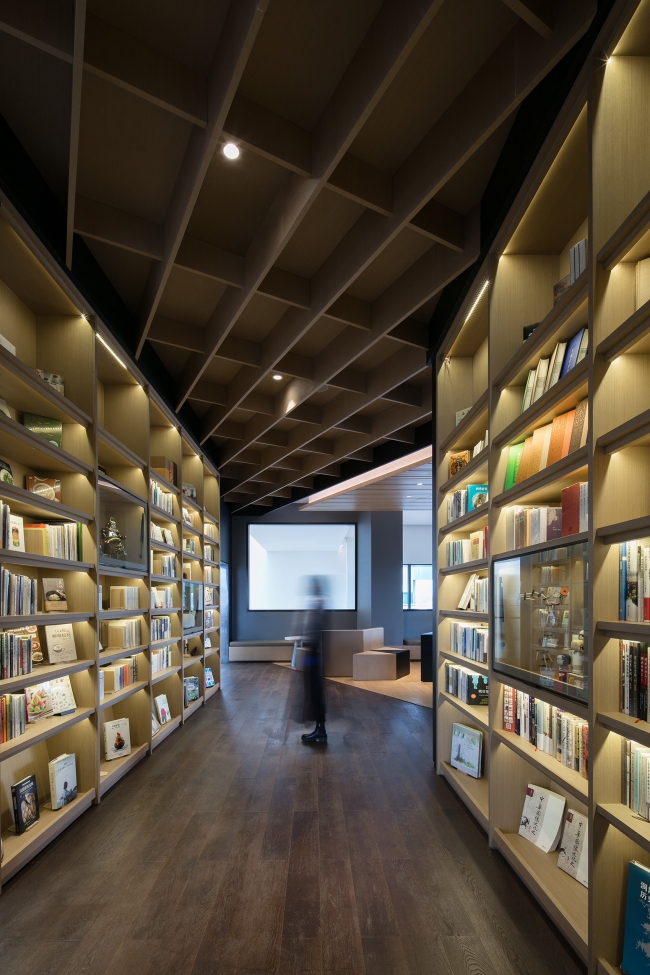

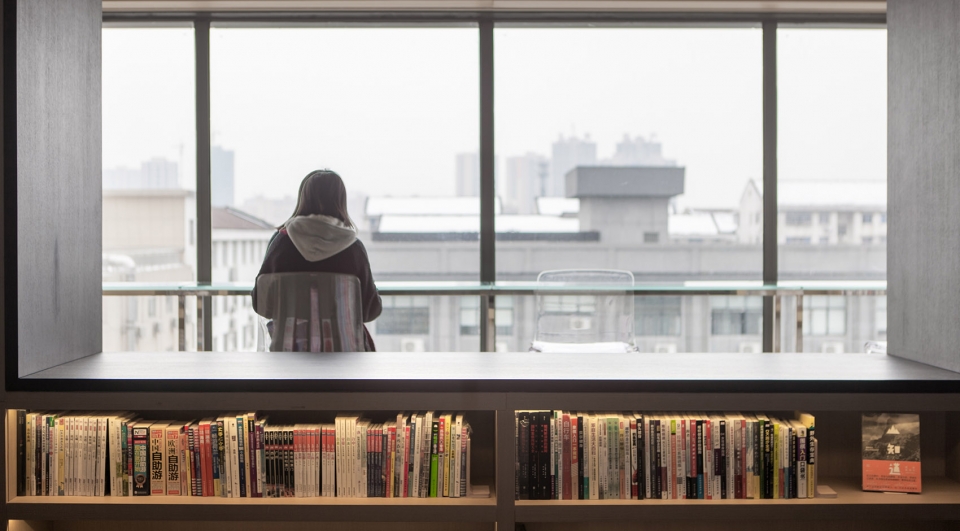

▼自心书院为市民提供修身自省的空间,Peace of mind library provides the public with self-cultivation and self-examination



有余剧场——永不落幕的艺术日常|Studio Theatre – a stage without retractable seating for diverse possibility.

生活与艺术之间的纽带,并非形而上的幻想,而是眼前的真实场景,旨在市民的日常都充满艺术张力。

▼剧场表演,performances in studio theatre



空中花园——见证未来城市的发展,展望美好未来的窗口|Meditation Sky Garden – Vertical garden city and window to witness the city transformation.

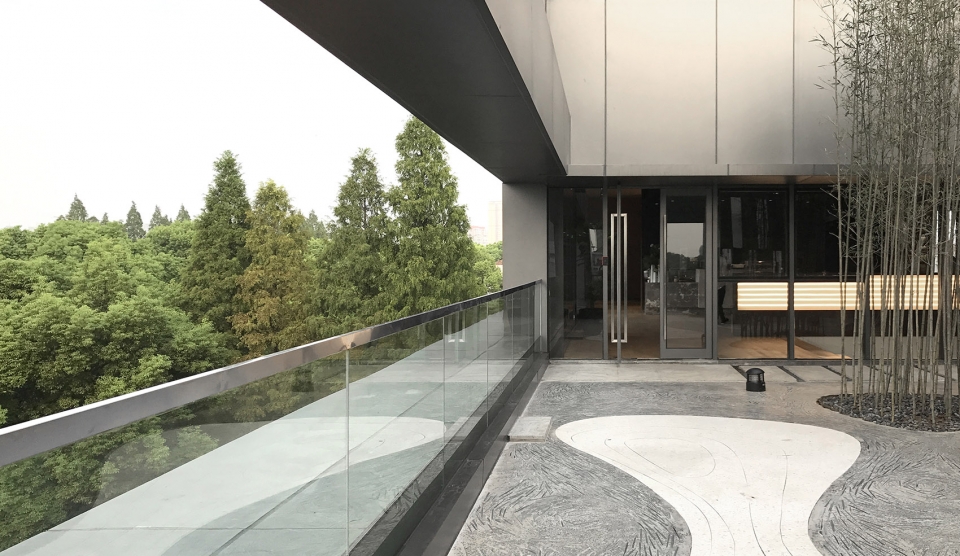

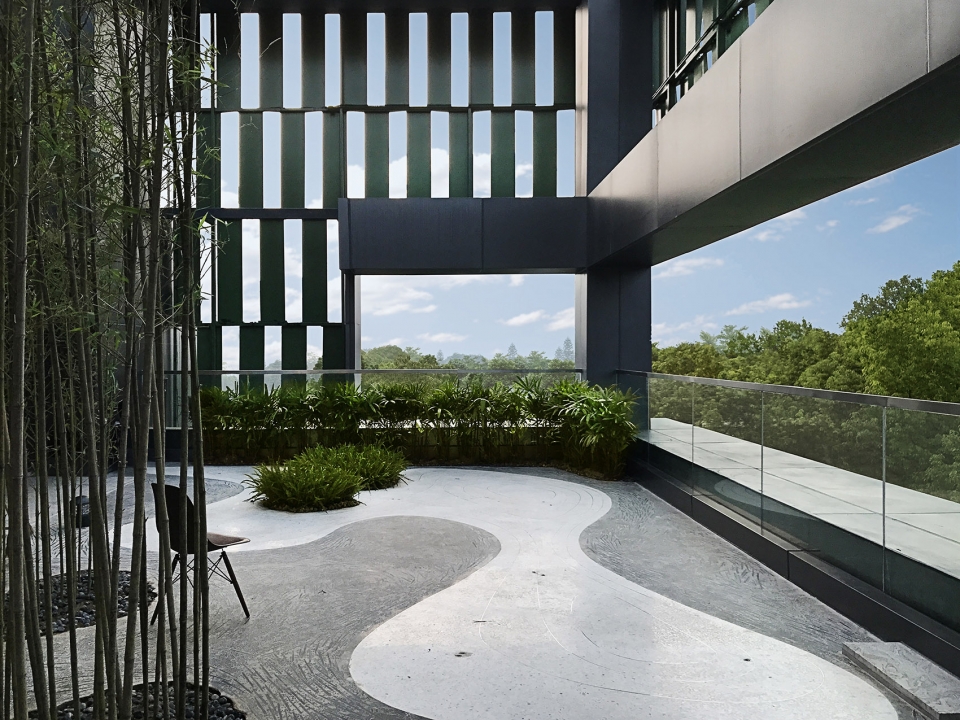

▼空中花园,Meditation Sky Garden

艺术中心的设计起点源于市民对常德美丽城市与人民的情怀与追求,希望有一个既能在当地呈现与提高艺术文化精神,同时又高度开放的好场所与市民大众能自由参与这独特的精神心灵空间。老城即将消失,新城势必崛起,结合现状空间及未来规划,留住老城的“记忆”,为新城注入“历史”。我们希望通过一个多元的建筑空间呈现一个丰富文化生活的心灵场所,以创造更多的公共性、灵活性和参与性的艺术空间,去应对不同艺术形式的需求,而且更是一个充满阳光与立体庭院的无墙展示体验。

The You Art Center also reflects the aspiration of an Utopia where people lead an ideal existence in harmony with nature. It becomes a place or venue open for public engagement and participation. City redevelopment and upgrade will inevitable erase the old town characters. In order to keep the old city memory and inject some historical elements to the city center. Artist are creating urban art pieces base on the reclaimed materials from the demolition of the old town such as bricks, drifted wood, street plates, etc. As architects, we also inspired by the traditional roofing shingles craftsmanship to create a new identity for The You Art Center. Catering for various art programs requirement, we create a series of functional boxes organized around the vertical public atrium. The venue becomes a museum without wall and boundary for Visitors to experience the space under the brightly lit skylight atrium.

▼右岸城市中独特的精神心灵空间,The You Art Center,the unique spiritual space in the city

建筑师:香港汇创国际建筑设计有限公司(Atelier Global)
设计团队:吕达文、蔡晖、苏晓媚、蔡静、潘兆峰、何振峰、陈海隆、贺永霞、蔡超、杨怡嘉、宋东珠、郭颖文
业主:常德市江南城市发展有限公司
地点:常德, 中国
面积:3880平方米
类别: 文化建筑
项目年份:2016
建成年份:2017
摄影师:谭冰
网址:http://www.atelier-global.com
邮箱:mail@www.atelier-global.com

Architects: Atelier Global Ltd.
Design team: Frankie Lui, Larry Tsoi, Vienna So, Jing Cai, Poon Siu Fung, Jeffrey He , Andy Chen.Yongxia He.Chao Cai.Jess Yang, Demi Song ,Yvon Guo.
Client: CHANGDE KONLAND URBAN DEVELOPMENT CO.,LTD.
Location: Changde, China
Area: 3880m²
Program: Cultural
Project year: 2016
Completion year: 2017
Photographs: Ice Tan
We: http://www.atelier-global.com
E-mail: mail@www.atelier-global.com
