The ICEBERG by Gabriel Verd Arquitectos

New emergency staircase at Santo Ángel de la Guarda´s school.

Project Specs

Location:

非常感谢 Gabriel Verd Arquitectos 予gooood的分享 。更多请至:Gabriel Verd Arquitectos on gooood
Appreciation towards Gabriel Verd Arquitectos for providing the following description:

Santo Ángel de la Guarda高中一栋两层高的教学楼中仅设有一条楼梯,这意味着该栋教学楼中350名学生需要全部在该楼梯间内出入和通行。因此新楼梯间的补充变成了当务之急。在新楼梯的疏导下,学生的日常通行将更加便捷和通畅,新楼梯让学生穿行自如,避免了对教学楼内部其他功能空间的干扰,且可以直接抵达相对应的教室中。除此之外,新楼梯除满足日常通行需求功能之外,还需帮助建筑通风和采光,及满足防火功能。

Until now the high school pavilion had a single staircase to evacuate two floors of classrooms. 350 students who use it simultaneously in the hours of entry and exit. To this must be added that the main access to the school is done at the other side of the building, so that the students’ access to the high school classroom interfered with other internal uses of the school. The new staircase provides direct access to the classrooms and provide a second evacuation exit. This new staircase must be able to be used under adverse weather conditions satisfying at the same time the demands of ventilation, lighting, … required by fire regulations.

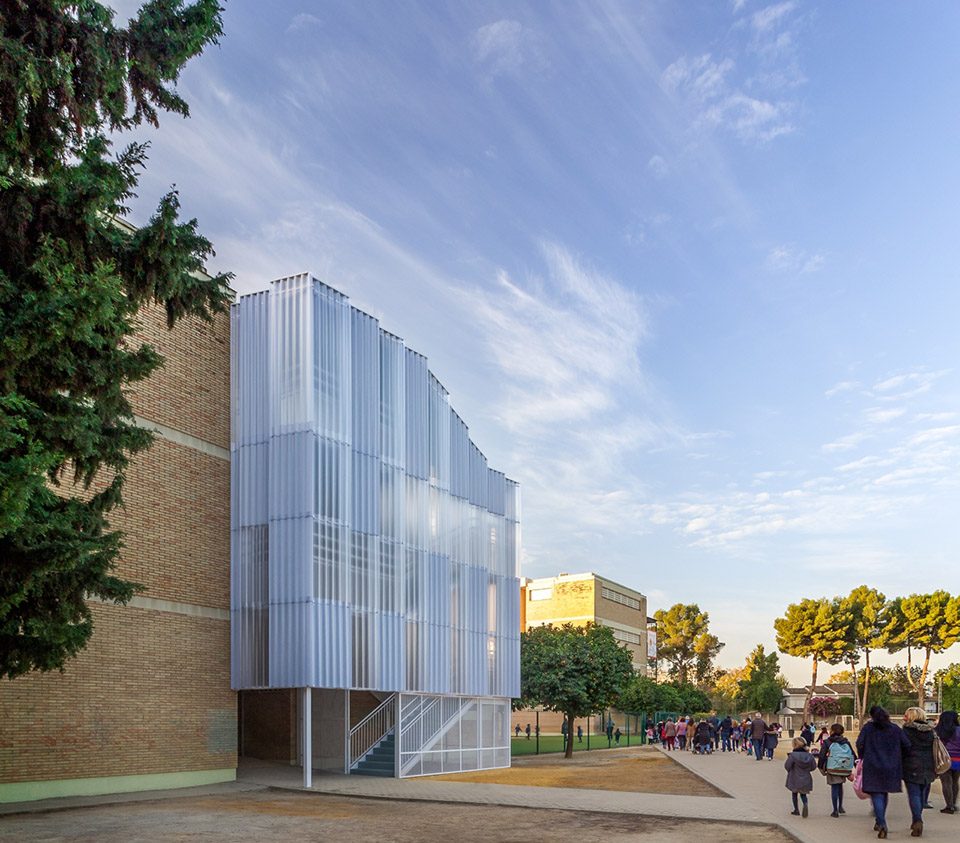

▼楼梯外貌,exterior view

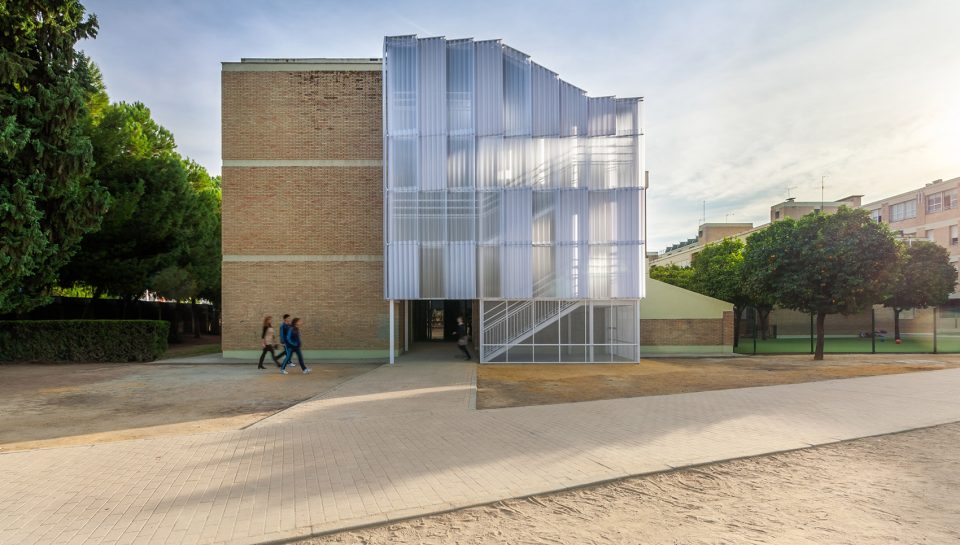

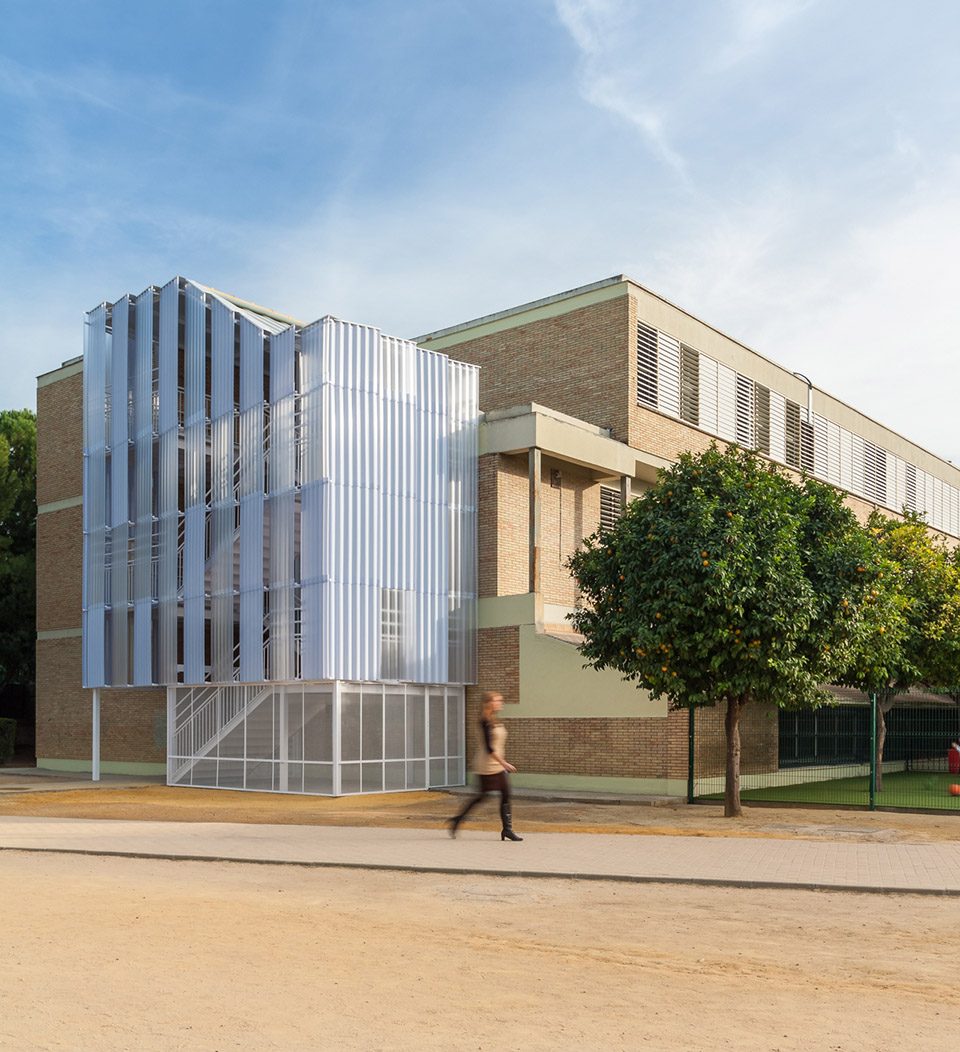

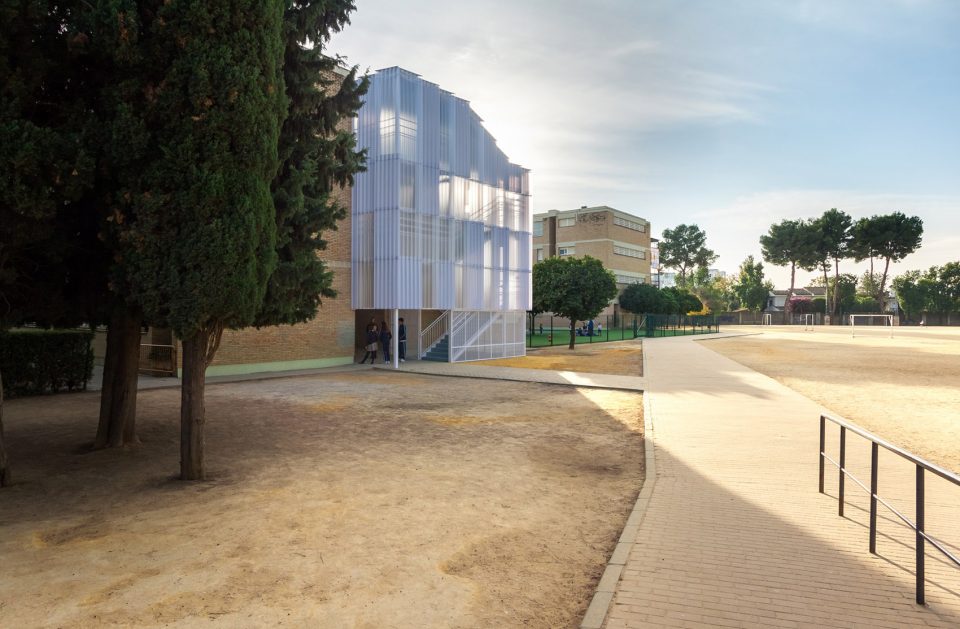

▼楼梯间与砖墙建筑彼此契合,the staircase is coupled to the brick construction

该楼梯由预制构件经现场组建而成。楼梯外侧由PC板围合,层层铺设的PC板令楼梯间展现独特的外观。透光透风的半透明“冰山”看似突如其来,却与砖墙主教学楼彼此契合。这个全新的附加构件,让建筑主体的内部循环更加通畅。曾经昏暗的建筑走廊,如今在外部楼梯的帮助下获得明亮。学生在明亮纯净的自然光下步入教学生活。

The structure is made of steel, facilitating prefabrication and subsequent assembly. As a coating, cellular polycarbonate panels have been used, arranged in flakes that give the whole its iconic image. A translucent, light and air permeable ICEBERG that is coupled to the brick construction, a new “peripheral device” that optimizes circulation through the main building. What were yesterday dark corridors are today luminous galleries, pure white and clear light that gives the reference to which guide the steps to the exit.

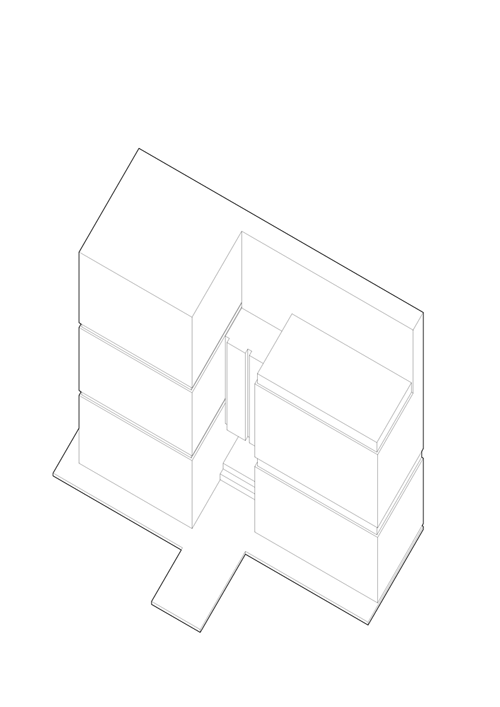

▼原理,concept

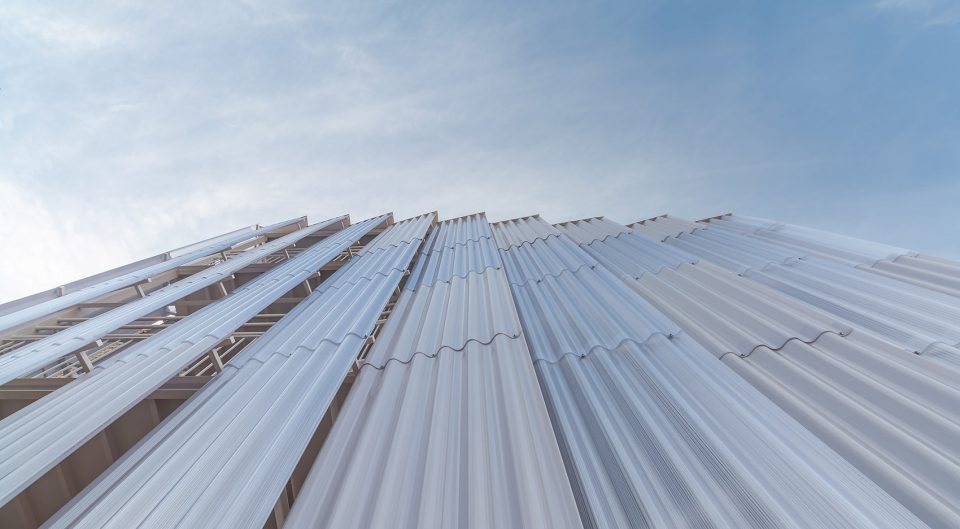

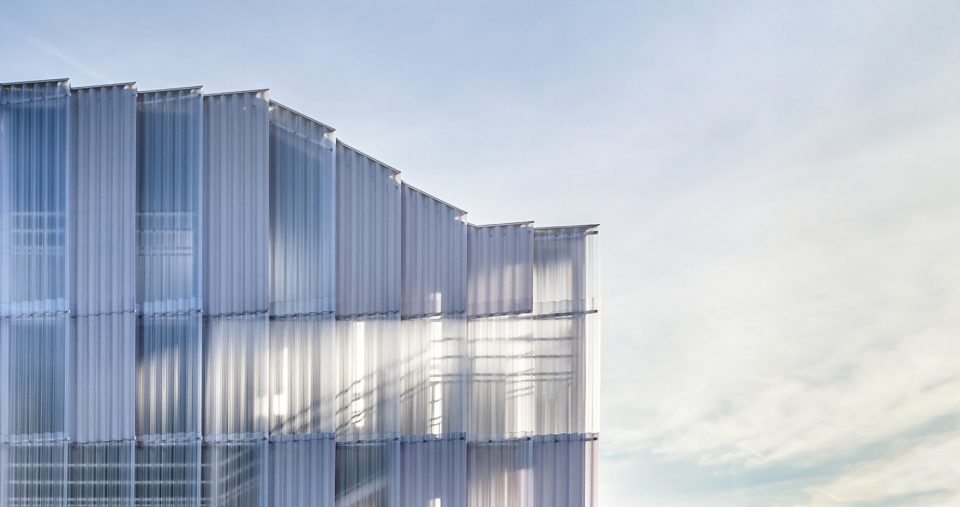

▼PC板围合楼梯结构,polycarbonate panels are used for coating

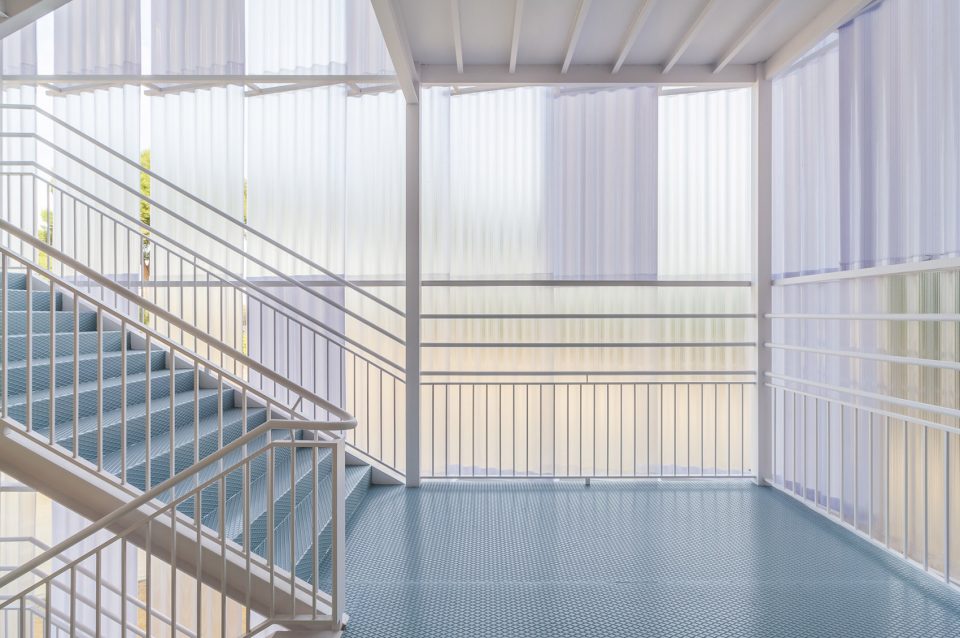

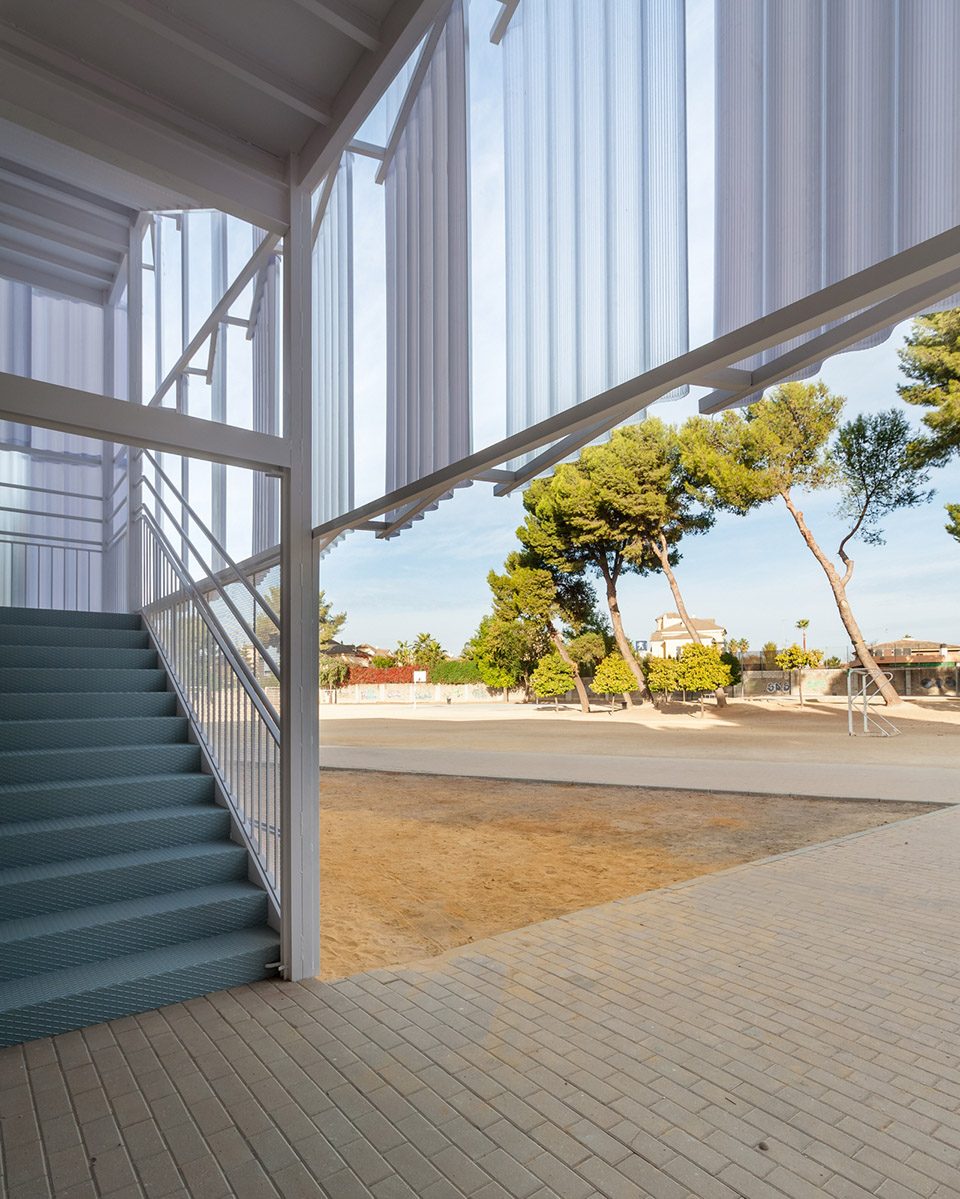

▼楼梯采用钢结构,the structure is made of steel

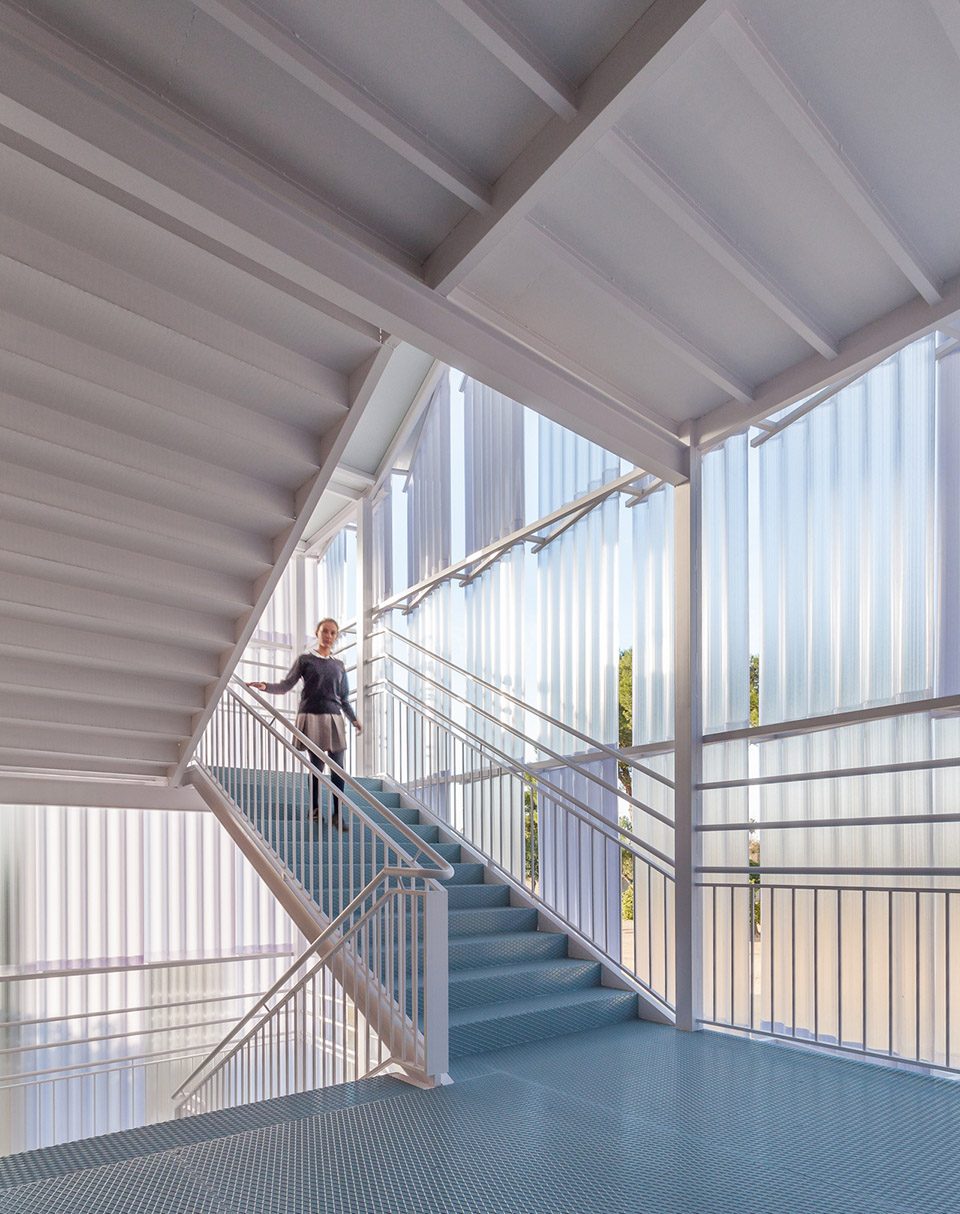

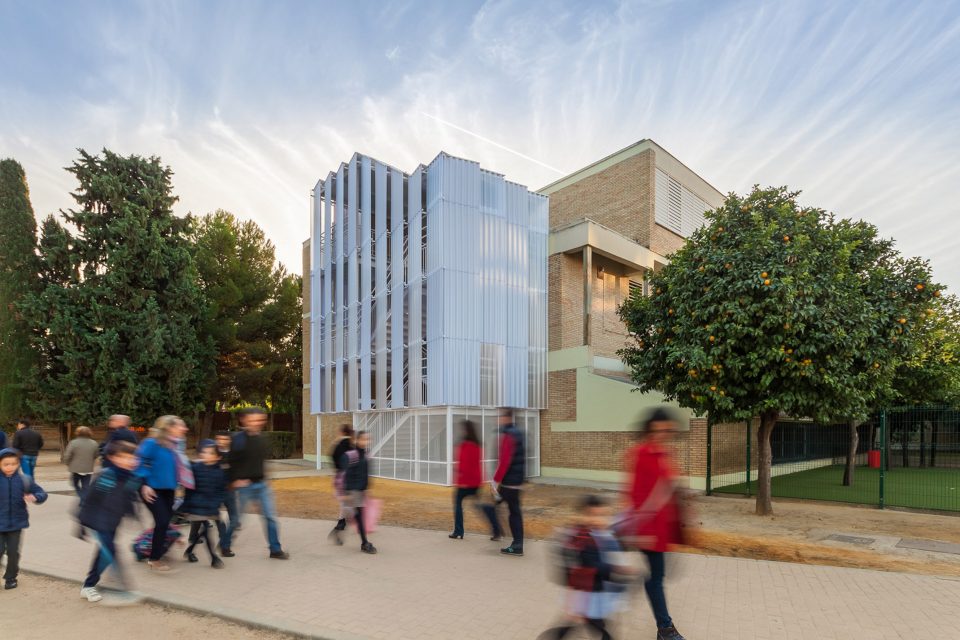

▼楼梯与校园生活,staircase and school life

Architect: Gabriel Verd
Date: november 2018
Builder: López Sequera Proyectos y Obras
Photos: Juanca Lagares
