The Compound Pistil Pavilion, China by NanJing University Of The Arts

Formation and digital construction of extremely small curved surfaces

Project Specs

Location:

感谢 南京艺术学院 予 gooood 分享以下内容。更多关于他们:Nanjing University of the Arts on gooood
Appreciation towards NanJing University 0f the Arts for providing the following description:

这件空间装置作品的研究方向为“复杂性极小曲面的生形与数字化建造”,设计团队将两朵花的形态融合其中,并通过计算机最终生成“双蕊”虚拟形态。

The research direction of this space installation is “formation and digital construction of extremely small curved surfaces”. The design team members integrate the forms of two flowers into design and create the “double-core” virtual form through the computer.

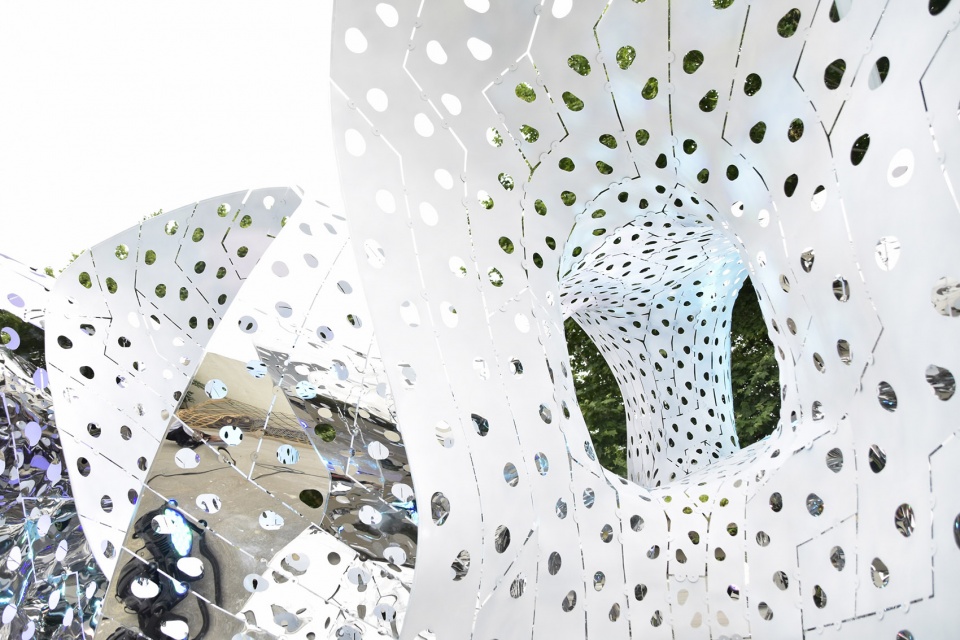

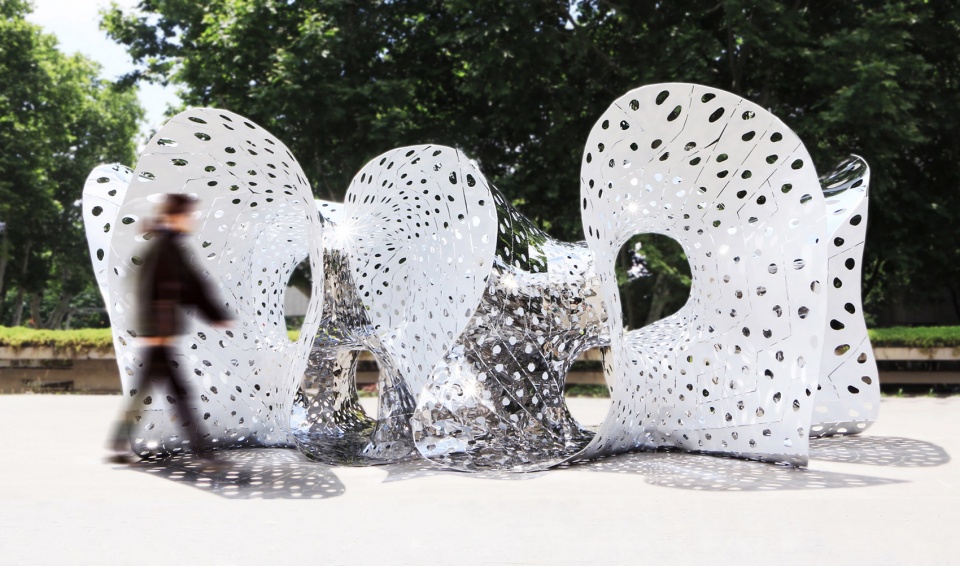

▼空间装置外观,exterior view of the space installation

▼视频,video

作品表皮使用grasshopper软件的网格分块算法细分展平,再利用数控雕刻设备将分块形成的397块镜面不锈钢板切割加工,最后通过铆钉连接的方式将2200个孔连接在一起,使作品依靠厚度仅为0.3毫米的钢板通过材料自承的方式建构成物化空间形态。

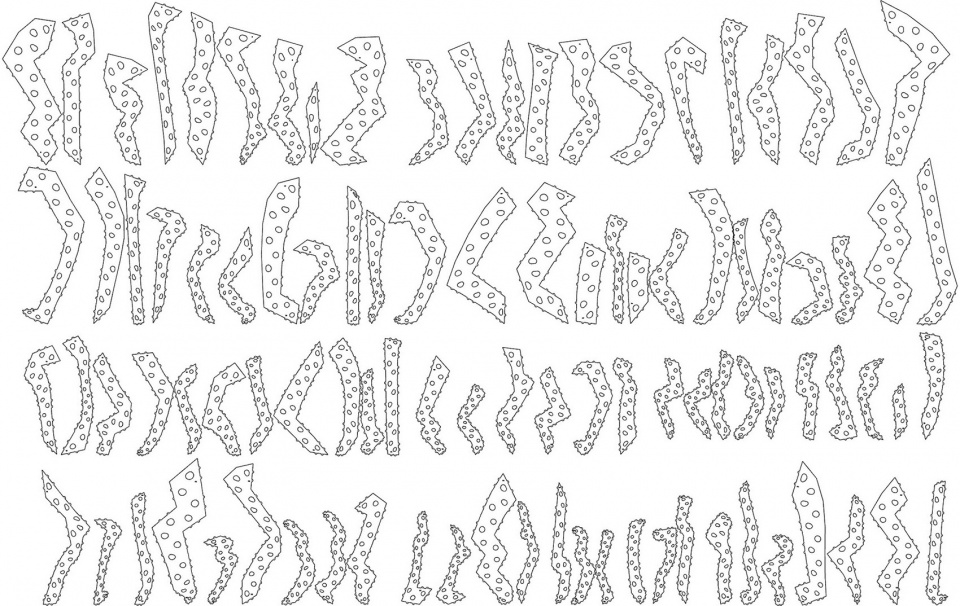

▼雕刻数据,CNC data

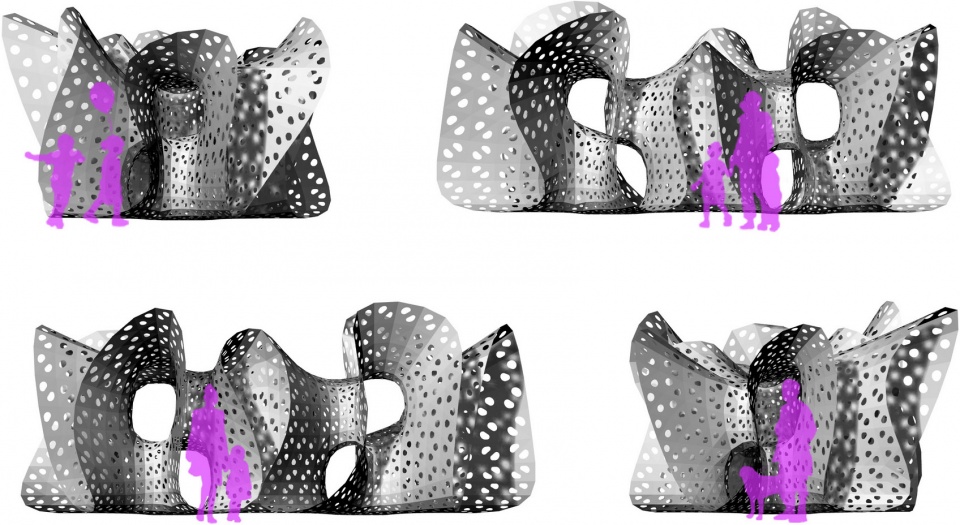

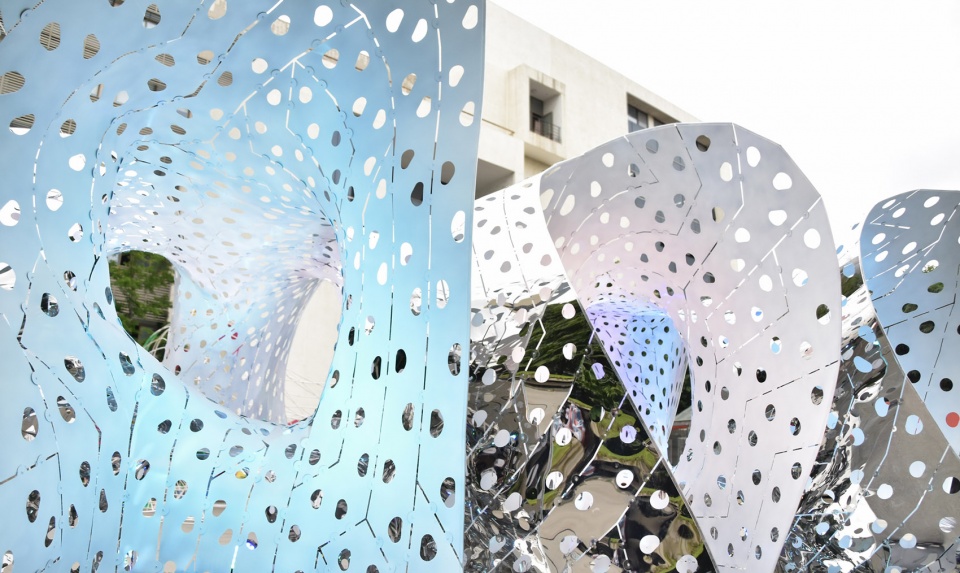

▼装置立面,installation facade

The surface of the work is segmented and flattened by the grid block algorithm of grasshopper software. Then, 397 mirrored stainless steel plates are formed by block cutting machine, CNC engraving equipment, and 2200 holes are connected by rivet. The steel plate with a thickness of only 0.3 mm is constructed by self-supporting materials to form a physicalized space.

▼397块镜面不锈钢板通过铆钉连接的方式将2200个孔连接在一起,397 mirrored stainless steel plates are formed by block cutting machine and 2200 holes are connected by rivet

▼极小曲面空间,the space of minimal surface

作品内部界面采用了白色油漆饰面,内外界面进而形成具有丰富趣味的类莫比乌斯环空间。作品在白天阳光和晚上照明的不同情境下产生不一样的空间和视觉体验,多变而复杂的空间层次让作品充满着独特的场所精神。

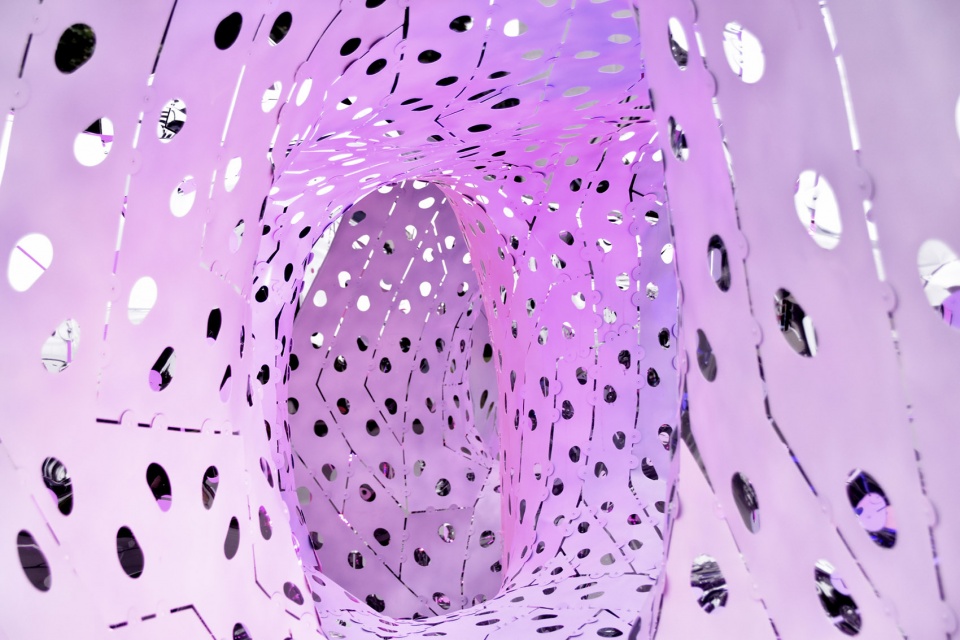

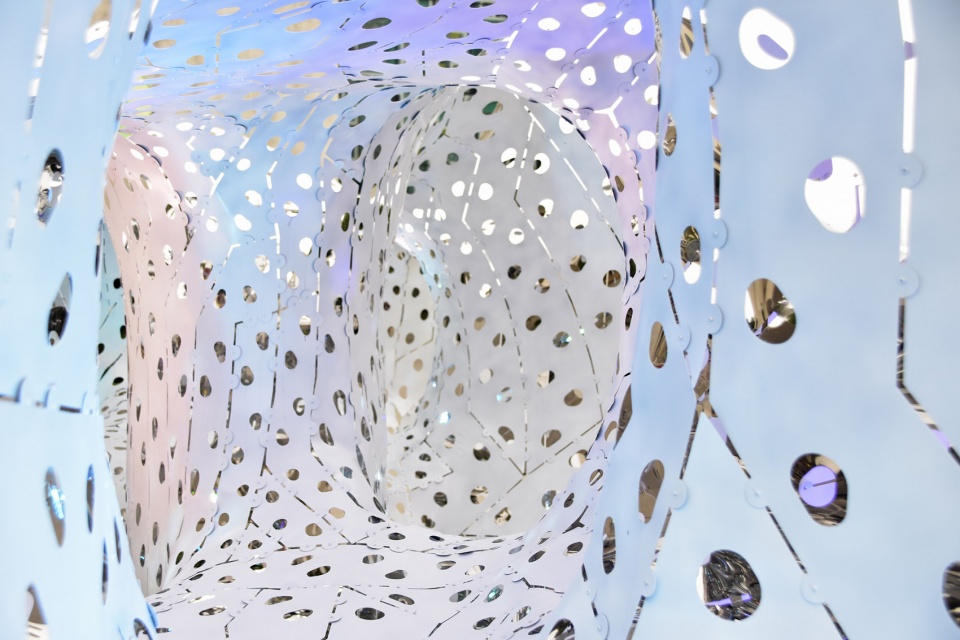

▼内部界面采用了白色油漆饰面,the interface of the work is painted in white

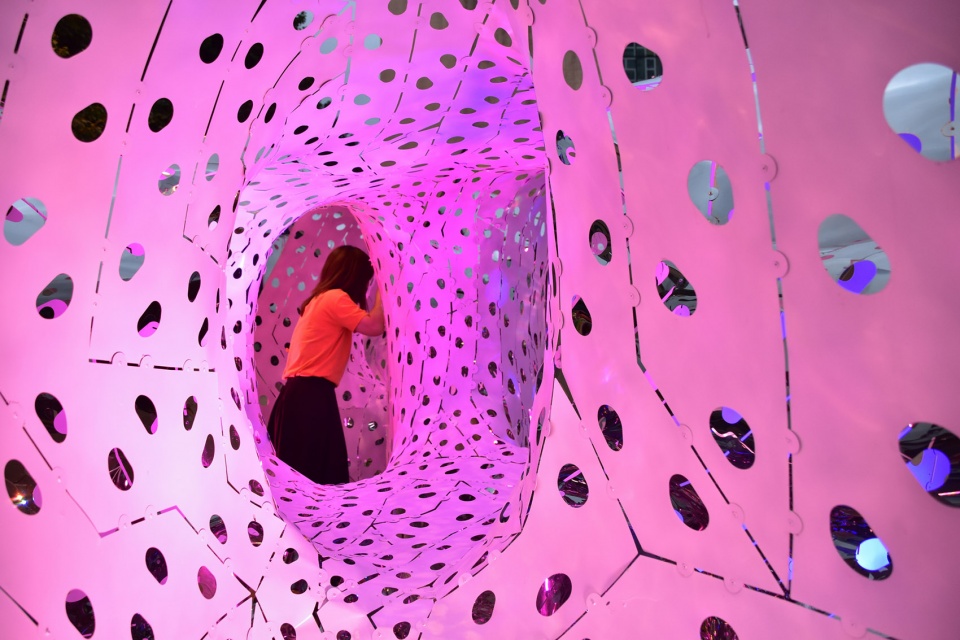

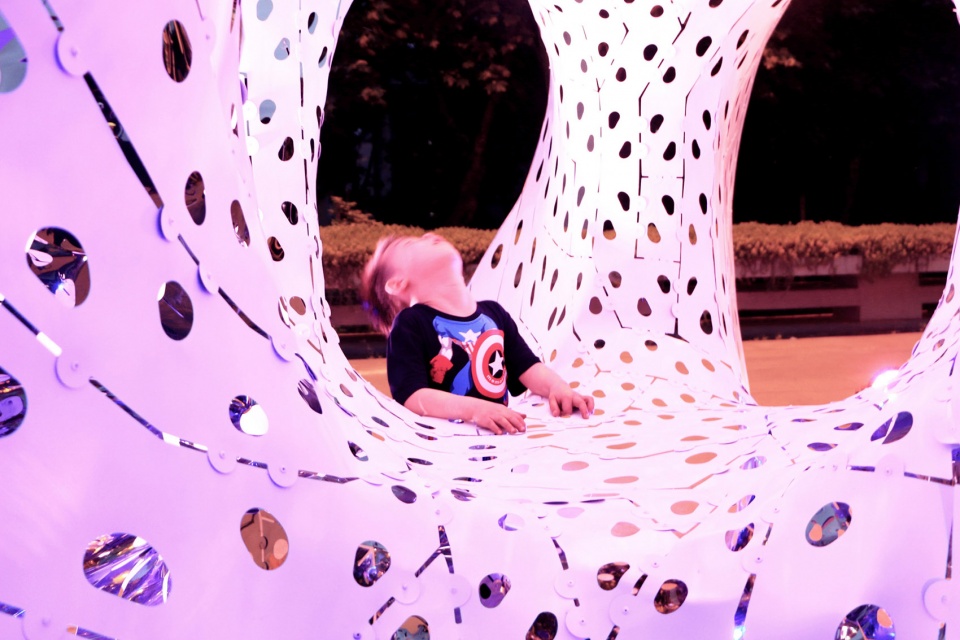

▼内外界面形成具有丰富趣味的类莫比乌斯环空间,inner and outer surface form an interesting Mobius ring space

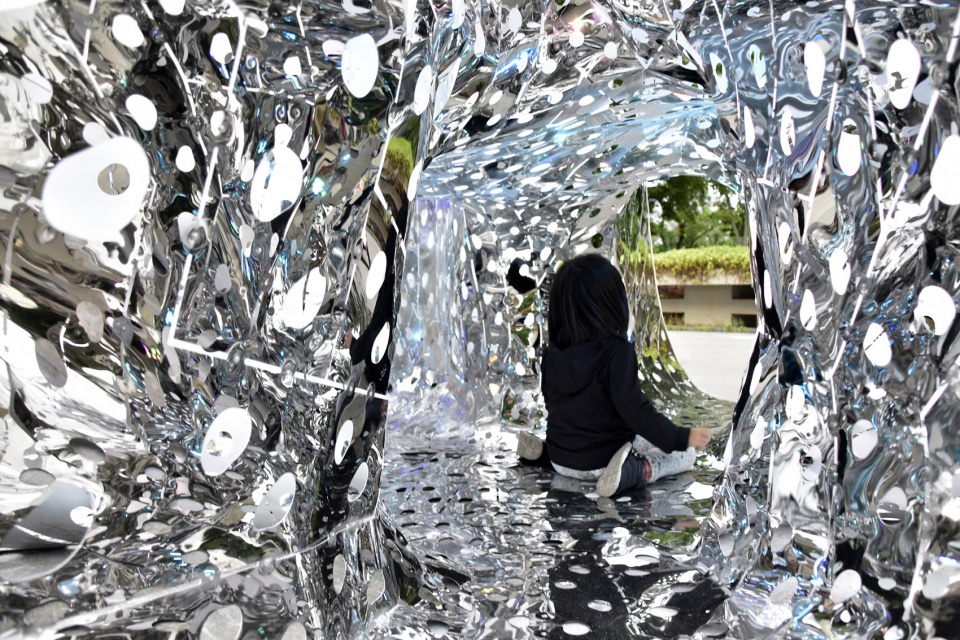

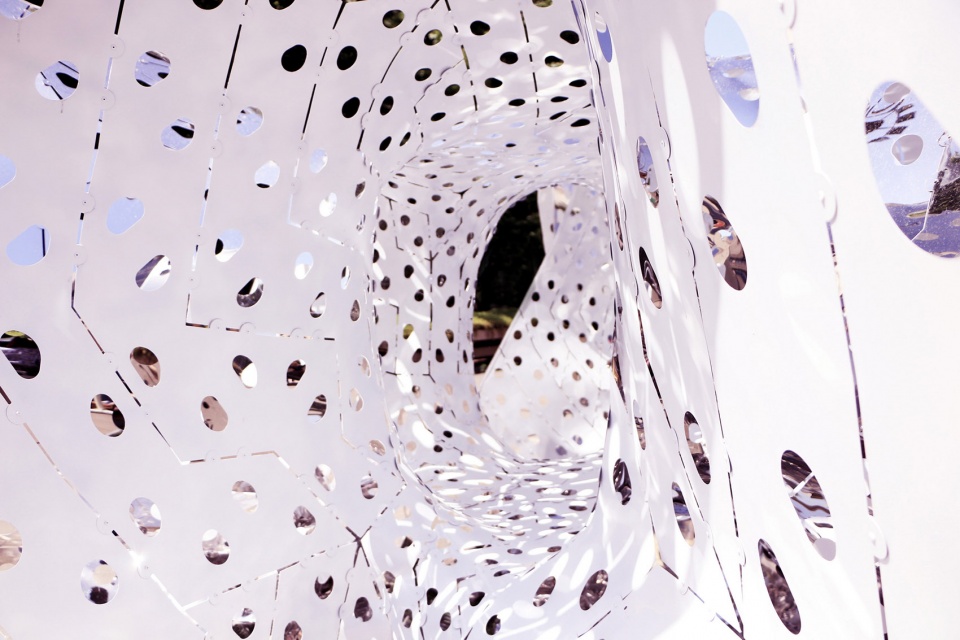

▼内外界面材质对比,the internal and external interface contrast material

The inner and outer surface form an interesting Mobius ring space, since the interface of the work is painted in white. The work produced different spatial and visual experiences in different situations as daylight and evening lighting. The varied and complex spatial layers make the work full of unique place spirit.

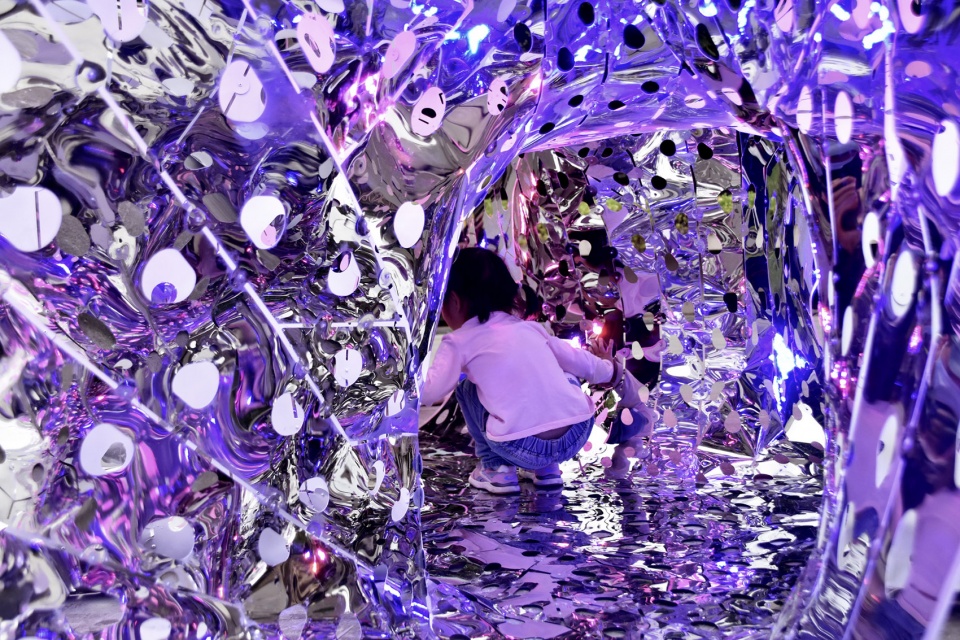

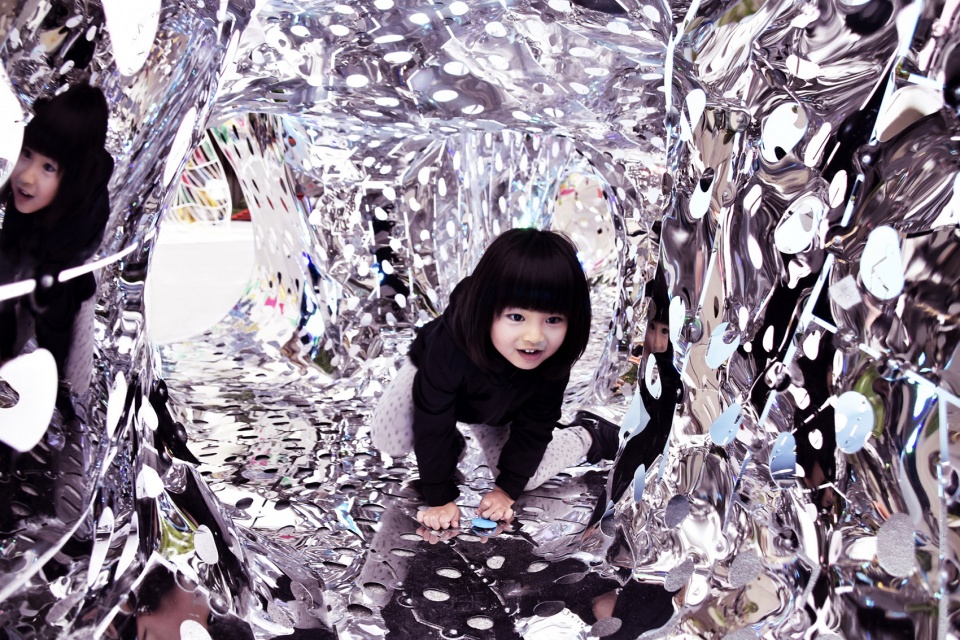

▼小朋友在装置中自由地玩乐,children interact with the space installation

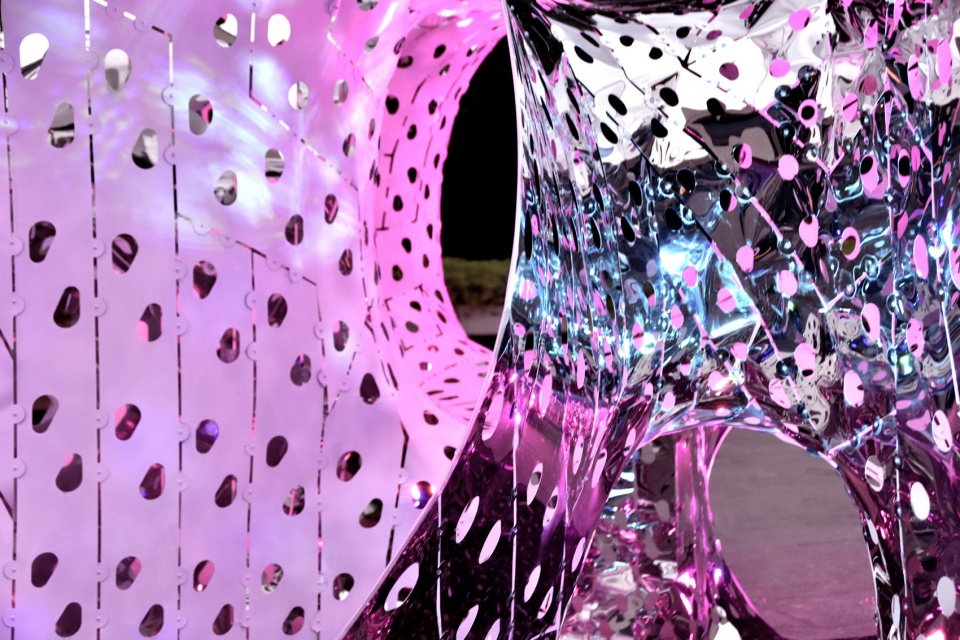

▼变换的色彩效果,changing colour effects

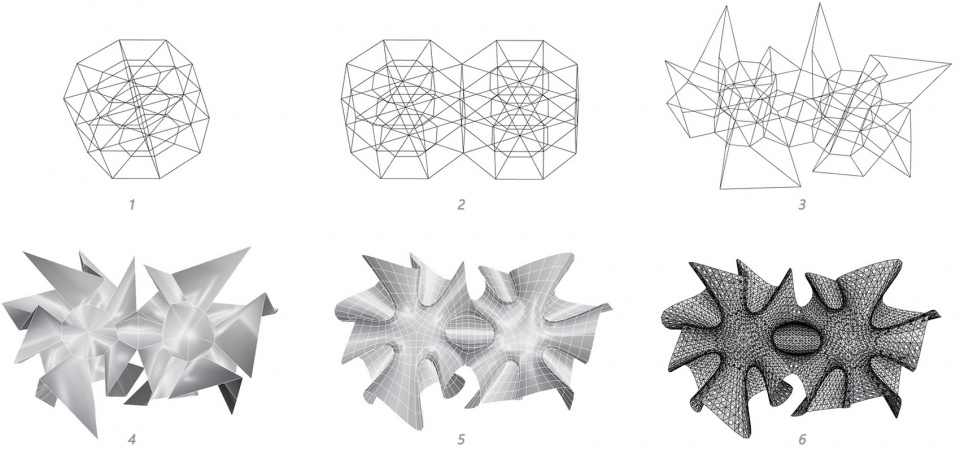

▼形态演化,formal evolution
