Terra Lodge Hotel by Ramos Castellano Arquitectos

Hotel complex on African island

Project Specs

Location:
Materials:

非常感谢 Ramos Castellano Arquitectos 予gooood分享以下内容。更多请至:Ramos Castellano Arquitectos on gooood
Appreciations towards Ramos Castellano Arquitectos for providing the following description:

佛得角共和国位于西非海岸,圣维森特岛是该国众多岛屿中的一个。Ramos Castellano Arquitectos日前完成了位于该岛的酒店综合体项目。业主是一位法国的徒步旅行向导,他买下了一栋位于市中心外围的旧时殖民住宅,并期望建筑师将其打造为酒店,使游客们能够以此为起点去探索附近的小岛。

Cabo Verde is an isolated country located off the coast of western Africa. On São Vicente, one of Cabo Verde’s ten islands, where local architecture firm Ramos Castellano Architects has completed a hotel complex for a french trekking guide. The client had purchased a old colonial house on the outskirts of the town center, and asked the architects to develop a hotel for tourists who want to explore the nearby island of santo antão, using the historic property as a starting point.

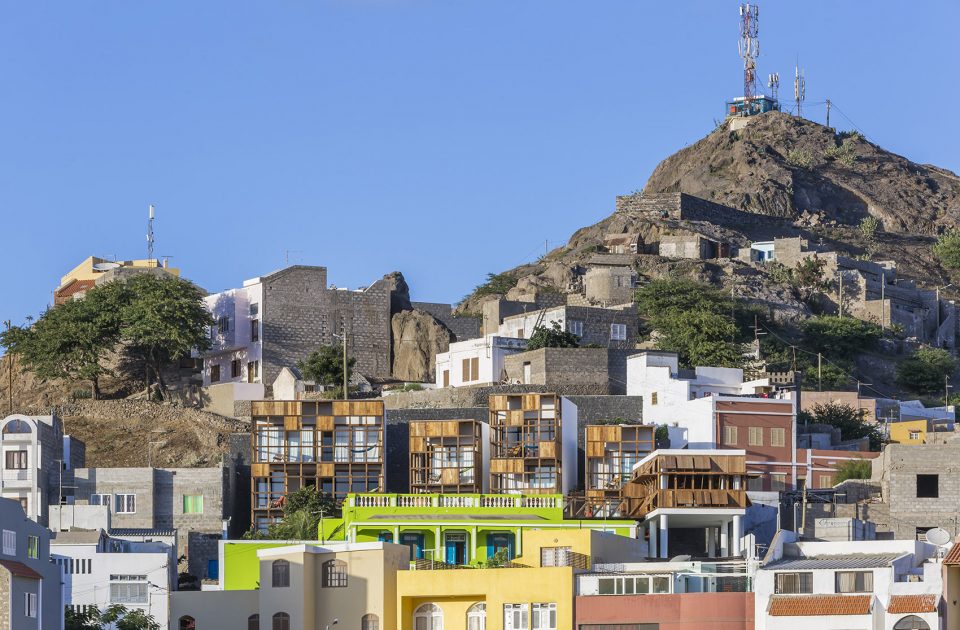

▼酒店位于佛得角的小岛上,the project is located at one of Cabo Verde’s ten islands

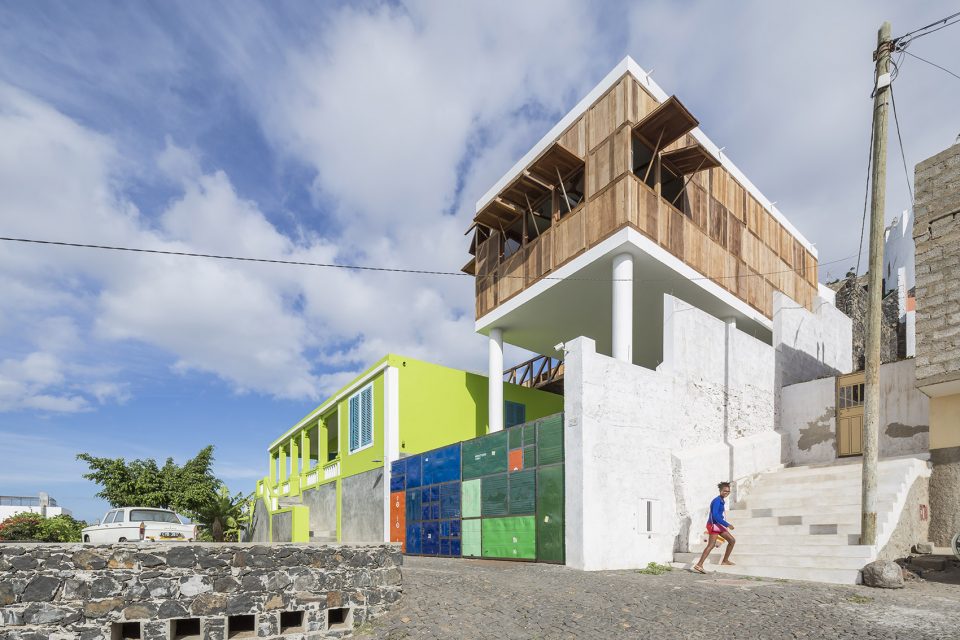

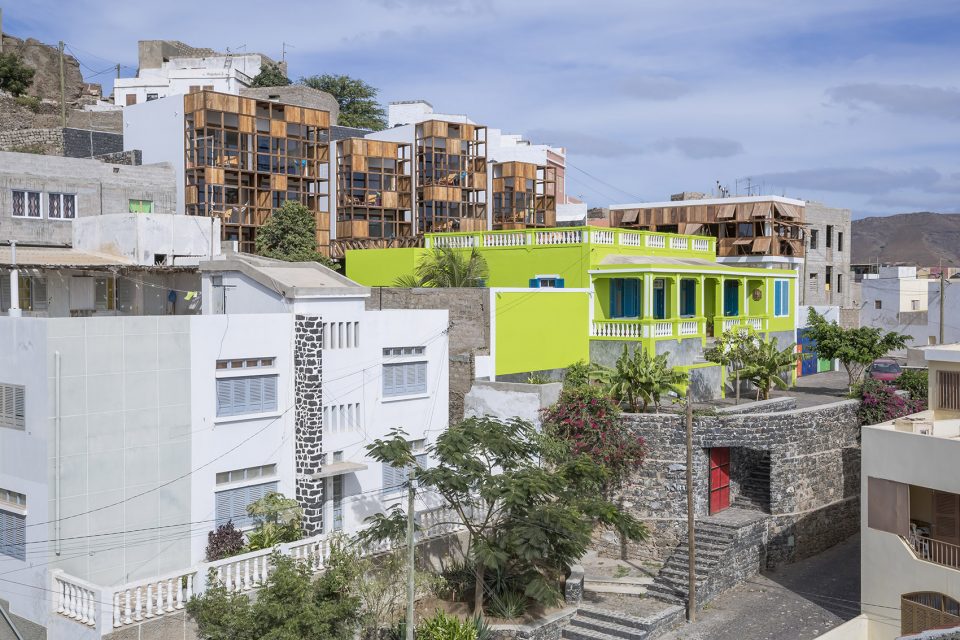

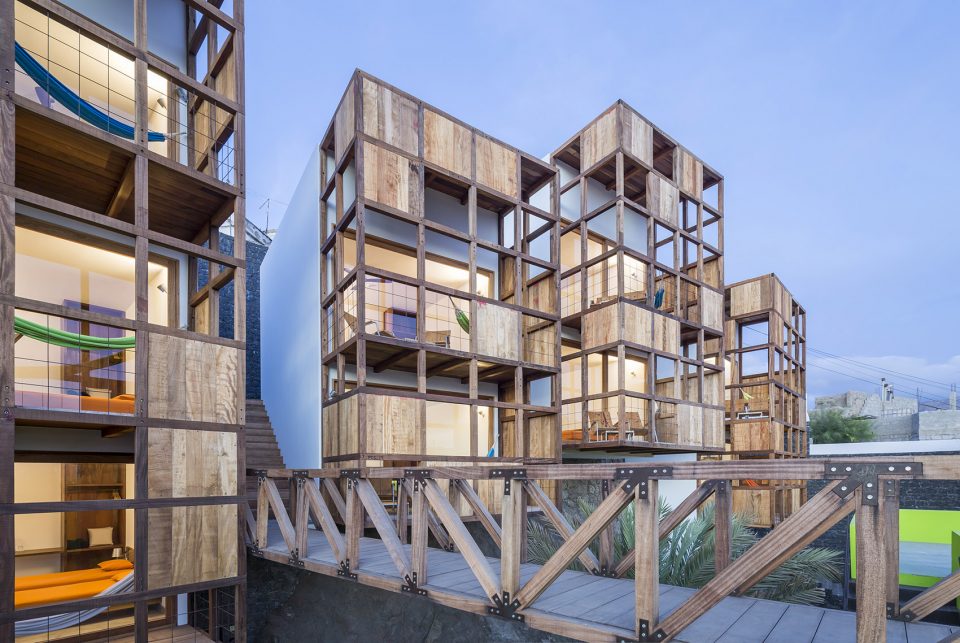

▼酒店外观,exterior view

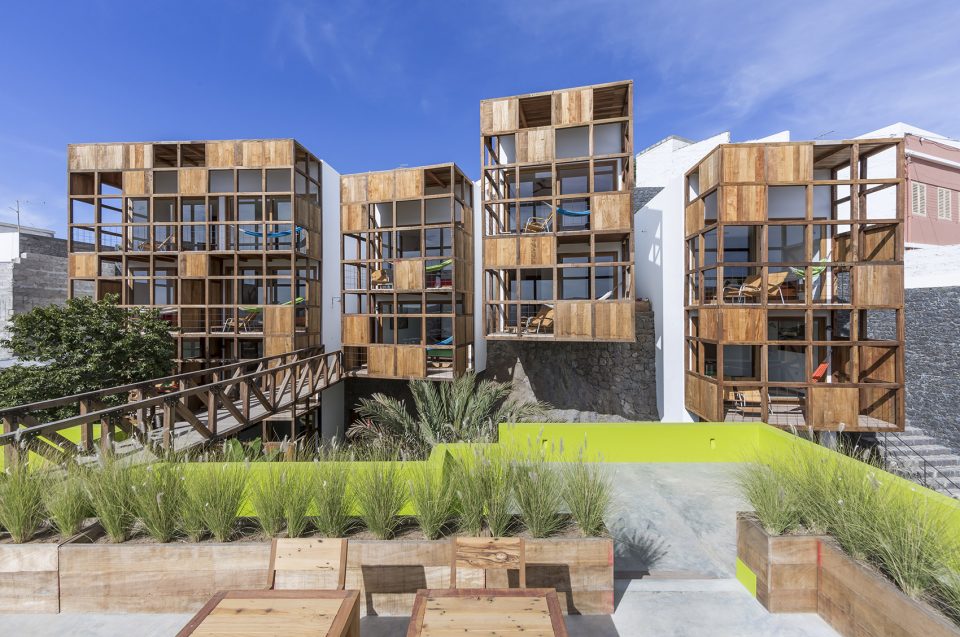

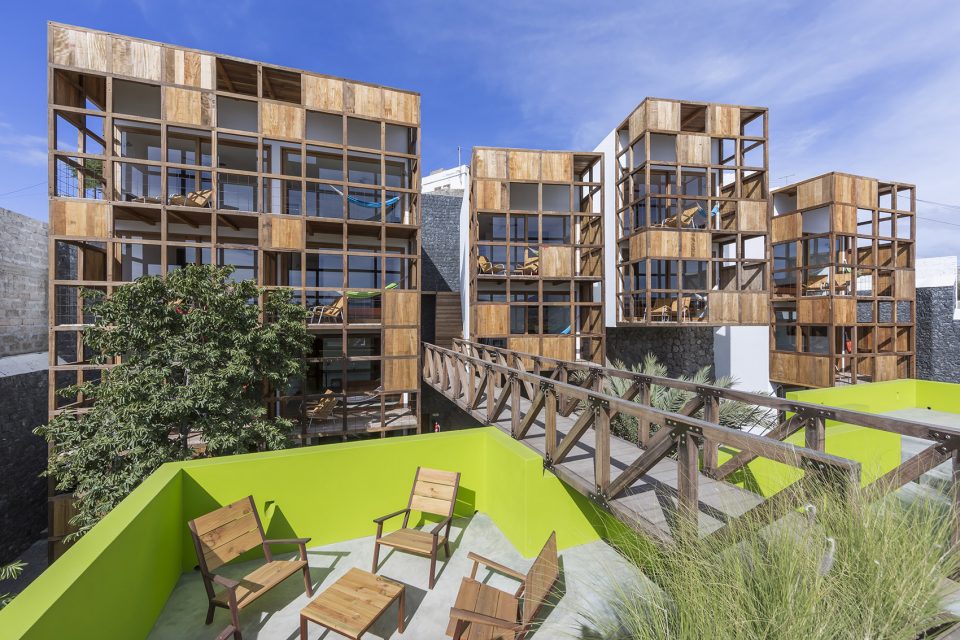

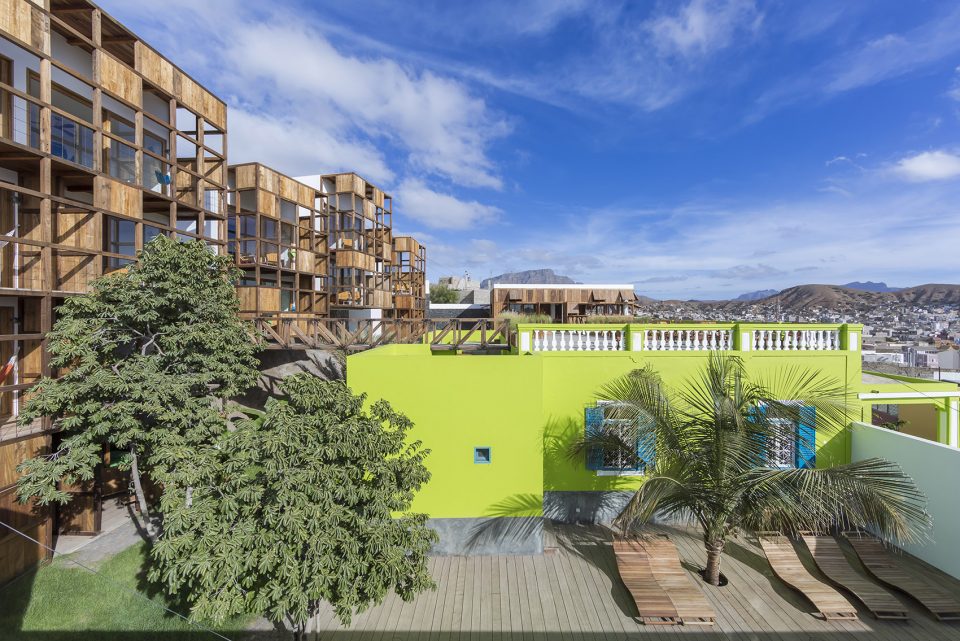

▼综合体被分为几个独立的单元,the complex’s separate units were adapted to the existing terrain

基于与周围建筑类似的形态,建筑师将这一综合体分为几个独立的单元,并使其融入既有的地形。呼应着太阳的运行轨迹,每栋建筑均朝向不同的视野,将城市和海湾的美景尽收眼底。早餐吧所在的建筑为场地带来了遮蔽,使其免受来自撒哈拉沙漠的强风干扰。酒店内的客房均实现了自然通风以及被动式的气候适应策略。

By using the same implantation philosophy of the surrounding buildings, Ramos Castellano arquitectos adapted the complex’s separate units to the existing terrain. Designed in response to the sun’s path throughout the day, each block is oriented to face a different view of the island — from the city to the bay. The breakfast-bar building has been positioned to shield the site from the strong winds that blow in from the sahara desert. All rooms at the Terra lodge hotel, promote cross ventilation and passive climatization strategies.

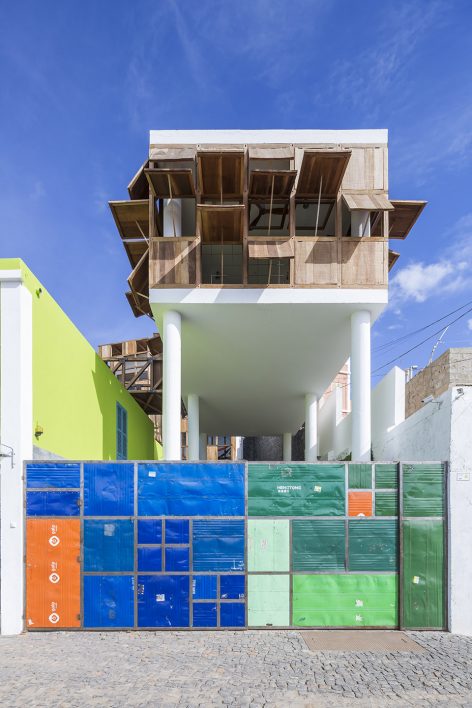

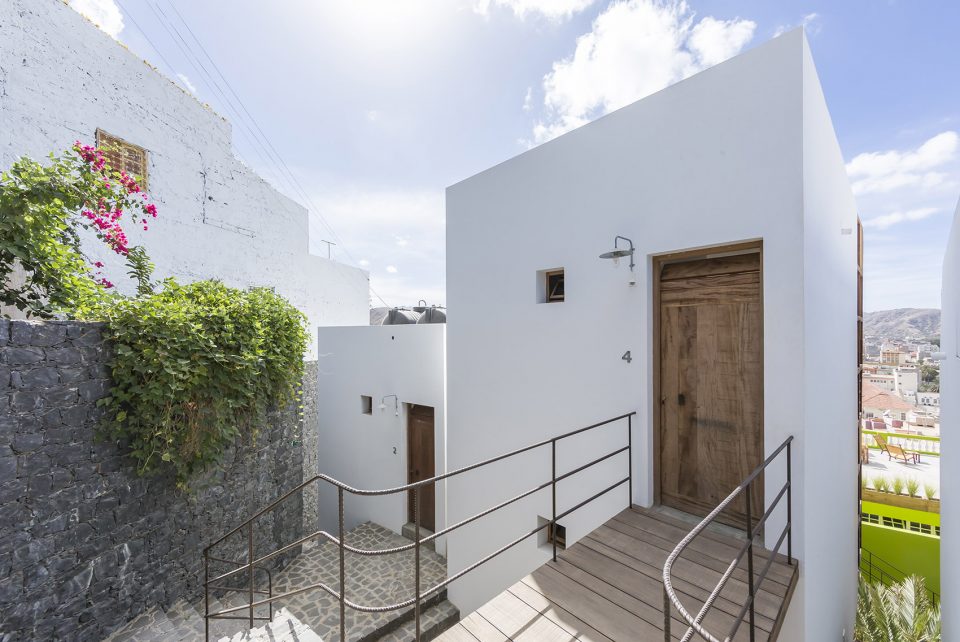

▼入口区域,entrance area

▼酒店中的诸多元素均由当地居民手工制成,many of the elements that make up the scheme are handmade and have been crafted by local people

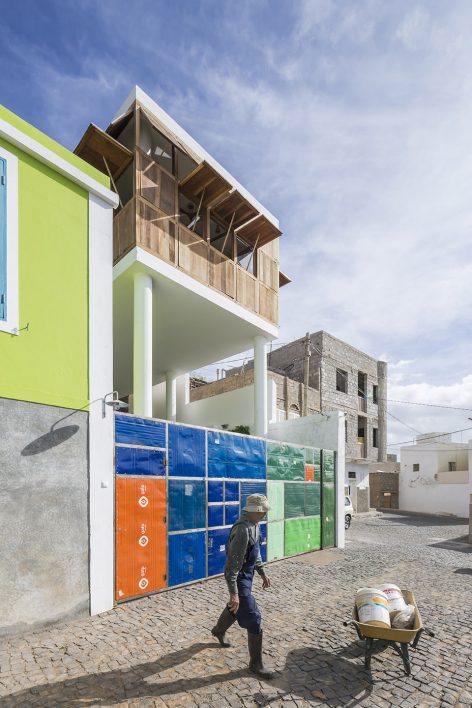

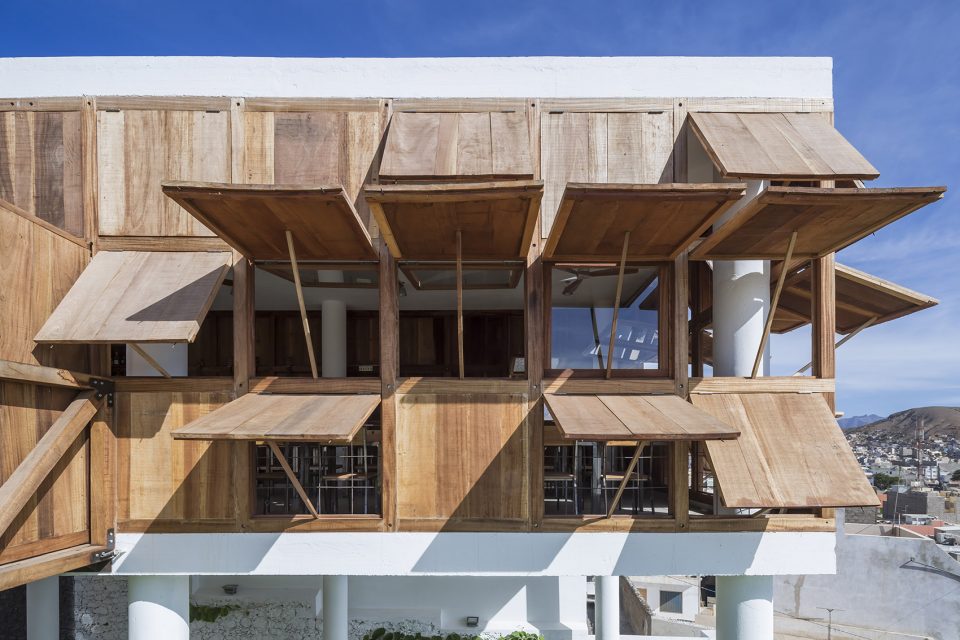

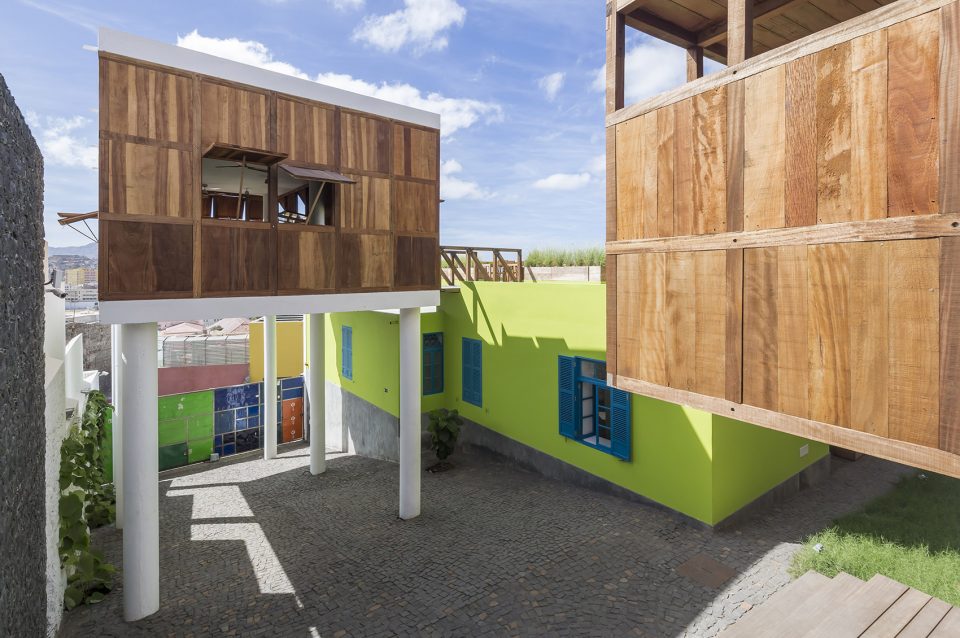

▼抬升的体量,the elevated building volume

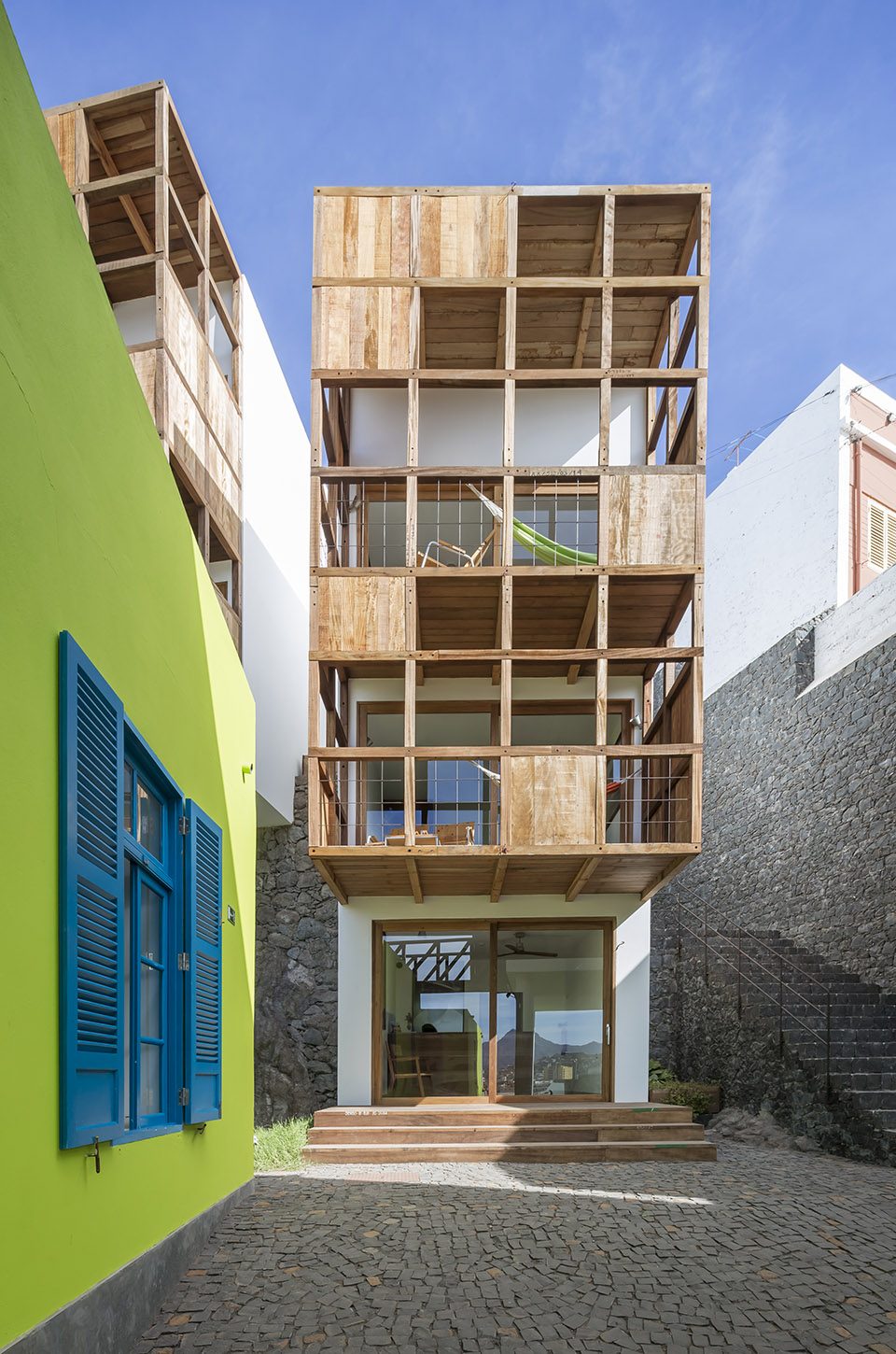

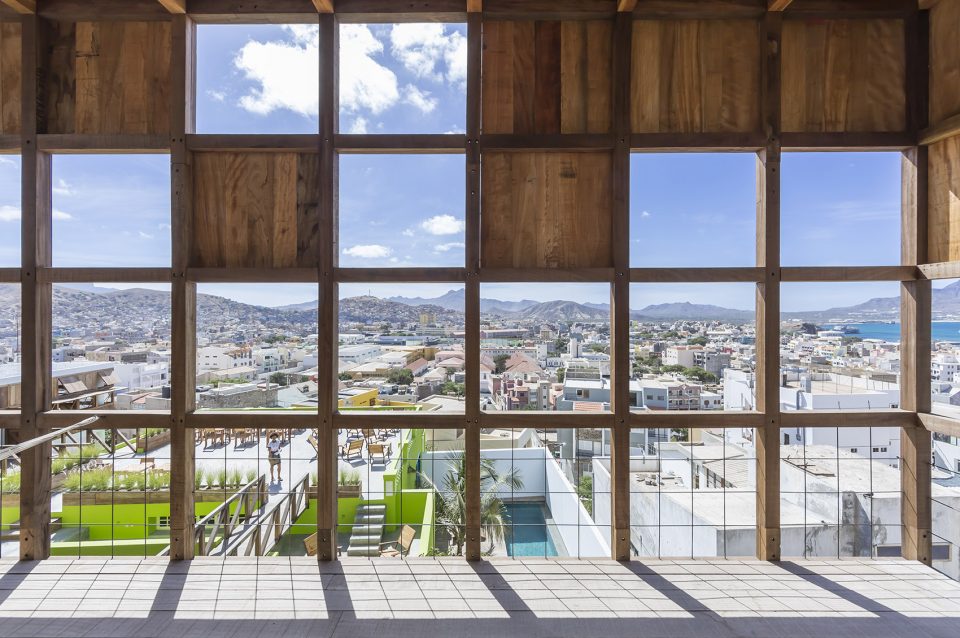

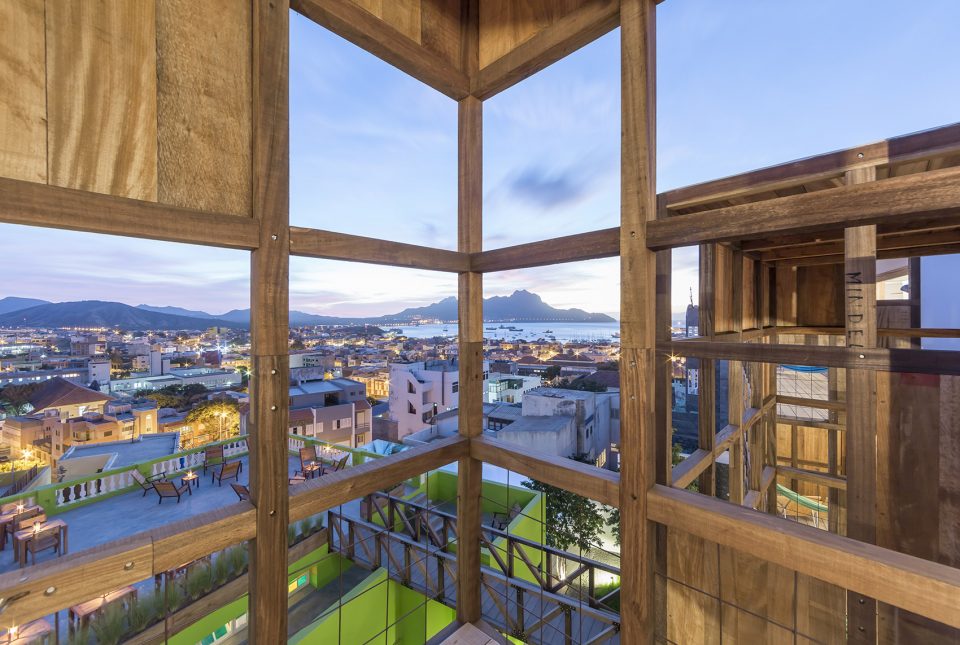

▼室外游廊近景,gridded verandahs made of wood

由于小岛上物质资源匮乏,建筑师尽量对设计进行了简化。从地板到家具,酒店中的诸多元素均由当地居民手工制成。室外游廊的栅格使用了木材,建筑的白色体量则覆盖以石灰膏饰面。从环保的角度看,酒店的屋顶上安装了光伏板;水源也可以重复利用于场地中的植被灌溉;另外设计中还大量使用了可回收的材料。酒店共包含12间客房和1间套房,殖民住宅被业主用于经营旅行社,其上方的屋顶平台则成为客人们享受早餐和海湾美景的场地。

As the remote island has a lack of material and resources, the architects sought to simplify the design as much as possible. From the floor finishes to the furniture, many of the elements that make up the scheme are handmade and have been crafted by local people. Wood has been used for the buildings’ gridded verandahs, while lime putty has been used to clad the hotel’s brilliant white structures. From an environmental standpoint, roofs feature photovoltaic panels, while water is re-used on site for irrigation. Recycled materials have also been used throughout the design. While the surrounding buildings contain 12 hotel rooms plus a suite, the colonial house now contains the premises of the client’s tourist agency. On its roof is a terrace where guests can enjoy a daily breakfast and views out onto the bay.

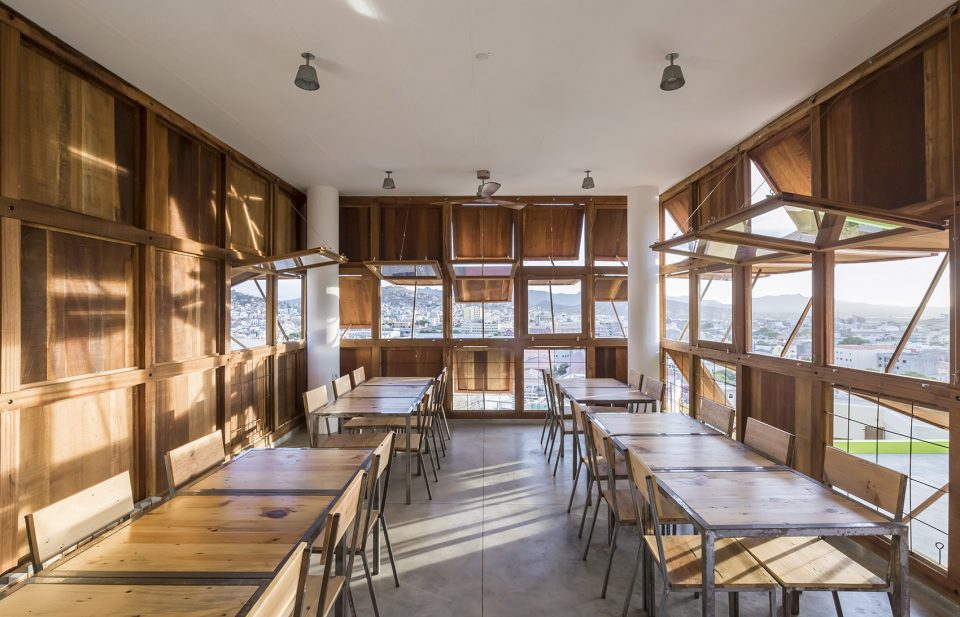

▼餐厅,dinging area

▼客房入口,guest room entrance

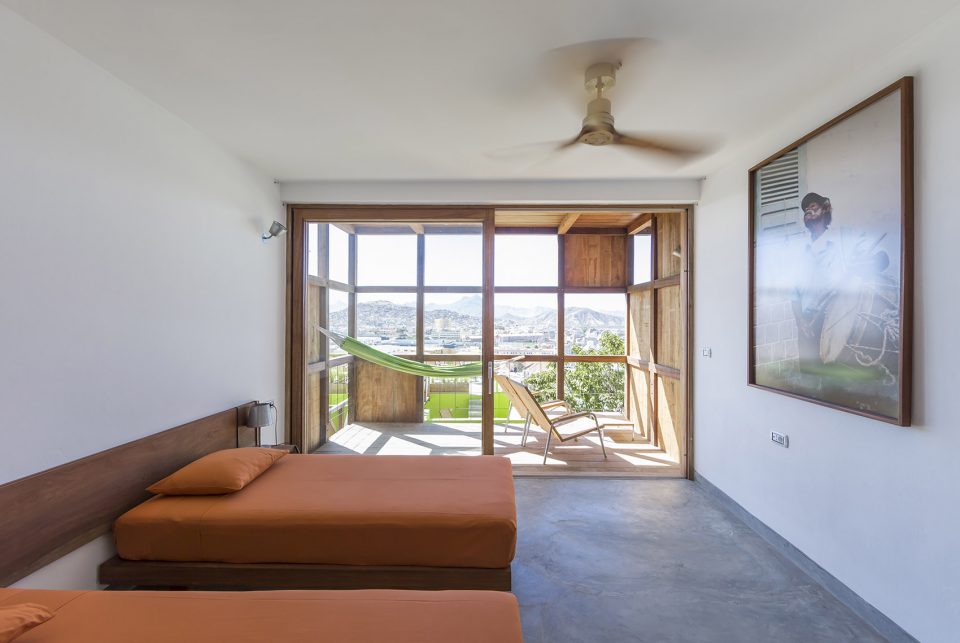

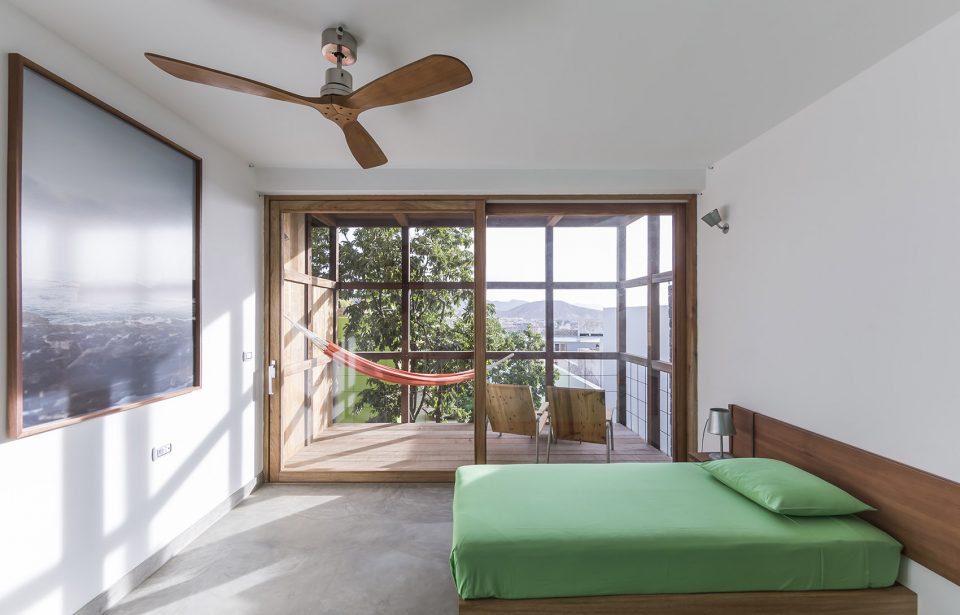

▼客房内部均实现了自然通风和被动式气候适宜策略,all rooms at the Terra lodge hotel, promote cross ventilation and passive climatization strategies

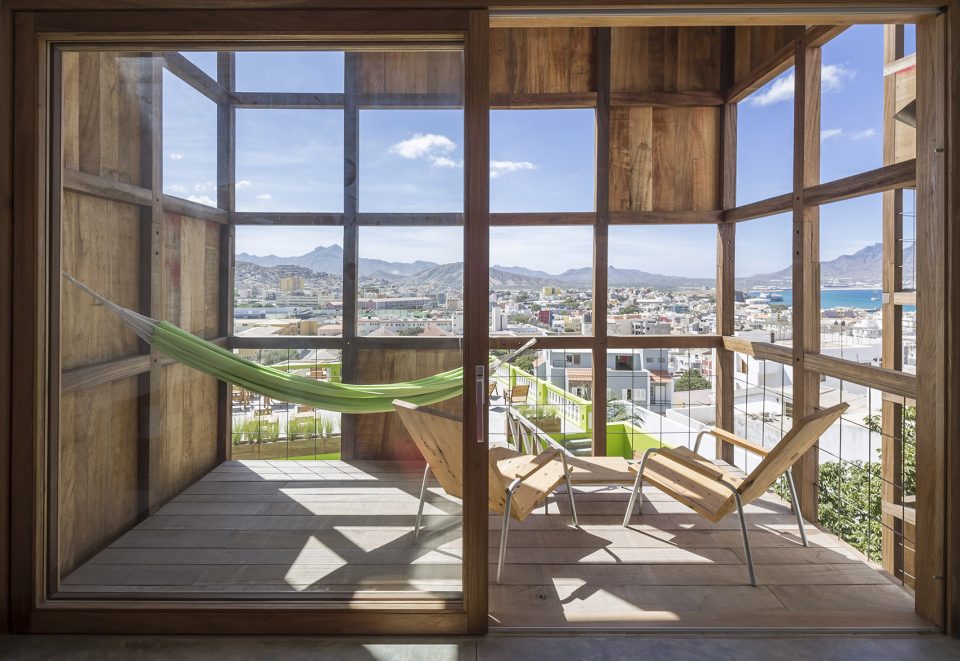

▼客房阳台,balcony

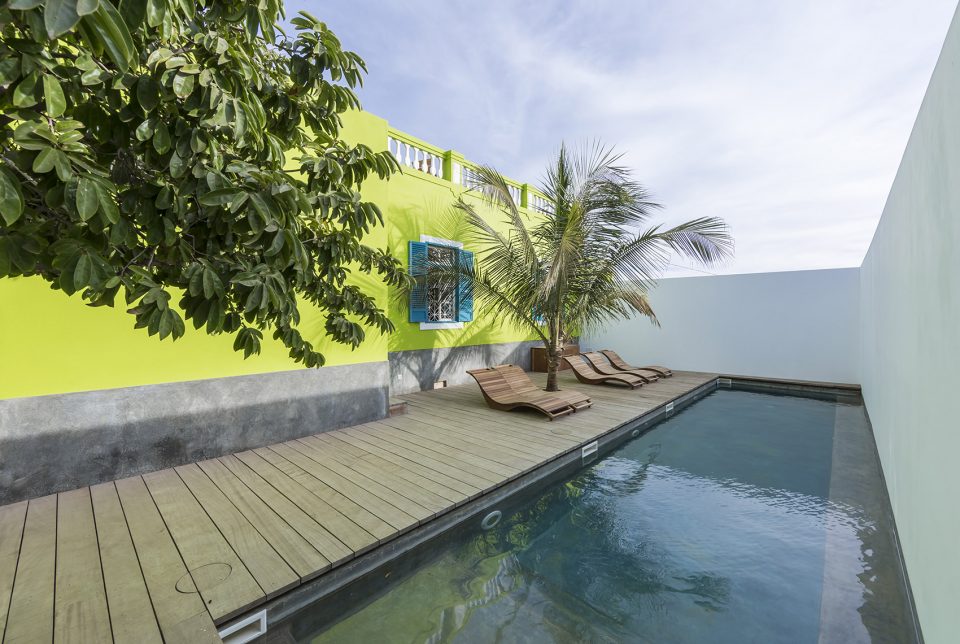

▼水池和露台,pool and terrace

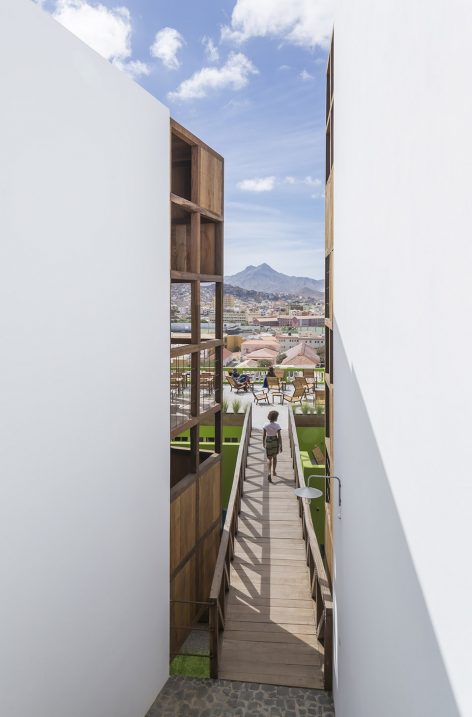

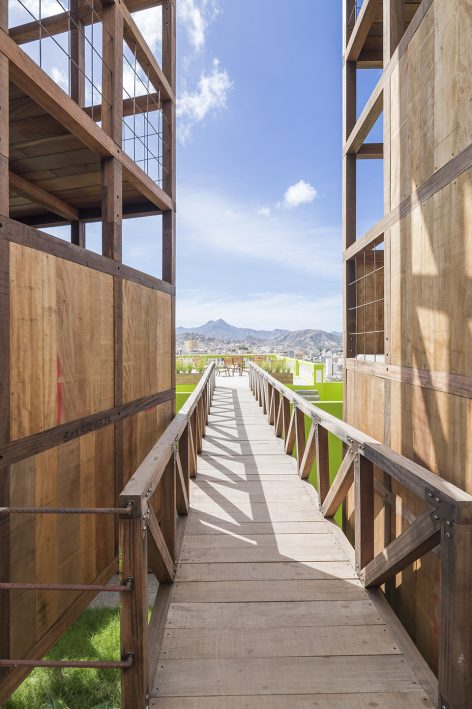

▼屋顶走廊,rooftop access

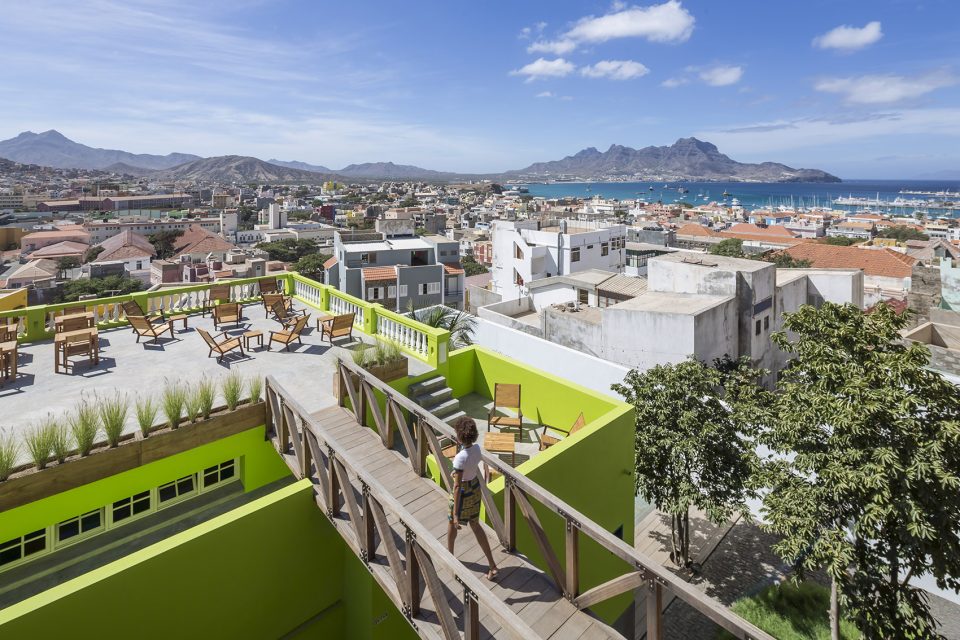

▼屋顶平台成为客人们享受早餐和海湾美景的场地,guests can enjoy a daily breakfast and views out onto the bay on the roof terrace

▼夜景,night view

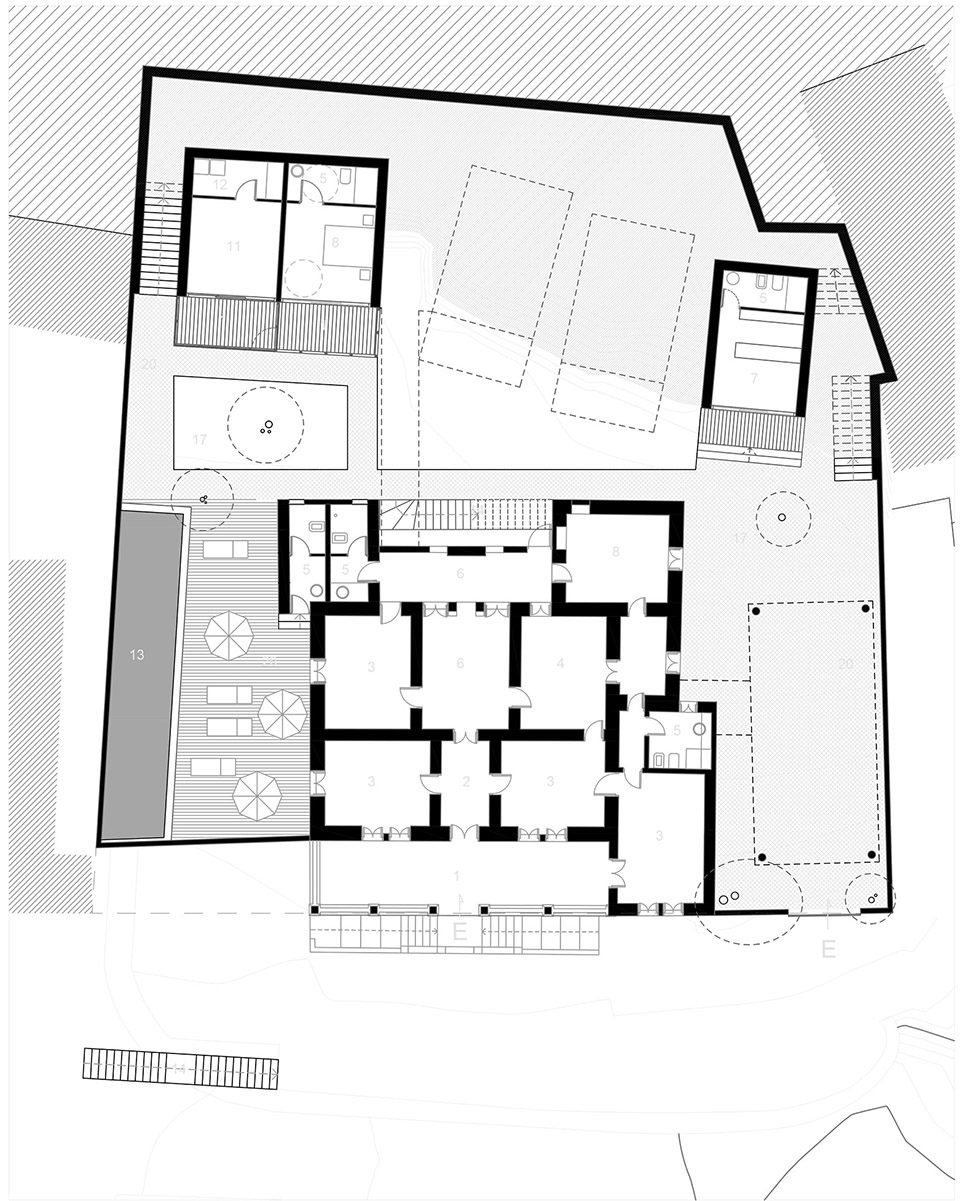

▼首层平面图,plan level 1

▼二层平面图,plan level 2

▼三层平面图,plan level 3

▼屋顶平面图,roof plan

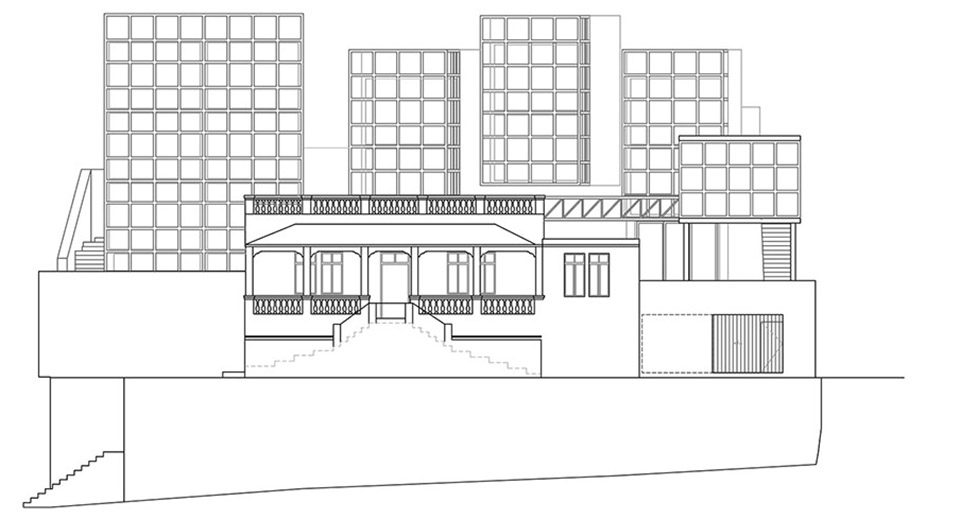

▼主立面图,main facade

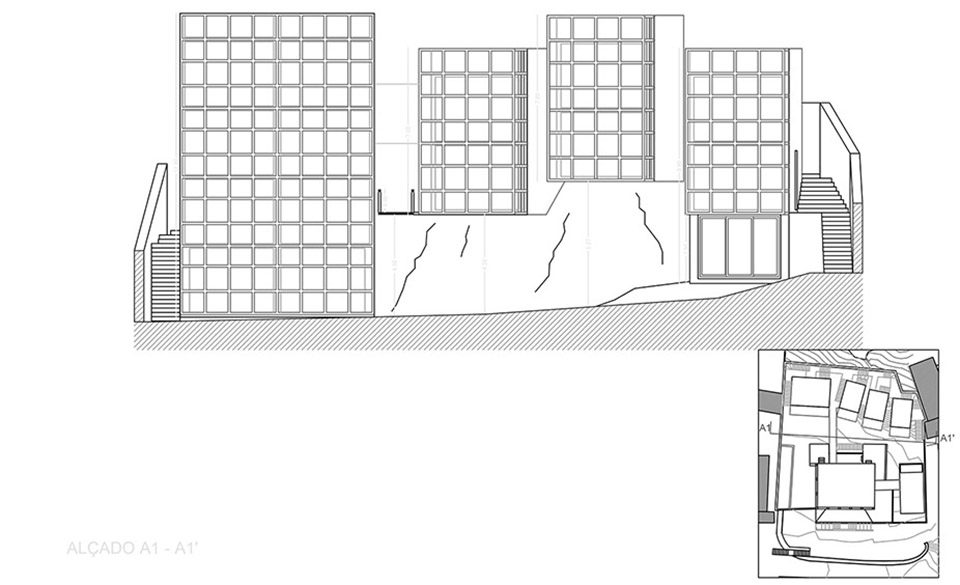

▼立面图A1,elevation A1

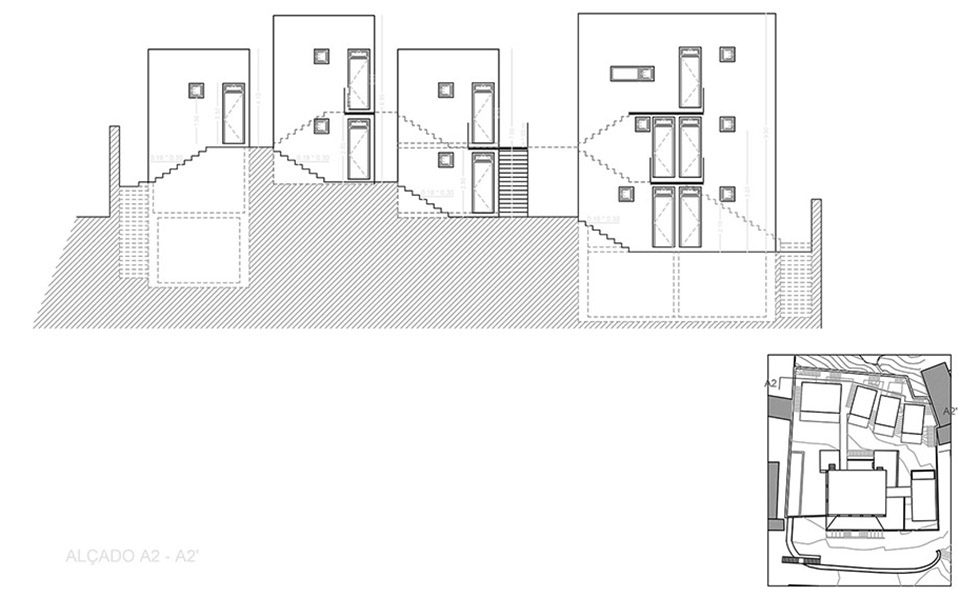

▼立面图A2,elevation A2

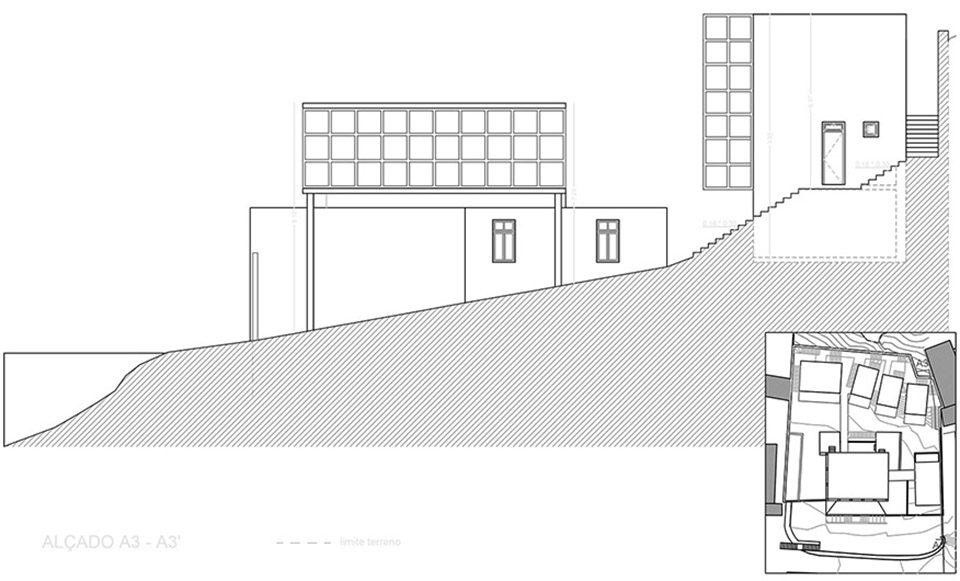

▼立面图A3,elevation A3

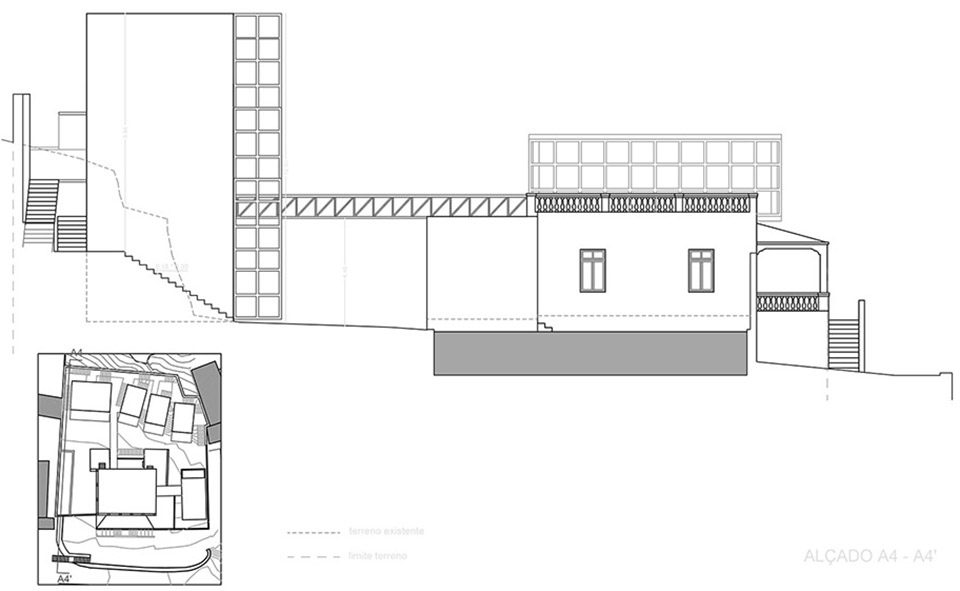

▼立面图A4,elevation A4

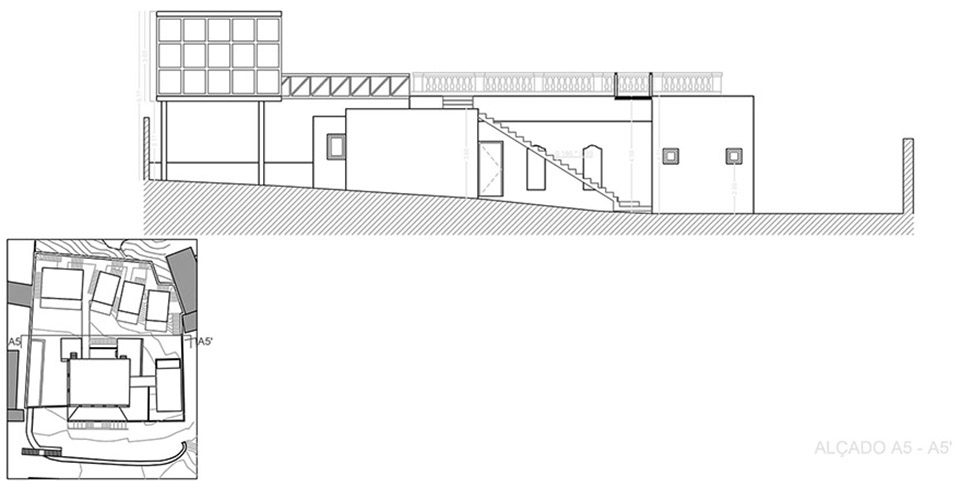

▼立面图A5,elevation A5

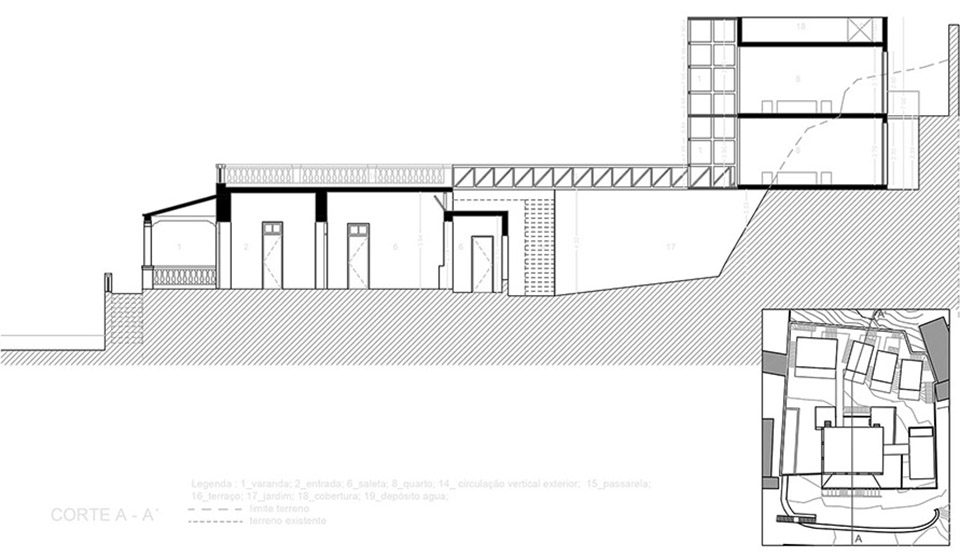

▼剖面图A,section A

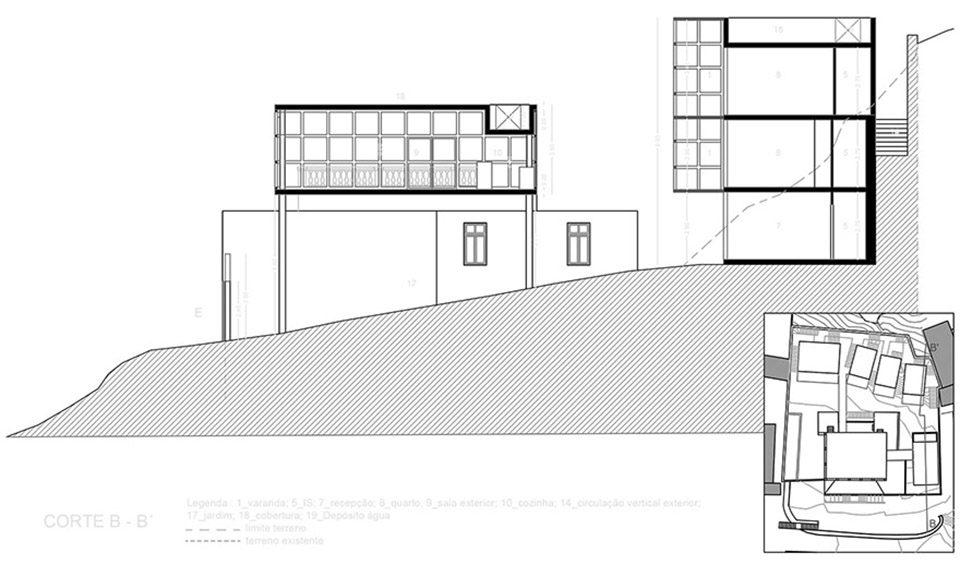

▼剖面图B,section B

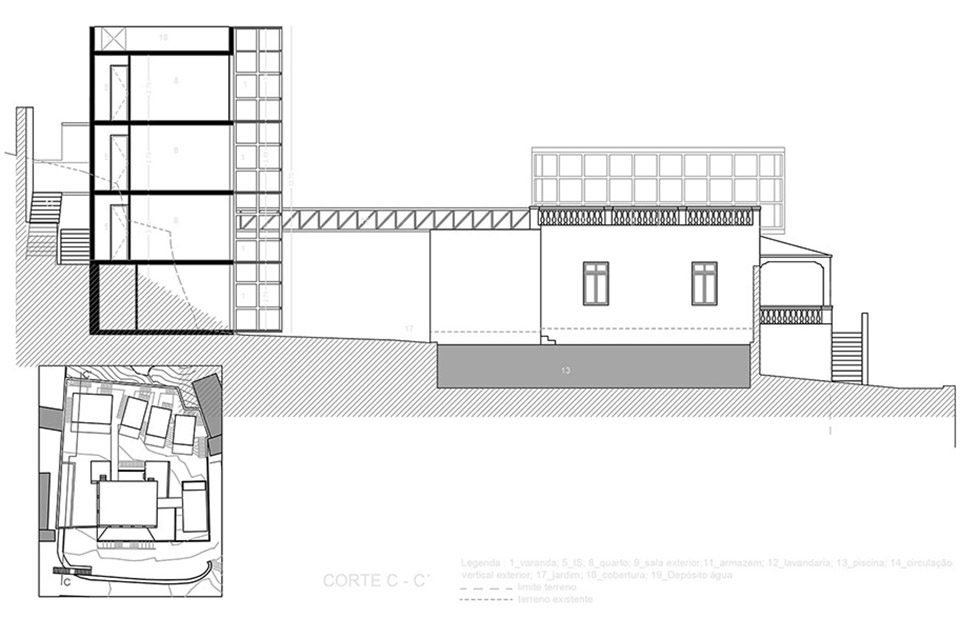

▼剖面图C,section C

project info:
location: mindelo, são vicente, cabo verde
client: terra lodge
studio: ramoscastellano arquitectos
architects in charge: eloisa ramos, moreno s. castellano
works supervision: moreno s. castellano
collaborators: camille cellier, marvin delgado
structural engineer: ilidio alexandre
builder: duka
carpenters: daniel cabanas, rui, mestre pulu
