来自 中国建筑西北设计研究院 对gooood的分享。更多请至：China Northwest Architecture Design And Research Institute on gooood
Appreciation towards China Northwest Architecture Design And Research Institute for providing the following description:

大汉坛建筑主体为钢结构，外饰装饰混凝土挂板、平面为四方“坛城”式布局，东西99米、总高19米，用适宜的尺度、简洁的造型、加之45°倾角，抽象而写意的概括了汉代文化的拙朴大美与震撼厚重，不仅深层次的表达了应有的场所意境也成为江苏丰县汉皇祖陵文化景区内重要的精神符号,是一座集汉代文化展示与楚汉文化体验于一体的文化类建筑。方形的平面与顶部的圆形构图，表现了天圆地方的朴素哲学概念，土黄色仿夯土肌理的外饰，点缀灰白色汉代纹样肌理，虚实相生，大道至简。华夏民族、独步银翰！大汉坛建筑设计昭示着这种文化自信与文化自觉。

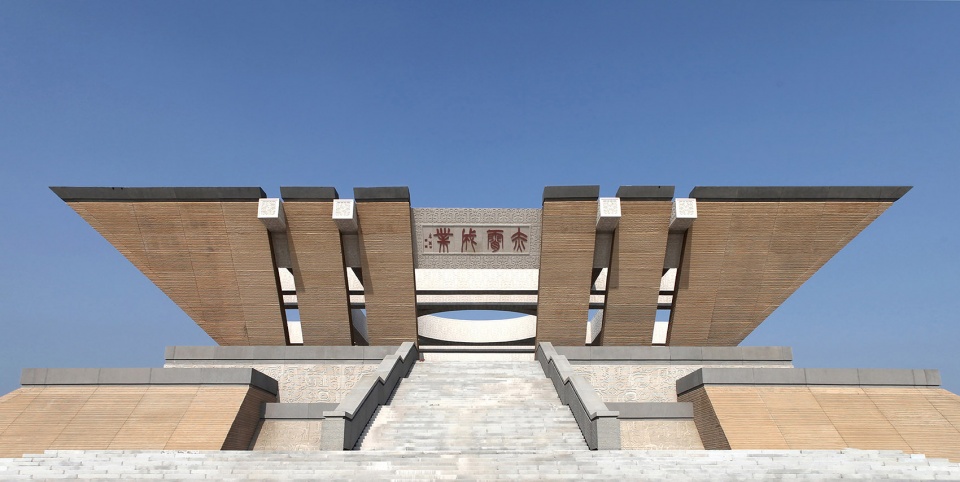

▼建筑外观，external view of the project ©屈培青

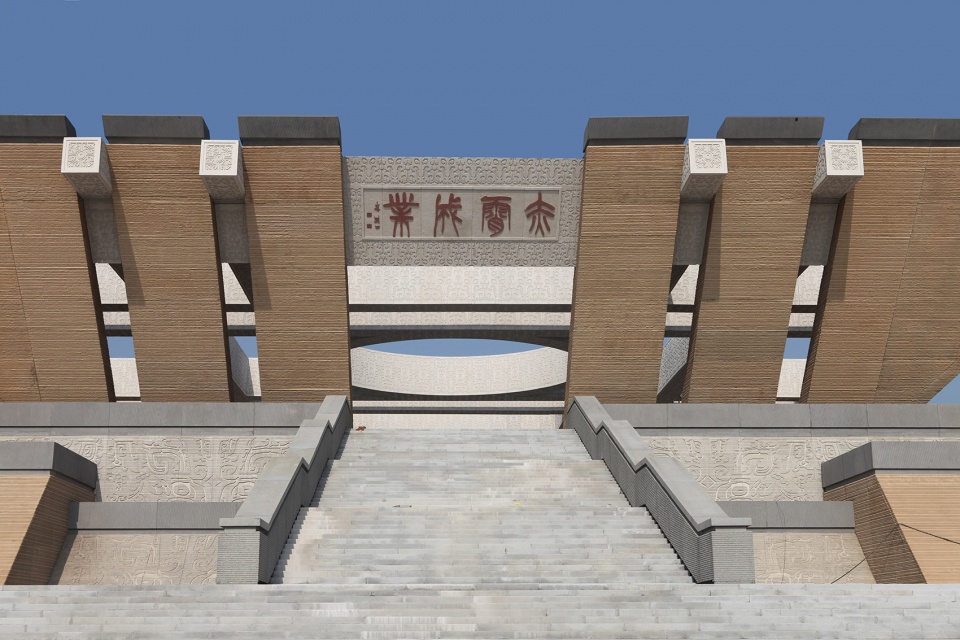

▼近景，closer view ©屈培青

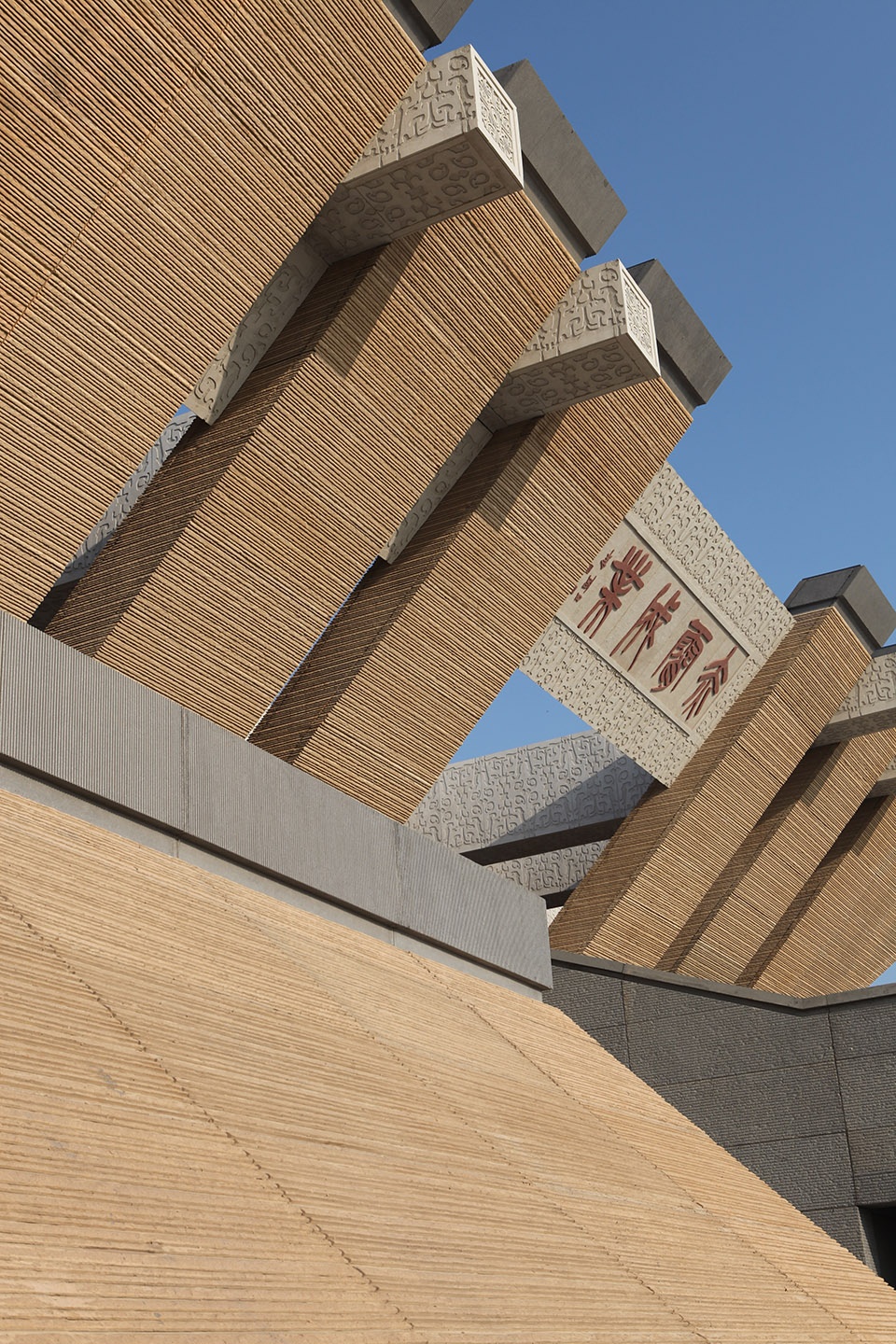

▼外立面细部，details of the facade ©屈培青

The main building of the Great Han Temple is a steel structure, whose exterior is decorated with concrete hanging plate, and its plane surface is a square “mandala” layout, 99 meters from east to west, with a total height of 19 meters, appropriate scale, simple style and 45° inclination angle. All of these abstractly and freehandly generalize the simplicity, unpretentious beauty and shocking richness of the Han culture, not only embodying all the scene artistic conception at a deep level, but making the building become an important spiritual symbol in the cultural scenic spot of the Han Emperor’s Ancestral Tomb in Feng County, Jiangsu as well. It is a cultural architecture integrating Handa, Chu and Han culture. The square plane and the circular composition at the top show the simple philosophical concept of square earth and spherical heavens. The exterior decoration of the earthy yellow imitating the texture of rammed earth is dotted with the gray-white Han Dynasty pattern texture. The virtual and real coexist, and the avenue is simple. Chinese nation, unique in in the world! The architectural design of the Great Han Temple declares this kind of cultural self-confidence and cultural consciousness.

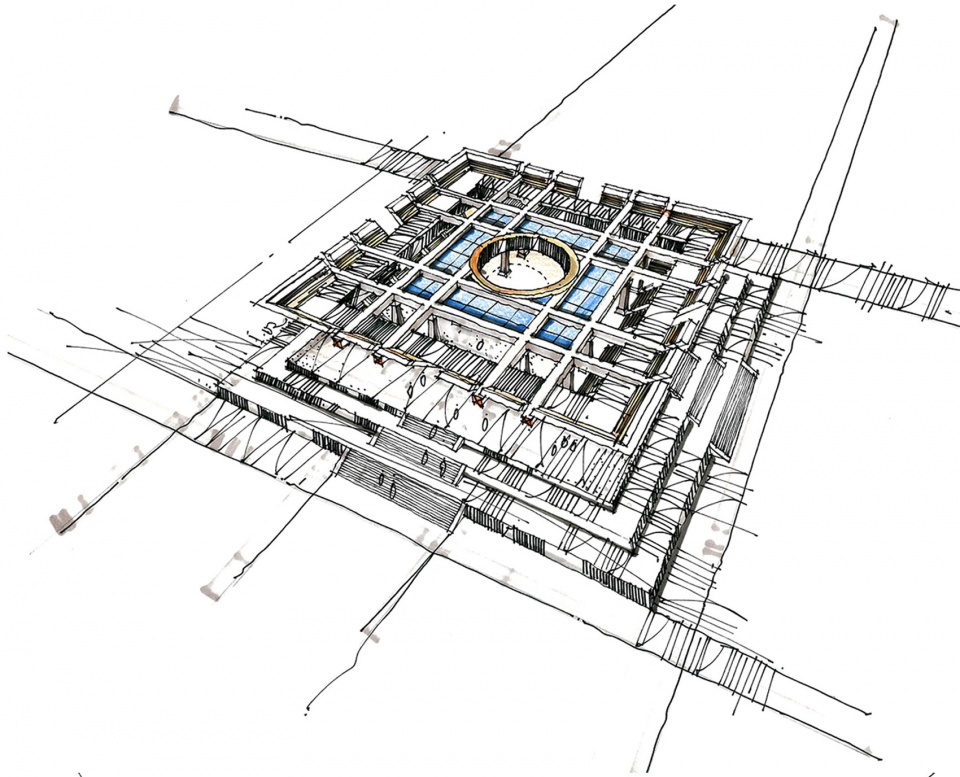

▼设计草图，design sketch ©中国建筑西北设计研究院

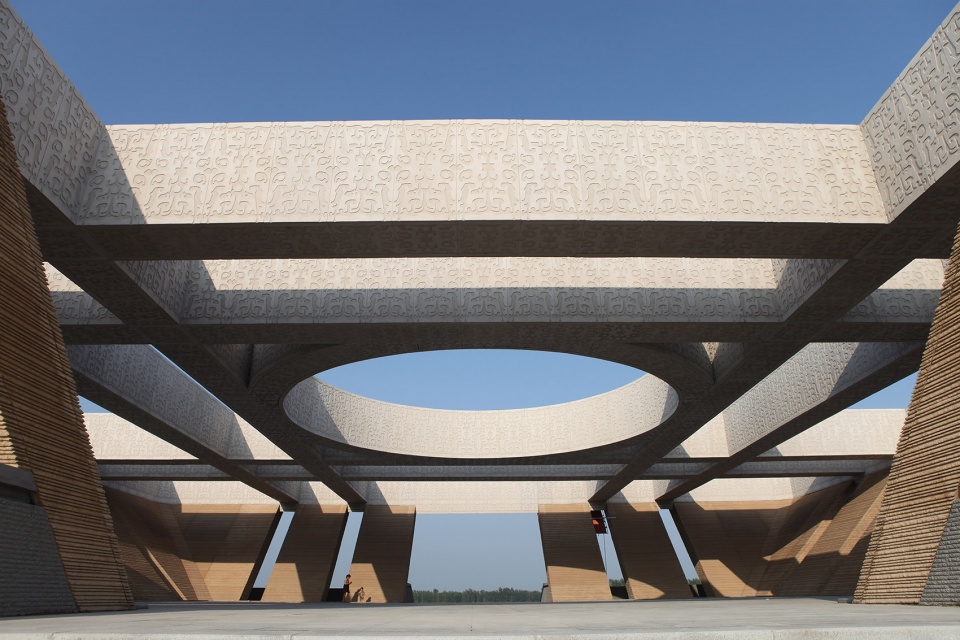

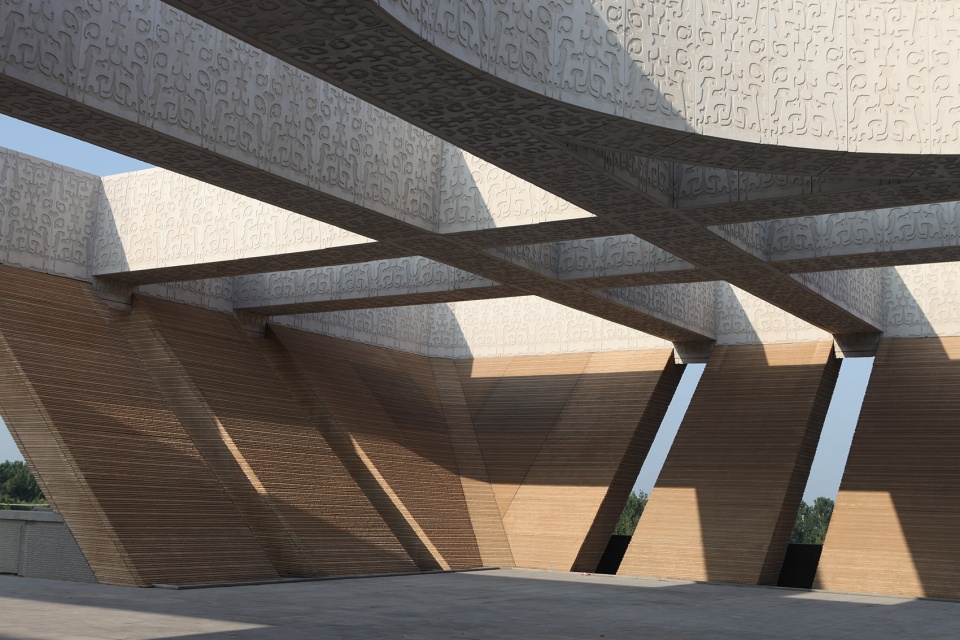

▼建筑内部空间，inside the structure ©屈培青

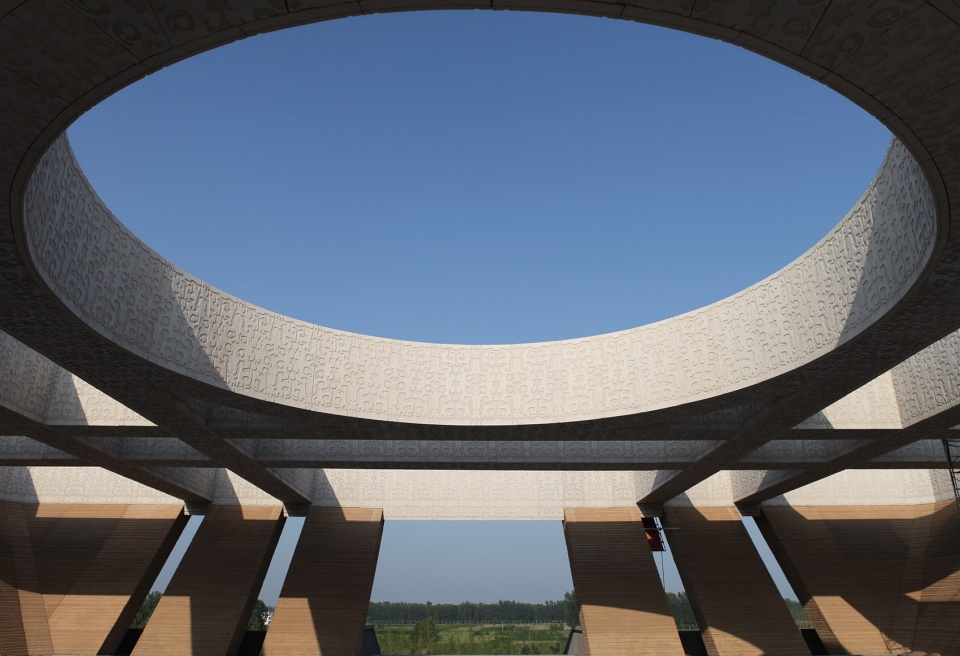

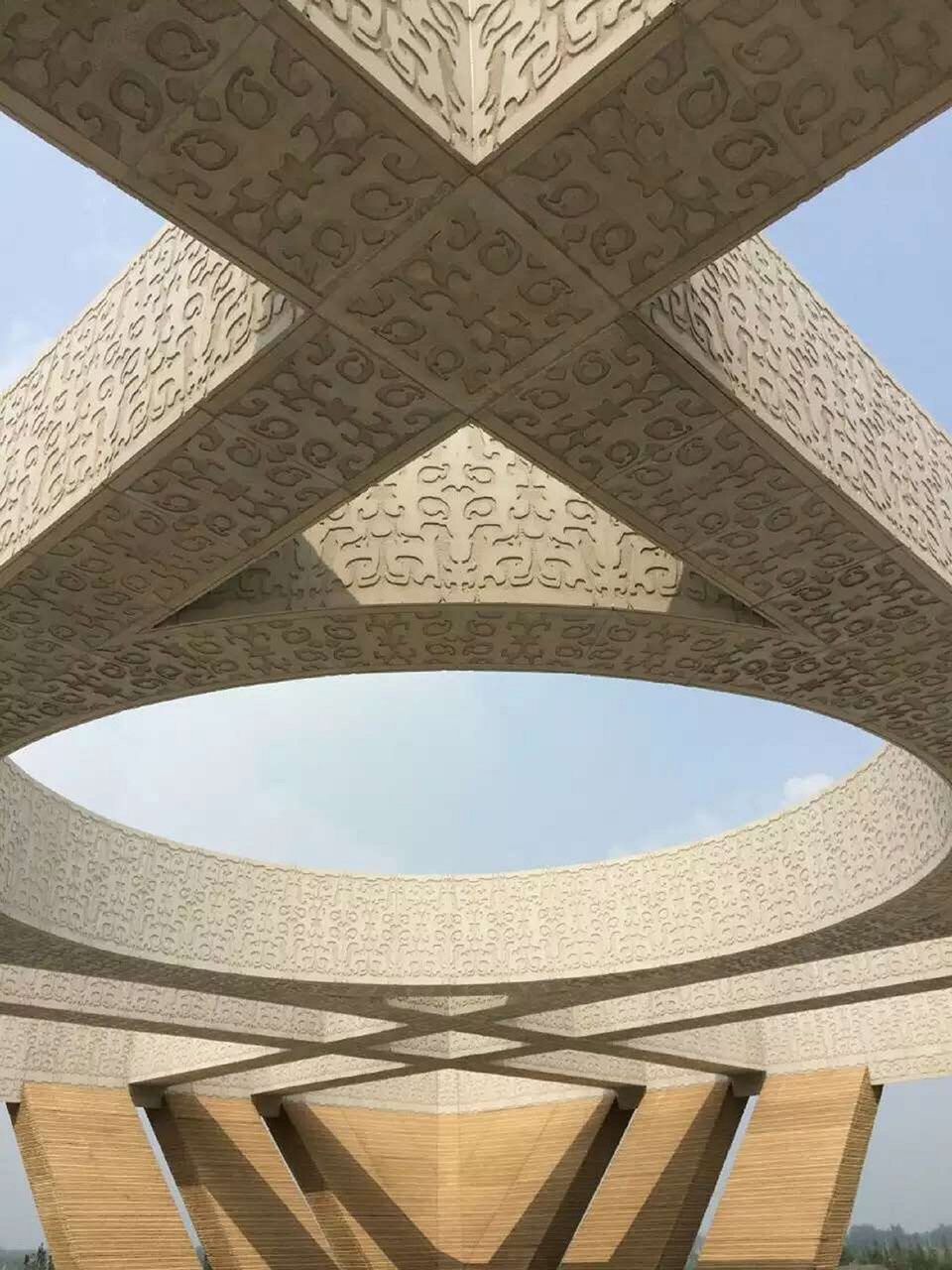

▼顶部的圆形结构，circular structure on the roof ©屈培青

▼纹理细部，closer view to the patterns ©屈培青

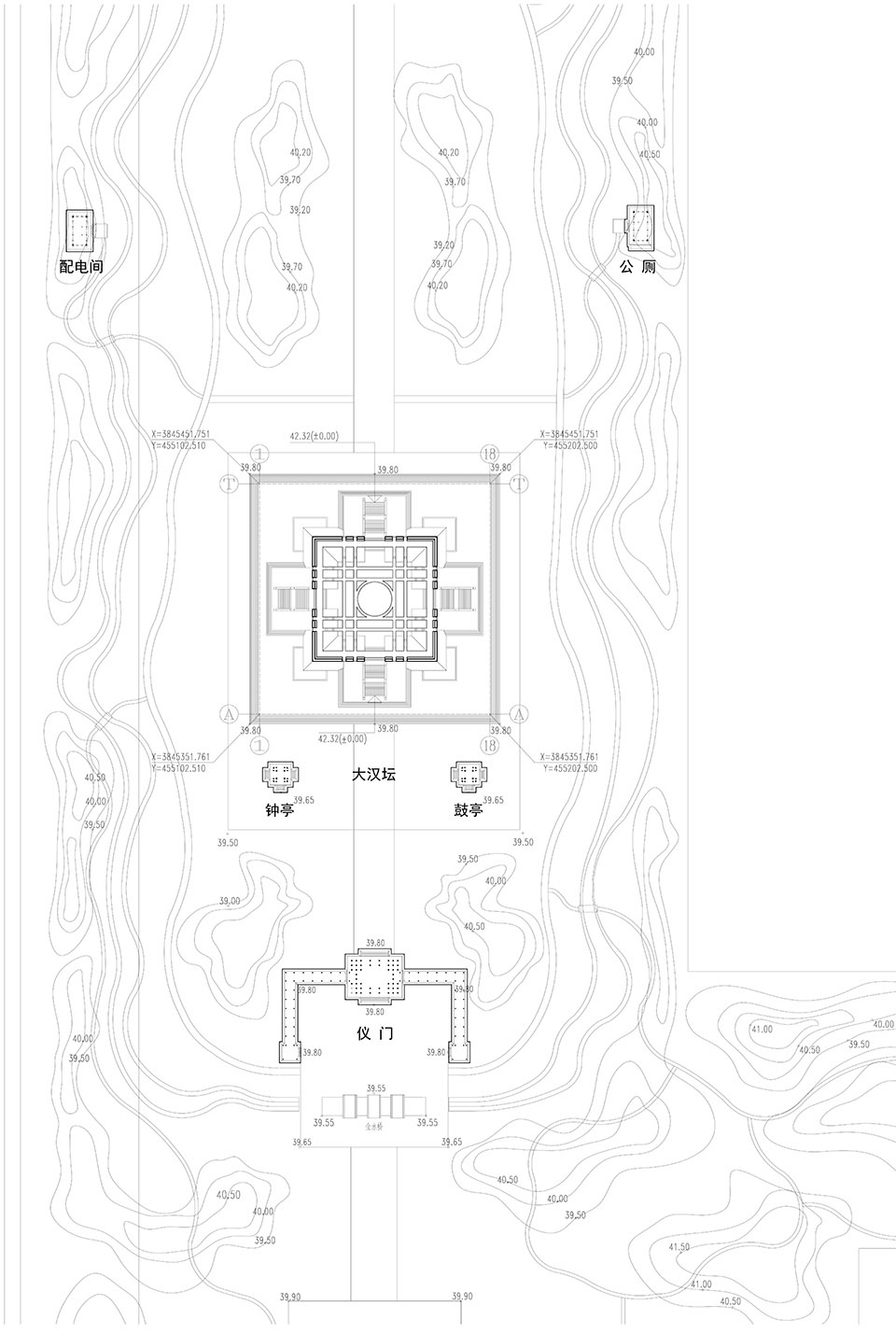

▼总平面图，site plan ©中国建筑西北设计研究院

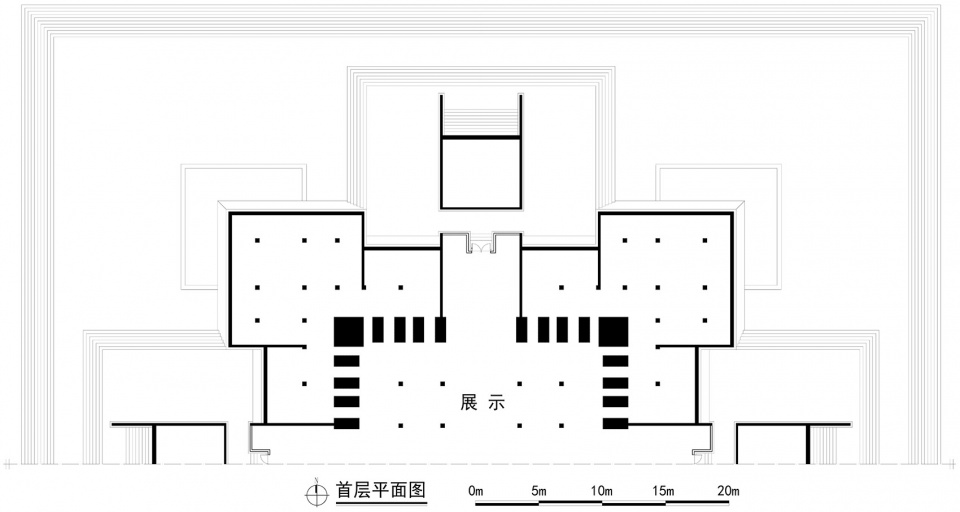

▼首层平面图，first floor plan ©中国建筑西北设计研究院

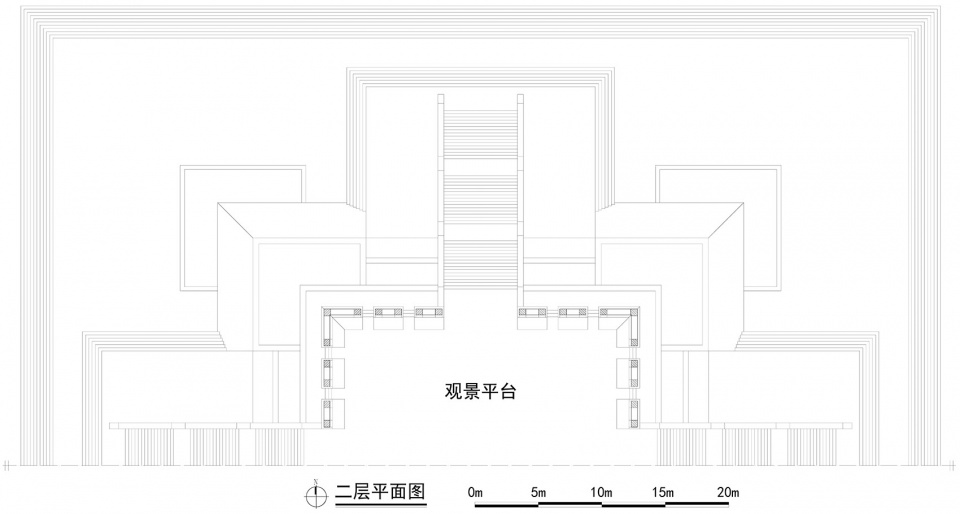

▼二层平面图，second floor plan ©中国建筑西北设计研究院

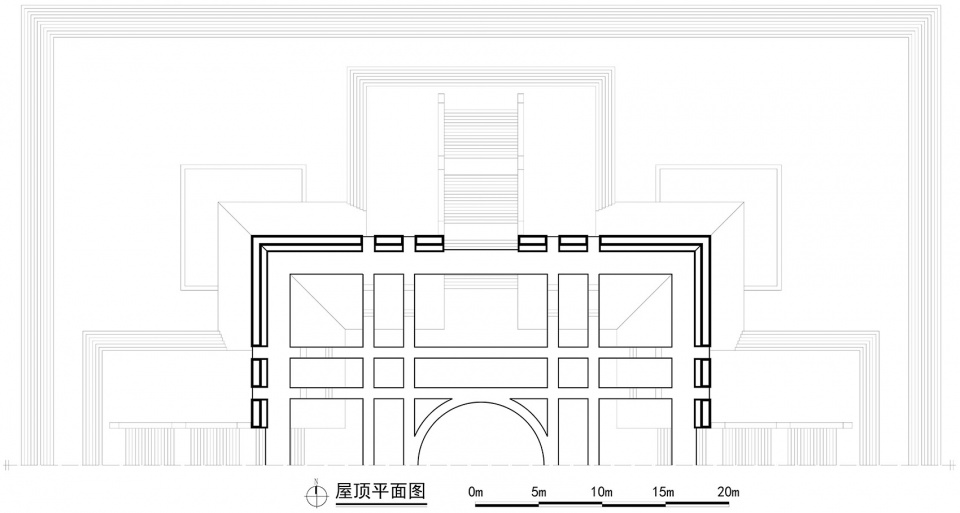

▼屋顶平面图，roof plan ©中国建筑西北设计研究院

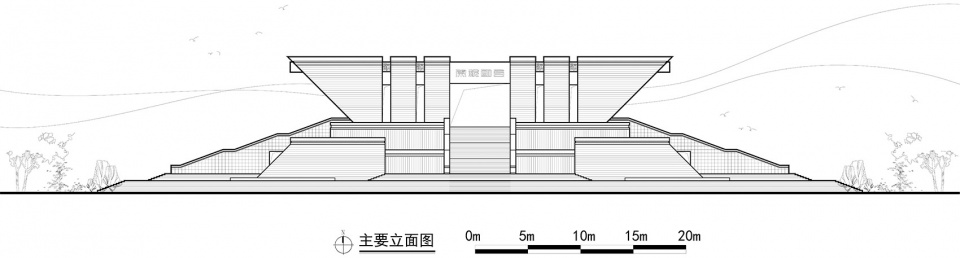

▼立面图，elevation ©中国建筑西北设计研究院

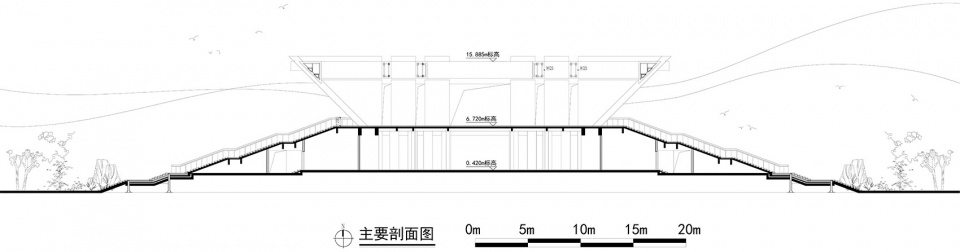

▼剖面图，section ©中国建筑西北设计研究院

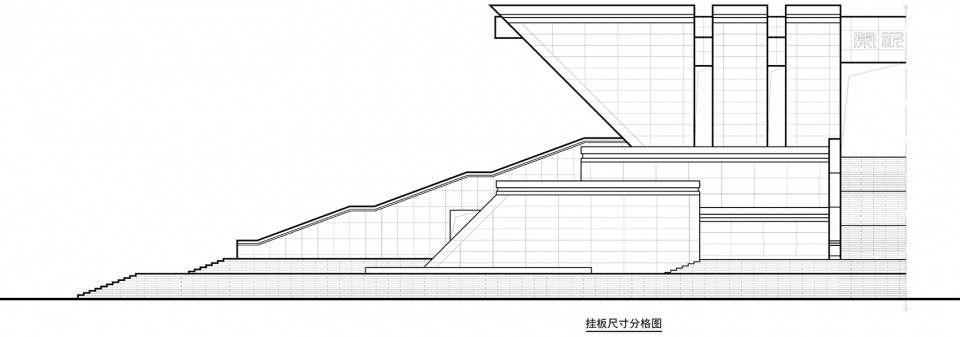

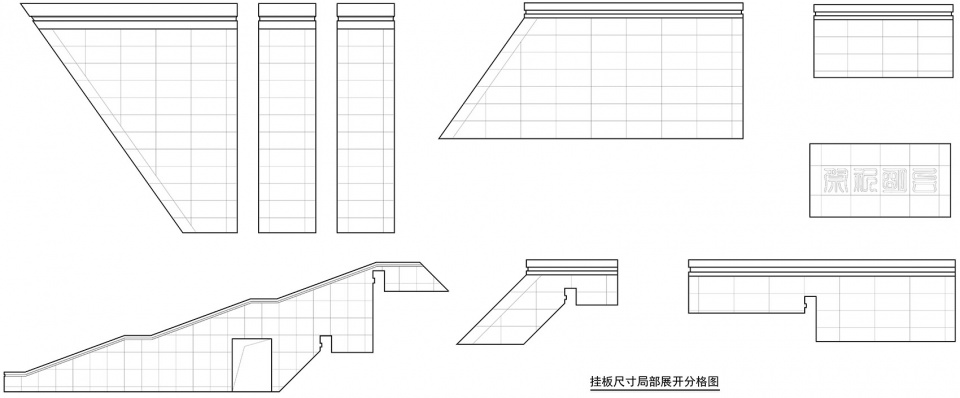

▼挂板设计图纸，design drawings of the surface panels ©中国建筑西北设计研究院

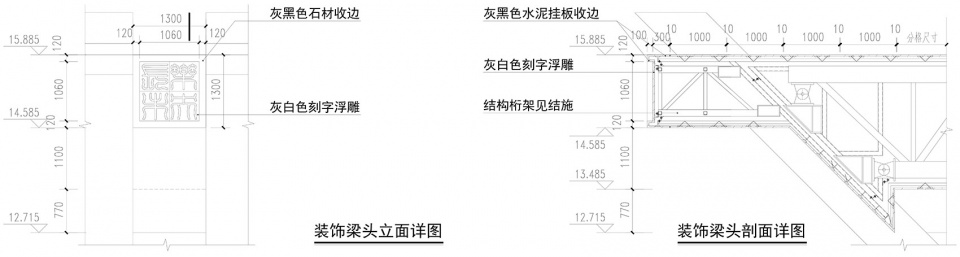

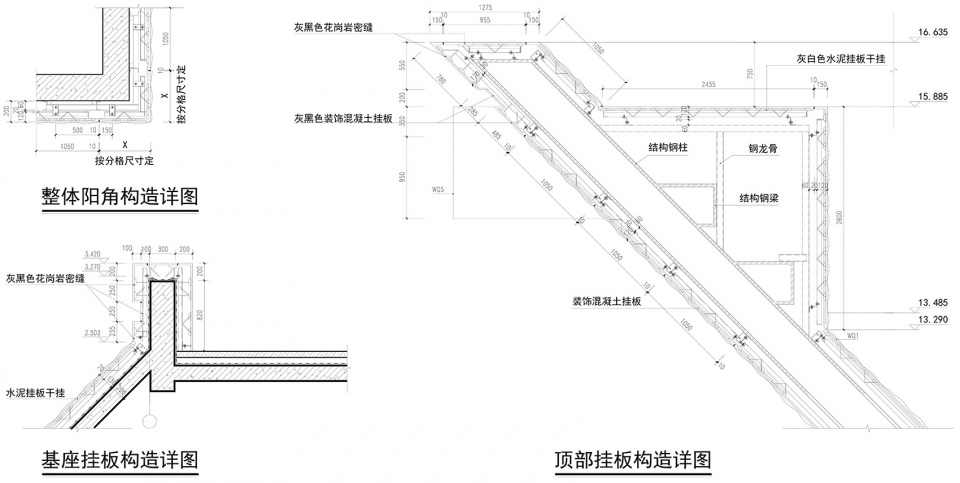

▼详图，detail drawings ©中国建筑西北设计研究院

项目名称：大汉坛,徐州丰县，江苏省，中国
设计方：中国建筑西北设计研究院
公司网站：http://www.cscecnwi.com
设计时间：2014
完成年份：2015.7
主持建筑师：屈培青
建筑专业：徐健生高伟
白少甫于新国
结构专业：王世斌刘伟
给排水专业：王彬
电气专业：季兆齐李士伟
项目地址：徐州丰县，江苏省
建筑面积：11811.86平方米
摄影版权：屈培青
品牌：北京宝贵石艺

Project Name: Temple of Han Dynasty, Feng County, Xuzhou, Jiangsu, China
Design: China Northwest Architecture Design And Research Institute
Website: http://www.cscecnwi.com
Design Year:2014
Completion Year: 2015.7
Architect in Charge: Qu Peiqing 
Architecture Major: Xu Jiansheng, Gao Wei, Bai Shaofu, Yu Xinguo 
Structural Major: Wang Shibin, Liu Wei 
Water supply and drainage major: Wang Bin 
Electrical Major: Ji Zhaoqi Li Shiwei
Project Location: Feng County, Xuzhou, Jiangsu Province
Gross Built Area: 11811.86㎡
Photo Credits: Qu Peiqing
Brands: Beijing precious stone art
