非常感谢 杜兹设计 对gooood的分享。更多关于：DUTStudio on gooood.
Appreciation towards Gallery by DUTStudio for providing the following description:

儿童是我们的未来。在多维的语境下，儿童空间正在走向多义的公共文化空间，带来更多丰富的成长体验。杜兹设计的最新力作 — 长颈鹿美语前滩空间日前揭开面纱，在总面积约630平米的不规则空间内，设计师为孩子们打造了一部“流动的篇章”，带来了更多的全新惊喜体验。

Children are our future. In a multi-dimensional world, children’s space is moving towards to a more multi-functional level, bringing more public cultural exposure and more rich experience for growth. DUTS Design presents its latest space renovation design project, a multi-functional kids space based in Qiantan, Pudong district of Shanghai. In an irregular space with a total area of about 630 square meters, the architectures of DUTSdesign have created a “Flowing Chapter” for children, bringing more new surprise experience.

▼空间一览，overall view of the space ©吴清山

设计灵感 — 魔毯上的学校
Design Inspiration – School on the Flying Carpet

本案项目为不规则的异形空间，由不同夹角墙面相接而成。杜兹设计的设计团队最初看到这个空间格局的印象是，“这个空间的格局就像一个探出的鹿头，很可爱，但对于空间布局和改造来说，则是一个巨大的挑战。”英语、品格力、多元知识、个人表达是长颈鹿美语为孩子提供的基本需求。基于功能的定位，在这个总共630平米的不规则空间中，需要加入一个开放式剧场，一个图书馆，八个教室，以及接待和办公区间。同时，由于该地块位于前滩板块，面向开放的人流广场，需同时考虑公共展示的功能。

The original space of the project is irregular shaped, formed by the connection of walls with different angles. When the design team of DUTS Design saw this space, “This layout of the space looks like the head of a deer, which is cute, but it is a huge challenge for the designers for space renovation and transformation.” English, Personality building，Multi-knowledge and Personal expression are the basic needs of children provided by English Giraffe. Based on functional positioning, an open theater and stage, library with reading space, 8 classrooms, reception and offices for staff need to be put in this irregular space with only 630 square meters. Facing the square with crowds, display window for public shall also be taken into consideration.

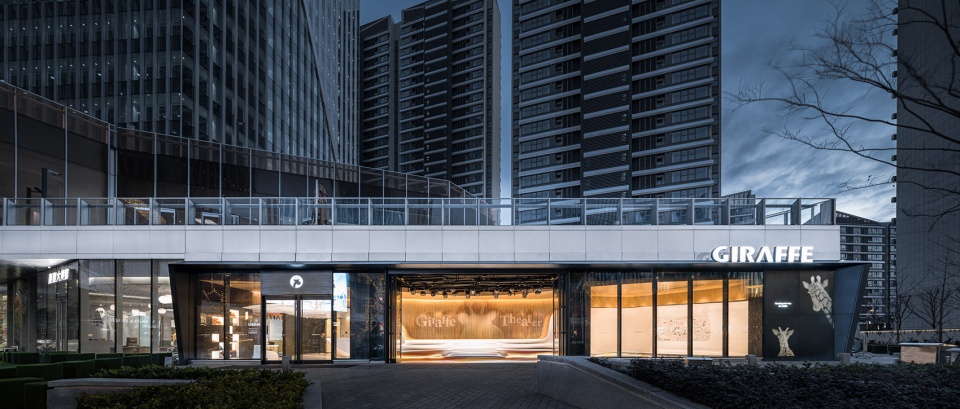

▼项目外观，面向开放的广场，external view of the project facing the public plaza ©吴清山

如果横向布局的空间有限，何不借助层高优势做立体布局设计呢？该空间层高5米，有一定空间优势。“对于孩子们来说，高高低低的空间，就好像是一张魔毯，会给他们带来更多体验与探索乐趣。”设计草图经过多次修改后，一所“魔毯上的学校”诞生了。使各个教室互相独立并在结构上令其抬高，和室内地坪脱离，营造出悬浮的美感。在横向平面功能中增加纵向结构空间的层次和动感，将抬高的边缘处理成“薄”和“飞舞”的形态。

If the space for horizontal layout is limited, why not take full advantages of vertical height? The height of the space is 5 meters, which is good for some renovation for it. “For children, the high and low space is like a flying magic carpet, which will bring them more exploration experience and have fun.” After the design sketch, “A School on the flying magic carpet” was born. Each classroom is independent and be raised in structure to separate from the indoor floor, creating a suspended feeling and aesthetics. Combining horizontal layout together with vertical structure, the space becomes more dynamic ,with rich layers ,while holding “thin”and “flying” shapes.

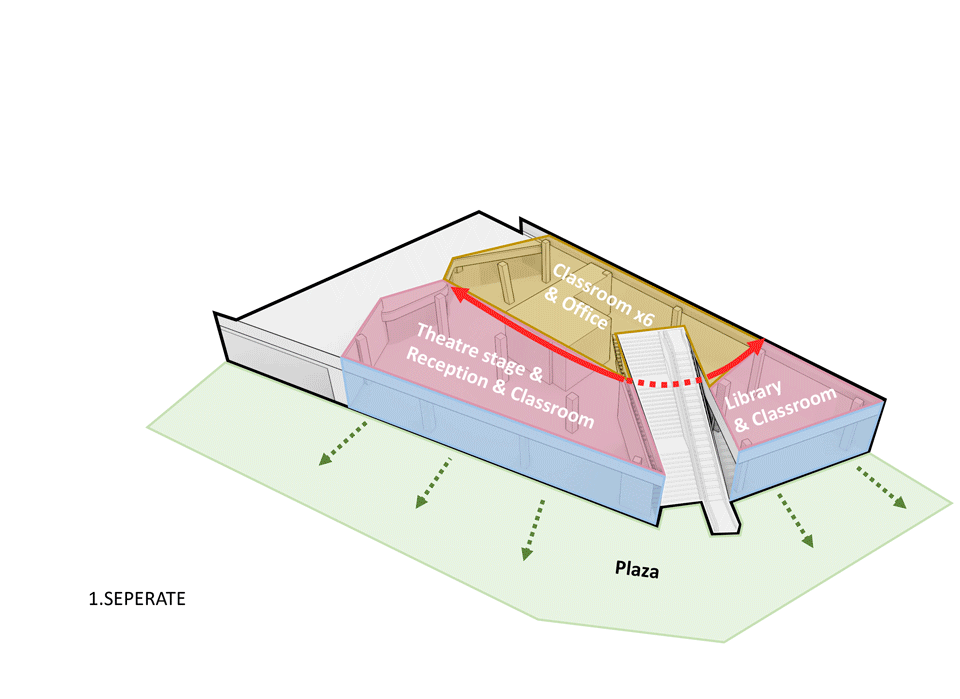

▼生成过程，generation diagram ©杜兹设计

在综合考虑空间、功能、人流、层高、安全等情况下，经过不断的推演构思，将拥有互动展示功能的表演舞台、戏剧教室、图书教室、前台等空间布置于沿街的玻璃幕墙区域；通过异形中寻找正形空间关系的方式，将6个常规的教学教室及办公室布置于安静的空间腹地，实现空间的极致发挥。

In consideration of space, function, flow of people, floor height, safety, etc., after continuous deduction, the performance stage, drama classroom, library classroom, reception and other spaces with interactive display functions are arranged in the glass curtain wall area along the street; 6 English classrooms with square shape and staff offices are located in the quiet hinterland to realize the ultimate use of space.

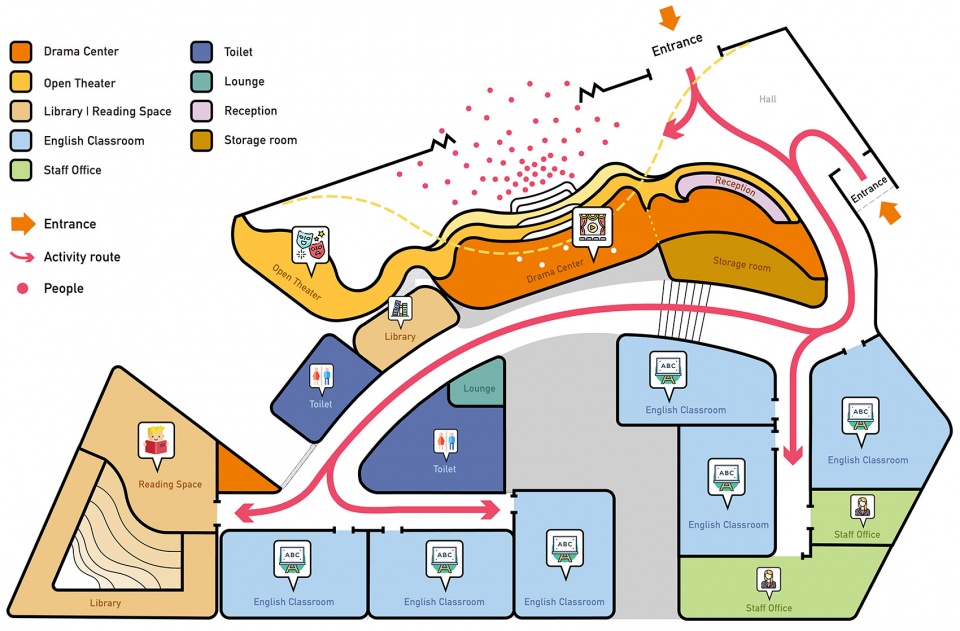

▼流线及功能分布，circulation and program in the project ©杜兹设计

270度环形橱窗 — 将公共文化展示融于商业设计
270-degree Window display – integrate public cultural display into commercial design

空间位于上海目前最为热门的晶耀前滩首层，面朝最热闹的文化广场，同时也兼具公共文化的展示功能。我们在“鹿头”的两侧区域设置了270度的环形橱窗，将戏剧舞台与悬浮的图书馆空间变为天然的展示橱窗，成为了前滩版块令人惊艳的公共文化展示空间。

The space is located in the 1^st floor of Crystal Plaza mall in Qiantan section in Shanghai, facing the most lively square, and also has the function of cultural displaying to public. We set up a 270-degree circular window display on both sides of the “Deer Head”, turning the theater stage and suspended library space into a natural display window, which became a stunning public cultural display space in the Qiantan section .

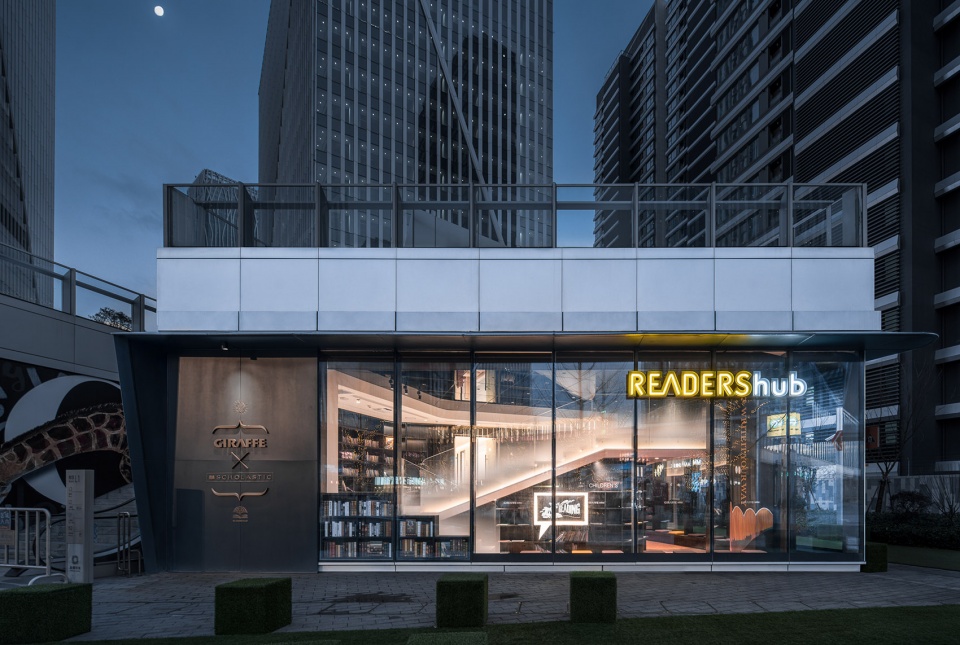

▼270度玻璃立面，270-degree circular glass facade

▼玻璃橱窗向城市展示室内空间，the interior space was displayed to the city through the glass facade ©吴清山

流动的篇章 — 层层递进的沉浸式学习之旅
Flowing Chapter — Create immersive exploring journey for Children

抽象起伏的流线是本次设计的核心。以功能与体验导向,我们为孩子们设计了一组充满想象力的动线，并命名为“流动的篇章”。开放式舞台、戏剧教室、图书馆被巧妙结合起来，如同一本吸引人去不断探索的魔法之书，吸引着孩子们不断地进行探索与发现更多乐趣。

Abstract undulating flow lines are the core of this design project. Oriented by function and experience, we designed a set of imaginative moving lines for children, and named it as “Flowing Chapter”. The open stage, drama classroom, and library are smartly integrated in the scene-based space, like a magic book that attracts children for continuous exploration and have rich experience.

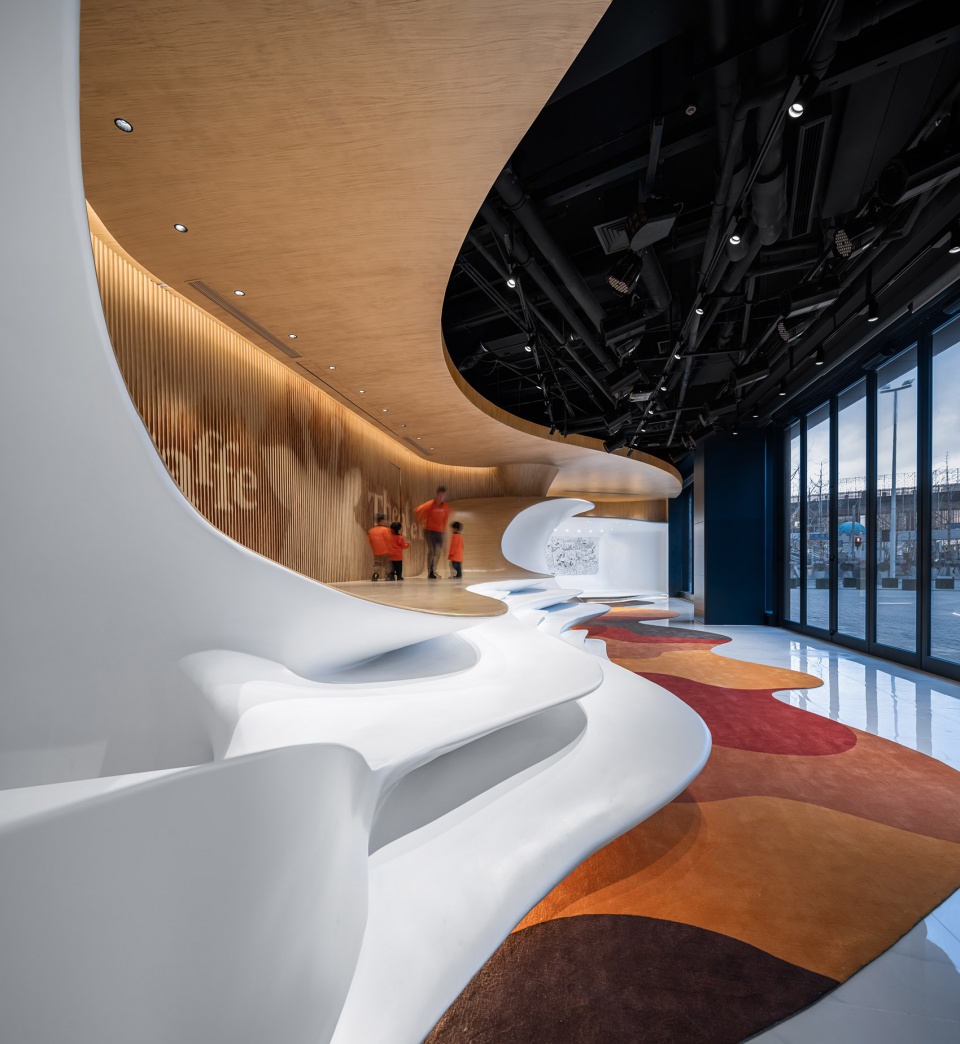

▼流动的室内空间，flowing interior spaces ©吴清山

“为孩子们设计一个流动的空间，让他们能在其中进行一场沉浸式的学习之旅。”

“Design a flowing space for children so that they can have an immersive learning journey in it.”

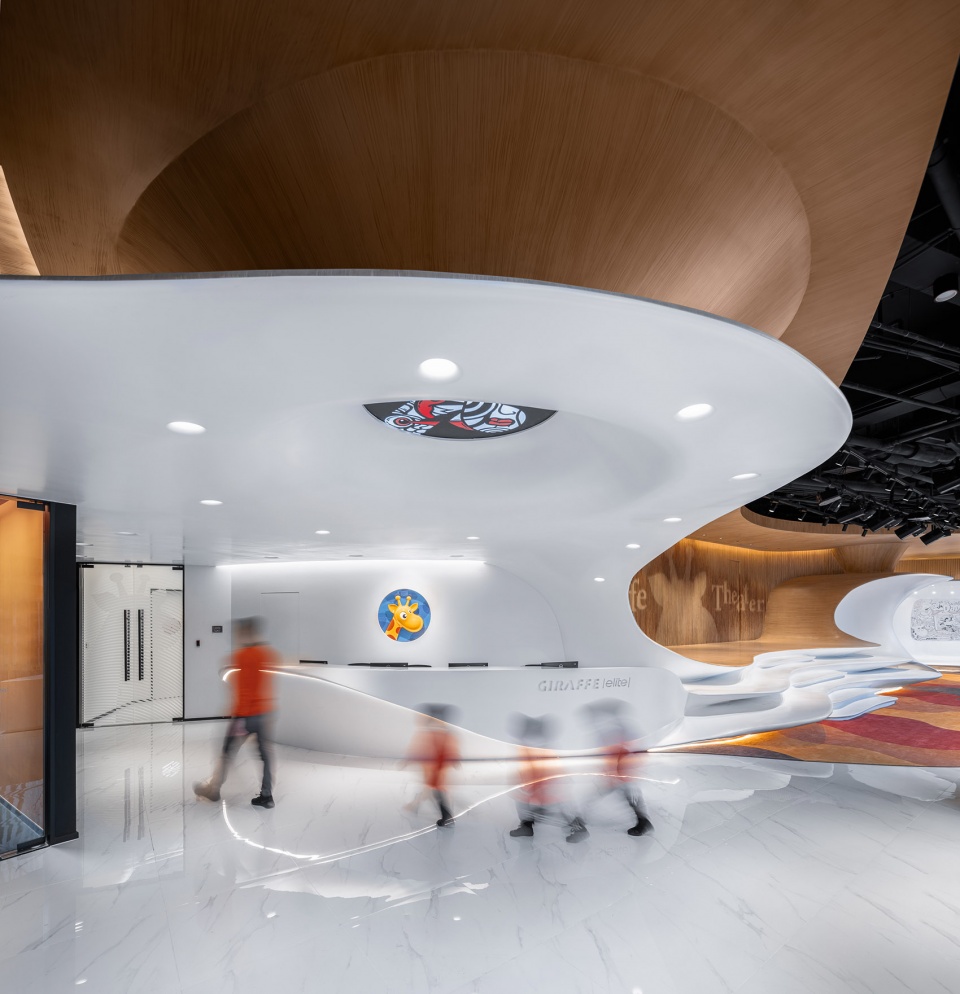

入口设计分别考虑了商场人流与广场人流的动线，并贴心地为从商场进入的孩子们设计了一座“魔法隧道“入口。当孩子们好奇地钻过这个隧道，就进入了充满想象力的流动空间。

The main gate pf the space is facing the square. Taking into consideration for flow of people in the mall , we created a special “magic tunnel” entrance for the children entering the space from the shopping mall. When the children curiously drilled through the tunnel, they entered the imaginative flowing space.

▼入口，entrance ©吴清山

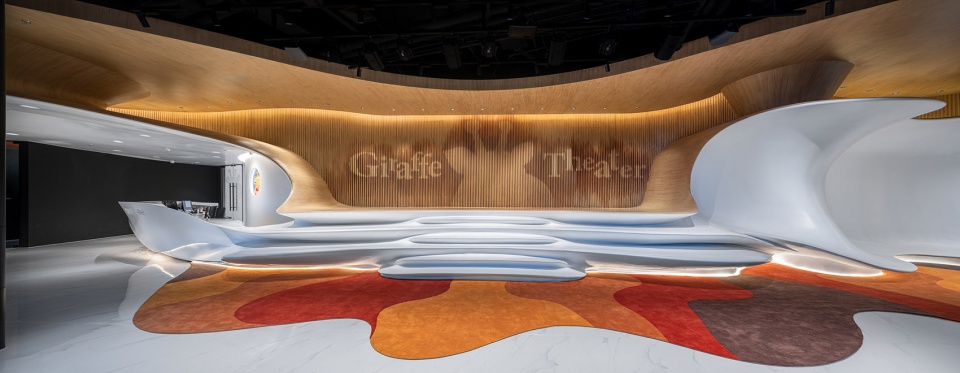

面向广场的“开放式剧场”，是整个空间最核心所在。整个大厅被设计成为了一个流动的舞台，是孩子们学习、排练和演出的伙伴。在每一期的课程结尾，都会有一场汇报演出，我们很欣慰地看到每一位孩子淋漓尽致的表演和每一位家长脸上洋溢的浓浓的自豪感。

The “Open Theater” facing the square is the core of the whole space. The whole hall is designed as a flowing stage, which is a partner for children to learn, rehearse and perform. At the end of each course, there will be a report performance. We are very pleased to see the vivid performance of each child and the deep pride on the face of each parent.

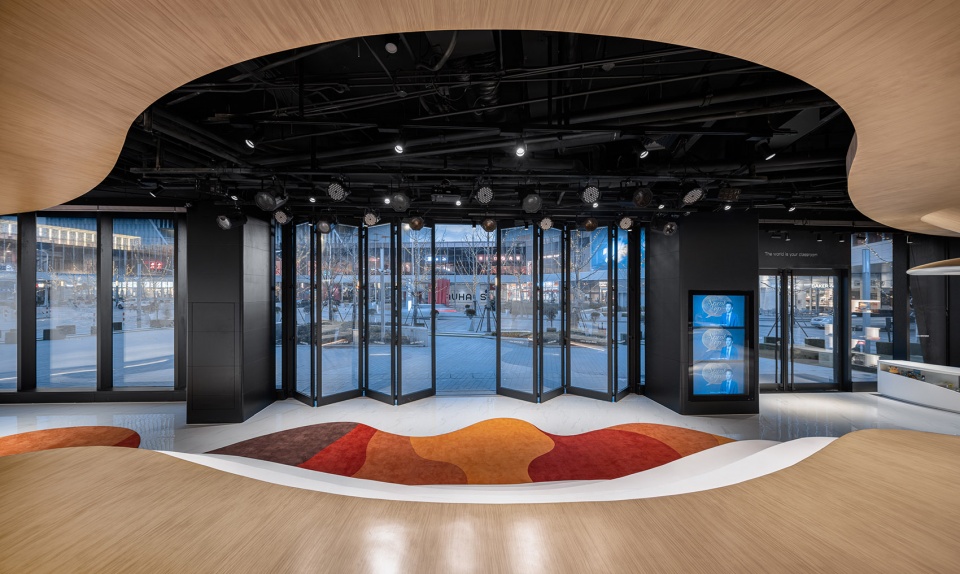

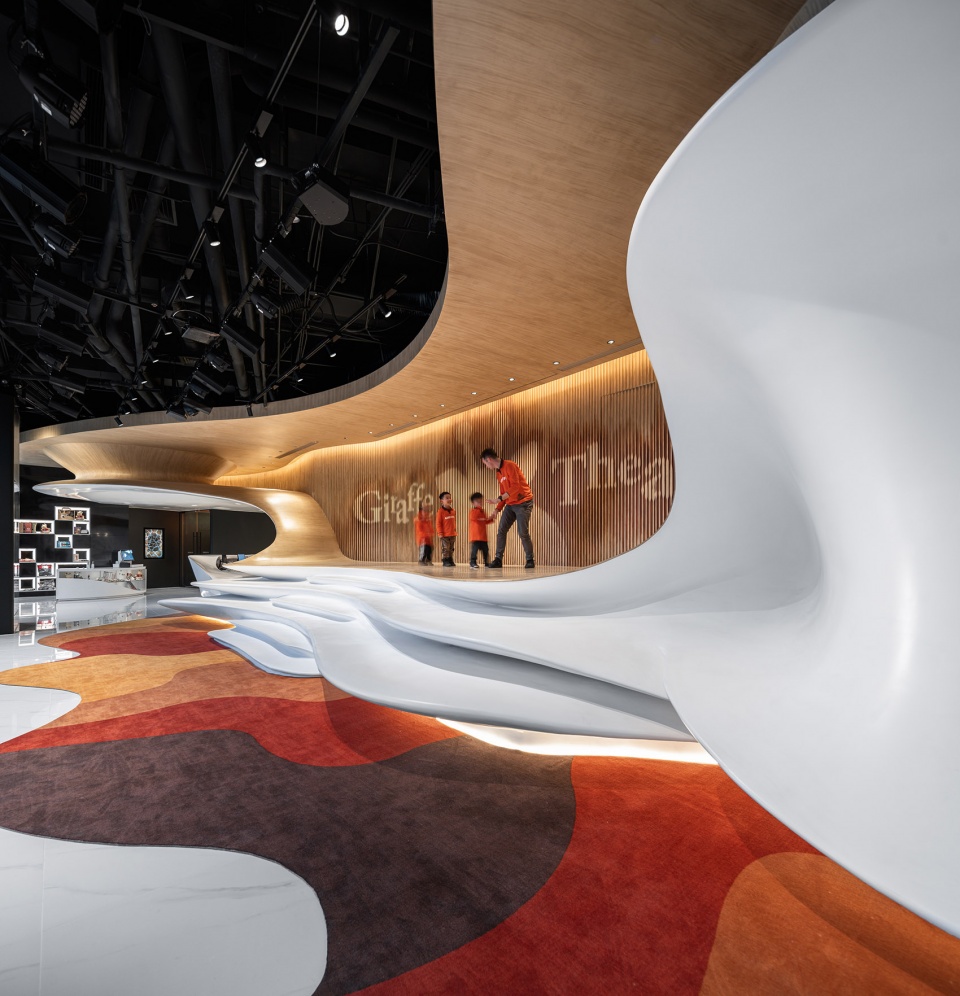

▼开放式剧场，open theater ©吴清山

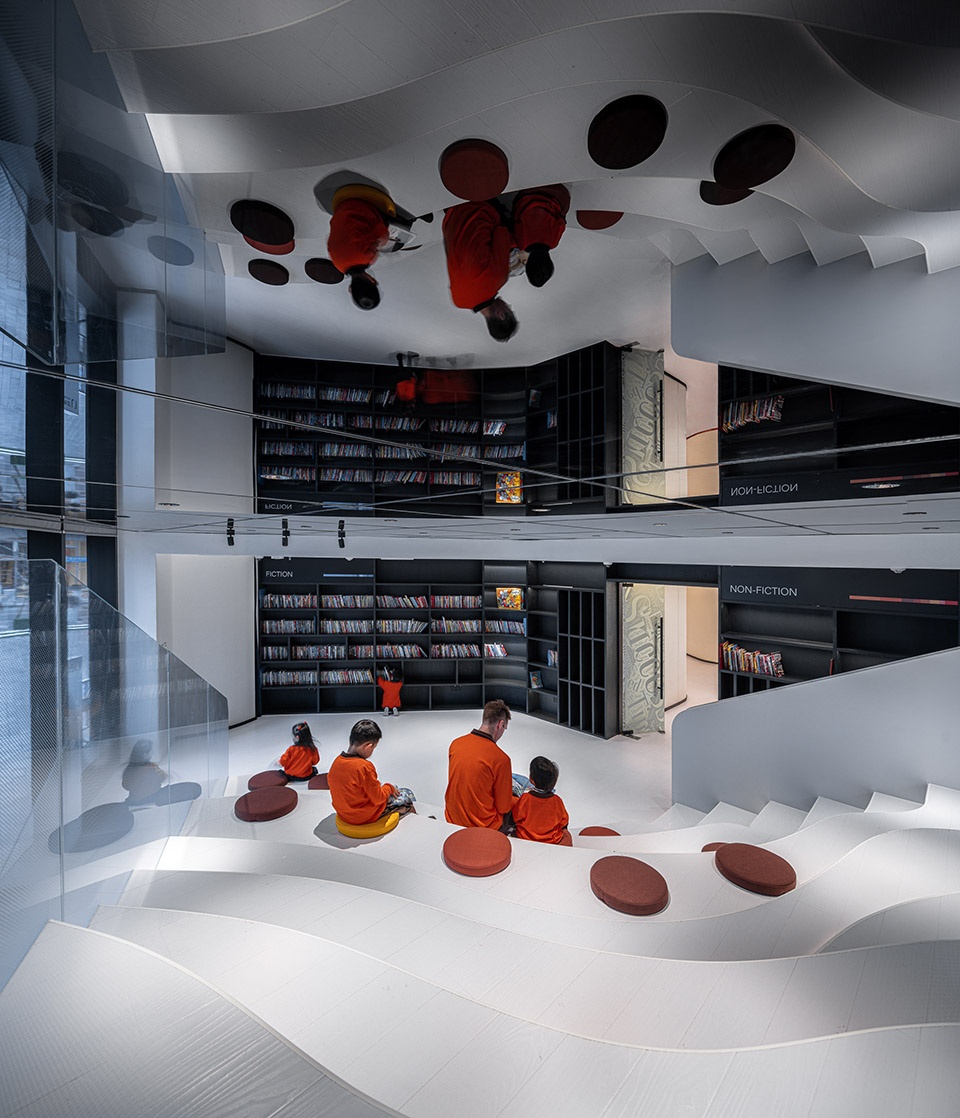

随着抽象起伏的流线，我们进入了阅读空间。这里被设计为了一座错落起伏的“阅读剧院”，孩子们高高低低错落坐于其中，享受属于阅读的宁静乐趣。

With the abstract undulating flow, we entered the reading space, which is designed as a “Reading Theater” with stairs, where the children sit high and low, enjoying the quiet pleasure of reading.

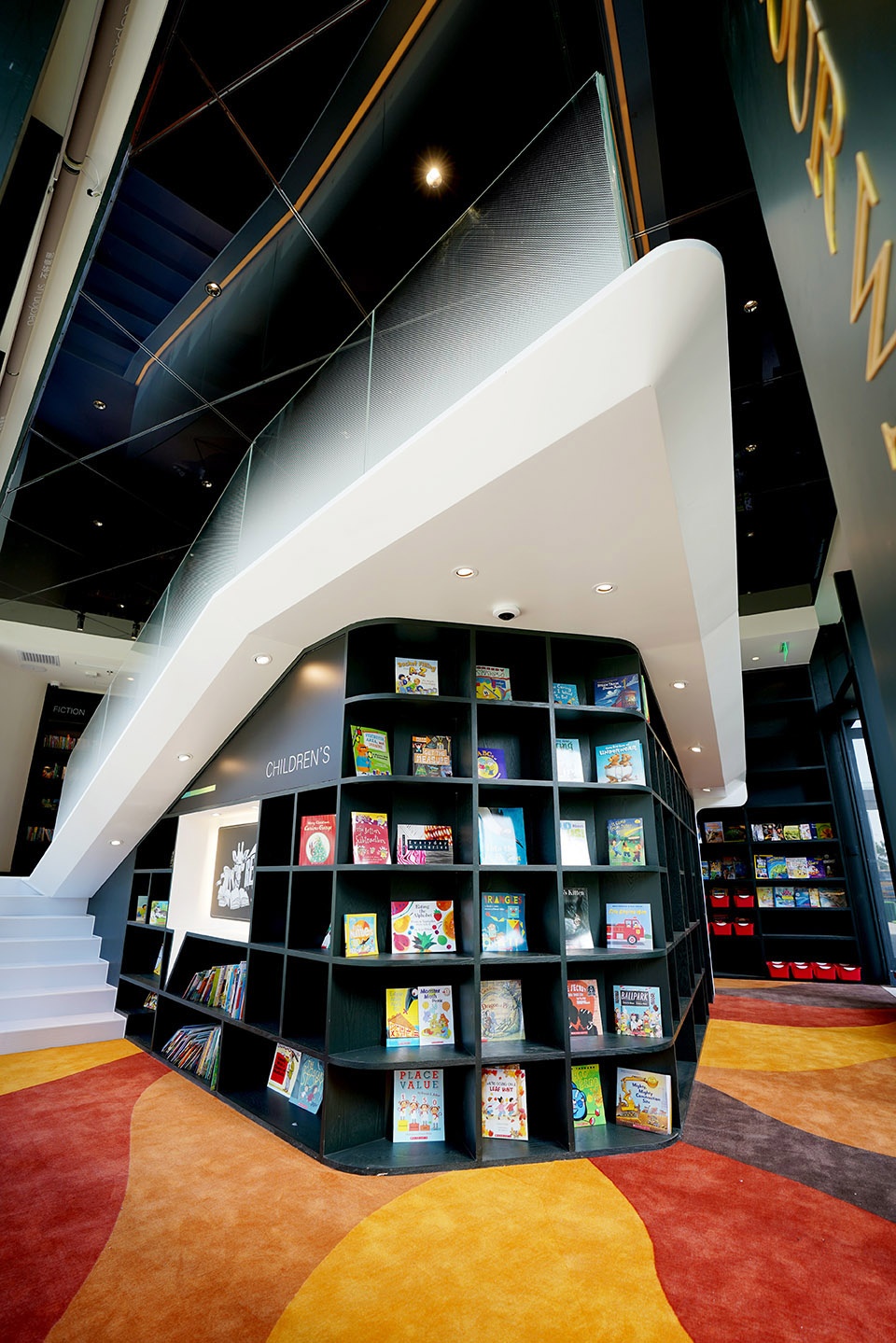

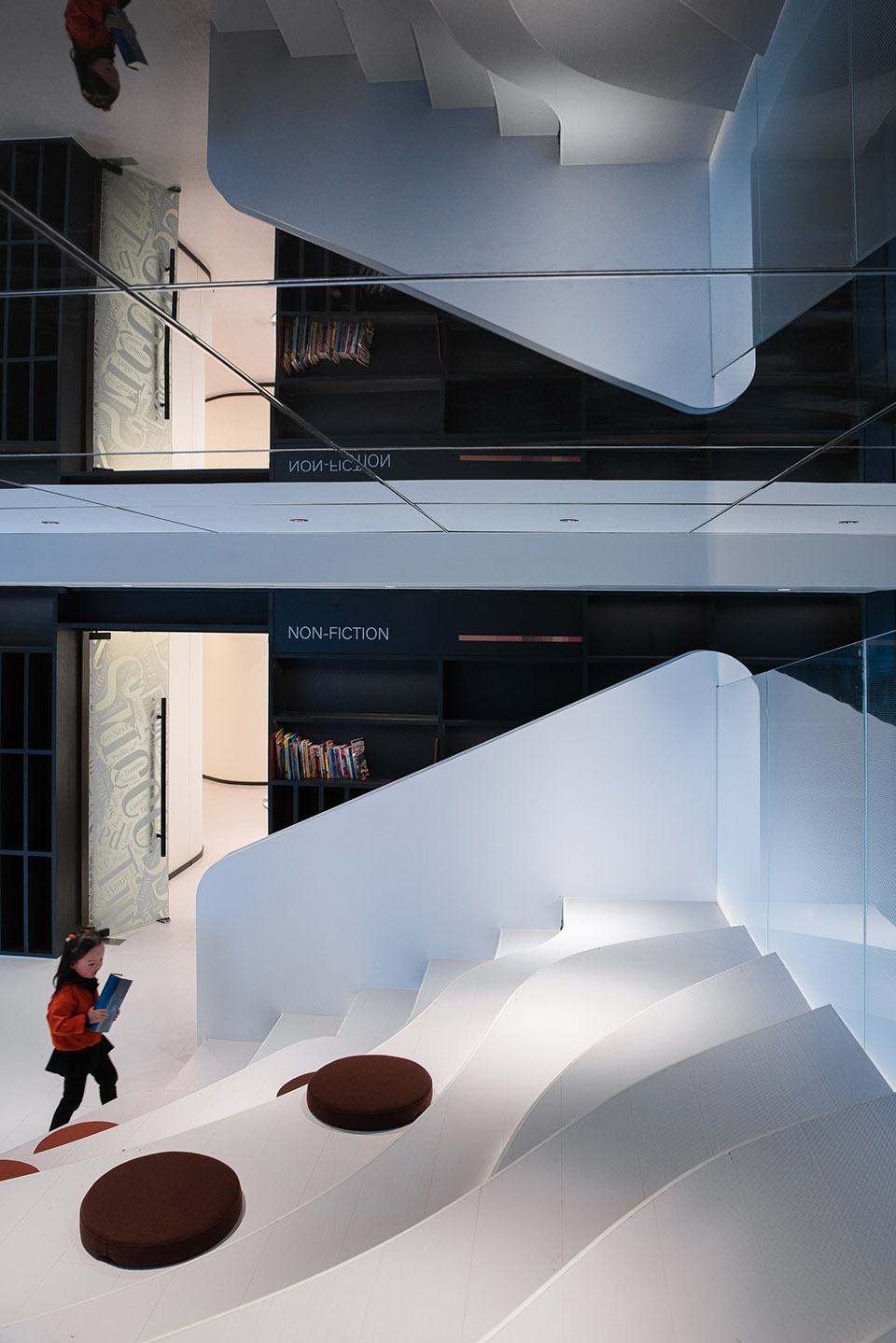

▼阅读剧院，reading theater ©吴清山

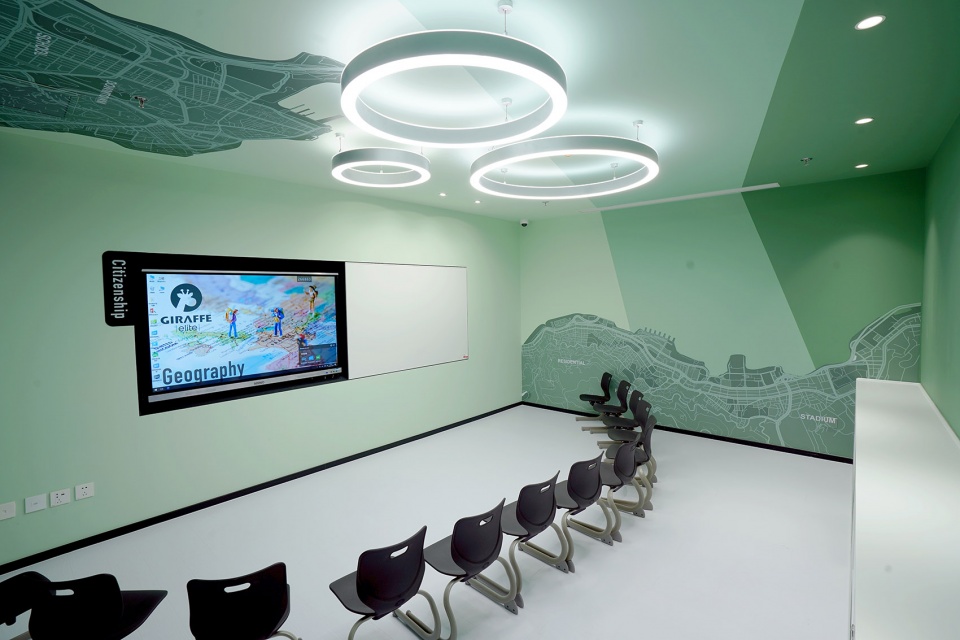

所有的教室都被巧妙安置在靠近“鹿脖”的安静区域，保证了教学空间的规整，同时也能为孩子们提供不受外界干扰的安静空间。一动一静结合，带来沉浸式又不失专业化的学习体验。

All classrooms are smartly placed in a quiet area near the “deer neck” to ensure the regularity of the teaching space, while also providing children with a quiet space without external interference. The combination of moving and quiet brings an immersive while professional learning experience.

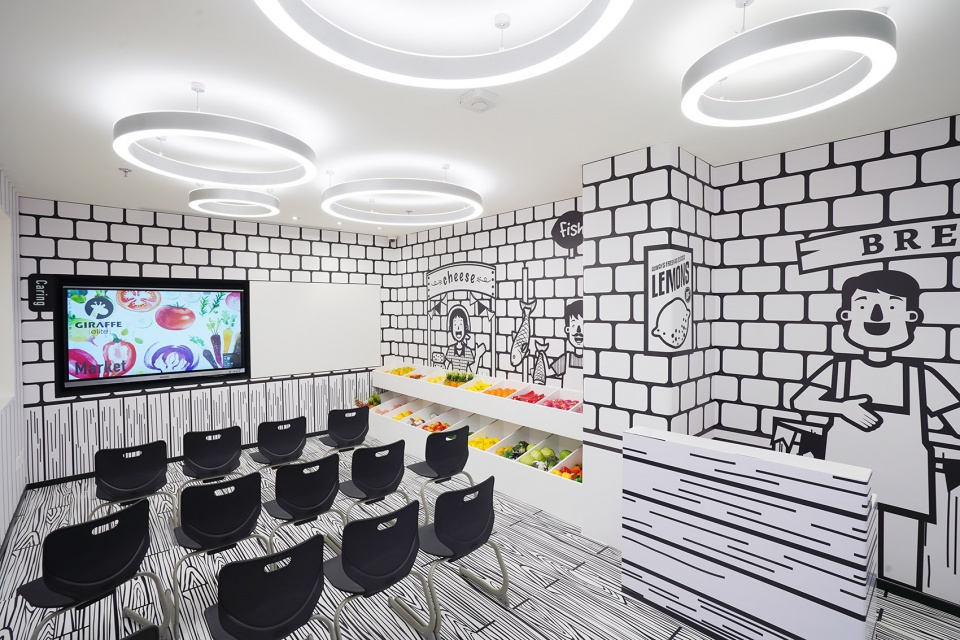

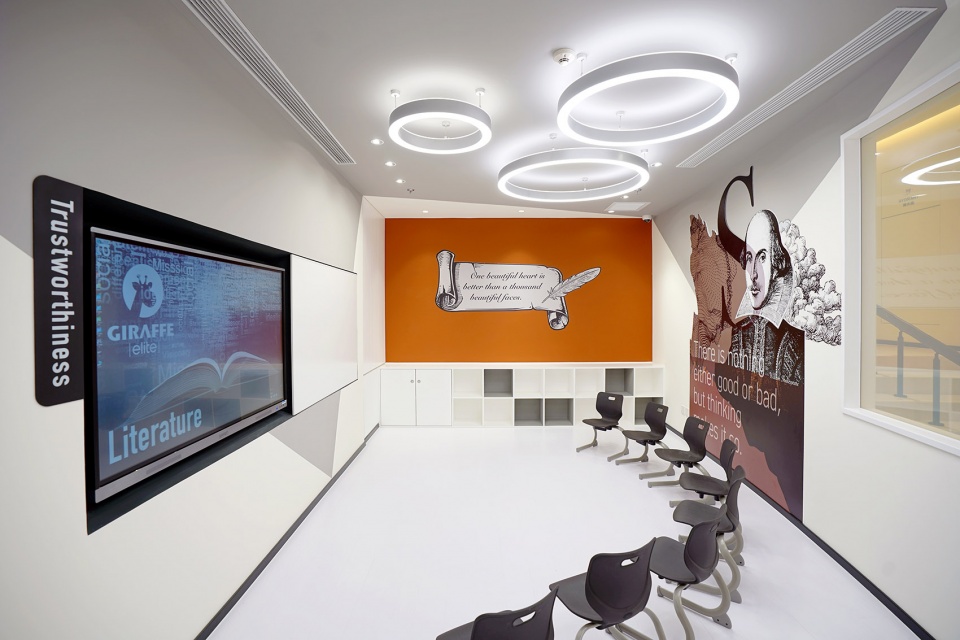

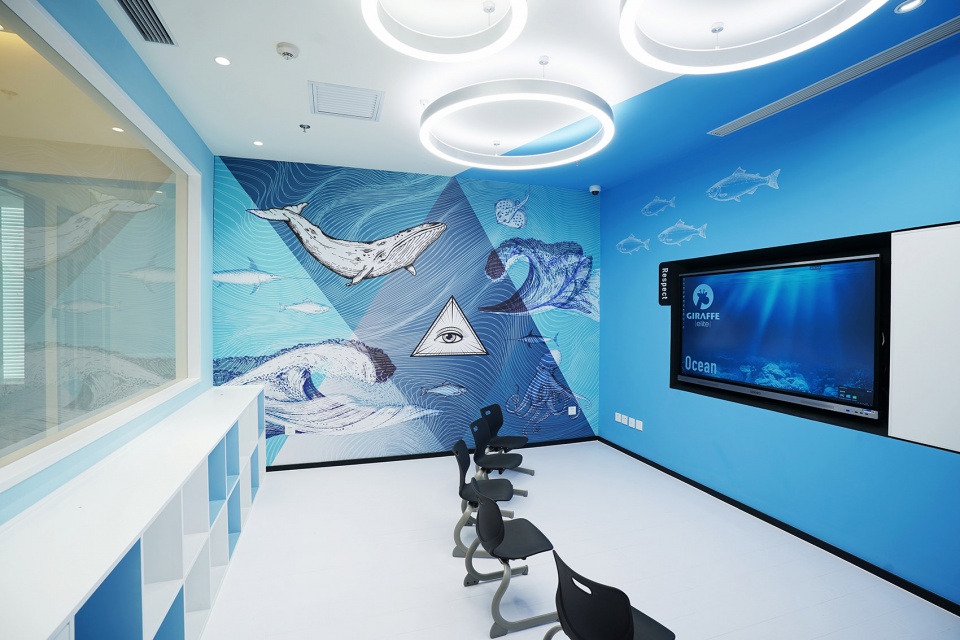

▼不同风格的教室，classroom in different styles ©吴清山

数字化设计 — 智慧赋能的空间布局
Digitalized design – Intelligence empowered spaces layout

在设计过程中，采用了数字化设计与建造技术，应用在形态生成、结构优化、立面模拟、施工生成中。以精确的计算和无数次的调整，使整个曲面有方向性指向和拓扑性地延续，将接待台、台阶、舞台、Speak Up舞台有机地整合在一起，使整个形体流动连续，一方面延续了城市公共空间的开放性，一方面为空间展示注入了独特的精神与活力。在舞台背景木纹墙的设计中，设计师采用了多次实验严谨的计算，优化了图案的宽度，长度，间隙和色彩。得出的抽象线性的木纹阵列将舞台门准确隐藏，在变化中清楚地拟合3D logo与文字，用光影与自然的色彩使整个舞台背景在有限的空间丰富地展现，最终生成了一个美观又实用的装饰面。

Digital design and new construction technology is used in the design process , used in form generation, structural optimization, elevation simulation, and construction generation. Accurate calculation and countless adjustments make the entire surface directional and topologically continue, organically integrate the reception, stair, stage, Speak Up stage, and keep the continuity of the moving flow in the space.It strengthens the openness of the urban public space, while brings a unique spirit and vitality to the space. In the design of the stage background wood grain wall, the designer adopted rigorous calculations for many experiments to optimize the width, length, gap and color of the pattern. The resulting abstract linear wood grain array accurately hides the stage door, clearly fits the 3D logo and text dynamically, and uses light and shadow and natural colors to make this stage background rich in limited space, and finally produces a beautiful And practical decorative surface.

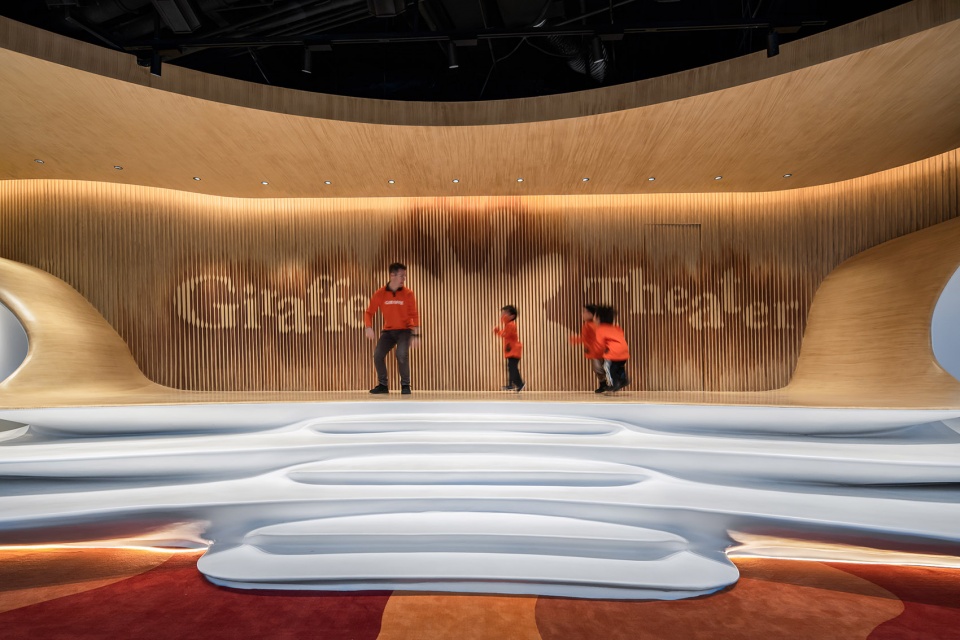

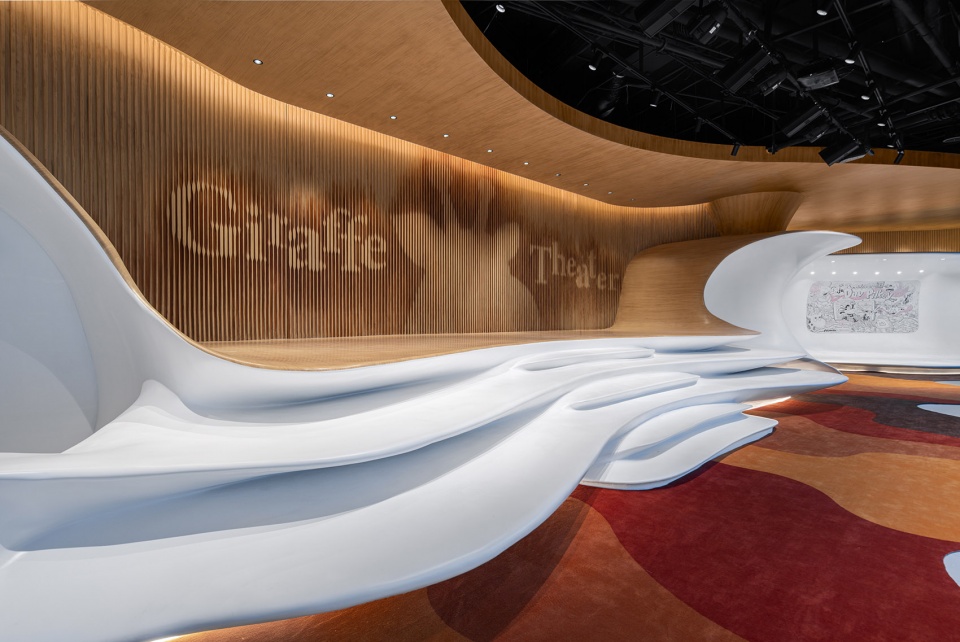

▼舞台背景由线性木纹阵列组成，the background of the stage was made of linear wood ©吴清山

建筑师的设计创意融合了详细系统的分析调研，结合数字化建造技术在本次设计中挑战了材料的特性，使得舞台的不同材质与不同曲度和功能的部分自然流畅地过渡。不但通过连续的几何特性满足了功能需求，同时也与家具和铺地的图案协调，提供了使用者不同于其他空间的统一而多层次体验。在数字化建筑技术的帮助下，项目施工可以较高程度地还原设计的模拟空间，也可以通过分块拼装在较短的工期内完成，有效节省施工成本。

The architect’s design creativity incorporates detailed systematic analysis and investigation combined with digital construction technology. In this project, the characteristics of the materials were challenged, making the natural and smooth transition of different materials and different curvatures and functions of the stage, not only through continuous geometry The features meet the functional requirements, and also coordinate with the furniture and floor patterns, providing users with a unified and multilevel experience that is different from other spaces. With the help of digital architect technology, the project construction can restore the designed simulation space to a higher degree, or it can be completed in a short period of time through block assembly, effectively saving construction costs.

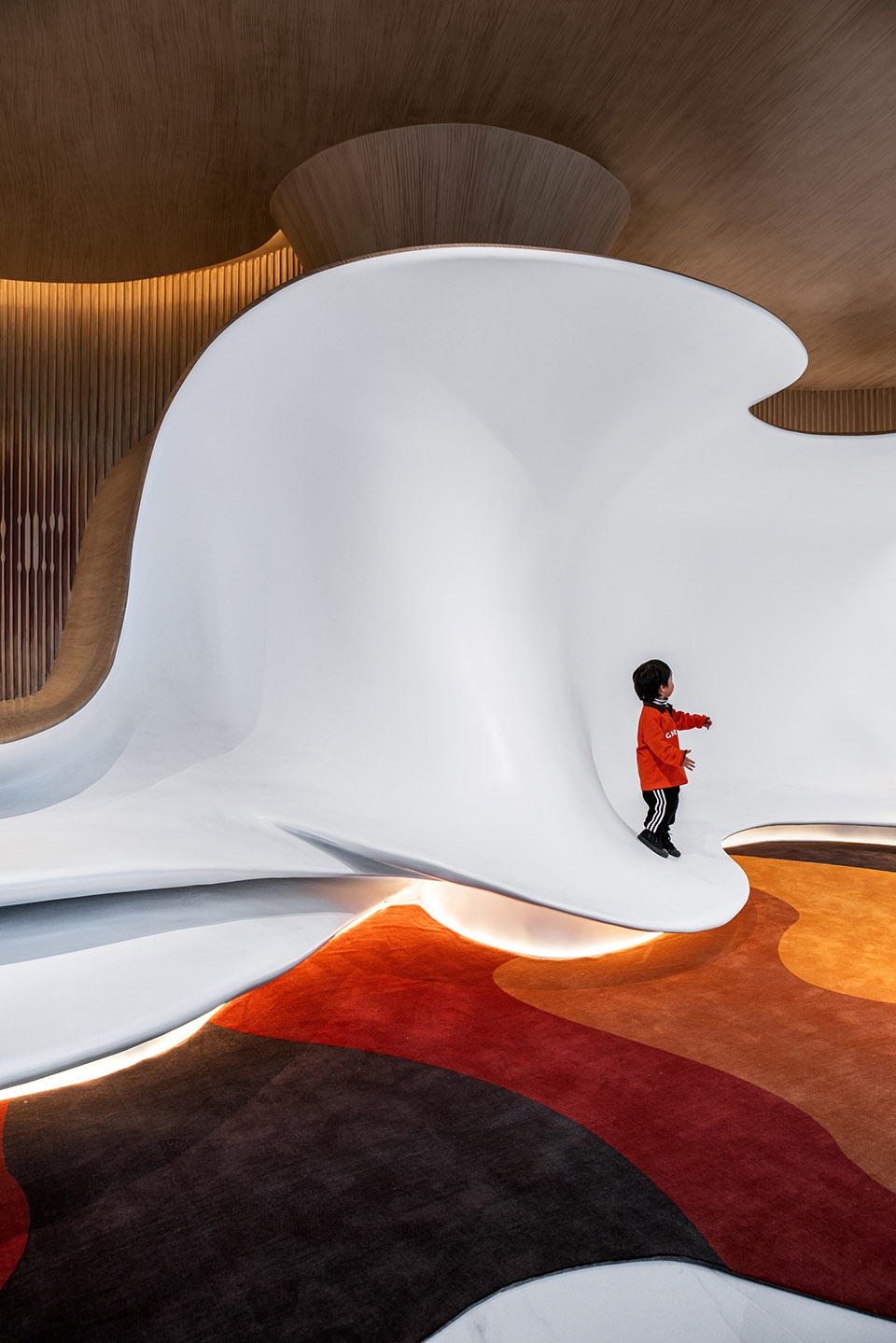

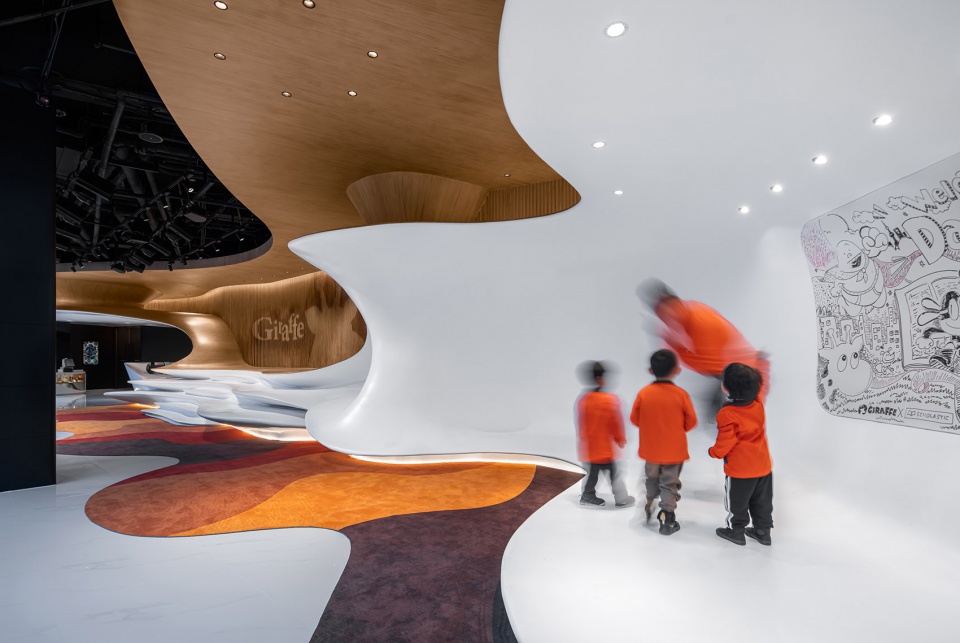

▼流畅的曲线提供丰富的空间体验
fluent curved lines providing rich space experience ©吴清山

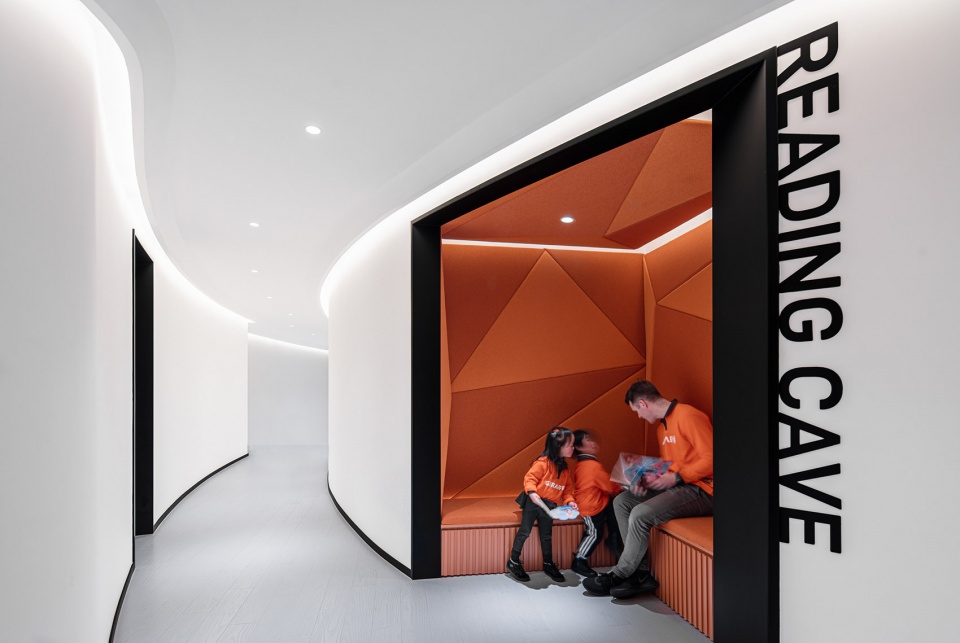

▼曲线中的阅读空间，reading cave in the curved walls ©吴清山

在万物皆可云的数字化时代，城市空间需要为人们创造更多元化的体验与生活场景。270度的环形橱窗外，广场上经过的孩子们无不驻足停留，眼中闪耀着惊喜。而这流动的篇章，如同未知的美好世界，正敞开着大门，等待着他们的探索与发现。

In the digital age, urban spaces need to create more diverse experiences and life scenarios for people.The passing children stopped all over, shinning in their eyes with surprise. The “Flowing Chapter”, like the unknown beautiful world, opening its doors, waiting for their exploration and discovery.

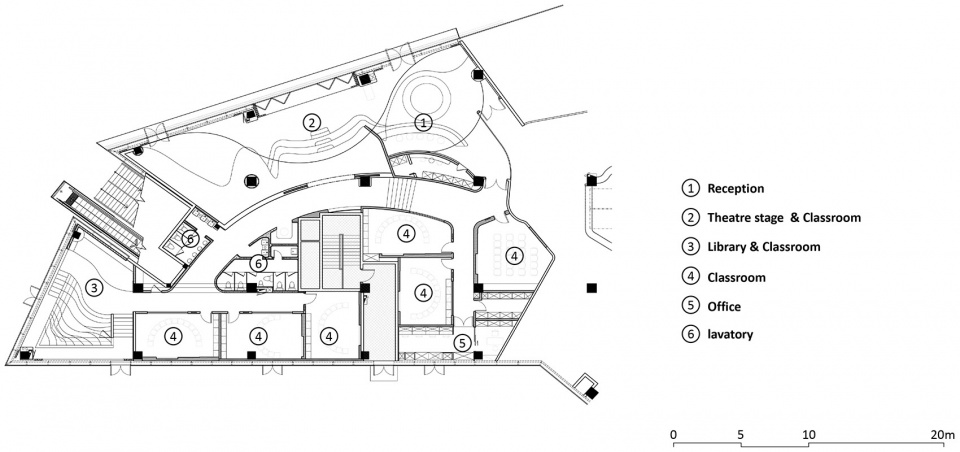

▼平面图，plan ©杜兹设计

项目地点：上海前滩
项目业主：长颈鹿美语
项目面积：630平方米
主持建筑师：钟凌
建筑设计：胡颖祺、胡永衡（参数化建模）、施望刚、刘颖、许可、万涛
品牌视觉设计：知本设计
灯光设计：Studio Illumine（Jimmy，Viva）
GRG材料：港英建科（黄树生）
摄影：吴清山

Location: Shanghai, China
Client: English Giraffe
Area: 630 sqm
Architect in charge: Ling Zhong
Architectural design: Yingqi Hu, Toto Hu (parametric modeling) , Michael Shi, Ying Liu, Ke Xu, Tao Wan
Brand visual design: Proad Identity
Lighting: Studio Illumine（Jimmy，Viva）
GRG material: Gang Ying Building Technology
Photographs: Qinshan Wu
