索姆住宅,澳大利亚 / Jarchitecture


Project Specs

Design Firm:

来自 Jarchitecture 对gooood的分享。
Appreciation towards Jarchitecture for providing the following description:


This development of two townhouses sits on a quiet cul-de-sac at one end and a beach on the other. Given the sites contextual tension between urbanism and landscape, the design is squeezed and defensive looking at one end and at the other end expands while the massing breaks down toward nature. As a response to the harsh environment at the site, the materials palette works on the premise of ‘tough on the outside, soft on the inside’; external materials are raw, robust and no maintenance, while the interior is soft on the eye and to the touch.

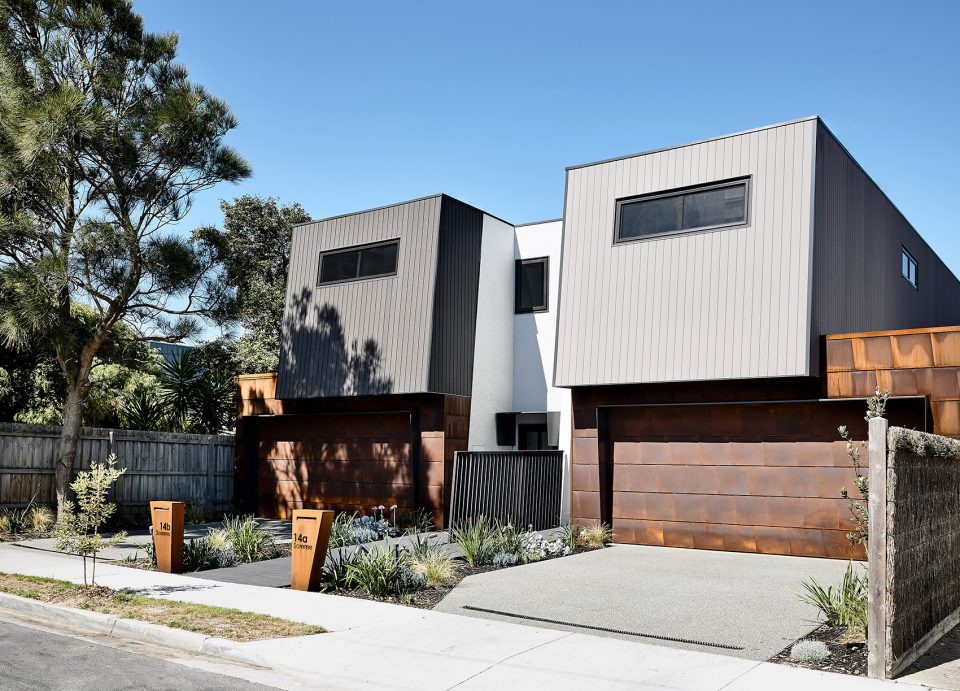

▼狭长的住宅建筑,the compact site

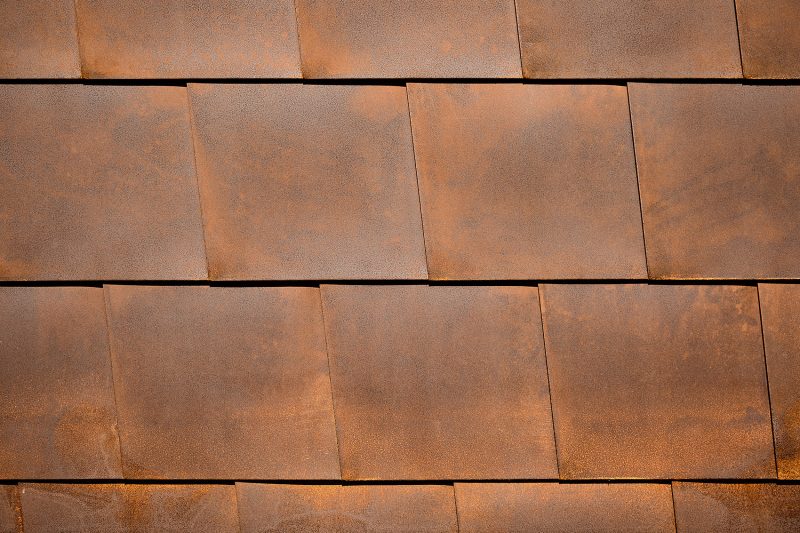

The exterior materials are robust in response to the sea’s destructive power and mixed in response to the assorted housing styles of the neighbourhood. The exterior materials are mainly untreated and have a long-life cycle with little to no maintenance. The dwellings incorporate varying materials and textures to break down the scale and reduce visual bulk. Cladding materials include corten steel which has a rusted finish, effectively beating the sea to the punch line. Also included are recycled timber/plastic boards, mimicking the weatherboards in the area but in a contemporary recycled material that does not deteriorate for a long time. Textured white Japanese ceramic tiles represent the theme of white brick in the area, while colourbond steel cladding fits with the vernacular. Painted render is used as small infill nothingness, letting the bold materials do the work. This variety of materials, together with contrasting dark window frames creates visual delight.

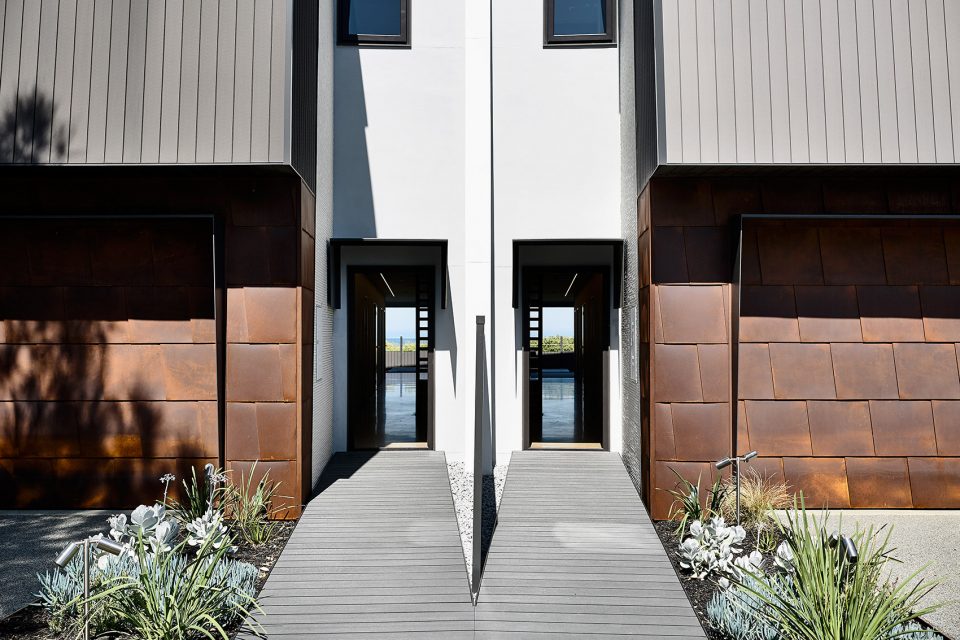

▼各种建筑材料的混搭设计,the exterior materials are mixed

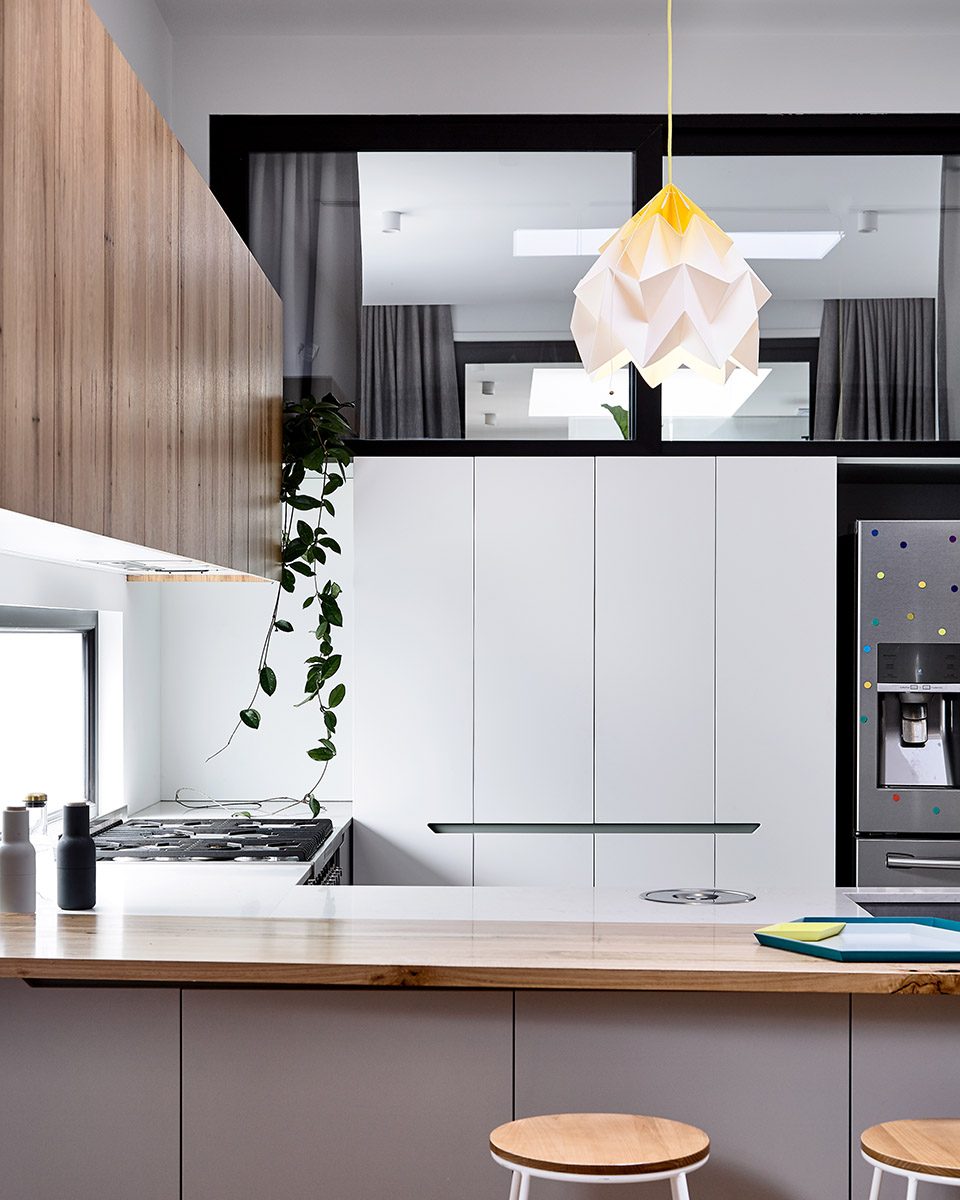

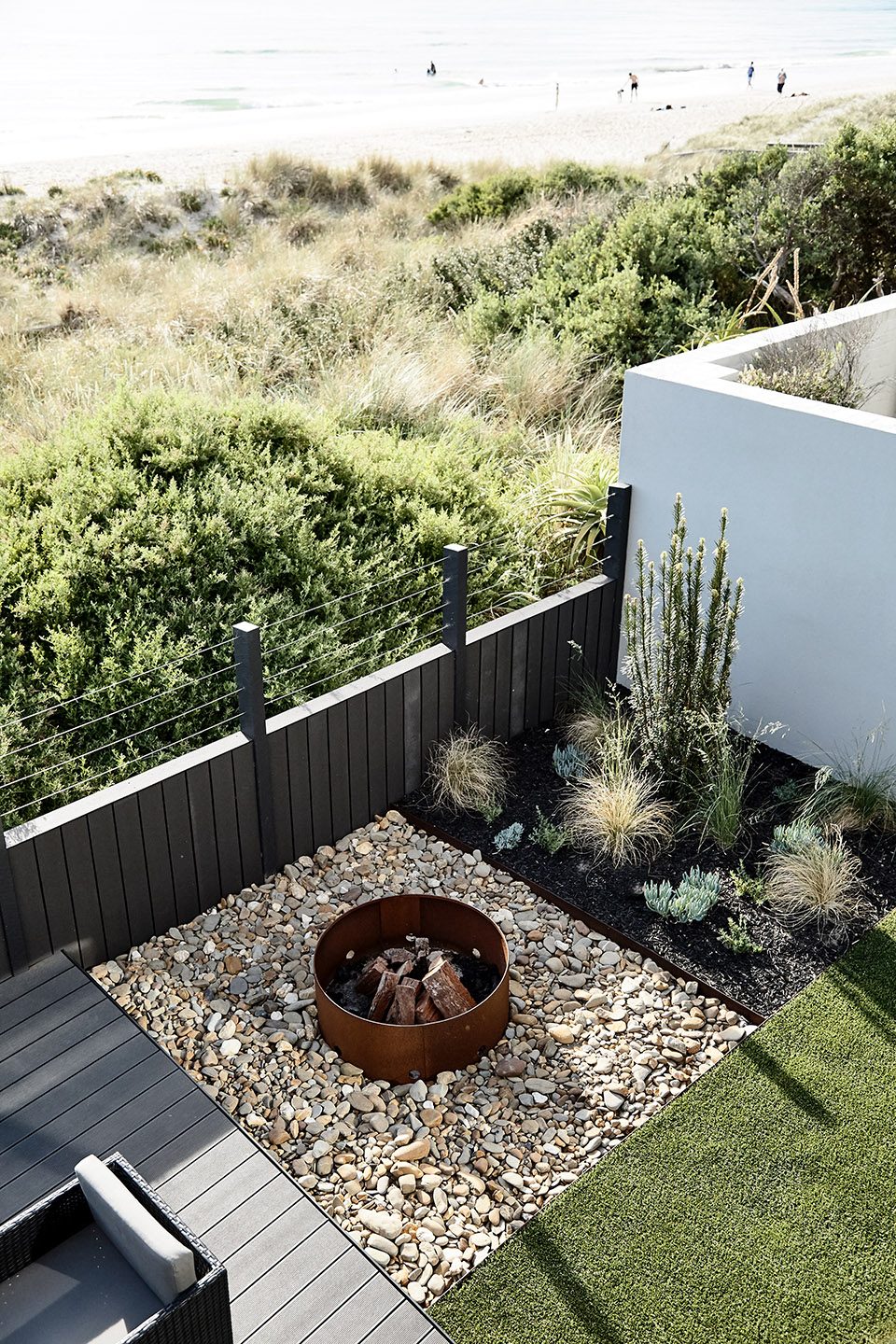

The building sits low on the land, protecting the lower level with the foreshore scrub while the upper level sits just over the foreshore planting for endless views. The dwellings are set out so that the entry axis of each space has a direct line of site to the landscape beyond. The beach can be seen from the letterbox, interior courtyard from the bedroom entry, the kitchen counter seating looks directly up to the sky and so on. We aim to connect with nature and create a larger sense of space than the site would suggest is possible. Given the necessary visual connection to the foreshore and longitudinal squeeze of the site, planning for north facing living space was not achievable. Skylights have been incorporated to bring more light to the centre of the dwellings main living spaces.

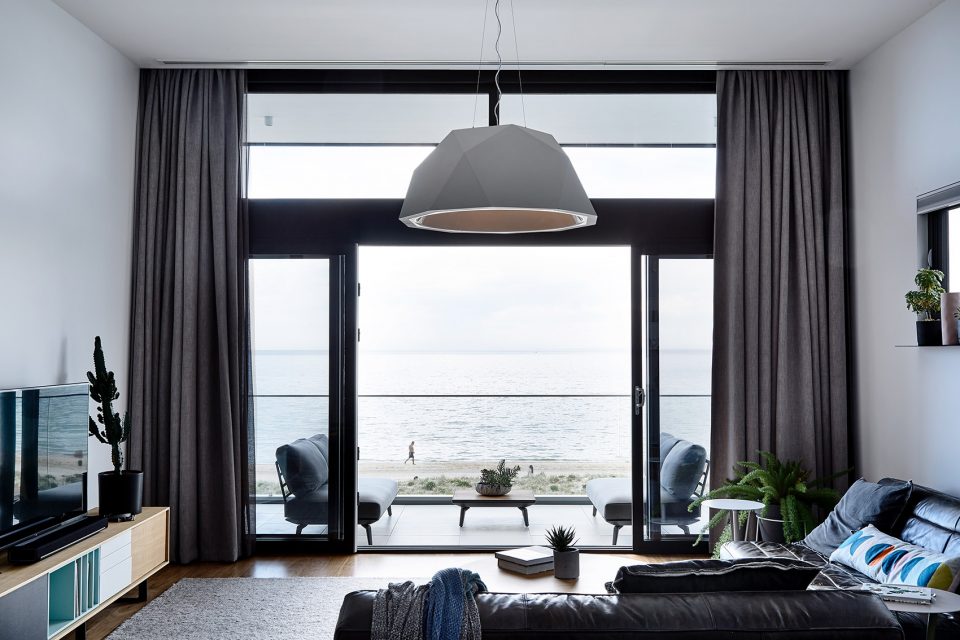

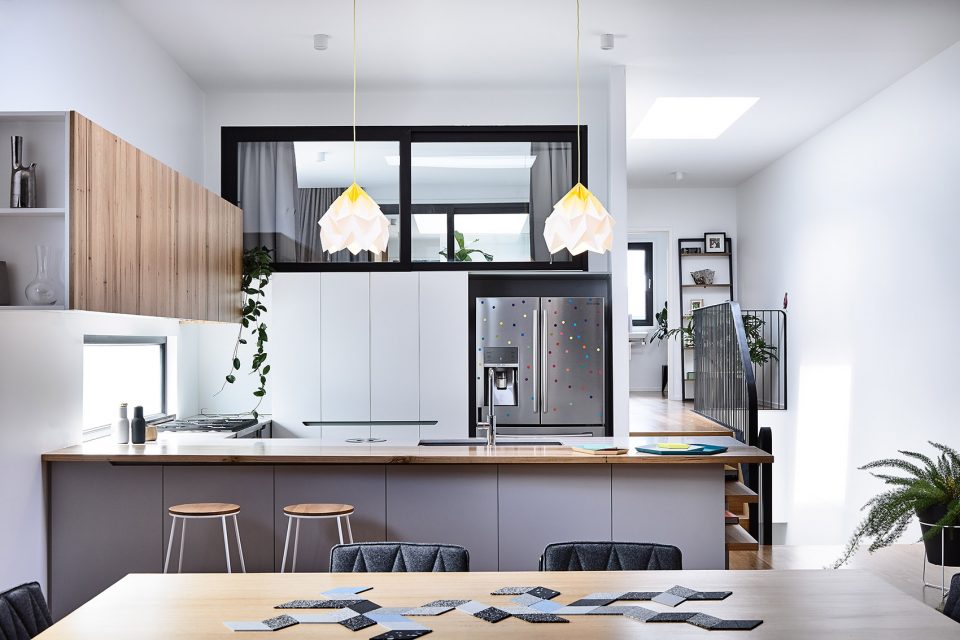

▼客厅朝向户外景观,the living room with beautiful view

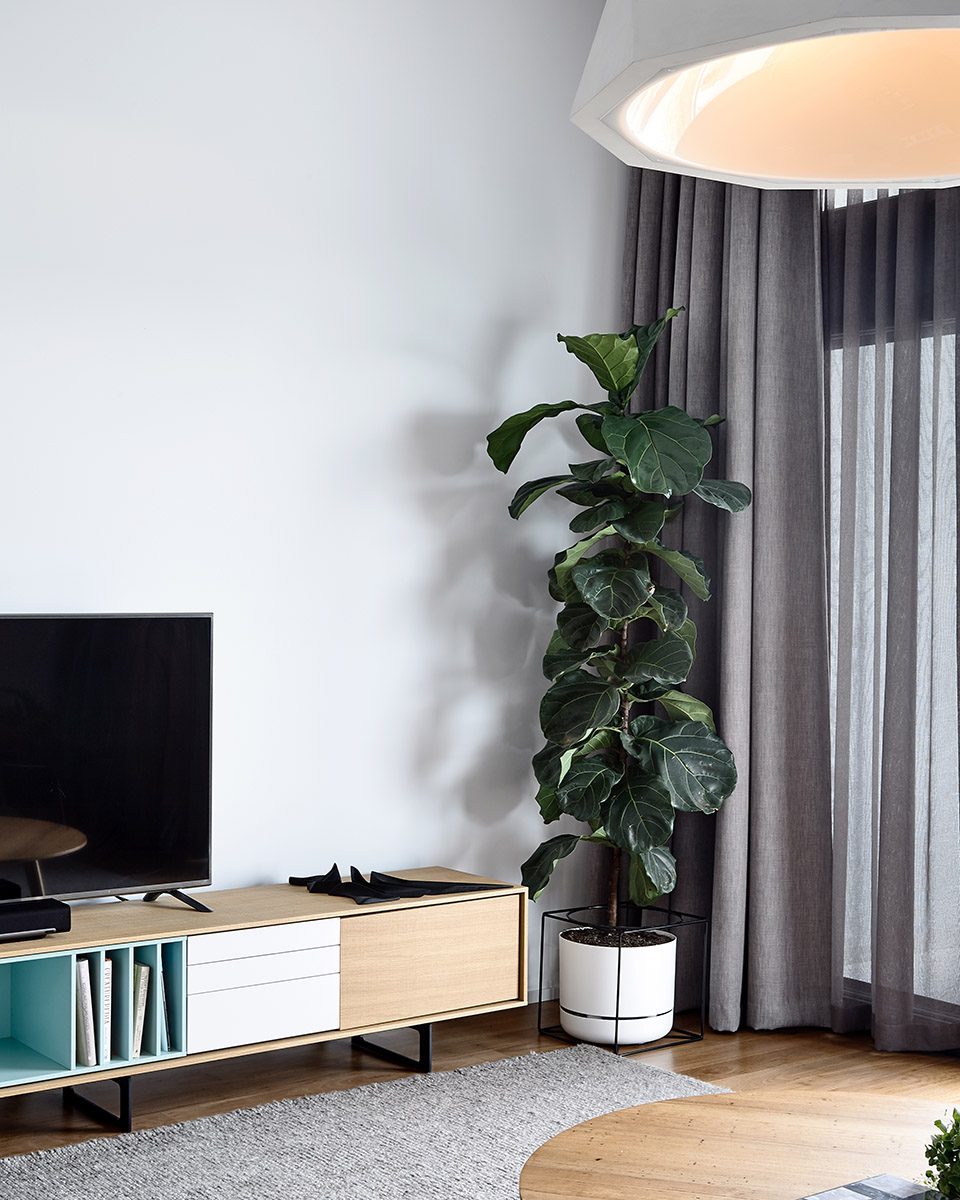

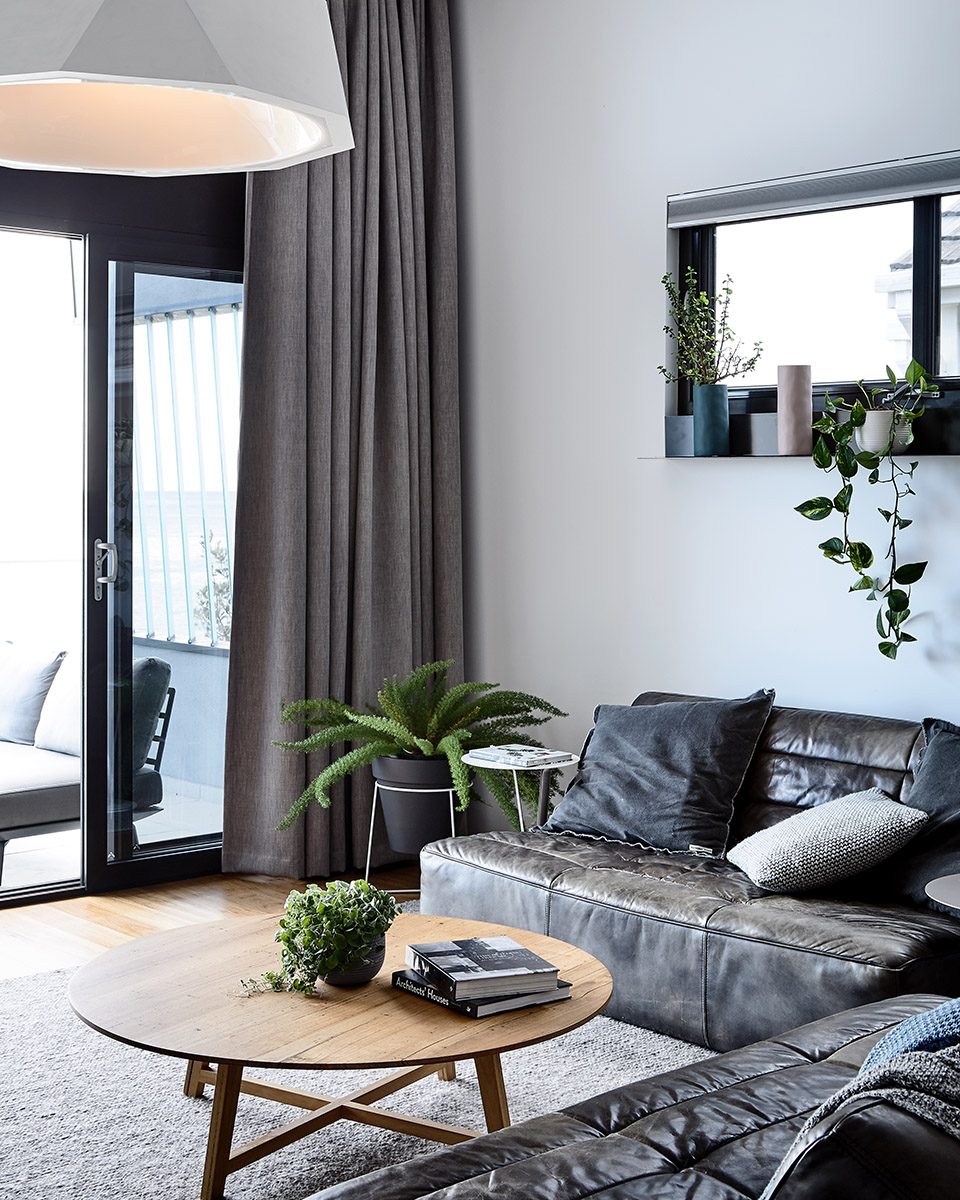

▼客厅细节,detail of the living room

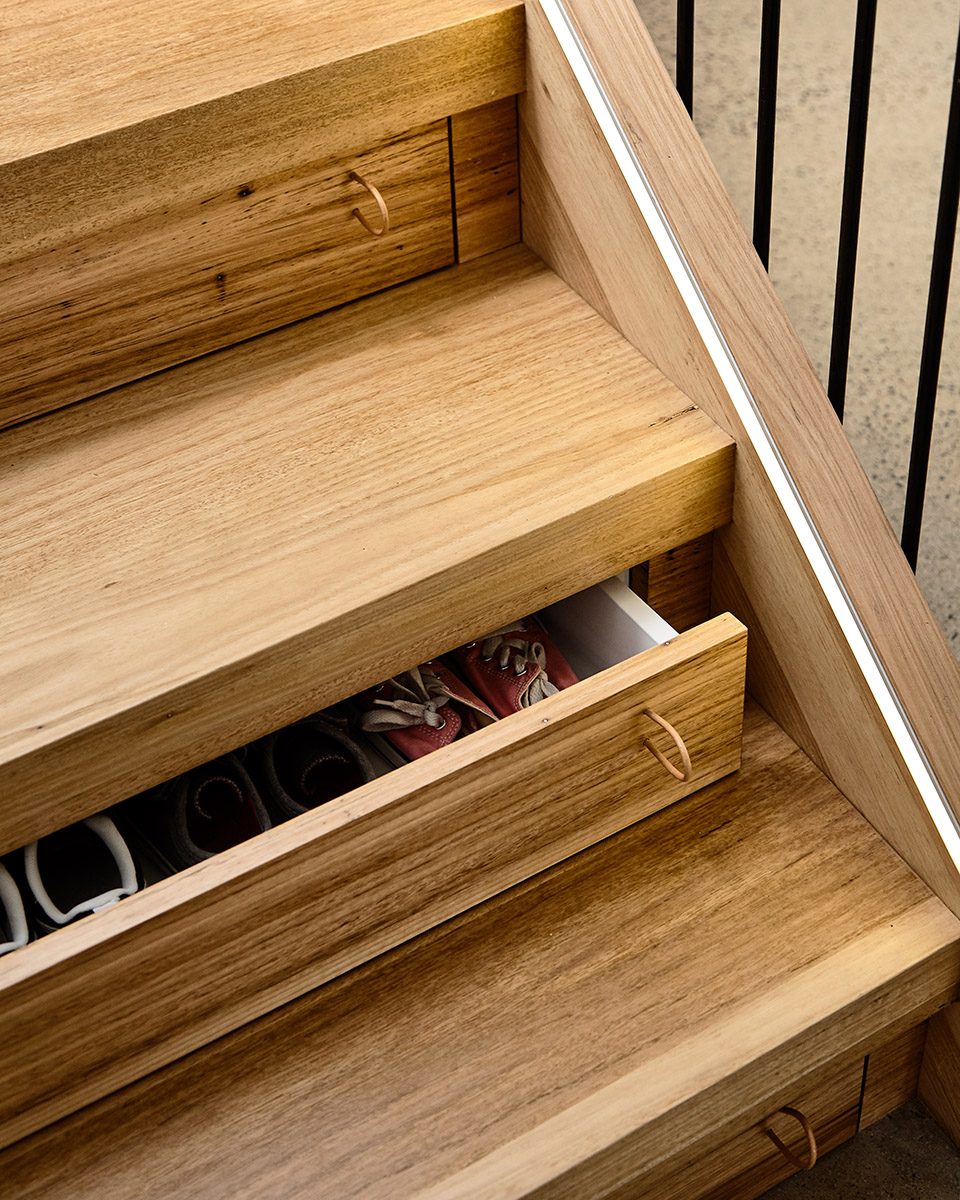

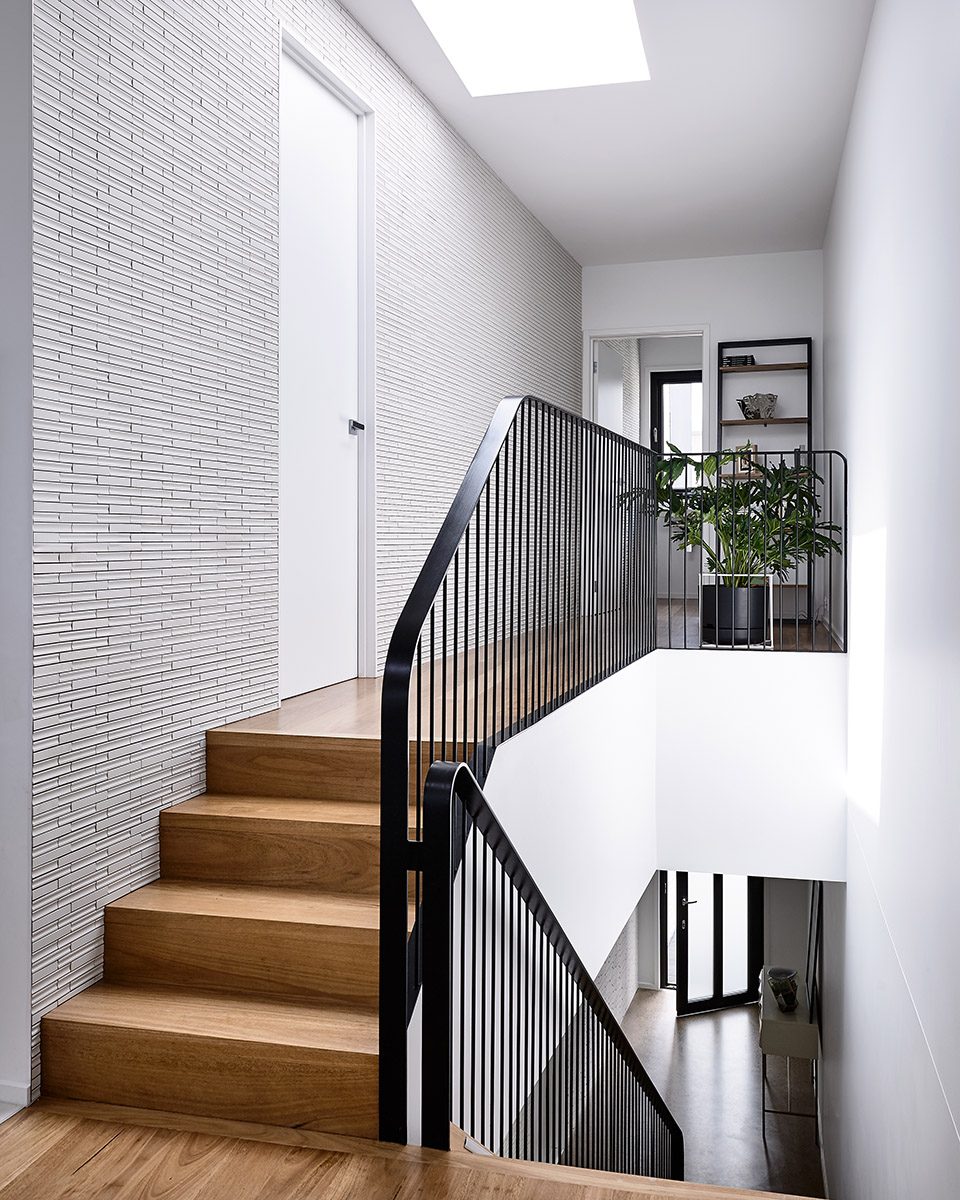

▼交通空间,circulation space

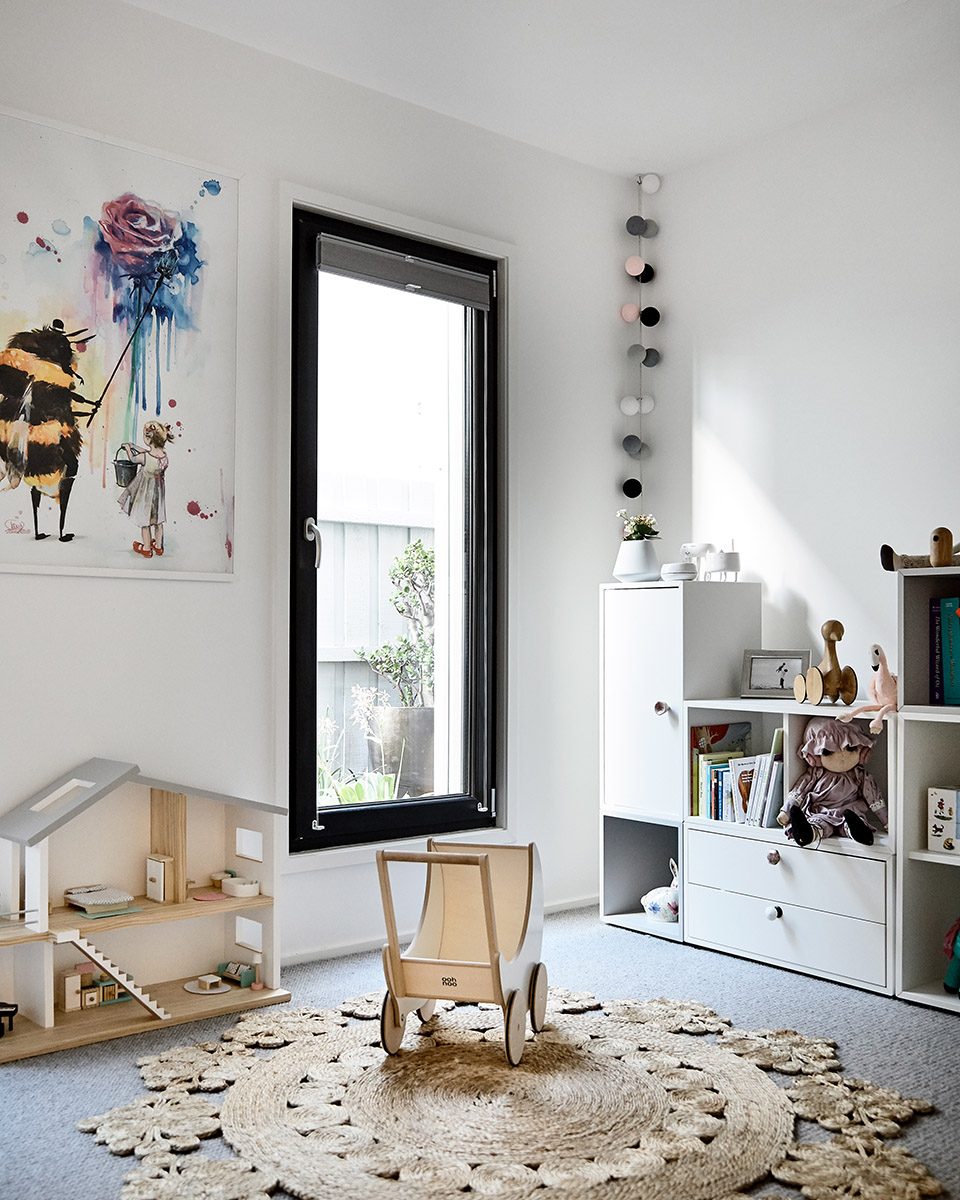

▼儿童房,children’s room

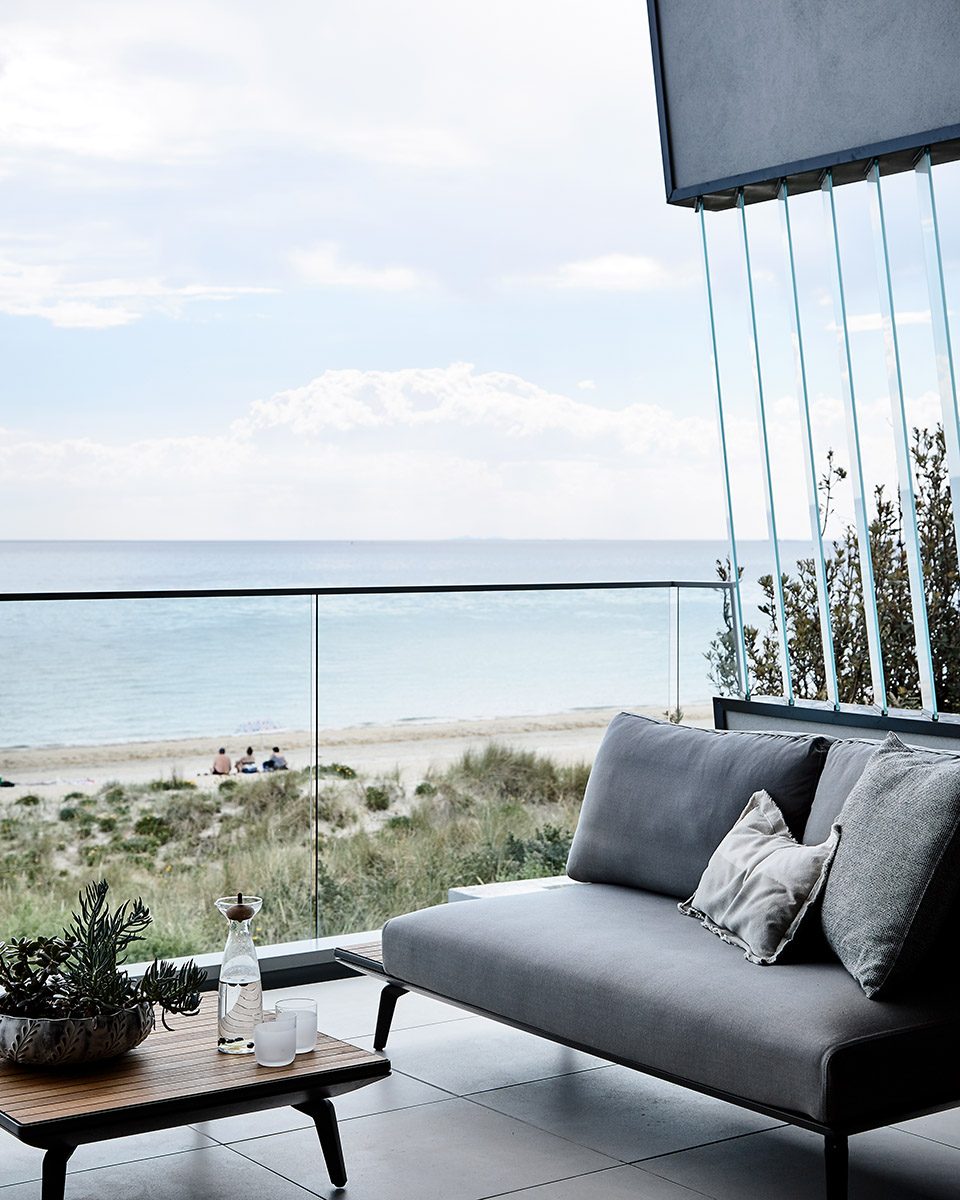

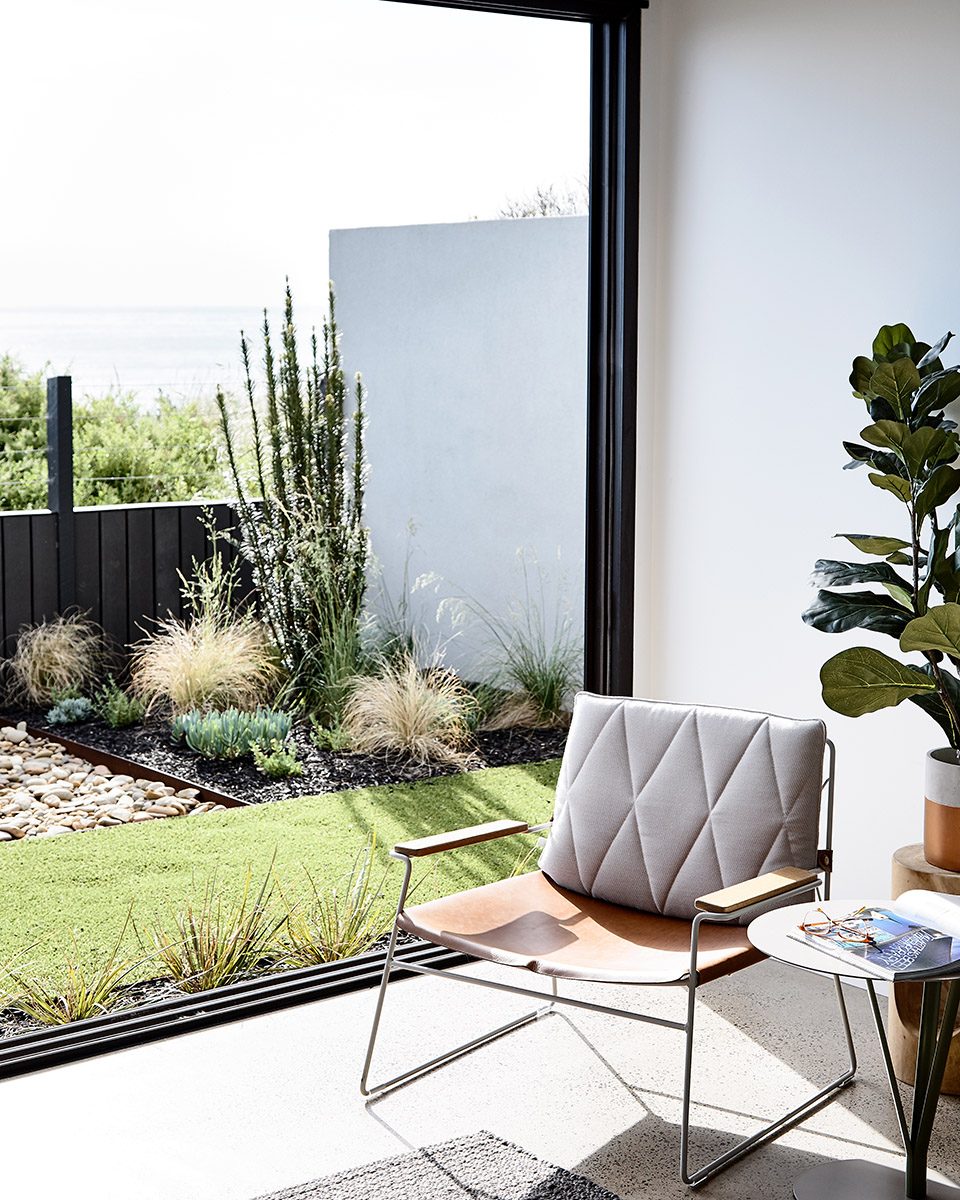

▼窗边观景,views at the window

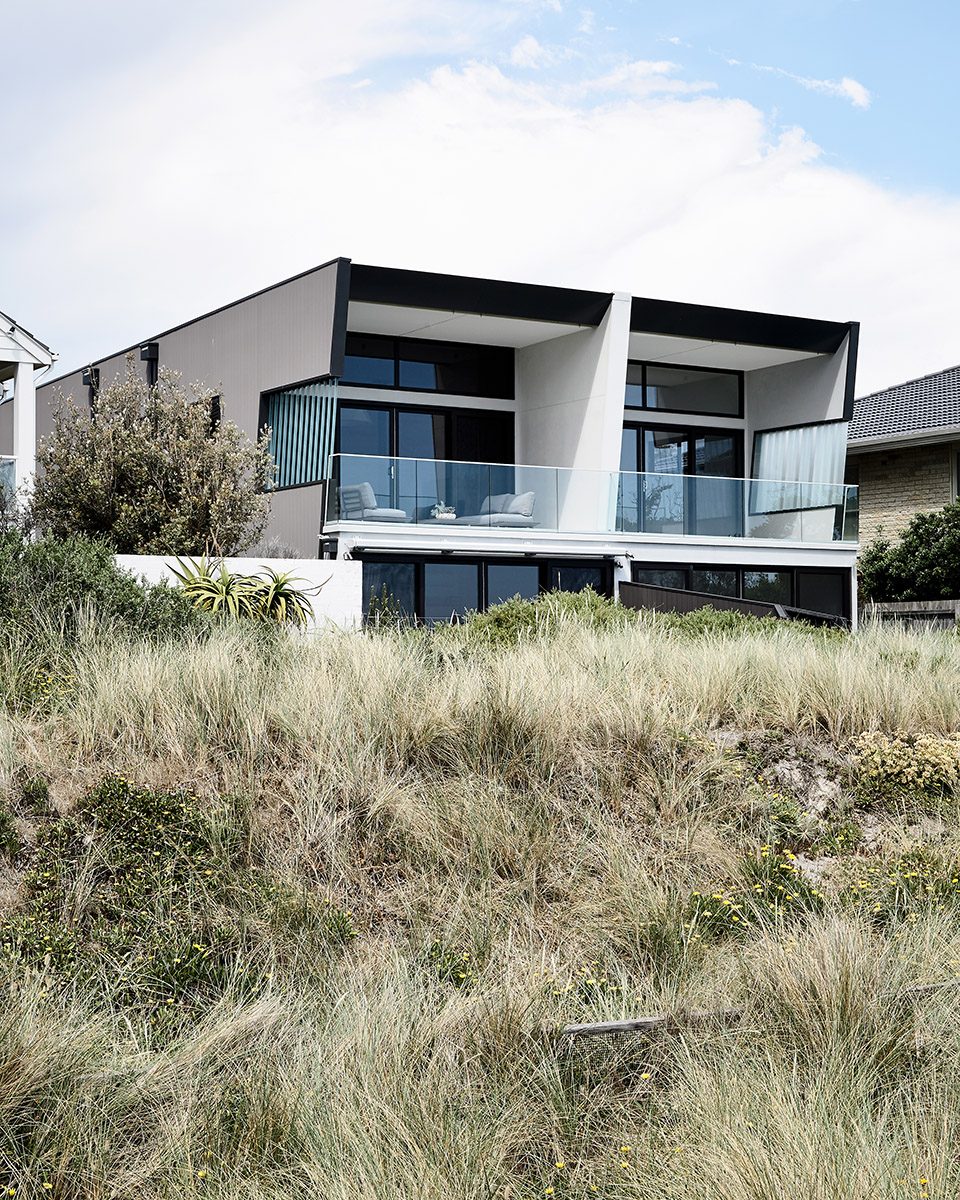

▼底层下沉隐藏在灌木中,the building sits low on the land, protecting the lower level with the foreshore scrub


The internal spaces are not vast, but the raked ceilings create a grand sense of space in the upper living area. The master suite is more intimate through the use of a split level which also creates the opportunity to look over the kitchen to the water. The ensuite is the centerpiece of the house with its massive scale, open shower, heated floors, beautiful materials, massive skylight and planting; pure indulgence.

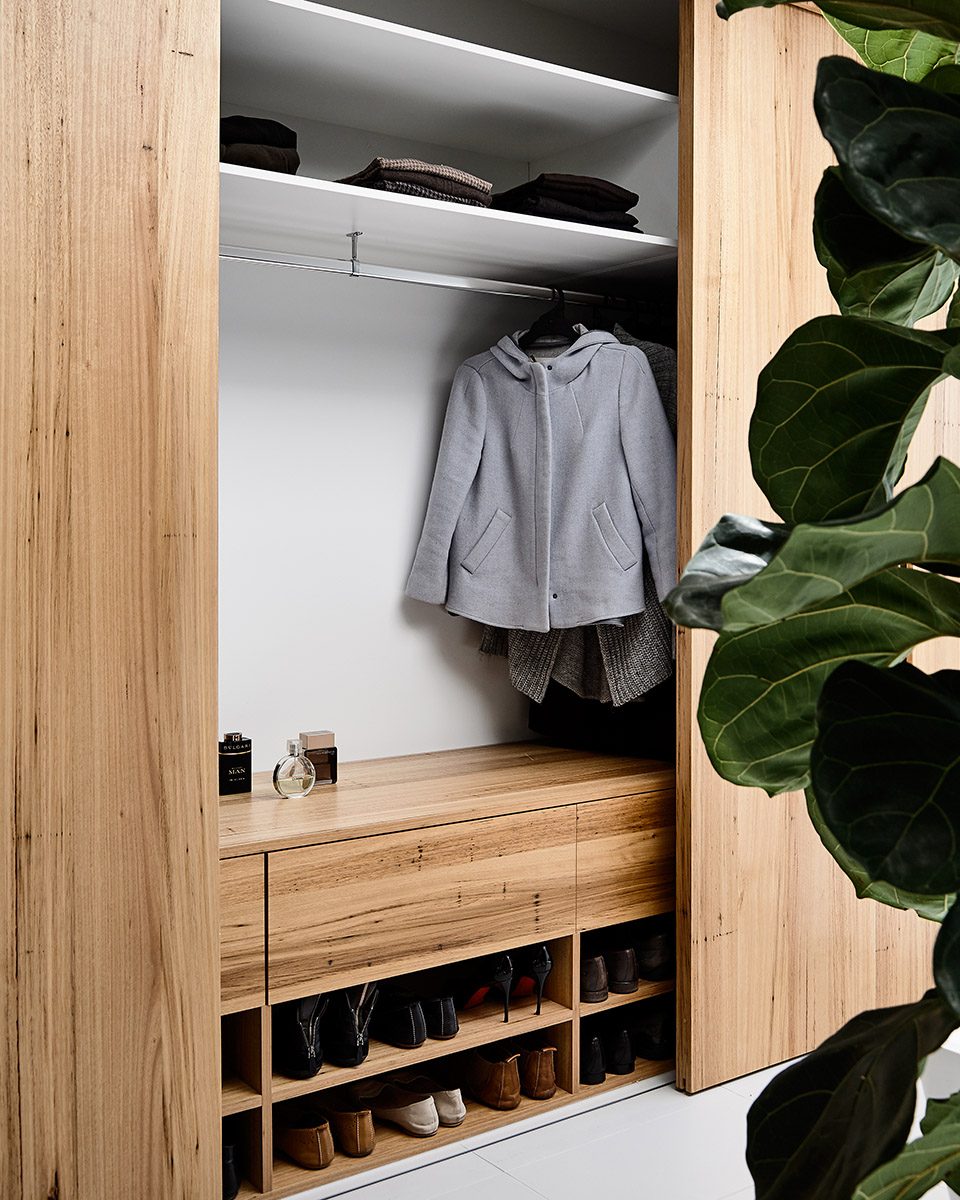

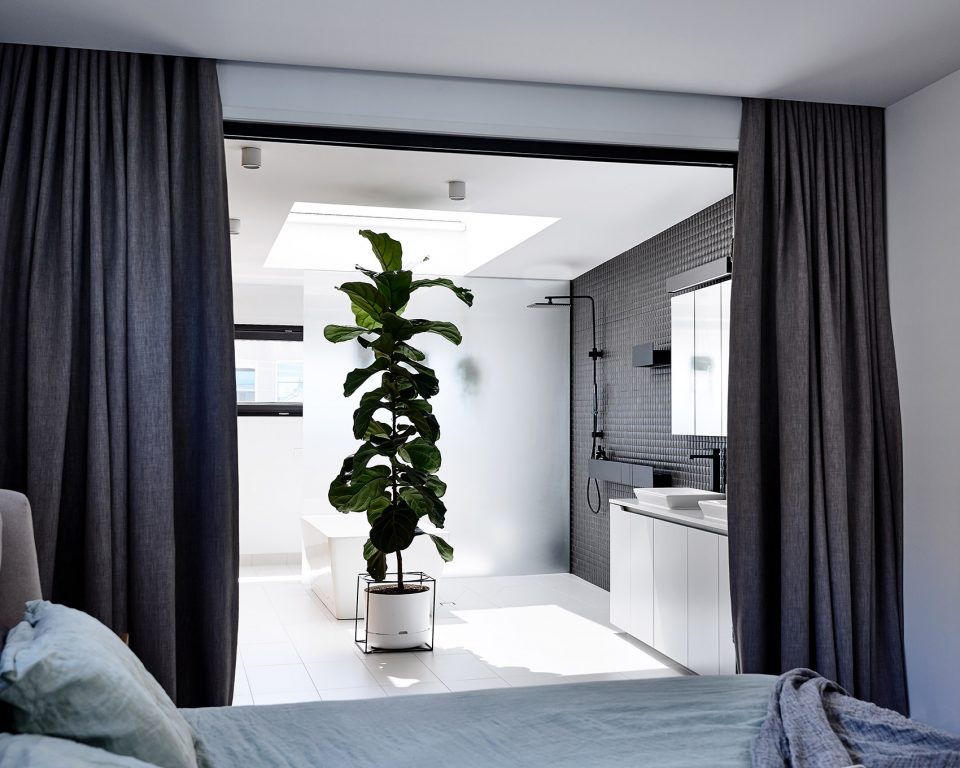

▼巨大的主卧套房,the giant suit

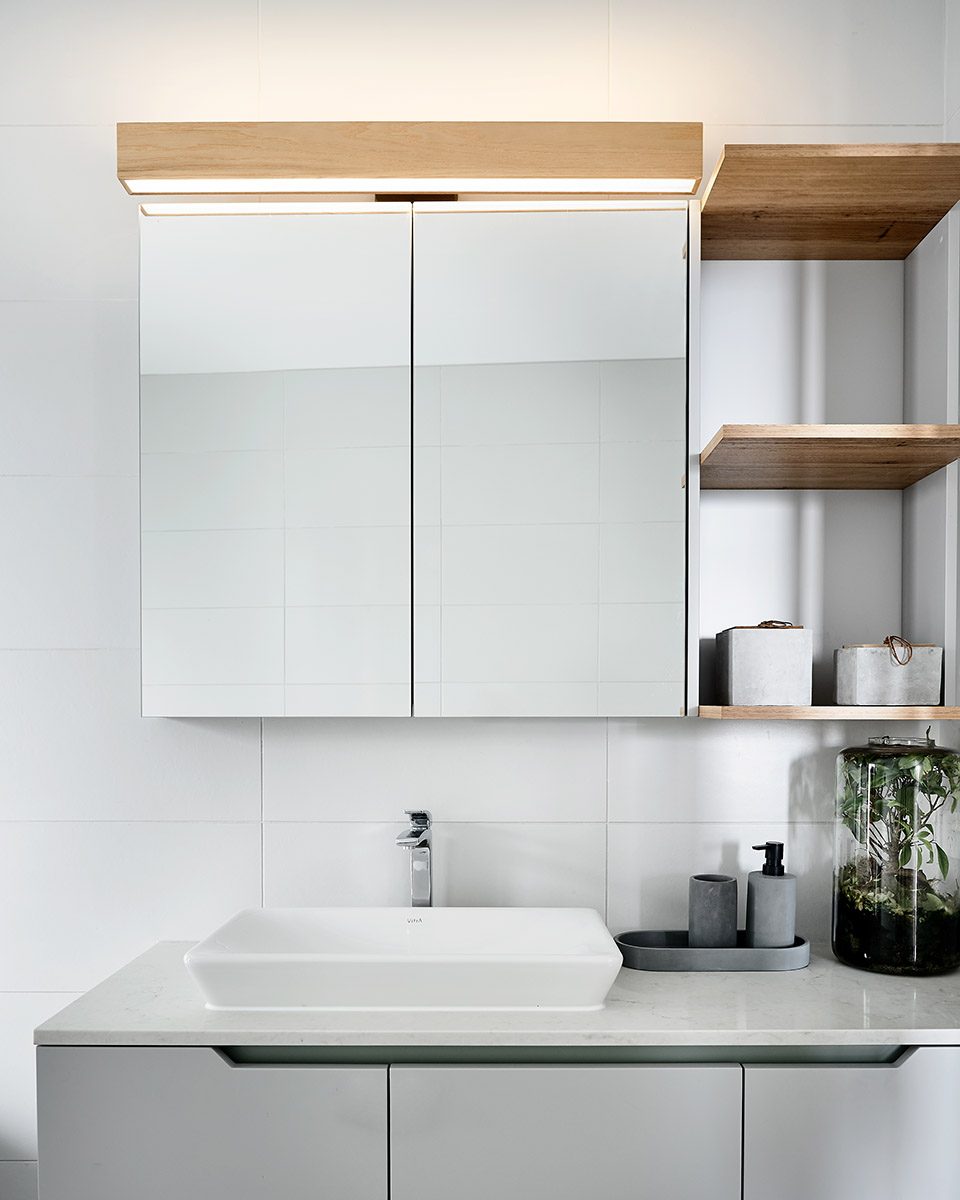

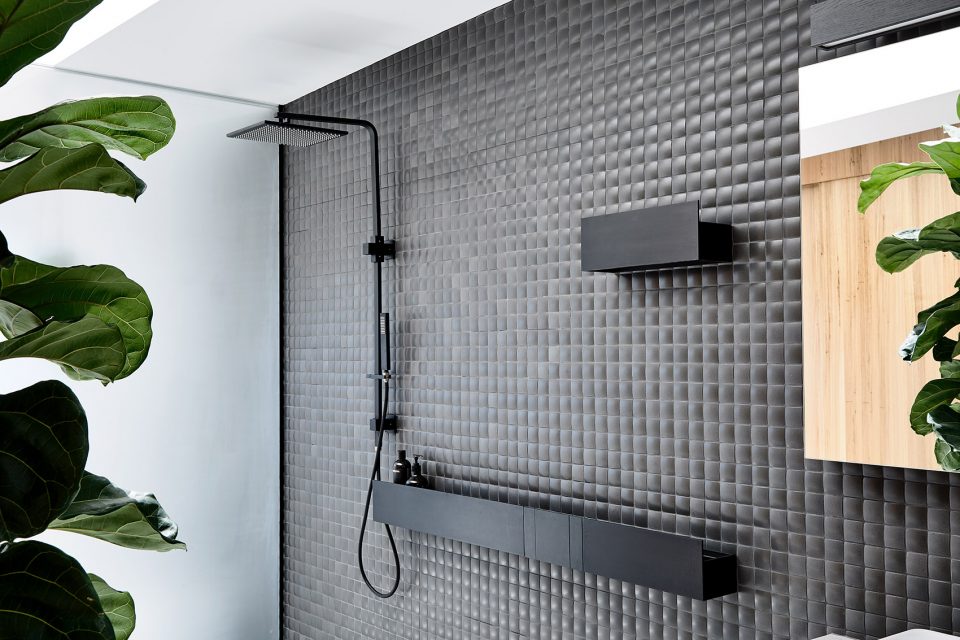

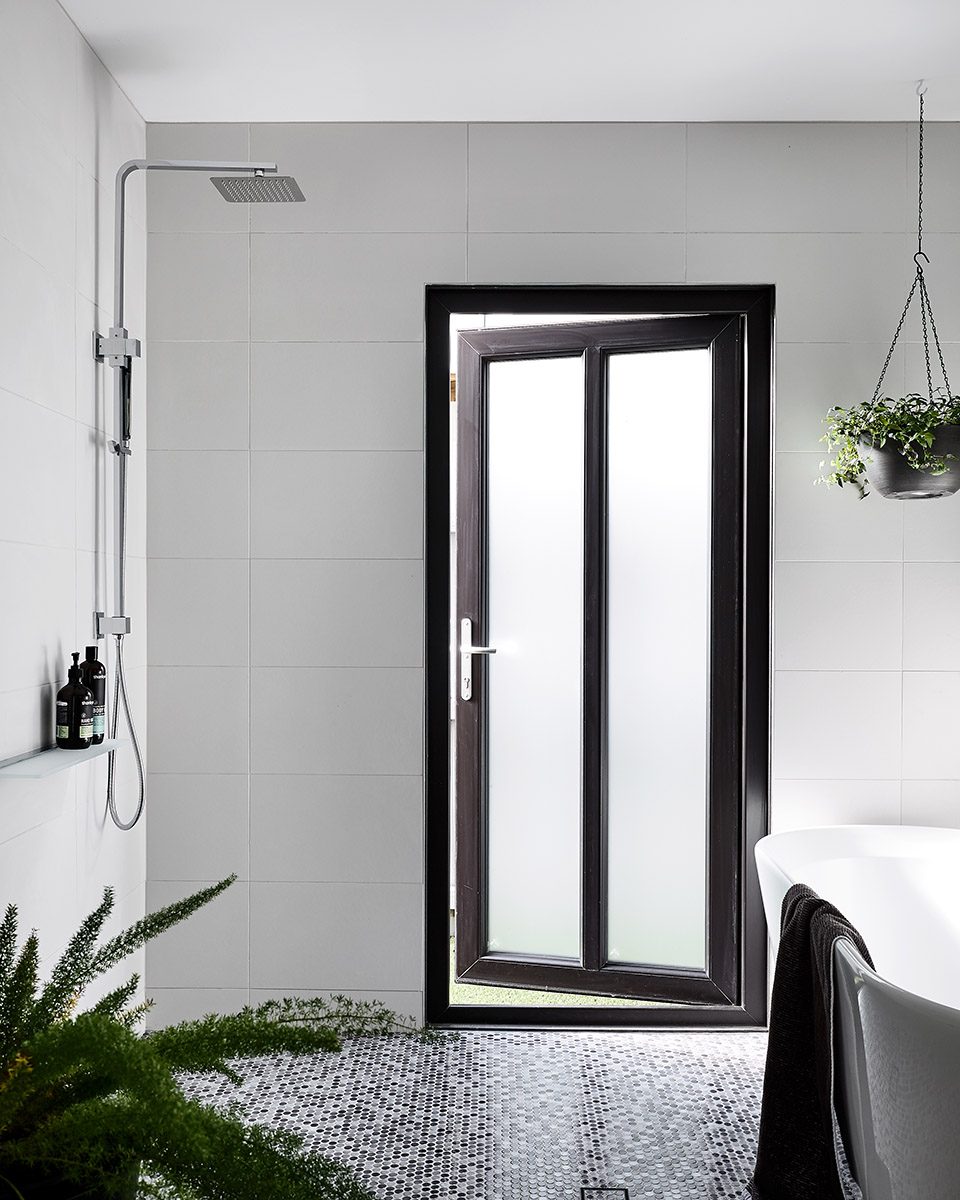

▼主卧洗手间,main bathroom

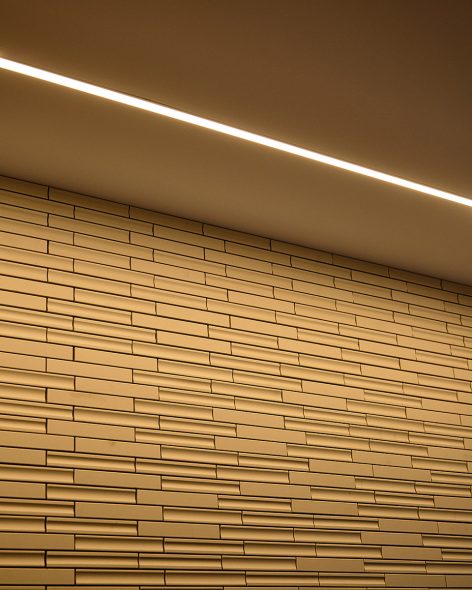

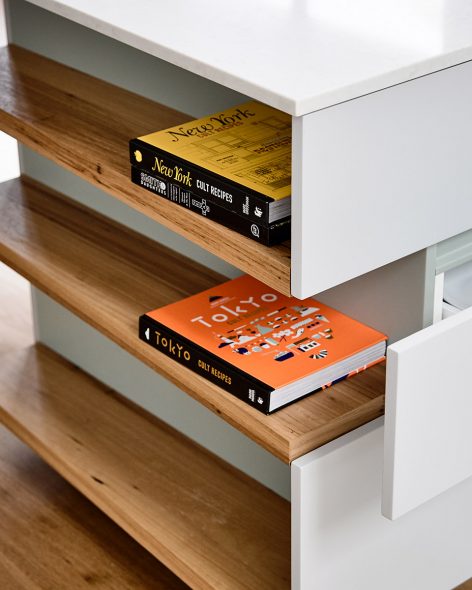

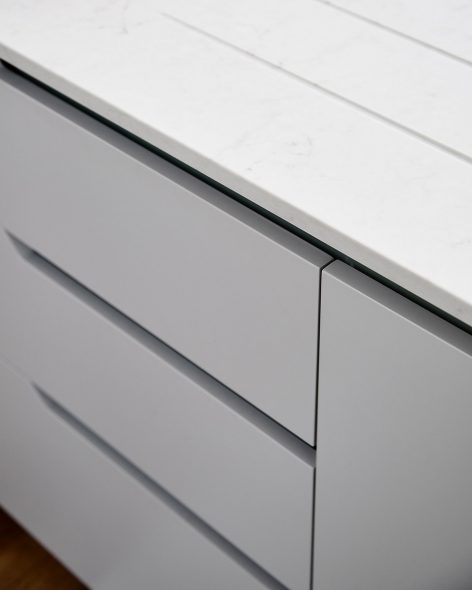

▼材料细节,detail of the materials



Project size: 580㎡
Site size: 574 ㎡
Completion date: 2017
Building levels: 2
