感谢 一境建筑设计 予gooood分享以下内容。更多关于他们: Yijing Architectural Design on gooood.
Appreciation towards Yijing Architectural Design for providing the following description:

随着深圳人口和城市的快速增长，城市建设用地和发展空间变得日益紧张，导致中小学及幼儿园学位供应面临巨大挑战。为了应对土地资源有限、人口规模扩大以及对高质量基础教育的需求，如何在集约用地的基础上设计符合未来教育发展且“有趣”、“高颜值”的高密度校园成为热门议题。设计师通过创新的平面布局、密中有疏的活动空间，以及与自然相融合的“谷地游园”设计，为孩子们创造了一座可以躺在天台数星星的“校园山谷”，在潜移默化中激发孩子的想象力和创造力。

As Shenzhen’s population and urban development continue to expand rapidly, the availability of land for construction and growth is becoming increasingly constrained, presenting significant challenges in providing adequate school and kindergarten seats. To address these challenges, designing high-density campuses that efficiently utilize land while meeting future educational needs has become a critical topic. These campuses must also be “interesting” and “visually appealing” to foster an engaging learning environment. Designers have developed a concept known as the “campus valley,” where children can lie on the rooftop and count stars. This innovative design incorporates floor layouts that optimize space, spacious activity areas within dense environments, and a “valley garden” that seamlessly integrates with nature, subtly stimulating children’s imagination and creativity.

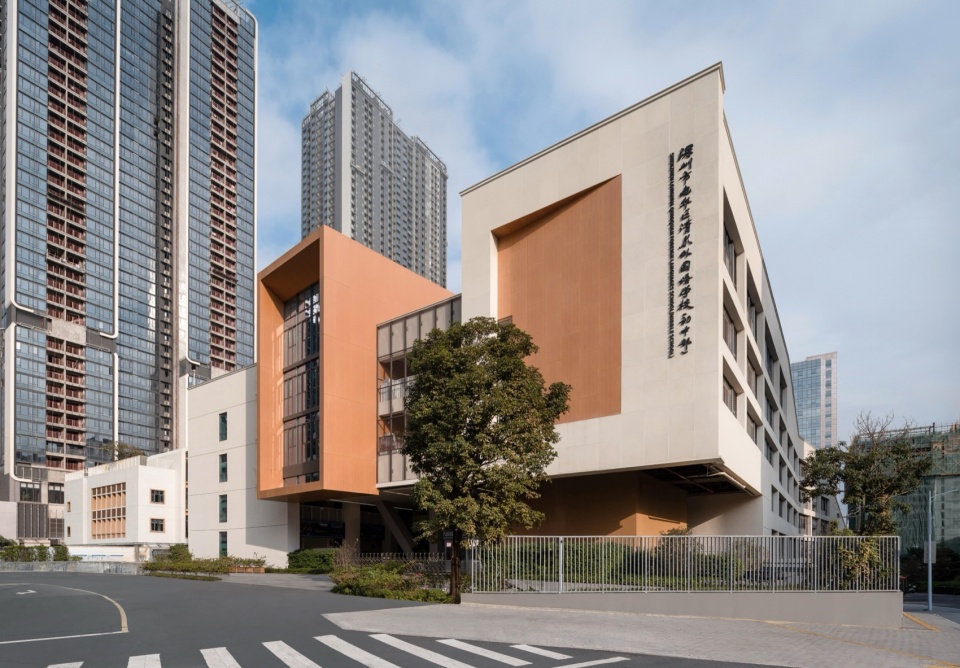

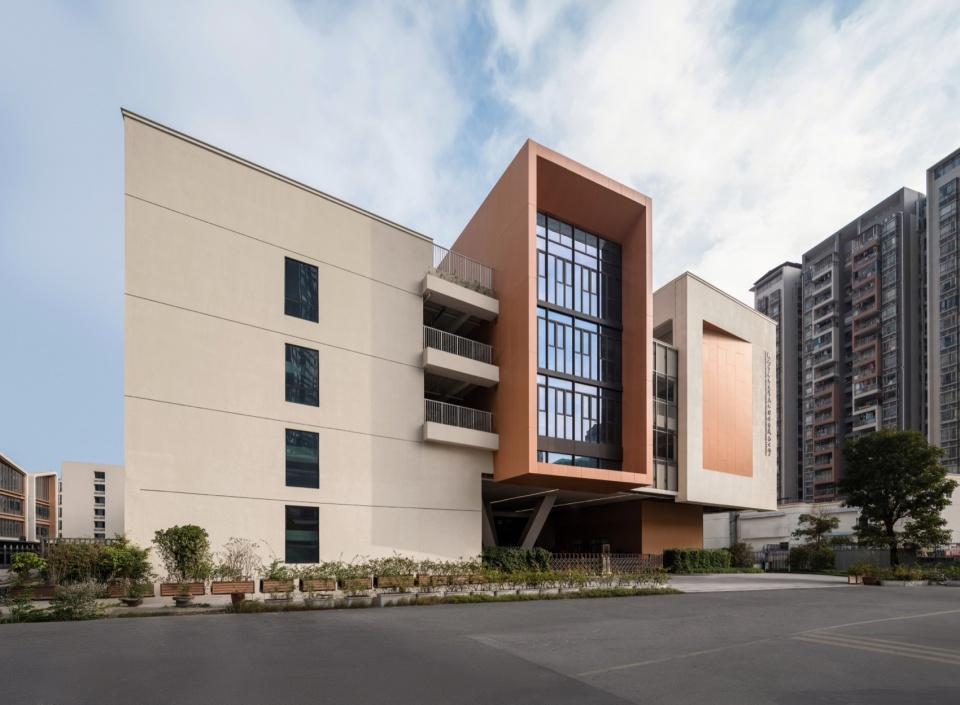

▼校园入口，entrance © 林绿摄影

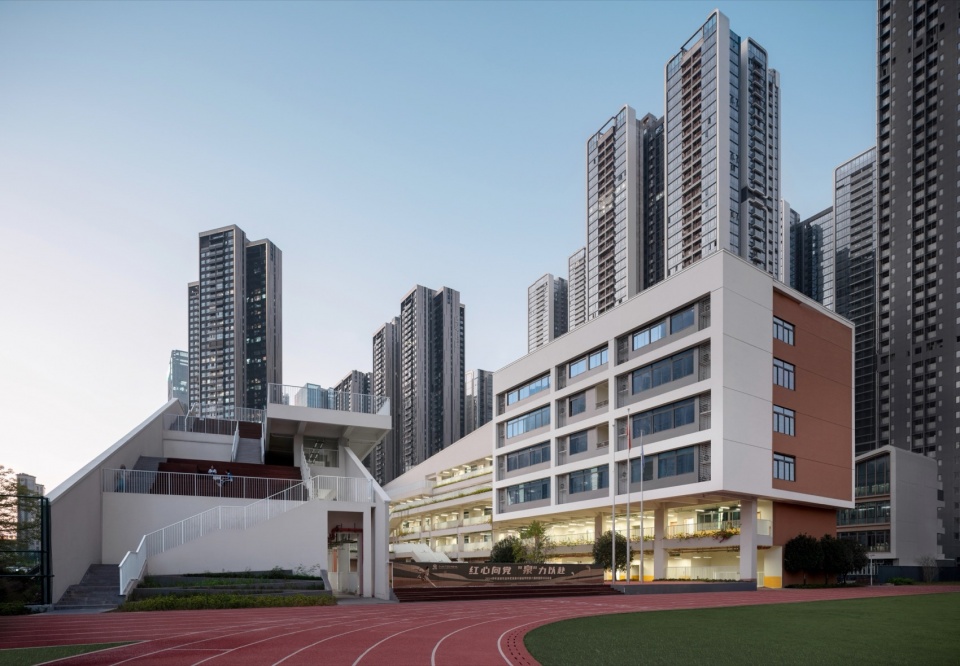

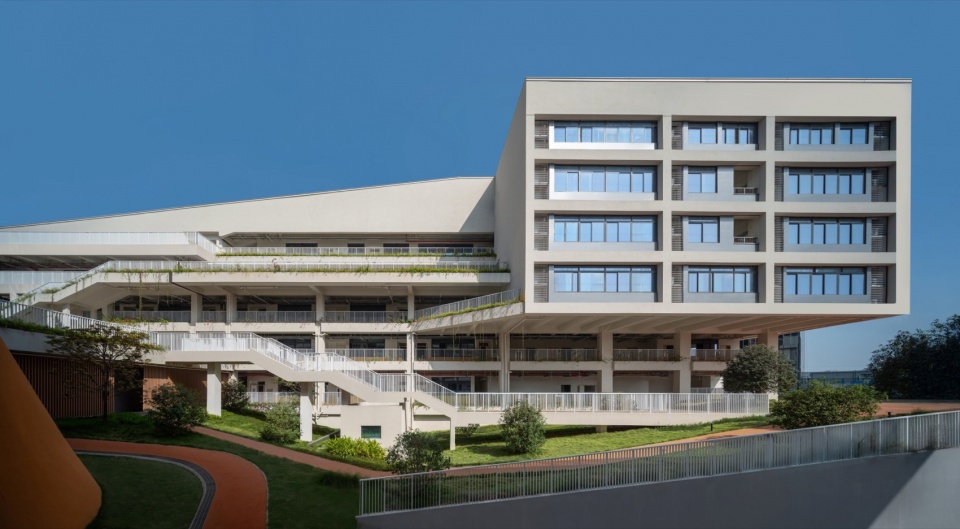

▼教学楼，teaching building © 林绿摄影

深圳市龙华区清泉外国语学校初中部是一所24班初中学校，总建筑面积约29266平方米，位于龙华区清泉街道。学校以泉文化为基础，以“清·活”为办学理念，旨在遵循教育发展规律，构建风清气正的校园文化，培育求真致知、清雅向善的学生。然而，在巨大的城市进程中，开阔的山川树林逐渐被钢筋混凝土所取代，人与自然的链接日渐薄弱，在追求高质量教育的过程中往往忽略了孩子们的精神追求与心理健康。

The Qingquan Foreign Language Junior School in Longhua District, Shenzhen, is a 24-class junior school with a total building area of approximately 29,266 square meters, located in Qingquan Street.

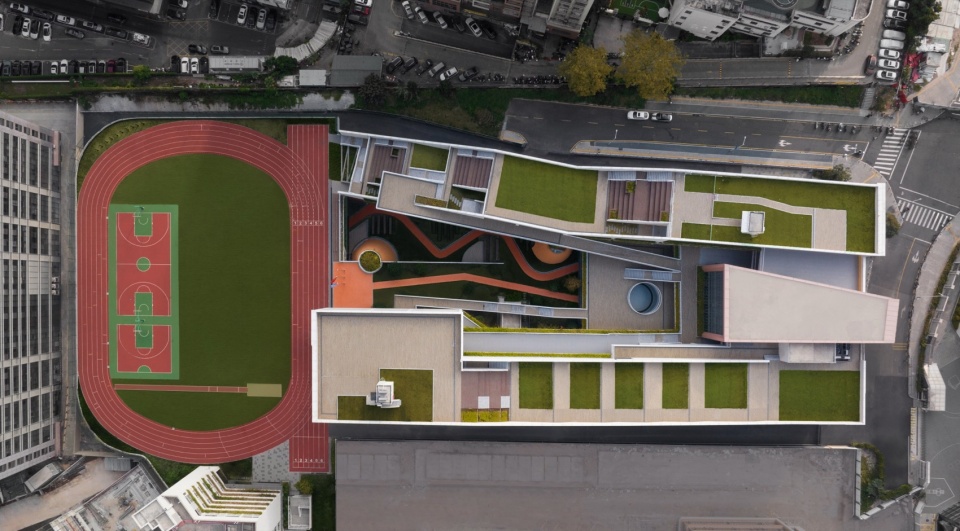

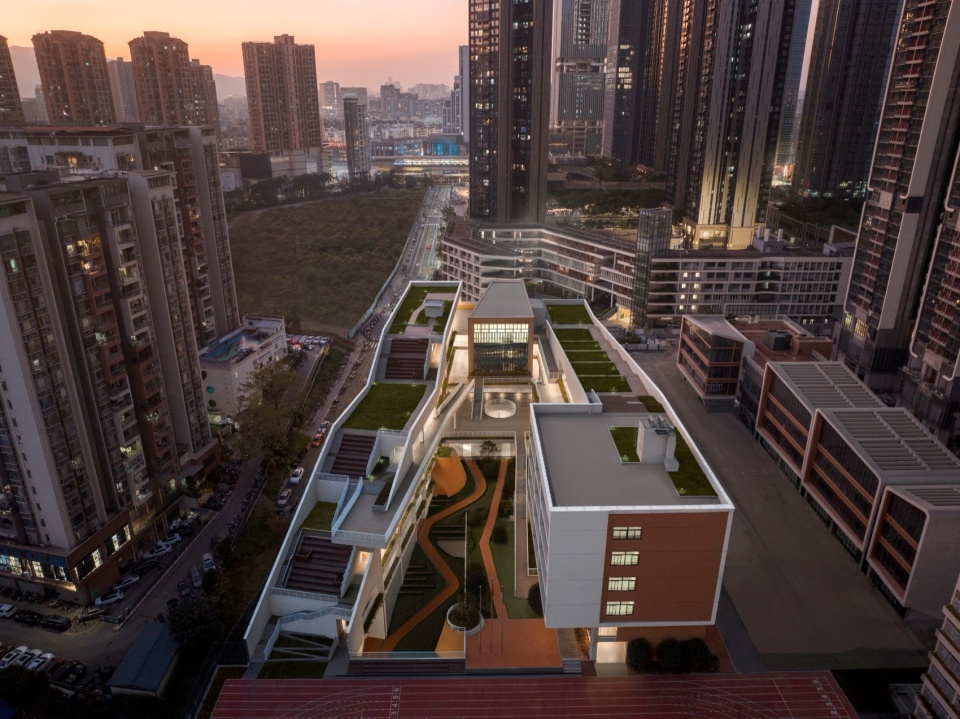

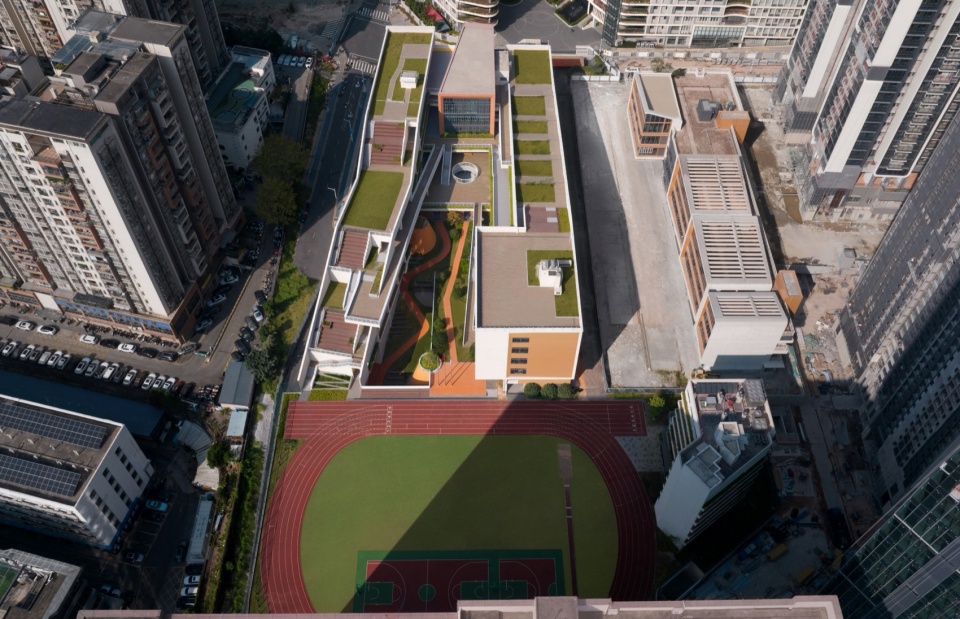

▼校园鸟瞰，campus aerial view © 林绿摄影

因此，设计师结合学校的办学理念在校园设计中更多地强调自然属性，通过丰富整个校园趣味空间缓解孩子们的学习压力，让他们在充满阳光与野趣的校园里快乐成长。学校原始地块呈不规则梯形，项目北临清龙路，南接永淳路，东至龙华大道，西至和平路，用地面积为14589.7m²。项目地形存在高差，最大有7.1米，整体呈西北高，东南低的状况。结合场地高差，在用地红线边缘放置两栋六层教学楼，解决基本体量问题，并把底层架空，营造更加开阔的首层视野，丰富校园建筑空间体验。

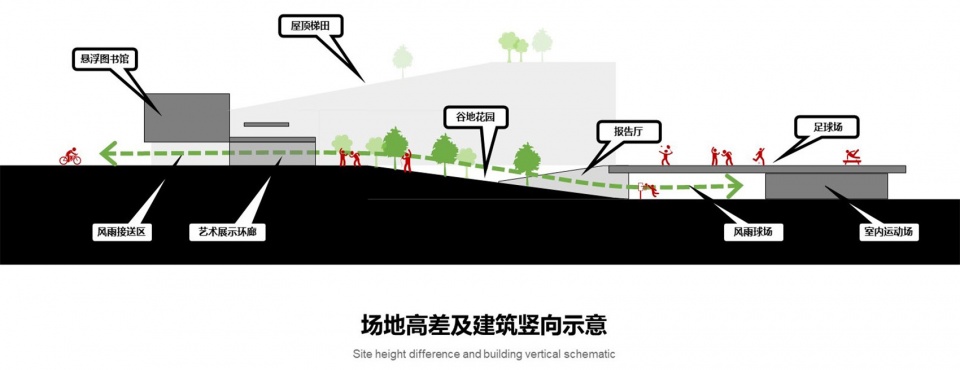

▼用地高差，height difference © 一境建筑设计

The design team has prioritized natural attributes in the campus layout, creating dynamic spaces that alleviate students’ learning pressures and promote their well-being in an environment rich with sunlight and natural beauty. The school’s original plot, an irregular trapezoid with a land area of 14,589.7 square meters, features a terrain with a maximum height difference of 7.1 meters. To optimize the use of space, two six-story teaching buildings are strategically placed along the perimeter of the land use line, with the ground floor elevated to enhance the openness of the first-floor view.

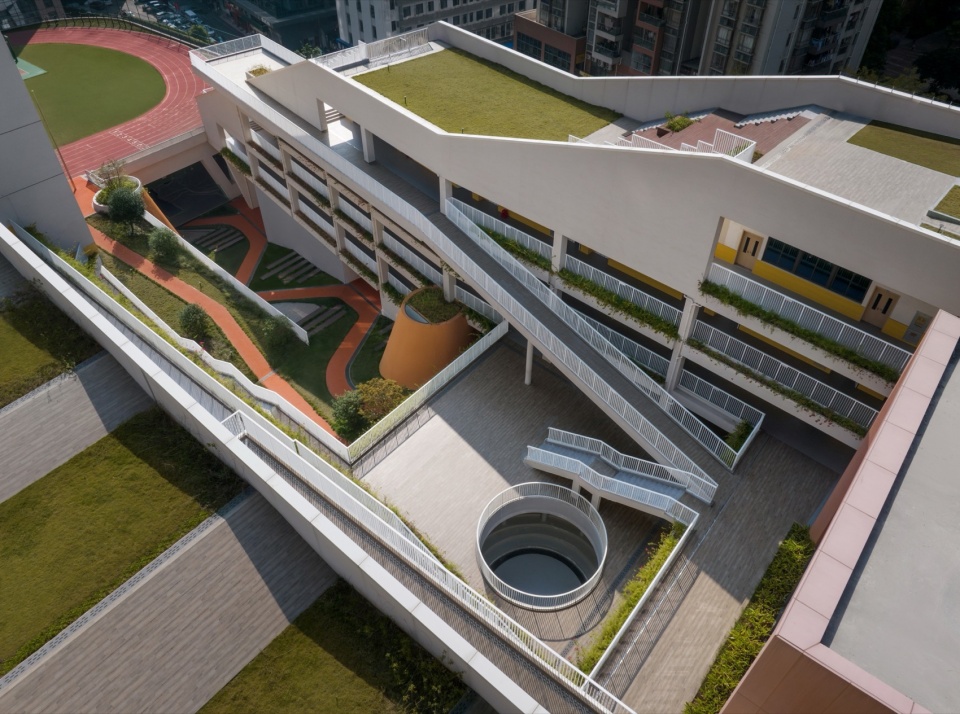

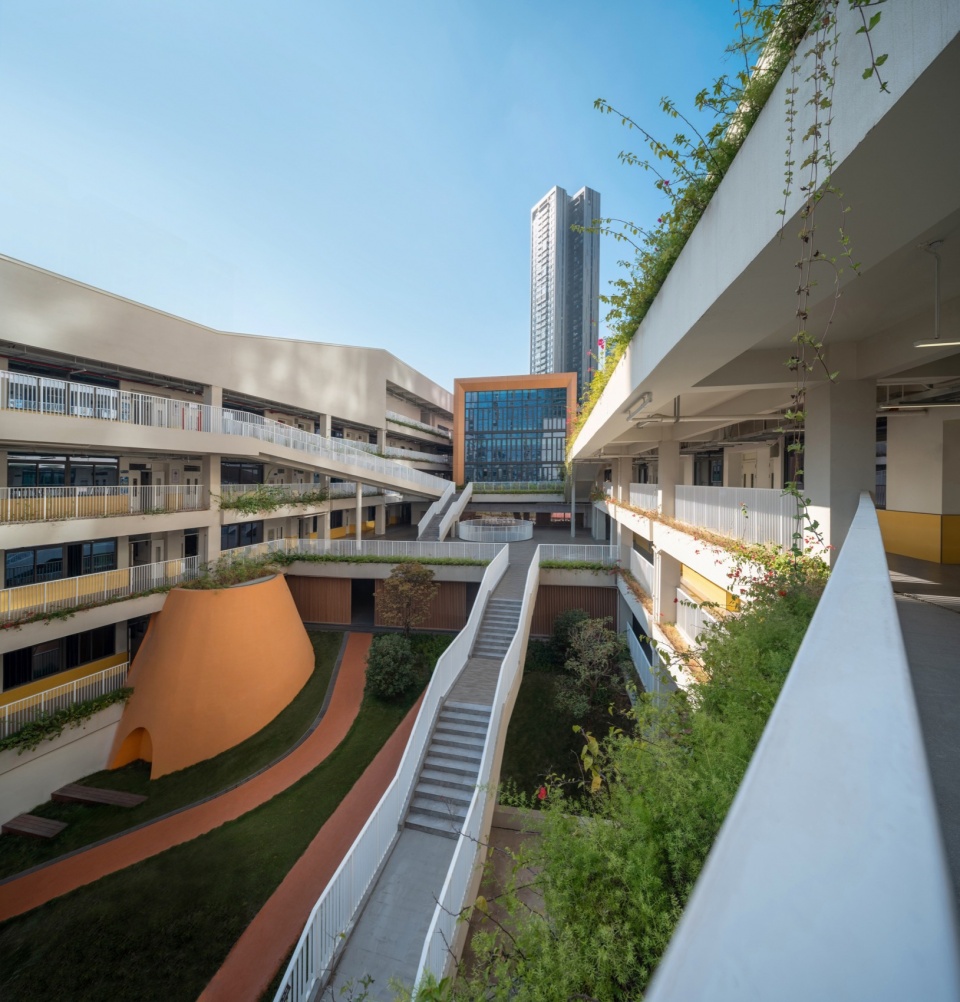

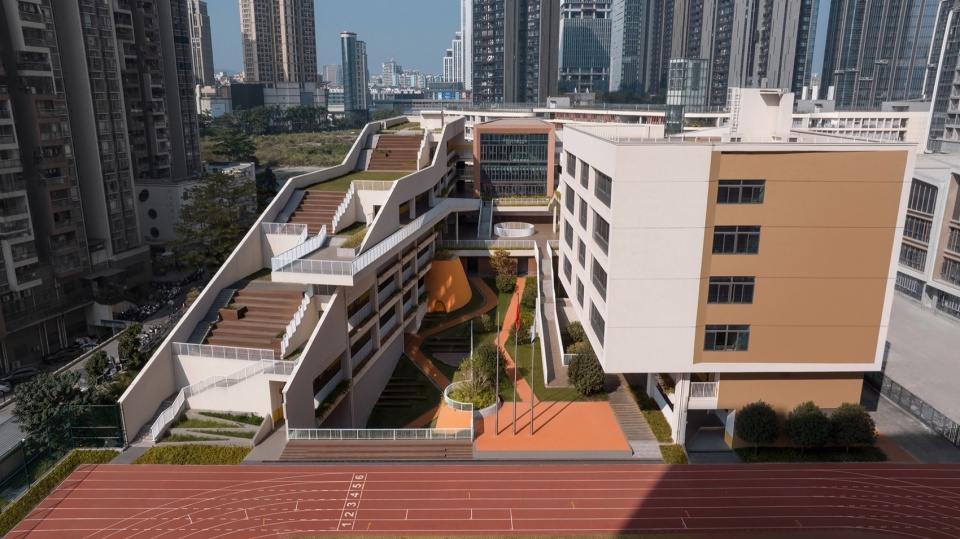

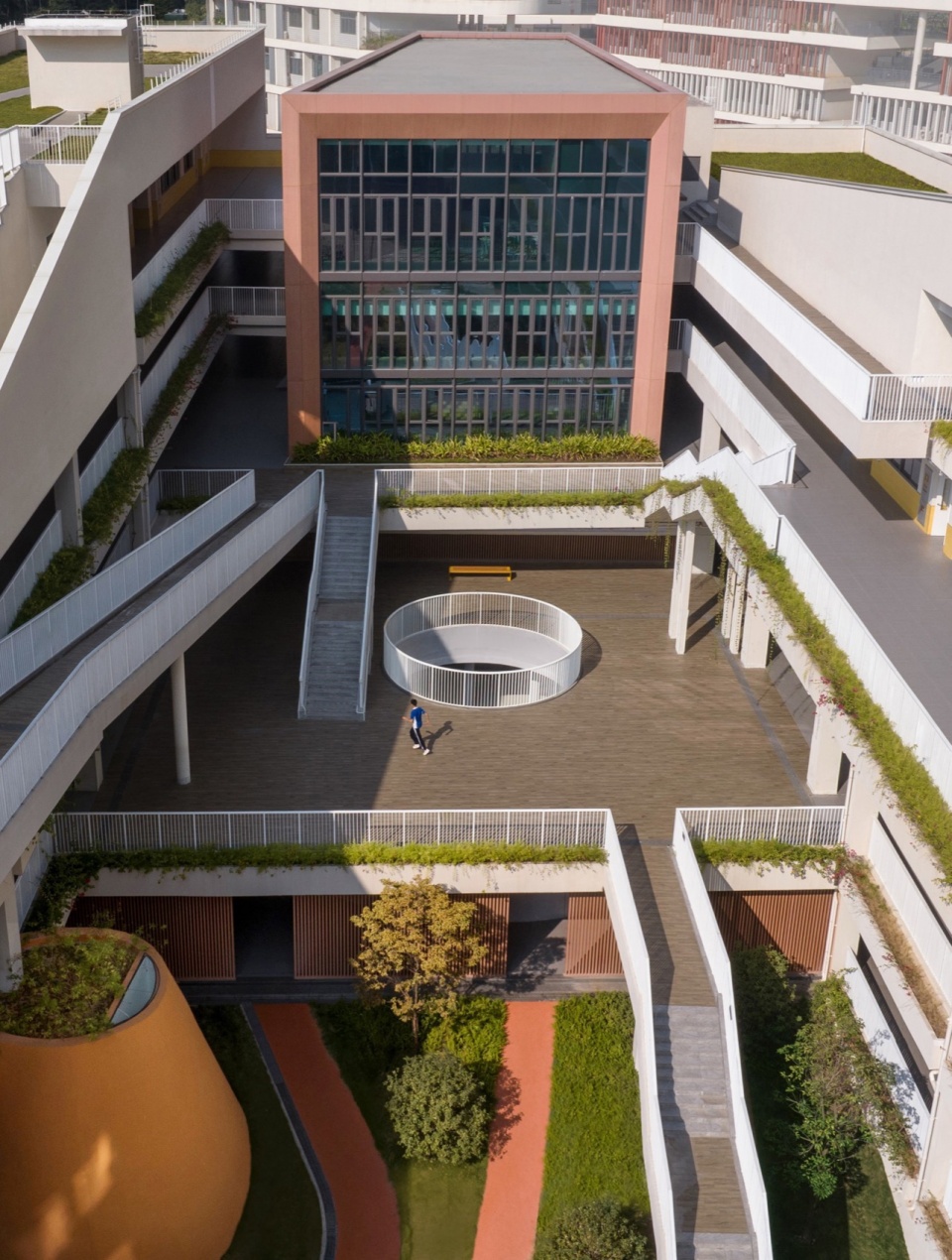

▼中庭鸟瞰，central courtyard overview © 林绿摄影

▼空中图书馆及教学楼，aerial library © 林绿摄影

▼坡地景观，ramp landscape © 林绿摄影

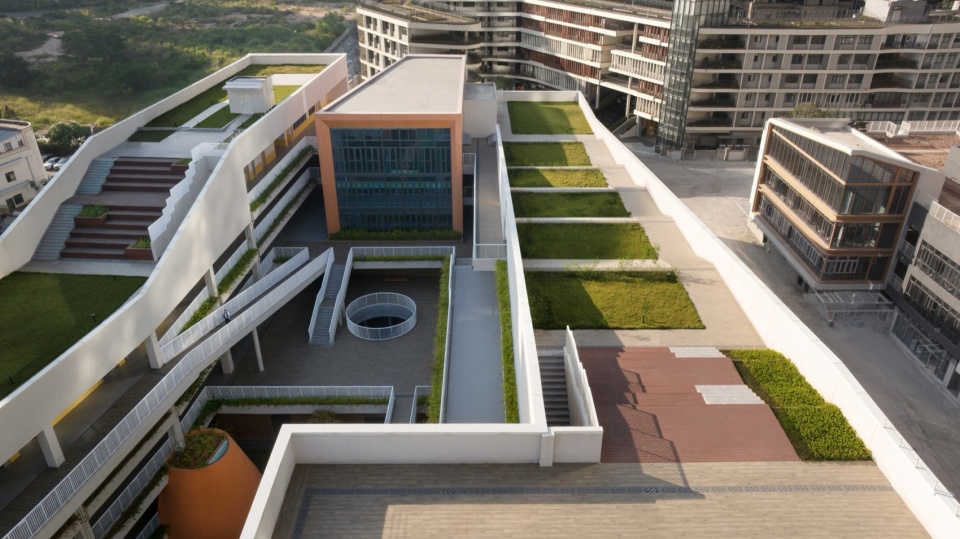

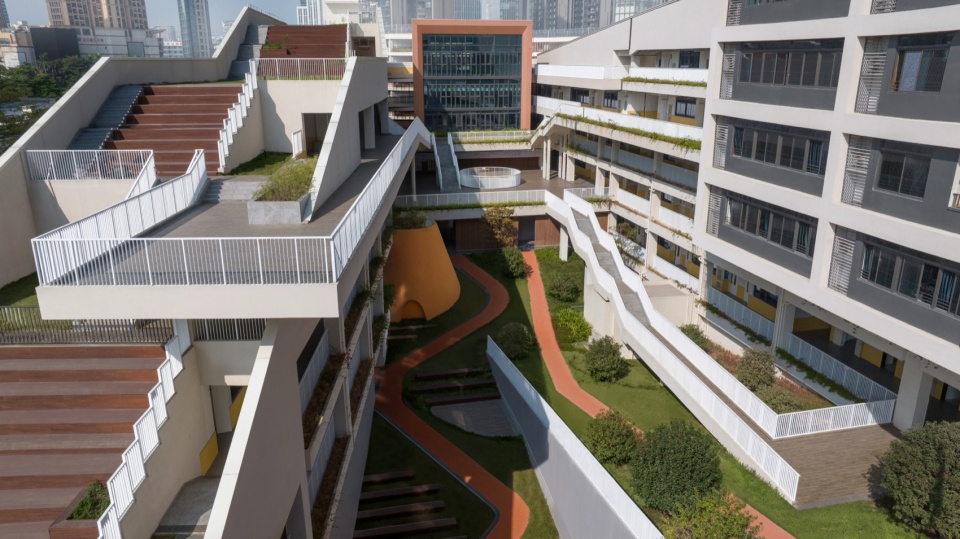

▼校园天台，rooftop terrace © 林绿摄影

在两座教学楼中间设置空中图书馆连接两侧教学功能，通过建筑退台创造连续的屋顶花园并与操场空间形成有机的连接。依据地势高差顺势而为，在南北建筑体量之间形成“谷地花园”，创造出绿意盎然充满童趣的坡地景观。精心设计的廊道、平台、小木屋、探索洞穴为孩子们在校园活动中创造了一片属于他们的山谷天地，下课时可以放肆玩耍。延绵的两侧教学楼就像两座建筑“山体”在入口处汇聚并悬挑而出形成一个半封闭的开放空间，形成沿街主界面，同时承载家长接送等待区的功能。

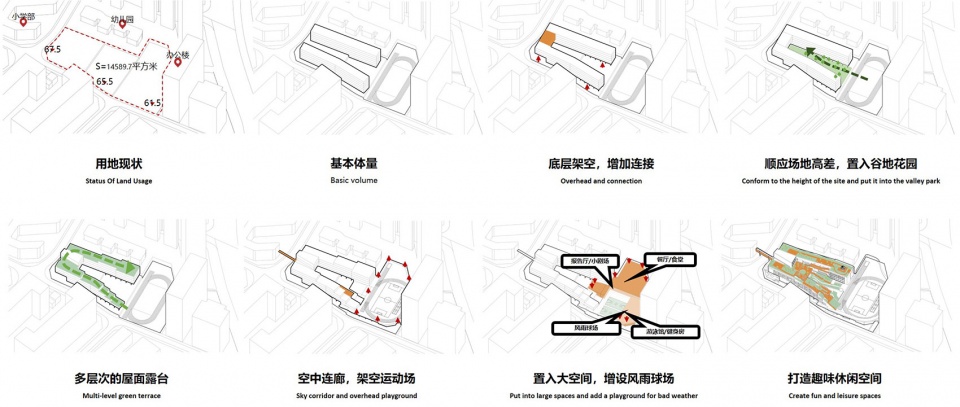

▼体块生成，block generation © 一境建筑设计

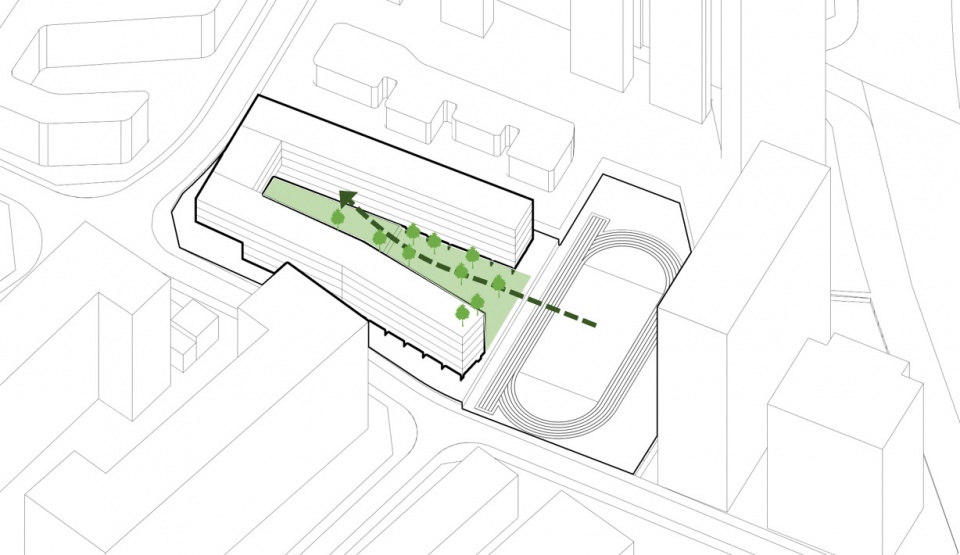

▼用自然连接校园，Connect the campus with nature © 一境建筑设计

An aerial library connects the teaching functions, and continuous rooftop gardens are created through building setbacks, forming a “valley garden” that serves as a central focal point.

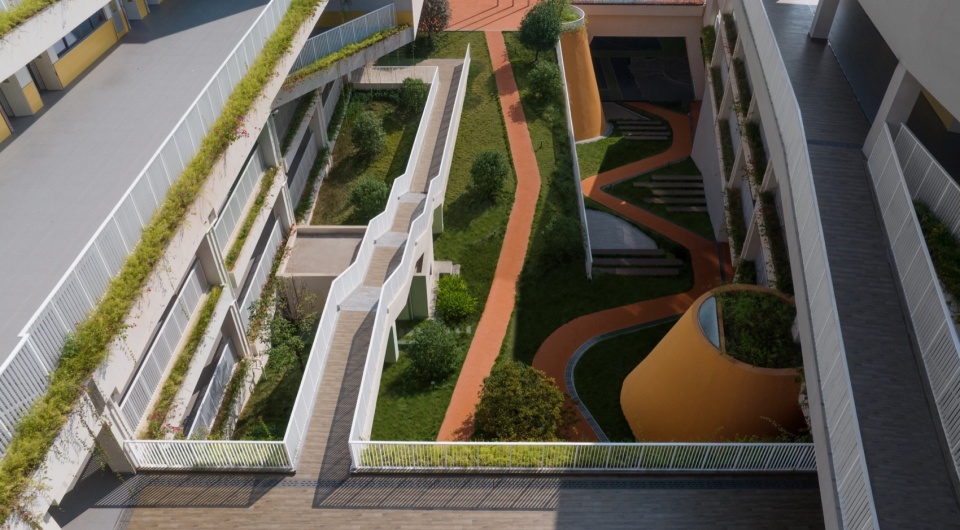

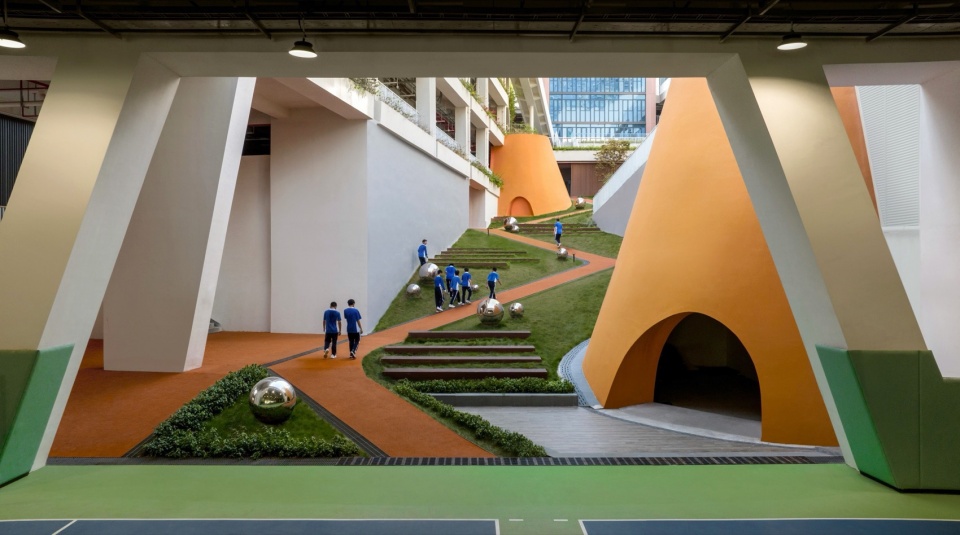

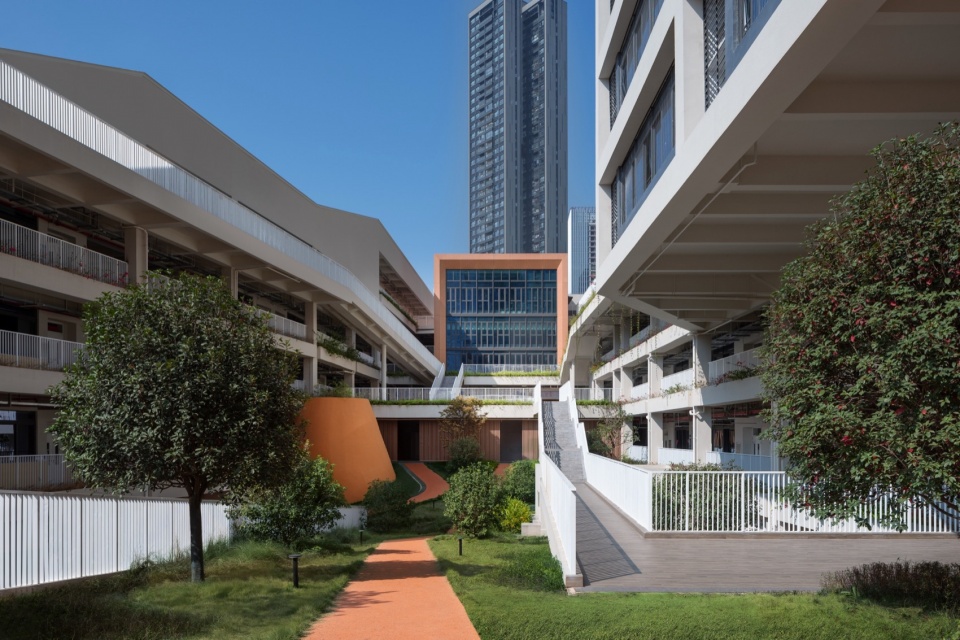

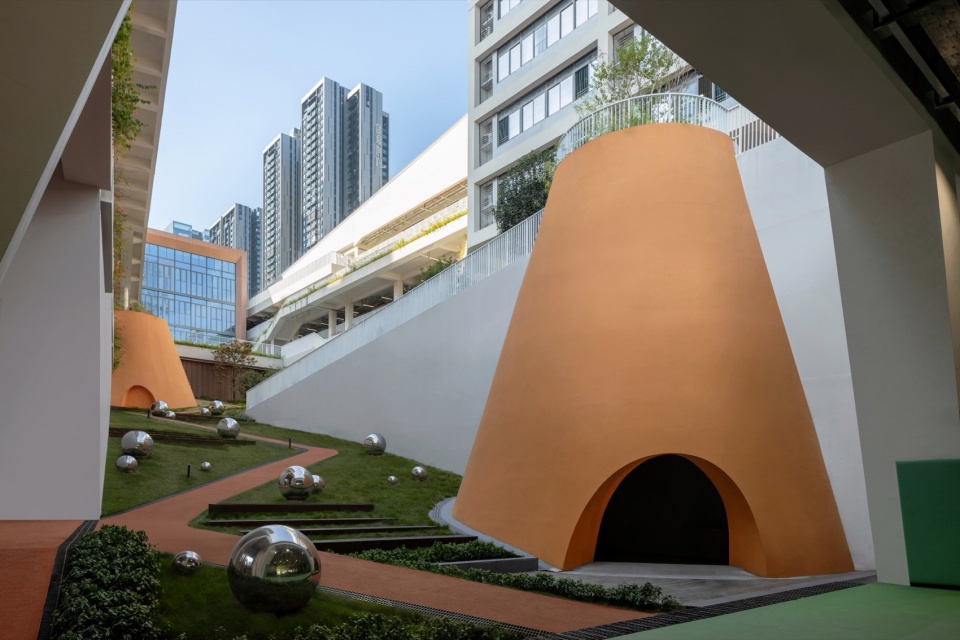

▼“谷地花园”，”valley garden” © 林绿摄影

▼半封闭的开放空间，semi closed open space © 林绿摄影

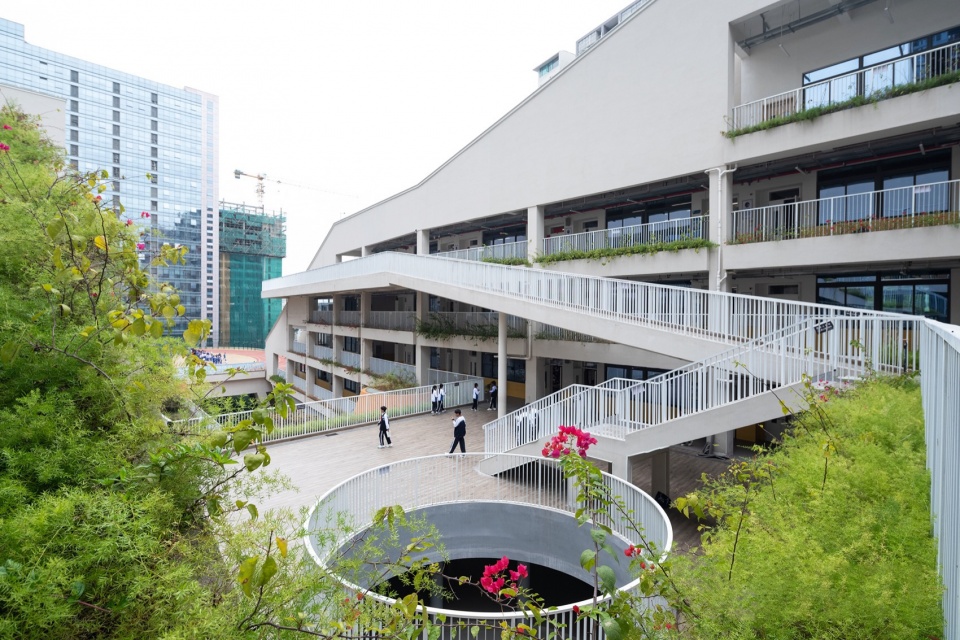

▼教学连廊，bridge © 林绿摄影

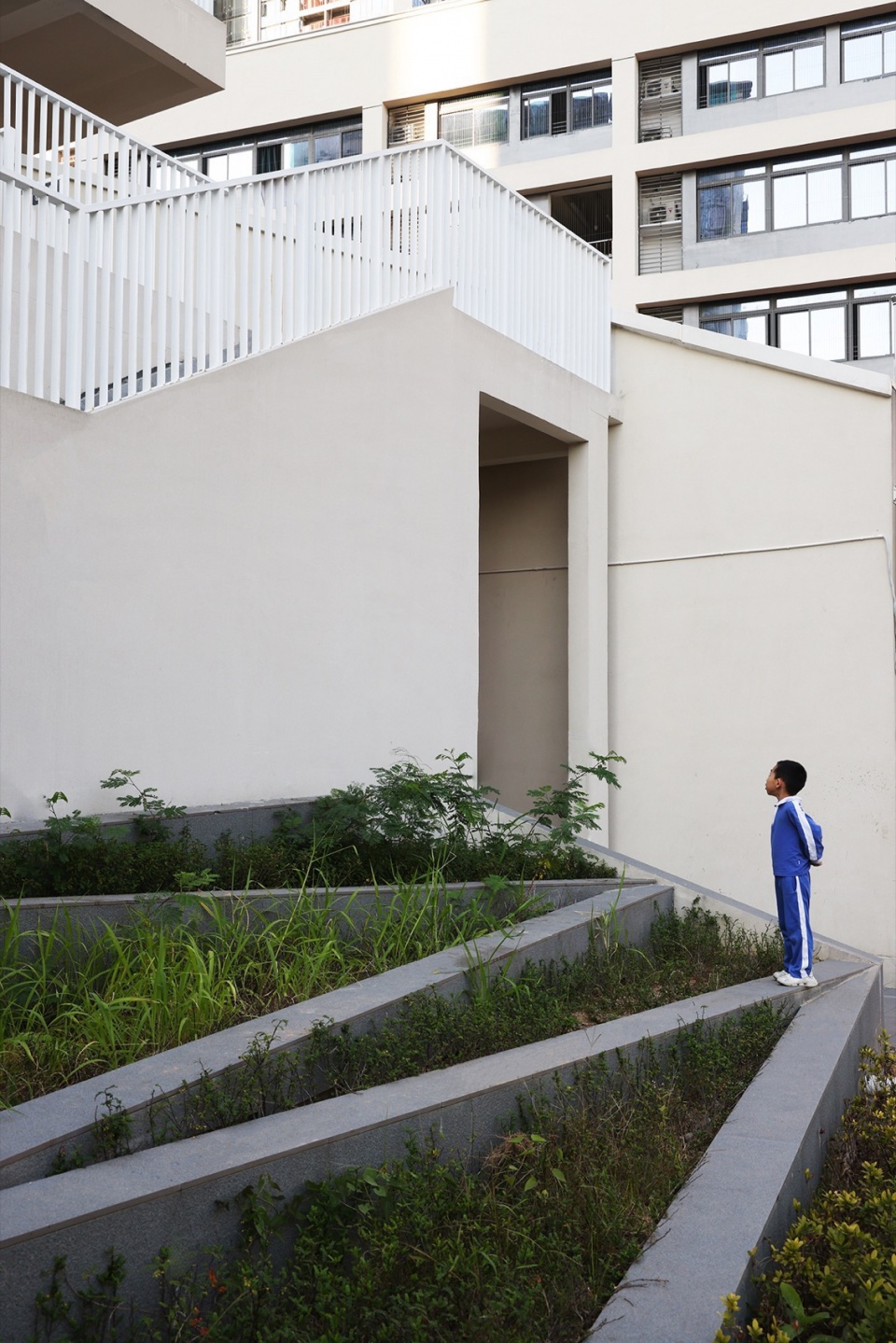

▼花坛一角，greenery © 林绿摄影

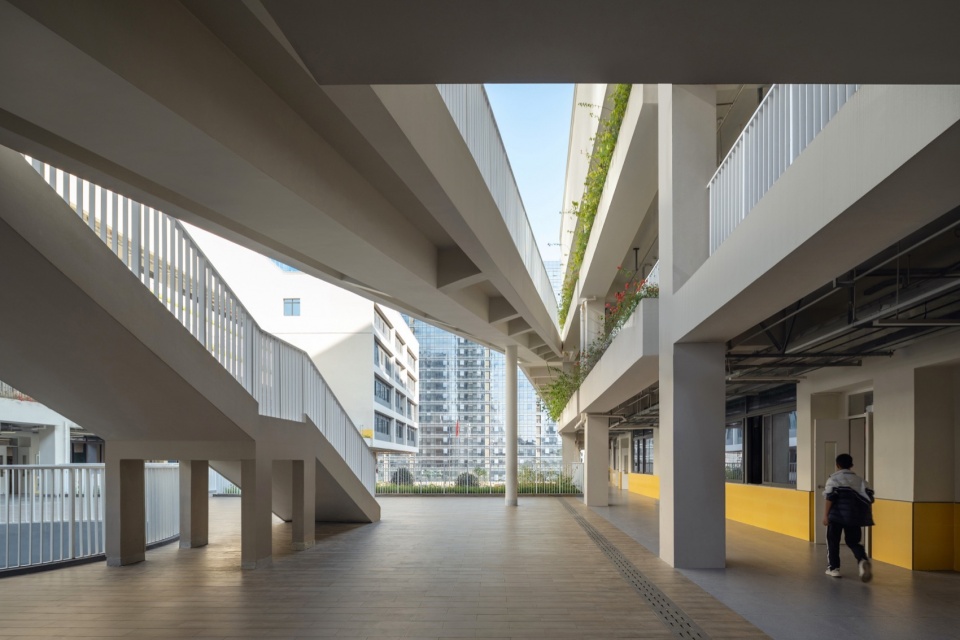

▼走廊，gallery © 林绿摄影

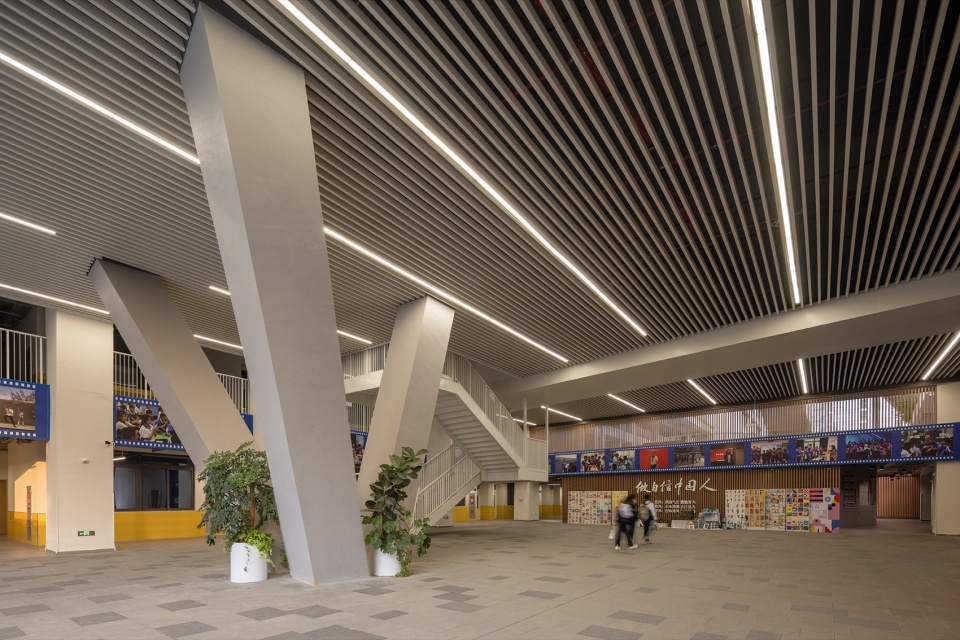

▼底层架空，elevated ground floor © 林绿摄影

将运动场架空成为谷地花园的延续，扩展孩子们的运动场地面积，增设风雨球场，为孩子们在风雨天提供运动场所。报告厅入口藏在室内运动场旁的洞穴里，用童趣的方式重新诠释别有洞天。从屋顶延续的绿色天空观景台、连续精巧的空中漫步道、有趣好玩的谷地花园、丰富的多重功能空间将整个校园高效的串联起来，形成地毯式的校园生态网络。中午孩子们可以到屋顶花园漫步野餐、放学后在学校观景台看一场红霞满天，让架空层、坡地、台阶、阳台、屋顶、平台——都成为孩子们学习和玩耍的空间，享受校园内愉快的时光。一境希望校园不仅是一个传统意义上教学的场所，还能培养孩子们多元的兴趣爱好，在这里可以听到孩子们的朗朗书声和他们在“绿谷”游园时的开怀大笑，为他们奉献一所与大自然共同成长、有趣、寓教于乐的校园.

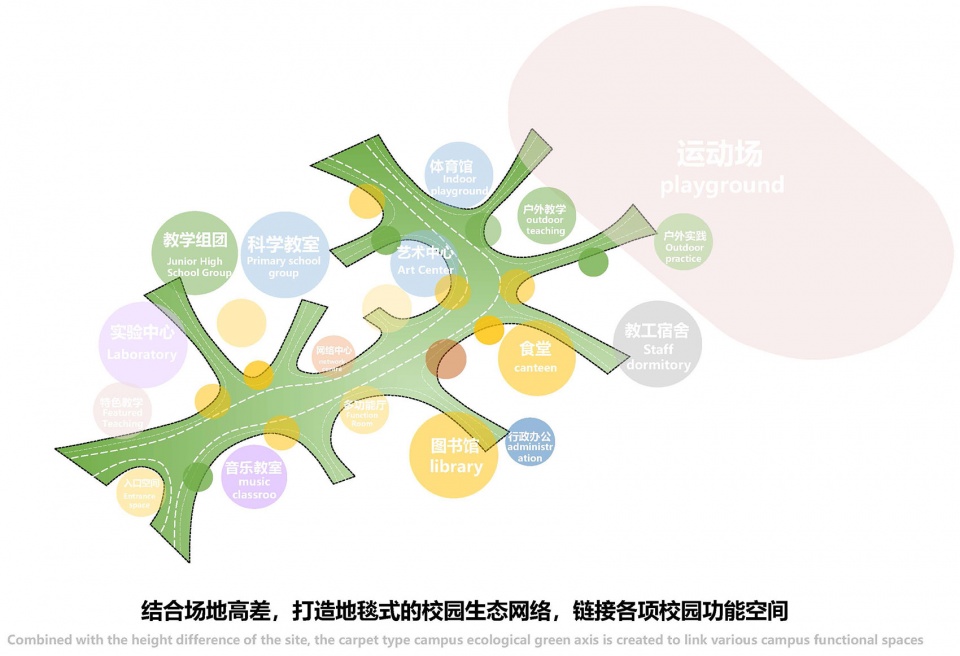

▼打造地毯式的校园生态网络，carpet-type campus ecological system © 一境建筑设计

The sports field is elevated to extend the valley garden, thereby expanding the children’s sports field area and incorporating a sports hall for use during inclement weather. The entrance to the auditorium is ingeniously hidden within a cave-like structure, reinterpreting the concept of “another world” in a child-friendly manner. The campus is equipped with a green sky observation deck, an aerial walkway, and a rich multi-functional space, forming a carpet-style campus ecological network. This design allows children to engage in activities such as strolling in the rooftop garden and watching the sunset from the observation deck. The campus is designed not only to serve as a traditional teaching facility but also to cultivate diverse interests and hobbies, providing a fun and educational environment where children can grow in harmony with nature.

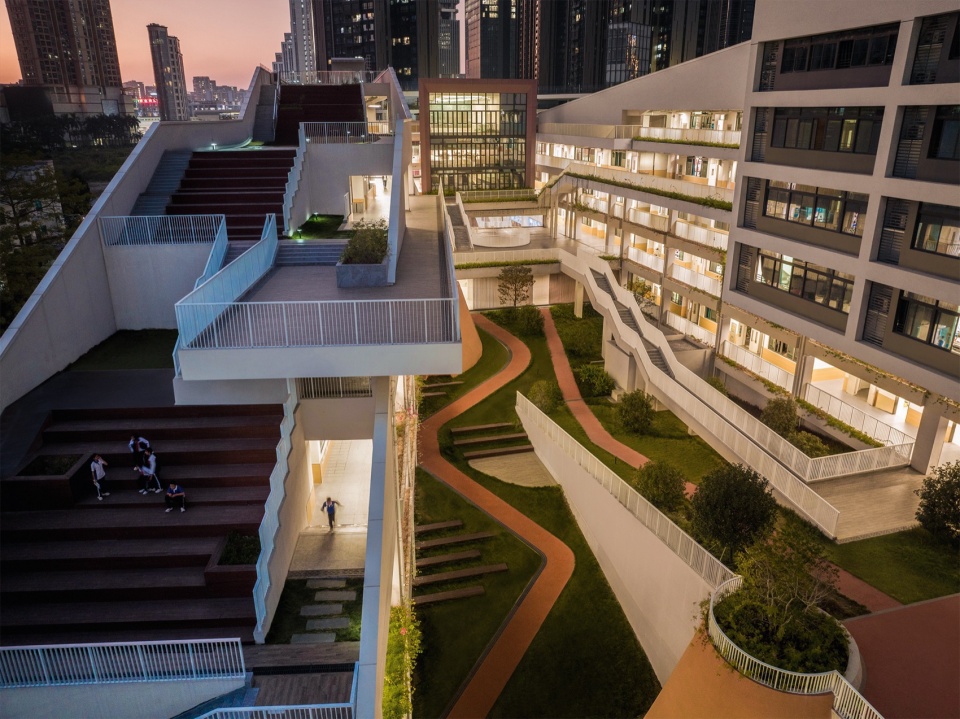

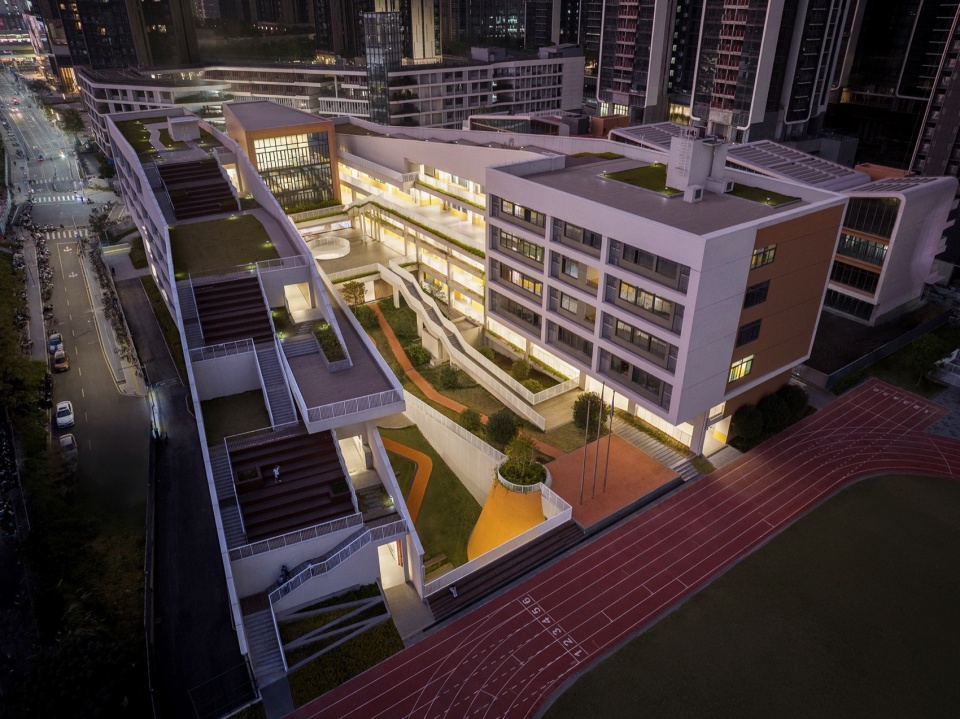

▼夜景，night view © 林绿摄影

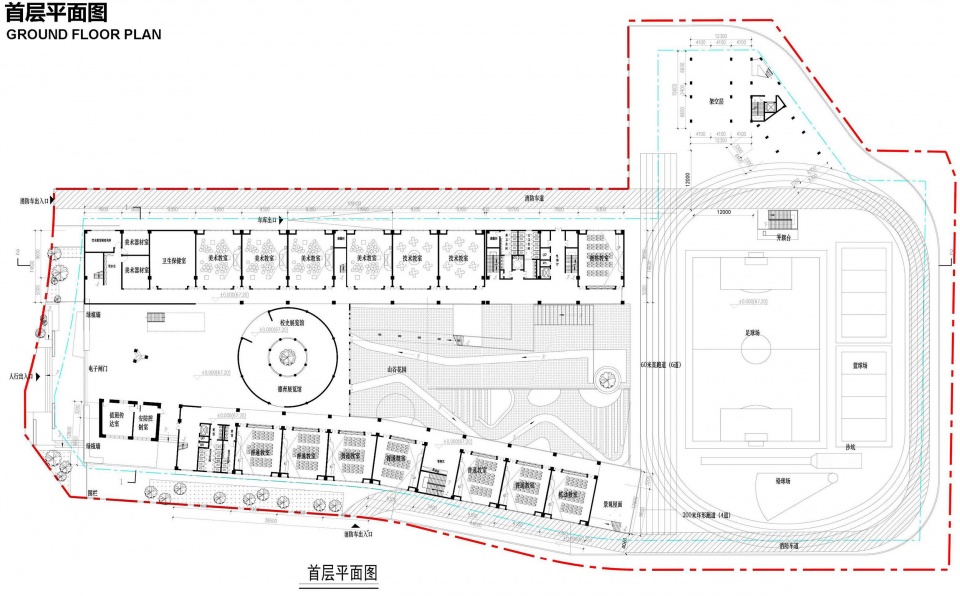

▼首层平面图，ground floor plan © 一境建筑设计

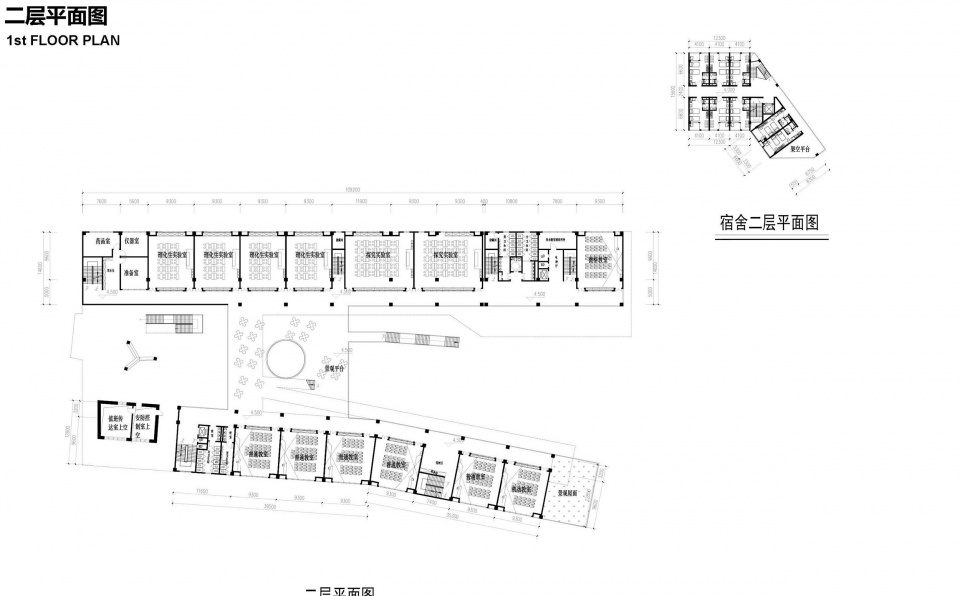

▼二层平面图，1st floor plan © 一境建筑设计

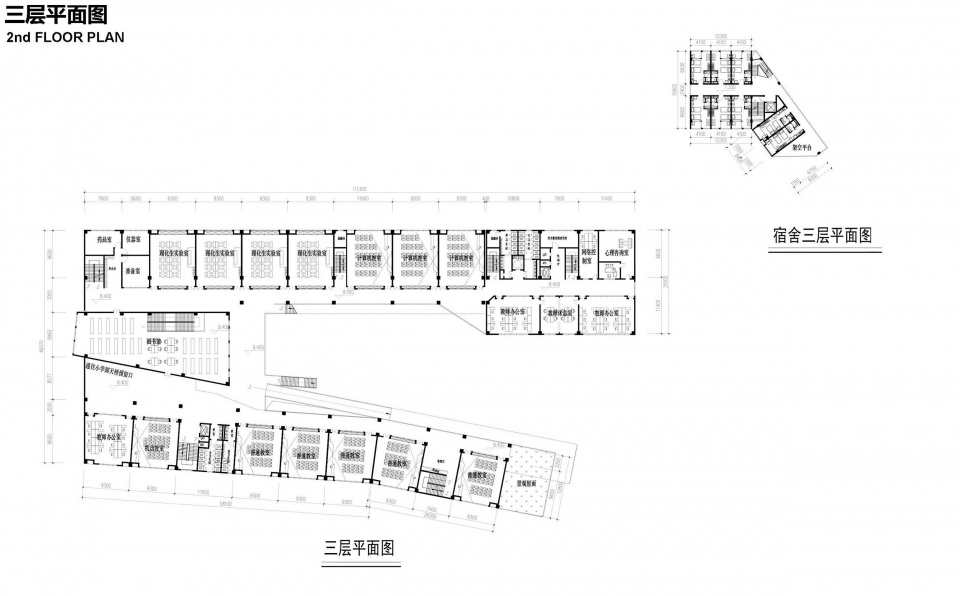

▼三层平面图，2nd floor plan © 一境建筑设计

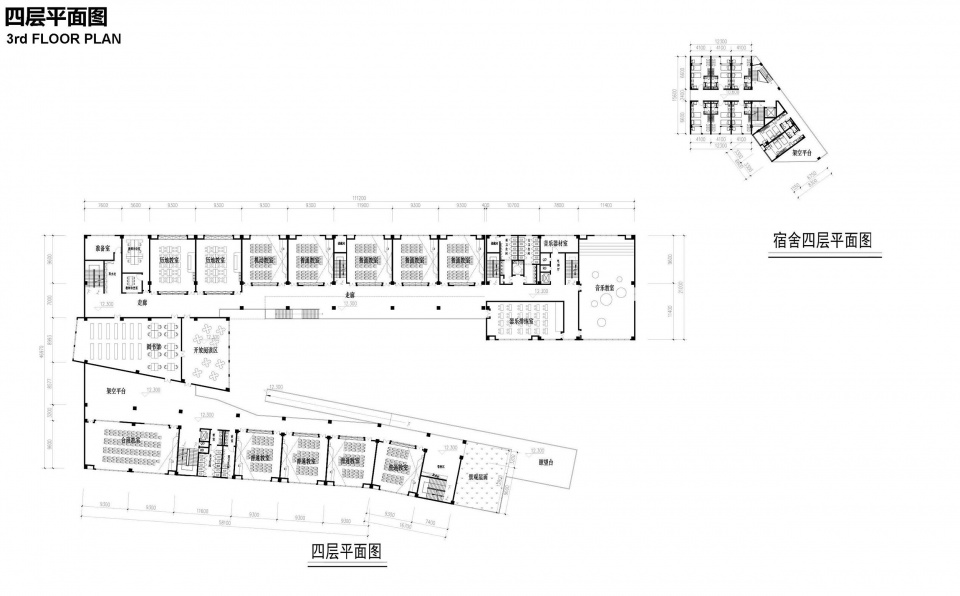

▼四层平面图，3rd floor plan © 一境建筑设计

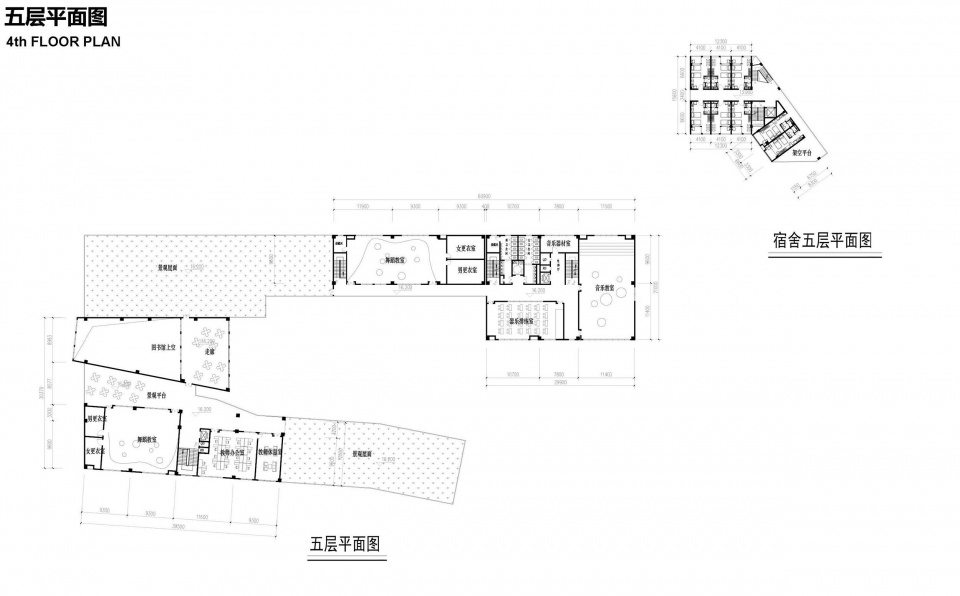

▼五层平面图，4th floor plan © 一境建筑设计

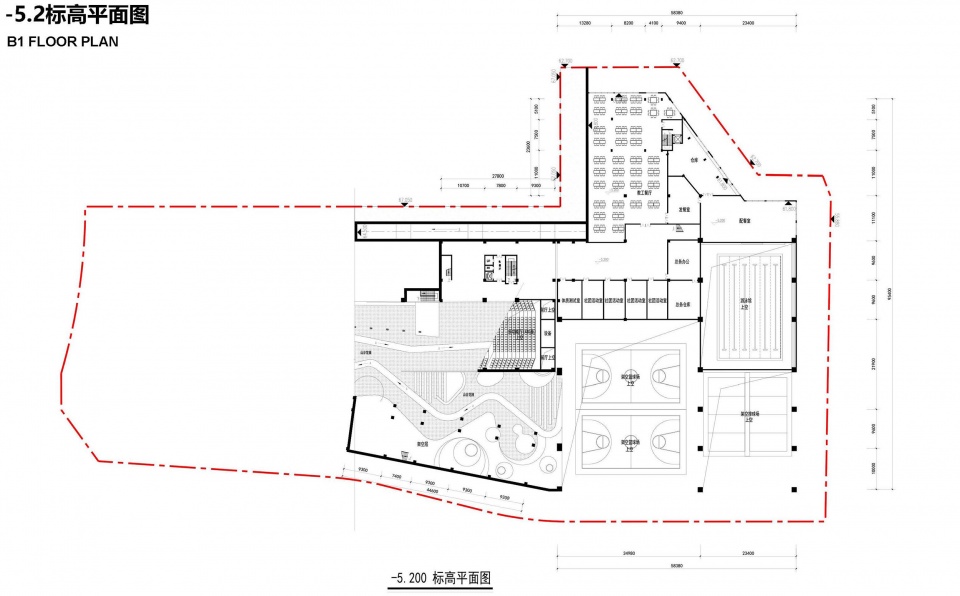

▼负一层平面图，B1 floor plan © 一境建筑设计

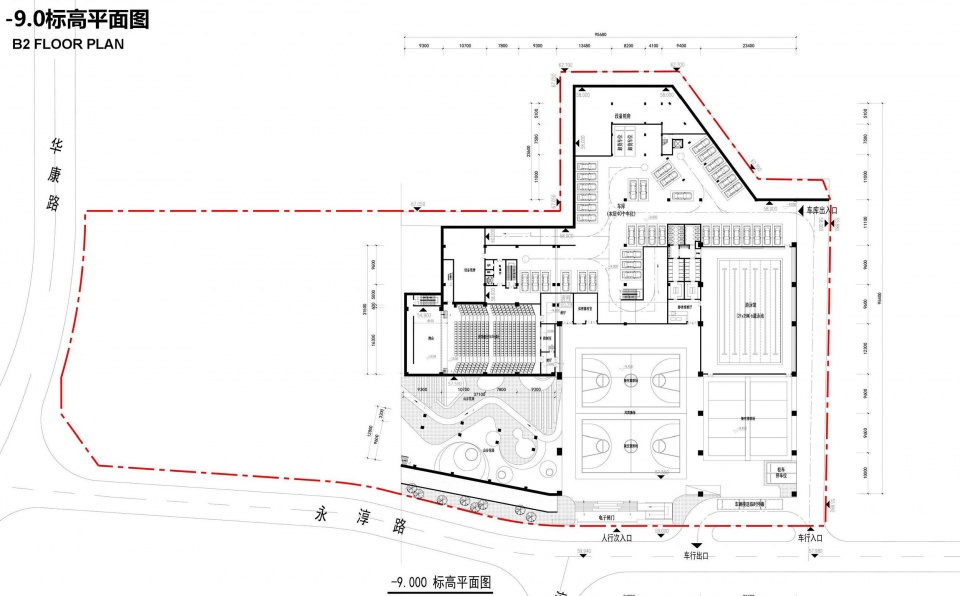

▼负二层平面图，B2 floor plan © 一境建筑设计

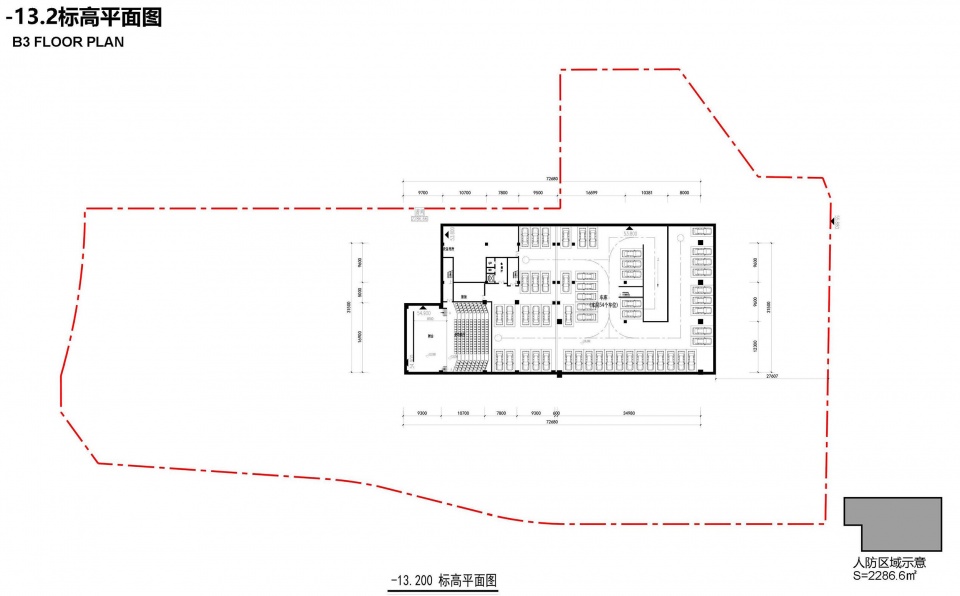

▼负三层平面图，B3 floor plan © 一境建筑设计

项目名称：深圳市龙华区清泉外国语学校初中部
项目类型：教育建筑
设计方：深圳市一境建筑设计有限公司简称：一境建筑设计
公司网站：www.yijing-vip.com
联系邮箱：YIJING_AD@123.com
完成年份：2023
设计团队：何敏聪、肖利军、谢翊、刘渝、陈日明
项目地址：深圳市龙华区永淳路（清湖地铁站D口）
建筑面积：29266㎡
摄影版权：林绿摄影
施工图设计（公司名称）: 深圳华阳国际工程设计股份有限公司//深圳市市政总工程总公司
可研单位（公司名称）: 深圳市建筑科学研究院股份有限公司
全过程工程咨询单位: 四川元丰建设项目管理有限公司（主体单位）
北京城建设计发展集团股份有限公司（成员单位）
勘察单位: 深圳市勘察研究院有限公司//中国电建集团华东勘察设计研究有限公司
客户：深圳市龙华区建筑工务署
材料：涂料 – 立邦
运动地板-圣象运动、
瓷砖-马可波罗

Project name: Shenzhen Longhua District Qingquan Foreign Language Junior School
Project type: education architecture
Design: Shenzhen Yijing Architectural Design Co., Ltd.
Website: www.yijing-vip.com
Contact e-mail: YIJING_AD@123.com
Design year: 2021
Completion Year: 2023
Leader designer & Team:He Mincong、Xiao Lijun, Xie Yi, Chen Riming，Liu Yu,
Project location:Yongchun Road, Longhua District, Shenzhen
Gross built area: 29266㎡
Photo credit: Linlv
Partner: Construction Drawing Design (Company Name): Shenzhen Huayang International Engineering Design Co., Ltd. // Shenzhen Municipal General Engineering Corporation
Feasibility Study Unit (Company Name): Shenzhen Building Research Institute Co., Ltd.
Whole Process Engineering Consulting Unit: Sichuan Yuanfeng Construction Project Management Co., Ltd. (Principal Unit)
Beijing Urban Construction Design & Development Group Co., Ltd.
Surveying Unit: Shenzhen Surveying and Research Institute Co., Ltd. // PowerChina Huadong Survey and Design Research Co., Ltd.
Clients:Longhua District Construction Bureau
Materials:• Paint: Nippon Paint
• Sports Flooring: Shengxiang Sports
• Tiles: Marco Polo
