该项目位于特里凡得琅（Trivandrum）拥挤市中心的小地块上，四周均被其他住宅所包围。它被设计成内向型住宅，所有空间都通向漏斗式中庭。住宅采用东西向布局，其门窗洞能够为室内带来最大通风。

Located smack in the middle of an urban and crowded locale of Trivandrum, the site was a small plot that was being suffocated by other residential projects from all four sides. The idea of this residence was to have an inward facing house with all its spaces opening into a funneling central courtyard. The house is aligned in the East-West direction with openings facilitating for maximum cross-ventilation.

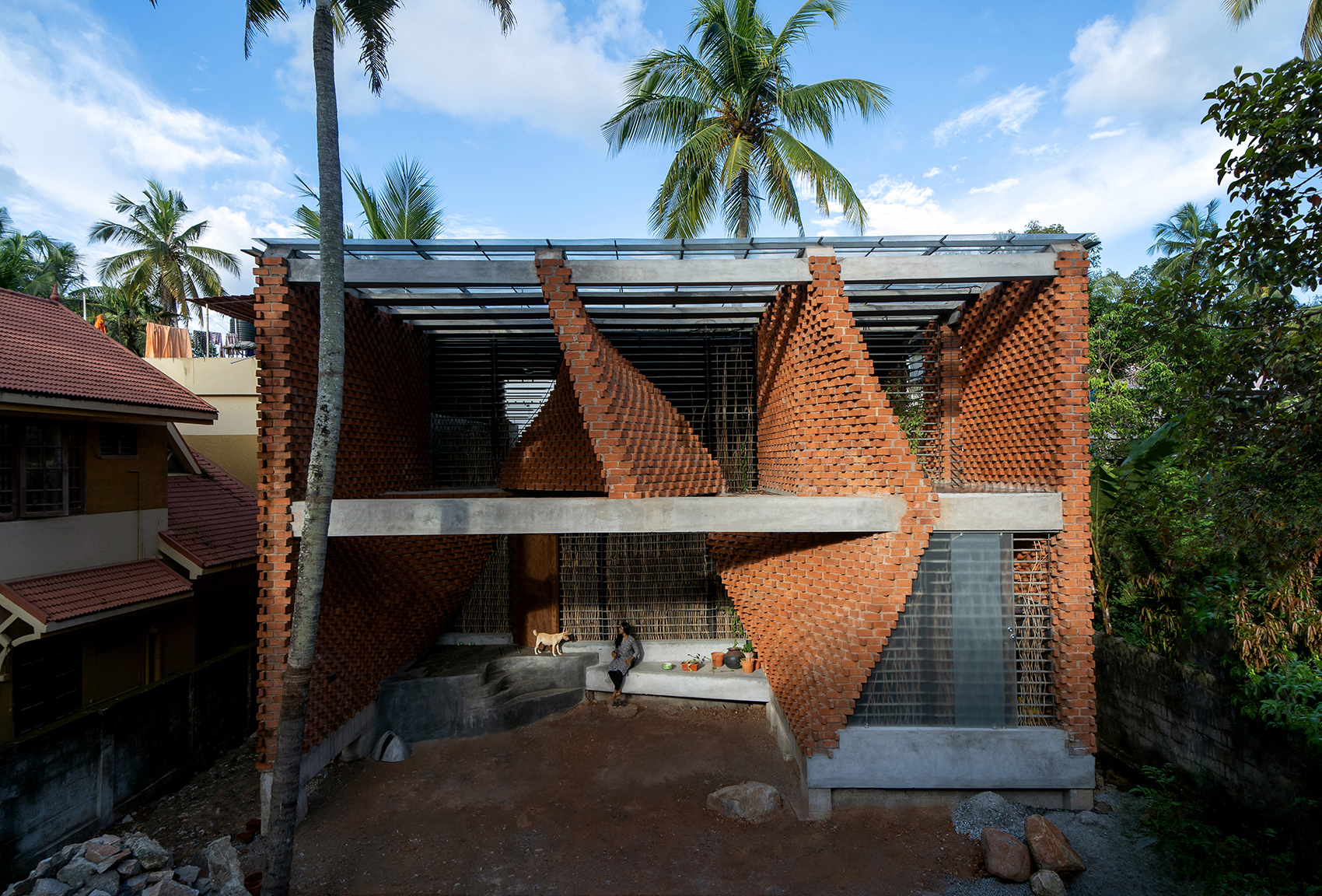

▼正立面，front elevation ©Jino Sam

Rat trap Bond是一种砖墙砌筑方式，砖块垂直放置取代传统的水平放置，在墙内形成空腔，不仅可以提高热效率和减少用砖量，还十分适于隐藏构件和管道。这种砌筑方式进一步发展形成起伏的曲面墙，仅用于支撑钢筋水泥壳体屋面。每面交错的墙均是针对该项目空间不足的问题而定制，为的是创造出更大的体积和更强的私密感。

▼主入口：砖块垂直放置形成曲面墙 ©Jino Sam
main entrance: bricks are placed vertically to form curved walls

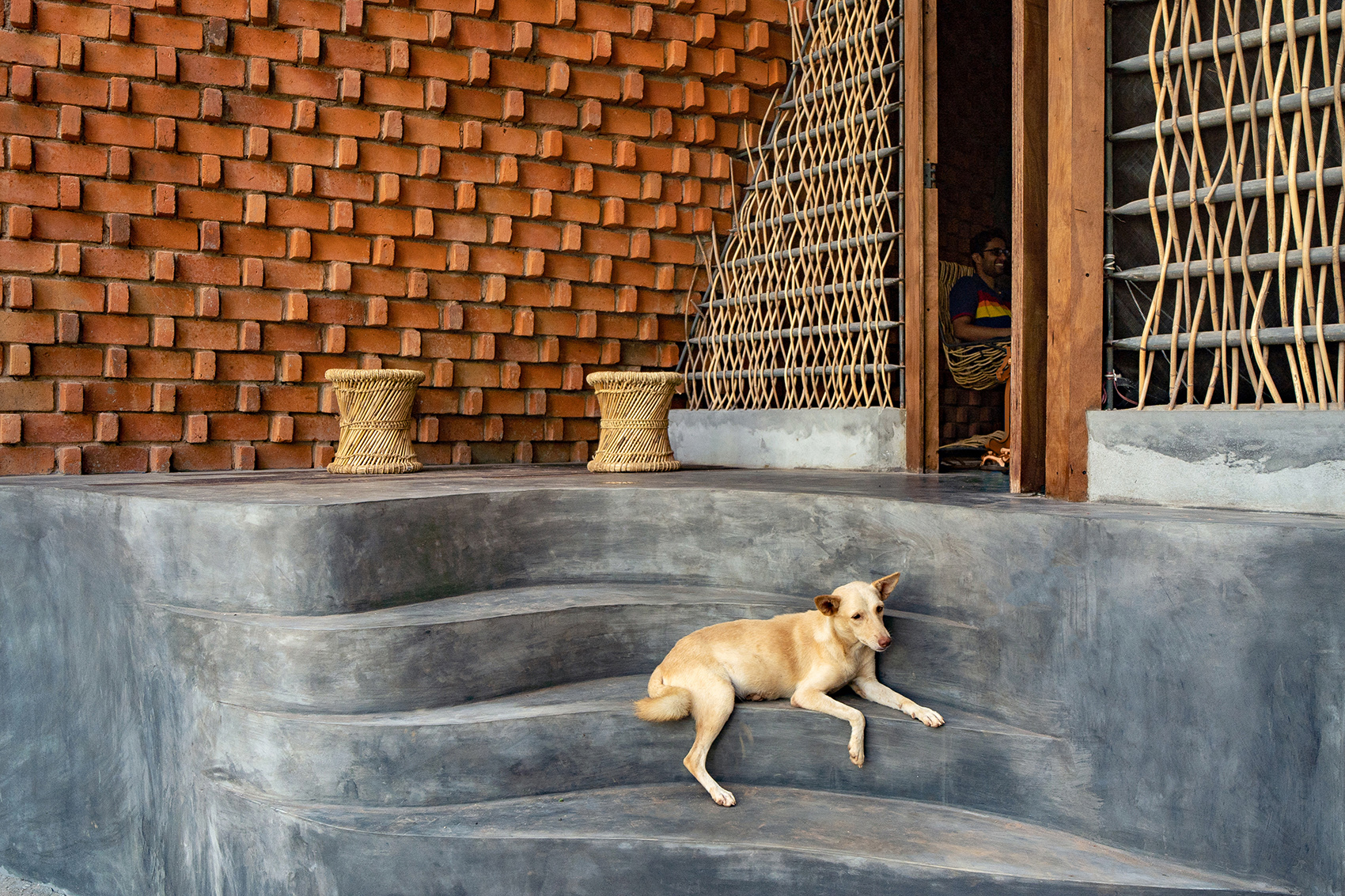

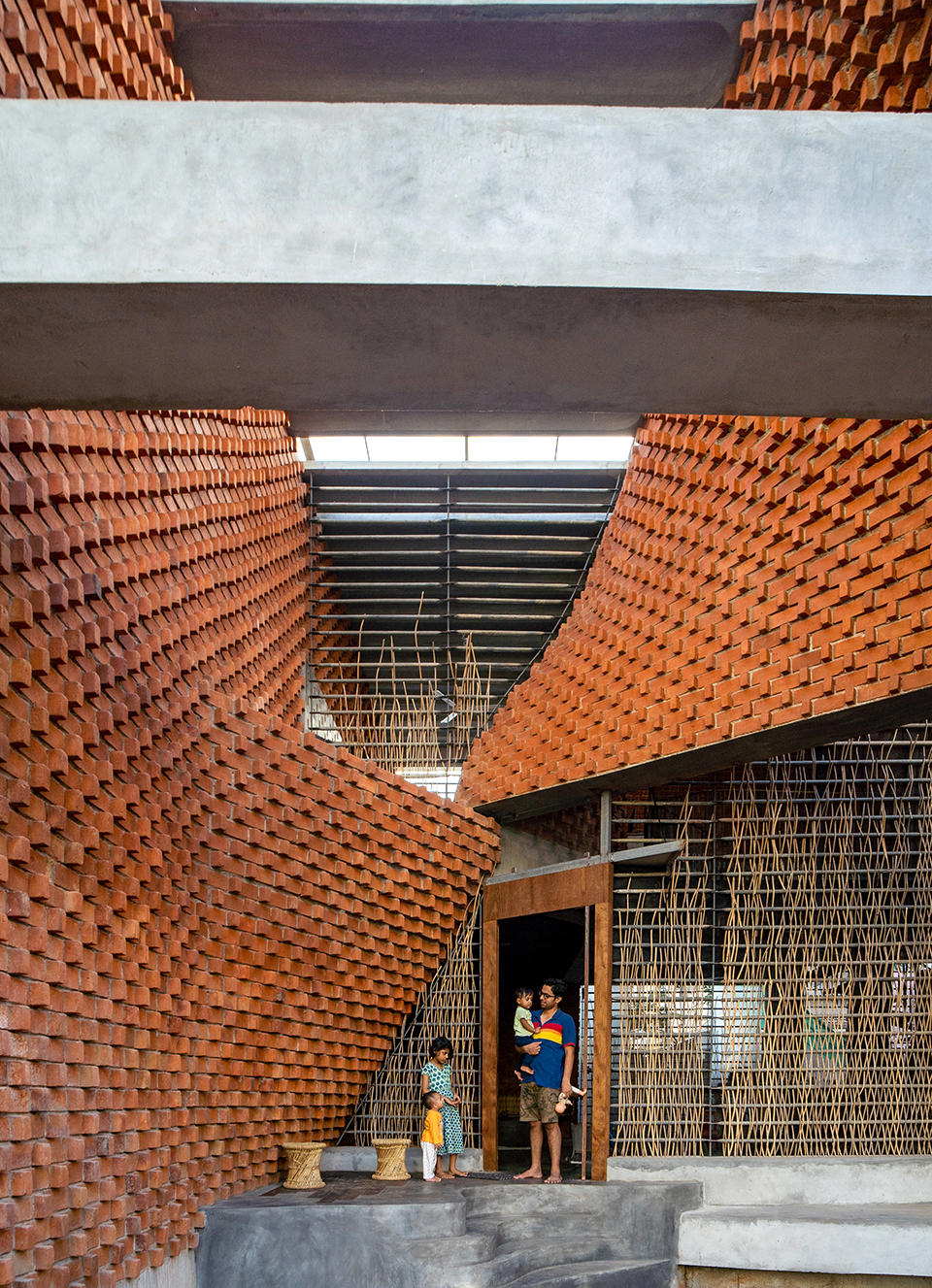

▼入口细部，details ©Jino Sam

The Rat trap bond is a brick masonry method of wall construction in which bricks are placed in vertical position instead of conventional horizontal position and thus creating a cavity within the wall that increases thermal efficiency, cuts down on the total volume of bricks used and is ideal for concealing structural members and service ducts. The idea was further developed to form a series of slanting walls that danced left and right, converging only to support the ferrocement shell roof. Each staggered wall has been tailor-made to suit the issue of deficiency in space that this residence posed, aiming to create larger volumes and a feeling of privacy.

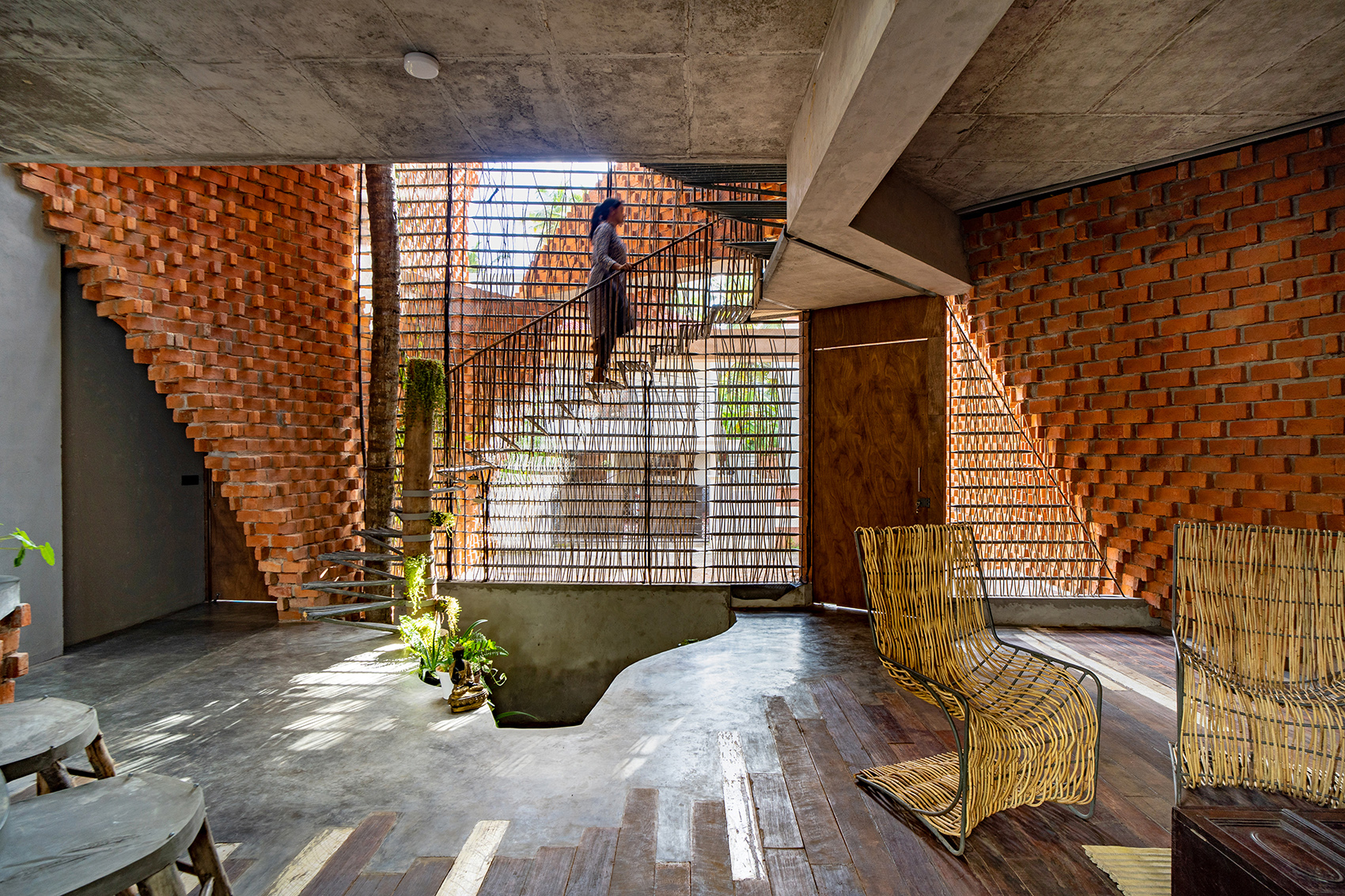

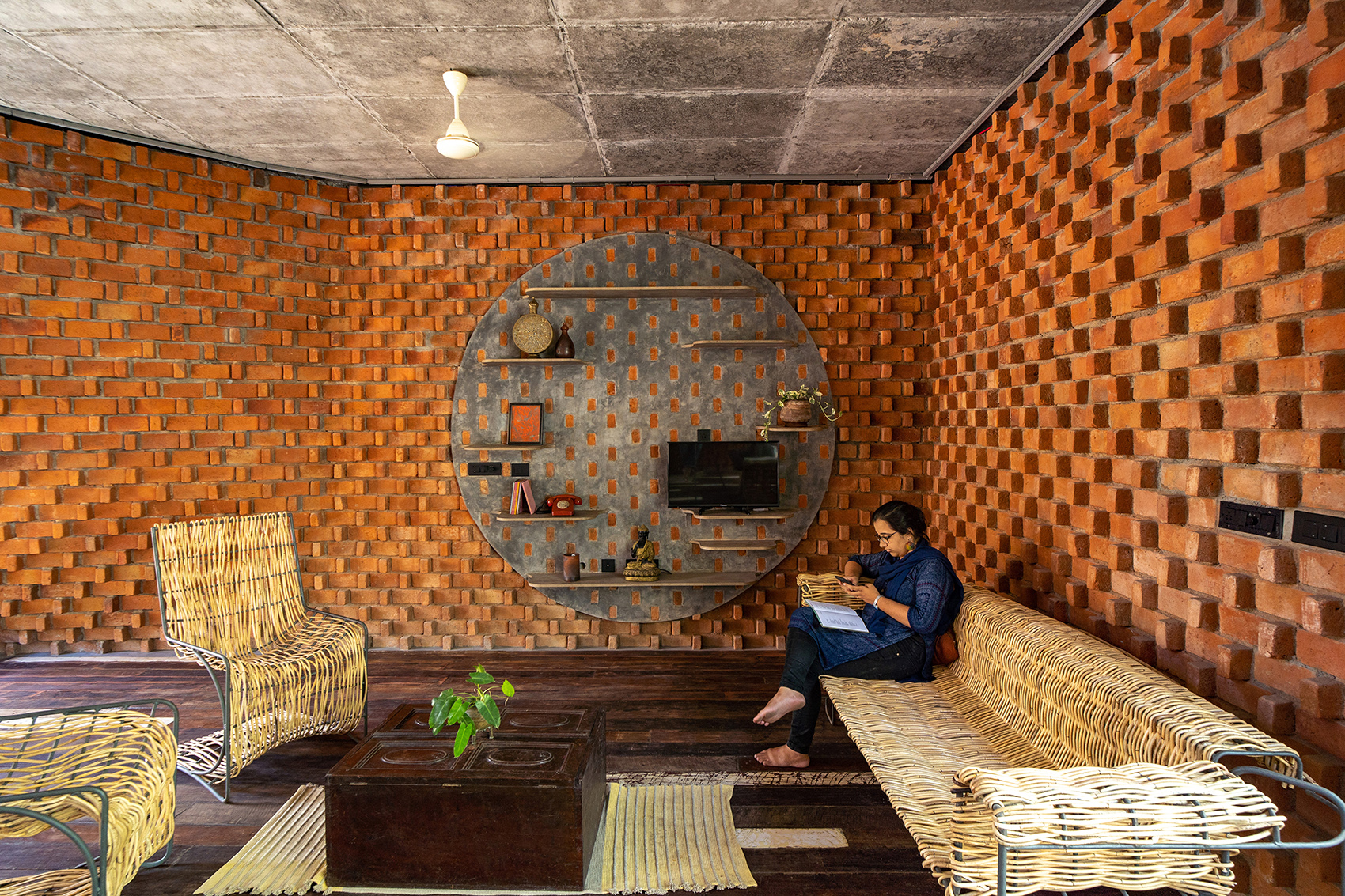

▼客厅，living area ©Jino Sam

▼餐厅，dining area ©Jino Sam

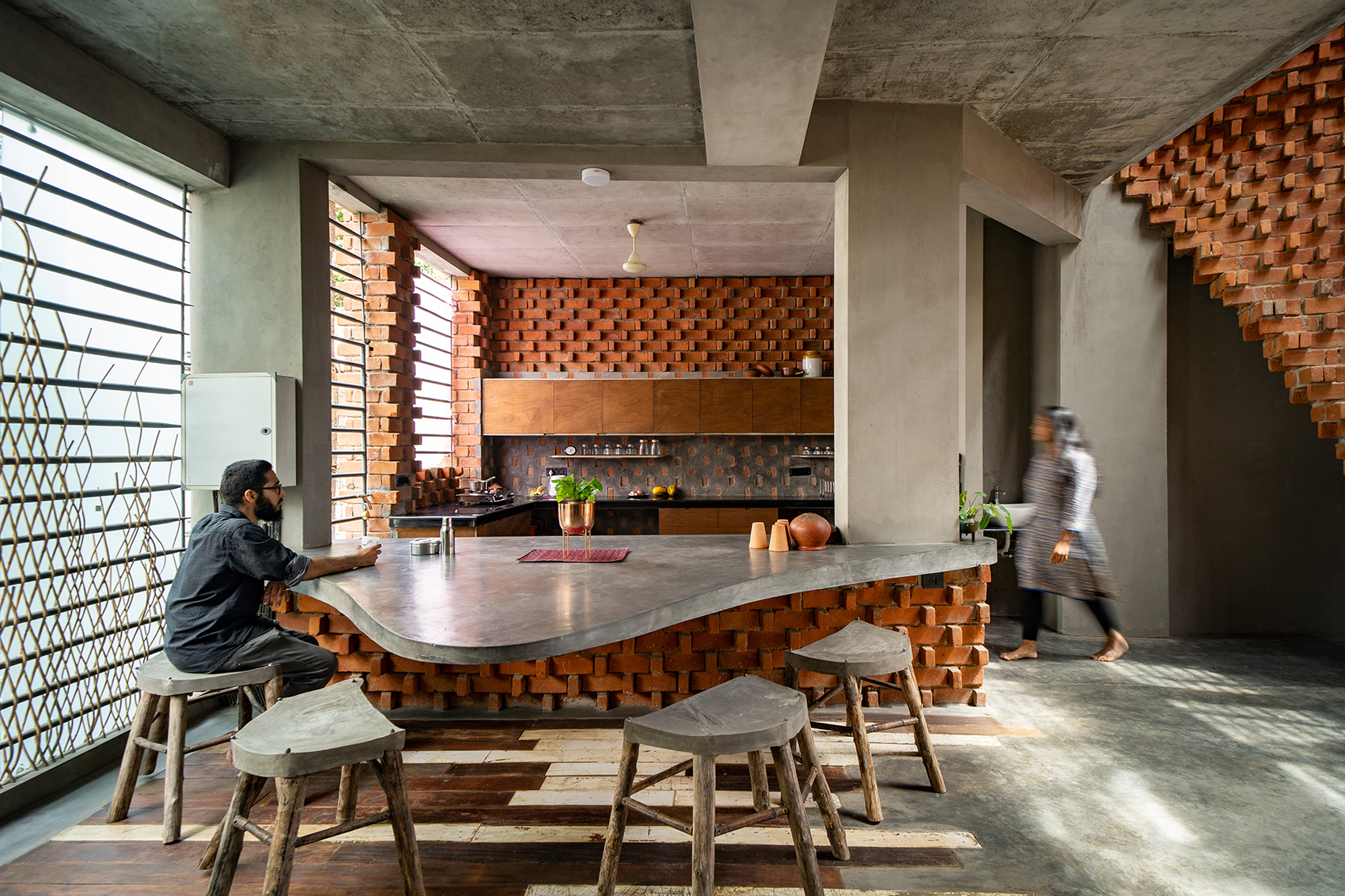

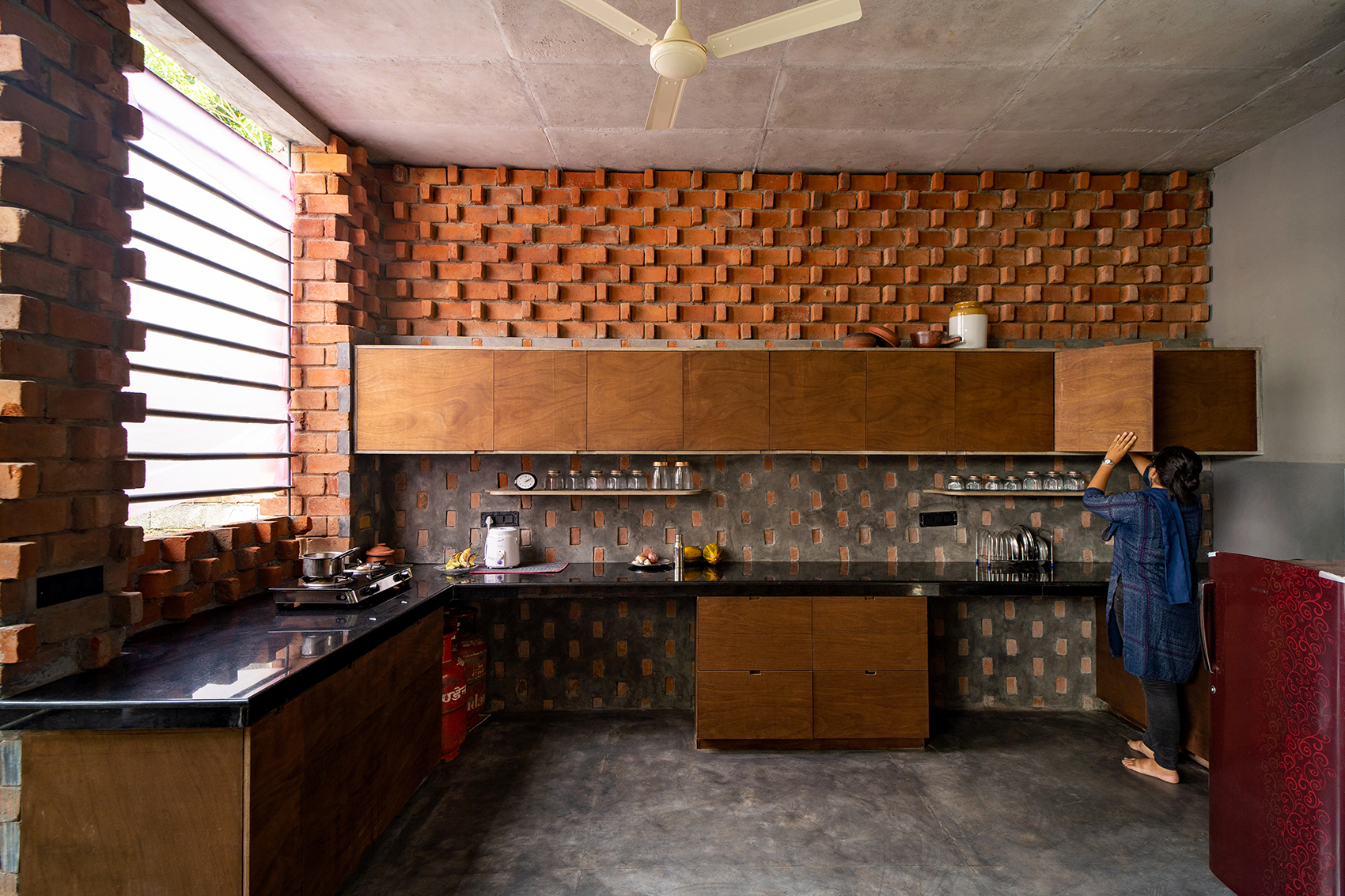

▼厨房，kitchen ©Jino Sam

施工阶段留下的脚手架很快被制成中央楼梯和格栅。秉着不丢弃任何“废料”的原则，木板也被拼成客厅地面的一部分。此外，从附近采购的藤条经过处理后被编织在格栅上，为隐私和家具创造了精巧的屏障。

Scaffolding pipes left behind from the construction stage soon were reused to form the central staircase and the grillwork. Keeping in mind the principle of discarding nothing as ‘waste’ the wooden planks were also pieced together to form part of the flooring in the living areas. Cane has been acquired from the neighbourhood, treated and wound around the grillwork to create subtle screens for privacy and for various furniture.

▼中庭：藤条与格栅形成精巧的屏障，courtyard: cane and grillwork form subtle screens ©Jino Sam

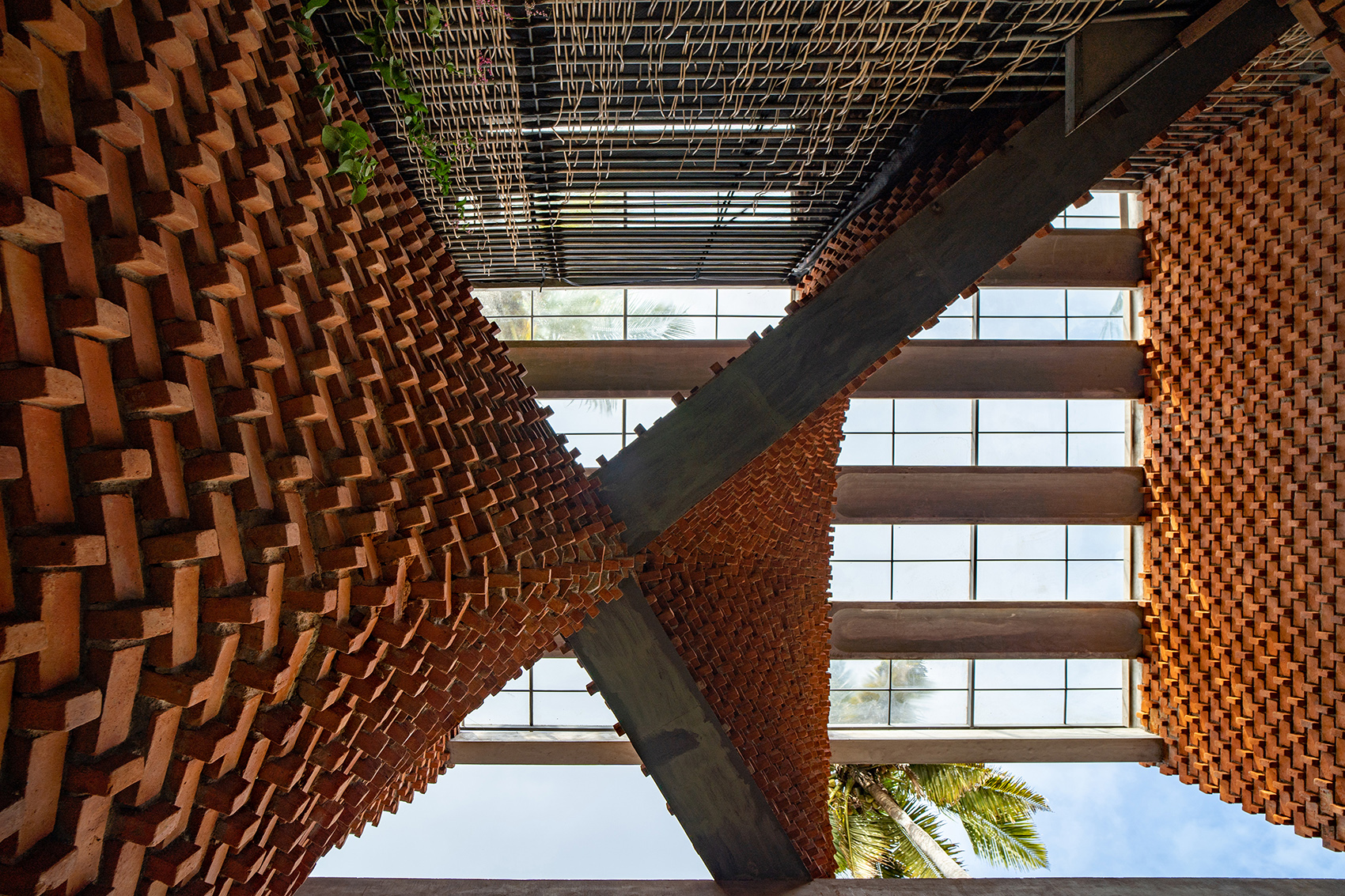

▼仰视中庭，view up to courtyard ©Jino Sam

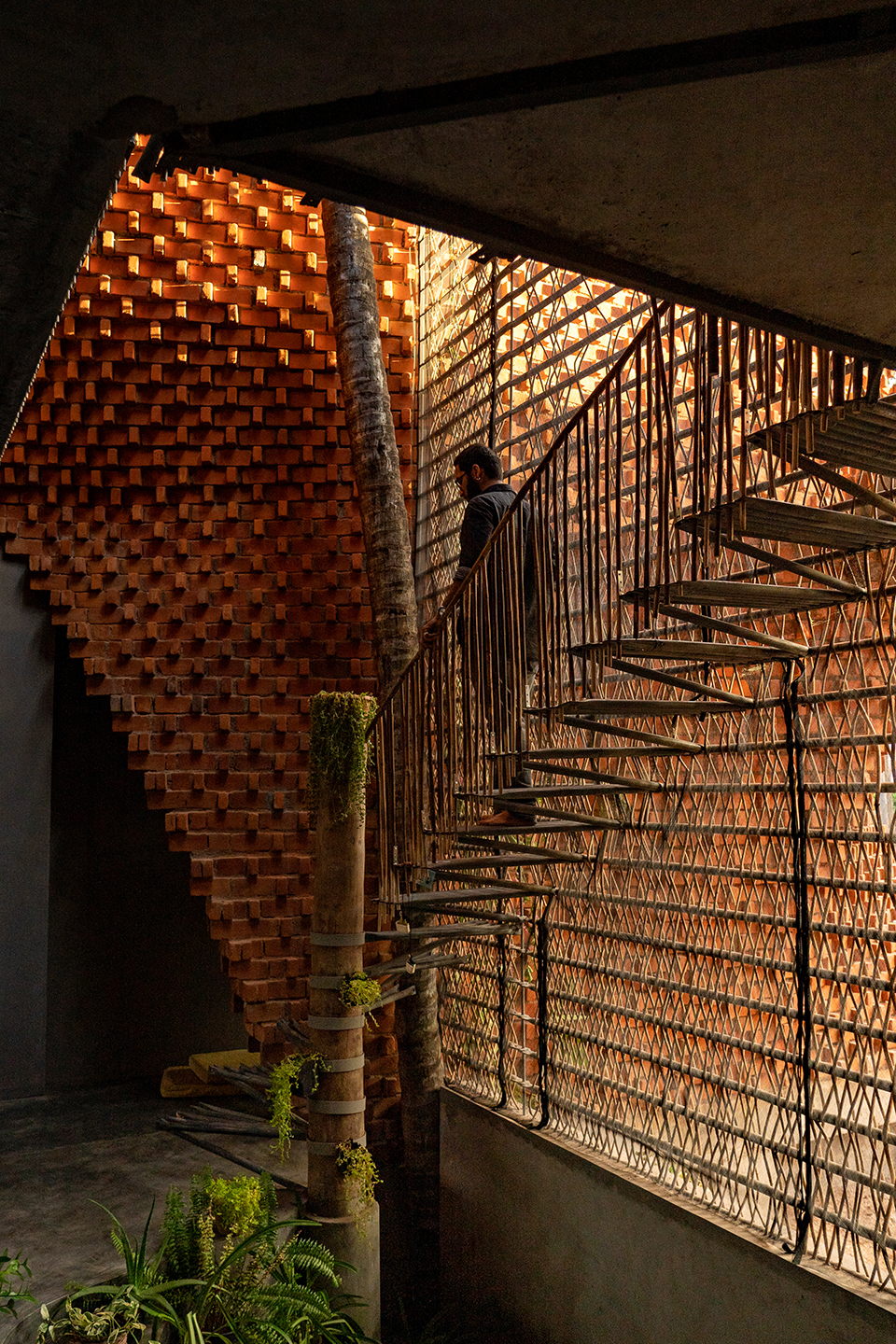

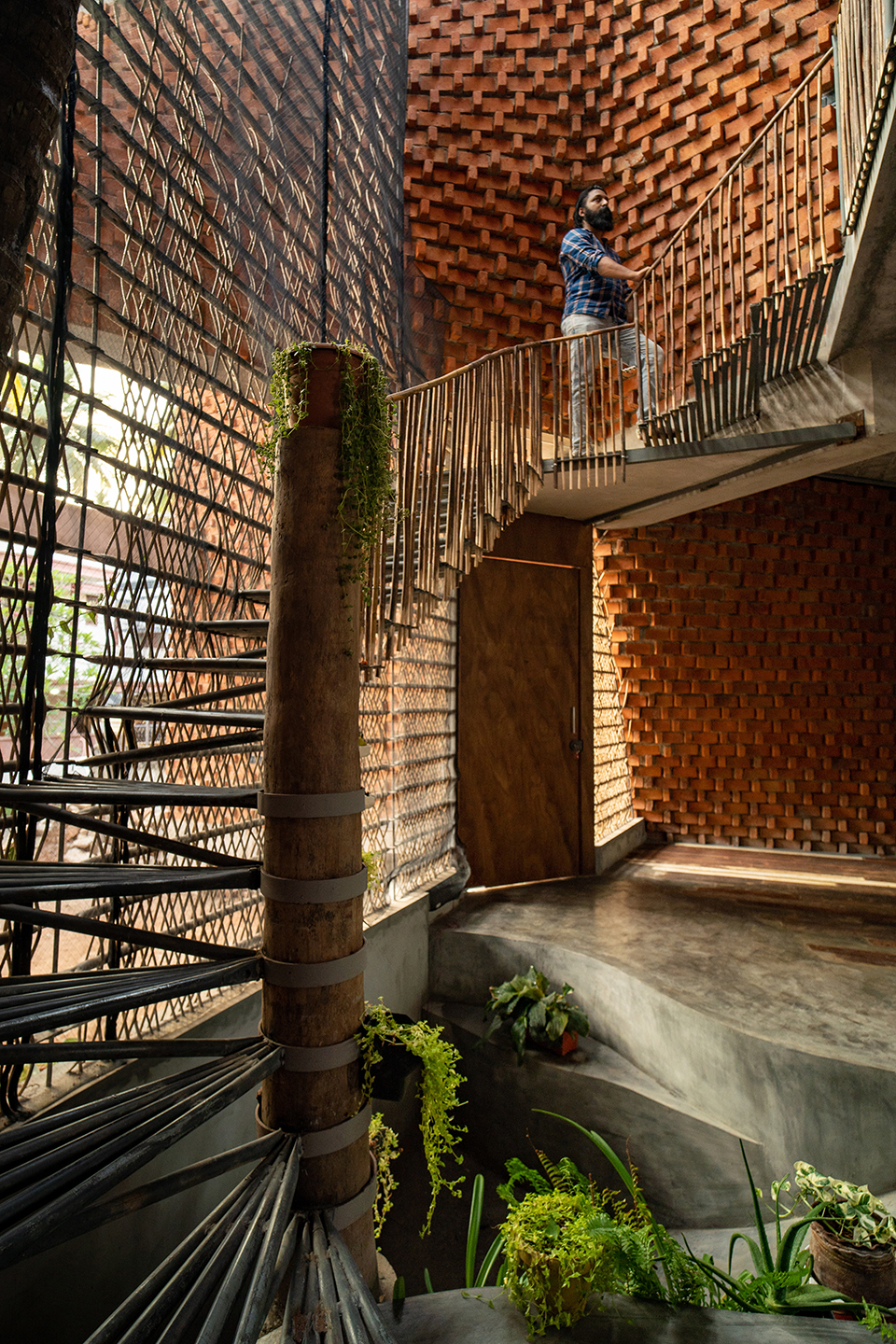

▼楼梯：由废弃脚手架制成 ©Jino Sam
staircase: made of waste scaffolding

该住宅以“最后一个莫西干人”烧制砖为特色，是对劳里·贝克（Laurie Baker）杰出实践的赞歌，其空间因动态墙壁塑造的纯粹几何形体和图案而变得美丽动人。

The Pirouette House features the “Last of the Mohicans” fired bricks as an ode to the stellar practice of Laurie Baker with spaces that are made beautiful by the pure geometry and patterns created by the walls that seem to be coming alive and pirouetting around.

▼二层平台与日常起居空间，landing cum informal living ©Jino Sam

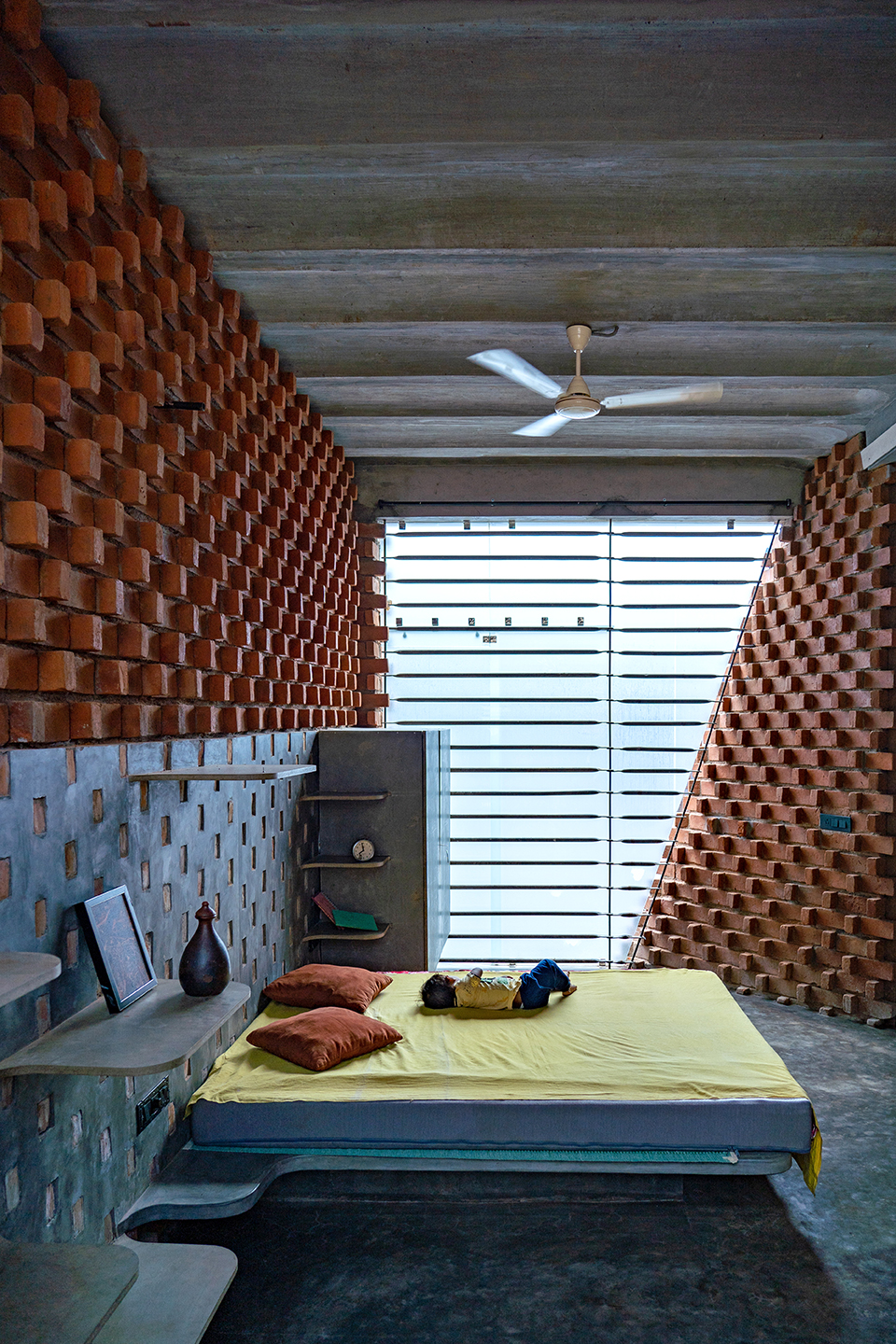

▼一层卧室，ground floor bedroom ©Jino Sam

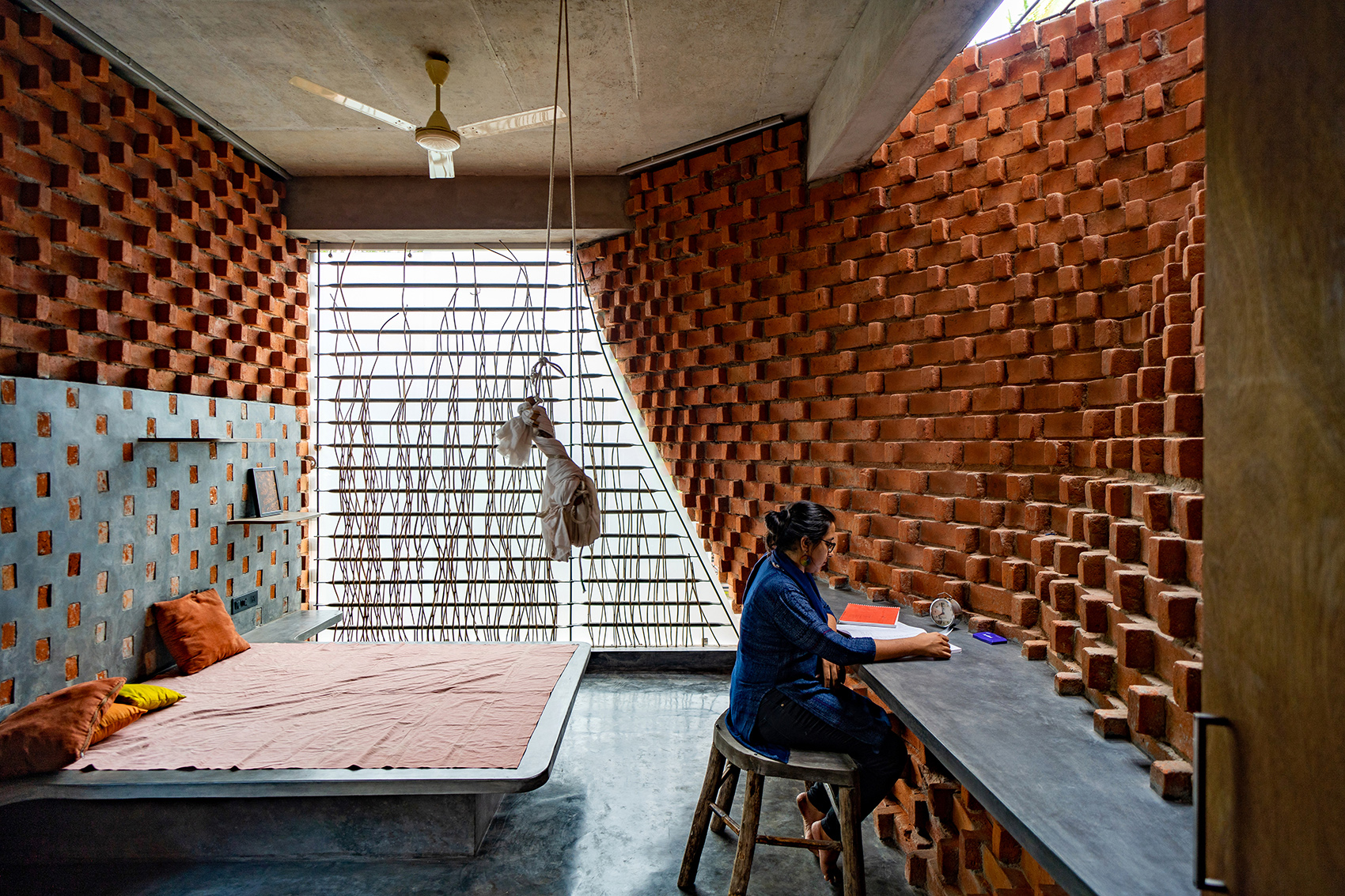

▼二层卧室，first floor bedroom ©Jino Sam

建筑材料：
1. Rat Trap bond烧结砖 — Rat trap bond是由劳里·贝克引入喀拉拉邦的砖墙砌筑方式，砖块垂直放置取代传统的水平放置，在墙内形成空腔，从而提高热效率并减少用砖量。
2. 废弃木材 — 切割的废弃木板已经成为地面的一部分。
3. MMT钢丝网水泥壳体 — 这些晶片状结构是有效厚度为2.5厘米的钢筋拱形壳，其承受荷载能力与钢筋混凝土板一致。在该项目中，它们有效地减少了40%的水泥消耗量和30%的钢材消耗量。这些壳体的强度高达1200kg/㎡，因此也取代了屋面中的钢筋混凝土板。
4. 用于楼梯和格栅的废弃脚手架管 — 房屋楼梯和格栅完全由脚手架管焊接而成。
5. 氧化物 — 地面和指定墙壁采用灰色和黄色氧化物饰面。
6. 藤条 — 藤条经过处理后被编织在格栅上，用作保护隐私的局部屏障。

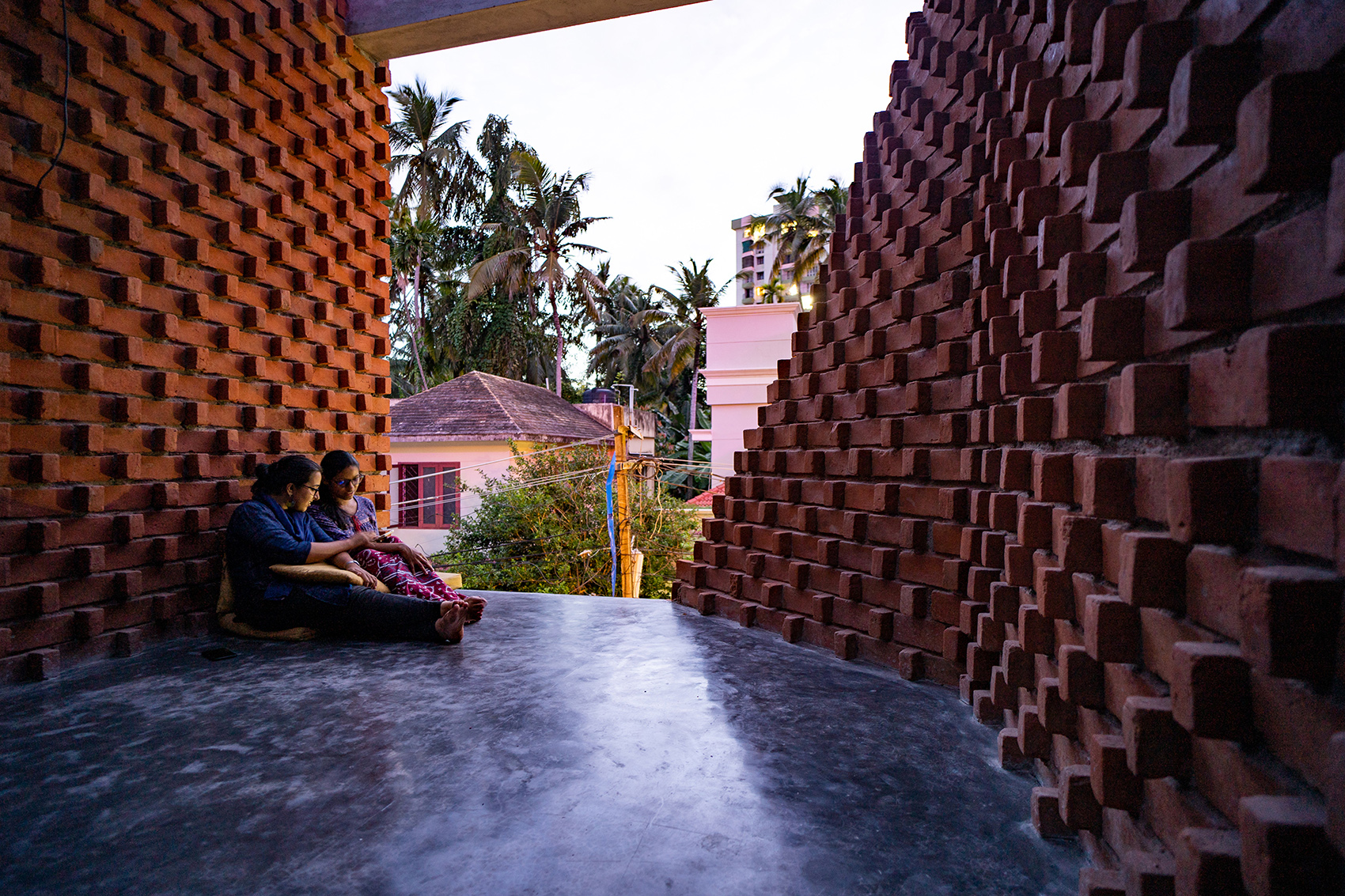

▼半开放阳台，semi open balcony ©Jino Sam

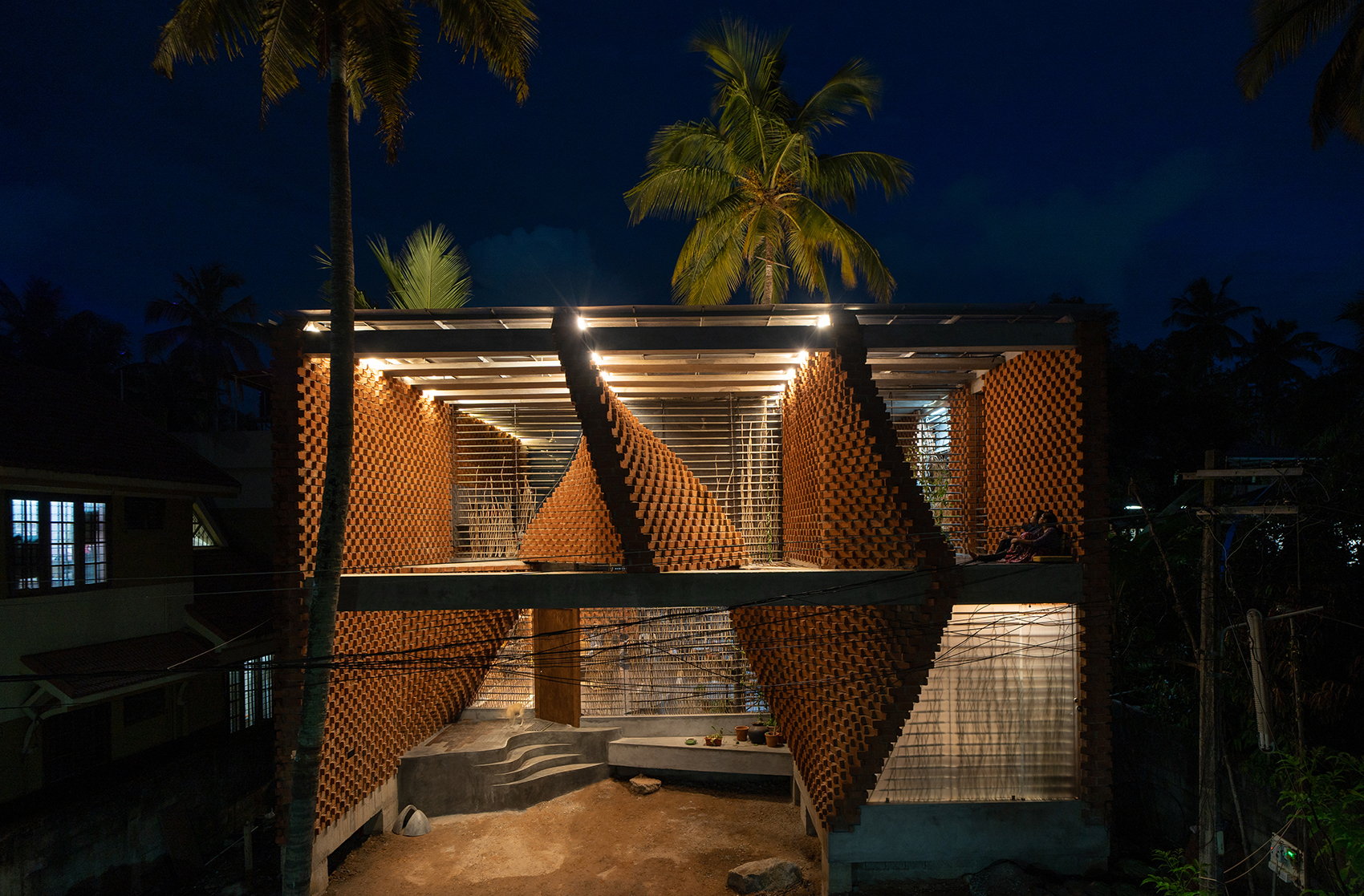

▼夜景，night view ©Jino Sam

Materials used in Construction:
1. Fired bricks for Rat Trap bond masonry – Rat trap bond is a brick masonry method of wall construction introduced by Laurie Baker in Kerala, in which bricks are placed in vertical position instead of conventional horizontal position and thus creating a cavity (hollow space) within the wall that increases thermal efficiency and cuts down the number of bricks.
2. Waste wood – Cut wooden scrap pieces have been joined to panel a part of the flooring.
3. MMT Ferrocement shells – These wafer-like structures are steel reinforced arched shells with effective thickness of 2.5cm and they take equal load of respective R.C.C slabs. They effectively reduce the overall cement consumption by 40% and steel consumption by 30%.These replace the R.C.C Slab in roofing as they are as strong as 1200 kg/m2.
4. Discarded Scaffolding pipes for Staircase and Grillwork – The staircase and the grillwork of this house has been made entirely out of scrap scaffolding pipes that have been welded in place.
5. Oxide – Floor and selected walls have been finished with grey and yellow oxides.
6. Cane – Cane has been treated and woven together in-between the grillwork to act as a partial screen for privacy.

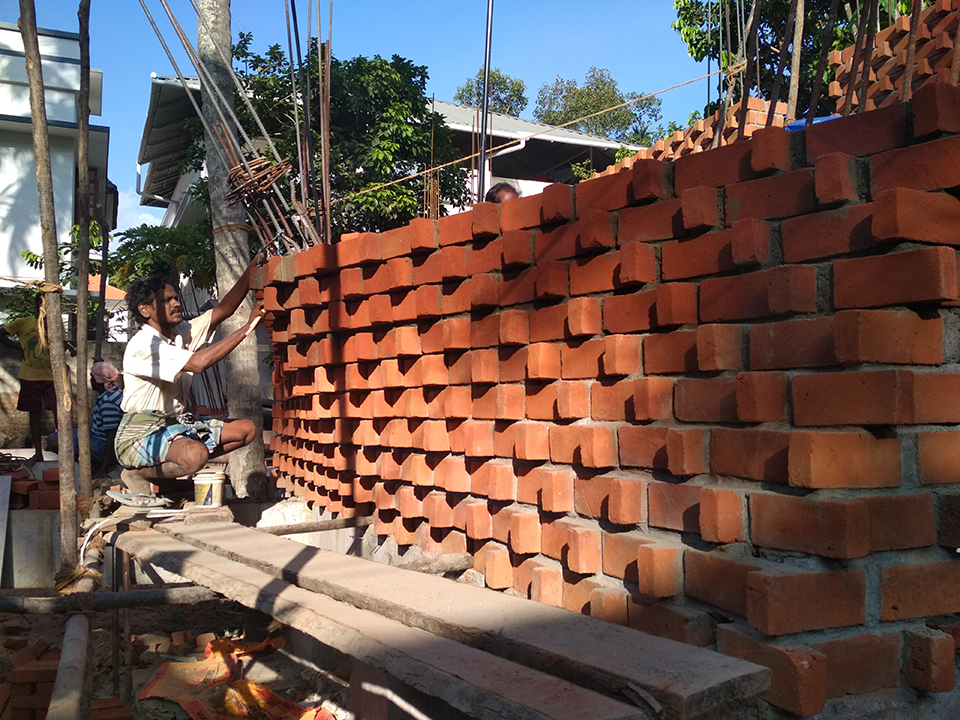

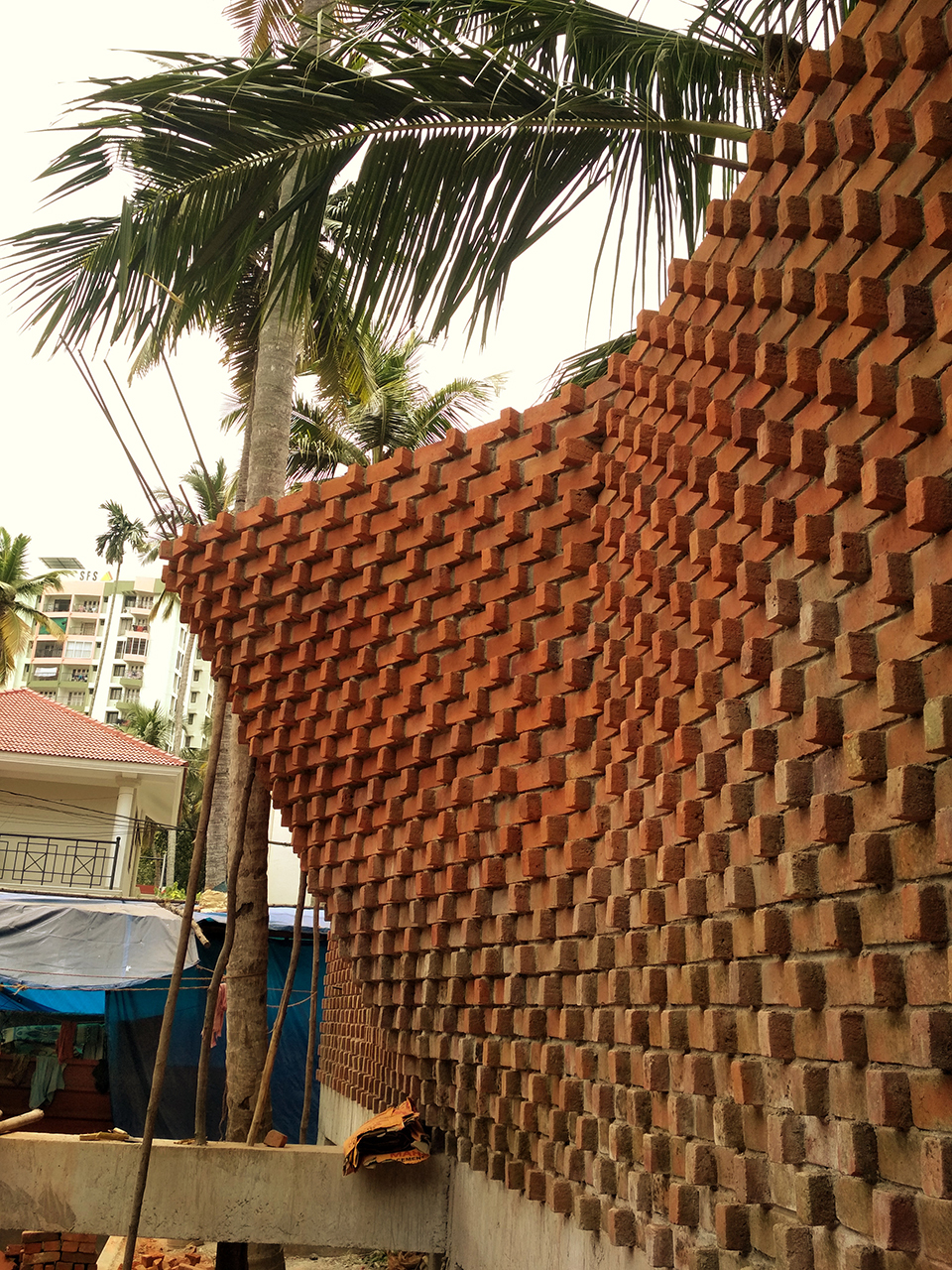

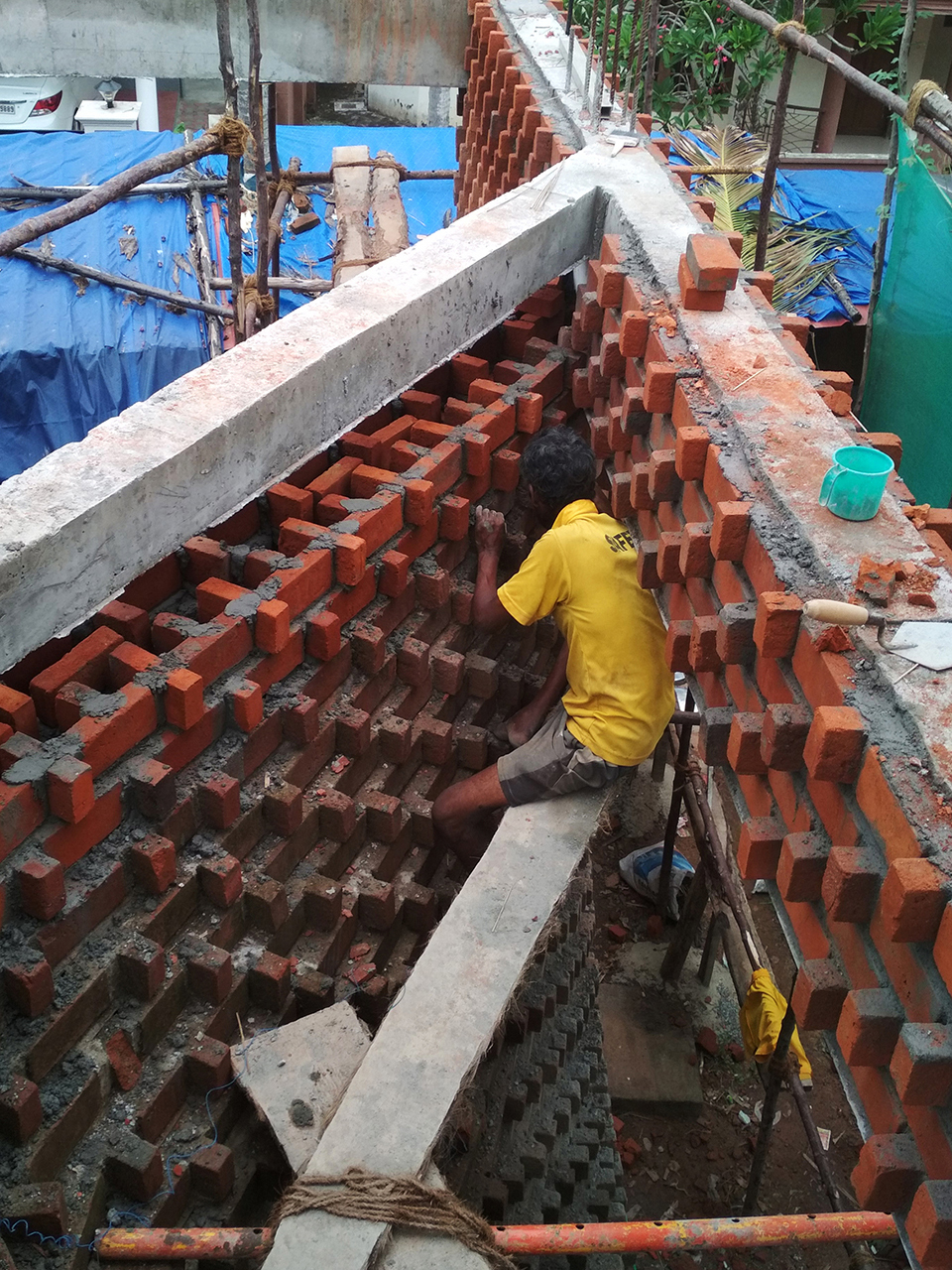

▼Rat trap Bond砌筑，Rat trap Bond masonry ©Wallmakers

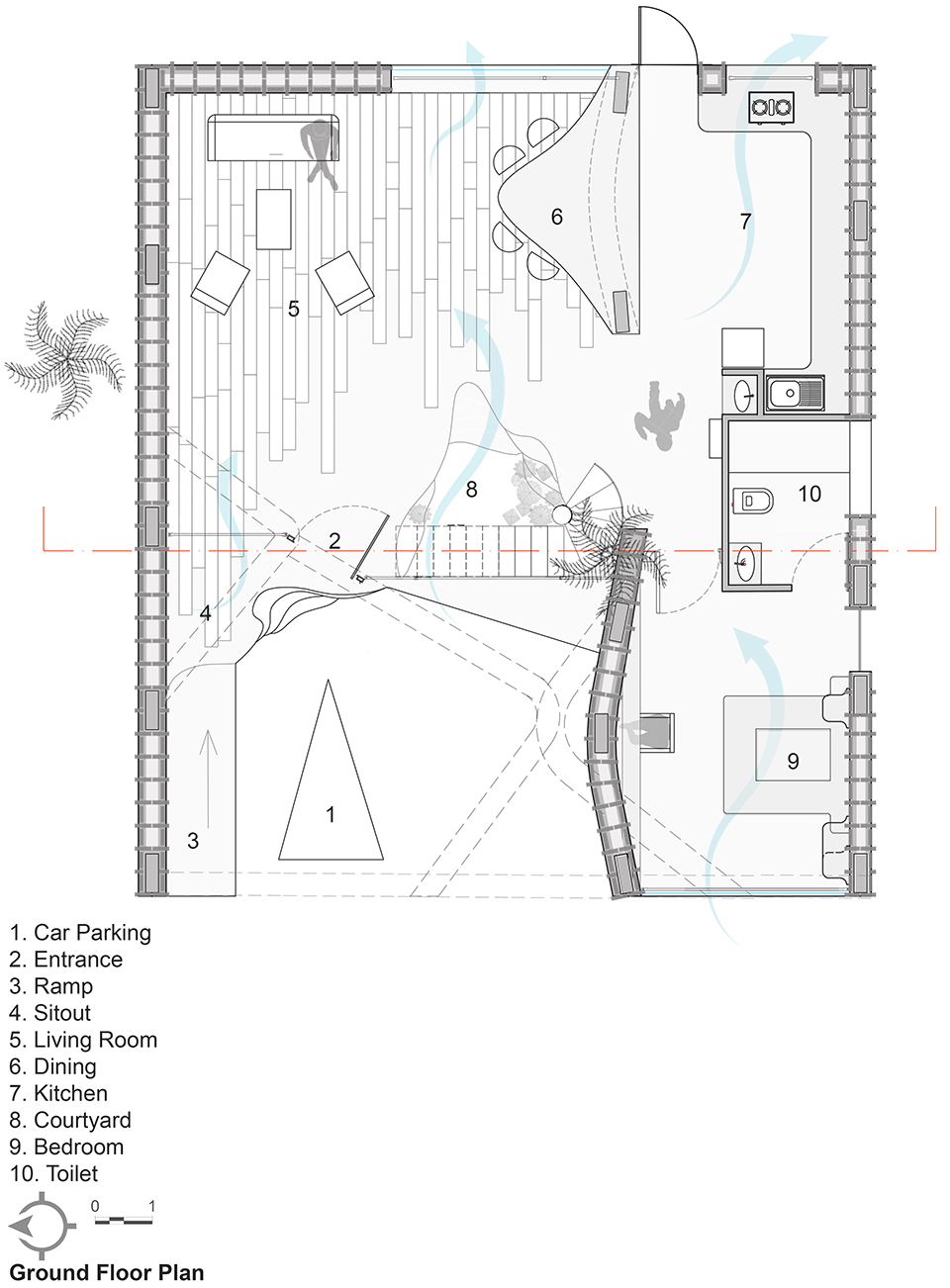

▼一层平面图，ground floor plan ©Wallmakers

▼二层平面图，first floor plan ©Wallmakers

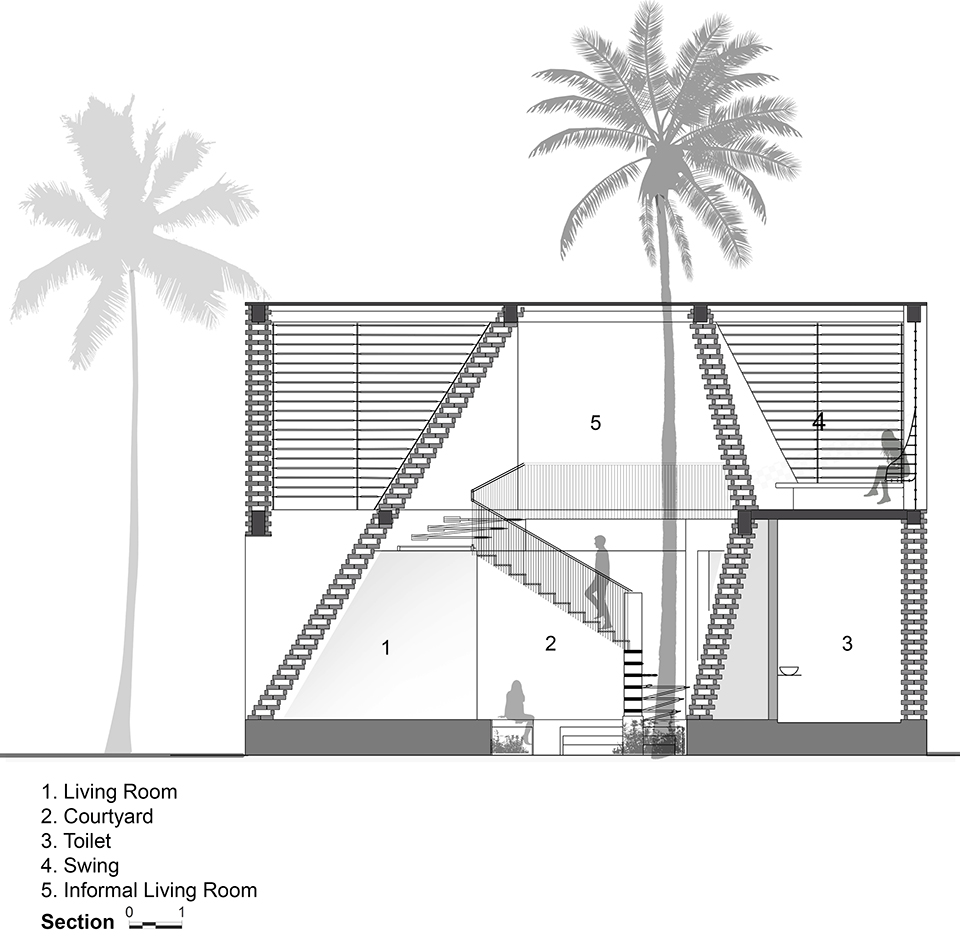

▼剖面图，section ©Wallmakers

Project name: PIROUETTE HOUSE
Architect’s Firm: Wallmakers
Website: www.wallmakers.org
Contact e-mail: vinudaniel@gmail.com
Firm Location: Samuel’s Pyramid, Civil line lane, Padivattom, Kochi -682025
Completion Year: 2020
Gross Built Area: 196 sqm
Project location: Maruthamkuzhi,Trivandrum, Kerala
Lead Architects: Ar. Vinu Daniel
Lead Architects e-mail: vinudaniel@gmail.com
Photo credits: Jino Sam
Photographer’s e-mail: jinosampanayil@gmail.com

More: Wallmakers 更多关于：Wallmakers on gooood
