Paint Drop, China by 100architects

An eye-catching and permeable tunnel of splashing color paint (video included)

Project Specs

Design Firm:
Location:

非常感谢来自100architects对gooood的分享。更多关于他们:100architects on gooood
Appreciation towards 100architects for providing the following description:

Paint Drop是一个创意性的公共互动空间,从视觉上连接了主广场和新开业的零售店,在带来引人注目的空间的同时,更通过一系列色彩缤纷的、“飞溅”的油漆点来吸引周围的顾客。

Paint Drop is a creative public space intervention designed to create a visual link between the main plaza and a newly open retail space, to firstly make the new space noticeable, and secondly attract customers dragging them through a color splash corridor.

▼装置概览,overview

装置所在的大宁国际商业广场是一个25万平方米的综合体,其中包含11万平方米的购物区域。露天的商业街使其成为了上海最受欢迎的商业区之一。考虑到装置的目的是吸引路人的注意,因此装置的设计需要足够地醒目且能够保证商场顾客的顺利通行。最终,一条“溅满”彩色油漆的隧道被设计出来。

▼视频,video

Life Hub @ Daning, a 250,000 sqm mixed use development with 110,000 sqm shopping mall, is one of the hottest commercial areas in Shanghai, due to its condition of open-air retail street. As the installation was intended to call the attention of pedestrians and drag them to the desired area, it had to be both, eye-catching & permeable allowing pedestrian circulation through it. To comply with both requests, a tunnel of splashing color paint was proposed as theme.

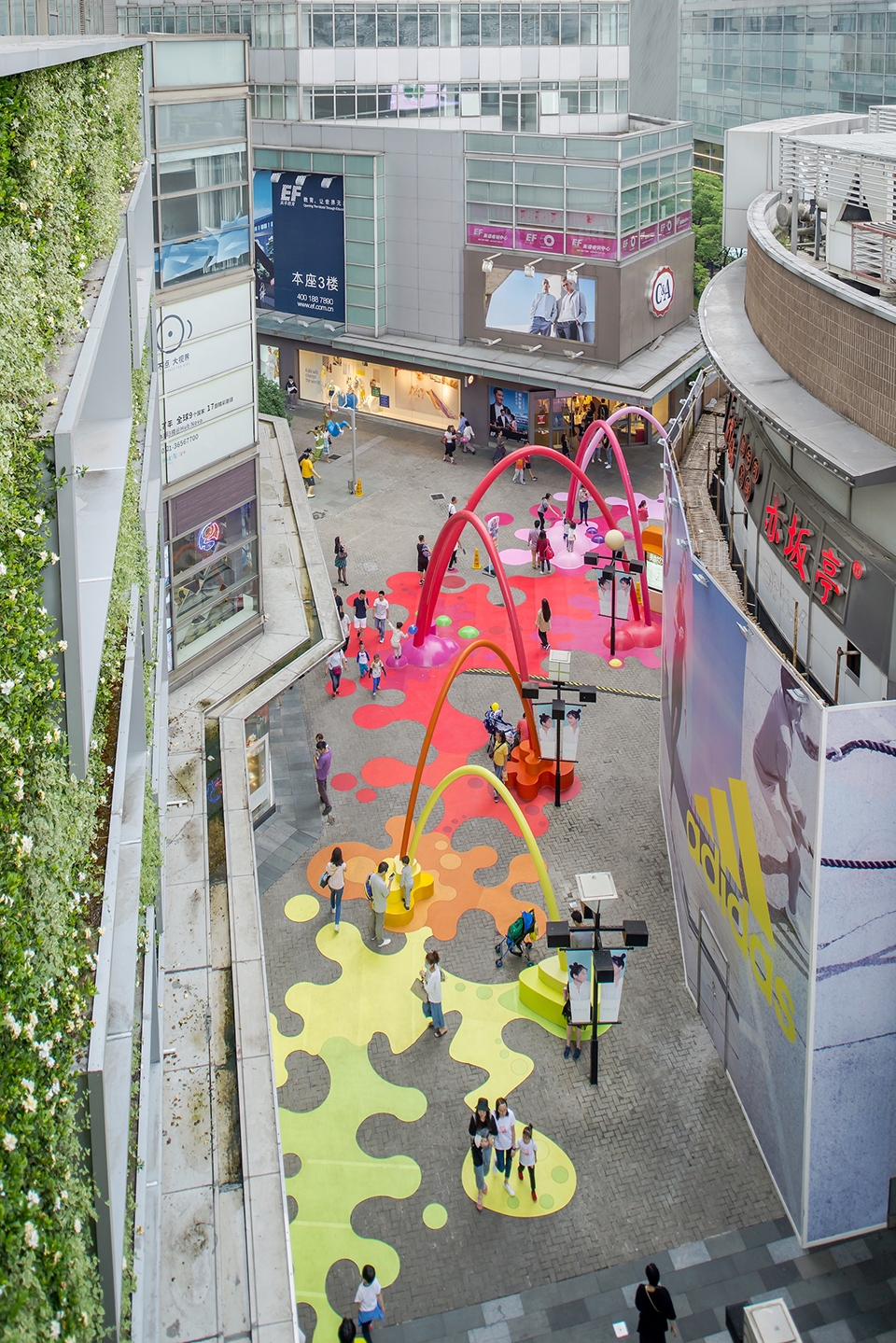

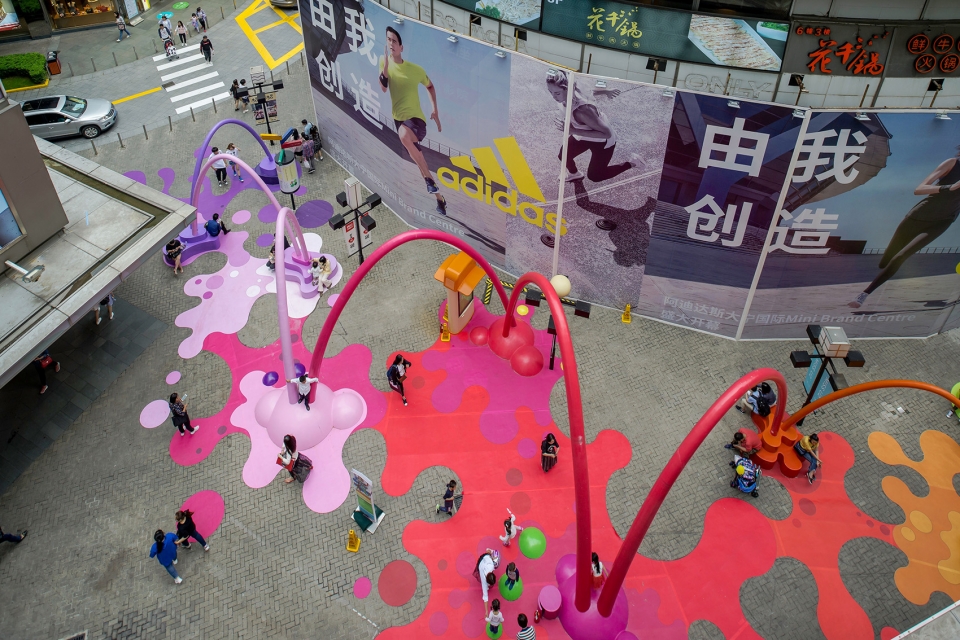

▼鸟瞰视角,aerial view

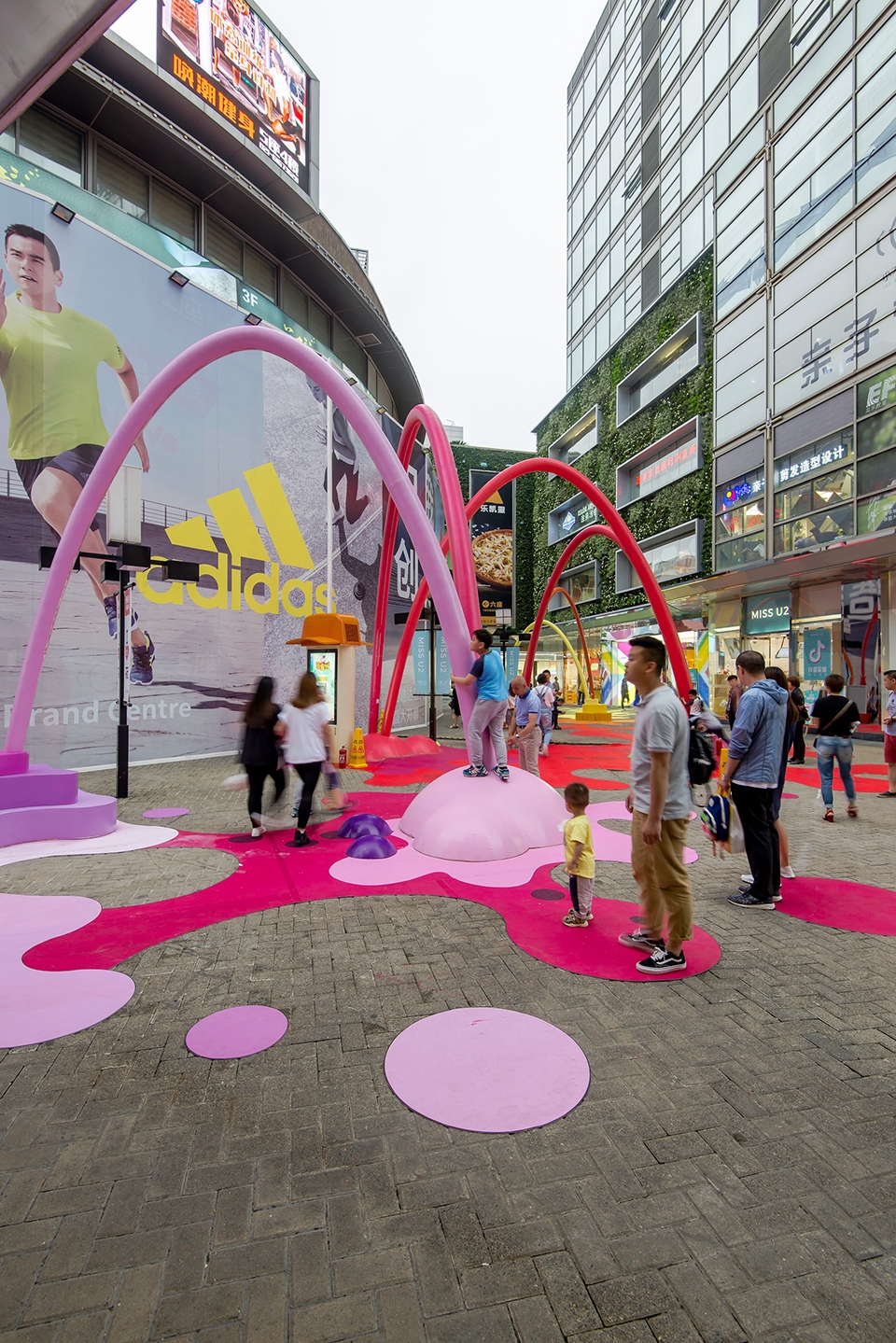

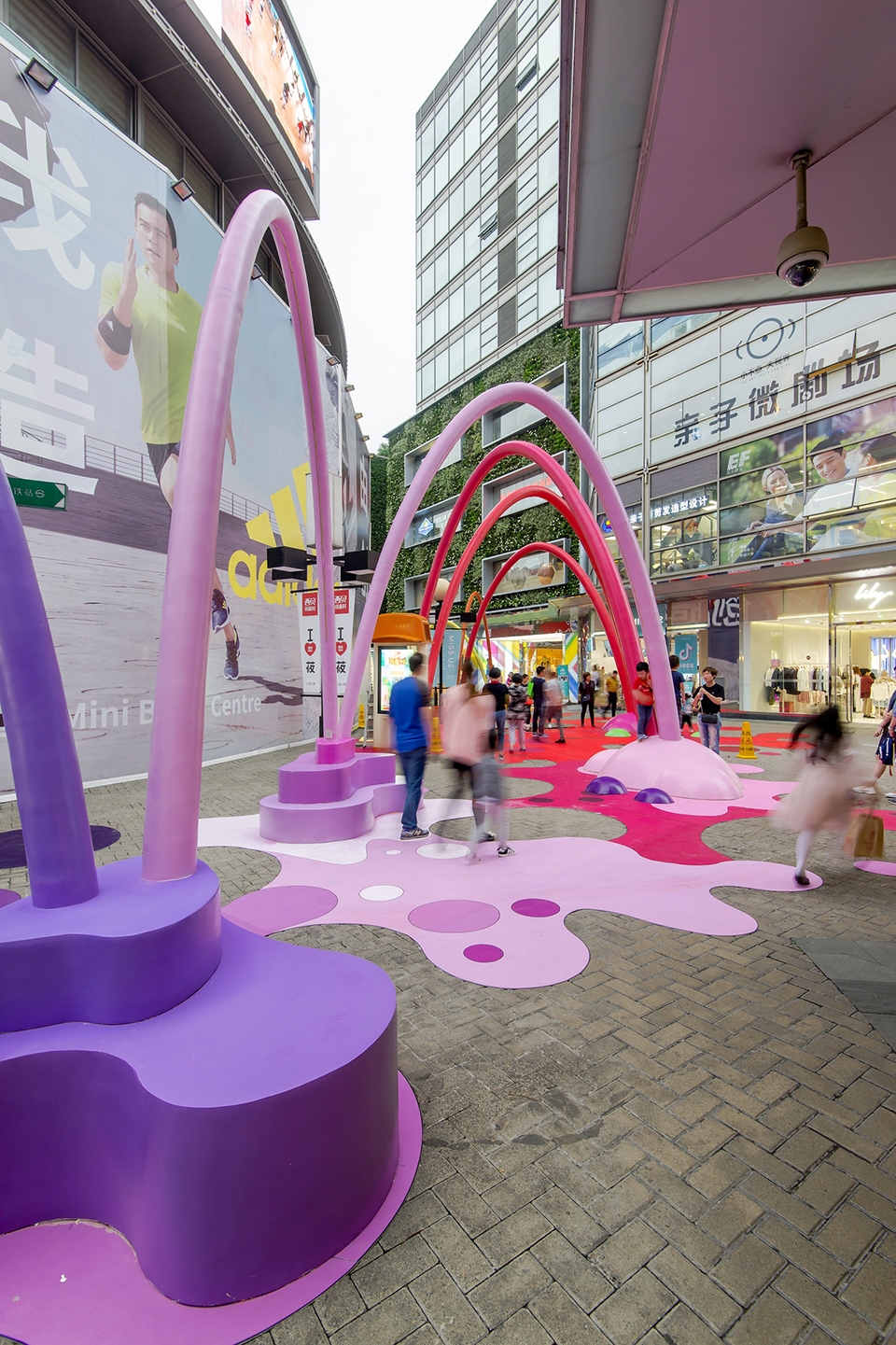

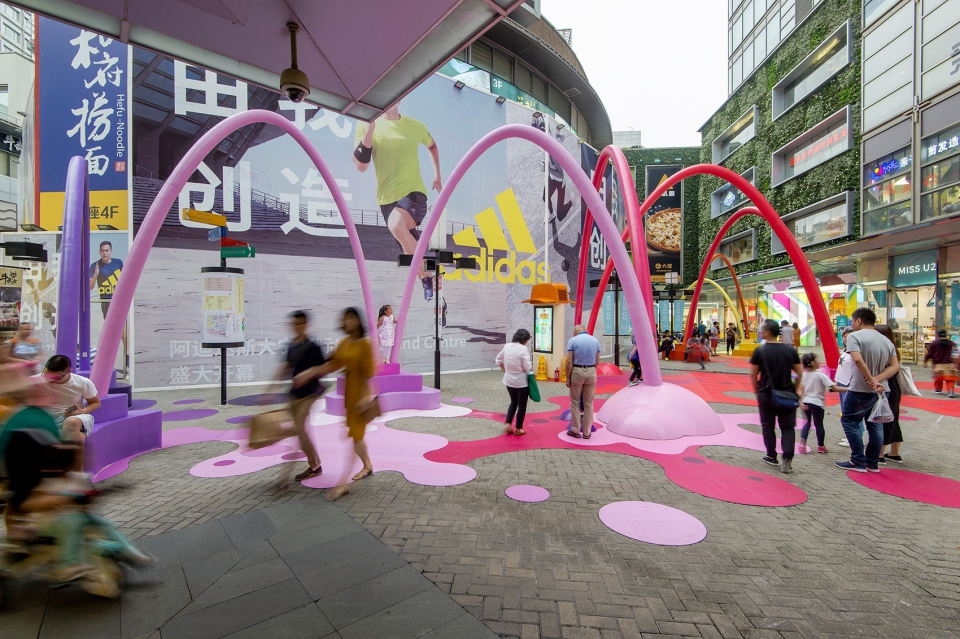

▼一条“溅满”彩色油漆的隧道, a tunnel of splashing color paint

该装置是由8个反垂曲线形拱体组成的系统,这些拱形结构沿着设计好的路径相互连接,看上去就像是从高空滴落的油漆。拱形结构与地面连接的地方会形成一个巨大的滴溅色块,设计师将座椅和休息区设置在这里,从而为装置赋予了功能性。地面上的沉浸式图案更进一步增强了游客的体验。

The solution consisted on a system of 8 catenary arches linked to each other spreading along the intended path, rendered as paint dropping on the floor from above. As the paint arches reach the floor, a splash of color occur, leaving a functional trace in the form of seating features and resting areas accompanied by immersive floor graphics to enhance the experience.

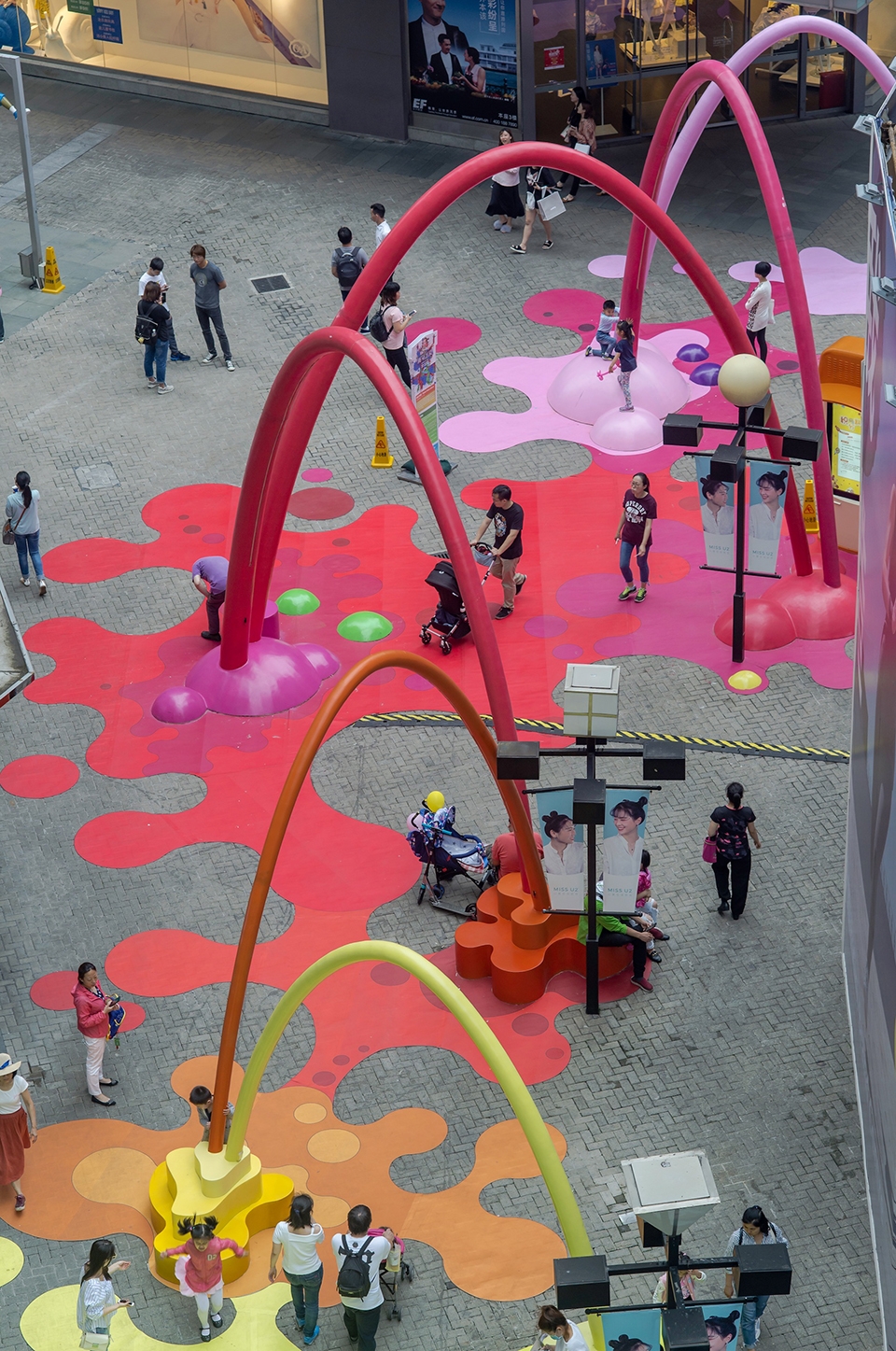

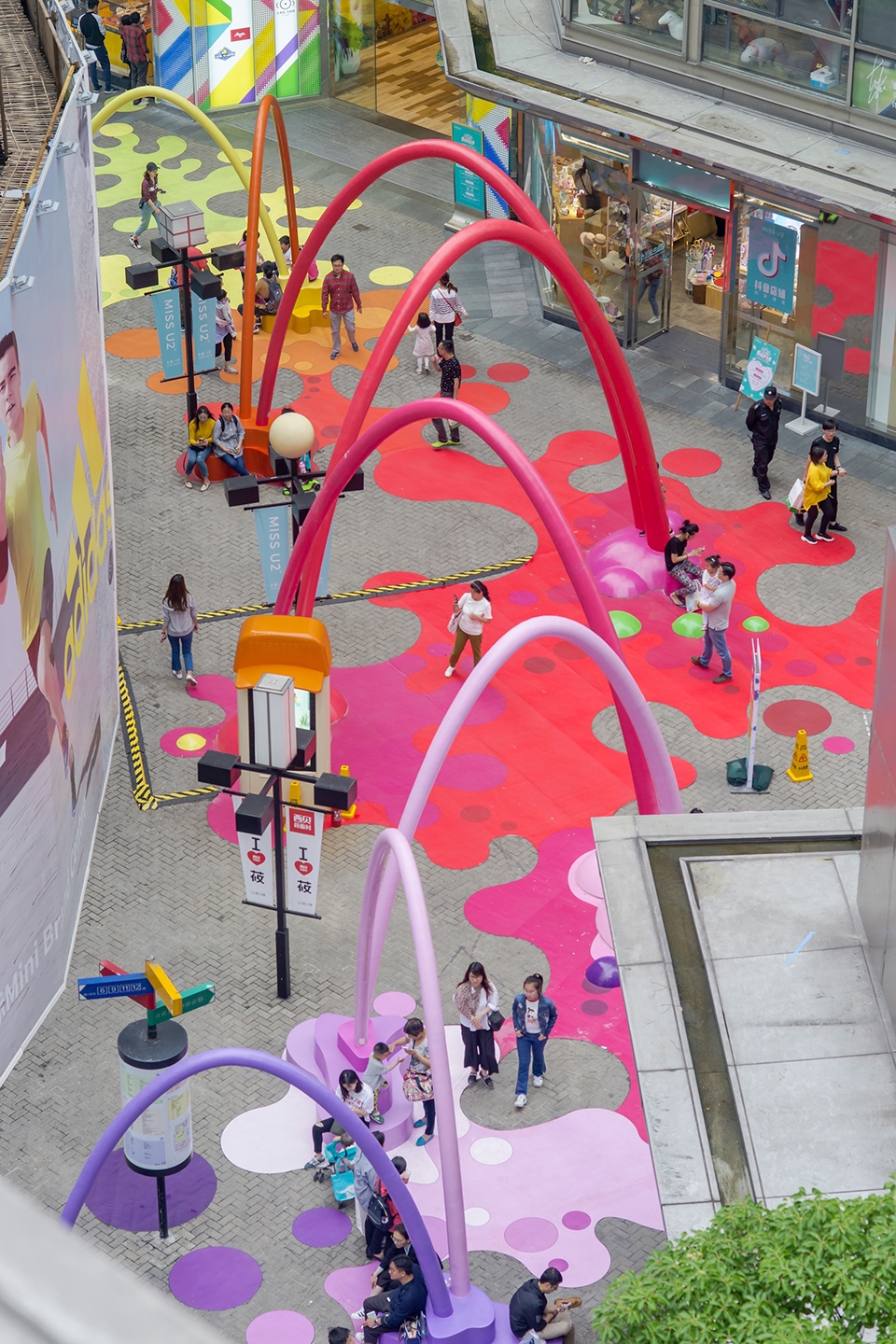

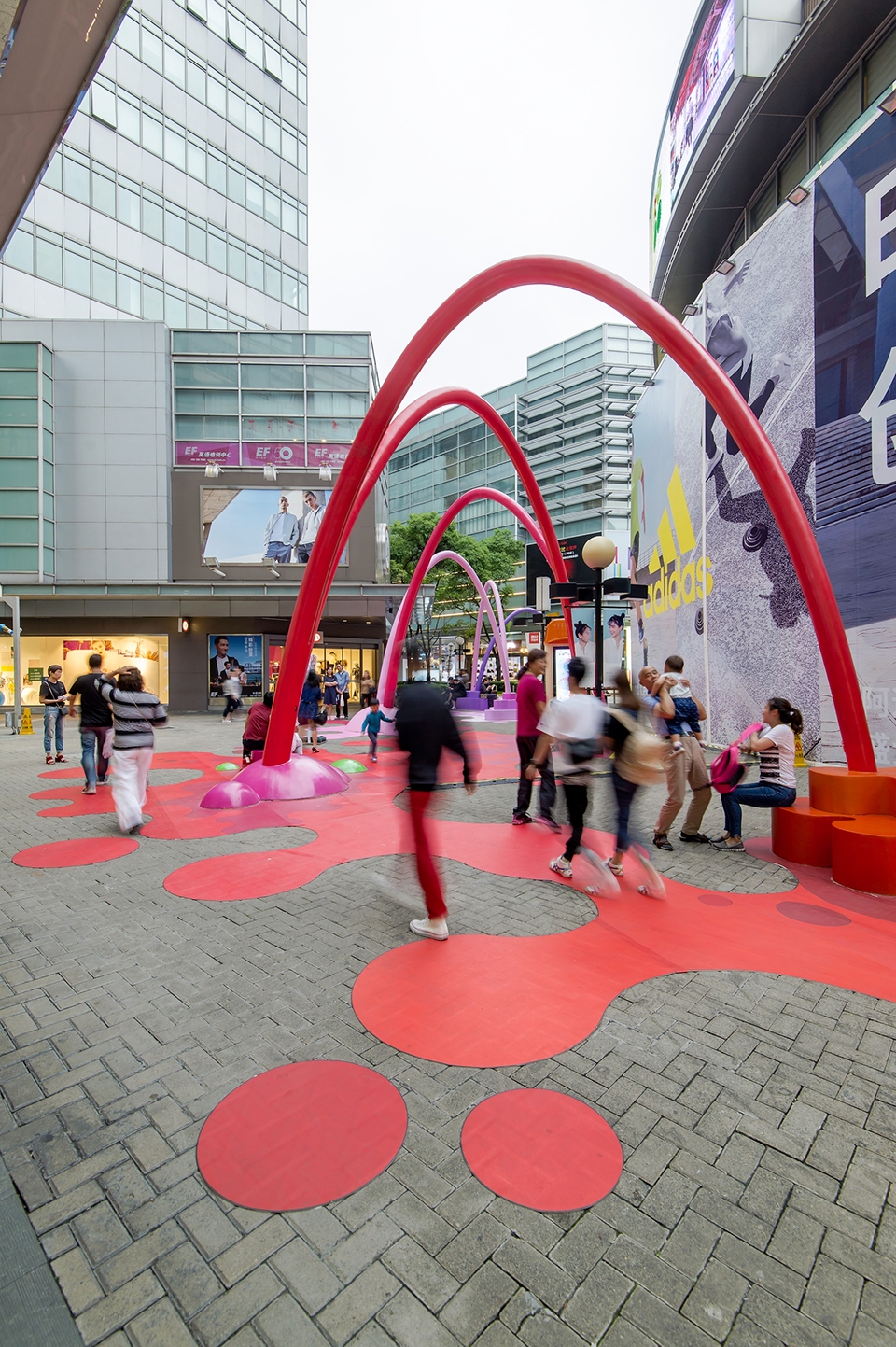

▼由8个反垂曲线形拱体组成的系统,a system of 8 catenary arches linked to each other spreading along the intended path

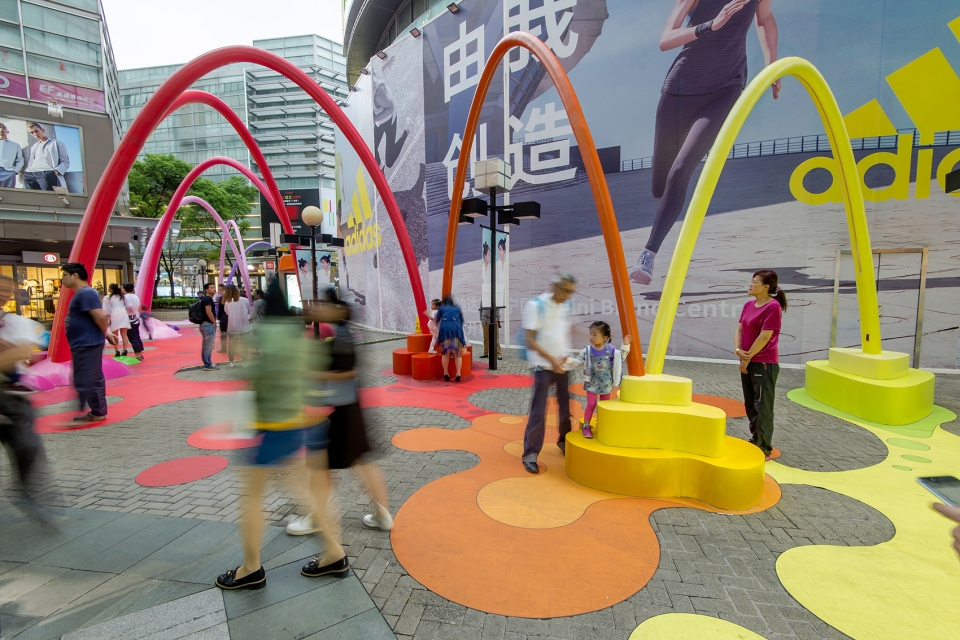

▼拱形结构与地面连接的地方形成座位, as the paint arches reach the floor, a splash of color occur, leaving a functional trace in the form of seating features and resting areas

七彩隧道的8个拱形结构还配备了交互式的照明系统。运动传感器被放置在拱体的基座部分,当有人经过时,将激活拱形结构内侧的LED灯带从而发出光亮。

The 8 arches from the colorful tunnel were equipped with an interactive lighting system. Movement sensors were placed at the bases of the arches, which would activate flexible LED strips of light embedded in the arches every time a person would pass by.

▼拱形结构内侧装置了LED灯带,flexible LED strips of light are embedded in the arches

这座色彩的乐园成为了露天商业街内最受欢迎的空间,不仅使大人和孩子们有了聚集游玩的空间,也使得商业街的人流量得到了增长。

During the summer period, the vortex of color became one of the hotspots of Life Hub @ Daning’s open-air retail street, gathering kids and adults alike, and successfully increasing the pedestrian circulation at the desired spot.

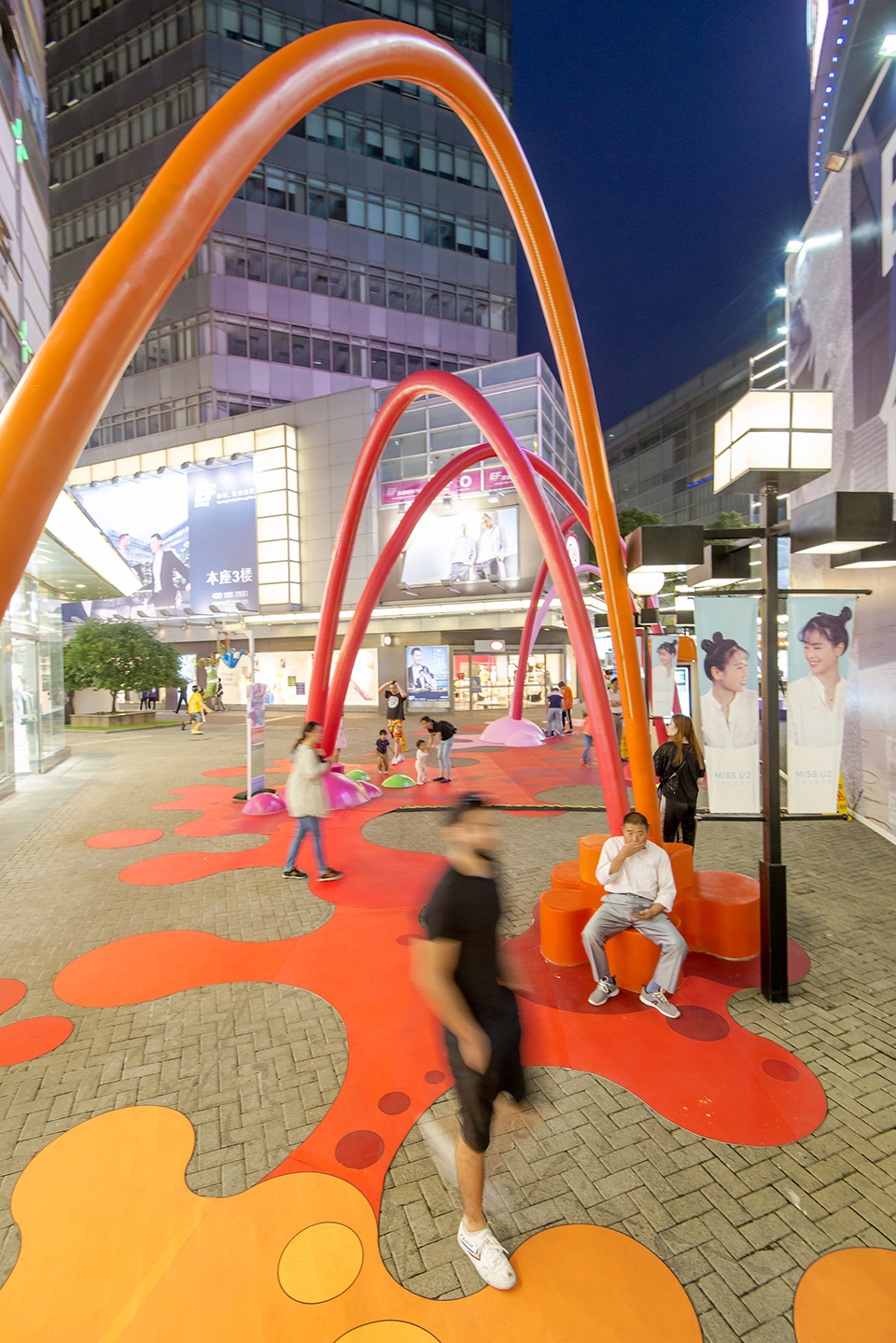

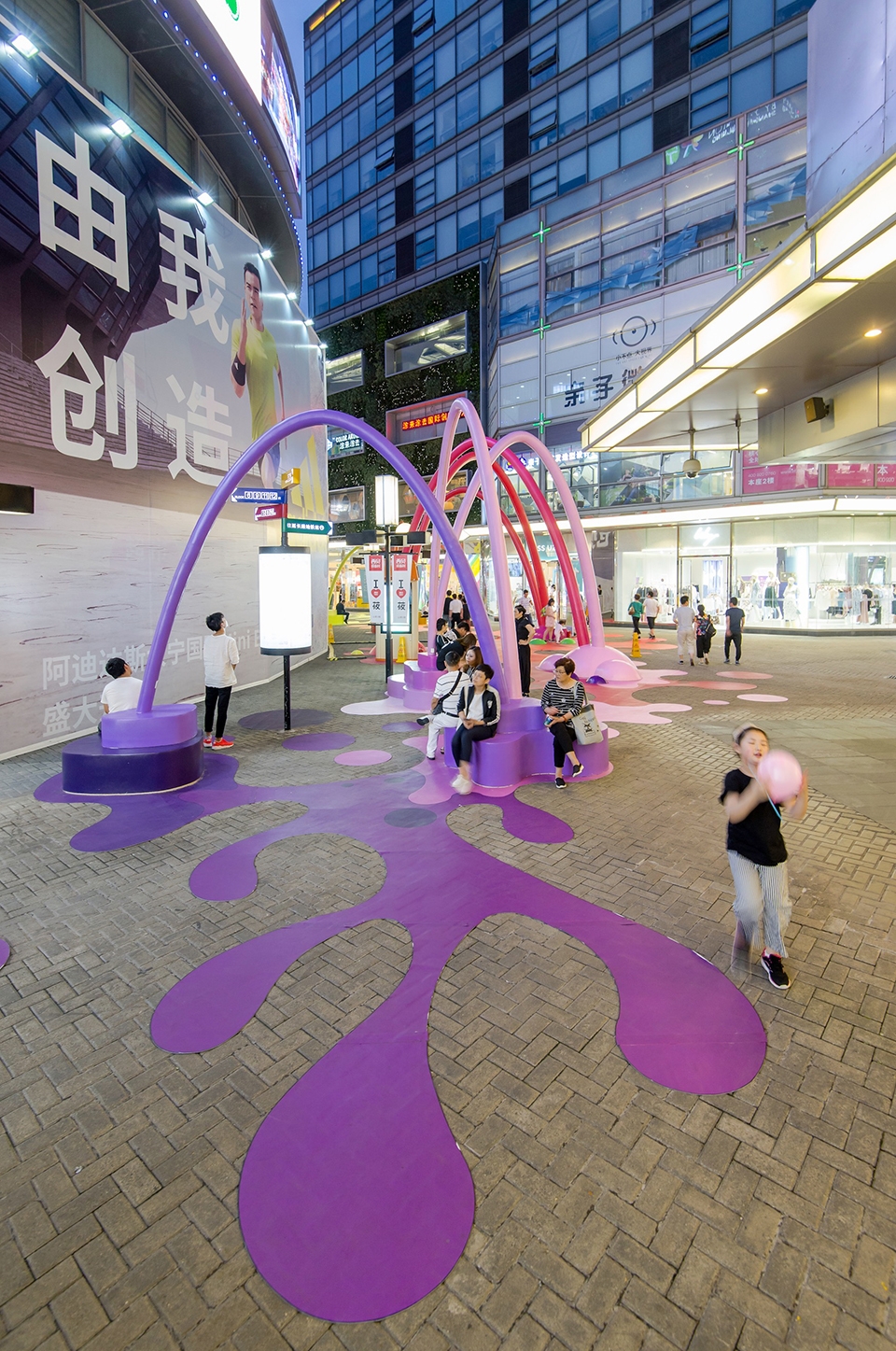

▼夜景,night view

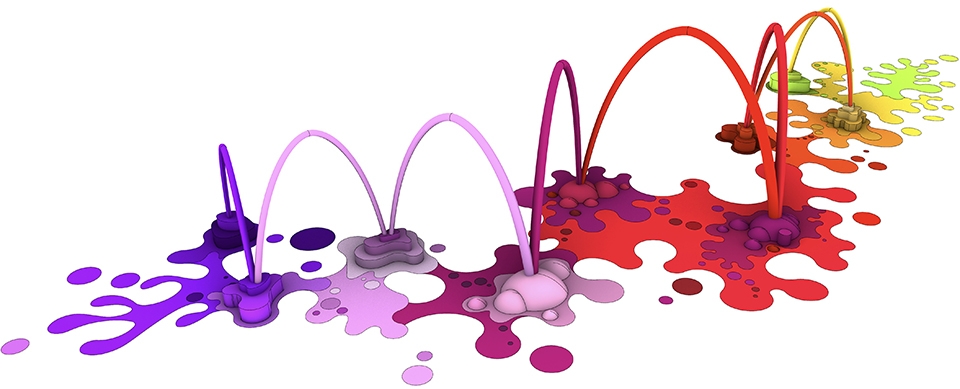

▼装置模型,model

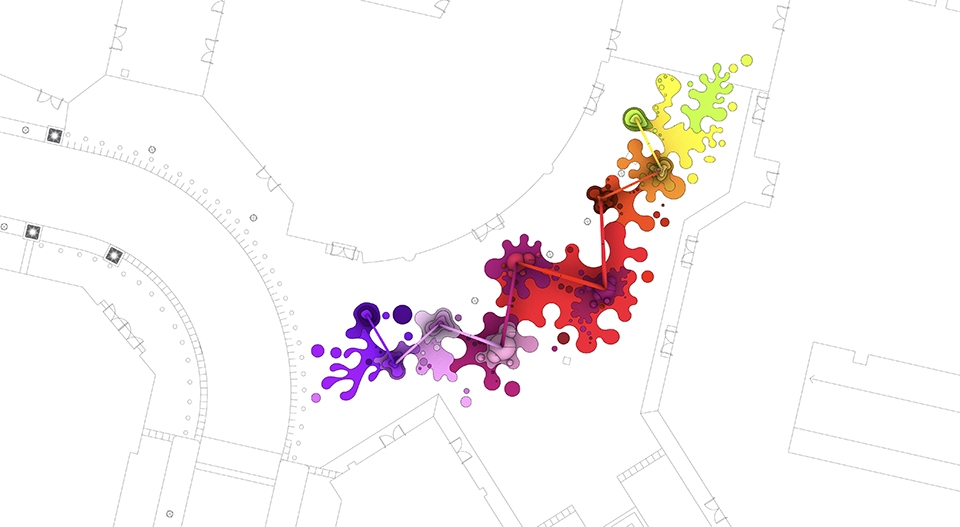

▼平面图,plan

Project name: Paint Drop
Designer: 100architects
Design team: Marcial Jesus, Javier Gonzalez, Anshuman Roy
Production: Hong Yang Advertising
Client: Life Hub @ Daning, (Chongbang Group)
Location: Daning Road, Jin’An District, Shanghai, China
Built area: 350 m2
Completion: June 2018
Photographer: Amey Kandalgaonkar
