ower ower塔中塔小屋，卢森堡 / 2001 TBSI & Elementar

感谢 2001 & Elementar予gooood分享以下内容。更多关于他们，请至：2001 on gooood
Appreciation towards 2001 & Elementar for providing the following description:

卢森堡Moselle河畔的Casino Tower属于国家历史遗产建筑，计划面向游客开放。

The listed national monument of the Casino Tower on the Luxembourg Moselle was to be made accessible for tourism.

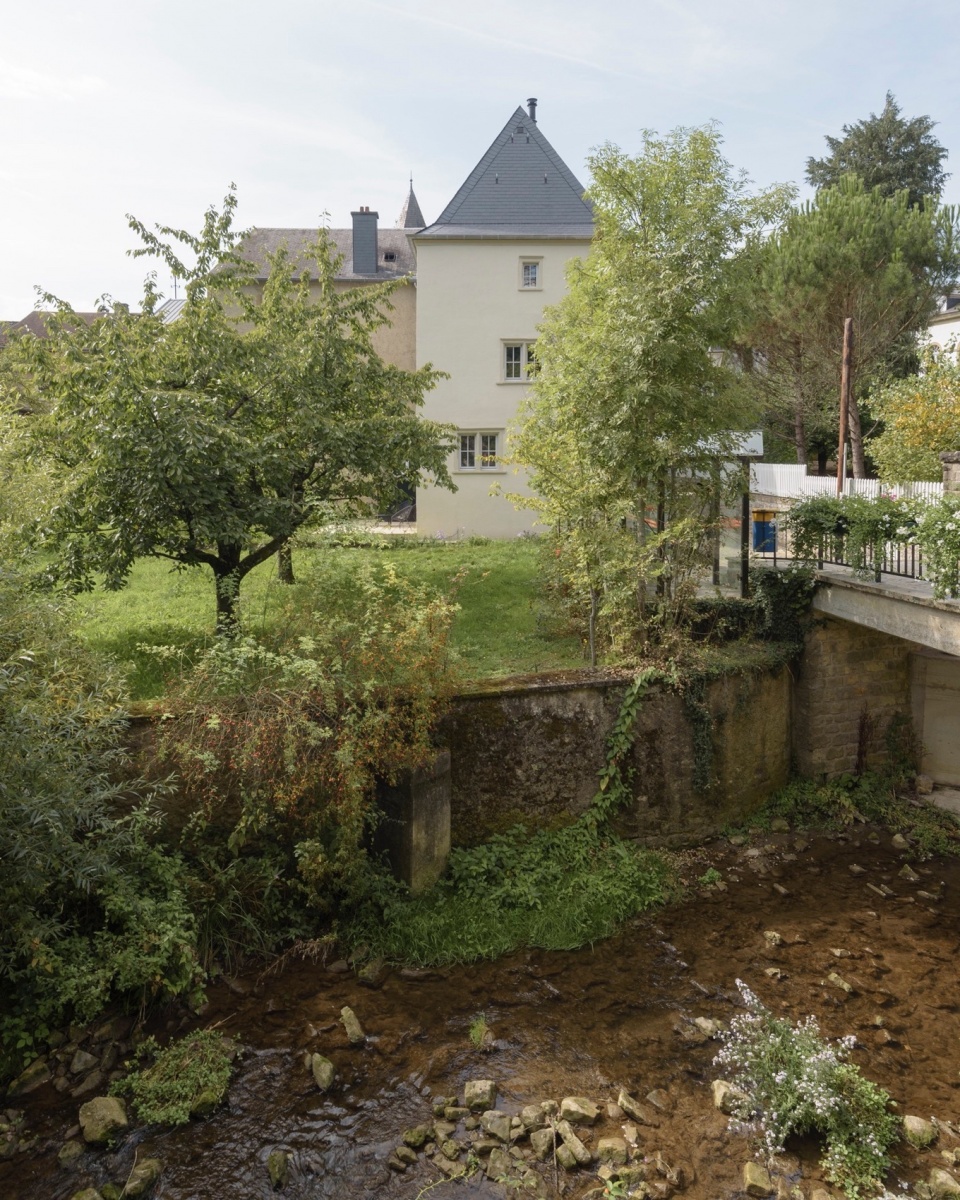

▼项目外观，Exterior space © Simone Bossi Photographer

▼入口处，Entrance space © Simone Bossi Photographer

▼主要空间，Mian interior space © Simone Bossi Photographer

本项目在历史结构中引入了通道、浴室、厨房和一些现代设备，但是并没有对这栋历史建筑造成破坏。

▼手绘图，hand drawing © 2001 TBSI

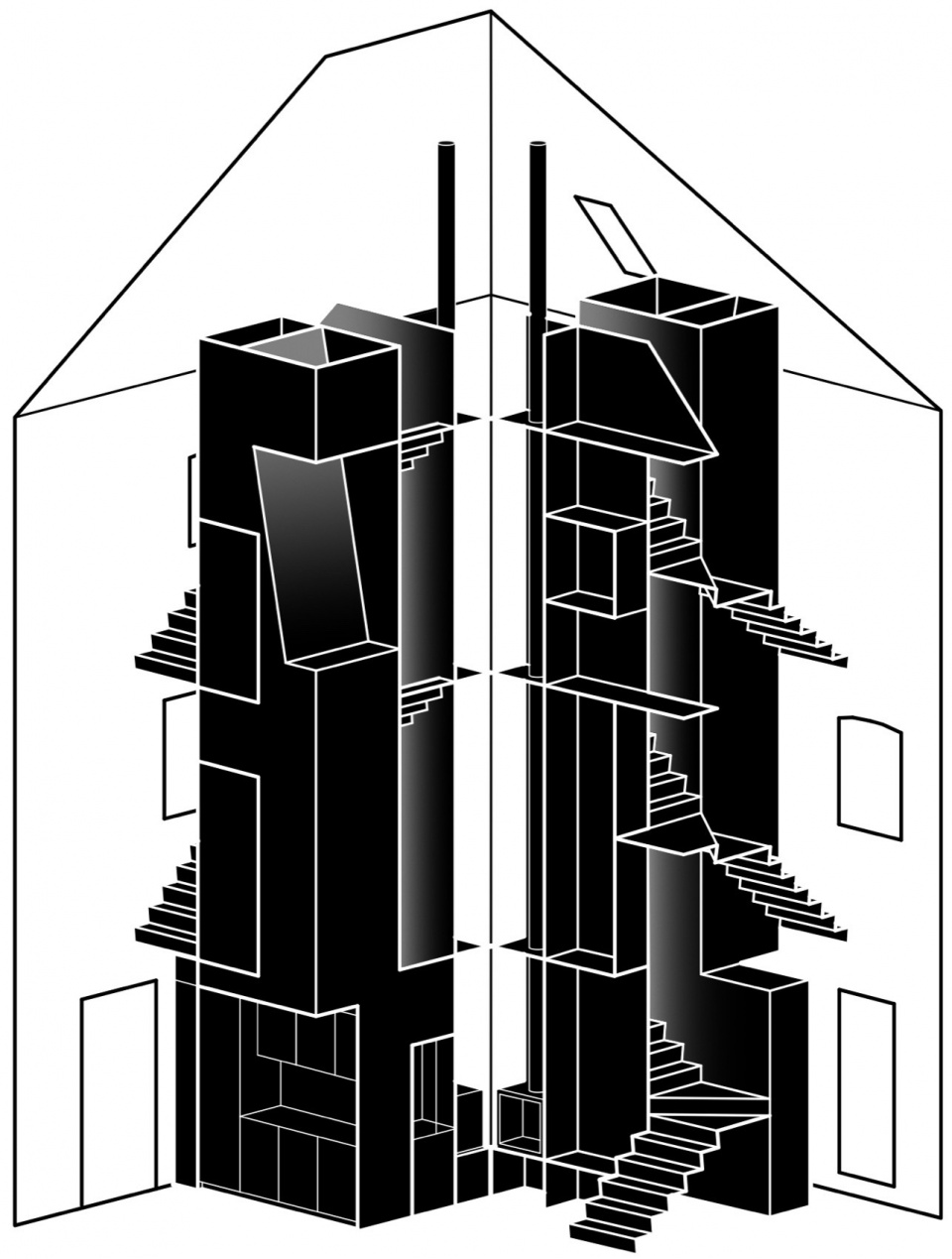

▼轴测，axo © 2001 TBSI

The project of a tower within the tower allows thus to bring in appropriate access, a bathroom and a kitchen but also contemporary technology without mutilating the historic structure.

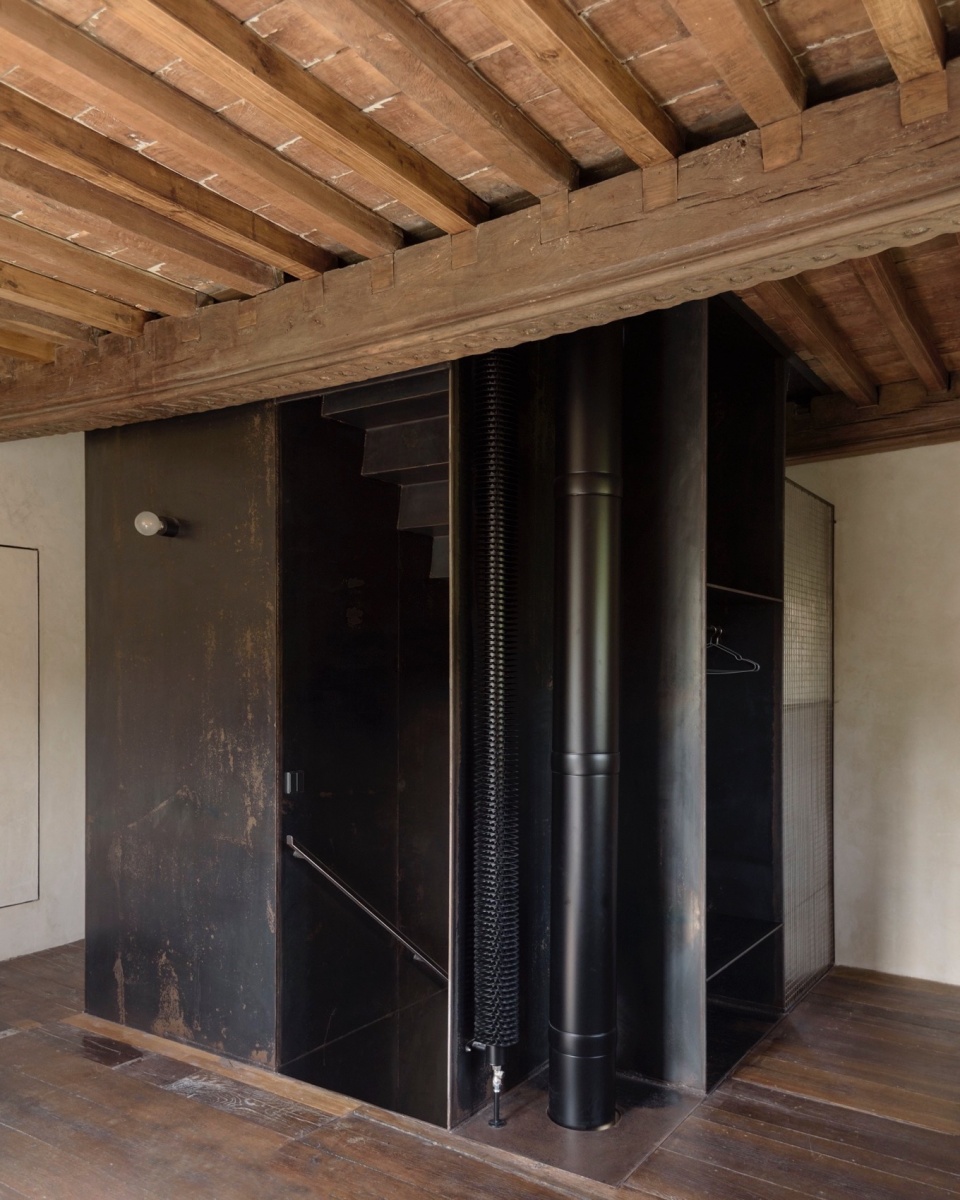

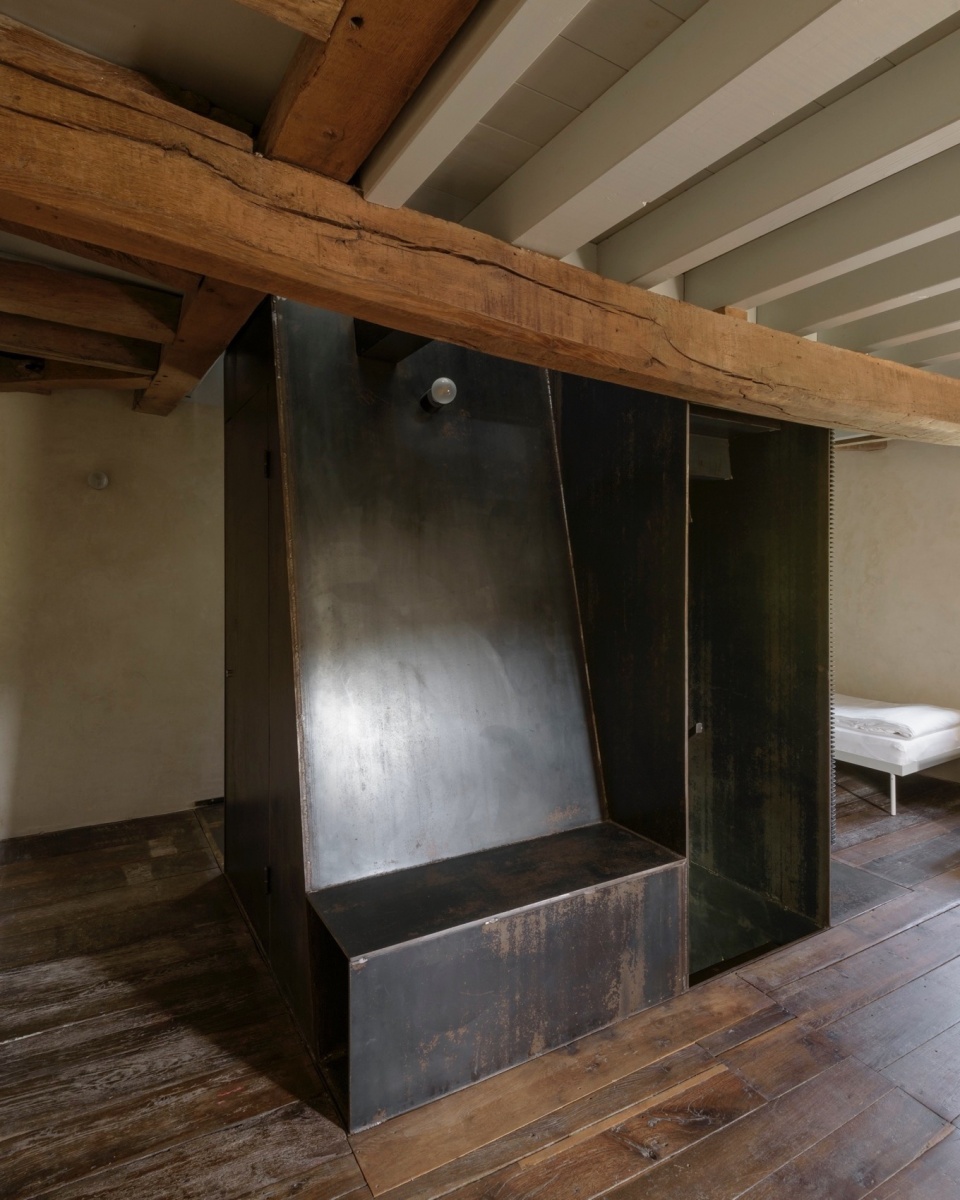

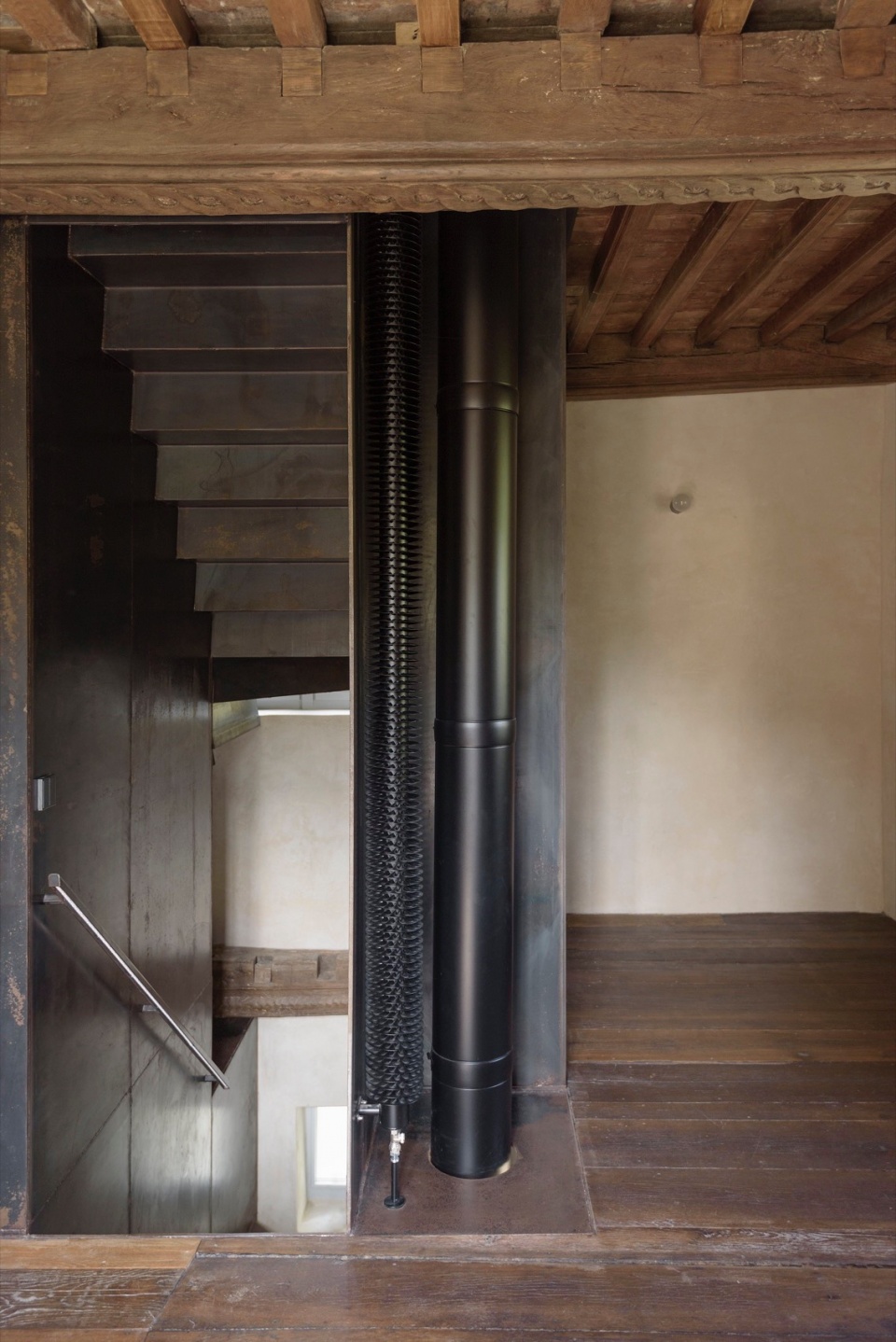

▼中央交通核，Central transportation core © Simone Bossi Photographer

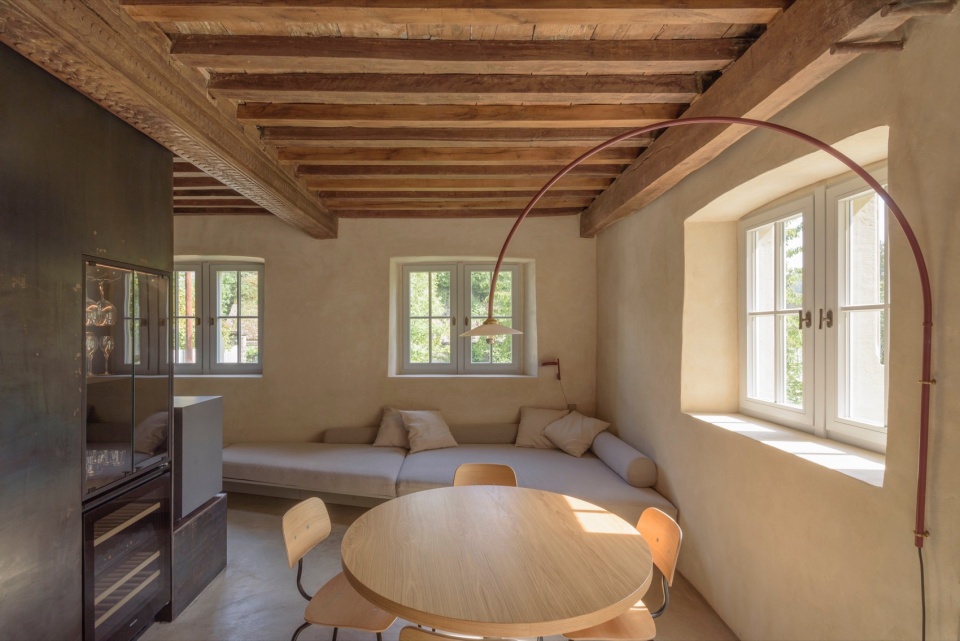

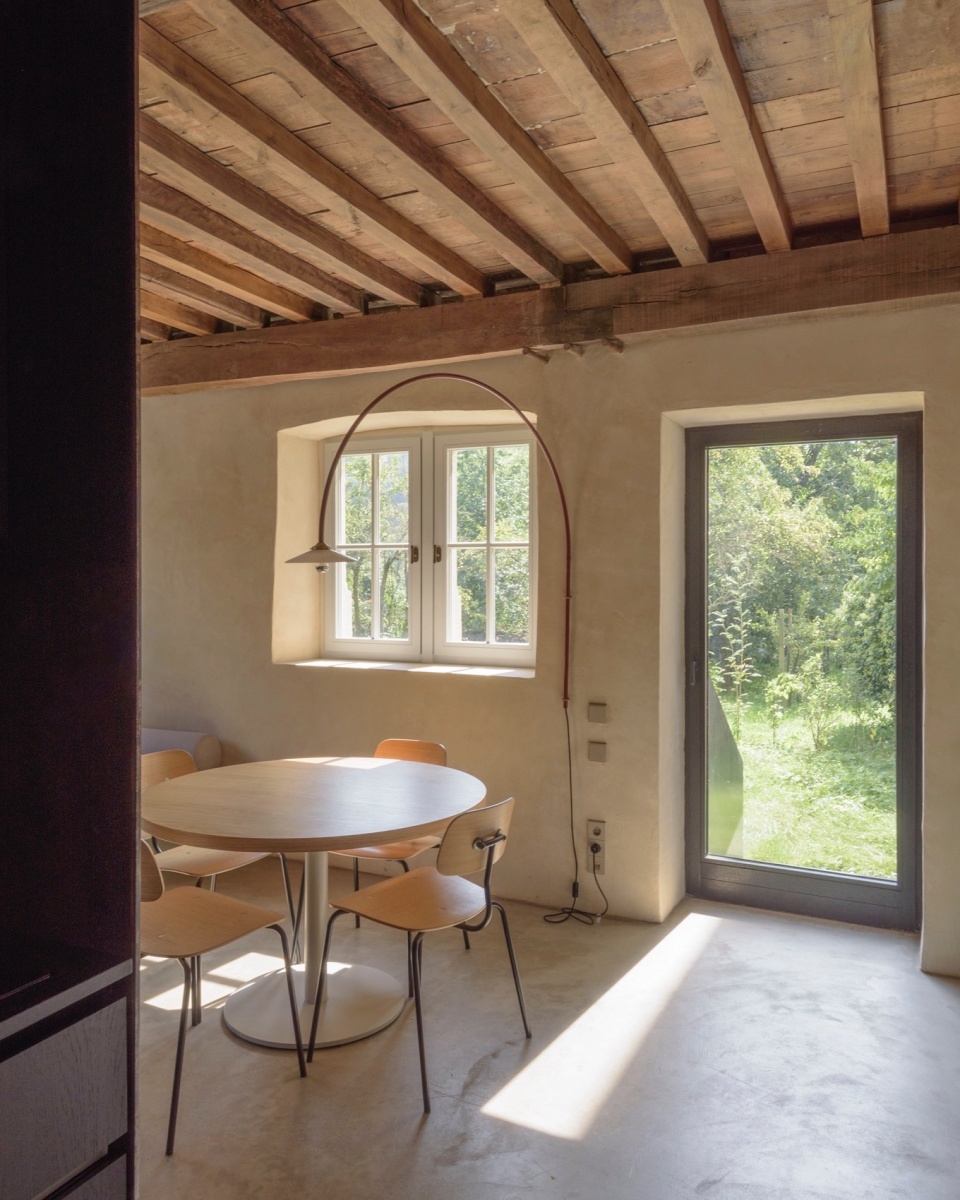

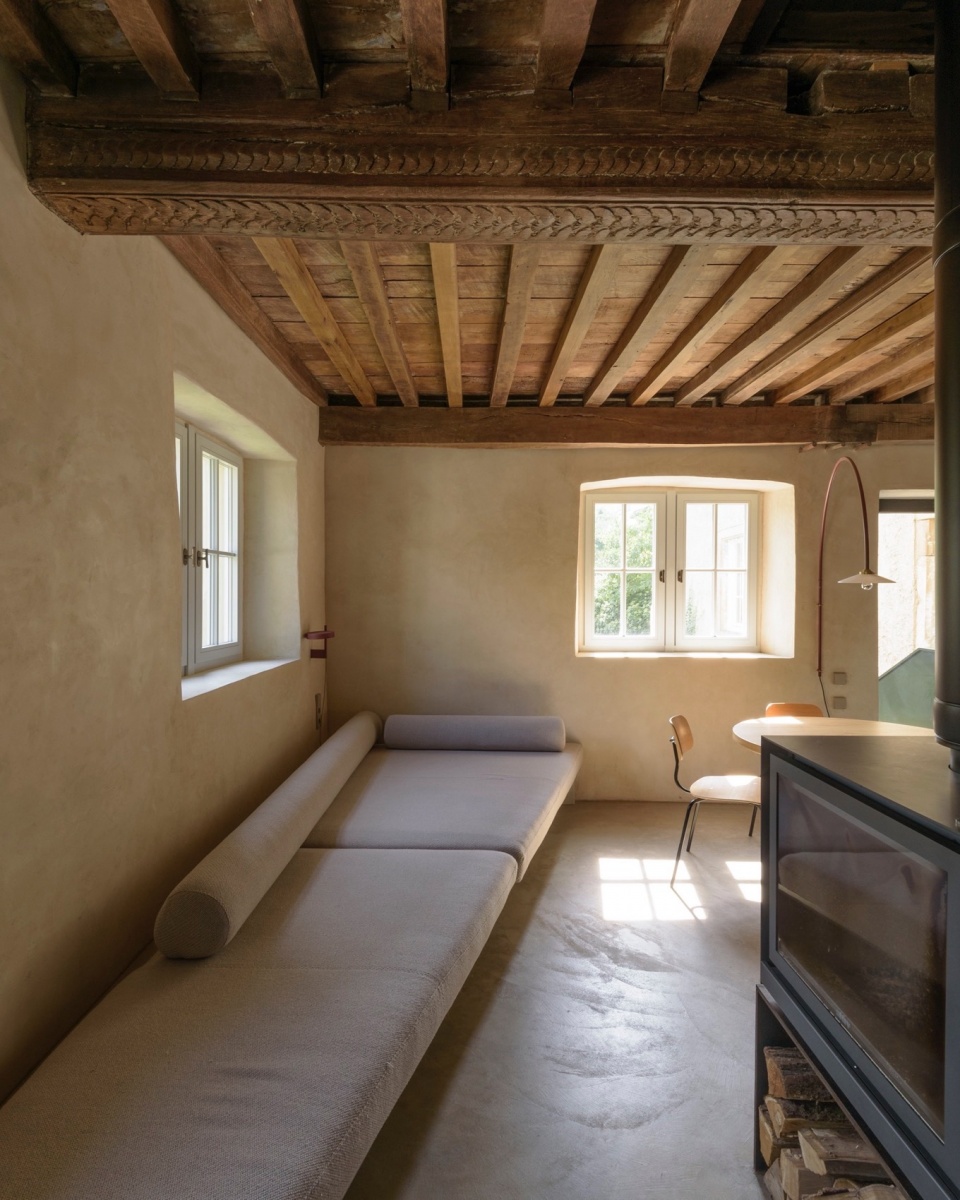

▼生活空间，Living space © Simone Bossi Photographer

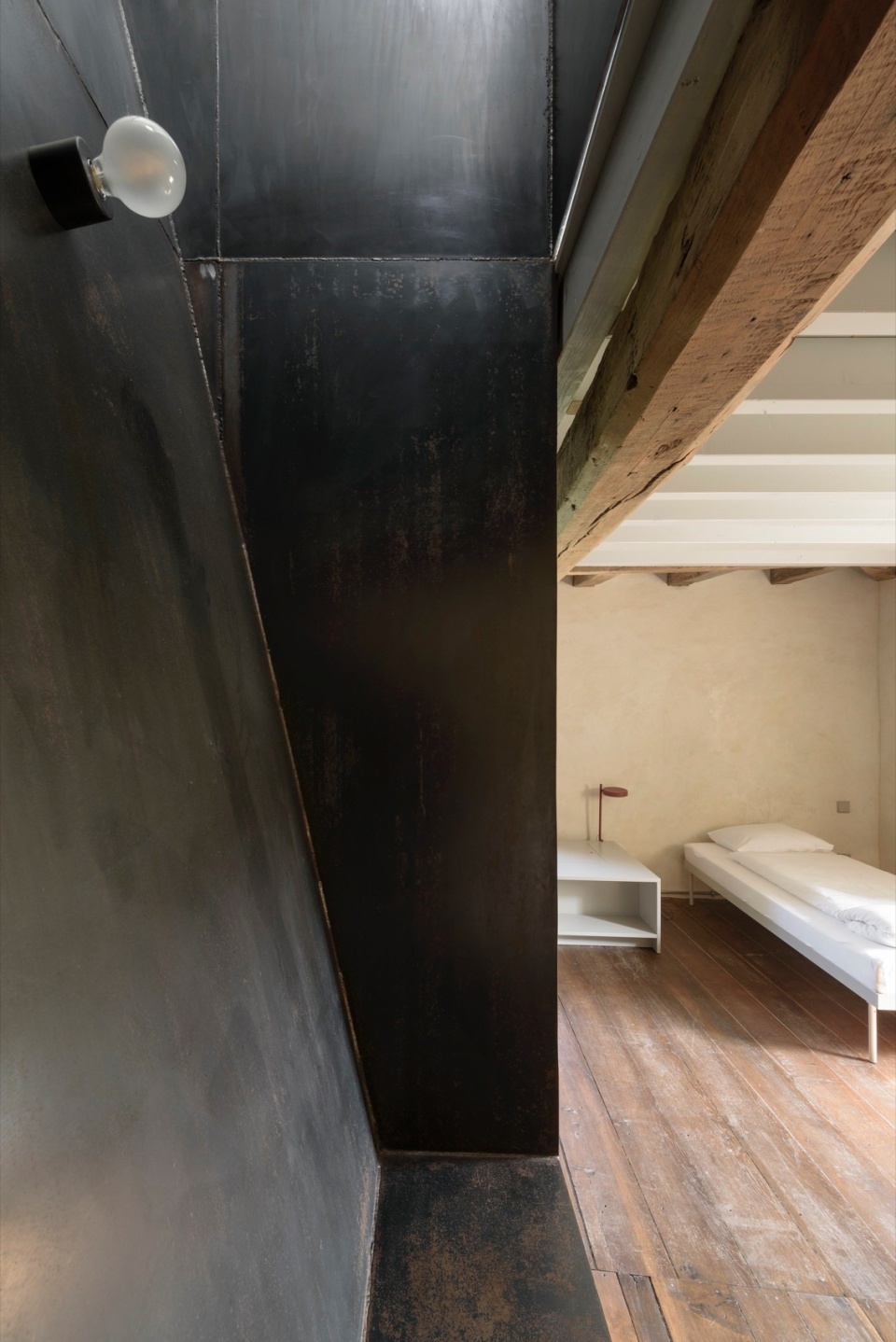

▼卧室空间，Bedroom © Simone Bossi Photographer

塔楼是由12毫米实心钢材在现场焊接打造的，既是结构也是建筑主体。由于内部空间及其有限，设计者在四层空间中布置了各种功能和布局。

The tower is welded together on site in 12 mm solid steel and is both structural and architectural. Diverse functions and room layouts are thus organized over four floors and in the smallest possible space.

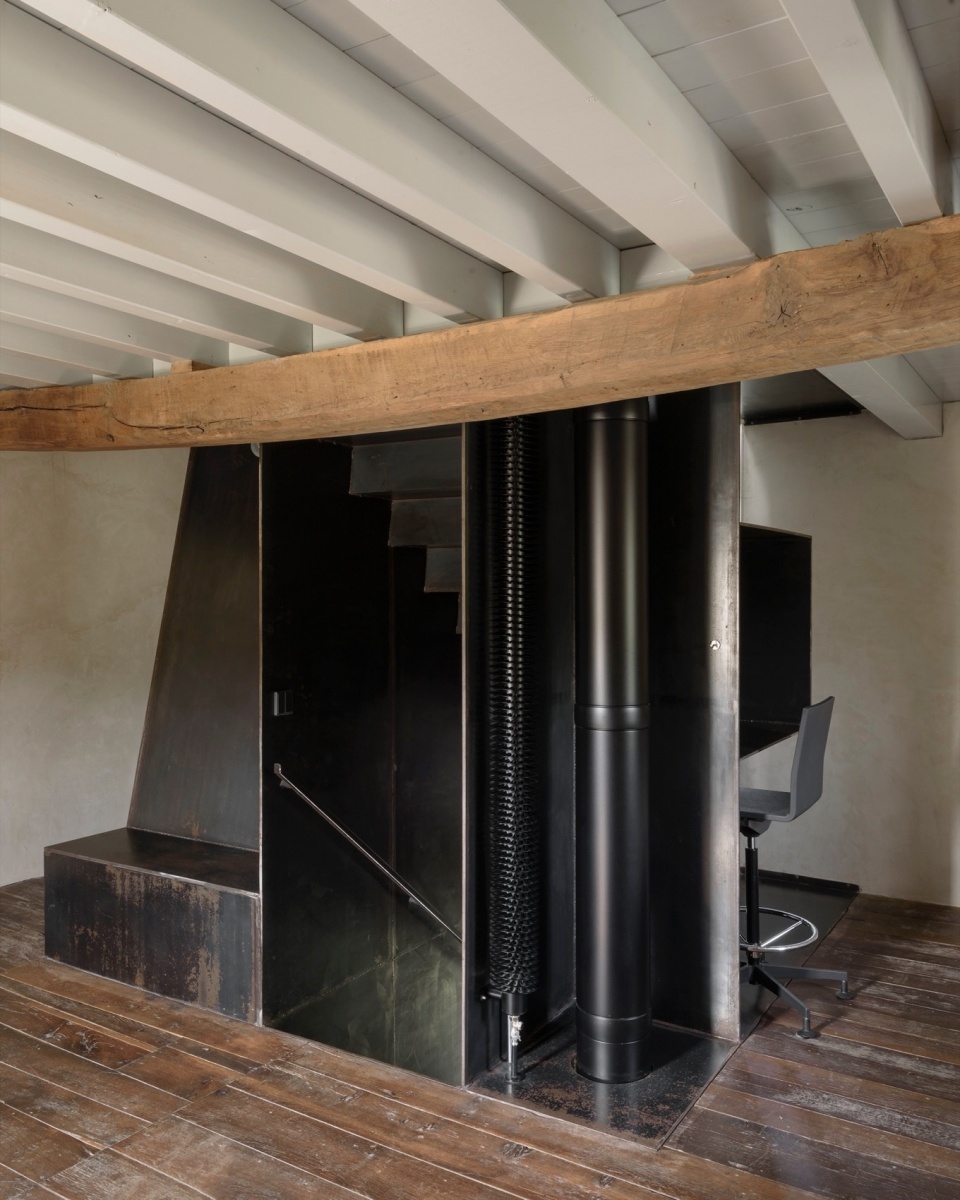

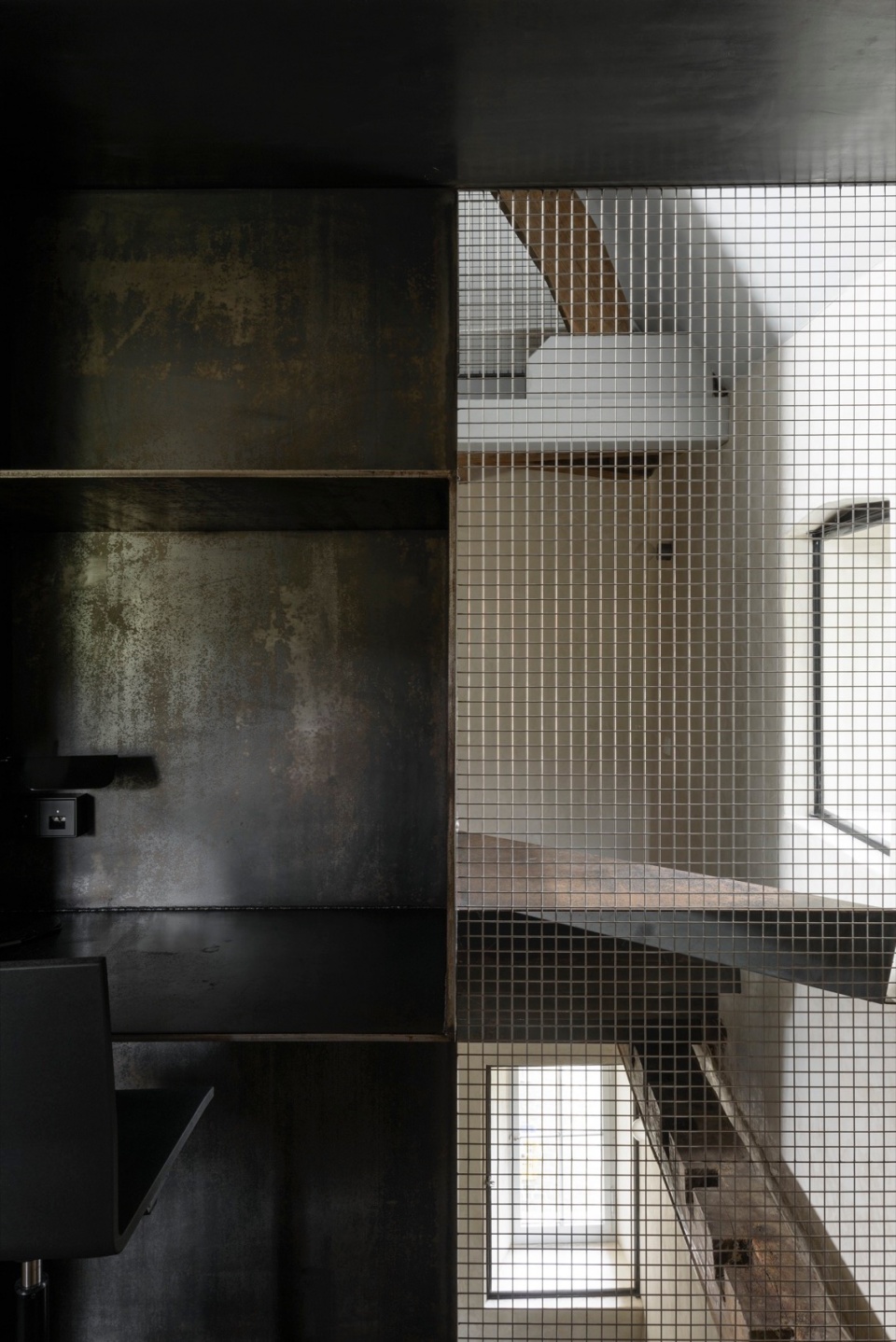

▼交通核旁的办公空间，Office space © Simone Bossi Photographer

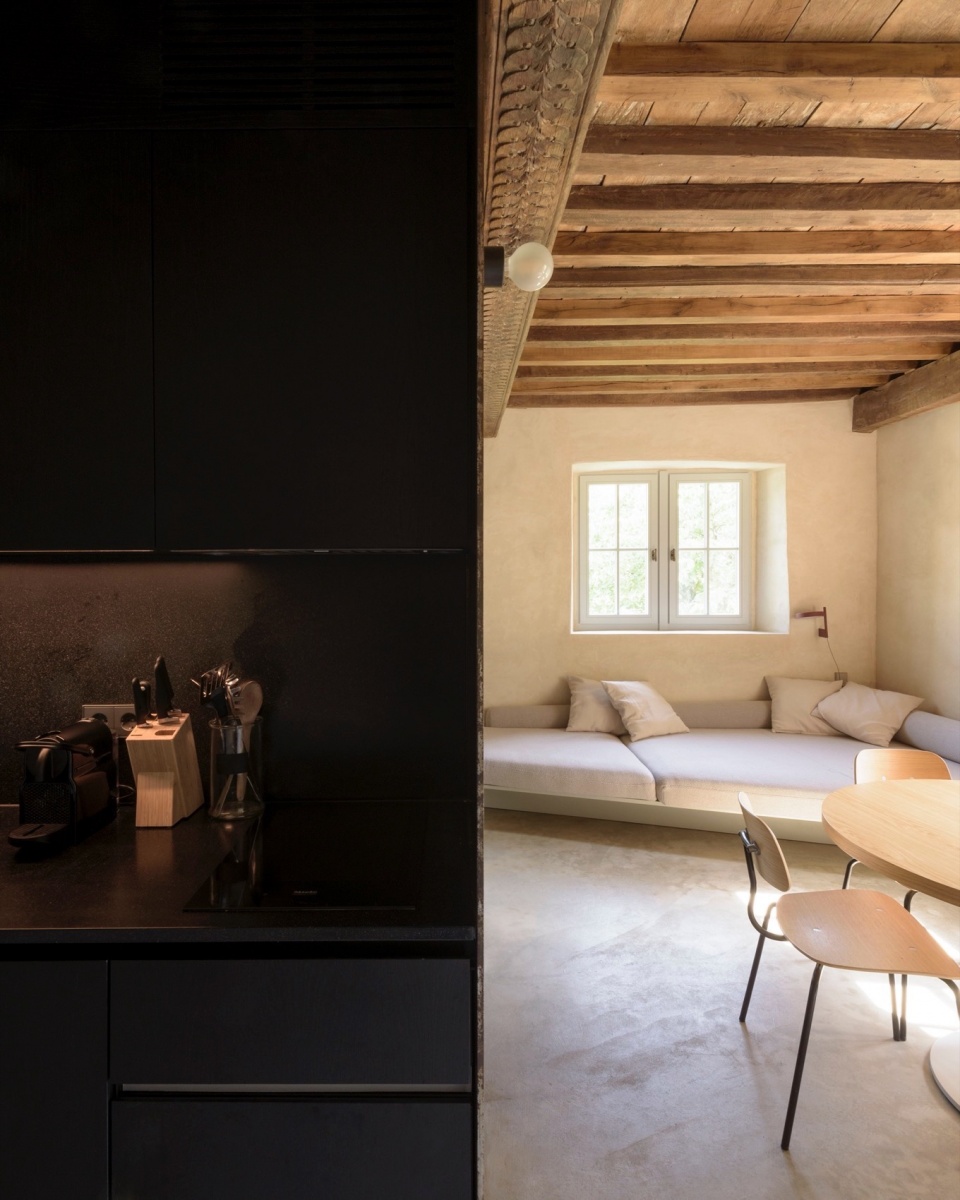

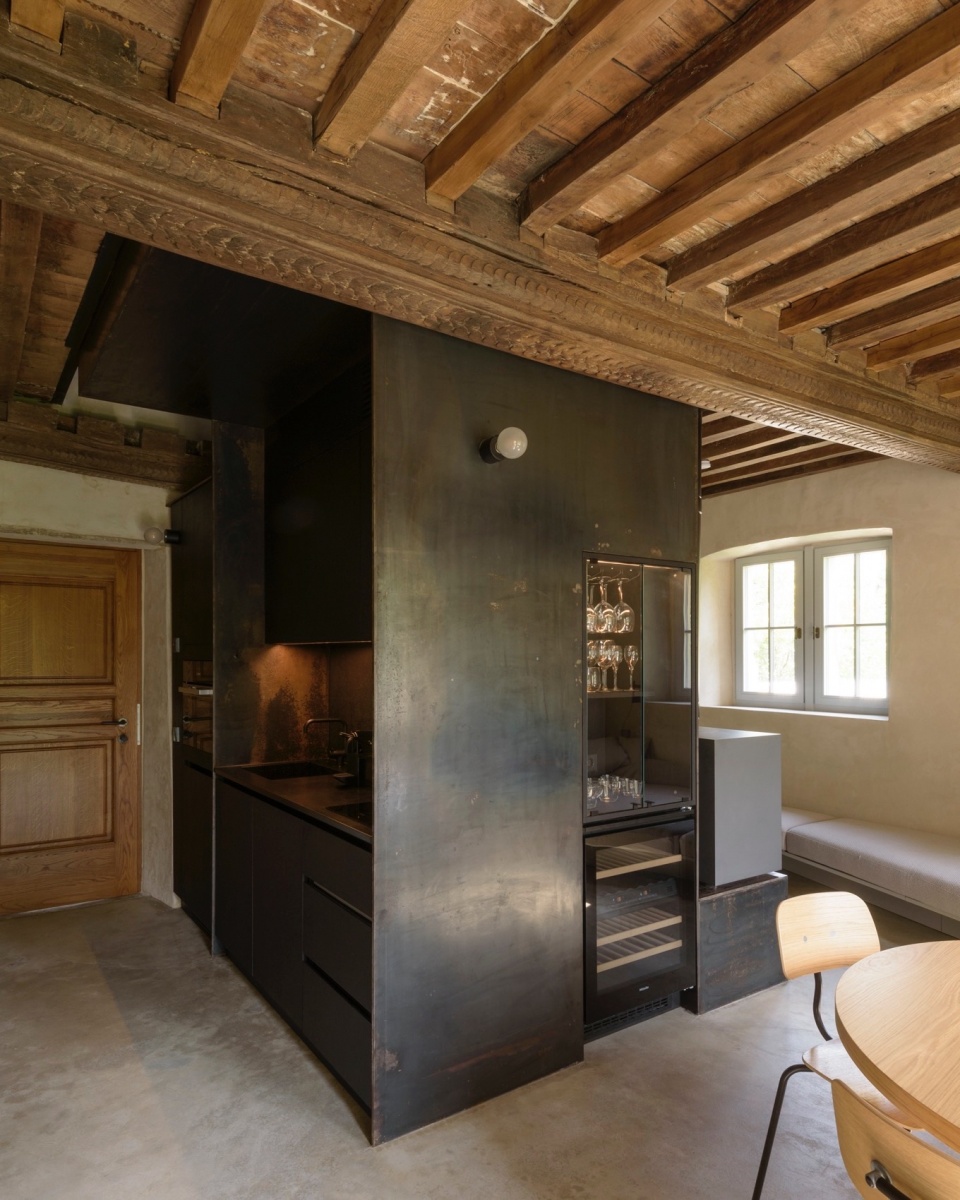

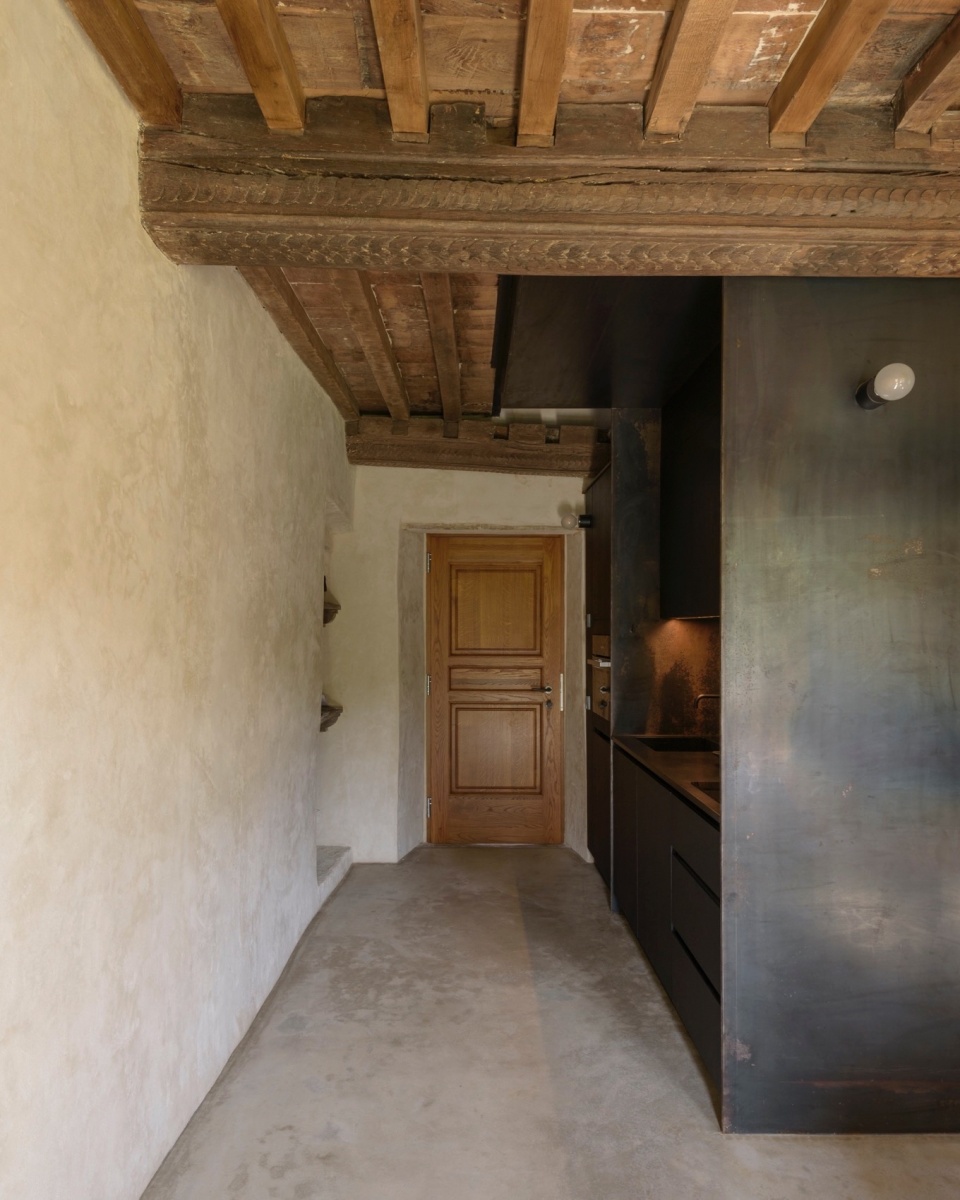

▼厨房与酒柜，Kitchen © Simone Bossi Photographer

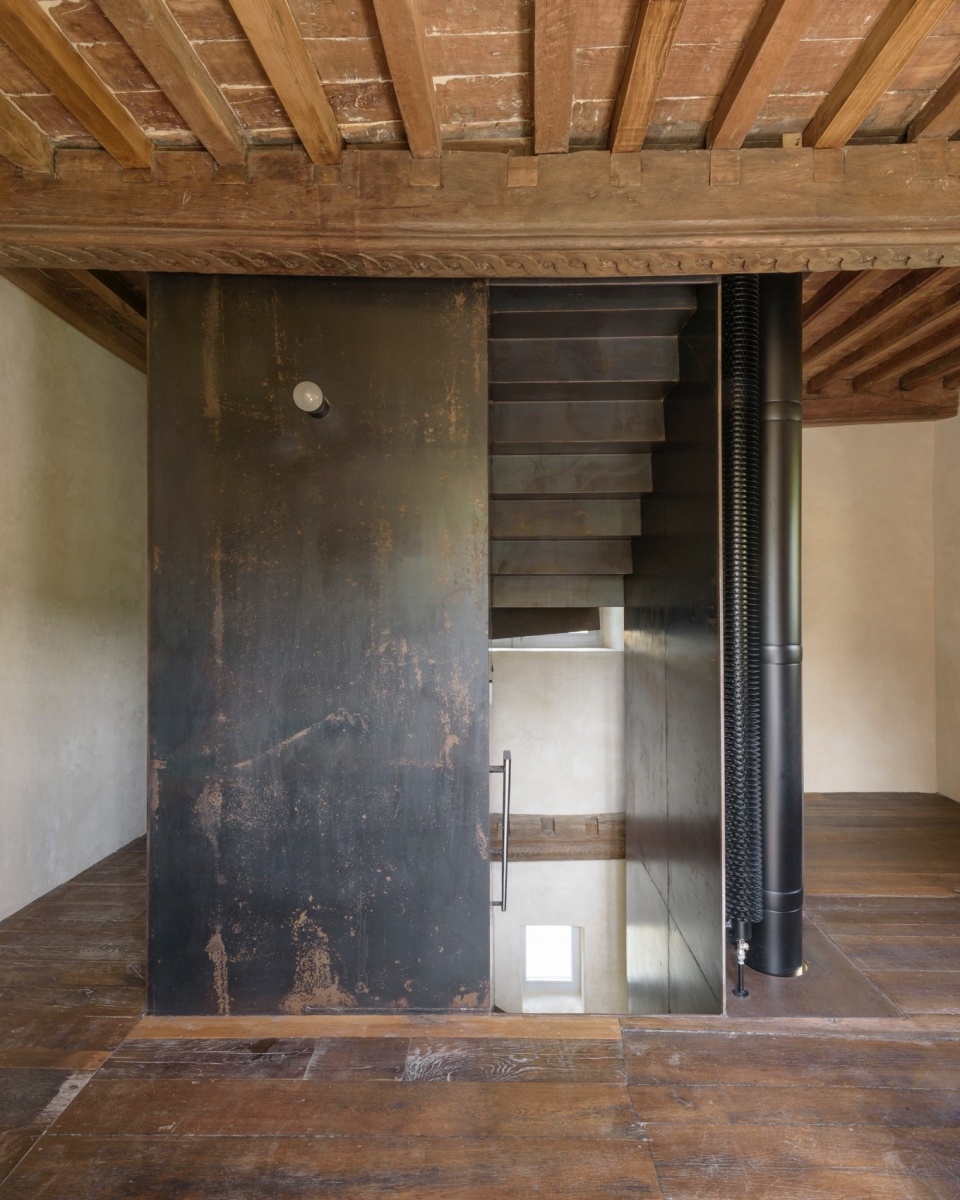

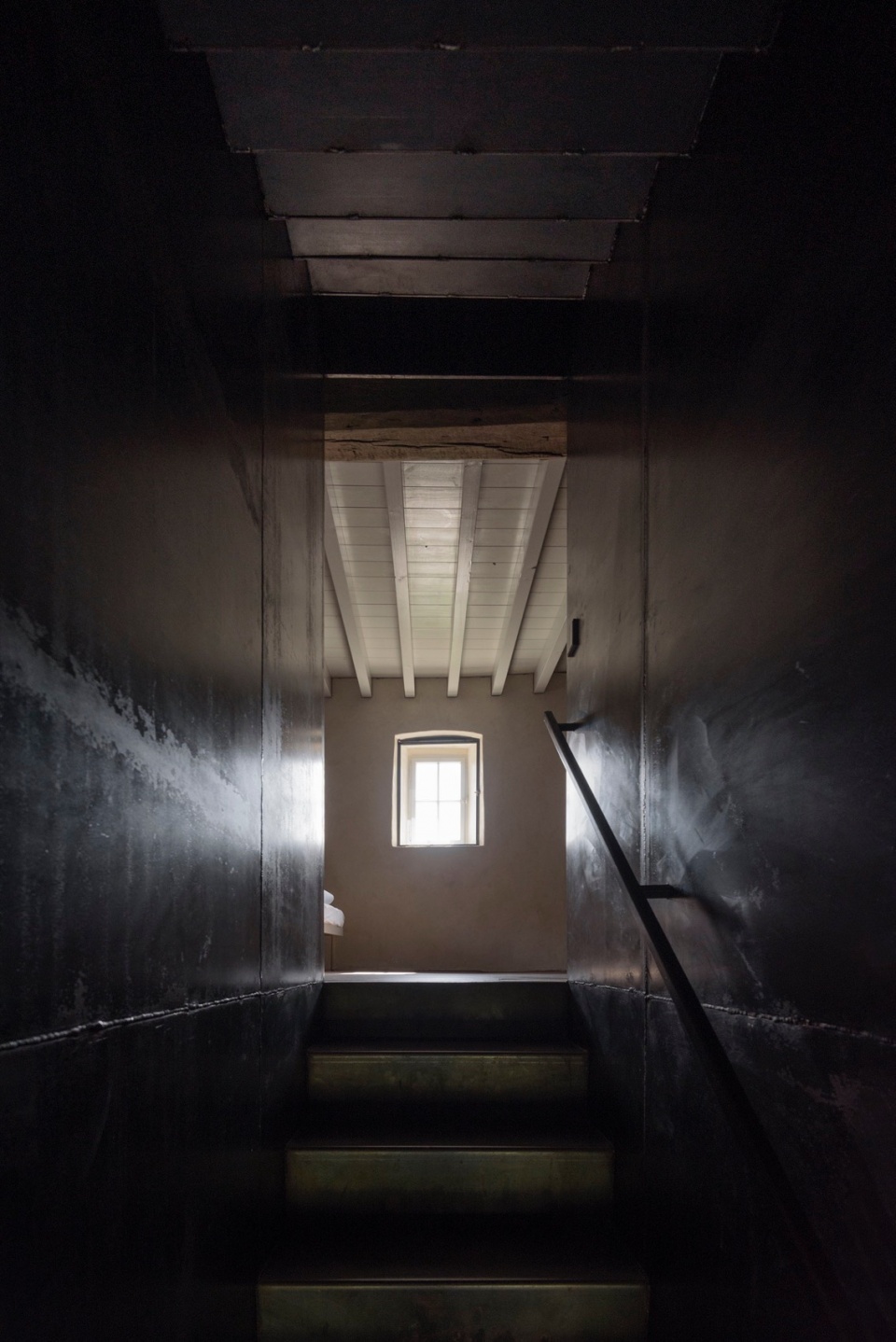

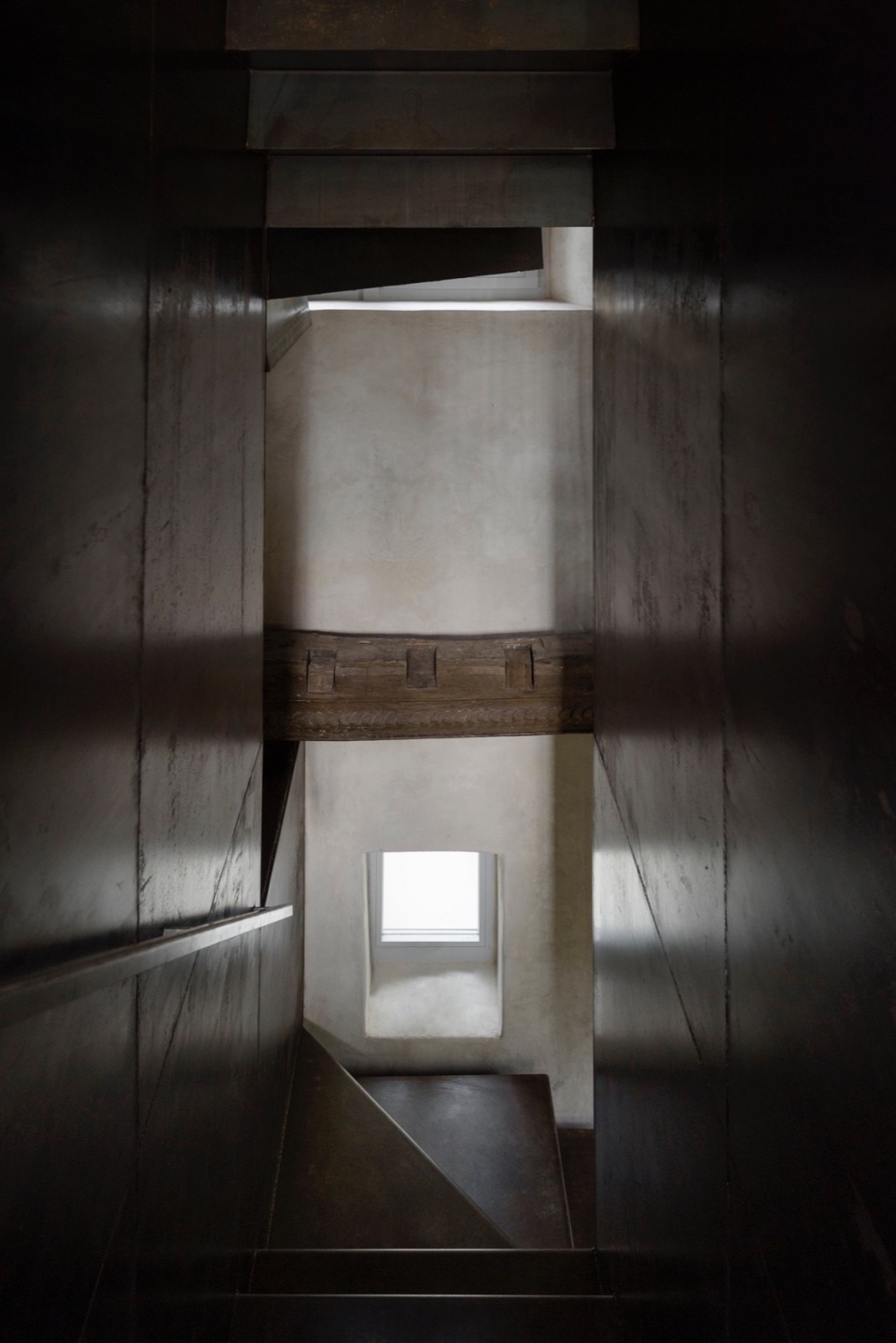

▼楼梯，Stairs © Simone Bossi Photographer

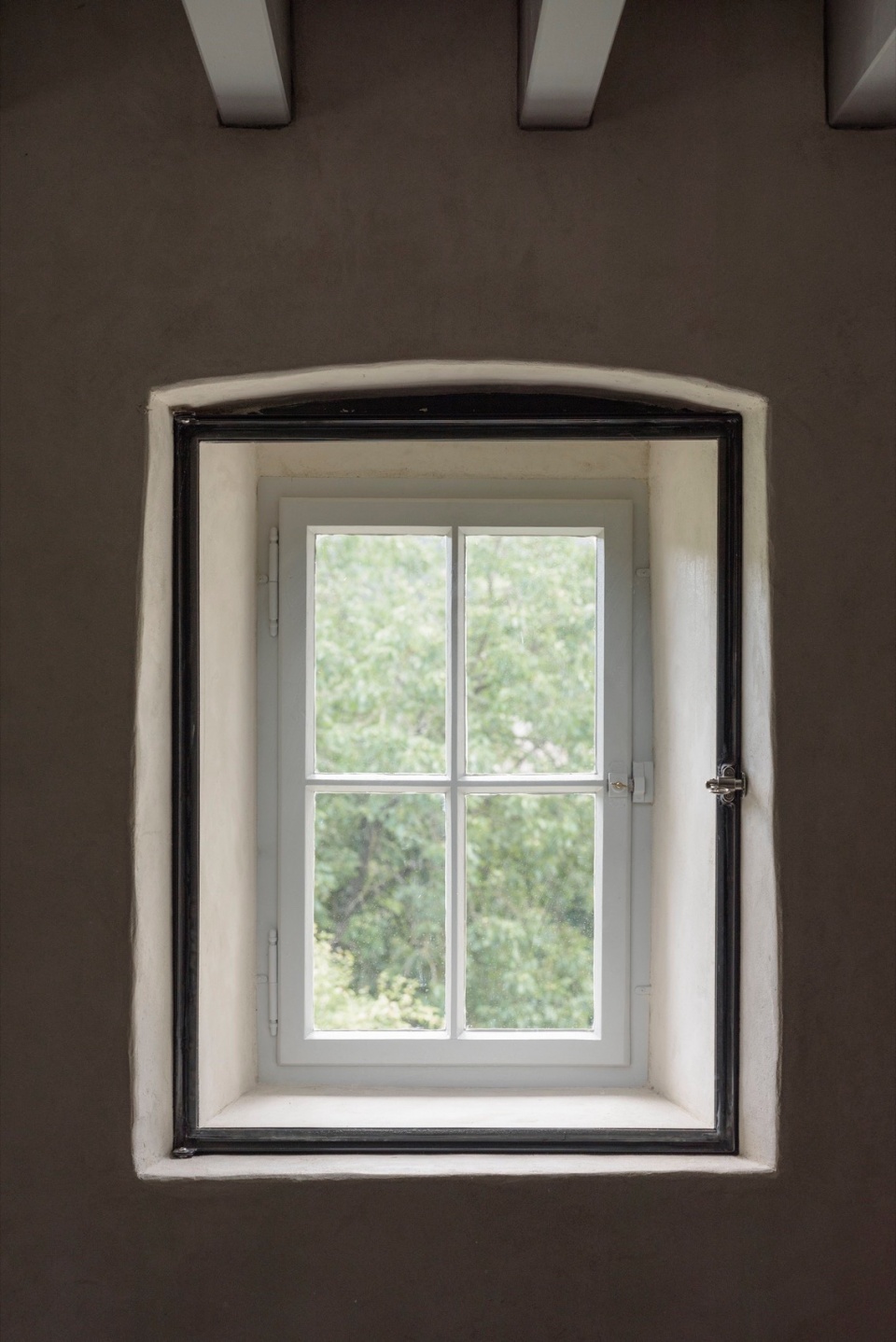

▼室内开窗，Window © Simone Bossi Photographer

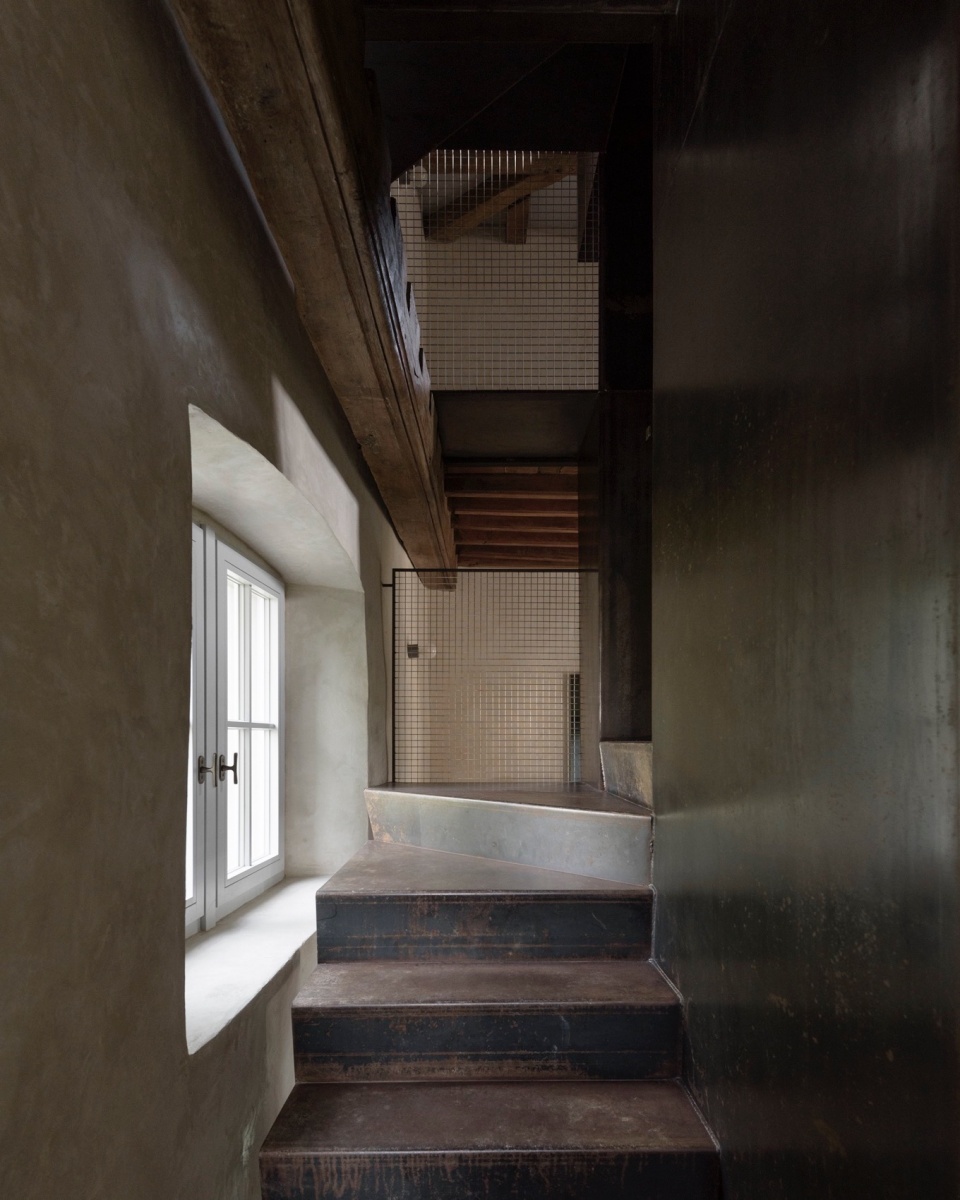

▼楼梯间开窗，Stairwell window  © Simone Bossi Photographer

塔楼内供暖、供水和电力系统一应俱全，还布置有浴室、厨房、办公空间、炉灶和当地必备的葡萄酒冰柜。

The stair tower contains heating, water techniques and electrical supply, as well as bathroom and kitchen, an office, a stove and the, for the region obligatory, wine fridge.

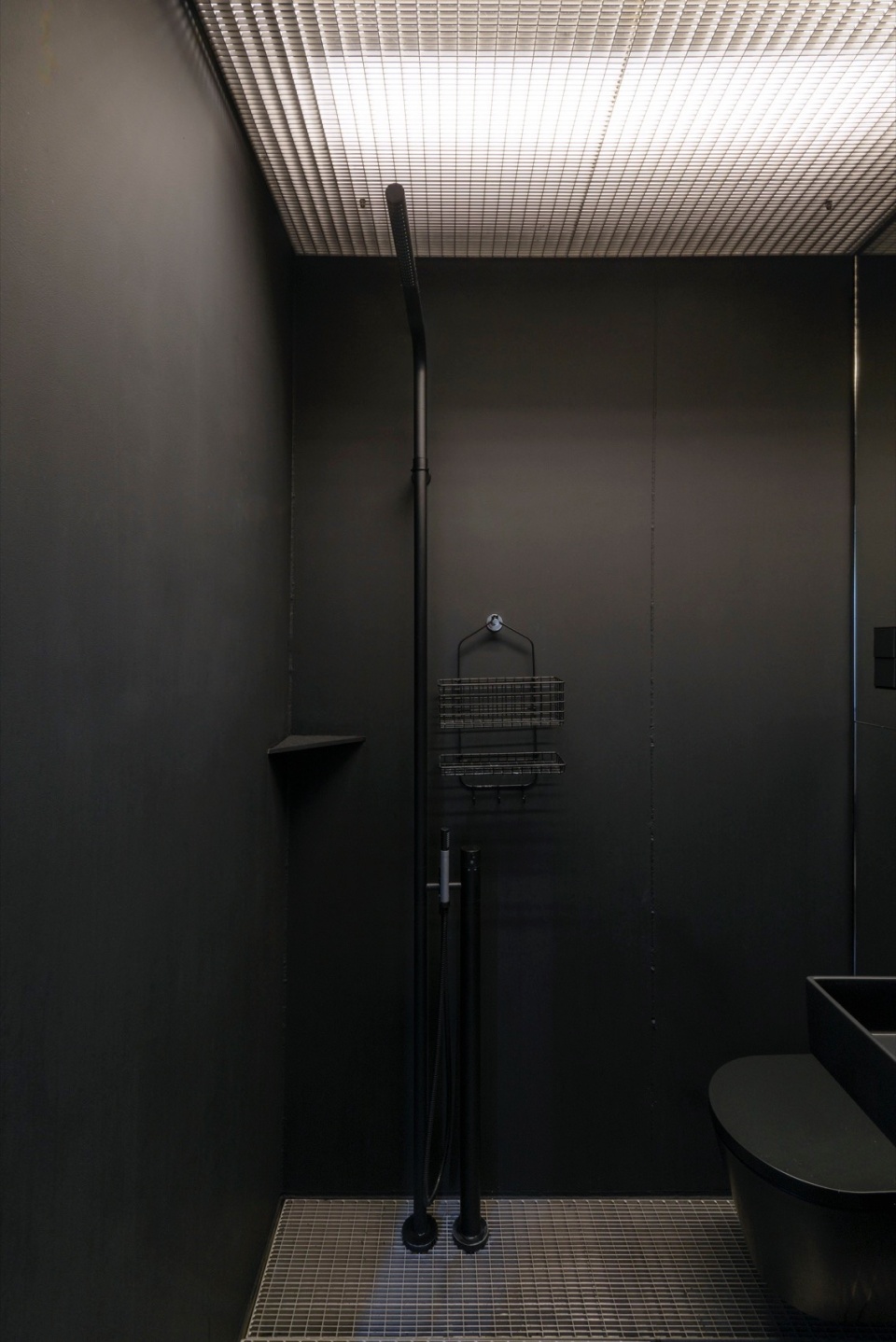

▼淋浴间，Shower room © Simone Bossi Photographer

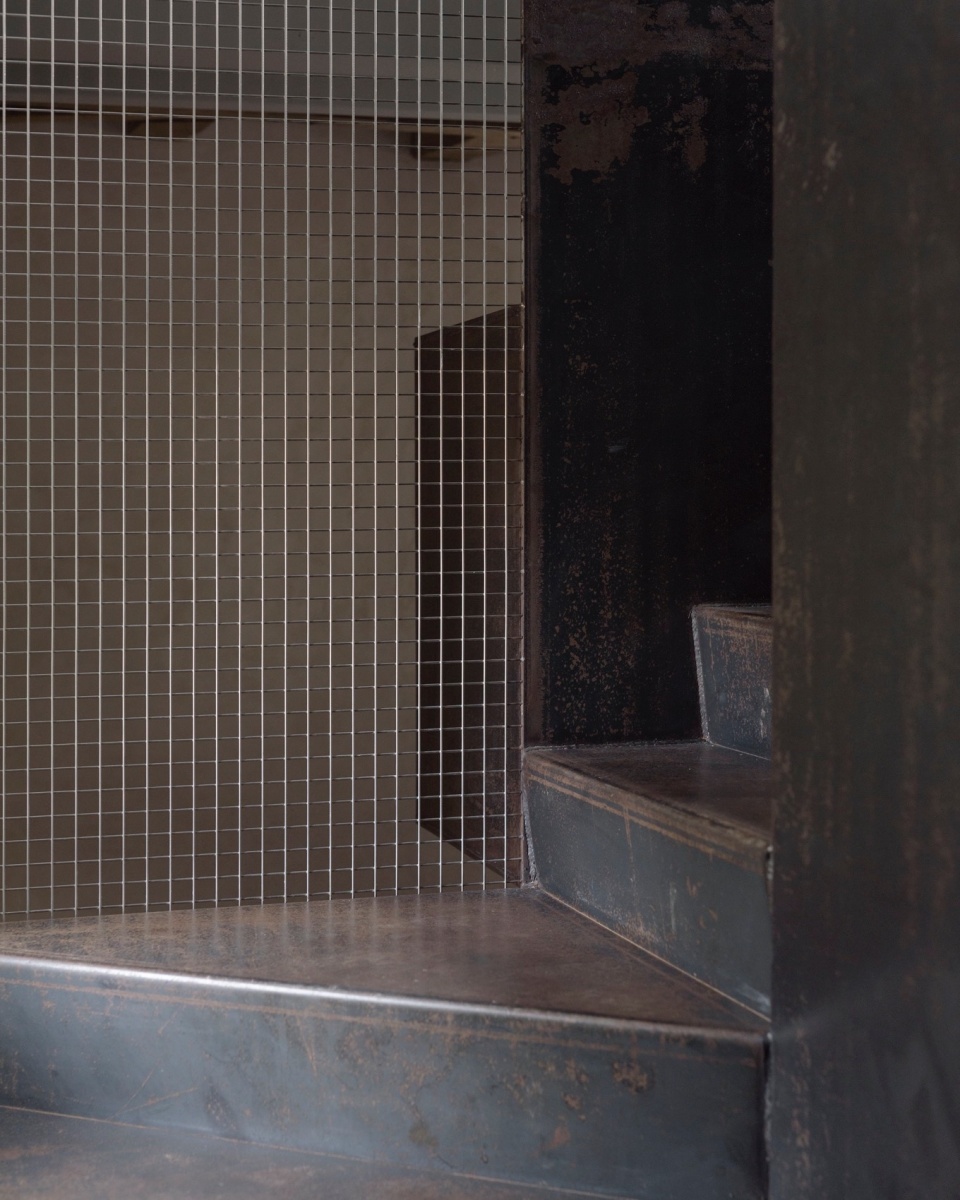

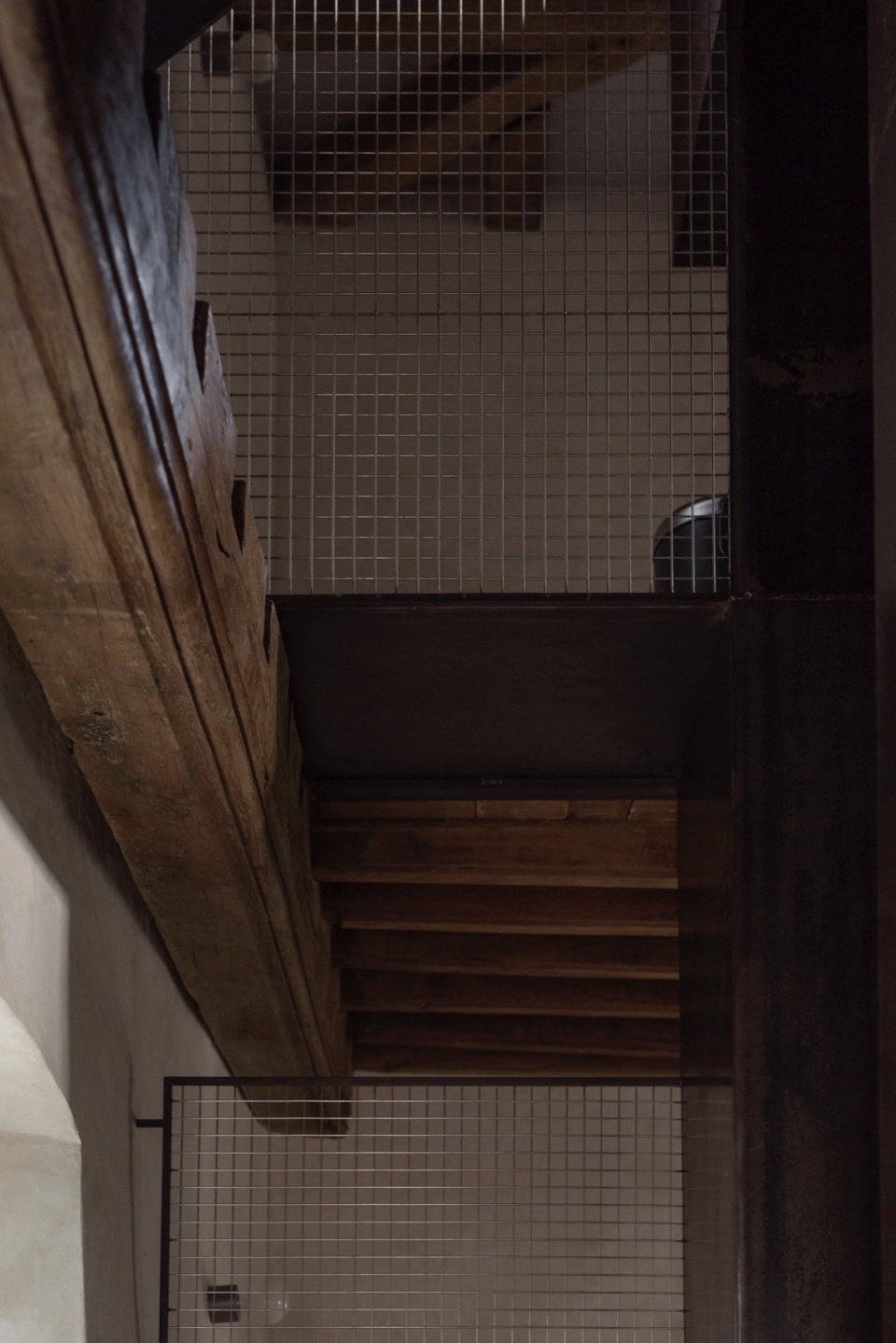

▼空间材质细部，Material detials © Simone Bossi Photographer

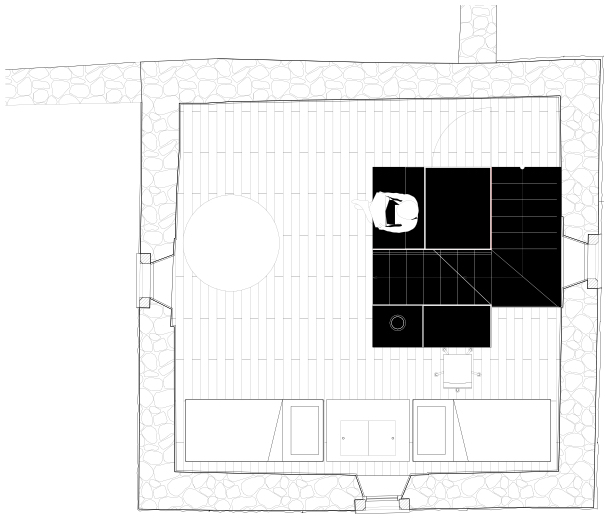

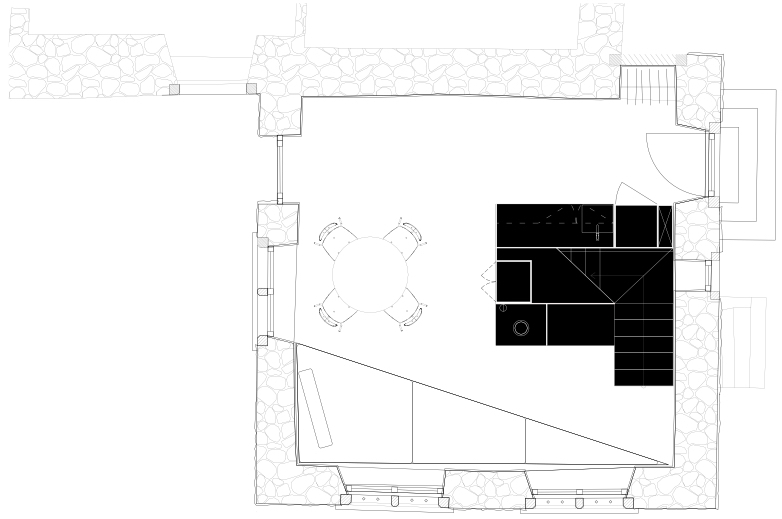

▼首层平面图，ground floor plan © 2001 TBSI

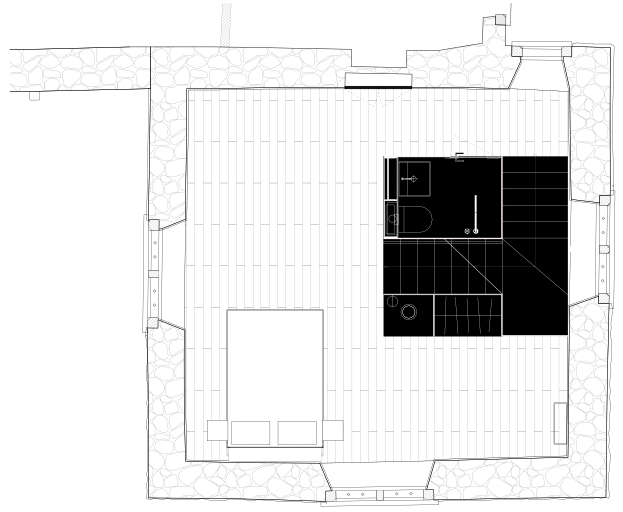

▼二层平面图，first floor plan © 2001 TBSI

▼三层平面图，second floor plan © 2001 TBSI

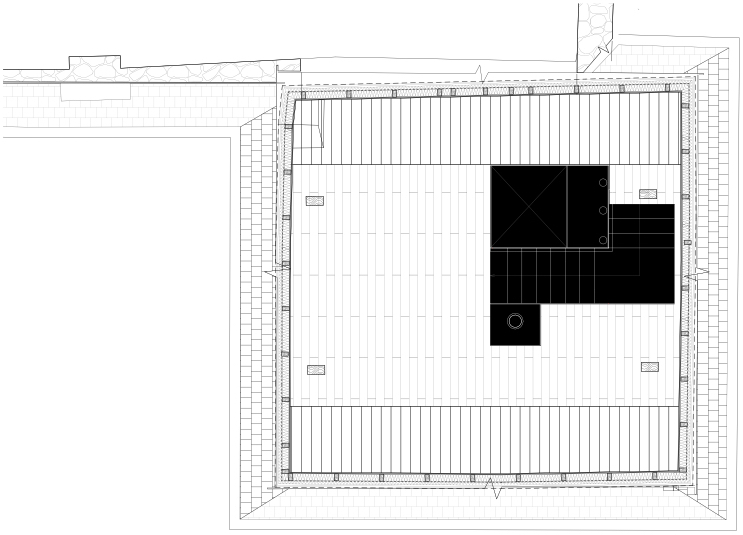

▼四层平面图，third floor plan © 2001 TBSI

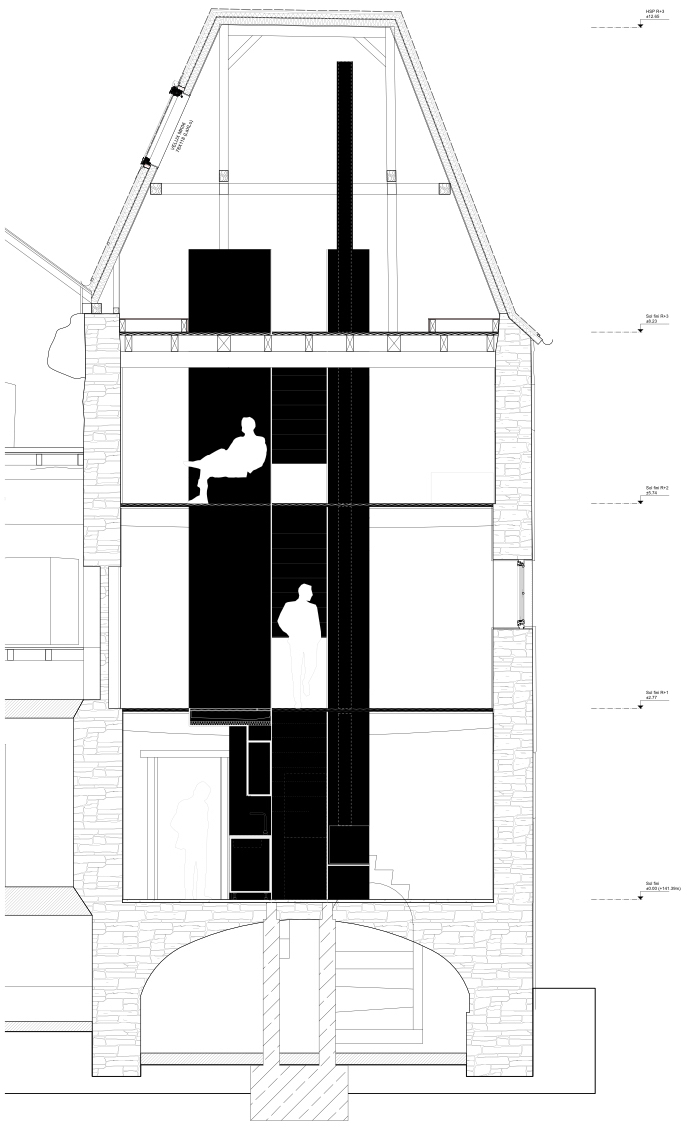

▼剖面图，section © 2001 TBSI

Details
Project size: 112 m2
Project Budget: EUR 800
Completion date: 2023
Building levels: 4
Project team
2001 TBSI      lead architect
elementar     co-design
