感谢 Zaha Hadid Architects 予gooood分享以下内容。更多关于：Zaha Hadid Architects on gooood。
Appreciation towards Zaha Hadid Architects for providing the following description:

迪拜ME酒店位于Opus综合体内，坐落在迪拜的哈利法塔区，毗邻市中心和迪拜运河沿岸的商业湾。作为扎哈·哈迪德本人在2007年提出的设计，Opus探索了虚与实、透明与不透明以及内外空间的平衡关系，同时也是唯一一家由扎哈同时担任建筑与室内设计的酒店。

Home to the new ME Dubai hotel, the Opus is located in the Burj Khalifa district adjacent to Downtown Dubai and Business Bay on the Dubai Water Canal. Exploring the balance between solid and void, opaque and transparent, interior and exterior, the design was presented by Zaha Hadid in 2007 and is the only hotel in which she created both its architecture and interiors.

▼项目概览，project overall view ©Laurian Ghinitoiu

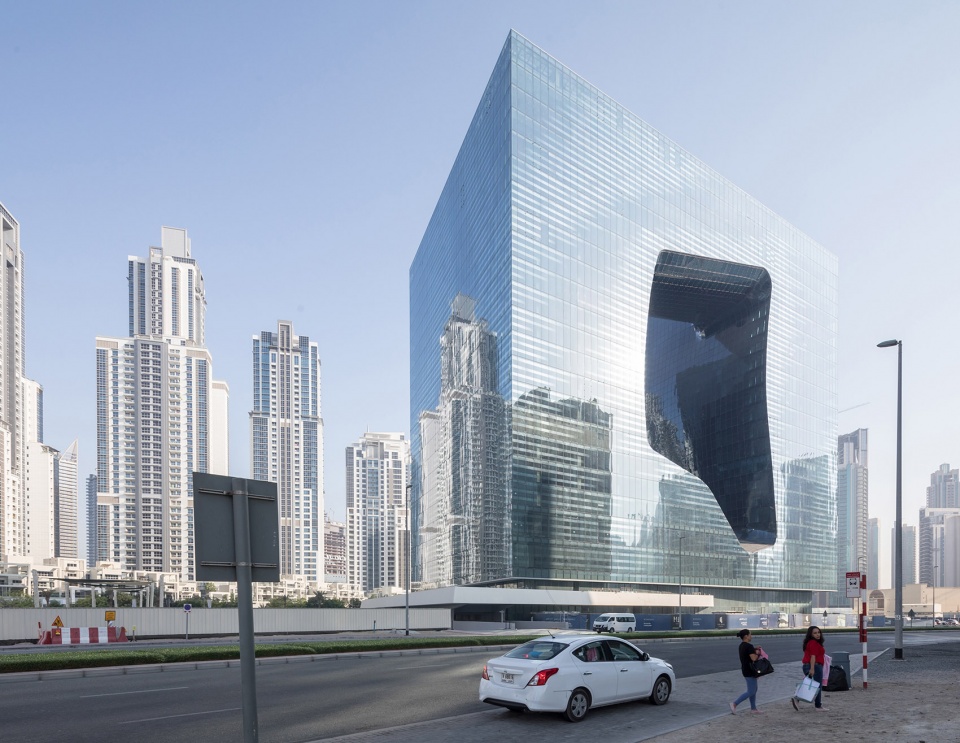

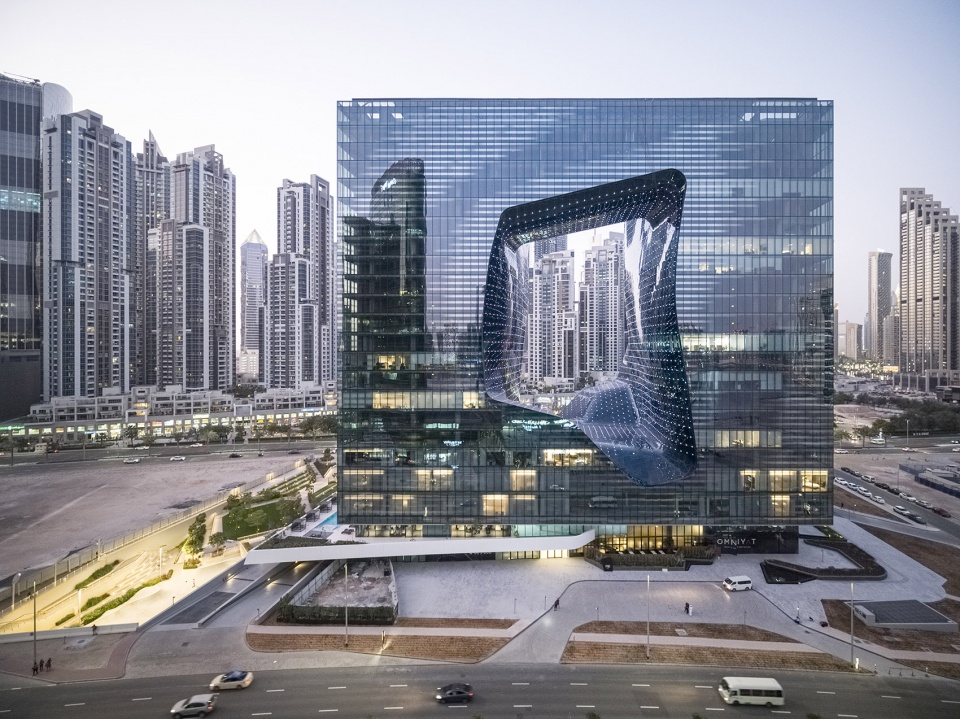

▼Opus综合体外观，exterior view of the Opus ©Laurian Ghinitoiu

Opus占地84300平方米（907400平方英尺），其立方体的形式由两个独立的塔楼融合而成。立方体中央的“镂空”呈现出自由流动的形态，是设计中最为别致的部分。被巨大孔洞分开的两座塔楼在地面层通过4层高的中庭相连接，在距离地面71米的位置则由一座3层高、宽度为38米的不对称桥梁连接。

▼剖面图，section ©Zaha Hadid Architects 

Spanning 84,300 square metres (907,400 square feet), the Opus was designed as two separate towers that coalesce into a singular whole—taking the form of a cube. The cube has been ‘eroded’ in its centre, creating a free-form void that is an important volume of the design in its own right. The two halves of the building on either side of the void are linked by a four-storey atrium at ground level and also connected by an asymmetric 38 metre wide, three-storey bridge 71 metres above the ground.

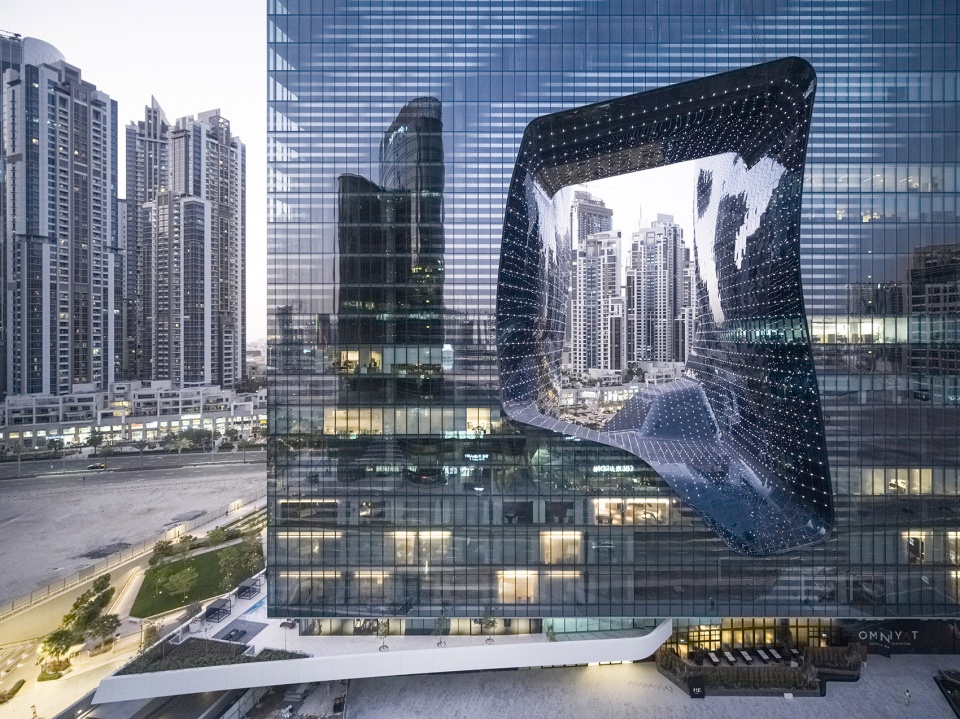

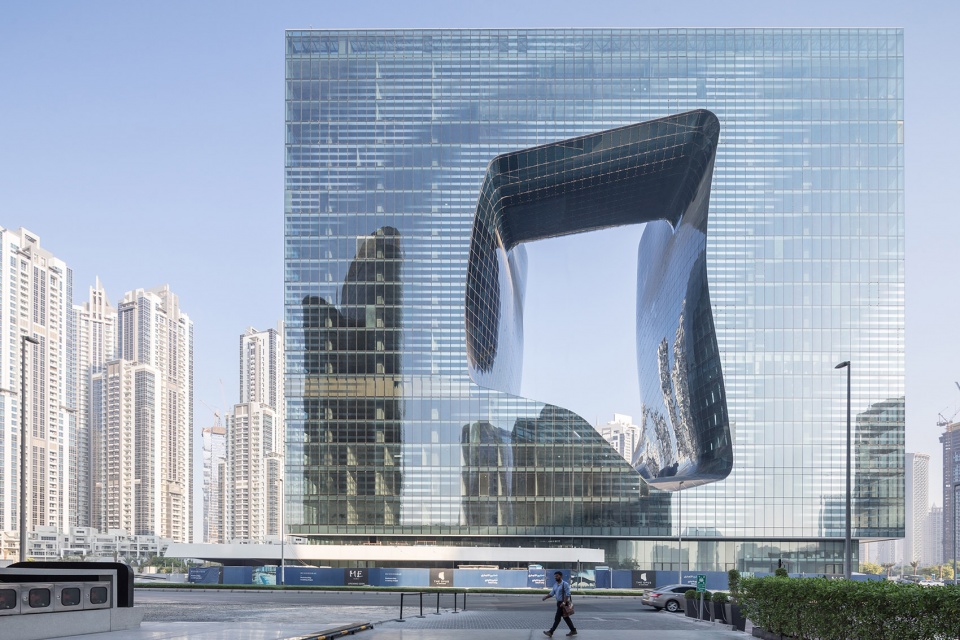

▼立方体中央的“镂空”呈现出自由流动的形态，the cube has been ‘eroded’ in its centre, creating a free-form void ©Laurian Ghinitoiu

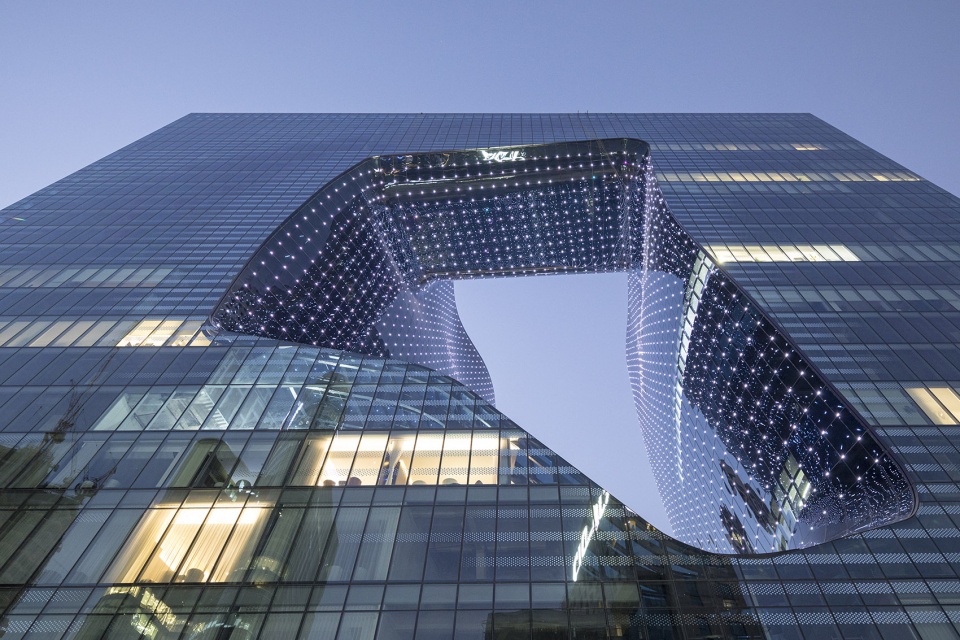

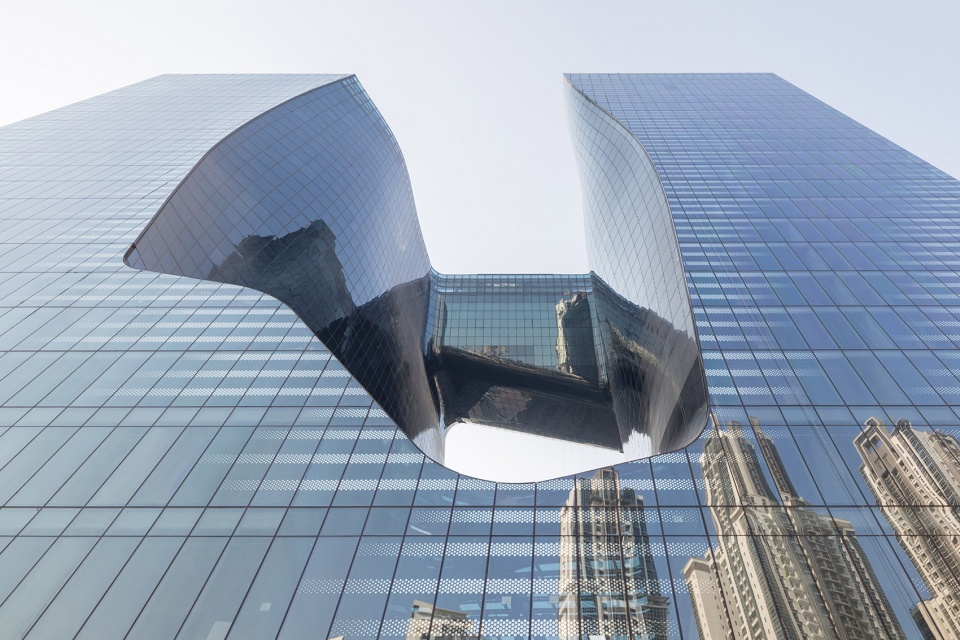

▼被巨大孔洞分开的两座塔楼在距离地面71米的位置由一座3层高的不对称桥梁连接，the two halves of the building on either side of the void are linked by an asymmetric, three-storey bridge 71 metres above the ground ©Laurian Ghinitoiu

“Opus简洁而精确的玻璃立方体形式与其中央的8层楼高的空隙的流动性形成了鲜明对比。”扎哈·哈迪德建筑事务所的项目总监Christos Passas解释道。

“The precise orthogonal geometries of the Opus’ elemental glass cube contrast dramatically with the fluidity of the eight-storey void at its centre,” explained Christos Passas, project director at Zaha Hadid Architects.

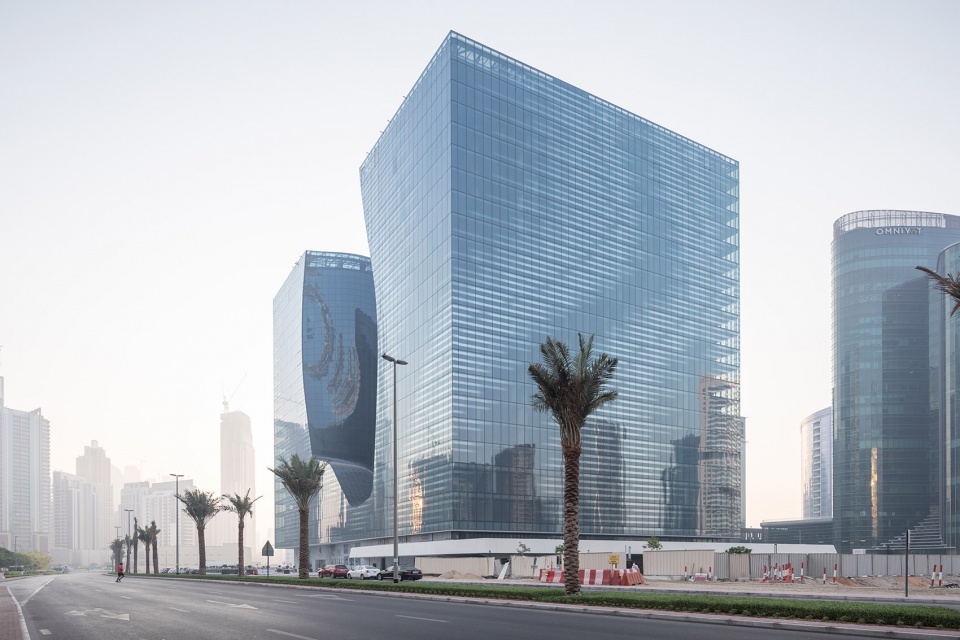

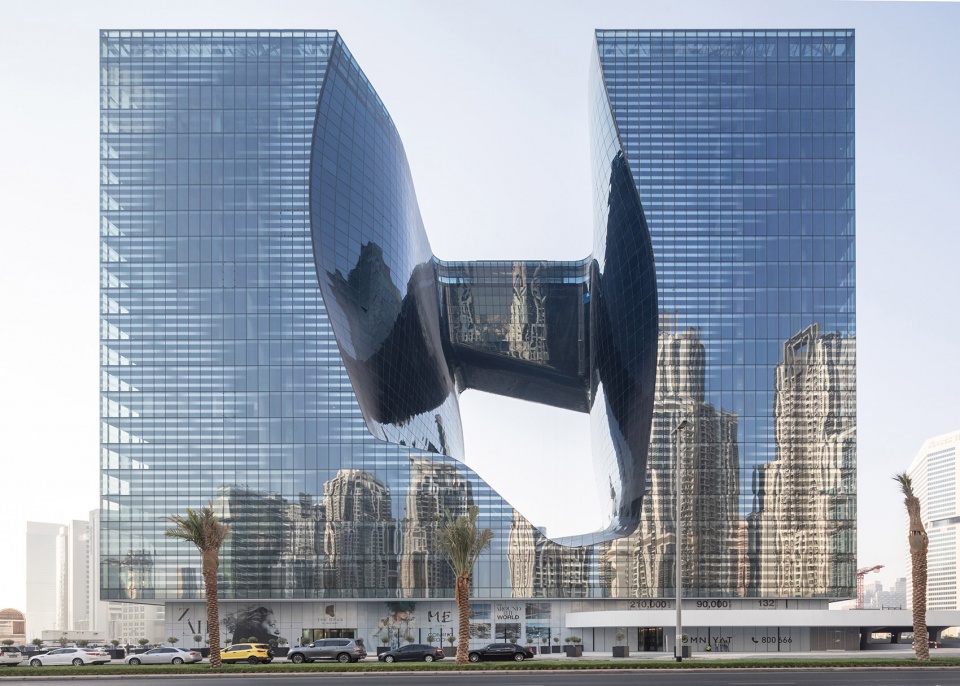

▼街道视角，view from the street ©Laurian Ghinitoiu

立方体的双层隔热玻璃外墙覆盖以UV涂层和镜面釉料图案，能够有效减少立面对日光的吸收。这一波点状的图案覆盖了整个建筑物，一方面强调出立方体的清晰度，另一方面又通过反射性和透明度不断变化的光线效果使建筑的体量呈现出消隐的观感。

The cube’s double-glazed insulating façades incorporate a UV coating and a mirrored frit pattern to reduce solar gain. Applied around the entire building, this dotted frit patterning emphasizes the clarity of the building’s orthogonal form, while at the same time, dissolving its volume through the continuous play of light varying between ever-changing reflections and transparency.

▼立面近景，可以看到波点图案，a close view to the facade with a dotted frit pattern ©Laurian Ghinitoiu

镂空部分的四周形成6000平方米的表面，由4300个独立的玻璃单元构成，其中包括平面玻璃、单曲面玻璃和双曲面玻璃。每个高效的玻璃单元由8mm厚的低辐射玻璃（内部镀膜）、16mm厚的空腔和两层6mm厚、带有1.52mm PVB树脂层压板的透明玻璃构成。曲线型的立面通过数字3D建模得以实现，该模型同时还帮助确定了需要使用钢化玻璃的特定区域。

The void’s 6,000 square metre façade is created from 4,300 individual units of flat, single-curved or double-curved glass. The high-efficiency glazing units are comprised of 8mm Low-E glass (coated on the inside), a 16mm cavity between the panes and 2 layers of 6mm clear glass with a 1.52mm PVB resin laminate. This curved façade was designed using digital 3D modelling that also identified specific zones which required tempered glass.

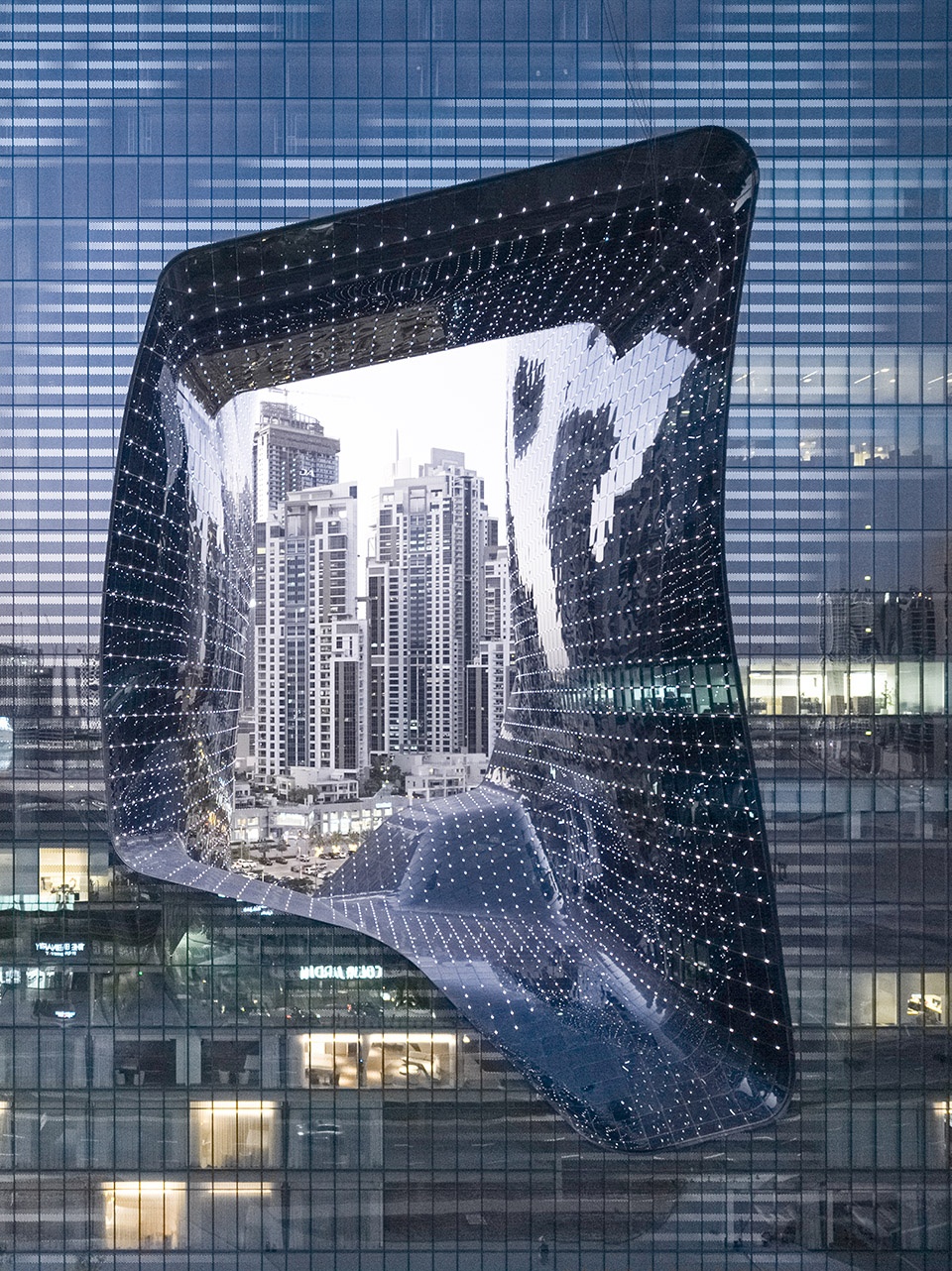

▼镂空部分的四周形成6000平方米的表面，由4300个独立的玻璃单元构成，the void’s 6,000 square metre façade is created from 4,300 individual glass units ©Laurian Ghinitoiu

在白天，立方体的表面反射出天空、太阳和周围的城市景观；到了晚上，中央的孔洞会被安装在每块玻璃面板内的可调节LED动态照明装置点亮。

During the day, the cube’s façade reflects the sky, the sun and the surrounding city; whilst at night, the void is illuminated by a dynamic light installation of individually controllable LEDs within each glass panel.

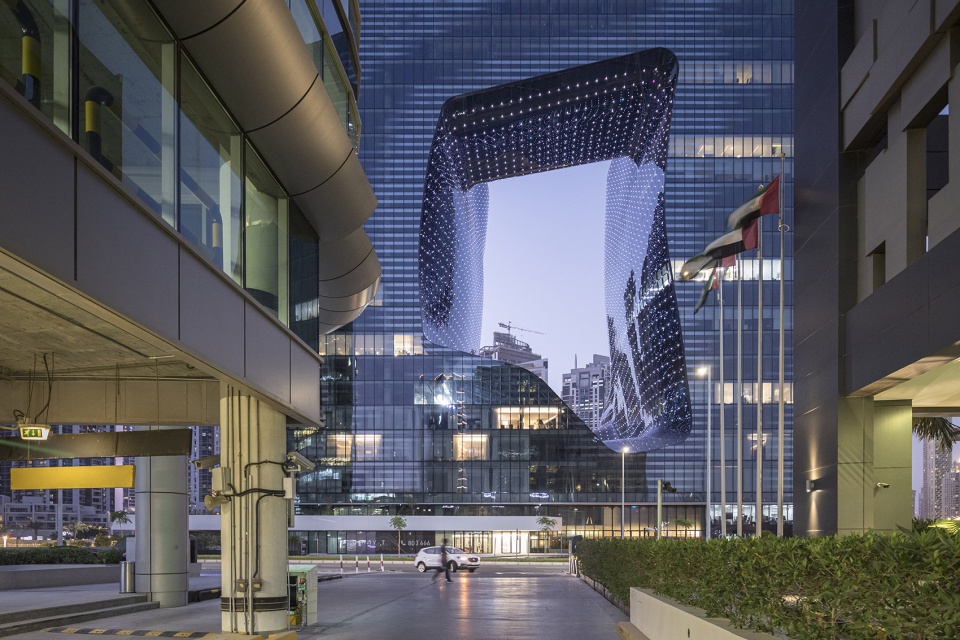

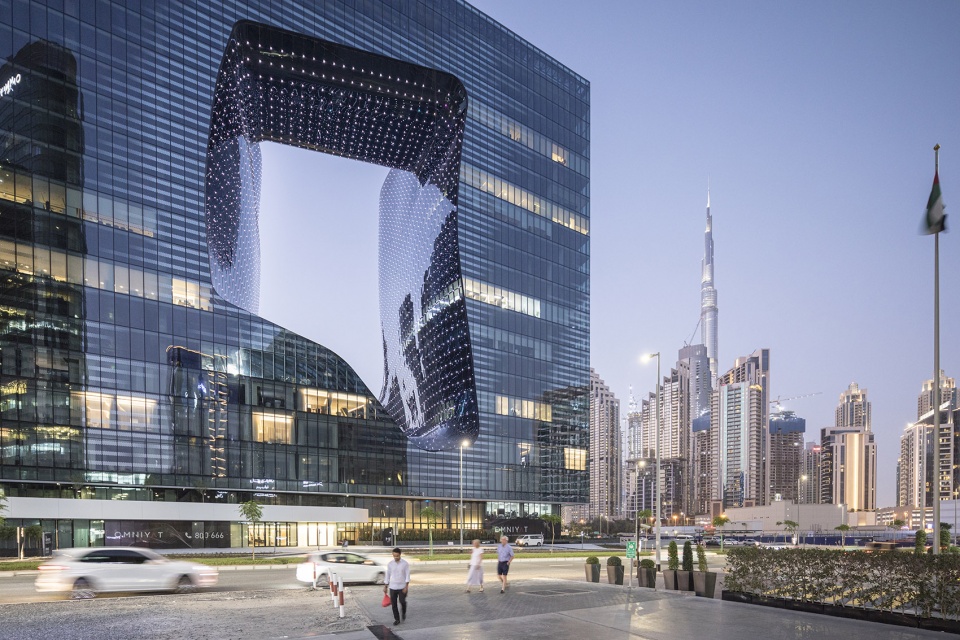

▼夜间视角，night view ©Laurian Ghinitoiu

由Zaha Hadid Design设计的家具被布置在酒店各处，包括大堂的“Petalinas”和“Ottomans”沙发。这些家具均由耐用的材料预制而成，其部件可以回收利用。

Furniture by Zaha Hadid Design is installed throughout the hotel, including the ‘Petalinas’ sofas and ‘Ottomans’ pods in the lobby that are fabricated from materials ensuring a long lifecycle and its components can be recycled.

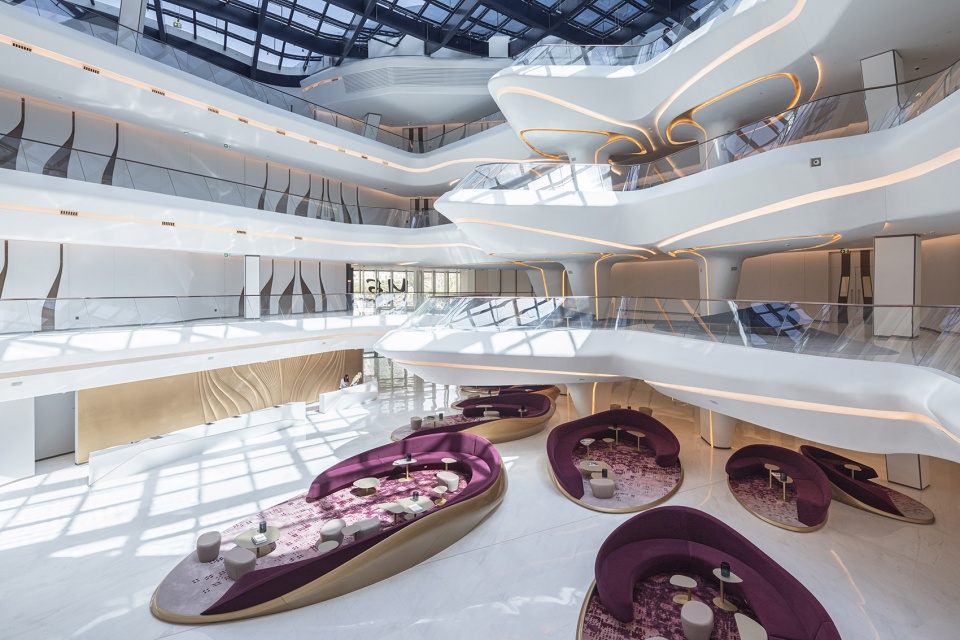

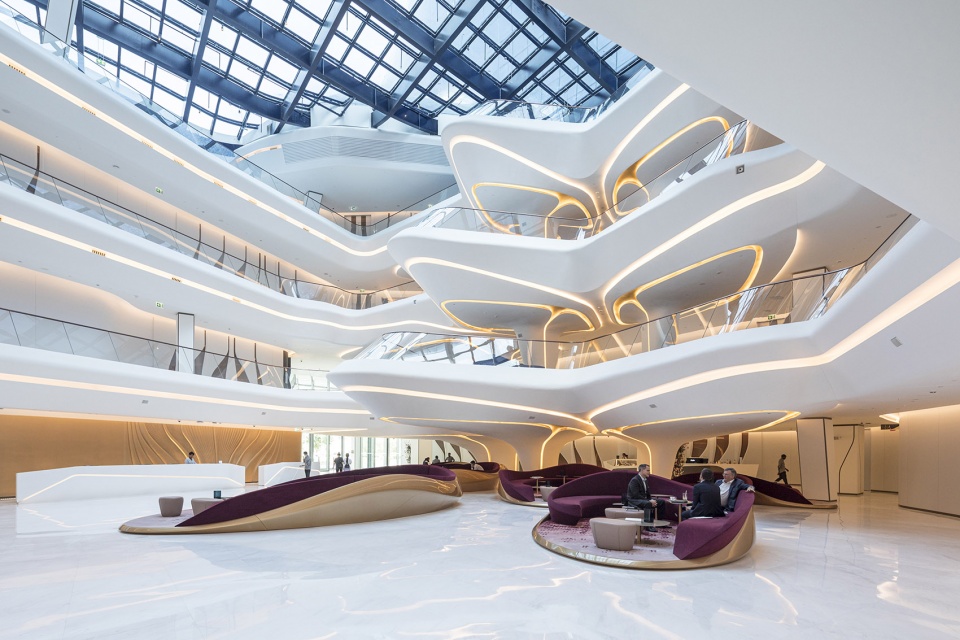

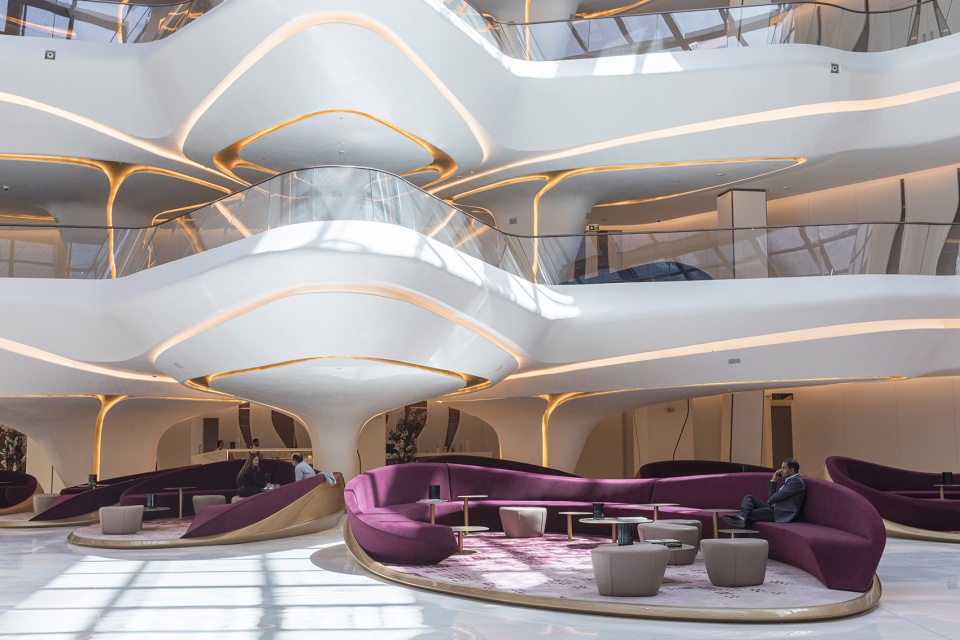

▼酒店大堂，hotel lobby ©Laurian Ghinitoiu

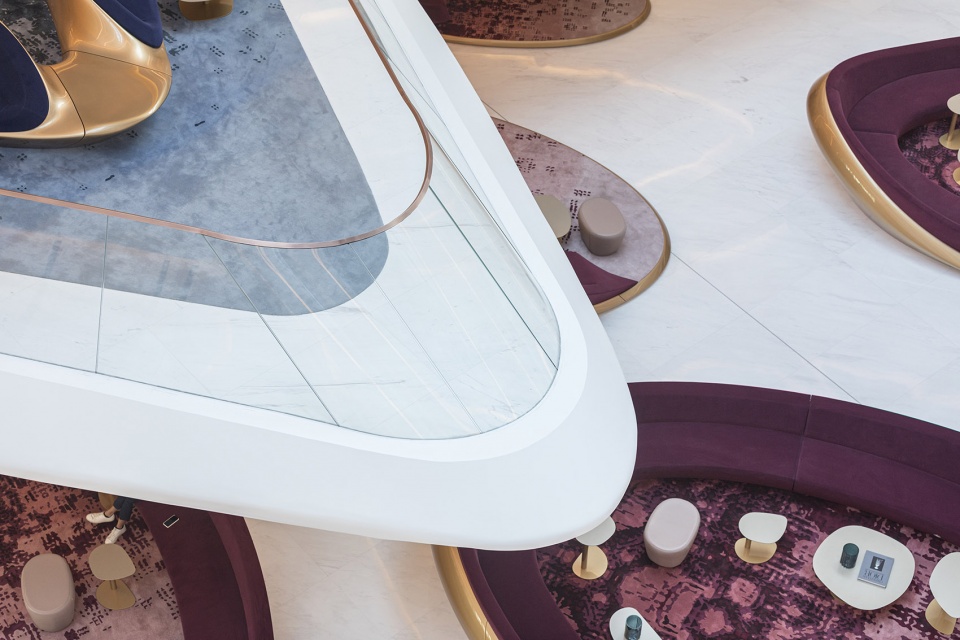

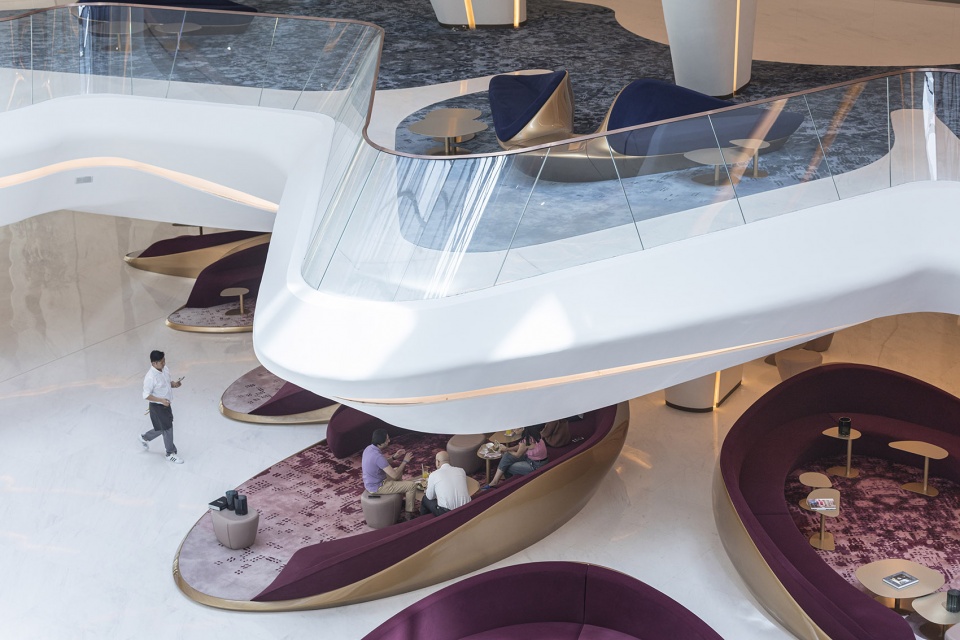

▼室内家具由Zaha Hadid Design设计，Furniture by Zaha Hadid Design ©Laurian Ghinitoiu

▼室内细节，interior detailed view ©Laurian Ghinitoiu

迪拜ME酒店设有74间客房和19间套房，除了酒店之外，Opus综合体还包含办公楼层、服务式公寓以及多家餐厅、咖啡厅和酒吧等，其中包括ROKA日式炉端烧餐厅和著名的MAINE Land Brasserie餐厅。

The ME Dubai hotel incorporates 74 rooms and 19 suites, while the Opus building also houses offices floors, serviced residences and restaurants, cafes and bars including ROKA, the contemporary Japanese robatayaki restaurant and the MAINE Land Brasserie.

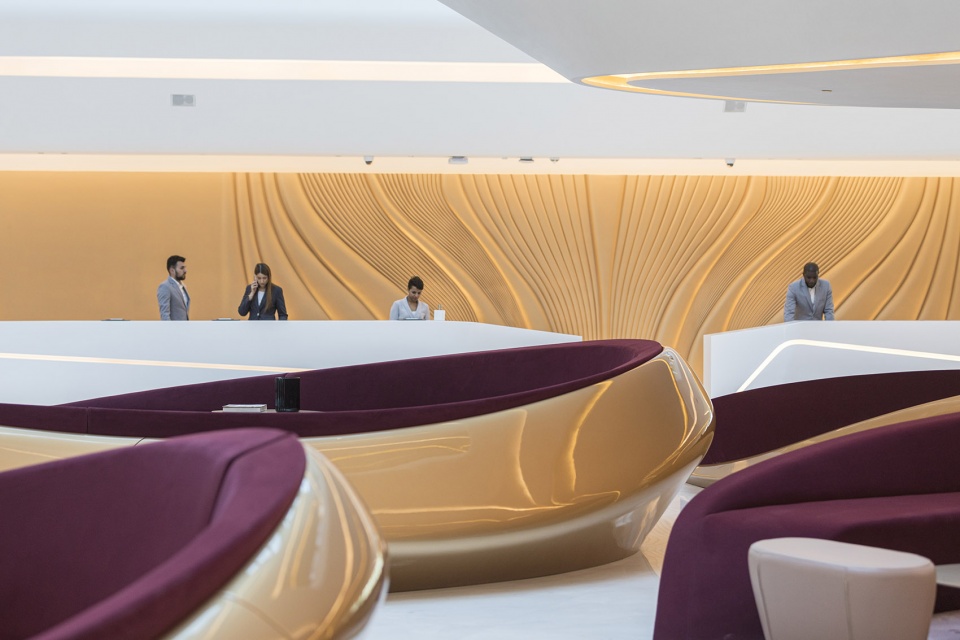

▼接待处，reception ©Laurian Ghinitoiu

酒店卧室设有“Opus”床，套房内则设有“Work & Play”组合沙发和配套书桌。客房内部还结合以“Vitae”浴室系列，是由扎哈于2015年为Noken Porcelanosa设计，延续了酒店内部流畅的建筑性语言。

The ‘Opus’ beds in each bedroom while the ‘Work & Play’ combination sofa with desk are installed in the suites. The hotel’s bedrooms also incorporate the ‘Vitae’ bathroom collection, designed by Hadid in 2015 for Noken Porcelanosa, continuing her fluid architectural language throughout the hotel’s interiors.

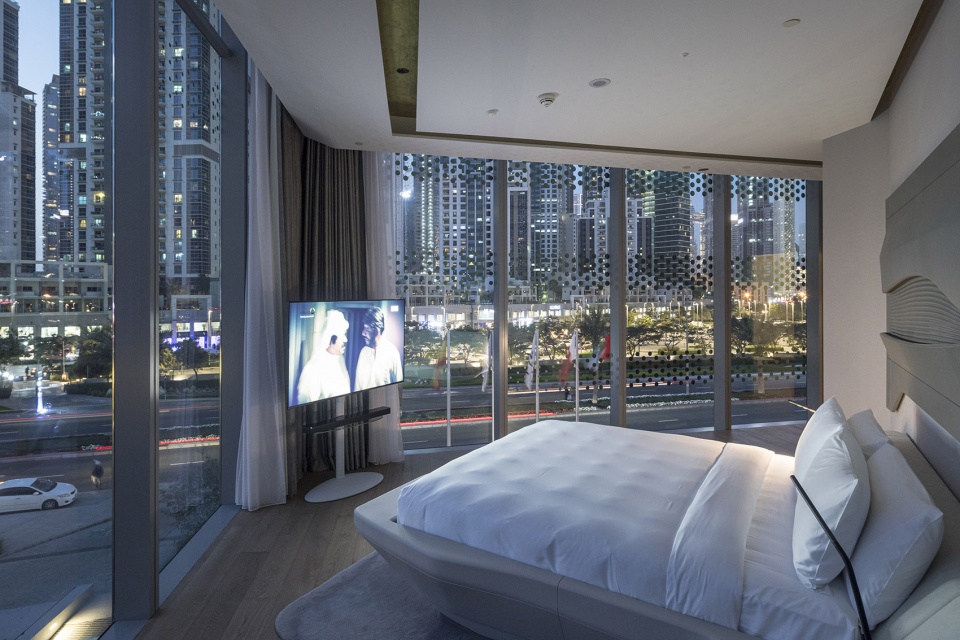

▼设有“Opus”床的客房卧室，the bedroom with an ‘Opus’ bed ©Laurian Ghinitoiu

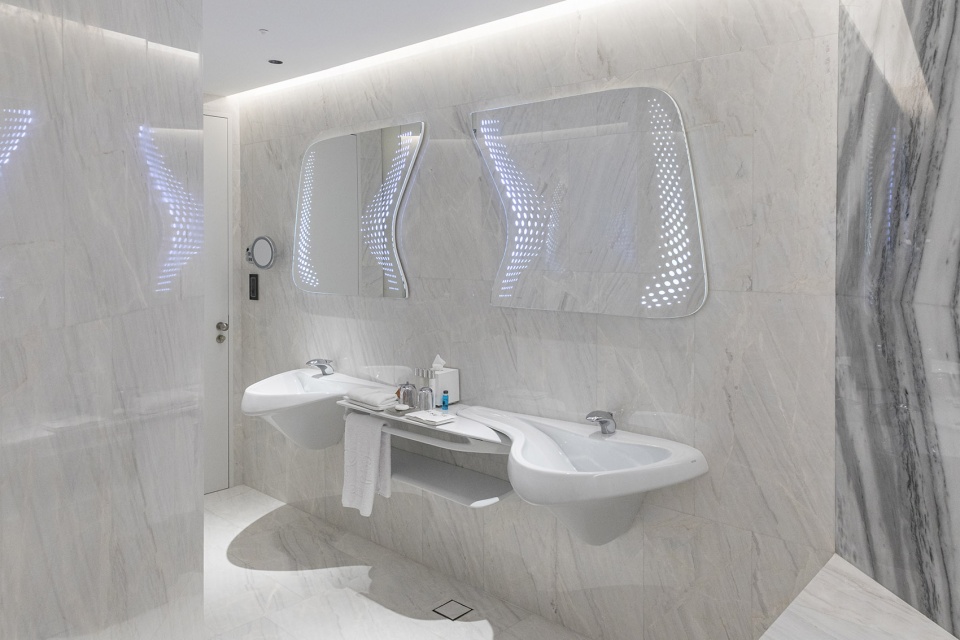

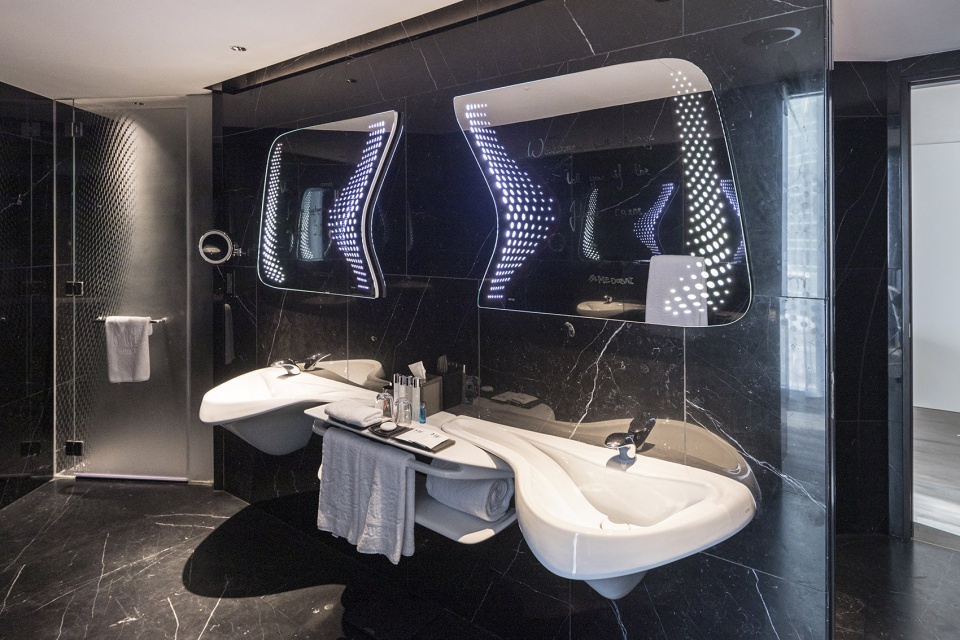

▼“Vitae”浴室系列由扎哈在2015年设计， ‘Vitae’ bathroom collection, designed by Hadid in 2015 ©Laurian Ghinitoiu

设置在Opus楼内各处的传感器能够根据使用的情况自动调节通风和照明以节约能源。ME酒店遵循了美利亚酒店集团一贯的可持续发展举措。酒店客人在入住期间会得到一个不锈钢水壶，与安装在酒店各处的饮水机搭配使用。除了客房内没有任何塑料制品，酒店还取消了自助餐服务以减少食物的浪费，并将废弃的有机物通过堆肥袋进行回收。

Sensors throughout the Opus automatically adjust the ventilation and lighting according to occupancy to conserve energy while ME Dubai follows Meliá Hotels International initiatives for sustainable practices. Hotel guests will receive stainless-steel water bottles to use during their stay with drinking water dispensers installed throughout the hotel. With no plastic bottles in guest rooms and a program to become entirely plastic free in all areas, the hotel is also reducing food waste by not serving buffets and has composters to recycle discarded organics.

▼城市中的Opus综合体，the Opus in the urban context ©Laurian Ghinitoiu

▼地下二层平面图，plan lower ground floor ©Zaha Hadid Architects 

▼地下一层平面图，plan upper ground floor ©Zaha Hadid Architects 

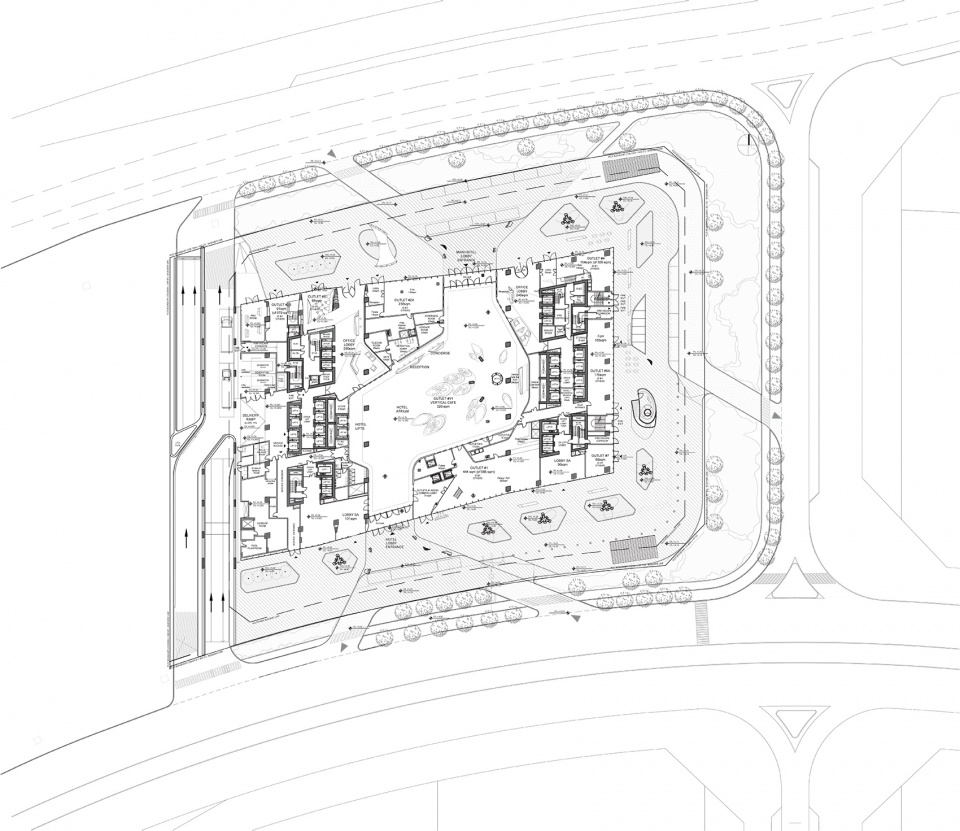

▼首层平面图，plan level 0 ©Zaha Hadid Architects 

▼二层平面图，plan level 1 ©Zaha Hadid Architects 

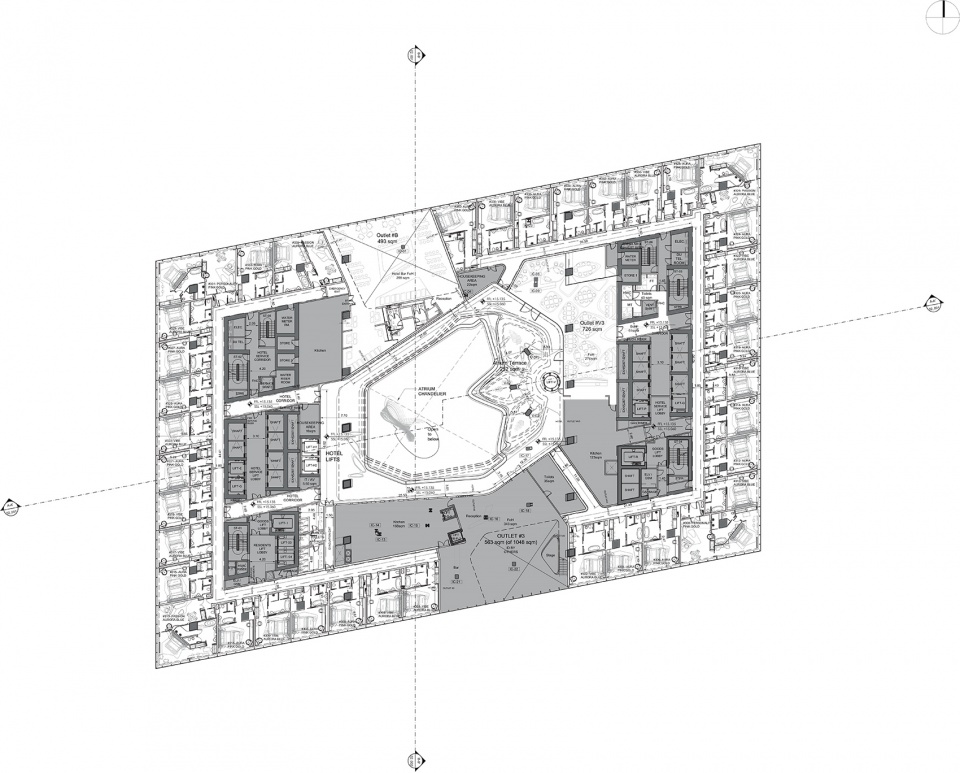

▼酒店裙楼平面图，plan podium hotel floor ©Zaha Hadid Architects 

▼剖面图，sections ©Zaha Hadid Architects 

Project Team
Architect: Zaha Hadid Architects 
Design: Zaha Hadid, Patrik Schumacher, Christos Passas 
ZHA Design Director: Christos Passas 
Competition Team: Christos Passas (Lead Designer), Paul Peyrer-Heimstaett, Alvin Huang, Daniel Baerlecken, Gemma Douglas, Saleem Al-Jalil 
Design Team (Shell and Core): Vincent Nowak (Project Architect), Dimitris Akritopoulos, Javier Ernesto-Lebie, Paul Peyrer-Heimstaett, Sylvia Georgiadou, Phivos Skroumbelos, Marilena Sophocleous, Chiara Ferrari, Thomas Frings, Jesus Garate, Wenyuan Peng 
Base Built Supervision Team: Fabian Hecker (Team Leader), Barbara Bochnak (Team Leader), Tomasz Starczewski, Kwanphil Cho, Bruno Pereira, Dimitris Kolonis 
Hotel and Apartment Interior Design Team 1: Reza Esmaeeli, Bozana Komljenovic (Project Leads), Laura Micalizzi, Emily Rohrer (Senior Interior Designers), Veronika Ilinskaya, Eider Fernandez Eibar, Stella Nikolakaki, Bruno Pereira, Raul Forsoni, Thomas Frings, Chrysi Fradellou, Spyridon Kaprinis, Alexandra Fischer, Hendrik Rupp, Vivian Pashiali, Sofia Papageorgiou, Carlos Luna, Christos Sazos, Kwanphil Cho, Andri Shalou, Ben Kikkawa, Melhem Sfeir, Faten el Meri, Eleni Mente (Landscape Designer) 
Hotel and Apartment Interior Design Team 2: Alessio Constantino (Project Lead), Sonia Renehan (Senior Interior Designer), Afsoon Es Haghi, Zsuzsanna Barat, Ekaterina Smirnova, Chafic Zerrouki, Nessma Al Ghoussein, Christina Christodoulidou Bespoke Furniture Team: Maha Kutay (Project Director), Margarita Valova, Reza Esmaeeli, Raul Forsoni, Bruno Pereira, Carine Posner, Filipa Gomes
Consultants 
Project Management: Gleeds [London], Omniyat [Dubai] 
Local Architects: Arex Consultants [Dubai], BSBG [Dubai] 
Structural Engineers: Whitbybird [London], BG&E [Dubai] 
MEP Engineers: Clarke Samadin [Dubai] 
Façade Engineers: Whitbybird [London], Agnes Koltay Facades [Dubai] 
Lift Consultants: Adam Scott, Roger Preston Dynamics [London], Lerch Bates [Dubai] 
Fire Engineering: Safe [London], Design Confidence [Dubai] 
Acoustic Consultants: PMK [Dubai] 
Traffic Consultants: Cansult Limited [Dubai], Al Tourath [Dubai] 
Lighting Consultants: Tim Downey, Isometrix [London], DPA [Dubai], Illuminate [Dubai] 
Interior Consultants: HBA [Dubai] 
Security Consultants: Control Risks [Dubai]
Kitchen Consultants: MCTS [Dubai], AV Consultants EntireTech [Dubai] 
QS Consultants: HQS [Dubai]
Main Contractors 
Facade Contractors: Brookfield Multiplex [London], Alu-Nasa [Dubai] 
Hotel Operator: Melia Hotels
