非常感谢 Inspiral Architecture and Design Studios 予gooood分享以下内容。更多关于：Inspiral Architecture and Design Studios on gooood
Appreciation towards Inspiral Architecture and Design Studios for providing the following description:

该项目坐落在巴厘岛Tabanan Nanyyi 海滩的悬崖边。Luna Beach俱乐部抓住机遇，打造了一个集活动、餐饮、艺术、整体享乐主义和嬉戏放松于一体的独特目的地，独特的标志性建筑俯瞰大海。总体规划以一系列突破性的自然建筑为特色，按照斐波那契序列构思，将整个场地的流动和运动联系在一起，形成了一个活动中心。

Sitting on the cliffside of Nyanyi Beach, Tabanan, Bali. Luna Beach Club delivered on the opportunity to create a standout destination for events, dining, arts, and holistic hedonism combined with playful relaxation, where unique iconic architecture overlooks the ocean. The masterplan features a series of groundbreaking naturally inspired buildings that create a hub of activity that is conceived according to Fibonacci sequences that connect flow and movement throughout the site.

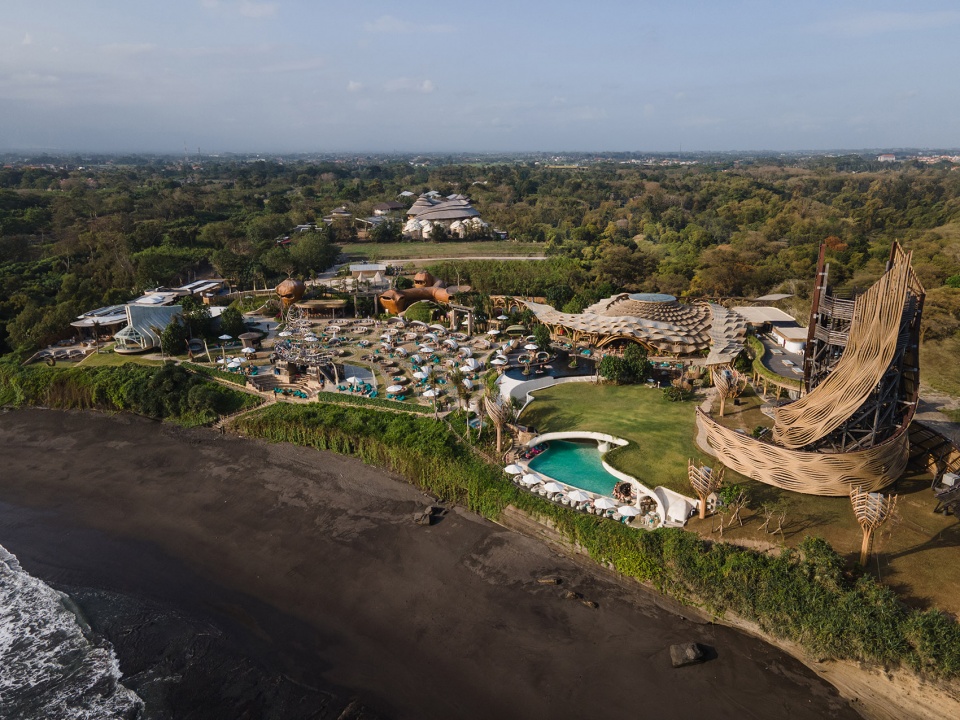

▼项目鸟瞰，Ariel view of the project ©Thomas Irsyad

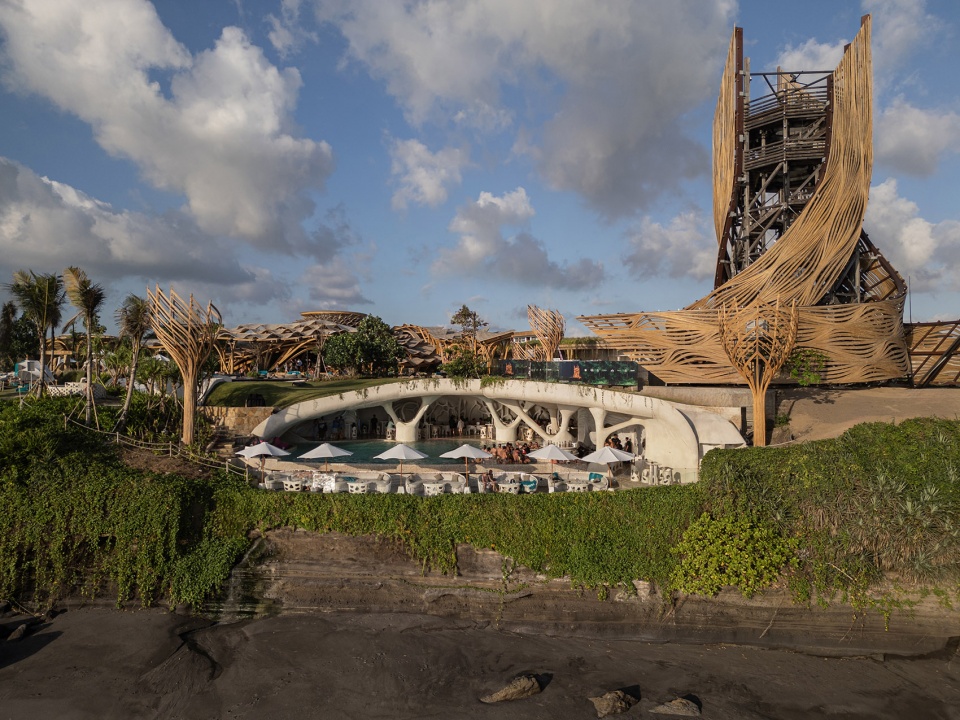

▼比邻悬崖海滩，close to cliff and beach ©Thomas Irsyad

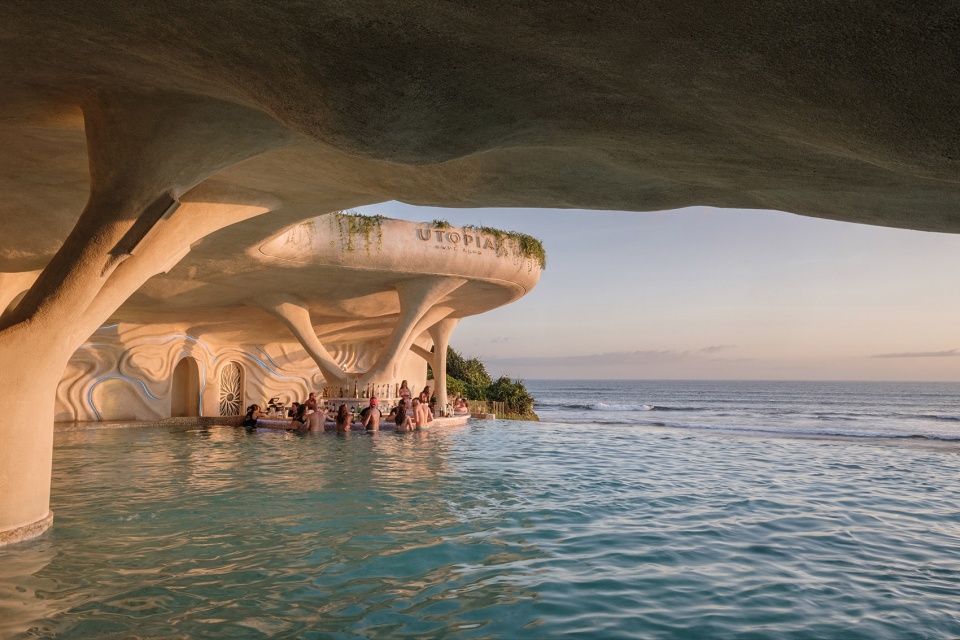

整个综合体的核心是主海滩俱乐部，其外观呈现为一个漩涡状结构，由竹子和玄武岩建造，作为主要餐厅区域。餐厅顶部覆盖多层编织遮阳层，在白天使室内保持舒适的明亮，同时在夜间提供柔和的照明。这一设计唤起了女性化的特质，与灯塔塔楼的阳刚气质形成平衡。它是一个多功能的空间，适用于用餐、工作坊以及娱乐活动。与餐厅相连的是一个面向大海的泻湖风格泳池，下方连接到地下的“乌托邦 VIP 俱乐部”，俱乐部内设有刺激的11米滑道。邻近的森林区域中，使用回收材料建造的高架舱体与树木交错融合，提供趣味空间，包括网状区域、隧道和攀爬路径，与自然环境无缝结合。

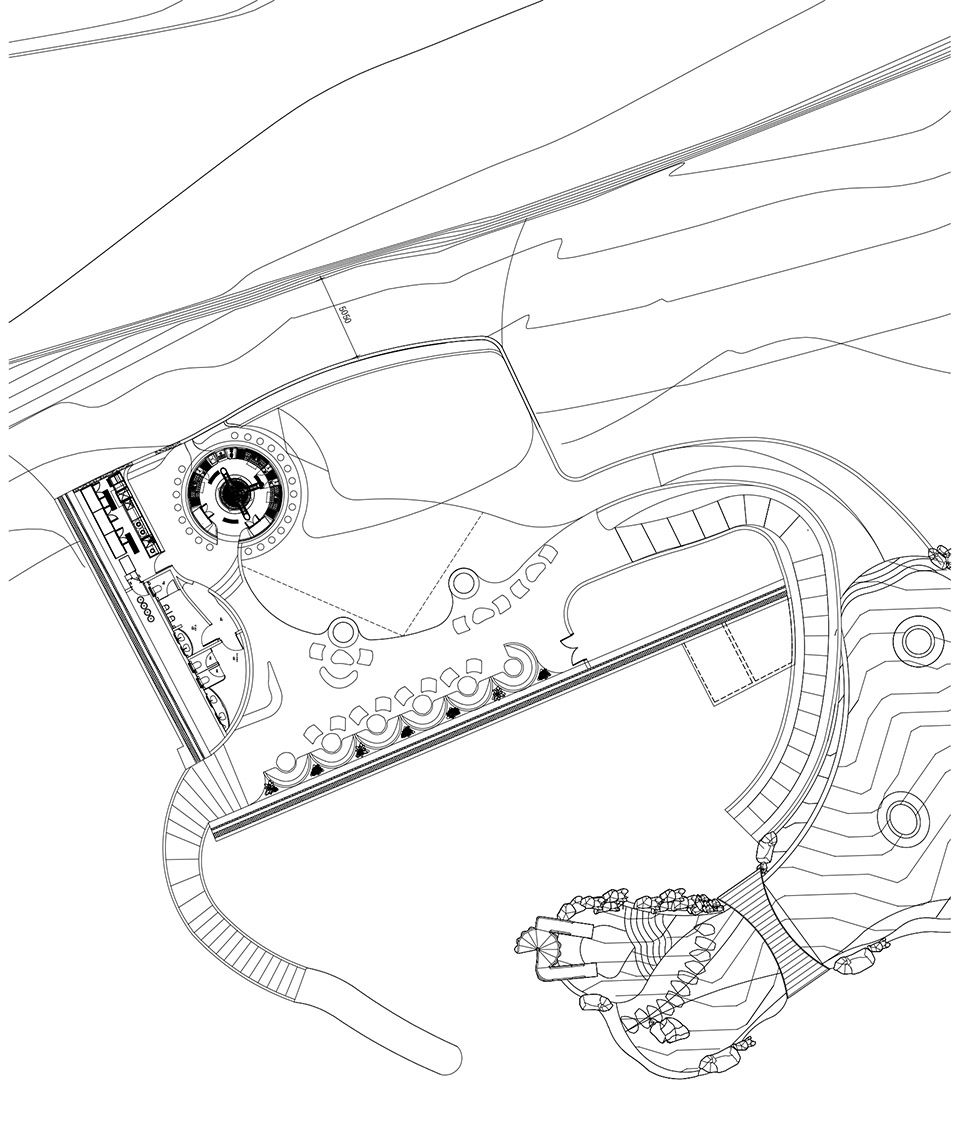

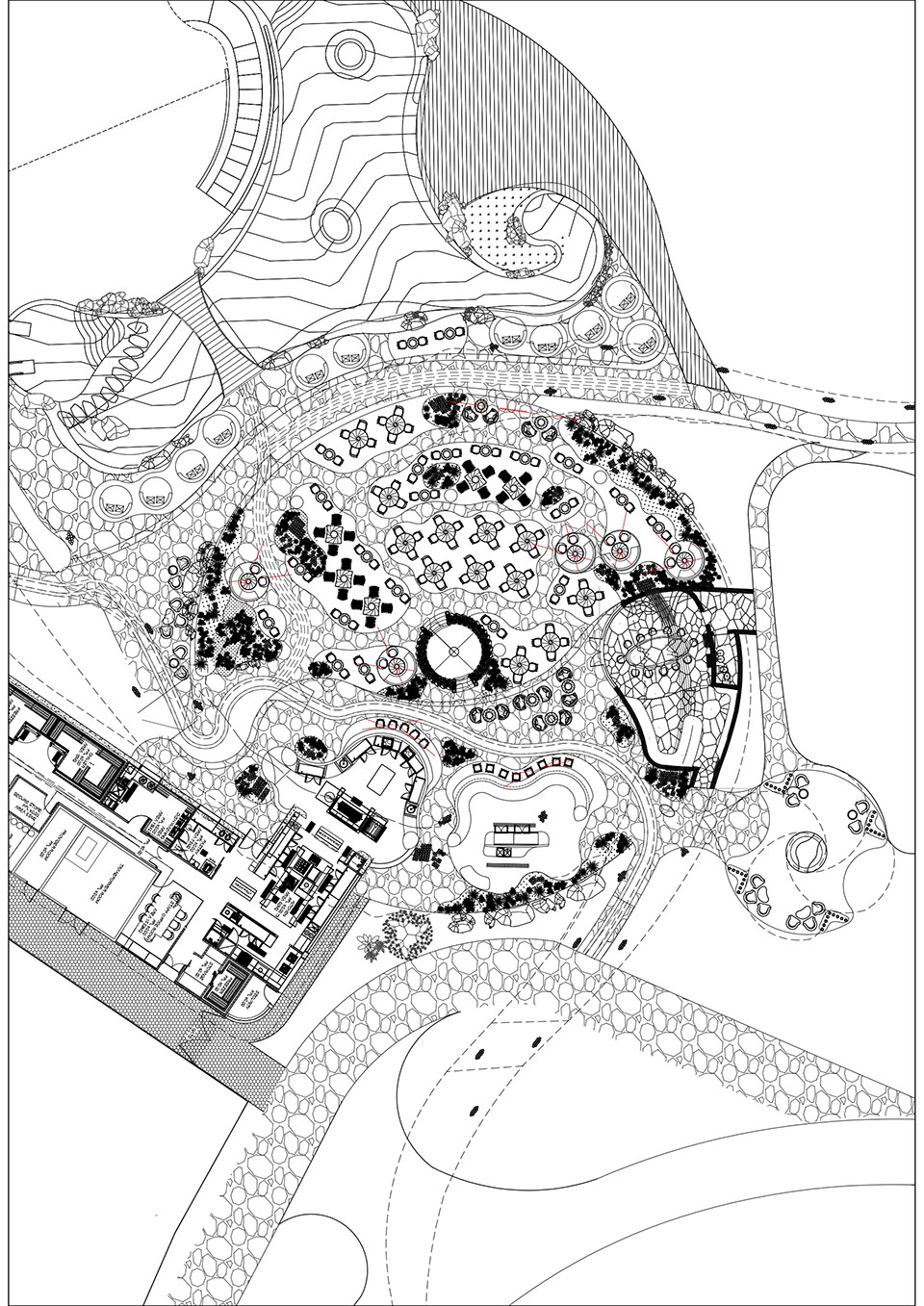

▼主海滩俱乐部平面，main beach club plan ©Inspiral Architecture and Design Studios

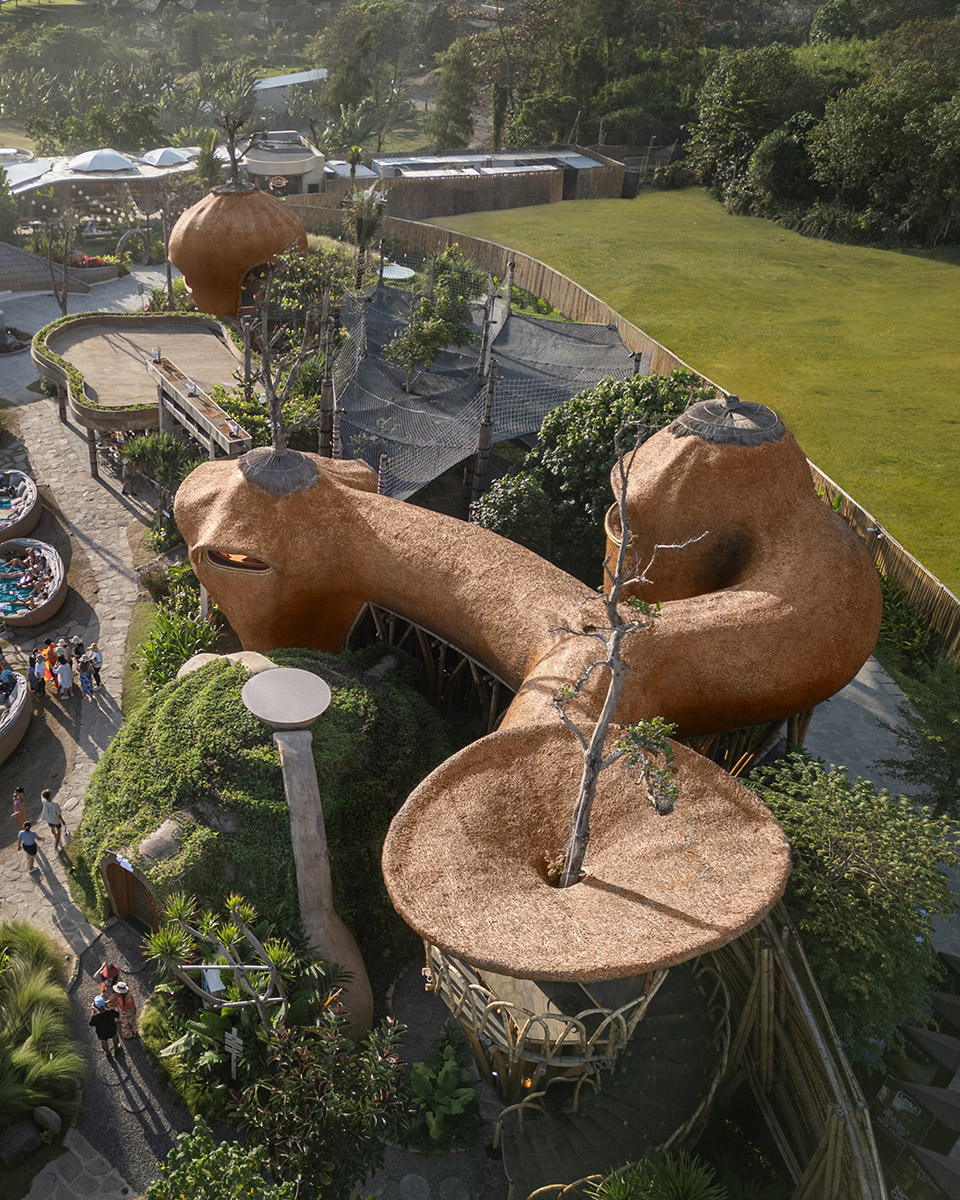

Central to the complex is the main beach club which appears as a vortex-like structure, built of bamboo and basalt which serves as the main restaurant area, and is covered with layers of woven shades to keep the interior comfortably bright during the daytime and illuminated at night. Evoking a feminine personality that balances the masculine presence of the lighthouse tower, it is a versatile space for dining, workshops, and entertainment. Connected to the restaurant is a lagoon-style pool facing the sea, into an underground ‘Utopia VIP Club’ with a thrilling 11m river slide. Adjacent to this in the forest area, elevated pods made of recycled materials intertwine with the trees, offering playful spaces like nets, tunnels, and climbing routes that blend with the natural surroundings.

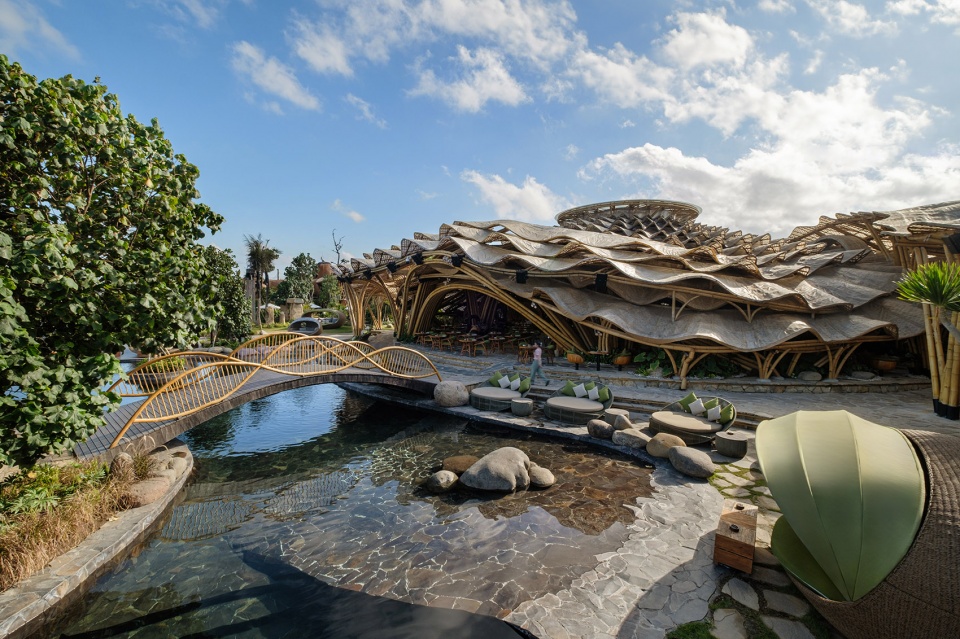

▼餐厅外观，restaurant exterior ©Thomas Irsyad

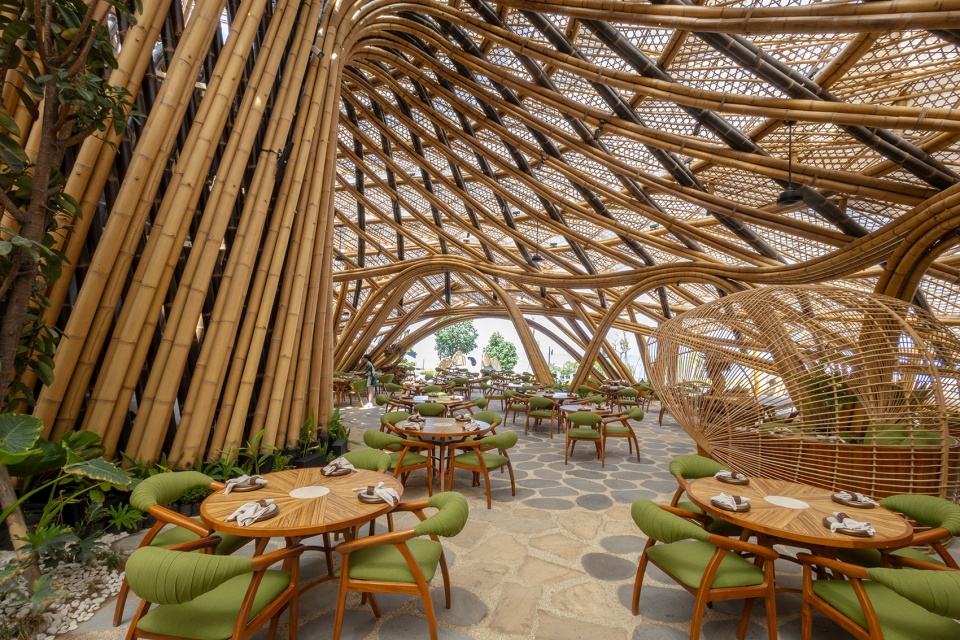

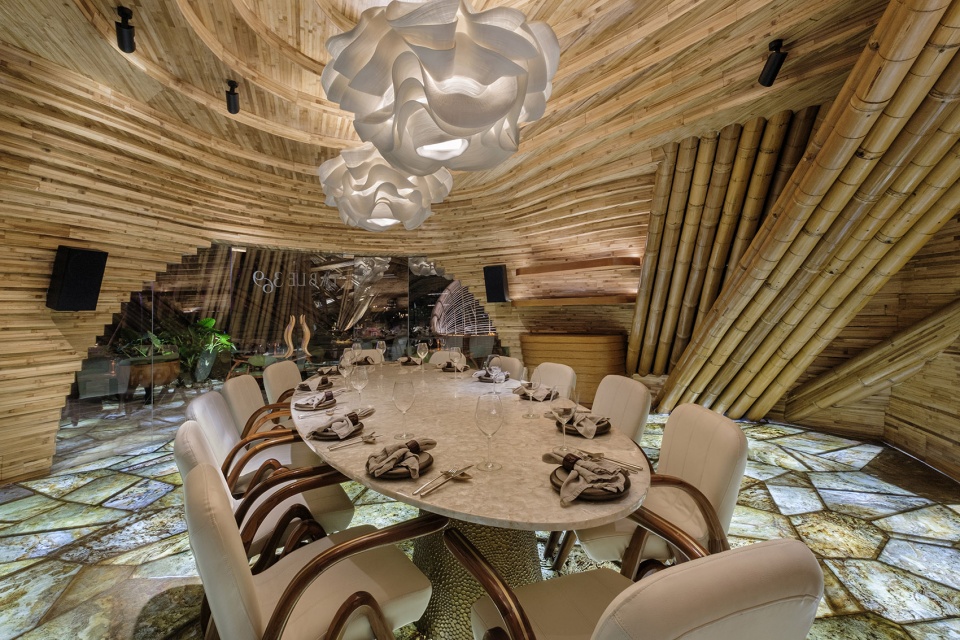

▼餐厅内部，restaurant 369 Wine Room ©Thomas Irsyad

▼餐厅内部，restaurant 369 Wine Room ©Luna Beach Club

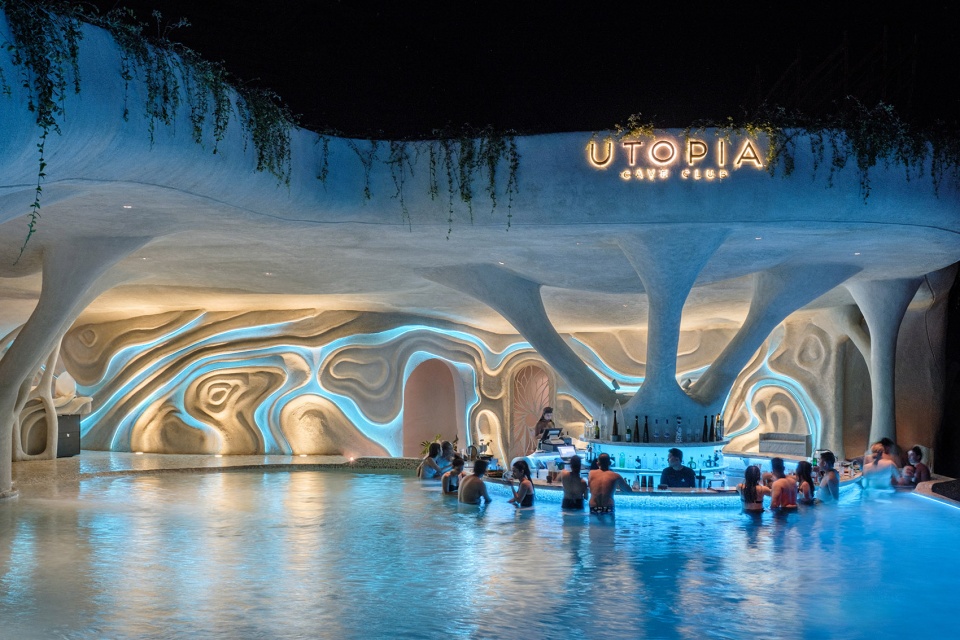

▼洞穴俱乐部内部空间，Utopia Cave Club Interior ©Thomas Irsyad

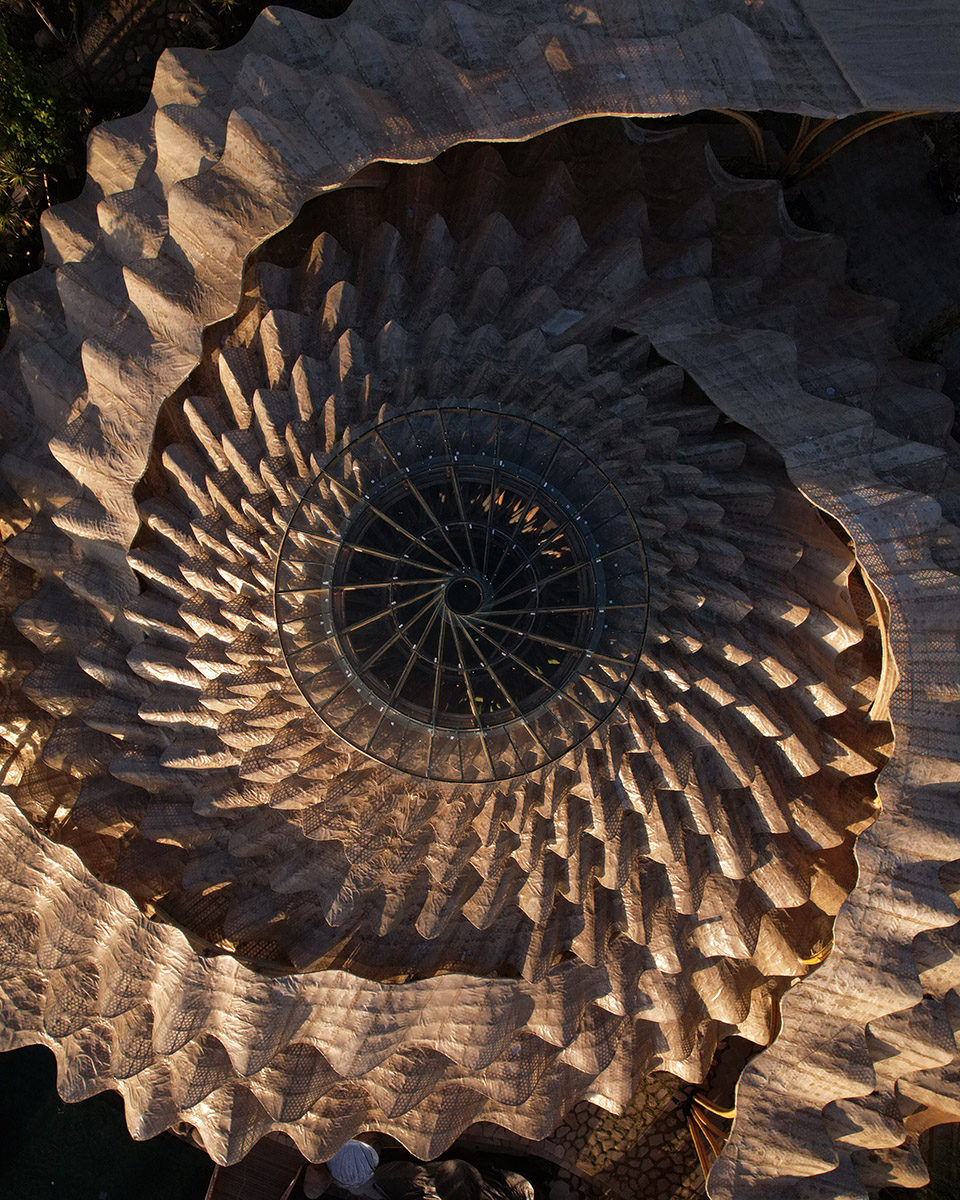

▼餐厅屋顶， Restaurant Roof ©Nuanu City

位于僻静角落的“极乐世界”（Elysium）是一个宁静的空间，专为冥想、婚礼和瑜伽等仪式活动而设计。建筑采用轻质夹芯板建造，其几何线条将光线引入室内，营造出与周围环境统一并相互连接的氛围。这些建筑与魔幻花园、大型雕塑艺术作品，以及令人心生好奇的小型场地相互交织，为整个场地增添了探索与冒险的乐趣。

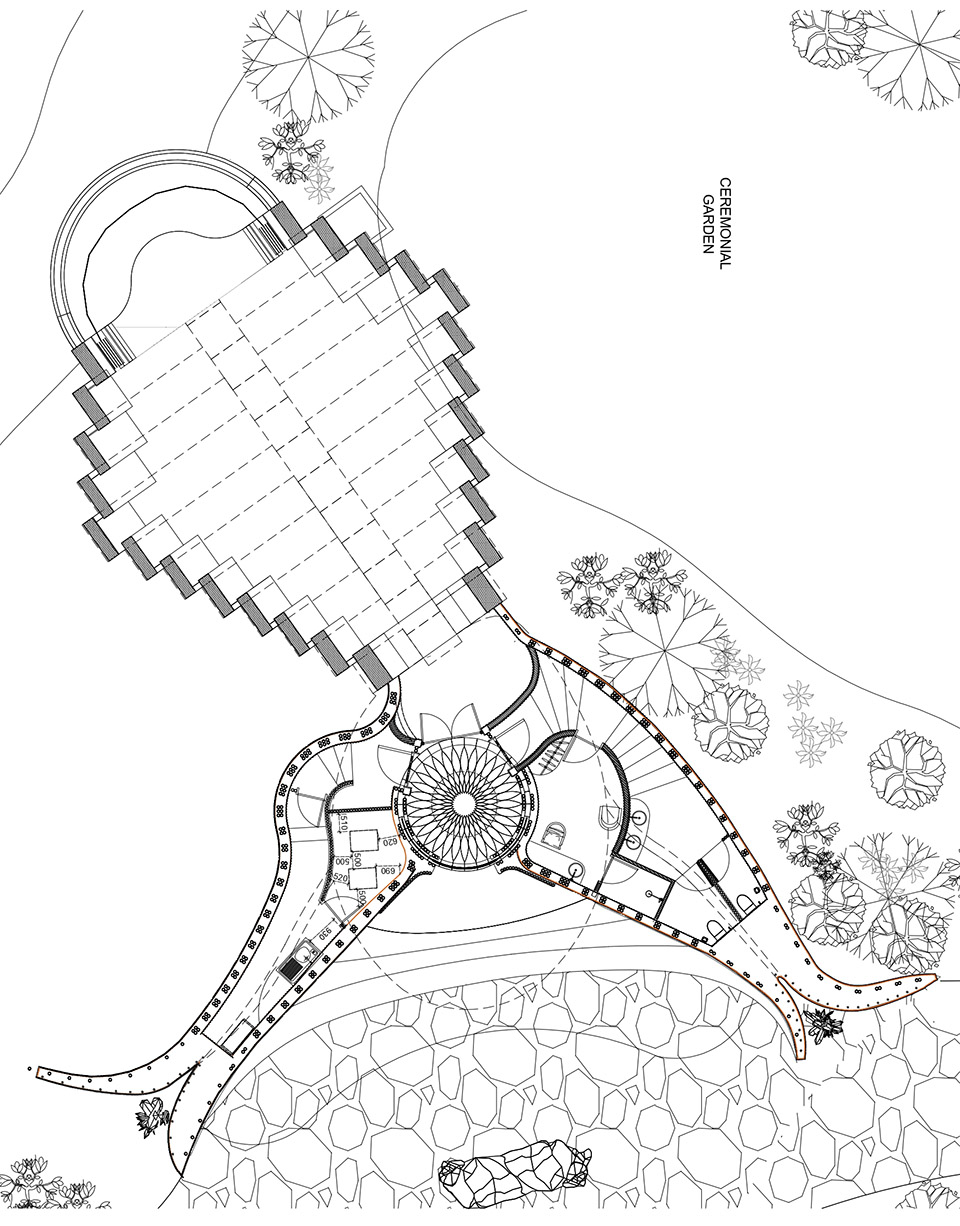

▼“极乐世界”平面， Elysium Plan ©Inspiral Architecture and Design Studios

‘Elysium’ located in a secluded corner, serves as a serene space for ceremonial events such as meditation, weddings, and yoga. Constructed with lightweight sandwich panels, the building features geometric lines that filter light into the interior, fostering a sense of unity and connection with the surroundings. Intertwined with all these buildings are enchanted gardens, art including giant sculptures, and inspiring mini venues whose structures serve to create intrigue and adventure throughout the whole site.

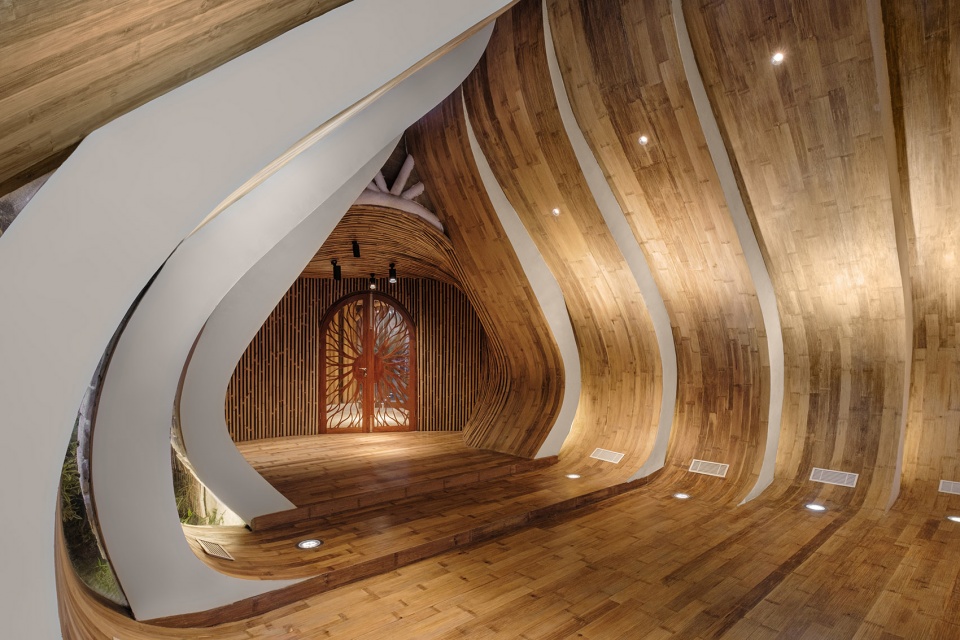

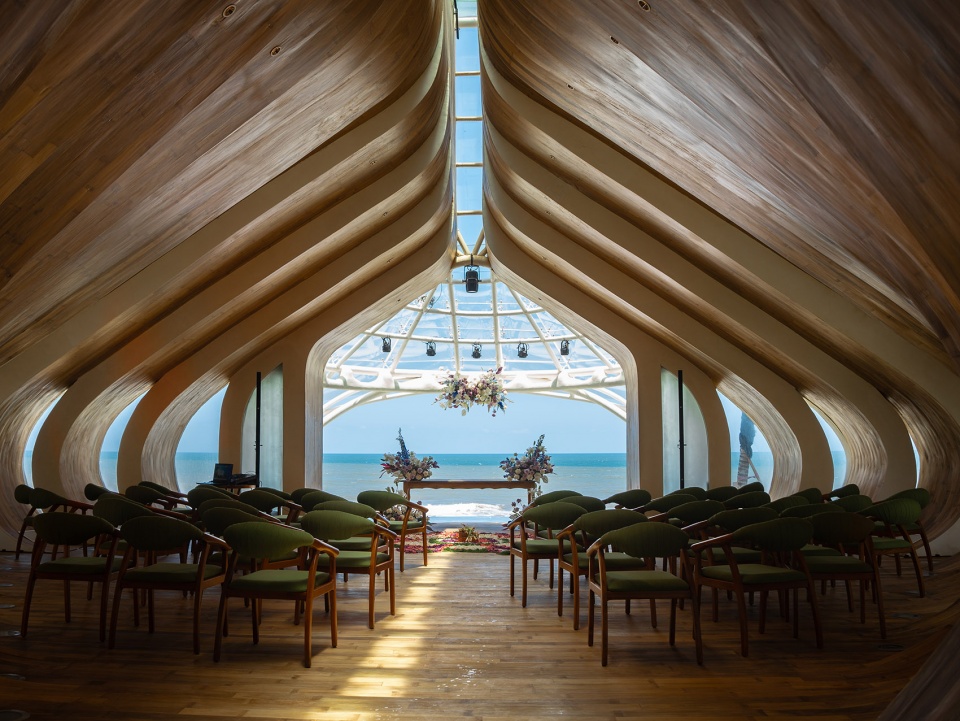

▼“极乐世界”内部，Elysium Interior ©Thomas Irsyad

▼材料细部，material detail ©Nuanu City

秉承可持续性和创新精神，这些建筑仿佛从地面生长而出，采用了竹子、复合夹芯板（SIP板）、天然石材、绿色屋顶、回收木材、玄武岩加固材料和石灰涂料等材料。这些材料经过巧妙组合和处理，形成了令人叹为观止的有机形态，从一侧流动到另一侧，提供遮阳、覆盖功能并收集雨水。这些天然材料还具有丰富的触感，与环境建立起深层次的连接，使人能够完全融入周围自然之中。

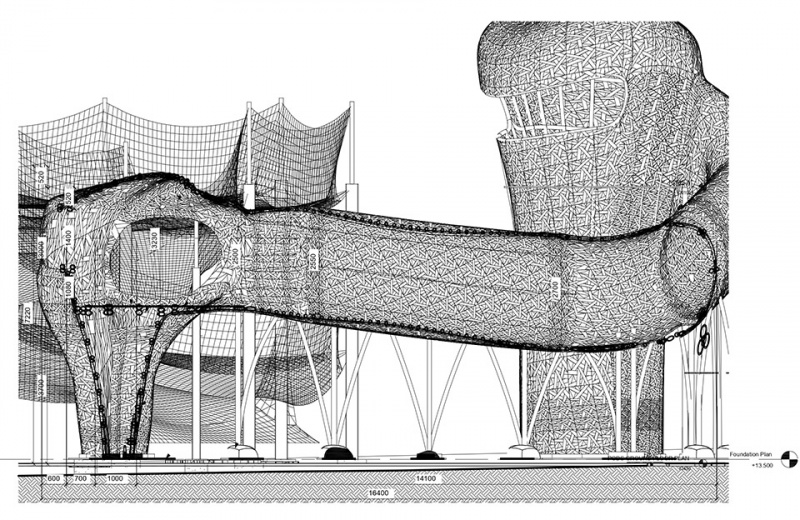

▼树荚剖面，Tree Pods section ©Inspiral Architecture and Design Studios

With sustainability and inventiveness at its core, the buildings are designed to grow from the ground, they use materials such as bamboo, composite SIP panels, natural stone, green roofs, recycled timber, basalt reinforcement, and lime renders. These materials are combined and manipulated into fascinating organic forms that undulate from one side to another, providing shade, cover, and a way to capture rainwater. Their natural essence is also tactile and rich with a grounding connection which helps the user to fully engage with the surrounding environment.

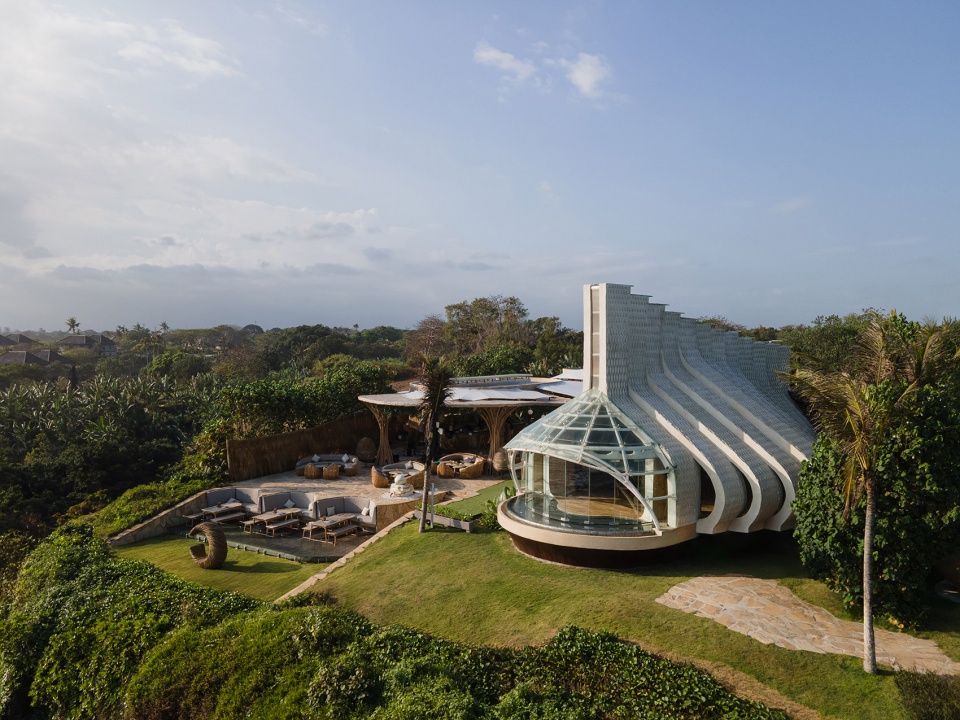

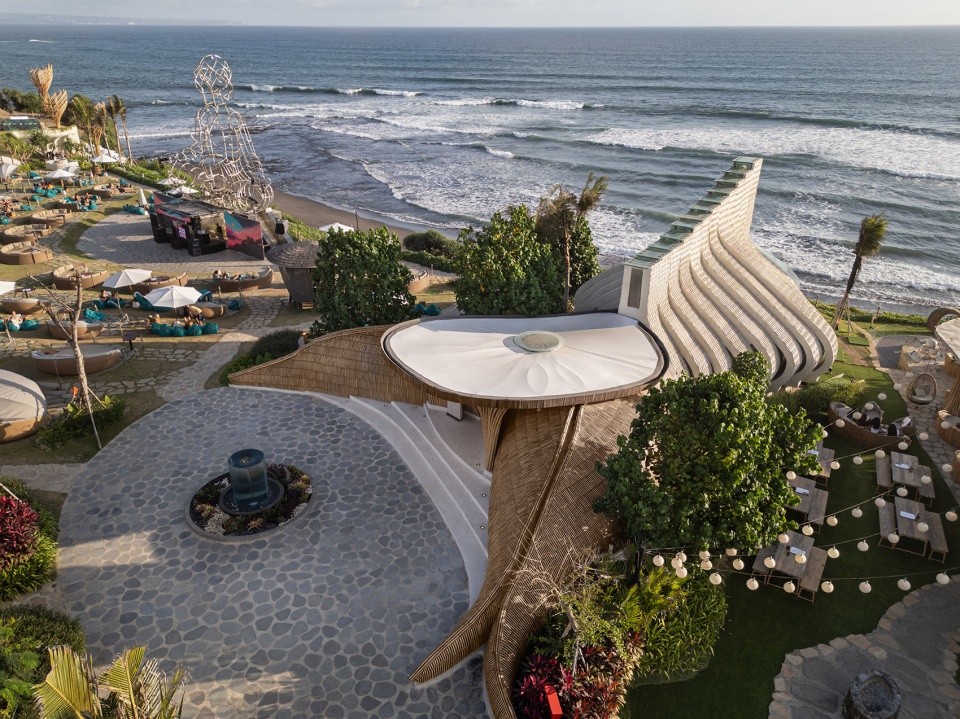

▼“栀子花”鸟瞰，Gardenia Aerial ©Thomas Irsyad

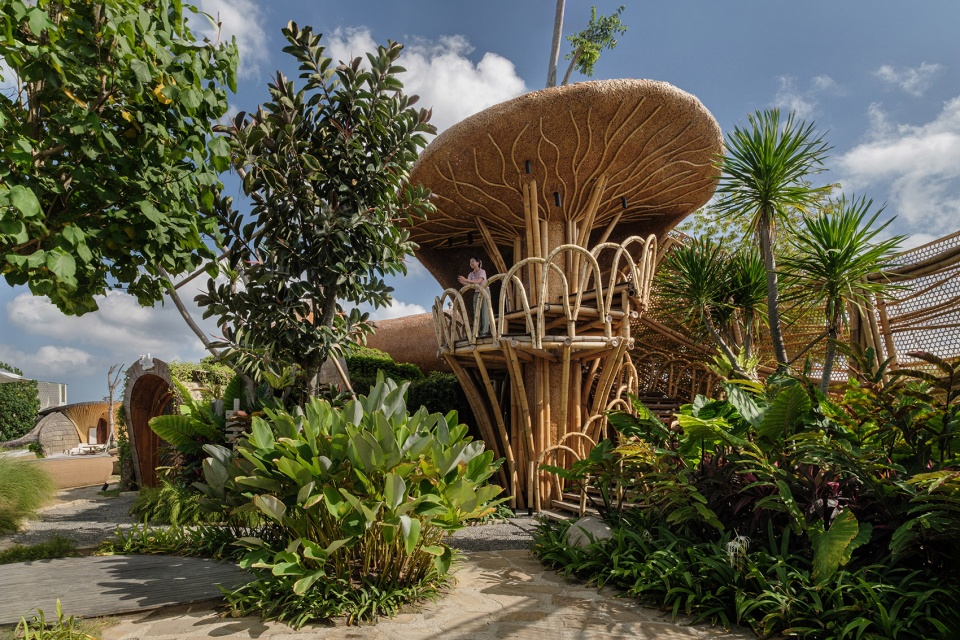

▼“栀子花”外部空间，Gardenia Exterior ©Thomas Irsyad

▼“栀子花”内部空间，Gardenia Interior ©Thomas Irsyad

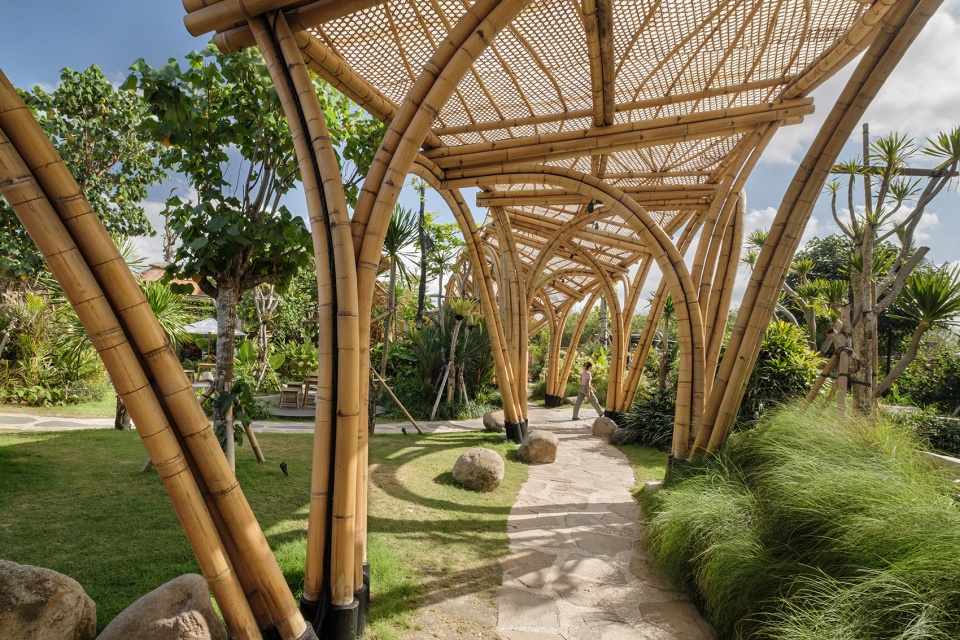

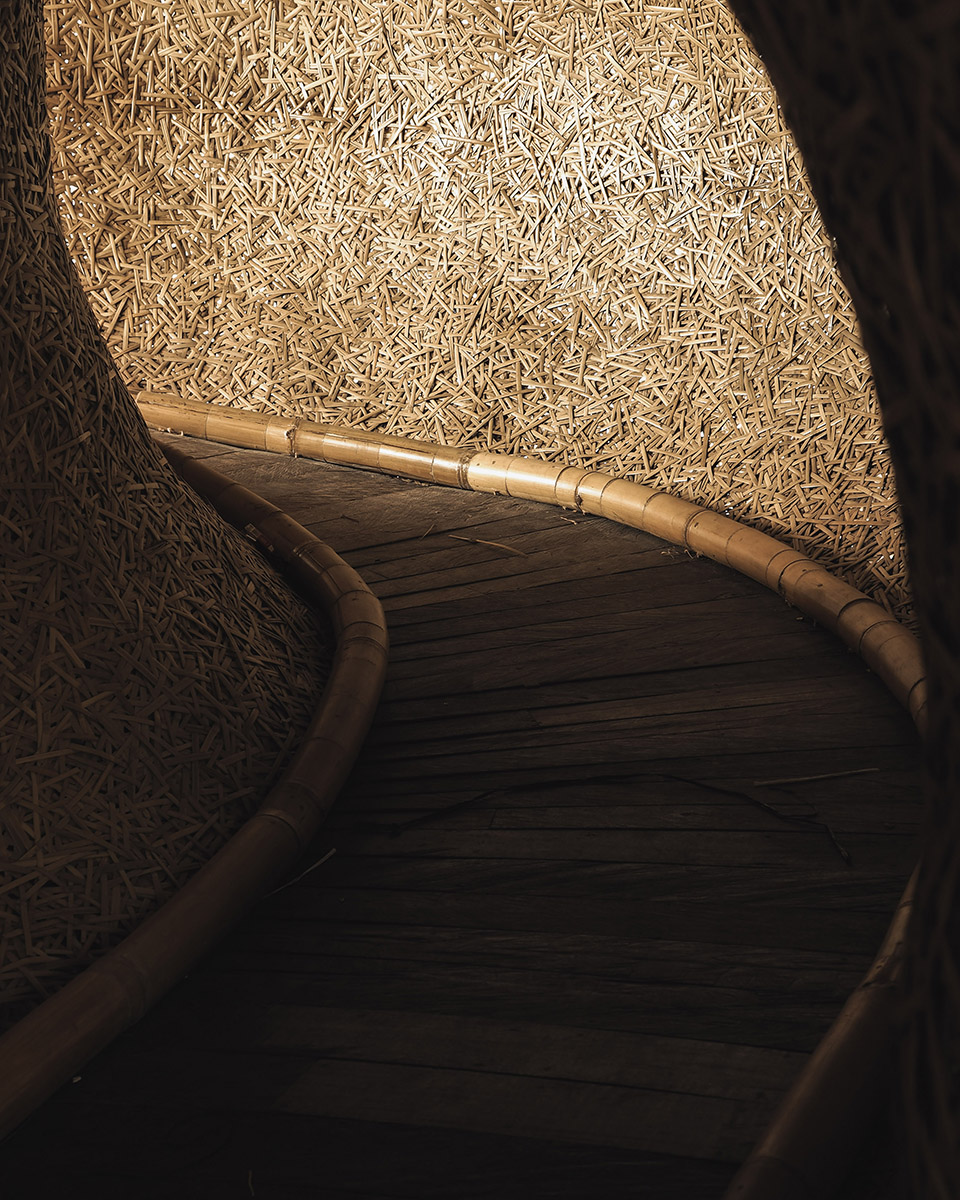

▼走廊，Pathway ©Thomas Irsyad

设计任务是打造一个极具标志性的海滩俱乐部和活动目的地，能够带来奇妙的体验、灵感以及冒险的感觉。项目需要结合斐波那契几何原理，并与海景以及陡峭的悬崖地形形成内在互动。功能需求的范围相对宽泛，通过多次研讨会确定引入哪些吸引点以及如何发展富有趣味的元素以营造氛围。我们的总体规划因此结合了阳刚（灯塔塔楼）和阴柔（主用餐及餐厅中心）的设计，设有一个主要的开放式吸引区域，以及一系列其他目的地，例如仪式建筑、泻湖泳池、通向洞穴泳池和俱乐部的滑道、高架舱体及其隧道和平台网、糖果吧穹顶、魔幻花园、户外饮品花园和烧烤区。这些建筑的位置和形式基于场地关键点的交叉点，依照黄金分割比例进行布局。拥有如此多样化的设施，并点缀着艺术、游戏空间、休憩区、用餐场所及自我表达的区域，整体体验充满了持续的发现与惊喜。同时，整个场地能够有效管理大规模音乐会、节日、演出、展览以及多元化聚会的流线、移动和体验，同时保持现有场地的植被、微气候和地形特征。

The brief was to a highly iconic beach club and events destination that would create wonderment, inspiration, and a sense of adventure. It had to embody Fibonacci geometry along with an intrinsic interaction with the seascape, hilly cliff-side land. The facilities requirement was a relatively open brief with several workshops created to decide what attractions would be introduced and what kind of playful elements to develop an atmosphere. Our masterplan, therefore, incorporated masculine (a lighthouse tower) and feminine (main dining and restaurant hub) along with a main attractive open space, plus an array of other destinations within such as the ceremonial building, lagoon pool, and slide-down to a cave pool and club, elevated pods with tunnels, platform nets and a candy bar dome, enchanted gardens, and an outdoor beverage garden and grill. The positions and forms of these buildings were then set out using intersections from key points across the site based on the golden section. With a range of these facilities in place strewn with art and spaces to play, rest, dine, and express oneself, the experience itself was one of continual discovery and surprise. At the same time, the whole venue can manage the flow, movement, and experience for large concerts, festivals, shows, performances, exhibitions, and eclectic gatherings while maintaining the existing site context with its specific vegetation, microclimate, and topography.

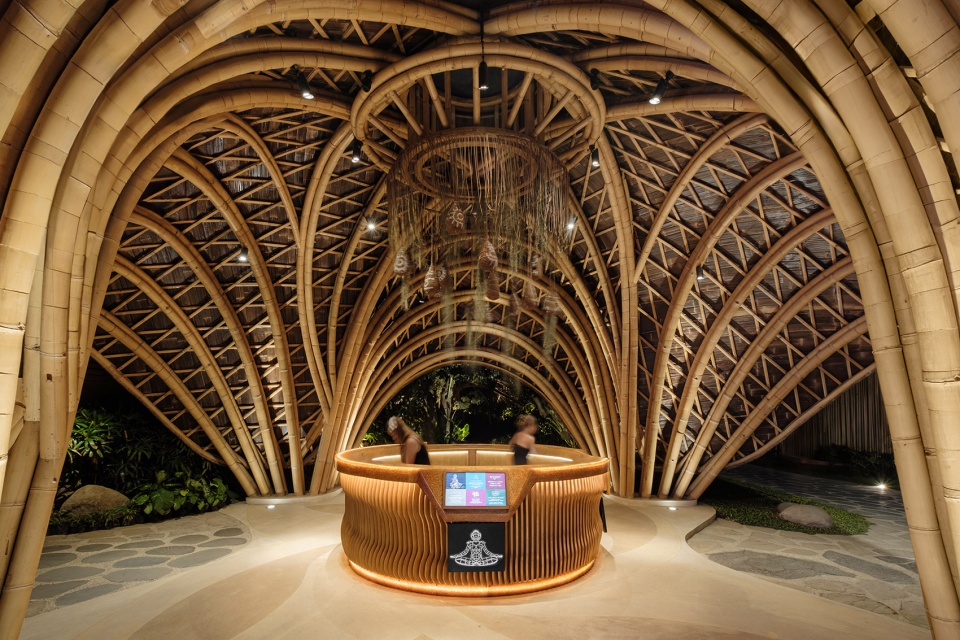

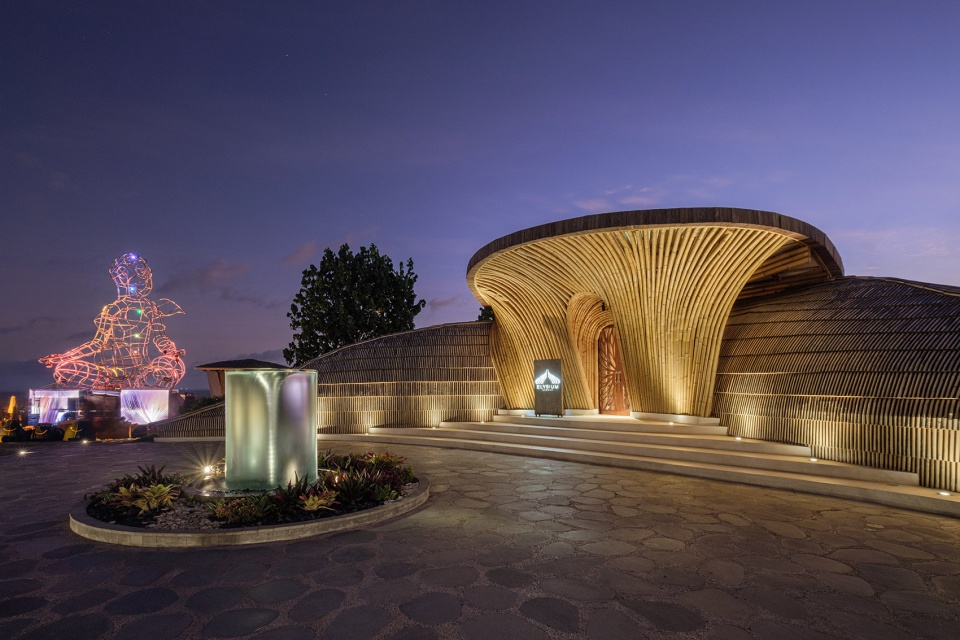

▼接待处夜景，Reception ay night ©Thomas Irsyad

由于整个项目中广泛采用了复杂的几何形态和前瞻性的生态环保材料，因此需要大量的研究与设计探索。这要求投入大量精力进行测试、原型制作、增强信心，并对施工团队进行培训，以掌握多种新建造技术，同时确保施工过程中的质量控制。通过这些努力，我们成功建造了全球首个采用竹子和玄武岩结合结构系统的建筑，这一点在主海滩俱乐部的双曲面结构中得以体现。半透明屋顶材料也首次被广泛用作膜系统。此外，在仪式建筑和洞穴泳池中，采用复合夹芯板（SIP板）创建了极具挑战性的形态，同时避免使用混凝土。在仪式建筑中，两部分建筑之间有一个清晰、连续的20米跨度，仅通过玻璃连接。这需要进行大量的结构分析，并在现场进行严格的检查，以确保几何形态的精确性，否则如果施工不当可能导致失败。

With such complex geometry used throughout combined with forward-thinking ecologically friendly materials, there was a huge degree of research and design that had to be explored. This requires a lot of energy in testing, prototyping, creating confidence, and training construction teams to be able to learn a number of new building techniques along with the quality control needed to be able to deliver this. In doing so we managed to create the world’s first building to use a combined bamboo and basalt structural system. This can be seen in the beachclubs double curvature structure. The translucent roof material was also the first time used extensively as a membrane system. Elsewhere composite SIP panels were used in the ceremonial building and the cave pool as a way to create very challenging forms and also without the use of concrete. In the ceremonial building, there is a clear unbroken 20m gap between the two halves of the building where the only connection is glass. This requires a great deal of structural analysis and stringent snagging on site to ensure the geometry is created correctly, otherwise resulting in possible failure if built incorrectly.

▼夜景，night view ©Thomas Irsyad

▼洞穴泳池平面，Cave Pool Floor Plan ©Inspiral Architecture and Design Studios

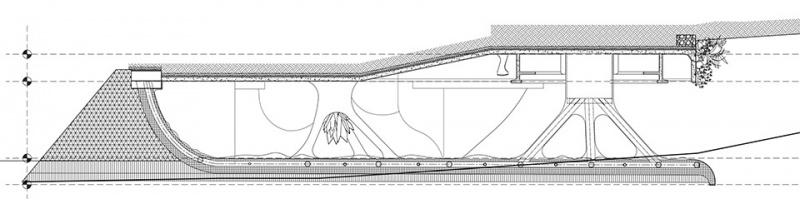

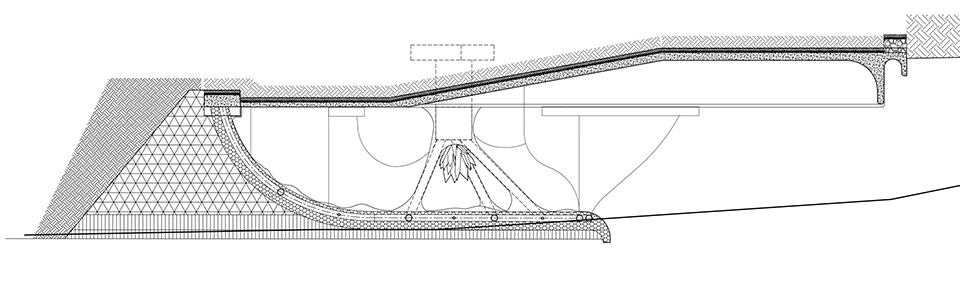

▼洞穴泳池剖面，Cave Pool Section ©Inspiral Architecture and Design Studios

▼“软心堂”平面，Jelly Bean Floor Plan ©Inspiral Architecture and Design Studios

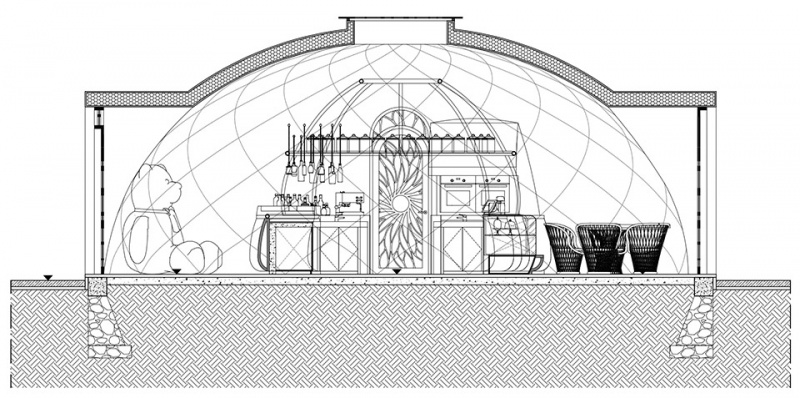

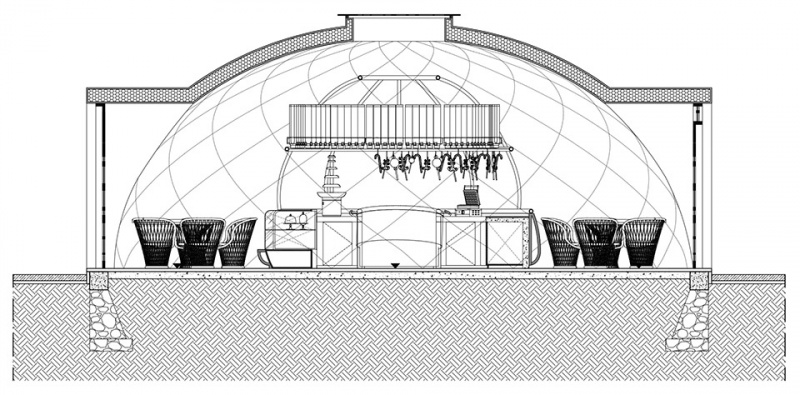

▼“软心堂”剖面，Jelly Bean Section ©Inspiral Architecture and Design Studios

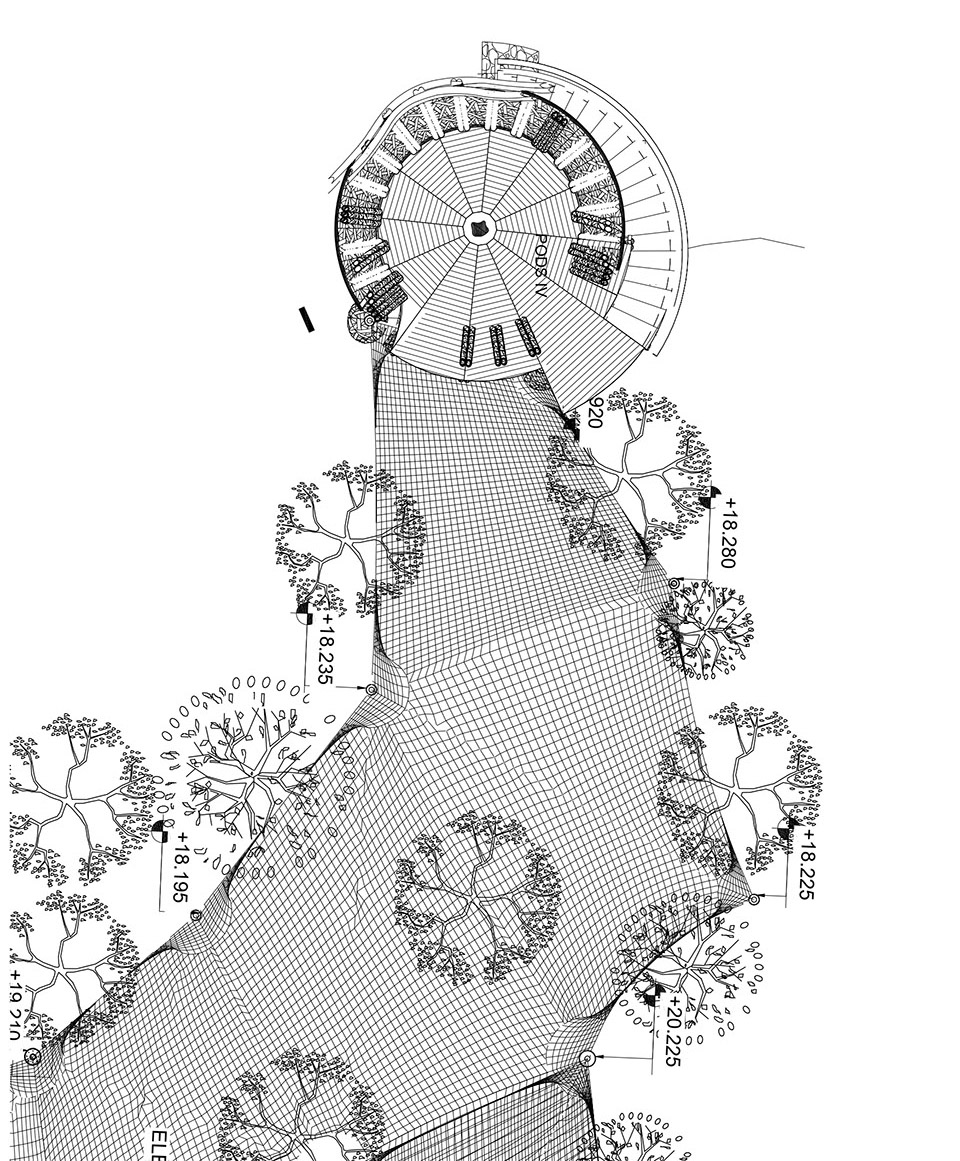

▼“树荚1-3”平面，Tree Pods 1-3 Floor Plan ©Inspiral Architecture and Design Studios

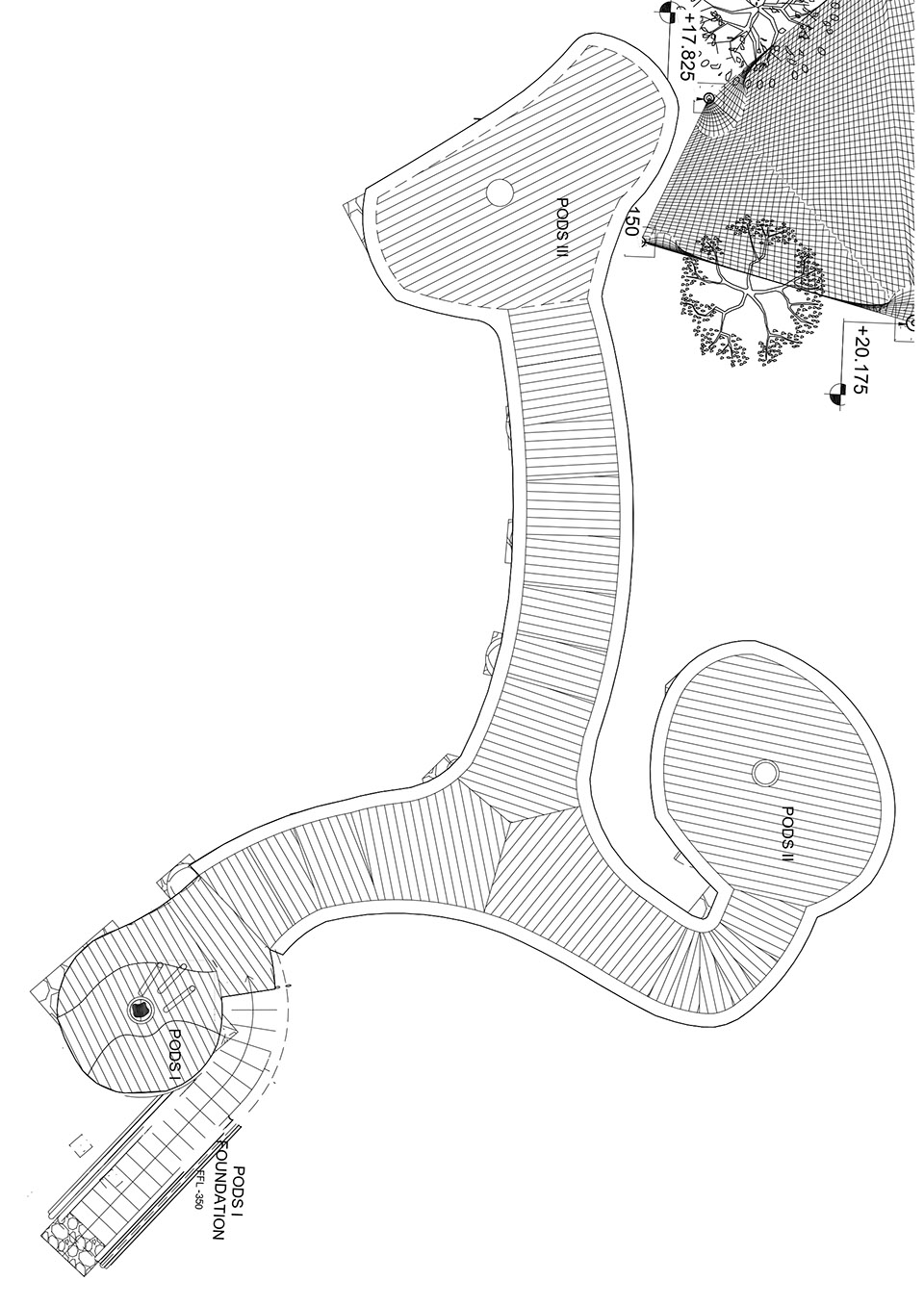

▼“树荚4”平面，Tree Pods 4 Floor Plan ©Inspiral Architecture and Design Studios

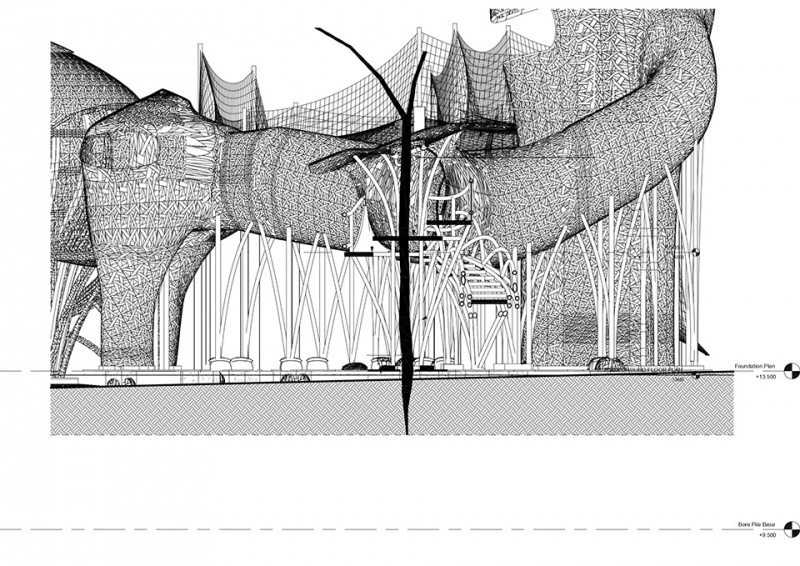

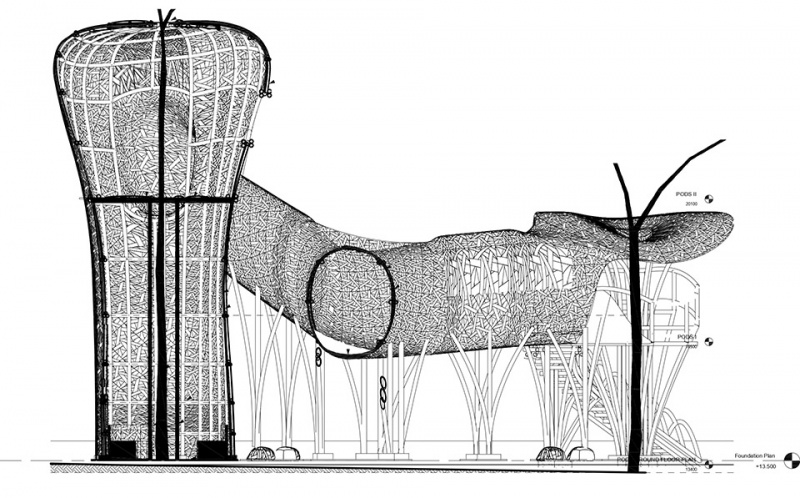

▼“树荚”剖面，Tree Pods Section ©Inspiral Architecture and Design Studios

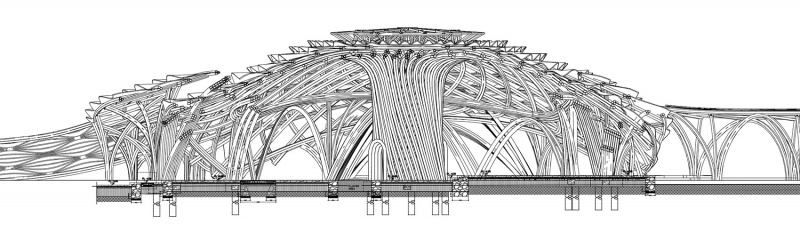

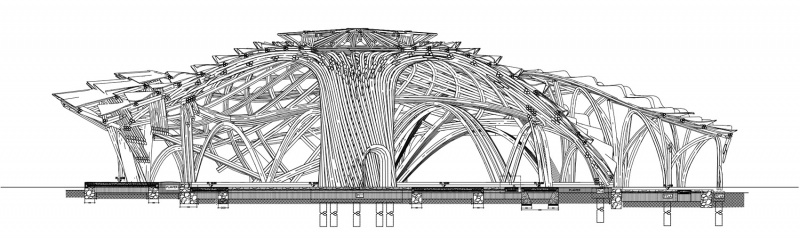

▼主俱乐部剖面，Vortex Section©Inspiral Architecture and Design Studios

Project Name: Luna Beach Club
Completion Year: 1 March 2024
Site Area (m2/ ft2): 17000sqm2
Total Floor Area (m2/ ft2): 7500sqm2
Project Location: Tabanan, Bali
Program / Use / Building Function: Beach club, restaurant and event space
Website: http://www.lunabeachclubbali.com
Client: PT. Wooden Fish Village
Project Director: James Karl Ephraim
Project Director Email: james@lunabeachclubbali.com
Architect Firm: Inspiral Architecture and Design Studios
Website: https://inspiralarchitects.com/
Email: communications@inspiralarchitects.com
Location: Mertasari St No.1A, Sanur, Denpasar Selatan, Denpasar City, Bali 80228
Design Director: Charlie Hearn
Architectural Design: Inspiral Architecture and Design Studio (Laura R. Tika, Iqbal Ziaul Haq, Rahman Akbar Sayekti)
Structural Design: Inspiral Architecture and Design Studio (Ratmo Guna Susilo, I Putu Chandra Sajana, Nyoman Marga, Wayan Adi Suantara)
Specialist Structure Design: AtelierOne
MEP Design: Hadrian
Interior Design Team: Inspiral Architecture and Design Studio (Oktanto, Aileen Ivena, I Nyoman Bagus Sakhapradnya)
Landscape Design: Tropland
Lighting Design: Collab.art
Main Contractor: In-house Contractor
Civil Contractor: Bali Tropical
MEP Contractor: WKN
Bamboo Contractors: PT. Ateng Tiying Mas, Bambu Luwih
SIP Contractor: Solusi Flatpack Indonesia
Interior Contractor: iBal Designs, CV. Pakun Jaya Perkasa
Landscape Contractor: Ubersari
Lighting supplier: MGN
Lighting installer: PT Wija Kusuma Nadi
