Joliette art Museum / Les architectes FABG

清澈的玻璃盒-魁北克若列特艺术博物馆

Project Specs

Location:

非常感谢Les architectes FABG予gooood分享以下内容 。更多请至:Les architectes FABG on gooood
Appreciation towards Les architectes FABG for providing the following description:

如今,Musée d’art de Joliette被认为是魁北克地区最最重要的区域性艺术博物馆。Joliette艺术博物馆创建于半个多世纪以前,致力于推动艺术品保护,文化的传播和艺术研究。半个多世纪以来,博物馆一直在扩大其收藏,至今已经收藏有四个方向的8500件藏品,这四个方向风别是:加拿大艺术,欧洲艺术,当代艺术和考古学。

Today the Musée d’art de Joliette is recognized as Quebec’s most important regional art museum. While pursuing the objectives of conservation, dissemination and research established over half a century ago by its founders, the Musée continues to expand its permanent collection, which currently comprises some 8,500 works held in four collections: Canadian art, European art, contemporary art and archaeology.

▼建筑外观,exterior of the building

001-Joliette art Museum by Les architectes FABG

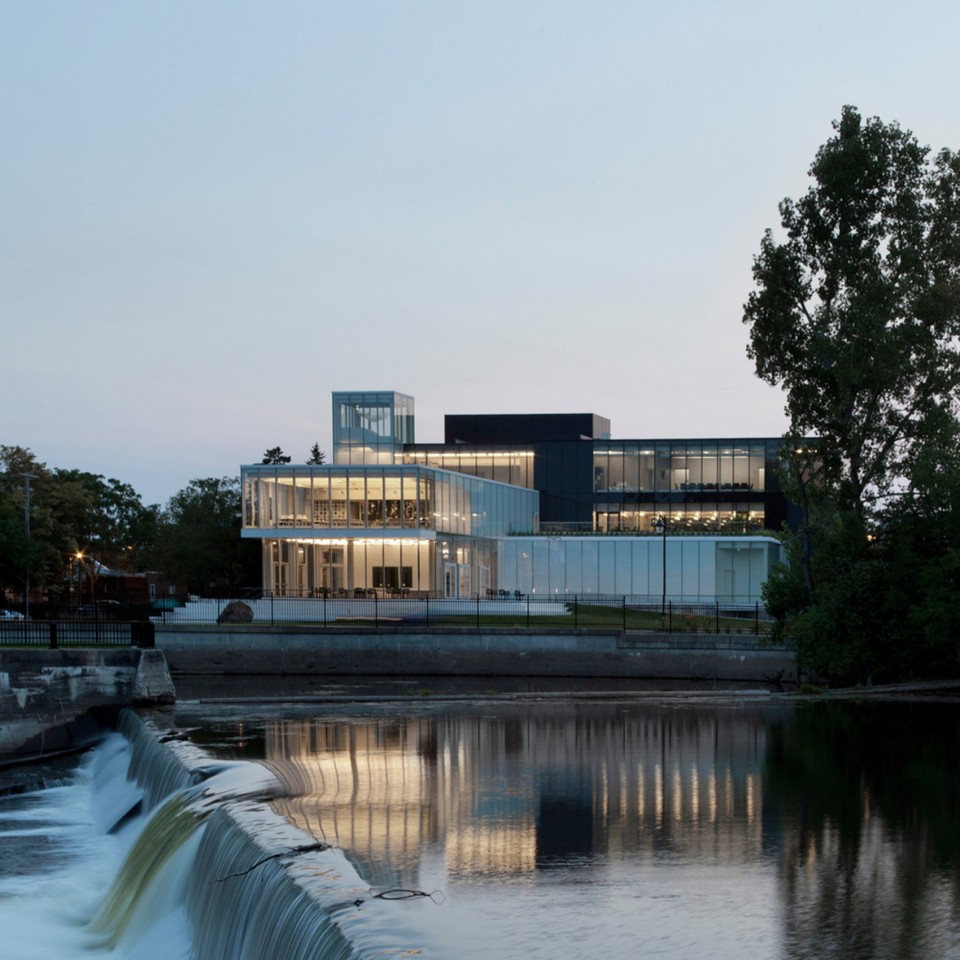

▼倒映在河水中的建筑,views from the other side of river

002-Joliette art Museum by Les architectes FABG

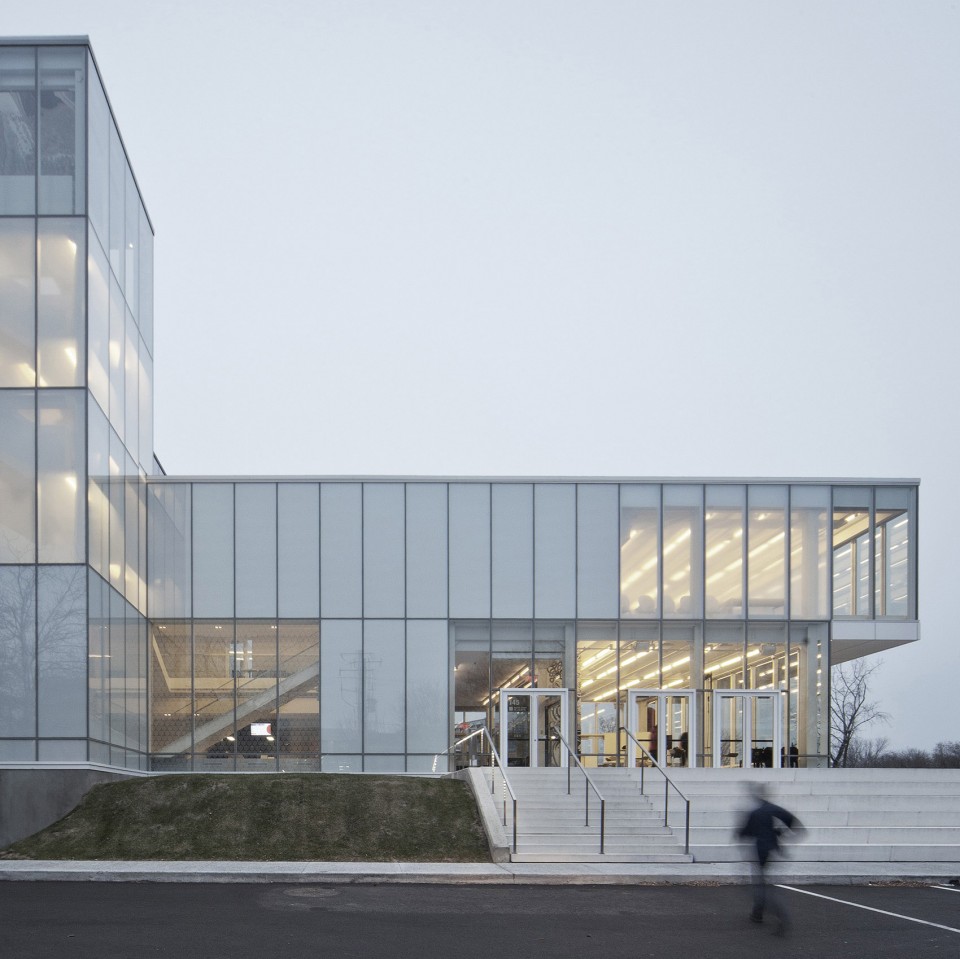

▼清晰的体量感,three volumes

003-Joliette art Museum by Les architectes FABG

随着博物馆的不断扩大,对于其进行完善的改造和扩建显得十分必要。博物馆有着诸多的发展愿景,比如继续扩大其永久收藏,举办临时的展览和讲座,为各个年龄段的参观者提供丰富多彩的文化活动。博物馆将除了新增一个灵活的展览空间之外,还要增设青少年动漫室、多功能会议室和一个咖啡厅。屋顶露台的改造也显得十分必要, 因为一个开放的露台彰显出博物馆开放的心态。在未来,博物馆将为Joliette市的市民提供更多的服务,在区域发展中发展发挥更大的作用。

The complete transformation and expansion of the original building was necessary to offer of a wide range of programs structured around the promotion of its permanent collection and the presentation of temporary exhibitions, as well as a host of educational and cultural activities for visitors of all ages. The addition of new flexible gallery space, animation rooms for youth, a multipurpose café, conference rooms and a rooftop terrace were necessary to open up the institution to the community and to allow it to play a larger role in the lives of the citizens of Joliette and its surrounding region.

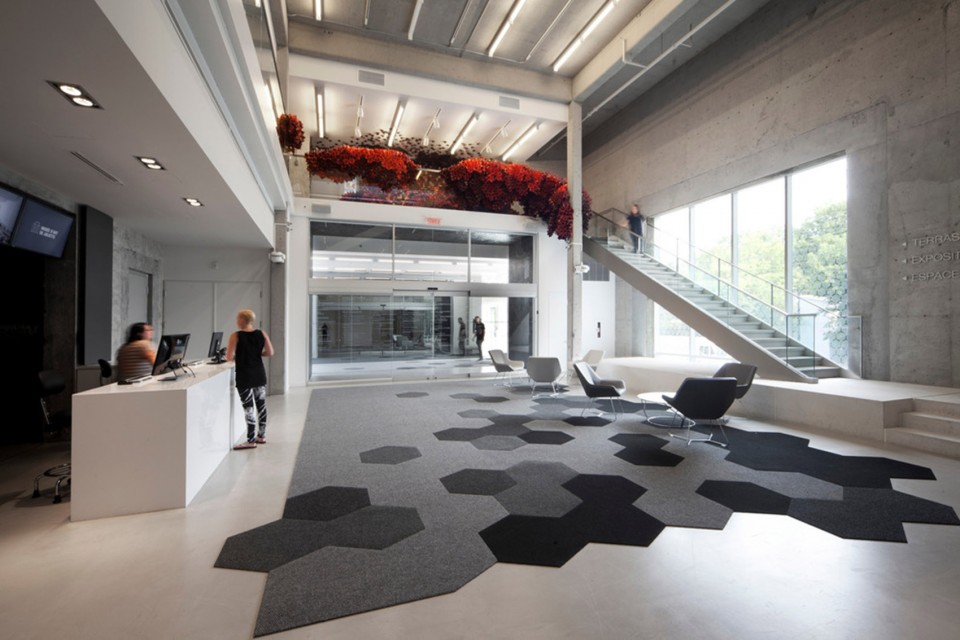

▼建筑入口和接待,entrance and reception of the museum

005-Joliette art Museum by Les architectes FABG

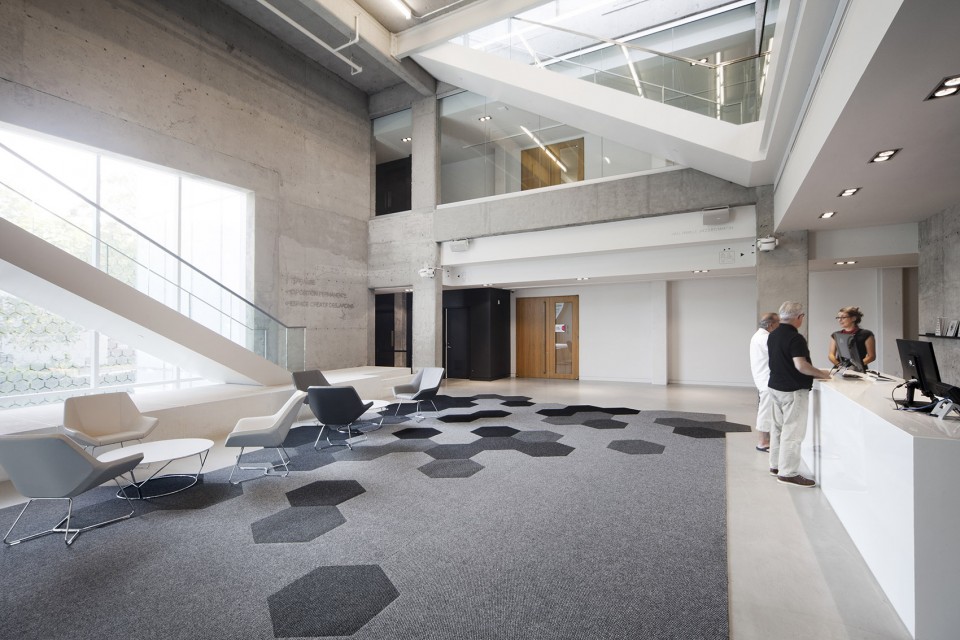

▼博物馆大厅,lobby of the museum

006-Joliette art Museum by Les architectes FABG

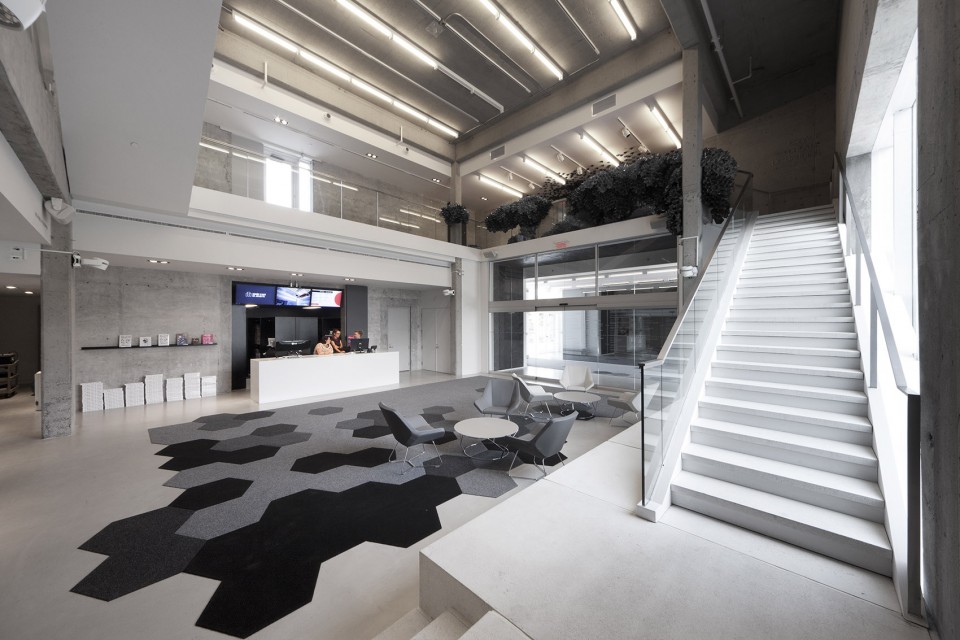

▼大厅里通向二楼的楼梯,staircase to the second floor

007-Joliette art Museum by Les architectes FABG

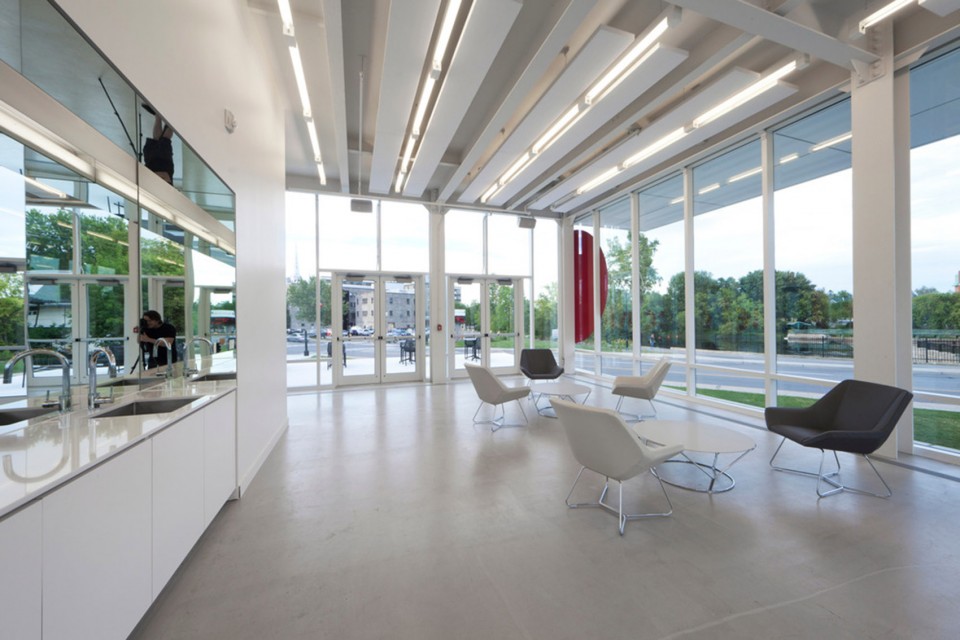

▼一楼咖啡厅,cafe on 1st floor

004-Joliette art Museum by Les architectes FABG

为了提高博物馆和公众之间的联系,建筑师新增了三个新的体量。新建筑的出现为原有的建筑增添了动态之美;透明的玻璃体量也让路过的人能看到博物馆内的有趣活动。除此之外,一个巨大的落地窗空间让人能够欣赏到L’Assomption河道景观和周围的城市风貌。

Our objective to enhance the connection between the institution and the public is achieved by adding three new volumes to the building that accentuate the dynamism of the existing cruciform composition and allows passers-by a glimpse of the activity happening within. Furthermore, the fenestrated spaces frame views of the river L’Assomption and surrounding cityscape from within.

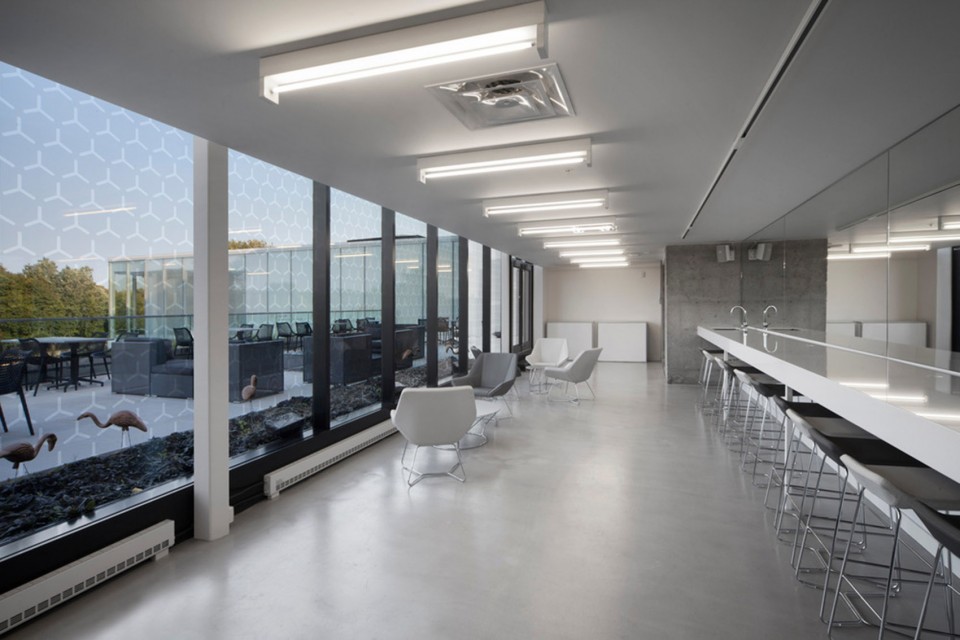

▼二层的休息室,relaxing spacing on second floor

008-Joliette art Museum by Les architectes FABG

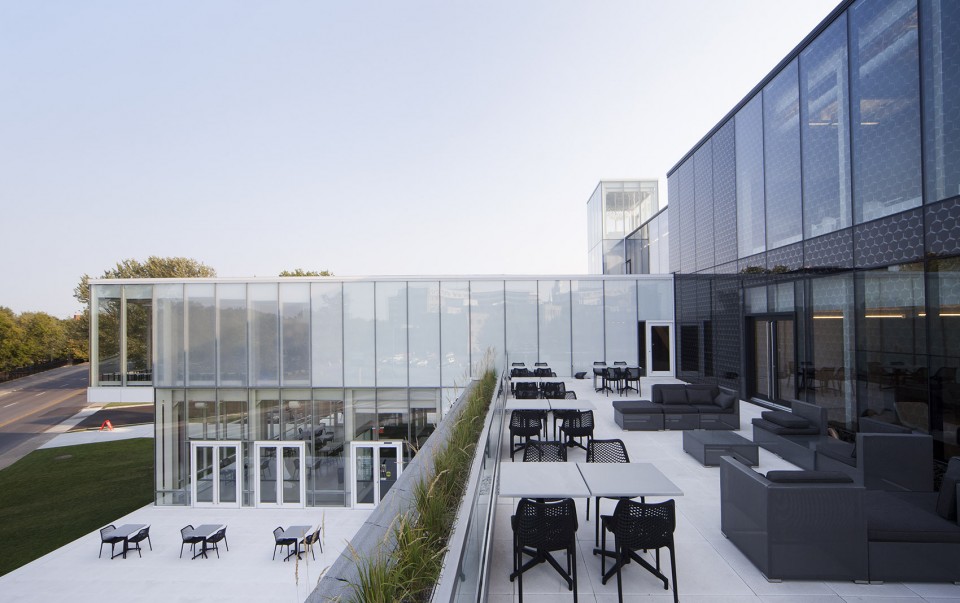

▼二层休息室外的露台,a rooftop terrace

009-Joliette art Museum by Les architectes FABG

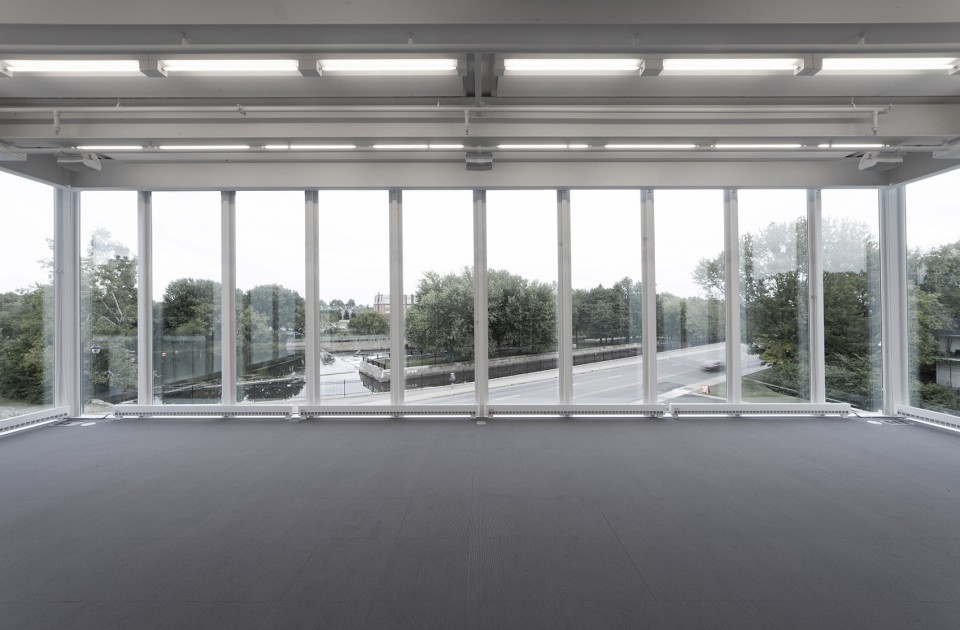

▼二层能欣赏河岸景色的挑窗空间,the fenestrated spaces frame views of the river L’Assomption

010-Joliette art Museum by Les architectes FABG

从落成以来,博物馆就开始为各式各样的聚会、社会活动提供举办场所,在博物馆举办过各类课程,创意工坊,表演,展览,导游,鸡尾酒会和音乐会。 建筑师对建筑作出了一些修缮,比如移除和清洗了在过去的时间里被砖和石膏覆盖的混凝土结构。为了方便游客识别方向,建筑师创造出一个戏剧性的双层空间。二楼建筑入口处的部分混凝土板被拆除,这里同样也是原先博物馆的中庭。

建筑师巧妙地的利用了原先一系列松散的功能性空间,并对其进行了重新的组织,使得新的博物馆在空间和使用功能上都获得了巨大的成功。此外,要求有混响效果的空间都使用了良好的吸声材料;全自动窗帘被用来控制博物馆内的光照条件;一系列的视听设施使得多媒体内容的播放能够在每一个空间中实施。

Since its inauguration, the museum has become an important setting for social activities and gatherings such a classes, creative studios, performances, exhibitions, guided tours, cocktails, and concerts. Particular attention was paid to the original building by revealing and cleaning the existing concrete structure that had been covered up with brick and plaster over time. In order to facilitate visitor orientation and create a dramatic double-height space, part of the second floor concrete slab was demolished at the entrance of the building here the original museum atrium had once existed.

The museum greatly benefits from a succession of loosely programmed spaces with varied spatial arrangements that permit and encourage a multiplicity of functions. Furthermore, the reverberation time of each of these spaces was modulated with the use of absorptive acoustical surfaces, while motorized blinds control natural light levels, and a series of audio-visual infrastructures allow multimedia content to be broadcasted and featured in all of these spaces.

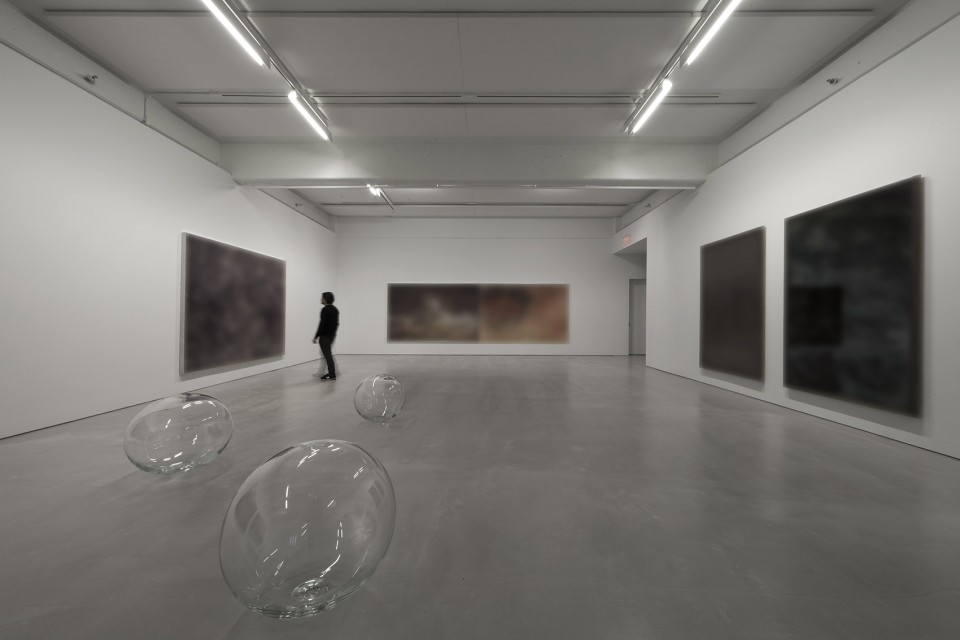

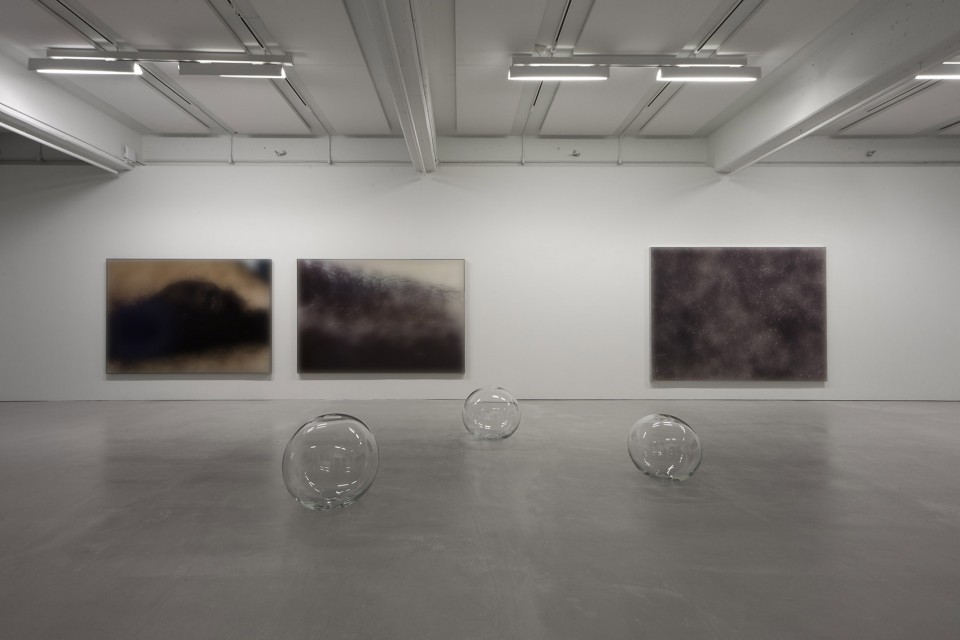

▼博物馆的展示空间,exhibition space

011-Joliette art Museum by Les architectes FABG

012-Joliette art Museum by Les architectes FABG

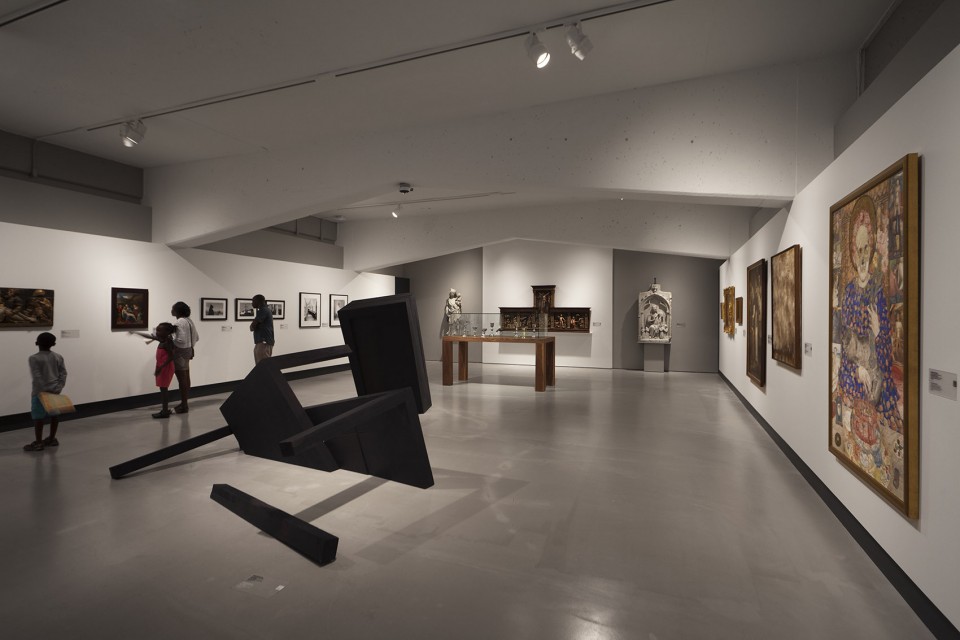

▼原本零碎的空间被重新组织,loosely programmed spaces with varied spatial arrangements

013-Joliette art Museum by Les architectes FABG

014-Joliette art Museum by Les architectes FABG

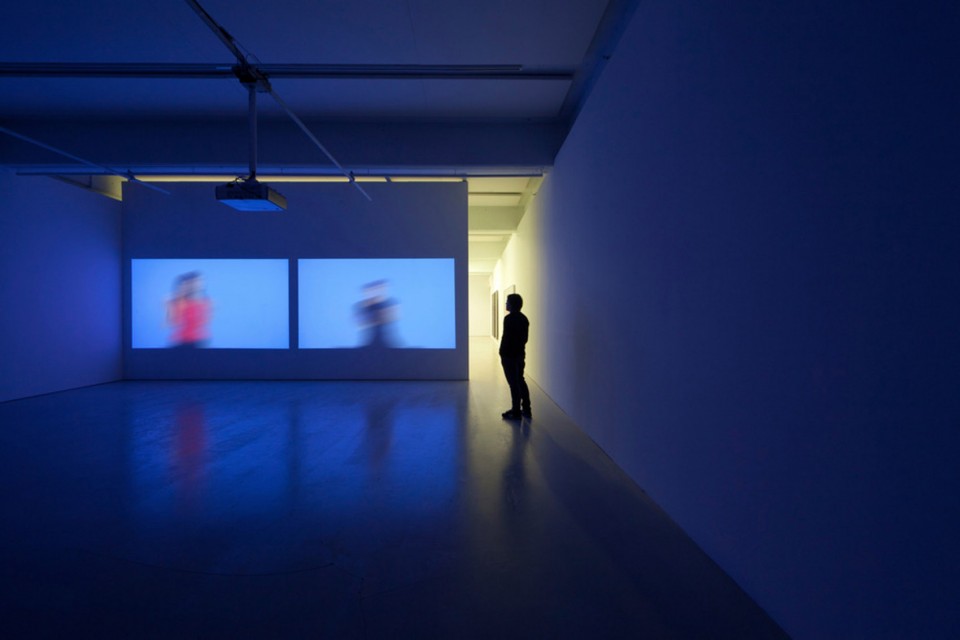

▼展示空间里有趣的展览,interesting exhibition

015-Joliette art Museum by Les architectes FABG

在全玻璃消防楼梯的顶部, 还有一件艺术装置,被看作是建筑师融合艺术和建筑的一次有趣尝试。这件艺术品被巧妙的布置在参观路线上,一点都不突兀。 博物馆有一系列的规范来修缮更新现有空间,包括位于地下室的档案室的整修;建筑设备和电力系统的重新安装;建筑防水的全面检查;全新办公空间的扩建和一个方便可达的博物馆。同时建筑师还设计了博物馆的标志,以及挑选了内外部的家具。

A work of art, conceived as part of the integration of art to architecture program, is perched at the top of the new, fully glazed emergency staircase and is seamlessly integrated in the exhibition circuit. The project required a complete code compliance update of the existing spaces including the renovation of the museum archives in the basement, the replacement of all the mechanical and electrical systems, the complete waterproofing the building envelope, the construction of new office spaces and the creation of a entirely universally accessible museum. Also included in the architect’s mandate were the signage design and the selection of all interior and exterior furnishings.

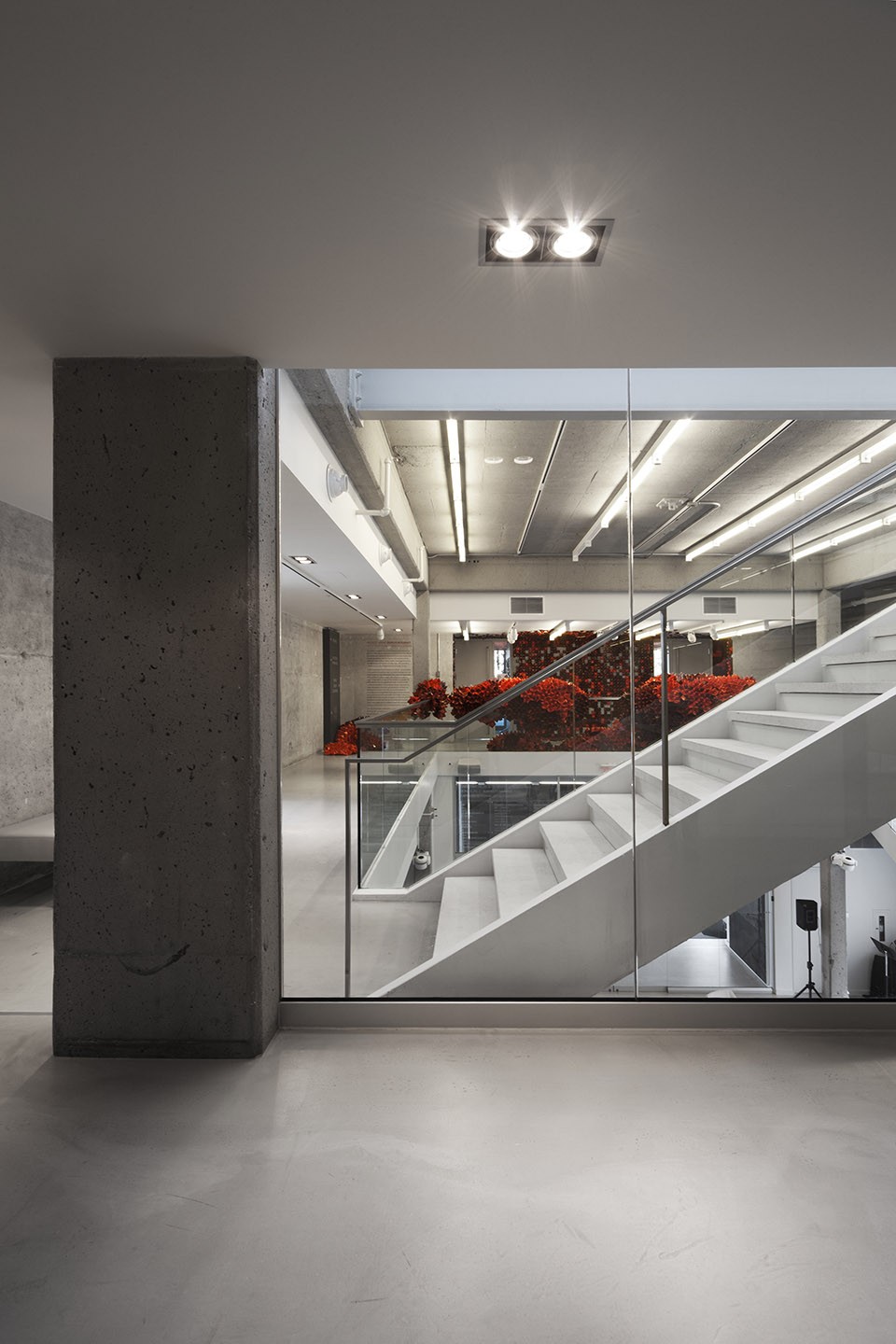

▼通向三层的楼梯,staircase to the third floor

017-Joliette art Museum by Les architectes FABG

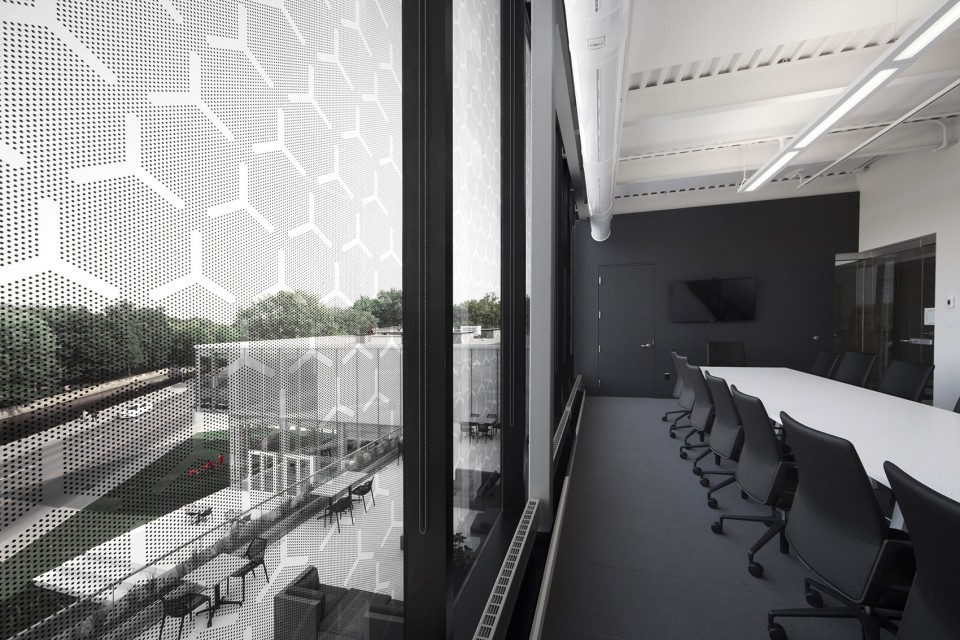

▼三楼会议室,meeting room on the third floor

018-Joliette art Museum by Les architectes FABG

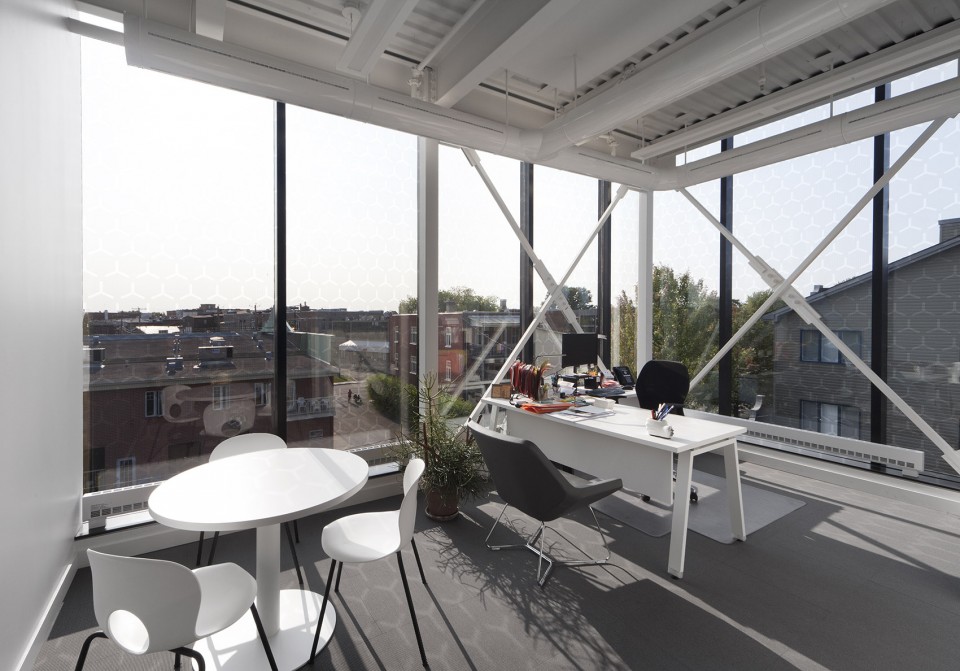

▼三楼办公室一隅窗外的城市景观,cityscape outside the window of office corner

019-Joliette art Museum by Les architectes FABG

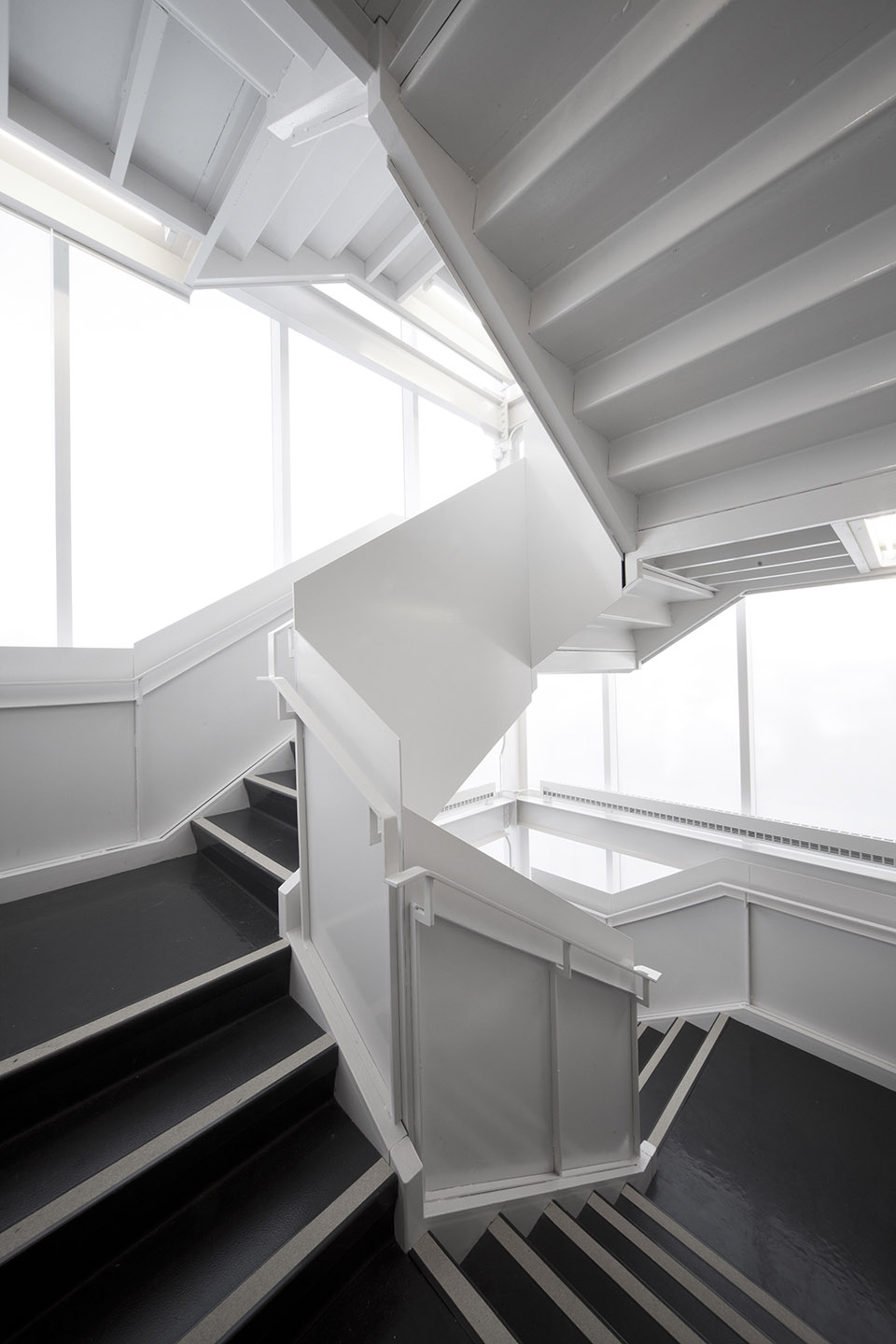

▼消防楼梯, emergency staircase

020-Joliette art Museum by Les architectes FABG

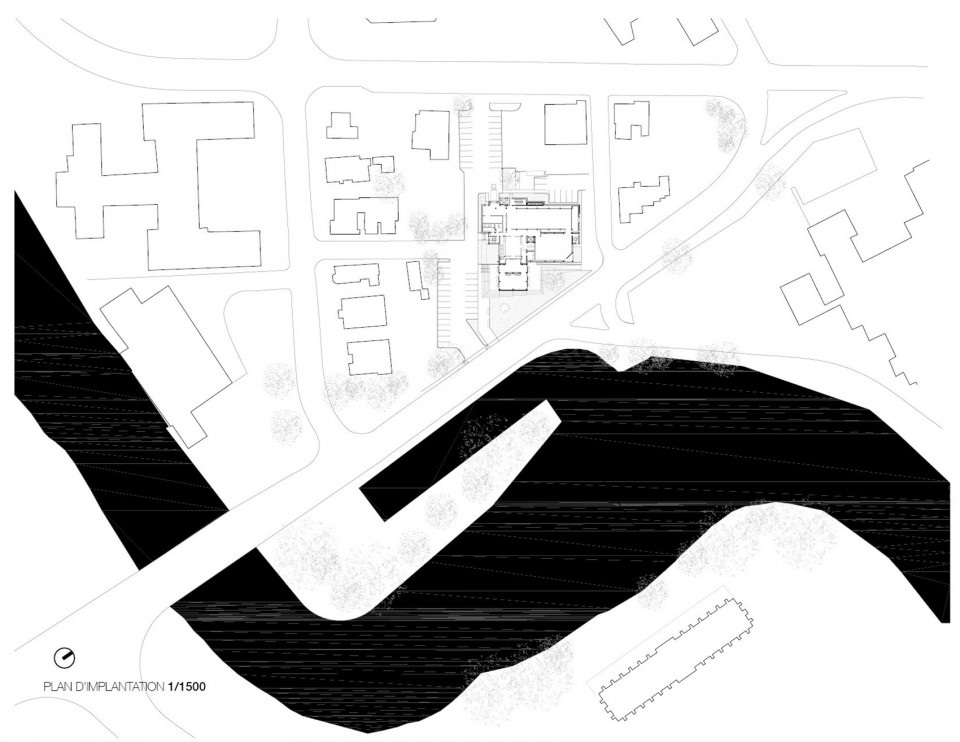

▼总平面,masterplan

021-Joliette art Museum by Les architectes FABG

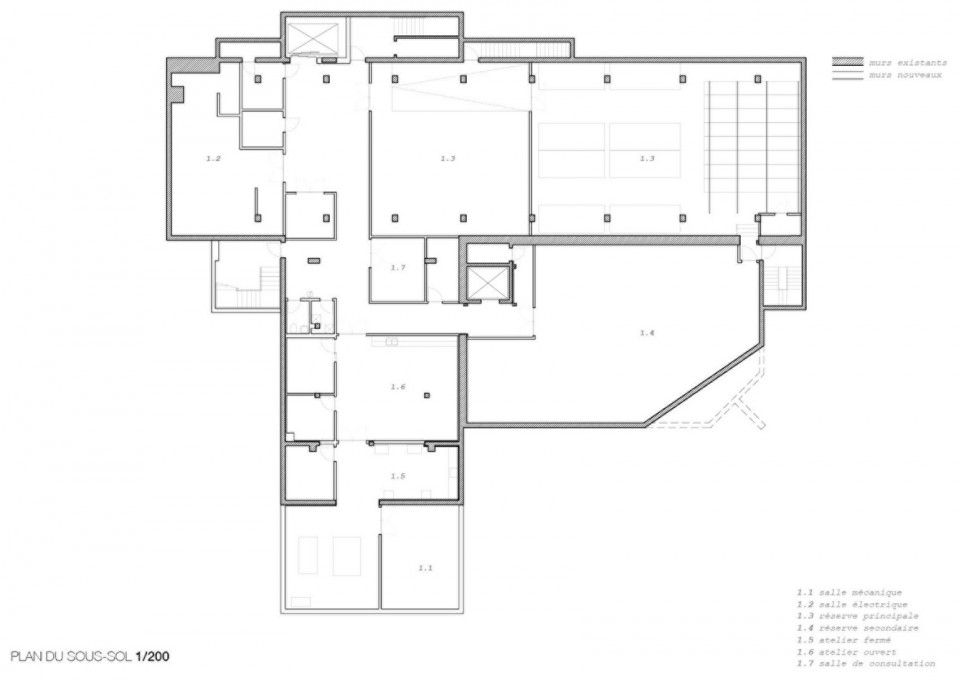

▼一层平面,1st floor plan

022-Joliette art Museum by Les architectes FABG

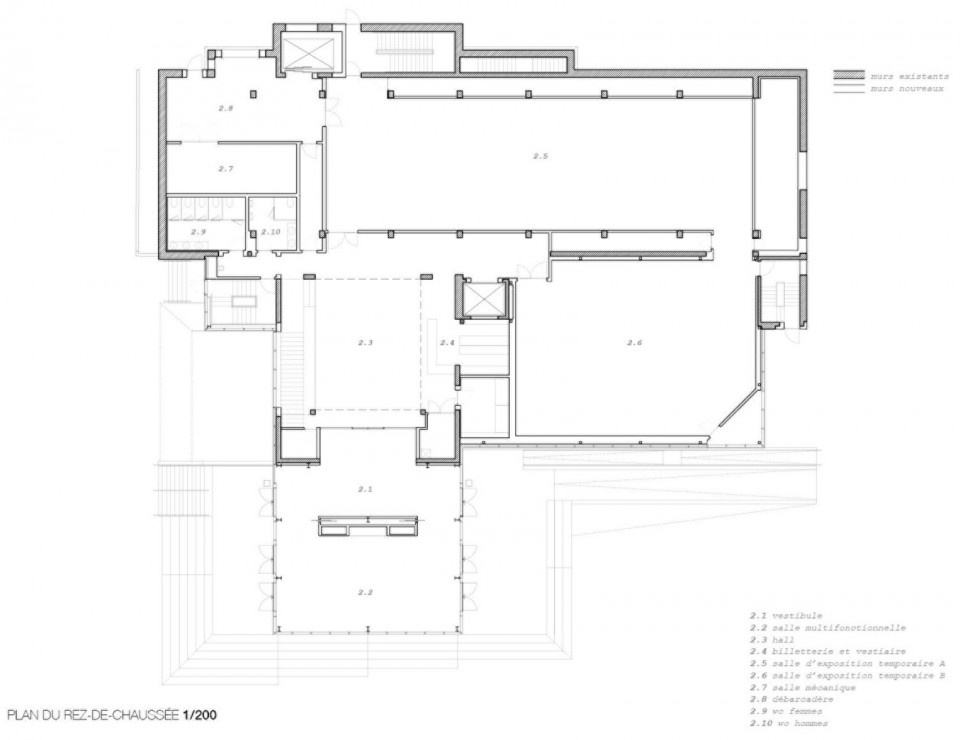

▼二层平面,2nd floor plan

023-Joliette art Museum by Les architectes FABG

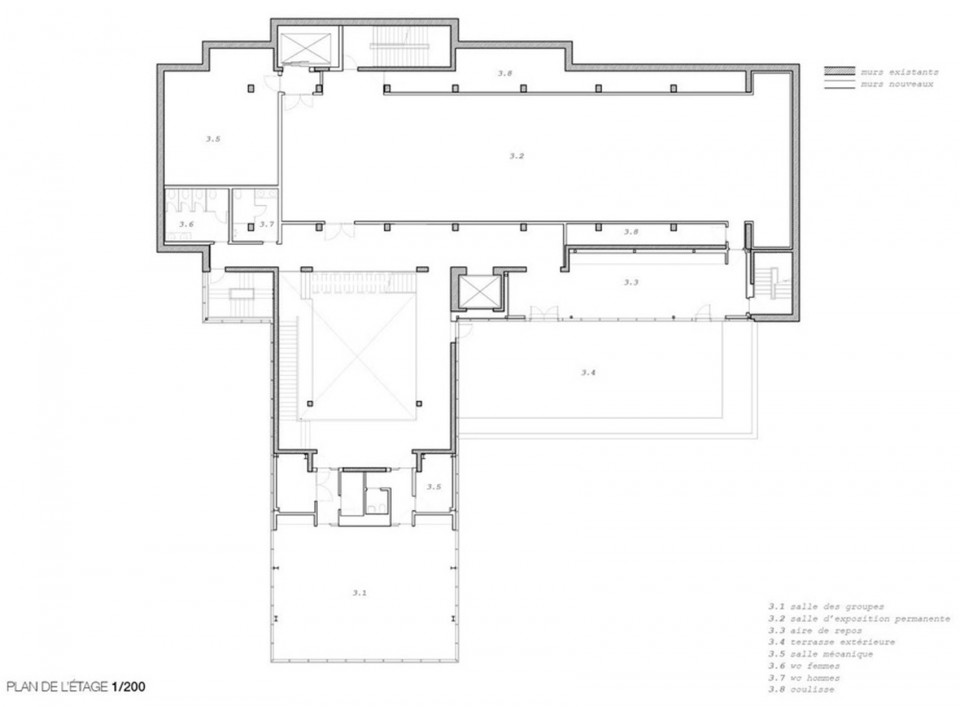

▼三层平面,3rd floor plan

024-Joliette art Museum by Les architectes FABG

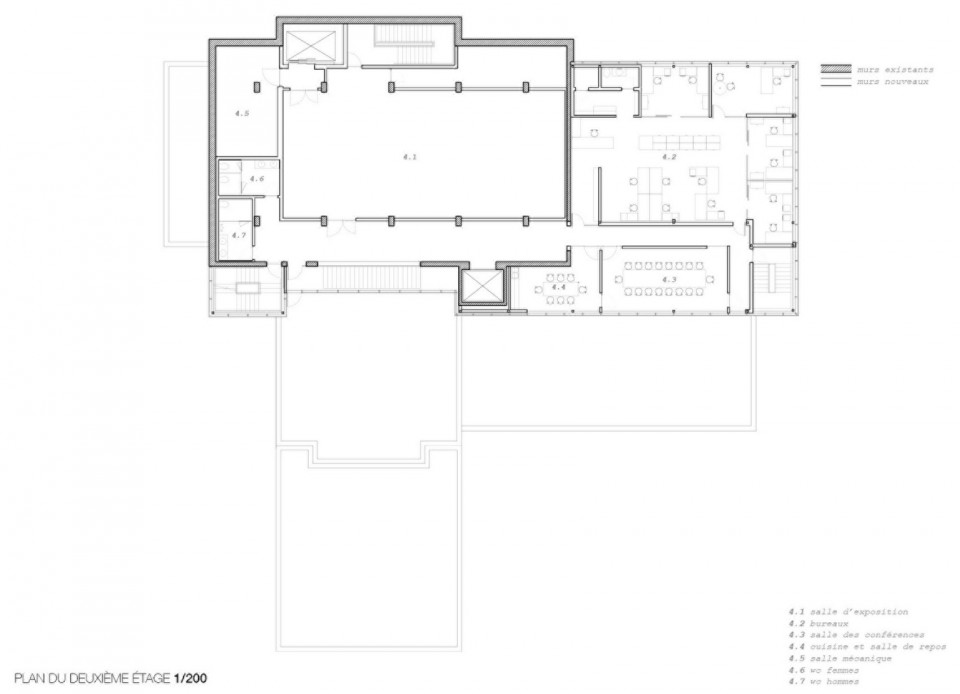

▼四层平面,4th floor plan

025-Joliette art Museum by Les architectes FABG

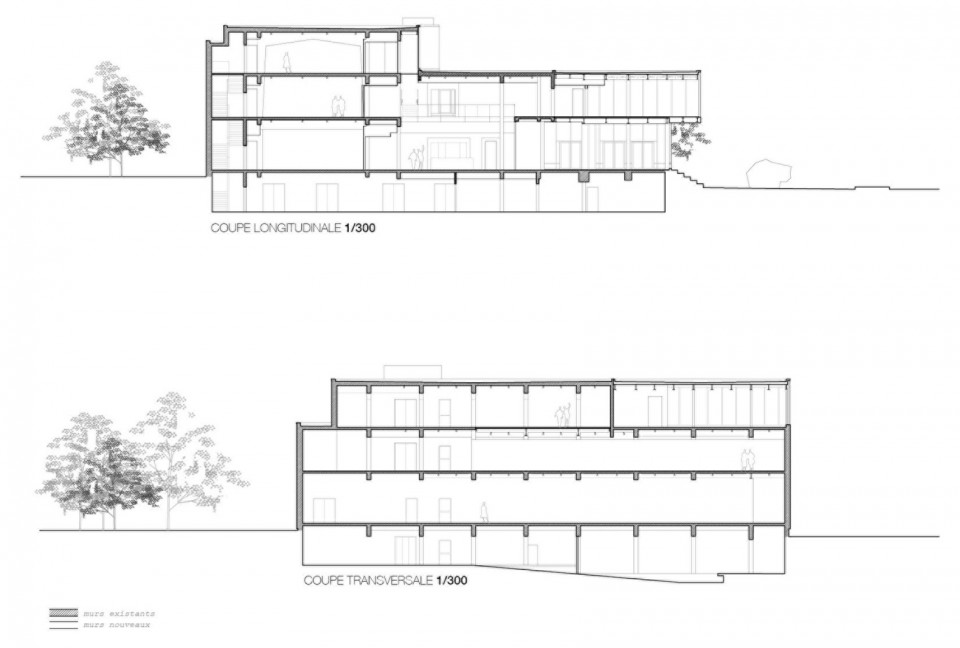

▼剖面,section

026-Joliette art Museum by Les architectes FABG

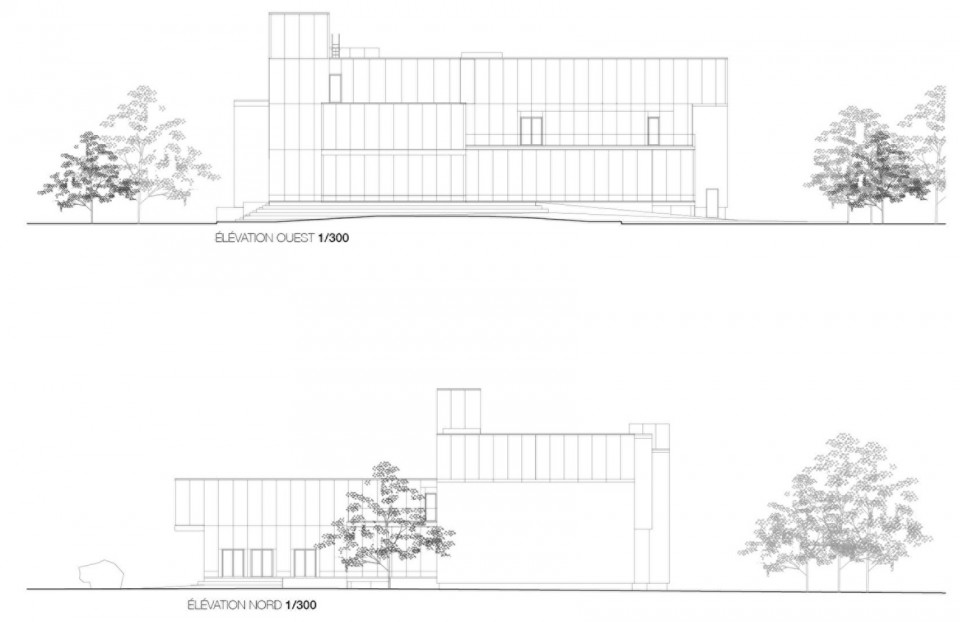

▼立面,elevation

027-Joliette art Museum by Les architectes FABG
