Iiyama Cultural Hall by Kengo Kuma and Associates

Express the traditional Japanese architecture with modern architecture technique.

Project Specs

Location:
Materials:

非常感谢 隈研吾建筑都市设计事务所 将以下内容授权gooood发行。更多关于他们:Kengo Kuma and Associates on gooood
Appreciation towards Kengo Kuma and Associates for providing the following description:

由隈研吾设计的饭山文化中心位于长野饭山县,建筑不远处便是2015年开通的北陆新干线车站。这个文化综合体由两个礼堂和一个社区中心组成,不同的功能区之间是宽敞的过道空间“Nakamichi”。建筑师以带有屋顶的拱形游廊“Gangi”为原型,将这种常见于日本多雪地区的传统建筑形式以现代建筑的手法演绎出来。建筑的屋顶部分由木材和钢材的混合结构支撑起来,此外也利用了本地的木材、夯实的土壤和当地生产的纸张。建筑师用朴实的材料和开放的空间营造出一种不常见于公建设施的温馨氛围。建筑的立面采用了COR-TEN耐腐蚀高强度钢和日本松木,起伏的造型让建筑与其后的绿色山林相得益彰,宁静安稳的形象与附近高速通过的铁路形成了鲜明的对比。

The town of Iiyama is located in Nagano prefecture, whose Japan Railway station lies on the Hokuriku Shinkansen line, which started its service in 2015. The project is a cultural complex of two halls and a community center, and we connected the spaces with an interiorized passage which we call Nakamichi.

We got a hint from roofed arcades called “Gangi”,  which can be found in snowy regions in Japan. Its intimate space formed by a wooden frame and “doma (earth floor)” was revived here as a modern version of Gangi.

The roof of Nakamichi is supported by mixed structure of wood and steel. The entire space is made of such elements as locally produced timber, soft and moist floor like natural earth, washi paper made by local craftsmen, and creates an atmosphere that could not be felt in a typical publicly-funded facility often described as a closed box.
The whole building is shaped like a hill and covered with a façade of COR-TEN and Japanese larch, morphing into the green rise at the back, making a contrast with the trains running nearby.

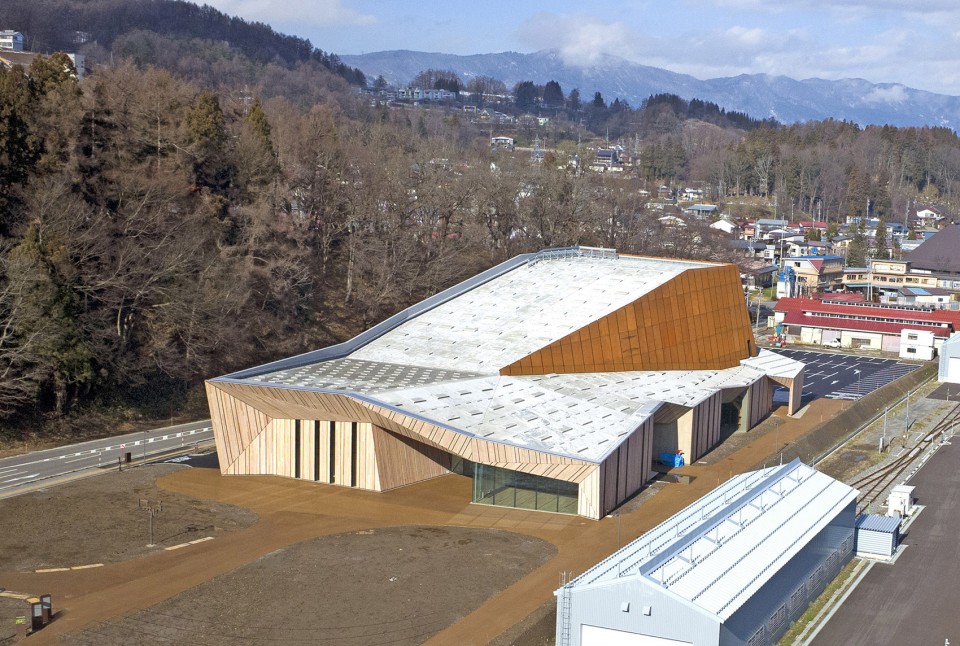

▽ 起伏的建筑和身后的山林,building and the green rise at the back

001-Iiyama Cultural Hall Nachura by Kengo Kuma and Associates

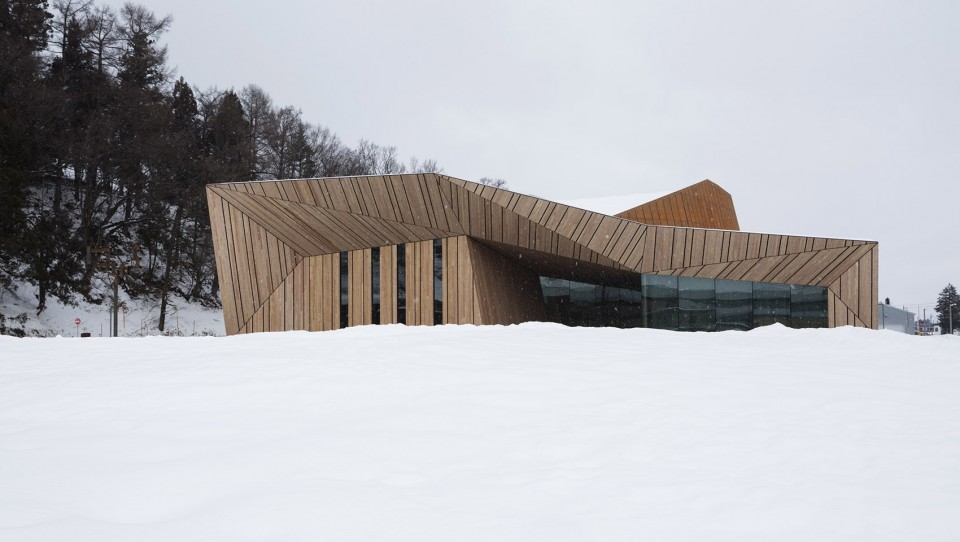

▽ 雪地中的大地色建筑,building in the snow

002-Iiyama Cultural Hall Nachura by Kengo Kuma and Associates

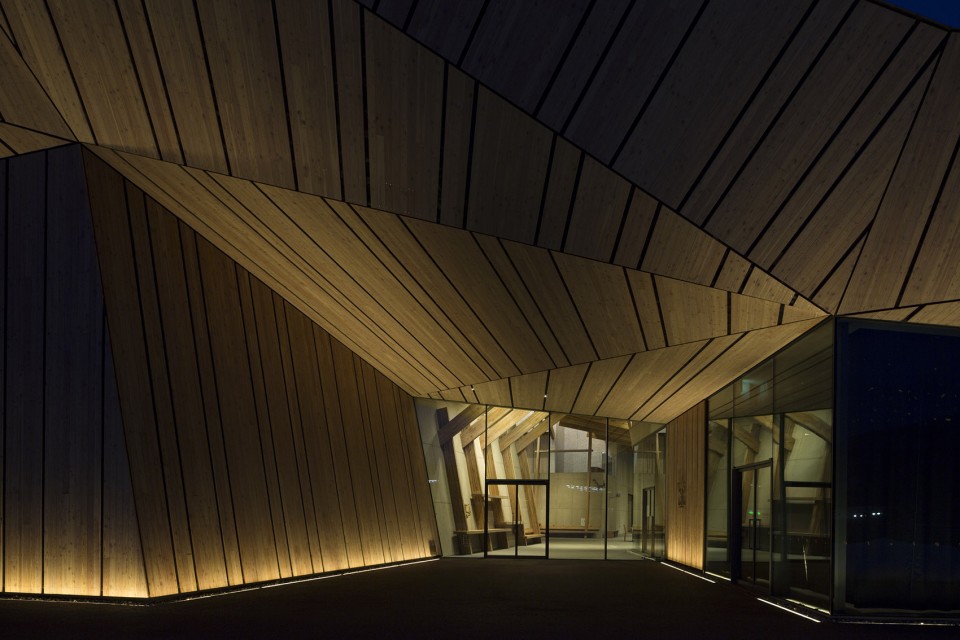

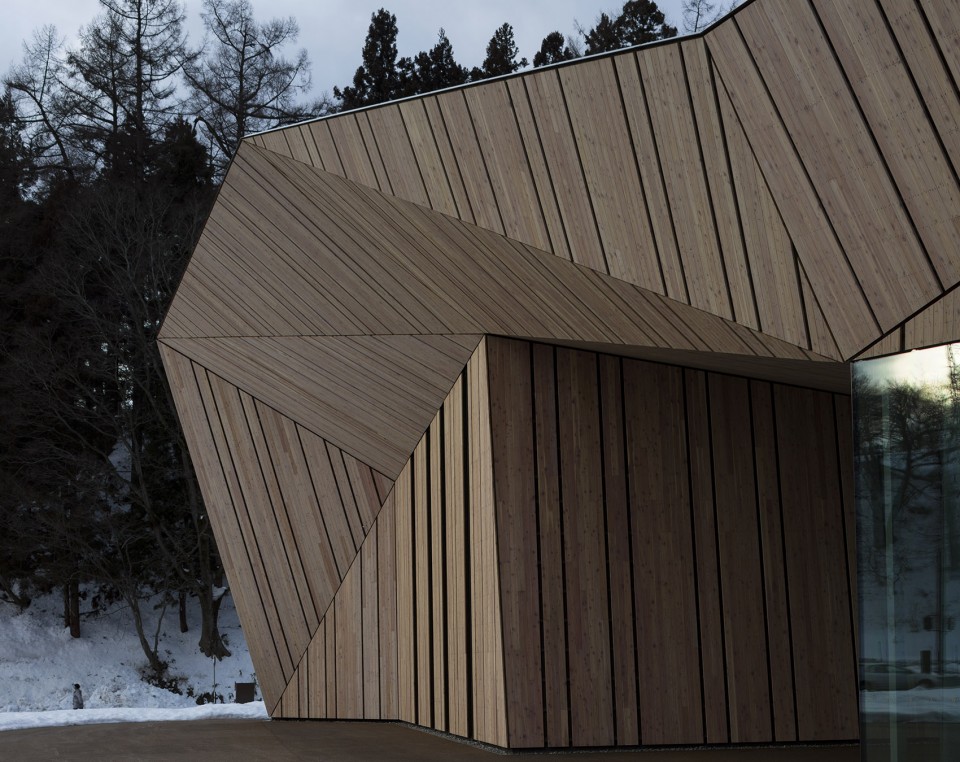

▽ 日本松木立面,facade of Japanese larch

003-Iiyama Cultural Hall Nachura by Kengo Kuma and Associates

004-Iiyama Cultural Hall Nachura by Kengo Kuma and Associates

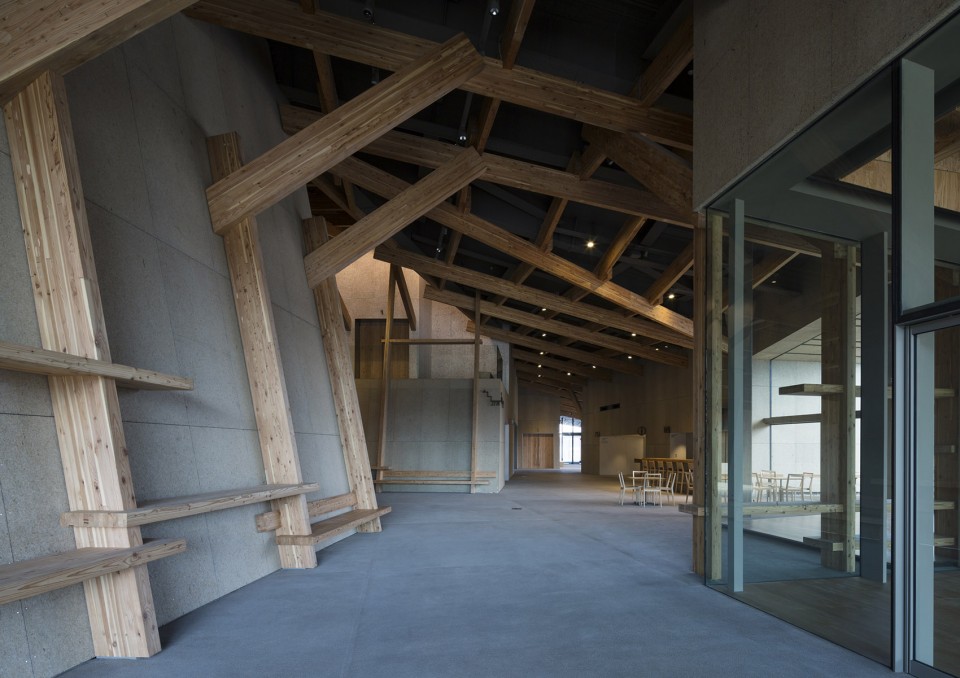

▽ 木材、钢材混合结构支撑起的过道空间“Nakamichi”,Nakamichi supported by mixed structure of wood and steel

005-Iiyama Cultural Hall Nachura by Kengo Kuma and Associates

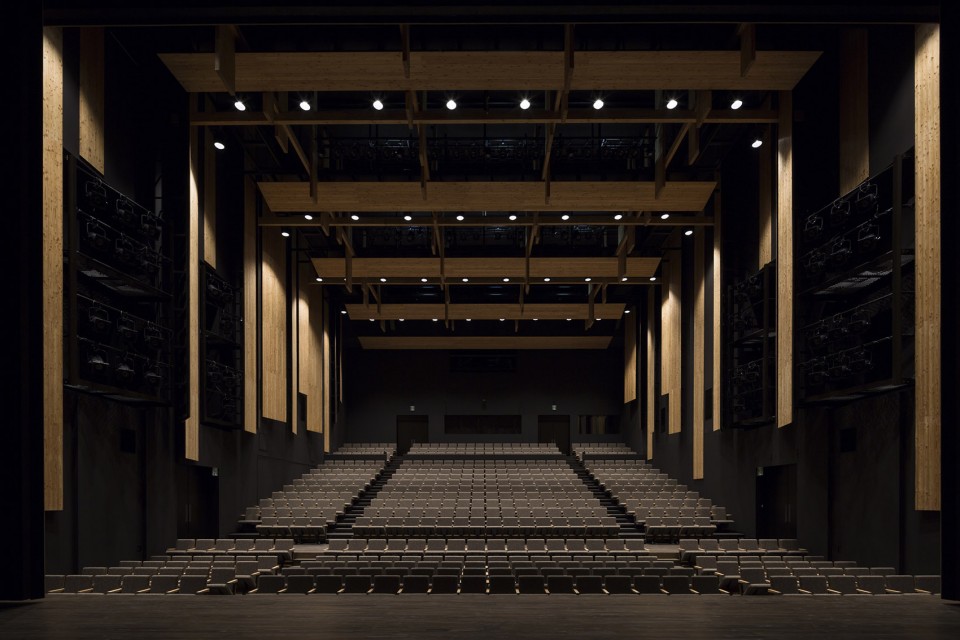

▽ 大礼堂空间,big hall

008-Iiyama Cultural Hall Nachura by Kengo Kuma and Associates

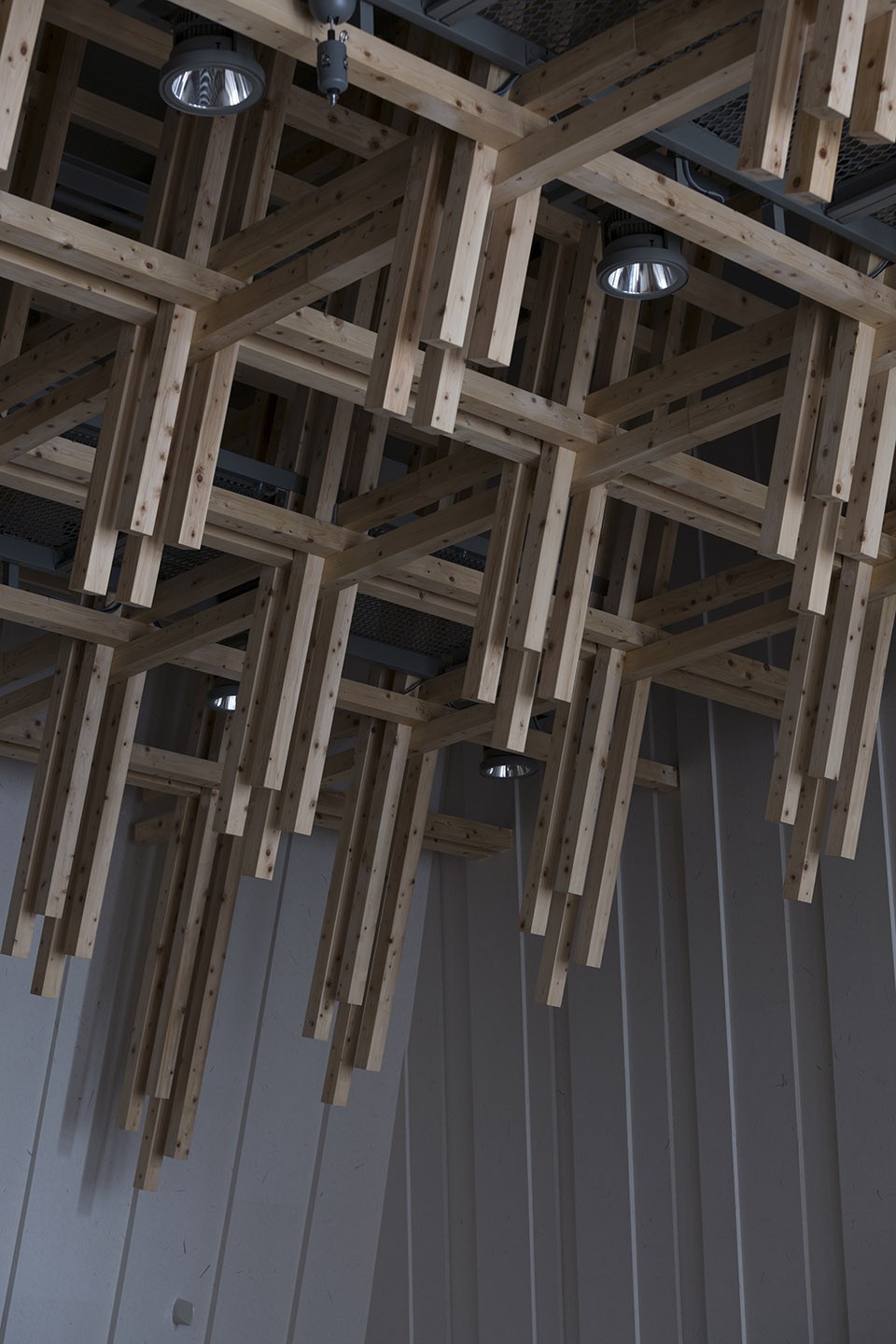

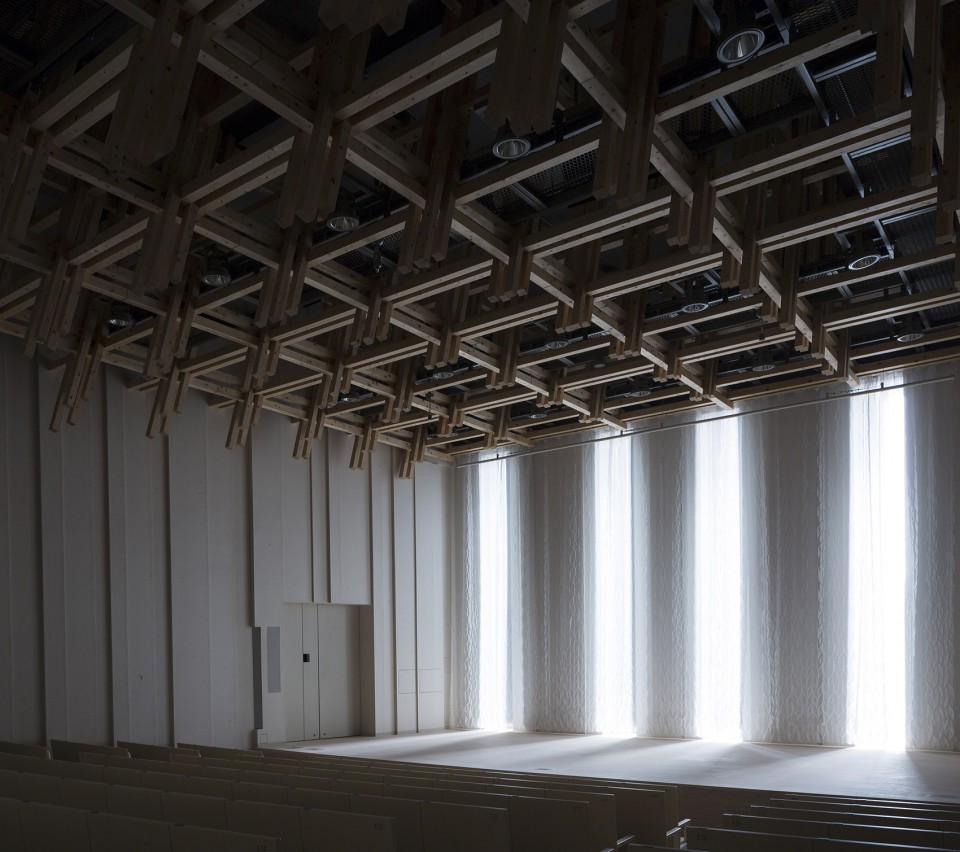

▽ 小礼堂空间,small hall

006-Iiyama Cultural Hall Nachura by Kengo Kuma and Associates

007-Iiyama Cultural Hall Nachura by Kengo Kuma and Associates

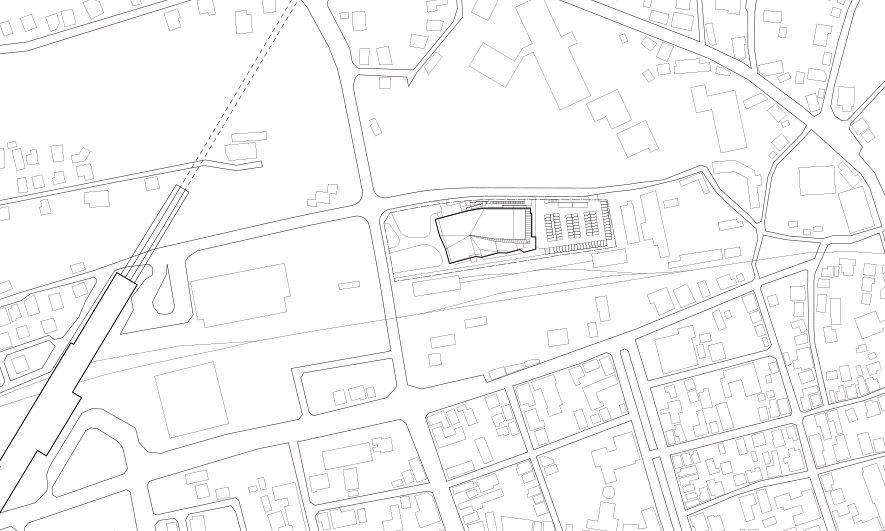

▽ 总平面图,site plan

ICH_配置図_10000

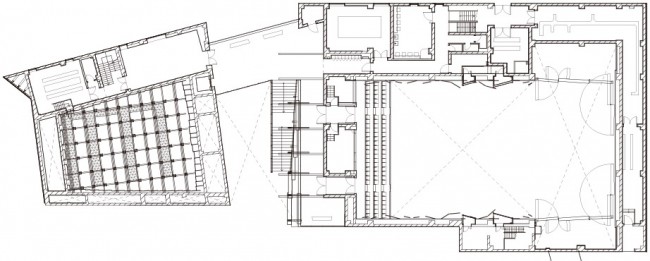

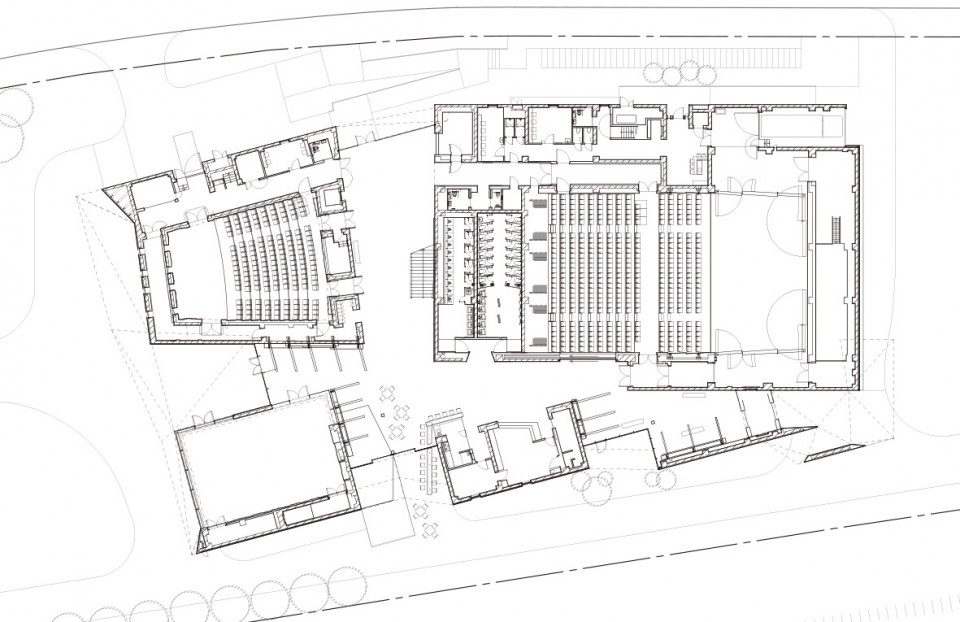

▽ 建筑平面,plan

ICH_平面図_1000

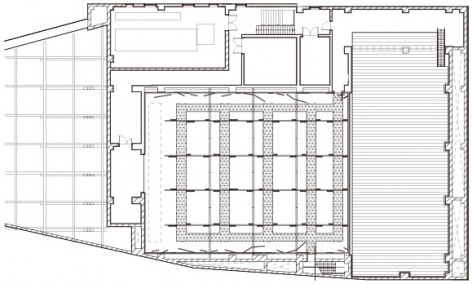

▽ 屋顶结构设计,roof structure

ICH_平面図_1000     ICH_平面図_1000

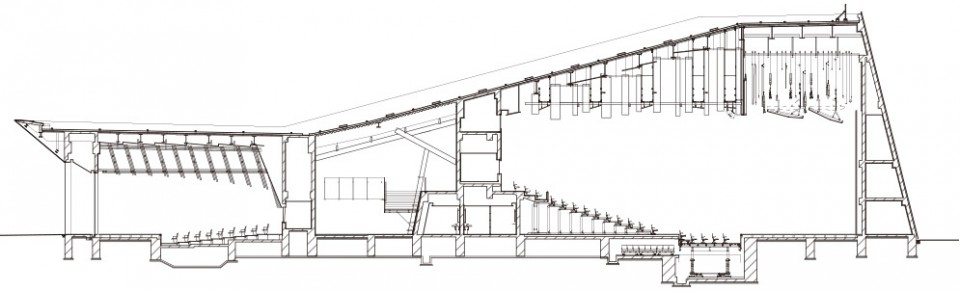

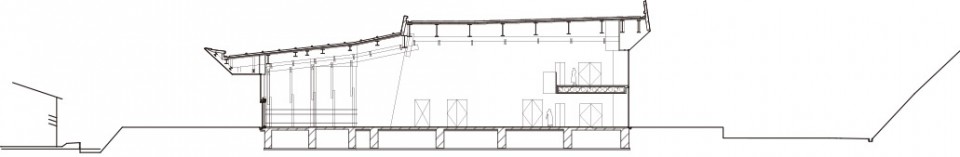

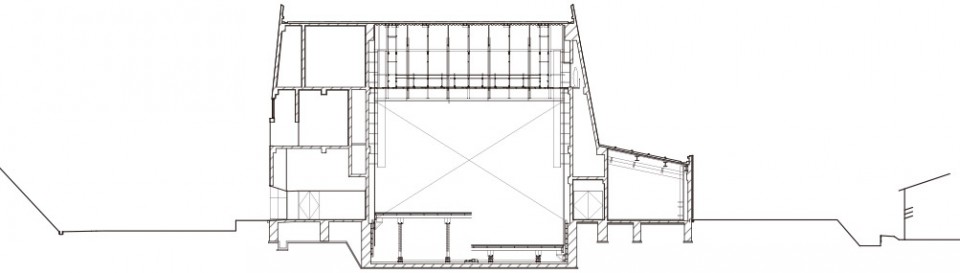

▽ 剖面,section

ICH_断面図_1000

ICH_断面図_1000

ICH_断面図_1000

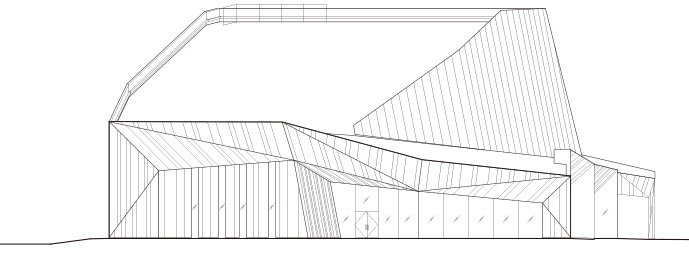

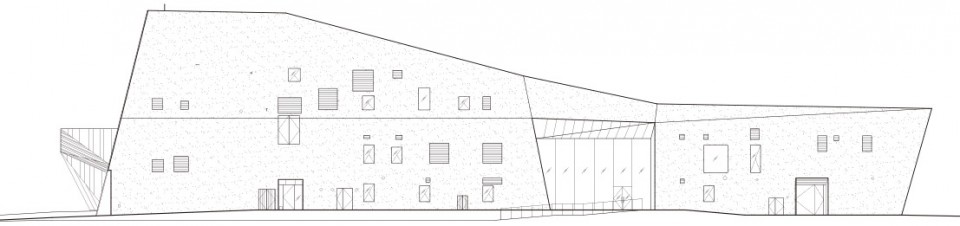

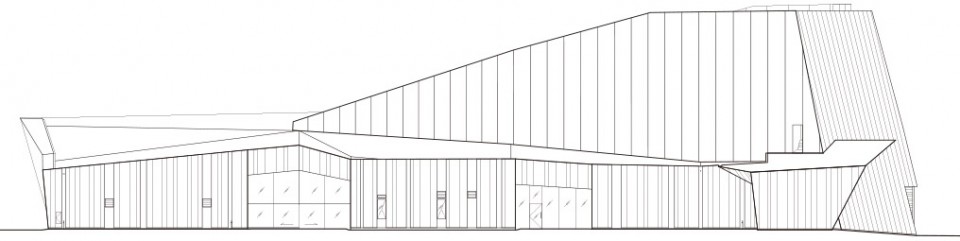

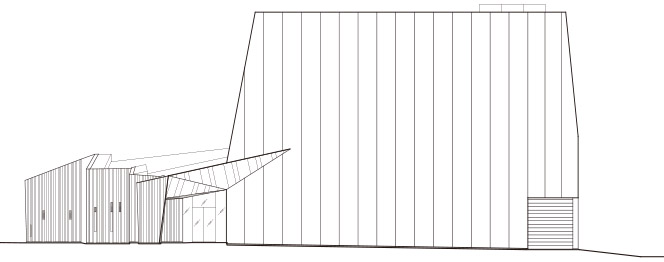

▽ 立面,elevation

ICH_立面図_1000

ICH_立面図_1000

ICH_立面図_1000

ICH_立面図_1000

Project: Iiyama Cultural Hall
Architect:Kengo Kuma and Associates
Plot: 9,926.16 ㎡
Surface:2,863.47㎡
Design: April 2012 – March 2014
Construction: April 2014 – December 2015

Drawings: Kengo Kuma and Associates
English Text: Kengo Kuma and Associates
Chinese Text: gooood
