Home Café / Penda

A cafe that allows customers to breathe fresh air in a misty city.

Project Specs

Design Firm:
Location:

非常感谢 penda 予gooood分享以下内容。更多关于:penda on gooood
Appreciations towards penda for providing the following description:

PENDA DESIGNS A CAFÉ TO TAKE A DEEP BREATH

槃达建筑(PENDA)新近完成了一处能够让顾客在雾霾笼罩的都市中呼吸到新鲜空气的咖啡馆——鸿咖啡。咖啡馆内部由建筑钢筋搭建起来的栅格结构分隔内部空间,同时在栅格中融入盆栽、书柜及灯饰等多种功能,营造了一处温室花园的氛围。在这里品尝一个下午茶,不仅舒缓了都市的紧张节奏,同时也获得了回归田园的生活体验。

在北京,人们习惯了加班、堵车同时也习惯了PM2.5。基于对生活环境是反思,槃达建筑受北京鸿坤集团委托为其名下品牌鸿咖啡提供室内空间方案设计。鸿咖啡首两家店分别落户于河北涿州和天津武清,并有望推广至中国其他城市。设计师希望能为今天雾霾笼罩的城市营造一处不仅能享受美味咖啡,而且还能呼吸到新鲜空气的室内环境。

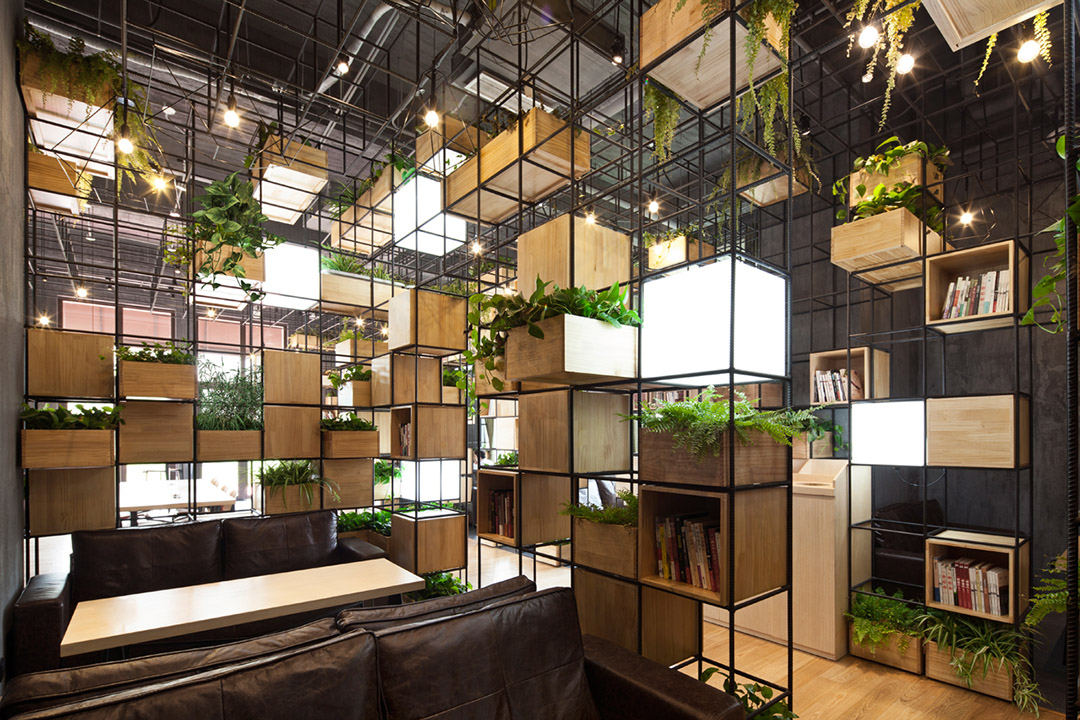

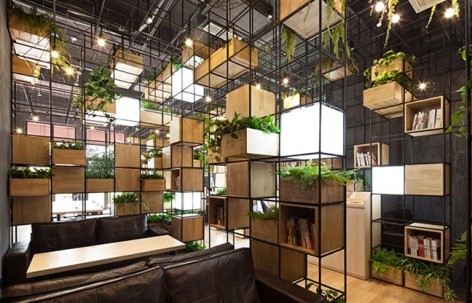

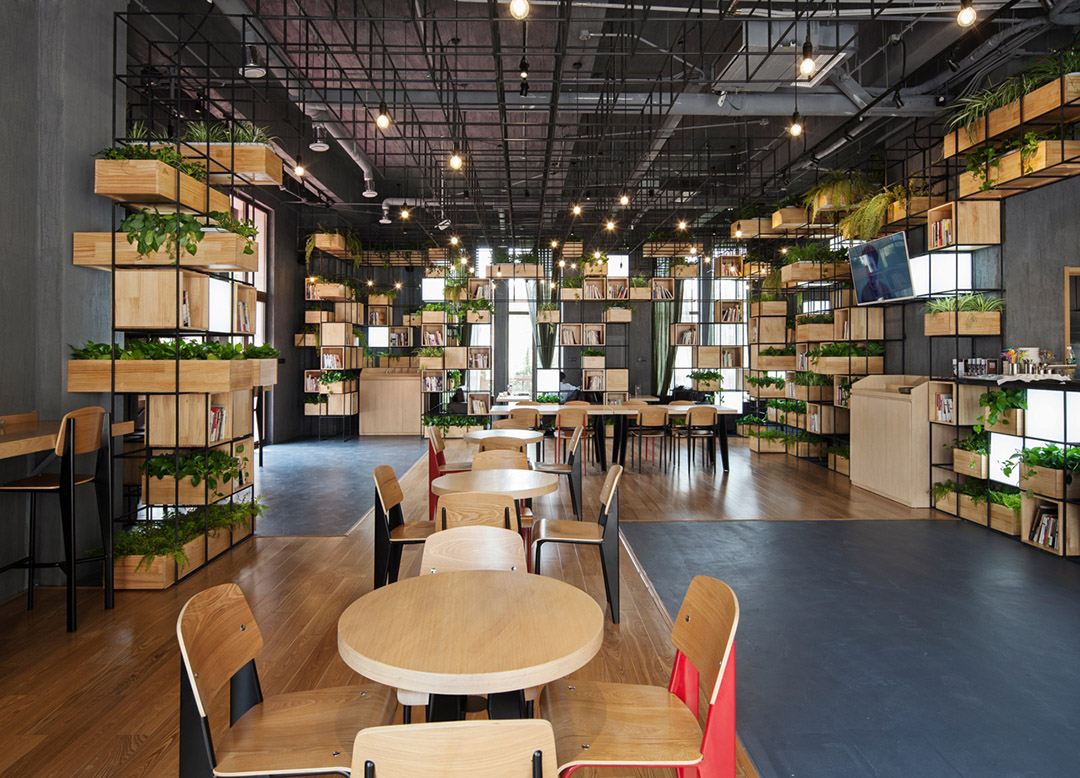

Constructed with recycled steel bars, the modular dividers shelving plants, books and lights give Home Café a hybrid of industrial and horticultural touches.

Beijing, China, 2014/08/25 – Penda has been commissioned by the Beijing-based property developer Hongkun to lay out a concept for its café brand Home Café with potential to spread it throughout China. The café chain will incorporate various concept versions to offer spaces to breathein heavily polluted areas of China. Two debut locations opened its doors in Beijing and Tianjin. With air pollution being a major issue in Chinese cities, Penda decided to create a café for visitors to take a deep breath of clean air.

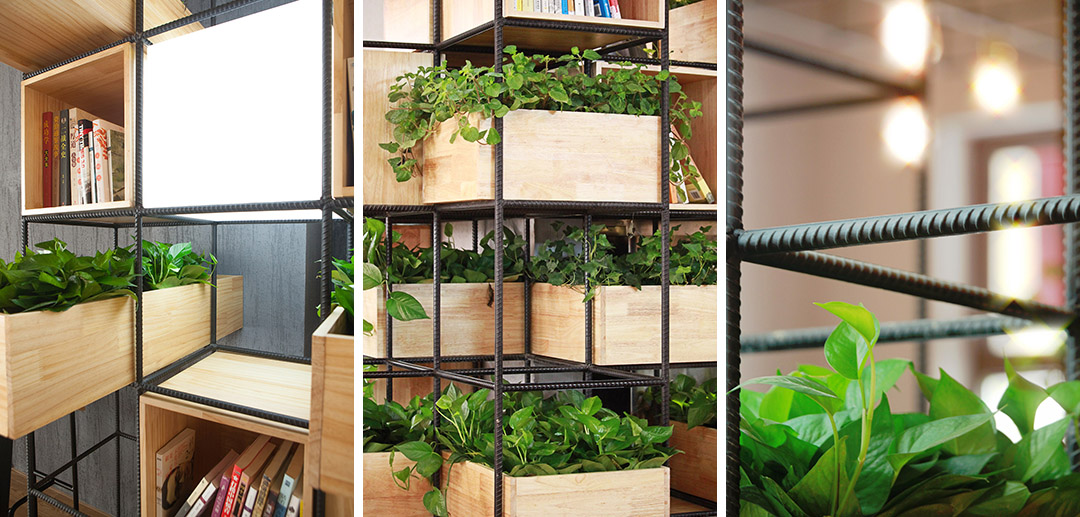

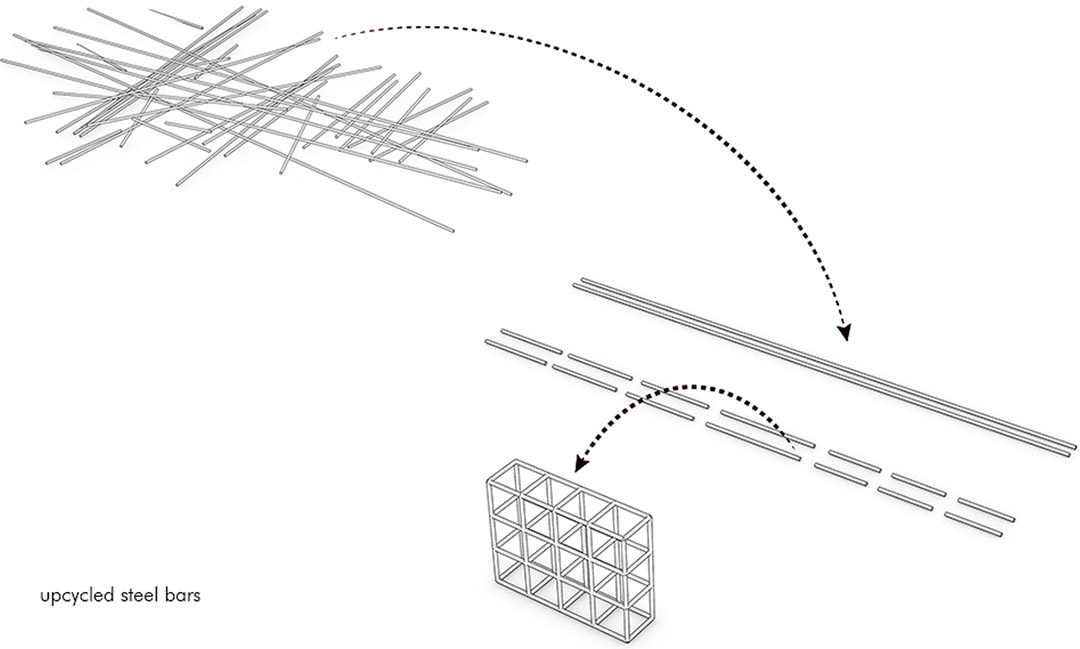

Steel bars are upcycled to become a main interior design feature. Commonly hidden within a building’s structure, steel bars are brought to light as a main design feature in Home Cafés. The reused steel bars are  painted black, connected with each other and constructed as a grid that defines the appearance of the cafés.

/wp-content/uploads/2014/08/_c_qAqYQWH0cdDb3UdUvrv5w3TSUldywD2i5uQ8hY0mguniI3UasprvipNMPI-gaG6iUYAaOrCMI6FzConbz-9mRQY8Uf8sWAoS.jpg

通常建筑用的钢筋被转换为室内的分隔材料
钢筋通常隐藏于建筑结构墙体中不被人所见, 然而在重新涂成黑色并交叉搭建成网格系统后在鸿咖啡里却成为室内的焦点。使家具结构与建筑结构融为一个整体。塑造了空间整体性同时也让有限的空间变得更加深邃。

模块化的系统提高了咖啡馆灵活性
基于模数化的钢筋框架成为空间的主要分隔结构构架。单元化定制的木盒可以满足不同的功能需要,构架上可以放置深度不一的书架、绿植及灯饰。这个结构为空间提供充分的灵活性,来适应不同的地点、不同的结构和举办不同的活动的功能需要。

绿植让咖啡馆成为了一处室内氧吧
构架里种植了丰富的绿色植物来营造一个田园的氛围,其中的植物选择如吊兰、绿萝和剑蕨等都易打理、同时带有空气净化功能, 还有一些箱子里种植了调味用的香草。这些植物与新鲜调制的咖啡一起为鸿咖啡创造香气芬芳的舒适环境。粗糙的混凝土墙面、皮制的沙发和木质桌椅还有新鲜调制的咖啡为顾客带来一种回归自然的感官体验,使鸿咖啡成为城市中的一片小绿洲,不仅能吸引顾客前来品尝咖啡,并能在舒适健康的环境中度过一个悠闲的下午。

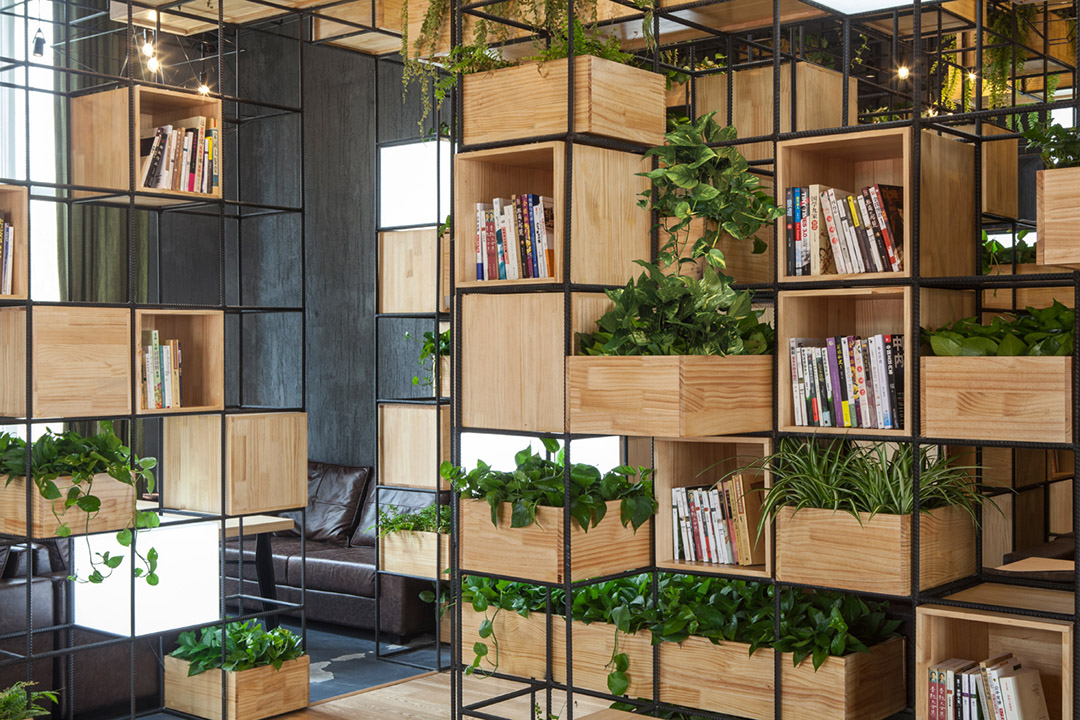

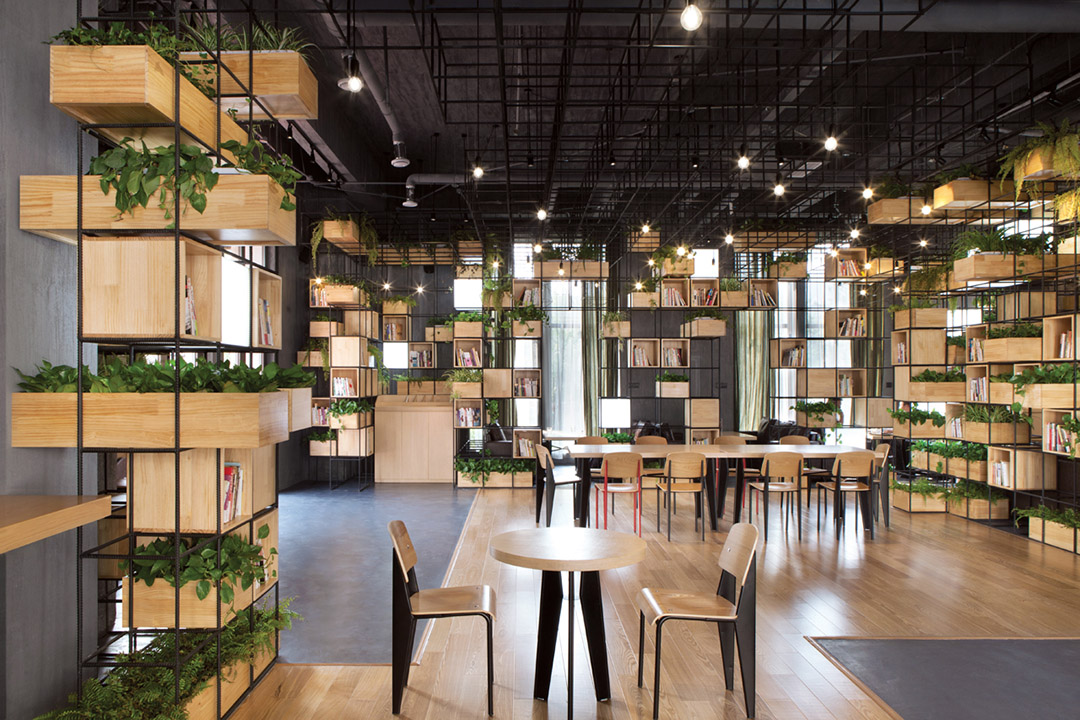

A modular grid system and its various fillings offer flexible reconfiguration for the café.

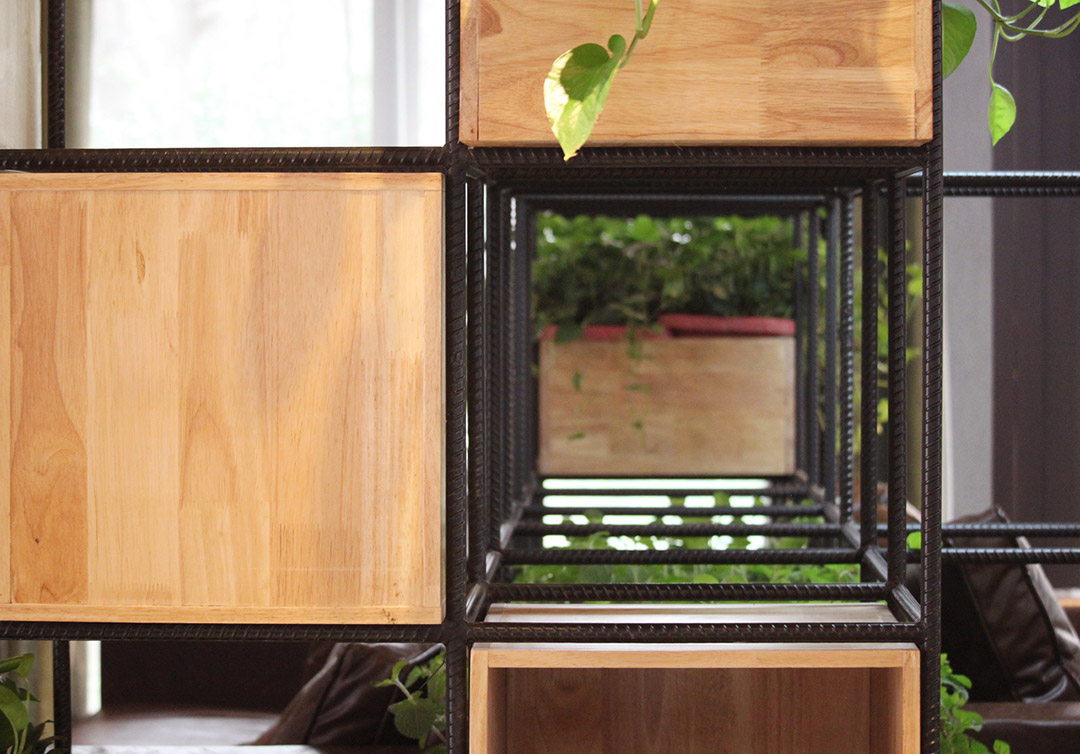

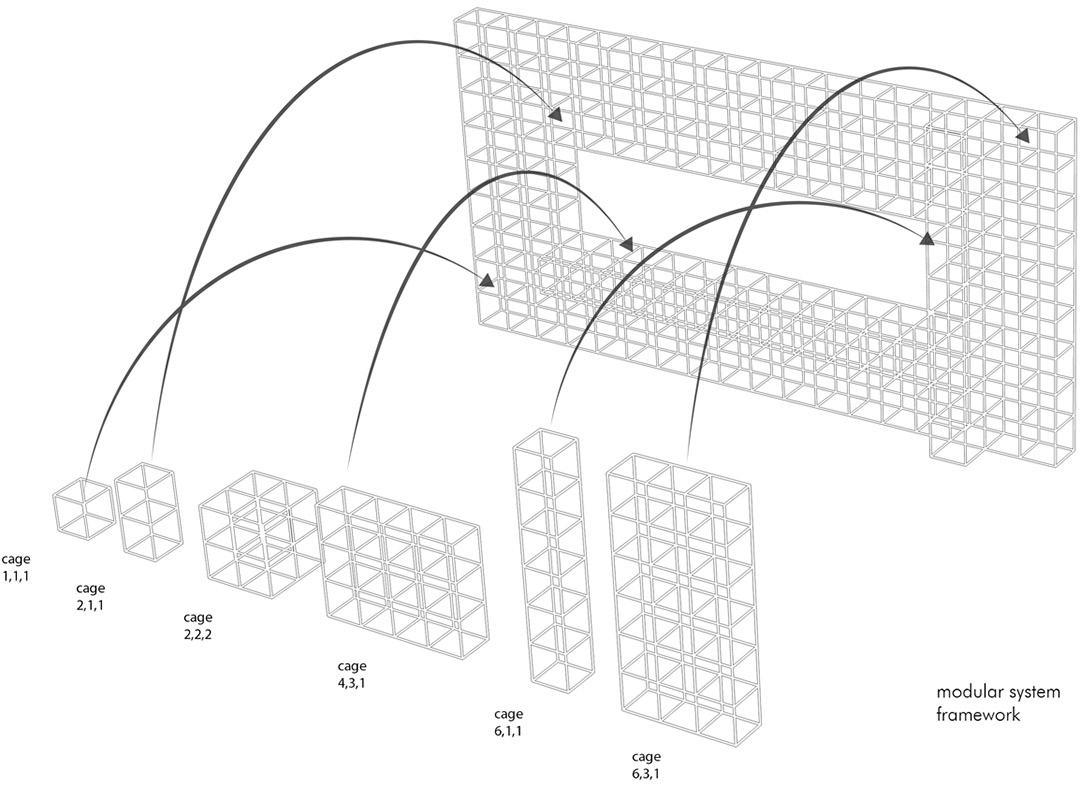

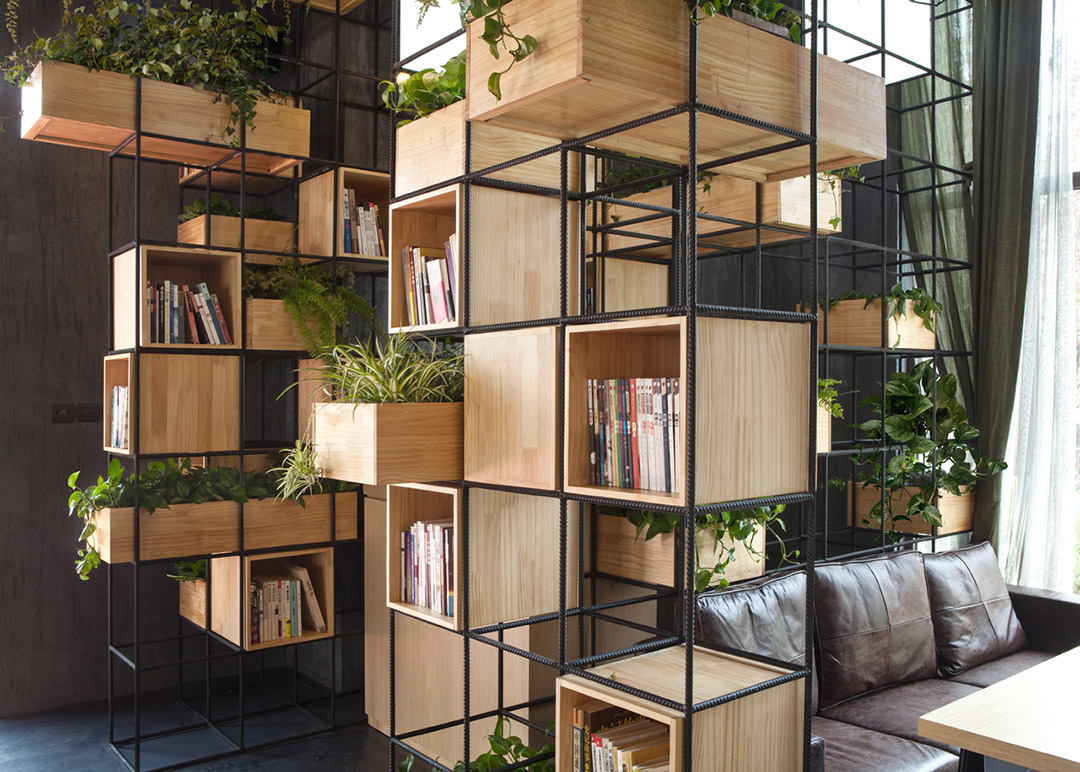

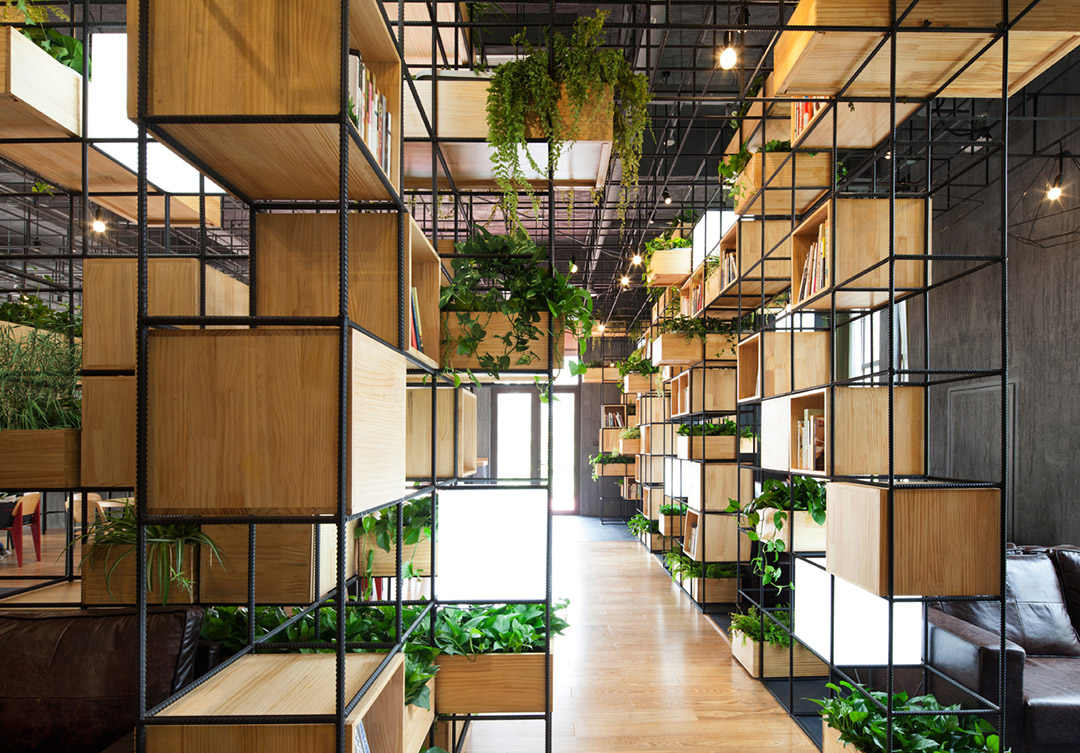

The steel bars create a series of cubic frameworks, which can be combined to shelves of different sizes. This gives the owner freedom of reorganizingthe grid or even reusing its parts for a different location.

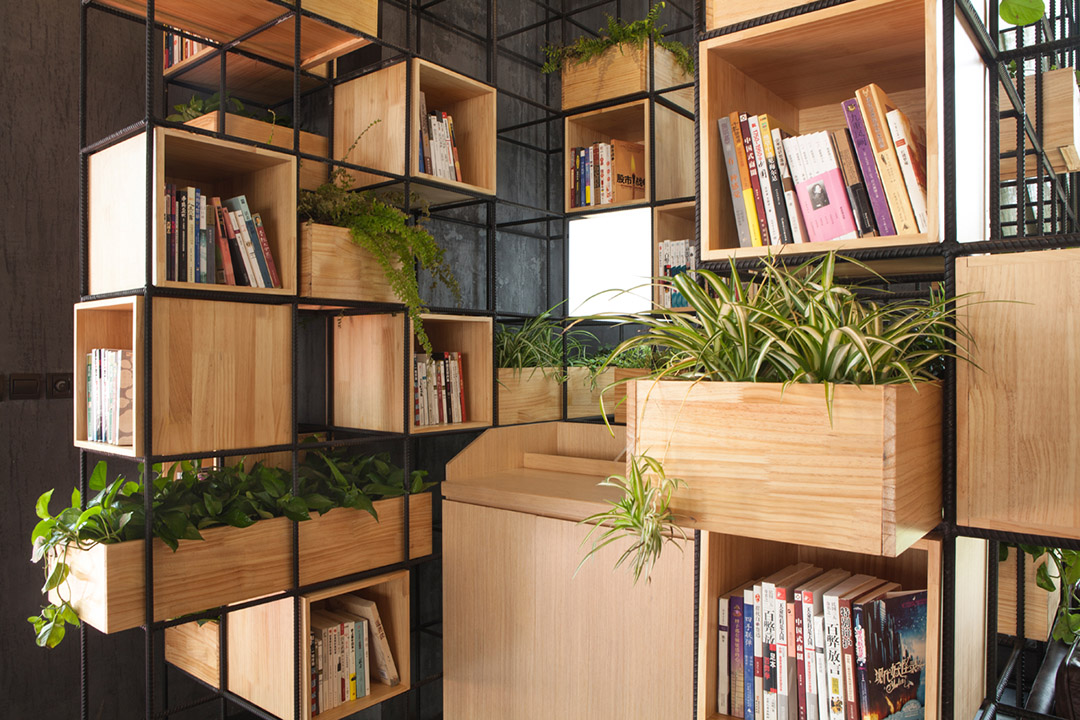

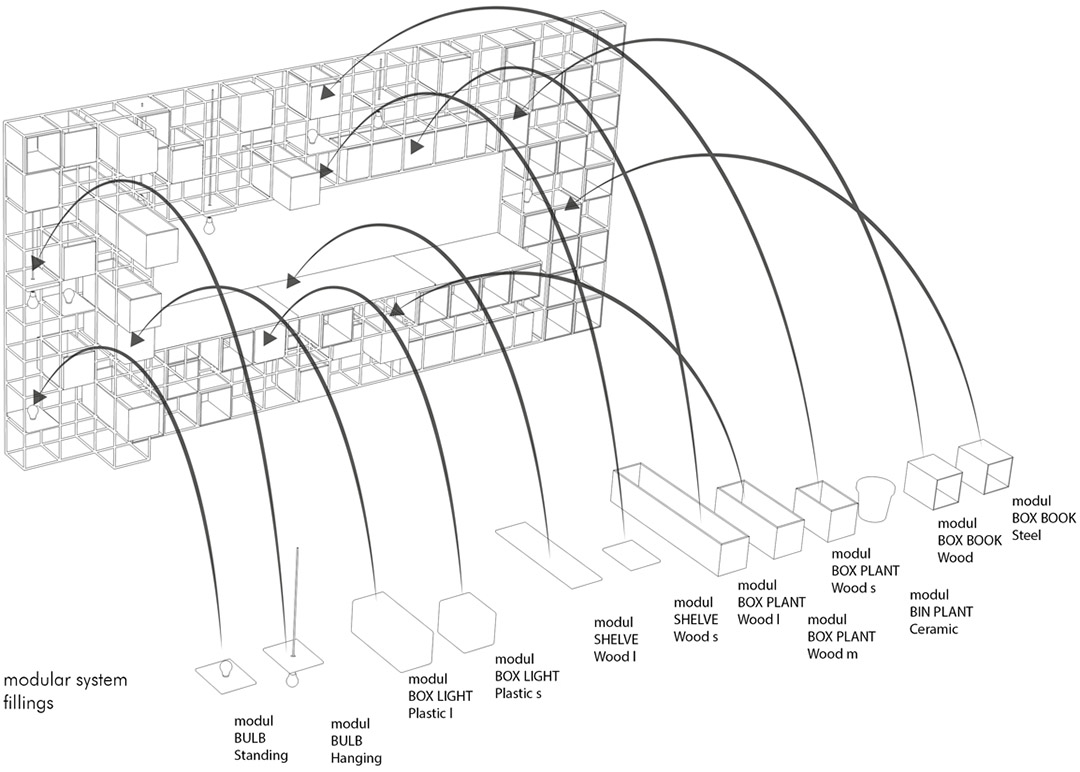

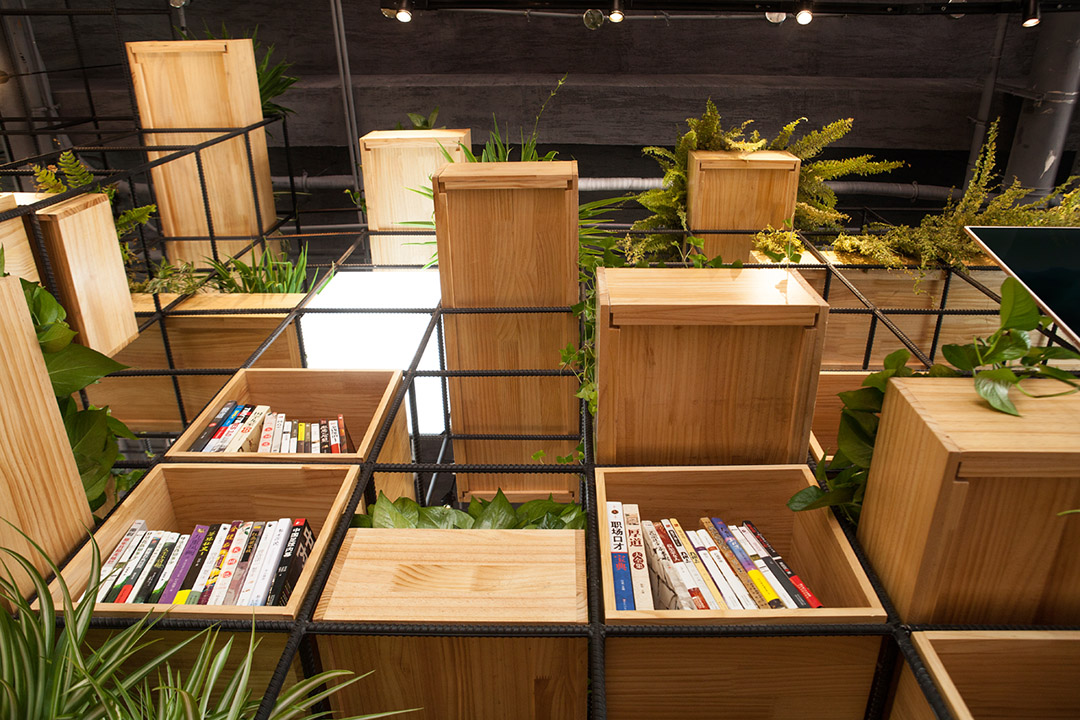

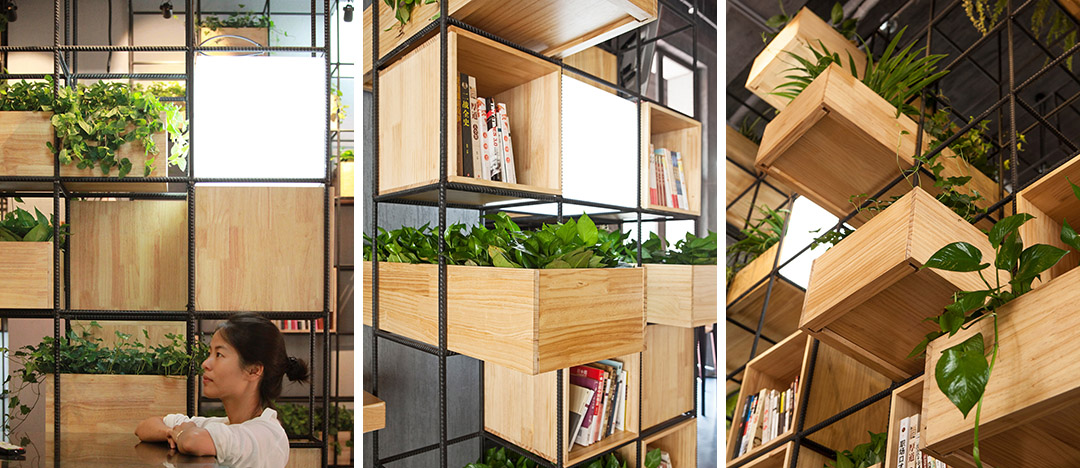

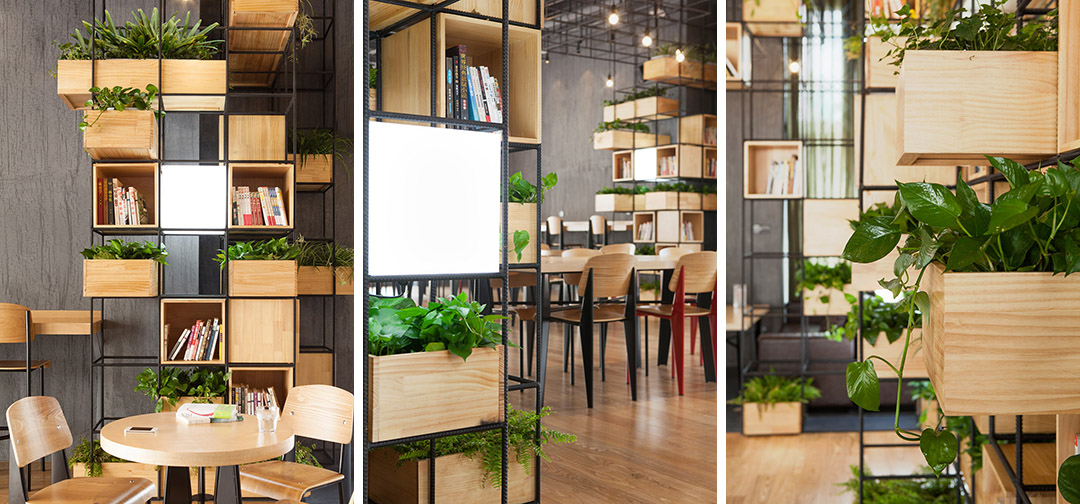

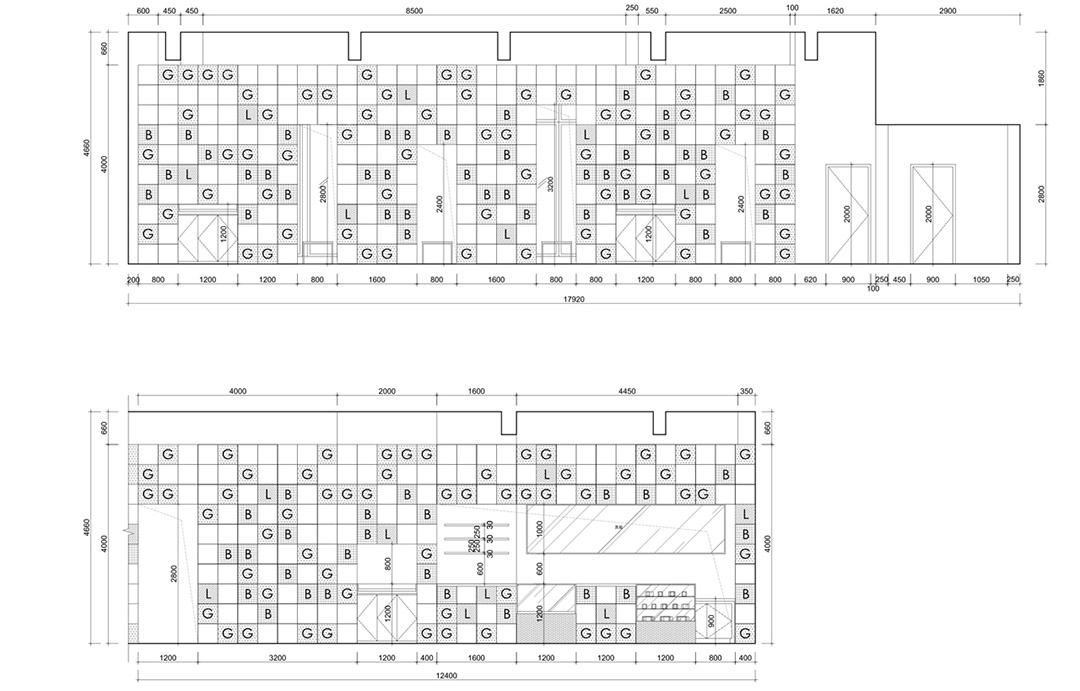

The structural grid offers a space, where various cubic elements can be implemented. Boxes of plants, books, and lights on different levels create various densities for the interior. By organizing the cubes, the modular system allows a flexible assembly for different occasions.

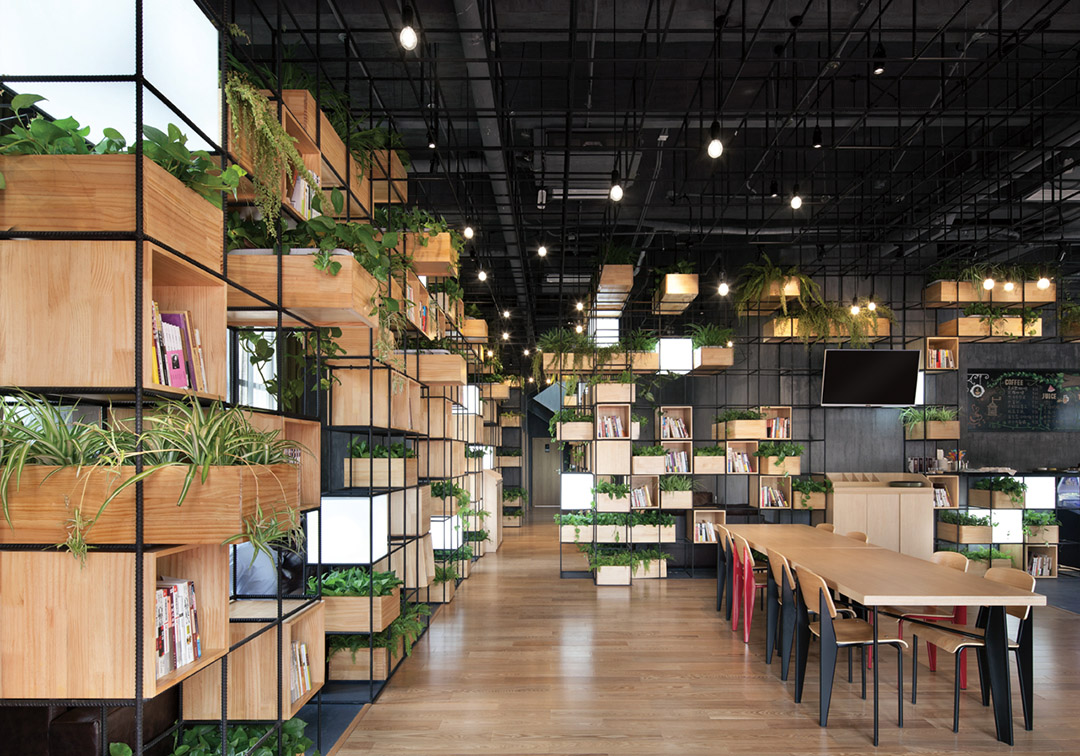

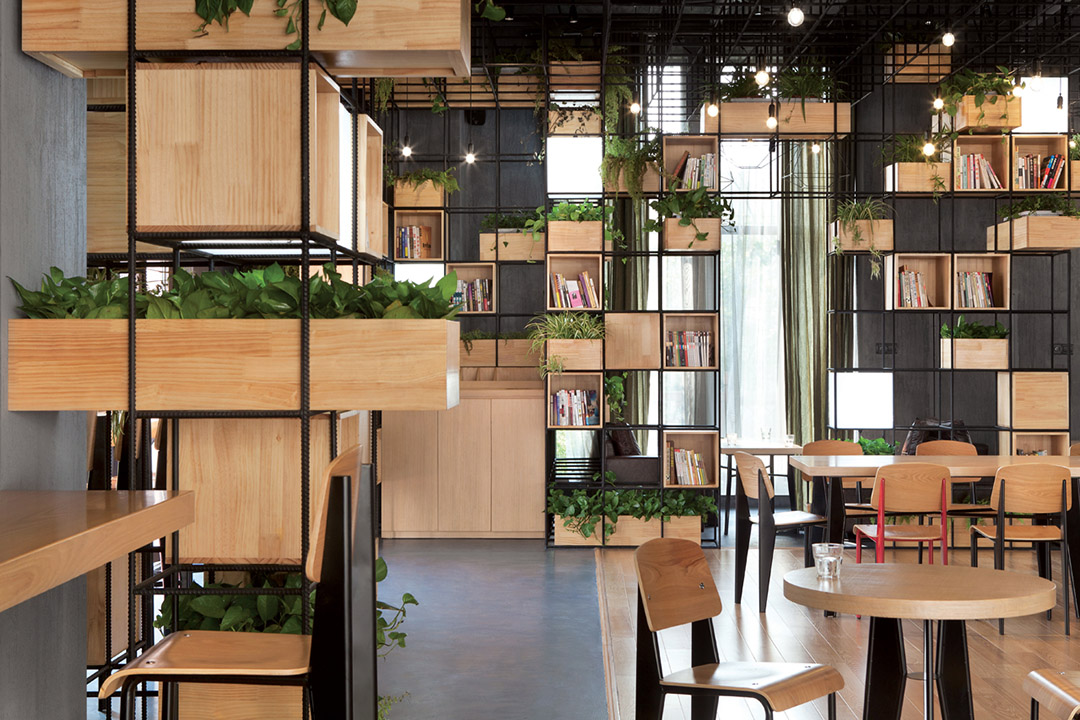

The plants in the café offer visitors a space to breathe within a polluted city.

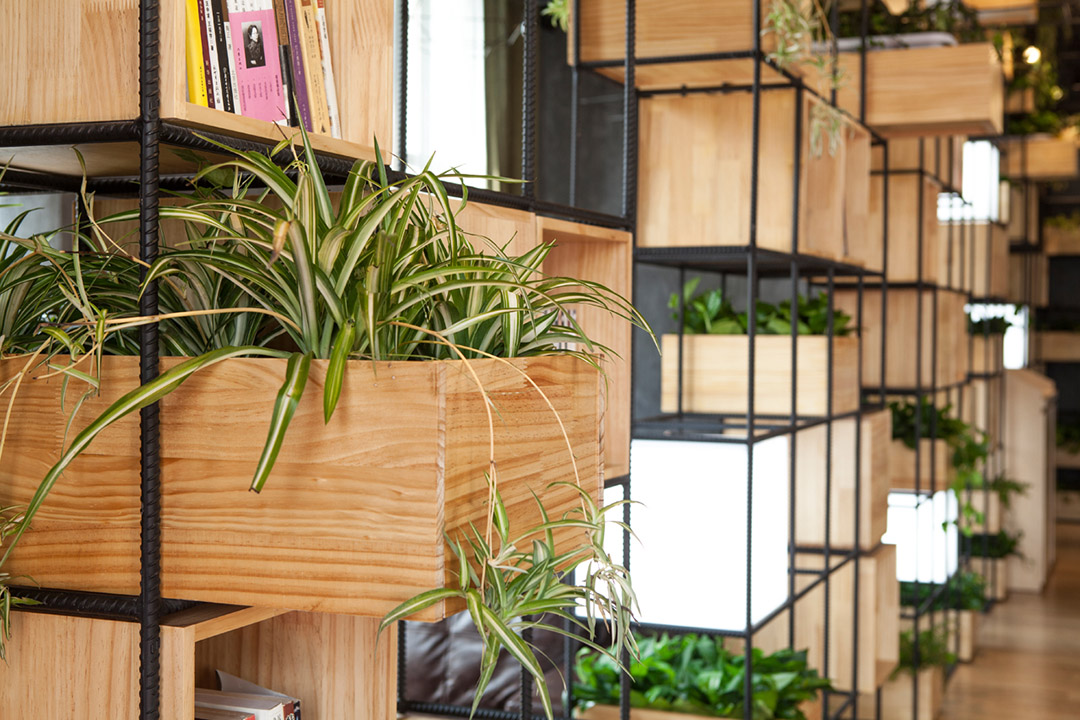

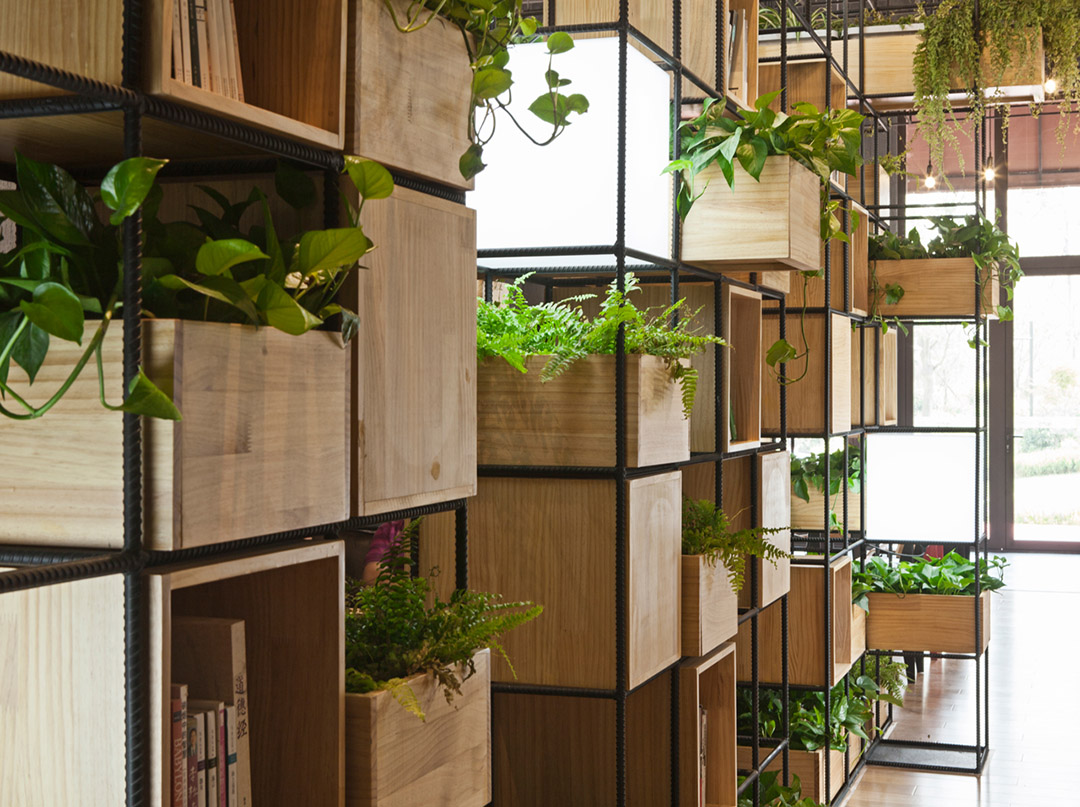

Many of the wooden pots are filled with air purifying and easy-to-grow plants such as spider plants, sword fern and marble queen. Other pots containa wide range of herbs, along with freshly brewed coffee to produce an aroma-rich environment. The space connects directly to all human senses: roughplaster wall, leather seatings and wooden furniture – touch, premium coffee and cakes – taste, the plants and herbs that offer visual and aromatic highlight. The café will welcome people to come in not only for quality coffee, but also to enjoy a green oasis in the midst of a polluted city.

/wp-content/uploads/2014/08/_c_DXna-DNEX9yCw-q18oGPiONsMXjeI6ufBV6I_1WS_0ptf4pzA2LECsNIClcMdZm3Y2A6vld5WgaXy8fL2tXkdMVNyLgJRZOk.jpg

/wp-content/uploads/2014/08/_c_ziGePyyRFLdms5uWhvQyLN64Un06xBQQMR26iYQcJD-JZCimCUAi7xartzwMgYOBF2Gz5YWNE3KPtAPWf_3mZPmHe43jbs7b.jpg

咖啡馆随着植物的生长带给常客们持续变化的视觉享受
攀岩类的植物将随着时间的推移慢慢沿着钢筋构架生长,逐渐地覆盖部分钢筋并成为咖啡馆里又一焦点。使室内空间与室外空间的界限打破,客人每次惠顾都会拥有新的感受,并留下新的回忆。室内的环境中同样可以体味四季的变换。咖啡馆记录着来到这里的人们生活中的点滴,同时也成为人们生命中一部分。

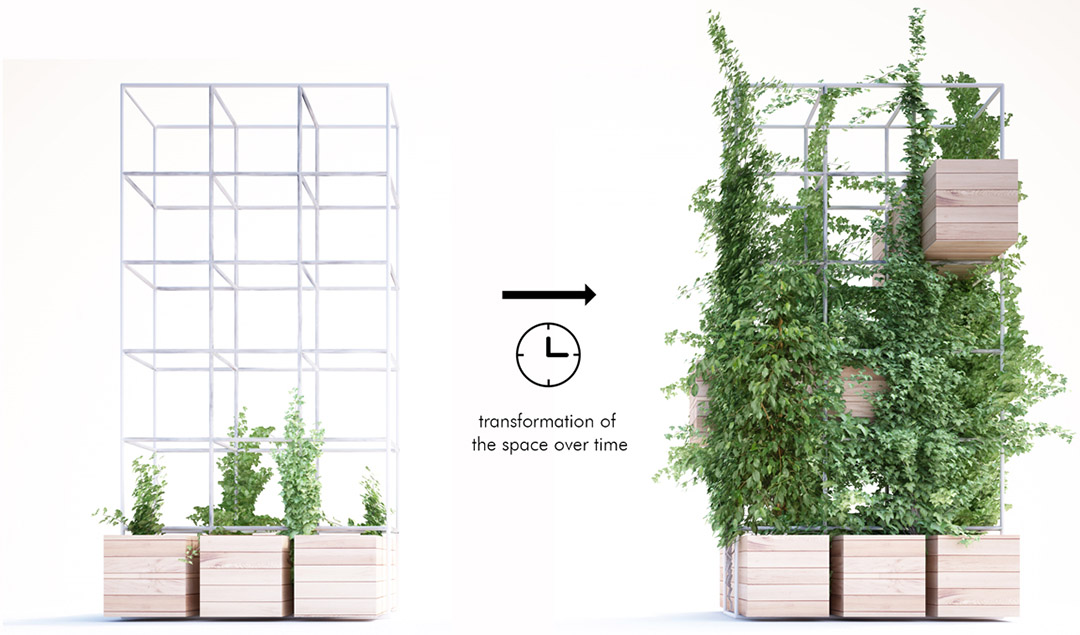

The growth of the plants will offer a varying appearance for returning costumers.Vine plants and ivy are seeded inside some pots. As they grow along the framework and slowly take over the steel, the plants will become a main design feature of the cafes and attract customers to return to a constantly alternating space.

/wp-content/uploads/2014/08/_c_m1tiSS6Onto7y2j-X3AS4b8l_mXvz9yUuC1x4hVovsOfaDSEY2KWXgyKMPB-jLxxmzgoBACkDilpmK5V58LXdz1rRz0IRE8Z.jpg

/wp-content/uploads/2014/08/_c_s7yZ4he2F1wH6jrBCRDkPZnyOf7VE4LUzwNDieFn0b8wXp4nkhNh7Qxfd4yU2WpjKiT1BUWijd3omfM5tECuFsiHRgvCC4_-.jpg

/wp-content/uploads/2014/08/_c_n6O1Xuyv57i3FafrXVrhNUogkuurTlzt8bWy6IlzLpPtp9RLai7ZIj0-BrLxLn70qvxqjQQB3pZNMl1HLy-P6bhPc-st62HN.jpg

/wp-content/uploads/2014/08/_c_gaHuXq9hnXcZ4wFE37_V66EZBewupoMFAc70MUeCB-z2xplR5v4HHVkDBsA5cvI8zGjx4fciKVThixfeNBmSkRbJ4NshuxGR.jpg

/wp-content/uploads/2014/08/_c_xjjdOdqmEM-dmXO95OK7CWEwGTgMpQfJWD6zUIreegp9jnTMUNrMtkHYeENaynYQjiBR1uXTsyWYr_STsPfEJTatKW3QsfOp.jpg

/wp-content/uploads/2014/08/_c_ImitNcvVlMJ-7qnVfrBLu6lDW8MY9-tG_YcrtJcdObDImrrWzSIkH6MSlqzwp3yJK1ehmECG6v63kCqU-2RIHfeW6QM9fKnj.jpg

/wp-content/uploads/2014/08/_c_A0TCV1JOTpx0_XudDh_rg4VHLMp9xN7AhOzr5iBkPb3E73KRz9MDEqMKlKW64PVUWmVchK_k4jOCLdIljS_0aG8imvF53pR2.jpg

/wp-content/uploads/2014/08/_c_04T4G3vobH9L2Wf1HQQRR6hcUjbMmrD5zqjoYaA1ONWZmlHYK3NSTucPp4Y875Gh3pMuWYQ4jj22dAvd77oZaCQjtqAriUYL.jpg

/wp-content/uploads/2014/08/_c_msisdlr6jXsEv0-g815YtjKdKEeXy2518mmF8uh20imd0veKCRk7UWrJOTAbLiUSkTVooTjqvbGiz07mazi2EbRMWjo8GV_q.jpg

/wp-content/uploads/2014/08/_c_9i4mOtiyKRvG1-2xgkBpACaSJDPE7kZS-FNwklNNgBc6MAgAfxgutuweMAYaO56epZuEvbl_ypaw7gIKWKy_8NSNwiMZBTIq.jpg

/wp-content/uploads/2014/08/_c_yN6bZ52k4Dn8Ht6bmHlteJHophsEjM1Msc1QPwo-Uink9mErJdfIvcr6dFQobyt7Gw_tKAAtmxoRzp5l8rX5Shtwu4P4Trdg.jpg

/wp-content/uploads/2014/08/_c_hdXK6XB5H7VN0vFtEtv5ntM53K9RMbHwHAaHLV-K_kZi34APdyDROak2yYgKnfgG-oUC9c_XjCe5U--WbbEGpPDJSSkTyPLN.jpg

/wp-content/uploads/2014/08/_c_NapYxhzIKwfGZKM4UmdMopywBf46ra3Y1ydQCzaMPeqefdUze8lUGtiYiaQAtl2Kl9hki98xbgCZMV5Re3dRFdF5DGNbQ02F.jpg

/wp-content/uploads/2014/08/_c_zF9Yu6loaGY-rJyNzqvva3LArxzl2emzzQNhVIqm7BTued93sUOSUq2jgZIAxO5RstwlEe_oD-rwQwul1aQp1Cf5lDsM_rGp.jpg

/wp-content/uploads/2014/08/_c_i5DaDnymLkMyvZYrGWpXWPh5VbxSrOlM8ktxCaNFGzc6CoLbgiCxu5Al_DwS2b1rDvpxnJ4XXF2lV6OamdmGuQR0XQTjAg2p.jpg

/wp-content/uploads/2014/08/_c_ttsqMwecoBtNGCHF6gbK9BMuCRdEGAFRY8MoDRC3IPNk_dlUYgerFv5PmOGfiUtYqWBOPbZY1dK60rPJcVqGyZ3QSY8Dt4ct.jpg

/wp-content/uploads/2014/08/_c_mGi4Q5KxlR8Xub7jyoZYPXyfsWEfnrffkwzAPa0HKBYkCO754pUAj2MUl3zJ_SHmYNwdxuG5ceRbQA9I_4iZ9eDroIfhGEpi.jpg

/wp-content/uploads/2014/08/_c_OszVTbH1BWdTBwyG4JFM3_UwNrXEJMT8Ig9pWKTuSm7qNYXoYOhEvOvcTSJLZunCwl8nWHZx2gRmnGbZ5B3QbSArYpZ6INhP.jpg

/wp-content/uploads/2014/08/_c_Oq744F6nZUt_6OQ6uxeJjYkHnBk-rPZcNpLcqV2Yz4aU0ifJ5bWaPkkAJZQIfHWAleDBHg_8YXf-X-Ci5Nh-LewxATnmIlRi.jpg

/wp-content/uploads/2014/08/_c_njypee2-x5-tRBMCdVpWlSpAA9fWWe7QKYnnjMk7PTxmpswUBnnTBLAYVkcgwbE1BJT_PA4TVxEOvy8IX6PszotKSObe1-7t.jpg

/wp-content/uploads/2014/08/_c_98cD8b5YpEzTvJ189Vvf9d3RHXrHJtsJj5ckztVNgb5sCwTfRG2a6PYYNDkzGJnCnUW4_qADiF1Mzpidm5Ky2D15JOuf0GPe.jpg

/wp-content/uploads/2014/08/_c_qbw0m57dSwDiDoOSRPbwHyifqk2Ig8pdxCYBdSNmtY5huOwnPDwYpmKN4FRsPL3Di-D_ZWNeR1HC_KoH0DomtIa88NIrM08Q.jpg

/wp-content/uploads/2014/08/_c_HyC-6QkqW7-pNMabOupBP3OYq493vu4zrVx53c8f_j_2Om_6PdSAhn6IotzA8whatT32lS7SrcCt3NpKk2NmJAZIMLD-pJo7.jpg

/wp-content/uploads/2014/08/_c_xkDT1ELf6zPJcJzUk_jFyzdxsGpBt4uu3A6z8Sy5mtqQvdLtKkIrdivkkCM6KkWGrWtAmOj5kl0EkYSIf9lwYl-l1rHej3AC.jpg

/wp-content/uploads/2014/08/_c_K5xKbfu-8ojob16lPIgB6aD7d9fwaCJuNFlc0QJZVlAtYFH-W6pBypgOAqMzQ26jPStMnEacYYnlarrrKeEecVpwtjT0KyC-.jpg

/wp-content/uploads/2014/08/_c_oDXx6CzTh6MVoZIp5LwME0HTTGsM0ewRjccfjacVmW9Gv9-a65zmOA2idh5YH1urm3Bz4K35PZdjuUOkDu_kBBPYECQJof15.jpg

/wp-content/uploads/2014/08/_c_4VuYSLA8IEuqMNzJe0SxyvoOLm0JSX8DQOZH7UQmmTpV2Ctdmkovo0_cxWtLZ2aTKT953RucuzPcSgb0DG5eBRCHaK2JZl8P.jpg

/wp-content/uploads/2014/08/_c_gnq8RWzX6UmdR1QwUVQfi1y8-1sZxtynvChmAIgblAsf7-CRjiFWJ77YUL11nvrwpNLQ675umpL2HysxnxDDztydGseuAAs2.jpg

ABOUT HOME CAFÉ
HOME CAFÉ is a brand coffee chain by Beijing-based investment company Hongkun, whose broad portfolio of diverse business interests include art, pharmaceutical, mining and property. The company has previously commissioned Penda to do a not-for-profit art gallery situated in one of its Beijing high-end compound.

ABOUT PENDA
Penda was established 2012 by Chris Precht and Dayong Sun. The studios are internationally located in Vienna and Beijing.We see architecture as a statement that always starts with questions about the content and the context, about identity, density and the communityof a specific site. That is why we treat each and every project in a unique and fresh way and therefore the outcome is always costum-made.

关于鸿咖啡
鸿咖啡品牌下属北京鸿坤集团,集团业务板块涵盖文化艺术、优质地产开发、金融投资等。曾委托槃达建筑设计其位于北京朝阳区的鸿坤美术馆。

关于槃达建筑
槃达建筑成立于2012年,其主持建筑师为孙大勇和Chris Precht,分别毕业于中央美术学院及维也纳应用艺术大学。槃达建筑融合了东西方文化的特点,以生命建筑观为理念创作了一系列有代表性的建筑作品,并获得多项国际竞赛奖项包括2015米兰世博会奥地利国家馆候选方案、襄阳紫薇花国际竞赛金奖、上海金外滩奖等。作为80后国际新锐建筑师的代表,作品获得众多国际专业媒体报道关注与报道。
