The establishment is located in a ground floor in the Sant Pere district, with level D in urban planning (Good of Documentary Interest). Over the last few years, it has worked as a bar, with different businesses which have tried their luck. The interior geometry, as is the case with most of the ground floors between common walls of the 19th century, has an elongated tube shape, widening once it surpasses the volume that generates the neighboring stairs, with a little ventilation patio at the back.

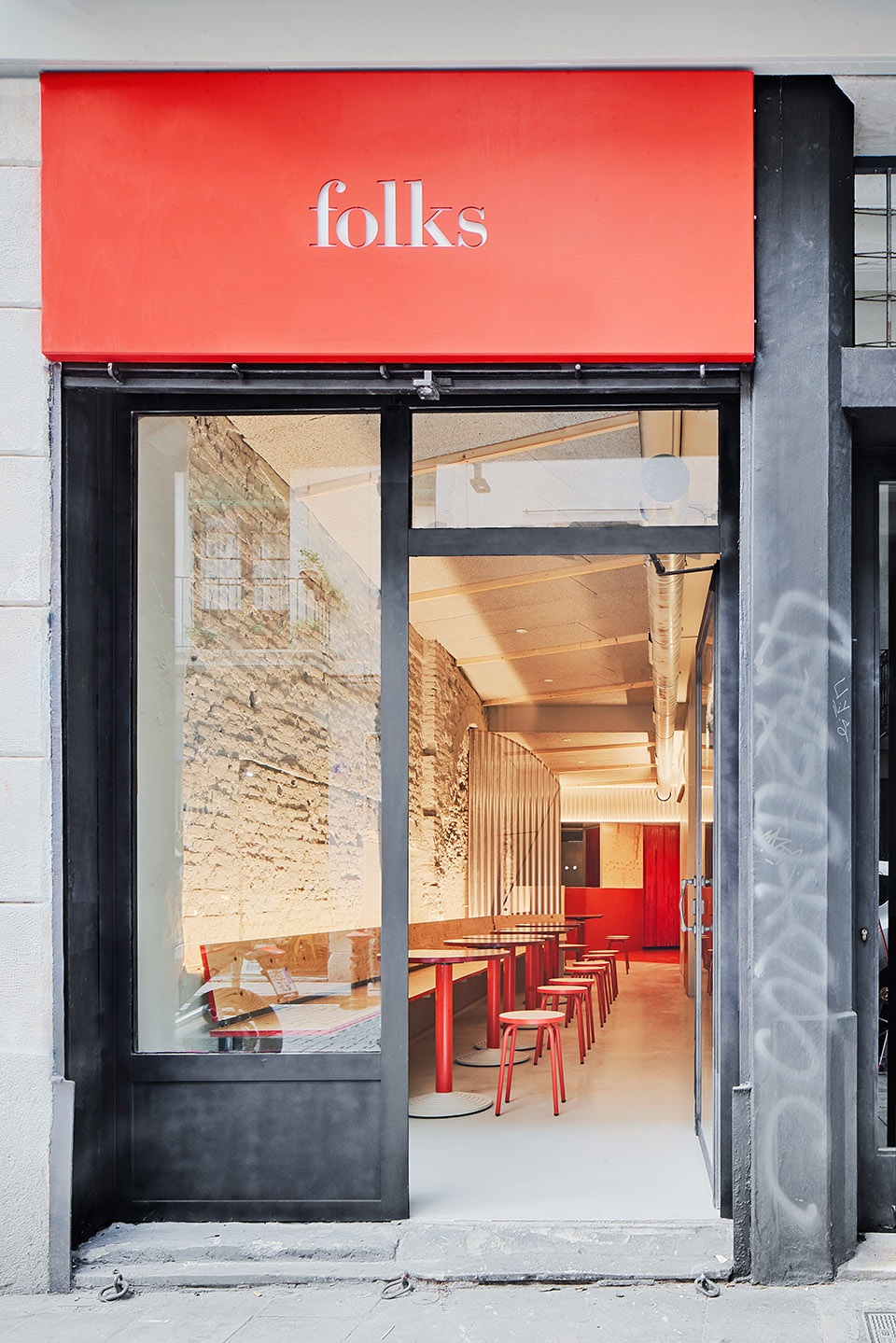

store-front of the project © José Hevia
The nature of the commission is to transform the former Lebanese food business into a hamburger restaurant. The resources are minimal, and there is the added peculiarity that in the same figure, that of the promoter, the one of the constructor and the operator will also be joined. The restaurant has been self-constructed in a 70% of its totality. Given the conditions, the contemplated interventions are simple, and the distribution only suffers slight alterations. These interventions are able to combine the specific actions of a professional operator with the self-taught capacities of the promoter.
▼室内轴侧图 © AMOO | Aureli Mora + Omar Ornaque
axonometric drawing of the interior
In the tubular space of the entrance, until reaching its extension, there is a large plywood spruce-wooden bench on the wall which absorbs the irregularities of the existing wall.

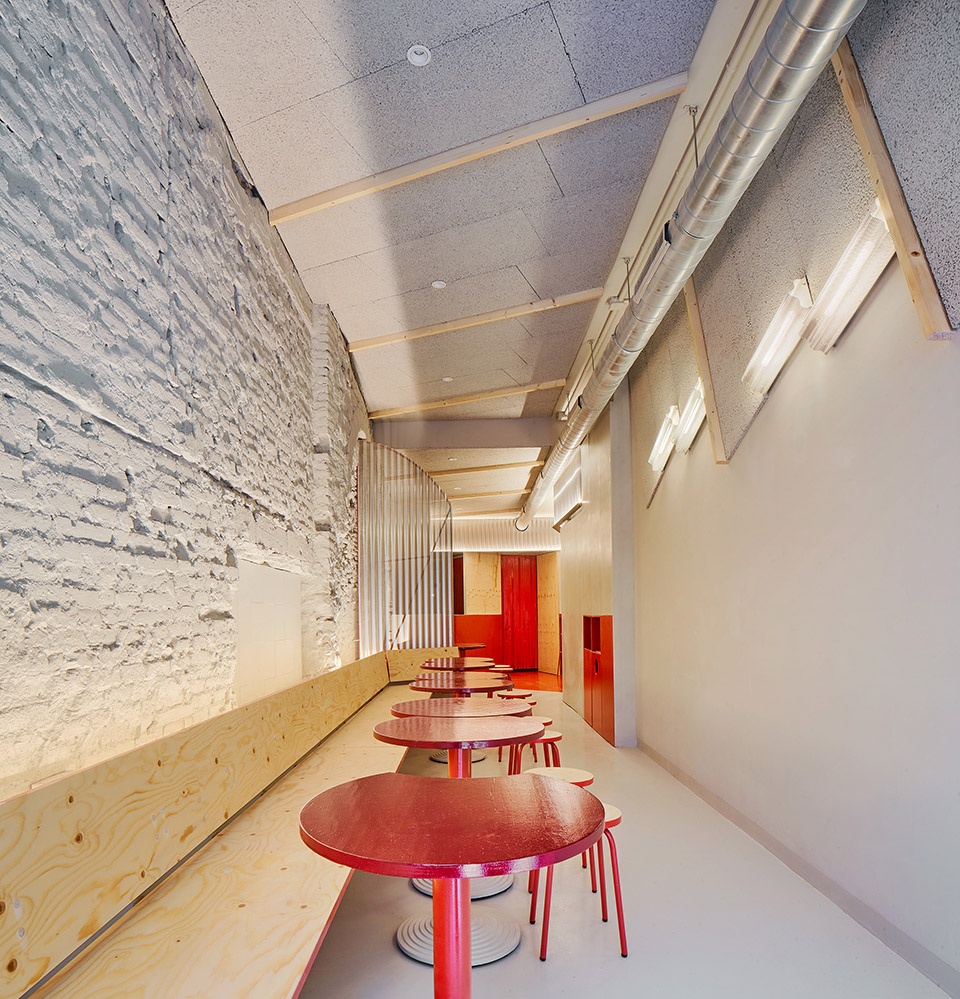

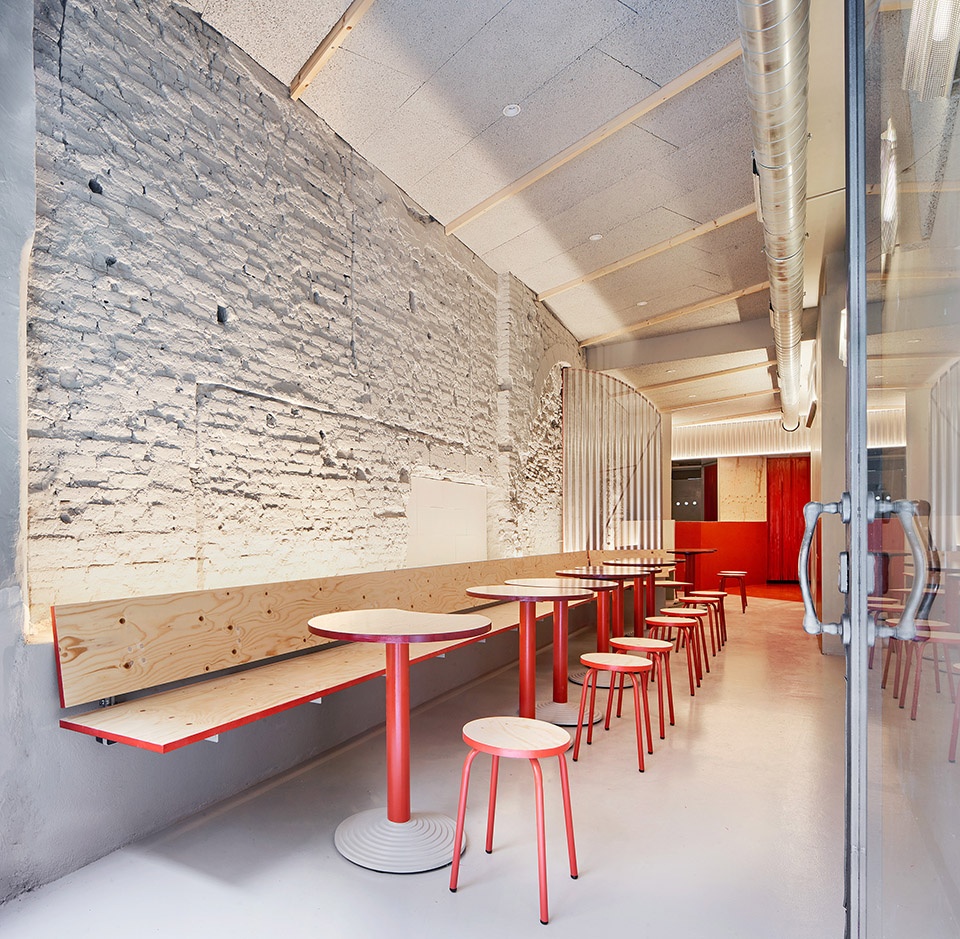

▼改造后的入口用餐空间，the entrance eating area after renovation © José Hevia

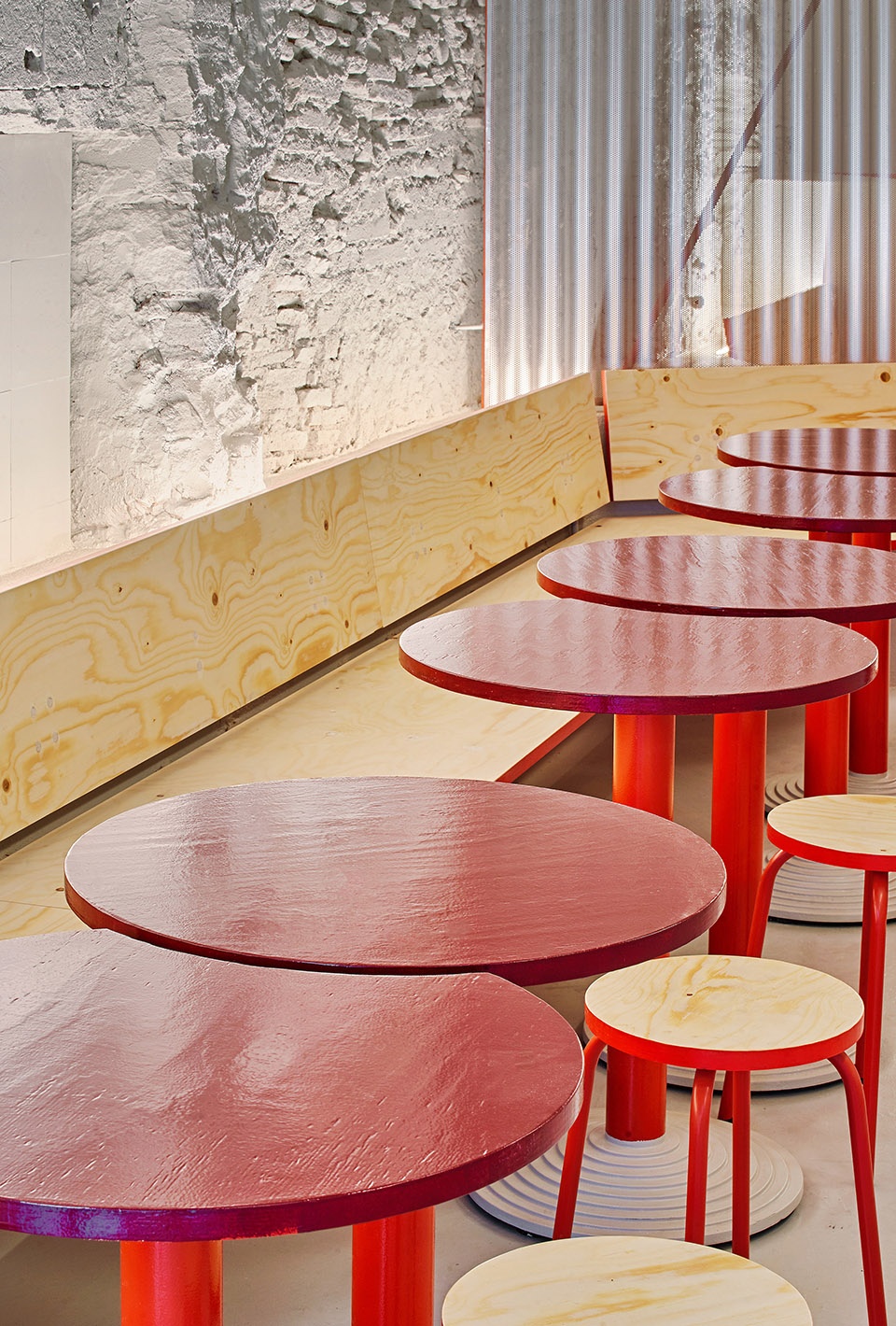

▼一排长条型的胶合板云杉木凳抵消了凹凸不平的墙面带来的不规则感， a large plywood spruce-wooden bench on the wall which absorbs the irregularities of the existing wall © José Hevia

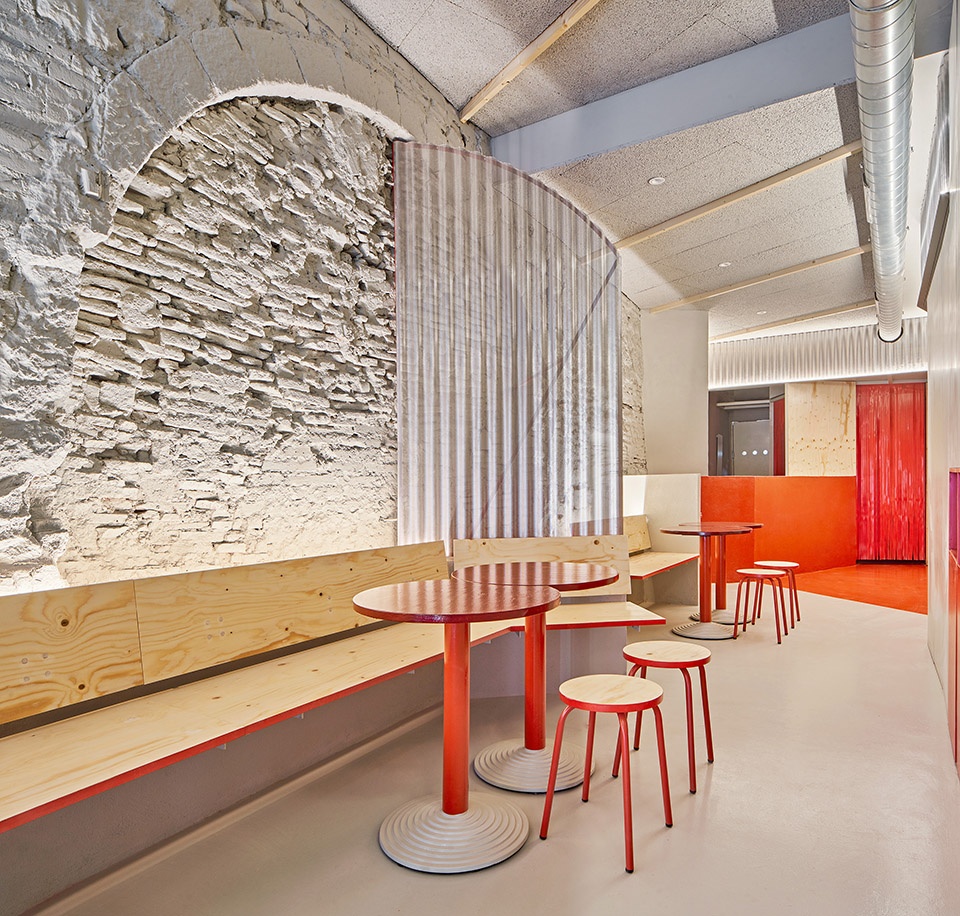

The semi-circular arch made of Montjuïc stone, filled with bricks from the common wall, is used as a turning point, making a withdrawal from the bank to create two corners and form a piece of furniture that will be used to serve sauces and other condiments.

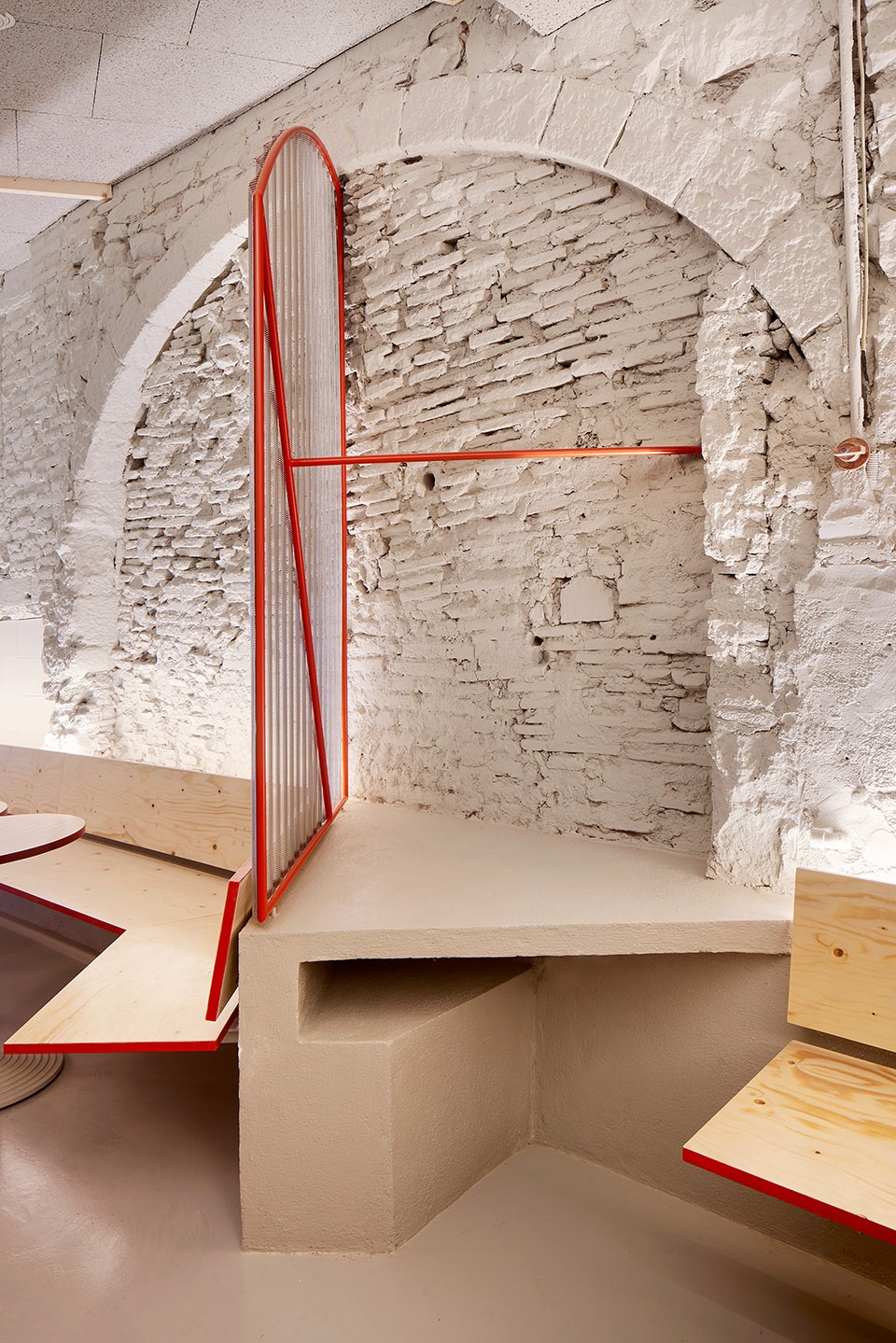

▼墙壁上拱门的门洞被砖块封堵起来，表面还附有蒙朱里克石，semi-circular arch made of Montjuïc stone, filled with bricks from the common wall © José Hevia

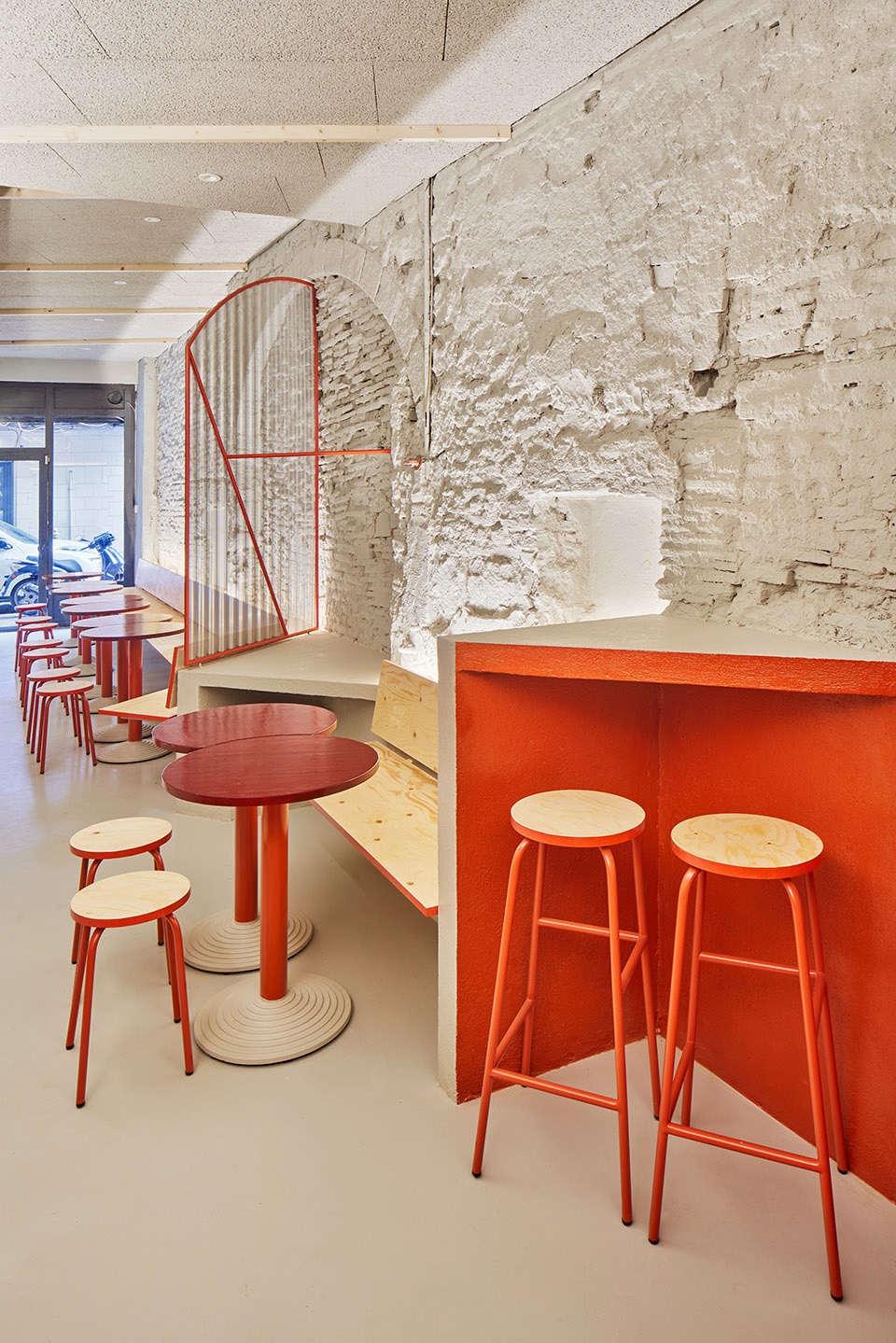

▼墙面转角处形成一个过渡空间，并创造出两个夹角空间，making a withdrawal from the bank to create two corners © José Hevia
▼夹角空间设置了用于摆放调料和其他调味品的定制家具 © José Hevia
a piece of furniture that will be used to serve sauces and other condiments
In front of this space, which, unlike the rest, does not have tables or stools and rests in front of the neighboring stairs, there is the rubbish bin, integrated into a DM panel which absorbs the irregularities of the neighboring stairs and also hides the premises’ and building’s electrical meter boxes.

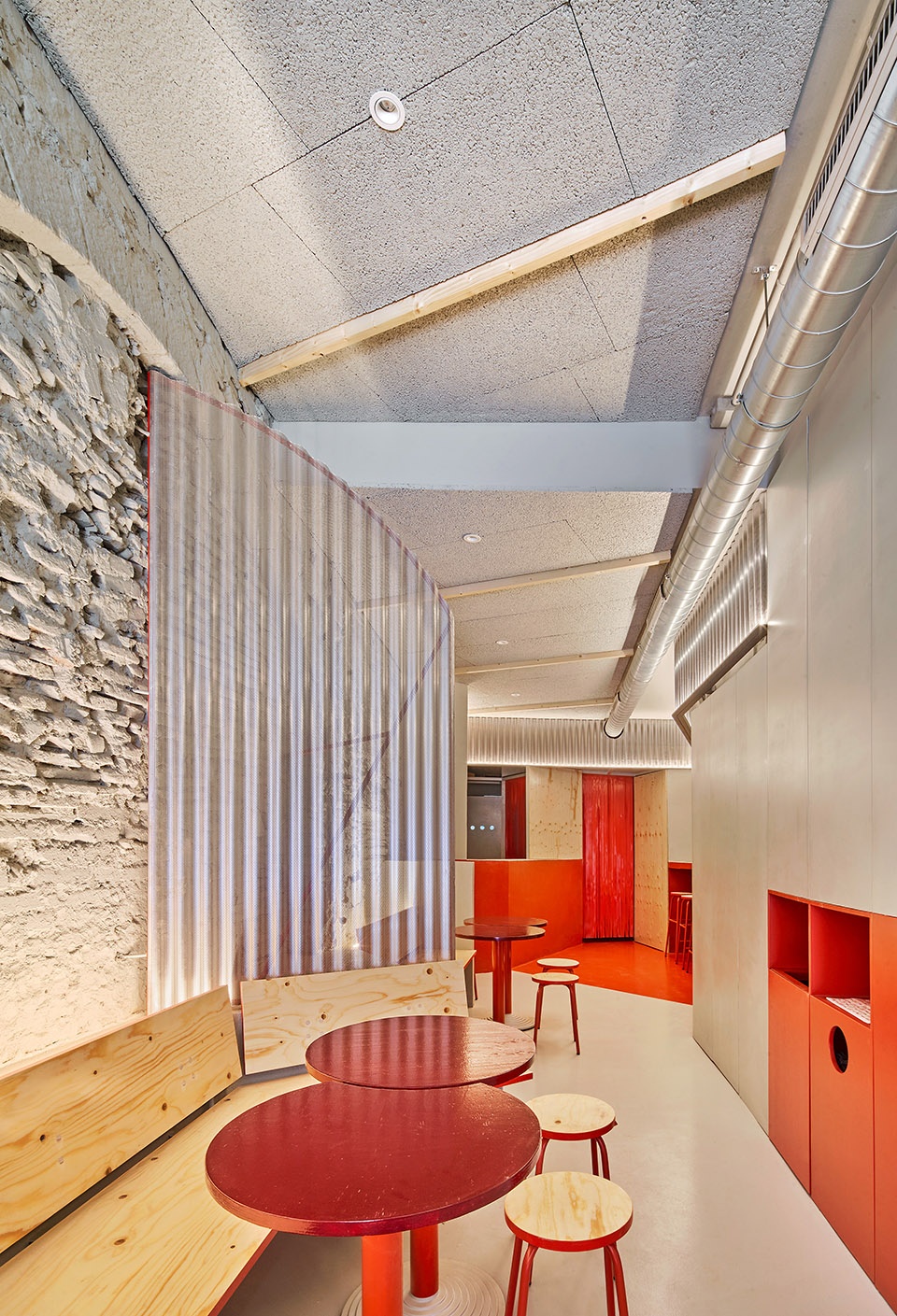

▼垃圾箱与DM板饰面的隔墙融为一体 © José Hevia
rubbish bin, integrated into a DM panel

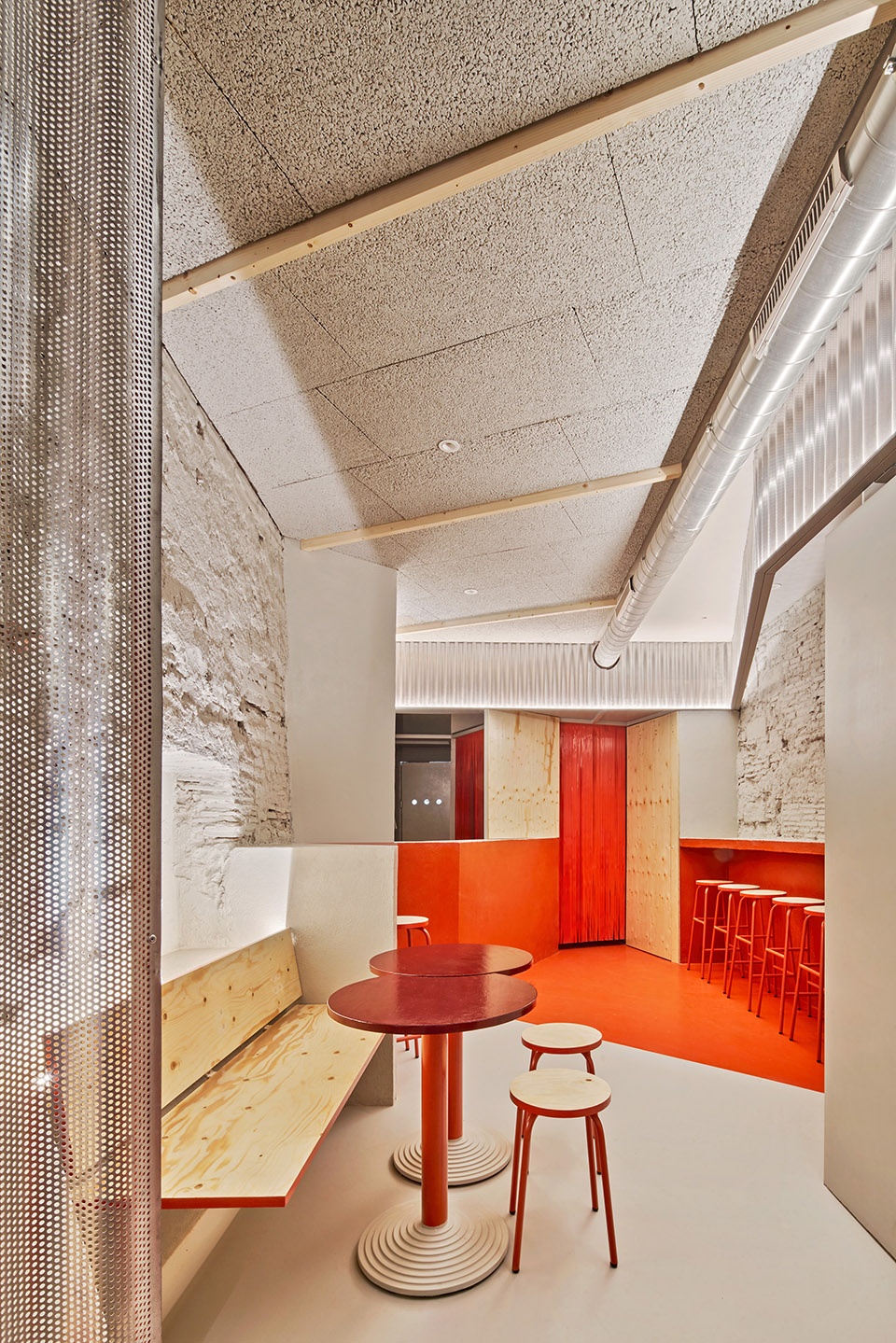

The extension of the room generates a zone of high counters, service and consumption at the back. These geometries are intertwined in the floor and in the elevation so that they hide the toilet’s lobby with the minimum involvement possible. The kitchen space and the patio are left out of the project’s intervention, as well as the toilets, to which an independent lobby is added, integrated with the bar’s volume.

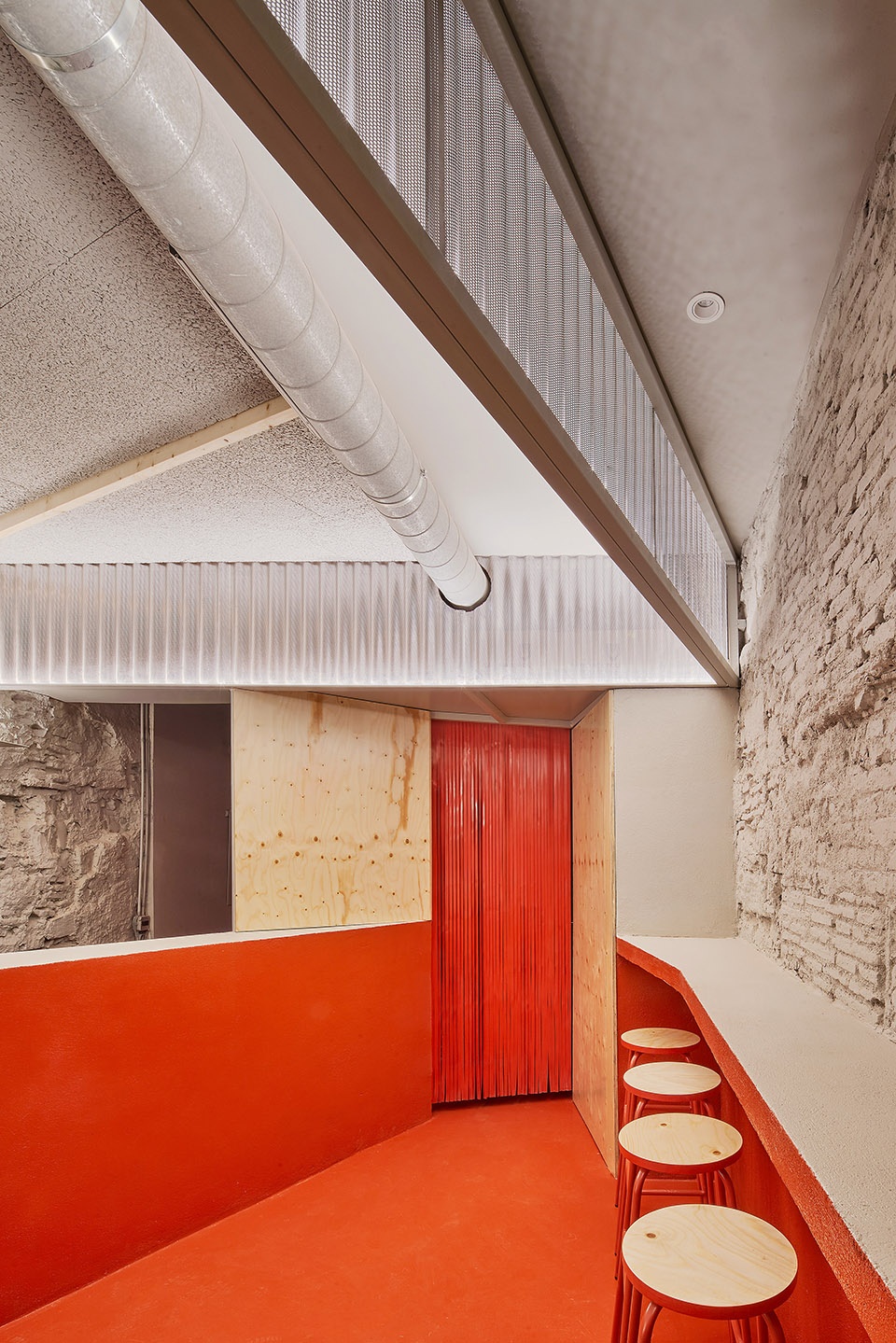

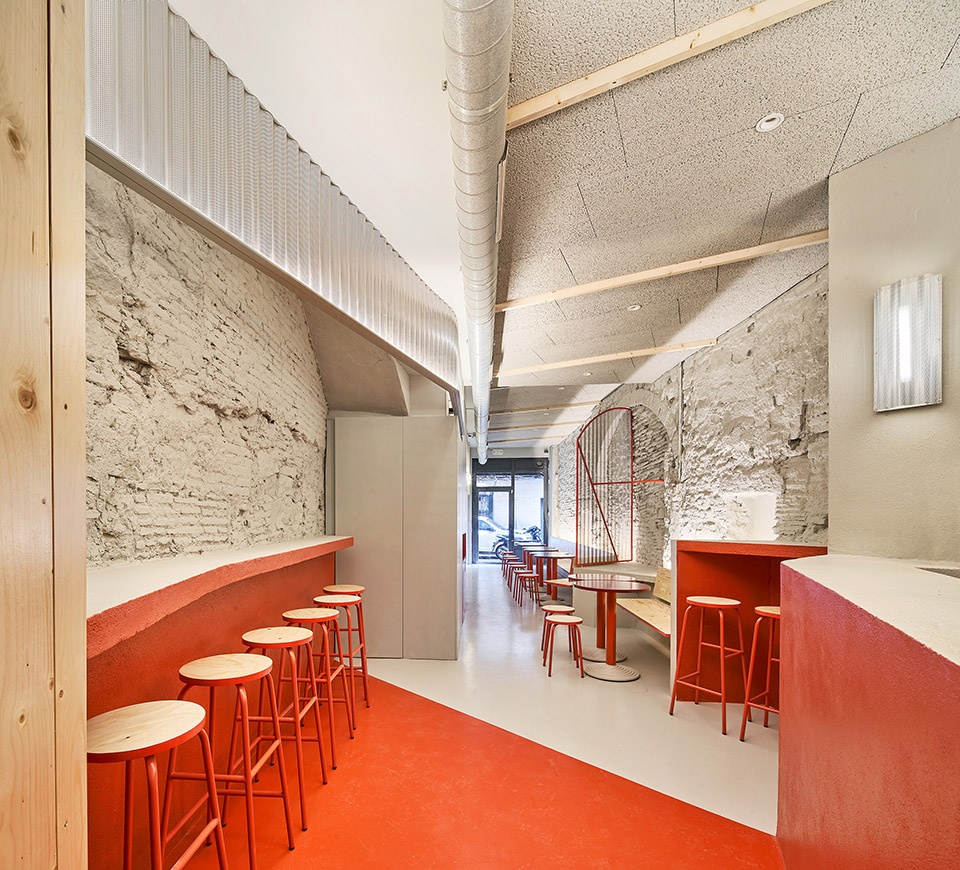

▼汉堡店的点单柜台，服务区与吧台位于后部, a zone of high counters, service and consumption at the back © José Hevia

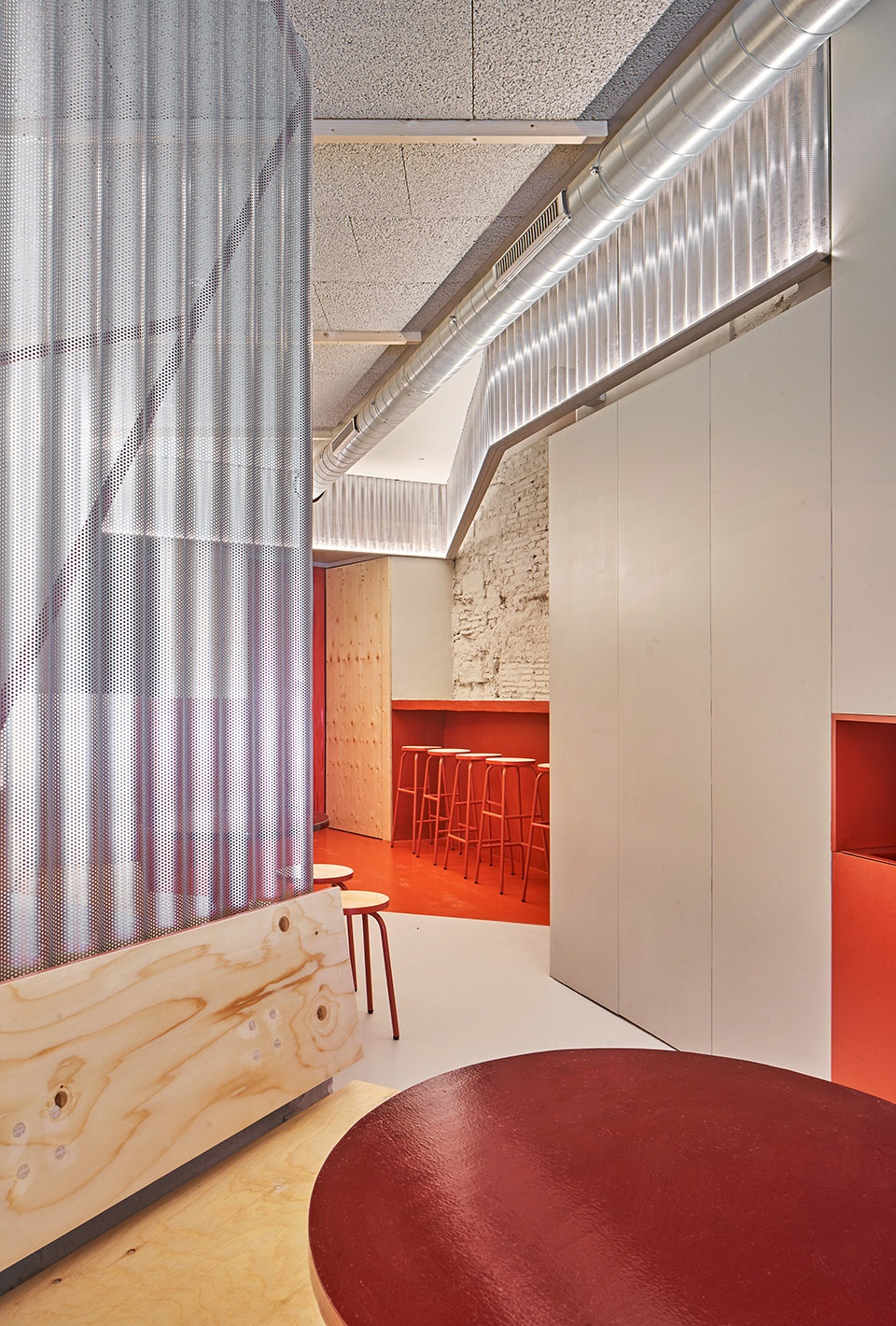

▼卫生间前增设了一个小型前厅，将其与吧台部分衔接了起来，an independent lobby is added to the toilets, integrated with the bar’s volume © José Hevia

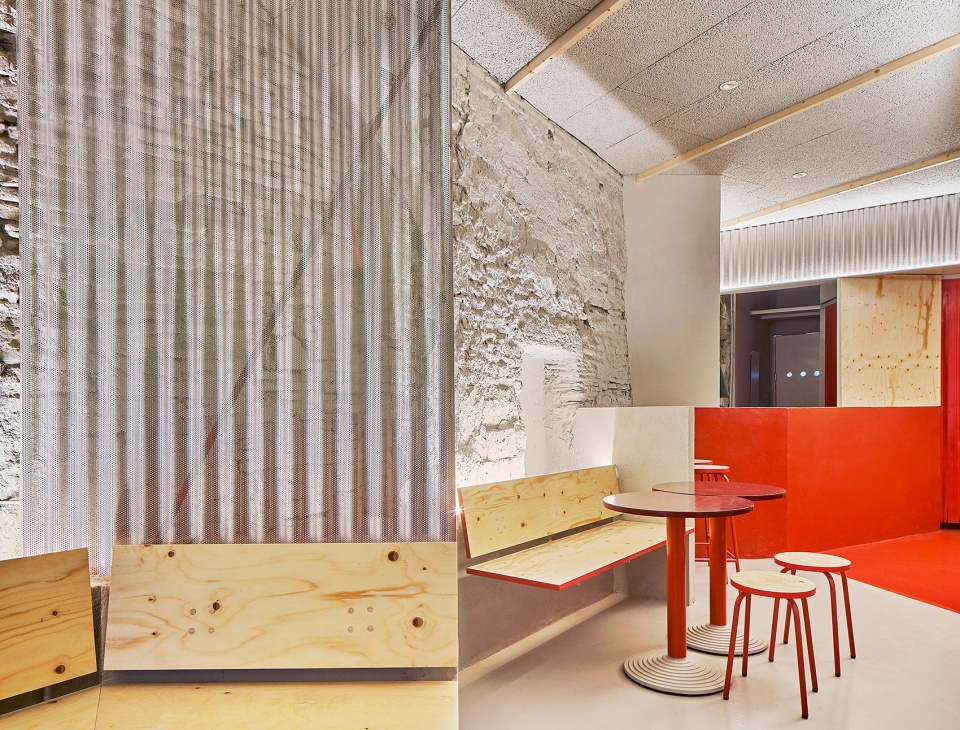

A silk grey invades the entire establishment, bringing all the materials into alignment: the existing ones (brick walls, masonry, plaster, tile…) and the new linings (leveling, cork panel, plaster, DM…). Areas and elements are highlighted in red, especially in the part of the bar and the furniture, as well as other surfaces with micro-perforated corrugated sheet (integrated light or wall lamps, separating folding screen, tape on bar…). Finally, the plywood spruce wood brings the necessary level of warmth required by the owner and sets a contrast with the general unification.
▼灰色主色调，红色的强调空间以及微孔波纹板饰面 © José Hevia
grey main tone, red highlighted space and micro-perforated corrugated sheet
The stools, tables and wall lamps are designed: a strategy which is adopted in order to differentiate the premises and to give them a material and conceptual integrity.

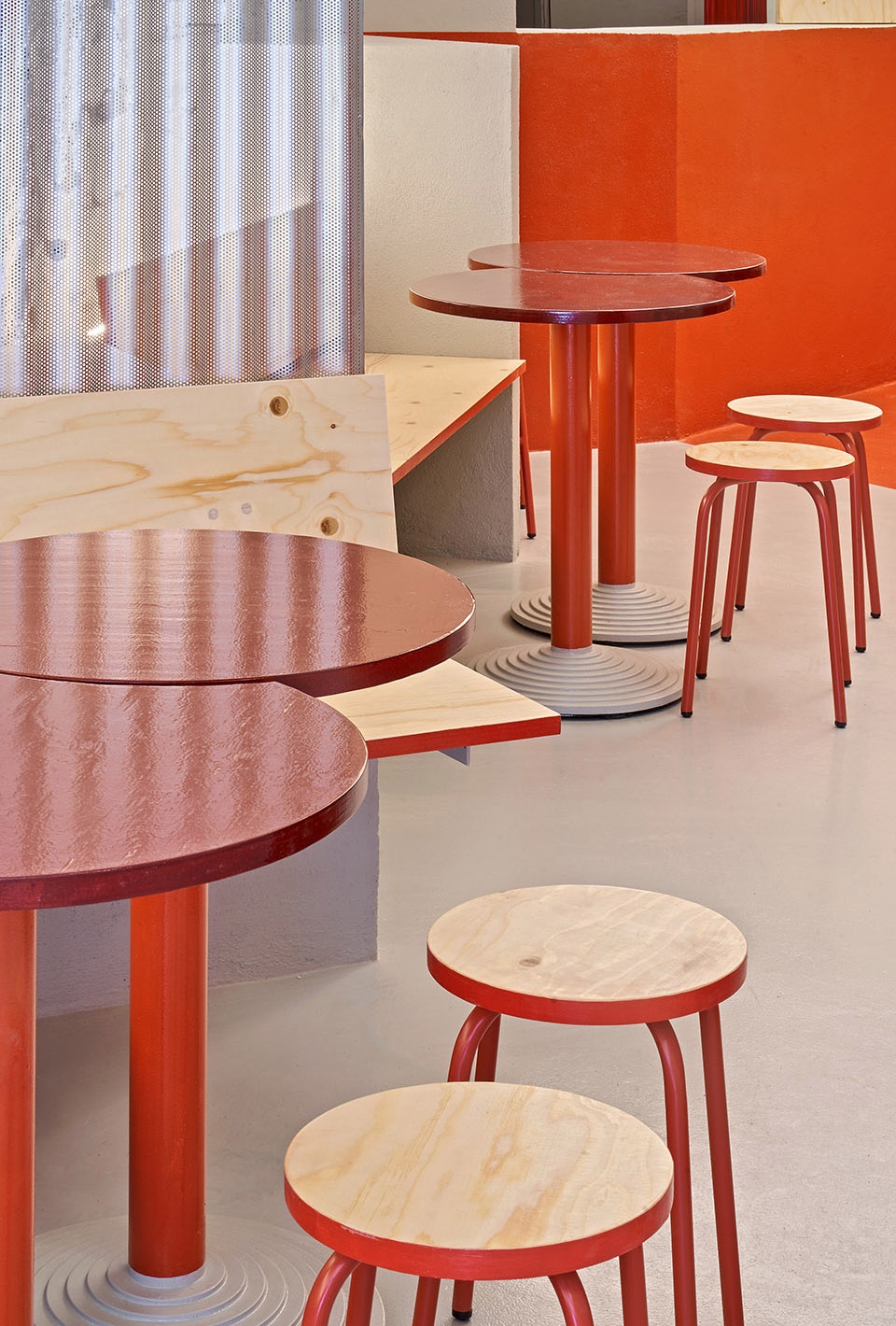

▼家具细部，details of the furniture © José Hevia

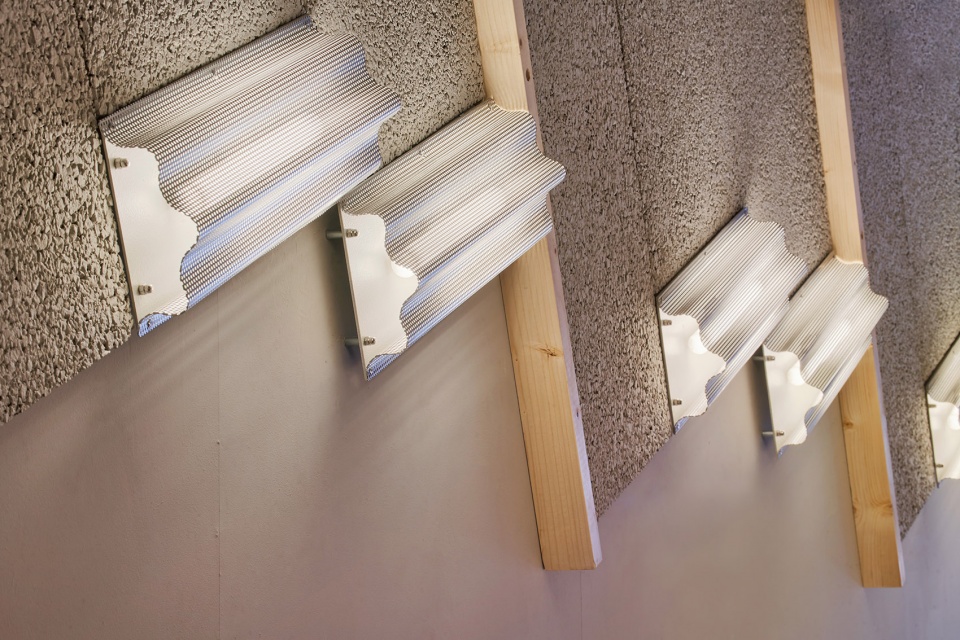

▼灯具细部，details of the light © José Hevia

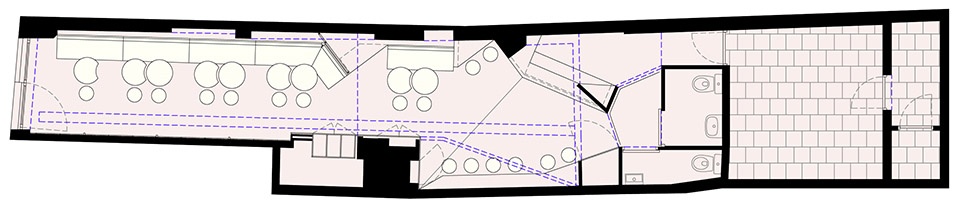

▼平面图，plan © AMOO | Aureli Mora + Omar Ornaque

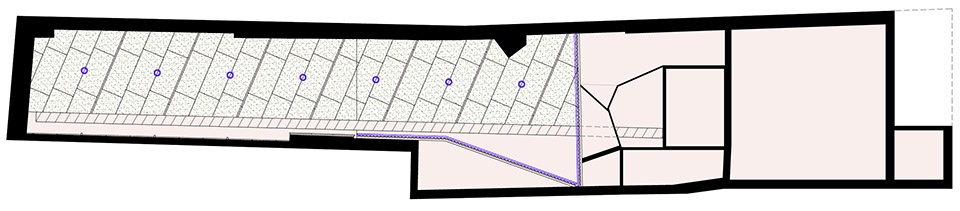

▼天花板布图，ceiling plan © AMOO | Aureli Mora + Omar Ornaque
authors: AMOO | Aureli Mora + Omar Ornaque
location: c. Portal Nou 19, Barcelona
project beginning/end: 2018
construction beginning/end: 2018
photographer: José Hevia
area: 43,00 m²
budget: 19.000,00 €
